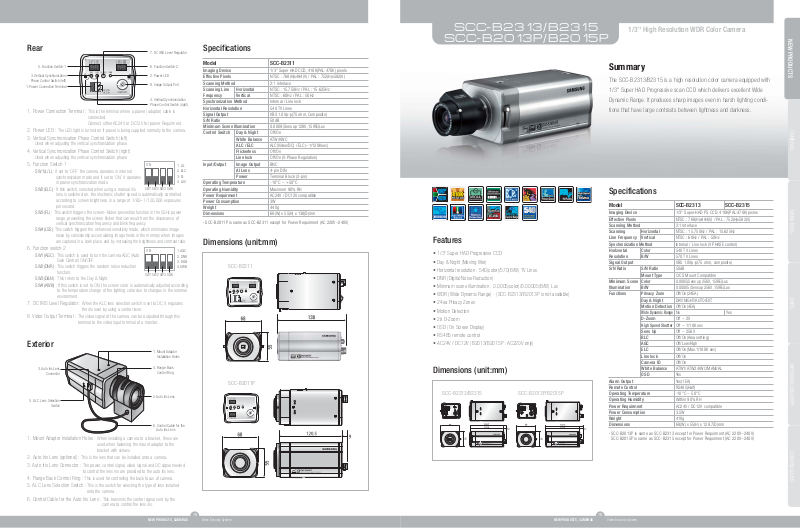

Specifications

Model SCC-B2313 SCC-B2315

Imaging Device 1/3" Super-HAD PS CCD, 410K(PAL:470K) pixles
Effective Pixels NTSC : 768(H)x494(V) / PAL : 752(H)x582(V)
Scanning Method 2:1 Interlace
Scanning Horizontal NTSC : 15.750Hz / PAL : 15.625Hz
Line Frequency Vertical NTSC : 60Hz / PAL : 50Hz
Synchronization Method Internal / Line lock (V PHASE control)
Horizontal Color 540 TV Lines
Resolution B/W 570 TV Lines
Signal Output VBS 1.0Vp-p(75 ohm, composite)
S/N Ratio S/N Ratio 50dB

Minimum Scene Color
Illumination B/W
Functions Privacy Zone Off/On(24EA)

Alarm Output Yes(1EA)
Remote Control RS485(Half)
Operating Temperature -10°C ~ 50°C
Operating Humidity Within 90% RH
Power Requirment AC24V / DC12V compatible
Power Consumption 3.5W
Weight 410g
Dimensions 68(W) x 55(H) x 128.7(D)mm

SCC-B2013P is same as SCC-B2313 except for Power Requirment (AC 220V~240V)

*

SCC-B2015P is same as SCC-B2315 except for Power Requirment (AC 220V~240V)

Mount Type C/CS Mount Compatible

Day & Night DAY/NIGHT/AUTO/EXT
Motion Detection Off/On(4EA)
Wide Dynamic Range
D-Zoom Off ~ 2X
High Speed Shutter
Sens Up Off ~ 256X
BLC Off/On(Area setting)
AGC Off/Low/High
ELC Off/On(Max.1/100K sec)
Line lock Off/On
Camera ID Off/On
White Balance ATW1/ATW2/AWC/MANUAL
OSD Yes

0.0005(Sens up 256X,15IRE)

0.00005(Sens up 256X,15IRE)

No Yes

Off ~ 1/10K sec

Lux

Lux
