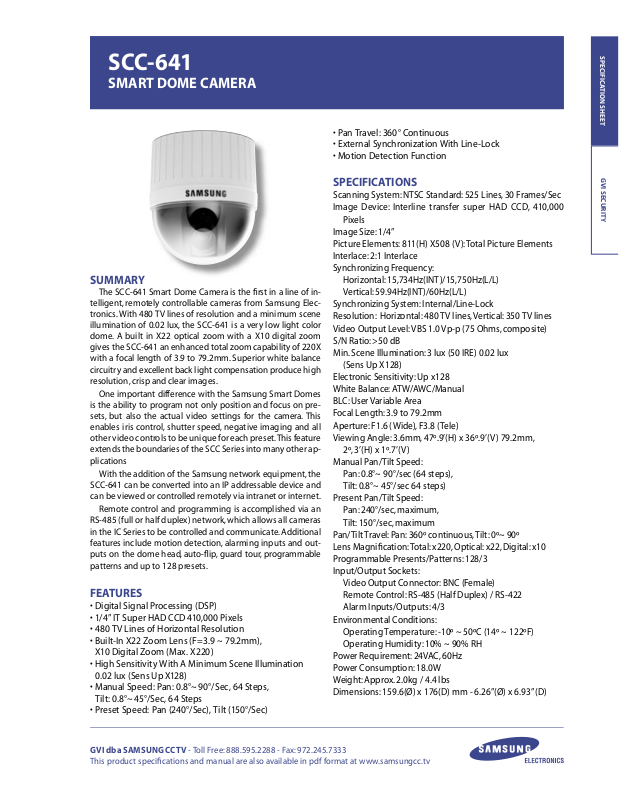

Samsung SCC-641 User Manual

SCC-641

PRODUCT NAME AND NUMBER

SMART DOME CAMERA

• Pan Travel: 360° Continuous

• External Synchronization With Line-Lock

• Motion Detection Function

SPECIFICATION SHEET

SUMMARY

The SCC-641 Smart Dome Camera is the fi rst in a line of in­telligent, remotely controllable cameras from Samsung Elec­tronics. With 480 TV lines of resolution and a minimum scene
illumination of 0.02 lux, the SCC-641 is a very low light color
dome. A built in X22 optical zoom with a X10 digital zoom
gives the SCC-641 an enhanced total zoom capability of 220X
with a focal length of 3.9 to 79.2mm. Superior white balance
circuitry and excellent back light compensation produce high
resolution, crisp and clear images.

One important difference with the Samsung Smart Domes
is the ability to program not only position and focus on pre­sets, but also the actual video settings for the camera. This
enables iris control, shutter speed, negative imaging and all
other video controls to be unique for each preset. This feature
extends the boundaries of the SCC Series into many other ap­plications

With the addition of the Samsung network equipment, the
SCC-641 can be converted into an IP addressable device and
can be viewed or controlled remotely via intranet or internet.

Remote control and programming is accomplished via an
RS-485 (full or half duplex) network, which allows all cameras
in the IC Series to be controlled and communicate. Additional
features include motion detection, alarming inputs and out­puts on the dome head, auto-fl ip, guard tour, programmable

patterns and up to 128 presets.

FEATURES

• Digital Signal Processing (DSP)

• 1/4” IT Super HAD CCD 410,000 Pixels

• 480 TV Lines of Horizontal Resolution

• Built-In X22 Zoom Lens (F=3.9 ~ 79.2mm),
X10 Digital Zoom (Max. X220)

• High Sensitivity With A Minimum Scene Illumination

0.02 lux (Sens Up X128)

• Manual Speed: Pan: 0.8°~ 90°/Sec, 64 Steps,
Tilt: 0.8°~ 45°/Sec, 64 Steps

• Preset Speed: Pan (240°/Sec), Tilt (150°/Sec)

SPECIFICATIONS

Scanning System: NTSC Standard: 525 Lines, 30 Frames/Sec
Image Device: Interline transfer super HAD CCD, 410,000
Pixels
Image Size: 1/4”
Picture Elements: 811(H) X508 (V): Total Picture Elements
Interlace: 2:1 Interlace
Synchronizing Frequency:
Horizontal: 15,734Hz(INT)/15,750Hz(L/L)
Vertical: 59.94Hz(INT)/60Hz(L/L)
Synchronizing System: Internal/Line-Lock
Resolution: Horizontal: 480 TV lines, Vertical: 350 TV lines
Video Output Level: VBS 1.0 Vp-p (75 Ohms, composite)
S/N Ratio: >50 dB
Min. Scene Illumination: 3 lux (50 IRE) 0.02 lux
(Sens Up X128)
Electronic Sensitivity: Up x128
White Balance: ATW/AWC/Manual
BLC: User Variable Area
Focal Length: 3.9 to 79.2mm
Aperture: F1.6 (Wide), F3.8 (Tele)
Viewing Angle: 3.6mm, 47º.9’(H) x 36º.9’(V) 79.2mm,
2º, 3’(H) x 1º.7’(V)
Manual Pan/Tilt Speed:
Pan: 0.8°~ 90°/sec (64 steps),
Tilt: 0.8°~ 45°/sec 64 steps)
Present Pan/Tilt Speed:
Pan: 240°/sec, maximum,
Tilt: 150°/sec, maximum
Pan/Tilt Travel: Pan: 360º continuous, Tilt: 0º~ 90º
Lens Magnifi cation: Total: x220, Optical: x22, Digital: x10
Programmable Presents/Patterns: 128/3
Input/Output Sockets:
Video Output Connector: BNC (Female)
Remote Control: RS-485 (Half Duplex) / RS-422
Alarm Inputs/Outputs: 4/3
Environmental Conditions:
Operating Temperature: -10º ~ 50ºC (14º ~ 122ºF)
Operating Humidity: 10% ~ 90% RH
Power Requirement: 24VAC, 60Hz
Power Consumption: 18.0W
Weight: Approx. 2.0kg / 4.4 lbs
Dimensions: 159.6(Ø) x 176(D) mm - 6.26”(Ø) x 6.93” (D)

GVI SECURITY

GVI dba SAMSUNG CCTV - Toll Free: 888.595.2288 - Fax: [phone]

This product specifi cations and manual are also available in pdf format at www.samsungcc.tv
