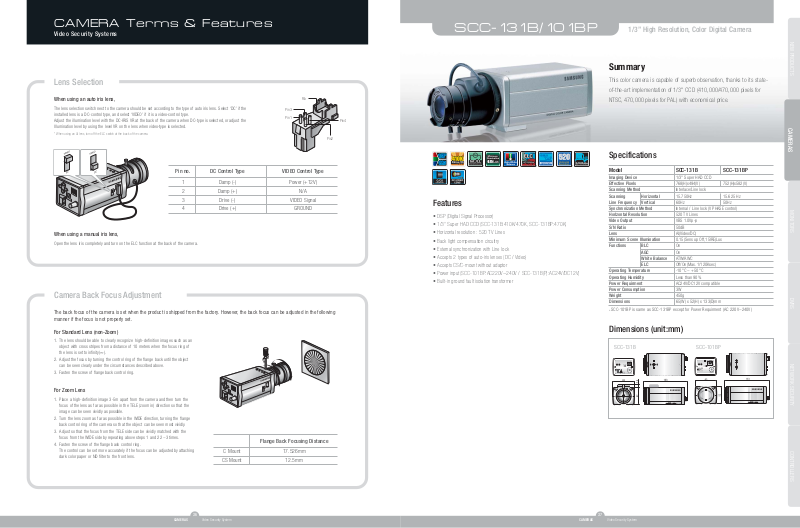

Samsung SCC-131B, SCC-131BP User Manual

Specifications

Model SCC-131B SCC-131BP

Imaging Device 1/3" Super HAD CCD
Effective Pixels 768(H)x494(V) 752(H)x582(V)
Scanning Method Interlace/Line lock
Scanning Horizontal 15.750Hz 15.625 Hz
Line Frequency Vertical 60Hz 50Hz
Synchronization Method Internal / Line lock (V PHASE control)
Horizontal Resolution 520 TV Lines
Video Output VBS 1.0Vp-p
S/N Ratio 50dB
Lens AI(Video/DC)
Minimum Scene Illumination 0.15(Sens up Off,15IRE)Lux
Functions BLC On

Operating Temperature -10°C ~ +50°C
Operating Humidity Less than 90%
Power Requirment AC24V/DC12V compatible
Power Consumption 3W
Weight 450g
Dimensions 65(W) x 52(H) x 133(D)mm

SCC-101BP is same as SCC-131BP except for Power Requirment (AC 220V~240V)

*

AGC On
White Balance ATW/AWC
ELC Off/On(Max. 1/120Ksec)
