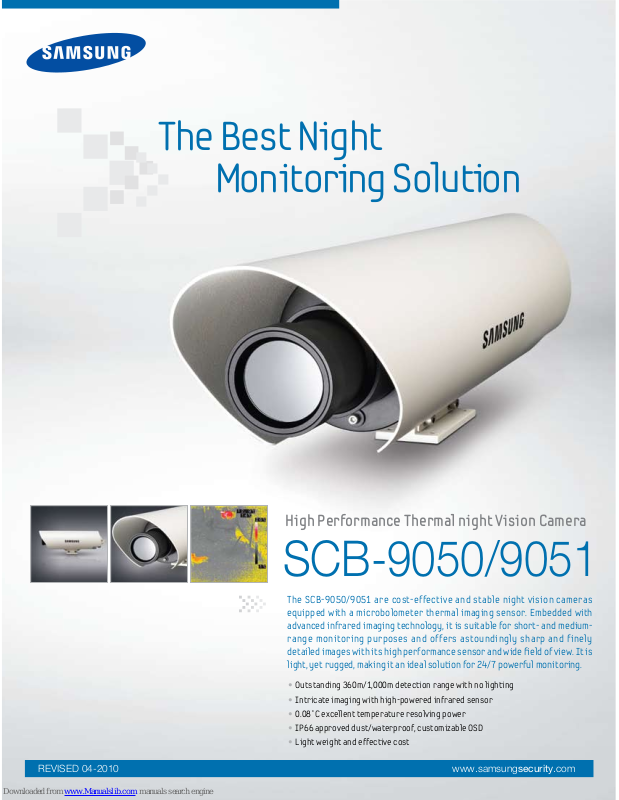

Samsung SCB-9050, SCB-9051, SCB-9050N, SCB-9051N, SCB-9050P Specifications
...
SCB-9050/9051
The SCB-9050/9051 are cost-effective and stable night vision cameras
equipped with a microbolometer thermal imaging sensor. Embedded with
advanced infrared imaging technology, it is suitable for short- and mediumrange monitoring purposes and offers astoundingly sharp and finely
detailed images with its high performance sensor and wide field of view. It is
light, yet rugged, making it an ideal solution for 24/7 powerful monitoring.
• Outstanding 360m/1,000m detection range with no lighting
• Intricate imaging with high-powered infrared sensor
• 0.08°C excellent temperature resolving power
• IP66 approved dust/waterproof, customizable OSD
• Light weight and effective cost
High Performance Thermal night Vision Camera
The Best Night
Monitoring Solution
www.samsungsecurity.comREVISED 04-2010
Design and specifications are subject to change without notice.
High Performance Thermal night Vision Camera
SCB-9050/9051
0
Light Weight
1000m
360m
The
Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Specifications
SCB-9050/9051N SCB-9050/9051P
24VAC
Max. 10.5W (22W when heater on)
320(H) x 240(H) Uncooled VOX microbolometer
23.5µm x 23.5µm
8 ~ 14um
30fps 25fps
VBS : 1.0VP-P, 75 , composite
F1.4, f=50mm
SCB-9051 : 27m ~ ° , Pan focus, SCB-9050 : 0.5m ~ ° , Pan focus
SCB-9051 : 9.2° x 6.9°, SCB-9050 : 30° x 22.8°
SCB-9051 : 0.47mrad, SCB-9050 : 1.68mrad
English, Japanese, Korean
6 levels : Off ~ 5
11 levels / (Auto, Manual : 10 levels)
2x ~ 4x
3D-DNR (4step : Low / Midium / High / Off)
B/W (Black & White) / W/B (White & Black)
RS-485
Samsung-T, Pelco-D
Auto / Manual (2step)
Low (-40°C ~ 150°C), High (0°C ~ 540°C)
-30°C ~ +55°C / Less than 90% RH
SCB-9051 : ø104(W) x 123(H) x 367(D)mm (4.09" x 4.84" x 14.45")
SCB-9050 : ø104(W) x 123(H) x 352(D)mm (4.09" x 4.84" x 13.86")
Approx. 2.2Kg (4.85 lb) (Including cables)
IP66
FCC (Class A), UL/cUL listed
352 (13.86")ø104 (4.09")
123 (4.84")
Dimensions
Unit : mm (inch)
SCB-9050 SCB-9051
367 (14.45")ø104 (4.09")
123 (4.84")
I.E-1004
DISTRIBUTED BY
SAMSUNG TECHWIN CO., LTD.
701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400
Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745
www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : +1-877-213-1222 Fax : +1-310-632-2195
www.samsungcctvusa.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Tel : +44-1932-45-5300 Fax : +44-1932-45-5325
TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD.
No.11 Wei 6 Street. Micro-Electronic Industrial Park
Jingang Road, Tianjin, P.R. CHINA 300385
Tel : +86-22-23887788 Fax : +86-22-23887788
ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Sensor Type
Sensor Pitch
Measured Wavelength Range
Video Ratio ( Sensor )
Video Output
LENS
Focal Length
Focal Range
Viewing Angle (HxV)
IFOV (Instaneous Field of View)
OPERATIONAL
OSD
Sharpness
Brightness / Contrast
Digital Zoom
Noise Reduction Function
Polarity Function
Communication
Protocol
ENVIRONMENTAL
Detecting temperature
Operating Temperature / Humidity
MECHANICAL
Dimension (WxHxD)
Weight
Ingress Protection
Certifications
