HD-SDI CAMERA
User Manual
SCB-6000
Page 2
HD-SDI Camera
User Manual
Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this
document shall be reproduced, distributed or changed, partially or wholly, without formal authorization
of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this
document, but no formal guarantee shall be provided. Use of this document and the subsequent
results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to
change the contents of this document without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin
will resolve the problem for free of charge. The warranty period is 3 years. However, the followings
are excluded:
•
If the system behaves abnormally because you run a program irrelevant to the system operation.
•
Deteriorated performance or natural worn-out in process of time
Design and specifications are subject to change without prior notice.
is the registered logo of Samsung Techwin Co., Ltd.
Page 3
overview
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
● OVERVIEW
English _3
Page 4
overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.
4_ overview
Page 5
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Please use the input power with just one camera and other devices must not
be connected.
● OVERVIEW
English _5
Page 6
overview
Please read the following recommend safety precautions carefully.
Do not place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
Do not expose the camera to radioactivity.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.
6_ overview
Page 7
CONTENTS
OVERVIEW
3
INSTALLATION &
CONNECTION
13
OPERATING YOUR CAMERA
18
APPENDIX
32
3 Important Safety Instructions
8 Product Features
9 What’s Included
10 At a Glance
13 Mounting the Lens
15 Connecting with other Device
18 Menu Configuration
19 Menu Setup
32 Specification
34 Product Overview
35 Troubleshooting
● OVERVIEW
English _7
Page 8
overview
PRODUCT FEATURES
• Supports Full HD-SDI Video
By adopting a diagonal 6mm (1/3”) 2M pixel CMOS, the camera produces clear picture
quality.
• Excellent low-illumination image quality
By adopting high-sensitive colour CMOS, the camera provides clear image quality under a
severe low illumination condition of 0.017 Lux (with SENS-UP, x60).
• SSNR3 (Samsung Super Noise Reduction) Function
The high-performance WN2 DSP chip effectively removes low-light gain noise and afterimage
to provide clear images even in dark environments.
• Electrical Day&Night
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions. The COLOR mode operates in daytime conditions to
provide optimum colors, and B/W mode operates in night-time conditions to enhance the
definition of the image.
• Motion Detection
Since the camera detects motion without any additional external sensor, you can monitor
activity more efficient.
• SSDR (Samsung Super Dynamic Range)
For images with high contrast between bright and dark areas from difficult lighting conditions
such as backlighting, this camera selectively illuminates darker areas while retaining the same
light level for brighter areas to even out the overall brightness.
• Miscellaneous Functions
HLC(High Light Compensation), SENS-UP, FLIP (H/V-REV), D-ZOOM and PRIVACY
functions are provided.
• OSD
By providing multi-lingual user-friendly OSD (On-screen Display) menu, the camera provides
easy handling of the camera.
8_ overview
Page 9
WHAT’S INCLUDED
Check if the main unit and all the following accessories are included in the product package.
Appearance Item Name Quantity Description
● OVERVIEW
Camera
User Manual
Quick Guide
C Mount Adapter
Auto Iris Lens Connector
Cable for the testing monitor
Camera Holder (Mount)
Camera Holder (Mount) Screws
1
1
1
1
1
1
2
Used to install the camera lens
Used to test the camera connection to a
portable display device
Used to install the camera holder
Used to install the mount
English _9
Page 10
overview

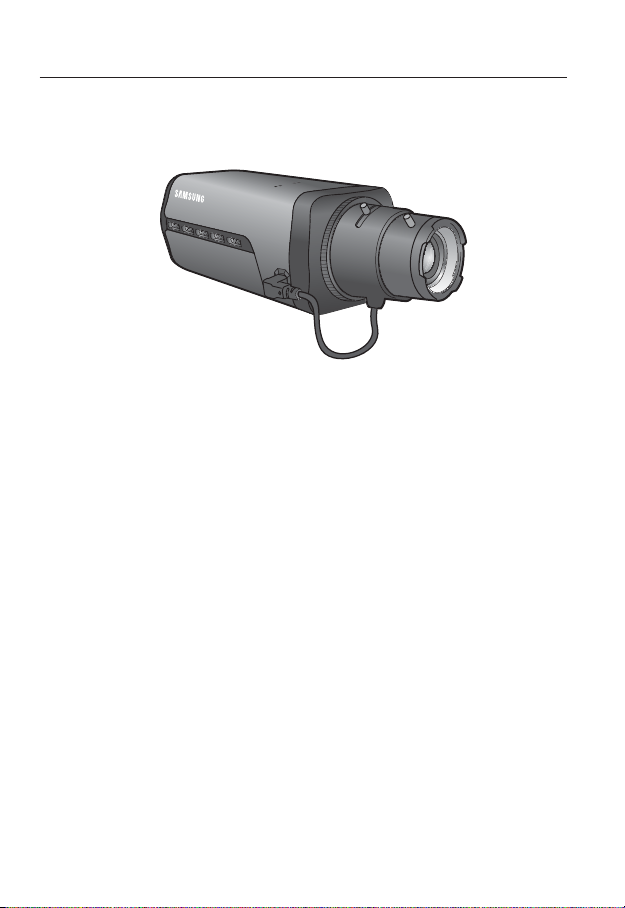

AT A GLANCE
Front Side
Item Description
Camera Holder
(Mount) Holes
Auto Iris Lens
b
(Optional)
Auto Iris Lens
c
Connector
Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied
M
ethanol.
Used when you mount the camera onto the bracket by fixing the camera
holder (mount) adaptor with the bracket.
Installed on the lens adaptor.
Used to supply power and output signal to control the iris of the lens.
10_ overview
Page 11

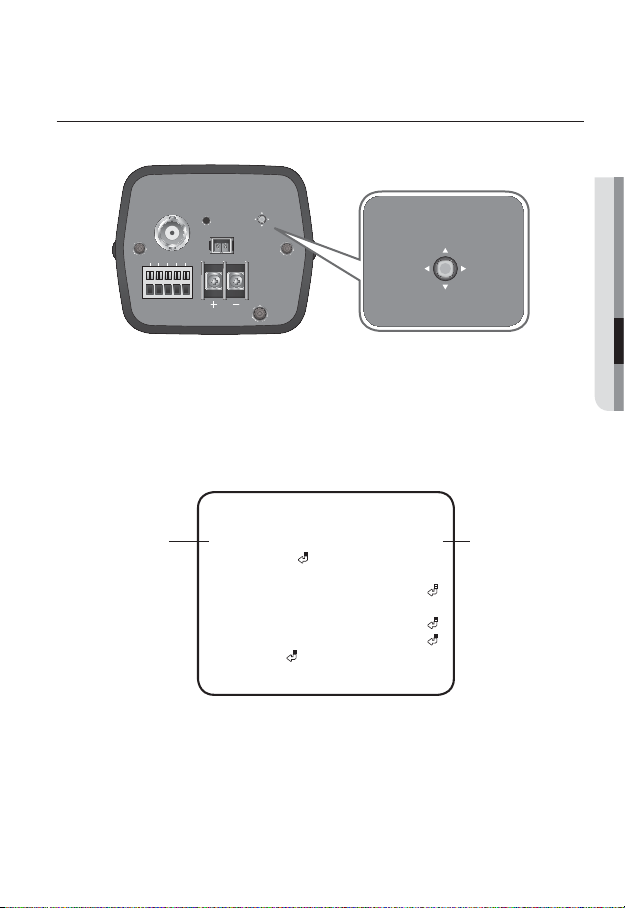

Rear Side
HD-SDI
POWER
C-Video
1 2 3 4 5
1 : GND 4 : RS-485+
2 : EXT_D/N 5 : RS-4853 : MD_OUT
DC 12V
AC 24V
GND
Item Description
● OVERVIEW
HD-SDI Video Out
terminal
Power LED This lamp turns green when the proper power is applied to the camera.
b
BNC terminal for HD-SDI video signal output.
Analogue video output terminal of C-Video.
c
C-VIDEO
Use a monitor cable for testing the camera with a portable display.
(for installation)
The switch is used for setting and adjusting the camera’s functions and
properties.
Press and hold this switch more than 2 seconds to display the main menu
on the screen.
SETUP Switch
◄/►
▲/▼
Move this switch left or right to move the cursor or change
the value in the menu.
Move this switch up or down to move the cursor in the
menu.
Press the switch to set the function in menu. To move to a submenu item in the menu, press this switch.
English _11
Page 12
overview
Item Description
Power Port Used to plug the power cable.
GND Used for earth-grounding.
I/O Port
1:GND Earth-grounding port for external signal.
2:EXT_D/N External signal input port for Day/Night mode setup.
3:MD_OUT Output port that signals when a motion is detected.
4:RS-485+ Signal port for RS-485 communication.
5:RS-485– Signal port for RS-485 communication.
12_ overview
Page 13
installation & connection
MOUNTING THE LENS
Disconnect the power before proceeding.
The C lens and CS lens are not included in the product package.
M
If using a normal commercial lens, you may encounter out of focus when switching to BW mode .
J
To prevent this, it is recommended to use the IR mega lens.
Mounting the CS lens

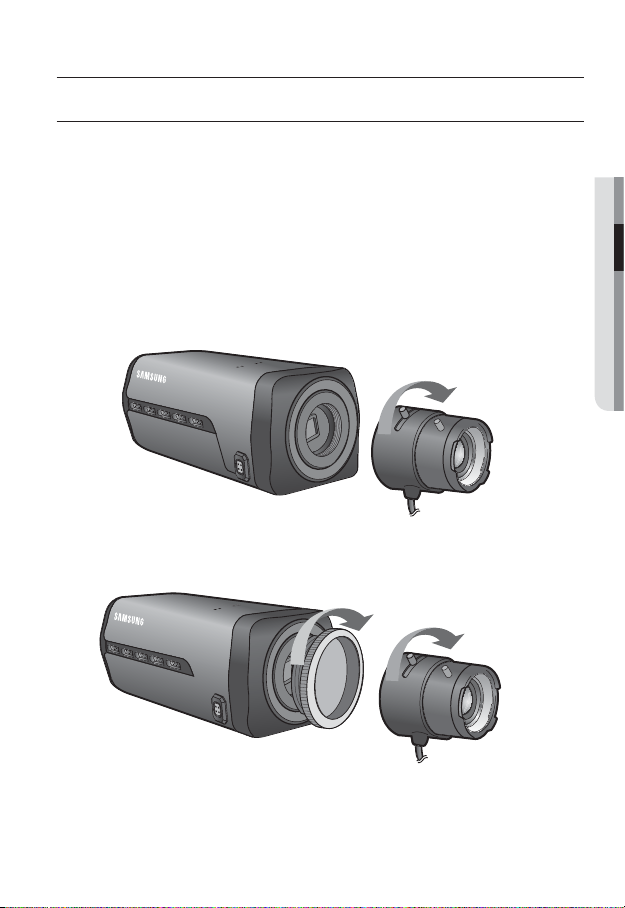

Turn the optional CS lens clockwise to insert it.
Mounting the C lens
Turn the C mount adaptor clockwise to insert it and do the same with the C lens.
● INSTALLATION & CONNECTION
CS Lens
C Lens
English _13
Page 14
installation & connection
Connecting the Auto Iris Lens connector
Insert the lens connector into the corresponding hole of the camera.
Focusing
Turn the lens left or right to control the zoom and focus the lens so that you can view a clear,
sharp object.
14_ installation & connection
Page 15

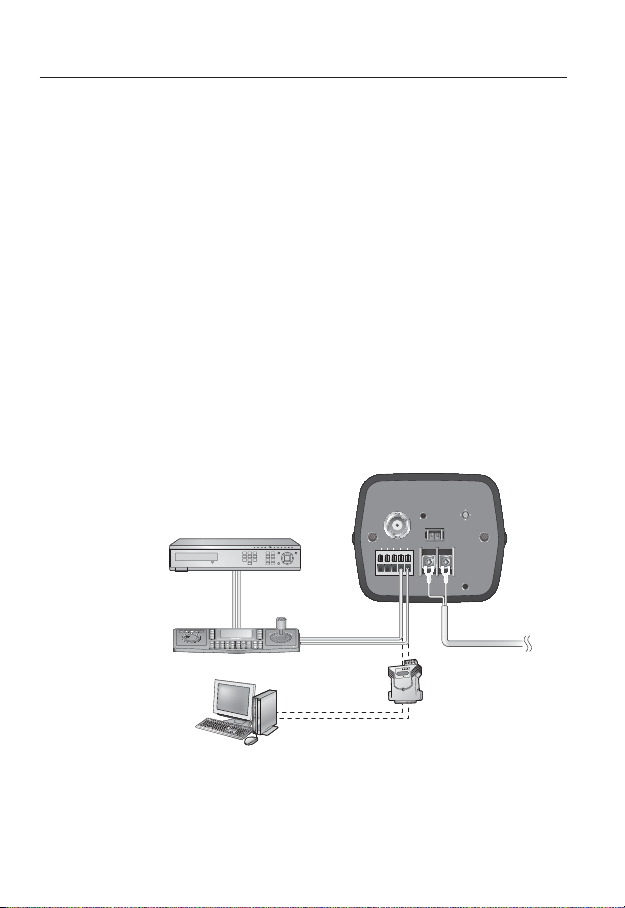

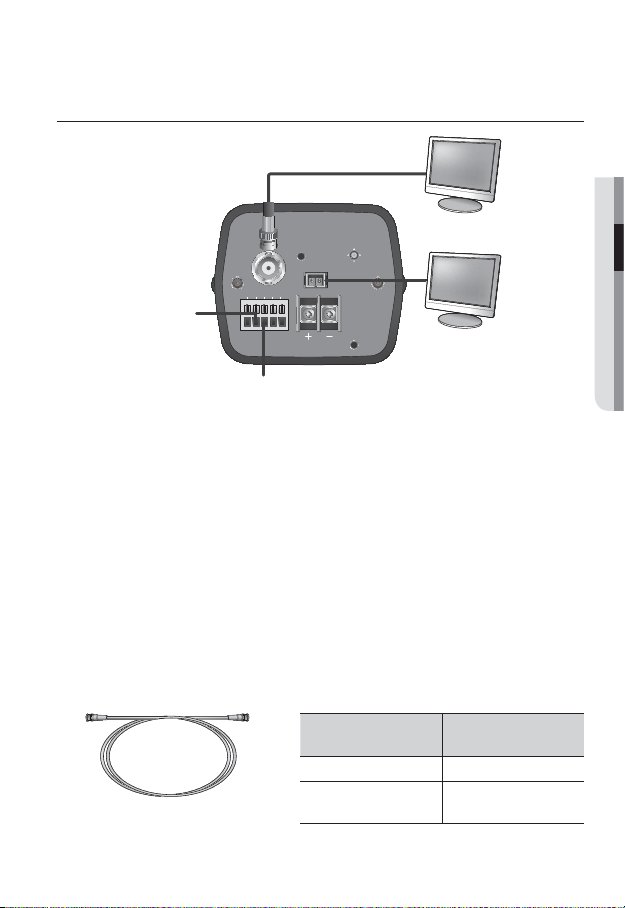

CONNECTING WITH OTHER DEVICE
● INSTALLATION & CONNECTION
HD-SDI
POWER
C-Video
1 2 3 4 5
Day/Night mode
HD-SDI Monitor
controller
1 : GND 4 : RS-485+
2 : EXT_D/N 5 : RS-4853 : MD_OUT
DC 12V
AC 24V
GND
Test monitor for
installation
Motion detection output device
Connecting to the monitor
Connect the video out port of the camera to the video input port of the monitor.
In the initial installation of the camera, you can connect the camera to the monitor for checking
M
the connection status.
When connecting a general monitor device to the HD-SDI video output, you need to use a signal
converter.
You can set the video output type to either NTSC or PAL. (page 29).
Video Cable
The cable connecting the camera’s video output and a monitor is a BNC coaxial cable as
shown below.
If the distance between the camera and the monitor exceeds the recommended maximum,
please us an auxiliary video amp.
Maximum video transfer
distance
100~140m 5C2V(75ohm)
200m
Recommended cable
specification
L-6CHD(75ohm)
(SDI-specific Cable)
English _15
Page 16
installation & connection
External Day/Night Switching Input
Day/Night mode of the camera can be switched by signal from an external device.
To use this function, <DAY/NIGHT> setting of the camera should be set to the <EXTERN>.
M
(Page 27)
Motion Detection Signal Out
Upon a motion detection, the port outputs signal for an external device for display or operation.
When a motion is detected, the port outputs 3.3V signal.
To use this function, <ALARM OUT> setting of the camera should be set to <ON>. (Page 30)
M
Power Supply
Use the screwdriver to connect each line (+, –) of the power cable to the corresponding
power port of the camera.
Be careful not to reverse the polarity when you connect the power cable.
J
Be sure to turn the power off the device to be connected.
HD-SDI
POWER
C-Video
DVR
System Controller
or
1 2 3 4 5
1 : GND 4 : RS-485+
2 : EXT_D/N 5 : RS-4853 : MD_OUT
DC 12V
AC 24V
T+ T- R- R+
CONVERTER
RS232C RS485, 422
RS-485 Converter
GND
POWER
PC
For AC/DC Power Supply
You can use either one of AC 24V/1A~2A and DC 12V/2A~4A adaptor.
16_ installation & connection
Page 17
Resistance of copper wire [at 20°C (68°F)]
Wire specification (AWG) #24(0.22mm2) #22(0.33mm2) #20(0.52mm2) #18(0.83mm2)
Resistance (Ω/m)
Voltage Drop (V/m)
Recommended Distance (m)
• As shown in the table above, you may encounter a voltage-sag depending on the
wire length. If you use an excessively long wire for camera connection, the camera
may not work properly.
Voltage for proper camera operation: DC 12V±10%, AC 24V±10%
Voltage drop shown in the table above may show difference from the actual depending on the
manufacturer and cable type.
RS-485 Communications
Using RS-485 communication, the camera menu can be accessed using Samsung
Techwin’s System Controller or the DVR.
• For accessing the camera from a computer
Use a RS-485 converter to connect the camera’s control port with the computer’s
serial cable.
Ex) Serial port (COM1) of computer Serial Cable RS-485 Converter Camera’s
RS-485 control port
• For accessing the camera from a DVR or the System Controller
connect the camera’s RS-485+ and RS-485– terminals to the RS-485 control board’s
terminals of desired device with a RS-485 cable (TRX+ and TRX–).
Control ports of RS-485 Controller RS-485 ports of the camera
(+) CONNECTION TERMINAL (TRX+) 485+
(–) CONNECTION TERMINAL (TRX–) 485–
Default RS-485 communication settings
0.078 0.050 0.030 0.018
0.028 0.018 0.011 0.006
Less than 20 Less than 30 Less than 30 Less than 30
● INSTALLATION & CONNECTION
Item Camera Number Transfer Rate
Default 1 9600 8-NONE-1 Not used
When constructing a proprietary controller for direct camera control, apply Pelco-D or Samsung-Techwin
J
protocol.
Use only a DVR model that supports HD-SDI saving.
Communication Mode
Return Data
English _17
Page 18
Operating Your Camera
MENU CONFIGURATION
MAIN SETUP
LENS •
EXPOSURE
WHITE BAL
SSDR •
BACKLIGHT •
SSNR3 •
DAY/NIGHT
SPECIAL
EXIT •
DC
BRIGHTNESS• SHUTTER
•
•
SENS-UP
ATW
•
•
MANUAL
OFF
OFF
ON
AUTO
•
•
B/W
•
CAM TITLE
•
PRIVACY
•
RESET
EXIT
•
MANUAL
•
RETURN
•
OUTDOOR
•
AWC ➝ SET
•
ON
•
BLC
•
OFF
•
EXTERN
•
IMAGE ADJ
•
COMM ADJ
•
RETURN
•
AGC
•
INDOOR
•
HLC
•
COLOR
•
MOTION DET
•
LANGUAGE
18_ Operating Your Camera
Page 19
MENU SETUP
To configure the camera’s function settings, use the button on the rear side of the product.
HD-SDI
POWER
C-Video
1 2 3 4 5
1 : GND 4 : RS-485+
2 : EXT_D/N 5 : RS-4853 : MD_OUT
: Moves up/down in menu.
•▲▼
: Moves right/left in menu.
•◄►
• SET : Press the switch to set the function in camera menu.
To move to a sub-menu item in the menu, press this switch.
1.
Press the SET button.
• Enters the function menu.
The selected function’s menu appears on the monitor.
Use up/down buttons
to set the desired item.
DC 12V
GND
AC 24V
MAIN SETUP
►
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
Use right/left buttons
to change the
selection.
● OPERATING YOUR CAMERA
2. Use the Up/Down buttons to select a desired function.
• Move the button up or down to move the arrow up or down.
Set the arrow to indicate the desired item.
English _19
Page 20
Operating Your Camera
3. Use the Up/Down buttons to select a desired function.
• Move the button right or left to display available values or settings.
Set the desired setting value using the button.
4. To finish, select <EXIT> and press the SET button.
An item with the icon also has sub menus. To select a sub menu, select an item with the icon and
M
press the Function Setup switch.
An item with the --- icon is unavailable due to function settings.
LENS
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed,
select <LENS> by using the Function Setup
switch so that the arrow indicates <LENS>.
2. Select the connected lens type by using the
Function Setup switch.
•
: Select Manual Lens
Manual
•DC : Select Auto Iris Lens.
►
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
MAIN SETUP
20_ Operating Your Camera
Page 21
EXPOSURE
1. When the SETUP menu screen is displayed,
select <EXPOSURE> by using the Function
Setup switch so that the arrow indicates
<EXPOSURE> .
2. Select a desired mode using the Function
Setup switch.
• BRIGHTNESS : Adjust the screen brightness.
• SHUTTER : You can select the shutter.
- – – – : 1/30sec
- A.FLK : Select this when you experience
picture flicker, this happen when there is a
clash with the installed lighting frequency.
- ESC : Select this to control the shutter speed
►
►
MAIN SETUP
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
EXPOSURE SETUP
.... .... .... ....
1. BRIGHTNESS
2. SHUTTER A.FLK
3. AGC HIGH
4. SENS-UP ON
5. RETURN
*
automatically. If ESC is selected, the shutter
speed is automatically controlled depending on
the ambient illumination of the subject.
- MANUAL : You can control shutter speed manually (1/30sec ~ 1/12,000sec)
When you use a DC lens, set the shutter mode to --- if color rolling occurs.
J
Carefully position the camera when installing, since produced image quality might be poor if
framing a bright light source while the shutter mode of EXPOSURE is set to AUTO.
When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
● OPERATING YOUR CAMERA
50
English _21
Page 22
Operating Your Camera
• AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen -
but the greater the noise.
- OFF : Not being used
-Low : Allows automatic gain control from 5.3dB to 20dB.
-Medium : Allows automatic gain control from 5.3dB to 26dB.
-High : Allows automatic gain control from 5.3dB to 32dB.
• SENS-UP : When it is night or dark, the camera automatically detects the light level
and maintains a clear picture if this mode is activated.
- OFF : Deactivates the SENS-UP function.
- AUTO : Activates the SENS-UP function.
• RETURN : Select this to save the changes in the EXPOSURE menu and return to
the SETUP menu.
Press the SET button while in AUTO mode to adjust the automatic scene accumulation multiplier
J
for low-illumination operation. (x2 ~ x60)
The greater the video accumulation factor is, the brighter the screen is but the afterimage of a
moving object grows accordingly.
Although noise, spots, and whitish symptoms may occur in higher accumulation, this is normal.
If the gain control (AGC) of EXPOSURE mode is set to OFF, SENS-UP mode is accordingly set to
‘- - -‘.
22_ Operating Your Camera
Page 23
WHITE BAL (WHITE BALANCE)
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed,
select <WHITE BAL>. by using the Function
Setup switch so that the arrow indicates
<WHITE BAL>.
2. Select a desired mode using the Function
►
Setup switch.
Select one of the following 5 modes, as appropriate
for your purpose.
•ATW : Select this when the color temperature is
between 2,400˚K and 11,000˚K.
• OUTDOOR : Select this when the color temperature is between 1,700˚K and
11,000˚K. (sodium light inclusion)
• INDOOR : Select this when the color temperature is between 4,500˚K and 8,500˚K.
• MANUAL : Select this to fine-tune White
Balance manually. Set White Balance first by
using the ATW or AWC mode. After that switch
►
to MANUAL mode, fine-tune the White Balance
and the Function Setup switch.
• AWC ➞ SET : To find the optimal luminance
level for the current environment, point the
camera towards a sheet of white paper
and press the Function Setup switch. If the
environment changes, readjust it.
White Balance may not work properly under the following conditions. In this case select the AWC
J
mode.
When the ambient illumination of the subject is dim.
-
If the camera is directed towards a fluorescent light or is installed in a place where illumination
-
changes dramatically, the White Balance operation may become unstable.
MAIN SETUP
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
WB MANUAL
.... ....
.... ....
1. RED GAIN
2. BLUE GAIN
3. RETURN
.... ....
*
*
.... ....
552
560
● OPERATING YOUR CAMERA
English _23
Page 24
Operating Your Camera
SSDR (SAMSUNG SUPER DYNAMIC RANGE)
SSDR illuminates darker areas of an image while retaining the same light level for brighter
areas to even out the overall brightness of images with high contrast between bright and
dark areas.
1. When the SETUP menu screen is displayed,
select <SSDR> by using the Function Setup
switch so that the arrow indicates <SSDR>.
2. Use the Function Setup switch to change the
SSDR level in the sub menu according to the
contrast between bright and dark areas.
•
: Adjust the dynamic range level.
LEVEL
• D-RANGE : Select the amplitude area of the
dynamic range.
►
►
MAIN SETUP
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
SSDER SETUP
.... ....
.... ....
1. LEVEL
2. D-RANGE NARROW
3. RETURN
*
8
SSDR ON SSDR OFF
24_ Operating Your Camera
Page 25
BACKLIGHT
This camera is designed so that it delivers a distinctive subject and background at the
same time, even when the subject is in backlight, by adopting a function of the proprietary
WN2 DSP chip.

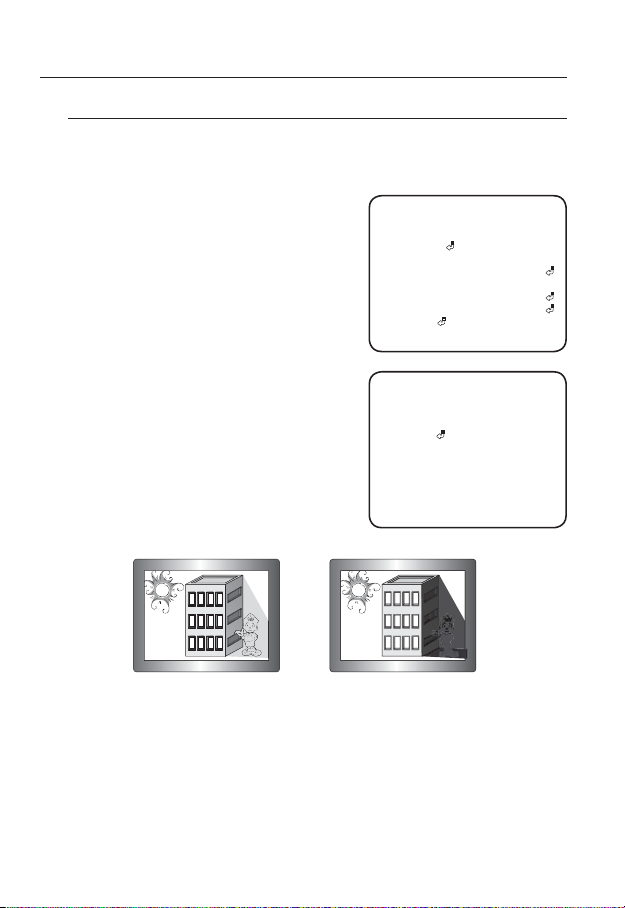

1. When the SETUP menu screen is displayed,
select <BACKLIGHT> by using the Function
Setup switch so that the arrow indicates
<BACKLIGHT>.
2. Select a desired mode using the Function Setup
switch depending on the camera purpose.
►
• BLC : Enables a user to select a desired area
on a picture and view that area more clearly.
- LEVEL : Adjust level of the BLC function.
- TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.
• HLC (High Light Compensation) : If the scene contains extremely bright light areas
such as; from car headlight, the light can mask out much of the on-screen detail.
- LEVEL : Adjust level of the HLC function.
- MASK COLOR/TONE : Change the color / brightness of the masking area. (Black,
Red, Blue, Cyan, Magenta)
- TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.
• OFF : Not being used
3. Select a desired mode using the Function Setup switch.
BLC SETUP
►
1. LEVEL MIDDEL
2. TOP
3. BOTTOM
4. LEFT
5. RIGHT
6. RETURN
.... * .... .... ....
.... .... ....
*
.... * .... .... ....
.... .... ....
*
....
....
30
75
30
75
►
HLC SETUP
1. LEVEL MIDDEL
2. MASK TONE
3. TOP
4. BOTTOM
5. LEFT
6. RIGHT
7. RETURN
MAIN SETUP
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
.... ....
.... ....
5
*
.... * .... .... ....
30
.... .... ....
....
75
*
.... * .... .... ....
30
.... .... ....
....
75
*
● OPERATING YOUR CAMERA
Because there can be a difference in the effectiveness of HLC according to the amount of light
J
area in the screen, optimize the installation angle for the best HLC performance.
When dark, the HLC is only activated when a bright light exceeding a specific size. (In NIGHT ONLY
mode).
The HLC is not activated in day light or when bright light is not present at night. (In NIGHT ONLY
mode).
English _25
Page 26
Operating Your Camera
SSNR3
This function reduces the background noise in a low luminance environment.
1. When the SETUP menu screen is displayed,
select <SSNR3> by using the Function Setup
switch so that the arrow indicates <SSNR3>.
2. Select a desired mode using the Function
Setup switch.
•ON : Activates SSNR3 so that noise is reduced.
• OFF : Deactivates SSNR3. Noise is not
reduced.
3. Set the SSNR3 mode to <ON> and press the
Function Setup switch. Then you can adjust the noise reduction level.
You cannot set the SSNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the ‘EXPOSURE’ menu is ‘OFF’.
J
When adjusting the noise reduction level in the SSNR3 mode, remember that the higher the level
set, the more the noise level will be reduced, as will the brightness of the image.
DAY/NIGHT
You can display pictures in color or in black and white.
1. When the SETUP menu screen is displayed,
select <DAY/NIGHT> by using the Function
Setup switch so that the arrow indicates <DAY/
NIGHT>.
2. Select a desired mode using the Function
Setup switch according to the picture display
you want.
• COLOR : The picture is always displayed in
color.
• B/W : The picture is always displayed in black and white.
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
►
6. SSNR3 ON
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
►
7. DAY/NIGHT AUTO
8. SPECIAL
9. EXIT
MAIN SETUP
MAIN SETUP
26_ Operating Your Camera
Page 27
• AUTO : The mode is switched to <COLOR> in
a normal environment, but switches to <B/W>
mode when ambient illumination is low. To set
up the switching time for AUTO mode, press
the Function Setup switch.
- DWELL TIME : You can select day/night
switching delay time from.
➝
5s, 7s, 10s, 15s, 20s, 30s, 40s, 60s
►
AUTO SETUP
1. COLOR B/W
DWELL TIME 5 SEC
DURATION SLOW
2. COLOR B/W
DWELL TIME 10 SEC
DURATION SLOW
3. SPECIAL
- DURATION : Adjust the brightness of the
lighting where the mode switch occurs.
• EXTERN : Control the image modes of Color and B/W when an external controller is
synchronized via the Alarm In port.
When AGC in the EXPOSURE menu is ‘OFF’, ‘---’ mode operates as selecting ‘AUTO’ mode cannot
J
be selected.
SPECIAL
● OPERATING YOUR CAMERA
1. When the SETUP menu screen is displayed,
select <SPECIAL> by using the Function Setup
switch so that the arrow indicates <SPECIAL>.
2.
Select a desired mode using the Function Setup
switch.
MAIN SETUP
1. LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. SSDR ON
5. BACKLIGHT OFF
6. SSNR3 ON
7. DAY/NIGHT AUTO
►
8. SPECIAL
9. EXIT
SPECIAL
►
1. CAM TITLE ON
2. IMAGE ADJ
3. MOTION DET ATW
4. PRIVACY ON
5. COMM ADJ ON
6. LANGUAGE ENGLISH
7. RESET
8. RETURN
English _27
Page 28
Operating Your Camera
A
—
• CAM TITLE : If you enter a title, the title will
appear on the monitor.
1) If the SPECIAL menu screen is displayed, use
the Function Setup switch so that the arrow
indicates <CAM TITLE>.
2) Set it to <ON> by using the Function Setup
switch.
3) Press the Function Setup switch.
CAM TITLE SETUP
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz
–.123456789
←→
CLR POS END
— — — — — — — — — — — — —
4) Use the Function Setup switch to move to a
desired letter and select the letter by pressing the Function Setup switch. Repeat this
to enter multiple letters. You can enter up to 15 letters.
5) Enter a title, move the cursor to <POS>
and press the Function Setup switch. The
ABCD
entered title appears on the screen. Select
the position to display the title on the screen
by using the Function Setup switch and press
the Function Setup switch. When the position
is determined, select <END> and press
the Function Setup switch to return to the
SPECIAL menu.
When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if you
J
enter one.
Only English is available in this mode.
If you move the cursor to CLR and press the Function Setup switch, all the letters are deleted.
←→↑↓
to Locate, then SET
To edit a letter, change the cursor to the bottom left arrow and press the Function Setup switch.
Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then
press the Function Setup switch.
28_ Operating Your Camera
Page 29
• IMAGE ADJ :
1) When the SPECIAL menu screen is displayed,
select <IMAGE ADJ> by using the Function
Setup switch so that the arrow indicates
<IMAGE ADJ>.
1. CAM TITLE ON
►
2. IMAGE ADJ
3. MOTION DET ATW
4. PRIVACY ON
5. COMM ADJ ON
6. LANGUAGE ENGLISH
7. RESET
8. RETURN
SPECIAL
2) Select a desired mode using the Function Setup switch.
- MONITOR : Please change the settings value
of video appropriate to your monitor.
• LCD : Please select this menu item when
using an LCD monitor.
• USER : Please use this menu item when
using a monitor other than standard ones.
You can change the gamma, PED level and
color gain in the sub menus.
►
IMAGE ADJ
1. MONTIOR LCD
2. H-REV OFF
3. V-REV OFF
4. D-ZOOM OFF
5. SHARPNESS ON
6. FONT COLOR WHITE
7. VIDEO FMT CVBS-NTSC
8. VIDEO SIZE 1080p 30
9. RETURN
- V-REV : You can flip the picture vertically on the screen.
- H-REV : You can flip the picture horizontally on the screen.
- D-ZOOM : You can use a digital zoom of x1 ~ x16.
- SHARPNESS : As you increase this value, the picture outline becomes stronger and
clearer. Adjust this value appropriately depending on the sharpness of the picture.
- FONT COLOR :
- VIDEO FORMAT
You can change the OSD font color. (White, Yellow, Green, Red, Blue)
: Sets the video output format of the C-Video port on the camera
provided for test and installation.
- VIDEO SIZE
: Sets the image resolution of the HD-SDI output of the camera.
Select the desired setting and press the SET button. (1080i 50, 1080p 30, 720p 50,
720p 60, 1080i 60)
- RETURN : Select this to save the settings for the IMAGE ADJ menu and to return to
the SPECIAL menu.
● OPERATING YOUR CAMERA
If you increase the sharpness level excessively, the image may be displayed abnormally or it
J
can cause a noise.
English _29
Page 30
Operating Your Camera
• MOTION DET : This product has a feature that
allows you to observe movement of objects in
4 different areas on the screen, and the words
<MOTION DET> appear on the screen when
movement is detected.
You can monitor activity more efficient.
1) When the SPECIAL menu screen is displayed,
press the Function Setup switch so that the
arrow indicates <MOTION DET>.
►
MOTION DET
1. AREA AREA1
2. MODE OFF
3. ALARM OUT OFF
4. TOP
5. BOTTOM
6. LEFT
7. RIGHT
8. SENSITIVITY
9. RETURN
*
.... ....
*
.... ....
.... ....
2) Set up the mode using the Function Setup switch.
- AREA SEL
: You can specify up to 4 motion detection areas to your preference.
Select the desired type of motion detection area.
According to the selected area type, top/bottom/left/right coordinates change.
- AREA
: Specify the use of the selected motion detection area.
If selected <ON>, the area is marked on the screen.
- ALARM OUT
- UP/DOWN/LEFT/RIGHT
- SENSITIVITY
: Specify the use of output signal on motion detection.
: Change the position of the selected area.
: The lower the figure is, the higher the sensitivity is and the camera can
track a slightest movement.
- RETURN
: Save the motion detection settings and return to the OPERATION SETUP
menu.
Motion detection area is marked only in MOTION DET menu, and not displayed on the monitoring
J
screen.
• PRIVACY : Mask an area you want to hide on
the screen.
1) When the SPECIAL menu screen is displayed,
press the Function Setup switch so that the
arrow indicates <PRIVACY>.
2) Set up the mode using the Function Setup
switch.
You can select up to 16 PRIVACY areas.
- AREA :
PRIVACY AREA SETUP
►
1. AREA AREA1
2. AREA MODE OFF
3. MASK COLOR GRAY
4. TOP
5. BOTTOM
6. LEFT
7. RIGHT
8. RETURN
*
.... * .... .... ....
*
.... * .... .... ....
- MODE : Determines whether to use the area
selected in the AREA.
- MASK COLOR : Determine area color. You can select Green, Red, Blue, Black,
White, Gray.
- TOP/BOTTOM/LEFT/RIGHT : Adjust the size and position of the selected area.
- RETURN : Select this to save the PRIVACY menu settings and return to the SPECIAL
menu.
30_ Operating Your Camera
.... .... .... ....
.... ....
*
.... .... .... ....
.... ....
*
.... ....
*
.... .... .... ....
.... .... .... ....
60
480
60
900
3
80
180
190
290
Page 31
• COMM ADJ (Communication Adjustment) :
This function sets up the camera
communication status when controlling the
camera through an external control device.
1) When the SPECIAL menu screen is displayed,
press the Function Setup switch so that the
arrow indicates <COMM ADJ>.
►
COMM SETUP
1. PROTOCOL SAMSUNG-T
2. CAM ID
3. BAUD RATE 9600
4. UART MODE 8-N-1
5. DISP ID OFF
6. RET PKT ENABLE
7. RETURN
.... .... .... ....
*
1
2) Set up the mode using the Function Setup
switch.
- PROTOCOL : Select the communication PROTOCOL. (SAMSUNG-T, SAMSUNG-E,
Pelco-D, Pelco-P, Bosch, Honeywell, Vicon, Panasonic, GE, AD)
- CAM ID : Determines the camera's identification number (between 0 and 255).
- BAUD RATE : You can select 2400/4800/9600/19200/38400/57600 bps.
- UART MODE : You can select NONE, EVEN or ODD for the parity bits.
- DISP ID : Display camera title on top left corner of the screen.
- RETURN DATA : Specify whether to return the same command to the controlling device
when a control command is delivered to the camera.
• LANGUAGE : You can select the menu language according to your requirements.
• RESET : Resets the camera settings to the factory defaults. Communication,
Language, Video Format and Monitor settings are not initialized.
• RETURN : Select this to save the SPECIAL menu settings and return to the MAIN
SETUP menu.
EXIT
Save the current settings and exit the MAIN SETUP menu.
● OPERATING YOUR CAMERA
English _31
Page 32
appendix
SPECIFICATION
Items Description
Video 1/3" Progressive Scan CMOS
Total Pixels 2,010(H) x 1,108(V), 2.2M Pixels
Effective Pixels 1,944(H) x 1,092(V), 2.1M Pixels
Video
Lens Type
Operational
Scanning System Progressiv Scan
Min. Illumination
S / N Ratio 50dB (AGC off, Weight on)
Video Output SMPTE292M ( HD-SDI ), Monotoring CVBS
Lens Type Manual / DC Auto Iris
Mount Type C/CS
On Screen Display
Camera Title Off / On (Displayed 15 characters)
Day &Night Auto (ICR), Color, B/W , External
Backlight Compensation
Contrast Enhancement SSDR ( Off / On )
Digital Noise Reduction SSNR
Motion Detection Motion Detection(Off/On)
Color : 1Lux @ F1.2, 0.017 Lux (Sens-up, 60x)
B/W : 0.1 Lux @ F1.2, 0.0017 Lux ( Sens-up, 60x)
Multi-language Support
English, Korean, Japanese, Spanish, French, Portuguese, Chinese,
German, Italian, Russian, Czech, Polish, Rumanian, Serbian, Swedish,
Denish, Turkish,
Off / User BLC / HLC
Ⅲ
( Off / On )
Thai, Taiwanese
32_ appendix
Page 33
Items Description
Privacy Masking Off / On (16 Rect-angle zones)
Sens-up (Frame
Integration)
Gain Control Off / Low / Middle / High
White Balance
Operational
Environmenta
Electrical
Mechanica
HD-SDI
Transmission
Distance
Electronic Shutter
Speed
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Communication RS-485
Protocol
Operating Temperature
/ Humidity
Input Voltage/Current Dual ( 24VAC±10% & 12VDC±10% )
Power Consumption Max. 6W
Color / Material Body : Dark Gray / Aluminum, Steel
Dimension (WxHxD) W72 x H60 x D136.8mm
Weight
5C2V ( 75ohm ) Max. 100~140m
L-6CHD ( 75 ohm ) Max. 200m
The maximum transferrable distance of HD-SDI video signal depends on the cable manufacturer or installation
conditions.
When a BNC cable adaptor is used to combine two or more BNC cables for distributed HD-SDI video transfer,
make sure the impedance of the adaptor is 75Ω. Otherwise, the adaptor may cause shorter transfer distance or
broken video transfer due to loss of transferred signal.
2x ~ 60x
ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
Esc / A.FLK / Manual / Fixed
RS-485 : SAMSUNG-T, SAMSUNG-E, Pelco-D, Pelco-P, Bosch,
Honeywell, Vicon, Panasonic, GE, AD
0°C ~ +50°C / ~ 90% RH
434g
● APPENDIX
English _33
Page 34
appendix
PRODUCT OVERVIEW
60(2.36")
Unit : mm (inch)
72(2.83")
138.6 (5.45")
136.8 (5.38")
34_ appendix
Page 35
TROUBLESHOOTING
PROBLEM SOLUTION
Nothing appears on the screen.
The image on the screen is dim.
The image on the screen is dark.
The camera is not working
properly, and the surface of the
camera is hot.
The SENS-UP function does not
work.
The Motion Detection function
does not work.
Color is not correct.
The screen flickers continually.
RS-485 communication is not
available.
Check that the power cord and line connection between the camera and
monitor are properly connected.
When the camera’s HD-SDI BNC output is directly connected to the
monitor’s BNC terminal:
Make sure the monitor supports HD-SDI signal input.
When the camera’s HD-SDI BNC output is connected to the DVR: Make
sure the DVR supports HD-SDI signal input.
HD-SDI output is converted into other format such as DVI and VGA by
using video converter: Make sure the converter’s HD-SDI input format
supports the product’s output video format.
Is lens stained with dirt? Clean your lens with soft, clean cloth.
Set the monitor to the proper condition.
If the camera is exposed to very strong light, change the camera position.
Adjust the contrast feature of the monitor.
Check that you have properly connected the camera to an appropriate
power source.
Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
Check that MOTION DET of SPECIAL SETUP menu is ‘OFF’.
Check the setting of WHITE BAL SETUP menu .
Ensure the camera is not pointing towards the sun.
Is the camera framing the sun or other bright light source?
HD-SDI video may not appear to be normal if distance exceeds the
maximum transferrable distance.
When a BNC cable adaptor is used to combine two or more BNC cables
for distributed HD-SDI video transfer, make sure the impedance of the
adaptor is 75Ω. Otherwise, it may cause shorter transfer distance or
broken video transfer.
Check RS-485 communication settings.
● APPENDIX
English _35
Page 36
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
Samsung Techwin cares for the environment at all product manufacturing stages, and is
taking measures to provide customers with more environmentally friendly products.
The Eco mark represents Samsung Techwin’s devotion to creating environmentally friendly
products, and indicates that the product satisfies the EU RoHS Directive.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate these items from other types
of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other
commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should
not be disposed of with other household waste at the end of their working life. Where marked, the
chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the
reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types
of waste and recycle them through your local, free battery return system.
Page 37
Page 38
Page 39
Page 40
SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
www.samsungcctvusa.com
www.samsungtechwin.com
www.samsungsecurity.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325
PT01-000568A
Loading...
