LCD Monitor
User Manual
S34E790C
The color and the appearance may differ depending on the
product, and the specifications are subject to change without
prior notice to improve the performance.
BN46-00442A-02
Table of contents
Before Using the Product
Copyright 5
Securing the Installation Space 6
Precautions for storage 6
Safety Precautions 6
Symbols 6
Cleaning 7
Electricity and Safety 7
Installation 8
Operation 10
Correct posture to use the product 13
Preparations
Checking the Components 14
Components 14
Parts 15
Control Panel 15
Direct Key guide 16
Function Key Guide 17
Reverse Side 19
Connecting and Using a Source
Device
Before Connecting 23
Pre-connection Checkpoints 23
Connecting and Using a PC 23
Connection Using the HDMI Cable 23
Connection Using the DP Cable 24
Connecting to Headphones or Speakers 24
Connecting the Power 25
Tidying Up the Connected Cables 26
Connecting the Product to a PC as a
USB HUB 27
Connecting a PC to the Product 27
Utilizing the Product as a USB HUB 28
Driver Installation 29

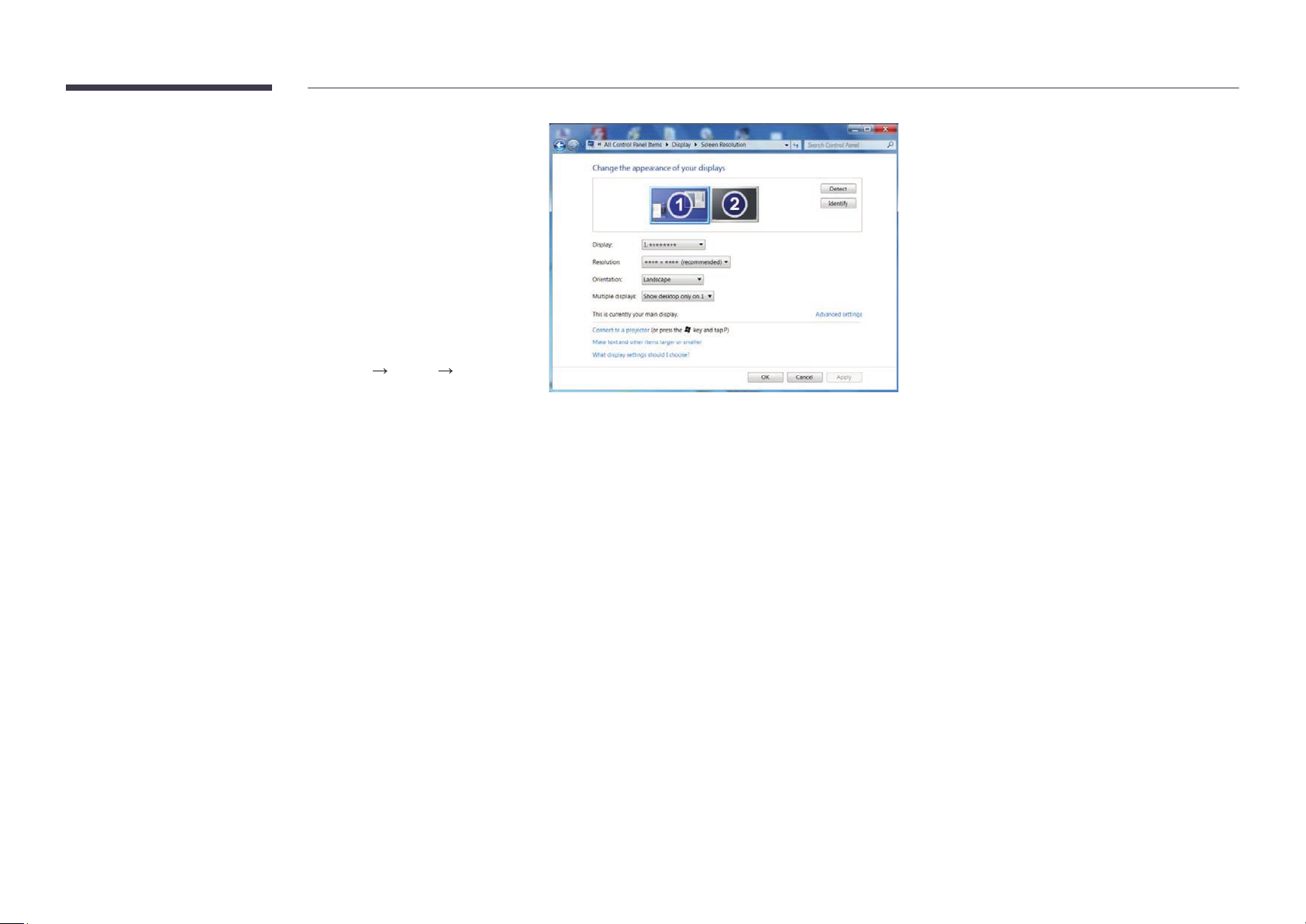

Setting Optimum Resolution 29
Screen Setup
Brightness 30
Configuring Brightness 30
Contrast 31
Configuring Contrast 31
Sharpness 32
Configuring Sharpness 32
Game Mode 33
Configuring Game Mode 33
SAMSUNG MAGIC Bright 34
Configuring SAMSUNG MAGIC Bright 34
Color 36

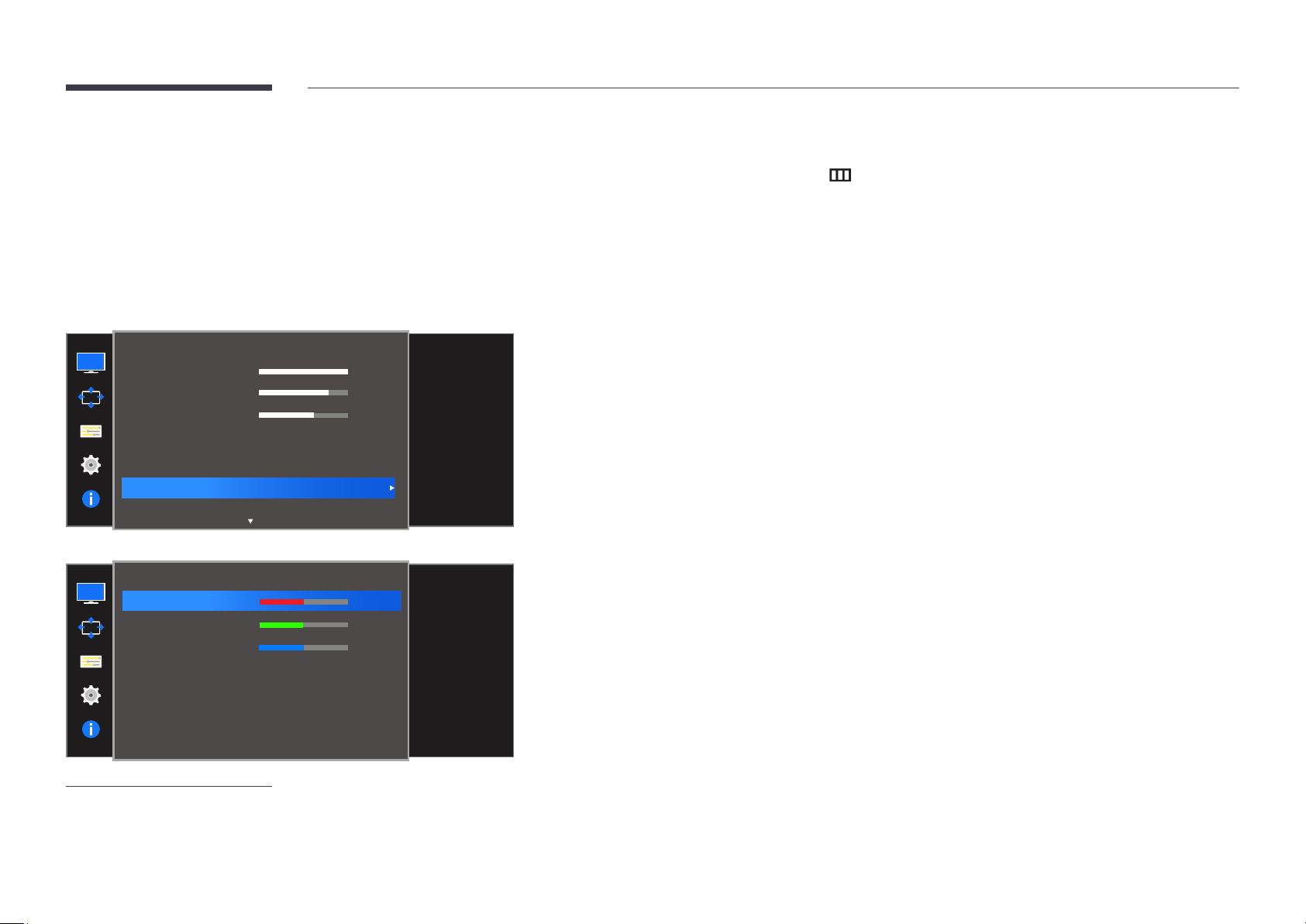

Configuring Color 36
HDMI Black Level 37
Configuring the HDMI Black Level Settings 37
Response Time 38
Configuring the Response Time 38
Installation 20
Adjusting the Product Tilt and Height 20
Anti-theft Lock 22
2
Table of contents
Screen Adjustment
Image Size 39
Changing the Image Size 39
H-Position & V-Position 41
Configuring H-Position & V-Position 41
PIP/PBP 42

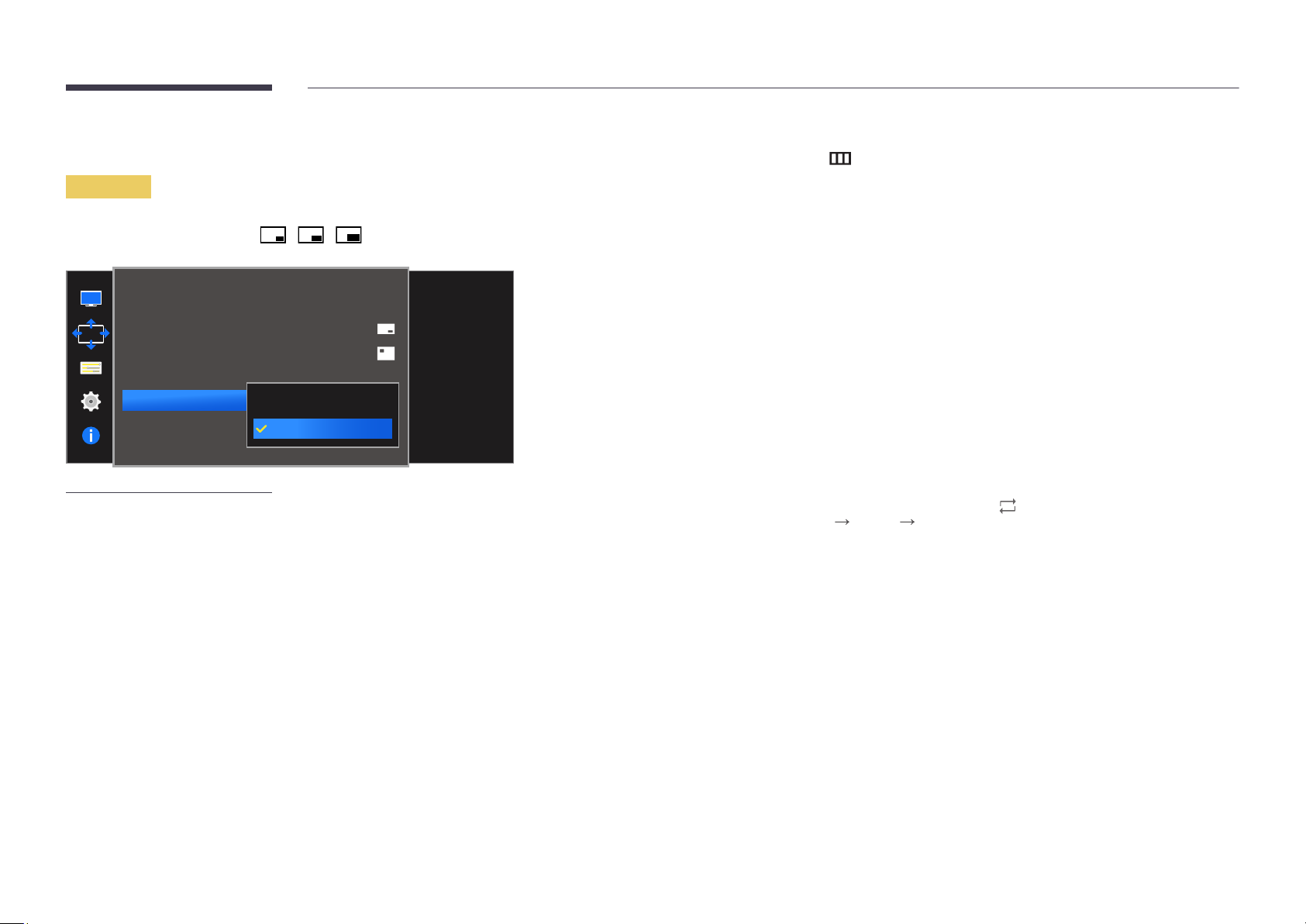

Configuring PIP/PBP Mode 43
Configuring Size 44
Configuring Position 45
Configuring Sound Source 46
Configuring Source 47
Configuring Image Size 49
Configuring Contrast 52
Coordinating OSD
Language 54
Configuring Language 54
Display Time 55
Configuring Display Time 55
Transparency 56
Changing Transparency 56
Setup and Reset
Sound 57
Configuring Volume 57
Configuring Sound Mode 58
Configuring Select Sound 59
Eco Saving 60
Configuring Eco Saving 60
USB Super Charging 61
Configuring USB Super Charging 61
PC/AV Mode 62
Configuring PC/AV Mode 62
DisplayPort Ver. 63
Configuring DisplayPort Ver. 63
Source Detection 64
Configuring Source Detection 64
Key Repeat Time 65
Configuring Key Repeat Time 65
Off Timer 66
Configuring Off Timer 66
Configuring Turn Off After 67
Power LED On 68
Configuring Power LED On 68
Reset All 69
Initializing Settings (Reset All) 69
Information Menu and Others
Information 70
Displaying Information 70
Configuring Brightness, Contrast and
Sharpness
Configuring Volume in the Initial Screen 72
Volume 72
from the Initial Screen 71
Installing the Software
Easy Setting Box 73
Installing the Software 73
Removing the Software 73
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Center 74
Testing the Product 74
Checking the Resolution and Frequency 74
Check the following. 75
Q & A 78
3
Table of contents
Specifications
General 80
PowerSaver 82
Standard Signal Mode Table 83
Appendix
Contact SAMSUNG WORLD WIDE 85
Responsibility for the Pay Service
(Cost to Customers) 95
Not a product defect 95
A Product damage caused by customer's fault 95
Others 95
Terminology 96
4
Chapter 01
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
ⓒ 2014 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Ownership of all other trademarks is attributed to their due owner.
5
Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire and
damage the product. Be sure to allow the amount of space as shown below or greater when installing
the product.
―
The exterior may differ depending on the product.
10 cm
(3.93 Inches)
10 cm (3.93 Inches)
Safety Precautions
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)
THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
Precautions for storage
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
―
Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product
(Service fee will be charged.)
This symbol indicates that high voltage is present inside.
It is dangerous to make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and maintenance has been
included with this product.
Symbols
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
6
Cleaning
!
Electricity and Safety
―
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
―
Take the following steps when cleaning.
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Power off the product and computer.
1
Disconnect the power cord from the product.
2
―
Hold the power cable by the plug and do not touch the cable with
wet hands. Otherwise, an electric shock may result.
Wipe the monitor with a clean, soft and dry cloth.
3
•
Do not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
•
Do not spray water or detergent directly on the
product.
Wet a soft and dry cloth in water and wring thoroughly to clean the
4
exterior of the product.
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
•
An electric shock or fire may result.
Do not use multiple products with a single power socket.
•
Overheated power sockets may cause a fire.
Do not touch the power plug with wet hands. Otherwise, an electric shock
may result.
Insert the power plug all the way in so it is not loose.
•
An unsecure connection may cause a fire.
!
Connect the power plug to a grounded power socket (type 1 insulated
Connect the power cord to the product when cleaning is finished.
5
Power on the product and computer.
6
!
devices only).
•
An electric shock or injury may result.
7
Do not bend or pull the power cord with force. Be careful not to leave the
power cord under a heavy object.
•
Damage to the cord may result in a fire or electric shock.
Do not place the power cord or product near heat sources.
•
A fire or electric shock may result.
!
Installation
Hold the plug when disconnecting the power cord from the power socket.
•
An electric shock or fire may result.
Warning
Clean any dust around the pins of the power plug or the power socket with
a dry cloth.
•
A fire may result.
!
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF
THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
•
A fire may result.
Caution
!
!
Do not disconnect the power cord while the product is being used.
•
The product may become damaged by an electric shock.
Only use the power cord provided with your product by Samsung. Do not
use the power cord with other products.
•
A fire or electric shock may result.
Keep the power socket where the power cord is connected unobstructed.
•
The power cord must be disconnected to cut off power to the product
when an issue occurs.
Do not install the product in poorly ventilated spaces such as a bookcase or
closet.
•
An increased internal temperature may cause a fire.
Install the product at least 10cm away from the wall to allow ventilation.
•
An increased internal temperature may cause a fire.
!
Keep the plastic packaging out of the reach of children.
•
Children may suffocate.
!
8
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.)
•
The product may fall and become damaged and/or cause an injury.
•
Using the product in an area with excess vibration may damage the
product or cause a fire.
Caution
Do not drop the product while moving.
•
Product failure or personal injury may result.
Do not install the product in a vehicle or a place exposed to dust, moisture
!
(water drips, etc.), oil, or smoke.
•
A fire or electric shock may result.
!
Do not set down the product on its front.
•
The screen may become damaged.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
•
The product lifespan may be reduced or a fire may result.
Do not install the product within the reach of young children.
•
The product may fall and injure children.
When installing the product on a cabinet or shelf, make sure that the
bottom edge of the front of the product is not protruding.
•
The product may fall and become damaged and/or cause an injury.
•
Install the product only on cabinets or shelves of the right size.
Set down the product gently.
•
Product failure or personal injury may result.
Edible oil, such as soybean oil, can damage or deform the product. Do not
install the product in a kitchen or near a kitchen counter.
!
Installing the product in an unusual place (a place exposed to a lot of fine
dust, chemical substances, extreme temperatures or a significant presence
of moisture, or a place where the product will operate continuously for an
SAMSUNG
!
extended period of time) may seriously affect its performance.
•
Be sure to consult Samsung Customer Service Center if you want to
install the product at such a place.
9
Operation
Warning
Do not leave heavy objects or items that children like (toys, sweets, etc.) on
top of the product.
•
The product or heavy objects may fall as children try to reach for the
toys or sweets resulting in a serious injury.
There is a high voltage inside the product. Never disassemble, repair or
modify the product yourself.
•
A fire or electric shock may result.
•
Contact Samsung Customer Service Center for repairs.
!
To move the product, first disconnect all the cables from it, including the
power cable.
•
Damage to the cord may result in a fire or electric shock.
!
If the product generates abnormal sounds, a burning smell or smoke,
disconnect the power cord immediately and contact Samsung Customer
Service Center.
•
An electric shock or fire may result.
!
Do not let children hang from the product or climb on top of it.
•
Children may become injured or seriously harmed.
If the product is dropped or the outer case is damaged, turn off the power
switch and disconnect the power cord. Then contact Samsung Customer
Service Center.
•
Continued use can result in a fire or electric shock.
!
!
GAS
During a lightning or thunderstorm, power off the product and remove the
power cable.
•
A fire or electric shock may result.
Do not drop objects on the product or apply impact.
•
A fire or electric shock may result.
Do not move the product by pulling the power cord or any cable.
•
Product failure, an electric shock or fire may result from a damaged
cable.
If a gas leakage is found, do not touch the product or power plug. Also,
ventilate the area immediately.
•
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
•
Product failure, an electric shock or fire may result from a damaged
cable.
10
Do not use or keep combustible spray or an inflammable substance near
the product.
•
An explosion or fire may result.
!
Ensure the vents are not blocked by tablecloths or curtains.
•
An increased internal temperature may cause a fire.
100
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects
that burn easily (paper, matches, etc) into the product (via the vent or input/
output ports, etc).
•
Be sure to power off the product and disconnect the power cord
when water or other foreign substances have entered the product.
Then contact Samsung Customer Service Center.
•
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
•
Be sure to power off the product and disconnect the power cord
when water or other foreign substances have entered the product.
Then contact Samsung Customer Service Center.
•
Product failure, an electric shock or fire may result.
Caution
!
-_-
!
!
Leaving the screen fixed on a stationary image for an extended period of
time may cause afterimage burn-in or defective pixels.
•
Activate power-saving mode or a moving-picture screen saver if you
will not be using the product for an extended period of time.
Disconnect the power cord from the power socket if you do not plan on
using the product for an extended period of time (vacation, etc).
•
Dust accumulation combined with heat can cause a fire, electric shock
or electric leakage.
Use the product at the recommended resolution and frequency.
•
Your eyesight may deteriorate.
Do not put DC power adapters together.
•
Otherwise, a fire may result.
Remove the plastic bag from the DC power adapter before you use it.
•
Otherwise, a fire may result.
Do not let water enter the DC power device or get the device wet.
•
An electric shock or fire may result.
•
Avoid using the product outdoors where it can be exposed to rain or
snow.
•
Be careful not to get the DC power adapter wet when you wash the
floor.
11
Do not put the DC power adapter near to any heating apparatus.
•
Otherwise, a fire may result.
Do not touch the screen when the product has been turned on for an
extended period of time as it will become hot.
Keep the DC power adapter in a well-ventilated area.
!
Do not hold the product upside-down or move it by holding the stand.
•
The product may fall and become damaged or cause an injury.
Looking at the screen too close for an extended period of time can
deteriorate your eyesight.
!
Do not use humidifiers or stoves around the product.
•
A fire or electric shock may result.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
•
Eye fatigue will be relieved.
!
!
Store small accessories out of the reach of children.
Exercise caution when adjusting the product angle or stand height.
•
Your hand or finger may get stuck and injured.
•
Tilting the product at an excessive angle may cause the product to fall
and an injury may result.
Do not place heavy objects on the product.
•
Product failure or personal injury may result.
When using headphones or earphones, do not turn the volume too high.
•
Having the sound too loud may damage your hearing.
!
12
Correct posture to use the product
Use the product in the correct posture as follows:
•
Straighten your back.
•
Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at
the screen. Keep your eyes directly in front of the screen.
•
Adjust the angle so light does not reflect on the screen.
•
Keep your forearms perpendicular to your upper arms and level with the back of your hands.
•
Keep your elbows at about a right angle.
•
Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your
heels attached to the floor, and your arms lower than your heart.
13
Chapter 02
Preparations
-
Contact the vendor where you
purchased the product if any
components are missing.
-
The appearance of the components may
differ from the images shown.
-
Recommend to use the HDMI cable
and DP cable which is provided by the
supplier.
-
The optimal resolution may not be
available when using a non-high speed
HDMI or HDMI-DVI cable.
-
To ensure that the screen displays
properly, a DP cable that supports 3440 x
1440 @ 60 Hz is recommended. An HDMI
cable that supports 3440 x 1440 @ 50 Hz
will also work.
-
The Mini DP to DP gender changer may
not be provided, depending on the
model.
Checking the Components
Components
―
Components may vary depending on the country.
Quick Setup Guide
Power cable (P.25)
Warranty card
(Not available in some locations)
DC power adapter (Detachable)
(P. 25)
Regulatory guide User manual
HDMI cable (P. 23) DP cable (P. 24)
USB 3.0 cable (P. 27) Mini DP to DP gender (Optional) Cleaning cloth
14
Parts
Control Panel
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
JOG Button Function Key Guide
UP
Icons Description
Multi directional button that helps navigate.
JOG Button
Function Key Guide
―
The JOG button is located on the rear left side of the product. The button can be used to move up, down, left or right, or as Enter.
Press the JOG button when the screen is turned on. The Function Key Guide will appear. To access the onscreen menu when the guide
is displayed, press the corresponding direction button again.
―
Function Key Guide may vary depending on the function or product model. Please refer to the actual product.
LEFT
RIGHT
DOWNPRESS(ENTER)
Return
15
Direct Key guide
Brightness
Volume
Features
Game Mode Off
―
The shortcut button screen (OSD menu) shown below is displayed only when the monitor screen is turned on, the
computer resolution changes, or the input source changes.
UP/DOWN: Adjust Brightness, Contrast, Sharpness.
LEFT/RIGHT: Adjust Volume.
PRESS(ENTER): Display Function Key Guide.
―
The function buttons page shows if Game Mode is enabled.
: Off
: On
16
Function Key Guide
―
To enter the main menu or to use other items, press the JOG button to display
the Function Key Guide. You can exit by pressing the JOG button again.
UP/DOWN/LEFT/RIGHT: Move to the item you want. The description for each item will appear when the focus changes.
PRESS(ENTER): The selected item will be applied.
Icons Description
Selects to change the input signal by moving the JOG button in the Function Key
Guide screen. A message will appear on the top left corner of the screen if the input signal
has been changed.
Selects by moving the JOG button in the function key guide screen.
The OSD (On Screen Display) of your Monitor’s feature appears.
OSD control lock: Maintain the current settings, or lock the OSD control to prevent
unintended changes to settings. Enable/Disable: To lock/unlock the OSD control, press the
LEFT button for 10 seconds when the main menu displayed.
―
If the OSD control is locked, Brightness and Contrast can be adjusted. PIP/PBP is
available. Information can be viewed.
Selects by moving the JOG button in the function key guide screen.

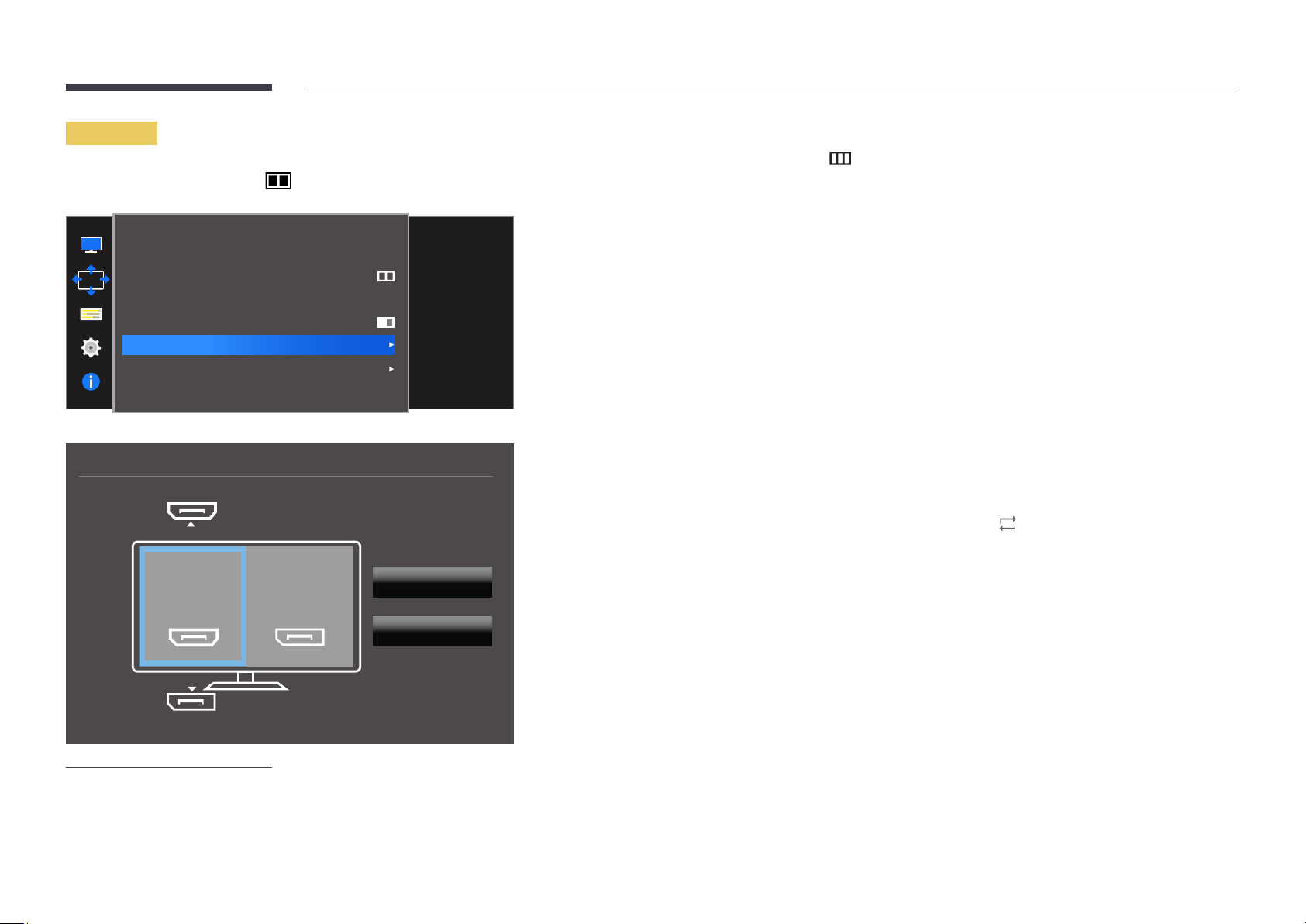

Press the button when configuring settings for the PIP/PBP function is required.
Return
Selects to turn the Monitor off by moving the JOG button in the function key guide
screen.
―
Actual models because of functional variation, Function key guide options will be different. Please run the corresponding
function based on the actual icon and description.
17
―
When the monitor displays nothing (i.e. Power saving mode or Non-signal mode), 2 direct keys for control source and power
could be used as below.
JOG Button Power saving/Non-signal mode
UP
Down
PRESS(ENTER) for 2 seconds
―
When the monitor displays the Main menu the JOG Button could be used as below.
Source Change
Power Off
JOG Button Action
UP/DOWN
LEFT
RIGHT
PRESS(ENTER)
Move the option
Exit the Main menu.
Close Sublist without saving value.
Value decreases in the slider.
Move to next depth.
Value increases in the slider.
Move to next depth.
Save the value and close Sublist.
18
Reverse Side
Port Description
―
The color and shape of parts may differ from what is shown. Specifications are
subject to change without notice to improve quality.
Connects to the DC power adapter.
Connects to a source device using an HDMI cable or HDMI-DVI cable.
Connects to a PC using a DP cable.
Connects to a PC using a USB cable.
―
This port can only connect to a PC.
Connect to an audio output device such as headphones.
―
The sound could only be heard when using the HDMI to HDMI cable or DP cable.
Connect to a USB device. Compatible with a USB cable version 3.0 or lower.
―
Source devices can be charged using these USB ports.
―
To use the USB Super Charging feature, go to Settings
set the USB port that will be used for fast charging to On.
The USB data transfer feature is not available when the USB Super Charging feature
is set to On.
―
High-speed charging is possible using the
charge devices faster than typical USB ports. The speed depends on the connected
devices.
and ports only. These ports
USB Super Charging and
19
Installation
Adjusting the Product Tilt and Height
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
-2˚(±2.0˚) ~ 20˚(±2.0˚)
100 mm ± 2.0 mm
•
The monitor tilt and height can be adjusted.
•
To avoid damage to the product when adjusting the tilt, push or pull the top area of the product at the center while holding the top of the stand.
20
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Caution
Take extra care to ensure your hand does not get stuck in the height adjustment area. This could injure your hand.
Do not put the hand below the stand body.
Do not hold the product upside down only by the stand.
21
Anti-theft Lock
―
An anti-theft lock allows you to use the product securely even in public places.
―
The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.
To lock an anti-theft locking device:
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
1
Put one end of the cable through the loop on the other end.
2
Insert the locking device into the anti-theft lock slot at the back of the product.
3
Lock the locking device.
4
-
An anti-theft locking device can be purchased separately.
-
Refer to the user guide provided with your anti-theft locking device for details.
-
Anti-theft locking devices can be purchased at electronics retailers or online.
22
Chapter 03
Connecting and Using a Source Device
Before Connecting
Check the following before you connect this product with other devices.
Pre-connection Checkpoints
―
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to
device.
―
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
―
Check the types of ports at the back of the product you want to connect.
Connecting and Using a PC
Select a connection method suitable for your PC.
―
Connecting parts may differ in different products.
Connection Using the HDMI Cable
―
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
HDMI IN 1, HDMI IN 2
Connect the HDMI IN 1 or HDMI IN 2 port on the back of the product to the HDMI port on the PC using an HDMI cable.
1
Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC.
2
Change the input source to HDMI 1 or HDMI 2 controlling the JOG button UP/DOWN, when input source is not set.
3
―
Provided ports may vary depending on the product.
―
To display 3440 x 1440 @ 50 Hz, use an HDMI cable that supports 3440 x 1440 @ 50 Hz. Make sure that the graphics card of
the HDMI source supports 3440 x 1440 @ 50 Hz.
23
Connection Using the DP Cable
Connecting to Headphones or Speakers
―
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
DP IN
Connect the DP cable to the DP IN port on the back of the product and the DP port on the PC.
1
Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
2
on the PC.
Change the input source to DisplayPort controlling the JOG button UP/DOWN, when input
3
source is not set.
―
Provided ports may vary depending on the product.
―
To display 3440 x 1440 @ 60 Hz, use a DP cable that supports 3440 x 1440 @ 60 Hz. Make sure that the
graphics card of the DP source supports 3440 x 1440 @ 60 Hz.
―
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
AUDIO OUT
Connect an audio output device such as headphones or speakers to AUDIO OUT on the product.
1
―
The sound could only be heard when using the HDMI to HDMI cable or DP cable.
24
Connecting the Power
Power connection using detachable DC power adapter
1
2
3
Connect the power cable to the DC power adapter. Then, connect the DC power adapter to the DC 22V port on the back of the product.
1
Next, connect the power cable to the power outlet.
2
Press the JOG button on the back of the monitor to turn it on.
3
―
The input voltage is switched automatically.
25
Tidying Up the Connected Cables
1
2
3
To remove the COVER-CABLE, hold and pull the COVER-CABLE
with your thumb and index finger in the arrow direction while
holding the stand with the other hand.
Insert and fix the cables in the slot.
Hold the COVER-CABLE and fix the cables into the grooves on
the STAND-REAR.
4
5
Hold the bottom of the stand neck securely with your left
hand and use the thumb of your right hand to slide up the
COVER-CABLE to fix it in place.
Installation is finished.
26
Connecting the Product to a PC as a USB HUB
Connecting a PC to the Product
―
The product can function as a HUB by connecting to a PC via a USB cable. You can connect a source device directly to the product and control the device from the
product, without having to connect the device to the PC.
To use the product as a USB hub, connect the product to a PC using a USB cable.
Connect the USB cable to on the back of the product and USB on the PC.
―
A USB 2.0 cable can be used to connect the product to a PC. However, to take full advantage of the USB 3.0 function, connect a USB 3.0 cable between the PC and the
product. Ensure the PC supports USB 3.0.
27
Utilizing the Product as a USB HUB
Using the product as a hub, connect and use various source devices with the product at the same time.
A PC cannot connect to multiple source devices at the same time as it has a limited number of input/output ports available. The HUB feature on the product will improve
your work efficiency by allowing you to connect multiple source devices to the USB ports on the product at the same time without connecting them to a PC.
If multiple source devices are connected to the PC, the many cables around the PC may look messy. Connecting the devices directly to the product will resolve such
inconvenience.
Connect a mobile device such as an MP3 player or smartphone to the product when connected to a PC. This allows you to control the device from the PC or charge the
device battery.
―
To detect and start a source device faster, connect the device to the USB 3.0 port on the product.
―
An external mass-storage HDD requires an external power supply. Be sure to connect it to a power source.
―
High-speed charging is possible using the
devices.
―
Battery charging is possible in power-saving mode. However, it is not possible when the product is powered off.
―
To charge a battery, make sure that the USB upstream port on the product is connected to a PC via a USB cable.
―
Battery charging is not possible if the power cable is disconnected from the power socket.
―
Mobile devices should be purchased separately.
and ports only. These ports charge devices faster than typical USB ports. The speed depends on the connected
28
Driver Installation
―
You can set the optimum resolution and frequency for this product by installing the corresponding
drivers.
―
An installation driver is contained on the CD supplied with the product.
―
If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and download
the file.
Insert the user manual CD provided with the product into the CD-ROM drive.
1
Click "Windows Driver".
2
Follow the instructions given on the screen to proceed with installation.
3
Select your product model from the list of models.
4
Setting Optimum Resolution

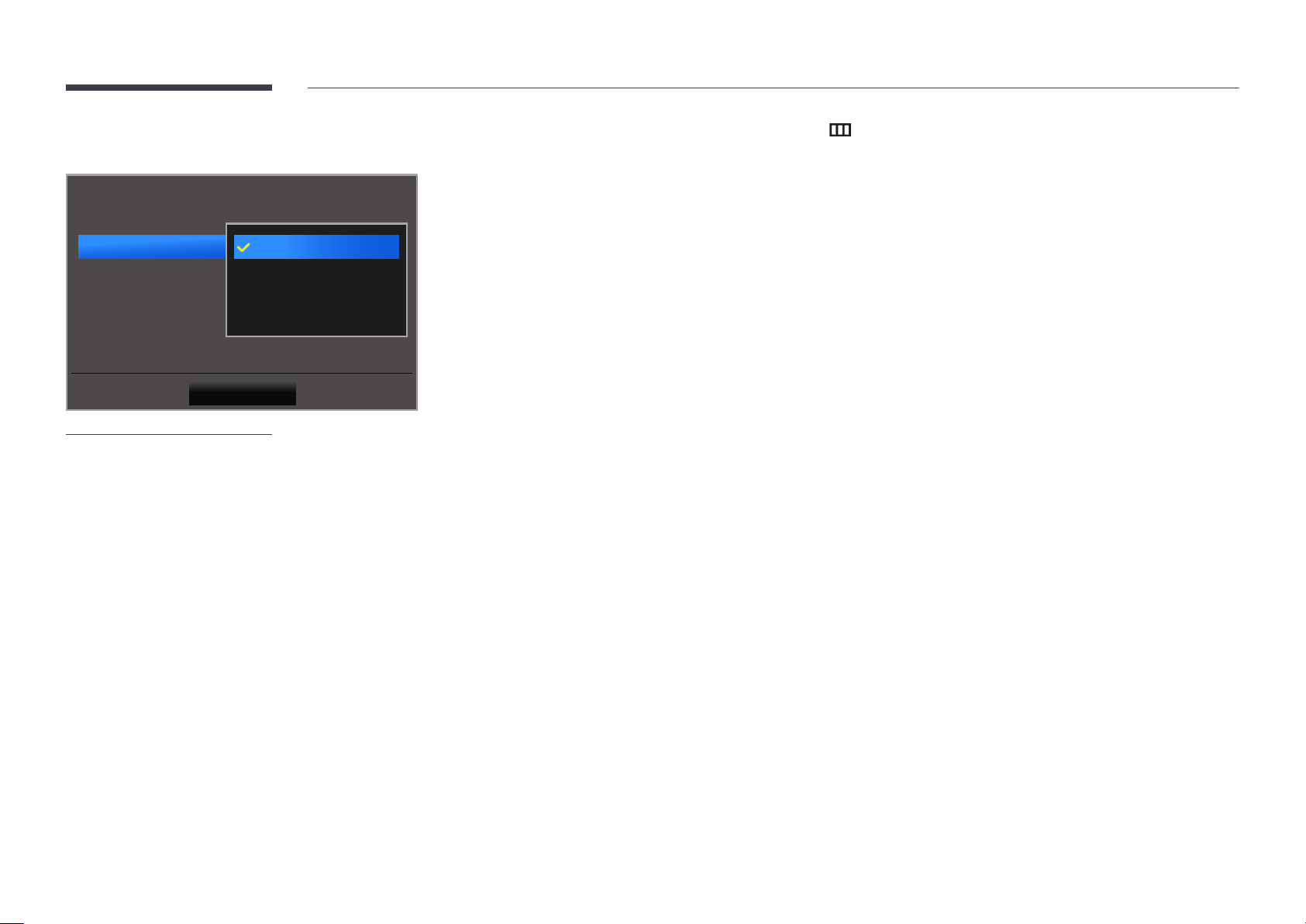

An information message about setting optimum resolution will appear if you power on the product for
the first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
Setup Guide
The optimal resolution for this monitor is as follows:
****x**** **Hz
Follow the above settings to set the resolution.
English
Return
Select a language by moving the JOG button LEFT/RIGHT. Next, press the JOG button.
1
Go to Display Properties and check that the resolution and refresh rate are appropriate.
5
Refer to your Windows OS manual for further details.
To hide the information message, press the JOG button.
2
―
If the optimum resolution is not selected, the message will appear up to three times for a specified
time even when the product is turned off and on again.
―
The optimum resolution can also be selected in Control Panel on your PC.
29
Chapter 04
SAMSUNG
MAGIC
Screen Setup
Configure the screen settings such as brightness.
A detailed description of each function is provided. Refer to your product for details.

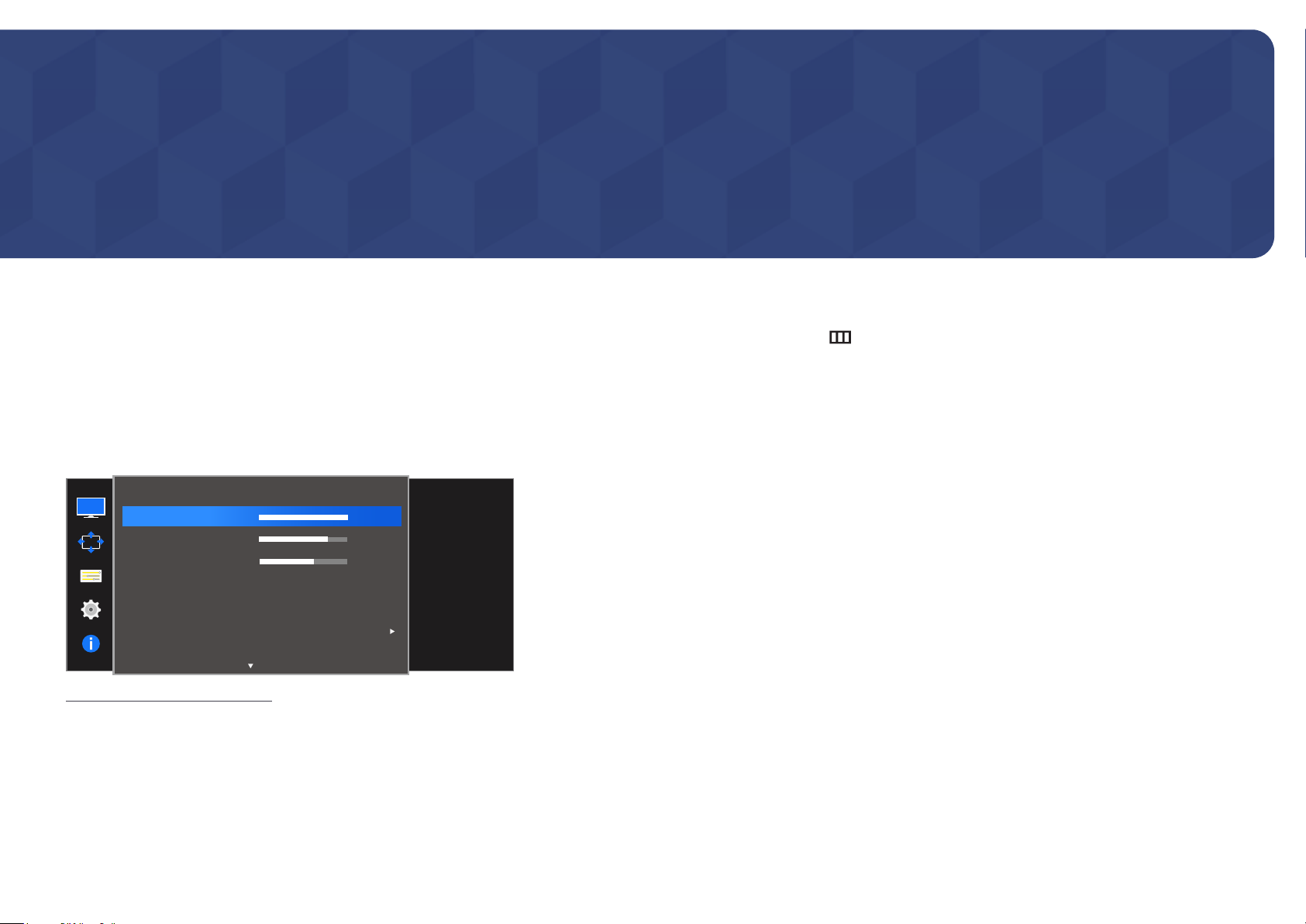

Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
―
This menu is not available when
mode.
―
This menu is not available when Eco Saving is set .
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
Bright
MAGIC
Color
HDMI Black Level
-
The displayed image may differ depending on the model.
Bright is set to Dynamic Contrast
Adjust the
brightness level.
100
Values closer to 100
mean a brighter
75
screen.
60
O
Custom
Low
Conguring Brightness
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Brightness controlling the JOG button UP/DOWN and press the JOG button.
3
Adjust the Brightness controlling the JOG button LEFT/RIGHT.
4
The selected option will be applied.
5
30

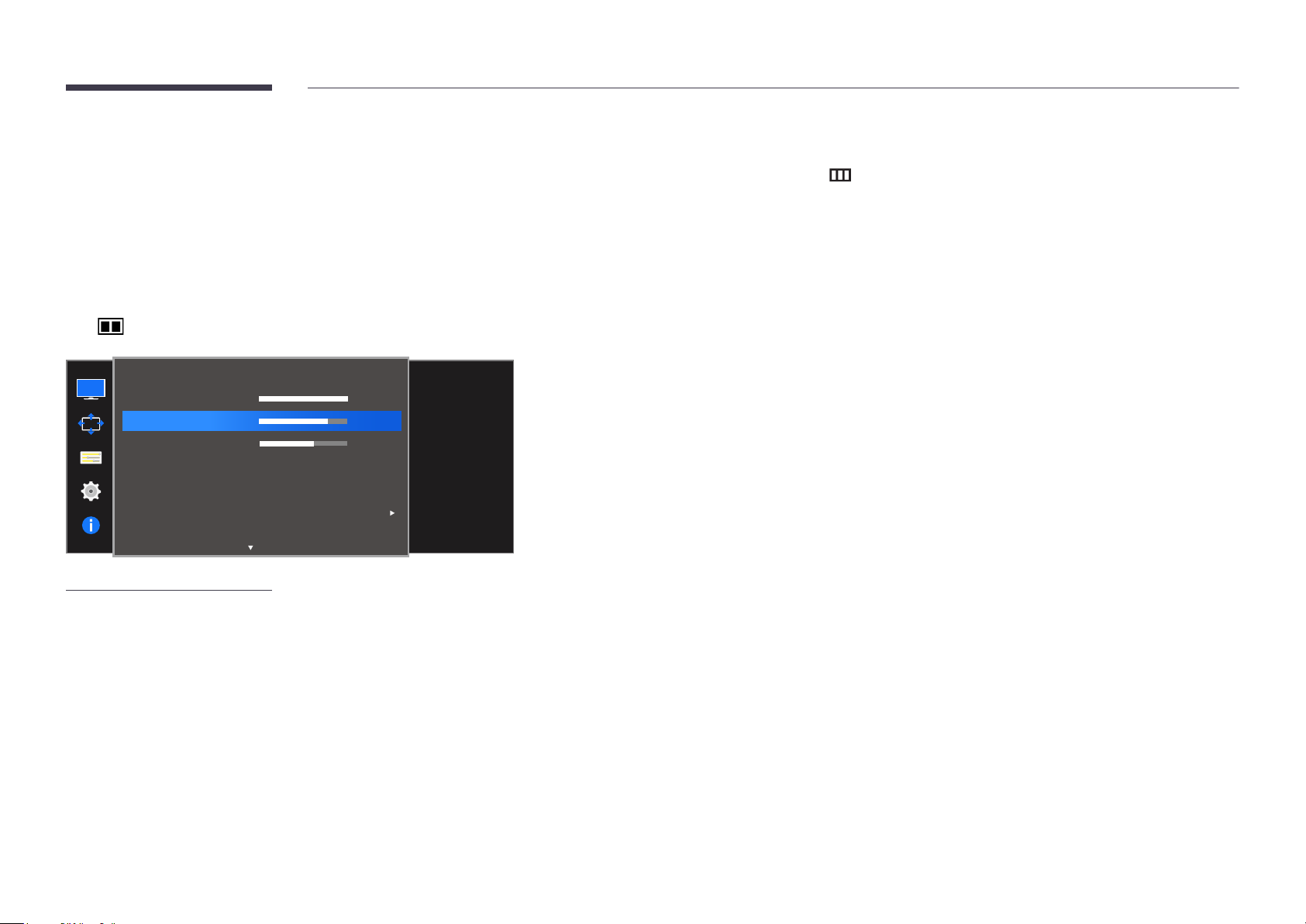

Contrast
SAMSUNG
MAGIC
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
―
This option is not available when
Contrast mode.
―
This menu is not available when Game Mode is enabled.
―
This menu is not available when PIP/PBP Mode is set to On and the Size is set
(PBP Mode).
to
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
Bright
MAGIC
Color
HDMI Black Level
Bright is in Cinema or Dynamic
Adjust the contrast
level. Values closer
100
to 100 mean a
bigger light/dark
75
contrast.
60
O
Custom
Low
Conguring Contrast
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Contrast controlling the JOG button UP/DOWN and press the JOG button.
3
Adjust the Contrast controlling the JOG button LEFT/RIGHT.
4
The selected option will be applied.
5
-
The displayed image may differ depending on the model.
31
Sharpness
SAMSUNG
MAGIC
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
―
This option is not available when
Contrast mode.
―
This menu is not available when Game Mode is enabled.
―
Not available when PIP/PBP Mode is set to On.
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
Bright
MAGIC
Color
HDMI Black Level
-
The displayed image may differ depending on the model.
Bright is in Cinema or Dynamic
100
75
60
O
Custom
Low
Adjust the
sharpness of the
picture. Values
closer to 100 mean
a sharper image.
Conguring Sharpness
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Sharpness controlling the JOG button UP/DOWN and press the JOG button.
3
Adjust the Sharpness controlling the JOG button LEFT/RIGHT.
4
The selected option will be applied.
5
32
Game Mode
Configure the product screen settings for game mode.
Use this feature when playing games on a PC or when a game console such as
PlayStation™ or Xbox™ is connected.
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
Bright
MAGIC
Color
HDMI Black Level
-
The displayed image may differ depending on the model.
O
On
Always On
100
75
Optimizes image
settings for playing
games.
Conguring Game Mode
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Game Mode controlling the JOG button UP/DOWN and press the JOG button.
3
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
―
When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off even if it is set to
On.
―
If you want to keep Game Mode enabled all the time, select Always On.
33
SAMSUNG MAGIC Bright
MAGIC
This menu provides an optimum picture quality suitable for the environment
where the product will be used.
―
This menu is not available when Eco Saving is enabled.
―
This menu is not available when Game Mode is enabled.
―
Not available when PIP/PBP Mode is set to On.
You can customize the brightness to suit your preferences.
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
Bright
MAGIC
Color
HDMI Black Level
-
The displayed image may differ depending on the model.
Custom
Standard
Cinema
Dynamic Contrast
100
75
Set to an optimum
picture quality
suitable for
the working
environment.
Conguring SAMSUNG MAGIC Bright
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
2
Move to
3
•
Custom: Customize the contrast and brightness as required.
•
Standard: Obtain a picture quality suitable for editing documents or using Internet.
•
Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.
•
Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
SAMSUNG
Bright controlling the JOG button UP/DOWN and press the JOG button.
34
MAGIC
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
Bright
MAGIC
Color
HDMI Black Level
-
The displayed image may differ depending on the model.
Dynamic
Standard
Movie
Custom
100
75
Set to an optimum
picture quality
suitable for
the working
environment.
When the external input is connected through HDMI/DP and PC/AV Mode is set to AV ,
SAMSUNG
Bright has four automatic picture
settings (Dynamic, Standard, Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard,
Movie or Custom. You can select Custom which automatically recalls your personalized picture settings.
Dynamic: Select this mode to view a sharper image than in Standard mode.
•
Standard: Select this mode when the surroundings are bright. This also provides a sharp image.
•
Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.
•
Custom: Select this mode when you want to adjust the image according to your preferences.
•
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
35
Color
MAGIC
A detailed description of each function is provided. Refer to your product for
details.
100
75
60
O
Low
50
50
50
SAMSUNG
Bright is set
Congure color
settings.
Adjust the red
saturation level.
Values closer to
100 mean greater
intensity for the
color.
―
Adjust the tint of the screen. This menu is not available when
to Cinema or Dynamic Contrast mode.
―
This menu is not available when Game Mode is enabled.
―
Not available when PIP/PBP Mode is set to On.
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
Bright
MAGIC
Color
HDMI Black Level
Color
Red
Green
Blue
Color Tone
Gamma
Custom
Normal
Mode1
Conguring Color
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Color controlling the JOG button UP/DOWN and press the JOG button.
3
•
Red: Adjust the red saturation level. Values closer to 100 mean greater intensity for the color.
•
Green: Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.
•
Blue: Adjust the blue saturation level. Values closer to 100 mean greater intensity for the color.
•
Color Tone: Select a color tone that best suits your viewing needs.
-
Cool 2: Set the color temperature to be cooler than Cool 1.
-
Cool 1: Set the color temperature to be cooler than Normal mode.
-
Normal: Display the standard color tone.
-
Warm 1: Set the color temperature to be warmer than Normal mode.
-
Warm 2: Set the color temperature to be warmer than Warm 1.
-
Custom: Customize the color tone.
―
When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, Color Tone has four color
temperature settings (Cool, Normal, Warm and Custom).
•
Gamma: Adjust the middle level of luminance.
-
Mode1 / Mode2 / Mode3
Move to the desired option by controlling the JOG button and then press the JOG button.
4
The selected option will be applied.
5
-
The displayed image may differ depending on the model.
36
HDMI Black Level
If a DVD player or set-top box is connected to the product via HDMI, image quality
degradation (contrast/color degradation, black level, etc.) may occur, depending
on the connected source device. In such case, HDMI Black Level can be used to
adjust the image quality.
If this is the case, correct the degraded picture quality using HDMI Black Level.
―
This function is only available in HDMI 1 or HDMI 2 mode.
―
Not available when PIP/PBP Mode is set to On.
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
Bright
MAGIC
Color
HDMI Black Level
-
The displayed image may differ depending on the model.
Normal
Low
Optimize HDMI
picture brightness
100
and contrast by
adjusting the black
75
level of the video
60
signal.
O

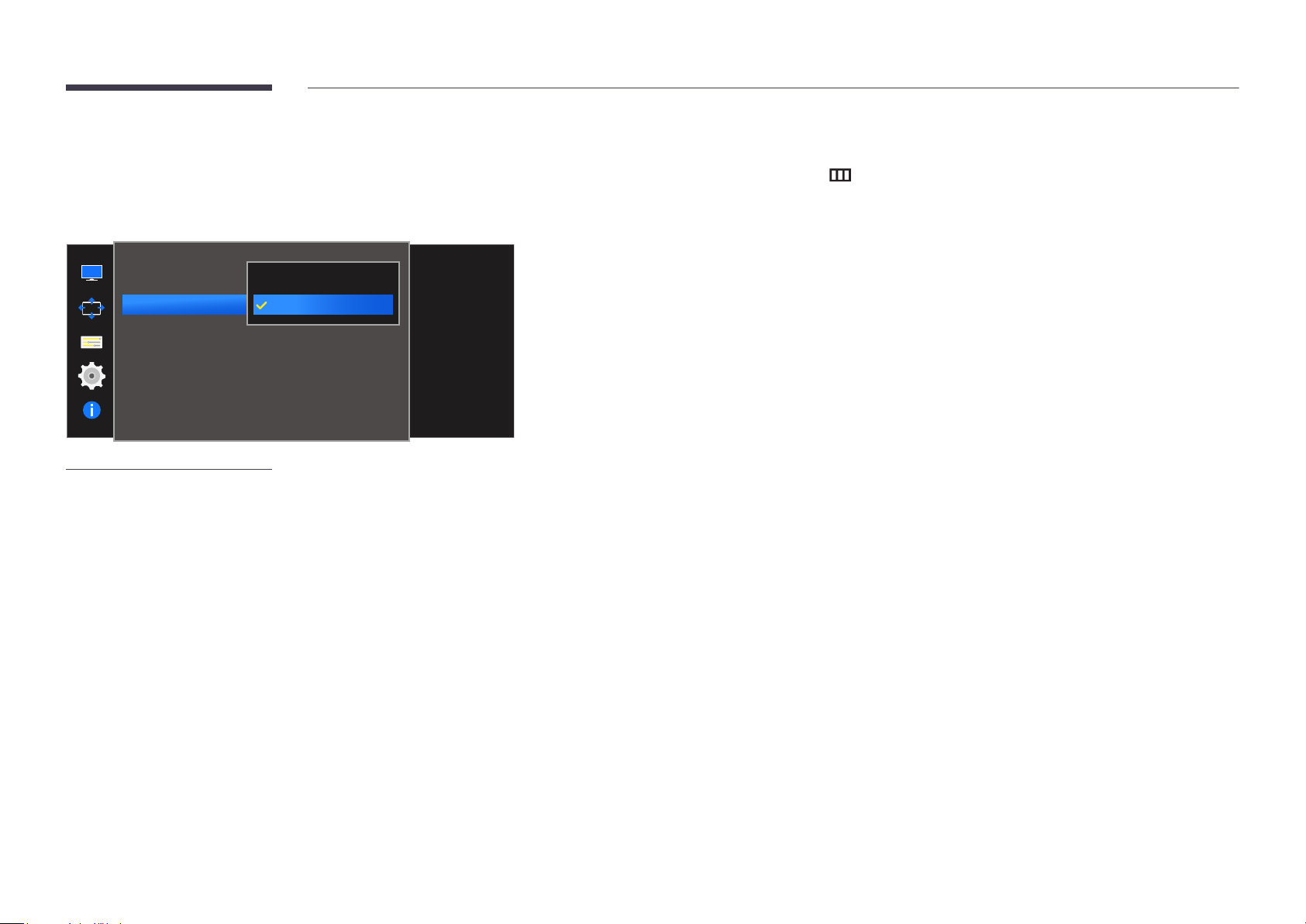

Conguring the HDMI Black Level Settings
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
2
Move to HDMI Black Level controlling the JOG button UP/DOWN and press the JOG button.
3
•
Normal: Select this mode when there is no contrast ratio degradation.
•
Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
―
HDMI Black Level may not be compatible with some source devices.
―
The HDMI Black Level feature is only activated at a certain AV resolution, such as 720P and 1080P.
37
Response Time
Accelerate the panel response rate to make video appear more vivid and natural.
―
It is best to set Response Time to Standard or Faster when you are not
viewing a movie.
―
This menu is not available when PIP/PBP Mode is set to On and the Size is set
/ / (PIP Mode).
to
Response Time
-
The displayed image may differ depending on the model.
Standard
Faster
Fastest
Accelerate the
panel response
rate to make video
appear more vivid
and natural.
Conguring the Response Time
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Response Time controlling the JOG button UP/DOWN and press the JOG button.
3
•
Standard / Faster / Fastest
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
38
Chapter 05
Screen Adjustment
Image Size
Change the picture size.
―
This menu is not available when PIP/PBP Mode is set to On and the Size is set
(PBP Mode).
to
In PC mode
Screen
Image Size
H-Position
V-Position
PIP/PBP
-
The displayed image may differ depending on the model.
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed
on screen.

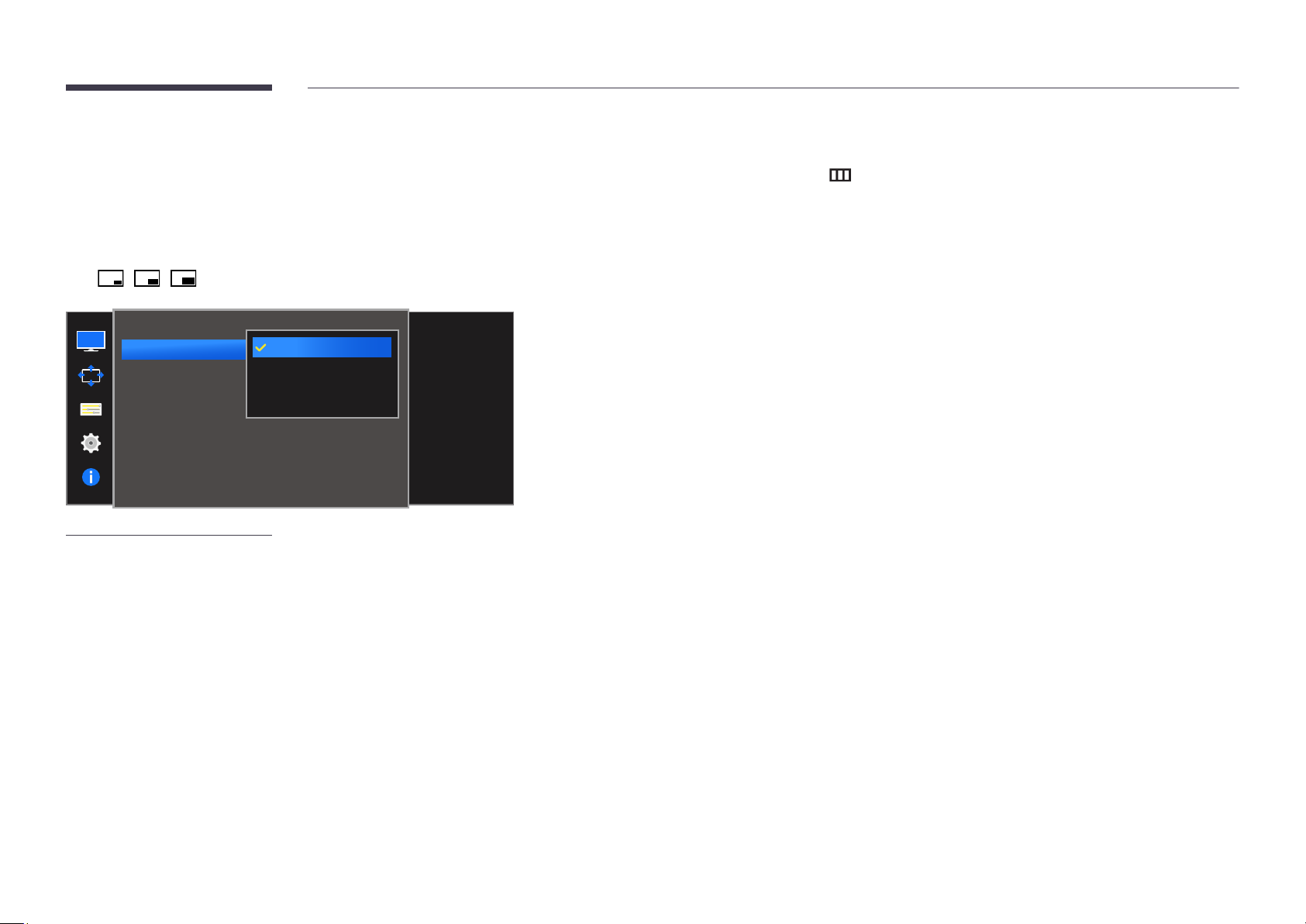

Changing the Image Size
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Image Size controlling the JOG button UP/DOWN and press the JOG button.
3
In PC mode
•
Auto: Display the picture according to the aspect ratio of the input source.
•
Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
39
In AV mode
Screen
Image Size
H-Position
V-Position
PIP/PBP
-
The displayed image may differ depending on the model.
4:3
16:9
21:9
Screen Fit
Choose the size and
aspect ratio of the
picture displayed
on screen.
In AV mode
•
4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
•
16:9: Display the picture with an aspect ratio of 16:9.
•
21:9: Display the picture with an aspect ratio of 21:9.
•
Screen Fit: Display the picture with the original aspect ratio without cutting off.
―
The function may not be supported depending on the ports provided with the product.
―
Changing the screen size is available when the following conditions are satisfied.
―
A digital output device is connected using the HDMI/DP cable.
―
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of
these signals.).
―
This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to AV.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
40

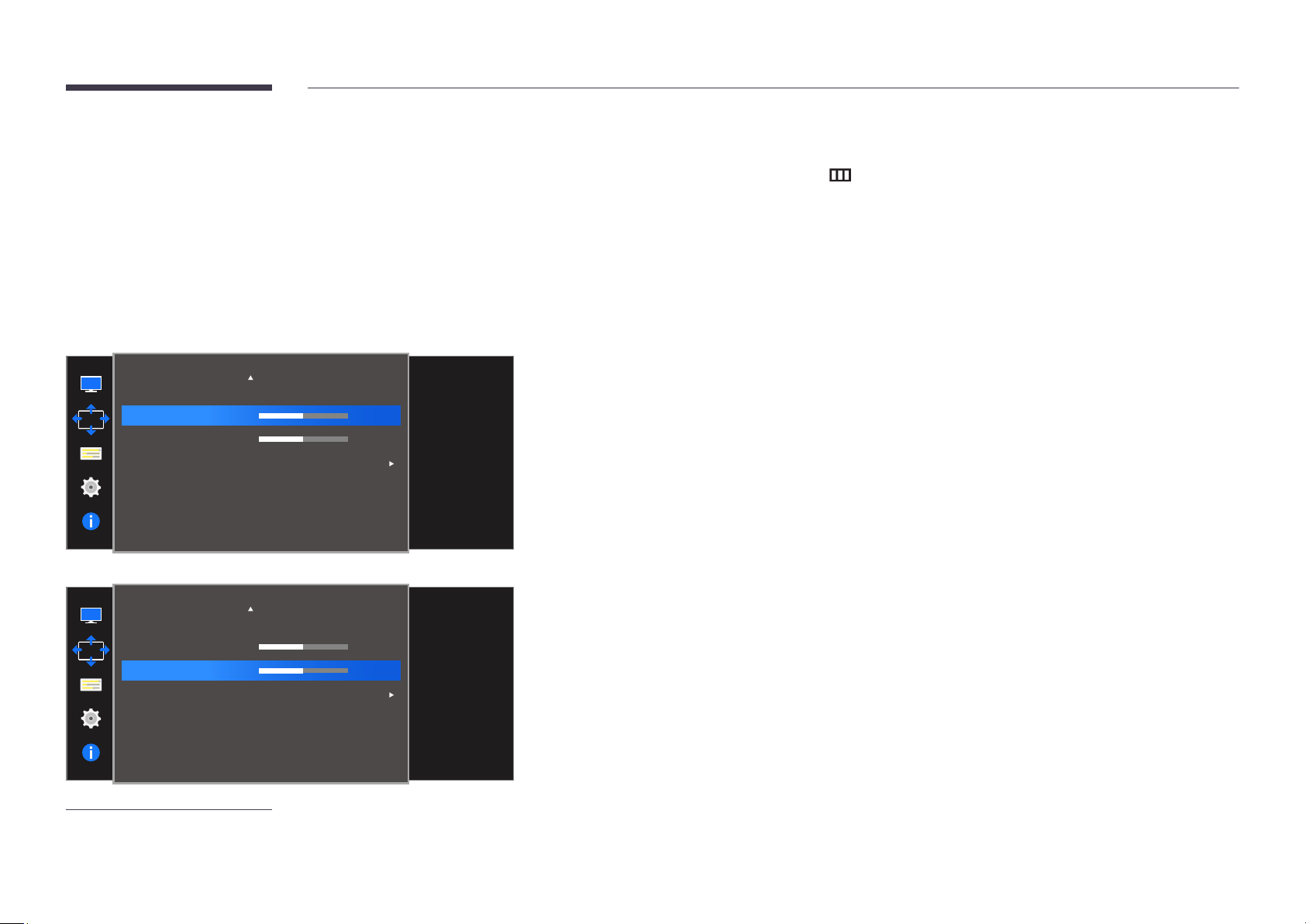

H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
―
This menu is only available when Image Size is set to Screen Fit in AV Mode.
When a 480P or 576P or 720P or 1080P signal is input in AV mode and the
monitor can display normally, select Screen Fit to adjust horizontal position in
0-6 levels.
―
Not available when PIP/PBP Mode is set to On.
Screen
Image Size
H-Position
V-Position
PIP/PBP
Screen Fit
Move the image
displayed on the
screen to the left or
right.
3
3
Conguring H-Position & V-Position
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the H-Position or V-Position controlling the JOG button UP/DOWN and press the JOG button.
3
Adjust the H-Position or V-Position controlling the JOG button LEFT/RIGHT and press the JOG button.
4
The selected option will be applied.
5
Screen
Image Size
H-Position
V-Position
PIP/PBP
-
The displayed image may differ depending on the model.
Screen Fit
Move the image
displayed on the
screen up or down.
3
3
41
PIP/PBP
The PIP (Picture in Picture) function separates the screen into two parts. One
source device is displayed on the main screen at the same time the another
source device is displayed in inset windows.
The PBP (Picture by Picture) function separates the screen in half displaying output
from two different source devices simultaneously on the left and right sides of the
screen.
―
Compatible with Windows7 and Windows8.
―
The PIP/PBP function may not be available depending on the specifications
of the graphics card used. If the screen is blank in PIP/PBP mode when the
optimum resolution is selected, go to Control Panel
Resolution and click Detect on the PC. (Instructions are based on Windows
7.) If the screen is blank when the resolution is set to the optimum resolution,
change the resolution to 1280 x 1024.
Display Screen
―
To maximize the picture quality, it is recommended to use a graphics card that supports WQHD+ (3440 x 1440) resolution.
―
When the PIP/PBP function is enabled, the resolution will not be able to automatically switch to the optimum resolution
due to a compatibility issue between the graphics card and the Windows system.
Set PIP/PBP Mode to Off or manually change the resolution to the optimum resolution using the Windows interface.
42

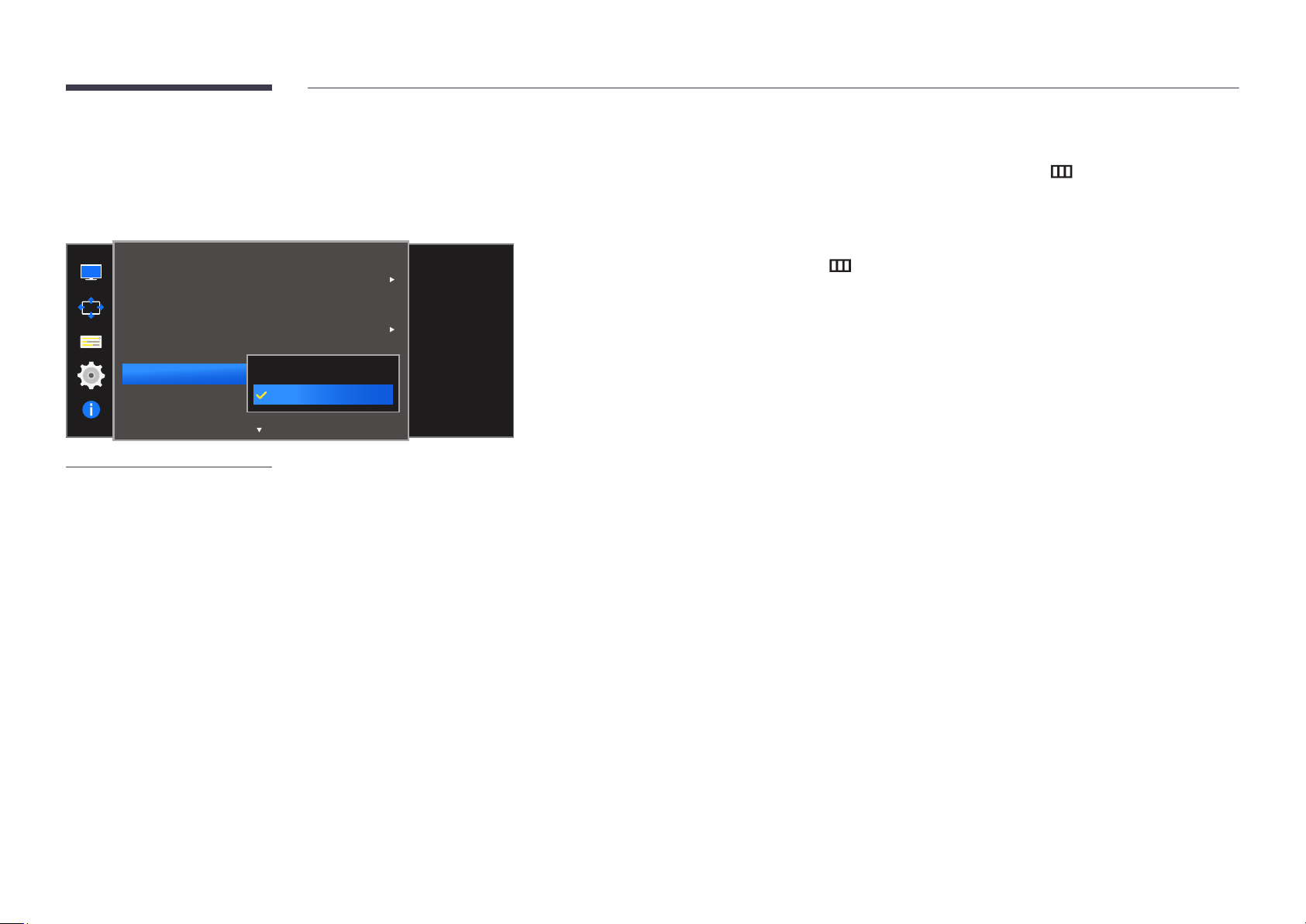

Conguring PIP/PBP Mode
Enable or disable the PIP/PBP Mode function.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Screen
Image Size
H-Position
V-Position
PIP/PBP
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
Congure the
O
On
Screen Fit
settings for using
Picture in Picture/
3
Picture by Picture.
3
Turn PIP/PBP Mode
on or o.
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
Move to the PIP/PBP Mode controlling the JOG button UP/DOWN and press the JOG button.
4
•
Off / On
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
-
The displayed image may differ depending on the model.
43

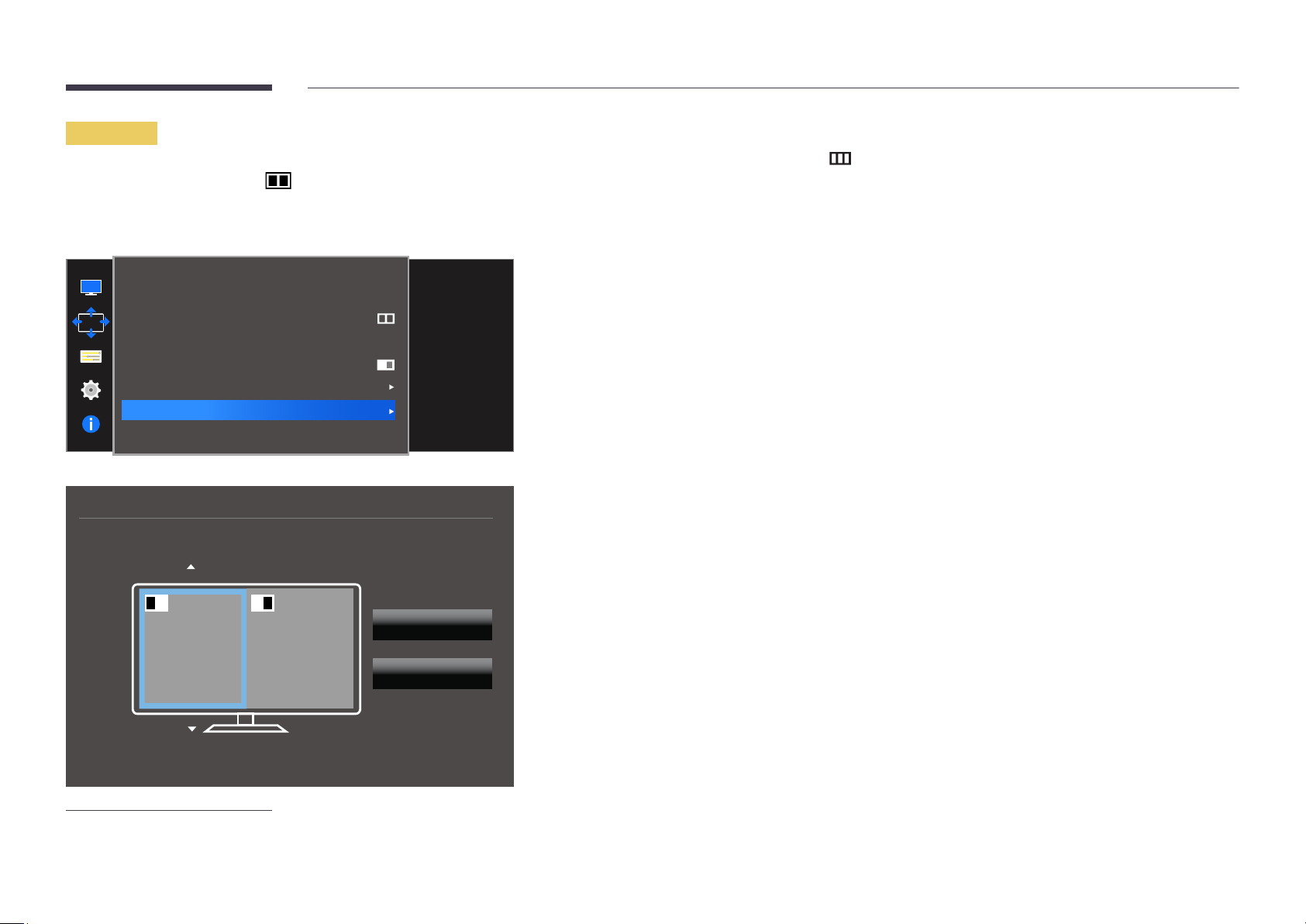

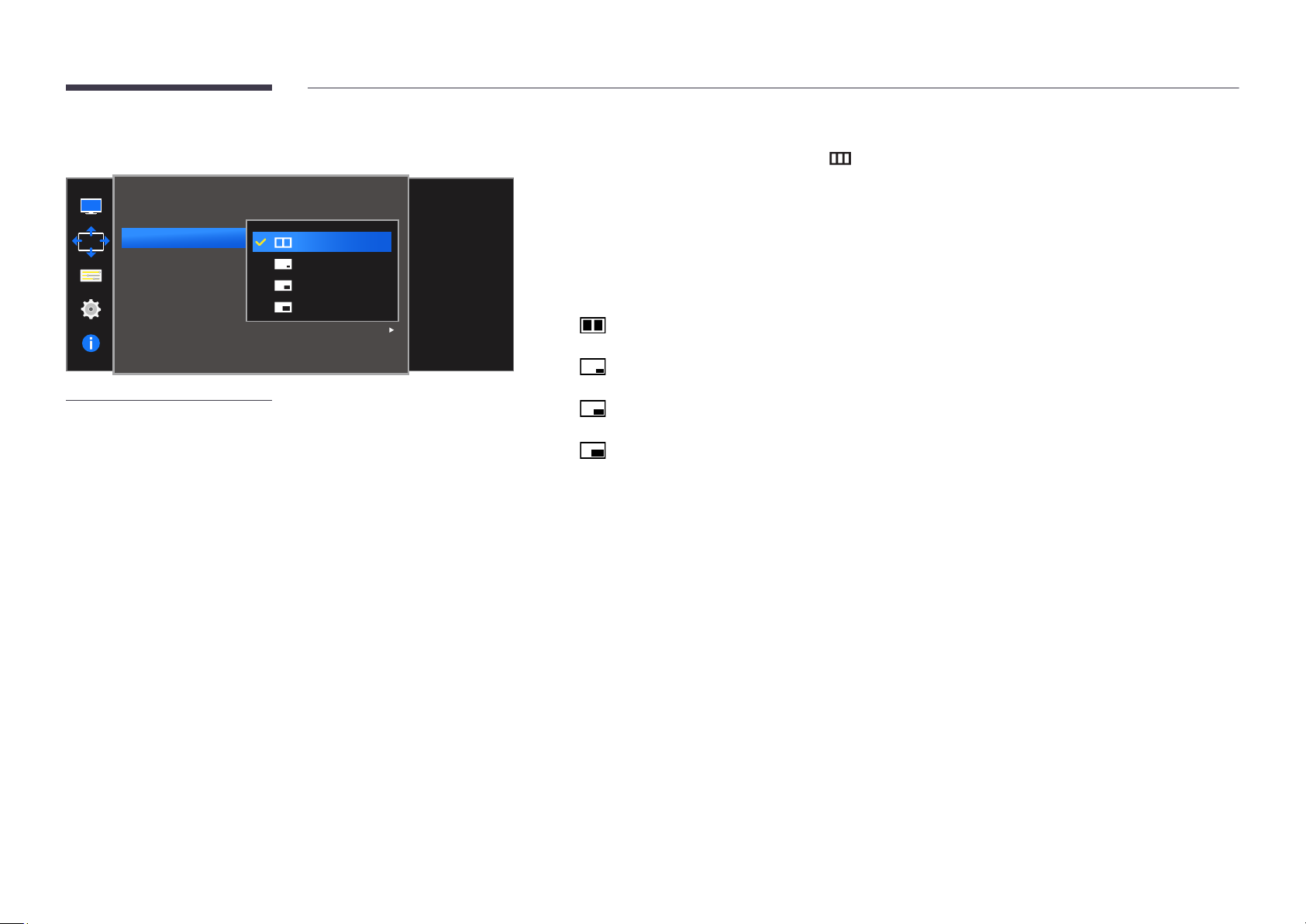

Conguring Size
Select the size and aspect ratio of the sub-screen.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
-
The displayed image may differ depending on the model.
75/75
Select the size and
aspect ratio of the
sub-screen.
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
Move to the Size controlling the JOG button UP/DOWN and press the JOG button.
4
•
: Select the icon image if you want to use PBP mode where the optimum resolution for the left and right sides of the
screen is 1720 x 1440 (width x height).
•
: Select the icon image if you want to use PIP mode where the optimum resolution for the sub-screen is 720 x 480
(width x height).
•
: Select the icon image if you want to use PIP mode where the optimum resolution of the sub-screen is 1280 x 720
(width x height).
•
: Select the icon image if you want to use PIP mode where the optimum resolution of the sub-screen is 1720 x 720
(width x height).
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
44

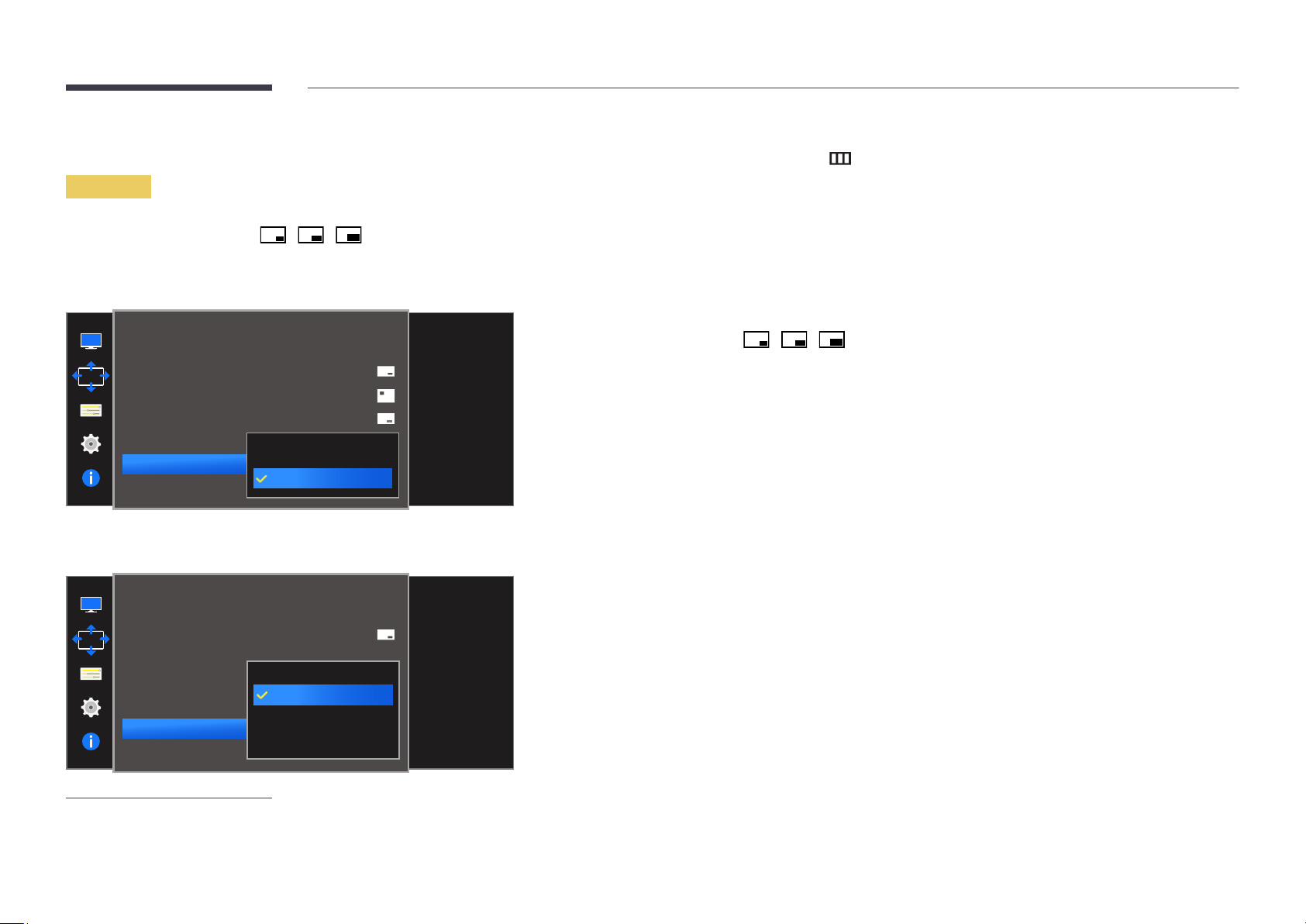

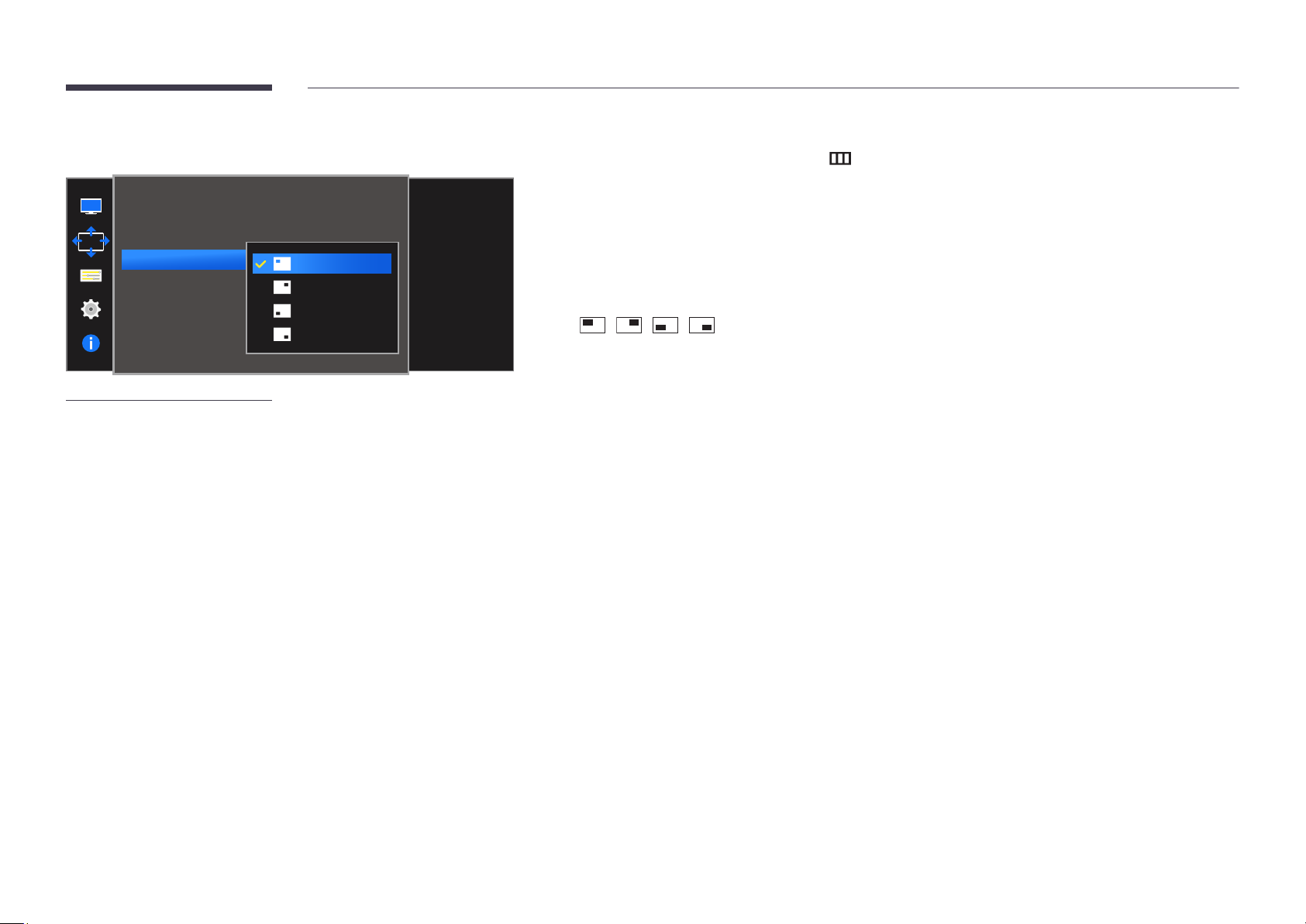

Conguring Position
Select the position of the sub-screen from the available options.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
-
The displayed image may differ depending on the model.
Select the position
of the sub-screen
On
from the available
options.
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
Move to the Position controlling the JOG button UP/DOWN and press the JOG button.
4
•
/ / /
―
Not available when PBP is selected.
―
The screen may flicker if the input signal is unstable.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
45

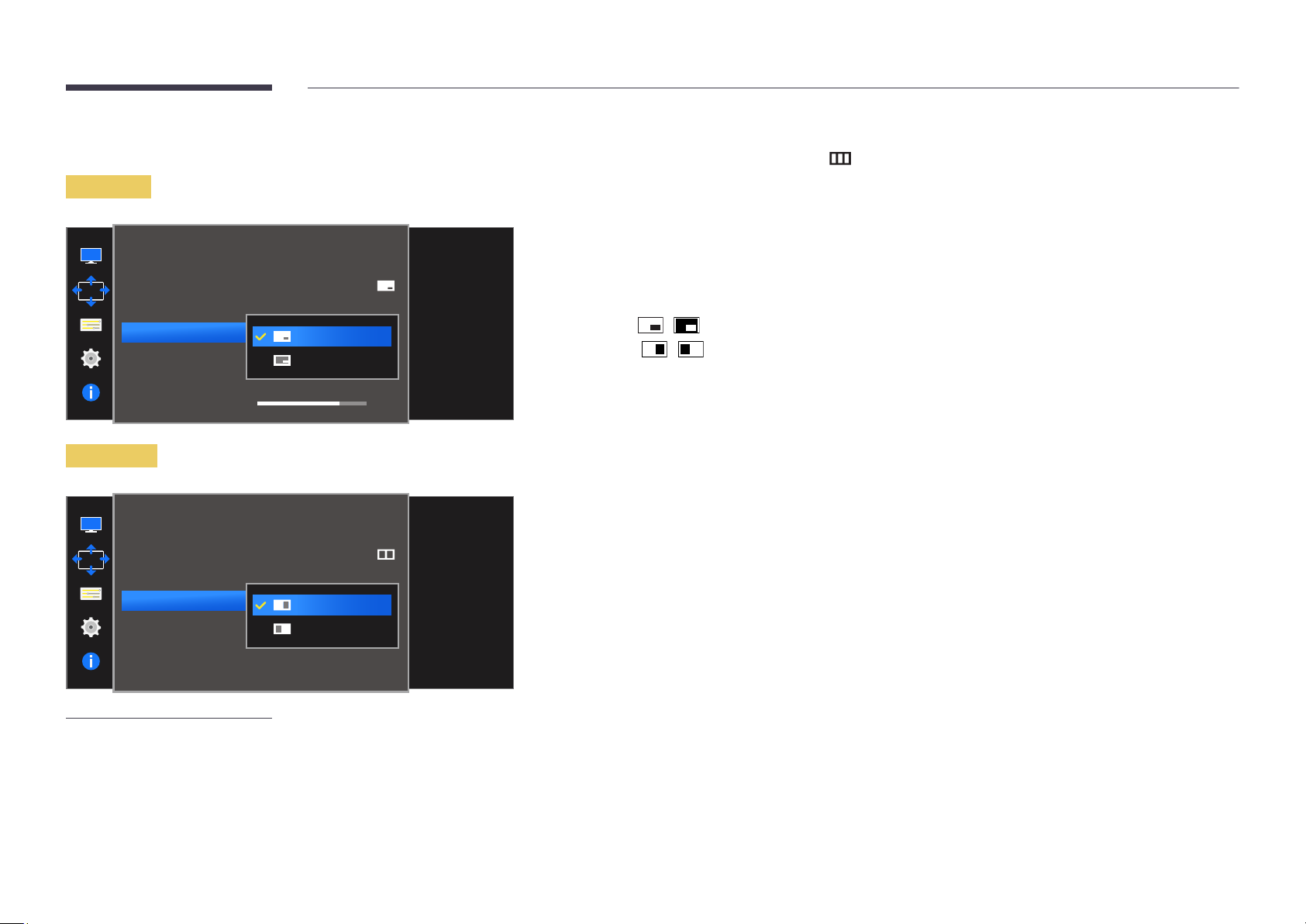

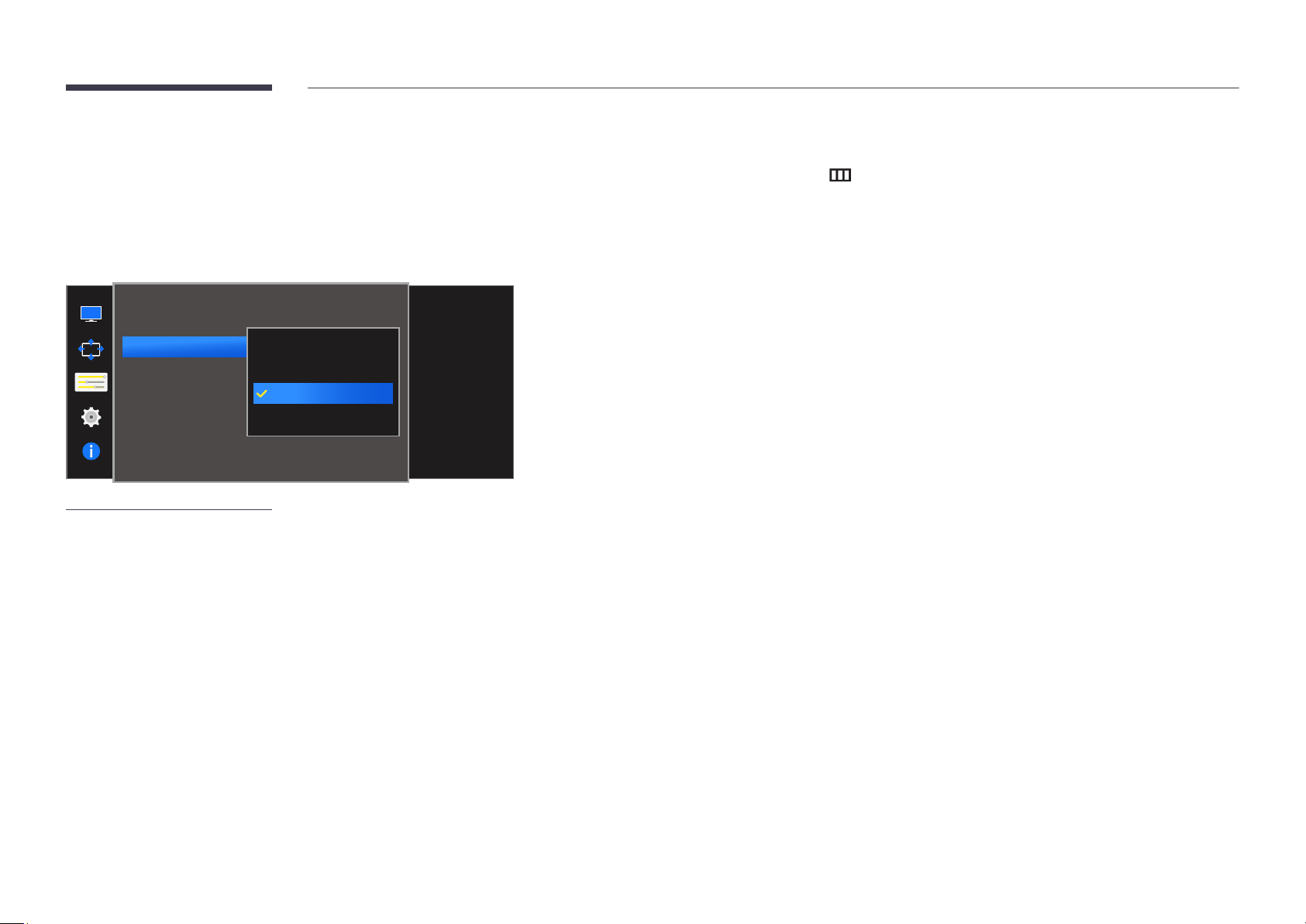

Conguring Sound Source
Set which screen you want to hear the sound for.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
PIP mode
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
PBP mode
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Set which screen
On
75
On
75/75
you want to hear
the sound for.
Set which screen
you want to hear
the sound for.
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
Move to the Sound Source controlling the JOG button UP/DOWN and press the JOG button.
4
•
PIP mode:
•
PBP mode:
―
The white area of the icon means that the Sound Source comes from the main screen/sub-screen or the left/right screen.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
/
/
-
The displayed image may differ depending on the model.
46

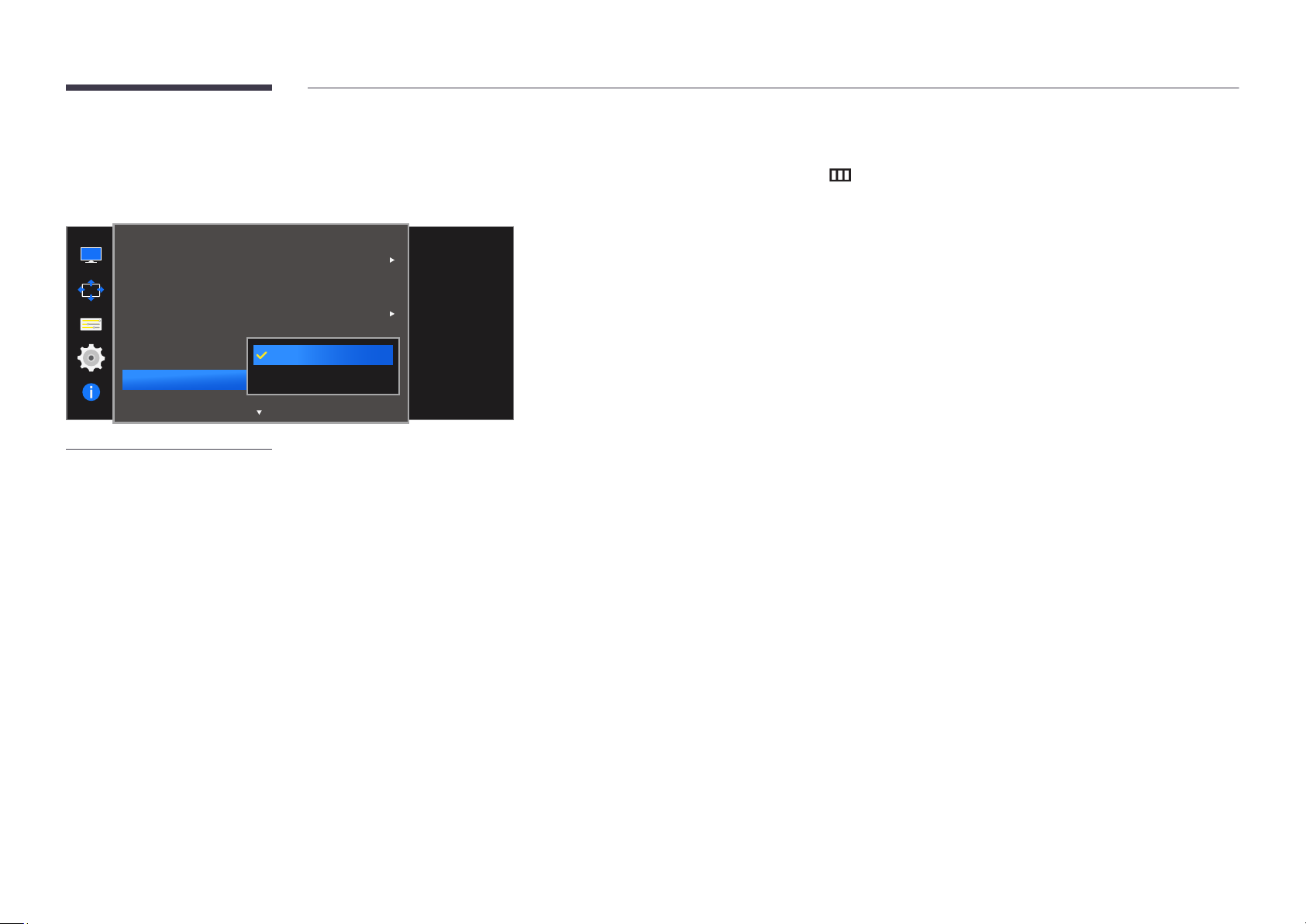

Conguring Source
Select the source for each screen.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
PIP Mode
(available in PIP mode(Size / / ))
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
-
The displayed image may differ depending on the model.
DisplayPort
HDMI 2
On
Select the source
for each screen.
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
Move the JOG button UP/DOWN to select Source and then press the JOG button.
4
•
DisplayPort / HDMI 1 / HDMI 2
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
―
The input source for the main screen changes.
―
With the exception of the current input source, the other two input sources can be selected.
―
The screen may flicker if the input signal is unstable.
―
When the Function Key Guide appears, move the JOG button LEFT to select the
main screen will switch in the order DisplayPort HDMI 1 HDMI 2.
icon and then press the JOG button. The
47

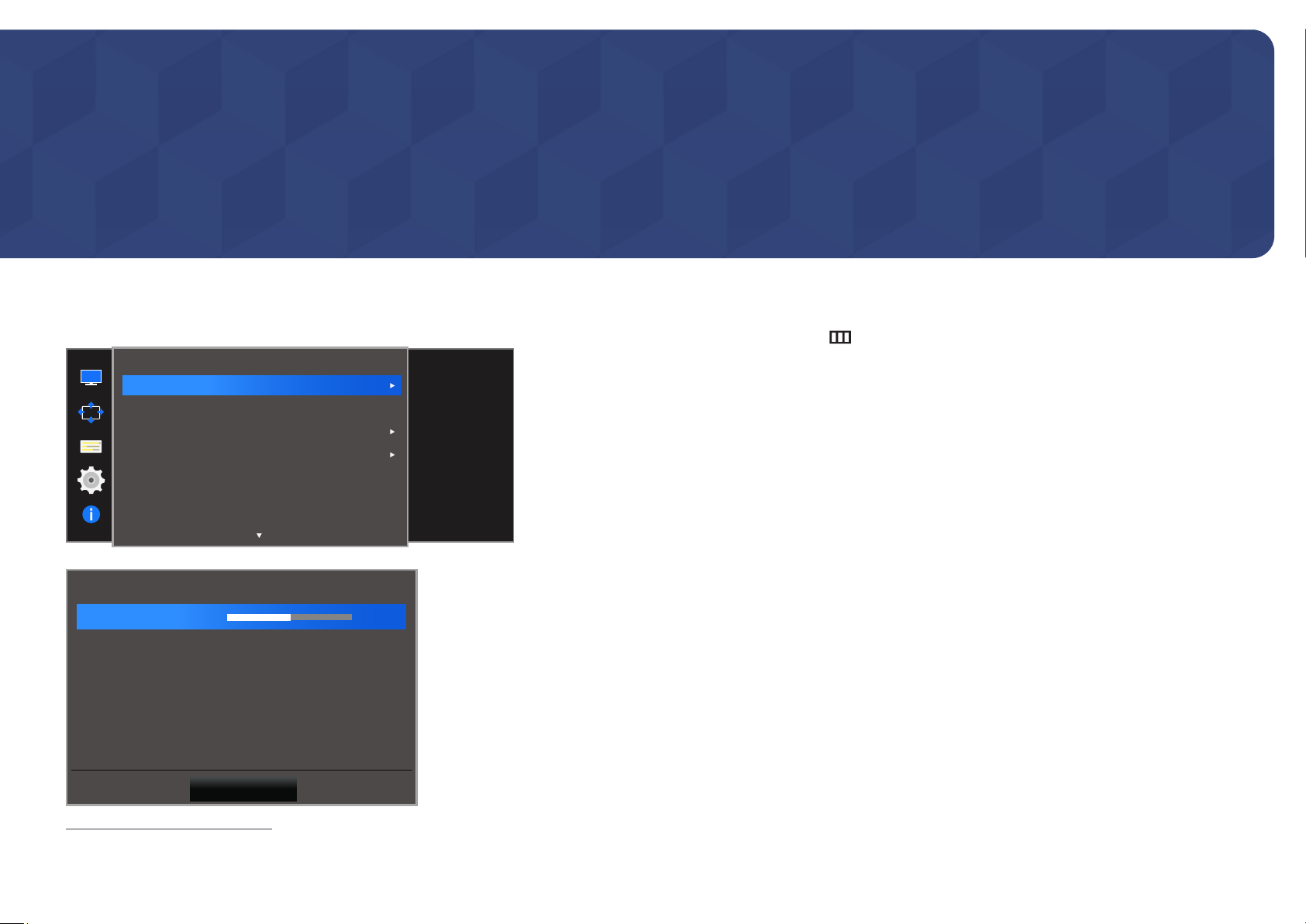

PBP Mode
(available in PBP mode(Size ))
Select input sources for the devices displayed on the main and sub screens.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
HDMI 1 DisplayPort
75/75
Source
On
Apply
Select the source
for each screen.
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
Move the JOG button UP/DOWN to select Source and then press the JOG button.
4
•
DisplayPort / HDMI 1 / HDMI 2

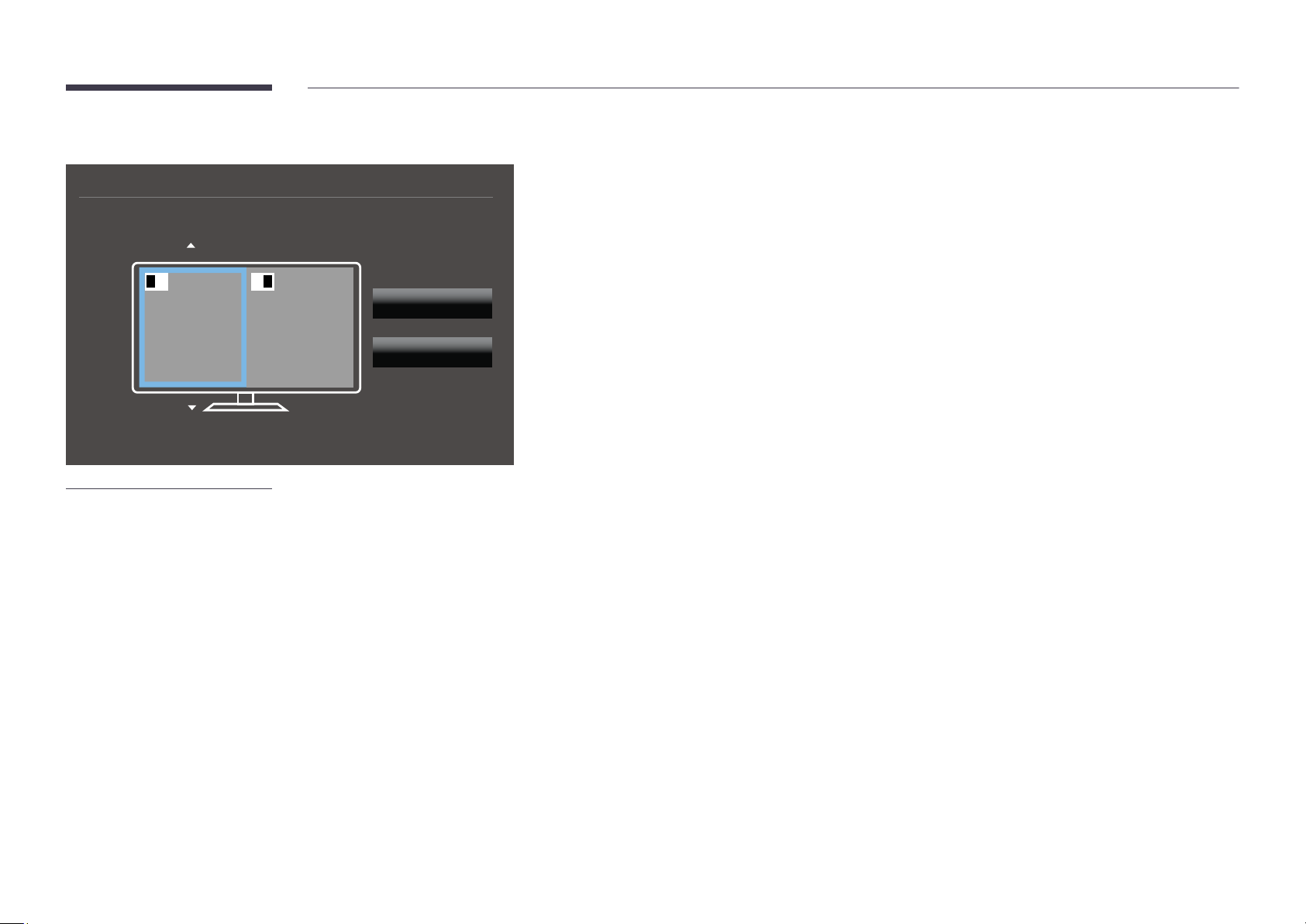

Control the JOG button UP/DOWN and choose the left/right external input source.
5
Move the JOG button LEFT/RIGHT to select Apply and then press the JOG button. Pressing the JOG button after selecting
6
Cancel will cancel Source configuration and revert back to the PIP/PBP control menu.
―
The input source for the main screen changes.
―
The screen may flicker if the input signal is unstable.
―
When the input signal of the left and right screens are the same, the operation cannot be performed.
―
When the Function Key Guide appears, move the JOG button LEFT to select the
same PBP source setting menu appears.
icon and then press the JOG button. The
Cancel
-
The displayed image may differ depending on the model.
48

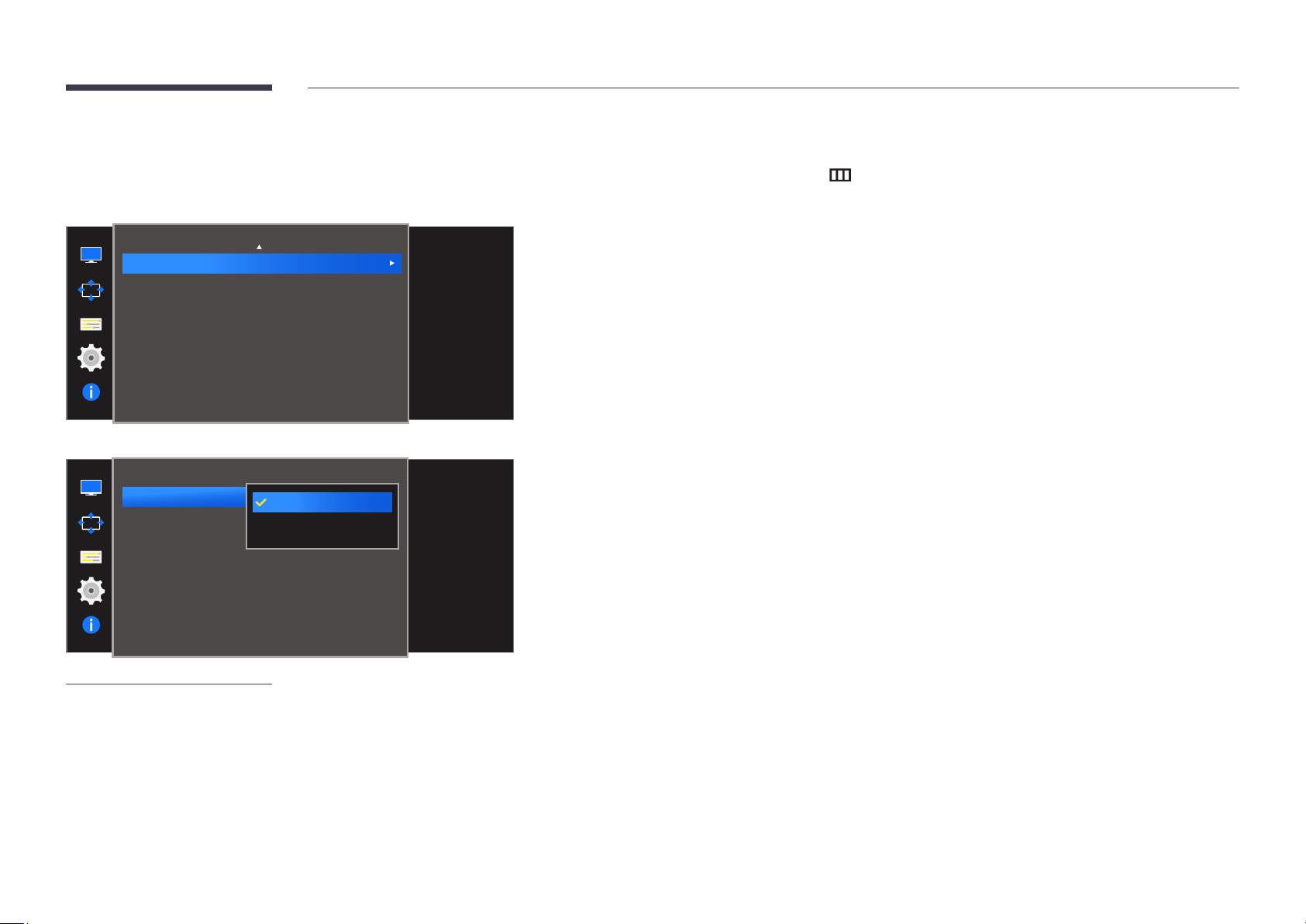

Conguring Image Size
Select the image size for sub-screen.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
PIP Mode
(available in PIP mode(Size / / ))
In PC mode
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
In AV mode
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
Auto
Wide
4:3
16:9
21:9
Screen Fit
Select the image
size for each screen.
On
Select the image
size for each screen.
On
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
Move the JOG button UP/DOWN to select Image Size and then press the JOG button.
4
(available in PIP mode(Size / / ))
In PC mode
•
Auto: Display the picture according to the aspect ratio of the each screen input source.
•
Wide: Display the picture in full screen regardless of the aspect ratio of the each screen input source.
In AV mode
•
4:3: Display the picture of the sub-screen with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
•
16:9: Display the picture of the sub-screen with an aspect ratio of 16:9.
•
21:9: Display the picture of the sub-screen with an aspect ratio of 21:9.
•
Screen Fit: Display the picture of the sub-screen with the original aspect ratio without cutting anything off.
―
The function may not be supported depending on the ports provided with the product.
―
Changing the screen size is available when the following conditions are satisfied.
-
A digital output device is connected using the HDMI/DP cable.
-
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of
these signals.).
-
This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to AV.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
-
The displayed image may differ depending on the model.
49
PBP Mode
(available in PBP mode(Size ))
In PC mode
Set the Image Size for each of the divided screens.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
75/75
Select the source
for each screen.
On
Move the JOG button UP/DOWN to select Image Size and then press the JOG button.
4
In PC mode
•
Auto: Display the picture according to the aspect ratio of the each screen input source.
•
Wide: Display the picture in full screen regardless of the aspect ratio of the each screen input source.
Image Size
Apply
Auto Auto
Cancel
-
The displayed image may differ depending on the model.
50
In AV mode
Image Size
-
The displayed image may differ depending on the model.
16:9 16:9
Apply
Cancel
In AV mode
•
4:3: Display the picture of the sub-screen with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
•
16:9: Display the picture of the sub-screen with an aspect ratio of 16:9.
•
21:9: Display the picture of the sub-screen with an aspect ratio of 21:9.
•
Screen Fit: Display the picture of the sub-screen with the original aspect ratio without cutting anything off.
―
The function may not be supported depending on the ports provided with the product.
―
Changing the screen size is available when the following conditions are satisfied.
-
A digital output device is connected using the HDMI/DP cable.
-
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of
these signals.).
-
This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to AV.
Move to the desired option controlling the JOG button and press the JOG button.
5
The selected option will be applied.
6
51
Conguring Contrast
Adjust the contrast level for sub-screen.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
PIP Mode
(available in PIP mode(Size / / ))
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
-
The displayed image may differ depending on the model.
75
Adjust the contrast
level for each
On
screen.
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3

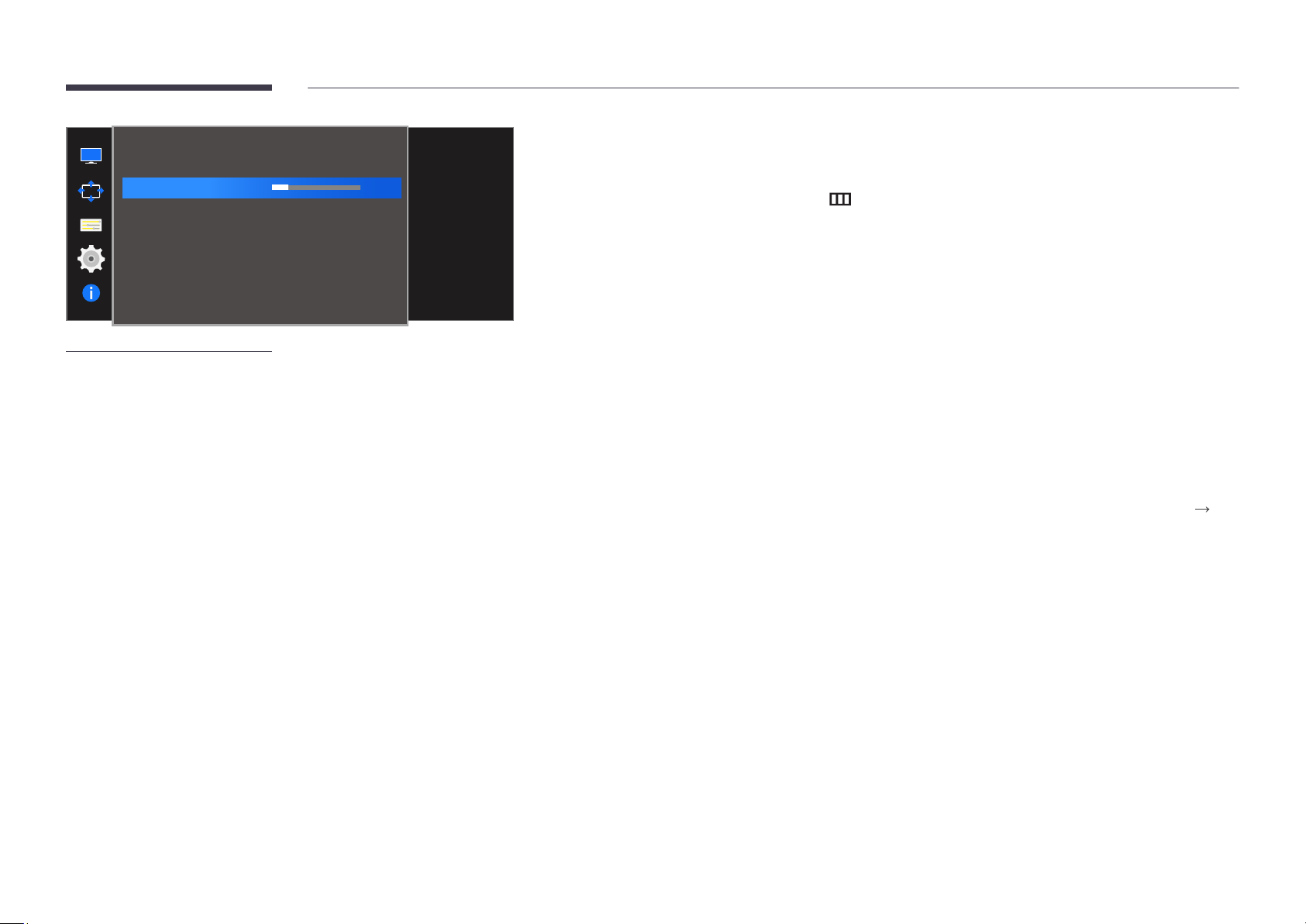

Move the JOG button UP/DOWN to select Contrast and then press the JOG button.
4

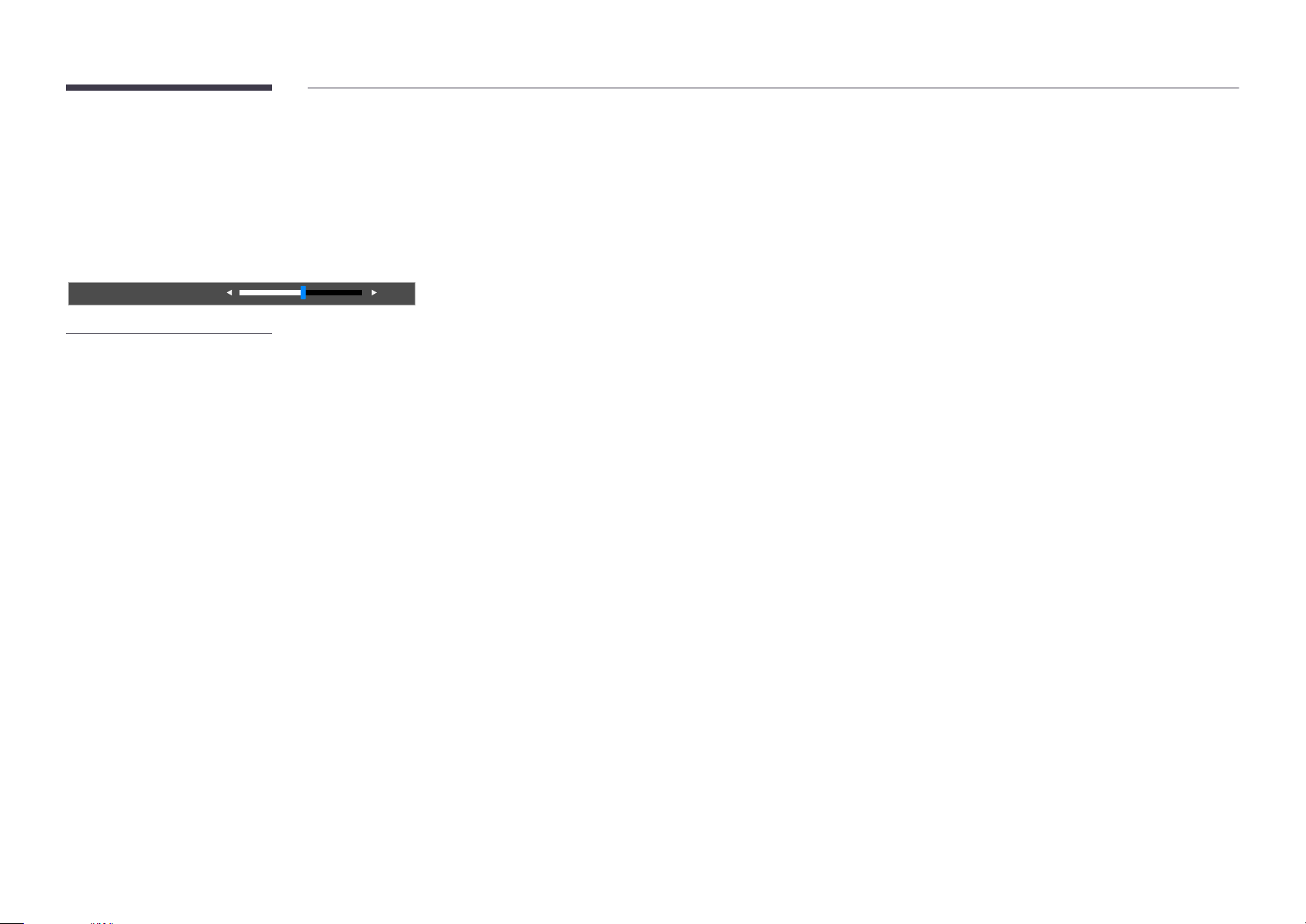

Adjust the Contrast controlling the JOG button LEFT/RIGHT.
5
The selected option will be applied.
6
52

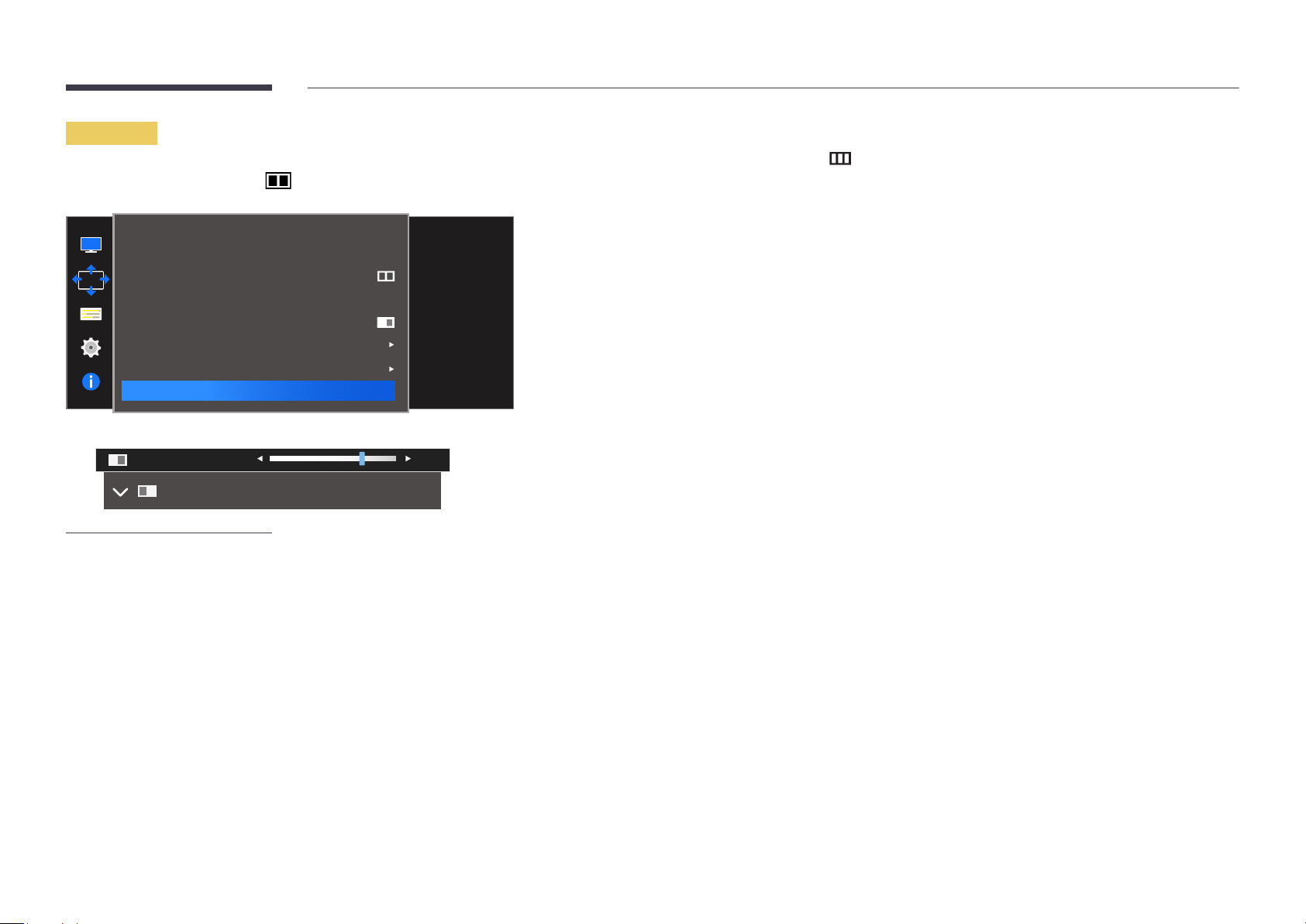

PBP Mode
PBP
(available in PBP mode(Size ))
PIP/PBP
PIP/PBP Mode
Size
Position
Sound Source
Source
Image Size
Contrast
On
75/75
Adjust the contrast
level for each
screen.
Adjust the contrast level for each screen.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Screen controlling the JOG button UP/DOWN and press the JOG button.
2
Move to the PIP/PBP controlling the JOG button UP/DOWN and press the JOG button.
3
Move the JOG button UP/DOWN to select Contrast and then press the JOG button.
4
Adjust the Contrast controlling the JOG button LEFT/RIGHT.
5
The selected option will be applied.
6
Contrast
-
The displayed image may differ depending on the model.
75
53
Chapter 06
Deutsch
English
Español
Français
Italiano
Coordinating OSD
A detailed description of each function is provided. Refer to your product for details.
Language
Set the menu language.
―
A change to the language setting will only be applied to the onscreen menu
display.
―
It will not be applied to other functions on your PC.
Options
Language
Display Time
Transparency
-
The displayed image may differ depending on the model.
Set the menu
language.

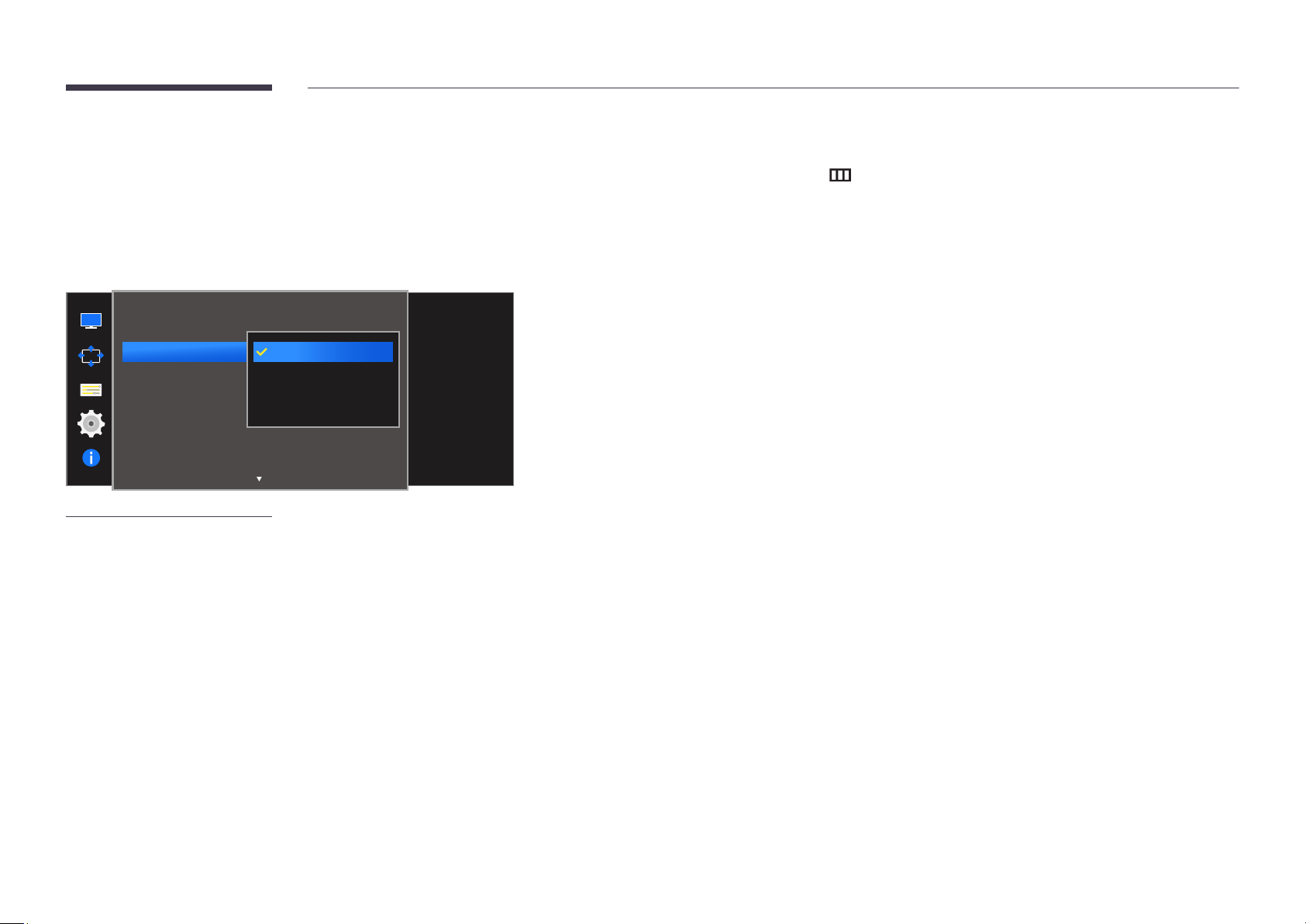

Conguring Language
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Options controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Language controlling the JOG button UP/DOWN and press the JOG button.
3
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
54

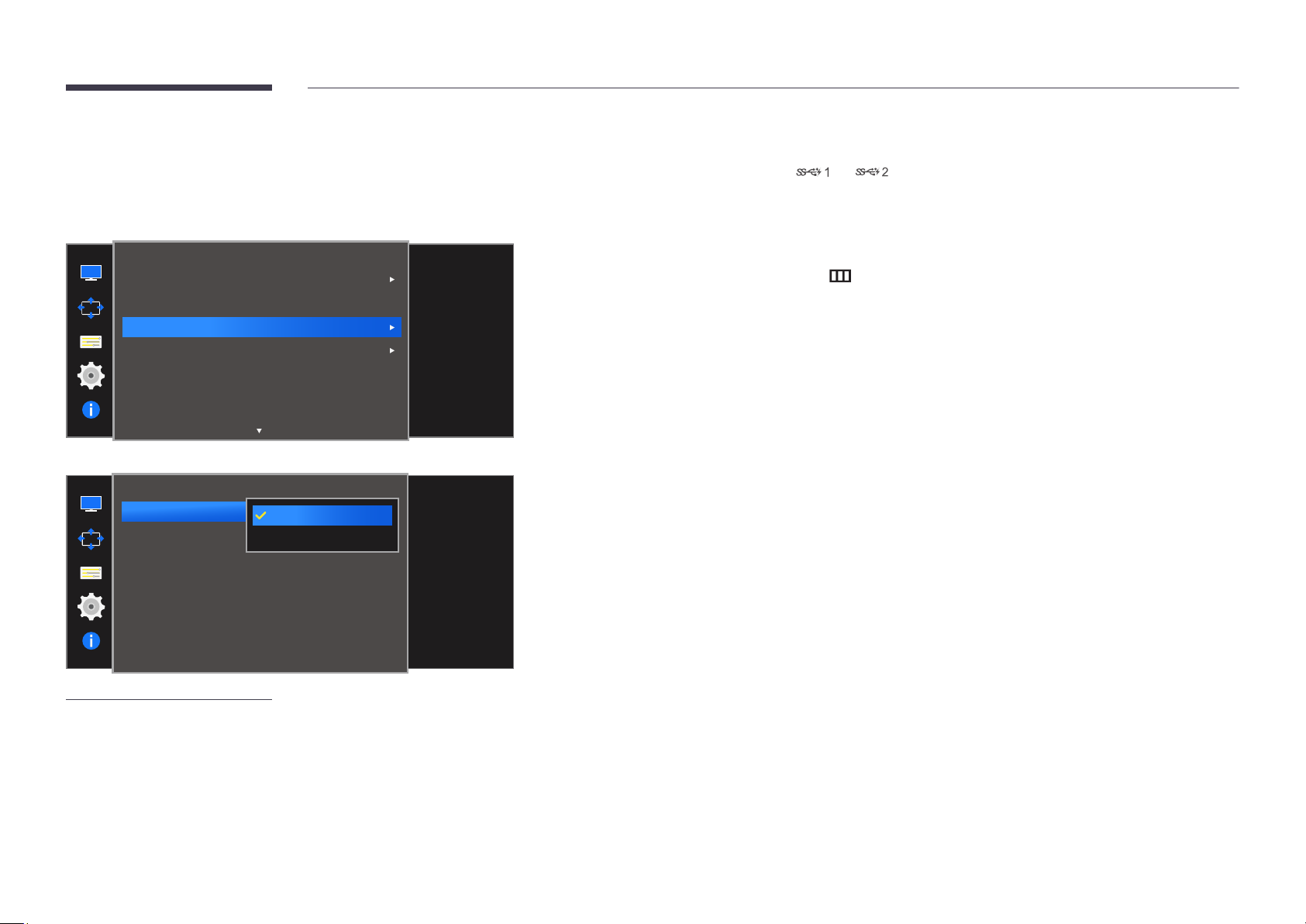

Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is
not used for a specified period of time.
Display Time can be used to specify the time after which you want the OSD
menu to disappear.
Conguring Display Time
When the Function Key Guide appears, select to display the corresponding menu screen.
1
Move to Options controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Display Time controlling the JOG button UP/DOWN and press the JOG button.
3
Options
Language
Display Time
Transparency
-
The displayed image may differ depending on the model.
5 sec
10 sec
20 sec
200 sec
Set how long the
menu window will
remain on screen
for when it is not in
use.
•
5 sec / 10 sec / 20 sec / 200 sec
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
55

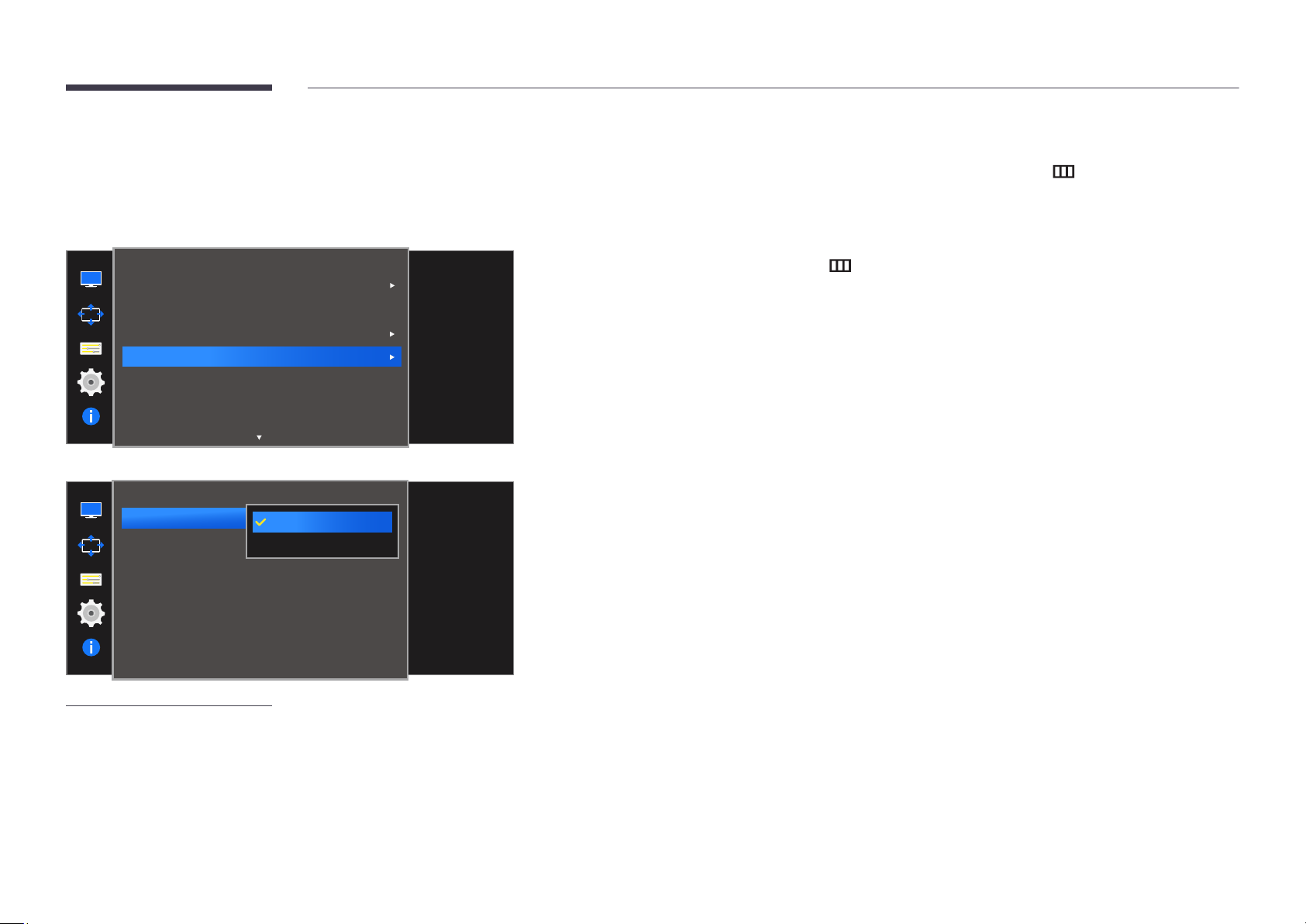

Transparency
Set the transparency for the menu windows.
Options
Language
Display Time
Transparency
-
The displayed image may differ depending on the model.
O
On
English
Congure the
transparency of the
menu windows.
Changing Transparency
When the Function Key Guide appears, select to display the corresponding menu screen.
1
Move to Options controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Transparency controlling the JOG button UP/DOWN and press the JOG button.
3
•
Off / On
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
56
Chapter 07
Setup and Reset
A detailed description of each function is provided. Refer to your product for details.
Sound
Settings
Sound
Eco Saving
USB Super Charging
PC/AV Mode
DisplayPort Ver.
Source Detection
Key Repeat Time
Sound
Volume
Sound Mode
Select Sound
O
1.2
Auto
Acceleration
Standard
Stereo
Conguring Volume
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Sound controlling the JOG button UP/DOWN and press the JOG button.
3
Adjust the Volume controlling the JOG button LEFT/RIGHT.
4
The selected option will be applied.
5
50
Close
-
The displayed image may differ depending on the model.
57
Conguring Sound Mode
Sound
Volume
Sound Mode
Select Sound
-
The displayed image may differ depending on the model.
Close
Standard
75%
Music
50%
Movie
해제
Clear Voice
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Sound controlling the JOG button UP/DOWN and press the JOG button.
3
Move to Sound Mode controlling the JOG button UP/DOWN and press the JOG button.
4
•
Standard: Selects the normal sound mode.
•
Music: Emphasizes music over voices.
•
Movie: Provides the best sound for movies.
•
Clear Voice: Emphasizes voices over other sounds.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
58
Conguring Select Sound
Sound
Volume
Sound Mode
Select Sound
-
The displayed image may differ depending on the model.
Stereo
Left Channel
Right Channel
Close
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Sound controlling the JOG button UP/DOWN and press the JOG button.
50
3
Move to Select Sound controlling the JOG button UP/DOWN and press the JOG button.
4
•
Stereo: Enable the sound both from the left and right speakers.
•
Left Channel: Set the left and right speakers to play only the left channel of the sound source.
•
Right Channel: Set the left and right speakers to play only the right channel of the sound source.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
59
Eco Saving
G
MAGIC
The Eco Saving function reduces power consumption by controlling the electric
current used by the monitor panel.
―
This option is not available when
―
This menu is not available when Game Mode is enabled.
Settings
Sound
Eco Saving
USB Super Charging
PC/AV Mode
DisplayPort Ver.
Source Detection
Key Repeat Time
-
The displayed image may differ depending on the model.
SAMSUN
Bright is in Dynamic Contrast mode.
Adjust the power
consumption of
the product to save
O
Minimum
Maximum
Acceleration
energy.
Auto
Conguring Eco Saving
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Eco Saving controlling the JOG button UP/DOWN and press the JOG button.
3
•
Off: Deactivate the Eco Saving function.
•
Minimum: Change the monitor power consumption to 50% of the default level.
•
Maximum: Change the monitor power consumption to 75% of the default level.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
60
USB Super Charging
Charge the battery of a connected source device quickly using the USB 3.0 port
on the product.
Settings
Sound
Eco Saving
USB Super Charging
PC/AV Mode
DisplayPort Ver.
Source Detection
Key Repeat Time
Acceleration
Set the USB Super
charging mode.
O
1.2
Auto
―
Setting USB Super Charging to On during a data transfer will stop the data transfer. If you set USB Super Charging to Off,
the standard charging and data transfer feature will be available.
―
High-speed charging is possible using the
ports. The speed depends on the connected devices.
and ports only. These ports charge devices faster than typical USB
Conguring USB Super Charging
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to USB Super Charging controlling the JOG button UP/DOWN and press the JOG button.
3
•
Off: Disable USB Super Charging.
•
On: Enable the function to quickly charge a source device connected to the USB 3.0 port.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
USB Super Charging
USB1
USB2
-
The displayed image may differ depending on the model.
O
On
Set the USB Port1
charging On/O.
The selected option will be applied.
5
―
Supported output by USB charging mode
―
Standard USB charging: 5 V, up to 900 mA (including USB 3.0)
―
Fast USB charging: 5 V, up to 1.5 A
(Outputs may differ depending on the device specifications.)
61
PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged.
This option is useful when you view a movie.
―
Supplied for the wide models only such as 16:9 or 16:10.
―
If the monitor is in HDMI 1, HDMI 2 or DisplayPort mode and the screen says Check Signal Cable or power saving mode
activates, press the JOG button to display the function-button screen and then select the
icon. You can select PC or AV.
Conguring PC/AV Mode
Settings
Sound
Eco Saving
USB Super Charging
PC/AV Mode
DisplayPort Ver.
Source Detection
Key Repeat Time
PC/AV Mode
DisplayPort
HDMI 1
HDMI 2
PC
AV
O
1.2
Auto
Acceleration
Set to AV to enlarge
the picture.
Select the PC/
AV mode for the
DisplayPort1
source.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to PC/AV Mode controlling the JOG button UP/DOWN and press the JOG button.
3
Move to the HDMI 1, HDMI 2, DisplayPort controlling the JOG button UP/DOWN and press the JOG button.
4
•
Set to PC when connected to a PC.
•
Set to AV when connected to an AV device.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
5
The selected option will be applied.
6
-
The displayed image may differ depending on the model.
62
DisplayPort Ver.
Select your Displayport. Displayport 1.1 supports High Bit Rate 1, while 1.2
supports High Bit Rate 2.
Settings
Sound
Eco Saving
USB Super Charging
PC/AV Mode
DisplayPort Ver.
Source Detection
Key Repeat Time
-
The displayed image may differ depending on the model.
1.1
1.2
Select your
Displayport.
Displayport 1.1
supports HBR 1,
O
while 1.2 supports
HBR 2.
―
Incorrect settings may cause the screen to go blank. If this occurs, check the device specifications.
―
If the monitor is in HDMI 1, HDMI 2 or DisplayPort mode and the screen says Check Signal Cable or power saving mode
activates, press the JOG button to display the function-button screen and then select the
icon. You can select 1.1 or 1.2.
Conguring DisplayPort Ver.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to DisplayPort Ver. controlling the JOG button UP/DOWN and press the JOG button.
3
•
1.1 / 1.2
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
63
Source Detection
You can activate Source Detection.
Settings
Sound
Eco Saving
USB Super Charging
PC/AV Mode
DisplayPort Ver.
Source Detection
Key Repeat Time
-
The displayed image may differ depending on the model.
Auto
Manual
Decide how input
sources will be
detected.
O
Conguring Source Detection
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Source Detection controlling the JOG button UP/DOWN and press the JOG button.
3
•
Auto: The input source is automatically recognized.
•
Manual: Manually select an input source.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
64
Key Repeat Time
Control the response rate of a button when the button is pressed.
Settings
Sound
Eco Saving
USB Super Charging
PC/AV Mode
DisplayPort Ver.
Source Detection
Key Repeat Time
-
The displayed image may differ depending on the model.
Acceleration
1 sec
2 sec
No Repeat
O
Congure the
response rate of a
button when the
button is pressed.
Conguring Key Repeat Time
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Key Repeat Time controlling the JOG button UP/DOWN and press the JOG button.
3
•
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is
pressed.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
65
O Timer
You can set the product to automatically turn off.
Settings
O Timer
Power LED On
Reset All
Stand-by
Enable or disable
the O Timer.
Conguring O Timer
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Off Timer controlling the JOG button UP/DOWN and press the JOG button.
3
•
Off: Deactivate the off timer so that the product does not power off automatically.
•
On: Activate the off timer so that the product powers off automatically.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
O Timer
O Timer
Turn O After
-
The displayed image may differ depending on the model.
O
On
Enable or disable
the O Timer.
66
O Timer
O Timer
Turn O After
-
The displayed image may differ depending on the model.
Set the monitor to
automatically turn
O
o after a certain
4h
time period.
Conguring Turn O After
―
This option is only available when Off Timer is set to On.
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Move to Off Timer controlling the JOG button UP/DOWN and press the JOG button.
3
Move to Turn Off After controlling the JOG button UP/DOWN and press the JOG button.
4
Adjust the Turn Off After controlling the JOG button LEFT/RIGHT.
5
The selected option will be applied.
6
―
The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number
of hours.
―
For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers
on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to MENU
Settings and set Off Timer to Off.
67
Power LED On
Image Size
Configure the settings to enable or disable the power LED located at the lower
part of the product.
Conguring Power LED On
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Settings
O Timer
Power LED On
Reset All
-
The displayed image may differ depending on the model.
Working
Stand-by
Set the status of the
power LED.
Move to Power LED On controlling the JOG button UP/DOWN and press the JOG button.
3
•
Working: The power LED is on when the product is turned on.
•
Stand-by: The power LED is on when the product is turned off.
Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
4
The selected option will be applied.
5
68

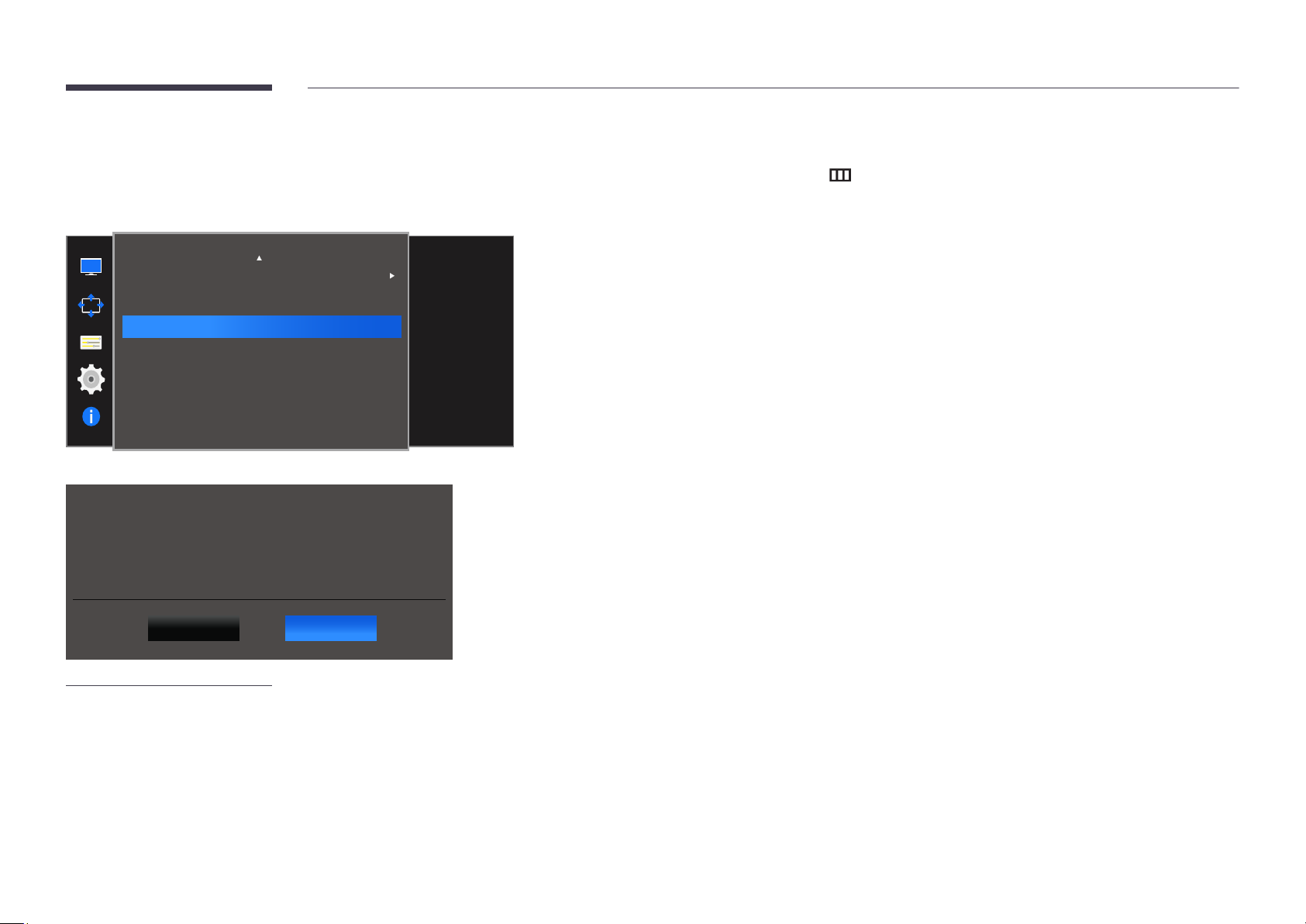

Reset All
Return all the settings for the product to the default factory settings.
Initializing Settings (Reset All)
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the JOG button.
1
Move to Settings controlling the JOG button UP/DOWN and press the JOG button.
2
Settings
O Timer
Power LED On
Reset All
All the menu settings will be reset to default.
Are you sure you want to reset?
Yes No
Stand-by
Return all the
settings for the
product to the
default factory
settings.
Move to Reset All controlling the JOG button UP/DOWN and press the JOG button.
3
Move to the desired option controlling the JOG button LEFT/RIGHT and press the JOG button.
4
The selected option will be applied.
5
-
The displayed image may differ depending on the model.
69
Chapter 08
Information Menu and Others
A detailed description of each function is provided. Refer to your product for details.
Information
View the current input source, frequency and resolution.
Displaying Information
When the Function Key Guide appears, select by moving the JOG button UP. Next, press the
1
JOG button.
Move to Information controlling the JOG button UP/DOWN and press the JOG button. The current
2
input source, frequency and resolution will appear.
Screen
Options
Settings
Information
Information
Model: S34E790C
DisplayPort
****x****
**kHz **Hz
Screen
Options
Settings
Information
Screen
Options
Settings
Information
-
The displayed image may differ depending on the model.
Information
Model: S34E790C
HDMI 1
****x****
**kHz **Hz
Information
Model: S34E790C
HDMI 1
****x****
**kHz **Hz
DisplayPort
****x****
**kHz **Hz
DisplayPort
****x****
**kHz **Hz
70
Conguring Brightness, Contrast
SAMSUNG
MAGIC
SAMSUNG
MAGIC
SAMSUNG
MAGIC
and Sharpness from the Initial
Screen
You can adjust Brightness, Contrast or Sharpness by moving the JOG button up
or down, if no OSD menu is displayed.
Sharpness
Brightness
Contrast
-
The displayed image may differ depending on the model.
50
Brightness
―
This menu is not available when
―
This menu is not available when Eco Saving is enabled.
Contrast
―
This menu is not available when
―
This menu is not available when Game Mode is enabled.
―
This menu is not available when PIP/PBP Mode is set to On and the Size is set to
Sharpness
―
This menu is not available when
―
This menu is not available when Game Mode is enabled.
―
Not available when PIP/PBP Mode is set to On.
Move the JOG button UP/DOWN to select Brightness, Contrast or Sharpness.
1
Move the JOG button LEFT/RIGHT to adjust the Brightness, Contrast or Sharpness setting.
2
Bright is set to Dynamic Contrast mode.
Bright is in Cinema or Dynamic Contrast mode.
Bright is in Cinema or Dynamic Contrast mode.
(PBP Mode).
71
Conguring Volume in the Initial
Screen
You can adjust Volume by moving the JOG button left or right, if no OSD menu is
displayed.
Volume
-
The displayed image may differ depending on the model.
50
Volume
Adjust the Volume controlling the JOG button LEFT/RIGHT.
1
―
If the audio quality of a connected input device is poor, the Auto Mute function on the product may mute the sound or
cause choppy audio when applying the headphones or speakers. Set the input volume for the input device to at least 20%
and control the volume using the volume control (JOG button LEFT/RIGHT) on the product.
•
What is Auto Mute?
The function mutes the audio to improve sound effect when there is sound noise or when the input signal is weak,
usually due to a problem with the volume of an input device.
72
Chapter 09
Installing the Software
Easy Setting Box
Easy Setting Box
Easy Setting Box enables users to use the monitor by partitioning multiple sections.
Installing the Software
Insert the installation CD into the CD-ROM drive.
1
Select the Easy Setting Box setup program.
2
―
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the Easy Setting Box setup file on the CD-ROM.
When the Installation Wizard appears, click Next.
3
Follow the instructions given on the screen to proceed with installation.
4
―
The software may not work properly if you do not restart the computer after the installation.
―
The Easy Setting Box icon may not appear depending on the computer system and the product
specifications.
―
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation (Easy Setting Box)
The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the
Networking Environment.
System Requirements
OS
•
Windows Vista 32Bit/64Bit
•
Windows 7 32Bit/64Bit
•
Windows 8 32Bit/64Bit
•
Windows 8.1 32Bit/64Bit
Hardware
•
At least 32MB of memory
•
At least 60MB of free space on the hard disk drive
Removing the Software
Click Start, select Settings/Control Panel, and then double-click Add or Remove Programs.
Select Easy Setting Box from the program list and click the Add/Delete button.
73
Chapter 10
Troubleshooting Guide
Requirements Before Contacting Samsung Customer Service Center
Before calling Samsung Customer Service
Center, test your product as follows. If
the problem persists, contact Samsung
Customer Service Center.
If the screen remains blank, check the PC
system, video controller and cable.
Testing the Product
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test.
Power off both the PC and product.
1
Disconnect the cables from the product.
2
Power on the product.
3
If the message Check Signal Cable appears, the product is working normally.
4
Checking the Resolution and Frequency
For a mode that exceeds the supported resolution(refer to Standard Signal Mode Table), the message Not Optimum Mode will appear for a short time.
―
The displayed resolution may vary depending on the product or PC system settings.
74
Check the following.
Installation issue (PC mode)
Issues Solutions
The screen keeps switching on and o.
Blank spaces are found on all four sides of the screen when
an HDMI or HDMI-DVI cable is connected to the product and
PC.
Check the cable connection between the product and PC, and ensure the connectors are locked.
The blank spaces found on the screen have nothing to do with the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the
screen size in the HDMI or DVI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update the
graphics card driver to the latest version.
(Please contact the graphics card or computer manufacturer for further details about how to adjust
the screen settings.)
Screen issue
Issues Solutions
The power LED is o. The screen will not switch on.
The message Check Signal Cable appears.
Not Optimum Mode is displayed.
Check that the power cable is connected properly.
Check that the cable is properly connected to the product.
Check that the device connected to the product is powered on.
This message appears when the signal from the graphics card exceeds the maximum resolution or
frequency for the product.
The images on the screen look distorted.
Change the maximum resolution and frequency to suit the product performance, referring to Standard
Signal Mode Table (P. 83).
Check the cable connection to the product.
75
Issues Solutions
The screen is not clear. The screen is blurry.
The screen appears unstable and shaky.
There are shadows or ghost images left on the screen.
The screen is too bright. The screen is too dark.
Screen color is inconsistent.
The colors on the screen have a shadow and are distorted.
White does not really look white.
There is no image on the screen and the power LED blinks
every 0.5 to 1 second.
Text is blurry.
Video playback is choppy.
Remove any accessories (video extension cable, etc.) and try again.
Set the resolution and frequency to the recommended level.
Check that the resolution and frequency for the PC are within the range of resolution and frequency
compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode
Table (P.83) in this manual and the Information menu on the product.
Adjust Brightness and Contrast.
Change the Color settings.
Change the Color settings.
Change the Color settings.
The product is operating in power-saving mode.
Press any key on the keyboard or move the mouse to return to normal operating mode.
If using a Windows OS (e.g. Windows 7, Windows 8 or Windows 8.1): Go to Control Panel Fonts
Adjust ClearType text and change Turn on ClearType.
Playback of high-definition large video files can be choppy. This may be because the video player is
not optimized for the computer resource.
Try playing the file on another video player.
76
Sound issue
Issues Solutions
There is no sound.
The volume is too low.
Video is available but there is no sound.
Check the connection of the audio cable or adjust the volume.
Check the volume.
Adjust the volume.
If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound
card or software program.
Sound cannot be heard if a HDMI-DVI cable is used to connect the input device.
Connect the device using an HDMI cable or a DP cable.
Source device issue
Issues Solutions
A beeping sound is heard when my PC is booting.
If a beeping sound is heard when your PC is booting, have your PC serviced.
Other issue
Issues Solutions
The ports and are not working.
The USB data transfer feature is not available when the USB Super Charging feature is set to On.
To use the USB data transfer feature, go to Settings
port(USB1 or USB2), and then select Off.
USB Super Charging, select a specific USB
77
Q & A
Refer to the user manual for your PC or
graphics card for further instructions on
adjustment.
Question Answer
How can I change the frequency?
How can I change the resolution?
Set the frequency on your graphics card.
•
Windows XP: Go to Control Panel
Advanced Monitor, and adjust Refresh rate under Monitor settings.
•
Windows ME/2000: Go to Control Panel
adjust Refresh rate under Monitor settings.
•
Windows Vista: Go to Control Panel
Monitor settings.
•
Windows 7: Go to Control Panel
Resolution
settings.
•
Windows 8(Windows 8.1): Go to Settings
Personalization
adjust Refresh rate under Monitor settings.
•
Windows XP: Go to Control Panel
adjust the resolution.
•
Windows ME/2000: Go to Control Panel
•
Windows Vista: Go to Control Panel
Display Settings, and adjust the resolution.
•
Windows 7: Go to Control Panel
Resolution, and adjust the resolution.
•
Windows 8(Windows 8.1): Go to Settings
Personalization
Appearance and Themes Display Settings
Display Settings Advanced Monitor, and
Appearance and Personalization Personalization
Display Settings Advanced Settings Monitor, and adjust Refresh rate under
Appearance and Personalization Display Screen
Advanced settings Monitor, and adjust Refresh rate under Monitor
Control Panel Appearance and
Display Screen Resolution Advanced settings Monitor, and
Appearance and Themes Display Settings, and
Display Settings, and adjust the resolution.
Appearance and Personalization Personalize
Appearance and Personalization Display Adjust
Control Panel Appearance and
Display Adjust Resolution, and adjust the resolution.
78
Question Answer
•
How do I set power-saving mode?
Windows XP: Set power-saving mode in Control Panel
•
Windows ME/2000: Set power-saving mode in Control Panel
Settings or BIOS SETUP on the PC.
•
Windows Vista: Set power-saving mode in Control Panel
•
Windows 7: Set power-saving mode in Control Panel
Personalize Screen Saver Settings or BIOS SETUP on the PC.
•
Windows 8(Windows 8.1): Set power-saving mode in Settings
and Personalization
Appearance and Themes Display
Screen Saver Settings or BIOS SETUP on the PC.
Display Screen Saver
Appearance and Personalization
Personalize Screen Saver Settings or BIOS SETUP on the PC.
Appearance and Personalization
Control Panel Appearance
Personalize Screen Saver Settings or BIOS SETUP on the PC.
79
Chapter 11
Specications
-
Size
General
Model Name S34E790C
-
Display area
V
-
Dimensions (W x H x D)
D
Panel Size
Display area
H
Dimensions (W x H x D) /
Weight
Maximum Pixel Clock
H
W
Power Supply
Signal connectors
Pixel Pitch
Without Stand
With Stand
34 Class (34 Inches / 86 cm)
797.22 mm (H) x 333.72 mm (V )
31.4 Inches (H) x 13.1 Inches (V)
0.23175 mm (H) x 0.23175 mm (V )
0.009124 Inches (H) x 0.009124 Inches (V)
821.5 x 364.0 x 51.5 mm / 7.4 kg
32.3 x 14.3 x 2.0 Inches / 16.3 lbs
MIN: 821.5 x 452.0 x 275.5 mm / 9.9 kg
32.3 x 17.8 x 10.8 Inches / 21.8 lbs
MAX: 821.5 x 552.0 x 275.5 mm / 9.9 kg
32.3 x 21.7 x 10.8 Inches / 21.8 lbs
319.75 MHz (DP)
AC 100 - 240 V ~ (+/- 10 %), 50/60 Hz ± 3 Hz
Refer to the label at the back of the product as the standard voltage can vary in different countries.
HDMI, DP Port
80
Model Name S34E790C
Environmental conditions Operating
Storage
―
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may appear brighter or darker on the panel. This does not affect
product performance.
―
This device is a Class B digital apparatus.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
Temperature: 50 F - 104 F (10 C - 40 C)
Humidity: 10 % - 80 %, non-condensing
Temperature: -4 F - 140 F (-20 C - 60 C)
Humidity: 5 % - 95 %, non-condensing
81
PowerSaver
The power-saving function of this product reduces power consumption by switching off the screen and changing the color of the power LED if the product is not used
for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Powersaving mode only functions when the product is connected to a PC with a power-saving function.
PowerSaver Energy Star
Power saving mode Power o (Power button)
Power Consumption
(Energy Star Test Condition)
Power Indicator
Power Consumption
―
The displayed power consumption level can vary in different operating conditions or when settings are changed.
―
ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
Energy Star power is measured with the test method in the current Energy Star® Standard.
―
SOG(Sync On Green) is not supported.
―
To reduce the power consumption to 0, disconnect the power cord. Disconnect the power cable if you will not be using the product for an extended period of time (during
vacation, etc.)
Off Blinking On
Typical 47 W 1 W 0.5 W
82
Standard Signal Mode Table
-
This product can be set to only one
resolution for each screen size to obtain
the optimum picture quality due to the
nature of the panel. Using a resolution
other than the specified resolution may
degrade the picture quality. To avoid
this, it is recommended that you select
the optimum resolution specified for
your product.
Model Name S34E790C
Synchronization Horizontal Frequency
Vertical Frequency
Resolution Optimum resolution
Maximum resolution
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the
PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the
following table by referring to the graphics card user manual.
Resolution Horizontal Frequency
30 - 90 kHz (DisplayPort, HDMI)
29 - 61 Hz (DisplayPort)
24 - 61 Hz (HDMI)
3440 x 1440 @ 60 Hz (DisplayPort)
3440 x 1440 @ 50 Hz (HDMI)
3440 x 1440 @ 60 Hz (DisplayPort)
3440 x 1440 @ 50 Hz (HDMI)
Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
(kHz)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
83
Resolution Horizontal Frequency
(kHz)
Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)
-
Horizontal Frequency
The time required to scan a single line
from the left to the right side of the
screen is called a horizontal cycle. The
reciprocal number of a horizontal cycle
is called horizontal frequency. Horizontal
frequency is measured in kHz.
-
Vertical Frequency
Repeating the same picture dozens of
times per second allows you to view
natural pictures. The repeat frequency is
called "vertical frequency" or "refresh rate"
and is indicated in Hz.
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 RB 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
CEA-861, 2560 x 1080 66.000 60.000 198.000 +/+
VESA, 2560 x 1440 RB 88.787 59.951 241.500 +/-
VESA, 3440 x 1440 (30 Hz) 43.819 29.993 157.750 +/-
VESA, 3440 x 1440 (50 Hz) 73.681 49.987 265.250 +/-
VESA, 3440 x 1440 (DP) 88.819 59.973 319.750 +/-
84
Chapter 12
Appendix
Contact SAMSUNG WORLD WIDE
―
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
NORTH AMERICA
U.S.A
CANADA
LATIN AMERICA
ARGENTINE
BOLIVIA
BRAZIL
CHILE
COLOMBIA
1-800-SAMSUNG (726-7864) http://www.samsung.com/us/support
1-800-SAMSUNG (726-7864) http://www.samsung.com/ca/support (English)
http://www.samsung.com/ca_fr/support (French)
0800-333-3733 http://www.samsung.com/ar/support
800-10-7260 http://www.samsung.com/cl/support
0800-124-421 (Demais cidades e regiões)
4004-0000 (Capitais e grandes centros)
800-SAMSUNG (726-7864) http://www.samsung.com/cl/support
Bogotá 600 12 72
Gratis desde cualquier parte del país 01 8000 112 112 ó desde su celular
#SAM(726)
http://www.samsung.com/br/support
http://www.samsung.com/co/support
85
LATIN AMERICA
COSTA RICA
DOMINICA
ECUADOR
EL SALVADOR
GUATEMALA
HONDURAS
0-800-507-7267
00-800-1-SAMSUNG (726-7864)
1-800-751-2676 http://www.samsung.com/latin/support (Spanish)
1-800-10-72670
1-800-SAMSUNG (72-6786)
800-6225 http://www.samsung.com/latin/support (Spanish)
1-800-299-0013
1-800-299-0033
800-27919267
800-2791-9111
http://www.samsung.com/latin/support (Spanish)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin/support (Spanish)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin/support (Spanish)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin/support (Spanish)
http://www.samsung.com/latin_en/support
(English)
JAMAICA
MEXICO
NICARAGUA
1-800-234-7267
1-800-SAMSUNG (726-7864)
01-800-SAMSUNG (726-7864) http://www.samsung.com/mx/support
001-800-5077267 http://www.samsung.com/latin/support (Spanish)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin_en/support
(English)
86
LATIN AMERICA
PANAMA
PARAGUAY
PERU
PUERTO RICO
TRINIDAD & TOBAGO
URUGUAY
VENEZUELA
800-7267
800-0101
009-800-542-0001 http://www.samsung.com/latin/support (Spanish)
0-800-777-08 http://www.samsung.com/pe/support
1-800-682-3180 http://www.samsung.com/latin/support (Spanish)
1-800-SAMSUNG (726-7864) http://www.samsung.com/latin/support (Spanish)
000-405-437-33 http://www.samsung.com/latin/support (Spanish)
0-800-SAMSUNG (726-7864) http://www.samsung.com/ve/support
http://www.samsung.com/latin/support (Spanish)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin_en/support
(English)
http://www.samsung.com/latin_en/support
(English)
EUROPE
AUSTRIA
BELGIUM
BOSNIA
0800 - SAMSUNG (0800 - 7267864) http://www.samsung.com/at/support
02-201-24-18 http://www.samsung.com/be/support (Dutch)
http://www.samsung.com/be_fr/support (French)
051 331 999 http://www.samsung.com/support
87
EUROPE
BULGARIA
CROATIA
CYPRUS
CZECH
DENMARK
EIRE
ESTONIA
FINLAND
FRANCE
GERMANY
GREECE
800 111 31, Безплатна телефонна линия http://www.samsung.com/bg/support
072 726 786 http://www.samsung.com/hr/support
8009 4000 only from landline, toll free http://www.samsung.com/gr/support
800 - SAMSUNG (800-726786) http://www.samsung.com/cz/support
Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 - Praha 4
70 70 19 70 http://www.samsung.com/dk/support
0818 717100 http://www.samsung.com/ie/support
800-7267 http://www.samsung.com/ee/support
030-6227 515 http://www.samsung.com/fi/support
01 48 63 00 00 http://www.samsung.com/fr/support
0180 6 SAMSUNG bzw.
0180 6 7267864*
(*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)
80111-SAMSUNG (80111 726 7864) only from land line
(+30) 210 6897691 from mobile and land line
http://www.samsung.com/de/support
http://www.samsung.com/gr/support
HUNGARY
ITALIA
LATVIA
LITHUANIA
0680SAMSUNG (0680-726-786)
0680PREMIUM (0680-773-648)
800-SAMSUNG (800.7267864) http://www.samsung.com/it/support
8000-7267 http://www.samsung.com/lv/support
8-800-77777 http://www.samsung.com/lt/support
http://www.samsung.com/hu/support
88
EUROPE
LUXEMBURG
MONTENEGRO
NETHERLANDS
NORWAY
POLAND
PORTUGAL
ROMANIA
SERBIA
SLOVAKIA
SLOVENIA
SPAIN
261 03 710 http://www.samsung.com/support
020 405 888 http://www.samsung.com/support
0900-SAMSUNG (0900-7267864) (€ 0,10/Min) http://www.samsung.com/nl/support
815 56480 http://www.samsung.com/no/support
0 801-172-678*
lub +48 22 607-93-33 *
* (koszt połączenia według taryfy operatora)
808 20 7267 http://www.samsung.com/pt/support
08008 726 78 64 (08008 SAMSUNG) Apel GRATUIT http://www.samsung.com/ro/support
011 321 6899 http://www.samsung.com/rs/support
0800 - SAMSUNG (0800-726 786) http://www.samsung.com/sk/support
080 697 267
090 726 786
0034902172678 http://www.samsung.com/es/support
http://www.samsung.com/pl/support
http://www.samsung.com/si
SWEDEN
SWITZERLAND
UK
0771 726 7864 (SAMSUNG) http://www.samsung.com/se/support
0800 726 78 64 (0800-SAMSUNG) http://www.samsung.com/ch/support (German)
http://www.samsung.com/ch_fr/support (French)
0330 SAMSUNG (7267864) http://www.samsung.com/uk/support
89
CIS
ARMENIA
AZERBAIJAN
BELARUS
GEORGIA
KAZAKHSTAN
KYRGYZSTAN
MOLDOVA
MONGOLIA
RUSSIA
TADJIKISTAN
UKRAINE
UZBEKISTAN
0-800-05-555 http://www.samsung.com/support
0-88-555-55-55 http://www.samsung.com/support
810-800-500-55-500 http://www.samsung.com/support
0-800-555-555 http://www.samsung.com/support
8-10-800-500-55-500 (GSM: 7799, VIP care 7700) http://www.samsung.com/support
8-10-800-500-55-500 http://www.samsung.com/kz_ru/support
0-800-614-40 http://www.samsung.com/support
7-495-363-17-00 http://www.samsung.com/support
8-800-555-55-55 http://www.samsung.com/ru/support
8-10-800-500-55-500 http://www.samsung.com/support
0-800-502-000 http://www.samsung.com/ua/support (Ukrainian)
http://www.samsung.com/ua_ru/support
(Russian)
8-10-800-500-55-500 http://www.samsung.com/support
90
CHINA
CHINA
HONG KONG
MACAU
S.E.A
AUSTRALIA
INDONESIA
JAPAN
MALAYSIA
MYANMAR
NEW ZEALAND
400-810-5858 http://www.samsung.com/cn/support
(852) 3698 4698 http://www.samsung.com/hk/support (Chinese)
http://www.samsung.com/hk_en/support
(English)
0800 333 http://www.samsung.com/support
1300 362 603 http://www.samsung.com/au/support
021-56997777
08001128888
0120-363-905 http://www.samsung.com/jp/support
1800-88-9999
603-77137477 (Overseas contact)
01-2399888 http://www.samsung.com/support
0800 726 786 http://www.samsung.com/nz/support
http://www.samsung.com/id/support
http://www.samsung.com/my/support
PHILIPPINES
SINGAPORE
TAIWAN
1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline and Mobile]
02-4222111 [Other landline]
1800-SAMSUNG (726-7864) http://www.samsung.com/sg/support
0800-329999 http://www.samsung.com/tw/support
http://www.samsung.com/ph/support
91
S.E.A
THAILAND
VIETNAM
S.W.A
BANGLADESH
INDIA
SRI LANKA
MENA
ALGERIA
BAHRAIN
0-2689-3232,
1800-29-3232
1800 588 889 http://www.samsung.com/vn/support
09612300300 http://www.samsung.com/in/support
1800 3000 8282 - Toll Free
1800 266 8282 - Toll Free
0094117540540
0094115900000
021 36 11 00 http://www.samsung.com/n_africa/support
8000-GSAM (8000-4726) http://www.samsung.com/ae/support (English)
http://www.samsung.com/th/support
http://www.samsung.com/in/support
http://www.samsung.com/support
http://www.samsung.com/ae_ar/support (Arabic)
EGYPT
IRAN
JORDAN
KUWAIT
08000-726786
16580
021-8255 http://www.samsung.com/iran/support
0800-22273
06 5777444
183-CALL (183-2255) http://www.samsung.com/ae/support (English)
http://www.samsung.com/eg/support
http://www.samsung.com/Levant/support
(English)
http://www.samsung.com/ae_ar/support (Arabic)
92
MENA
MOROCCO
OMAN
PAKISTAN
QATA R
SAUDI ARABIA
SYRIA
TUNISIA
TURKEY
U.A.E
080 100 22 55 http://www.samsung.com/n_africa/support
800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/support (English)
http://www.samsung.com/ae_ar/support (Arabic)
0800-Samsung (72678) http://www.samsung.com/pk/support
800-CALL (800-2255) http://www.samsung.com/ae/support (English)
http://www.samsung.com/ae_ar/support (Arabic)
920021230 http://www.samsung.com/sa/support
http://www.samsung.com/sa_en/support
(English)
18252273 http://www.samsung.com/Levant/support
(English)
80-1000-12 http://www.samsung.com/n_africa/support
444 77 11 http://www.samsung.com/tr/support
800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/support (English)
http://www.samsung.com/ae_ar/support (Arabic)
AFRICA
BOTSWANA
BURUNDI
CAMEROON
COTE D’ IVOIRE
8007260000 http://www.samsung.com/support
200 http://www.samsung.com/support
7095-0077 http://www.samsung.com/africa_fr/support
8000 0077 http://www.samsung.com/africa_fr/support
93
AFRICA
DRC
GHANA
KENYA
MOZAMBIQUE
NAMIBIA
NIGERIA
RWANDA
SENEGAL
SOUTH AFRICA
SUDAN
TANZANIA
UGANDA
499999 http://www.samsung.com/support
0800-10077
0302-200077
0800 545 545 http://www.samsung.com/support
847267864 / 827267864 http://www.samsung.com/support
08 197 267 864 http://www.samsung.com/support
0800-726-7864 http://www.samsung.com/africa_en/support
9999 http://www.samsung.com/support
800-00-0077 http://www.samsung.com/africa_fr/support
0860 SAMSUNG (726 7864) http://www.samsung.com/support
1969 http://www.samsung.com/support
0800 755 755 http://www.samsung.com/support
0800 300 300 http://www.samsung.com/support
http://www.samsung.com/africa_en/support
ZAMBIA
0211 350370 http://www.samsung.com/support
94
Responsibility for the Pay Service
A Product damage caused by customer's fault
(Cost to Customers)
―
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
•
If a service technician gives instructions on how to use product or simply adjusts options without
disassembling product.
•
If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
•
If a product is reinstalled or devices are connected additionally after installing the purchased
product for the first time.
•
If a product is reinstalled to move to a different spot or to move to a different house.
•
If customer requests instructions on how to use because of another company's product.
•
If customer requests instructions on how to use the network or another company's program.
•
If customer requests software installation and setup for the product.
•
If a service technician removes/cleans dusts or foreign materials inside of the product.
•
If customer requests an installation additionally after purchasing a product through homeshopping or online.
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
•
External impact or drop.
•
Use of supplies or separatly sold product unspecified by Samsung.
•
Repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
•
Remodeling or repairing the product by customer.
•
Using it with incorrect voltage or non-authorised electrical connections.
•
Not following the "cautions" in User Manual.
Others
•
If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
•
If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
―
If customer requests a service in case the product has no defect, service fee may be charged. So
please read User Manual first.
95
Terminology
OSD (On Screen Display)____ On
screen display (OSD) allows you to
customize on-screen settings to
optimize the picture quality as required.
You can change the screen brightness,
tint, size and many other settings using
menus displayed on the screen.
HUB____ HUB refers to a device that
is a common connection point for
multiple devices connected over a
network. It is used to connect multiple
PCs, video devices, office devices and/or
LANs over a single network.
Gamma____ The Gamma menu adjusts
the grey scale that represents middle
tones on the screen. Adjusting the
brightness brightens the whole screen,
but adjusting Gamma only brightens
the medium brightness.
Grey scale____ Scale refers to levels
of color intensity that show variations
of color change from darker areas to
brighter areas on the screen. Changes
to the screen brightness are expressed
with black and white variation, and
grey scale refers to the medium area
between black and white. Changing the
grey scale through Gamma adjustment
will change the medium brightness on
the screen.
Scanning rate____ Scanning rate, or
refresh rate, refers to the frequency
of screen refreshes. Screen data is
transmitted as it refreshes to display
an image, although the refreshing is
invisible to the naked eye. The number
of screen refreshes is called scanning
rate and is measured in Hz. A scanning
rate of 60Hz means that the screen
refreshes 60 times per second. The
screen scanning rate depends on the
performance of the graphics cards in
your PC and monitor.
Dot Pitch____ The product and screen
consist of red, green and blue dots.
A shorter distance between the dots
produces a higher resolution. Dot pitch
refers to the distance between the
shortest distance between dots of the
same color. Dot pitch is measured in
millimeters.
Horizontal Frequency____ Characters
or images displayed on the monitor
screen consist of numerous dots (pixels).
Pixels are transmitted in horizontal
lines, which are then arranged vertically
to create an image. The horizontal
frequency is measured in kHz and
represents how many times horizontal
lines per second are transmitted and
displayed on the monitor screen. A
horizontal frequency of 85 means that
the horizontal lines that make up an
image are transmitted 85000 times per
second. The horizontal frequency is
indicated in 85kHz.
Vertical Frequency____ One image is
made of numerous horizontal lines. The
vertical frequency is measured in Hz and
represents how many images can be
created per second by those horizontal
lines. A vertical frequency of 60 means
that an image is transmitted 60 times
per second. The vertical frequency is
also called "refresh rate" and affects
screen flicker.
Resolution____ Resolution is the
number of horizontal pixels and vertical
pixels that form a screen. It represents
the level of display detail. A higher
resolution displays a greater amount
of information on the screen and is
suitable for performing multiple tasks at
the same time.
E.g. A resolution of 1920 x 1080 consists
of 1920 horizontal pixels (horizontal
resolution) and 1080 vertical lines
(vertical resolution).
Plug & Play____ The Plug & Play
feature allows the automatic exchange
of information between a monitor and
PC to produce an optimum display
environment.
The monitor uses VESA DDC
(international standard) to execute Plug
& Play.
96
