Samsung RT52EAMT, RT57EAMT User Manual

O WNER’S MANUAL

ENGLISH

REFRIGERATOR

Before operating the unit, please read this manual throughly,

and retain for future reference.

※ If you took out of the power supply outlet, you should plug in again after five minutes.

Register your product at www.samsung.com/global/register

DA68-01258A REV(0.2)

FEATURE

Uniform supply of cold in refrigerating
room!

�Food can be refrigerated more freshly and evenly by

supplying cold even to the corners by means of rotating
wings to distribute cold, which are installed to the cold
outlet of the refrigerating room.(Rotating cooling
system).

Uniform supply of cold in the freezing
room!

�Foods can be freezed more evenly by the air shower

function to jet cold evenly in the freezing room.

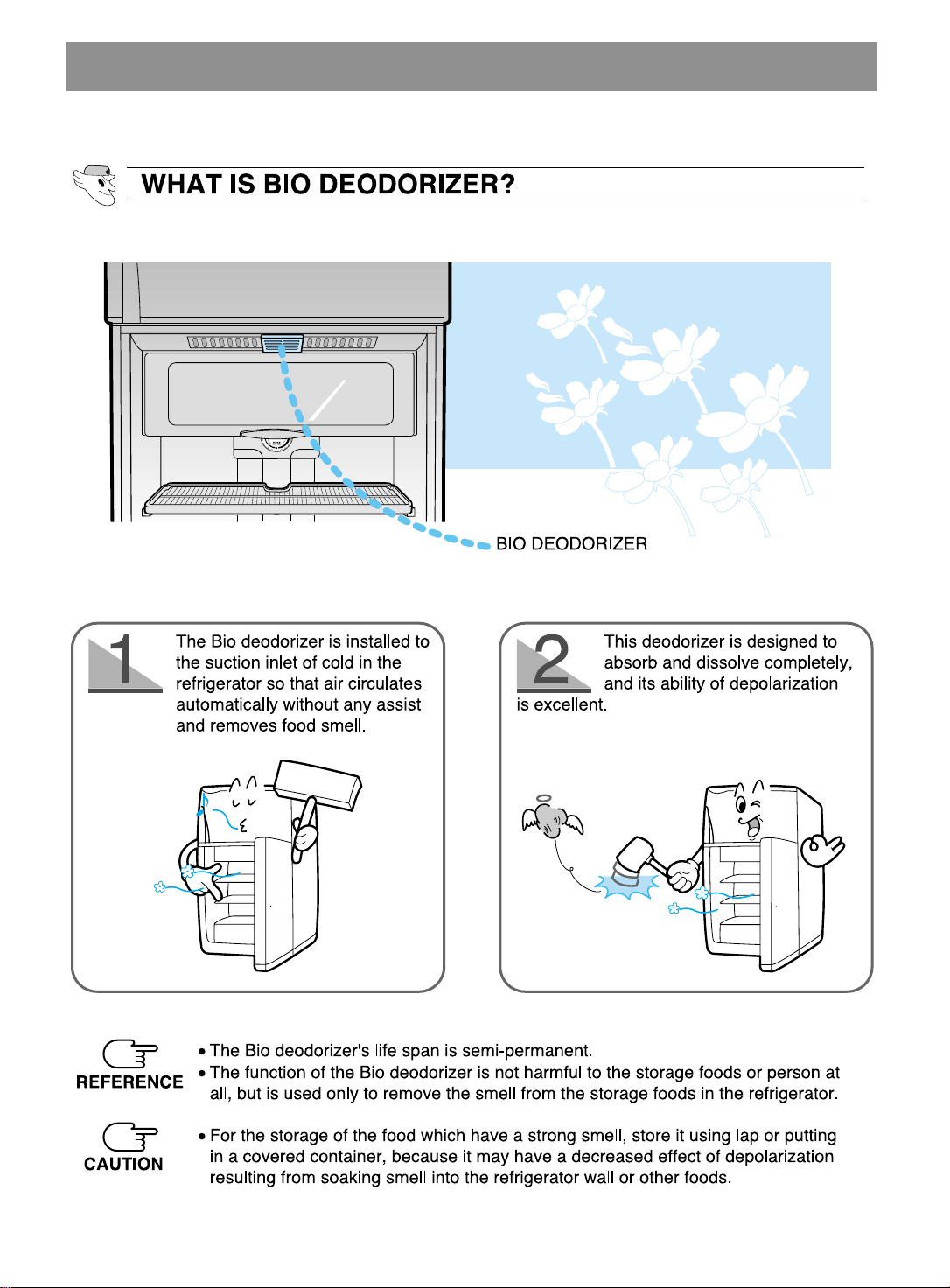

Being fresh by Bio deodorizer!

�Bio deodorizer that remove every kinds of foods smell in

refrigerator maintains the origin flavor of foods newly.

X-Flow cooling system is a new rotating
cooling system that refrigerates the inside
of refrigerator quickly and uniformly by
rotating wings tramsmitting cold in all the
corners.

●

Before operating the appliance, please read this
manual thoroughly and retain it for your reference.

●

Because these following operating instructions
cover various models, the characteristics of your
refrigerator may differ slightly from those described
in this manual.

●

The appliance is not intended for use by children or
infirm persons without adult supervision.

●

Children should be supervised to ensure that they
do not play with the appliance.

●

The appliance must be positioned so that the plug
is accessible after installation.

Rapid opening and closing by rail
system!

�Vegetables and fruits can be rapidly accessible to

prevent loss of cold by employing a rail style design in
high-humidity vegetable room and high-humidity special
room which operates smoothly only by pulling and
pushing a handle effortlessly.

Even slightly opened door is closed
automatically by itself!

�In case of slight opening of refrigerator door, it will be

closed automatically by employing energy-saving,
automatic closing function.

CONTENTS

FEATURE-----------------------------------------------------------------------------------------------------------------1
WARNING FOR SAFETY------------------------------------------------------------------------------------- 2
CAUTION FOR SAFETY------------------------------------------------------------------------------------4
PREPARATIONS PRIOR TO USE-----------------------------------------------------------------6
HOW TO STORE FOODS CORRECTLY---------------------------------------------------- 7
INSTALLATION METHOD---------------------------------------------------------------------------------8
HOW TO USE FREEZING ROOM------------------------------------------------------------------9
HOW TO USE REFRIGERATING ROOM-------------------------------------------------11
HOW TO DISASSEMBLE ACCESSORIES----------------------------------------------14
CLEANING METHOD---------------------------------------------------------------------------------------- 16
PROCEDURE OF INSTALLATION--------------------------------------------------------------18
CAUTIONS WHEN USING------------------------------------------------------------------------------ 19
CHECKS PRIOR TO SERVICE REQUEST----------------------------------------------20
ANSWER TO THE QUESTION---------------------------------------------------------------------22

1

W ARNING FOR SAFETY

This is to prevent users or other persons from being wounded or injured, by using the present
product properly. Be sure to observe these contents for safety. (After reading these contents,
please keep in such a safe place as to look up)

2

3

CA UTION FOR SAFETY

4

5

PREPARATIONS PRIOR TO USE

6

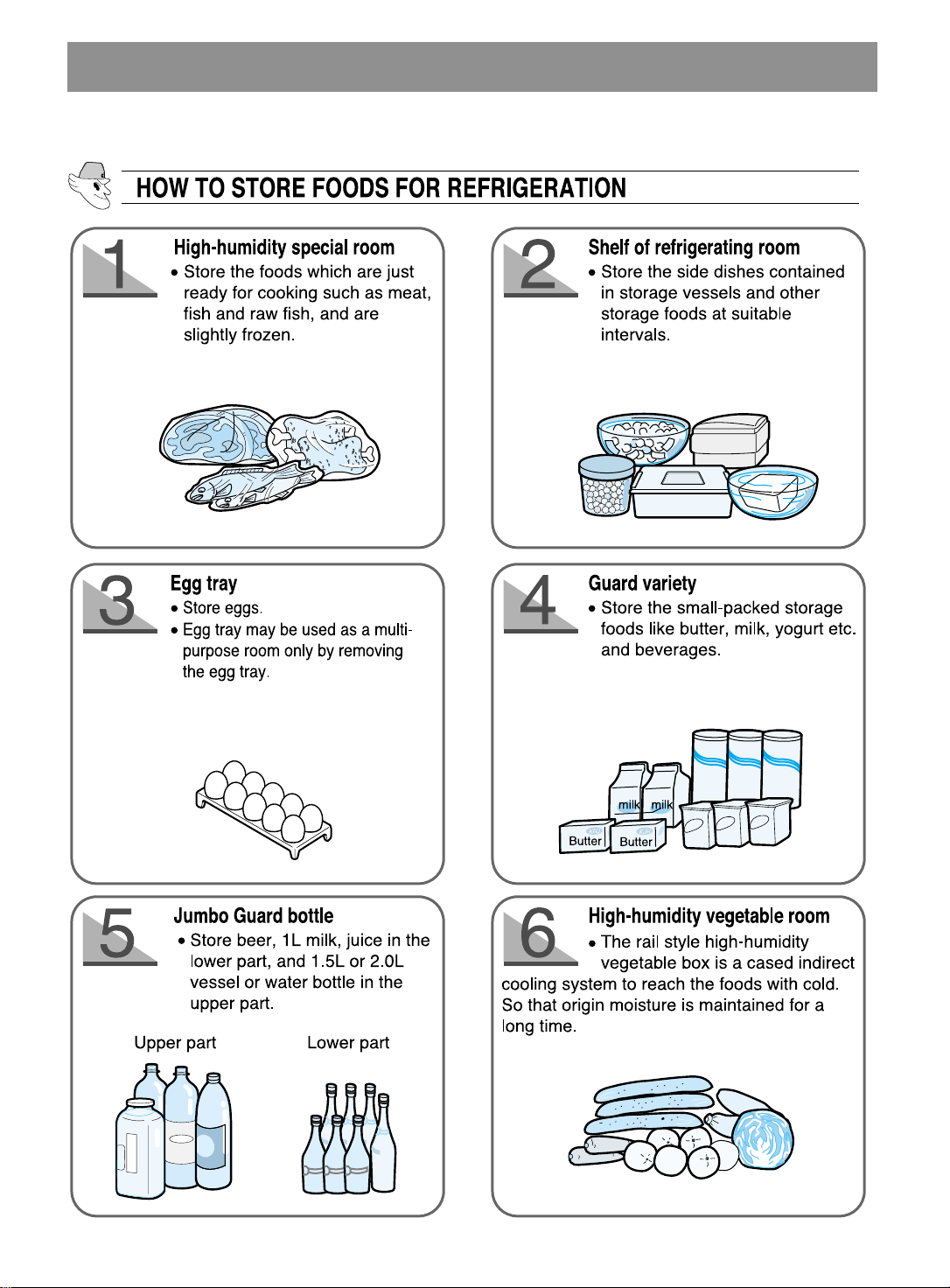

HO W T O ST ORE FOODS CORRECTLY

7

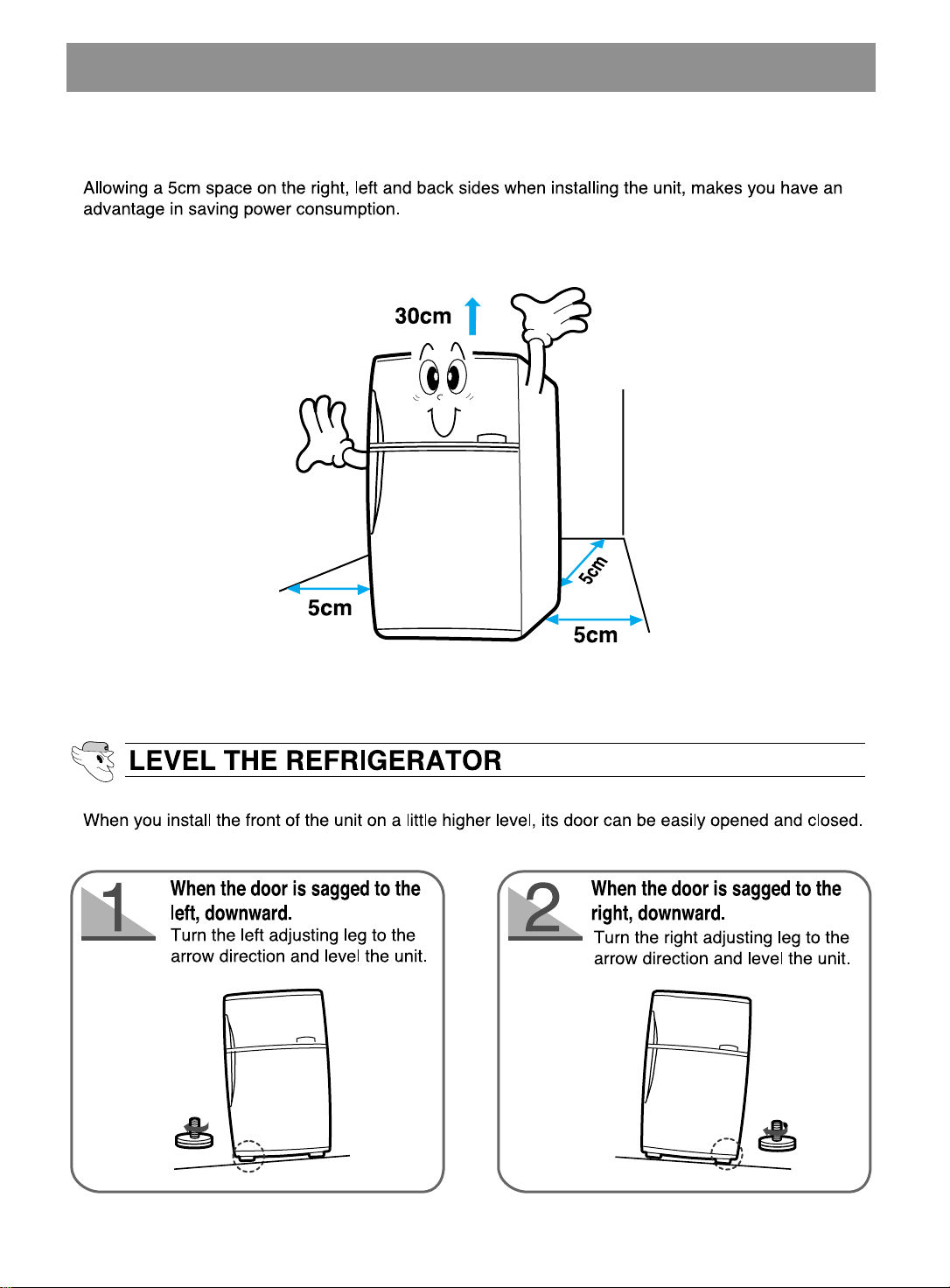

INSTALLATION METHOD

8

HO W T O USE FREEZING ROOM

ICE BOX
Temperature controller in freezing room
Indoor light in freezing room

Drying room

Airshower: Function of airshower- foods can

Suction inlet of cold

be frozen more evenly by function of jetting
cold uniformly in freezing room. (Option)

Electronic model

9

HOW TO CONTROL TEMPERATURE IN FREEZING ROOM

1. Mechanic model
COLDER :

When storing much quantities of foods to be frozen, or producing ice quickly .

●

Adjust the temperature controller in the freezing room to the “COLDER”position.

COLDER to COLD :
When using in average.

●

Adjust the temperature controller in the freezing room between “COLDER”and “COLD”position .

COLD :

When storing few quantity of foods to be frozen.

●

Adjust the temperature controller in the freezing room to the "COLD" position.

2. Electronic model

Push the “CONTROL TEMP.” button.

●

You can choose the temperature (Ultra, High, Middle, Low) depends on the amount of food.

●

If you push the button, you can see lighting moved in the following order. (ex ; Middle → High →
Ultra → Low)

●

It means “ULTRA” that all lamps are on.(Store large quantities of food)

Push the “QUICK FREEZE” button.

●

You can push this button, when you want to make the ice or cool the food quickly.

●

If you push this button, the lamp will be on and it will work.

●

If you want to stop the function, push the button one more.

Push the “DOOR ALARM” button.

●

You can check the airtight of door with the alarm.

●

If the door of refrigerator is left opened over the angle of 5o, the alarm will operate for 10 second
every 2 minute repeatedly.

●

As soon as you plug in a refrigerator, this function will operate. If you don’t use this function, push
this button and then you will see the lamp off.

●

Put the foods to be stored for a long time in the freezing room, such as ice cream, fish,

and meat, etc.

●

It is recommended to store the dried foods in the dry room, such as dried fish, pepper

powder which dislike humidity.

In the following case, smell may arise from ice.

●

Storing the uncovered meat or fish.

●

Storing foods packed with the smelling package such as vinyl.

10

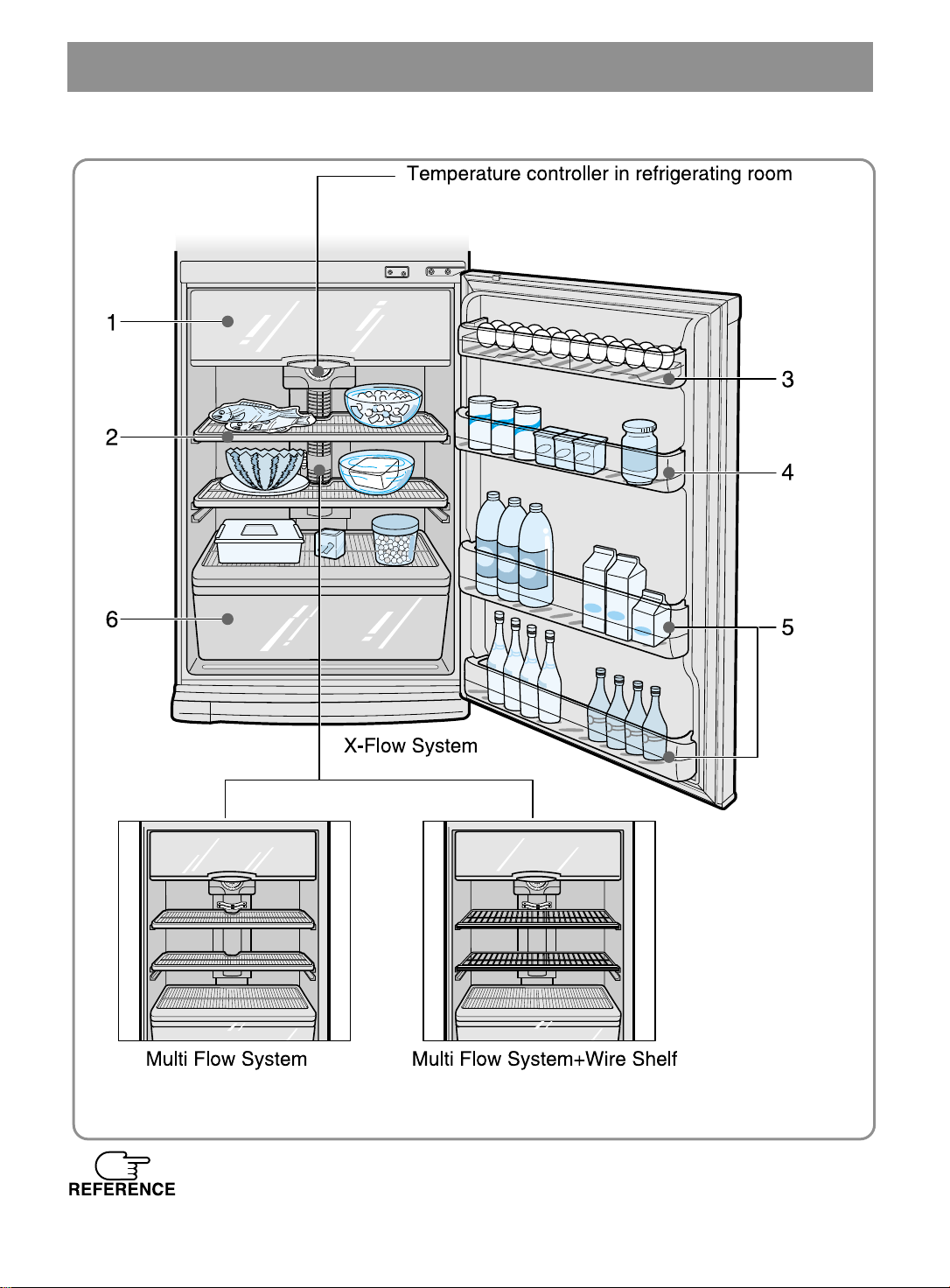

HO W T O USE REFRIGERATING ROOM

Frequent opening of refrigerator door may produce dew inside of the unit.

11

HO W T O CONTROL TEMPERATURE IN REFRIGERATING ROOM

COLDER :
When storing much quantities of foods to be refrigerated or not being cold enough.

●

Adjust the temperature controller in refrigerating room to the “COLDER”position.

COLDER to COLD :
When using in average.

●

Adjust the temperature controller in refrigerating room between “COLDER”and “COLD”position.

COLD :
When the food refrigerated are frozen, or the foods are in a small quantity.

●

Adjust the temperature controller in refrigerating room to the “COLD”position.

In case surrounding temperature is less than 5°C, the temperature should be lower than
average to prevent the stored foods against getting frozen.

12

13

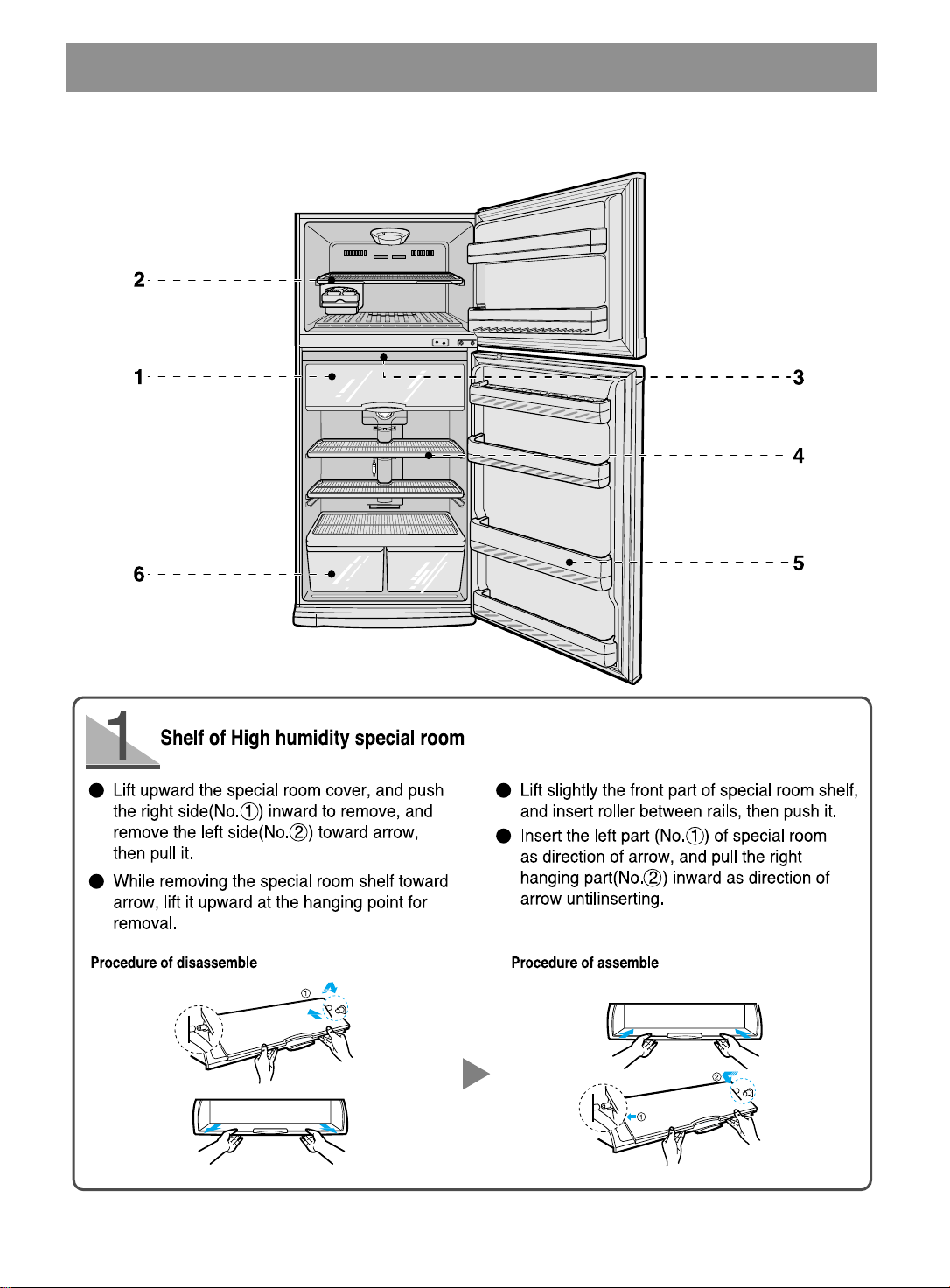

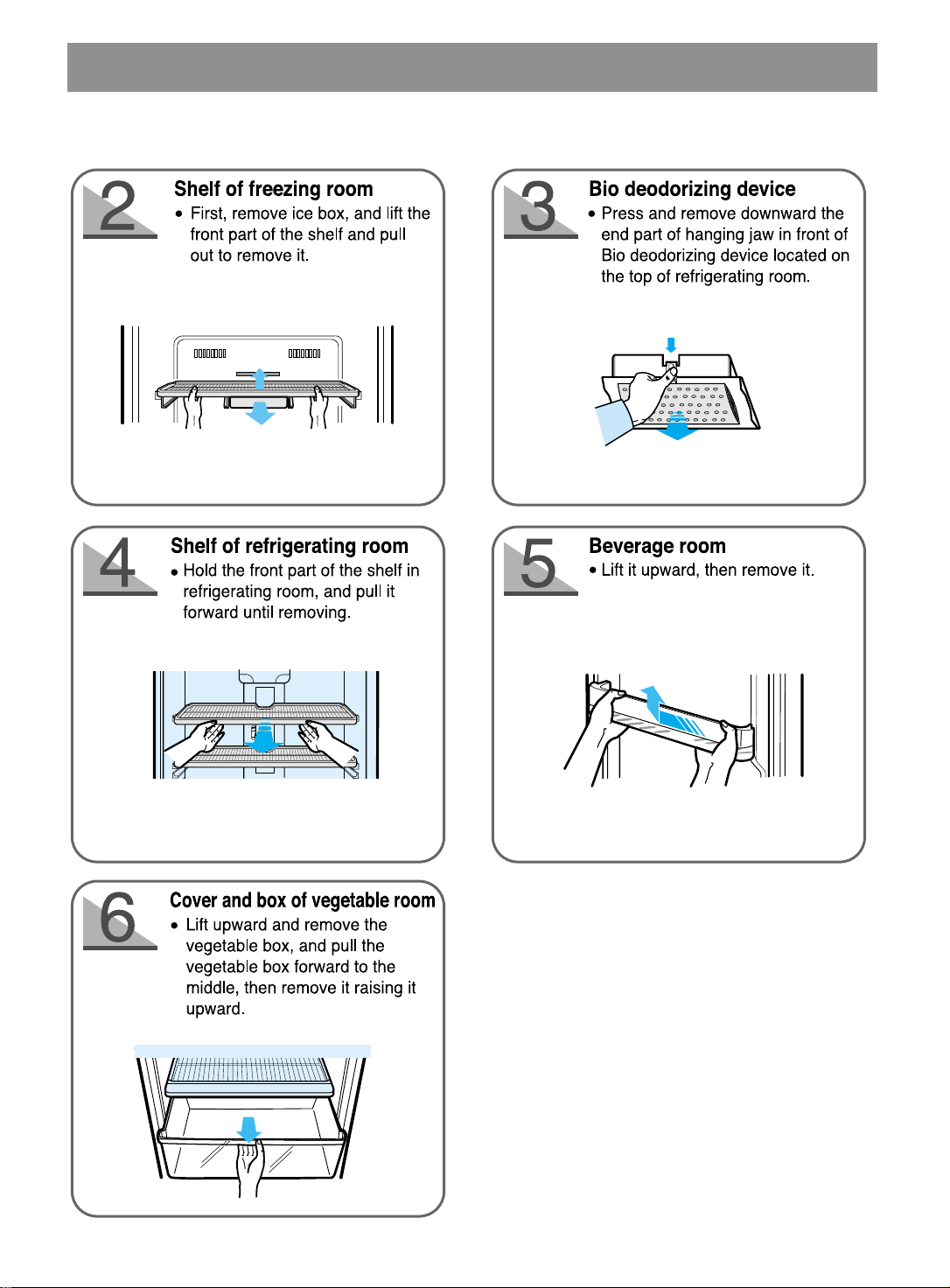

HO W T O DISASSEMBLE A CCESSORIES

14

15

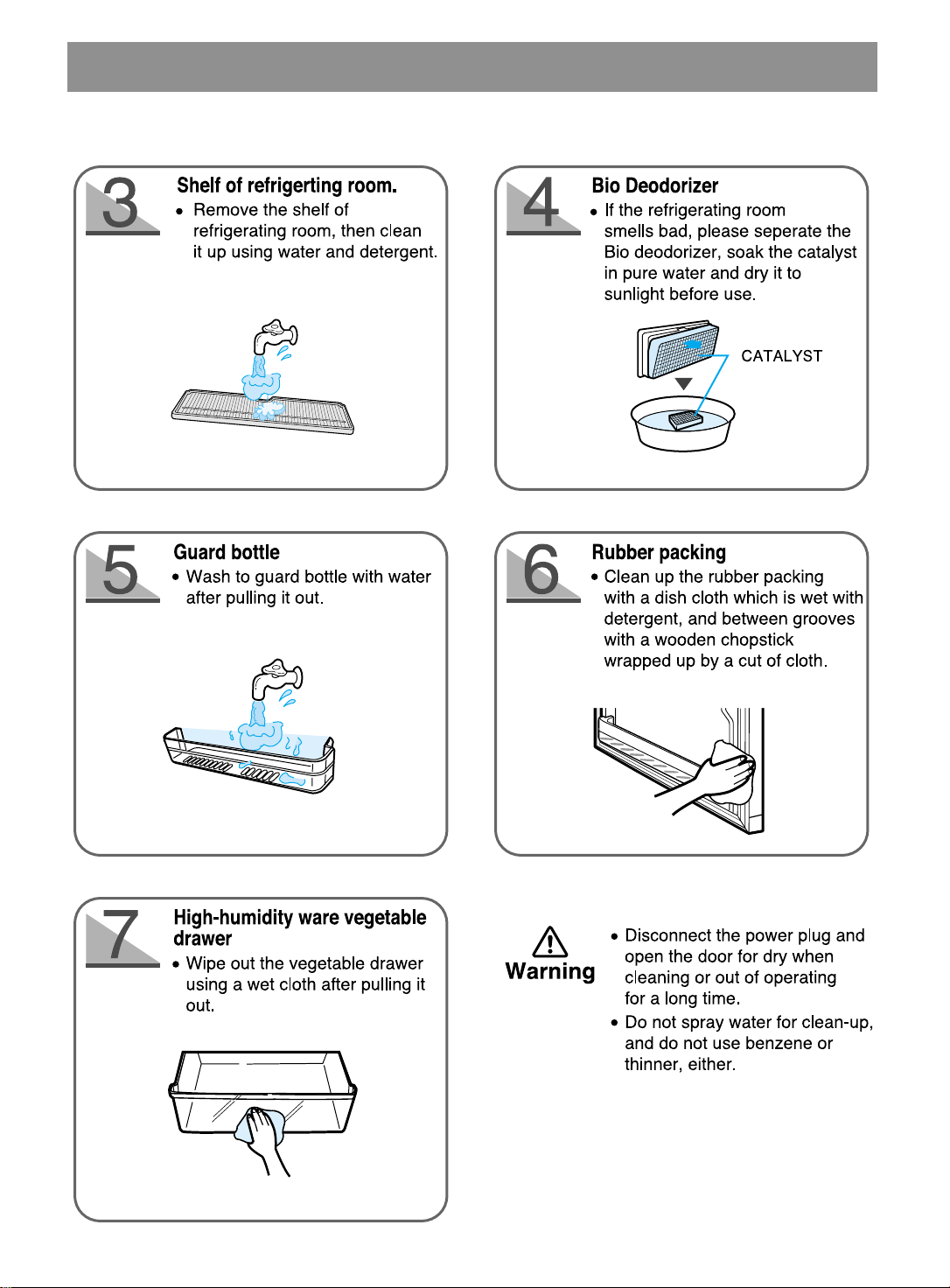

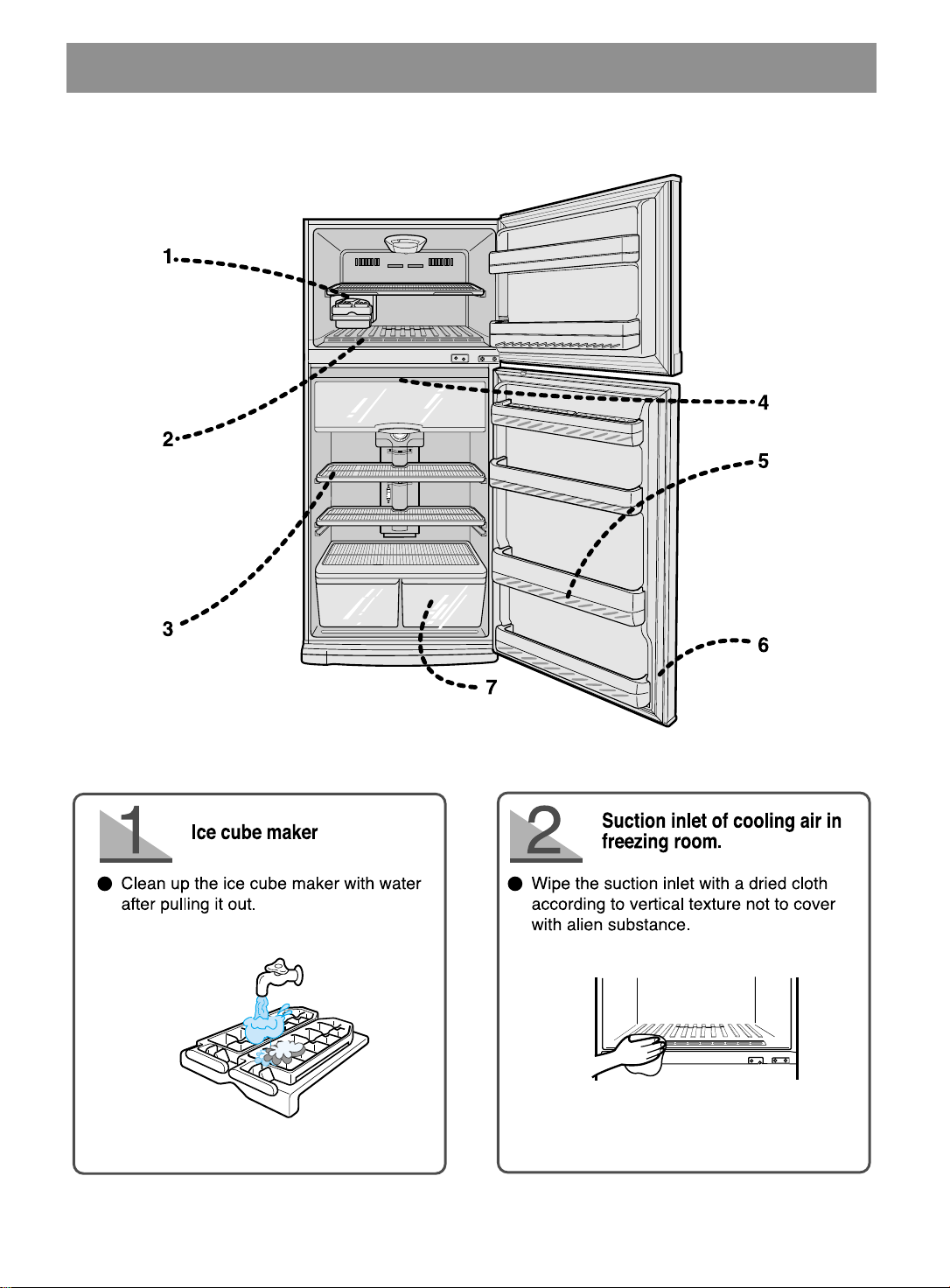

CLEANING METHOD

16

17

PROCEDURE OF INSTALLA TION

18

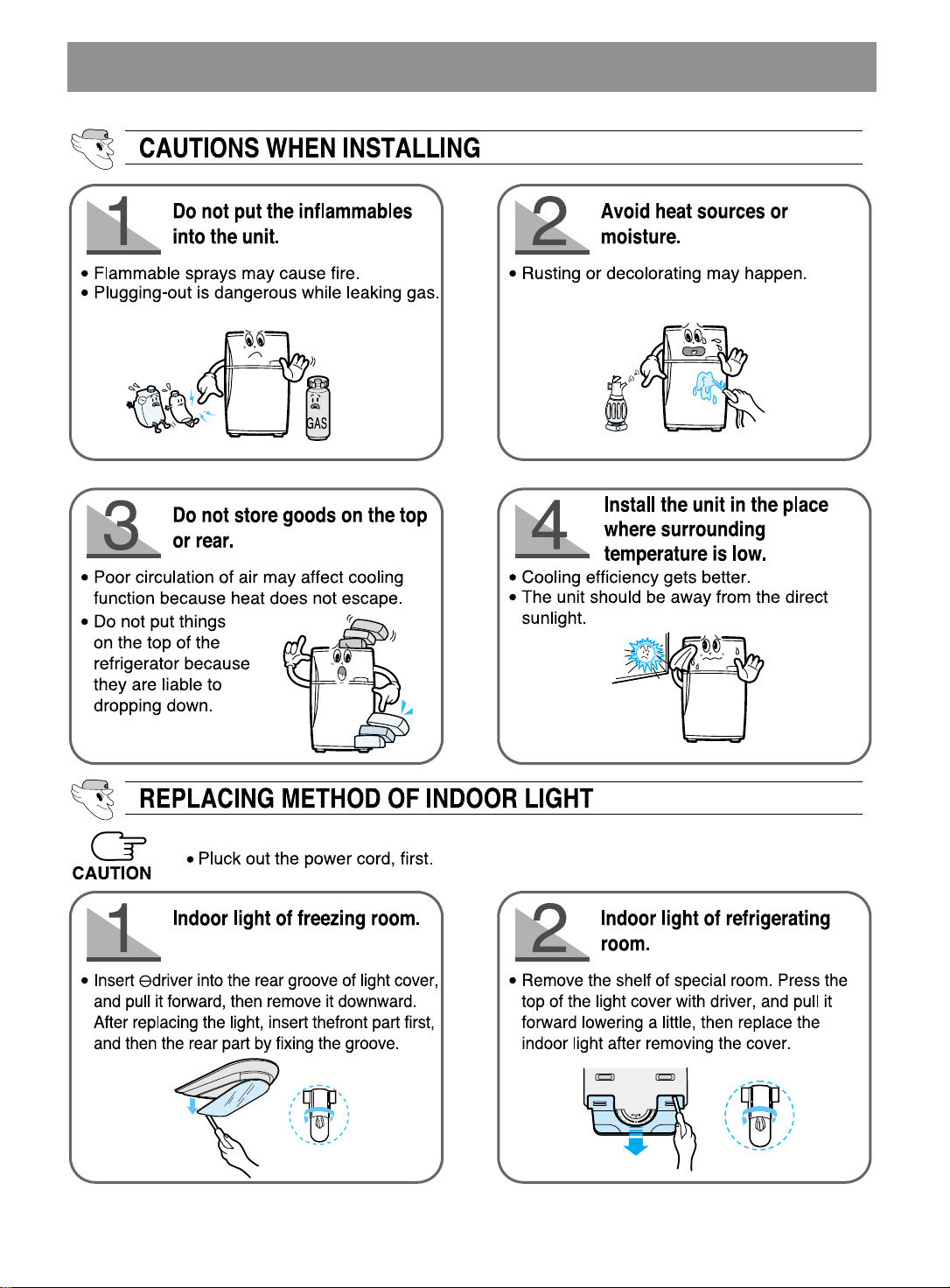

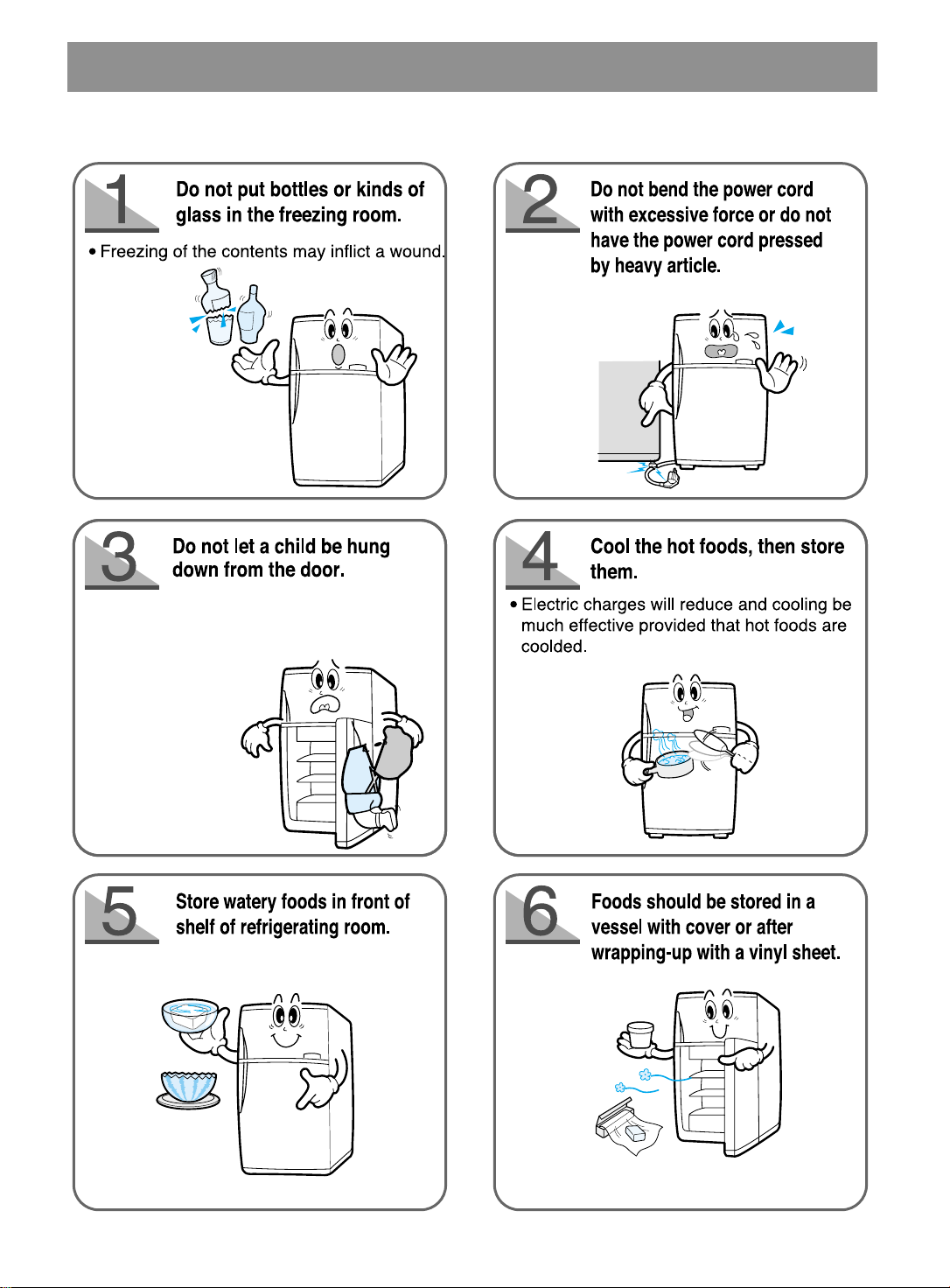

CA UTIONS WHEN USING

19

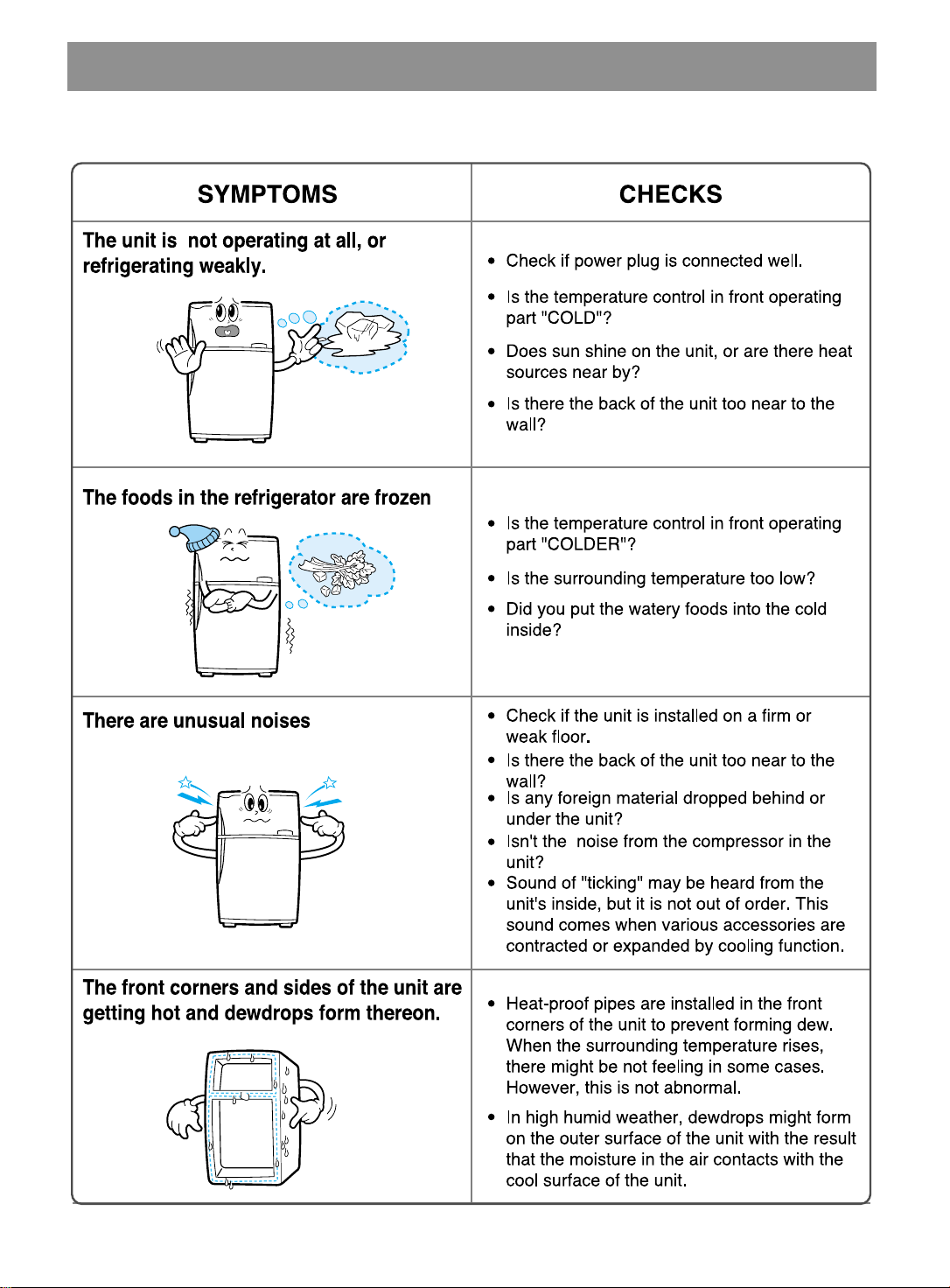

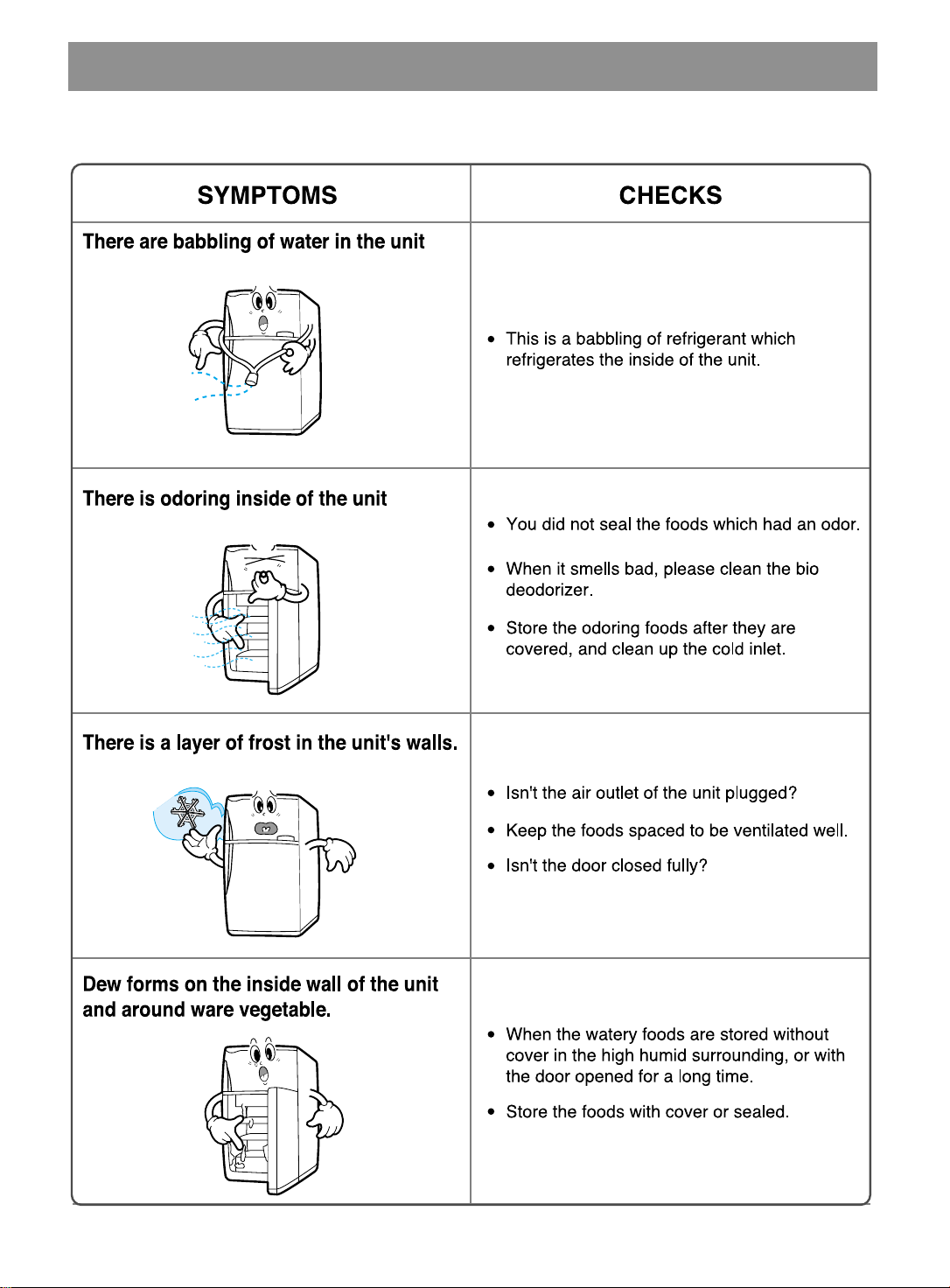

CHECKS PRIOR T O SER VICE REQUEST

20

21

ANSWER T O THE QUESTION

22

English

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with
separate collection systems)

This marking shown on the product or its literature, indicates that it should
not be disposed with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material
resources.

Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
