SyncMaster 930MP

Power

Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Do not touch Grounding to prevent an electric shock

When not used for extended period of time, set your computer to DPMS.
If using a screen saver, set it to the active screen mode.

Do not use a damaged or loose plug.

z This may cause an electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

z This may cause an electric shock or fire.

Use only a properly grounded plug and receptacle.

z An improper ground may cause elec tric shock or equipment damage.

Do not excessively bend the plug and wire nor place heavy objects upon them,
which could cause damage.

z This may cause an electric shock or fire.

Do not connect too many extension cords or plugs to an outlet.

z This may cause fire.

Installation

Put your monitor in a location with low humidity and a minimum of dust.

z Failure to do so may cause an electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

z This may cause damage to the product or human body.

Place the monitor on a flat and stable surface.

z The monitor may cause injury by falling.

Set down the monitor carefully.

z The monitor could be damaged or b ro ken.

Do not place the monitor face down.

z The TFT-LCD surface may be damaged.

Installing a wall bracket must be done by a qualified professional.

z Installation by unqualified personnel may result in injury.
z Always use the mounting device specified in the owner's manual.

Leave a space for ventilation between the product and the wall.

z Poor ventilation may cause the interior temperature to rise and lead to fire.

Clean

To prevent rainwater from running along the outdoor antenna cable and entering the
house, be sure the outdoor portion of the cable hangs down below the point of entry.

z If rainwater enters the product, it may cause an electric shock or fire.

If you are using an outdoor antenna, be sure to put sufficient distance between your
antenna and the electrical wires nearby so that they would not come in contact with
each other in case the antenna is knocked over by strong wind.

z A knocked-over antenna may cause injury or an electric shock.

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a
slightly moistened, soft fabric.

Do not spray water or detergent directly on the monitor.

z This may cause damage, electric shock or fire.

Others

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it properly
with a dry cloth.

z A dirty connector may cause an electric shock or fire.

Contact a Service Center or Customer Center for interior cleaning once a year.

z Keep the product's interior clean. D ust which has accumulated in the interior

over an extended period of time may cause malfunction or fire.

Do not remove cover (or back). No user serviceable parts inside.

z This may cause an electric s hock or fire.
z Refer servicing to qualified service personnel.

If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and contact

an authorized dealer or service.

z This may cause an electric s hock or fire.

Be careful not to let water drip into the monitor or expose the monitor to
moisture.

z

This may cause malfunction, an electric shock or fire.

z Especially avoid operating the monitor near water or outdoors where it could

be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off and
unplug the power cord.

z The monitor may malfunction, causing an electric shock or fire.

z

Then contact the Service Center .

Disconnect the plug from the outlet during storms or lightening or if it is not
used for a long period of time.

z Failure to do so may cause an electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal cable.

z This may cause a breakd own, electric shock or fire du e to damage to the

cable.

Do not move the monitor right or left by pulling only the wire or the signal
cable.

z This may cause a breakd own, electric shock or fire du e to damage to the

cable.

Do not cover the vents on the monitor cabinet.

z Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects on
the monitor.

z This may cause malfunction, an electric shock or fire.
z If a foreign substance enters the monitor, unplug the power cord and contact

the Service Center .

Do not use or store inflammable substances near the monitor.

z This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

z This may cause an electric shock, fire or injury.

Do not insert metal objects such as utensils, wire or drill bits, or things that
catch fire easily, such as pieces of paper or matches, into the vents, or the
headphone, or A/V ports on the monitor.

z This may cause malfunction, an electric shock or fire.
z Always contact the Service Center if foreign substances/objects enter into the

monitor.

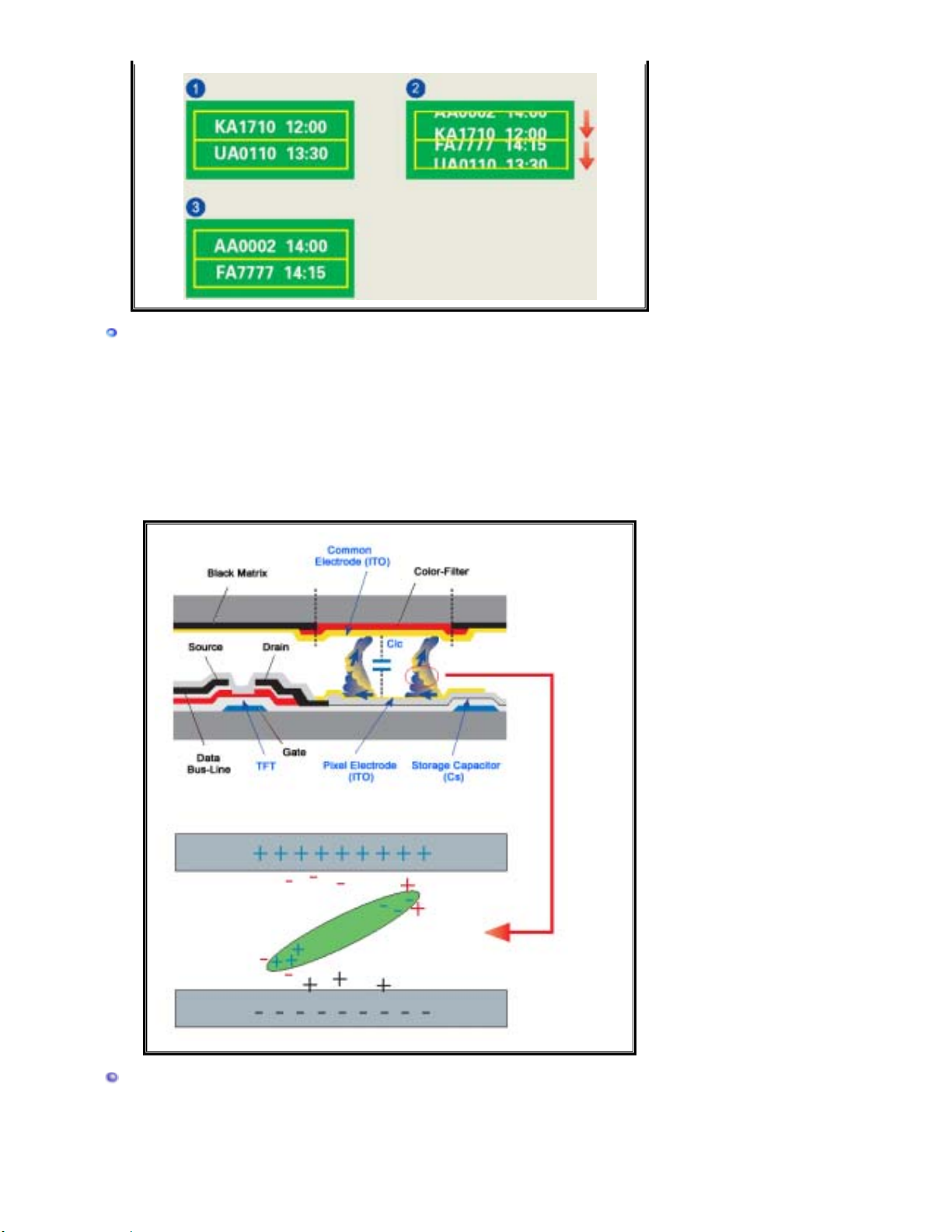

If you view a fixed screen for an extended period of time, residual image or
blurriness may appear.

z Change the mode to energy save or set a screensaver to moving picture when

you need to be away from the monitor for an extended period of time.

Adjust the resolution and frequency to the levels appropriate for the model.

z Inappropriate resolution may cause undesirable picture quality.

19 inch - 1280 X 1024

Be careful that adapter should not be in contact with water and therefore not
be wet.

z This may cause malfunction, an electric shock or fire.
z Do not use adapter by the waterside or outside particularly when it rains or

snows.

z Be careful that adapter should not be wet while cleaning floor with water.

Keep all power adapters apart.

z Failure to do so may cause fire.

Keep power adapter away from any other heat source.

z Failure to do so may cause fire.

Remove and discard vinyl bag from power adapter before use.

z

Failure to do so may caus e fire.

Always keep power adapter in well-ventilated area.

Keep the volume at a proper level when you use the headphones.

z

Excessively loud volume levels may damage hearing.

Keep a proper distance between your eyes and the monitor screen.

z Sitting too close to the monitor on a continuous basis may damage eyesight.

To ease eye strain, take at least a five-minute break after every hour of using
the monitor

.

Do not use the monitor where it may be exposed to strong vibrations.

z Exposure to strong vibrations may be fire hazard and shorten the life of the

monitor.

When moving the monitor, turn the power switch off and unplug the power
cord.
Make sure that all cables, including the antenna cable and c ables connecting
to other devices, are disconnected before moving the monitor.

z Failure to disconnect a cable may damage it and lead to fire or an electric

shock.

When you remove batteries from the remote, be careful that they are not
swallowed by children. Keep batteries out of the reach of children.

z If swallowed, see a doctor immediately.

When replacing batteries, place the batteries in the correct +/- polarity position
as indicated on battery holder.

z

Incorrect polarity may cause a battery to break or leak and could lead to fire,
injury, or contamination (damage).

Use only specified standard batteries. Do not use new and used batteries
together.

z This may cause a battery to break or leak and could lead to fire, injury, or

contamination (damage).

Do not set a glass of water, chemicals or any small metal objects on the
monitor.

z This may cause damage, electric shock or fire.
z If a foreign substance gets into the monitor, disconnect the plug and then

contact a service center.

r

(

)

Unpacking

Manual

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer

Contact a local deale

Monitor

to buy optional items.

.

Quick Setup Guide

Cable

D-Sub Cable Power Cord Radio Antenna

Warranty Card

Not available in all locations

User's Guide, Monitor Driver,

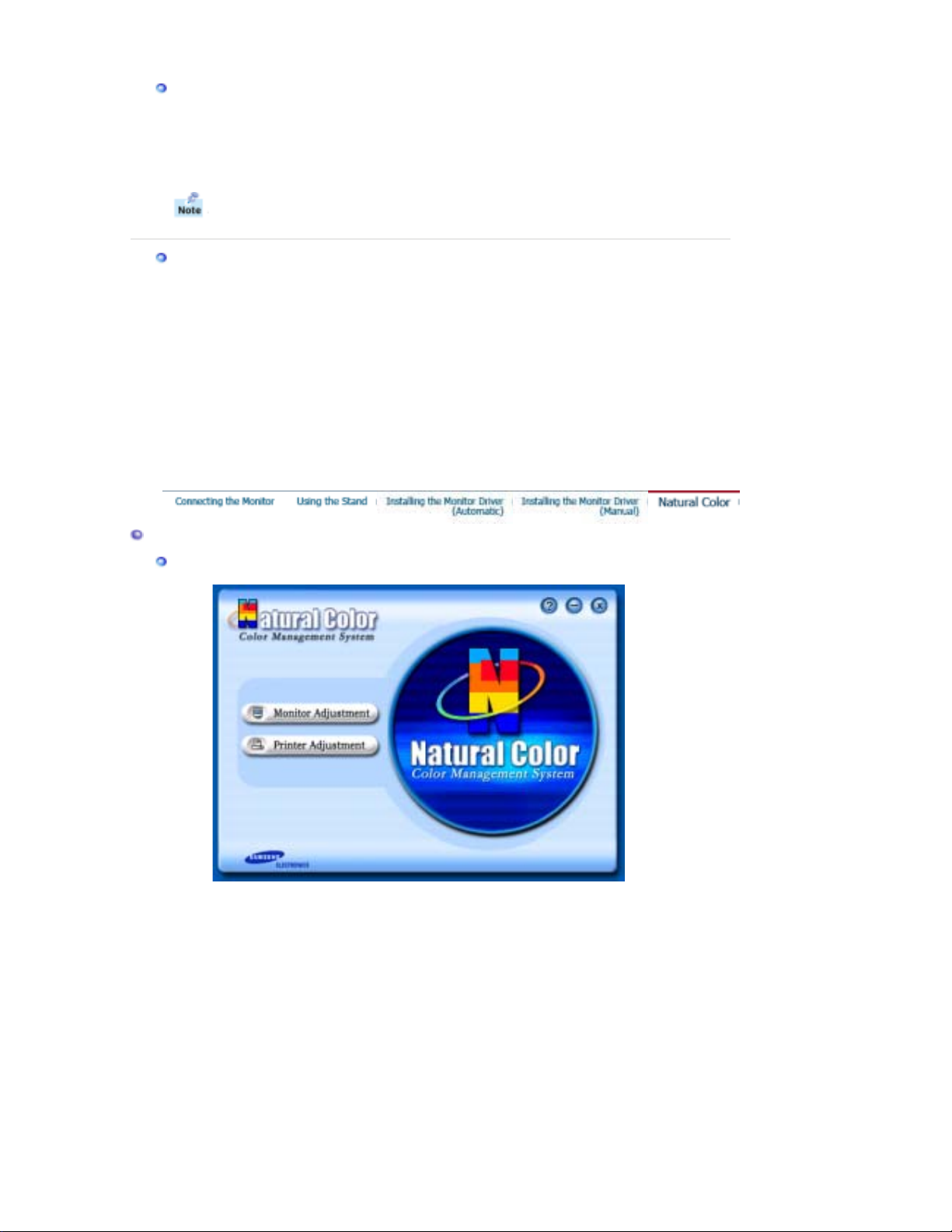

Natural Color software

r

Sold separatel

y

r

Others

Audio Cable DC Adapte

DVI Cable

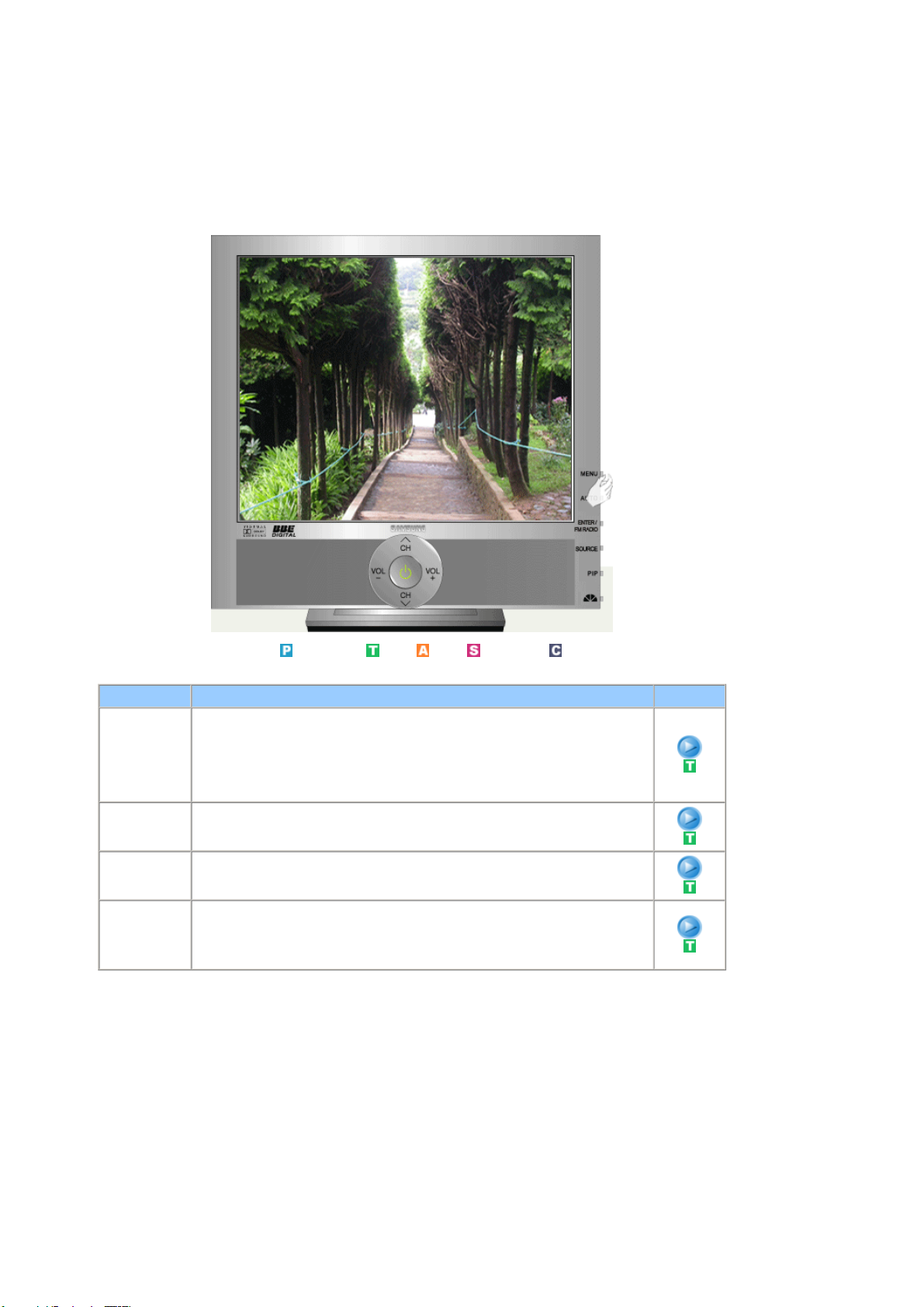

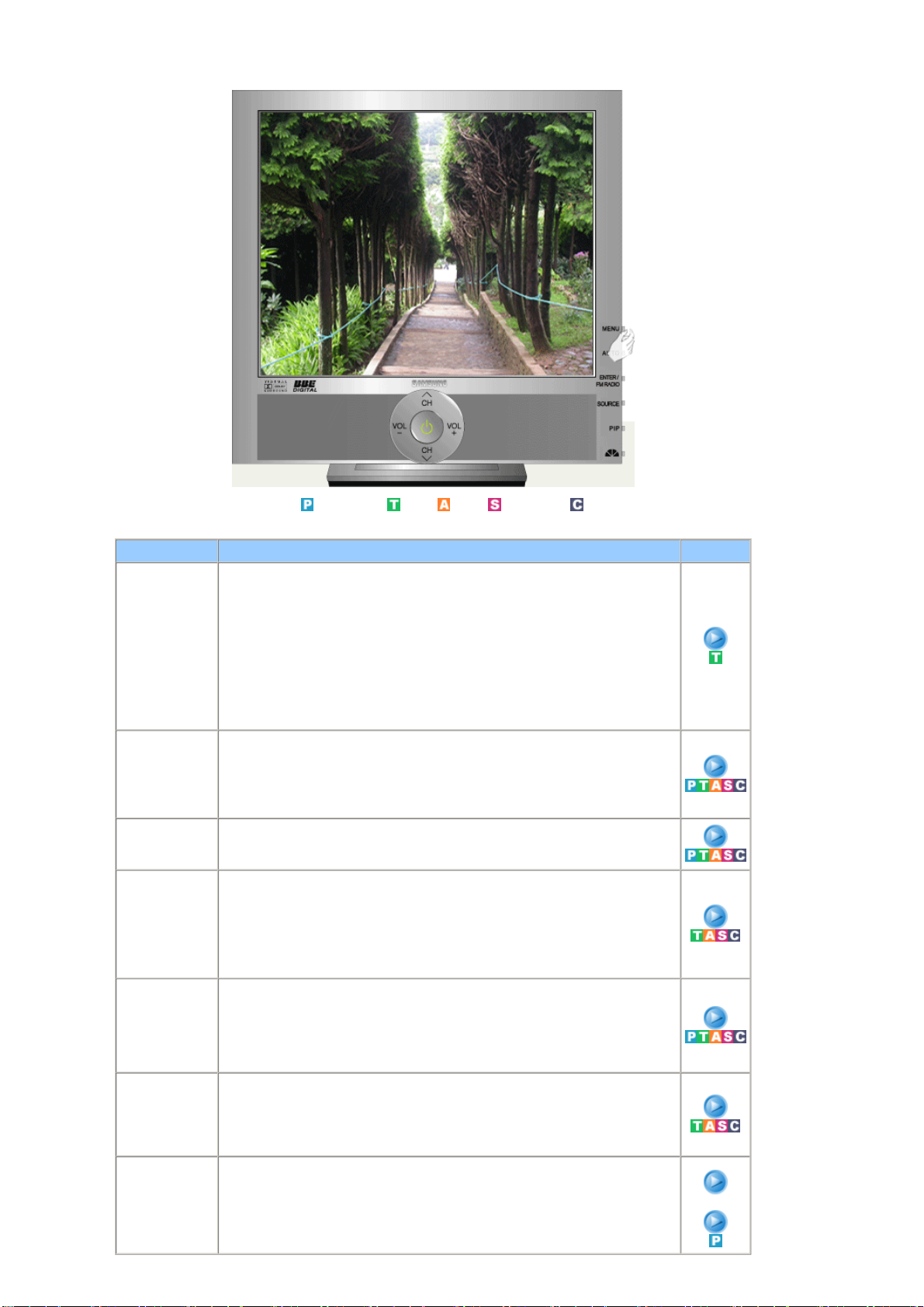

Front

Remote Control Batteries (AAA X 2) Connecte

1. MENU

2. AUTO

3. ENTER/FM RADIO

4. SOURCE

5. PIP

6. MagicBright™

7. CH

8. + VOL -

9. Power button / Power indicator

10. Remote Control Sensor

1. MENU

Use this button for open the on-screen menu and exits from the menu screen or closes
screen adjustment menu.

2. AUTO

3. ENTER / FM RADIO

4. SOURCE

5. PIP ( Available in PC/DVI Mode Only )

6. MagicBright™ [ ] ( Available in PC/DVI Mode Only )

7. CH

-( Available in PC/DVI Mode Only )
Use this button for auto adjustment.
If you change resolution in the control panel, Auto function will be executed.

>>Click here to see an animation clip

: Activates a highlighted menu item.

ENTER
FM RADIO

In PC/DVI mode, sets only SOUND to FM Radio.
In areas where signal is weak, noise may occur while FM radio is broadcast.
In general VIDEO SOURCE mode, sets to FM RADIO, turning off the screen.

>>Click here to see an animation clip

Switches from PC mode to Video mode.
Changing the source is allowed only external devices that are connected to the monitor at
the time.
To switch Screen modes:
[PC] [DVI] [TV] [Ext.] [AV] [S-VIDEO] [Component]

>>Click here to see an animation clip

NOTE : According to broadcasting type in each country, y ou may not be able to select one.
Scart is mainly used in Europe.
For more information > Broadcasting Systems

In PC Mode, turns on Video or TV s creens in PIP Mode.

>>Click here to see an animation clip

MagicBright™ is a new feature providing optimum viewing env ironment depending on the
contents of the image you are w atching. Currently four different modes are available:
Custom, Text, Internet, and Entertain. Each mode has its own pre-confi gured brightness
value. You can easily select one of four settings by simply pressing MagicBright™ control
buttons.

1) Text

2) Internet

3) Entertain

4) Custom

>>Click here to see an animation clip

Moves from one menu item to another vertically or adjusts selected menu values. In TV
mode, selects TV channels.

>>Click here to see an animation clip

: Turns on/off FM Radio.

: Normal Brightness

For documentations or works involving heavy text.

: Medium Brightness

For working with a mixture of images such as text and graphics.

: High Brightness

For watching motion pictures such as a DVD or VCD.

Although the values are carefully chosen by our engineers, the pre-configured values
may not be comfortable to your eyes depending on your taste.
If this is the case, adjust the B rightness and Contrast by using the OSD menu.

8. + VOL -

Moves from one menu item to another horizontally or adjusts se lected menu values. Also
adjusts the audio volume.

>>Click here to see an animation clip

9. Power button / Power indicator

Use this button to turn the monitor on and off./ Power Indicator shows P owerSaver mode
by green blinking.

10. Remote Control Sensor

Aim the remote control towards this spot on the Monitor.

See PowerSaver described in the manual for further information regarding power saving functions.
For energy conservation, turn your monitor OFF when it is not needed or when leaving it unattended
for long periods.

Rear

(The configuration at the back of the monitor may vary from product to product.)

1. DC 14V Power Connection Terminal

2. PC connection terminal

This product may be used wi th 90 ~ 264VAC.
(Voltage is automatically adjusted by the power adapter.)

z Computer connection terminal (DV I(HDCP))
z Computer connection terminal(15 Pin D-SUB)

3. AUDIO termi nal

A

udio connection terminal

4. COMPONENT terminal

5. FM RADIO / TV connection terminal

6. EXT(RGB) connection terminal

z DVD/DTV left / right audio connection terminal (R/L)
z DVD/DTV Component(P

z FM RADIO ANT connection terminal
z TV connection terminal

, PB,Y) terminal

R

For more information > Connecting TV

EXT(RGB) connection terminal

- Scart is mainly used in Europe.

7. AV connection terminal

z S-Video connection terminal (Input)

z Video connection terminal (Input)
z Left(L) / Right(R) audio connection terminal (Input)
z Headphone connection terminal (Output)

See Connecting the Monitor for further information regarding c able connections.

Remote Control

The performance of the remote control may be affected by a TV or other electronic devices

operated near the monitor, causing malfuction due to interference with frequency.

1. POWER

2. CHANNEL

3. +100, -/--

4. - +

5. MUTE

6. TTX/MIX

7. MENU

8. ENTER

9. FM RADIO

10. CH/P

11. SOURCE

12. INFO

13. EXIT

14. Up-Down Left-Right Buttons

15. AUTO

16. P.MODE, M/B (MagicBright™)

17. P.SIZE

18. STILL

19. PIP

20. S.MODE

21. DUAL/MTS

22. PRE-CH

23. SOURCE

24. SIZE

A

A

A

25. POSITION

26. MAGIC-CH

1. POWER

Use this button to turn the monitor on and off.

2. CHANNEL

Selects TV channels in the TV mode. You may use this button in PIP mode as well.

3. +100

Press to select channels over 100.
For example, to select channel 121, press "+100", then press "2" and "1".

-/-- (One/Two-Digit channel selection )

Use to select a channel numbered ten or over.
Press this button, and the "--" symbol is displayed.
Enter the two-digit channel number.

4. - +

djusts the audio volume.

5. MUTE

Pauses (mutes) the audio output temporarily.
Displays on the lower le ft corner of the screen.
The audio resumes if Mute or - + is pressed in the Mute mode.

6. TTX/MIX

TV channels provide written information services via teletext.
For more information > TTX / MIX

TTX / MIX is mainly used in Europe.

7. MENU

Use this button to open the on-screen menu and exit from the menu screen or close screen
adjustment menu.

8. ENTER

ctivates a highlighted menu item.

9. FM RADIO

Turns on/off FM Radio.
In PC/DVI mode, sets only SOUND to FM Radio.
In areas where signal is weak, noise may occur while FM radio is broadcast.
In general VIDEO SOURCE mode, sets to FM RADIO, turning off the screen.

10. CH/P

In TV mode, selects TV channels.

11. SOURCE

Switches from PC mode to Video mode.
Changing the source is allowed only external devices that are connected to the monitor at
the time.

12. INFO

Current picture information displays on the upper left corner of the screen.

13. EXIT

Exits from the menu screen.

14. Up-Down Left-Right Buttons

Moves from one menu item to another horizontally, vertically or adjusts selected menu
values.

15. AUTO -( Available in PC/DVI Mode Only )

djusts the screen display automatically.

16. P.MODE, M/B (MagicBright™)

When you press this button , current mode is displayed on the lower center of the screen.

TV / AV / Ext. / S-Video /Component Mode : P.MODE( Picture Mode )

The Monitor has four automatic picture settings that are preset at the factory.
Then push button again to circle through available preconfigured modes.
( Dynamic Standard Movie Custom )

PC / DVI Mode : M/B ( MagicBright™ )

MagicBright™ is a new feature providing the optimum viewing environment depending on
the contents of the image you are watching.
Then push button again to circle through available preconfigured modes.
( Entertain Internet Text Custom )

17. P.SIZE - Not available in PC/DVI Mode

Press to change the screen size.
ZOOM1, ZOOM2 are not available in 1080i(or over 720p) of DTV.

18. STILL

Press the button once to freeze the screen. Press it again to unfreeze.

19. PIP

Push the PIP button to turn PIP screen On/Off.

20. S.MODE ( Sound Mode )

When you press this button , current mode is displayed on the lower center of the screen.
The Monitor has a built-in high fidelity stereo amplifier.
Then push button again to circle through available preconfigured modes.
( Standard Music Movie Speech Custom )

21. DUAL / MTS

STEREO/MONO, DUAL l / DIAL ll and MONO/NICAM MONO/NACAM STERE O

DUAL :

can be operated depending on broadcasting type by using DUAL button on the remote
control while watching TV.
Toggles MONO/STEREO, DUAL 1/DUAL 2 and MON O/NICAM MONO/NICAM STEREO

You can select the MTS (Multichannel Television Stereo) mode.

MTS :

• Mono, Stereo, SAP (Separate Audio Program)
Set 'MTS' to ON to choose Mono, Stereo or SAP.

22. PRE-CH

This button is used to return to the immediately previous channel.

23. SOURCE

Selects the Video source.

24. SIZE

You can switch the Picture Size.

25. POSITION

Changing the Position of the PIP window.

26. MAGIC-CH

MagicChannel enables you to watch only certain channels .

This function is available only in Korea.

Connecting the monitor

1. Connecting to a Computer

Connect the power cord for you r monitor to the power port on the back of the monitor.

1.

Plug the power cord for the monitor into a nearby outlet.
Using the D-sub (Analog) connector on the video card.

2-1.

Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.

Using the DVI (Digital) connector on the video card.

2-2.

Connect the DVI Cable to the DVI Port on the back of your Monitor.

Connect the audio cable for your monitor to the audio port on the back of your computer.

3.

Connect the power cord insert a plug in a wall outlet.

4.

Turn on both your computer and the monitor.

5.

You may enjoy clear and quality sound from the computer sound card using the monitor speakers.

6.

(You don't need to install any separate speakers for your computer. )

You may get a blank screen depending on the type of video ca rd you are using, if you connect
simultaneously both the D- sub and DVI cables to one computer.

If you connect properly your monitor using the DVI connector but get a blank or fuzzy screen, check
to see if the monitor status is set to analogue. Press Source button to have the monitor double­check the input signal source.

2. Connecting to a Macintosh

1. Connect the power cord to the DC adapter and then connect the adapter jack to the DC POWER
port on the monitor. (Voltage is automatically adjusted by the power adapter.)

2. Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the D-SUB port on the Macintosh computer.

3. For older model Macintoshes, you need to adjust the resolution control DIP switch on the Macintosh
adapter (optional) referring to the switch configuration table shown o n its rear.

4. Turn on the monitor and Macintosh.

Connecting to other devices

This monitor allows the user to connect it to such input devices as a DVD player, a VCR or a
camcorder, or a DTV or a TV without disconnecting the PC. For detailed information on connecting
AV input devices, refer to User Controls under Adjusting Your Monitor.

The configuration at the back of the monitor may vary from product to product.

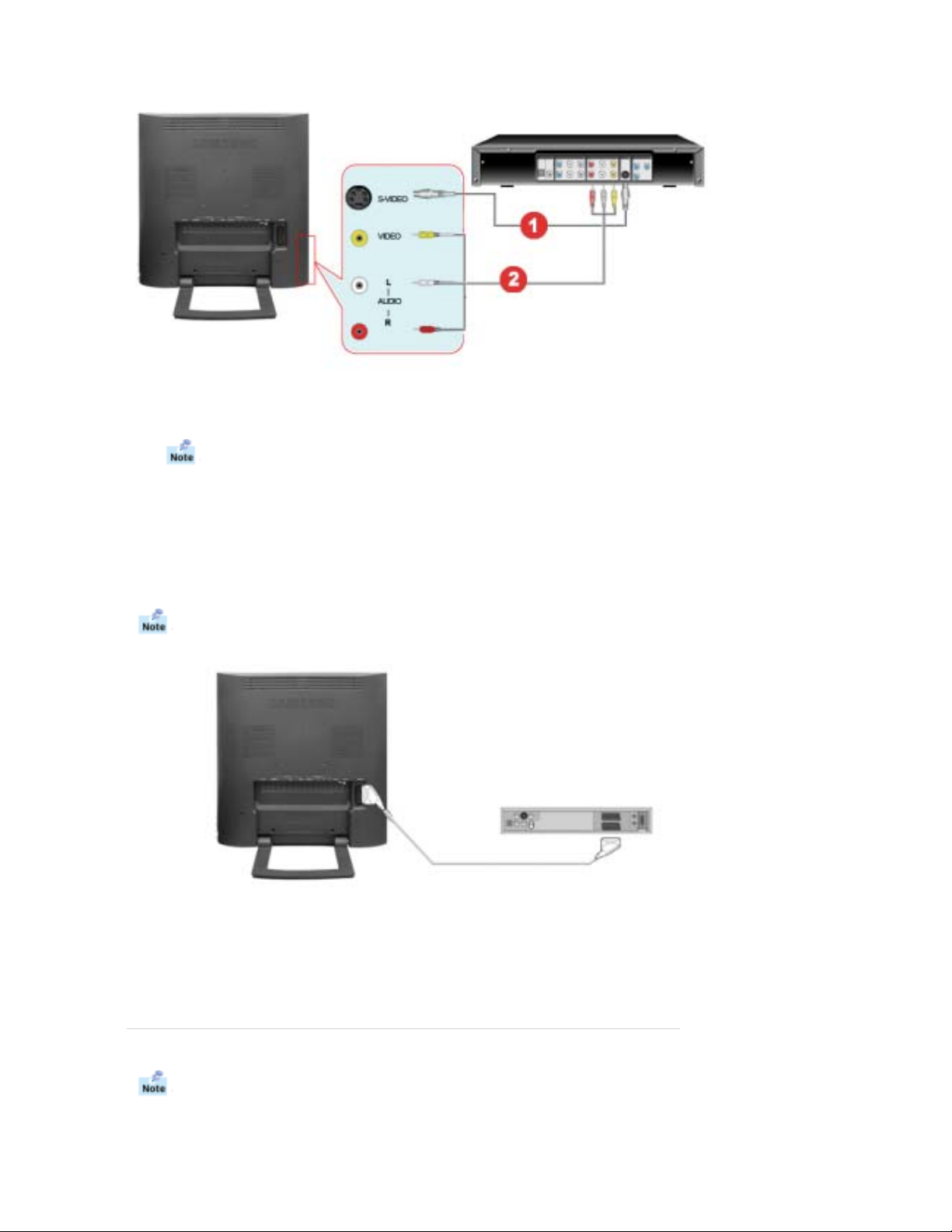

1-1. Connecting AV Devices

The monitor has AV connection terminals to connect AV input devices like DVDs, VCRs or
Camcorders. You may enjoy AV signals as long as the monitor is turned on.

1. Input devices such as DVDs, VCRs or Camcorders are connected to the Video or S-Video terminal
of the monitor using the RCA or S-Video c able.

S-Video, RCA cable and EX T(RGB) cable is optional.

2. Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.

3. Select AV or S-Video using the

4. Connect the Audio (R) and Audio (L) terminals of a DVD, VCR or C a mcorders to the monitor's R
and L audio input terminals using audio cables.

1-2. Connecting EXT(RGB) - It only applies to AV DEVICE that supports SCART.

Connect to the DVD Devices input if the device has a DVD connector.You can watch DVD simply by
hooking up the DVD with the monitor as long as the power is on.

SOURCE

button on the monitor's front.

1. Connect a video cable between the EXT(RGB) jacks on the Monitor and the EXT(RGB) jacks on
the DVD Player.

2. Select Ext. by pressing

2. Connecting TV

You may view television programs on the monitor if it is connected to an antenna or a CATV cable
without installing any separate TV reception hardware or software on your computer.

SOURCE

button on the monitor.

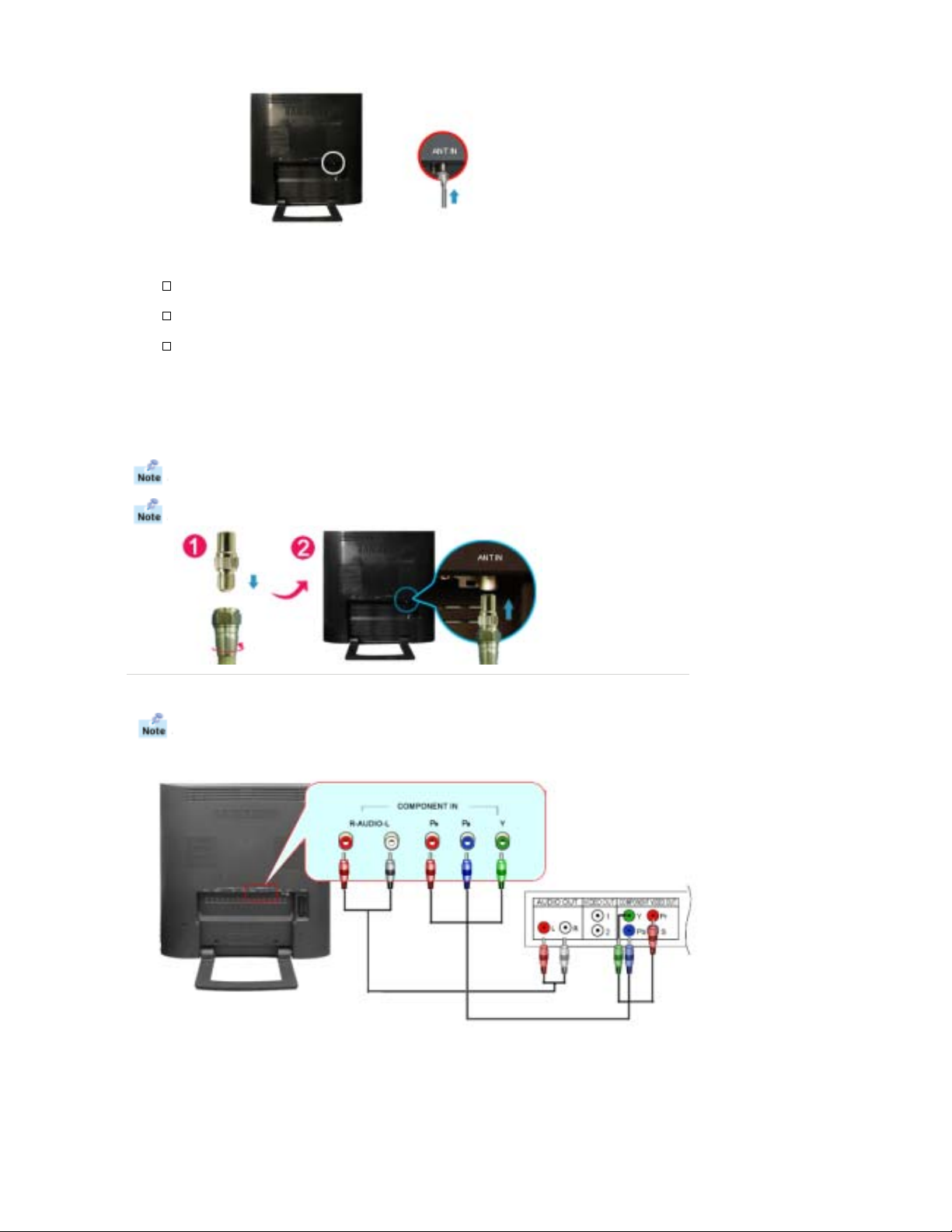

1. Connect the CATV or antenna coaxial cable to the Antenna terminal on the rear of the monitor.
You need to use a coaxial antenna cable.

When using an interior antenna terminal:

Check the antenna terminal on the wall first and connect the antenna cable.

When using an outdoor antenna:

If you are using an outdoor antenna, use a professional for installation if possible.

To connect the RF cable to the antenna input terminal:

Keep the copper wire portion of the RF cable straight.

2. Turn on the monitor.

3. Select TV using Source button among the external signal adjus tment buttons.

4. Select a desired TV channel.

Is weak signal causing poor reception?

Purchase and install a signal amplifier for better reception.

In areas where Antenna cable is not supported, first, attach Connecter to TV antenna .

3. Connecting DVD/DTV Set Top Box

Connect to the DVD/DTVSet Top Box input if the device has a DVD/DTV connector. You can watch
Component simply by hooking up the Component with the monitor as long as the power is on.

1. Connect the Audio (R) and Audio (L) outputs on the DVD / DTV set top box to the Audio (R) and
Audio (L) inputs on the monitor using audio cables.

2. Connect a video cable between the component( P

, PB,Y) jacks on the Monitor and the PR, PB,Y

R

jacks on the DVD / DTV set top box.

3. Select Component using the

SOURCE

button on the monitor's front.

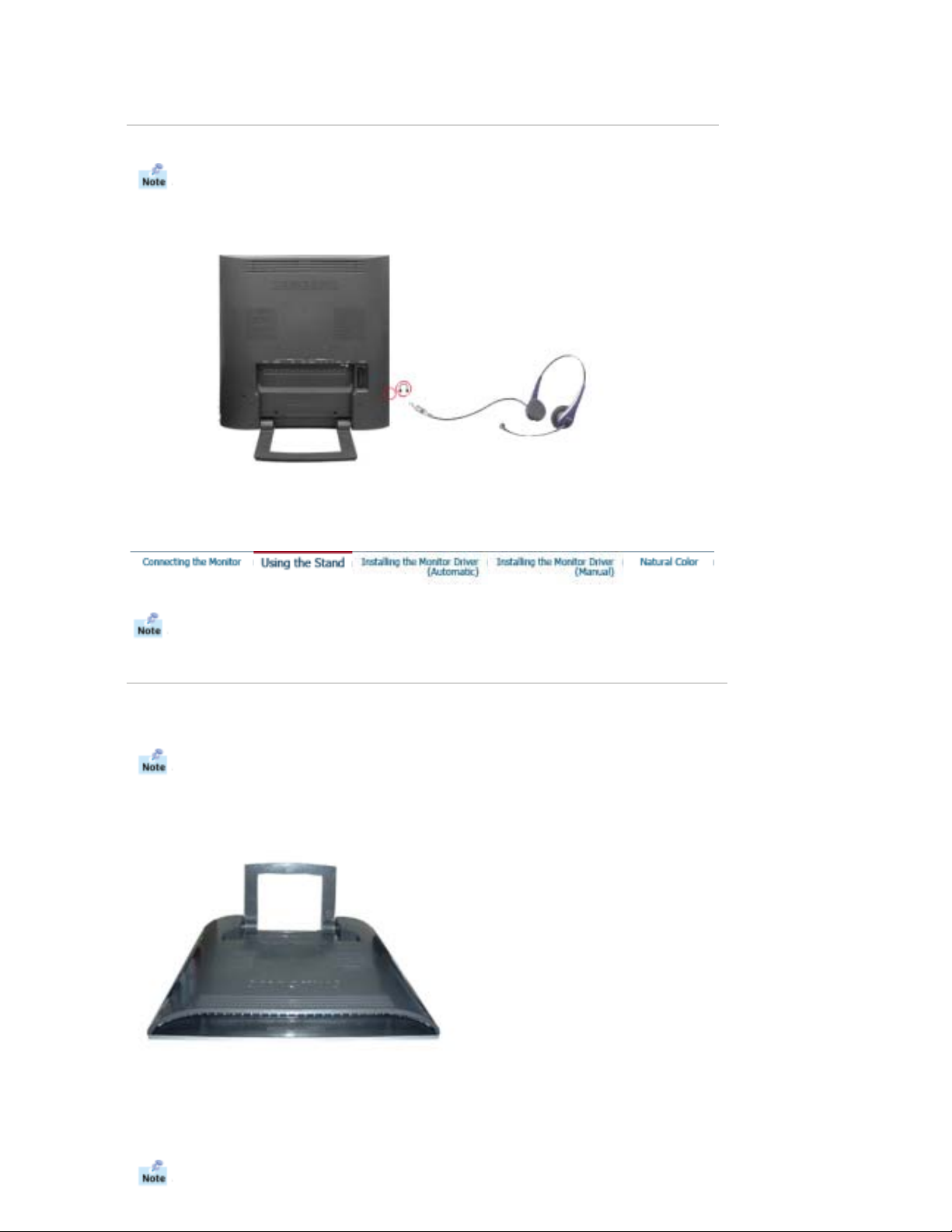

4. Connecting Headphone

You may connect your Headphone to the monitor.

1. Connect your Headphone to the Headphone connection termina l.

Using the Stand

This monitor supports various types of VESA-standard bases. You need to either fold or remove the
base in use in order to install a VESA base.

Folding the base | Removing the base | Install a VESA base

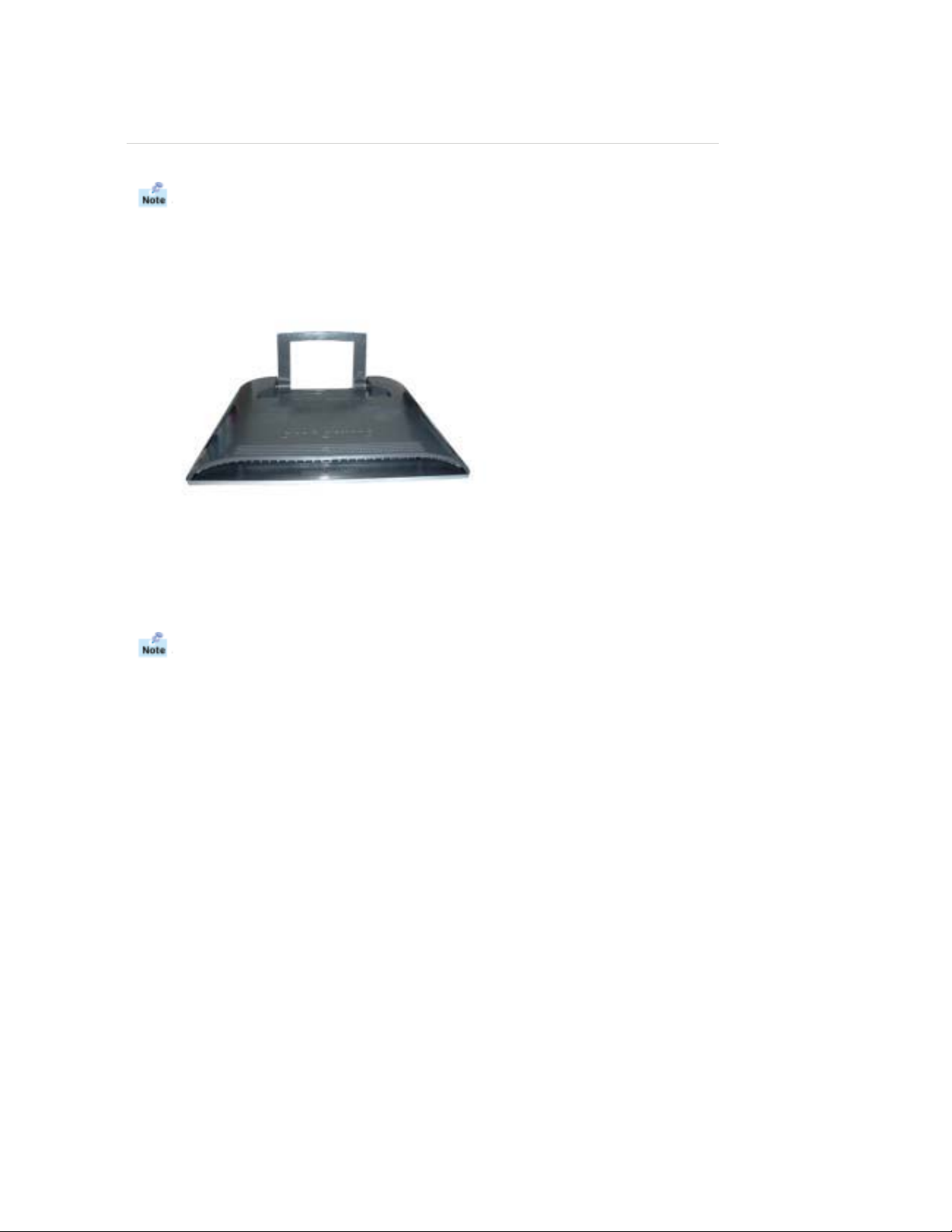

1. Folding the base

The monitor may be reclined from 0 to 90 degrees. When fully folded (reclined), the base becomes
a handy holder for moving the monitor around.

1. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.

2. Disconnect the monitor cables.

3. Fully recline the monitor back ward pressing the

4. Reconnect the monitor cables.

FOLD

button.

You may install a VESA base when the monitor base is fully folded.

2. Removing the base

You can separate the base from the monitor.

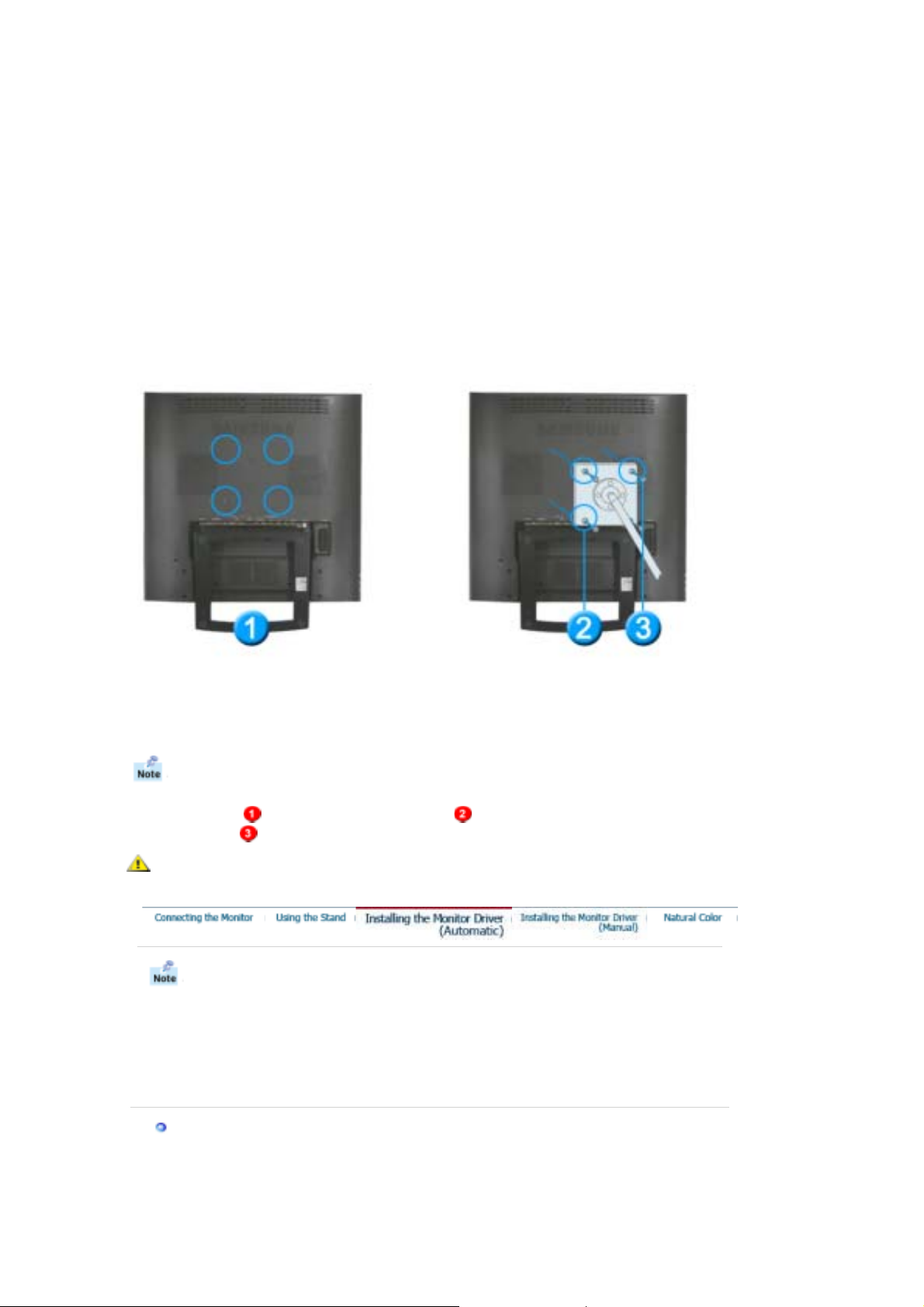

3. Install a VESA base

1. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.

2. Disconnect the monitor cables.

3. Remove the four bolts that fasten the base to the monitor.

4. Reconnect the monitor cables.

You may install a VESA base when the monitor base is separated.

The monitor supports VESA mounting standard for use with various VESA mounting devices.
This monitor accepts a 100mm x 100mm VESA-compliant mounting interface pad.
You need to fold the monitor base before installing a VESA base.

Align

four bolt holes

base with

four bolts

on the monitor base with

.

the holes

on the VESA base and then fasten the

Samsung Electronics will not be responsible for damages caused by using a base other than those
specified.

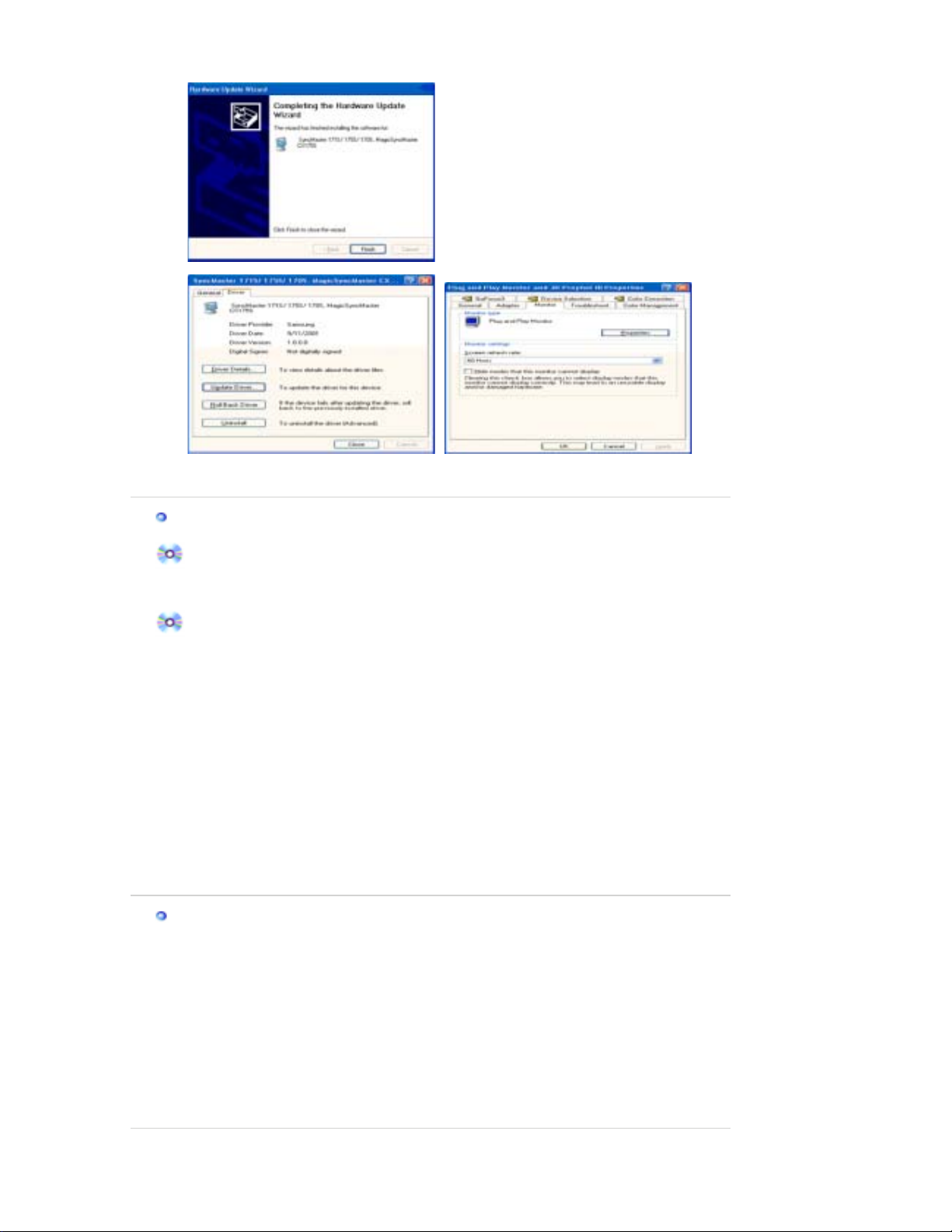

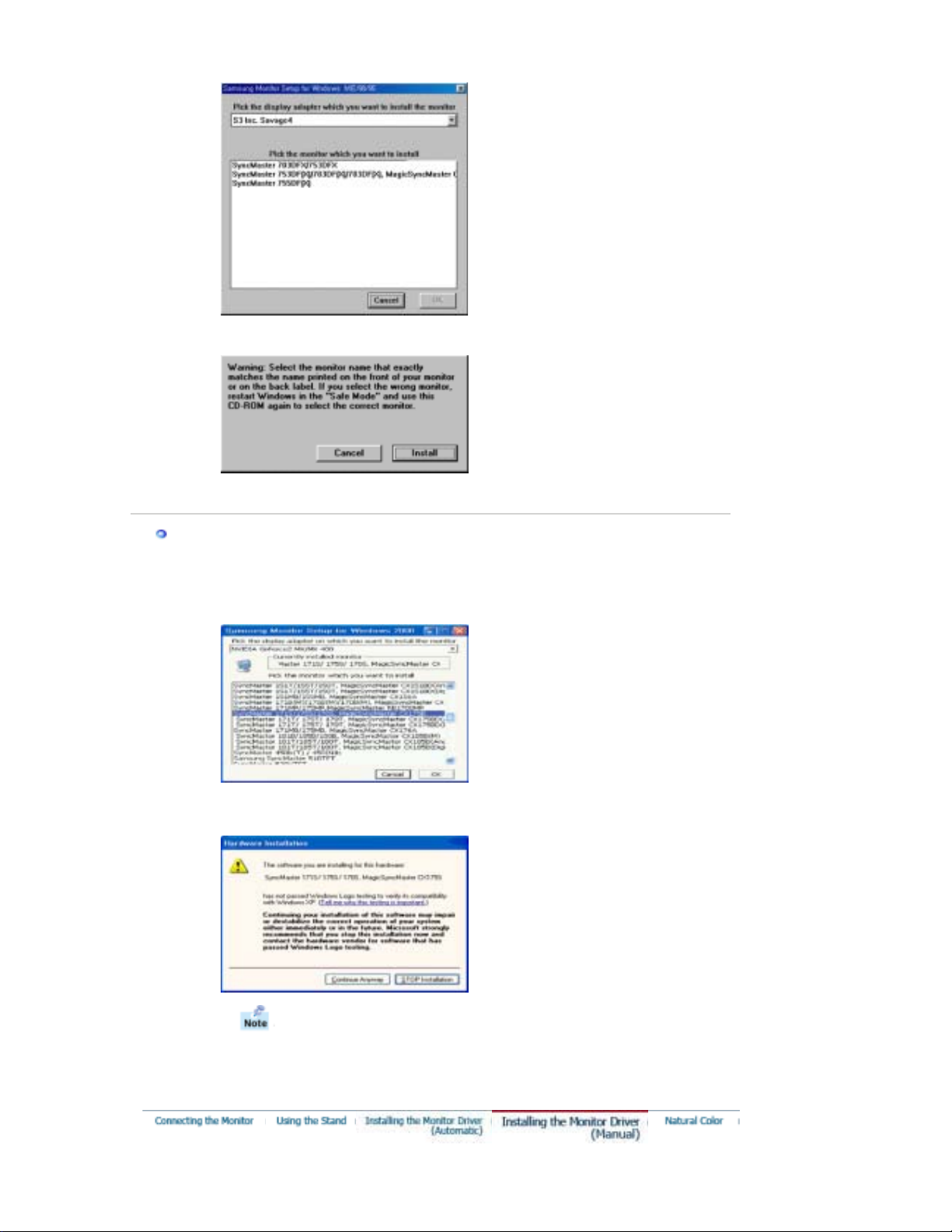

When prompted by the operating system for the monitor driver, insert the CD-ROM included
with this monitor. Driver installation is slightly different from one operating system to
another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

z Internet web site : http://www.samsung-monitor.com/ (Worldwide)

http://www.samsungusa.com/monitor (USA)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)

Windows ME

1. Insert CD into the CD-ROM drive.

2. Click

"Windows ME Driver"

3. Choose your monitor model in the model list, then click t he

.

button.

"OK"

4. Click the

5. Monitor driver installation is completed.

Windows XP/2000

1. Insert CD into the CD-ROM drive.

2. Click

3. Choose your monitor model in the model list, then click t he

"Windows XP/2000 Driver"

"Install"

button in the

"Warning"

window.

"OK"

button.

4. If you can see following message window, then click the
click

5. Monitor driver installation is completed.

button.

"OK"

This monitor driver is under certified MS logo,and this installati on doesn't damage
your system.The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung-monitor.com/.

"Continue Anyway"

button. Then

Windows XP | Windows 2000 |Windows Me |Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM included
with this monitor. Driver installation is slightly different from one operating system to
another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

z

Internet web site : http://www.samsung-monitor.com/ (Worldwide)

http://www.samsungusa.com/m onitor (USA)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)

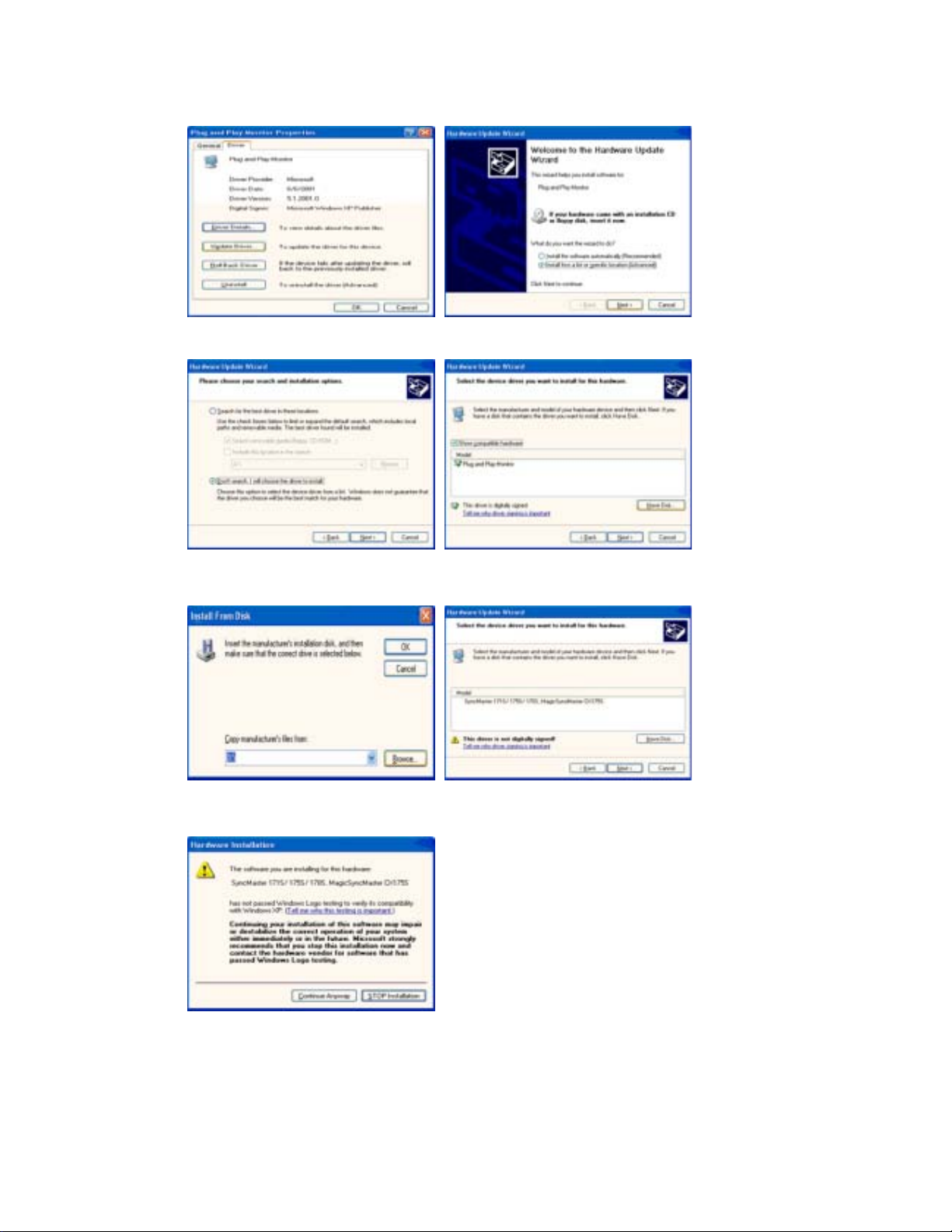

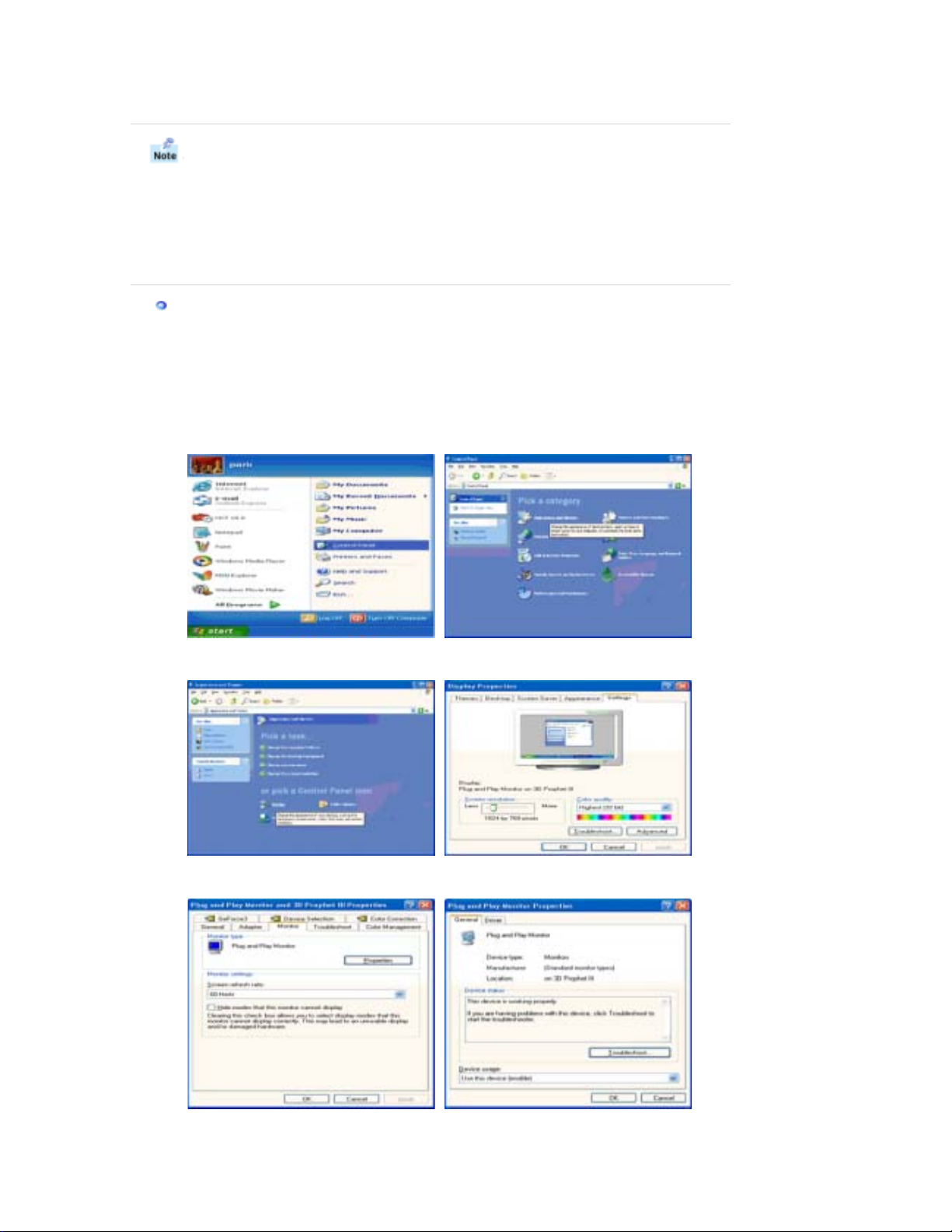

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "

Start

" —> "

Control Panel

" then click the "

Appearance and Themes

" icon.

3. Click "

Display

4. Click the "

" icon and choose the "

Properties

" button on the "

Settings

Monitor

" tab then click "

Advanced..

".

" tab and select "

Driver

" tab.

5. Click "

Update Driver..

" and select "

Install from a list or..

" then click "

Next

" button.

6. Select "

7. Click the "

Don't search ,I will..

and click the "

" then click "

" button then choose A:(D:\Driver) and choose your monitor model in the model list

Browse

Next

" button.

" and then click "

Next

Have disk

".

8. If you can see following message window, then click the "
button.

This monitor driver is under certified MS logo,and this installation doesn't damage your system.The
certified driver will be posted on Samsung Monitor homepage.

http://www.samsung-monitor.com/

9. Click the "

" button, then click "OK" button continually.

Close

Continue Anyway

" button. Then click "OK"

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "

2. Click the "

Browse

" button on the "

Insert disk

" window.

File Nee ded

" window.

3. Choose A:(D:\Driver) then click th e "Open" button and then click "OK" button.

How to install

1. Click "

2. Double click the "

3. Choose the "

4. Choose "

Start

Monitor

" , "

Setting

Settings

" , "

Control Panel

" Icon.

Display

" tab and then click "

".

".

Advanced..

".

Case1: If the "Properties" button is inactive, it means your monitor is properly configured. Please

stop installation

Case2: If the "Properties" button is active, click the "Properties" button then follow next steps

continually.

5. Click "

6. Choose "

driver

7. Click the "

8. Click the "

9. Choose your monitor model and click the "

10. Click the "

" and then click on "

Driver

Update Driver..

" then click on the "Next" button.

Display a list of the known drivers for this device so that I can choose a specific

" then click "

Browse
Open

Finish

" and then click "

Next

Have disk

" button then choose A:(D:\Driver).

" button, then click "OK" button.

Next

" button then the "

Close

" button.

".

" button then click "

Next

" button.

If you can see the "
the "

Finish

Digital Signature Not Found

" button then the "

Close

" button.

Microsoft® Windows® Millennium Operating System

1. Click "

2. Double click "

3. Select the "

4. Select the "

5. Click the "

6. Choose "

7. Choose "

8. Click the "

" , "

Start

Display
Settings
Monitor

Change

Specify the location of the driver

" , "

Setting

" icon.

" tab and click "

" tab.

" button in the "

Control Panel

Advanced Properties

Monitor Type

".

" area.

".

Display a list of all the driver in a specific location..

Have Disk

" button

9. Specify A:\(D:\driver) then click "OK" button.

10. Select "

Show all devices

" and choose the monitor that corresponds to the one you connected to

your computer and click "OK".

11. Continue choosing "

" button and "OK" button until you close the Display Properties dialogue

Close

box.

" window then click the "

" button.

" then click "

"button. And click

Yes

" button.

Next

Microsoft® Windows® NT Operating System

1. Click

2. In Display Registration Information window, click Settings Tab and then click

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and the n

4. Click

Linux Operating System

To execute X-Window, y ou need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and the second screen after executing the X86Config file.

2. The third screen is for

3. Set a mouse for your computer.

4. The next screen is for

5. Set a Keyboard for your computer.

6. The next screen is for

7. First of all, set a

8. Set a

9. Enter the

10. You have

Start,Settings,Control Panel

click OK.
normal, change to a different mode (lower mode of resolution, colors or frequency).

Window.

Execute

button if you see the screen working normally after clicking

Apply

If there is no Mode at
by referring to the Preset Timing Modes in the user guide.

setting your mouse
selecting a keyboard
setting your monitor

vertical frequency

horizontal frequency

model name of your monitor

finished

X-Window after setting other requested hardware.

for your monitor. (You can enter the frequ ency directly.)

setting up your monitor.

, and then double-click

All Display Modes

.

.

.

for your monitor. (You can enter the frequ ency directly.)

. This information will not affect the actual execution of X-

icon.

Display

, select the level of resolution and vertical frequency

All Display Modes

. If the screen is not

Test

Natural Color

Natural Color Software Program

.

One of the recent problems in using a computer is that the color of the images printed out by a printer
or other images scanned by a scanner or a digital camera are not the same as those shown on the
monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system
developed by Samsung Electronics in association with Korea Electronics & Telecommunications
Research Institute (ETRI).
This system is available only for Samsung monitors and makes the color of the images on the monitor
the same as the printed or scanned images.
For more information, refer to Help (F1) in the software program.

How to install the Natural Colo r software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the
program Natural Color will be executed. Click Natural Color on the initial screen to install the Natural
Color software.
To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM
Drive, click the [Start] button of Windows and then select [Execute].
Enter D:\color\eng\setup.exe and then press the <Enter> key.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select

"Setting" / 'Control Panel"

program"

Select Natural Color from the list and then click the [Add/Delete] button.

.

on the

menu and then double-click

"Start"

"Add/Delete a

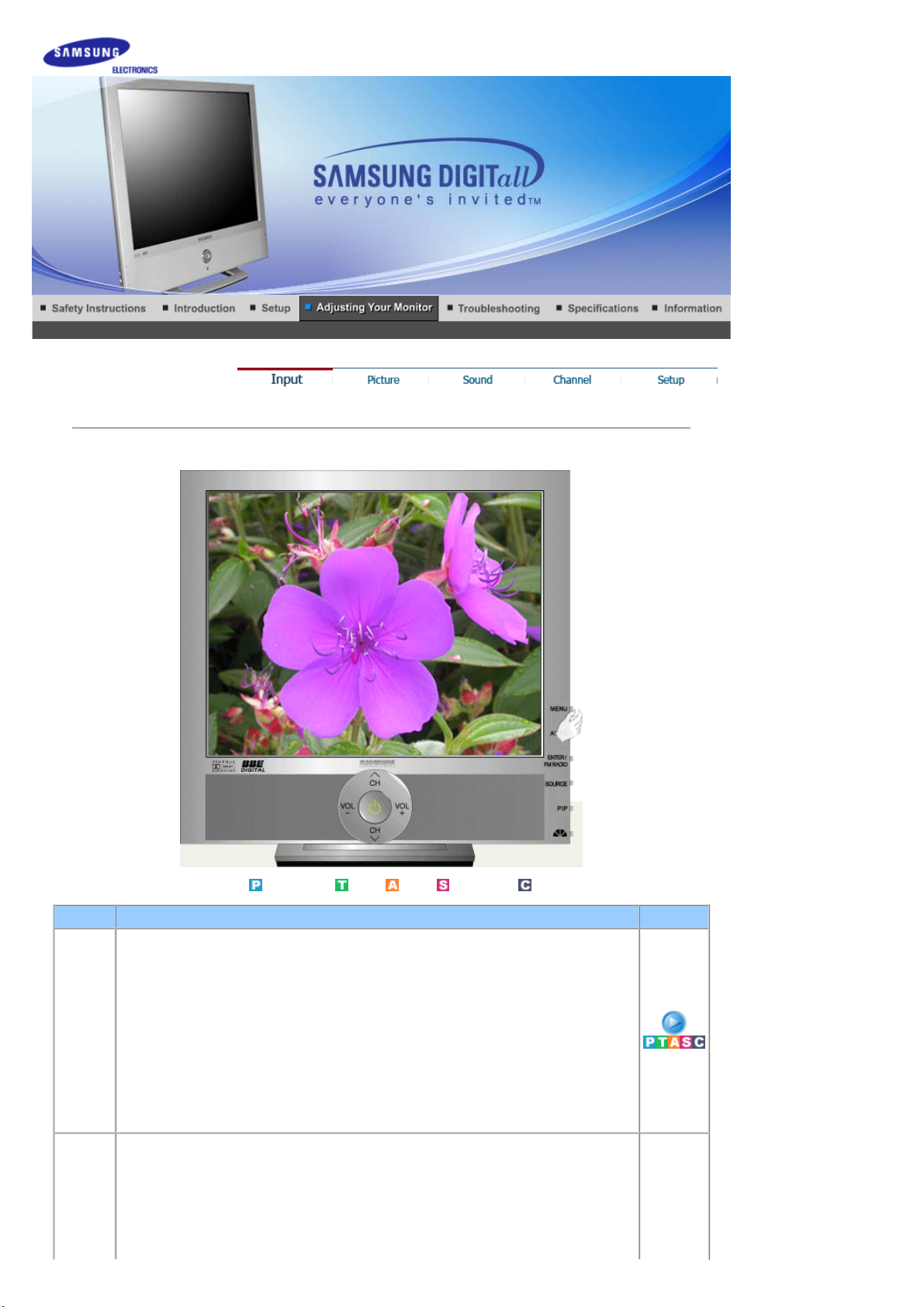

Input

Available Mode

OSD Description Play

Source

PIP

Use to select PC, TV or other external input source
connected to the Monitor.
Use to select the screen of your choice.

- The direct button on the remote control is 'SOURCE'
button.

• PC

: HDCP supported

• DVI

• TV

- EXT.(RGB)is mainly used in Europe.

• Ext.

• AV

• S-Video

• Component

When external A/V devices such as VCRs or DVDs are
connected to the monitor, PIP allows you to watch video from
those devices in a small window super-imposed on the PC
Video signal. (On/Off)

While V-chip is in operation, the PIP function cannot be
used.

- Available in PC Mode Only

: PC / DVI

: TV : AV : S-Video : Component

p

1) PIP

• ON/ Off

: Turn the PIP Screen on or off.

- The direct button on the remote control is 'PIP' button.

2) Source

• PC / DVI

: TV / Ext.(EXT.(RGB)is mainly used in Europe.) / AV / S-Video / Component
Mode

: Select the input source for the PIP.

- The direct button on the remote control is 'SOURCE' button.

3) Size

: Change the Size of the PIP window.
If you select , in Size, Position and Transparency

will not be activated.

- The direct button on the remote control is 'SIZE'
button.

4) Position

: Change the Position of the PIP window.

- The direct button on the remote control is 'POSITION' button.

1) PIP

2) Source

3) Size

4) Position

5)
Trans

arency

5) Transparency

• High / Medium / Low / Opaque

: Adjust the Transparency of PIP windows.

Edit
Name

Name the input device connected to the input jacks to make
your input source selection easier.

• PC

• DVI

- EXT.(RGB)is mainly used in Europe.

• Ext.

• AV

• S-Video

• Component


PC / DVI Mode

When you input video signal into DVI,

TV / AV / S-Video / Component Mode

will appear in the menu.

Available Mode

: PC / DVI

: TV : AV : S-Video : Component

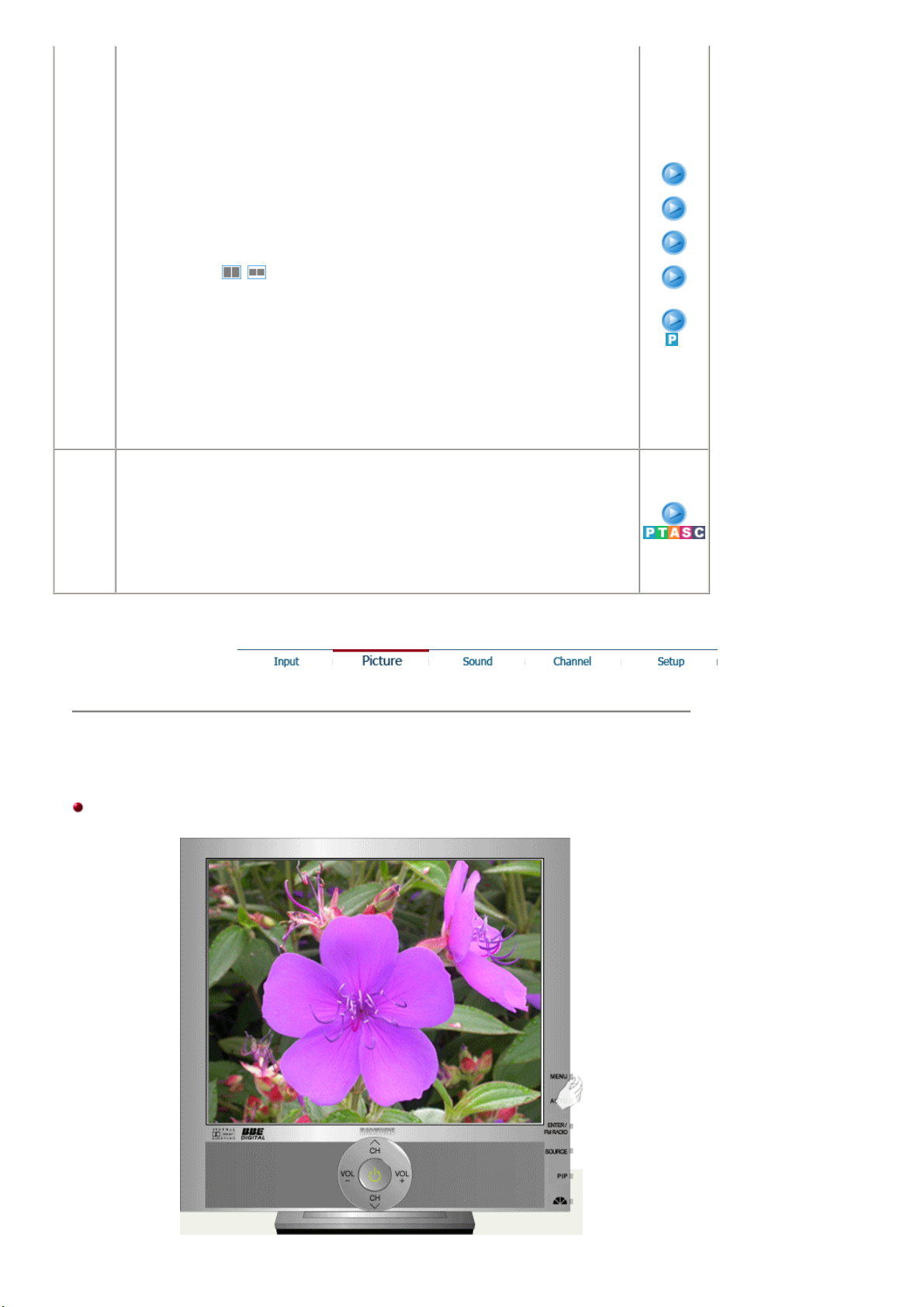

OSD Description Play

MagicBright™

MagicBright™ is a new feature providing the optimum
viewing environment depending on the contents of the image
you are watching.
Currently four different modes are available: Entertain,
Internet,Text and Custom.
Each mode has its own pre-configured brightness value. You
can easily select one of four settings by simply pressing the
MagicBright™ control button.

- The direct button on the remote control is 'M/B' button.

1) Entertain

: High Brightness
For watching motion pictures such as a DVD or VCD.

2) Internet

: Medium Brightness
For working with a mixture of images such as text and graphics.

3) Text

: Normal Brightness
For documentations or works involving heavy text.

4) Custom

Although the values are carefully chosen by our engineers, the pre­configured values may not be comfortable to your eyes depending on your
taste.
If this is the case, adjust the Brightness and Contrast by using the OSD
menu.

Custom

You can use the on-screen menus to change the contrast
and brightness according to personal preference.

1) Contrast

: Adjust the Contrast.

2) Brightness

: Adjust the Brightness.

If you adjust picture using Custom function, MagicBright will turn to Custom mode.

Color Tone

The tone of the color can be changed.

- Available in PC Mode Only

Color Control

• Cool / Normal / Warm / Custom

Adjust the individual R, G, B color controls.

- Available in PC Mode Only

1) Red

2) Green

3) Blue

If you adjust picture using Color Control function, Color Tone will turn to Custom mode.

Image Lock

Image Lock is used to fine-tune and get the best image by
removing noise that creates unstable images with jitter and
shimmer. If satisfactory results are not obtained using the
Fine adjustment, use the Coarse adjustment and then use
Fine again.

- Available in PC Mode Only

1) Coarse

: Removes noise such as vertical stripes. Coarse adjustment may move
the screen image area. You may relocate it to the center using the
Horizontal Control menu.

2) Fine

: Removes noise such as horizontal stripes. If the noise persists even after
Fine tuning, repeat it after adjusting the frequency (clock speed).

3) Position

: Adjusts the screen location horizontally and vertically.

1) Coarse
/ Fine

3) Position

Auto
Adjustment

PIP Picture

The values of Fine, Coarse, position are adjusted
automatically.
If you change resolution in the control panel, Auto function
will be executed.

- The direct button on the remote control is 'AUTO'
button.

- Available in PC Mode Only

You can adjust the PIP Screen Settings.

1) Contrast

: Adjusts the Contrast of the PIP window on the screen.

2) Brightness

: Adjusts the Brightness of the PIP window on the screen.

3) Sharpness

: Adjusts the difference between the lightest and darkest areas of the PIP
window.

4) Color

: Adjusts the Color of the PIP window on the screen.

5) Tint

: Adds a natural tone to the PIP window.

TV / Ext. / AV / S-Video / Component Mode

Available Mode

OSD Description Play

Mode

Custom

Color Tone

Size

The Monitor has four automatic picture settings ("Dynamic",
"Standard", "Movie" and "Custom") that are preset at the
factory.
You can activate either Dynamic, Standard, Movie, or
Custom. You can select "Custom" which automatically recalls
your personalized picture settings.

- The direct button on the remote control is 'P.MODE'
button.

• Dynamic

• Standard

• Movie

• Custom

You can use the on-screen menus to change the contrast
and brightness according to personal preference.

1) Contrast

: Adjusts the Contrast.

2) Brightness

: Adjusts the Brightness.

3) Sharpness

: Adjusts the difference between the lightest and darkest areas of the
display.

4) Color

: Adjusts the Color of the PIP window on the screen.

5) Tint

: Adds a natural tone to the display.

The tone of the color can be changed. The individual color
components are also user adjustabls.

• Cool2 / Cool1 / Normal / Warm1 / Warm2

You can switch the Size.

- The direct button on the remote control is 'P.SIZE'
button.

: PC / DVI

: TV : AV : S-Video : Component

Digital NR

Film Mode

Sound

• 16:9

• Normal

• Zoom 1

• Zoom 2

- ZOOM1, ZOOM2 are not available in 1080i(or over 720p) of DTV.

- Digital Noise Reduction.
You can turn the Noise Elimination feature On/Off.
The Digital Noise Elimination feature allows you to enjoy
clearer and crisper images.

• On /Off

You can turn Film Mode On/Off.
The Film Mode feature offers you a theater-quality viewing
experience.

• On /Off

Available Mode

OSD Description Play

Mode

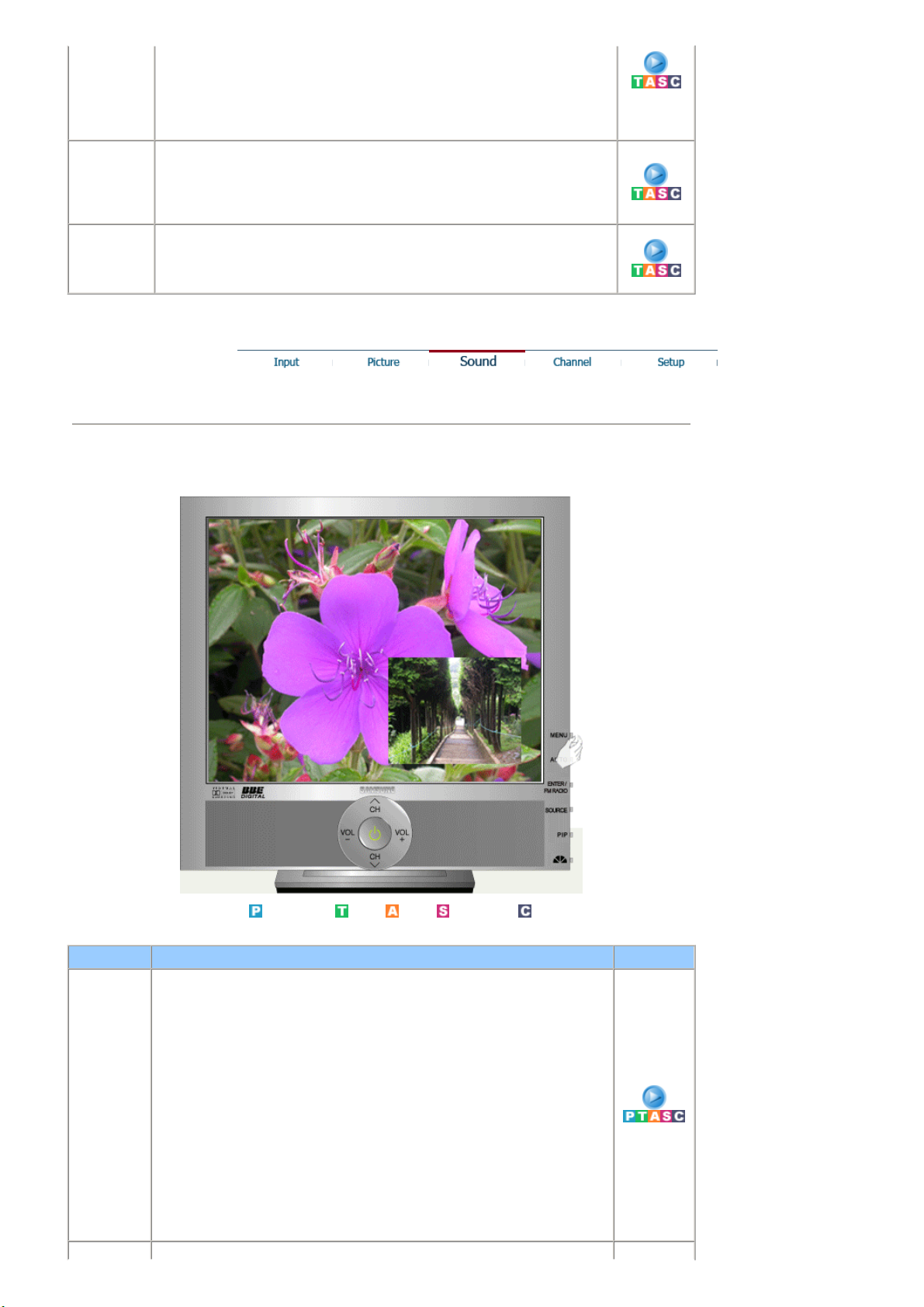

The Monitor has a built-in high fidelity stereo amplifier.

- The direct button on the remote control is 'S.MODE'
button.

1) Standard

: Choose Standard for the standard factory settings.

2) Music

: Choose Music when watching music videos or
concerts.

3) Movie

: Choose Movie when viewing movies.

4) Speech

: Choose Speech when watching a show that is mostly
dialogue (i.e., news).

5) Custom

: Choose Custom if you want to adjust the settings
according to personal preference.

: PC / DVI

: TV : AV : S-Video : Component

Custom

A

A

The sound settings can be adjusted to suit your personal
preference.

1) Bass

: Emphasize low frequency audio.

2) Treble

: Emphasize high frequency audio.

3) Balance

: Allows you to adjust the sound balance between the left and right
speakers.

Ballance allows you to adjust the sound balance between the left and
right speakers and you can hear the sound even when the sound
value is set to 0.

Auto
Volume

Reduces the differences in volume level among
broadcasters.

• On /Off

Dolby
Virtual

Dolby Virtual Sound On/Off (Dolby Virtual simulates the effect
of the Dolby Surround sound system, recreating the movie­theatre or concert-hall- quality sound.)

• On /Off

BBE BBE

(Barcus-Berry Electronics) recreates the natural sound
and improves sound clarity through boosting high and low
range frequencies.
As a result, high sounds are clearer, brilliant and finely
detailed while low sounds are tight, well-defined and
harmonically rich.

• On /Off

BBE and Dolby Virtual cannot be functioned at the same time.

Select
Sound

FM Radio

You can select either Main or Sub when PIP is On.

• Main / Sub

Press the button on the front or the "FM RADIO" button on
the remote control to select the "FM RADIO" feature.

- The direct button on the remote control is 'FM RADIO'
button.

• Auto Store

You can scan the frequency ranges available on your
FM Radio in your area and store all the channels found
automatically.

• Manual Store

You can scan the frequency ranges available on your
FM Radio in your area and store all the channels found
manually.

- Channel

: Chooses the Radio channel through the

adjustment of up/down under the current frequency.

- Search

: The tuner scans the frequency range until
the first channel or the channel that you selected is
received.

• Add / Delete

: Restores the number user inputs.

- Store

Adds or deletes channels from the memory.

If you select FM Radio, picture will turn black
while FM Radio is functioning in TV, EXT,
AV, S-Video, Component modes except PC,
DVI modes.

uto Store

Manual Store

dd / Delete

Channel

Available Mode

OSD Description Play

Auto
Program

Add/Delete

Fine Tune

LNA

The TV automatically cycles through all of the available
channels and stores them in memory. This takes about one
to two minutes.
In rare cases, "Auto program" may miss a few channels due
to weak signals and the channels may not be added to the
channel memory.

Adds or deletes channels from the memory.

Due to weak signals or an incorrect antenna configuration,
some of the channels may not be tuned correctly.

Amplifies signals when antenna reception is poor. However, if
incoming signals are interfering with each other, turn off LNA
as it may malfunction.

• On / Off

: PC / DVI

: TV : AV : S-Video : Component

Setup

Available Mode

: PC / DVI

: TV : AV : S-Video : Component

OSD Description Play

Area
Configuration

When you turn the power on of the product for the first time since it released
from a factory, menu to select location will appear.
Choose the region and country where you use the monitor.
This is because broadcasting type varies according to region and country.
You can select broadcasting type in OSD menu as well by selecting

Setup-Area Configuration

.

MENU-

This product can be used worldwide if area configuration is set up

Note :

regardless of broadcasting type.

If country is not selected properly, the product may not locate

Note :

channels.

Language

You can choose one of 2 languages.

• English,

한국어

Note : The language chosen affects only the language of the
OSD.
It has no effect on any software running on the computer.

Sleep Timer

Use to set the Monitor to be turned off automatically the set in
certain minutes.
(Off, 30, 60, 90, 120, 150, 180)

Caption

Enables or disables the Caption feature and sets the
appearance of closed caption text.

: Off / On

: Caption / Text

: 1 / 2

: 1 / 2

Menu
Transparency

1) Caption

2) Mode

3) Channel

4) Field

Changes the opaqueness of the background of the OSD.

• High

• Medium

• Low

Blue Screen

• Opaque

If no signal is being received or the signal is very weak, a
blue screen automatically replaces the noisy picture
background. If you wish to continue viewing the poor picture,
you must set the "Blue screen" mode to "Off".

• On / Off

Reset

Picture parameters are replaced with the factory default

1) Image Reset

values.

- Available in PC Mode Only

1) Image Reset

2) Color Reset

2) Color Reset

It has no effect on any software running on the computer.

Sleep Timer Use to set the Monitor to be turned off automatically the set in certain minutes.

(Off, 30, 60, 90, 120, 150, 180)

Caption Enables or disables the Caption feature and sets the appearance of closed

caption text.

1) Caption : Off / On

2) Mode : Caption / Text

3) Channel : 1 / 2

4) Field : 1 / 2

Menu
Transparency

Changes the opaqueness of the background of the OSD.

• High

• Medium

• Low

• Opaque

Blue Screen If no signal is being received or the signal is very weak, a blue screen

automatically replaces the noisy picture background. If you wish to continue
viewing the poor picture, you must set the "Blue screen" mode to "Off".

• On / Off

Reset Picture parameters are replaced with the factory default values.

- Available in PC Mode Only

1) Image Reset

2) Color Reset

1) Image
Reset

2) Color Reset

Self-Test Feature Check

Check the following items yourself before calling for service. Contact the service center for problems
that you cannot solve by yoursel f.

Self-Test Feature Check | Not Supporte d Mode | Not Opti mum Mode | Display Adapter Driver
Maintenance and Cleaning | Symptoms & Recommended Actions

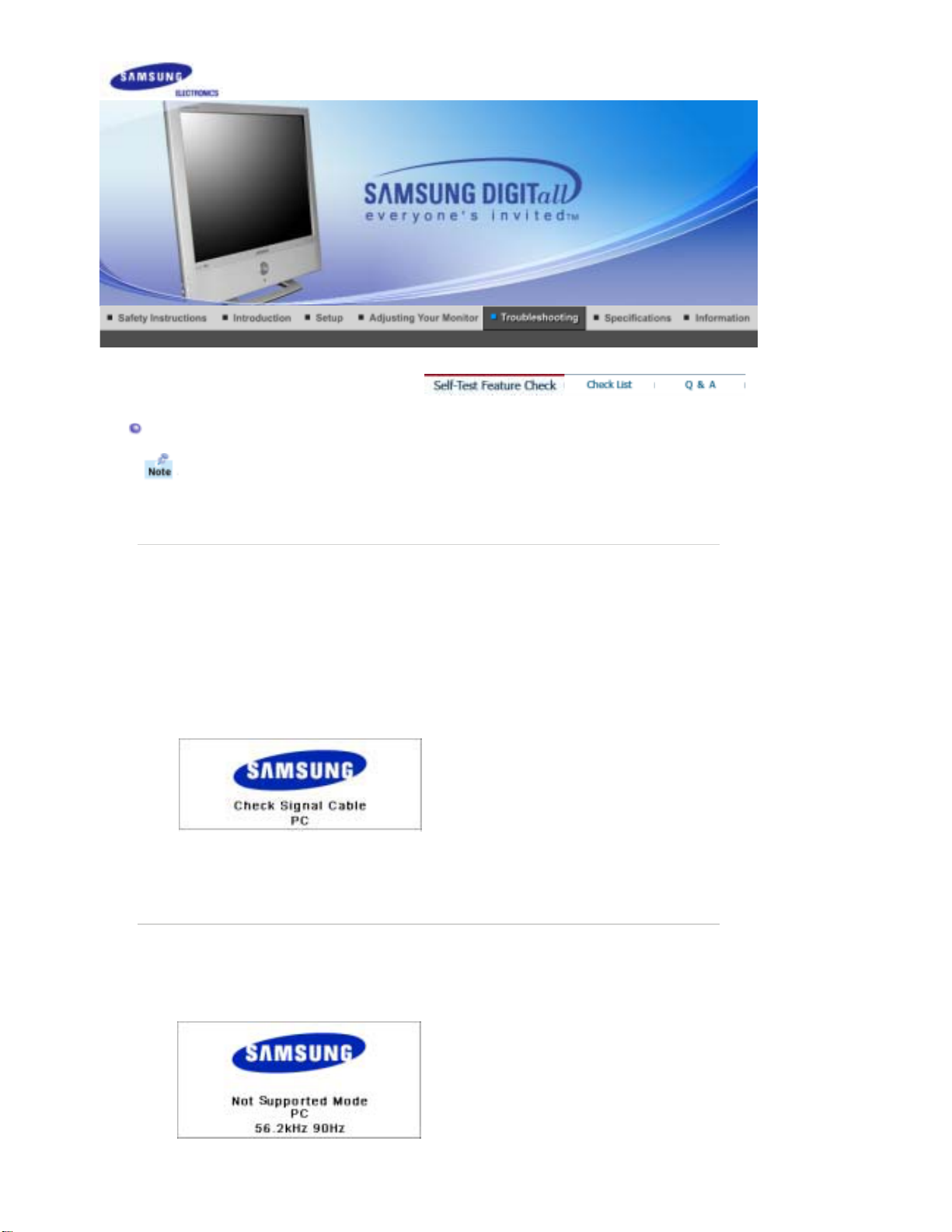

1. Self-Test Feature Check

Your monitor provides a self test fe ature that allows you to check whether your monitor is functioning
properly.

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.
The figure shown below ("Check Signal Cable") appears on a black background when the monitor is

in its normal working condition though it does not sense any video signal: While in the Self-Test
mode, the LED power indicator remains green and the figure moves around on the screen.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.

If your monitor screen remains blank after using the previous procedure, check your video controller and
computer system;

2. Not Supported Mode

This indicates the display resolution or refresh rate is not properly set on your computer video card . Reboot
the computer in Safe Mode and select "Default" in the "Refresh Rate Unknown" box while setting Adapter
for Display Properties.

your monitor is functioning properly

.

Contact the computer dealer or manufacturer for information on Safe Mode Booting.

Refer to Specifications > Preset Timing Modes for the resolutions or frequencies that are
supported by the monitor.

Sometimes the screen turns black without the "Not Supported Mode" message appearing on the screen.
This indicates the monitor is set for a frequency out of range or the Pow erSaver mode is on.

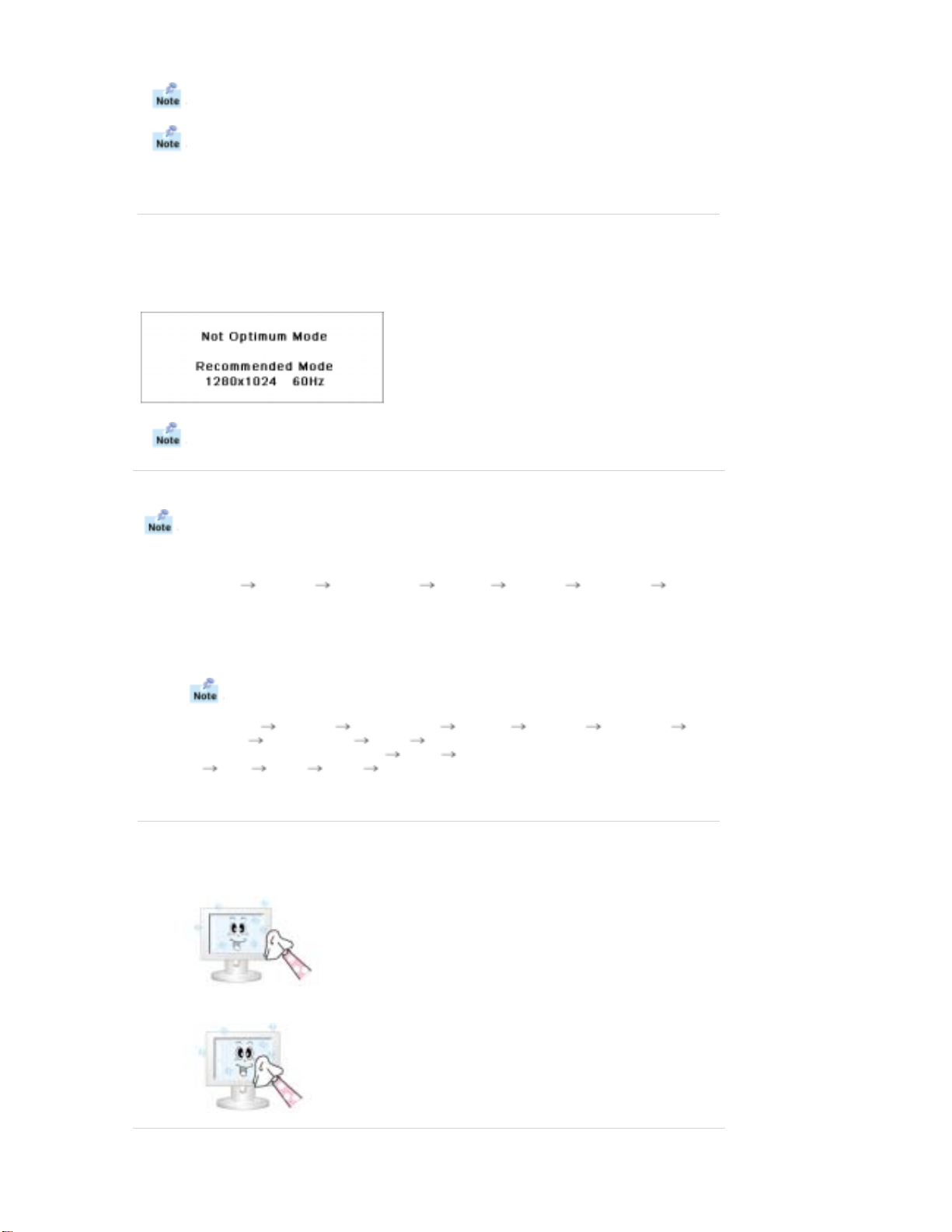

3. Not Optimum Mode

If the vertical resolution is not in optimum mode, you can still see the display but the warning message
below appears and disappears after one minute.
The user must adjust the frequency within that one minute.

Refer to Specifications > Preset Timing Modes for the resolutions or frequencies that are
supported by the monitor.

4. Display Adapter Driver

Display adapter refers to the computer video card driver.
If the adapter is not properly set, you cannot adjust resolution, frequency or color and you cannot
install the monitor driver.

1. Checking Adapter Driver
Click Start Settings Contro l Panel Display Settings Advanced
Adapter.
If "Default" or a wrong product model is indicated, it means that the adapter driver is not pro perly
installed. Install the adapter d river again according to the information provided by the computer or
video card manufacturers.

2. Installing Adapter Driver

The instructions given below are for general circumstances.
For specific issues, contact the relevant computer or video card manufacturers.

1)

Click Start Settings Contro l Panel Display Settings Advanced
Adapter Update Driver Next Display a list of the known drivers for this device so
that I can choose a specific driver Next Have Disk (Insert Video Card Driver diskette)

OK Next Next Finish.

2) In case you have Adapter Driver Setup file on your computer:
Run Setup.exe or Install.ex e, which is found in the Ada pter Driver Setup file.

5. Maintenance and Cleaning

1. Maintaining the Monitor Case.
Clean with a soft cloth after disconnecting the power cord.

z Do not use benzene, thinner or other flammable substances, or a

wet cloth.

z We recommend a Samsung cleansing agent is used to prevent

damage to the screen.

2. Maintaining the Flat Panel Display Screen.
Clean with a soft cloth (cotton flannel) smoothly.

z Never use acetone, benzene or thinner.

(They may cause flaws or defo rmation of the screen surface.)

z The user will be required to pay costs and related expenses for

repair of damages caused by him/her.

6. Symptoms and Recommended Actions

A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the
computer or the video card, this can cause the monitor to become blank, have poor coloring, noise,
Video mode not supported, etc. In this case, first check the source of the problem, and then contact
a service center or your dealer.

1. Check if the power cord and the video cables are properly connected to the computer.

2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)

3. If you installed a new video card or if you assembled the PC, check if you installed the adapter(video)
driver and the monitor driver.

4. Check if the scanning ratio of the video screen is set at 75Hz or 85Hz.
(Do not exceed 60Hz when usi ng the maximum resolution.)

5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove
the Display Adapter at the "

Control Panel,System,Device Administrator

" and then reboot the

computer to reinstall the adapter (v ideo) driver.

The following table lists possible problems and their solutions. Before calling for service, check the
information in this section to see if you can remedy any problems yourself. If you do need
assistance, please call the phone number on the Information section or contact your dealer.

Installation | Screen | Audio | Remote Control

1. Problems related to Installation

Problems related to the monito r installation and their solutions are listed.

Problems Solutions

It appears the PC does not
function normally.

The monitor screen flickers.

TV screen is blurred or shows
noise signals.

TV signal is not received

2. Problems related to Screen

Problems related to the monito r screen and their solutions are list ed.

Problems Solutions

Screen is blank and power
indicator is off

z Check if the Display Adapter Driver (VGA Driver) is properly

installed.
(Refer to Installing Driver)

z Check if the signal cable between the computer and the

monitor is securely connected and tightened.
(Refer to Connecting to a Computer)

z Check if the TV antenna connector is securely connected to

the external antenna.
(Refer to Connecting to TV)

z Check "Channel system" and make sure you choose the

correct channel system.
(Refer to the Channel System)

z Select "Auto program" to confi gure the channel system

automatically. (Refer to the Auto Program)

z Ensure that the power cord is firmly connected and the LCD

monitor is on.
(Refer to the Connecting th e Monitor)

"Check Signal Cable" message

"Not Supported Mode" message

z Ensure that the signal cable is firmly connected to the PC or

video sources.
(Refer to the Connecting th e Monitor)

z Ensure that the PC or video sources are turned on.

z Check the maximum resolution and the frequency of the

video adapter.

z

Compare these values with the data in the Preset Timing

Modes Chart.

Picture rolls vertically.

z

Check if the signal cable is securely connected.
Connect it again securely.
(Refer to Connecting to a Computer)

Image is not clear. Picture is
blurred.

Picture image is unstable and
vibrates.

Ghost images are shown in the
picture.

The image is too light or too dark

Screen color is inconsistent.

Color image is distorted with
dark shadows.

White color is poor.

Power Indicator blinks green.

Screen is blank and power
indicator light is steady green or
blinks every 0.5 or 1 seconds

3. Problems related to Audio

Problems related to audio signals and their solutions are listed be low.

z Run Frequency Coarse and Fine tuning.
z Turn on again after removing all accessories

(video extension cable, etc.)

z

Set resolution and frequency to the recommended ranges.

z Check if the resolution and frequency set for the computer

video card falls in the range s upported by the monitor.
If not, reset them referring to the current Information under
the monitor menu and Preset Timing Modes.

z Adjust the Brightness and Contrast.

(Refer to the Brightness, Contrast)

z Adjust color using Custom under OSD Color Adjustment

menu.

z The monitor is currently saving the changes made in settings

to the OSD memory.

z The monitor is using its power management system.
z Press a key on the keyboard

Problems Solutions

No sound

Sound level is too low.

Sound is too high pitched or too
low pitched

4. Problems related to Remote Control

Problems related to the remote control and their solutions are listed.

Problems Items to check

The remote control buttons do
not respond.

z Ensure that the audio cable is firmly connected to both the

audio-in port on your monitor a nd the audio-out port on your
sound card.
(Refer to the Connecting th e Monitor)

z Check the volume level.

(Refer to the Volume)

z Check the volume level.

(Refer to the Volume)

z If the volume is still too low after turning the control to its

maximum, check the volume control on the computer sound
card or software program.

z Adjust the Treble and Bass to appropriate level.

z Check the battery polarities (+/-).

z

Check if the batteries have been exhausted.

z Check if the power is on.
z Check if the power cord is securely connected.
z Check if a special fluorescent or neon lamp is on in the

vicinity.

Q & A

Question Answer

How can I change the frequency? Frequency can be changed by reconfiguring the video card.

Note that video card support c an vary, depending on the version of the
driver used. (Refer to the computer or the video card manual for
details.)

How can I adjust the resolution? Windows ME/XP/2000 : Set the resolution at the Control

How can I set the Power Sa ving
function?

How can I clean the outer
case/LCD Panel?

Panel㸢Display㸢Settings.
* Contact the video card manufa cturer for details.

Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer Manual).

Disconnect the power cord and then clean the monitor with a s o ft cloth,
using either a cleaning solution or plain water.

Do not leave any remains of the detergent nor scratch the case. Do not
allow any water to go inside the monitor.

General

General

Model Name SyncMaster 930MP

LCD Panel

Size 19" Diagonal
Display area 376.32(H) x 301.056(V)
Pixel Pitch 0.294(H) x 0.294(V)
Type a-si TFT active matrix

Synchronization

Horizontal 31 ~ 81kHz
Vertical 56 ~ 85Hz

Display Color

16,777,216 Colors

Resolution

Maximum resolution SXGA 1280 x 1024 @75Hz

Input Signal, Terminated

RGB Analog , DVI Compliant Digital RGB.
Composite H/V Sync, 0.7Vp-p Positive at 75 ohms
Separate H/V sync, TTL level positive or negative

TV / Video

Color system NTSC-M, PAL-M/N, PAL/SECAM - L/L',B/G,D/K,I
Video format CVBS, S-Video, Component, SCART(RGB), RF

Maximum Pixel Clock

140 MHz

Power Supply

AC 90 ~ 264 VAC(+/- 10%) , 60/50 Hz ± 3Hz

Signal Cable

15pin-to-15pin D-sub cable, detachable
DVI-D to DVI-D connector, detachable (Option)

Power Consumption

Less than 55W

Power Saving

Less than 2W

Dimensions (WxDxH)/ Weight

433 x 58 x 419.5 mm (Without stand)
433 x 198 x 436 mm / 5.9 kg (With Stand)

VESA Mounting Interface

100mm x 100mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)

Humidity: 10% ~ 80%, non -condensing

Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)

Humidity: 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer
systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will
proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm(one
millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be
bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it
without uneasiness.

z For example, the number of TFT LCD sub pixels that is contained i n this product are 3,932,160.

Note: Design and specifications are subject to change without prior notice.

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system sav es energy by
switching your monitor into a low-power mode when it has not been used for a certain amount of time. The
monitor automatically returns to normal operation when you press a key on the keyboard. For energy
conservation, turn your monitor OFF when it is not needed, or when leavi ng it unattended for long periods. The
PowerSaver system operates with a VESA DPMS compliant video card installed in your computer. Use a
software utility installed on your computer to set up this feature.

State Normal Operation

Power saving mode

EPA/ENERGY 2000

Power Indicator Green Green, Blinking Black

Power Consumption Less than 55W

Less than 2W

(Off-mode)

This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.

As an ENERGY STAR
product meets the ENERGY STAR

®

Partner, SAMSUNG has determined that this

®

guidelines for energy efficiency.

Power off

(Power button)

Less than 1W

(110Vac)

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will
be adjusted automatically. How e ver, if the signal differs, the screen may go blank while the power LED is on.
Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Display Mode

IBM, 640 x 350 31.469 70.086 25.175 +/­IBM, 720 x 400 31.469 70.087 28.322 -/+

IBM, 640 x 480 31.469 59.940 25.175 -/­MAC, 640 x 480 35.000 66.667 30.240 -/­MAC, 832 x 624 49.726 74.551 57.284 -/­MAC,1152 x870 68.681 75.062 100.000 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/­VESA, 640 x 480 37.500 75.000 31.500 -/­VESA, 640 x 480 43.269 85.008 36.000 -/­VESA, 800 x 600 35.156 56.250 36.000 +,-/+,­VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 800 x 600 53.674 85.061 56.250 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/­VESA, 1024 x 768 56.476 70.069 75.000 -/­VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1024 x 768 68.677 84.977 94.500 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+

VESA, 1280 x 1024 63.981 60.020 108.00 +/+
VESA, 1280 x 1024 79.976 75.025 135.00 +/+

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Pola rity

(H/V)

Table 2. Broadcasting Systems

: According to broadcasting type in each country, you may not be able to select one.

Note

Broadcasting

Systems

Countries

Broadcasting

Systems

PAL-B/G PAL-D/K PAL-I PAL-N PAL-M

Italy

Sweden

NTSC

NTSC -M

USA

South Korea

Japan

Ecuador

Mexico

Guatemala

Canada

PAL

Countries

Germany

Norway

Spain

Israel

Denmark

Portugal

Netherlands

Austria

Singapore

Indonesia

Australia

China

North Korea

Rumania

Ireland

England

South Africa

Hongkong

Ireland

England

South Africa

Hongkong

Brazil

Broadcasting

Systems

Countries

SECAM

SECAM-B SECAM-D SECAM-K

1

SECAM-L

Iran
Iraq

Saudi arabia

Syria

Lebanon

Egypt

Russia
Hungary
Bulgaria

Poland

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the
screen horizontally is called H o rizontal Cycle and the inverse number of the
Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called Vertical Frequency or Refresh Rate. Unit: H z

France

Service

AUSTRALIA :

Samsung Electronics Australi a Pty Ltd.
Customer Response Centre
7 Parkview Drive, Homebush Bay NSW 2127
Tel : [phone]

http://www.samsung.com.au/

BRAZIL :

Samsung Eletronica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303, Terro B
Chacara Sto. Antonio, CEP : 04719-040
Sao Paulo, SP
SAC : 0800 124 421

http://www.samsung.com.br/

CANADA :

Samsung Electronics Canada Inc.
Samsung Customer Care
7037 Financial Drive
Mississauga, Ontario
L5N 6R3
1-800-SAMSUNG (1-800-726-7864)

http://www.samsung.ca/

CHILE :

SONDA S.A.
Teatinos 550, Santiago Centro, Santiago, Chile
Fono: 56-2-5605000 Fax: [phone]
56-2-800200211

http://www.sonda.com/
http://www.samsung.cl/

COLOMBIA :

Samsung Electronics Colombi a
Cra 9 No 99A-02 Of. 106
Bogota, Colombia
Tel.: [phone]
Fax: (571) 618 - 2068

http://www.samsung-latin.com/

e-mail : [email protected]

ESPAÑA :

Samsung Electronics Comercial Iberica, S.A.
Ciencies, 55-65 (Poligono Pedrosa) 08908
Hospitalet de Llobregat (Barcelona)
Tel. : [phone]
Fax. : [phone]

http://samsung.es/

A

FRANCE :

SAMSUNG ELECTRONICS FRANCE Service
Paris Nord 2
66 rue des Vanesses
BP 50116 Villepinte
95950 Roissy CDG Cedex
Tel : [phone]
Fax : [phone]

http://www.samsungservices.com/

GERMANY :

TELEPLAN Rhein-Main GmbH
Feldstr. 16
64331 Weiterstadt
T. 06151/957-1306
F. 06151/957-1732
* EURO 0.12/Min

http://www.samsung.de/

HUNGARY :

Samsung Electronics Magya r Rt.
1039, Budapest, Lehel u. 15-17.
Tel: [phone]
Fax: [phone]

http://www.samsung.hu/

ITALY :

Samsung Electronics Italia S.p.a.
Via C. Donat Cattin, 5
20063 Cernusco s/Naviglio (MI)
Servizio Clienti: 199.15 3.153

http://www.samsung-italia.com/

MEXICO :

SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V.
Saturno NO.44, Col. Nueva Industrial Vallejo
Gustavo A.Madero C.P.07700, Mexico D.F. Mexico
TEL. [phone]
Fax. [phone]
RFC: SEM950215S98

http://www.samsung.com.mx/

IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V.

EXPORTADO POR: Samsung Electronics CO.,LTD.

NETHERLANDS/BELGIUM/LUXEMBOURG :

Samsung Electronics Benelux B. V.
Fleminglaan 12 2289 CP Rijiswijk, NEDERLANDS
Service and informatielijn ;
Belgium :0800-95214, http://www.samsung.be/
Netherlands : 0800-2295214, http://www.samsung.nl/

PANAMA :

Samsung Electronics Latinoamerica( Z.L.) S.A.
Calle 50 Edificio Plaza Credicorp, Planta Baja
Panama
Tel. : [phone]
Tel : [phone](FAST)

http://www.samsung-latin.com/

Saturno NO.44, Col. Nueva In dustrial Vallejo
Gustavo A.Madero C.P.07700, Mexico D.F. Mexico
TEL. [phone]

416, Mae tan-3dong, Yeongtong-gu,
Suwon City, Kyoungki-Do Korea

PERU :

Servicio Integral Samsung

v.Argentina 1790 Lima1. Peru

Tel: [phone]

Fax: [phone]

http://www.samsungperu.com/

PORTUGAL :

SAMSUNG ELECTRONICA PORTUGUESA S.A.
Rua Mário Dioniso, N

o

2 - 1º Drt. 2795-140 LINDA-A-VELHA
Tel. [phone] Fax. [phone]
Free Line 800 220 120

http://www.samsung.pt/

SOUTH AFRICA :

Samsung Electronics,5 Libertas Road, Somerset Office Park,
Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa
Tel : [phone]
Fax : [phone]

http://www.samsung.co.za/

SWEDEN/DENMARK/NORWAY/FINLAND :

Samsung Electronics AB
Box 713
S-194 27 UPPLANDS VÄSBY
SVERIGE
Besöksadress : Johanneslundsvägen 4
Samsung support Sverige: 020-46 46 46
Samsung support Danmark : 8088-4646
Samsung support Norge: 8001-1800
Samsung support Finland: 0800-118001
Tel [phone]
Fax [phone]

http://www.samsung.se/

THAILAND :

HAI SAMSUNG SERVICE CENTER
MPA COMPLEX BUILDING,1st-2nd Floor
175 SOI SUEKSA VIDHAYA SATHON SOI 12
SILOM ROAD ,SILOM,BANGRAK
BANGKOK 10 50 0
TEL : [phone]
FAX : [phone]

UKRAINE :

SAMSUNG ELECTRONICS REPRESENTATIVE OFFICE IN UKRAINE
4 Glybochitska str.
Kiev, Ukraine
Tel. [phone]
Fax [phone]
Toll-free 8-800-502-0000

http://www.samsung.com.ua/

United Kingdom :

Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook R ise South
Surbiton, Surrey KT6 7LD
Tel. : [phone]
Fax. : [phone]
< European Service Center & National Service >
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel. : [phone]
Fax. : [phone]

http://samsungservice.co.uk/

U.S.A. :

Samsung Electronics America
Service Division
400 Valley Road, Suite 201
Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)

http://samsungusa.com/monitor/

Terms

A

g

Sync Signal

Sync (Synchronized) Signals re fer to the standard signals that are required to display desired colors on
the monitor. They are divided into Vertical and Horizontal Sync Signals. These signals display normal
color images by the set resolution and frequency.

Types of Sync Signals

Separate This is a scheme of transmitting in dividual vertical sync signals to the monitor.
Composite This is a scheme of combining vertical sync signals into one composite signal

Sync On Green This scheme does not use sync signals. Instead, it com bines horizontal and

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm

Vertical Frequency

The screen must be redrawn sev eral times per second in order to create and display an image for the
user. The frequency of this repetit ion per second is called Vertical Frequency or Refresh Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

and transmitting it to the monitor. The monitor displays the color signals by

separating the composite signal into original color signals.

vertical sync signals into a Green signal and transmits to the monitor. It is mainly

used for workstations.

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom in order is called the Non­Interlace method while showing odd lines and then even lines in turn is called the Interlace method.
The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace
method is the same as that us ed in TVs.

Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer and the
monitor to exchange information automatically. This monitor follows the international standard VESA
DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called 'resolution'.
This number shows the accuracy of the display. High resolution is good for performing mu ltiple tasks as
more image information can be shown on the screen.

Example: If the resolution is 1280 x 1024 , this means the screen is composed of 1280 horizontal

A2

This system uses two carriers to transmit voice data. Countries such as South Korea and Germany use
this system.

BTSC

Broadcast Television System Committee
The stereo broadcasting system that is used in most of the countries that have adopted the NTSC
system, including the United States, Canada, Chile, Venezuela and Taiwan. It also refers to the
organization that has been organized to promote its development and management.

EIAJ

Electronic Industries Association of Japan.

dots (horizontal resolution) and 1024 vertical lines (vertical resolution).

RF Cable

round signal cable generally used for TV antennas.

Satellite Broadcastin

Broadcasting service provided via satellite. Enables high p icture quality and clear sound throughout the

V

g

country regardless of the location of the viewer.

Sound Balance

Balances the levels of the sound coming from each speaker in televisions with two speakers.

Cable TV

Whereas the terrestrial broadcasting is delivered via frequen cy signals through the air, cable
broadcasting is transmitted via a cable network. In order to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.

CATV

"CATV" refers to the broadcasting s ervice offered at hotels, schools and other buildings through their
own broadcasting system, apart from VHF or UHF broadcasting by terrestrial broadcasters. The CATV
programs may include movies, entertainment and educational programs. (Different from cable TV.)

CATV can be viewed only within the area in which the CATV service is offered.

S-Video

Short for "Super Video." S-Video allows up to 800 lines of horizontal resolution, enabling high-quality
video.

HF/UHF

VHF indicates TV channels 2 to 13, and UHF indicates channels 14 through 69.

Channel Fine Tunin

This feature allows the viewer to fine-tune the TV channel to obtain the best viewing conditions. The
Samsung LCD TV has both automatic and manual channel fine-tuning features to enable the viewer to
adjust their desired settings.

External Device Input

External device input refers to video input from such external video devices as VCRs, camcorders and
DVD players, separate from a TV broadcast.

For Better Display

1. Adjust computer resolution and screen injection rate (refresh rate) on computer as described below to
enjoy the best quality of picture. You can have an uneven quality of picture in the screen if the best
quality of picture is not provided in TFT-LCD.

{ Res olu tion: 1280 x 1024
{ Vertical frequency (refresh rate): 60 Hz

2. TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color
seem to be bright sometimes or some of black pixels could be seen.
This is not from bad quality and you can use it without une asiness.

{ For example, the number of TFT LCD sub pixels that is contained in this product are 3,932,160.

3. When you clean the monitor and the panel outside, please apply the recommended small amount of
cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but to be scrubbed ou t
softly.
If excessive force is applied, you can have a stain on it.

4. If you are not satisfied with the quality of picture, you can get b etter quality of picture by executing
"auto adjustment function" in display screen that is appeared as window termination button is
pressed.
If there's still noise after automatic adjustment, use FINE/COARSE adjustment function.

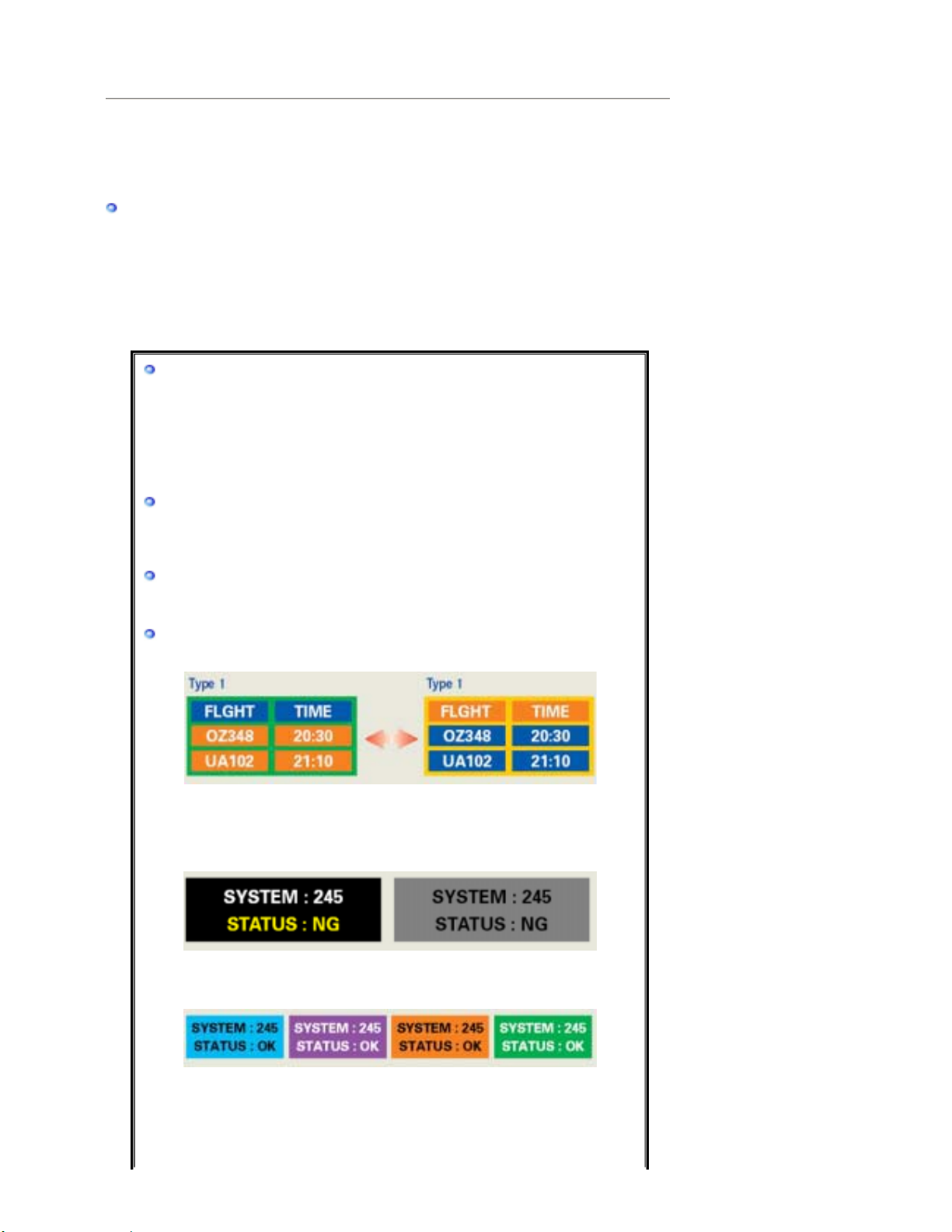

5. If you view a fixed screen for an extended period of time, residual image or blurriness may appear.
Change the mode to energy save or set a screensaver to moving picture when you need to be away
from the monitor for an extended period of time.

Authority

Information in this document is subject to change without notice.
© 2004 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is
strictly forbidden.

Samsung Electronics Co., Ltd. s hall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.

Samsung
NT

of Video Electronics Standard Association; the
of the U.S. Environmental Protec tion Agency (EPA). As an ENER GY STAR® Partner, Samsung Electronics
Co., Ltd. has determined that this product meets the ENERGY S TAR® guidelines for energy efficiency. All
other product names mentioned herein may be the trademarks or registered trademarks of their respecti ve
owners.

is the registered trademark of Samsung Electronics Co., Ltd.;

are registered trademarks of Microsoft Corporation;

VESA,DPMS

ENERGY STAR®

Microsoft,Windows

and

name and logo are registered trademarks

are registered trademarks

DDC

and

Windows

MPR II Compliance
European Notice (Europe only)
TCO'95-Ecological requirements for personal comp uters (TCO'95 applied model only)

TCO'99-Ecological requirements for personal comp uters (TCO'99 applied model only)
TCO'03-Ecological requirements for personal comp uters (TCO'03 applied model only)
TCO'03 Recycling Information (TCO'03 applied model only)
Medical Requirement
Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA only)

| PCT Notice | VCCI |

MPR II Compliance

This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and
magnetic fields.

European Notice(Europe Only)

Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC),
(93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the
European Community. Compliance with these directives implies conformity to the following
European Norms:

z

EN55022:1998+A1:2000 - Radio Frequency Interf erenc e

z

EN55024:1998 - Electromagnetic Immunity

z EN55013:1990+A12:1994+A13:1996+A14:1999 - Radio Frequency Interference
z EN55020:1994+A11:1996+A12/A13/A14:1999 - Electromagnetic Immunity
z EN61000-3-2:1995+A1/A2:19 98 - Power Line Harmonics

z

EN61000-3-3:1995 - Voltage Fluctuations

z

EN60065:1997 or EN60950:1998 - Product Safety

PCT Notice

VCCI

This is a Class B product based on the standard of the Voluntary Control Council for
Interference by Information Technology Equipment (VCCI). If this is used near a radio or
television receiver in a domestic environment, it may cause radio interference. Install and use
the equipment according to the instruction manual.

TCO'95-Ecological requirements for personal computers (TCO'95 applied model only)

AB general requirements
AB2 Written Eco-document acompanying the products

Congratulations! You have just purchased a TCO'95 approved and labelled product! Your
choice has provided you with a product developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and to the further development of
environmentally-adapted electronic products.

Why do we have environmentally-labelled monitors?

In many countries, environmental labelling has become an established method for encouraging
the adaptation of goods and services to the environment.The main problem as far as monitors
and other electronic equipment are concerned is that environmentally harmful substances are
used both in the products and during their manufacture. Since it has not been possible so far
for the majority of electronic equipment to be recycled in a satisfactory way, most of these
potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a monitor, such as energy consumption levels, that are
important from both the working and natural environment viewpoints. Since all types of
conventional electricity generation have a negative effect on the environment (acidic and
climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy. Electronic
equipment in offices consumes an enormous amount of energy, since it is often routinely left
running continuously.

What does labelling involve?

This product meets the requirements for the TCO'95 scheme, which provides for international
environmental labelling of monitors. The labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The
Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and
Technical Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission
of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern among other things restrictions on the presence and use
of heavy metals, brominated and chlorinated flame retardants, CFCs (freons), and chlorinated
solvents. The product must be prepared for recycling and the manufacturer is obliged to have
an environmental plan, which must be adhered to in each country where the company conducts
its operations policy. The energy requirements include a demand that the monitor after a certain
period of inactivity shall reduce its power consumption to a lower level, in one or more stages.
The length of time to reactivate the monitor shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example in respect of the
reduction of electric and magnetic fields, along with physical and visual ergonomics and good
usability.

TCO Development Unit 1996-11-29
On the page this folder you will find a brief summary of the environmental requirements met by
this product.
The complere environmental criteria document may be ordered from:
TCO Development Unit
S-11494 Stockholm
Sweden
Fax: [phone]
E-mail (Internet):

[email protected]

Current information regarding TCO'95-approved and labelled products may also
be obtained via the Internet, using the address:

http://www.tco-info.com/

TCO'95 is a co-operative project between(3 logos)

Environmental Requirements

Brominated flame retardants are present in printed circuit boards, cables, wires, casings and
housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer
casing can consist of flame retardant substances. These are related to another group of
environmental toxins, PCBs, which are suspected to give rise to similar harm, including
reproductive damage in fish eating birds and mammals, due to the bioaccumulative processes.
Flame retardants have been found in human blood and researchers fear that disturbances in
foetus development may occur.

z

TCO'95 demand requires that plastic components weighing more than 25 grams must not

contain organically bound chlorine and bromine.

Lead

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning.

z

TCO'95 requirement Permits the inclusion of lead since no replacement has yet been

developed.

Cadmium

Cadmium is present in rechargeable batteries and in the colour generating layers of certain
computer displays. Cadmium damages the nervous system and is toxic in high doses.

z

TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per

million) of cadmium. The colour-generating layers of display screens must not contain any

cadmium.

Mercury

Mercury is sometimes found in batteries, relays and switches. Mercury damages the nervous
system and is toxic in high doses.

z TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per

million) of mercury. It also demands that no mercury is present in any of the electrical or
electronics components concerned with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing
of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone
layer in the stratosphere, causing increased reception on Earth of ultraviolet light with
consequent increased risks of skin cancer (malignant melanoma).

z

The relevant TCO'95 requirement: Neither CFCs nor HCFCs may be used during the

manufacturing of the product or its packaging.

TCO'99-Ecological requirements for personal computers (TCO'99 applied model only)

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided
you with a product developed for professional use. Your purchase has also contributed to
reducing the burden on the environment and also to the further development of environmentally
adapted electronics products.

This product meets the requirements for the TCO'99 scheme which provides for an
international environmental and quality labelling labelling of personal computers. The labelling
scheme was developed as a joint effort by the TCO(The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen(The Swedish Society for Nature Conservation),
Statens Energimyndighet(The Swedish National Energy Administration) and SEMKO AB.

The requirements cover a wide range of issuse: environment, ergonomics, usability, reduction
of electric and magnetic fields, energy consumption and electrical safety.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging
the adaptation of goods and services to the environment. The main problem, as far as
computers and other electronics equipment are concerned, is that environmentally harmful
substances are used both in the products and during their manufacture. Since it is not so far
possible to satisfactorily recycle the majority of electronics equipment, most of these potentially
damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (internal) and natural (external) environments.
Since all methods of electricity generation have a negative effect on the environment (e.g.
acidic and climate-influencing emissions, radioactive waste), it is vital to save energy.
Electronics equipment in offices is often left running continuously and thereby consumes a lot of
energy.

What does labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The
Swedish Society for Nature Conservation). These demands impose restrictions on the
presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs(freons)
and chlorinated solvents, among other things. The product must be prepared for recycling and
the manufacturer is obliged to have an environmental policy which must be adhered to in each
country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain
period of inactivity, shall reduce its power consumption to a lower level in one or more stages.
The length of time to reactivate the computer shall be reasonable for the user.

Below you will find a brief summary of the environmental requirements met by this product. The

complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden
Fax: [phone]
Email (Internet):

[email protected]

Current information regarding TCO'99 approved and labelled products may also be obtained
via the Internet, using the address:

http://www.tco-info.com/

Environmental requirements
Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings.
Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a
computer casing can consist of flame retardant substances. Most flame retardants contain
bromine or chloride, and those flame retardants are chemically related to another group of
environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the
PCBs are suspected of giving rise to severe health effects, including reproductive damage in
fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have
been found in human blood and researchers fear that disturbances in foetus development may
occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams
must not contain flame retardants with organically bound bromine or chlorine. Flame retardants
are allowed in the printed circuit boards since no substitutes are available.

Cadmium**

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain
computer displays. Cadmium damages the nervous system and is toxic in high doses. The
relevant TCO'99 requirement states that batteries, the colour-generating layers of display
screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system
and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not
contain any mercury. It also demands that mercury is not present in any of the electrical or
electronics components associated with the labelled unit. There is however one exception.
Mercury is, for the time being, permitted in the back light system of flat panel monitors as today
there is no commercially available alternative. TCO aims on removing this exception when a
Mercury free alternative is available.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the
manufacture and assembly of the product. CFCs (freons) are sometimes used for washing
printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the
stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks
of skin cancer (malignant melanoma) as a consequence.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement
permits the inclusion of lead since no replacement has yet been developed.

TCO'03-Ecological requirements for personal computers (TCO'03 applied model only)

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your
display is designed, manufactured and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a high performance product, designed
with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

Good visual ergonomics and image quality in order to improve the working environment for the
user and to reduce sight and strain problems. Important parameters are luminance, contrast,
resolution, reflectance, colour rendition and image stability.

Energy

z

Energy-saving mode after a certain time ?beneficial both for the user and the environment

z

Electrical safety

Emissions

z Electromagnetic fields
z Noise emissions

Ecology

z

The product must be prepared for recycling and the manufacturer must have a certified

environmental management system such as EMAS or ISO 14 000

z Restrictions on

o chlorinated and brominated flame retardants and polymers
o heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in
cooperation with scientists, experts, users as well as manufacturers all over the world. Since
the end of the 1980s TCO has been involved in influencing the development of IT equipment in
a more user-friendly direction. Our labelling system started with displays in 1992 and is now
requested by users and IT-manufacturers all over the world.

For more information, Please visit

www.tcodevelopment.com

TCO'03 Recycling Information (TCO'03 applied model only)

For recycling information for TCO'03 certified monitors, for the residents in the following
countries, please contact the company corresponding to your region of residence. For those
who reside in other countries, please contact a nearest local Samsung dealer for recycling
information for the products to be treated in environmentally acceptable way.

[U.S.A. Residents Only] [European Residents Only]

U.S.A. SWEDEN NORWAY GERMANY

COMPANY

ADDRESS

TELEPHONE [phone] 212 90 23 06 07 40 49 0 2234 9587 - 0
FAX Fax: [phone] 212 99 23 06 07 41
E-

MAIL
HOME

PAGE

Solid Waste Transfer &
Recycling Inc

442 Frelinghuysen Ave
Newark, NJ 07114

none [email protected] [email protected] [email protected]

http://www.bcua.org/Solid
Waste_Disposal.htm

ELKRETSEN Elektronikkretur AS vfw AG
ELKRETSEN Box

1357, 111 83
Stockholm
Barnhusgatan 3, 4
tr.

http://www.el­kretsen.se/

6454 Etterstad 0602 Oslo
Fyrstikkalln 3B

http://www.elretur.no/

Max Plank Strasse
42
50858 Collogne
Germany

Medical Requirement

Classifications:

In accordance with UL 2601-1/IEC 60601-1, the product is cssified as Continuous duty Class I
equipment, which is not protected against ingress of liquids. The product is not suitable for use
in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.

EMC

This equipment has been tested and found to comply with the limits for medical devices to the
IEC 601-1-2:1994. These limits are designed to provide reasonable protection against harmful
interference in a typical medical installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to other devices in the vicinity. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to other devices, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:

z Reorient or relocate the receiving device.
z Increase the separation between the equipment.
z Connect the equipment into an outlet on a circuit different from that to which the other

device(s) are connected.

z

Consult the manufacturer or field service technician for help.

Video In / RS 232 / Video Out

Accessories equipment connected to the analog and digital interfaces must be certified to the
respective IEC standards (i.e. IEC 950 for data processing equipment and IEC 601-1 for
medical equipment.) Furthermore all configurations shall comply with the system standard IEC
601-1-1. Everybody who connects additional equipment to the signal input part or signal output
part configures a medical system, and is therefore, responsible that the system complies with
the requirements of the system standard IEC 601-1-1. If in doubt, consult the technical services
department or your local representative.

Transport and Storage Limitations:

Temperature Range of -40°C to +70°C
Relative Humidity of 10 -95%, non-condensing

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA only)

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR
DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS
For details see lamprecycle.org, eiae.org, or call 1-800-Samsung

PRODUCT INFORMATION (Image Retention Free)

LCD Monitors and TVs may have image retention when switching from one image to another
especially after displaying a stationary image for a long time.
This guide is to demonstrate correct usage of LCD products in order to protect them from Image
retentio n.

What is Image retention ?

During normal operation of a LCD panel, pixel image retention doesn't occur. However,

if the same image is displayed for a long time, a slight difference in electric charge

accumulates between the two electrodes which encase the liquid crystal. This may

cause the liquid crystal to build up in a certain areas of the display. Thus, the previous

image is retained when switching to a new video image. All display products, including

LCD,are subject to image retention. This is not a product defect.

Please follow the suggestions below to protect your LCD from image retention

Power Off, Screen Saver, or Power Save Mode

Ex)

z

Turn the power off when using a stationary pattern.

- Turn the power off for 4 hours after 24 hours in use

- Turn the power off for 2 hours after 12 hours in use

z Use a Screen saver if possible

- Screen saver in one color or a moving image is recommended.

z

Set the Monitor to power off with the PC Display Properties Power Scheme.

Suggestions for specific applications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems
We recommend that you follow set up of your display system program as below:

Display Information together with Logo or Moving image cycle.

Ex) Cycle : Display Information for 1 hour followed by a
Display Logo or moving image for 1 minute.

Change the Color Information periodically(Use 2 different colors).

Ex) Rotate the Color Information with 2 colors every 30 minutes.

Avoid using a combination of characters and background color with large
difference in luminance.
Avoid using Grey colors, which can cause Image retention easily.

z

Avoid: Colors with big difference in luminance (Black & White, Grey)

Ex)

z Recommended settings: Bright colors with little difference in luminance

- Change the characters color and background color every 30 minutes
Ex)

- Every 30 minutes, change the characters with movement.
Ex)

The best way to protect your monitor from Image retention is to set your PC or

y

stem to operate a Screen Saver program when you are not using it.

S

Image retention may not occur when a LCD panel is operated under normal conditions.

Normal conditions are defined as continuously changing video patterns. When the LCD

panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be

slight difference in voltage between electrodes that work the liquid crystal (LC) in a

pixel. The voltage difference between electrodes increases with time, forcing the liquid

crystal to lean. When this occurs, the previous image may be seen when the pattern is

changed.

To prevent this, the accumulated voltage difference must be decreased.

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II
