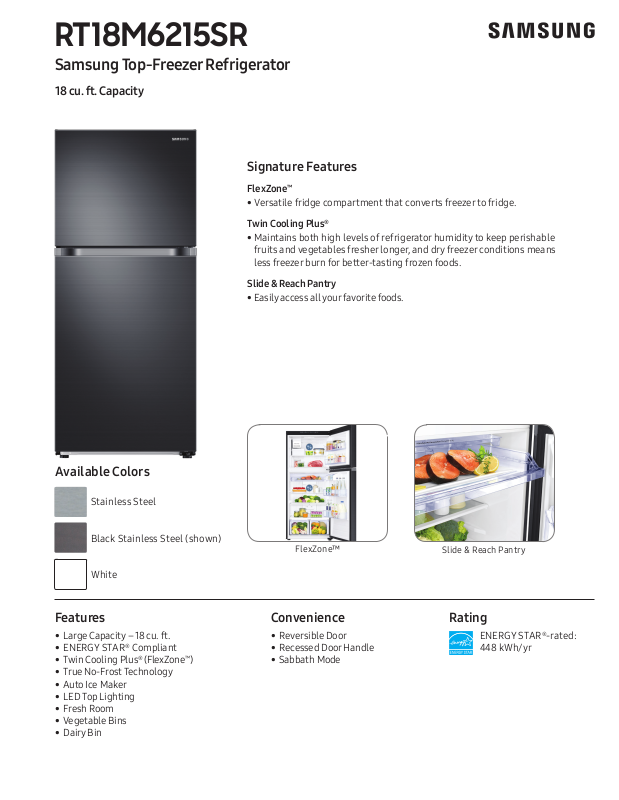

Samsung RT18M6215WW Specifications

RT18M6215SR
Stainless Steel
Stainless Steel
Samsung Top-Freezer Refrigerator
18 cu. ft. Capacity
Signature Features
Available Colors
FlexZone
• Versatile fridge compartment that converts freezer to fridge.
Twin Cooling Plus
• Maintains both high levels of refrigerator humidity to keep perishable fruits and vegetables fresher longer, and dry freezer conditions means less freezer burn for better-tasting frozen foods.
Slide & Reach Pantry
• Easily access all your favorite foods.
®
Stainless Steel
Black Stainless Steel (shown)
White
Features
• Large Capacity – 18 cu. ft.
• ENERGY STAR® Compliant
• Twin Cooling Plus® (FlexZone™)
• True No-Frost Technology
• Auto Ice Maker
• LED Top Lighting
• Fresh Room
• Vegetable Bins
• Dairy Bin
FlexZone™
Convenience
• Reversible Door
• Recessed Door Handle
• Sabbath Mode
Slide & Reach Pantry
Rating
ENERGY STAR®-rated: 448 kWh/yr
RT18M6215SR
Samsung Top-Freezer Refrigerator
18 cu. ft. Capacity
Installation Specifications
1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).
2. Refer to illustration below to determine dimensions.
3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall
where handle may make contact.
4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.
5. Ensure each door and entryway in the home is wide enough for the refrigerator
to be moved through easily.
For optimal usage and to be able to open refrigerator doors completely, do not install next to a wall.
Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product, or download manual online at samsung.com.
Measure height including flooring. Be sure to allow for hinge clearance height if needed.
Measure width including countertop overhang.
Measure depth including molding or trim.
Total Capacity: 17.6 cu. ft.
Refrigerator: 12.7 cu. ft.
• Fresh Room
• Dairy Bin
• 2 Vegetable Bins
• LED Top Lighting
Fridge in Freezer: 4.9 cu. ft.
• 1 Glass Shelf
Warranty
One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on
Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years
Labor on Digital Inverter Compressor
*Compressor, evaporator, condenser, drier and connecting tubing.
Product Dimensions & Weight
Dimensions (WxHxD with hinges, handles and doors): 283/4" x 663/4" x 317/8"
Dimensions (WxHxD without hinges and door): 283/4" x 6511/16" x 281/2"
Weight: 198.4 lbs.
Shipping Dimensions & Weight (WxHxD)
Dimensions: 301/8" x 705/8" x 331/2"
Weight: 216.1 lbs.
Dimensions
Color Model # UPC Code
Stainless Steel RT18M6215SR 887276191836 Black Stainless Steel RT18M6215SG 887276191829
283/4"
2"
317/8"
663/4"
6511/16"
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2017 Samsung Electronics America, Inc. 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
121⁰
44"
White RT18M6215WW 887276191843
2"2"
577/8"
