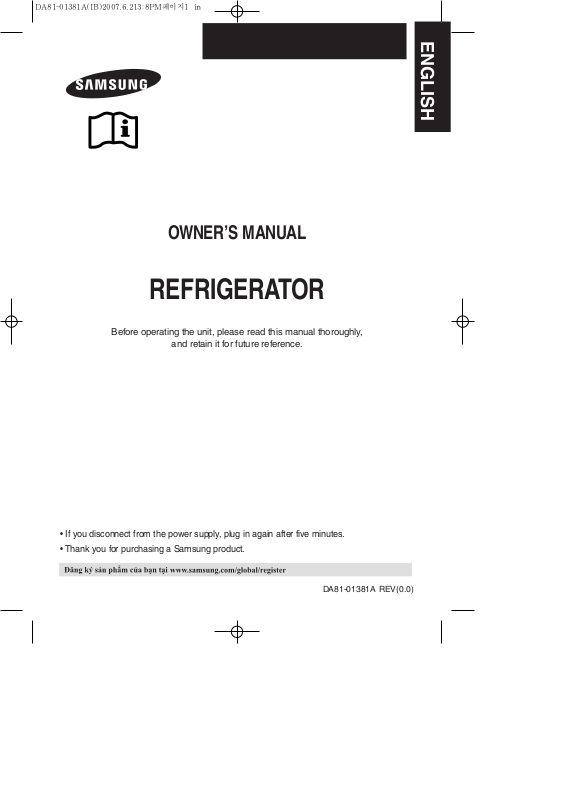

Page 1
OWNER’S MANUAL
REFRIGERATOR
ENGLISH
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
•
If you disconnect from the power supply, plug in again after five minutes.
•
Thank you for purchasing a Samsung product.
DA81-01381A REV(0.0)
Page 2
• Because this operating instruction book covers
various models, the characteristics of your
refrigerator may differ slightly from those
described in this manual.
Warning
• This appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised by a responsilble person to
ensure that they can use the appliance safely.
• Children should be supervised to ensure that they
do not interfere with the appliance.
• The appliance must be positioned so that the plug
is accessible after installation.
CONTENTS
WARNINGS / SAFETY PRECAUTIONS ................. 3
INSTALLING THE FRIDGE/FREEZER .................... 5
USING THE CONTROL FEATURES ....................... 6
GENERAL CLEANING .............................................. 7
HOW TO DISASSEMBLE THE ACCESSORIES .... 8
PROBLEMS AND SOLUTIONS .................................9
USAGE PRECAUTIONS ...........................................10
VIEW OF YOUR FRIDGE / FREEZER ....................11
2
Page 3
WARNINGS / SAFETY PRECAUTIONS
To avoid any risk of personal injury, material damage or incorrect use of the appliance, be sure to
observe the following safety precautions. (After reading these owner’s instructions, please keep them in
a safe place for reference). Remember to hand them over to any subsequent owner.
Indicates that a danger of death or
Warning
Do not plug several appliances into the same
sockets.
• This could cause overheating and the risk of
fire.
Keep the power plug away from the rear of
the fridge/freezer.
• A damaged power plug may cause fire due to
overheating.
Do not directly spray water inside or outside
the fridge/freezer.
• There is a risk of fire or electric shock.
Do not spray inflammable gas near the
fridge/freezer.
• There is a risk of explosion or fire.
Do not bend the power cord excessively or
place heavy articles on it.
This constitutes a fire hazard.
serious injury exists.
Warning
If the power
cord is damaged, have it replaced
immediately by the manufacturer, its
service agent or a similarly qualified
person.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on
top of the appliance.
• If the water spills on to any electrical parts, it
may lead to fire or electric shock.
Do not install the fridge/freezer in a damp
place, where it could be splashed with water.
• Incorrect insulation of the electrical parts may
cause an electric shock or fire.
• Do not place the equipment directly under the
sunlight.
Indicates that a risk of personal
injury or material damage exists.
Caution
Do not store volatile and inflammable
substances in the refrigerator.
• The storage of benzene, thinner, alcohol, ether,
LP gas or other such substances may cause
an explosion.
Do not disassemble, repair or alter the
appliance.
• It may cause fire or abnormal operations, which
may lead to injury.
Pull the power plug out of the socket before
replacing the interior light in the refrigerator.
• Otherwise, there is a risk of electric shock.
Make sure that the appliance is correctly
earthed.
• Otherwise, it may cause material damage and
electric shock.
If you wish to dispose of the fridge/freezer,
throw it away after removing the door or its
seals.
• In this way, it is not possible for a child to
remain trapped inside it.
• The gases in the insulation material required
special disposal procedure.
• Please dispose of the packaging material for
this product in an environmentally friendly
manner.
• Please contact your local authorities in regard
to the enviromentally safe disposal of this
product.
• This product is intended only for the storage of
food in a domestic environment.
3
Page 4
WARNINGS / SAFETY PRECAUTIONS
Warning
• Keep ventilation openings in the appliance
enclosure or mounting structure clear of
obstruction.
• Do not use mechanical devices or any other
means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the
fridge/freezer, unless they are a type
recommended by the manufacturer.
Caution
Do not store too much food in the appliance.
• When you open the door, an item may fall out
and cause personal injury or material damage.
Do not put bottles or any kinds of glass in
the freezer.
• The container may break and cause personal
injury.
If the wall socket is loose, do not insert the
power plug.
• It May cause electric shock or fire.
Do not disconnect the power cord by pulling
on it.
• You may disconnect a wire and cause a short
circuit.
Do not store articles on top of the appliance.
• When you open or close the door, the articles
may fall and cause personal injury or material
damage.
Do not store pharmaceutical products,
scientific materials or other temperaturesensitive products in the refrigerator.
• Products that require strict temperature controls
must not be stored in the refrigerator.
Do not let a child hang from the door.
Do not touch any containers and food in the
freezer with wet hands.
• It may cause frostbite.
Remove any foreign matter from the power
plug pins.
• Otherwise, there is a risk of fire.
Do not insert your hand into the bottom area
of the appliance.
• Any sharp edges may cause personal injury.
After unplugging the appliance, wait for at
least five minutes before plugging it in again
to the wall socket.
• Abnormal operation of the freezer may cause
material damage.
If the appliance is not to be used for a long
period of time, pull out the power plug.
• Any deterioration in the wire insulation may
cause fire.
Do not let children touch or play with the
controller of the appliance.
• Do not allow children to interfere with the
appliance.
• Repairs and maintenance of the appliance
should only be performed by a qualified
technician. Incorrect repairs by an unqualified
person are a potential source of danger that
may have critical consequences for the user of
the appliance.
• Never put ice cubes or ice lollies straight from
the freezer into your mouth. (The low
temperature may cause “freezer burns”.)
4
Page 5
INSTALLING THE FRIDGE/FREEZER
Allow an adequate space and install the fridge/freezer on a firm, level floor.
• If the appliance is not level, there may be unusual noises and poor cooling.
• Wait for at least five minutes before plugging the appliance in.
Clean the fridge/freezer.
• Wipe and clean the appliance inside and outside with a damp cloth.
Plug the fridge/freezer into a wall socket used exclusively by this appliance.
• This appliance must be properly earthed.
Place the food in the fridge/freezer.
• Set the temperature control to the colder temperature and let the refrigerator operate for one
hour. The freezer should get slightly chilled and the motor should run smoothly with a soft
hum and no noise.Your fridge/freezer is operated by a compressor which switches “on and
off” to maintain the internal temperature.
Warning
Use of an grounded socket exclusively for the appliance:
• If you are using a socket with an earthing terminal, you do not require a
separate earthing connection.
Use of a no grounded wire socket:
• Connect the “grounding wire” to the copper plate and bury it at a depth
of at least 25cm in the ground.
LEVELLING
If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily.
The appliance tilts down to the left.
Turn the left adjusting leg in the direction of the arrow until
the appliance is level.
The appliance tilts down to the right.
Turn the right adjusting leg in the direction of the arrow
until the appliance is level.
• When the level adjustment legs are not fixed on the
Caution
❊ What if they do not make the ground circuit correctly.
floor, the refrigerator could move.
• Please tie up the extra length of the power cord at the
back of the refrigerator so as not to be touched on the
floor preventing the power cord from being crushed by the
rollers upon relocation.
They acted on samsung advice.
5
Page 6
- Freezer -
USING THE CONTROL FEATURES
• When you have small
food.
• You can save the
electric power
consumption.
- Fridge -
• When you have small
food.
• You can save the
electric power
consumption.
• Genernal use.
• Initial setting position.
• Genernal use.
• Initial setting position.
• When you want to
freeze food and make
ice quickly.
• When you want to
freeze food and make
ice quickly.
• When environmental
temp. is below 15 °C.
6
Page 7
GENERAL CLEANING
Pull forward
Hole
Evaporation
Tray
Storage bin
• Wipe and clean the high humidity special fresh bin
with water and dishwashing detergent after pulling it
out.
Freezer / Fridge Shelf
• In case of foods spillages, pull out the freezer/fridge
shelf and wipe it with clean cloth.
Door Gasket
• Clean the door gasket with dishwashing detergent
the door can not easily close if it is dirty.
• Wipe the gaps along the grooves with cloth.
• Care should be taken not to damage the door
gasket while cleaning.
• If gasket is damaged during cleaning, it may not be
durable enough.
Using method of Evaporation tray
• The evaporation tray is installed on the top of the
compressor on the backside. It can be easily
separated by pulling the handle forward.
When installing, fix it on evaporation tray hole.
(Insert it horizontally )
• Insert the evaporation tray thoroughly.
If installed imperfectly, defrosted water can be
entered into the compressor causing damage
or electric leakage and also causing noise.
7
Page 8
HOW TO DISASSEMBLE THE ACCESSORIES
Freezer shelf
• Pull out the ice tray first and then lift up the front
part of freezer shelf and pull it out forward.
Freezer shelf
Fridge shelf
• Lift up the fridge shelf and pull it forward.
Fridge shelf
High humidity vegetable bin.
• Lift up the vegetable bin lid and pull it forward.
Vegetable bin
Door guards
• Lift up and pull out the door guards.
• It is possible, if you need more space to store vegetable and fruits, to remove the
Note
drawers and ice tray.
8
Page 9
PROBLEMS AND SOLUTIONS
The appliance is not operating at all or the temperature is too high
• Check that the power plug is correctly connected.
• Is the temperature controller in the fridge/freezer correctly set?
• Is there direct sunlight on the appliance or are there heat sources nearby?
• Is the back of the appliance too near to the wall?
The food in the fridge is frozen
• Is the temperature controller in the fridge set to the colder temperature?
• Is the ambient temperature too low?
• Did you put food with a high water content in the fridge?
There are unusual noises
• Check that the appliance is installed on a stable, level floor.
• Is the back of the appliance too near to the wall?
• Have any foreign objects fallen behind or under the appliance?
• Is the noise coming from the compressor in the appliance?
• A ticking sound may be heard inside the appliance; this is normal. This sound occurs when the various
accessories contract or expand.
The front corners and sides of the appliance are warm and condensation starts to form
• Heat-proof pipes are installed in the front corners of the appliance to prevent condensation from forming.
• Heat-proof pipes are installed in the front corners of the appliance to prevent condensation from forming.
When the surrounding temperature rises, this may not always be effective. However, this is not abnormal.
When the surrounding temperature rises, this may not always be effective. However, this is not abnormal.
• In very humid weather, condensation may form on the outer surface of the appliance when the moisture
• In very humid weather, condensation may form on the outer surface of the appliance when the moisture
in the air comes into contact with the cool surface of the appliance.
in the air comes into contact with the cool surface of the appliance.
You can hear a liquid gurgling in the appliance.
• This is the refrigerant, which cools the inside of the appliance.
There is a smell inside the appliance
• Food may not be sealed correctly in a container.
• If there is a smell, the low temperature catalysing deodorizer may require cleaning.
There is a layer of frost on the appliance’s walls
• Is the air outlet on the appliance blocked?
• Space the food out as much as possible to improve ventilation.
• Is the door fully closed?
Condensation forms on the inside wall of the appliance and around vegetables
• Food with a high water content is stored uncovered with a high humidity level or the door has been left
open for a long time.
• Store the food with a cover or in sealed containers.
9
Page 10
USAGE PRECAUTIONS
Store food with a high water content at the
front of a fridge shelf.
Tips
• Install the appliance in a cool,dry place with adequate ventilation.
Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat
(radiator, for example).
• Never block any vents or grilles on the appliance.
• Allow warm food to cool down before placing it in the appliance.
• Put frozen food in the fridge to thaw.
You can then use the low temperatures of the frozen products to cool food in the fridge.
• Do not keep the door of the appliance open for too long when putting food in or taking food out.
The shorter the time for which the door is opened, the less ice will form in the freezer.
• When freezing food or storing it in the freezer, place the food in freezer compartment in sealed containers.
Power Saving TipsPower Saving Tips
Store hot food in the appliance after it has
cooled.
• If you store cold food, you save on electricity and
improve refrigeration.
10
Page 11
VIEW OF YOUR FRIDGE / FREEZER
①
⑪
⑫
⑬
⑭
②
④
③
⑤
⑥
⑦
⑧
⑨
⑩
① Ta b l e
② Ice Box
③ Freezer Shelf
④ Ice Tray
⑤ Freezer Temp. Control
⑥ Temp. Control
⑦ Fridge Shelf
⑧ Vegetable Box Cover
⑨ Vegetable Box
⑩ Height Adjustable Legs
⑪ Freezer Pocket
⑫ Egg Pocket
⑬ Multi Pocket
⑭ Bottle Pocket
FUNCTION
Freezer Shelf
Provided to make ice or store frozen food.
Freezer Temp. Control
Used when you want to regulate temperature of
freezer compartment.
Fridge Shelf
Provided to store day to day food.
Vegetable Box
It is suitable to store vegetable and fruit
Freezer Pocket
Please don't put long term storing items such
as Ice cream etc.
Egg pocket
Storing eggs, cheese, etc.
Bottle Pocket
Storing big bottled drinks, juice, etc.
Fridge Temp Contorl
Used when you want to regulate temperature
of fridge compartment.
11
Page 12
Loading...
