Refrigerator

user manual

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/global/register

English

Free Standing Appliance

RSA1Z*** RSA1S***

RSA1D*** RSA1J*** RSA1N***

DA68-02439Z-16

*** ***

RSA1U RSA1

条形码

2_ features

features of your new refrigerator

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung Side-By-Side Refrigerator comes equipped with many space-saving, innovative storage and energy-efﬁcient features.

• HIDDEN HINGES & DOOR S/W

Slick-covered hidden hinges & door s/w helps Neat & Stylish square frontal view.

• CoolSelect Duo (Optional)

The customizable CoolSelect Duo lets you choose between meat and vegetable mode depending on your needs. In meat mode, your deli items and meats keep their juicy texture and freshness. In vegetable mode, the box maintains optimal humidity for fruits and vegetables, transforming into a perfect crisper to keep them fresh longer. Now, you always have food at its freshest.

• BLACK CLEAR LED DISPLAY

With luxurious black window, you can look and feel neat & clear design.

For easy future reference write the model and serial number down. You will ﬁnd your model number on the left hand side wall of the refrigerator.

Model # Serial #

safety information _03

safety information

SAFETY INFORMATION

•

Before operating the appliance, please read this manual thoroughly and retain it for your reference.

•Because these following operating instructions cover

various models, the characteristics of your refrigerator may differ slightly from those described in this manual.

•This appliance is intended to be used in household and

similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

CAUTION/WARNINGSYMBOLSUSED

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

OTHERSYMBOLSUSED

Represents something you must NOT do.

Represents something you must NOT disassemble.

Represents something you must NOT touch.

Represents something you must follow. Indicates that you must disconnect the power plug

from the socket. Represents a ground is needed to prevent electric shock. It is recommended that this symbol be handled by service man.

WARNING

04_safety information

safety information

WARNING

These warning signs are here to prevent injury to you

and others.Please follow them explicitly.After reading this section, keep it in a safe place for future reference.

• This refrigerator must be properly installed and located

in accordance with the manual before it is used.

• Use this appliance only for its intended purpose as

described in this user manual.

• We strongly recommend that any servicing be

performed by a qualified individual.

• R600a/R134a can be used as a refrigerant. Check the

compressor label or the circuit diagram on the rear of the appliance to see which refrigerant is used for the refrigerator

• In case of R600a refrigerant, this gas is natural

gas with high environmental compatibility that is,

however, also combustible. When transporting and

installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

• Refrigerant squirting out of the pipes could ignite

or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

• In order to avoid the creation of a flammable gas-air

mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.

• The room must be 1m³ in size for every 8g of R600a

refrigerant inside the appliance.

• Never start up an appliance showing any signs of

damage. If in doubt, consult your dealer.

safety information _05

• Please dispose of the packaging material for this

product in an environmentally friendly manner

• Do not change the pars in the refrigerator at random.

SEVERE WARNING SIGNS

• Do not install the refrigerator in a damp place or place

where it may come in contact with water.

- Deteriorated insulation of electrical parts may cause

an electric shock or fire.

• Do not place this refrigerator in direct sunlight or

expose to the heat from stoves, room heaters or other appliance.

• Do not place a lighted candle or open flames on the

refrigerator.

- This may result in electric shock or fire.

• Allow sufficient space to install the refrigerator on a flat

surface.

- If your refrigerator is not level, the internal cooling system may not work correctly.

• Use 220~240V power. Do not plug several appliances

into the same multiple power board. The refrigerator should always be plugged into its own individual electrical which has a voltage rating that matched the rating plate.The refrigerator must be grounded.

- This provides the best performance and also prevents overloading house wiring circuits,which could cause a fire hazard from overheated wires.

• Never unplug your refrigerator by pulling on the power

cord. Always grip plug firmly and pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, fire and/or electric shock.

safety information

WARNING

06_safety information

safety information

• Make sure that the power plug is not squashed or

damaged by the back of the refrigerator.

• Do not bend the power cord excessively or place

heavy articles on it.

- This constitutes a fire hazard.

• Do not use a loose socket or a cord that shows

cracks or abrasion damage along its length or at either end.

• If the power cord is damaged, have it replaced

immediately by the manufacturer or its service agent.

• When moving the refrigerator, be careful not to roll

over or damage the power cord.

• Do not insert the power plug with wet hands.

• Disconnect the power before cleaning or maintaining

your refrigerator.

- Do not use a wet or damp cloth when cleaning the

pulug.

• Remove any foreign matter or dust from the power

plug pins.

- Otherwise there is a risk of fire.

• If the refrigerator is disconnected from the power

supply, you should wait for at least ten minutes before plugging it back.

• If the wall socket is loose, do not insert the power

plug.

- There is a risk of electric shock or fire.

• The appliance must be positioned so that the plug is

accessible after installation.

• Do use separate and reliable earthing power. Don’t

share a socket with other appliances. In order to ensure safety, the socket and its connecting wire must

be able to bear over 10A current.

safety information _07

• The refrigerator must be grounded.

- You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage

from the refrigerator.

• Never use gas pipes, telephone lines or other

potential lightening rods as ground.

- Improper use of the ground plug can result in electric shock.

• Do not dissemble or repair the refrigerator by yourself.

- You run risk of causing a fire, malfunction and/or personal

injury.

• If you smell pharmaceutical or smoke, pull out power

plug immediately and contact your Samsung electronics service center.

• Keep ventilation opening in the appliance enclosure or

mounting structure clear of obstruction.

• Do not use mechanical devices or any other means

to accelerate the defrosting process, other than those recommended by the manufacturer.

• Don’t dismantle, repair or adapt structure of the

refrigerator unadvisedly; otherwise, its refrigeration system

may be damaged. Do not damage the refrigerant circuit.

• Do not place or use electrical appliance inside the refrigerator/freezer, unless they are of a type

recommended by the manufacturer.

• Don’t put a dryer in the refrigerator for drying.

• Do not replace LED lamp privately and please contact

the specialized repair staff if necessary.

• Children and other retardates can’t use the refrigerator

without supervision.

• Children should be supervised to ensure that they do not

play with the appliance.

safety information

08_safety information

safety information

• The appliance is not to be used by persons (including

children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Do not let children hang on the door. If not, a serious

injury may occur.

• Do not touch the inside walls of the freezer or products

stored in the freezer with wet hands.

- This may cause frostbite.

• If the refrigerator is not to be used for a long period of

time, pull out the power plug.

- Deterioration in the insulation may cause fire.

• Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and/or material damage.

CAUTION SIGNS

• Before the refrigerator is put into use, its leveling legs

must be adjusted to contact the ground, and the refrigerator must be leveled, so as to avoid tilting.

• This product is intended only for the storage of food in a

domestic environment.

• Manufacturer’s recommended storage times should be

adhered to.

Refer to relevant instructions.

• Bottle should be stored tightly together so that they do

not fall out.

• Don’t store any carbonated drink or soda water in the

freezer.

CAUTION

safety information _09

safety information

• Do not overfill the refrigerator with food.

- When you open the door, an item may fall out and cause

personal injury or material damage.

• Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause

personal injury.

• Do not spray inflammable gas near the refrigerator.

- There is a risk of explosion or fire.

• Do not directly spray water inside or outside the

refrigerator or wipe it with benzene or alcohol.

- There is a risk of fire or electric shock.

• Do not store volatile or flammable substances in the

refrigerator.

- The storage of benzene, thinner, alcohol, ether, LP gas

and other such products may cause explosions.

• You are recommended to empty the refrigerator and turn

it off when you have a long term journey.

• Do not re-freeze frozen foods that have thawed

completely.

• Do not store pharmaceuticals products, scientific materials

or temperature-sensitive products in the refrigerator.

- Products that require strict temperature controls must not be stored in the refrigerator.

• Do not put a container filled with water on the refrigerator.

- If spilled, there is a risk of fire or electric shock.

• The two legs in the front of the refrigerator are rotatable.

The front legs contact the ground so that the refrigerator will not move when opening its doors.

• Do not apply strong shock or excessive force onto the

surface of glass.

- Broken glass may result in a personal injury and/or

property damage.

10_safety information

CAUTION SIGNS FOR CLEANING

• Do not insert your hands into the bottom area under the

appliance.

- Any sharp edges may cause personal injury.

• Never put fingers or other objects into the dispenser hole

and ice chute.

- It may cause personal injury or material damage.

• Don’t use wet cloth to clean the plug or remove its

foreign substances or dust.

- Otherwise, it will result in fire hazard.

• If the refrigerator is disconnected from the power supply,

you should wait for at least tenminutes before plugging it back.

WARNING SIGNS FOR DISPOSAL

• When disposing of this or other refrigerator/s, remove the door/door seals, so that small children or animals

cannot become trapped inside.

• Leave the shelves in place so that children may not easily

climb inside.

• Check the cimpressor label or the rating label on the

rear of the appliance to see which refrigerant is used for

your refrigerator. When this product contains flammable gas(Refrigerant R600a/R134a)contact your local authority

in regard to safe disposal of this product.

• Cyclopentane is used as a insulation blowing gas. The

gases in insulation material require special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product. Ensure that none of the pipes on the back of the appliances are damaged prior to disposal. The pipes shall be broke in the open space.

CAUTION

_11

safety information

In the event of a power failure, call the local office of your

Electricity Company

and ask how long it is going to last.

Most power failures that are corrected in an hour or two will

not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.

But should the power failure last more than 24hours, remove

all frozen food.

For doors or lids fitted with locks and keys, the keys be kept

out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

There is protective film on the surface of some refrigerator models, which is used to protect the refrigerator from scratches during transport. To avoid static electricity, please peel off the protective film slowly. If the protective film is not removed for a long time, it may cause color shading of the steel plate.

safety information

CAUTION

safety information

12_

safety information

ADDITIONAL TIPS FOR PROPER USAGE

• Allow the appliance to stand for 2hours after installation.

• To get best performance of product,

- Do not place foods too closely in front of the vents

at the rear of the appliance as it can obstruct free air circulation in the freezer compartment.

- Wrap the food up properly or place it in airtight

containers before put it into the fridge freezer

- Do not put any newly introduced food for freezing near

to already frozen food.

• Please observe maximum storage times and expiry

dates of frozen goods.

• There is no need to disconnect the refrigerator from

the power supply if you will be away for less than three weeks. But, remove all the food if you are going away

for the three weeks or more. Unplug the refrigerator and

clean it, rinse and dry.

• Most power failures that are corrected in an hour or two

will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. But should the power failure last more

than 24hours, remove all frozen food.

• Do not store food which goes bad easily at low

temperature, such as bananas, melons.

• Place the ice tray at the originally provided posistion by

manufacturer in order to achieve optimal ice-freezing.

• Your refrigerator is frost-free, so you are no need

to defrost manually and the refrigerator will do so automatically.

• Temperature rising during the defrost can comply with

relevant national requirement. But If you want to prevent an undue rise in the temperature of the frozen food

_13safety information

while defrosting the appliance, please wrap the frozen food

in several layers of paper such as newspaper.

• Any increase in temperature of frozen food during defrosting

can shorten its storage life.

SAVING ENERGY TIPS

- Install the appliance in a cool, dry room with adequate ventilation.

Ensure that it is not exposed to direct sunlight and never put

it near a direct source of heat (radiator, for example).

- Never block any vents or grilles on the appliance.

- Allow warm food to cool down before placing it in the appliance.

- Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator.

- Do not keep the door of the appliance open for too long

when putting food in or taking food out. The shorter time for which the door is open, the less ice will form in the freezer.

Clean the rear of the refrigerator regularly. Dust increases

energy consumption.

- Do not set temperature colder than necessary.

- Ensure sufficient air exhaust at the refrigerator base and at the back wall of the refrigerator.

- Do not cover air vent openings.

- Allow clearance to the right, left, back and top when installing.

This will help reduce power consumption and keep your

energy bills lower.

safety information

14_ contents

contents

seTTING UP yOUR sIde-by-sIde

RefRIGeRATOR

15 Getting ready to install the refrigerator 16 Removing the refrigerator doors 19 Reattaching the refrigerator door

22 Leveling the refrigerato

seTTING UP yOUR sIde-by-sIde

RefRIGeRATOR

23 Making minor adjustments to the doors 24 Checking the water dispenser lin

e(optional)

25 Installing the water dispenser lin

OPeRATING The sAMsUNG

sIde-by-sIde RefRIGeRATOR

28 Setting up the refrigerator 29 Operating the refrigerato

30 Using the digital displa

31 Controlling the temperatur

32 Using the ice and cold water dispense

33 Shelves and bin

34 Storing foo

36 CoolSelect Duo

(Optional) 37 Removing the freezer accessories 38 Removing the fridge accessorie

39 Cleaning the refrigerato

40 Changing the interior light

Using the door

TROUbleshOOTING

setting up _15

setting up your side-by-side refrigerator

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on the purchase of your Samsung Side-By-Side Refrigerator. We hope you will enjoy the many state-of-the-art features and efﬁciencies that this new appliance has to offer.

Selecting the best location for the refrigerator

• Select a location with easy access to the water supply.

• Select a location without direct exposure to sunlight.

• Select a location with level (or nearly level) ﬂooring.

• Select a location with enough space for the refrigerator doors to open easily.

• Allow sufﬁcient space to install the refrigerator on a ﬂat surface.

- If your refrigerator is not level, the internal cooling system may not work correctly.

- Overall space required in use. Refer to drawing and dimension as below.

• Allow clearance to the right, left, back and top when installing. This will help reduce

power consumption and keep your energy bills lower.

• Do not install the refrigerator where the temperature will go below 50°F (10°C).

• Make sure you disconnect the water supply line BEFORE removing the freezer door.

See the next section on “Separating the Water Line” to avoid damage.

25mm

50mm

1546mm

1163mm

at least 50mm

01 SETTING UP

Spacer

•

Spacer(gray block) installation For better performance, please certainly fix the spacer on the rear of unit when installing the refrigerator. It is improving refrigerator performance.

(RSA1Z**)

setting up

REMOVING THE REFRIGERATOR DOORS

If your entrance won’t allow the refrigerator to pass easily through it, you can remove the doors.

1. Removing the Front Leg Cover

First, open both the freezer and refrigerator doors, and then take off the front leg cover by turning the th

ree screws counter-clockwise.

Separating the Water Supply Line from the Refrigerator

1. Remove the water line by pressing the coupler 1 and pulling the water line 2 away.

Do not cut the water line. Gently separate it f

rom the coupler.

16_

setting up _17

setting up your side-by-side refrigerator

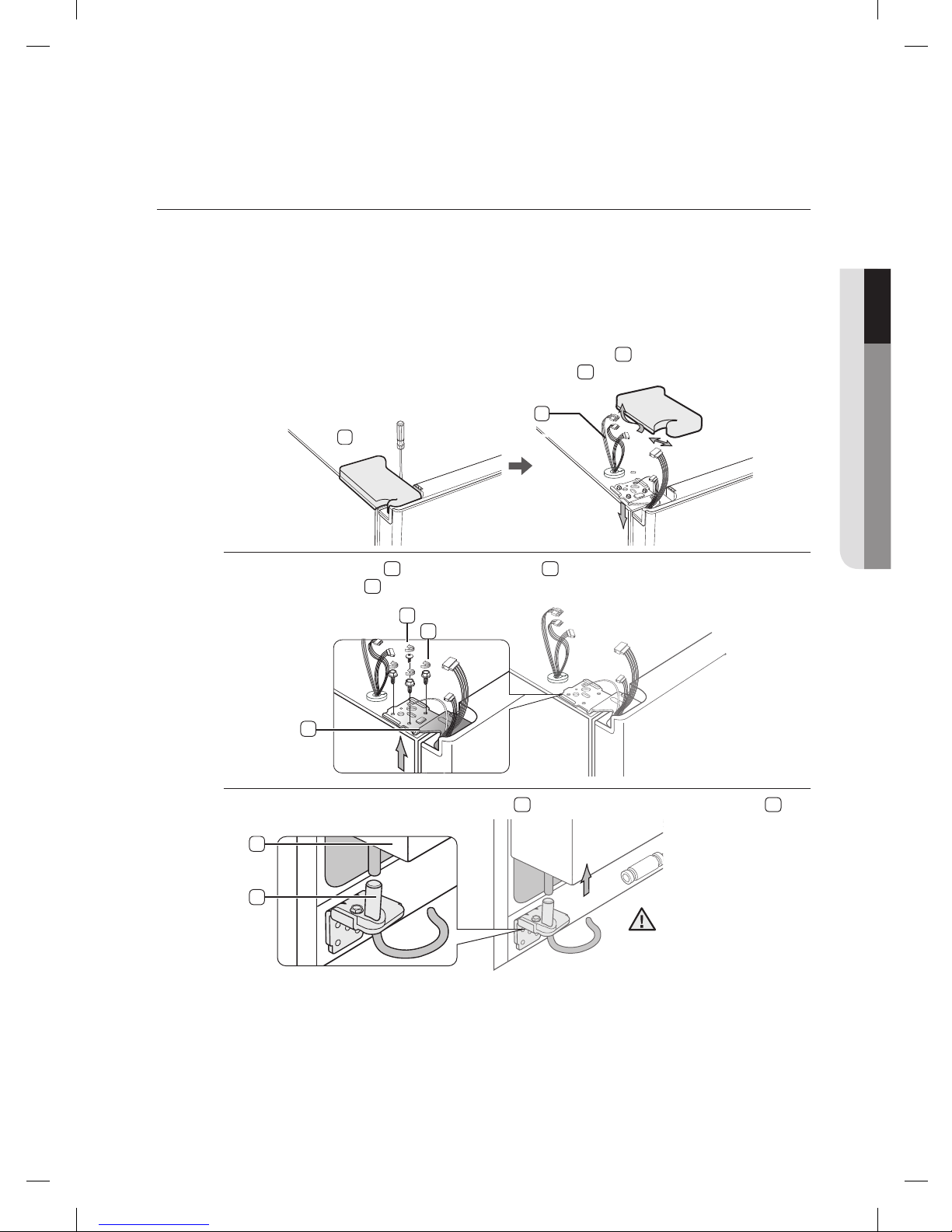

2. Removing the freezer door

A few things to mention ﬁrst.

• Make sure that you lift the door straight up so the hinges are not bent or broken.

• Be careful not to pinch the water tubing and wire harness on the door.

• Place doors on a protected surface to prevent scratching or damage.

1. With the Freezer door closed, remove the upper hinge cover

using a screwdriver, and

then disconnect the wires by gently pulling them apart 2.

Remove hinge screws

and the ground screw 4 by turning counter-clockwise, and take

off the upper hinge

. Be careful that the door does not fall on you as you are removing it

Next, remove the door from the lower hinge

by carefully lifting the door straight up 7.

01 SETTING UP

Be careful not to pinch the water tubing and wire harness on the door.

18_ setting up

Removing the Fridge Door

1. With the door closed, remove the upper hinge cover 1 using a screwdriver.

Remove hinge screws

and the ground screw 3 by turning counter-clockwise, and take

off the upper hinge 4. Be careful that the door does not fall on you as you are removing it.

Remove the door from the lower hinge

by lifting the door straight up 6.

setting up _19

setting up your side-by-side refrigerator

REATTACHING THE REFRIGERATOR DOORS

Once you have safely placed your refrigerator where you plan for it to stay, it is time to put the doors back on.

Reattaching the Freezer Door

1. Insert the upper hinge shaft 3 into the hole on the corner

of the freezer door

. Make sure the hinge is level between

the upper hinge hole

and the hole of the cabinet 6 and

reattach the hinge screws

and ground screw 8 by turning

in a clockwise direction.

Reconnect the wires.

Place the front part of the upper hinge cover

on the front of the upper hinge 10 and

reattach with the screw.

01 SETTING UP

_ setting up

Reattaching the Fridge Door

1. Fit the hole in the corner of the fridge door 3 over the lower

hinge

Insert the upper hinge shaft

into the hole on the hinge

. Make sure the hinge is level between the upper hinge hole

and the hole on the top of the cabinet 8. Then,

reattach hinge screws

and the ground screw 10 by

turning it in a clock wise direction.

Place the front part of the upper hinge cover

on the front of the upper hinge 12 and

reattach it with the screw.

setting up _21

setting up your side-by-side refrigerator

Reattaching the Water Supply Line

1. Insert the water line 1 into the coupler 2.

Reattaching the Front Leg Cover

Before attaching the cover, check water connector for leakage. Replace the f

ront leg cover by turning the three screws clockwise, as shown in the ﬁgure.

Front Leg Cover

Screw

10 SE

GNI

U P

2.The Water Line must be fully Inserted to the center of transparent coupler to prevent water leakage f

rom the dispenser.

3.Insert the clip in the install pack and check that it holds the line ﬁrmly.

Center of transparent

coupler

clip A (1/4”)

(6.35mm)

_ setting up

LEVELING THE REFRIGERATOR

Now that the doors are back on the refrigerator, you will want to make sure the refrigerator is level so you can then make ﬁnal adjustments. If the refrigerator is not level, it will not be possible to get the doors perfectly even.

The front of the refrigerator is also adjustable.

When the Freezer door is lower than the fridge

Insert a ﬂat-blade screwdriver into a notch on the Leg, turn it clockwise or counter clockwise to level the freezer.

When the Freezer door is higher than the fridge

Insert a ﬂat-blade screwdriver into a notch on the Leg, turn it clockwise or counter clockwise to level the fridge.

Refer to the next section for the best way to make very minor adjustments to the doors.

Leg

Screw Driver

Caution:The legs of product are unconnected when it is out of factory. Make sure to adjust the legs to touch the floor, and make the product level before using.

setting up _23

setting up your side-by-side refrigerator

MAKING MINOR ADJUSTMENTS TO THE DOORS

Remember, a leveling refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator.

When the door of the freezer is higher than the fridge

In the case of the process to correct the imbalance is the same. Open the doors and adjust them, one at a time, as follows:

1. Unscrew the nut

from the lower hinge until it reaches the upper end of the bolt 2.

When you release the nut 1, make sure that you use the Allen wrench provided 3 to loosen the bolt

in a counter-clockwise direction. You should then be able to unscrew the

nut

with your ﬁngers.

Adjust the height difference between the doors by turning the bolt

clockwise or

counter clockwise .

When you turn clockwise , the door will move up.

Adjustment part

Wrench

bolt

Nut

Wrench

bolt

01 SETTING UP

_ setting up

3. After adjusting the doors, turn the nut 1 clockwise until it reaches the lower end of

the bolt, then tighten the bolt again with the wrench

to ﬁx the nut in place 1.

If you do not secure the nut ﬁrmly, the bolt may release.

CHECKING THE WATER DISPENSER LINE (OPTIONAL)

A water dispenser is just one of the helpful features on your new Samsung refrigerator. To help promote better health, the Samsung water ﬁlter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You will need to purchase a water purifying system to do that.

In order for the icemaker to operate properly, water pressure of 138 ~862 Kpa is required. Under normal conditions, a 170 cc paper cup can be ﬁlled in 10 seconds.

If the refrigerator is installed in an area with low water pressure (below 138 Kpa), you can install a booster pump to compensate for the low pressure.

Make sure the water storage tank inside the refrigerator is properly ﬁlled. To do this, press the water dispenser lever until the water runs from the water outlet.

Water Line installation Kits are included with unit. You can ﬁnd it in freezer drawer.

INSTALLING THE WATER DISPENSER LINE

Parts for water line Installation

Connecting to the water supply line

Connect the water pipe with coupler and tap.

1. Close the main water tap.

2. Connect coupler “A” to the tap. Note:

Water line ﬁxer

and screws

Pipe

connector

Water line

Filter lock-clip

Filter

Wrench

bolt

Nut

CAUTION

The water line must be connected

to the cold water pipe.

If it is connected to the hot

water pipe, it may cause the

filter to malfunction.

WARRANTY INFORMATION

This water line installation is not covered by the refrigerator or ice maker manufacturer’s warranty. Follow these instructions carefully to minimise the risk of expensive water damage.

Note:

If the coupler does not ﬁt on the current tap, go the nearest authorised service dealer and purchase the right couplers ﬁttings.

COUPLER “A”

TAP

setting up

Remove any residual matter inside the filter. (Model with the filter)

- Open the main water tap to check whether water is running through the water tube on the water inlet side of the filter.

- If water does not come out through the line, check whether the tap is open.

- Leave the tap open until clean water is running out and any residual matter that built up during manufacturing has been removed.

Attach the filter lock stations.

- Hold the filter lock stations in the appropriate position (under the sink for example) and ﬁx it tightly into place where to screw.

Secure the filter in position.

- Fix the filter in position, as shown in the ﬁgure on the right.

setting up your side-by-side refrigerator

01 SETTING UP Select the location where the filter is to install. (Model with the filter)

- If you wish to reassemble the water inlet and out

let sides of the filter during filter installation, see the reference illustration.

- Cut the water line attached to the filter to the appropriate place after measuring the distance between the filter and the cold water tap.

COUPLER

SIDE OF

FILTER

WATER INLET SIDE OF FILTER

LINE OUTLET

90 degree

FILTER WATER

REFERENCE

WATER LINE

FILTER

WATER

OUTLET SIDE

OF FILTER

TWO FILTER LOCK

STATION

TWO FILTER LOCK

STATION

TIGHTENING

BAND

FILTER

WATER TUBE

FILTER

LOCK STATIONS

__25

setting up

Connect the water line to the refrigerator.

- Remove the compressor cover of the refrigerator.

- Connect the water line to the valve, as shown in the ﬁgure.

- When connected, check if there is any leakage. If any, repeat the connection.

- Reattach the compressor cover of the refrigerator.

Secure the water line.

- Using clip ”A”, ﬁx the water line to the wall (the back of refrigerator).

- When the water line is secure, make sure whether the water line is not excessively bent, pinched or squashed.

CLIP A

WATER LINE

INSTRUCTIONS COMPRESSOR COVER OF REFRIGERATOR

CONNECTION NUT

26_

setting up _

setting up your side-by-side refrigerator

Removing any residual matter inside the water supply line after installing ﬁlte

1. Turn ON the main water supply & turn OFF the valve

to the water supply line.

Run water th

rough the dispenser until the water runs

clear (app

rox. 1L). This will clean the water supply

system and

remove air from the lines.

Additional ﬂushing may be

required in some

households.

Open the

refrigerator door and make sure there are

no water leaks coming f

rom the water ﬁlter.

A newly installed water ﬁlter cartridge may cause water to brieﬂy spurt f

rom the water dispenser. This is due to air getting into the line. It should pose no problem to operation.

Check the amount of water supplied to the ice tray. (Optional)

1. Lift up the icemaker bucket and gently pull out of the freezer.

When you p

ress the Test button for 1.5 seconds, the ice cube container is ﬁlled with water from the water supply tap after ice tray is twisted. Check to make sure the amount of water is cor

rect(see the illustration below).

If the water level is too lo

w, the ice cubes will be small. This is a water pressure problem from

with in the main water pipes, not the

refrigerator.

10 SE

GNI

U P

Ice maker

Ice

Water

Check the water level

Test button

Feeler Arm

operating the SAMSUNG side-by-side refrigerator

SETTING UP THE REFRIGERATOR

Now that you have your new refrigerator installed and in place, you are ready to set up and enjoy the full features and functions of the appliance.

By completing the following steps, your refrigerator should be fully operational. If not, ﬁrst check the power supply and electricity source or try the troubleshooting section at the back of this user guide. If you have any further questions, contact your Samsung Electronics service center.

1. Place the refrigerator in an appropriate location with reasonable clearance between the wall

and the refrigerator. Refer to installation instructions in this manual.

Once the refrigerator is plugged in, make sure the interior light comes on when you open the doors.

Set the temperature control to the coldest temperature and wait for an hour. The freezer should get slightly chilled and the motor should run smoothly.

After powering the refrigerator, it will take a few hours to reach the appropriate temperature. Once the refrigerator temperature is sufﬁciently cool, you can store food and drink in the refrigerator.

setting up

28_

operating

20 O

P GNI

OPERATING THE REFRIGERATOR

Using the Control Panel

5 6

POWER FREEZE BUTTON

Speeds up the time needed to freeze products in the freezer. This can be helpful if you need to quickly freeze items that spoil easily or if the temperature in the freezer has warmed dramatically (For example, if the door was left open).

FREEZER BUTTON

Press the Freezer button to set the freezer to your desired temperature, You can set the temperature between -14°C (8°F) and -25ºC (-14°F).

E TYPE BUTTON

Use this button to choose Cubed, Crushed or to turn the Ice feature off.

FILTER CHANGE BUTTON

When you change the ﬁlte

r, press this button for 3 seconds to reset the

ﬁlter schedule.

VACATION BUTTON

If you are going on vacation or business trip or you do not need to use the refrigerator, press the Vacation button.

When you select vacation button for

fridge compartment o

ff, display LED of Vacation will be on. It is strongly requested to remove foods in the fresh-food compartment and do not leave the door open when you select

Vacation function.

CHILD LOCK FUNCTION

By pressing the Vacation button and the Fridge button simultaneously for 3 seconds, all buttons will be locked. The Water dispenser lever and the Ice lever will not work eithe

r. To cancel this function, Press these two buttons for

3 seconds again.

FRIDGE BUTTON

Press the Fridge button to set the fridge to your desired temperature. You can set temperature between 1°C and 7°C (34°F and 45°F).

RSA1S/N/V

RSA1Z/U/D

5 6

BUTTON

POWER COOL

Speeds up the time needed to fresh poducts in the fridge. This can be helpful if need to quickly cool fresh food, or if the temperature in the fridge has warmed dramatically (For example, if the door was opened too long, or put too much warm food in fridge suddenly)

RSA1Z/U/D

RSA1S/N

When not in use the temperature, Dual Flow and Filter (green) display will turn off,

and press the key or door open will turn on again,this is normal.

_29

operating

operating the SAMSUNG side-by-side refrigerator

USING THE DIGITAL DISPLAY

“88” segment on Freezer part indicates the current Freezer temperature. “88” segment on Fridge part indicates the cur

rent Fridge temperature.

Power Freeze

This icon will light up when you activate the “Power Freeze” feature. “Power Freeze” is great for times when you need a lot of ice. P

ress the Power Freeze button and ice production will increase.

When you have enough, just p

ress the button again to cancel the “Power Freeze” mode.

When you use this function, the energy consumption of the refrigerator will increase. This function must be activated before putting large amount of food stuff in the freezer compartment at least 24 hours before.

RSA1S/N/V

RSA1Z/U/D

RSA1S/N

30_

operating

Filter Indicator

When the ﬁlter indicator light is on, it is time to change the ﬁlter. Typically this happens about every 6 months.

After removing the old water ﬁlter and installing a new one (see page 18 for instructions on how to do this), reset the indicator status light by pressing the Ice Type button for about 3 seconds. The indicator will light again in about 6 months to let you know it is time to change your water ﬁlter.

When you do not use the water ﬁlter, press the Ice Type button for more than 5 seconds, the Filter indicator lamp and the Filter Change letters will be o

ff.

Child Lock

This icon will light up when you activate the Child Lock function by pressing the Power Cool button and the Fridge button simultaneously for 3 seconds. Press these two buttons for 3 seconds again to reactivate.

Cubed Ice, Crushed Ice and turnning the Ice maker off.

Enjoy cubed or crushed ice by selecting your preference from the digital control panel. If you don’t need ice, turn the feature off to save on water and energy consumption. The Ice type light indicates the type of ice(or no ice) that is currently chosen.

CONTROLLING THE TEMPERATURE

Controlling the Freezer temperature

The freezer temperature can be set between -14°C (8°F) and -25ºC (-14°F) to suit your particular needs. Press the Freezer button repeatedly until the desired temperature is shown in the temperature display. Keep in mind that foods like ice cream may melt at -16ºC (4°F).

The temperature display will move sequentially from -14°C (8°F) and -25ºC (-14°F). When the display reaches -14ºC (8°F), it will begin again at -25ºC (-14°F).

Five seconds after the new temperature is set the display will again show the actual current freezer temperature. However, this number will change as the Freezer adjusts to the new temperature.

Controlling the Fridge temperature

The refrigerator temperature can be set between 7ºC (45°F) and 1ºC (34°F) to suit your particular needs. Press the Fridge button repeatedly until the desired temperature is shown in the temperature display.

The temperature control process for the Fridge works just like the Freezer process. Press the Fridge button to set your desired temperature. After a few seconds, the Fridge will

begin tracking towards the newly set temperature. This will be reﬂected in the digital display.

The temperature of the freezer or the refrigerator may rise from opening the doors too frequently, or if a large amount of warm or hot food is placed in either side. This may cause the digital display to blink. Once the freezer and refrigerator return to their normal set temperatu

res the blinking will stop.

If the blinking continues, you may need to “

reset” the refrigerator. Try unplugging the

appliance, wait about 10 minutes and then plug back in.

20 O

TAR

Ice type

Also,this button has another function.When this button is pressed for 3 seconds (lock indication lamp turn on),the heater for sweat control is off at a same time.If sweat is appeared around the cover dispenser or beverage station with this function,press this button for 3 seconds again.then,the light will turn off and the sweat control function will be performed.and all keys will be unlocked at a same time.

_31

_ operating

operating the SAMSUNG side-by-side refrigerator

USING THE ICE AND COLD WATER DISPENSER

Press the Ice Type button to select the type of ice you want

Ice is made in cubes. When you select “Crushed”, the icemaker grinds the ice cubes into crushed ice.

Dispensing ice

Place your glass underneath the ice outlet and push gently against the ice dispenser lever with your glass. Make sure the glass is in line with the dispenser to prevent the ice from bouncing out.

Using the Water Dispenser

Place a glass underneath the water outlet and push gently against the water dispenser lever with your glass. Make sure the glass is in line with the dispenser to p

revent the water from

splashing out.

•

Do not put your ﬁngers, hands or any other unsuitable objects in the chute or ice-maker bucket.

- It may result in personal injury or material damage.

• Never put ﬁnger or any other objects in the dispenser opening.

- It may cause injur

• Use only the ice maker provided with the refrigerator.

• The water supply to this refrigerator must only be installed/connected by a suitably qualiﬁed person and connect to a potable water supply only.

• In order to operate the ice maker properly, water pressure of 138 ~ 862 Kpa is required.

• If you have a long vacation or business trip and won’t use water or ice dispensers, close the water valve.

- Otherwise, water leakage may occu

• Wipe excess moisture from the inside and leave the doors open.

- Otherwise, odor and mold may develop.

Push

WARNING

CAUTION

No Ice

Select this if you want to turn off the icemaker

No Ice

Select this if you want to turn off the icemaker

operating

20 O EP GNITAR

SHELVES AND BINS

Freezer

Fridge

Ice Maker Bucket (Optional)

Door Bins

Ice Chute (Optional)

Lamp Cover

Glass Shelves

Drawers (Optional)

Front Leg Cover

Dairy Bin

Lamp Cover

Glass Shelf

Door Bins

CoolSelect Duo

(Optional)

Vegetable &Fruit

Drawers

(Optional)

Tray Utility

Beverage Station (Optional)

_33

34_ operating

operating the SAMSUNG side-by-side refrigerator

STORING FOOD

Storing Food in the Freezer

The Samsung Side-By-Side Refrigerator has been designed to provide you with maximum spacesaving features and functions. Here are some of the customized compartments we have created to keep your food fresher, longer. Remember, in order to prevent odor penetration to the ice, stored food should be wrapped securely and as airtight as possible.

o get more space, you can remove freezer drawer(s) except bottom freezer drawer and ice trays(For RSA1S***, RSA1N*** , RSA1W*** and RSA1V *** models) since it does not affect thermal and mechanical characteristics. A declared storage volume of frozen food storage compartment is calculated with these components removed.

o get the best energy efﬁciency of this product, please leave all selves, drawers and baskets

on their original position like as above illustration.

operating _35

Storing Food in the Freezer

ICE CHUTE

Do not put your ﬁngers, hands or any other objects in the ice chute or the ice maker bucket. This may result in personal injury or material damage.

SHEL

VES

Can be used to sto

re all types of frozen

food.

DOOR BINS

Can be used for small packages of frozen food.

DRAWERS

Best used to store meats or dry foods. Stored food should be wrapped securely using foil or other suitable wrapping materials or containers.

Storing Food in the Fridge

SHELVES

Designed to be crack-resistant. They can be used to store all types of food and drinks. Circular marks on the glass surface are a normal phenomenon and can usually be wiped clean with a damp cloth.

TRAY UTILITY

Best place to keep eggs. Place the TRAY UTILITY on the shelf for easy

access.

COOLSELECT DUO (OPTIONAL)

Helps to preserve the taste, and prolong the freshness of your food. Use it to store meat, vegetable, poultry, ﬁsh or any other foods that are consumed on a regular basis.

FRUIT & VEGETABLE DRAWER

Used to preserve the freshness of your stored vegetables and fruits. It has been speciﬁcally designed to cont

rol the level of humidity within

the drawer.

DAIRY BIN

Can be used to sto

re smaller dairy items like

butter or margarine, yogurt or c

ream-cheese

bricks.

DOOR BINS

Designed to handle large, bulky items such as gallons of milk or other large bottles and containers.

Bottles should be sto

red tightly together so that they do not tip and fall out when the refrigerator door

is opened.

• If you plan to go away for a signiﬁcant time, empty the refrigerator and turn it off. Wipe the excess moisture from the inside of the appliance and leave the doors open. This helps keep odor and mold from developing.

• If the refrigerator is not to be used for a long period of time, pull out the power plug.

- Deterioration in the insulation may cause ﬁ

re.

20 O

P GNI

WARNING

beVeRAGe sTATION (OPTIONAl)

Canbe used to store the frequently used items, such as canned beverages and snacks and allows access to these items without opening the regrigerator door.

36_ operating

operating the SAMSUNG side-by-side refrigerator

USING THE CoolSelect Duo (OPTIONAL)

The CoolSelect Duo is designed to make your busy life just a little bit easler.

Meat

When MEAT is selected, the temperature of the CoolSelect Duo is suitable for storing meat or ham by entering chill of freezer to it. This feature also helps keep meat or ham fresh for longer.

Vegetable

When VEGETABLE is selected, the temperature of CoolSelect Duo is suitable for storing vegetable or fruit by closing chill of freezer to it. This feature also helps keep vegetable or fruit fresh for longer.

When “MEAT or VEGETABLE” is in operation, any items that you do NOT want affected should be moved out of the drawer.

operating _

REMOVING THE FREEZER ACCESSORIES

Cleaning and rearranging the interior of the freezer is a snap.

1. Remove the Glass Shelf by pulling the shelf out as far as it

will go. Then, gently lift it up and

remove it.

Remove the

Door Bin by holding the door bin with both

hands and then gently lift it up.

Remove the Plastic Drawer by pulling it out and slightly lifting it up.

Remove the Icemaker Bucket by lifting up and pulling it out.

Remove the F

ront Leg Cover by opening both the freezer

and

refrigerator doors, and removing the three screws. Once

the sc

rews are free, detach the cover. To reattach the front

leg cove

r, place it back in its original position and tighten the

ree screws.

Do not use excessive fo

rce when removing the cover.

Otherwise, the cover may b

reak and cause injury.

20 O

GNI

CAUTION

In case it does not have hooks itself in the back side for not being tilted,a shelf should be placed deeply in a proper position where there are blocks

for shelves as shown. if not, the shelf can fall out of a refrigerator.

Hook

Block

_ operating

REMOVING THE FRIDGE ACCESSORIES

1. Remove the Glass Shelf by pulling the shelf out as far as it

will go. Then, gently lift it up and gently remove it.

Remove the Vegetable & Fruit Drawer by pressing on the indentations found on the inside left and right sides of the Veggie Box/Dry Box cover and remove by pulling forward. Holding the drawer with one hand, lift it up a little bit while pulling it forward and take it out of the refrigerator.

Remove the Gallon Door Bin by holding the bin with both hands and gently lifting it up.

side-by-side refrigerator

CAUTION

In case it does not have hooks itself in the back side for not being tilted,a shelf should be placed deeply in a proper position where there are blocks for shelves as shown. if not, the shelf can fall out of a refrigerator.

Hook

Block

Before removing any accessories, make sure that no food is in the way. When possible, remove the food altogether to reduce the risk of accidents.

operating _39

operating the SAMSUNG side-by-side refrigerator

CLEANING THE REFRIGERATOR

Caring for your Samsung Side-By-Side Refrigerator prolongs the life of your appliance and helps keep it odor and germ-free.

Cleaning the Interior

Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. You can remove the drawers and shelves for a more thorough cleaning. Just make sure to dry them before putting them back into place.

Cleaning the Exterior

Wipe the digital panel and display panel with a clean, soft cloth. Spray water onto the cleaning cloth instead of spraying directly on the surface of the refrigerator. This helps ensure an even distribution of moisture to the surface. The doors, handles and cabinet surfaces should be cleaned with a mild detergent and then wiped dry with a soft cloth. To keep your appliance looking its best, the exterior should be polished once or twice a year.

Do not use Benzene, Thinner or Clorox™ for cleaning. They may damage the surface of the appliance and can create a risk of ﬁre.

Cleaning the Rubber door seals

If the rubber door seals are dirty the doors may not close properly, and the refrigerator will not operate efﬁciently. Keep the door seals free of grit or grime by cleaning the doors with a mild detergent and damp cloth. Wipe dry with a clean, soft cloth.

Do not spray the refrigerator with water while it is plugged in, as it may cause an electric shock. Do not clean the refrigerator with benzene, thinner or car detergent for risk of ﬁre.

02 OPERATING

WARNING

CAUTION

Cleaning the Home Bar

Use a damp cloth to clean the ice and water dispenser. Then wipe dry with a clean, soft cloth.

_ operating

operating the SAMSUNG side-by-side refrigerator

CHANGING THE INTERIOR LIGHTS

Do not replace LED lamp privately and please contact the specialized repair staff if necessary. And make it sure that the new LED lamp is the same as the old one.

Do not break the lamp cover .

using tHE Doors

The refrigerator doors are equipped with a door opening and closing feature that ensures that the doors close all the way and are securely sealed.

After opening beyond a certain point, the door will “catch” and remain open. When the door is ajar ahead of the catch that allows it to stay open, it will close automatically.

CAUTION

troubleshooting

PRObleM sOlUTION

The refrigerator does not work at all or it does not chill sufﬁciently.

• Check that the power plug is properly connected.

• Is the temperature control on the display panel set to the correct

temperature? Try setting it to a lower temperature.

• Is the refrigerator in direct sunlight or located too near a heat source?

• Is the back of the refrigerator too close to the wall and therefore keeping

air from circulating?

The food in the fridge is frozen.

• Is the temperature control on the display panel set to the correct

temperature? Try setting it to a warmer temperature.

• Is the temperature in the room very low?

• Did you store the food with a high water content in the coldest part of

the fridge? Try moving those items into the body of the fridge instead of keeping them in the CoolSelect Duo™ drawer.

You hear unusual noises or sounds.

• Check that the refrigerator is level and stable.

• Is the back of the refrigerator too close to the wall and therefore keeping

air from circulating?

• Was anything dropped behind or under the refrigerator?

• A “ticking” sound is heard from inside the refrigerator. This is normal and

occurs because various accessories are contracting or expanding in relation to the temperature of the refrigerator interior.

The front corners and sides of the appliance are hot and condensation is occurring.

• Some heat is normal as anti-condensators are installed in the front

corners of the refrigerator to prevent condensation.

• Is the refrigerator door ajar? Condensation can occur when you leave

the door open for a long time.

Ice is not dispensing.

• Did you wait for 12 hours after installation of the water supply line before

making ice?

• Is the water line connected and the shut-off valve open?

• Did you manually stop the ice making function? Make sure Ice Type is

set to Cubed or Crushed.

• Is there any ice blocked within the ice storage unit?

• Is the freezer temperature too warm? Try setting the freezer temperature

lower.

You can hear water bubbling in the refrigerator.

• This is normal. The bubbling comes from the refrigerant coolant liquid

circulating through the refrigerator.

There is a bad smell in the refrigerator.

• Has a food item spoiled?

• Make sure that strong smelling food (for example, ﬁsh) is wrapped so

that it is airtight.

• Clean out your freezer periodically and throw away any spoiled or

suspect food.

Frost forms on the walls of the freezer.

• Is the air vent blocked? Remove any obstructions so air can circulate

freely.

• Allow sufﬁcient space between the foods stored for efﬁcient air

circulation.

• Is the freezer door closed properly?

Water dispenser is not functioning.

• Is the water line connected and the shut-off valve open?

• Has the water supply line tubing been crushed or kinked?

Make sure the tubing is free and clear of any obstruction.

• Is the water tank frozen because the refrigerator temperature is too low?

Try selecting a warmer setting on the main display panel.

41_ troubleshooting

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

COUNTRY CALL Web site

AUSTRALIA 1300 362 603 www.samsung.com/au/support

COLOMBIA

Bogotá en el 600 12 72 Sin costo en todo el pais 01 8000 112 112 Y desde tu celular #726

www.samsung.com/co

EIRE 0818 717100 www.samsung.com/ie/support

HONG KONG 3698 4698

www.samsung.com/hk/support (Chinese) www.samsung.com/hk_en/support (English)

INDIA

1800 3000 8282 - Toll Free 1800 266 8282 - Toll Free

www.samsung.com/in/support

BANGLADESH

0961-2300300

www.samsung.com/in/support

MALAYSIA

1800-88-9999 603-77137477 (Overseas contact)

www.samsung.com/my/support

NEW ZEALAND 0800 726 786 www.samsung.com/nz/support

PANAMA

800-0101

www.samsung.com/latin/support (Spanish) www.samsung.com/latin_en/support (English)

PHILIPPINES

1-800-10-726-7864 [ PLDT Toll Free ] 1-800-8-726-7864 [ Globe Landline and Mobile ] 02- 422-2111 [ Standard Landline ]

www.samsung.com/ph/support

SINGAPORE 1800-SAMS

UNG(726-7864) www.samsung.com/sg/support SOUTH AFRICA 0860 SAMSUNG (726 7864) www.samsung.com/support UK 0330 SAMSUNG (7267864) www.samsung.com/uk/support VIETNAM 1800 588 889 www.samsung.com/vn/support

U.A.E

800-SAMSUNG (800 - 726 7864)

OMAN

800-SAMSUNG (800 - 726 7864)

KUWAIT

183-CALL (183-2255)

BAHRAIN

8000-GSAM (8000-4726)

QATAR

800-CALL (800-2255)

EGYPT

08000-7267864 16580

www.samsung.com/eg/support

ALGERIA

3004 (Toll Free)

www.samsung.com/n_africa/support

PAKISTAN

0800-Samsung (72678)

www.samsung.com/pk/support

TUNISIA

80-1000-12

www.samsung.com/n_africa/support

JORDAN

0800-22273 06 5777444

www.samsung.com/Levant

SYRIA

18252273

www.samsung.com/Levant

IRAN

021-8255 [CE] 021-42132 [HHP]

www.samsung.com/iran/support

MOROCCO

080 100 22 55

www.samsung.com/n_africa/support

SAUDI ARABIA

800 247 3457 (800 24/7 HELP)

www.samsung.com/sa/home www.samsung.com/sa_en

TURKEY

444 77 11

www.samsung.com/tr/support

www.samsung.com/ae/support (English) www.samsung.com/ae_ar/support (Arabic)

0800-0300300 (Toll free)

Samsung RSA1D Series, RSA1J Series, RSA1N Series, RSA1S Series, RSA1U Series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
