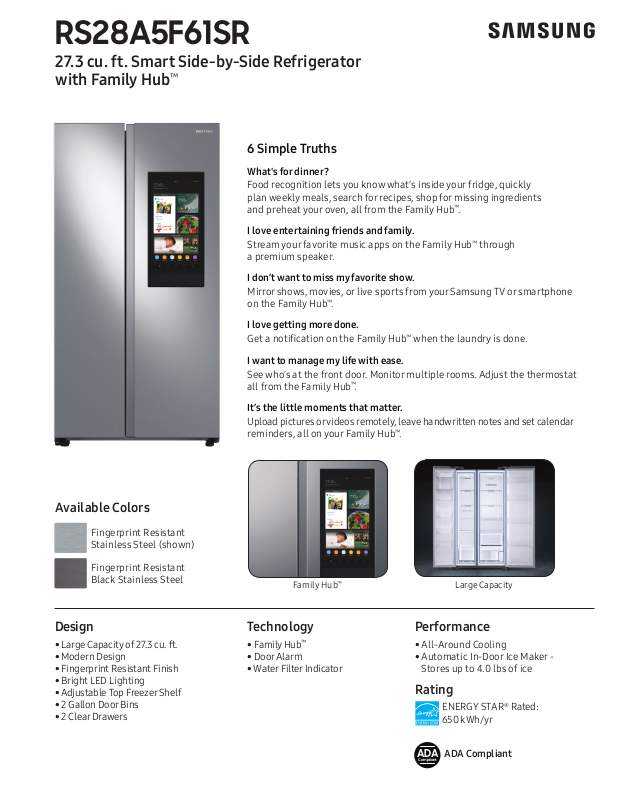

Samsung RS28A5F61SG Specification Sheet
RS28A5F61SR
Stainless Steel
Stainless Steel
27.3 cu. ft. Smart Side-by-Side Refrigerator
with Family Hub
™
6 Simple Truths
What's for dinner?
Food recognition lets you know what’s inside your fridge, quickly
plan weekly meals, search for recipes, shop for missing ingredients
and preheat your oven, all from the Family Hub™.
I love entertaining friends and family.
Stream your favorite music apps on the Family Hub™ through
a premium speaker.
I don’t want to miss my favorite show.
Mirror shows, movies, or live sports from your Samsung TV or smartphone
on the Family Hub™.
I love getting more done.
Get a notication on the Family Hub
™
when the laundry is done.
Available Colors
Fingerprint Resistant
Stainless Steel (shown)
Fingerprint Resistant
Black Stainless Steel
Design
• Large Capacity of 27.3 cu. ft.
• Modern Design
• Fingerprint Resistant Finish
• Bright LED Lighting
• Adjustable Top Freezer Shelf
• 2 Gallon Door Bins
• 2 Clear Drawers
I want to manage my life with ease.
See who’s at the front door. Monitor multiple rooms. Adjust the thermostat
all from the Family Hub
It’s the little moments that matter.
Upload pictures or videos remotely, leave handwritten notes and set calendar
reminders, all on your Family Hub™.
Family Hub
Technology
• Family Hub
• Door Alarm
• Water Filter Indicator
™
™
.
™
Large Capacity
Performance
• All-Around Cooling
• Automatic In-Door Ice Maker -
Stores up to 4.0 lbs of ice
Rating
ENERGY STAR® Rated:
650 kWh/yr
ADA
ADA Compliant
Compliant
RS28A5F61SR
27.3 cu. ft. Smart Side-by-Side Refrigerator
with Family Hub
™
Installation Specifications
1. Measure the height, width and depth of the opening, making sure to include baseboards,
molding tile, countertop overhang, etc. Check to be sure there is enough room to open
the door (consider walls, islands or other obstacles when measuring).
2. Refer to illustration below to determine dimensions.
3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall
where handle may make contact.
4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical
connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.
5. Ensure each door and entryway in the home is wide enough for the refrigerator
to be moved through easily.
For optimal usage and ability to open refrigerator doors completely,
do not install next to a wall.
Please note: The following dimension and cutout information is for planning purposes only.
For complete installation details, consult manual packed with product or download manual
online at samsung.com.
Measure height
including flooring.
Be sure to allow
for hinge clearance
height if needed.
Measure width
including
countertop
overhang.
Measure depth
including
molding or trim.
Dimensions
357/8"
Total Capacity: 27.3 cu. ft.
Refrigerator: 17.2 cu. ft.
• 4 Tempered Glass Shelves
• 2 Drawers
• 5 Door Bins
– 2 Gallon Bins
– 3 Door Bins
• Top LED Lighting
Freezer: 10.1 cu. ft.
• Automatic In-Door Ice Maker
• 5 Tempered Glass Shelves
• 2 Drawers
• 4 Door Bins
• Top LED Lighting
Accessories
Water Filter: HAF-QIN
Warranty
One (1) Year Parts and Labor on Refrigerator
Five (5) Years Parts and Labor on
Sealed Refrigeration System Only*
Ten (10) Years Parts and Five (5) Years
Labor on Digital Inverter Compressor
*Compressor, evaporator, condenser, drier and connecting tubing.
Product Dimensions & Weight
Dimensions (WxHxD with hinges, recessed handles,
and doors): 357/8" x 701/16" x 331/2"
Dimensions (WxHxD without hinges and door):
357/8" x 685/8" x 2815/16"
Weight: 253 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 373/4" x 753/8" x 35"
"22
16
/
"
16
/
1
70
357/8"
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2021 Samsung Electronics America, Inc., 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
15
3
Weight: 260 lbs
28
Color Model # UPC Code
Fingerprint Resistant
Stainless Steel
Fingerprint Resistant
"
8
Black Stainless Steel
/
RS28A5F61SR 887276467849
RS28A5F61SG 887276467832
