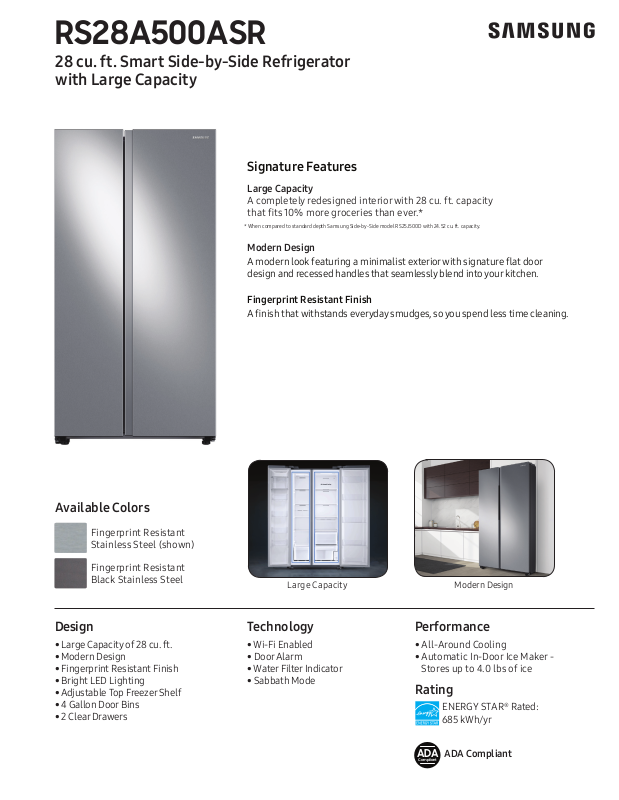

Samsung RS28A500ASR Specification Sheet

RS28A500ASR

Stainless Steel

28 cu. ft. Smart Side-by-Side Refrigerator with Large Capacity

Signature Features

Large Capacity

A completely redesigned interior with 28 cu. ft. capacity

that ﬁ ts 10% more groceries than ever.*

* When compared to standard depth Samsung Side-by-Side model RS25J500D with 24.52 cu. ft. capacity.

Modern Design

A modern look featuring a minimalist exterior with signature ﬂ at door

design and recessed handles that seamlessly blend into your kitchen.

Fingerprint Resistant Finish

A ﬁ nish that withstands everyday smudges, so you spend less time cleaning.

Available Colors

Fingerprint Resistant Stainless Steel (shown)

Fingerprint Resistant Black Stainless Steel

Design

• Large Capacity of 28 cu. ft.

• Modern Design

• Fingerprint Resistant Finish

• Bright LED Lighting

• Adjustable Top Freezer Shelf

• 4 Gallon Door Bins

• 2 Clear Drawers

Large Capacity

Technology

• Wi-Fi Enabled

• Door Alarm

• Water Filter Indicator

• Sabbath Mode

Modern Design

Performance

• All-Around Cooling

• Automatic In-Door Ice Maker -

Stores up to 4.0 lbs of ice

Rating

ENERGY STAR® Rated: 685 kWh/yr

ADA

ADA Compliant

Compliant

RS28A500ASR

28 cu. ft. Smart Side-by-Side Refrigerator with Large Capacity

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall

where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical

connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and ability to open refrigerator doors completely,

do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product or download manual online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Dimensions

357/8"

Total Capacity: 28 cu. ft.

Refrigerator: 17.9 cu. ft.

• 4 Tempered Glass Shelves

• 2 Drawers

• 5 Door Bins – 4 Gallon Bins

– 1 Door Bin

• Top LED Lighting

Freezer: 10.1 cu. ft.

• Automatic In-Door Ice Maker

• 5 Tempered Glass Shelves

• 1 Drawer

• 4 Door Bins

• Top LED Lighting

Accessories

Water Filter: HAF-QIN

Warranty

One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on

Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges, recessed handles, and doors): 357/8" x 701/16" x 331/2"

Dimensions (WxHxD without hinges and door): 357/8" x 685/8" x 2815/16"

Weight: 242.5 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 373/4" x 753/8" x 35"

"22

357/8"

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

Weight: 251 lbs

Color Model # UPC Code

Fingerprint Resistant Stainless Steel

Fingerprint Resistant

Black Stainless Steel

RS28A500ASR 887276467825

RS28A500ASG 887276467818
