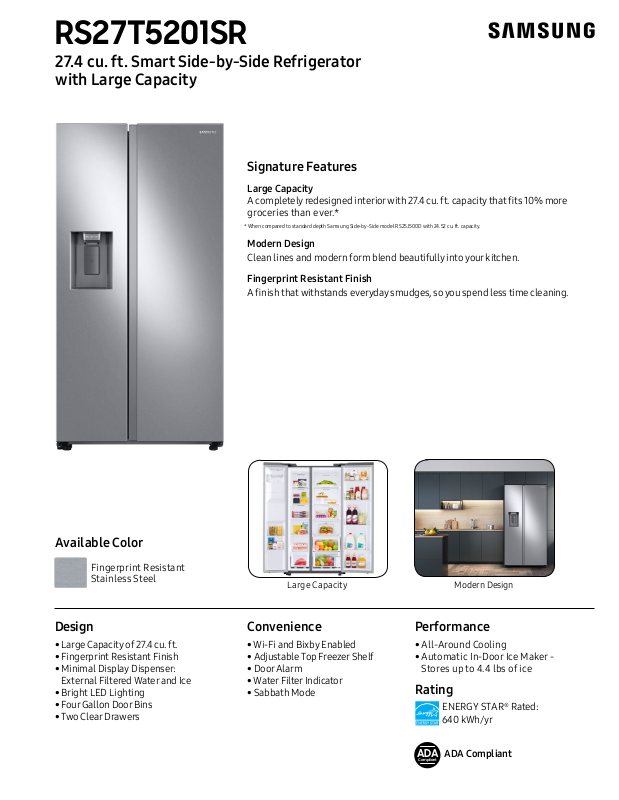

Samsung RS27T5201SR Specification Sheet

RS27T5201SR

27.4 cu. ft. Smart Side-by-Side Refrigerator with Large Capacity

Signature Features

Large Capacity

Acompletelyredesignedinteriorwith27.4cu.ft.capacitythatfits10%more groceries than ever.*

* When compared to standard depth Samsung Side-by-Side model RS25J500D with 24.52 cu. ft. capacity.

Modern Design

Clean lines and modern form blend beautifully into your kitchen.

Fingerprint Resistant Finish

Afinishthatwithstandseverydaysmudges,soyouspendlesstimecleaning.

Available Color

Fingerprint Resistant
Stainless Steel	Large Capacity	Modern Design
	Large Capacity	Modern Design

Design	Convenience
• Large Capacity of 27.4 cu. ft.	• Wi-Fi and Bixby Enabled
• Fingerprint Resistant Finish	• Adjustable Top Freezer Shelf
• Minimal Display Dispenser:	• DoorAlarm
External Filtered Water and Ice	• Water Filter Indicator
• Bright LED Lighting	• Sabbath Mode
• Four Gallon Door Bins
• Two Clear Drawers

Performance

•All-Around Cooling

•Automatic In-Door Ice Maker - Stores up to 4.4 lbs of ice

Rating

ENERGY STAR® Rated:

640kWh/yr

ADA ADA Compliant

Compliant

RS27T5201SR

27.4 cu. ft. Smart Side-by-Side Refrigerator with Large Capacity

Installation Specifications

1.Measuretheheight,widthanddepthoftheopening,makingsuretoincludebaseboards, moldingtile,countertopoverhang,etc.Checktobesurethereisenoughroomtoopen the door (consider walls, islands or other obstacles when measuring).

2.Refer to illustration below to determine dimensions.

3.Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall where handle may make contact.

4.Allow1"minimumclearanceatrearforproperaircirculationandwater/electrical connections.Allowa3/8"minimumclearanceatsidesandtopforeaseofinstallation.

5.Ensure each door and entryway in the home is wide enough for the refrigerator to be moved through easily.

Foroptimalusageandabilitytoopenrefrigeratordoorscompletely, do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only.

Forcompleteinstallationdetails,consultmanualpackedwithproduct,ordownloadmanual online at samsung.com.

Measure height

including flooring.

Be sure to allow

for hinge clearance

height if needed.

Measure width

including

countertop

overhang.

Measure depth

including

molding or trim.

Total Capacity: 27.4 cu. ft.

Refrigerator: 17.9 cu. ft.

•4 Tempered Glass Shelves

•2 Drawers

•5 Door Bins

–4 Gallon Bins

–1DoorBin

•Top LED Lighting

Freezer: 9.5 cu. ft.

•External Filtered Water and Ice Dispenser

(CrushedorCubedIce)

•Automatic In-Door Ice Maker

•5 Tempered Glass Shelves

•1Drawer

•2 Door Bins

•Top LED Lighting

Accessories

Water Filter: HAF-QIN

Warranty

One (1) Year Parts and Labor on Refrigerator

Five (5) Years Parts and Labor on

Sealed Refrigeration System Only*

Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Dimensions

357/8"

	<![if ! IE]> <![endif]>"
	<![if ! IE]> <![endif]>16
<![if ! IE]> <![endif]>/1	<![if ! IE]> <![endif]>15/
<![if ! IE]> <![endif]>/1	<![if ! IE]> <![endif]>28
<![if ! IE]> <![endif]>"
<![if ! IE]> <![endif]>16
<![if ! IE]> <![endif]>70
	<![if ! IE]> <![endif]>"
	<![if ! IE]> <![endif]>8
	<![if ! IE]> <![endif]>223/

357/8"

Product Dimensions & Weight

Dimensions (WxHxD with hinges, recessed handles, doors and dispenser): 357/8" x 701/16" x 331/2"

Dimensions (WxHxD without hinges and door): 357/8" x 685/8" x 2815/16"

Dimensions (WxHxD with hinge and door):

357/8" x 701/16" x 331/2"

Weight: 289 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 373/4" x 753/8" x 35"

Weight: 298 lbs

Color	Model #	UPC Code
Fingerprint Resistant
Stainless Steel	RS27T5201SR	887276473604

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
