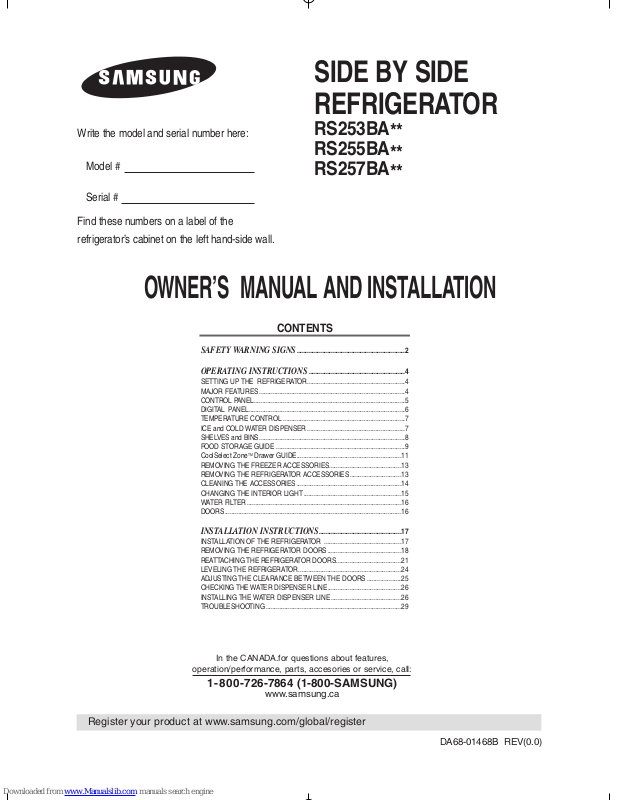

Samsung RS255BABB, RS253BABB, RS255BASB, RS255BAWW, RS257BARB Owner's Manual And Installation
...
SIDE BY SIDE
REFRIGERATOR
Write the model and serial number here:
Model #
Serial #
Find these numbers on a label of the
refrigerator’s cabinet on the left hand-side wall.
OWNER’S MANUAL AND INSTALLATION
SAFETY WARNING SIGNS ...............................................................2
OPERATING INSTRUCTIONS ........................................................4
SETTING UP THE REFRIGERATOR.........................................................4
MAJOR FEATURES .....................................................................................4
CONTROL PANEL........................................................................................5
DIGITAL PANEL...........................................................................................6
TEMPERATURE CONTROL .......................................................................7
ICE and COLD WATER DISPENSER.........................................................7
SHELVES and BINS.....................................................................................8
FOOD STORAGE GUIDE ...........................................................................9
CoolSelect Zone
REMOVING THE FREEZER ACCESSORIES..........................................13
REMOVING THE REFRIGERATOR ACCESSORIES..............................13
CLEANING THE ACCESSORIES .............................................................14
CHANGING THE INTERIOR LIGHT.........................................................15
WATER FILTER ..........................................................................................16
DOORS.......................................................................................................16
TM
Drawer GUIDE.............................................................11
RS253BA
RS255BA
RS257BA
CONTENTS
**
**
**
INSTALLATION INSTRUCTIONS................................................17
INSTALLATION OF THE REFRIGERATOR .............................................17
REMOVING THE REFRIGERATOR DOORS ...........................................18
REATTACHING THE REFRIGERATOR DOORS......................................21
LEVELING THE REFRIGERATOR............................................................24
ADJUSTING THE CLEARANCE BETWEEN THE DOORS ....................25
CHECKING THE WATER DISPENSER LINE...........................................26
INSTALLING THE WATER DISPENSER LINE.........................................26
TROUBLESHOOTING...............................................................................29
operation/performance, parts, accesories or service, call:
1-800-726-7864 (1-800-SAMSUNG)
Register your product at www.samsung.com/global/register
In the CANADA.for questions about features,
www.samsung.ca
DA68-01468B REV(0.0)
SAFETY WARNING SIGNS
• Before operating the appliance, please read and retain this manual thoroughly for your reference.
• Because these following operating instructions cover various models, the characteristics of your refrigerator
may differ slightly from those described in this manual.
WARNING
CAUTION/WARNINGS USED OTHER SIGNS USED
WARNING
CAUTION
Because these warning signs are to prevent injury to from users or other persons, please follow
safety warning signs. After reading the warning signs, keep them in a safe place for future reference.
• The appliance is not intended for use by children or infirm persons without adult supervision.
• Children should be supervised to ensure that they do not play with the appliance.
Represents something you must NOT do.
Represents something you must NOT
Indicates that a danger of
death or serious injury exists.
disassemble.
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the
Indicates that a risk of
personal injury or material
damage exists.
power plug from the socket.
Represents that a ground is needed to pre-
vent electric shock.
It is recommended that this should be handled by a service center.
Do not store volatile or flammable substances in the
WARNING SIGNS
Do not plug several appliances into the same multiple
receptacle.
• This could cause overheating and the risk of fire.
Make sure that the power plug is not squashed or damaged by the back of the refrigerator .
• A damaged power plug may overheat and cause fire.
Do not directly spray water inside or outside the refrigerator
/ freezer. .
• There is a risk of electric shock.
Do not use aerosols near the refrigerator .
• There is a risk of explosion or fire.
Do not bend the power cord excessively or place heavy
articles on it .
• This constitutes a fire hazard. If the power cord is damaged, have it replaced immediately by the manufacturer
or its service agent.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.
Do not install the refrigerator in a damp place or a
place where it may come in contact with water.
• Deteriorated insulation of the electrical parts may cause
electric shock or fire.
refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas and
other such products may cause explosions.
Do not disassemble or repair the
• You run the risk of causing a fire, malfunctions and/or
personal injury.
Pull the power plug out of the socket before changing the refrigerator’s interior light.
• Otherwise, there is a risk of electric shock.
If you wish to dispose of the
by first removing the doors and seals.
• Do so in a way that it is not possible for a child to remain
trapped inside.
The refrigerator must be grounded.
You must ground the refrigerator to prevent any power
•
leakages or electric shocks caused by current leakage
from the refrigerator.
Never use gas pipes, telephone lines or other potential lightening rods as ground.
Improper use of the ground plug can result in a risk of
•
electric shock. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade ground
plug and a 3-slot receptacle that will accept the plug on the
appliance. The marked rating of the extension cord should
be AC 115V~120V, 10A, or more. If a grounding adapter is
used, make sure the receptacle box is fully grounded.
refrigerator
refrigerator,
by yourself.
throw it away
2
SAFETY WARNING SIGNS
CAUTION SIGNS
Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause
personal injury or material damage.
Do not put bottles or glass containers in the
• When the contents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
Do not disconnect the power cord by pulling on it.
• Damage to the cord may cause a short-circuit, fire
and/or electric shock.
• If the power cord is damaged, it must be replaced by
the manufacturer, a certified service agent or qualified
service personnel.
Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall
and cause personal injury and/or material damage.
Do not store pharmaceutical products, scientific
materials and temperature-sensitive products in
the refrigerator.
• Products that require strict temperature controls must
not be stored in the refrigerator.
Do not let children hang on the door because a
serious injury may occur.
If you sense pharmaceutical smells or smoke, pull
out the power plug immediately and contact your
SAMSUNG Electronics service center.
freezer
.
Do not use a wet or damp cloth when cleaning the
SAFETY WARNING SIGNS
plug. Remove any foreign matter or dust from the
power plug pins.
• Otherwise there is a risk of causing a fire.
• If the refrigerator is disconnected from the power
supply, you should wait for at least five minutes
before plugging it back in.
If the refrigerator is not to be used for a long
period of time, pull out the power plug.
• Deterioration in the insulation may cause fire.
• The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
• Do not place the equipment directly under the sunlight, etc.
Do not touch the inside walls of the freezer or
products stored in the freezer with wet hands.
• It may cause frostbite.
Do not insert your hands into the bottom area
under the appliance.
• Any sharp edges may cause personal injury.
Never put fingers or other objects into the
dispenser hole and ice chute. It may cause personal injury or material damage.
• The appliance must be positioned so that the plug is
accessible after installation.
• If the power cord is damaged, it must be replaced
by the manufacturer, a certified service agent or a
qualified service personnel.
• If you have a long vacation planned, empty the
refrigerator and turn it off. Wipe excessmoisture
from the inside and leave the doors open.
Otherwise, odor and mold may develop.
Service warranty section
• Any changes or modifications performed by a 3rd
party on a finished product is not covered under
Samsung warranty service
Safety Caution section
• Samsung does not recommend 3rd party modifica
tion, therefore Samsung is not responsible for safety
issues that result from 3rd party modifications.
3
SETTING UP THE
Once you have performed the following steps, your refrigerator should be fully operational. If not, check
the power supply and electricity source. If you have any questions, contact your SAMSUNG Electronics
service center.
REFRIGERATOR
Place the refigerator in an appropriate location with reasonable clearance between the
wall and the refrigerator.
(refer to installation instructions in this mannal)
When the refrigerator is plugged in,
the interior light should come on when
you open the doors.
MAJOR FEATURES
Twin Cooling System
•
The refrigerator and the freezer have two evaporators. Given this independent system, the freezer and the refrigerator are cooled individually
as required and are, therefore, more efficient. Food odor from the refrigerator does not affect food in the freezer due to separate air flow circulation.
Multi-Flow System
•
Cool air circulates through multiple vents on every shelf level. This provides even distribution of cooling inside cabinets to keep your food fresh
longer.
Xtra Space
• Vertical room next to the ice maker in the freezer provides space for
pizza etc.
Set the temperature control to the coldest
temperature and wait for an hour. The
freezer should get slightly chilled and the
motor should run smoothly.
Once the refrigerator temperature is sufficiently low, you can store food in the
refrigerator. After starting the refrigerator, it
takes a few hours to reach the appropriate
temperature.
TM
Door Alarm
•
Beeper reminds you that the door is open.
Xtra Fresh
• Optimized humidity control keeps vegetables & fruits fresh.
CoolSelect Zone
• User can select Quick Cool, Thaw and Select buttons to quickly chill,
thaw and cool items. Select Soft Freeze, Cool or Chill to control the
temperature of drawer.
TM
TM
Drawer (RS255BA, RS257BA)
4
CONTROL PANEL
RS253BA
RS255BA, RS257BA
FREEZER BUTTON
To set the freezer temperature, press the button
repeatedly to change the set temperature in
sequence between 8°F and -14°F.
POWER FREEZE BUTTON
Speeds up the freezing process in the freezer.
ICE TYPE BUTTON
Use this button to choose Cubed or Crushed Ice or
Ice off.
FILTER CHANGE BUTTON
In order to change filter, press this button for 3 sec.
POWER COOL BUTTON
Speeds up the cooling process in the
FRIDGE BUTTON
To set the fridge temperature, press the button
repeatedly to change the set temperature in
sequence between 34°F and 46°F.
CHILD LOCK BUTTON
When the “Power Cool” and the “Fridge” buttons are
pressed for more than 3 seconds simultaneously,
Power Freeze, Power Cool, Freezer Temp. and Fridge
Temp. buttons will be locked and they do not work.
But, the “Ice Type” button works normally.The Water
and the Ice dispensers will not be locked and can still
be used. To cancel this function, press the Child Lock
button again.
refrigerator
OPERATING INSTRUCTIONS
5
DIGITAL PANEL
or
RS253BA
Freezer Temp. indicates the current freezer temperature.
Fridge Temp. indicates the current
Quick Cool,Thaw, Soft Freeze and Chill show the status of the CoolSelect Zone
The LCD Back Light operates as follows.
•
1)Bright Light-Up conditions (Under the following conditions, the LCD Back Light glows brightly for 30 seconds)
-When the refrigerator is plugged in
-When a function button is pressed
-When a door (Refrigerator Door, Freezer Door) is opened
2)Dim Light-Up conditions (For power saving, the LCD Back Light glows dimly automatically)
-In 30 seconds after the power on
-In 30 seconds after the door is closed
-When there is no button press for 30 seconds after the last button input
Note) Black lines could appear on the LCD panel for a moment. It is due to static electricity that is a general
phenomenon of LCD. It disappears automatically in a while. (It occurs when wiping the display panel with
a dry cloth or controlling the buttons in dry surrounding conditions.)
refrigerator
temperature.
RS255BA,RS257BA
TM
Drawer.
Power Freeze
This light goes on when you press the Power Freeze button.
•
Press this button to return the freezer to its set temperature.
If you need much ice, you can get ice faster.
•
Press the button again to cancel the Power Freeze mode.
•
If you use this function, energy consumption will increase.
Please turn off when not using this function.
Power Cool
This light goes on when you press the Power Cool button.
•
Press this button to return the refrigerator to its set temperature.
Press this button again to cancel the Power Cool mode.
•
Cubed Ice, Crushed Ice and Ice Off
When the filter indicator icon is on, change the filter.
Filter Indicator
•
When the water filter is replaced, reset the indicator by pressing the Ice Type
•
button for 3 seconds.
Press the Ice Type button in seqence to choose
•
Cubed Ice, Crushed Ice or Ice Off to stop making ice.
Lit icon indicates the ice type currently chosen.
•
6
TEMPERATURE CONTROL
Freezer
The freezer temperature can be set between
•
8°F and -14°F.
Press the Freezer button repeatedly until the desired
•
set temperature is shown in the temperature display.
The temperature display changes in sequence
•
between 8°F and -14°F. When the display reaches
8°F, it returns to -14°F.
After five seconds, the display reverts to the actual
•
freezer temperature, which changes as the freezer
reaches the new temperature.
When ice cream is stored above 4°F in freezer, it may melt.
•
The temperature of the freezer or the refrigerator rises from frequent openings and from warm
•
WARNING
food. This may cause the digital display to blink .The digital display will stop blinking when the
freezer and refrigerator return to the normal temperature.
Refrigerator
The refrigerator temperature can be set between
•
46°F and 34°F.
Press the Fridge button repeatedly until the desired
•
temperature is shown in the temperature display.
The temperature display changes in sequence and
•
reverts in the same way as the freezer.
If does not reset temp, unplug fridge, wait 9 min and replug in.
ICE and COLD WATER DISPENSER
Press the Ice Type button to select the type
of ice:
Cubed ice
•
Crushed ice
•
No ice
•
No ice
Water Dispenser
The capacity of the water tank is approximately 0.3 gal.
Cold Water
Push the water dispenser lever with a cup.
•
If you have just installed the refrigerator or
•
installed a new water filter, throw away the first six
glassfuls of water or until water flows cleanly to
flush out impurities in the water supply system.
OPERATING INSTRUCTIONS
If the Ice remains in the Ice bucket,
cubed ice is obtained. Ice stays in cube
NOTE
Push the ice dispenser lever with a cup.
•
form and is crushed when the Crushed
ice button is pressed.
Place a cup in line with the dispenser to prevent
the ice from jumping out.
Never put fingers or any other objects in the
dispenser opening to avoid injury.
NOTE
Push
CAUTION
7
Push
If you have a long period of time (long
vacation or business trip) and won’ t use
the water or ice dispensers, close the
water valve and shut off the water supply
to the refrigerator. Otherwise, water leakage may occur.
SHELVES AND BINS
Freezer
RS253BA Model
Refrigerator
Xtra Space
Door Bin
Ice Maker
Light
Ice Chute
Wire Shelf
Light Switch
Tilt Pockets
Wire Drawers
Front Leg Cover
TM
Glass Shelf
Plastic Drawers
RS255BA Model RS257BA Model
Water Filter
Light (upper)
Light Switch
Spill-proof glass Shelf
Deodorizer
Egg Container
CoolSelect Zone
(Chilled Bin for RS253BA)
Vegetable & Fruit Drawers
TM
Drawer
Dairy Compartment
Wine Shelf (RS257BA)
Gallon Door Bin
Lights (lower) (RS255BA,257BA)
Gallon Door Bins
Door Bin Top Lips
8
FOOD STORAGE GUIDE
FROZEN FOOD STORAGE IN FREEZER
Ice chute
Do not put your fingers, hands or any other insuitable objects in the chute or ice-maker bucket,
WARNING
as this may result in personal injury or material damage.
Door Bin (Tilt Pocket)
Can be used for small packages of frozen food.
•
Xtra Space
Can be used for frozen foods such as pizza, pasta, burritos,
•
and fajitas.
In order to prevent odor penetration to the ice, stored food
•
should be wrapped securely.
Tempered Glass Shelf (Wire Shelf )
Can be used to store all types of frozen food.
•
Plastics Drawer (Wire Drawer)
Can be used to store meat and dry foods. Stored food should be
•
wrapped securely using foil or other suitable wrapping materials
or containers.
TM
9
OPERATING INSTRUCTIONS
FOOD STORAGE GUIDE
CHILLED FOOD STORAGE IN REFRIGERATOR
Wine Shelf (
•
Place your wine bottles on the shelf to maintain their taste.
Tempered Spill Proof Glass Shelf
Can be used to store all types of chilled food.
•
•
Safe and hard to break resistant.
Circular marks on the glass surface are a normal phenomenon.
•
Egg Container
•
Put eggs in the container and place them on the shelf.
Chilled Bin or CoolSelect Zone
•
Helps to preserve the taste of food and prolongs its freshness. Use
to store cheese, meat, poultry, fish or any other foods used quickly.
Fruit & Vegetable Drawer (Upper and Lower)
•
Is used to store fruits and vegetables.
•
This drawer is airtight. Optimized humidity control design helps to
preserve the freshness of the stored vegetables and fruits.
Dairy Compartment
•
Can be used to store butter or margarine.
•
Can be used to store foods in small packages, such as milk and
yogurt.
RS257BA)
Gallon Door Bins
TM
Drawer
NOTE
WARNING
Bottles should be stored tightly together so that they do not fall out.
If you have a long vacation planned, empty the refrigerator and turn it off. Wipe excess moisture
•
from the inside and leave the doors open. Otherwise, odor and mold may develop.
10
CoolSelect Zone
TM
Drawer GUIDE
“Quick Cool” Button
You can use the Quick Cool operation with the CoolSelect ZoneTM.
•
“Quick Cool” allows 1~3 canned beverages to cool within 60 min.
•
To cancel this operation, press the “Quick Cool” button again.
•
CoolSelect ZoneTMreturns to the previous temperature.
When “Quick Cool” ends, it returns to the “Cool” temperature set-
•
ting.
NOTE
NOTE
Depending on the beverages, the cool-down time may vary.
For “Quick Cool” operation, the food stored in the CoolSelect
•
ZoneTMDrawer should be removed.
“Thaw” Button
After “Thaw” is selected, warm and cold air is alternately supplied
•
into the
CoolSelect ZoneTMDrawer
Depending on the weight of meat, thawing time can be selected for 4
•
hrs, 6 hrs, 10 hrs, and 12 hrs sequentially, keeping the meat partially
frozen.
When “Thaw” ends, the CoolSelect
•
condition.
When “Thaw” ends, meats are in a half-frozen state so it is easy to
•
cut them for cooking.
To cancel this option, press any button except “Thaw”.
•
The approximate thawing times of meat and fish are shown below.
•
(Based on 1inch thickness)
.
TM
displayreturns to “chill”
Zone
OPERATING INSTRUCTIONS
Thaw
Time 4 hours 6 hours 10 hours 12 hours
Weight 0.8 lb 1.3 lb 1.7 lb 2.2 lb
Depending on the size and thickness of the meat and fish, the thawing time may vary.
NOTE
NOTE
The above chart represents the total weight of food in the CoolSelect ZoneTMDrawer.
With the “Thaw” option selected, food stored in the CoolSelect ZoneTMDrawer that you don't want
•
thawed should be removed.
11
CoolSelect Zone
TM
Drawer GUIDE
“Select” Button (RS255BA, RS257BA)
Soft Freeze
When “Soft Freeze” is selected, the temperature on the
•
digital panel displays 23°F(-5oC), regardless of the set
temperature of the refrigerator.
“Soft Freeze” temperature helps keep meat and fish
•
fresh for longer.
Chill
When “Chill” is selected, the temperature of the
•
lect Zone
the set refrigerator temperature.
“Chill” temperature helps keep meat or fish fresh for
•
longer.
Cool
When “Cool” is selected, the temperature will be the
•
same as the set temperature of the refrigerator.The digital panel shows the same temperature as that of the display panel.
When using “Cool”, the CoolSelect ZoneTMDrawer allows
•
extra refrigerator space.
TM
Drawer is kept at 30°F(-1oC), regardless of
CoolSe-
12
REMOVING THE FREEZER ACCESSORIES
Glass Shelf
Pull the shelf out as far as
•
it goes. Then lift it up and
remove it.
Door Bin
Hold the door bin with both
•
hands and then lift it up.
Plastic Drawer (Wire Drawer)
Remove the drawer by
•
pulling it out and slightly lifting it up.
Ice Maker Bucket
Remove the bucket by lifting up and pulling out.
•

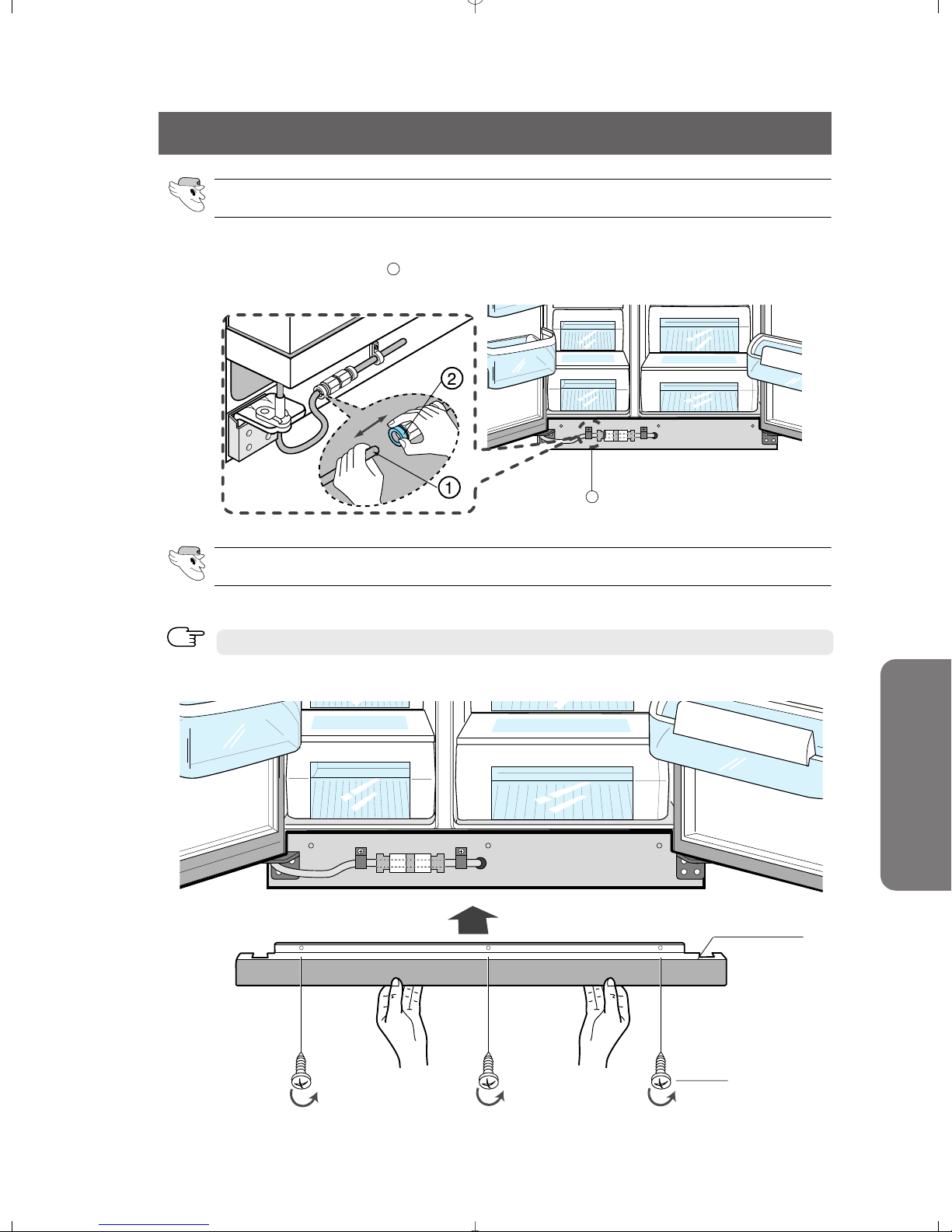

Front Leg Cover
Open the freezer and refriger-
•
ator doors, remove three
screws and detach the cover.
To reattach the front leg
•
cover, put it back in its original
position and tighten the three screws.
•
Do not use excessive force when
NOTE
removing the cover. It may cause an
injury.
REMOVING THE REFRIGERATOR ACCESSORIES
Spill Proof Glass Shelf
Pull the shelf out as far as it will go.Then lift it up and gently remove it.
•
Vegetable & Fruit Drawer
Press the extrusions on the left and right sides inside the cover of
•
Veggie Box/Dry Box and remove it by pulling forward.
OPERATING INSTRUCTIONS
Hold it with one hand, lift it up a little bit while pulling it forward and take
•
it out of the refrigerator.
Gallon Door Bin
Hold the bin with both hands and remove it by lifting it up.
•
Wine Shelf
•
It is attached to the cabinet wall. To remove the wine shelf, slide it in the
direction of the arrow as shown.
•
Simply take the shelf out of the tabs.
Before removing the freezer and refrigerator accessories, please remove the food.
NOTE
•
13
CLEANING THE ACCESSORIES
Interior
•
Clean the accessories with a mild detergent, then wipe out with a dry cloth.
•
After washing the accessories, make sure that they are dry before using them again.
Exterior
•
Wipe the digital panel and display panel with a clean cloth.
•
The doors, handles and cabinet surfaces should be cleaned with a mild detergent and soft
cloth, then wiped off with a dry cloth.
- Do not use Benzene, Thinner or CloroxTMfor cleaning.
- Do not spray water directly on the surface of the refrigerator while cleaning.
•
The exterior part of the refrigerator should be polished once or twice a year.
Rear
•
Use a vacuum cleaner to remove dust once or twice a year.
Do not remove cover, risk of shock.
•
WARNING
Ice and water dispenser
•
Use a damp cloth to clean the ice and water dispenser.Then wipe it out with a dry cloth.
•
To keep drainage grid dry, do not touch ice and water dispenser.
Rubber door seals
If the rubber door seals are dirty, the door will not close properly, and the refrigerator will not
•
be able to function efficiently. Clean the doors with a mild detergent and damp cloth.Then
wipe with a dry cloth.
WARNING
Do not spray the refrigerator with water while it is plugged in, as it may cause an electric shock.
•
Do not clean it with benzene, thinner or car detergent. It may cause a fire.
•
14

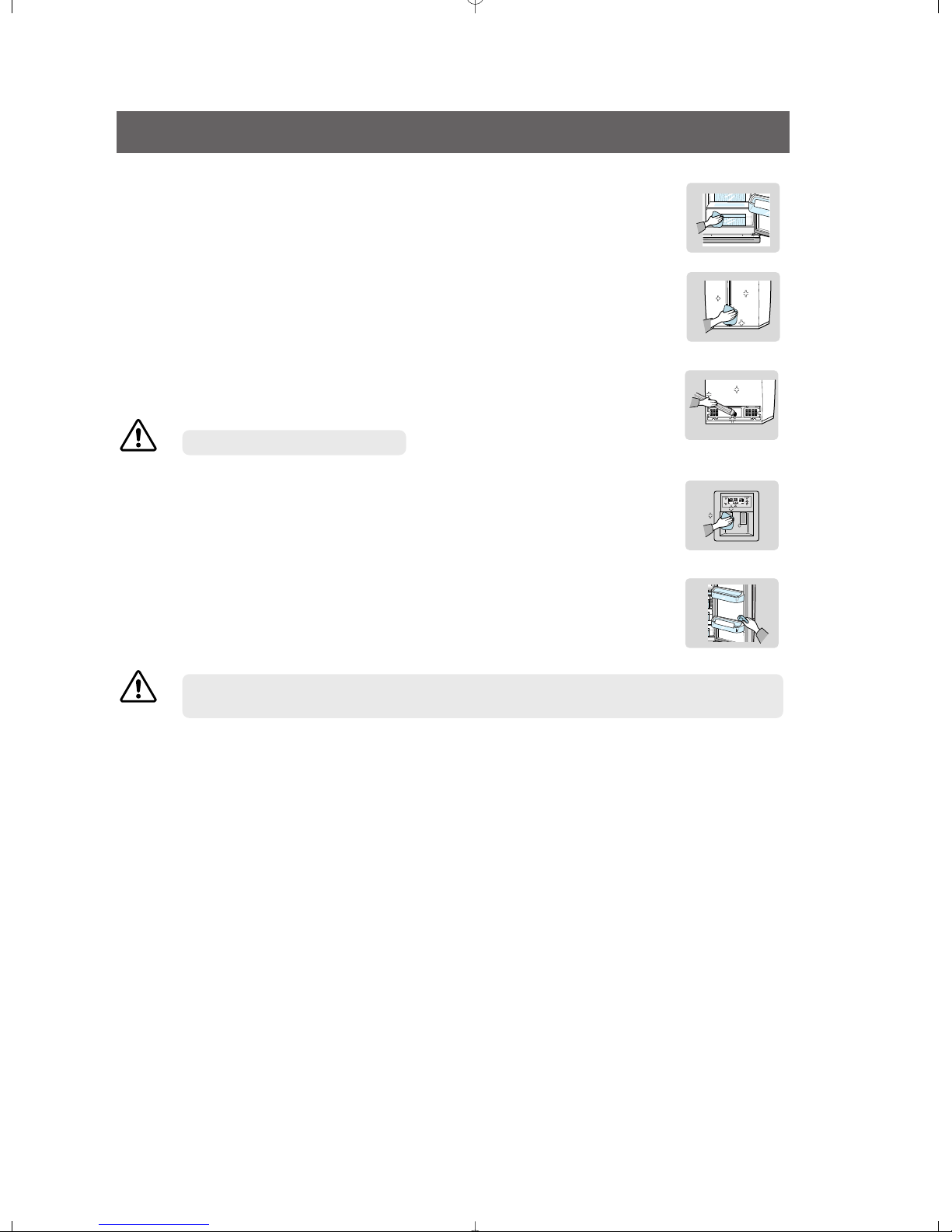

CLEANING THE ACCESSORIES
Twin Deodorizer
Remove the cover with a flat blade screw driver as shown.
•
Take out the cartridge from the cover and soak it in clean, warm water for at least 4 hrs.
•
Completely dry out the cartridge in sunlight for at least 8 hrs in an open area.
Repeat this process once or twice a year.
•
If the cartridge is dried in a confined area, there may be some odor.
•
Keep children away from contaminated water while the cartridge is soaking.
NOTE
•
CHANGING THE INTERIOR LIGHT
Before changing the interior light, unplug the
have difficulty in changing the light, contact your service center.
WARNING
INTERIOR LIGHT IN THE REFRIGERATOR .
Upper
Pull out the screw cap ➀ and
remove the screw.
Lower (RS255BA,RS257BA)
Pull out the screw cap and
remove the screw.
refrigerator
Push the lamp cover in the
direction of the arrows.
Take the lamp cover out in the
direction of the arrows.
from the power supply. If you
OPERATING INSTRUCTIONS
After changing the bulb,
reattach the light cover
and screw it in again.
After changing the bulb,
reattach the light cover
and screw it again.
15
CHANGING THE INTERIOR LIGHT
INTERIOR LIGHT IN THE FREEZER
The freezer light is located in the bottom of the auger motor case.
Use a screwdriver to remove
the light cover (➀).
Replacement bulbs for both the freezer and refrigerator are at available retail outlets such as Wal-
NOTE
mart, The Home Depot and Lowe's.
Use replacement bulb size E17, maximum 30 watts.
Change the bulb with a new
one (➁)
.
Reattach the light cover
WATER FILTER
The water “Filter Indicator” light
“Filter Indicator” light lets you know when it is time to change your water filter cartridge. This tells you
•
that it is almost time to change the current cartridge.
It is recommended that you should hold button for 3 seconds after replaced the cartridge.
(see “Install the water filter” section for more information)
If you install a new water filter, throw away the first six glassfuls of water, or until water flows clearly.
•
Using the dispenser without the water filter
You can not use the water and ice dispenser without a water filter cartridge as the water line may
•
become blocked.
Ordering replacement filters
To order more water filter cartridges, call 1-800-SAMSUNG and ask for accessory Part # DA29-
•
00003A or contact your authorized Samsung dealer.
DOORS
The refrigerator doors have a special door opening and closing feature to make sure that the doors
close all the way and are securely sealed.
When opening the door, it will only open so far. After reaching a certain point, it will remain open.
When the door is partially open, it will close automatically.
16
INSTALLATION OF THE REFRIGERATOR
Checking the Dimensions of your Entrance Door
Check the dimensions of your entrance door to determine whether the refrigerator can pass
through it.
Dimension
(inch)
NOTE
Model
Capacity (Cu. Ft)
Case Height
Depth
Width
without Hinge
with Hinge
with door
without door
RS253BA, RS255BA, RS257BA
25.2
36"
69"
70"
35"
28"
Selecting the Location for the Refrigerator
• Select a location with easy access to the water supply.
• Select a location with enough space for the refrigerator.
• Select a location without direct exposure to sunlight.
• Select a location with a level floor or close to it.
• Before disassembling the freezer door, the water supply line needs to be disconnected.
(If not, the water supply line can be damaged.)
• See “Separating the water supply line from the refrigerator” on the next page.
Allow sufficient space for air circulation of the internal cooling system.
When the refrigerator does not have enough space, the internal cooling system may not work correctly.
•
Allow clearance to the right, left, back and top when installing the refrigerator.
NOTE
This has the advantage of reducing power consumption.
1/8 inch
1
inch
INSTALLATION INSTRUCTIONS
1 inch
17
REMOVING THE REFRIGERATOR DOORS
Removing the Front Leg Cover
Open the freezer and refrigerator doors, and then take off the front leg cover by turning the
three screws counter-clockwise.
a
FRONT LEG COVER
SCREW
Separating the Water Supply Line from the Refrigerator
1) Remove the screw from clamp ( ).
2) Remove the water tube by pressing the coupler (➁) and pulling the water tube (➀) away.
NOTE
Do not cut the water tube. Separate it from the coupler.
a
18

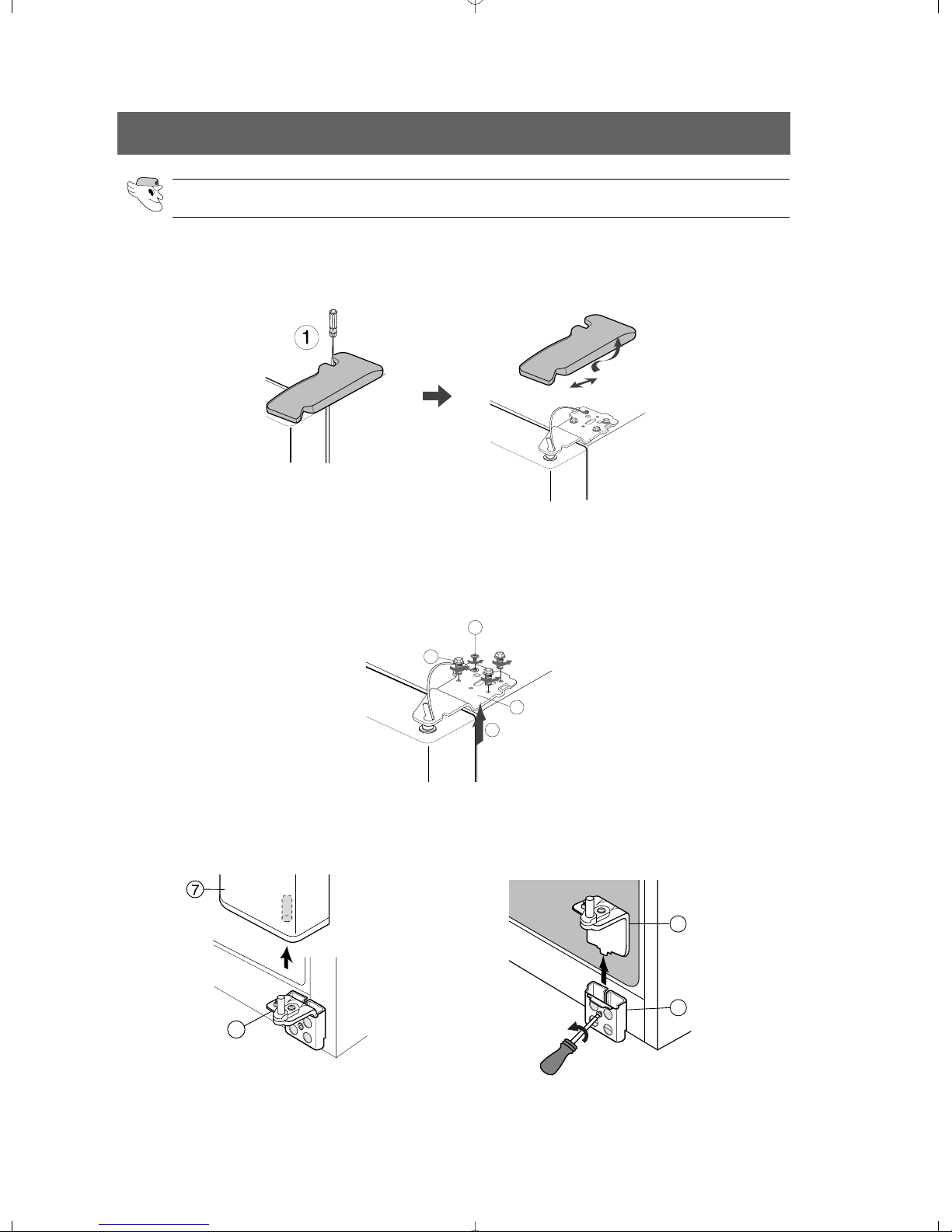

REMOVING THE REFRIGERATOR DOORS
Lift the door straight up.
•
Be careful not to pinch the water tubing and wire harness on the door.
NOTE
1) With the door closed, remove the upper hinge cover (➀) using a screwdriver, and then disconnect
•
Place doors on a protected surface.
•
Removing the Freezer Door
the wires (➁).
2) Remove hinge screws (➂) and ground screw (➃) counter-clockwise, and take off the upper hinge (➄)
along the arrow (➅). Be careful when removing the door to ensure that it does not fall on you.
3) Remove
carefully lifting the door (➇).
the door from the lower hinge
(➆)
by
4) Remove the lower hinge (➈) from the bracket in
(➉) by lifting the lower hinge (➈) the direction of
the arrow.
INSTALLATION INSTRUCTIONS
19
REMOVING THE REFRIGERATOR DOORS
6
8
9
2
3
5
4
Removing the Refrigerator Door
1) With the door closed, remove the upper hinge cover (➀) using a screwdriver.
2) Remove hinge screws (➁) and ground screw (➂) counter-clockwise, and take off the upper hinge
(➃) in the direction of the arrow (➄). Be careful when removing the door to ensure that it does not fall
on you.
3) Remove
lifting the door (➆).
the door from the lower hinge
(➅)
by
4) Remove the lower hinge (➇) from the bracket in
(➈) by lifting the lower hinge (➇) the direction of
the arrow.
20
REATTACHING THE REFRIGERATOR DOORS
Reattaching the Freezer Door
1) Insert the lower hinge (➀) into the lower hinge
bracket (➁).
3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling between the upper hinge hole (➆) and
the hole of the cabinet
(➇).
Reattach hinge screws (➈) and gound screw (➉) in a clockwise direction.
2) Reattach the freezer door by inserting the hose
(➂) in the lower side of the door into the hole in
the lower hinge (➃) and pulling the hose down.
4) Connect the wires. 5)
21
Put the front part of the upper hinge cover ( )
on the front part of the upper hinge ( ) and
reattach from the front part of the upper hinge
cover first.
11
12
INSTALLATION INSTRUCTIONS
REATTACHING THE REFRIGERATOR DOORS
9
10
Reattaching the Refrigerator Door
1) Insert the lower hinge (➀) into the lower hinge
bracket (➁).
3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling between the upper hinge hole (➆) and
the hole of the cabinet
(➇). Reattach
hinge screws (➈) and gound screw (➉) in the clockwise direction.
2) Place the hole in the refrigerator door (➂) over
the lower hinge (➃).
4)
Put the front part of the upper hinge cover ( ) on the front part of the upper hinge ( ) and reattach it
from the front part of the upper hinge cover first.
11 12
22
REATTACHING THE REFRIGERATOR DOORS
Reattaching the Water Supply Line
1) While pressing the front face of coupler (➁), insert the water line (➀) in the coupler.
2) Tighten the screw on the clamp ( ).
Reattaching the Front Leg Cover
a
a
NOTE
Put on the front leg cover by turning the three screws clockwise, as shown in the figure.
Before attaching check water connector for leakage.
INSTALLATION INSTRUCTIONS
FRONT LEG COVER
SCREW
23
LEVELING REFRIGERATOR
Make sure the refrigerator is level before adjusting its doors.
The doors will be uneven if the refrigerator is not level.
The front of refrigerator is adjustable.
NOTE
Case 1) Freezer door is lower than
that of the refrigerator
DIFFERENCE OF HEIGHT
SCREW DRIVER(-)
➀
Insert a flat-blade screwdriver (-) (➀) into a slot of
the control lever (➁), turn it clockwise and level the
refrigerator.
Case 2) Freezer door is higher than
that of the refrigerator
DIFFERENCE OF HEIGHT
Do not make small adjustments with the control lever, Please refer to the next page.
NOTE
➁ CONTROL LEVER
Insert a flat-blade screwdriver (-) (➀) into a slot of
the control lever (➁), turn it clockwise and level
the refrigerator.
SCREWDRIVER(-)
➀
➁ CONTROL LEVER
24
LEVELING REFRIGERATOR
About Leveling first.
NOTE
Making small adjustments between doors.
If the door of the freezer is lower than that of the
refrigerator.
Adjustment part
If the door of freezer is higher than that of the
refrigerator.
Please open the doors and adjust them as follows:
1) Release the nut (①) on the lower hinge until it reaches the upper end of the bolt (➁).
When you release the nut (①), use enclosed hex wrench (➂) to turn the bolt(➁) in a slightly
NOTE
counter
➀ NUT
clockwise
➂ WRENCH
➁ BOLT
direction. This will enable you to loosen the nut (①) with your fingers.
➂ WRENCH
➀ NUT
➁ BOLT
2) Please adjust the height difference between the doors by turning the bolt (➁) clockwise ( ) or
clockwise
().
Adjustment part
counter
When you turn clockwise ( ), the door goes up.
NOTE
➂ WRENCH
➁ BOLT
➂ WRENCH
➁ BOLT
3) After adjusting the doors, the nut (①) turn clockwise ( ) until it reaches the lower end of the bolt, then
tighten the bolt again with the wrench (➂) to fix the nut(①).
➀ NUT
➂ WRENCH
➁ BOLT
➀ NUT
➂ WRENCH
➁ BOLT
If you do not fix the nut (①)firmly, the bolt (➁) may be released.
NOTE
25
INSTALLATION INSTRUCTIONS

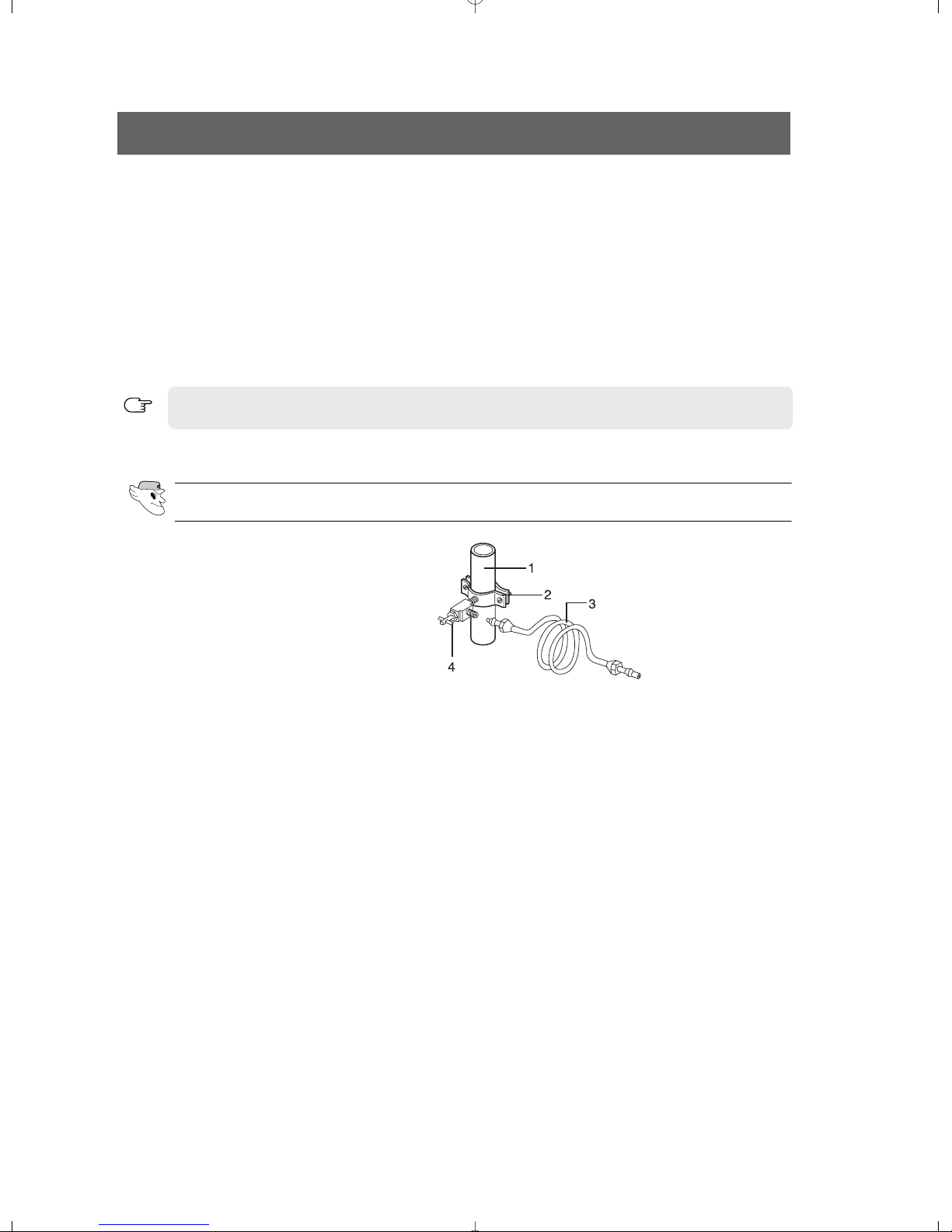

CHECKING THE WATER DISPENSER LINE
1) In order to operate the ice maker properly, water pressure of 20 ~125 psi is required.
In this range a 170 cc paper cup can be filled in 10 secs.
2) The water filter removes particles. It does not sterilize or destroy any micro-organisms.
3) If the refrigerator is installed in an area with low water pressure (below 20psi), you should install a
booster pump to compensate for the low pressure.
4) Ensure the water storage tank inside the refrigerator is properly filled initially. Push the water dispenser
lever until the water runs from the outlet.
Water line installation kit is available at extra cost from your dealer.The refrigerator manufacturer
NOTE
recommends using a water supply kit containing copper tubing.
Connecting to water supply line
- Shut off the main water supply line and turn
the Ice maker to the off position.
- Locate the nearest cold drinking water line.
- Follow the instructions in the ice maker
installation kit.
- After connecting the water supply with water
filter, turn on water supply and flush 4 or
more gallons into a bucket to clear the water
filter
1. Cold Water line
2. Pipe Clamp.
3. Water Line Installation Kit
4. Shut Off Valve
26
INSTALLATION OF THE WATER DISPENSER LINE
Connect the water line to the refrigerator.
1) Slip the compression nut through the provided
plastic tubing.
2) Tighten the compression nut onto 1/4”
comprression fitting.
Ferrule
(Purchased)
Do not overtighten the compression
NOTE
● Using Copper Tubing
● Using Plastic Tubing
3) Tighten the compression nut onto the com-
4) Turn water on and check for any leakage.
nut.
- Slip the compression nut and ferrule on copper tubing as shown.
- Insert the molded end of the plastic tubing
into the compression fitting.
pression fitting.
Copper Tubing
(Purchased)
Household Water Line
Water line must be connected to drinkable water only.
NOTE
Cut off 1/4 inch of the provided plastic tubing squarely to prevent leaks when reconnect.
Install the water filter.
1) As shown, the fixed cap separates from the refrigerator by rotating
it counterclockwise.
Remove the water filter from the box and put a month indicator
sticker on the filter as shown.
Refrigerator
Compression Nut (1/4″)
(Provided)
Compression Fitting
(Provided)
Compression Nut (1/4″)
(Purchased)
Plastic Tubing
(Purchased)
Keep the cap(A) in a safe place for recapping, when
NOTE
2) If the water filter was installed in March, put on the "SEP" sticker
3) Remove the protective cap then position and insert the
4) Slowly turn the water filter clockwise 90º to align
NOTE
you will not use the filter.
as the filter's life is usually six months.
filter as shown.
the indication mark on the cover, locking the filter in position.
Do not overtighten.
SEPARATION
OF RED CAP
STICKER
(MONTH INDICATION)
Please check that the indication line aligns with the lock position.
27
(A)
COVER FILTER
ALIGN THE INDICATION MARK
WITH LOCK POSITION.
INSTALLATION INSTRUCTIONS
INSTALLATION OF THE WATER DISPENSER LINE
Remove any residual matter inside the water supply line after installing filter.
1) Turn on the main water supply & shut-off the valve of the
water supply line.
2) Run water through the dispenser until the water runs clear
(6~7 minutes). This will clean the water supply system and
clear air from the lines.
3) Additional flushing may be required in some households.
4) Open the refrigerator door and check if water leaks around
the water filter.
•
A newly-installed water filter cartridge may cause water to briefly spurt from the dispenser.
•
NOTE
Before reinstalling the water filter, remove the wine shelf (RS257BA).
ICE
WATER
Check the amount of water supplied to the ice tray.
1) Lift up (①) and pull out (➁) the ice maker bucket in the freezer.
2) When you press the test button, the ice cube container is
filled with water from the water supply tap.
Check the amount of water (see the illustration below).
If the water level is too low,
the ice cubes will be small.
This is not a problem with the ice maker
but of the water pressure in the pipe.
When this problem occurs, contact
the dealer service center to check the
amount of water supplied.
CHECK THE WATER LEVEL
Feeler Arm
ICE MAKER
TEST BUTTON
TOO HIGH
OPTIMUM
LEVEL
TOO LOW
28
TROUBLESHOOTING
The refrigerator does not work at all or it does not
chill sufficiently
• Check that the power plug is properly connected.
• Is the temperature control on the display panel set to
the correct temperature? Try setting it to a lower temperature.
• Is the refrigerator in direct sunlight or located near a
heat source?
• Is the back of the refrigerator too close to the wall?
The food in the refrigerator is frozen
• Is the temperature control on the display panel set to
the correct temperature? Try setting it to a warmer
temperature.
• Is the temperature in the room too low?
• Did you store the food with a high water content in
the coldest part of the refrigerator?
You hear unusual noises or sounds
• Check that the floor is leveled and stable.
• Is the back of the refrigerator too close to the wall?
• Was anything dropped behind or under the refrigera-
tor?
• A “ticking” sound may be heard from inside the refrig-
erator, this is normal. This occurs because various
accessories are contracted or expanded.
The front corners and sides of the cabinet are hot;
condensation occurs.
• Anti-condensators are installed in the front corners of
the refrigerator to prevent condensation.
• Condensation can occur when you leave the door
open for a long time.
Ice is not dispensed
• Did you stop the ice making function?
• Is there any ice in the ice storage unit?
• Is the water line connected and the shut-off valve
open?
• Is the freezer temperature too warm?
(Set the temperature lower)
• Did you wait for 12 hours after installation of the
water supply line before making ice?
You can hear water bubbling in the refrigerator
• The bubbling comes from the refrigerant circulating in
the refrigerator and is normal.
There is a bad smell in the refrigerator
• Wrap strong smelling food so that it is airtight.
Throw away any rotten food.
Frost forms on the walls of the freezer
• Is the air vent blocked?
• Allow sufficient space between the foods stored for
efficient air circulation.
• Is the door closed properly?
No water is supplied
• Is the water line connected and the shut-off valve
open?
• Is the water supply line crushed?
• Is the water tank frozen because the refrigerator temperature is too low? Select a warmer setting on the
display panel.
INSTALLATION INSTRUCTIONS
29
MEMO
30
MEMO
31
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
SAMSUNG ELECTRONICS CANADA, INC.
55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA
TEL : 905-542-3535 FAX : 905-542-3835
1-800-SAMSUNG (7267864)
www.samsung.com/ca
To obtain service, please call our toll-free CAMCO CUSTOMER SERVICE
number at 1-800-361-3400
If further help is needed concerning warranty, contact:
Manager, Consumer Relations
Camco, Inc.
1 Factory Lane
Moncton, New Brunswick
E1C 9M3
You can also contact us on our web site: www.geappliances.ca
Loading...
