Page 1

Free Standing Appliance

Refrigerator

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

English

Page 2

2_ safety information

SAFETY INFORMATION

• Before operating the appliance, please read this

manual thoroughly and retain it at a safe place near the appliance for your future reference.

• Use this appliance only for its intended purpose

as described in this instruction manual. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Warnings and Important Safety Instructions in

this manual do not cover all possible conditions and situations that may occur.

It is your responsibility to use common sense,

caution, and care when installing, maintaining, and operating your appliance.

• Because these following operating instructions

cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning

signs may be applicable. If you have any

questions or concerns, contact your nearest service center or ﬁnd help and information online at www.samsung.com.

Important safety symbols and precautions :

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in mi nor per sonal injury or property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions carefully.

Unplug the power plug from the

wall socket. Make sure the machine is grounded

to prevent electric shock.

Call the contact center for help.

Note.

These warning signs are here to prevent injury to you and others. Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

CE Notice

This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC), the Electromagnetic Compatibility Directive (2004/108/EC) and the Eco-Design Directive(2009/125/EC) implemented by Regulation

(EC) No 643/2009 of the European Union.

SEVERE WARNING SIGNS FOR TRANSPORTATION AND SITE

• When transporting and installing the

appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- Refrigerant leaking from the pipe work could

ignite or cause an eye injury. If a leak is detected,

avoid any naked ﬂames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

• In order to avoid the creation of a ammable

gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.

• Never start up an appliance showing any signs

of damage. If in doubt, consult your dealer.

The room where the refrigerator will be sited must be 1m³ in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identiﬁcation plate inside the appliance.

WARNING

safety information

Page 3

safety information _3

SEVERE WARNING SIGNS FOR INSTALLATION

• Do not install the refrigerator in a damp

place or place where it may come in contact

with water.

- Deteriorated insulation of electrical parts may cause an electric shock or ﬁre.

• Do not place this refrigerator in direct sunlight or

expose to the heat from stoves, room heaters or other appliance.

• Do not plug several appliances into the same

multiple power board. The refrigerator should always be plugged into its own individual electrical which has a voltage rating that matched the rating plate.

- This provides the best performance and also prevents overloading house wiring circuits, which could cause a ﬁre hazard from overheated wires.

• If the wall socket is loose, do not insert the

power plug.

- There is a risk of electric shock of ﬁre.

• Do not use a cord that shows cracks or abrasion

damage along its length or at either end.

• Do not bend the power cord excessively or

place heavy articles on it.

• Do not use aerosols near the refrigerator.

- Aerosols used near the refrigerator may cause an explosion or ﬁre.

• This refrigerator must be properly installed

and located in accordance with the manual

before it is used.

• Connect the power plug in proper position with

the cord hanging down.

- If you connect the power plug upside down, wire

can get cut off and cause ﬁre or electric shock.

• Make sure that the power plug is not squashed

or damaged by the back of the refrigerator.

• When moving the refrigerator, be careful not to

roll over or damage the power cord.

- This constitutes a ﬁre hazard.

• The appliance must be positioned so that the

plug is accessible after installation.

• The refrigerator must be grounded.

- You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.

• Never use gas pipes, telephone lines or other

potential lightening rods as ground.

- Improper use of the ground plug can result in

electric shock.

• If the power cord is damaged, have it

replaced immediately by the manufacturer or

its service agent.

• The fuse on the refrigerator must be changed by

a qualiﬁed technician or service company.

- Failing to do so may result in electric shock or personal injury.

CAUTION SIGNS FOR INSTALLATION

• Keep ventilation opening in the appliance

enclosure or mounting structure clear of

obstruction.

• Allow the appliance to stand for 2 hours after

installation.

SEVERE WARNING SIGNS FOR USING

• Do not insert the power plug with wet

hands.

• Do not store articles on the top of the appliance.

- When you open or close the door, the articles

may fall and cause personal injury and/or material damage.

WARNING

CAUTION

WARNING

Page 4

4_ safety information

SEVERE WARNING SIGNS FOR USING (CONT’D)

• Do not put items lled with water on the

refrigerator.

- If spilled, there is a risk of re or electric shock.

• Do not let children hang on the door.

- Failure to do so may cause serious personal injury.

• Do not leave the doors of the refrigerator open

while the refrigerator is unattended and do not let children enter inside of the refrigerator.

- There is a risk of children entrapment and serious personal injury because of low temperature.

• Never put ngers or other objects into the

dispenser hole.

- Failure to do so may cause personal injury or material damage.

• Do not store volatile or ammable substances

such as benzene, thinner, alcohol, ether or LP gas in the refrigerator.

- The storage of any of such products may cause explosions.

• Do not store low temperature-sensitive

pharmaceuticals products, scientiﬁc materials or other low temperature-sensitive products in the refrigerator.

- Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use electrical appliance inside

the refrigerator, unless they are of a type recommended by the manufacturer.

• Do not use a hair dryer to dry the inside of the

refrigerator. Do not place a lighted candle in the refrigerator for removing bad odors.

- This may result in electric shock or ﬁre.

• Do not touch the inside walls of the freezer or

products stored in the freezer with wet hands.

- This may cause frostbite.

• Do not use mechanical devices or any other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• This product is intended only for the

storage of food in a domestic environment.

• Bottles should be stored tightly together so that

they do not fall out.

• If a gas leak is detected, avoid any naked ames

or potential sources of ignition and air the room in which the appliance is standing for several minutes.

• Use only the LED Lamps provided by

manufacturer or service agents.

• Children should be supervised to ensure that

they do not play with and/or climb into the appliance.

• Do not disassemble or repair the

refrigerator by yourself.

- You run risk of causing a ﬁre, malfunction and/or personal injury.

In case of malfunction, please contact your

service agents.

• If the appliance generates a strange noise,

a burning or smell or smoke, unplug the power plug immediately and contact your nearest service center.

- Failing to do so may result in electric or ﬁre

hazards. Keep ventilation opening in the

appliance enclosure or mounting structure clear of obstruction.

• If you experience difculty when changing the

light, contact service agents.

• If the products equipped with LED Lamp, do

not disassemble Lamp Cover and LED Lamp by yourself.

- Please contact your service agents.

• If any dust or water is in refrigerator, pull

out power plug and contact your Samsung Electronics service center.

- There is a risk of ﬁre.

CAUTION SIGNS FOR USING

• To get best performance of product,

- Do not place foods too closely in front of the vents at the rear of the appliance as it can obstruct free air circulation in the refrigerator compartment.

Wrap the food up properly or place it in airtight

containers before put it into the refrigerator.

CAUTION

WARNING

Page 5

safety information _5

• Do not place carbonated or zzy drinks in the

freezer compartment. Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break

and cause personal injury and property damage.

• Do not change the functionality of or modify the

refrigerator.

- Changes or modiﬁcations may result in personal injury and/or property damage. Any changes or modiﬁcations performed by a 3rd party on this completed appliance is neither covered under Samsung warranty service, nor is Samsung responsible for safety issues and damages that result from 3rd party modiﬁcations.

• Do not block air holes.

- If the air holes are blocked, especially with a

plastic bag, the refrigerator can be over cooled.

If this cooling period lasts too long, the water

ﬁlter may break and cause water leakage.

- Do not put any newly introduced food for freezing near to already frozen food.

• Please observe maximum storage times and

expiry dates of frozen goods.

• Fill water tank, ice tray, water cubes only with

potable water.

CAUTION SIGNS FOR CLEANING AND MAINTENANCE

• Do not directly spray water inside or

outside the refrigerator.

- There is a risk of ﬁre or electric shock.

• Do not spray inammable gas near the

refrigerator.

- There is a risk of explosion or ﬁre.

• Do not spray cleaning products directly on the

display.

- Printed letters on the display may come off.

• Remove any foreign matter or dust from

the power plug pins.

But do not use a wet or damp cloth when cleaning

the plug, remove any foreign material or dust from the power plug pins.

- Otherwise there is a risk of ﬁre or electric shock.

• Unplug the refrigerator before cleaning and

performing maintenance.

SEVERE WARNING SIGNS FOR DISPOSAL

• Ensure that none of the pipes on the

back of the appliance are damaged prior to

disposal.

• R600a or R134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the refrigerator to see which refrigerant is used for your refrigerator.

When this product contains ammable gas

(Refrigerant R600a), contact your local authority in regard to safe disposal of this product. Cyclopentane is used as an insulation blowing gas. The gases in insulation material require special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product. Ensure that none of the pipes on the back of the appliances are damaged prior to disposal. The pipes shall be broke in the open space.

• If the appliance contains iso-butane refrigerant

(R600a), a natural gas with high environmental compatibility that is, however, also combustible.

When transporting and installing the appliance,

care should be taken to ensure that no parts of the refrigerating circuit are damaged.

• When disposing of this product or other

refrigerators, remove the door/door seals, door latch so that small children or animals cannot become trapped inside. Leave the shelves in place so that children may not easily climb inside. Children should be supervised to ensure that they do not play with the old appliance.

• Please dispose of the packaging material for this

product in an environmentally friendly manner.

CAUTION

WARNING

Page 6

6_ safety information

contents

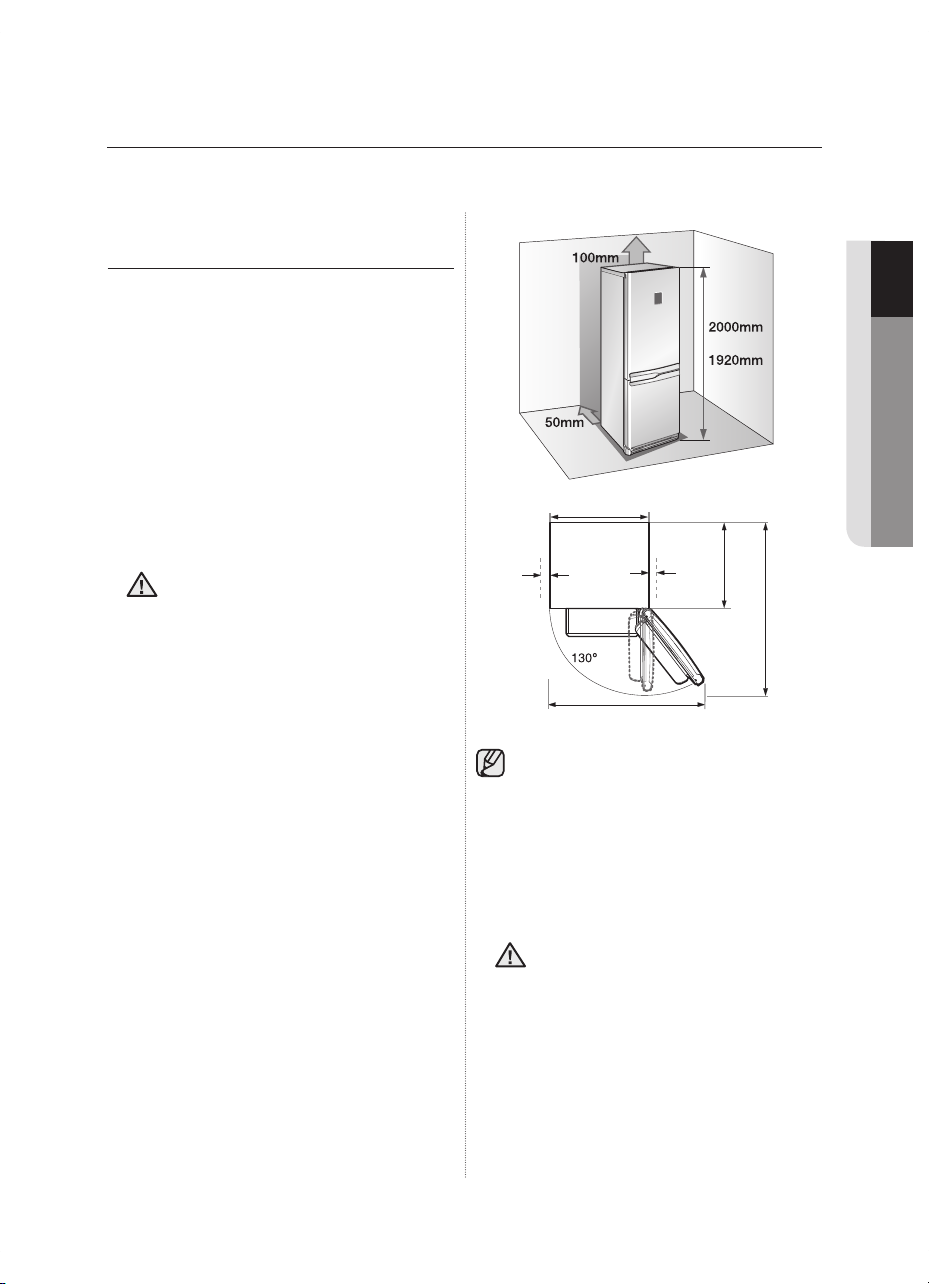

SETTING UP YOUR SIDE-BY-SIDE REFRIGERATOR ···································7

OPERATING YOUR REFRIGERATOR ····························································13

TROUBLESHOOTING ·····················································································19

ADDITIONAL TIPS FOR PROPER USAGE

• In the event of a power failure, call the local

ofﬁce of your Electricity Company and ask

how long it is going to last.

- Most power failures that are corrected within an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.

- Should the power failure last more than 24 hours, remove all frozen foods.

• If keys are provided with the refrigerator, the

keys should be kept out of the reach of children and not in vicinity of the appliance.

• The appliance might not operate consistently

(possibility of temperature becoming too warm in refrigerator) when sited for an extended period of time below the cold end of the range of temperature for which the refrigerating appliance is designed.

• Do not store food which spoils easily at low

temperature, such as bananas, melons.

• Your appliance is frost free, which means there

is no need to manually defrost your appliance, as this will be carried out automatically.

• Temperature rising during the defrost can

comply with ISO requirement. But if you want to prevent an undue rise in the

temperature of the frozen food while defrosting the appliance, please wrap the frozen food in several layers of newspaper.

• Any increase in temperature of frozen food

during defrosting can shorten its storage life.

Saving Energy Tips

- Install the appliance in a cool, dry room with

adequate ventilation. Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example).

- Never block any vents or grilles on the appliance.

- Allow warm food to cool down before placing it in the appliance.

- Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator.

- Do not keep the door of the appliance open for too long when putting food in or taking food out. The shorter time for which the door is open, the less ice will form in the freezer.

- Clean the rear of the refrigerator regularly. Dust increases energy consumption.

- Do not set temperature colder than necessary.

- Ensure sufﬁcient air exhaust at the refrigerator base and at the back wall of the refrigerator. Do not cover air vent openings.

- Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

Page 7

setting up _7

01 SETTING UP

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of this Samsung Refrigerator.

We hope you enjoy state-of-the-art features and

efﬁciencies that this new appliance offers.

• This refrigerator must be properly installed and

located in accordance with the manual before it is used.

• Use this appliance only for its intended purpose as

described in this instruction manual.

• We strongly recommend that any servicing be

performed by a qualiﬁed individual.

• Please dispose of the packaging material for this

product in an environmentally friendly manner.

Pull the power plug out of the socket before changing the interior light of the refrigerator.

- Otherwise, there is a risk of electric shock.

Selecting the best location for the refrigerator

• A location without direct exposure to sunlight.

• A location with at oor surface.

• A location with enough space for the refrigerator

door to open easily.

• Allow sufcient space to the right, left, back and top

for air circulation.

If the refrigerator does not have enough space, the

internal cooling system may not work properly.

• Please ensure that appliance can be moved freely

in the event of maintenance & service.

• Height of the product may be different

depending on the models.

• Allow clearance to the right, left, back and top

when installing. This will help reduce power consumption and keep your energy bills lower.

• Do not install the refrigerator in a place with the

temperature lower than 10°C.

Pull the unit straight out when installing, servicing or cleaning behind the

refrigerator and push it straight back after work is complete. Make sure your ﬂoor can support fully loaded refrigerator.

WARNING

CAUTION

960mm

50mm

1,165mm

600mm

560mm

at least

setting up your refrigerator

Page 8

8_ setting up

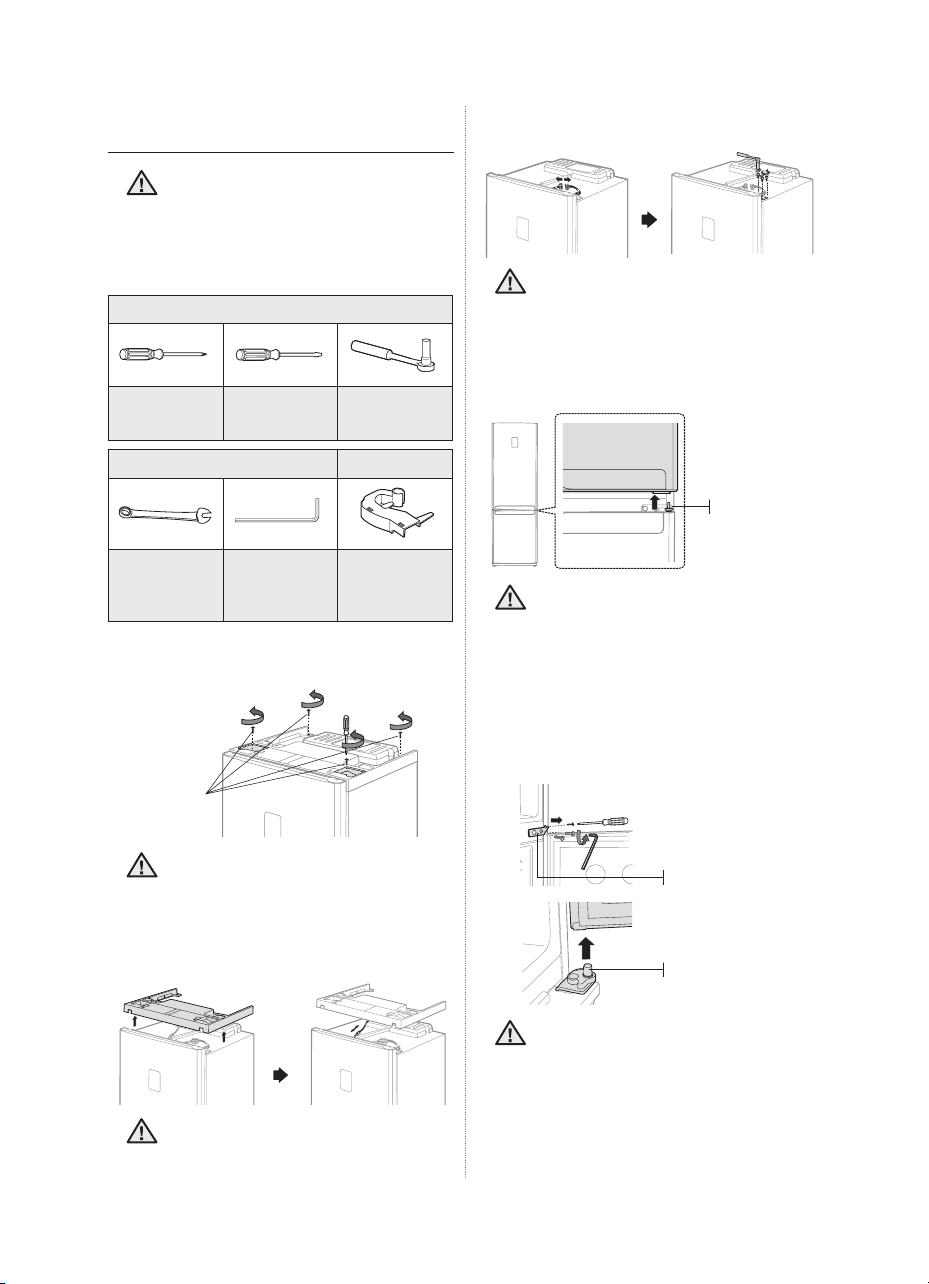

REVERSING THE REFRIGERATOR DOOR

Before you reverse the refrigerator door,

make sure to unplug the refrigerator.

If this operation is not performed by After

sales service, it is not covered by the warranty.

Required Tools

Not provided

Phillips Head

Driver (+)

Flat Head

Driver (-)

10mm Socket

Wrench

(for bolts)

Not provided Additional part

11mm Wrench

(for hinge shaft)

3/16” Allen

Wrench

(for middle

hinge)

Top Left

Hinge Cover

(Underneath the

Top Cover)

1. Remove 4 screws on the Top cover of the refrigerator.

Make sure your refrigerator is unplugged before handling electrical wires.

2. Remove the Top cover. Make sure to disconnect the wire underneath the Top cover.

Be careful not to damage the electrical

wires when removing the Top cover.

3. Disconnect the wire and then remove 3 bolts on the top of the refrigerator.

Make sure the Fridge door is closed ﬁrmly.

4. Remove the Fridge door from the Middle hinge by carefully lifting the door straight up.

Fridge door is heavy, be careful not to injure yourself when removing the Fridge door.

5. Disassemble the Middle hinge by removing 2 bolts and a screw on the right side.

Remove the Freezer door from the Bottom hinge

by carefully lifting the door straight up.

Freezer door is heavy, be careful not to injure yourself when removing the Freezer door.

WARNING

Screw

CAUTION

Middle hinge

CAUTION

Middle hinge

Bottom hinge

Page 9

setting up _9

01 SETTING UP

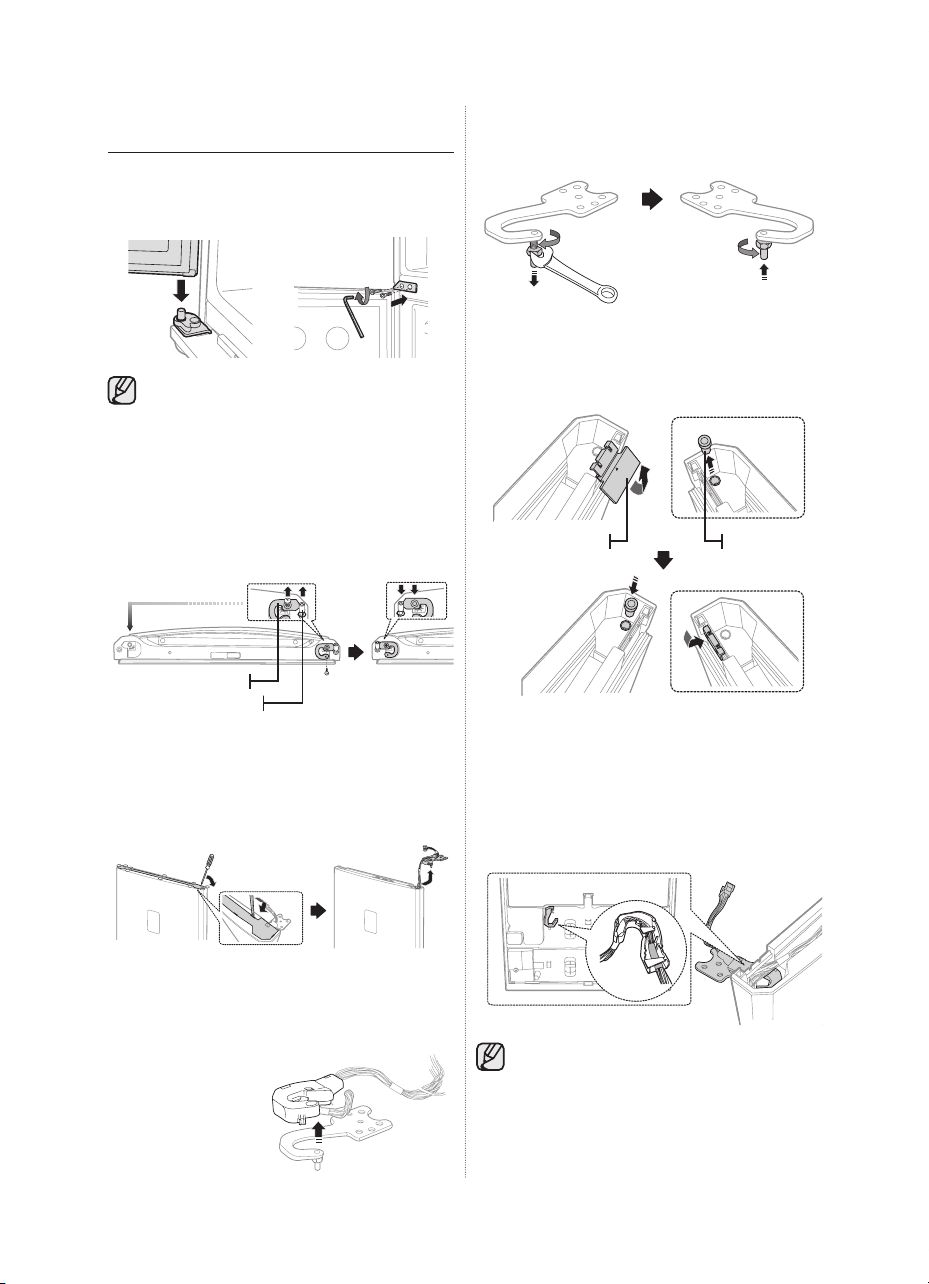

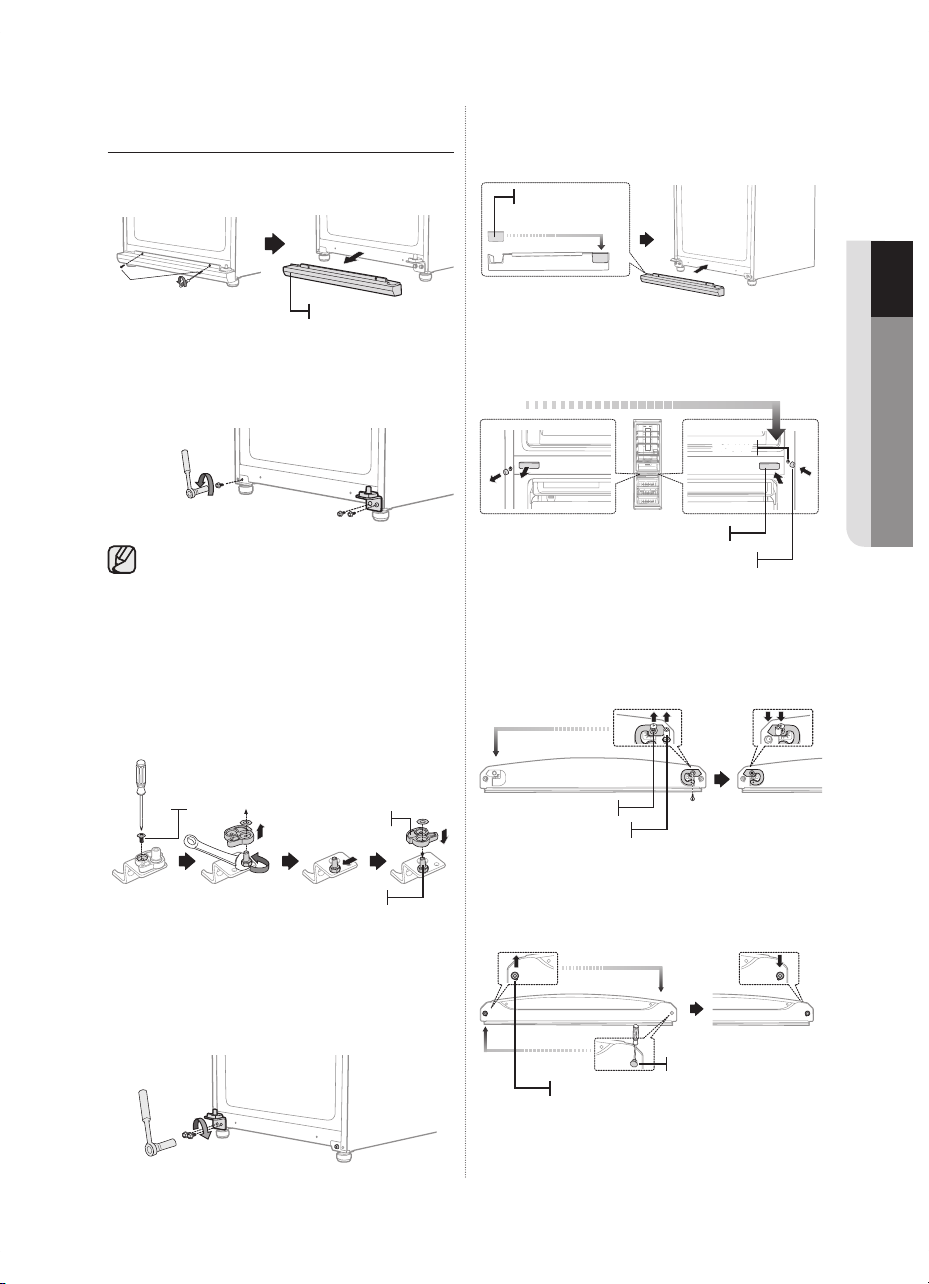

REVERSING THE REFRIGERATOR DOOR (CONT’D)

6. Separate the Front leg cover after removing 2 screws.

7. Unscrew 2 bolts tightening the Bottom hinge and

also unscrew a bolt on the left side by the front leg

where removed Bottom hinge will be attached.

Before removing the Bottom hinge, slightly

turn the front legs clockwise for easier disassembling and assembling.

8. Switch the position of the Bottom hinge shaft.

Remove the screw on the Auto guide and remove

the Bottom hinge shaft with 11mm wrench. Attach the Bottom hinge shaft on the left and put

the reversed Auto Guide back.

9. Attach the Bottom hinge on the bottom left side

of the refrigerator where a bolt was previously removed in step 8. Screw remaining bolt on the bottom right side of the refrigerator for the future usage.

10. Switch the side of bottom hinge cap and then attach the Front leg cover on the bottom of the refrigerator.

11. Switch the side of the Middle hinge cap, Screw cap and a Screw from left to the right side.

12. Remove the screw on the bottom right side of the Freezer door. Switch the Door stopper and the Hinge grommet from the right to the left.

13. Switch the Hinge grommet and the Grommet cap on the top of the Freezer door.

Screw

Front leg cover

10mm

Bottom hinge shaft

Auto guide

Screw

Bottom hinge cap

Screw cap

Middle hinge cap

Screw

Hinge grommet

Door stopper

Hinge grommet

Grommet cap

Page 10

10_ setting up

REVERSING THE REFRIGERATOR DOOR (CONT’D)

14. Carefully put the Freezer door back on. Assemble the Middle hinge with 2 bolts on the left side.

A screw will be remained after reversing freezer door. And it does not affect performance of the refrigerator.

15. Remove the screw on the bottom right side of the Fridge door. Switch the Door stopper and the Hinge grommet from the right to the left.

16. Remove the Wire cover on the top of the Fridge

door with ﬂat head driver and then take out the Top hinge and wires from right side of Fridge door.

17. Detach the Top right hinge cover from the Top hinge and pull the wires out from the Top right hinge cover.

18. Use 11mm wrench to separate the Top hinge

shaft. Flip the Top hinge and reattach the Top hinge shaft.

19. Switch the side of the Door cap and the Hinge grommet on the top of the Fridge door.

20. Reassemble the Top hinge by reversing the step

19. (Make sure to use the Top left hinge cover which can be found underneath the Top table.) Put the assembled hinge on the left side of the fridge door.

Make sure that red tape on the wire is positioned on the end of the Top left hinge cover.

Hinge grommet

Door stopper

Door cap

Hinge grommet

Page 11

setting up _11

01 SETTING UP

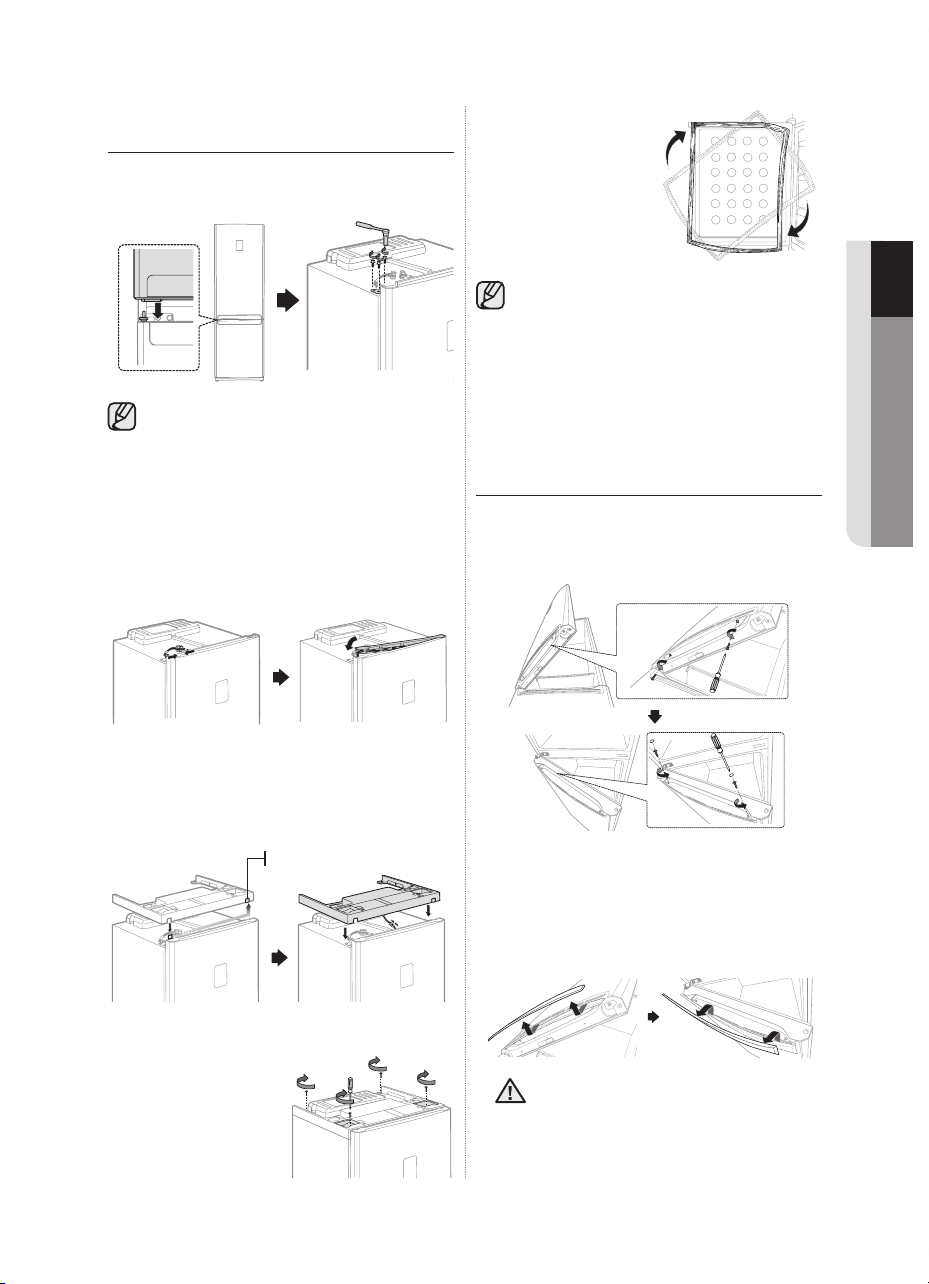

REVERSING THE REFRIGERATOR DOOR (CONT’D)

21. Carefully put the Fridge door back on. Then tighten 3 bolts to assemble the Top hinge.

• You must reverse the Type B door handle

before putting the Fridge door back. Please refer to page 12.

• For Door handle Type A, make sure to switch

the door handle after reversing the door.

22. Connect wires and then assemble the Wire cover

on the top of the Fridge door.

23. Change the position of the Top hinge cap. Connect the wire under the Top cover and put the Top cover back to its original position.

24. Tighten 4 screws back to its place.

25. Detach the Fridge and the Freezer door gaskets and then attach them after rotating them 180˚.

After reversing the doors, make sure the Fridge and Freezer door gaskets are properly

arranged. If not, there might be a noise or

dew formed which affects perfomance of the refrigerator.

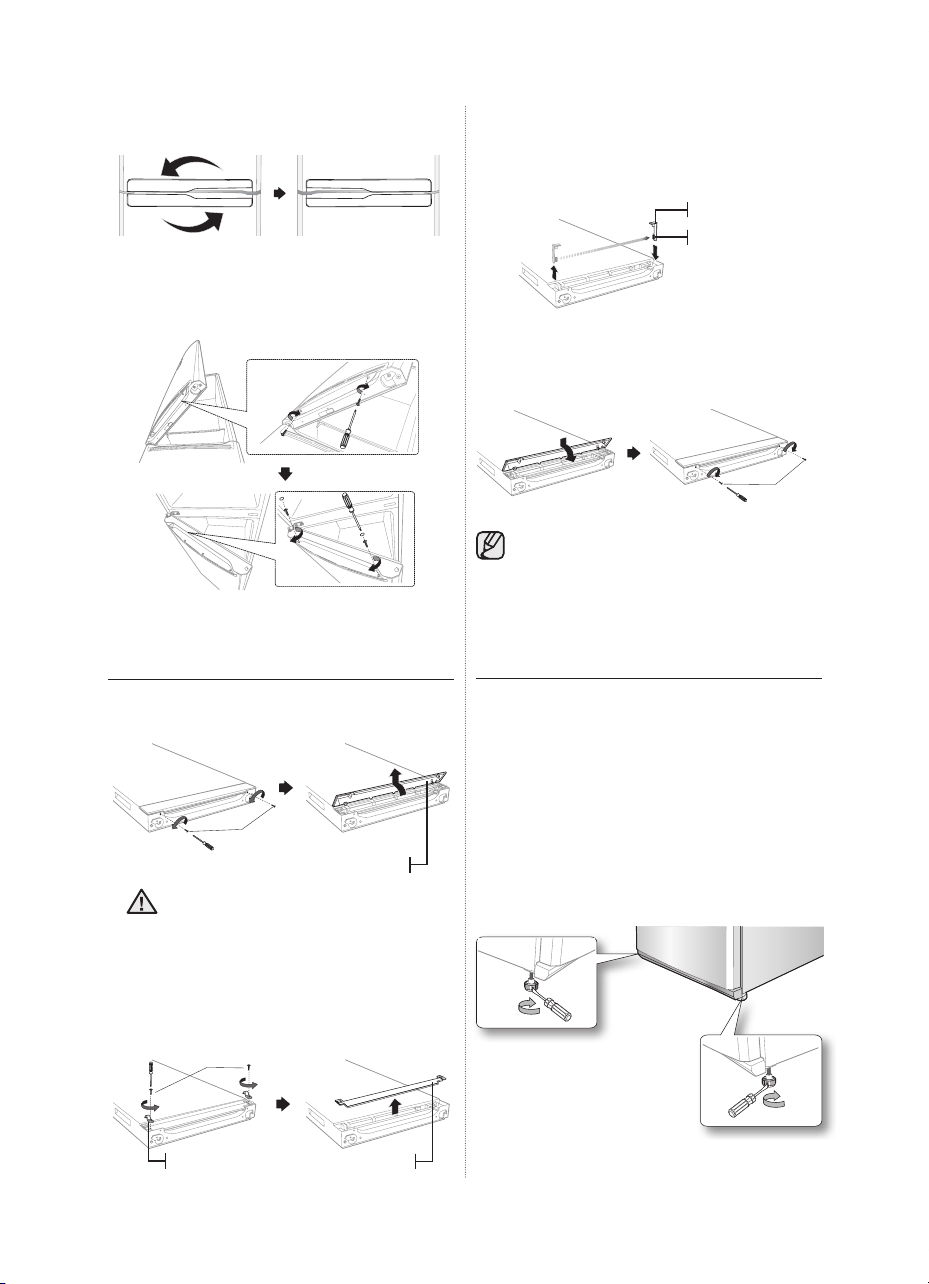

REVERSING THE DOOR HANDLE (TYPE A)

1. Remove 2 screws underneath the Fridge door and

then take off 2 Cap sheets and remove 2 screws on the Freezer door.

2. Slightly push down the Fridge handle and then

remove it by pulling it toward to you. Slightly push up the Freezer handle and then remove it by pulling it toward to you.

Disassemble the door handle carefully. Hooks inside of the door handles can break easily.

Top hinge cap

CAUTION

Page 12

12_ setting up

3. Assemble the handles after switching the side of the Fridge handle and the Freezer handle.

4. Tighten 2 screws underneath the Fridge door and then assemble 2 screws and 2 Cap sheets on the Freezer door.

REVERSING THE DOOR HANDLE (TYPE B)

1. Remove 2 screws underneath the Fridge door and then pull the Handle cover.

Disassemble the Handle cover carefully. Hooks inside of the Handle cover can break easily.

2. Remove 2 screws on the Handle grommets. Remove the Handle grommets and disassemble the Easy handle.

3. Change the positions of the Handle slider and spring from the left side to the right side. Make sure to change position of the Handle slider cap from the right side to the left side.

4. Assemble the door handle by following step 2 and 1 in reverse order.

This procedure must be done before ‘Reversing the Refrigerator Door’ step 23.

LEVELLING THE REFRIGERATOR

If the front of the appliance is slightly higher than the

rear, the door can be opened and closed more easily. Turn the adjusting legs clockwise to raise and counter-clockwise to lower the height.

Case 1) The appliance tilts down to the left.

• Turn the left adjusting leg in the direction of the

arrow until the appliance is level.

Case 2) The appliance tilts down to the right.

• Turn the right adjusting leg in the direction of the

arrow until the appliance is level.

WARNING

Screw

Cover handle

Screw

handleGrommet

Spring

Slider

Screw

Page 13

02 OPERATING

operating _13

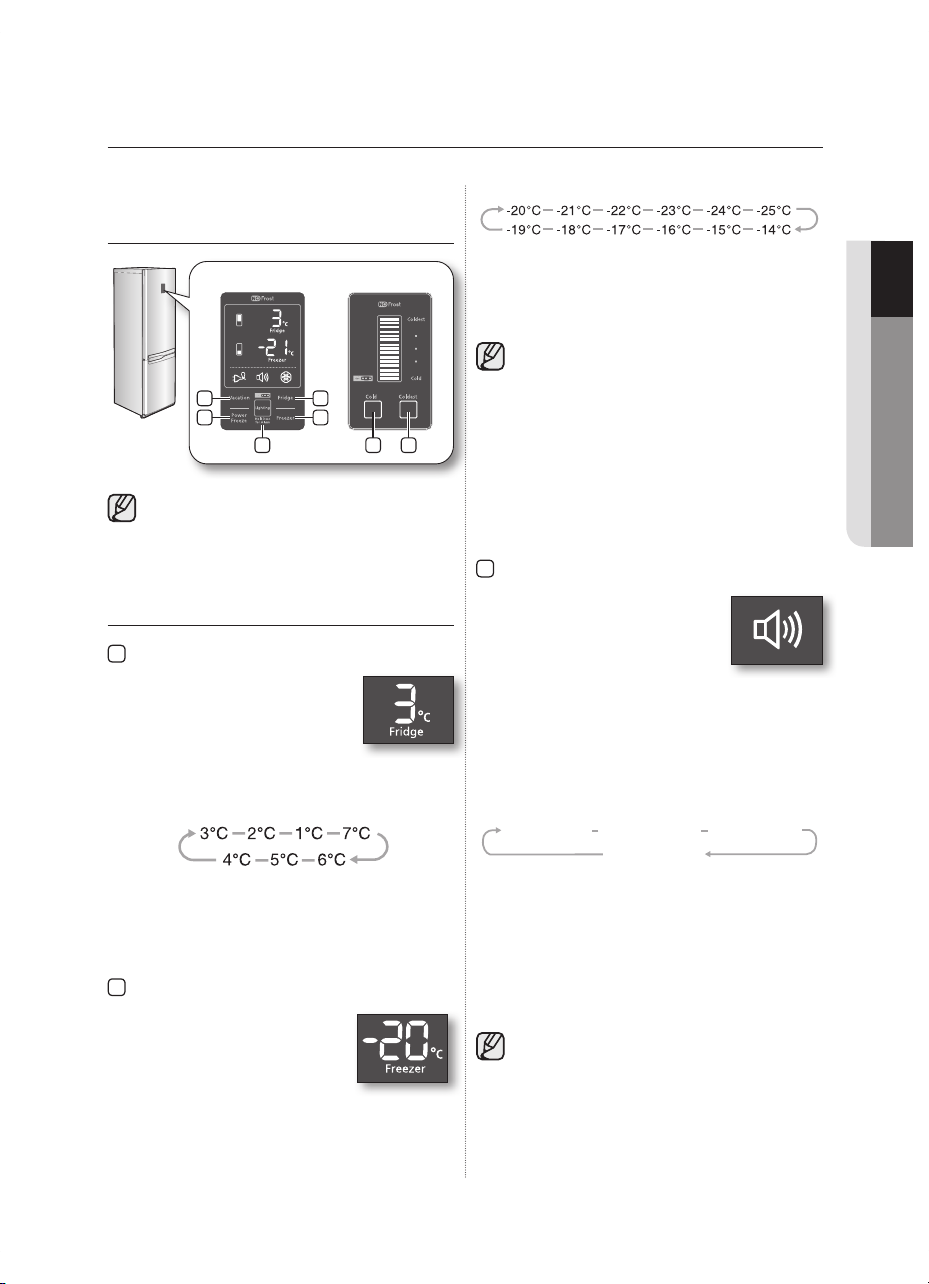

CHECKING THE CONTROL PANEL

Each time you press the button, a short beep will sound.

USING THE CONTROL PANEL (TYPE A)

Fridge

Touch the Fridge button to set the fridge to desired temperature from the range between 1°C and 7°C.Default set temperature is set on 3°C and each time you press the Fridge button, temperature will change in following order and temperature indicator will display the desired temperature.

When the temperature setting is done, the set

temperature is displayed initially for 5 seconds and then indicator will display the actual temperature of the fridge.

Freezer

Touch the Freezer button to set the freezer to desired temperature from the range between -14°C and -25°C. Default set temperature is set on

-20°C and each time you touch the Freezer button, temperature will change in following order and temperature indicator will display the desired temperature.

When the temperature setting is done, the set

temperature is displayed initially for 5 seconds and then indicator will display the actual temperature of the freezer.

Fridge or Freezer temp indicator will blink when temperature in the fridge or freezer compartment goes up dramatically by storing warm food or frequent door opening. (Fridge or Freezer temperature indicator will stop blinking when temperature in the fridge

or freezer is become normal. If temperature

indicator does not stop blinking after several hours, please contact your service center.

Lighting (Hold 3sec for Alarm)

Touch the Lighting button to activate the Lighting Function and the light underneath fridge door will be on. The light keeps on while Lighting function is activated.

If you want to adjust the brightness of the light, touch

the Lighting button again. (Adjusting brightness may not be available depending on the models.) To deactivate the Lighting function, touch the Lighting button again until the light is off.

Touch the Lighting button for longer than 3 seconds to activate the Alarm function. Alarm indicator will light up and the refrigerator will alert you with alarm sound if the refrigerator door is kept open for longer than 2 minutes. To deactivate the Alarm function, touch the Lighting button for longer than 3 seconds.

• Lighting activated : Light stay on.

• Lighting deactivated : If you open the freezer

door with the fridge door closed the Light will be turned on.

operating your refrigerator

(TYPE A)

(TYPE B)

2 1

Light off

Light on(Bright) Light on(Medium) Light on(Dark)

Page 14

14_ operating

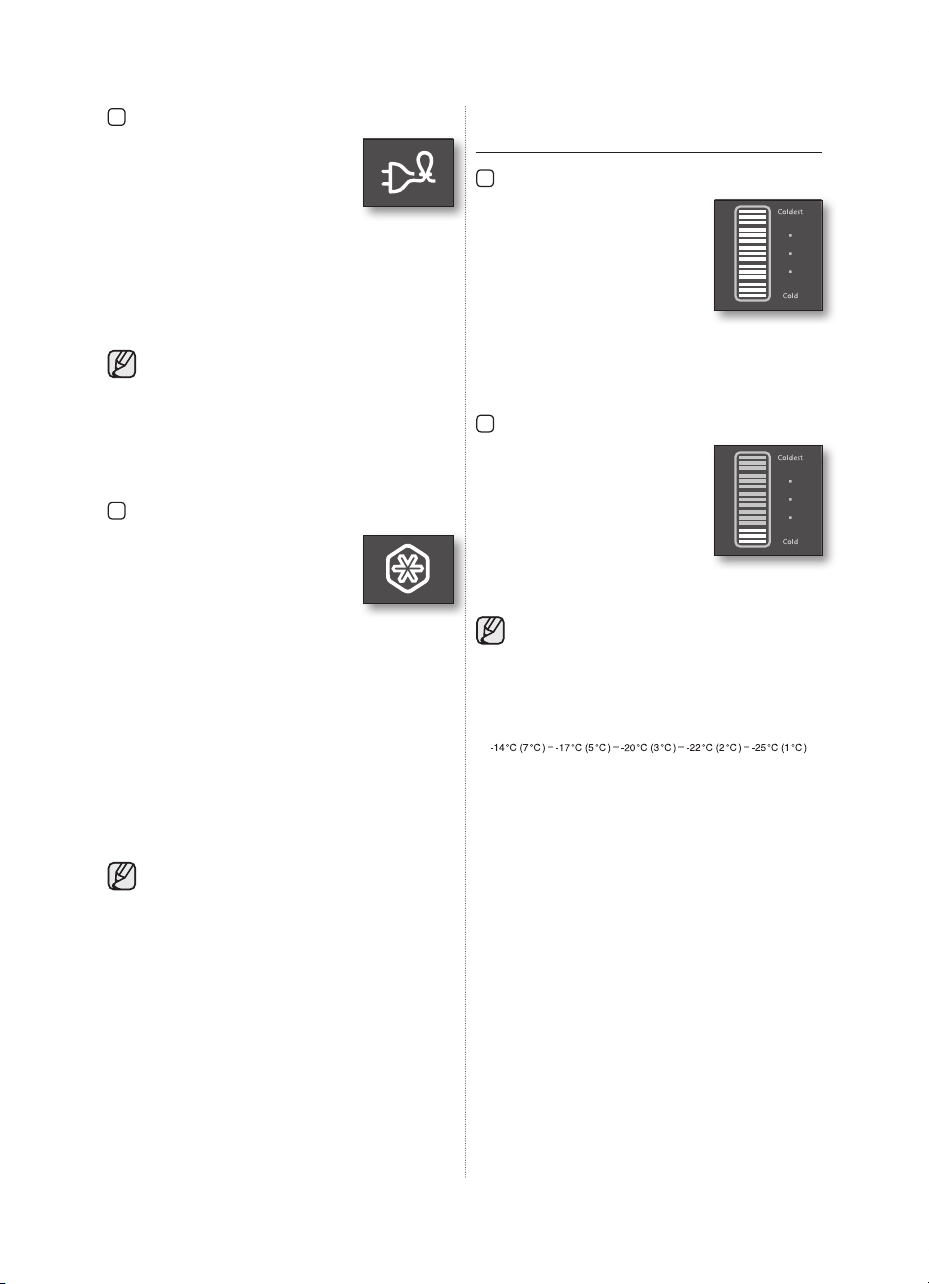

Vacation

Touch the Vacation button to activate the Vacation function. Vacation indicator will light up and the refrigerator will set the temperature to 15°C to minimize the power consumption when you are going on a long vacation or business trip or you do not need to use the refrigerator.

While Vacation function is activated, freezer

compartment remains on.

• Vacation function will be automatically

deactivated if you adjust fridge temperature while Vacation function is on.

• Make sure to remove foods in the fridge

compartment before using Vacation function.

Power Freeze

Touch the Power Freeze button to activate the Power Freeze function. Power Freeze indicator will light up and the refrigerator will speed up the time to needed to freeze products in the freezer. Power freeze function will be activated for 72 hours and freezer indicator will display -25°C. The Power Freeze function switches off automatically.

When the Power Freeze process is completed, the

Power freeze indicator switches off and the freezer switches back to the previous temperature setting.

When you use this function, the energy consumption

will increase. To deactivate the Power Freeze function, touch the Power Freeze button again.

If you need to freeze large amount of food

stuff, activate Power Freeze function at least 24 hours before.

USING THE CONTROL PANEL (TYPE B)

Coldest

Press the Coldest button one or more times to lower the temperature of the refrigerator. Temperature indicator will change from cold to coldest. Default set temperature is the Midpoint temperature.

When all lights are on, the temperature is at its

coldest.

Cold

Press the Cold button one or more times to raise the temperature of the refrigerator. Temperature indicator will change from coldest to cold. Default set temperature is the Midpoint temperature.

When one light is on, the temperature is at its cold.

• There are ve temperature settings,

represented by ﬁve indicator lights.

• The freezer temperature will be adjusted

automatically according to the refrigerator temperature (as stated in below).

• If you need to freeze large amount of food

stuff, set the temperature of refrigerator as the coldest temperature at least 24 hours before.

• Temp indicator will blink when temperature

in the fridge or freezer compartment goes up dramatically by storing warm food or frequent door opening. Temperature indicator will stop blinking when temperature in the fridge or freezer becomes normal.

If temperature indicator does not stop

blinking after several hours, please contact your service center.

Cold Coldest

Temperature of Freezer(Fridge)

Page 15

02 OPERATING

operating _15

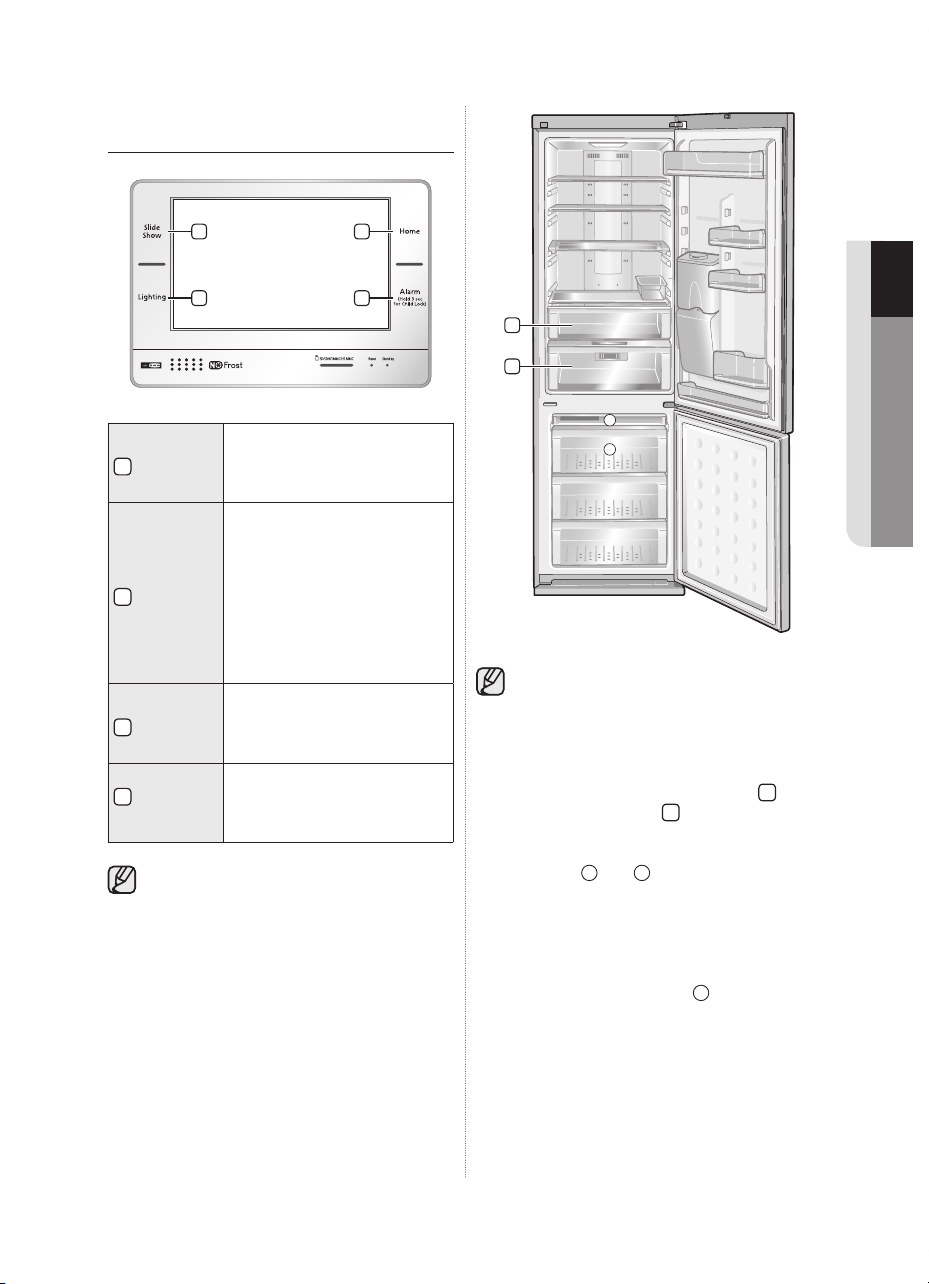

CHECKING THE CONTROL PANEL (TYPE C)

HOME

You can go to the home screen with the main functions of the refrigerator.

ALARM

The alarm will alert you if the refrigerator door is kept open for longer than 2 minutes. To cancel the alarm, touch the Alarm button again. You can activate/deactivate the Child Lock function by touching this button for 3 seconds.

LIGHTING

You can turn the lighting underneath the fridge door on or off.

SLIDE

SHOW

You can use this function to see images saved in the Photo Album.

• For more information about using Control

panel (Type C), refer to LCD Control Manual enclosed with this manual.

• If you need to freeze large amount of food

stuff, activate Power Freeze function at least 24 hours before.

• Some of the feature such as Water Tank,

Cool Select Zone, Cooler Zone and Photosynthetic Fresh can be different and may not be available depending on the model.

• To get more space in the refrigerator, you can remove Fresh Safe Drawer

and

Cooler Zone Drawer

(except Cool Select Zone Box). To get more space in the freezer, you can remove

and

drawers.

It does not affect thermal and mechanical

characteristics. A declared storage volume of the freezer compartment is calculated with these parts removed.

• For freezing test, remove

drawer.

Page 16

16_ operating

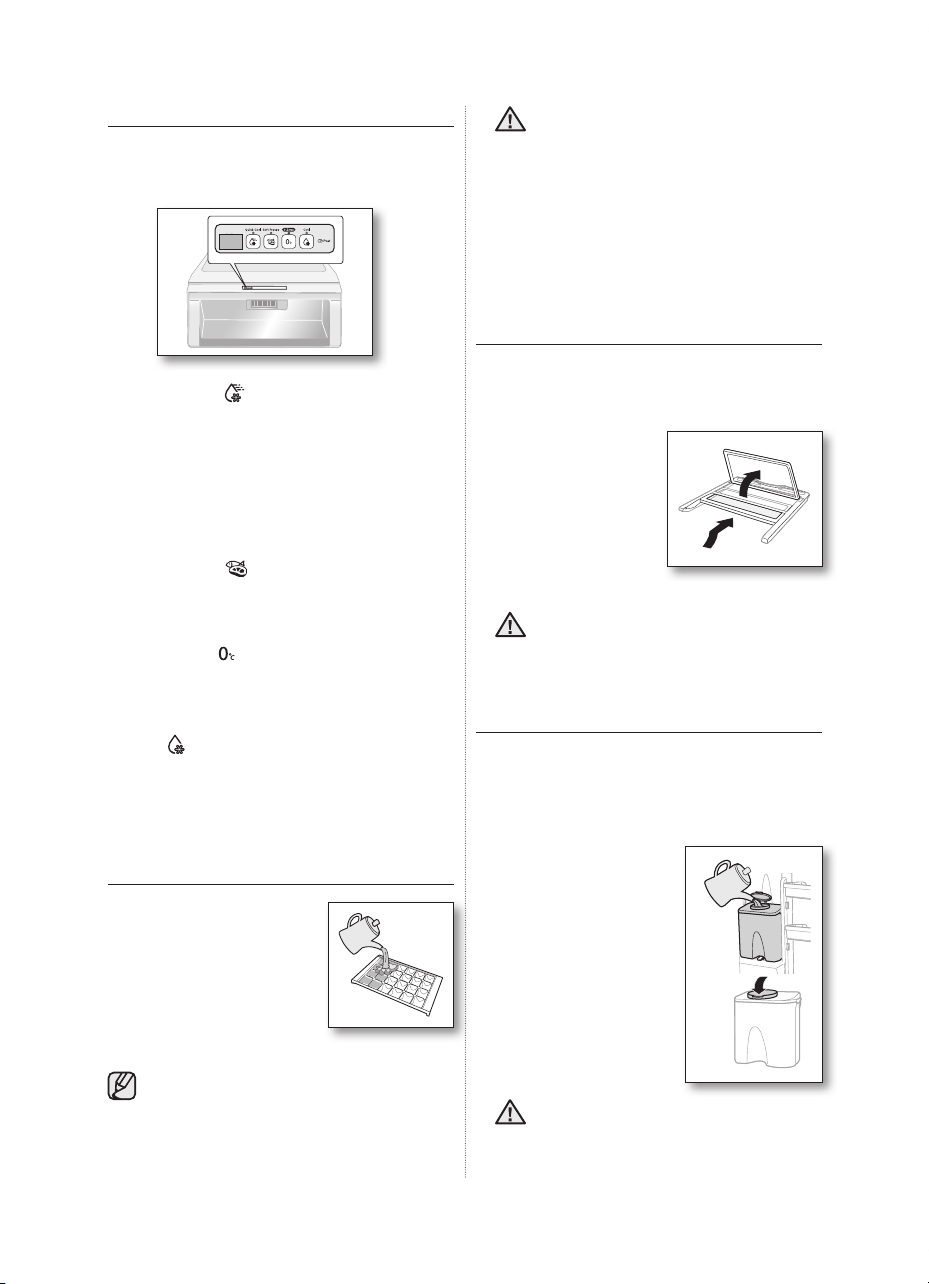

USING COOL SELECT ZONE™

You can store various foods such as cheese, meat, poultry ﬁsh and other foods at ideal temperature to preserve the taste of food.

Quick Cool

• If you want to cool down food quickly, store food in

Cool Select Zone and press Quick Cool button.

• Cool Select Zone will cool food for 60 minutes.

• When Quick Cool mode is completed,

the Cool Select Zone drawer will automatically set the mode to Cool.

Soft Freeze

• When you select Soft Freeze mode, temperature of

the Cool Select Zone will be set on -5°C.

Zero Zone

• When you select Zero Zone mode, temperature of

the Cool Select Zone will be set on 0°C.

Cool

• When you select Cool mode, temperature of the

Cool Select Zone will be set on 3°C.

MAKING ICE

1. Fill the tray up to 80% with water level.

2. Place the ice tray in the top freezer drawer.

3. Wait until the ice cubes are

formed.

4. Twist the ice tray slightly to take out the ice cubes.

Freezing time

It is recommended that you wait for about 1~2

hour with the temperature set to Power Freeze for the ice cubes to form.

Danger of explosion

• The coldest parts of the refrigerator is

the rear panel. This is the best place to store delicate foodstuffs.

• Glass bottles containing liquids should never be

stored in the freezer as the glass can shatter when the contents freeze.

USING THE FOLDABLE SHELF

You can fold the foldable shelf if you need to accommodate taller containers or products on the shelf underneath.

1. Slightly lift up the shelf and slide it inward.

2. Lift up the tucked shelf towards the rear wall.

3. You can simply pull the folded shelf in reverse procedure to use the fully extended shelf.

Shelf can fall out, handle with care when using or cleaing the shelf.

USING THE WATER DISPENSER

Filling the water

You can ﬁll the water with the water tank sitting inside of the refrigerator or you can remove the water tank to ﬁll the water.

1. Open the round cap and ﬁll the water tank up with drinking water.

• Do not ll up the water

tank too much (just over 4.2 liters). As it could overﬂow when the door opens and closes.

2. Close the round cap by pushing down on it until it clicks into place.

Do not put anything other than water in the water tank.

CAUTION

Page 17

02 OPERATING

operating _17

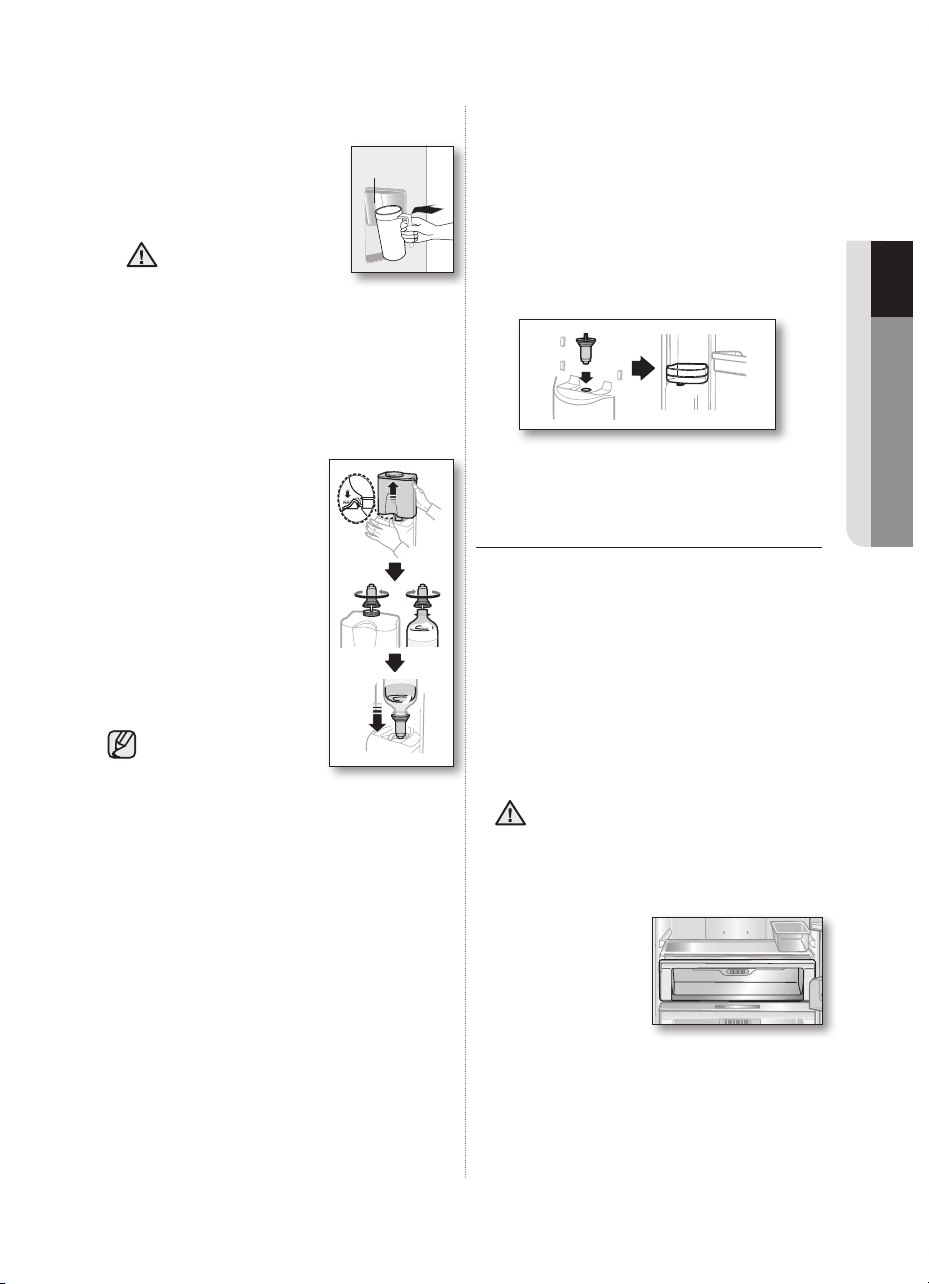

Getting water from the dispenser

1. Place a glass underneath the water outlet.

2. Push it gently against the water dispenser lever with your glass.

• Make sure the glass

is in line with the dispenser to prevent the water from splashing out.

• Water dispenser may not be available depending

on the model.

Installing a regular bottle

1. Press the ﬁxing lever, lift the

Water tank upwards and

remove it.

2. Remove the Dispenser cock

from the Water tank.

3. Put the Dispenser cock on the regular mineral water bottle and rotate them clockwise to lock the Dispenser cock.

4. Put the water bottle with the Dispenser cock in the dispenser hole.

• Gurgling sounds may be

heard when air enters the water bottle from regular mineral water or beverage bottles.

• Some regular mineral water or beverage bottles may not ﬁt the Dispenser cock depending on their size.

• If water does not come out satisfactorily when you press the lever, press the lever again.

• Do not use carbonated drinks. When you press the lever, beverage may

spurt out due to the pressure of carbonic gas accumulated in the upper part of beverage bottle.

• For better hygiene, beverages with a high

sugar content (juice, soft drinks) are not recommended.

• You can use bottled mineral water or boiled

tap water as long as it does not contains any particles.

When the water dispenser is not used

1. Fix the Dispenser cock tightly into the dispenser hole.

• When the Dispenser cock is pulled out for a

long time, Refrigerator may not operate properly because cold air will leak.

2. Place a Variety guard in the location of the Water

tank and store beverage bottle.

• Two 1.5 liter bottles can be placed.

USING THE PHOTOSYNTHETIC FRESH (OPTIONAL)

Feature of photosynthetic fresh LED

Plants breathe only without light. However, if there is light, plants can breathe and photosynthesize at the same time. Therefore, if you keep the vegetables in dark refrigerator, they continue breathing and it makes organic matter in vegetables decrease and wither more quickly.

If you keep vegetables and fruits in fresh safe drawer,

you can keep them fresher because they can breathe and photosynthesize in there at the same time.

Do not look directly at the Photosynthetic Fresh LED for a long time.

It may cause an eye trouble.

Operating photosynthetic fresh

• Photosyn thetic Fresh

LED is installed on the back of the fresh safe drawer.

It keeps vegetable and

fruits stored in fresh safe drawer fresher by providing light.

• To maximize the effect, keep the vegetables and

fruits in the transparent vinyl bag or itself. Effect may decrease if vegetables and fruits are in the opaque boxes, containers or black vinyl bag.

Push

CAUTION

Page 18

18_ operating

• Photosynthetic Fresh LED is always on when the

fridge door is opened. LED will turn on and off repeatedly when the door is closed.

In winter time, if you set the desired

temperature of fridge as 1°C and store vegetables for a long time, vegetables can be frozen.

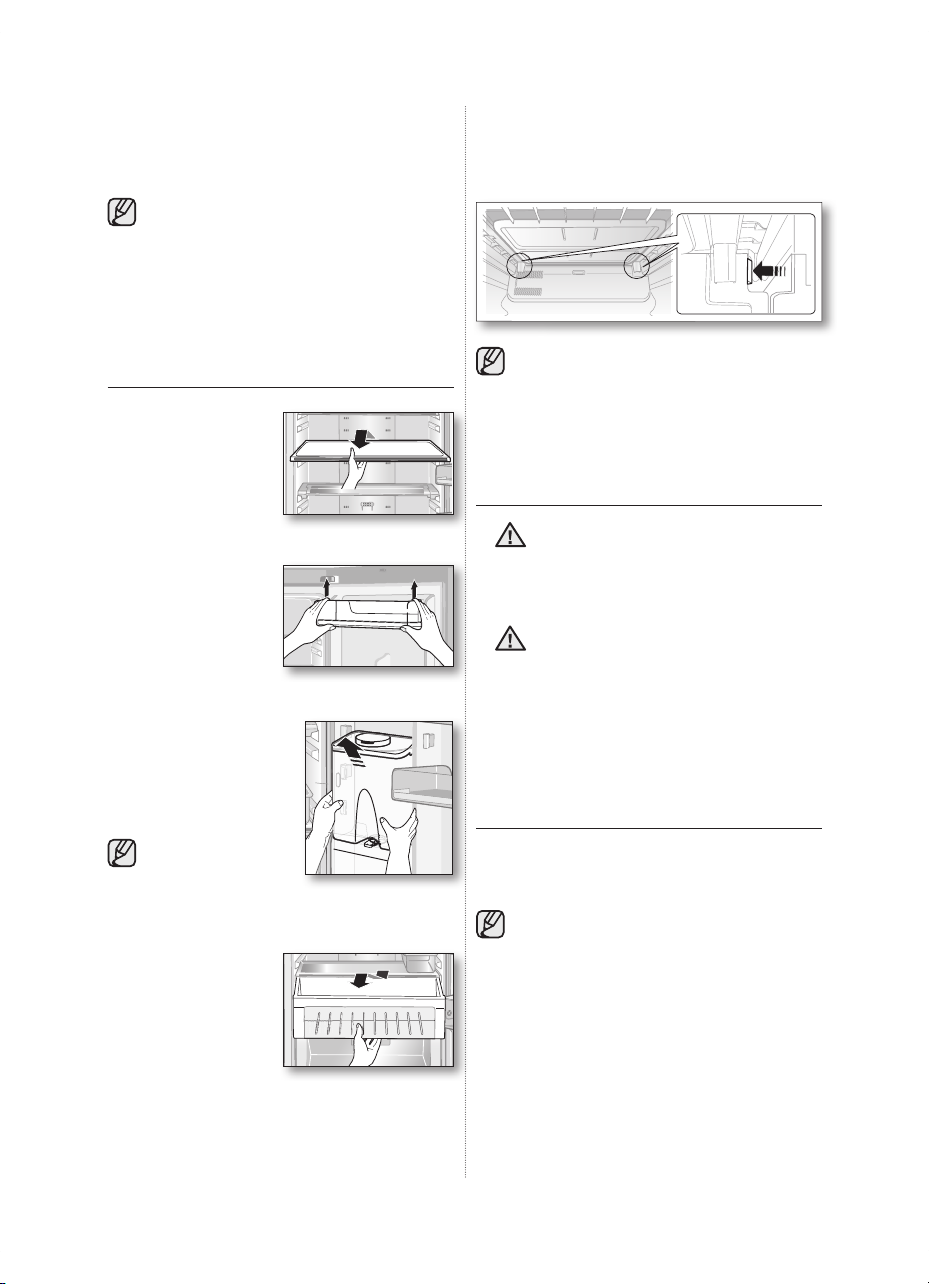

REMOVING THE INTERIOR PARTS

Shelves

Gently lift up the shelves with both hands and pull it toward you. (Glass shelf/Foldable shelf)

Door guards

Firmly grab the door guards with both hands and lift it up gently to remove the door guards.

Water tank

Firmly grab the water tank with both hands and lift it up towards you gently to remove the water tanks.

Water tank may not be

available depending on the model.

Drawers

Pull the drawers out fully then slightly lift it up to remove the drawers. (Fresh safe drawer / Cool select zone drawer / Cooler zone drawer / Freezer Drawers )

Cooler zone

Press the locking device on the rear left and right side of the cooler zone cover and pull the cooler zone cover to remove it.

To get the best energy efﬁciency of this product, please leave all selves, drawers and baskets on their original position like as illustration in page (15).

CLEANING THE REFRIGERATOR

Do not use Benzene, Thinner or Clorox™

for cleaning. They may damage the surface of the appliance and can create a risk of ﬁre.

Do not spray the refrigerator with water while it is plugged in, as it may cause an electric shock. Do not clean the refrigerator with benzene, thinner or car detergent for risk of ﬁre.

REPLACING THE LED LAMP

When the interior or exterior LED lamp has gone out,

do not disassemble the lamp cover and LED lamp by yourself.

Please contact your service agents.

CAUTION

WARNING

Page 19

troubleshooting _19

03 TROUBLESHOOTING

troubleshooting

PROBLEM SOLUTION

The appliance is not operating at all or the temperature is too high.

• Check if the power plug is correctly connected.

• Is the temperature control on the front panel correctly set?

• Does sun shine on the appliance or are there any heat sources nearby?

• Is the back of the appliance too close to the wall?

The food in the refrigerator is frozen.

• Is the temperature control on the front panel set to the coldest temperature?

• Is the surrounding temperature too low?

There are unusual noises.

• Check if the appliance is installed on a stable and even oor.

• Is the back of the appliance too close to the wall?

• Have any foreign objects fallen behind or under the appliance?

• Is the noise coming from the compressor in the appliance?

• A ticking sound occurs when the various accessories contract or

expand.

The front corners and sides of the appliance are warm and condensation starts to form.

• Heat-proof pipes are installed in the front corners of the appliance to

prevent condensation from forming.

When the surrounding temperature rises, this may not always be

effective. However, this is not abnormal.

• In very humid weather, condensation may form on the outer surface of

the appliance when the moisture in the air comes into contact with the cool surface of the appliance.

You can hear a liquid bubbling in the appliance.

• This is the refrigerant, which cools the inside of the appliance.

There is a bad smell inside the appliance.

• Is there any spoiled food inside of the refrigerator?

• Make sure that strong smelling food (for example, sh) is wrapped so

that it is airtight.

• Clean out your refrigerator periodically and throw away any spoiled or

suspect food.

There is a layer of frost on the appliances walls.

• Are the air outlet vents blocked by food stored inside the refrigerator?

• Space the food out as much as possible to improve ventilation.

• Is the door fully closed?

Condensation forms on the inside wall of the appliance and around vegetables.

• Food with a high water content is stored uncovered with a high

humidity level or the door has been left open for a long time.

• Store the food with a cover or in sealed containers.

Page 20

In an effort to promote recycling this user manual is printed on recycled paper.

Ambient Room Temperature Limits

This refrigerator is designed to operate in ambient temperatures speciﬁed by its temperature class marked on the rating plate.

Class Symbol Ambient Temperature range (°C)

Extended Temperate SN +10 to +32

Temperate N +16 to +32

Subtropical ST +16 to +38

Tropical T +16 to +43

Internal temperatures may be affected by such factors as the location of the refrigerator,

ambient temperature and the frequency with which you open the door. Adjust the temperature as required to compensate for these factors.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

English
