Safety Information
SAFETY INFORMATION
Before using your new Samsung French Door
Refrigerator, please read this manual thoroughly to
ensure that you know how to operate the features and
functions that your new appliance offers safely and
efficiently.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory, or
mental capabilities, or those who lack experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a
person responsible for their safety.
Because the following instructions cover various
models, the characteristics of your refrigerator may
differ slightly from the refrigerator described in this
manual. If you have any question, contact us at 1-800SAMSUNG or find help and information online at www.
samsung.com.
Important safety symbols and precautions:
Hazards or unsafe practices that may result
WARNING
CAUTION
These warning signs are here to prevent injury
to you and others.
Please follow them carefully.
After reading this section, keep it in a safe
place for future reference.
in severe personal injury or death.
Hazards or unsafe practices that may result
in minor personal injury or property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall socket.
Make sure the refrigerator is grounded to
prevent electric shock.
Call the contact center for help.
Note.
CRITICAL INSTALLATION
WARNING
- Deteriorated insulation of electrical parts may cause
•Do not place this refrigerator in direct sunlight or
•Do not plug several appliances into the same
- This provides the best performance and also
•Ifthewallsocketisloose,donotinsertthepower
- There is a risk of electric shock of fire.
•Do not use a cord that shows cracks or abrasion
•Do not bend the power cord excessively or place
•Never unplug your refrigerator by pulling on the
- Damage to the cord may cause a short-circuit, fire
•Do not use aerosols near the refrigerator.
- Aerosols used near the refrigerator may cause an
•Connect the power plug in the proper position with
- If you connect the power plug upside down, the wire
•When moving the refrigerator, be careful not to roll
- This constitutes a fire hazard.
•Make sure that the power plug is not squashed or
•Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child
WARNINGS
•Do not install the refrigerator in a damp place
or place where it may come in contact with
water.
an electric shock or fire.
expose to the heat from stoves, room heaters or
other appliance.
multiple power strip. The refrigerator should always
be plugged into its own individual electrical outlet
which has a voltage rating that matches the voltage
listed on the refrigerator's rating plate.
prevents overloading house wiring circuits, which
could cause a fire hazard from overheated wires.
plug.
damage along its length or at either end.
heavy articles on it.
power cord. Always grip plug firmly and pull straight
out from the outlet.
and/or electric shock.
explosion or fire.
•This refrigerator must be properly installed and
located in accordance with the manual before
you use it.
the cord hanging down.
can get cut off and cause a fire or electric shock.
over or damage the power cord.
damaged by the back of the refrigerator.
02_ Safety information
puts the packing materials on his or her head.
•The appliance must be positioned so that the plug
is accessible after installation.
•You need to remove all the protective plastic film
before you initially plug the product in.
•The refrigerator must be safely grounded.
- Always make sure that you have grounded the
refrigerator before attempting to investigate or
repair any part of the appliance. Power leakages
can cause severe electric shock.
•Never use gas pipes, telephone lines or other
potential lightning attractors as an electrical ground.
- Improper use of the grounding plug can result in
a risk of electric shock. If it is necessary to use
an extension cord, use only a 3-wire extension
cord that has a 3-blade grounding plug and a
3-slot receptacle that will accept the plug on the
appliance. The marked rating of the extension
cord should be AC115-120 V, 10 A, or more.
If a grounding adapter is used, make sure the
receptacle box is fully grounded.
•If the power cord is damaged, have it replaced
immediately by the manufacturer or its service
agent.
CAUTION
- If your refrigerator is not level, the internal cooling
•Keep the ventilation space in the appliance enclosure
•Allow the appliance to stand for 2 hours after
•Werecommendyouhavethisrefrigeratorinstalled
- Failing to do so may result in an electric shock, fire,
WARNING
•Do not store articles on the top of the appliance.
- When you open or close the door, the articles
•Do not put a container filled with water on the
INSTALLATION CAUTIONS
•Allow sufficient space to install the refrigerator
on a flat surface.
system may not work correctly.
or mounting structure clear of obstruction.
installation.
b y a q u a l i fi e d t e c h n i c i a n o r s e r v i c e c o m p a n y .
explosion, problems with the product, or injury.
CRITICAL USAGE WARNINGS
•Do not insert the power plug with wet hands.
may fall and cause personal injury and/or material
damage.
refrigerator.
- If spilled, there is a risk of fire or electric shock.
•Children should be supervised to ensure that they
do not play with the appliance.
•Do not let children hang on the door. A serious
injury may occur.
•Do not let children go inside the refrigerator.
Children could become trapped.
•Do not insert your hands into the bottom area
under the appliance.
- Any sharp edges may cause personal injury.
•Do not let children step on a drawer’s cover.
- The drawer may break and cause them to slip.
•Do not overfill the refrigerator with food.
- When you open the door, an item may fall out and
cause personal injury or material damage.
•Do not touch the inside walls of the freezer or
products stored in the freezer with wet hands.
- This may cause frostbite.
•Never put fingers or other objects into the water
dispenser hole, ice chute, or ice maker bucket.
- It may cause personal injury or material damage.
•Do not spray flammable gas near the refrigerator.
- There is a risk of explosion or fire.
•Do not store volatile or flammable substances in the
refrigerator.
- The storage of benzene, thinner, alcohol, ether,
LP gas and other such products may cause
explosions.
•Do not store pharmaceuticals products, scientific
materials, or temperature sensitive products in the
refrigerator.
- Products that require strict temperature controls
must not be stored in the refrigerator.
•Do not place or use an electrical appliance inside
the refrigerator, unless it is of a type recommended
by the manufacturer.
•Do not stand on top of the appliance or place
objects (such as laundry, lighted candles, lighted
cigarettes, dishes, chemicals, metal objects, etc.)
on the appliance.
- This may result in an electric shock, fire, problems
with the product, or injury.
•Donotputacontainerlledwithwateronthe
appliance.
- If spilled, there is a risk of fire or electric shock.
•Do not use mechanical devices or any other means
to accelerate the defrosting process, other than
those recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not disassemble or repair the refrigerator
Safety information _03
by yourself.
- You run risk of causing a fire, malfunction and/or
personal injury.
- When the interior or exterior LED lamp has gone
out, please contact your service agents.
•Children should be supervised to ensure that
they do not play with the appliance.
•Bottles should be stored tightly together so that
they do not fall out.
•This product is intended only for the storage of food
in a domestic environment.
•If a gas leak is detected, avoid any naked flames
or potential sources of ignition and air the room in
which the appliance is standing for several minutes.
•Use only the LED Lamps provided by manufacturer
or service agents.
•If there are burning smells or smoke, pull out
power plug immediately and contact your
Samsung Electronics service center.
•If you experience difficulty when changing the light,
contact a service agent.
•If the product is equipped with LED Lamps, do not
disassemble the Lamp Cover and LED Lamp by
yourself.
- Please contact your service agents.
•If any dust or water is in refrigerator, pull out the
power plug and contact your Samsung Electronics
service center.
- Otherwise there is a risk of fire.
CAUTION
Do not place carbonated or fizzy drinks in the freezer
compartment. Do not put bottles or glass containers
in the freezer.
- When the contents freeze, the glass may break and
- Any changes or modifications performed by a 3rd
•Do not block air holes.
- If the air holes are blocked, especially with a plastic
USAGE CAUTIONS
•Do not re-freeze frozen foods that have
thawed completely.
cause personal injury.
•Service warranty and Modification.
party on this finished appliance are not covered
under Samsung warranty service, nor can Samsung
be responsible for safety issues that result from 3rd
party modifications.
bag, the refrigerator can be over cooled. If this
cooling period lasts too long, the water filter may
break and cause water leakage.
•If the refrigerator is disconnected from the power
supply, you should wait for at least five minutes
before plugging it back in.
•If you have a long vacation planned or the
refrigerator is not to be used for a long period of
time, you must empty the refrigerator and pull out
the power plug.
- Letting the refrigerator run for a long time without
using it can cause the insulation to deriorate and
may cause a fire.
- Wipe excess moisture from the inside and leave
the doors open. Otherwise, odor and mold may
develop.
•To get the best performance from the product:
- Do not place foods too close to the vents at the
rear of the appliance as it can obstruct free air
circulation in the refrigerator compartment.
- Wrap food up properly or place it in airtight
containers before putting it into the refrigerator.
•Fill the water tank, ice tray, and water cubes only
with potable water.
•If the product is flooded, make sure to contact
your nearest service center.
- There is a risk of electric shock or fire.
CAUTION
- There is a risk of fire or electric shock.
•Donotuseahairdryertodrytheinsideofthe
- This may result in an electric shock or fire.
- Otherwise, there is a risk of fire or electric shock.
CLEANING CAUTIONS
•Do not directly spray water on the inside or
outside the refrigerator.
refrigerator. Do not place a lighted candle in the
refrigerator to remove bad odors.
•Remove any foreign matter or dust from the
power plug pins. Do not use a wet or damp
cloth when cleaning the plug.
•Unplug the refrigerator before cleaning or
making repairs.
CRITICAL DISPOSAL
WARNING
- Take off the doors.
- Leave the shelves in place so that children can not
WARNINGS
•Risk of child entrapment. Before you throw
away your old refrigerator or freezer:
easily climb inside.
04_ Safety information
•Please dispose of the packaging material from this
3 inches
3/4
2 inches
2 inches
EE
CC
A
A
BB
DD
product in an environmentally friendly manner.
•Leave the shelves in place so that children can not
easily climb inside. Ensure that none of the pipes
on the back of the appliance are damaged prior to
disposal.
•R600a or R134a is used as a refrigerant. Check the
compressor label on the rear of the appliance or the
rating label inside the fridge to see which refrigerant
is used for your refrigerator. If this product contains
flammable gas (Refrigerant R600a), contact your
•When disposing of this refrigerator, remove the
door/door seals and door latch so that small
children or animals cannot become trapped inside.
Children should be supervised to ensure that they
do not play with the appliance.
•Cyclopentane is used in the insulation. The gases
in the insulation material require a special disposal
procedure. Please contact your local authorities in
regard to the environmentally safe disposal of this
product. Ensure that none of the pipes on the back
of the refrigerator are damaged prior to disposal.
local authority in regard to safe disposal of this
product.
Contents
SETTING UP YOUR FRENCH DOOR REFRIGERATOR ................................................................................5
OPERATING YOUR FRENCH DOOR REFRIGERATOR ...............................................................................11
TROUBLESHOOTING .................................................................................................................................24
WARRANTY ................................................................................................................................................. 25
01 SETTING UP

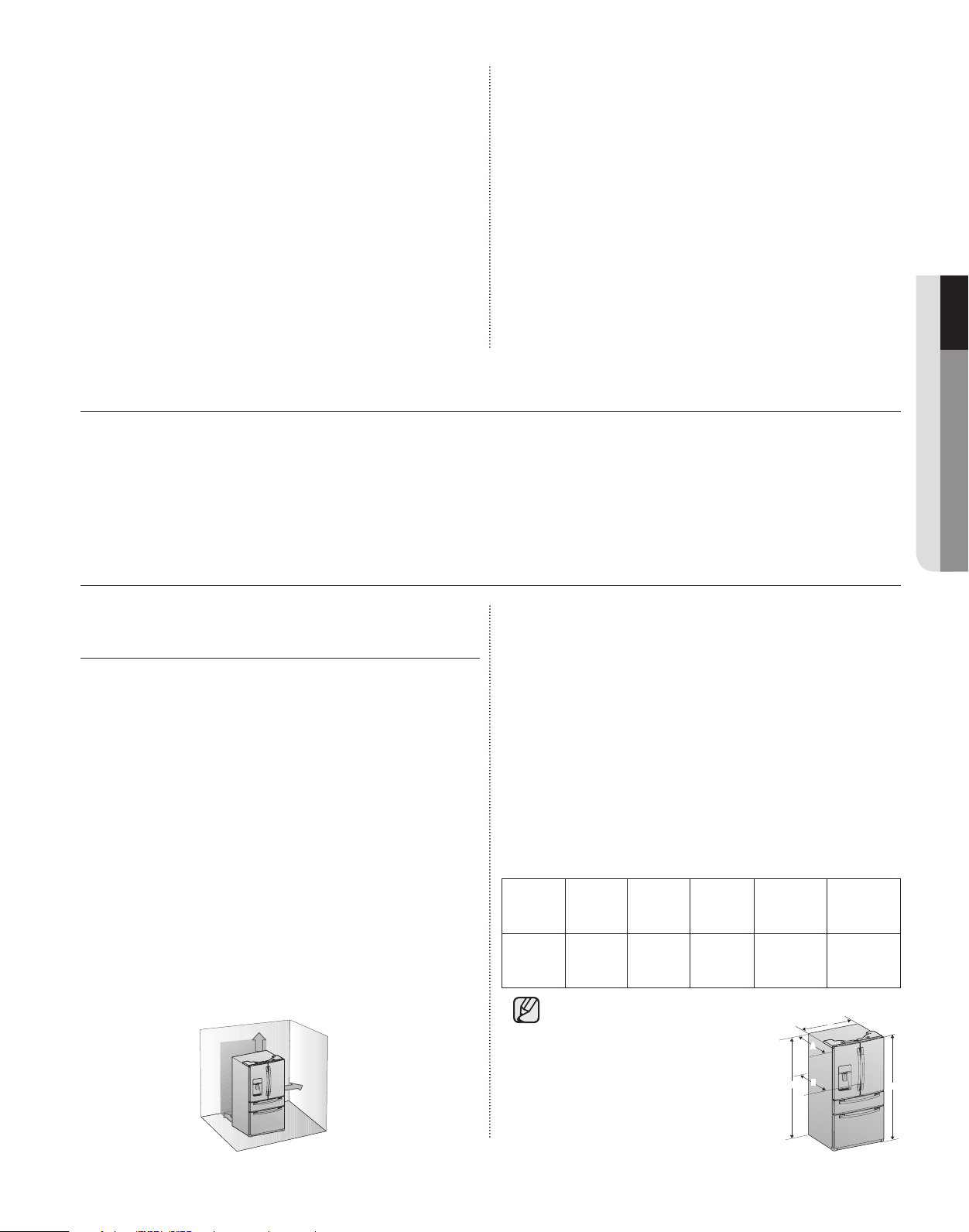

Setting up your French Door Refrigerator
GETTING READY TO INSTALL THE
REFRIGERATOR
Congratulations on your purchase of this Samsung
French Door Refrigerator.
We hope you enjoy the state-of-art features and
efficiencies that this new appliance offers.

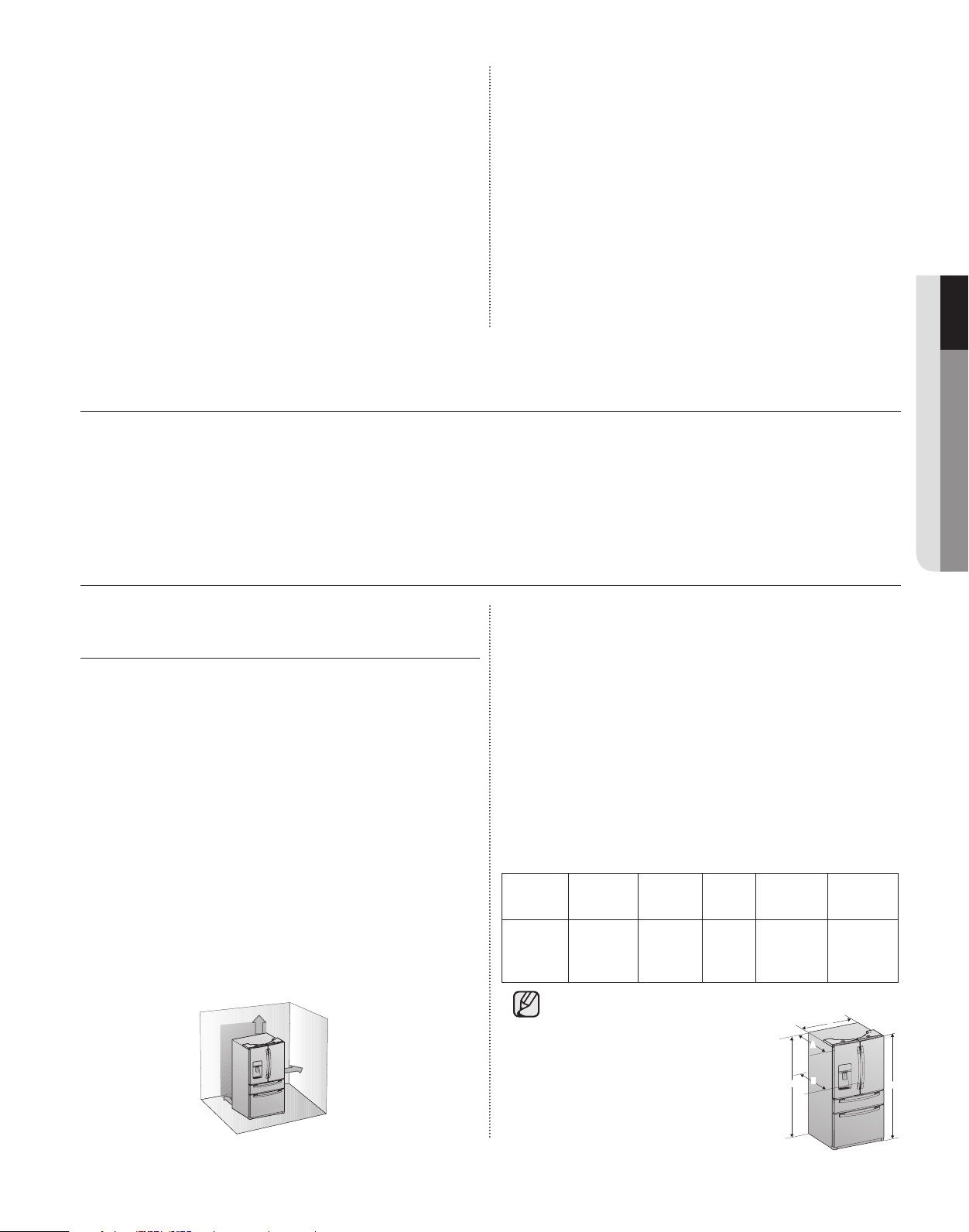

Selecting the best location for the
refrigerator
•A location with easy access to a water supply.
•A location without direct exposure to sunlight.
•A location with a leveled floor.
•A location with enough space for the refrigerator
doors to open easily.
•A location that allows sufficient space to the right,
left, back and top for air circulation.
•A location that allows you to move the refrigerator
easily if it needs maintenance or service.
If the refrigerator does not have enough space, the
internal cooling system may not work properly.
If your refrigerator has an ice maker, allow extra space
at the back for the water line connections.
When you install the refrigerator next to a fixed wall,
you need a minimum clearance of 3 ¾” (95mm)
between the refrigerator and wall to allow the door to
swing open.
First thing! Make sure that you can easily move your
refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways,
etc.
The following chart details the exact height and depth
of this Samsung French Door Refrigerator.
Model
RF4267HA
Depth
“A”
29½”
(749
mm)
Width
“B”
32¾”
(830 mm)
Height
“C”
68⅝”
(1742
mm)
Height “D”
(1768 mm)
•Allow clearance to the right, left, back and top
when installing.
This will help reduce power
consumption and keep your energy
bills lower.
•Do not install the refrigerator where
the temperature will go below 50ºF
(10ºC).
Overall
69⅝”
setting up _05
Depth
“E”
36¼”
(922
mm)
•Do not locate the refrigerator where it may become
wet.

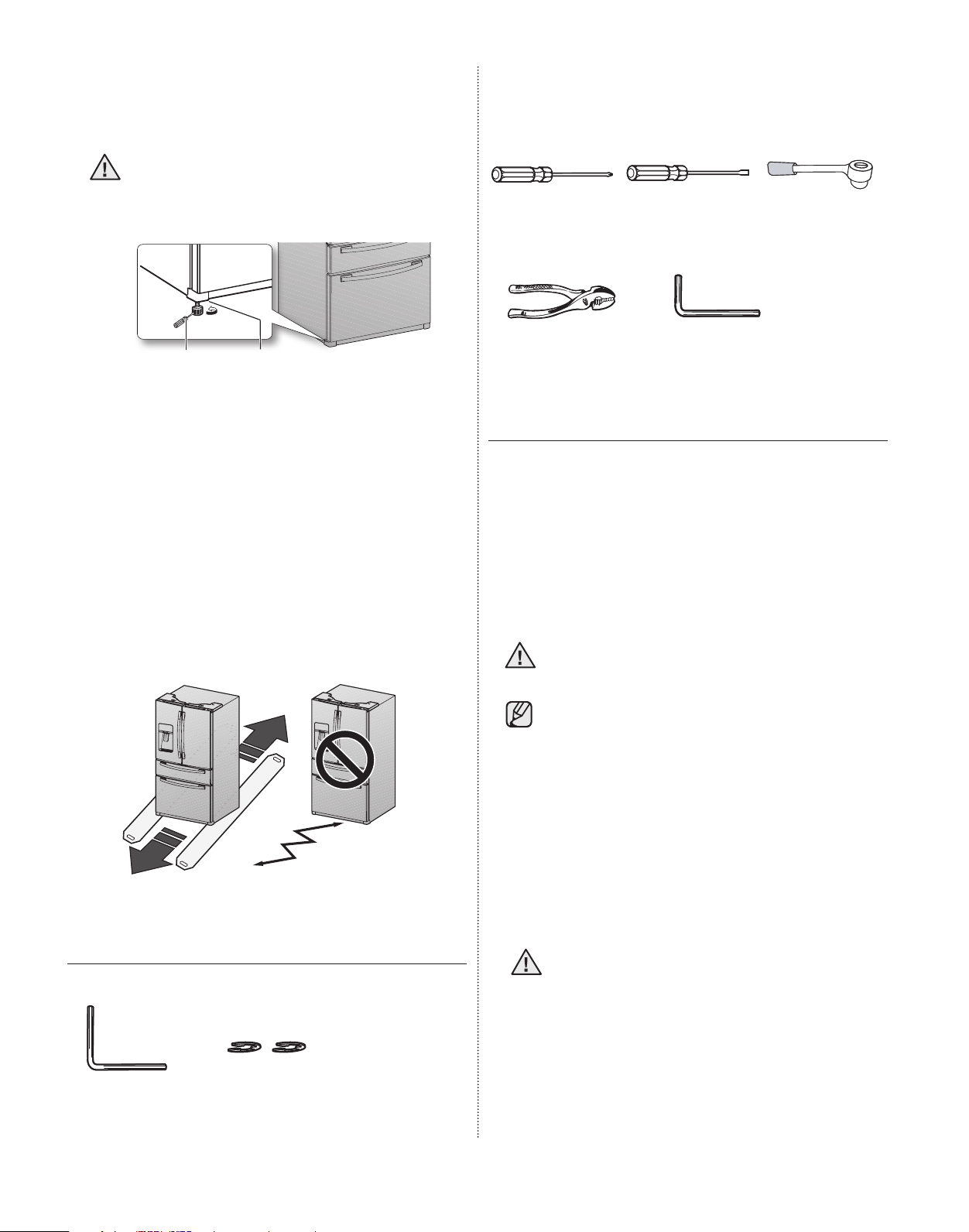

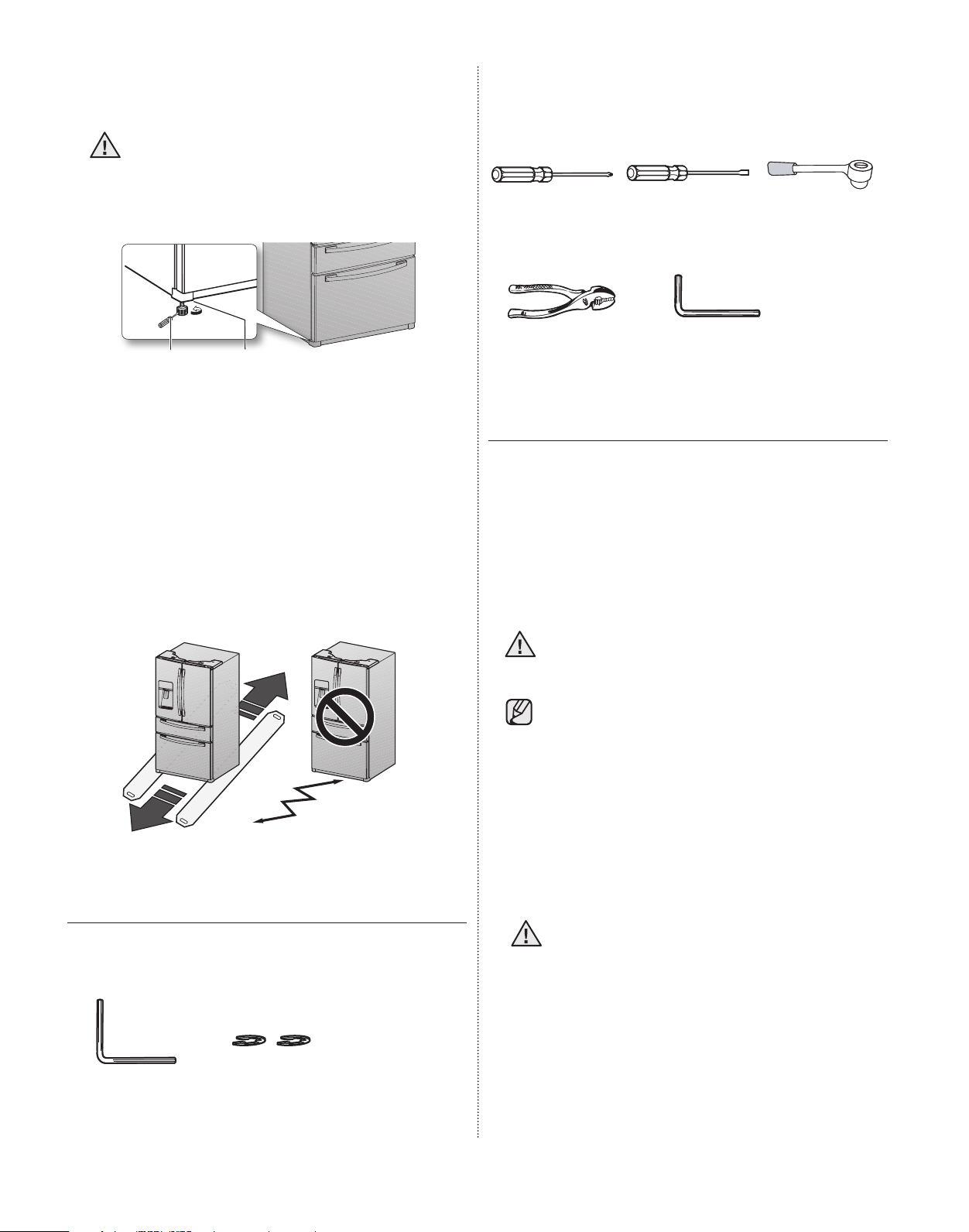

When moving your refrigerator
To prevent floor damage, be sure the front
CAUTION
Refer to ‘Adjusting the doors’ in the manual (on
page 9).
adjusting legs are in the up position (above
the floor).
Required Tools (Not provided)
You need the following tools to complete the
installation of your refirgerator:
Philips screw-
driver (+)
Pliers Allen wrench (3/16”) (5mm)
Flat-blade screw-
driver (-)
Socket wrench
(10mm)
Flat-blade
screw driver(-)
FLOORING
For proper installation, you must place this refrigerator
on a level, hard surface that is the same height as the
rest of the floor. This surface should be strong enough
to support a fully loaded refrigerator, or approximately
359lbs (165kg). To protect the finish of the flooring, cut
a large section of the cardboard carton and place it
under the refrigerator where you are working.
When moving the refrigerator, you need to pull and
push it straight forwards or back. Do not wiggle it from
side to side.
Control Lever
REMOVING THE REFRIGERATOR
DOORS
For some installations you need to remove the fridge
and flex doors and the freezer drawer so you can
move the refrigerator to its final location. Do not
remove the doors/drawer if you don't need to. If you
do not need to remove the doors/drawer, go to
Adjusting the Level on page 8. If you need to remove
the doors/drawer, continue below.
Before removing the door/drawer, make sure you read
the following items:
Disconnect power to the refrigerator before
WARNING
•Be careful not to get injured while removing the
door/drawer.
•Reattach the door/drawer properly to avoid:
- Moisture from air leakage.
- Uneven door alignment.
- Wasting energy due to improper door seal.
removing the door or drawer.
• Be careful not to drop, damage or scratch
the door/drawer while removing them.
ACCESSORIES AND REQUIRED
TOOLS
The following accessories are included with your
refigerator:
Hex wrench Fastener
06_ setting up
Disassemble the refrigerator doors
Be careful not to drop and scratch the doors
WARNING
while removing the doors.

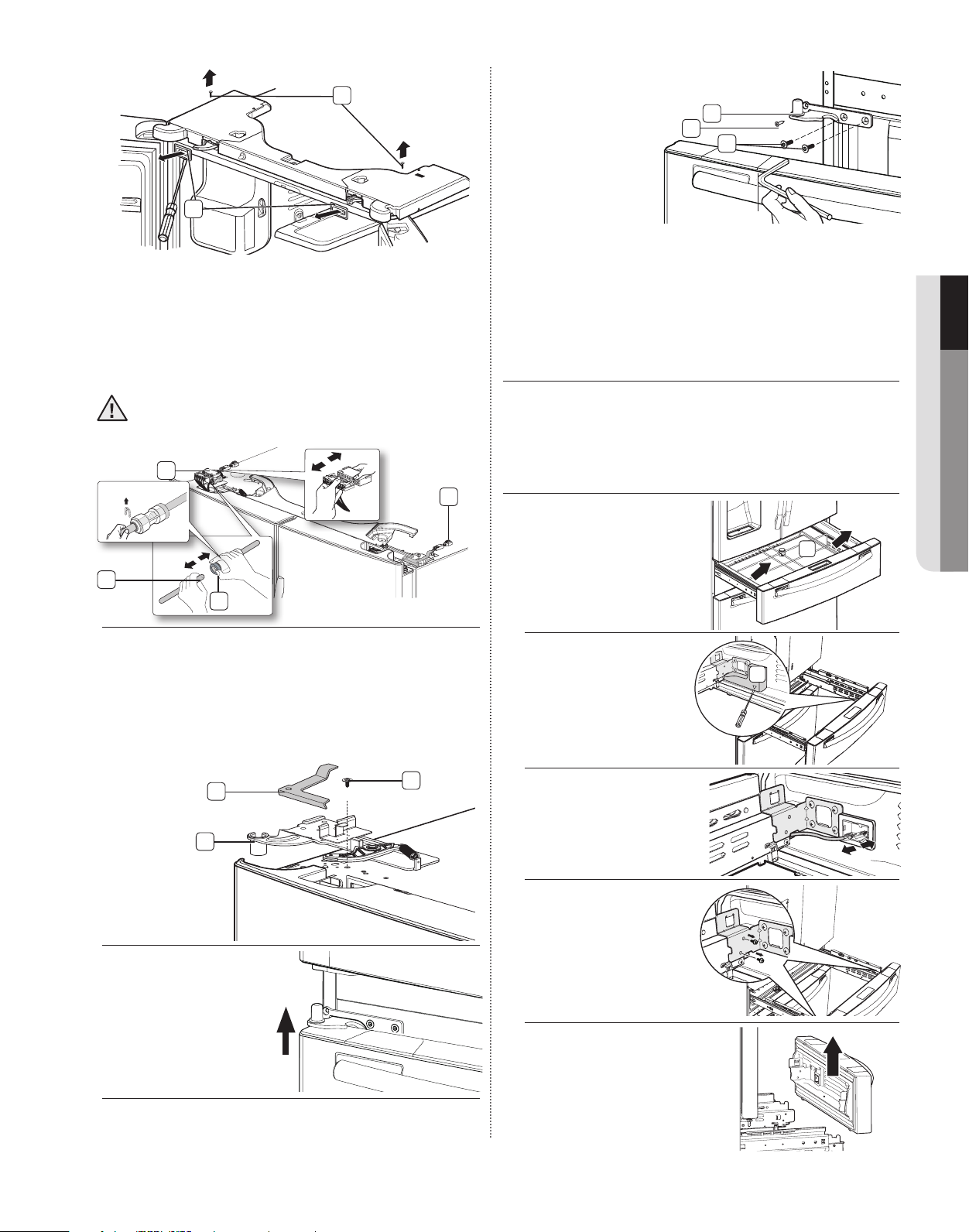

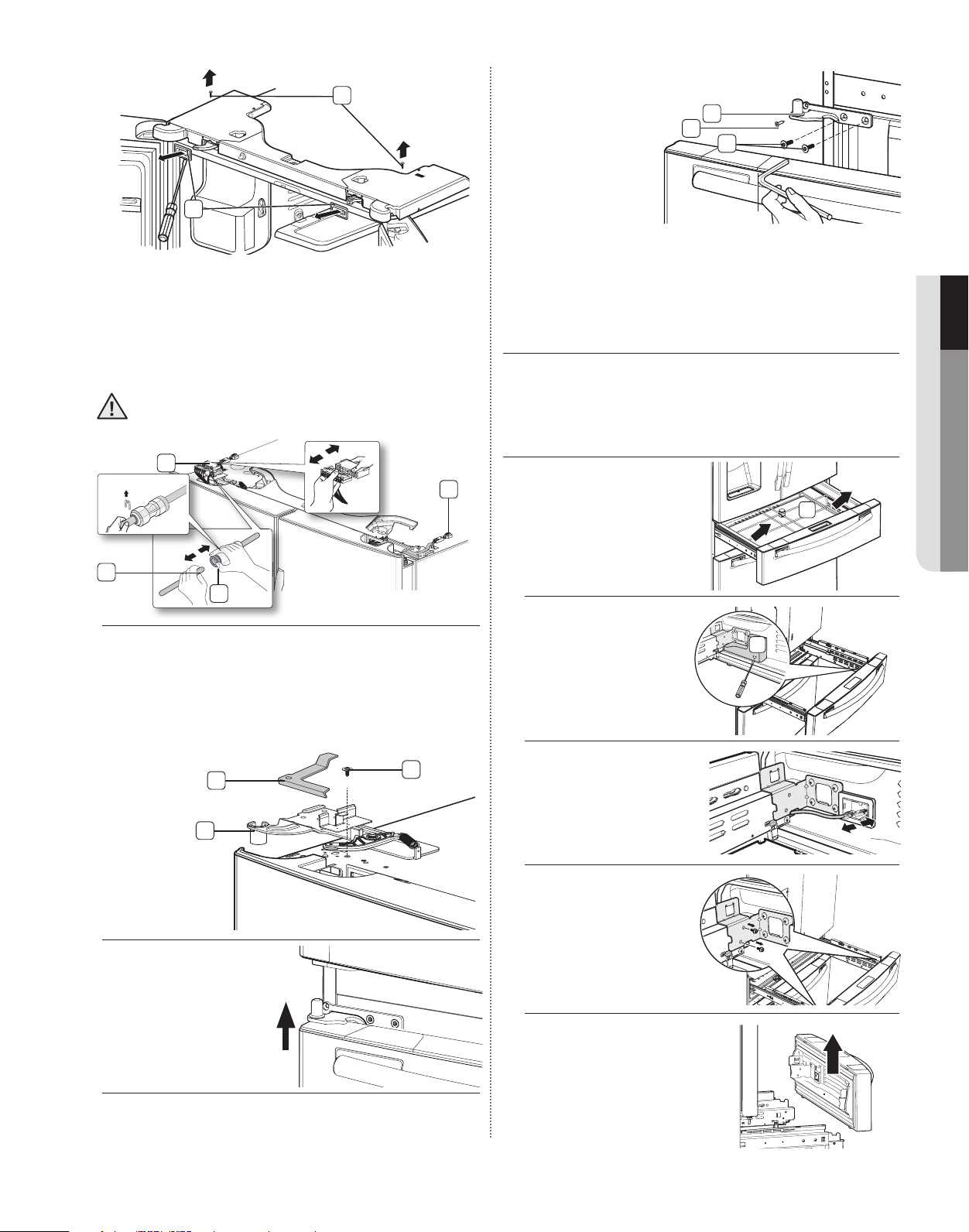

Disassemble the refrigerator doors
1. With the door opened, remove the cap top table
( 1 ) with a flat-blade screwdriver(-). and close
the door. Remove 2 screws holding down the
cover hinge ( 2 ) and turn it with several wires
connected.
2
1
2. Disconnect one connector ( 3 ) on the right side
door and one connector ( 4 ) on left side door. To
remove the water coupler from the hinge, twist
and pull it from the hinge. Remove the water line
( 5 ) while pressing the marked part ( 6 ) of the
water line coupler.
If a red clip is on the coupler, it must be
CAUTION
removed before removing the tube.
left and right
door hinges
with a philips
screwdriver (+).
Remove the 2
12
10
11
hex head bolts
( 11 ) attached
to the lower left
Allen wrench
and right door
hinges with an allen wrench (3/16”). Remove the
lower left and right door hinges ( 12 ).
REATTACHING THE REFRIGERATOR
DOORS
To reattach the fridge doors after you have moved the
fridge to its final location, assemble parts in reverse order.
DISASSEMBLE THE FLEX DOOR
01 SETTING UP
4
Red Clip
(1/4")
5
6
3
3. Pull and remove the hinge lever ( 7 ) . Remove the
ground screw ( 8 ) attached to the upper left and
right door hinges with a philips screwdriver (+).
Remove the upper left and right door hinges ( 9 ).
7
9
8
4. Lift the door straight
up to remove.
1. Take out the Flex
Zone ( 1 ) by lifting
it up.
2. Take off the cover
( 2 ) w/harness
with a flat-blade
screwdriver (-).
3.
Disconnect the housing
connector.
4. Remove 2 hex head
bolts from sides with
a socket wrench
(10mm).
1
2
5. Remove the screw ( 10 ) attached to the lower
5. Lift up the Flex door from
the rails.
setting up _07
08_ setting up
ASSEMBLE THE FLEX DOOR
ADJUSTING THE LEVEL
To reattach the flex doors after you have moved the
fridge to its final location, assemble parts in reverse order.

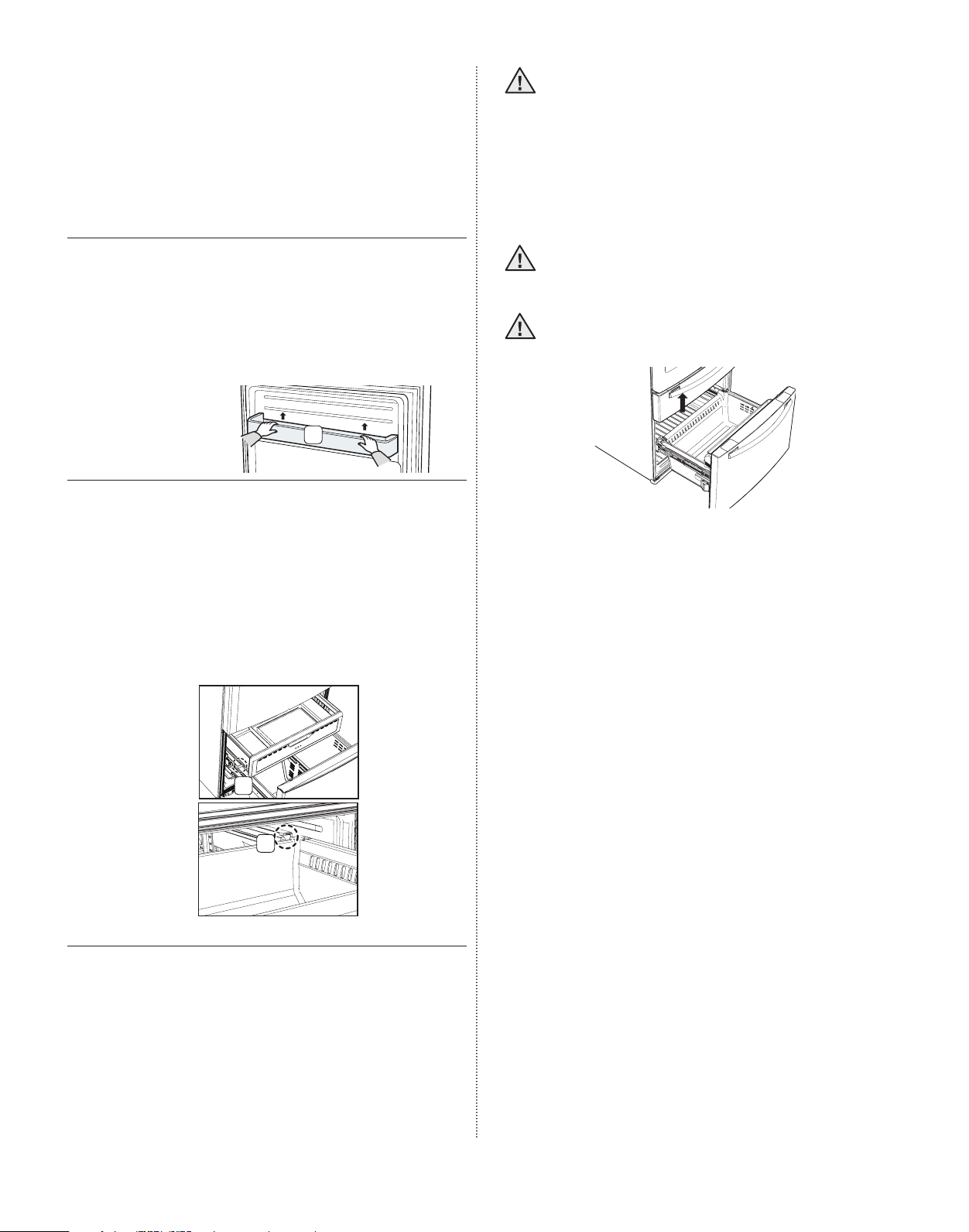

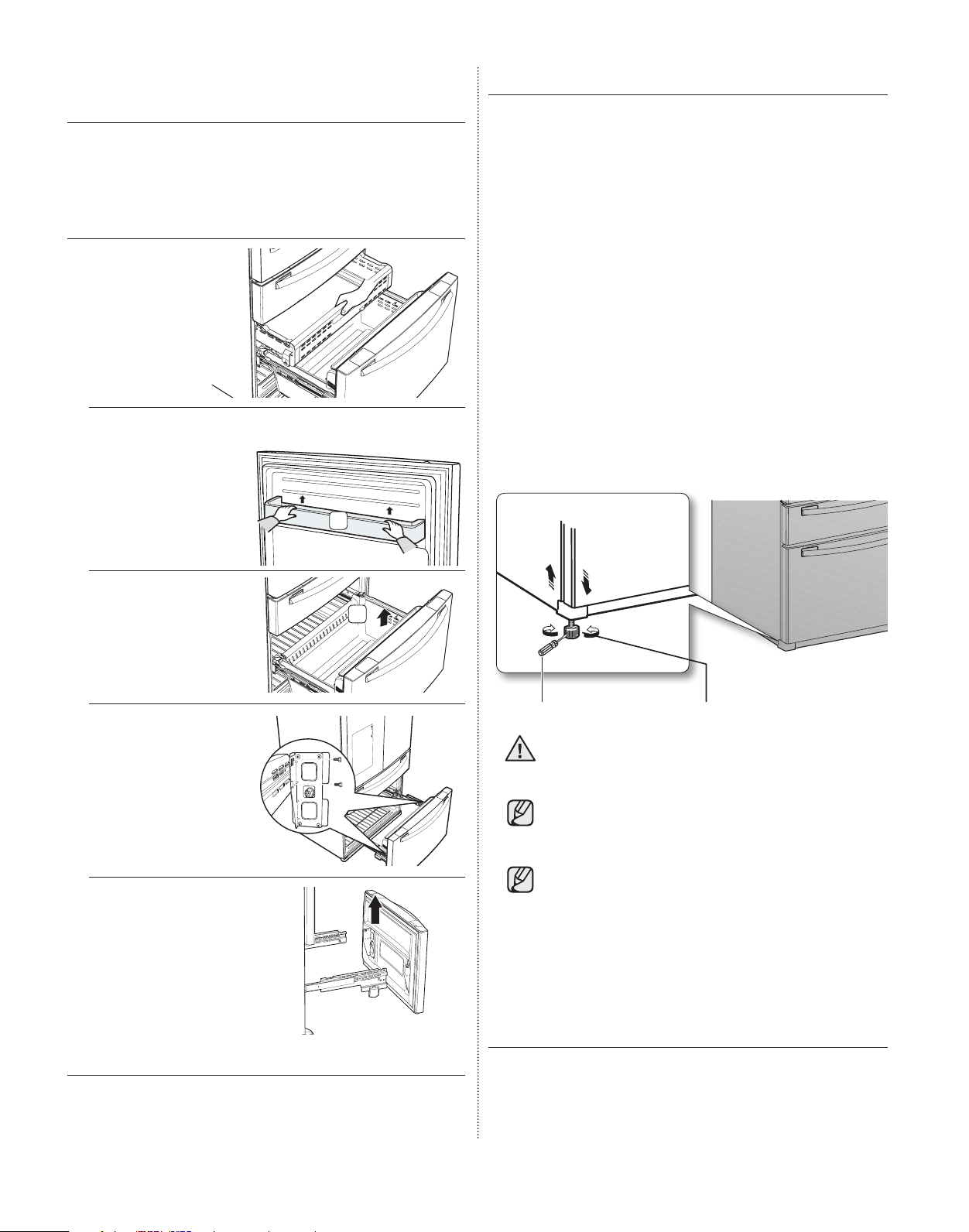

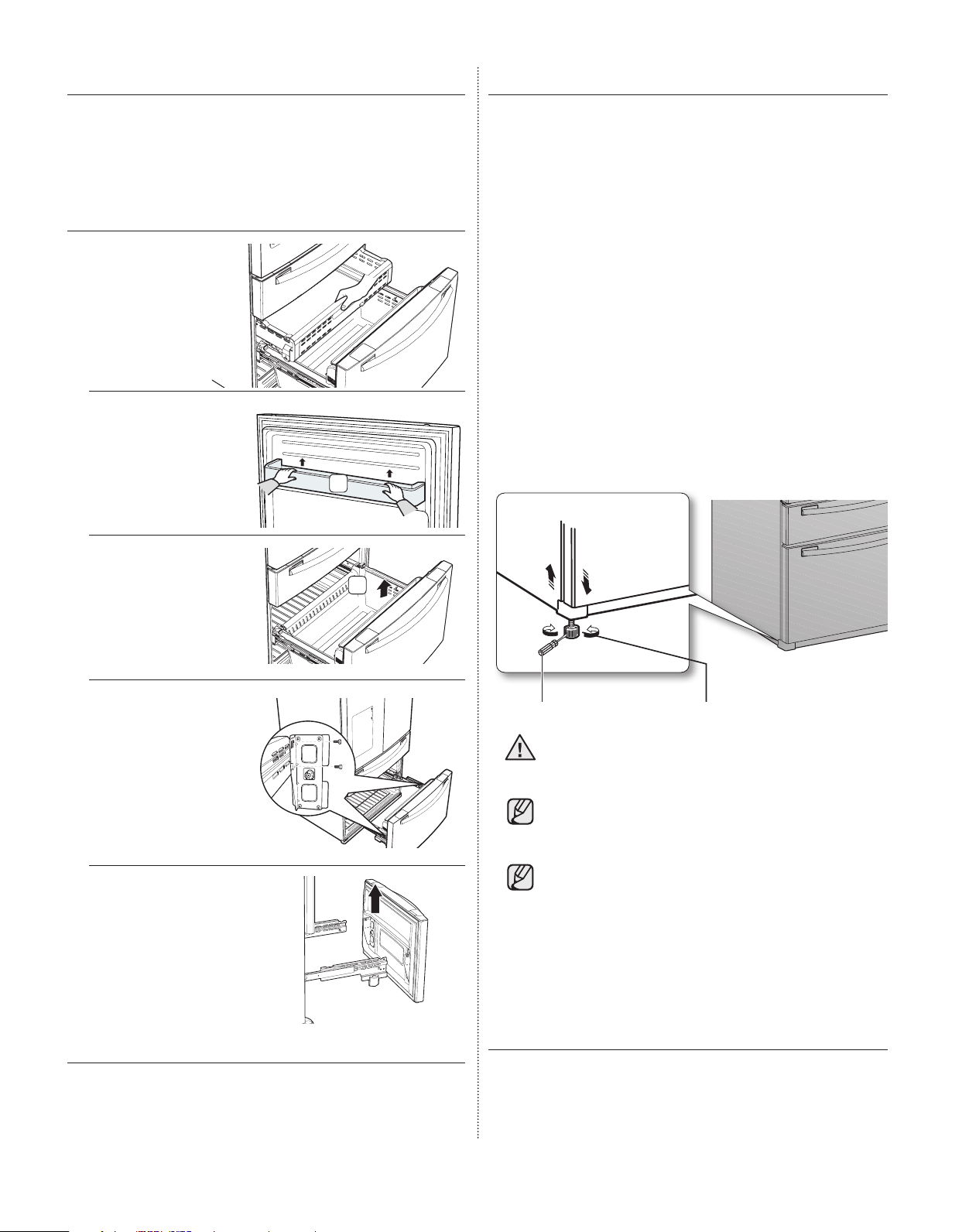

DISASSEMBLE THE FREEZER DRAWER
1. Take out the
upper drawer
by lifting it up.
2. Remove the freeze room guard ( 1 ) by lifting the
guard up.
1
3. Take out the lower
basket ( 3 ) by
lifting the basket
up from the rail
system.
3
Make sure the refrigerator is level so that you can
make final adjustments. Use a level to test if the
refigerator is level both side to side and back to front. If
the refrigerator is not level, it will not be possible to get
the doors perfectly even, which may cause moisture
condensation and increased energy bills. Below is an
example of how to level the refrigerator if the left side
of the refrigerator is lower than the right side.
How to adjust the level
Insert a flat-blade screwdriver (-) into a notch on the
left control lever, and turn it count clockwise to level
the refrigerator. (You turn the lever clockwise to lower
the refrigerator and counterclockwise to raise it.)
flat-blade screwdriver(-) Control Lever
4. Remove 4 hex
head bolts from
both sides with
a socket wrench
(10mm).
5. Lift up the freezer
door from the rails.
ASSEMBLE THE FREEZER DRAWER
To reattach the drawer after you have moved the fridge
to its final location, assemble parts in reverse order.
Both control levers must be touching the floor
CAUTION
to avoid possible personal injury or property
damage because of tipping.
If the right side is lower, perform the same
procedure, but with the right control lever.
It is difficult to remove the cover leg front from
the refrigerator, so we do not recommend
making small adjustments wIth the control
lever. Instead, refer to the next page for the
best way to make minor adjustments to the
doors.

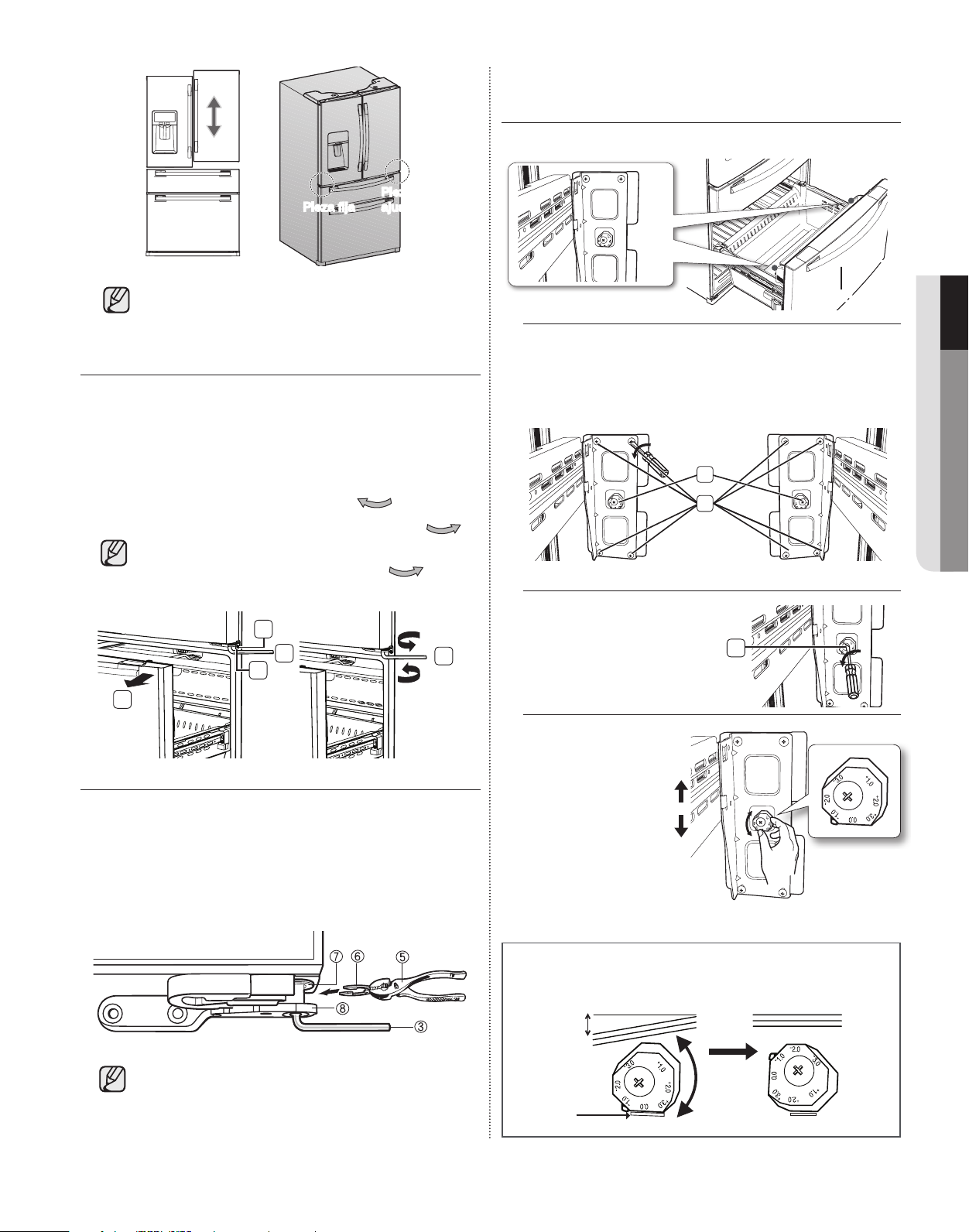

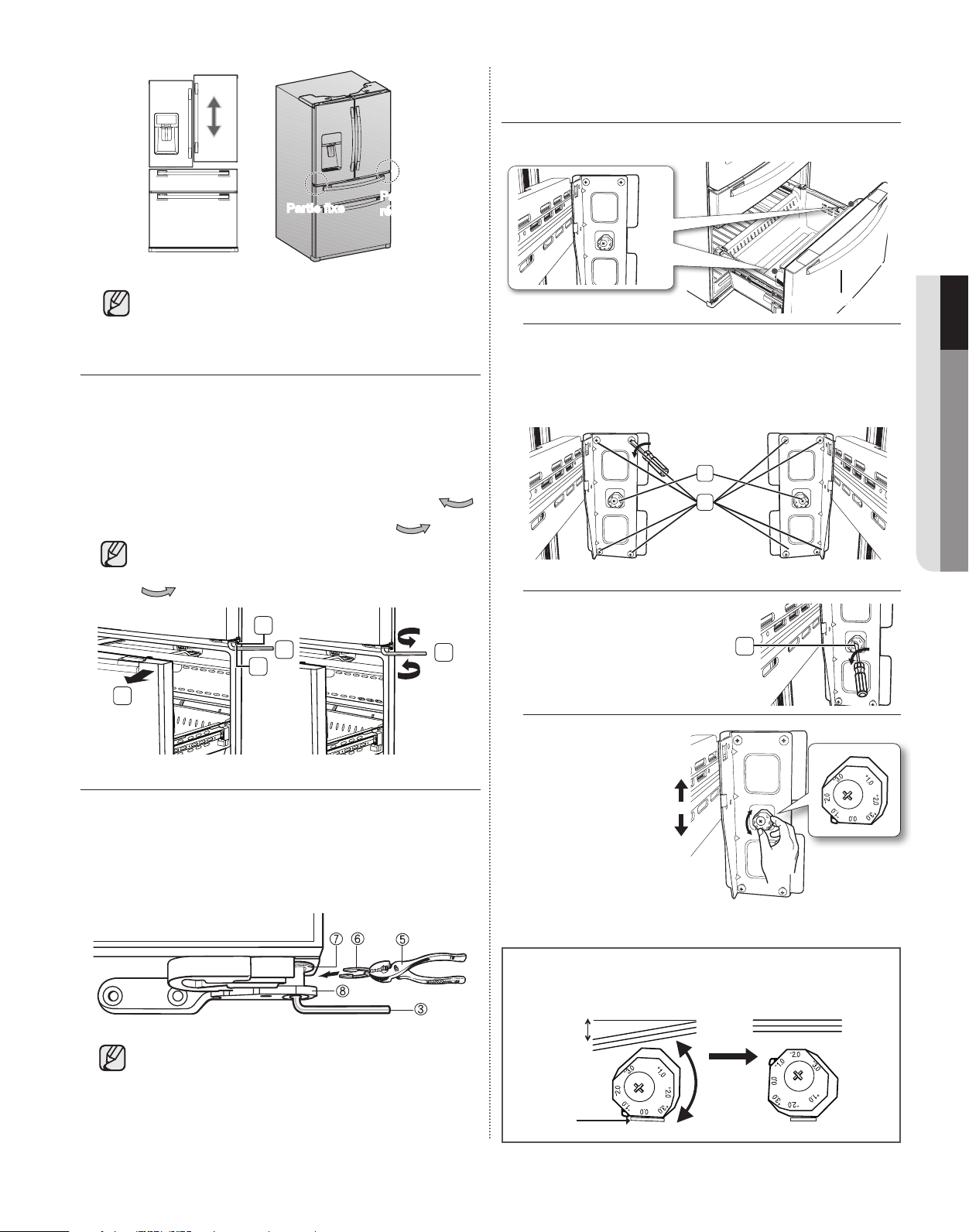

MAKING MINOR ADJUSTMENTS
BETWEEN DOORS
Remember, a leveled refrigerator is necessary for
getting the doors perfectly even. If you need help,
review the previous section on leveling the refrigerator.
setting up _09
01 SETTING UP
ADJUSTING THE FREEZER DRAWER
LEVEL
Adjustment part
Fixed part
Adjustment
part
The left door is fixed. To make minor
adjustments between doors, adjust only the
right door.
1. Pull out the Convertible door ( 1 ) to expose the
lower hinge ( 2 ).
2. Insert the supplied allen wrench (3/16”) ( 3 ) into
the shaft ( 4 ) of the lower hinge.
3. Please adjust the height by turning the hex
wrench ( 3 ) clockwise (
clockwise (
UP
).
DOWN
) or counter-
When you turn the hex wrench counterclockwise (
1
), the door will move up.
2
3
4
3
Freezer Drawer
1. Locate the height-adjuster ( 1 ) in the freezer
drawer.
Unscrew the 8 Phillips screws ( 2 ) slightly to
loosen the door.
1
2
2. Loosen the controller
screw ( 3 ) with a Phillips
screwdriver (+).
3
1. After adjusting the doors, insert the supplied
fastener ( 6 ) using a pliers ( 5 ) in the gap
between the hinge-grommet ( 7 ) and the lower
hinge ( 8 ). The number of fasteners you’ll need to
insert depends on the gap.
2 fastener are enclosed with the refrigerator.
The thickness of each fastener is 0.04”.
3. Find the best level
to align the door
slope.
• After
adjustment,
tighten the
controller screw
( 3 ) and then
philips screws.
Example) The slope is about 0.08inch (2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
Slope
Reference
plane
CHECKING THE WATER DISPENSER LINE
INSTALLING THE WATER LINE
A water dispenser with a filter is one of the helpful
features on your new refrigerator. To help promote
better health, the water filter removes unwanted
particles from your water. However, it does not sterilize
or destroy microorganisms. You may need to purchase
a water purifying system to do that.
In order for the ice maker to operate properly, a water
pressure of 20~125 psi is required.
Under normal conditions, a 170 cc (5.75 oz.) cup can
be filled in about 10 seconds.
If the refrigerator is installed in an area with low water
pressure (below 20psi), you can install a booster pump
to compensate for the low pressure.
After you have connected the water line, make
sure the water storage tank inside the refrigerator is
properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
Water line installation kits are available at extra
cost from your dealer. We recommend using a
water line installation kit that contains copper tubing
and ¼” compression nut.
Connecting the water supply line to the
refrigerator.
There are several items that you need to purchase
to complete this connection.
You may find these items sold as a kit at your local
hardware store.
Use Copper Tubing Use Plastic Tubing
• ¼” copper tubing
• ¼” compression nut (1pc)
• Ferrule (2pc)
Compression
Nut (1/4”)
(Assembled)
• ¼” plastic tubing
→ Molded end(Bulb)
• ¼” compression nut (1pc)
Refrigerator
Plastic Tubing
(Assembled)
Compression Fitting
(Assembled)

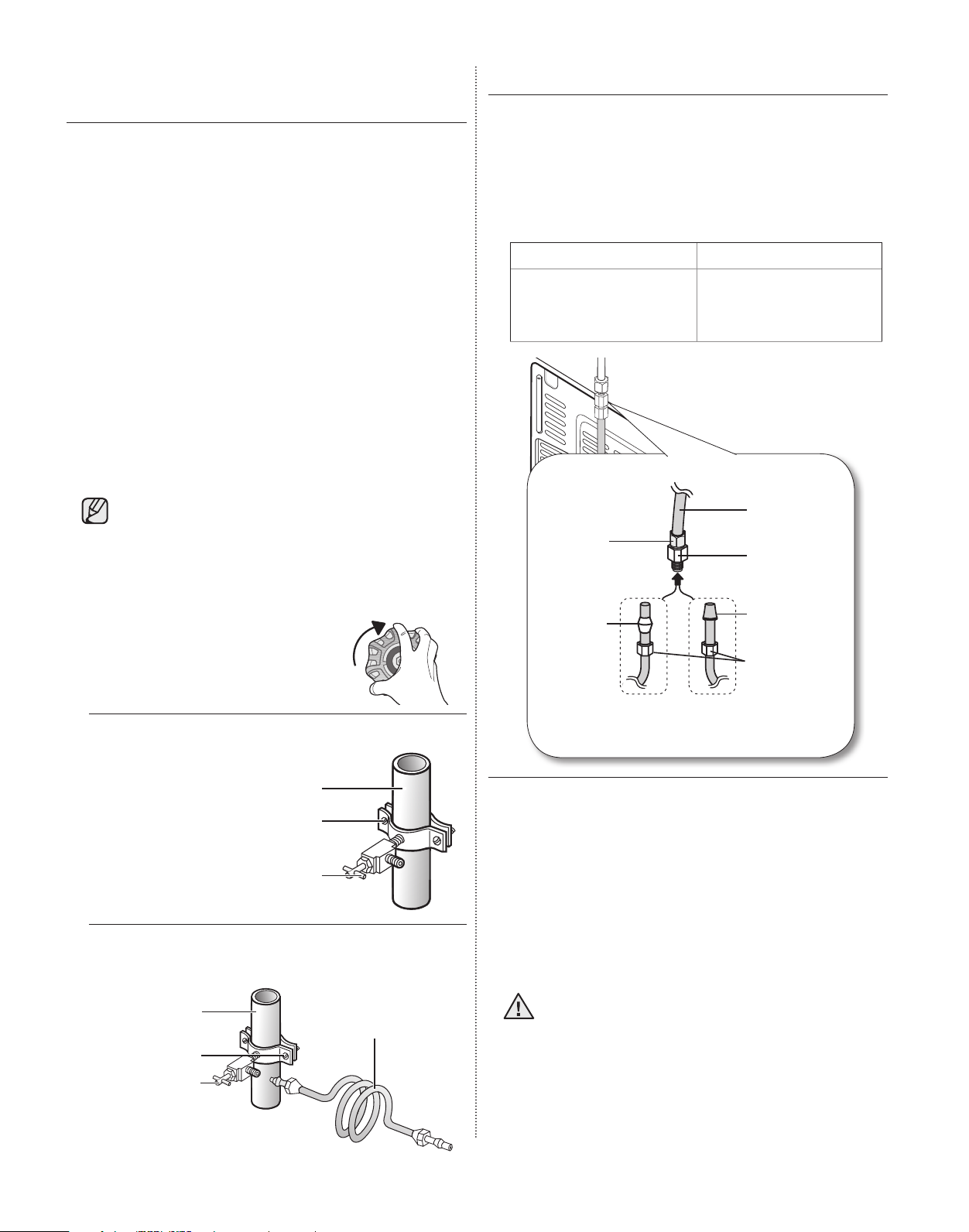

Connecting to the water supply line
1. First, shut off the main water
supply.
2. Locate the
nearest cold
water drinking
line and install
the pipe clamp
and shut off
valve.
3. Connect the water line installation kit to the shut
off valve.
Cold water line
Pipe clamp
Shut off valve
Cold water line
Pipe clamp
Shut off valve
Water line installation kit
Ferrule
(Not supplied)
Copper tubing
(Not supplied)
Plastic tubing (B)
or
(Not supplied)
Household water supply line
Molded end(Bulb)
Compression nut (B)
(1/4”)
(Not supplied)
1. Connect the household water line to the
assembled compression fitting.
- If you are using copper tubing, slip the
compression nut ( B )
(not supplied) and ferrule
(not supplied) on the copper tubing (not supplied)
as shown.
- If you are using plastic tubing ( B ) , insert the
molded end (Bulb) of the plastic tubing ( B ) into
the compression fitting.
Do not use without the molded end (Bulb) of
CAUTION
the plastic tubing ( B ).
2. Tighten the compression nut ( B ) onto the
compression fitting.
Do not over-tighten the compression nut ( B ) .
10_ setting up
3. Turn water on and check for any leakage. If you
find water drops or leakage in the connection
areas, turn off the main water supply. Check the
connections and, if nescessary, tighten.
4. Flush 1 gallon of water through the filter before
drinking or using the water from the refrigerator.
(Flush approximately 6 minutes.) To flush, press
a large glass or cup against the water dispenser
lever. Fill the glass, empty it into the kitchen sink
after it is filled, and then repeat.
5. After you turn on the refrigerator, let the ice maker
make ice for 1 to 2 days. Over that period of time,
throw out the first 1 or 2 buckets of ice the freezer
makes to ensure all impurities have been removed
from the water line.
Only connect the water line to a drinkable
water source.
If you have to repair or disassemble the water line,
cut off 1/4“ of the plastic tubing to make sure you
get a snug, leak-free connection.
COMPLETING THE SET UP
Now that you have your new refrigerator installed in
place, you are ready to set up and enjoy the features
and functions of the appliance. By completing the
following steps, your refrigerator should be fully
operational.
1. Make sure your refrigerator is in an appropriate
location with reasonable clearance between it and
the wall. Refer to installation instructions in this
manual.
2. Once the refrigerator is plugged in, make sure the
interior light comes on when you open the doors.
3. Set the Temperature control to the coldest
temperature and wait for an hour. The freezer
will get slightly chilled and the motor will run
smoothly. Reset the refrigerator and freezer to the
temperatures you want.
4. After you plug the refrigerator in, it will take a few
hours to reach the appropriate temperature. You
can store food and drinks in the refrigerator after
the temperature is sufficiently cool.
02 OPERATING
Operating your French Door Refrigerator

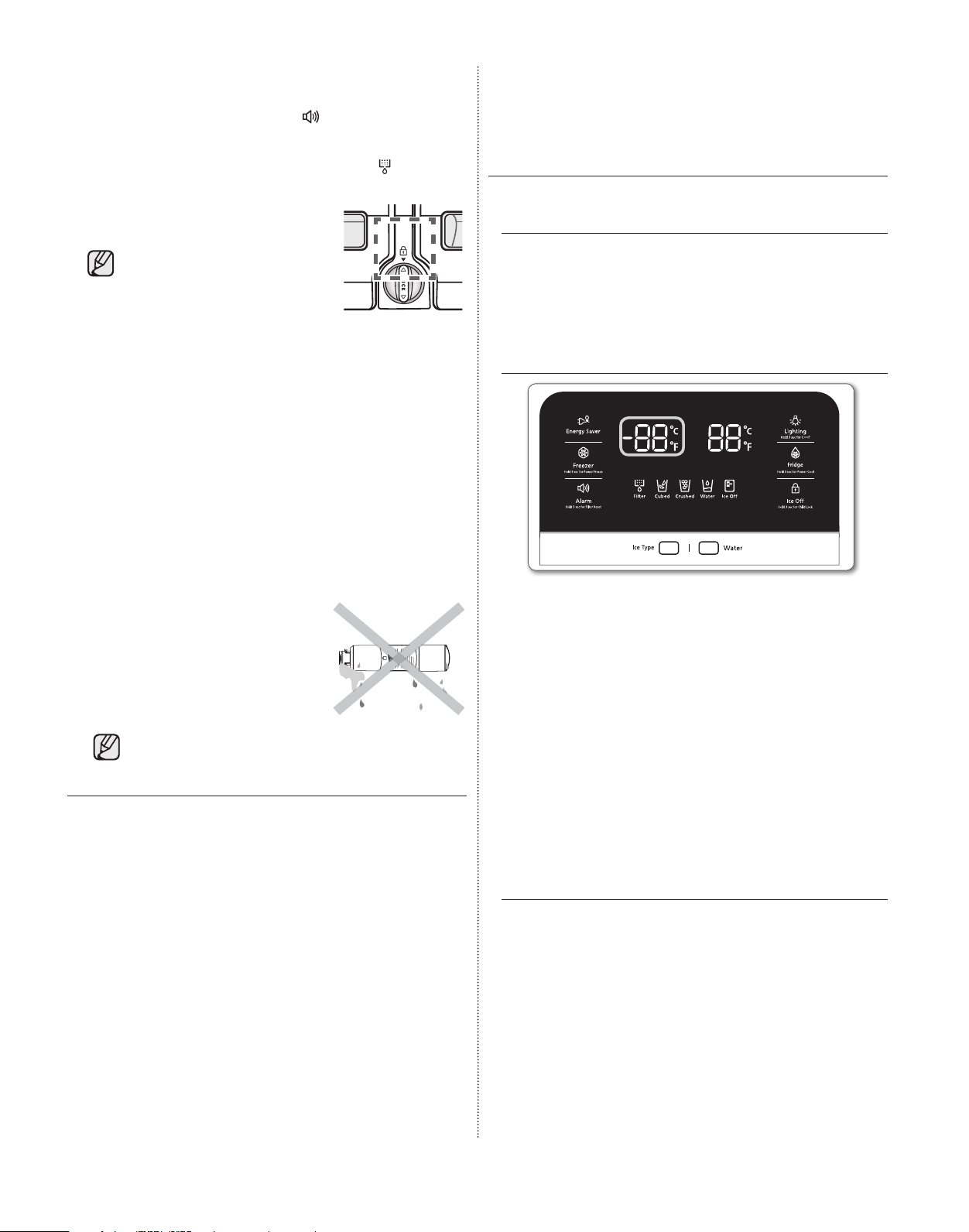

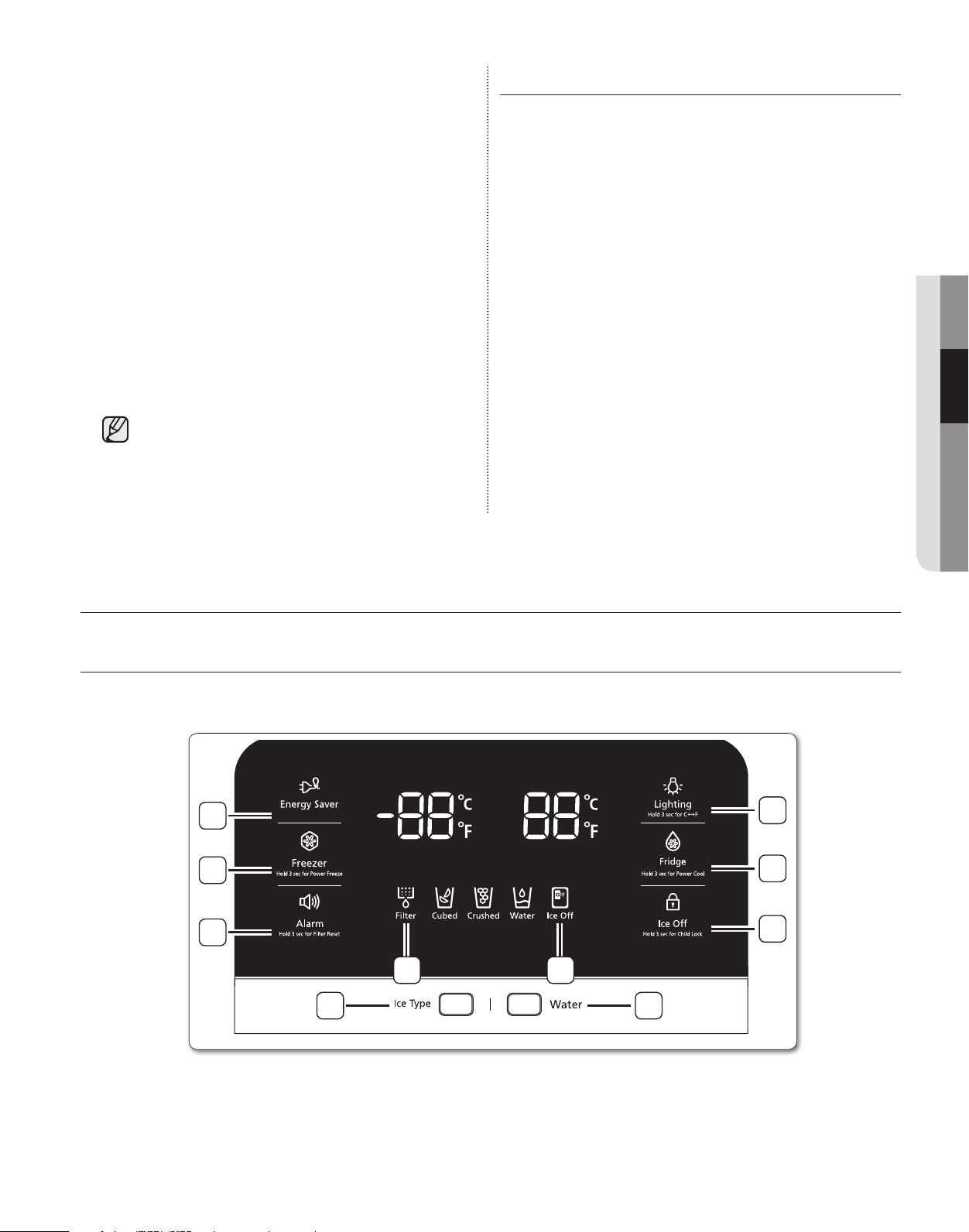

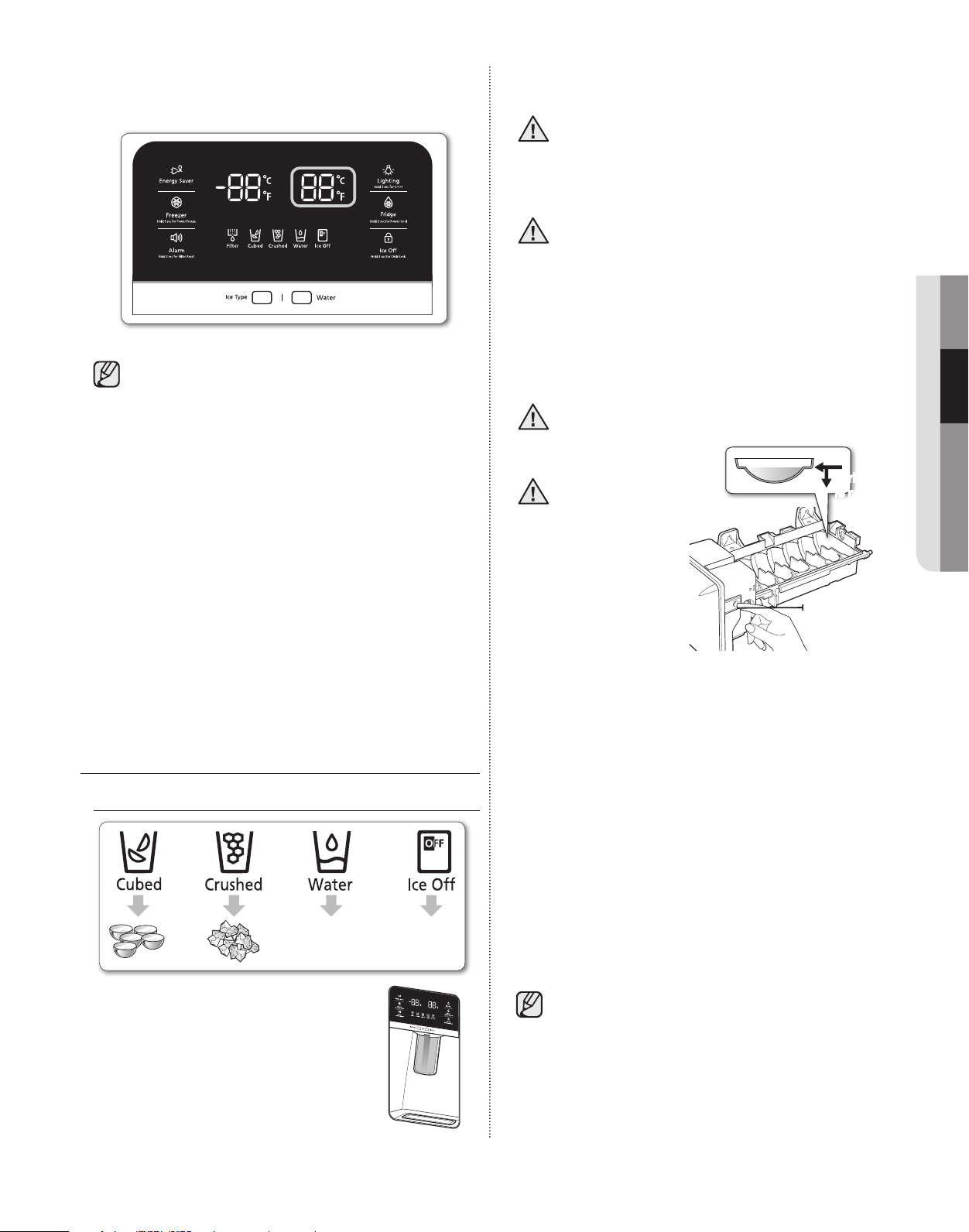

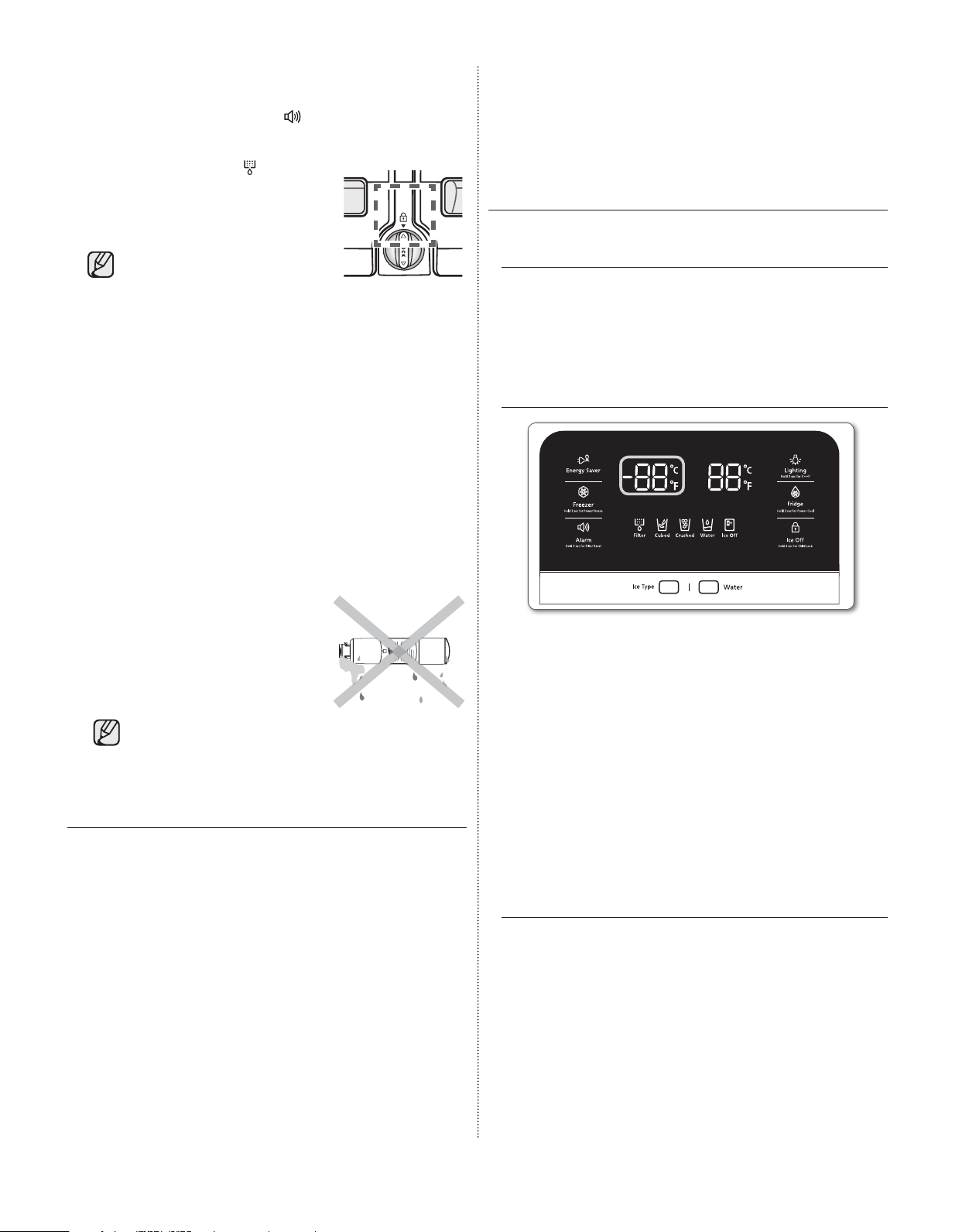

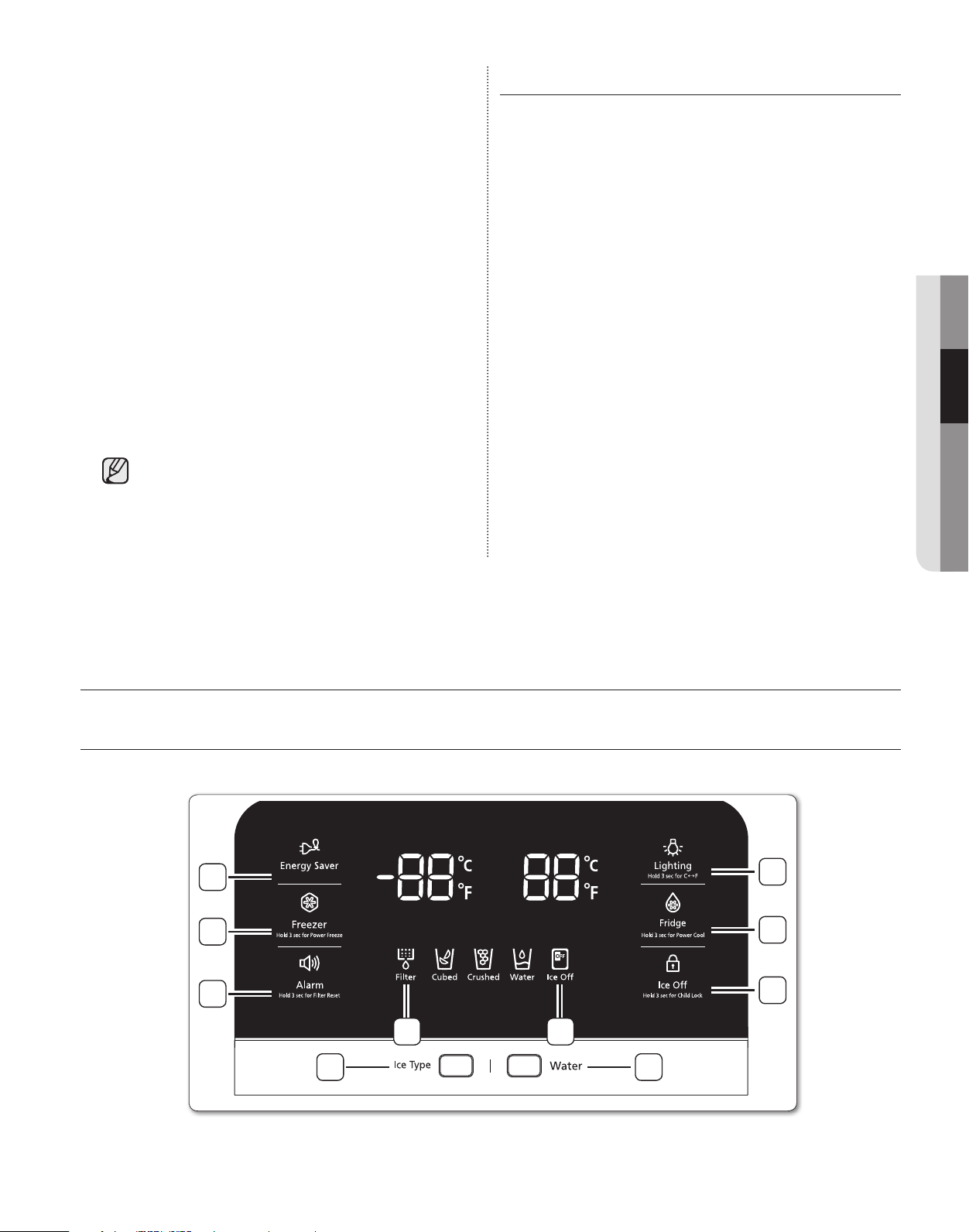

USING THE CONTROL PANEL
1
2
3
910
7
8
4
5
6
operating _11
( 1 ) Energy
Saver
( 2 ) Freezer
(Hold 3
sec for
Power
Freeze)
Touching this button turns Energy Saver
mode on and off. When you turn Energy
Saver on, the Energy Saver icon lights.Turn
Energy Saver off and the icon goes off.
The Energy Saver function automatically
turns on when power is supplied to the
refrigerator.
If condensation or water drops appear on
the doors, turn the Energy Saver mode off.
Touch this button to set the Freezer to your
desired temperature.
You can set the temperature between -8°F
and 8°F (or between -22°C and -14°C).
Touch and hold this button for 3 seconds to
decrease the time needed to freeze products
in the Freezer. It can be helpful if you need
to quickly freeze easily spoiled items or if
the temperature in the Freezer has warmed
dramatically (For example, if the door was
left open).
( 5 ) Fridge
(Hold 3
sec for
Power
Cool)
( 6 ) Ice Off
(Hold 3
sec for
child lock)
Touch this button to set the fridge to your
desired temperature.
You can set the temperature between 34°F
and 46°F (or between 7°C and 1°C).
Touch and hold this button for 3 seconds to
decrease the time needed to cool products
in the Refrigerator. It can be helpful if you
need to quickly cool easily spoiled items or
if the temperature in the fridge has warmed
dramatically
(For example, if the door was left open).
If you don’t want to make more ice, touch
this button. Also, pressing this button for 3
seconds locks the display panel and
dispenser buttons so the buttons can not
be used.The Child Lock icon lights up to
indicate you’ve activated the Child Lock
function. Press 3 seconds to unlock.
( 3 ) Alarm /
Hold 3
sec for
Filter
Reset
( 4 ) Lighting/
Hold 3
sec for
C↔F
This button serves two purposes:
1) To turn the door open alarm on and off
If the door alarm is set to On, an alarm beeps
if any refrigerator door is left open for more
than three minutes.
The beeping stops when you close the
door. The door alarm function is pre-set
to On in the factory. You can turn it off by
touching and then releasing this button. You
can turn it back on in the same fashion. The
icon lights up when the function is on.
2) To reset the water filter life indicator.
After you replace the water filter, touch and
hold this button to reset the water filter life
indicator.
Touching this button turns on the Dispenser
LED lamp (under the display) in continuous
mode so that it stays on continuously.
The button also lights up. If you want the
Dispenser lamp to come on only when some
one uses the dispenser, press the Lighting
button to turn the continuous mode off.
Touch and hold this button for 3 seconds
to switch the temperature units between °C
and °F
(7) Ice Type
(8) Water
Cooling Off
Mode
Touch this button to select your desired
ice type. Cubed and crushed ice modes
alternate when you press the button. This
mode can not be used with the Water mode
simultaneously.
Touch this button to dispense water. This
mode can not be used with the Ice Type
mode simultaneously.
Water mode will be off if you Touch the Ice
Type button.
Cooling Off mode (also called Shop mode),
is designed for use by retailers when they
are displaying refrigerators on the shop
floor. In Cooling Off mode, the refrigerator's
fan motor and lights work normally, but the
compressors do not run, and the refrigerator
and freezer do not get cold.
To start Cooling Off mode, touch and hold
the Energy Saver button and the Power
Freeze button for 5 seconds during normal
operation. The refrigerator chime sounds and
the temperature display flashes OF OF.
To cancel Cooling Off mode, touch and hold
the Energy Saver and the Power Freeze
buttons again for 5 seconds.
12_ operating

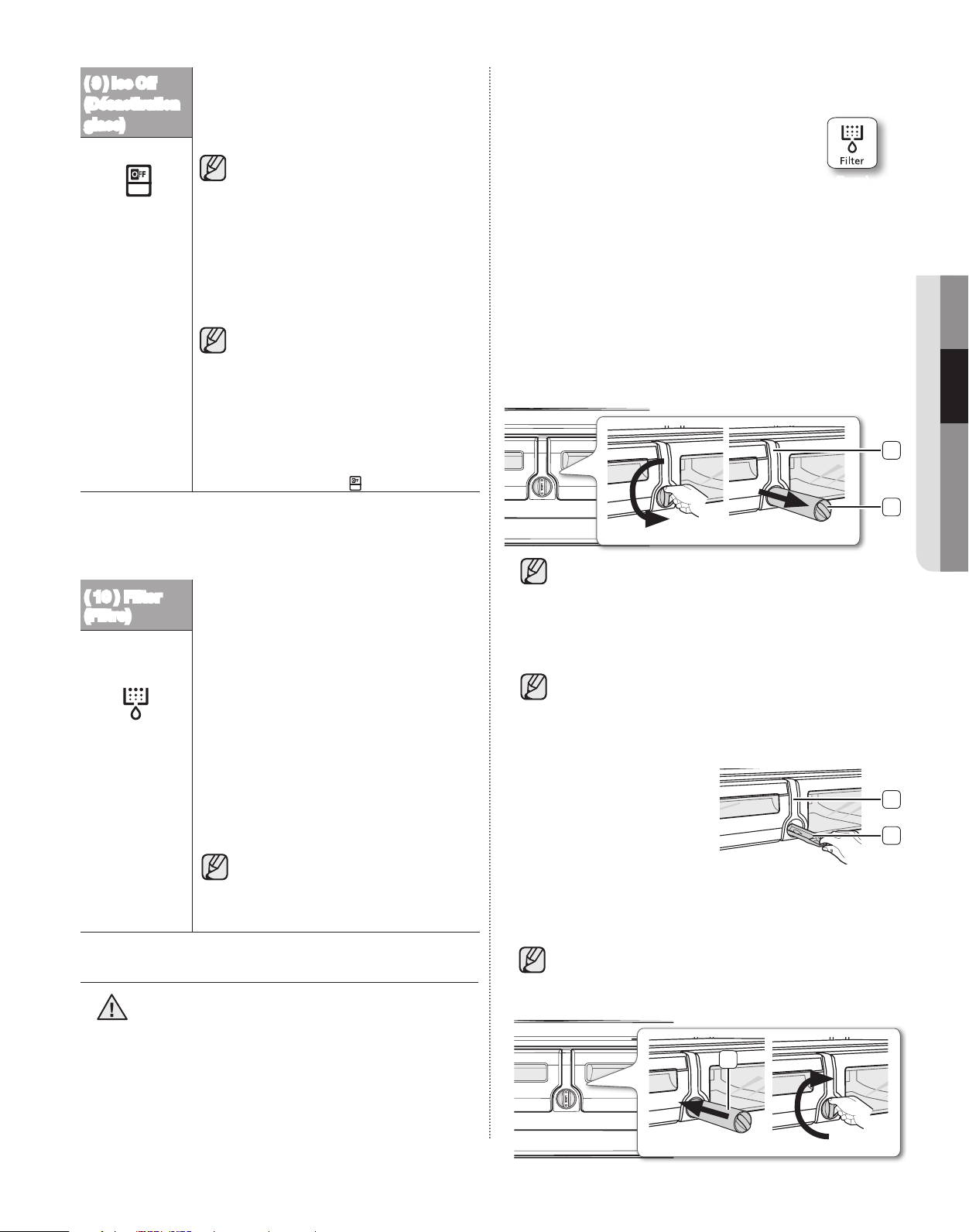

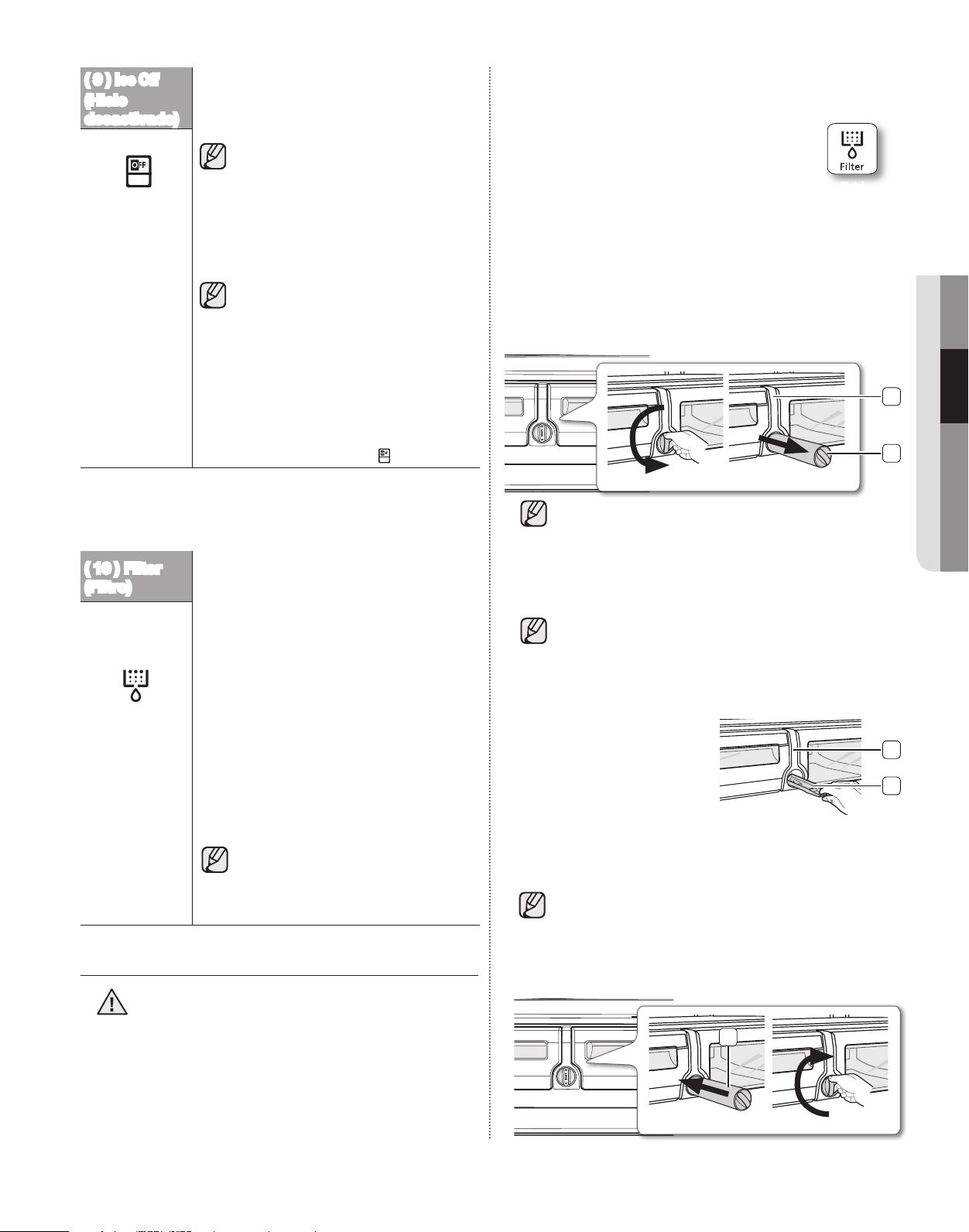

( 9 ) Ice Off
If you don’t want to make more ice, touch
this button.
The icon will light up and the Ice-Maker
stops making ice.
We recommend you stop ice
making if the following occur:
- There is enough ice in the ice
bucket.
- You want to save water and
energy.
- Water is not being supplied
to the refrigerator.
If the ice maker function is ON, and
the water Line is not connected,
there will be a water valve noise
from the back of the unit, press the
Ice Off (Hold 3sec for child lock)
button for less than 3 seconds until
the Indicator ( ) illuminates.
If you do not touch any button, the freezer and fridge
temperature indicator turn off in a few seconds.
If you touch any button, the display lights up again.
( 10 ) Filter
Water filter usage
This icon will light up when you need to
change the filter.
After you use about 300 gallons of water,
the filter indicator lights up. (about 6 months).
After you install the new water filter, reset the
filter indicator by touching the Alarm/hold 3
sec for Filter Reset button.
• Ifwaterisnotdispensingor
dispensing slowly, you need
to replace the water filter
because the water filter is
clogged.
• Someareashavelarge
amounts of lime in their water,
which causes the water filter
to clog more quickly.
CHANGING THE WATER FILTER
To reduce risk of water damage to your
WARNING
property, DO NOT use generic brands of
water filters in your SAMSUNG Refrigerator.
designed to work ONLY WITH SAMSUNG Water
Filter.
The Filter light turns red to let you know when it is
time to change your water filter cartridge.
To give you time to get a new filter, the red
light comes on just before the capacity of
the current filter runs out.
(Red)
Changing the filter on time provides
you with the freshest, cleanest water from your
refrigerator.
1. Shut off the water supply. Then, turn the water
filter ( 1 ) about 1/4 turn, counter-clockwise.
2. Pull the water filter ( 1 ) from the case filter ( 2 ).
2
1
• To change the water filter more easily, shut
off the water supply valve.
• Sometimes, it is hard to disassemble the water
filter because impurities in the water cause it to
stick. If you are having difficulties, grip the water
filter firmly and pull it hard.
• When you pull the water filter, a little water
can leak from the opening.
This is normal. To minimize the water leaks, keep the
filter cartridge horizontal
when you pull it.
• To prevent overflow,
empty the water filter
2
3
tray ( 3 ) and dry around
the filter case ( 2 ).
3. Insert the new filter into the filter case ( 4 ).
4. Push the filter, and then turn it clockwise until it
locks.
• If you have trouble inserting the water filter
because of high water pressure, shut off
the water supply valve.
• The locked symbol should be lined up with the
indicator line.
02 OPERATING
USE ONLY SAMSUNG BRAND WATER FILTER.
SAMSUNG will not be legally responsible for any
damage, including, but not limited to property
damage caused by water leakage from use of a
generic water filter. SAMSUNG Refrigerators are
4
operating _13
14_ operating
5. Touch the "Alarm/hold 3 sec for Filter Reset"
button (
water filter. The color of indicator (
from red to indicator OFF.
6. If you turned off the water
supply, turn it back on.
(Filter Reset)
For a replacement water filter,
you can visit your local home
Improvement center or contact
the Samsung Parts distributor.
Be sure the replacement water filter has the
SAMSUNG logo on the box and on the water filter.
Link : http://www.samsungparts.com
) for about 3 seconds to reset the
) changes
Removing any residual matter inside the
water supply line after installing the water
filter.
1. Turn ON the main water supply and supply water
from water supply line.
2. Run water through the dispenser until the water
runs clear (approx. 6 to 7 minutes). This will clean
the water supply system and remove air from the
lines.
3. Additional flushing may be
required in some households.
4. Open the Refrigerator door
and make sure there are no
water leaks coming from the
water filter.
Be sure to flush the dispenser thoroughly,
otherwise water may drip from the
dispenser.
This means that there is still air in the line.
Reverse Osmosis Water Supply
IMPORTANT : The pressure of the water supply
coming out of a reverse osmosis system going to
the water inlet valve of the refrigerator needs to be
between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 to 414 kPa.)
If the water pressure to the reverse osmosis system
is less than 40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment filter in the
reverse osmosis system is blocked. Replace
the filter if necessary.
• Allow the storage tank on the reverse osmosis
system to refill after heavy usage.
•Ifyourrefrigeratorhasawaterlter,itmay
further reduce the water pressure when used
in conjunction with a reverse osmosis system.
Remove the water filter.
If you have questions about your water pressure,
call a licensed, qualified plumber.
CONTROLLING THE TEMPERATURE
Basic temperature of Freezer and
Refrigerator Compartments
The basic temperature and recommended
temperatures of the Freezer and Refrigerator
Compartments are -2°F and 38°F (or -19°C and
3°C) respectively. If the temperature of Freezer and
Refrigerator Compartments are too high or
low, adjust the temperature manually.
Controlling the Freezer temperature
Recommend Temp (Freezer) : -2°F (or -19°C )
The Freezer temperature can be set between -8°F
and 8°F (or between -22°C and -14°C) to suit your
particular needs. Press the Freezer button repeatedly
until the desired temperature is shown in the
temperature display. The temperature will change by
2°F (or 1°C) with each press. See below.
Fahrenheit : -2°F
4°F → 2°F → 0°F → -2°F.
→
Centigrade : -19°C
-14°C → -15°C → -16°C → -17°C → -18°C → -19°C.
Keep in mind that foods like ice cream may melt
at 4°F (or 0°C ). The temperature display will move
sequentially from -8°F to 8°F
Controlling the fridge temperature
The fridge temperature can be set between 34°F and
46°F (or between 7°C and 1°C) to suit your particular
needs. Press the Fridge button repeatedly until the
desired temperature is shown in the temperature
display. The temperature will change by 2°F (or 1°C)
with each press. See below.
Fahrenheit : 38°F → 36°F → 34°F → 46°F → 44°F
42°F → 40°F → 38°F.
Centigrade : 3°C → 2°C → 1°C → 7°C → 6°C → 5°C
4°C → 3°C.
→
Fridge works just like the Freezer process. Press the
Fridge button to set your
-4°F → -6°F → -8°F → 8°F → 6°F
→
-20°C → -21°C → -22°C
→
(or from -22°C to -14°C ).
The temperature
control process for the
desired temperature.
→
→
Operating _15
02 OPERATING
After a few
seconds, the Fridge will begin adjusting
towards the newly set temperature. This will be
reflected in the digital display.
Recommend Temp (Fridge) : 38°F (or 3°C )
- The temperature of the Freezer, Fridge or Flex
Zone may rise when you open the doors too
frequently, or if a large amount of warm or hot
food is placed inside.
- This may cause the digital display to blink. Once
the Freezer and Fridge temperature return to their
normal set temperatures, the blinking will stop.
- If the blinking continues, you may need to “reset”
the Refrigerator. Try unplugging the appliance,
wait for around 10 minutes and then plug the
power cord back in.
- If there is a communication error between the
Display and Main Controller, the Convertible
Display light may blink. If the blinking continues for
a long period of time, please contact a Samsung
Electronics Service Center.

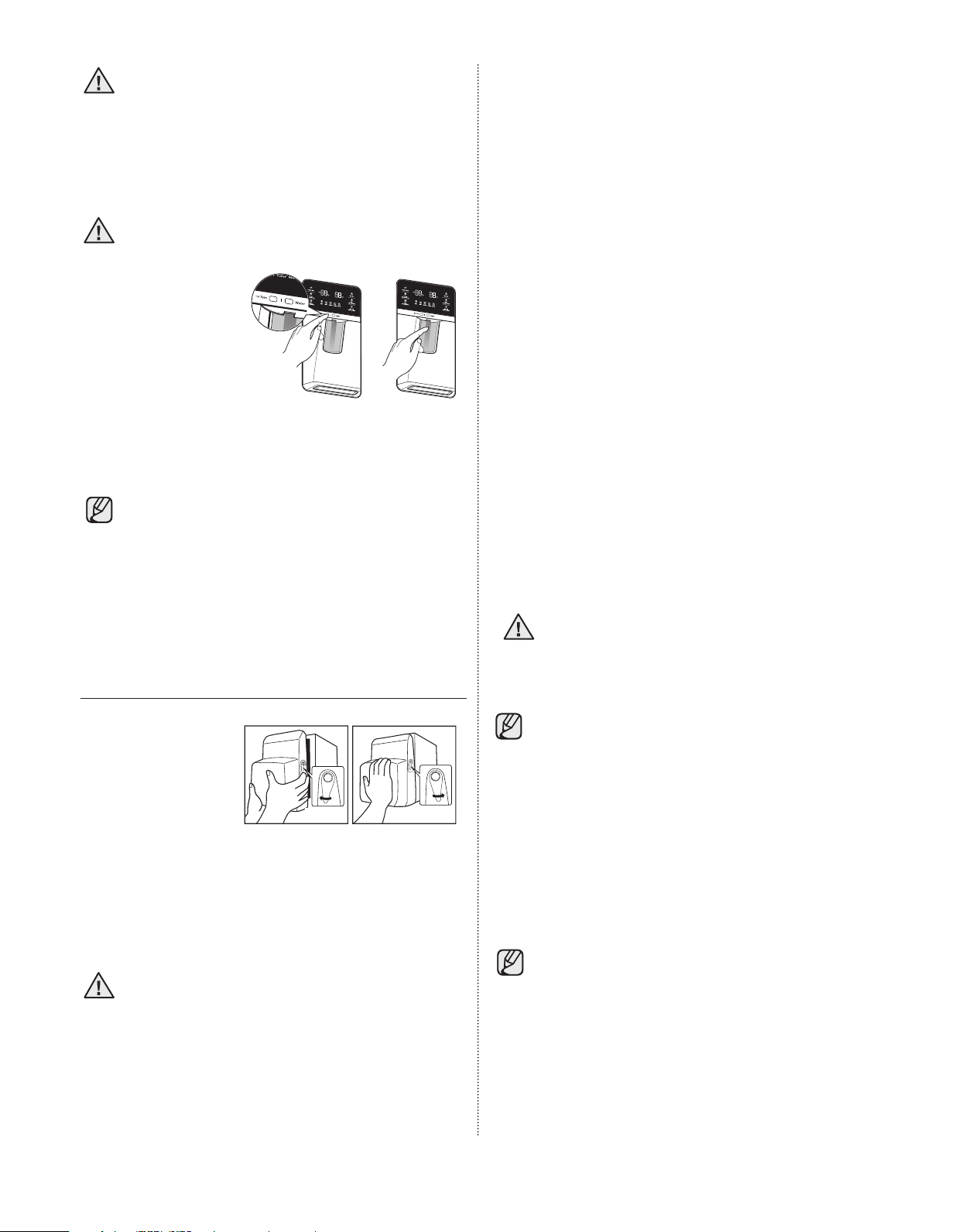

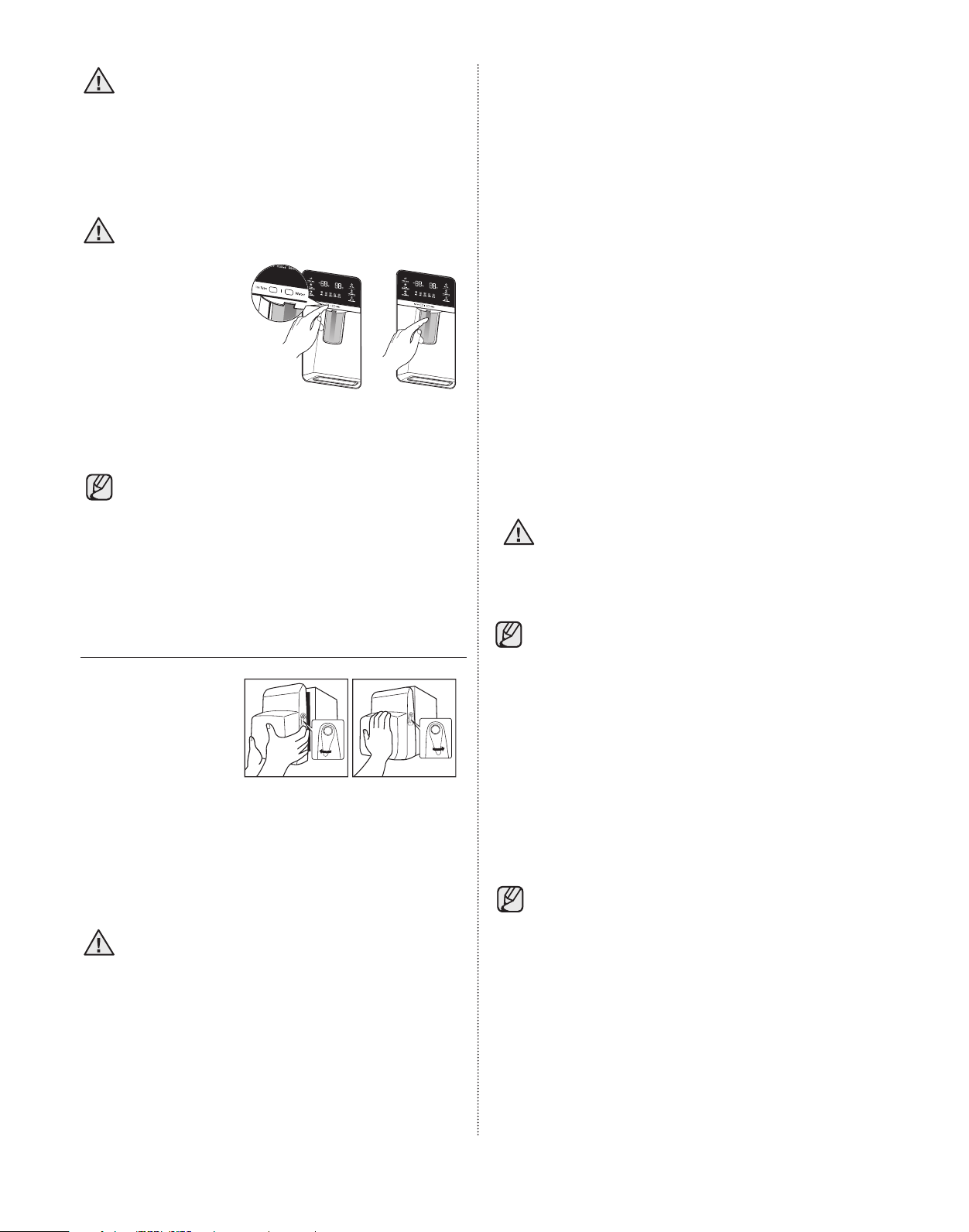

USING THE COLD WATER DISPENSER
Push the appropriate ice type button to
select what you want dispensed.
Select this if you want to
Using the ice Dispenser
Place a glass underneath the ice
dispenser and push gently against
the dispenser lever with your glass.
NO ICE
turn ice maker off
the dispenser to prevent the ice from bouncing out.
Please wait 2 seconds before removing the
CAUTION
glass under the dispenser to prevent spills.
If the Refrigerator door opens, the Dispenser does
not work.
• When Cubed Ice is selected after using
CAUTION
the Crushed Ice feature, a small amount of
residual crushed ice might be produced.
• After Water Dispenser Installation, press the
dispenser arm for at least 2 minutes to remove
trapped air from the water line and to fill the water
system.
Do not pull the lever out. You could damage
CAUTION
or break the
lever's spring.
check the
water level
• To clean
CAUTION
the ice bin/
bucket, wash
with a mild
detergent,
Test button
rinse well, and
dry thoroughly
it. Do not use
harsh or abrasive cleaners or solvents.
• If ice doesn’t come out, pull out the ice bucket
and press the test button located on the right
side of ice maker.
• Do not press the test button continuously when
the tray is filled with ice or water. Water may
overflow or ice may jam the bucket.
• Normal Use
To fill the ice bucket to maximum capacity after
installation, follow these steps:
1. Allow your refrigerator to operate and cool
down for 24 hours (or 1 full day).
- Waiting 24 hours will allow your ice maker to
cool properly.
2. Dispense 4 to 6 ice cubes into the glass.
3. After 8, and then 16 hours, dispense a full
glass of ice.
• When you press the Test button, you will
hear the refrigerator chime (ding-dong).
When the chime sounds, release the Test
button.
• The chime sounds automatically again to let you
know the ice maker is working well.
Make sure the glass is in line with
16_ Operating
If a power failure occurs, ice cubes may melt
CAUTION
then freeze together when the power comes
back on, causing the dispenser to be out of
order.
To prevent this problem, after a power failure, pull
out the ice bucket and discard the residual ice or
water.
After you dump the ice from the ice bucket,
CAUTION
you should press the dispenser lever once
with the ‘ICE
CUBED’ or
‘CRUSHED’
function ON.
The ice maker will
make new ice faster
after you return the
ice bucket to the freezer.
If you use all the ice at once, you must
repeat Steps 2 and 3 on the previous
page. However, only wait 8 hours before
dispensing the first 4 to 6 ice cubes. This
will replenish the ice cubes and ensure
maximum ice production.
Using the ice off Function
When you select
the Ice Off mode,
remove all ice
cubes from the
bucket. If you are
not using the ice
dispenser, the ice cubes may clump together.
Pull the lock lever forward to remove the bucket.
Throw away the ice cubes or clumped ice. Push
the bucket back until you hear a click.
Use only the ice maker provided with
CAUTION
the refrigerator. The water supply to this
refrigerator must only be installed/connected
by a suitably qualified person. Connect to a
potable water supply only.
To operate the ice maker properly, water pressure
of 138 ~ 862Kpa is required.
If you have a long vacation or business trip and
won’t use the water or ice dispensers for a long
time:
- Close the water valve. Otherwise, water
leakage may occur.
- Remove all food.
- Unplug the refrigerator.
- Wipe excess moisture from inside and leave
PULL PUSH
the doors open. Otherwise, odor and mold
may develop.
Do not put your fingers, hands or any other
unsuitable objects in the chute or ice-maker
bucket.
- It may result in personal injury or material
damage.
Never put your finger or any other objects in the
dispenser opening.
- It may cause injury.
Do not try to disassemble the ice maker.
Do not wash or spray the ice bucket with water
while it is in the refrigerator. Remove it to clean it.
When you insert the Ice maker tray, be sure
CAUTION
that the tray is well centered at the entrance.
Otherwise, the tray may be stuck.
Water clouding phenomenon
All water provided to the refrigerator flows
through the core filter which is an alkaline water
filter. In the filtering process, the pressure of
the water that has flowed out of the filter is
increased, and the water becomes saturated
with oxygen and nitrogen. When this water flows
out into the air, the pressure plummets and
the oxygen and nitrogen get supersaturated,
which results in gas bubbles. The water may
temporarily look misty or cloudy due to these
oxygen bubbles. After a few seconds, the water
will look clear.
Please wait 1 second before removing the cup
after dispensing water to prevent spills. Do not
pull out the lever dispenser after dispensing ice
or water. It comes back automatically. Ice is
made in cubes. When you select “Crushed”, the
ice maker grinds the ice cubes into crushed ice.
Operating _17
02 OPERATING

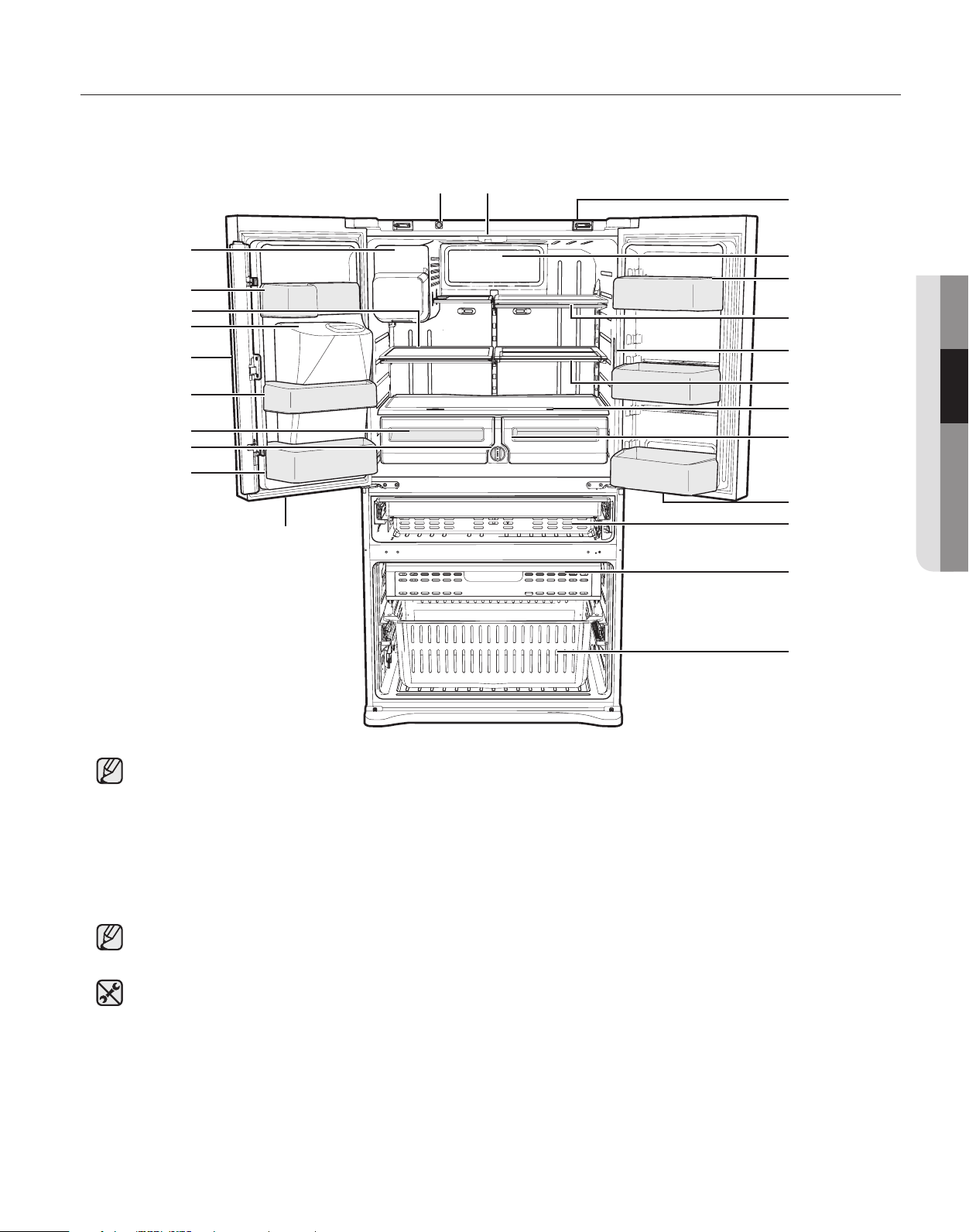

PARTS AND FEATURES
Use this page to become more familiar with the parts and features of the refrigerator.
FF Ice-Maker
Dis Door Bins
Slide-Shelf
Cap Chute
Vertical Hinged
Section
Mid Door Bins
Vegetable & Fruit
Drawers
Water Filter
Left Door Bins
Light
Interlocking switch
Light
Door Closer
Cover Eva
Right Door Bins
Tempered glass
shelves
Light
Quick-Space
Glass Shelf
Cover Veg
Light
Light
Flex Zone
Auto Pull Out
Drawer
Freezer Drawer
Bin
When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid
scratching the other door.
If the Vertical Hinged Section is reversed, put it back to the right position and close the door.
Moisture may appear at times on the Vertical Hinged Section.
The door handle may become loose over time. If this happens, tighten the bolts found on the inside of
the door.
If you close one door with a lot of force, the other door may open.
When the door opens, the interlock switch automatically turns off the auger motor in the ice maker for
safety reasons.
When the interior or exterior LED lamp has gone out, please contact your service agents.
18_ Operating

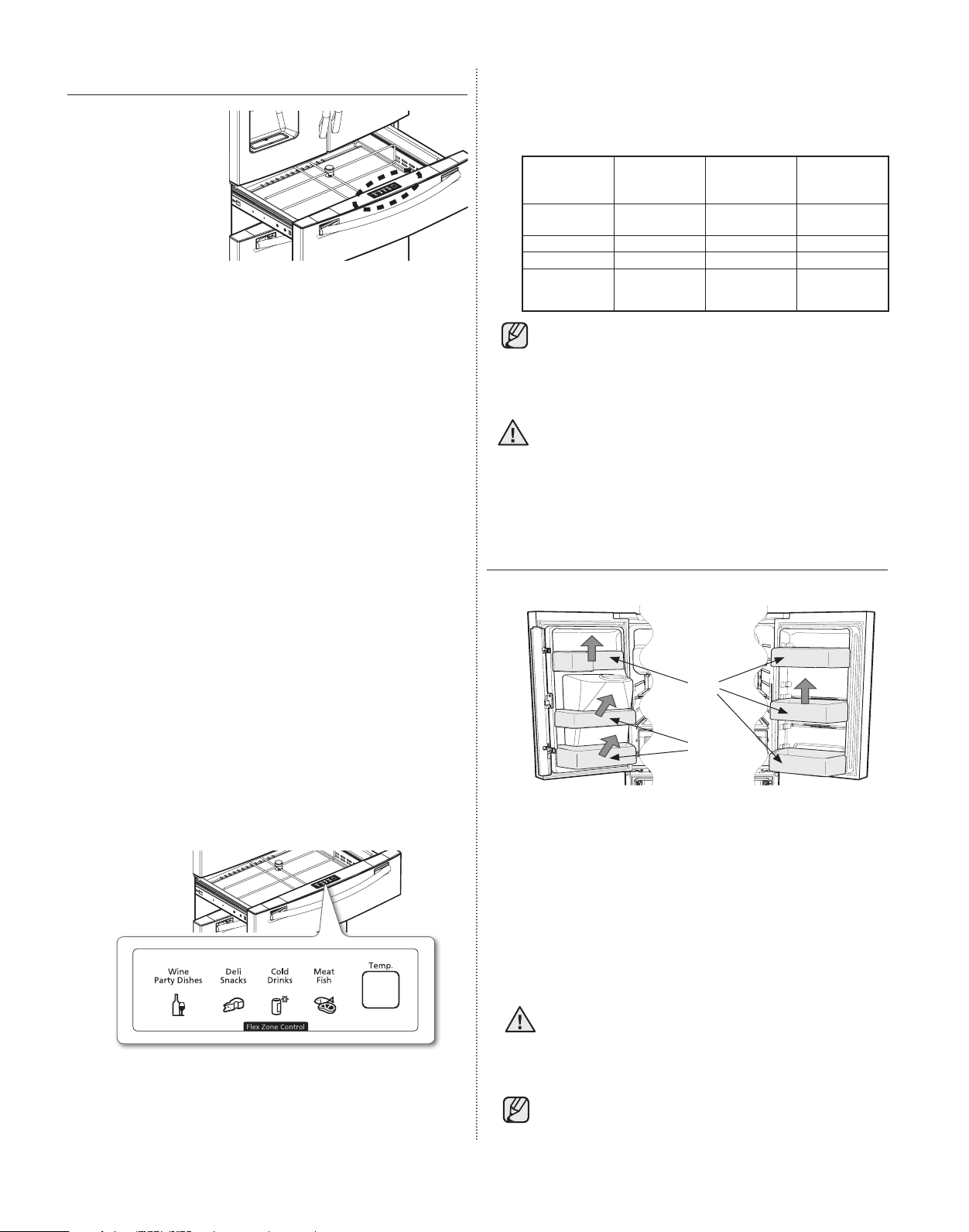

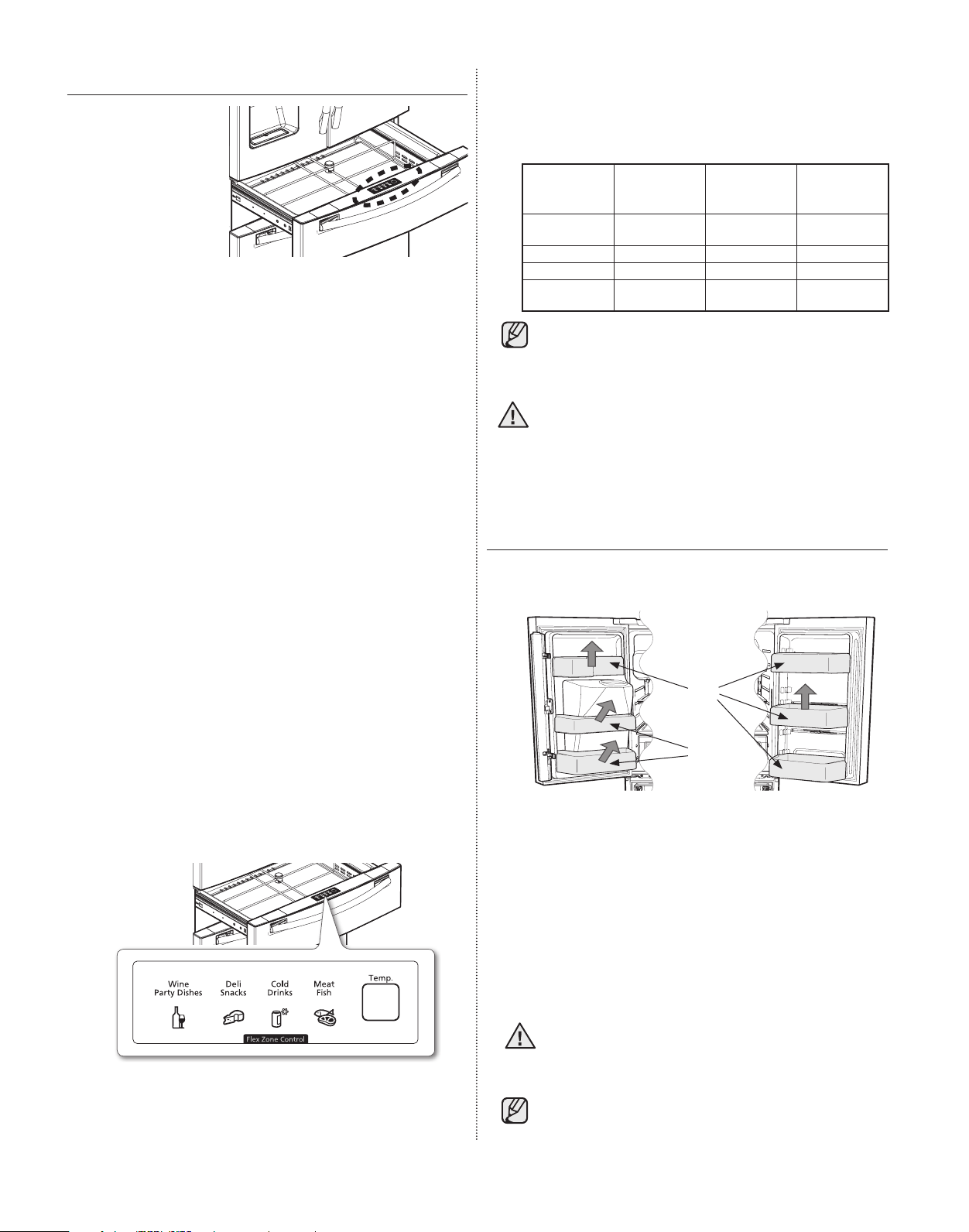

USING FLEX ZONE
The Flex Zone is a
full-width drawer
with an adjustable
temperature
control. You can
use the Flex Zone
for large party trays,
deli items, wines,
pizzas, beverages, or miscellaneous items. There is a
temperature sensor which lets you adjust the amount
of cold air allowed into the Zone. The control buttons
are located on the cap door center.
• Press the Temp button repeatedly until your
desired mode is lit.
• Each time you press the Temp button, you
change the mode in this order: Meat/Fish mode,
Cold Drinks mode, Deli/Snack, Wine/Part
mode. Initially, the Cold Drinks mode is selected.
The refrigerator will adjust the temperature in the
Flex Zone automatically to the temperature you
selected.
• The Flex Zone Temp. Display may change
depending on the number of items inside, where
they are located, the ambient temperature, and
how often the door is opened.
y Dishes
4. When “Meat/Fish” is selected, the temperature
of Flex Zone will be kept around 29°F (or -1°C ).
This feature also helps keep meat or fish fresh for
a longer time.
Wine
Party Dishes
• wine • pineapples • bottled
• cocktails • lemons • juice • coldcuts
• cakes • biscuits • softdrinks • bacon
• cheeses • potatoes • beer • chilidogs
Deli
Snacks
Cold
Drinks
water
Meat
Fish
• steaks
Fruit and vegetables may be damaged under
the “Meat Fish” setting.
Do not store lettuce or other leafy produce in the
Flex Zone.
Do not store glass bottles in the Flex Zone
CAUTION
under the "Cold Drinks" or "Meat/Fish" setting.
If they are frozen, they can break and cause
personal injury.
REMOVING THE REFRIGERATOR
ACCESSORIES
1. Door Bins & Dairy Compartment
Selection Button
1. When “Wine/Party Dishes” is selected, the
temperature of Flex Zone will be kept around 42°F
(or 5°C ). This feature helps keep food fresh for a
long time.
2. When “Deli/Snack” is selected, the temperature
of Flex Zone will be kept around 37°F (or 3°C ).
This feature helps keep food fresh for a longer time.
3. When “Cold Drink” is selected, the temperature
of Flex Zone will be kept around 33°F (or 1°C).
This feature also helps keep drinks cold and
refreshing.
(1)
(2)
· Door Bins (1)
To remove - Simply lift the bin up and pull
straight out.
To relocate - Slide it in above the desires location
and push down until it stops.
· Door Bins (2)
To remove - Take the right side of the bin out by
lifting it obliquely along the guide and then, take
the left side out by pulling it from the door.
To relocate - Slide it into the original
location and push down until it is sticks.
Injury may occur if the door bins are not
CAUTION
firmly assembled.
Do not allow children to play with bins.
Sharp corners of the bins may cause injury.
Do not adjust a bin full of food. Remove the
food first.
Dust removal method - Remove the guard and
wash in water.
Operating _19
02 OPERATING

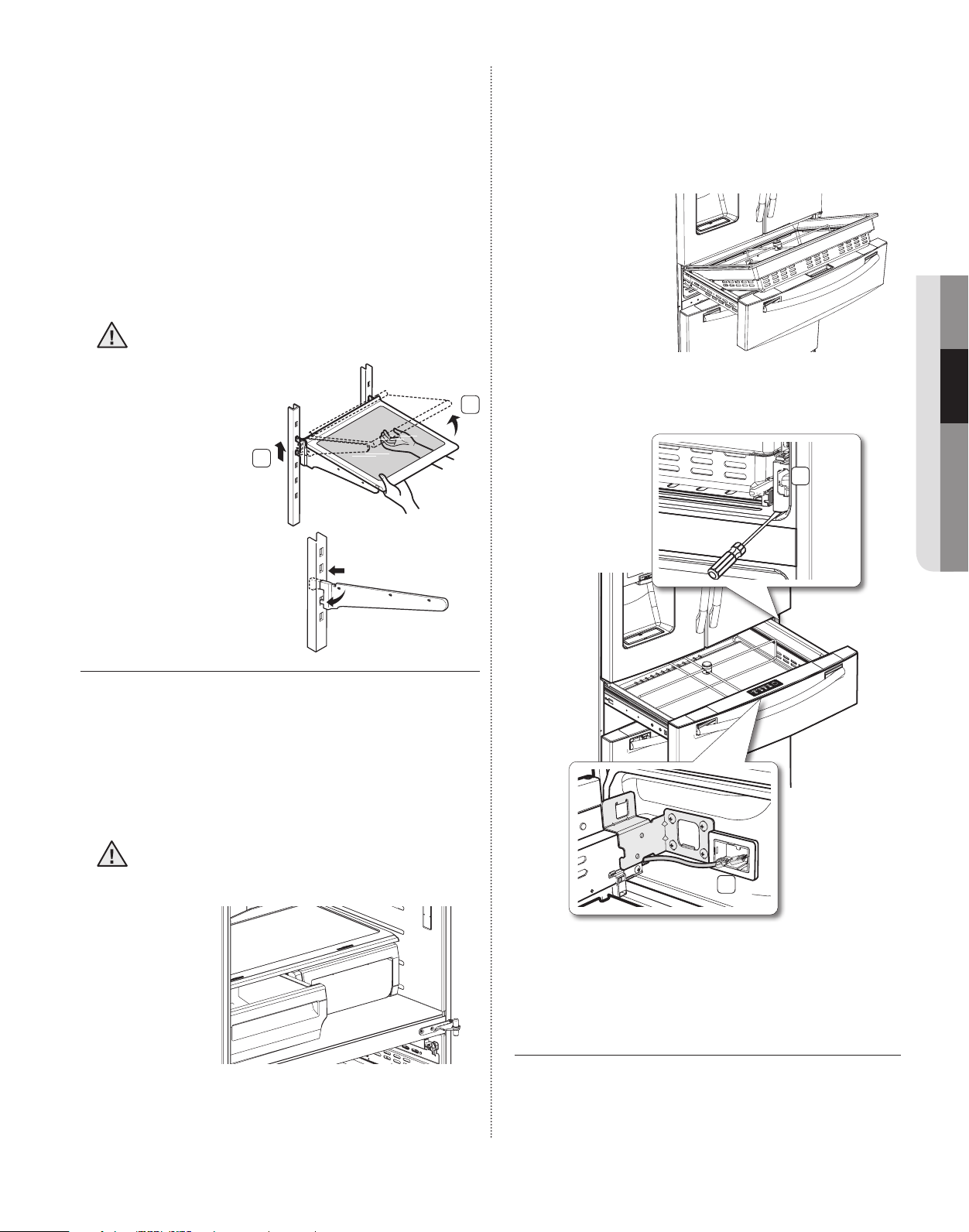

2. Tempered Glass shelves
To remove - Tilt up the front of the shelf in the
direction shown ( 1 ) and lift it up
vertically ( 2 ). Pull the shelf out.
To relocate - Tilt the front of the shelf up and
guide the shelf hooks into the slots
at a desired height. Then lower the
front of the shelf so that the hooks
can drop into the slots.
The Tempered Glass shelves are heavy.
CAUTION
Use special care when removing them.
2
To relocate the Flex Zone – Open the Flex door to
full extension. Tilt the front of the Flex Zone up,
place the back of the Flex Zone onto the rails,
and then lower the front until the whole Zone
rests on the rails.
When the Flex Zone or LED lighting are not
1
working, check the connectors [ ( 1 ), ( 2 )
shown below] for cracks or leaks.
2
3. Vegetable & Fruit Drawers
To remove - Pull the drawer out to full extension.
Tilt up the front of the drawer and
pull straight out.
To relocate - Insert the drawer into the frame rails
and push back into place.
The drawers need to be removed before the
CAUTION
glass shelf above them can be lifted out.
4. Flex Zone
To remove the Flex Zone – Pull the Flex door out
to full extension. Lift the Flex Zone up, pulling it to
your body with both hands.
1
1. Refer to page 7 for disassembly instructions.
2. Open the cover housing with a flat-blade
screwdriver.
Using the doors
Ensure that the doors close all the way and are
securely sealed.
When the refrigerator door is only partially open,
20_ Operating
it will automatically close. But, the door will stay
open when opened more than the auto close
range and you must close it manually.

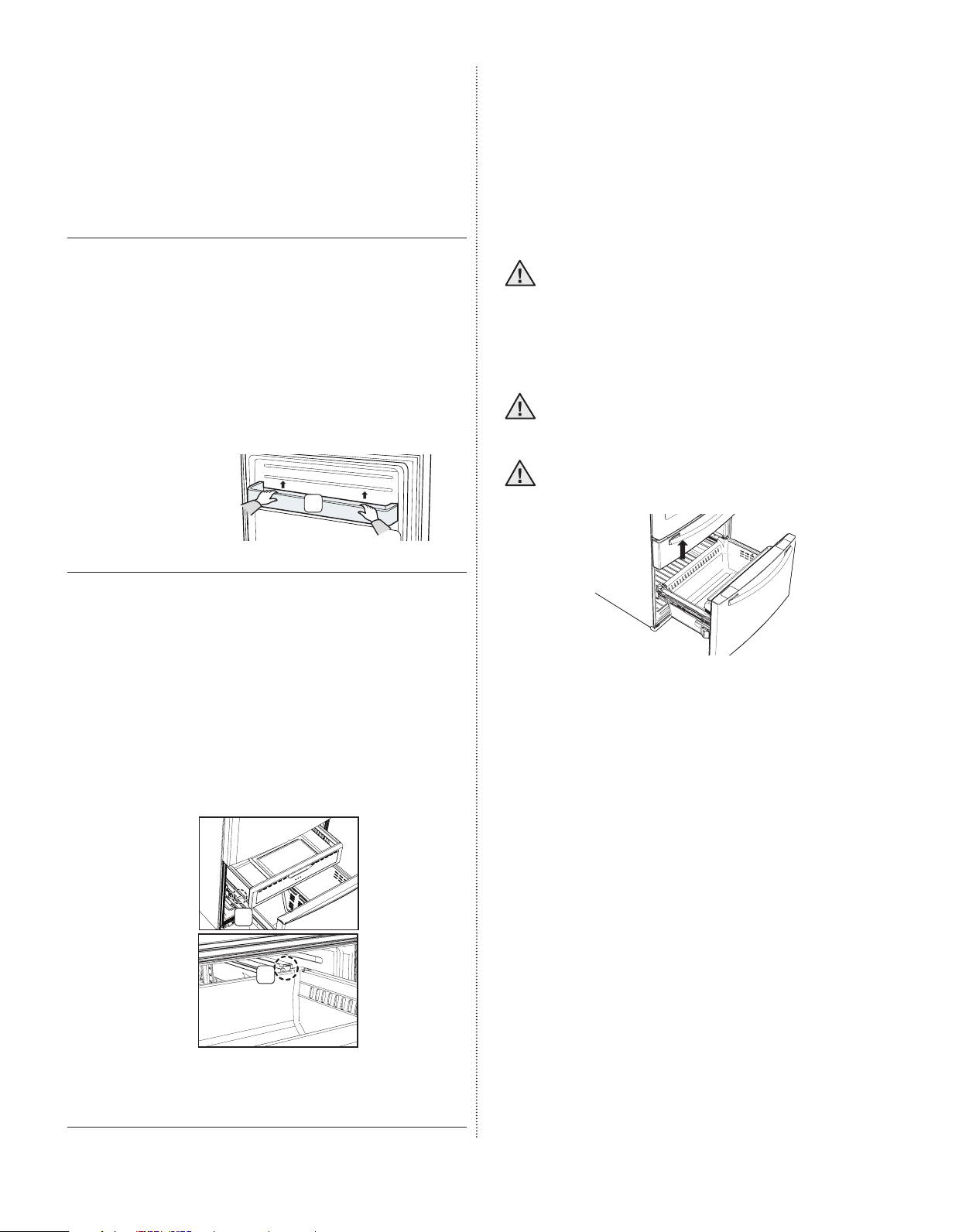

REMOVING THE FREEZER
ACCESSORIES
1. Freeze room Guard
To remove - Remove the freeze room guard ( 1 )
by lifting the guard up.
To replace - Push down until the guard ( 1 ) locks
into place.
1
2. Super Extended Drawer
Do not sit on the freezer door. The door may break.
Do not allow children to climb into the freezer drawer.
CAUTION
Do not remove the divider.
• If trapped inside, children may be injured or
WARNING
suffocate to death.
To remove - Pull the drawer out to full extension.
Tilt up the rear of the drawer and lift straight out.
To relocate - Place the drawer onto the rails ( 4 )
by tilting it up. Lower the drawer into place until it
is horizontal and slide the drawer ( 3 ) in.
3
4
3. Freezer Drawer
To remove the freezer drawer - Pull the freezer
drawer out fully. Tilt up the rear of the bin and lift
it out to remove.
To relocate the freezer drawer - Place the bin into
the rail assembly.
Do not allow babies or children go inside
CAUTION
the freezer drawer. They could damage the
refrigerator and seriously injure themselves.
Operating _21
02 OPERATING
FOOD STORAGE TIPS
Foods Refrigerator Freezer Storage Tips
DAIRY PRODUCTS
Butter 2-3 Weeks 6-9 Months Wrap or cover tightly.
Check date code. Most milk and similar products are sold in date-coded
Milk 1-2 Weeks Not recommended
Cream Cheese, cheese
food, and cheese
spread
Hard Cheese (unopened)
Hard Cheese (opened) 2 Months Not recommended
Cottage Cheese 10-15 Days Not recommended
2-4 Weeks Not recommended
3-4 Months 6 Months
cartons that indicate a products’s peak freshness. Re-seal with cap or
wrap tightly. Do not return unused protions to oroginal container.
Check date code. Keep all cheese tightly packed in moisture proof wrap
Cream 7-10 Days 2 Months
Sour Cream 2 Weeks Not recommended
Cream Dips (opened) 1 Week Not recommended
Yogurt 10-14 Days Not recommended
Frozen Yogurt na 2 Months
EGGS
Eggs (uncooked) 3-4 Weeks Not recommended
Eggs (cooked) 1 Week Not recommended Store in covered container
Leftover egg dishes 3-4 Days Not recommended Store in covered container
FRESH FRUITS
Apples 1 Month Not recommended
Bananas 2-4 Days Not recommended
Peaches, Melons,
Pears, Avocados
Berries and Cherries 2-3 Days 12 Months
Apricots 3-5 Days Not recommended
3-5 Days Not recommended
Check date code. Most yogurt, creams, and similar products are sold in
date-coded cartons that indicate a product’s peak freshness. Re-seal or
cover tightly. Do not return unused portions to original container.
Check date code. Keep covered.
Check date code. Store eggs in coldest part of refrigerator and in their
original container.
If storing in refrigerator, do not wash fruit before storing. Store in moisture resistant bags or containers. Wrap cut fruits. Some fruits darken
when refrigerated.
Grapes 2-5 Days na
Pineapple (un-cut) 2-3 Days Not recommended
Pineapple (cut) 5-7 Days 6-12 Months
Citrus 1-2 Weeks Not recommended Store uncovered.
Juice 6 Days Not recommended
Frozen Juice Thawing only 12 Months Check date code. Do not re-freeze.
Check date code and re-seal in original container. Do not return unused
portions to original container.
22_ Operating
Foods Refrigerator Freezer Storage Tips
FISH AND SHELLFISH
Fish
Fatty Fish (mackerel,
trout, salmon)
Lean Fish (cod, flounder,
etc)
Frozen or Breaded na 3 Months
Shellfish
Shrimp (uncooked) 1-2 Days 12 Months
Cooked Fish or Shellfish 2-3 Days 3 Months
MEAT
Fresh, Uncooked
Chops 2-4 Days 6-12 Months
Ground 1 Day 3-4 Months
1-2 Days 2-3 Months
1-2 Days 6 Months
Keep in original wrapper and store in coldest part of refrigerator.
Package in vapor-proof and moisture proof wrap for freezer.
Freeze at 0ºF (or -18°C ). Thaw in refrigerator or check date code.
Freeze in original packaging.
To freeze, package in vapor-proof and moisture-proof container.Crab 3-5 Days 10 Months
Roast 2-4 Days 6-12 Months
Bacon 1-2 Weeks 1-2 Months
Sausage 1-2 Days 1-2 Months
Steak 2-4 Days 6-9 Months
Poultry 1 Day 12 Months
Lunch meat 3-5 Days 1 Month
Cooked
Meat 2-3 Days 2-3 Months
Poultry 2-3 Days 4-5 Months
Ham 1-2 weeks 1-2 Months
Check date code for use. Store in coldest part of refrigerator in
original packaging. Package in moisture-proof and vapor-proof
container for freezing. Recommended refrigerator temperature
33ºF to 36ºF (or 1°C to 2°C ) and freezer temperature 0ºF to 2ºF
(or -18°C to -16°C )
Check date code for use. Store in coldest part of regrigerator in original
packaging. Package in moisture-proof and vapor-proof container for
freezing.
Sources:
American Meat Institute Foundation. 1994. Yellow pages: answers to predictable questions consumers ask
about meat and poultry. American Meat Institute Food Marketing Institute. 1999. The food keeper. Food
Marketing Institute, Washington, D.C. Freeland-Graves, J.H. and G.C. Peckham. 1996. Foundations of
food preparation, 6th ed. Prentice-Hall, Inc. Englewood Cliffs, NJ. Hillers, V.N. 1993. Storing foods at home.
Washington State University Cooperative Extension, Pullman, WA. Publ. EB 1205.
National Restaurant Association. 2001. Be cool-chill out! Refrigerate promptly. National Restaurant Association
Education Foundation¼s International Food Safety Council, Washington, D.C. USDA. 1997. Basics for handling
food safely. U.S. Department of Agriculture, Food Safety and Inspection Service, Washington, D.C.
Operating _23
02 OPERATING

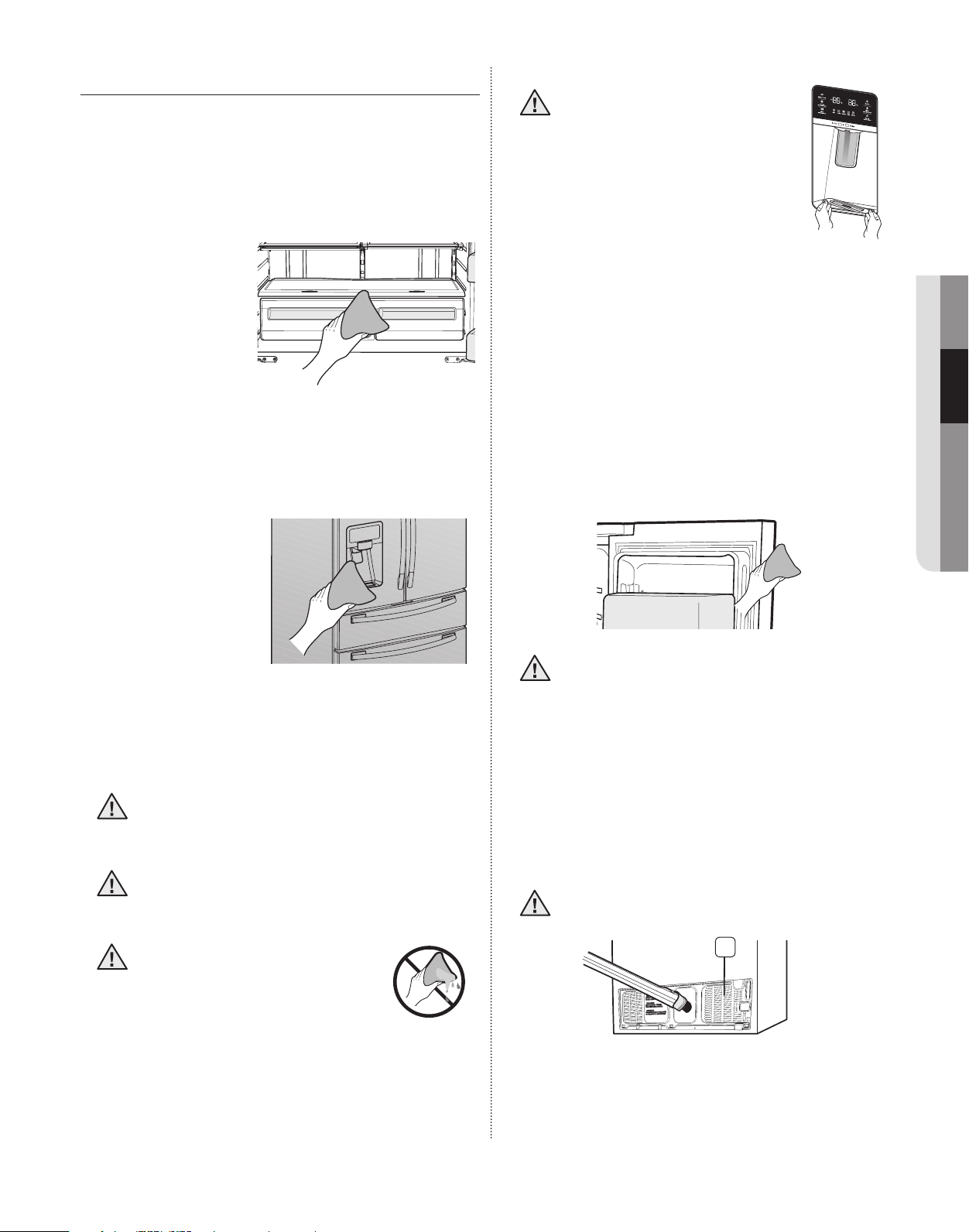

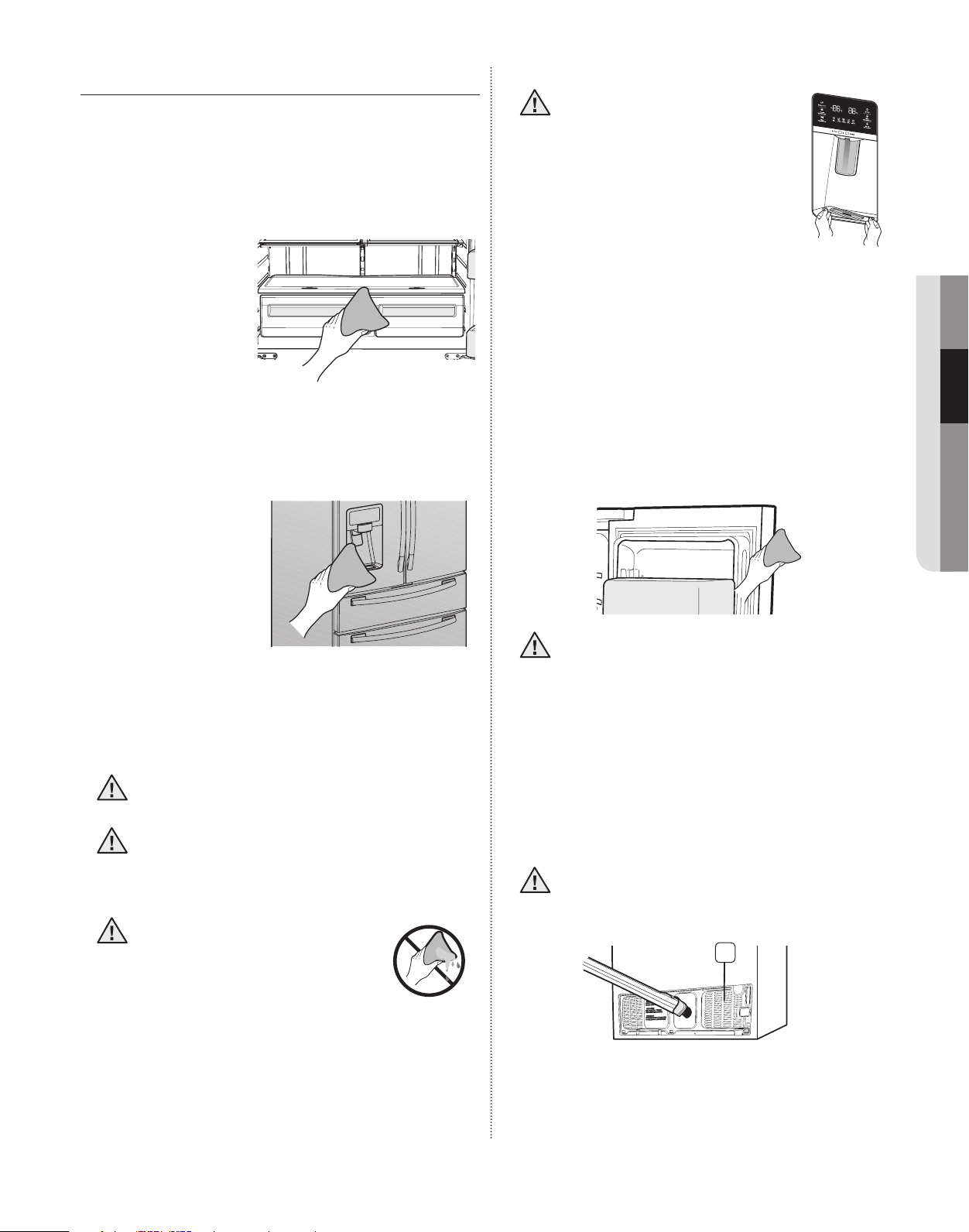

CLEANING THE REFRIGERATOR
Caring for your Samsung French Door Refrigerator
prolongs the life of your appliance and helps keep the
refrigerator free of odor and germs.
Cleaning the Interior
Clean the inside walls and accessories with a
mild detergent
and then wipe dry
with a soft cloth.
You can remove
the drawers and
shelves for a more
thorough cleaning.
Just make sure
to dry drawers and shelves before putting them
back into place.
Cleaning the Exterior
Wipe the control panel and digital display with a
damp, clean, soft
cloth. Do not spray
water directly on
the surface of the
refrigerator.
The doors,
handles and
cabinet surfaces
should be cleaned with a mild detergent and
then wiped dry with a soft cloth. To keep your
appliance looking its best, polish the exterior once
or twice a year.
When using the crushed ice
CAUTION
selection from the dispenser
some residual ice chips
may start to collect in the
ice chute. To prevent that
residual ice from melting and
running out of the chute you
should clean out the residual
ice when you see it start to
collect in the ice chute.
Cleaning the Rubber door seals
If the rubber door seals are dirty, the doors may
not close properly, and the refrigerator will not
operate efficiently. Keep the door seals free of
dust or stains by cleaning the doors with a mild
detergent and damp cloth. Wipe dry with a clean,
soft cloth.
Do not clean the refrigerator with benzene,
CAUTION
thinner, or car detergent due to risk of fire.
Cleaning the rear side of the refrigerator
To keep cords and exposed parts free of dust
and dirt accumulation.
Vacuum the rear side of the appliance once or
twice a year.
Do not spray water directly on the refrigerator.
CAUTION
Use a clean, damp cloth to clean.
Do not use benzene, thinner, or Clorox for
CAUTION
cleaning. They may damage the surface of
the appliance and may cause a fire.
You can erase the printed
CAUTION
letters on the display if you
apply stainless cleaner directly
to the area where the letters
are printed.
Cleaning the Ice / Water Dispenser
Push down one end of the tray dispenser and
remove it. Wipe the Ice / Water Dispenser with a
clean and soft cloth.
CAUTION
Do not remove the back cover ( 1 ). You
could suffer an electric shock.
1
Troubleshooting
TROUBLESHOOTING
PROBLEM SOLUTION
The refrigerator
does not work at all
or it does not chill
sufficiently.
• Check that the power plug is properly connected.
• Check if the set temperature on the digital display is warmer than the freezer or fridge inner
temperature. If it is, set the refrigerator colder.
• Is the refrigerator in direct sunlight or located near a heat source?
• Is the back of the refrigerator too close to the wall, preventing proper ventilation?
The food in the fridge
is frozen.
You hear unusual
noise or sounds.
The cabinet-door
sealing area of the
appliance is hot
and condensation is
occurring.
Ice Maker is not
producing ice.
You can hear water
bubbling in the
refrigerator.
• Check if the set temperature on the digital display is too low.
• Try setting the refrigerator to a warmer temperature.
• Is the temperature in the room too low? Set the refrigerator warmer.
• Did you store the food which is juicy in the coldest part of the refrigerator? Try moving those items
to the other shelves in the fridge instead of keeping them in the colder areas or bins.
• Check that the refrigerator is level and stable.
• Is the back of the refrigerator too close to the wall, preventing proper ventilation?
Try moving the back of the refrigerator at least 2 inches from the wall.
• Was anything dropped behind or under the refrigerator?
• A “ticking” sound is heard from inside the refrigerator. It is normal and occurs because various
accessories are contracting or expanding according to the temperature of the refrigerator interior.
• If it sounds as if something is hitting something else inside the refrigerator, this is normal. The
sound is caused by the compressor operating at high capacity.
• Some heat is normal as anti-condensators are installed in the vertical hinged section of the
refrigerator to prevent condensation.
• Is the refrigerator door ajar? Condensation can occur when you leave the door open for a long
time.
• Did you wait for 12 hours after installation of the water supply line before making ice?
• Is the water line connected and the shut-off valve opened?
• Did you manually stop the ice making function?
• Is the freezer temperature too warm? Try setting the freezer temperature lower.
• This is normal. The bubbling comes from refrigerant circulating through the refrigerator.
There is a bad smell in
the refrigerator.
Frost forms on the
walls of the freezer.
Water dispenser is not
functioning.
Auto close system
does not work with
the freezer door.
24_ Troubleshooting
• Check for spoiled food.
• Foods with strong odors (for example, fish) should be tightly covered.
• Clean out your freezer periodically and throw away any spoiled or suspicious food.
• Is the air vent blocked? Remove any obstructions so air can circulate freely.
• Allow sufficient space between the stored foods for efficient air circulation.
• Is the freezer drawer closed properly?
• Is the water line connected and the shut-off valve opened?
• Has the water supply line tubing been crushed or kinked?
• Make sure the tubing is free and clear of any obstruction.
• Is the water tank frozen because the fridge temperature is too low?
Try selecting a warmer setting on the Digital display.
• Is there an imbalance between the right and left parts of the door?
• Open and close the door smoothly 1~2 times. After you do this, the auto close system usually
works properly again.
• Try opening the door smoothly to avoid unbalancing the right part and the left part of the door.
Warranty
(
USA
)
WARRANTY ON SAMSUNG REFRIGERATOR
LIMITED WARRANTY TO ORIGINAL PURCHASER
This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung) and delivered
new, in the original carton to the original consumer purchaser, is warranted by Samsung against manufacturing defects
in materials and workmanship for a limited warranty period of:
One (1) year Parts and Labor on Refrigerator
Five (5) years Parts and Labor on sealed Refrigeration system only*
(*Compressor, evaporator, condenser, drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the
United States. To receive warranty service, the purchaser must contact Samsung for problem determination and service
procedures. Warranty service can only be performed by a Samsung authorized service center. The original dated bill of
sale must be presented upon request as proof of purchase to Samsung or Samsung authorized service center.
Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulatedX herein, with
new or reconditioned parts during the limited warranty period specified above. All replaced parts and products become
the property of Samsung and must be returned to Samsung. Replacement parts and products assume the remaining
original warranty, or ninety (90) days, whichever is longer.
In-home service will be provided during the warranty labor period subject to availability within the contiguous United
States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed and
accessible from floor level to service personnel. If during in-home service repair cannot be completed, it may be necessary
to remove, repair and return the product. If in-home service is unavailable, Samsung may elect, at our option, to provide
for transportation of our choice to and from a Samsung authorized service center. Otherwise, transportation to and from
the Samsung authorized service center is the responsibility of the purchaser.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial
use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment;
delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers;
cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products,
equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external plumbing
and leaks, external wiring, circuit breakers, fuses or connectors not supplied and authorized by Samsung, or which damage
this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments
and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and
prescribed in the instruction book; loss of food due to spoilage; consumable items including filters and light.
04 WARRANTY
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO
WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY
PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM
OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL
NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR
ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY
TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN
IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY
KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY
SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES
ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD
BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL
NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE
AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights, which vary from state to state.
To obtain warranty service, please contact Samsung at:
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660
1-800-SAMSUNG (1-800-726-7864) and www.samsung.com
warranty _25
In case the need for servicing arises
Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address
and telephone number when your product is not functionning properly.
Warranty Information
Limited Warranty for Original Purchaser
This Samsung product is warranted by Samsung Electronics Canada, Inc. (hereafter referred to as SECA) against
manufacturing defects in material or workmanship for the following periods:
Labor : 1 year (in-home)
Parts : 1 year
Compressor : 10 years
SECA further warrants that if this product fails to operate properly within the specified warranty period and the failure
is due to improper workmanship or defective material, SECA will repair or replace the product at its option.
All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To find the
nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca)
Obligation to the Original Owner
The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It
must be presented to a SECA Authorized Service Center at the time service is requested before warranty services
are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility
of the customer.
Exclusions of the Warranty
This warranty does not cover damage due to accident, fire, flood, and/or other Acts of God, misuse, incorrect line
voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during
shipping. Customer adjustments which are esplained in this owner s manual are not covered under the terms of
this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number.
This warranty is valid only on products purchased and used in the Canada.
(
CANADA
)
26_ warranty
Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Canada
Customer Care Center 1-800-SAMSUNG(7267864)
Customer Care Center fax. 1-866-436-4617
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
SAMSUNG ELECTRONICS CANADA, INC.
55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA
TEL : 905-542-3535 FAX : 905-542-3835
1-800-SAMSUNG (7267864)
www.samsung.com/ca
