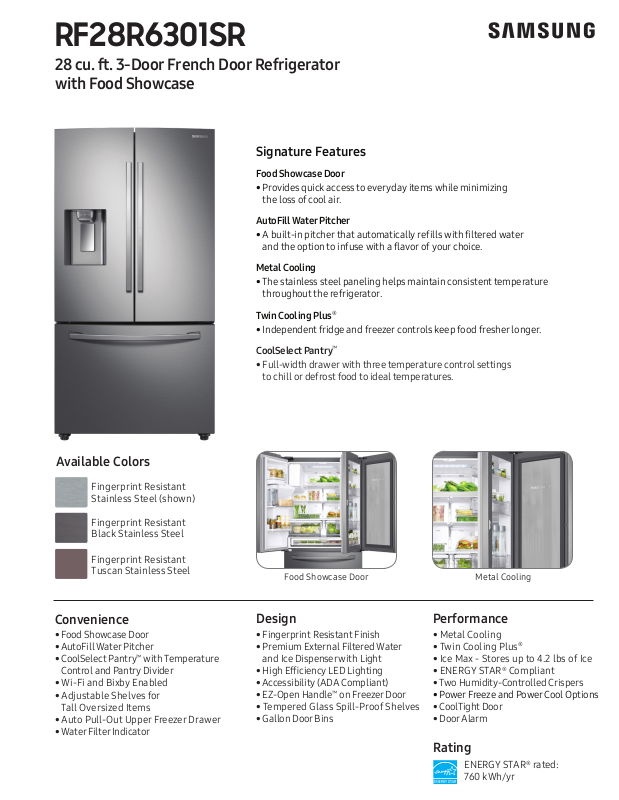

Samsung RF28R6301SR Specifications

RF28R6301SR

Stainless Steel

Stainless Steel

28 cu. ft. 3-Door French Door Refrigerator
with Food Showcase

Signature Features

Food Showcase Door

• Provides quick access to everyday items while minimizing
the loss of cool air.

AutoFill Water Pitcher

• A built-in pitcher that automatically refills with filtered water
and the option to infuse with a flavor of your choice.

Metal Cooling

• The stainless steel paneling helps maintain consistent temperature
throughout the refrigerator.

Available Colors

Fingerprint Resistant
Stainless Steel (shown)

Fingerprint Resistant
Black Stainless Steel

Fingerprint Resistant
Tuscan Stainless Steel

Twin Cooling Plus

• Independent fridge and freezer controls keep food fresher longer.

CoolSelect Pantry

• Full-width drawer with three temperature control settings
to chill or defrost food to ideal temperatures.

®

™

Metal CoolingFood Showcase Door

Convenience

• Food Showcase Door

• AutoFill Water Pitcher

• CoolSelect Pantry™ with Temperature
Control and Pantry Divider

• Wi-Fi and Bixby Enabled

• Adjustable Shelves for
Tall Oversized Items

• Auto Pull-Out Upper Freezer Drawer

• Water Filter Indicator

Design

• Fingerprint Resistant Finish

• Premium External Filtered Water
and Ice Dispenser with Light

• High Efciency LED Lighting

• Accessibility (ADA Compliant)

• EZ-Open Handle™ on Freezer Door

• Tempered Glass Spill-Proof Shelves

• Gallon Door Bins

Performance

• Metal Cooling

• Twin Cooling Plus

• Ice Max - Stores up to 4.2 lbs of Ice

• ENERGY STAR® Compliant

• Two Humidity-Controlled Crispers

• Power Freeze and Power Cool Options

• CoolTight Door

• Door Alarm

®

Rating

ENERGY STAR® rated:
760 kWh/yr

RF28R6301SR

6

621/8"

13

1

/4"

125° 125°

2"

28

7

/

8

"

52

1

/

2

"

47

3

/

4

"

353/4"

4

3

/4"

2

3

/8"

28

7

/

8

"

52

1

/

2

"

47

3

/

4

"

353/4"

4

3

/4"

2

3

/8"

28 cu. ft. 3-Door French Door Refrigerator
with Food Showcase

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards,
molding tile, countertop overhang, etc. Check to be sure there is enough room to open
the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall

where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical
connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and to be able to open refrigerator doors completely,
do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only.
For complete installation details, consult manual packed with product, or download manual
online at samsung.com.

Total Capacity: 27.8 cu. ft.

Refrigerator: 18.9 cu. ft.

• Food Showcase Door with Metal Cooling

• Premium External Filtered Water and Ice Dispenser

- Crushed or Cubed Ice

• Ice Max

• CoolSelect Pantry™ with Temperature Control –

Deli (410C), Fresh (380F) and Chilled (320F) Options

• Pantry Divider

• 2 Humidity-Controlled Crispers

• 5 Tempered Glass Spill-Proof Shelves:
– 1 Slide-In
– 1 Slide-Out
– 1 Foldable Half
– 2 Fixed

• 7 Clear Door Bins
– Right Door: 2 Gallon Bins, 1 Regular Bin, 1 Dairy Bin

Measure height
including flooring.
Be sure to allow
for hinge clearance
height if needed.

Measure width
including
countertop
overhang.

Measure depth
including
molding or trim.

– Left Door: 3 Regular Bins

• Adjustable Shelves for Tall Oversized Items

• High Efciency Top LED Lighting

Freezer: 8.9 cu. ft.

• EZ-Open Handle

• 2 Drawer Dividers

• High Efciency LED Lighting

Accessories

Water Filter: HAF-QIN

Warranty

One (1) Year Parts and Labor on Refrigerator
Five (5) Years Parts and Labor on

Sealed Refrigeration System Only*

Dimensions

Ten (10) Years Parts and Five (5) Years
Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges, handles and doors):

287/8"

353/4"

2"

1

13

/4"

353/4" x 70" x 36"

36"

7

8

/8"

331/2"

70"

125° 125°

"

8

/

7

28

621/8"

353/4"

3

/4"

4

3

/8"

2

"

4

/

3

47

Dimensions (WxHxD without hinges and door):
353/4" x 687/8" x 287/8"

Dimensions (WxHxD with hinge and door, no handle):
353/4" x 70" x 331/2"

Weight: 325 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 385/8" x 765/8" x 361/8"
Weight: 334 lbs

"

2

/

1

52

Color Model # UPC Code

Fingerprint Resistant
Stainless Steel

Fingerprint Resistant
Black Stainless Steel

Fingerprint Resistant
Tuscan Stainless Steel

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

©2019 Samsung Electronics America, Inc., 85 Challenger Road, Ridgeeld Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.

™

RF28R6301SR 887276341415

RF28R6301SG 887276341408

RF28R6301DT 887276341392
