	Content
	Safety information
	Important safety symbols and precautions:
	State of California Proposition 65 Warning (US only)
Content	Critical installation warnings
	Usage cautions
	Installation cautions
	Critical usage warnings
	Cleaning cautions
	Critical disposal warnings
	1. Regulatory Notice
	Installation
	Refrigerator at a glance
	Door removal for entrance
	Step-by-step installation
	Operations
	Feature panel
	Samsung Smart Home
	SMART GRID Function (Demand Response)
	Special features
	Maintenance
	Handle and care
	Cleaning
	Replacement
	Troubleshooting
	General
	Samsung Smart Home
	Smart Grid
	Warranty (USA)
	WARRANTY ON SAMSUNG REFRIGERATOR
2	English

4

4

4

5

7

7

11

12

13

14

16

16

18

26

35

35

42

46

51

56

56

60

60

64

64

67

68

69

69

Untitled-2 2			2016-02-15 7:35:30

Warranty Information (CANADA)

If your refrigerator needs service Limited Warranty for Original Purchaser Obligation to the Original Owner Exclusions of the Warranty

SAMSUNG CUSTOMER CARE CENTER

Open Source Announcement

72

72

72

72

73

73

74

English  3 

Content

Untitled-2 3			2016-02-15 7:35:30

Safety information

		• Before using your new Samsung Refrigerator, please read this manual thoroughly
		to ensure that you know how to operate the features and functions that your new
		appliance offers safely and efficiently.
		• This appliance is not intended for use by persons (including children) with reduced
		physical, sensory, or mental capabilities, or those who lack experience and knowledge,
		unless they have been given supervision or instruction concerning the use of the
		appliance by a person responsible for their safety.
		• Because the following instructions cover various models, the characteristics of your
		refrigerator may differ slightly from the refrigerator described in this manual.
	Safety	• If you have any question, contact us at 1-800-SAMSUNG or find help and information
		online at www.samsung.com.
	information	• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of
		the appliance or the rating label inside the fridge to see which refrigerant is used for
		your refrigerator. If this product contains flammable gas (Refrigerant R-600a), contact
		your local authority in regard to safe disposal of this product.
		• It is hazardous for anyone other than an Authorised Service Person to service this
		appliance.

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 Warning (US only)

WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

4  English

Untitled-2 4			2016-02-15 7:35:31

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact
with water.
- Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves,
room heaters, or other appliances.	Safety
• Do not plug several appliances into the same multiple power strip. The refrigerator
should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the voltage listed on the refrigerator’s rating plate.	information
- This provides the best performance and also prevents overloading of house wiring
circuits, which could overheat the wires and cause a fire hazard.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of fire.
• Do not use a power cord that has cracks or abrasion damage along its length or at
either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power
cord, insert the power cord between objects, or push the power cord into the space
behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This may result in an electric shock or fire.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, fire, and/or electric shock.
• Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
• Do not install this appliance near a heater or flammable material.
• Do not install this appliance in a location where gas may leak.
- This may result in an electric shock or fire.
• This refrigerator must be properly located and installed in accordance with the
instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
- If you connect the power plug upside down, the wire can get cut off and cause a fire
or electric shock.

English  5 

Untitled-2 5			2016-02-15 7:35:31

Safety information

		• Make sure that the power plug is not crushed or damaged by the back of the
		refrigerator.
		• Keep the packing materials out of reach of children.
		- There is a risk of death from suffocation if a child puts the packing materials on his
		or her head.
		• The appliance must be positioned so that the plug is accessible after installation.
		- Failing to do so may result in an electric shock or fire due to electric leakage.
	Safety	• Do not install this appliance in a humid, oily or dusty location, or in a location exposed
		to direct sunlight or to water (rain drops).
	information	- Deteriorated insulation on electrical parts may cause an electric shock or fire.
		• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
		• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
		contact your Samsung Electronics service center.
		- Otherwise there is a risk of fire.
		lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
		- This may result in an electric shock, fire, problems with the product, or injury.
		• You need to remove all the protective plastic film before you initially plug the product
		in.
		• Children should be supervised to ensure that they do not play with the snap rings used
		for door adjustment or the water tube clips.
		- There is risk of death by suffocation if a child swallows a snap ring or water tube
		clip. Keep the snap rings and water tube clips out of children's reach.
		• The refrigerator must be safely grounded.
		- Always make sure that you have grounded the refrigerator before attempting to
		investigate or repair any part of the appliance. Power leakages can cause severe
		electric shock.
		• Never use gas pipes, telephone lines, or other potential lightning attractors as an
		electrical ground.
		- You must ground the refrigerator to prevent any power leakages or electric shocks
		caused by current leakage from the refrigerator.
		- This may result in an electric shock, fire, explosion, or problems with the product.
		- Improper use of the grounding plug can result in a risk of electric shock. If it is
		necessary to use an extension cord, use only a 3-wire extension cord that has a
		3-blade grounding plug and a 3-slot receptacle that will accept the plug on the
		appliance. The marked rating of the extension cord should be AC 115-120 V, 10
		A, or more. If a grounding adapter is used, make sure the receptacle box is fully
		grounded.

6  English

Untitled-2 6			2016-02-15 7:35:31

•Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.

-This may result in an electric shock or fire.

•If the power cord is damaged, have it replaced immediately by the manufacturer or one of its service agents.

•Only a qualified technician or service company should be allowed to change the fuse in the refrigerator.

-Failing to do so may result in an electric shock or personal injury.

Installation cautions

CAUTION

•Allow sufficient space around the refrigerator and install it on a flat surface.

-Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

•After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.

•We strongly recommend you have a qualified technician or service company install the refrigerator.

-Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

•Overloading one door may make the refrigerator fall, causing physical injury.

information Safety

Critical usage warnings

WARNING

•Do not insert the power plug into a wall socket with wet hands.

-This may result in an electric shock.

•Do not store articles on the top of the appliance.

-When you open or close the door, the articles may fall and cause personal injury and/or material damage.

•Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.

-This may result in an electric shock or injury.

-Any sharp edges may cause a personal injury.

English  7 

Untitled-2 7			2016-02-15 7:35:31

Safety information

		• Do not touch the inside walls of the freezer or products stored in the freezer with wet
		hands.
		- This may cause frostbite.
		• Do not put a container filled with water on the refrigerator.
		- If spilled, there is a risk of fire or electric shock.
		• Do not keep volatile or flammable objects or substances (benzene, thinner, propane
		gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
	Safety	- This refrigerator is for storing food only.
		- This may result in fire or explosion.
	information	• Children should be supervised to ensure that they do not play with the appliance.
		• Do not let children go inside the refrigerator. They could become trapped.
		- Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet
		are necessarily small. Be careful when you open the doors if children are in the area.
		• Do not let children hang on the door or door bins. A serious injury may occur.
		• Do not insert your hands into the area under the appliance.
		- Any sharp edges may cause personal injury.
		• Do not store pharmaceutical products, scientific materials, or temperature sensitive
		products in the refrigerator.
		- Products that require strict temperature controls must not be stored in the
		refrigerator.
		• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are
		of a type recommended by the manufacturer.
		• If you smell smoke, pull out the power plug immediately, and then contact your
		Samsung Electronics service center.
		• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
		contact your Samsung Electronics service center.
		- Otherwise there is a risk of fire.
		• Do not let children step on a drawer.
		- The drawer may break and cause them to slip.
		• Do not leave the doors of the refrigerator open while the refrigerator is unattended
		and do not let children enter the refrigerator.
		• Do not allow babies or children go into a drawer.
		- It can cause death from suffocation by entrapment or personal injury.
		• Do not overfill the refrigerator with food.
		- When you open the door, an item may fall out and cause personal injury or material
		damage.
		• Do not spray volatile material such as insecticide onto the surface of the appliance.
		- As well as being harmful to humans, it may also result in an electric shock, fire, or
		problems with the product.
	8	English

Untitled-2 8			2016-02-15 7:35:31

• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker
bucket.
- It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as flammable sprays,
flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted
candle in the refrigerator to remove bad odors.
- This may result in an electric shock or fire.	Safety
• Fill the water tank, ice tray, and water cubes with potable water only (tap water,
mineral water, or purified water).
- Do not fill the tank with tea, juice, or a sports drink. They can damage the	information
refrigerator.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may
result in an electric shock, fire, problems with the product, or injury. Do not put a
container filled with water on the appliance.
- If spilled, there is a risk of fire or electric shock.
• Do not use mechanical devices or any other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Never stare directly at the UV LED lamp for long periods of time.
- This may result in eye strain due to the ultraviolet rays.
• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not
work.
- The glass shelf could fall and cause personal injury.
• Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are
necessarily small. Be careful when you open the doors if children are in the area.
• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and
air the room in which the appliance is standing for several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
• Use only the LED Lamps provided by the manufacturer or its service agents.
• Bottles should be stored tightly together so that they do not fall over or out.
• This product is intended only for the storage of food in a domestic environment.
• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker
bucket.
- This can cause a personal injury or material damage.

English  9 

Untitled-2 9			2016-02-15 7:35:31

Safety information

		• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
		- Unauthorized modifications can cause safety problems. To reverse an unauthorized
		modification, we will charge the full cost of parts and labor.
		• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
		• If your refrigerator needs to be repaired or reinstalled, contact your nearest service
		center.
		- Failing to do so may result in an electric shock, fire, problems with the product, or
	Safety	injury.
		center.
	information	• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service
		• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately
		and contact a Samsung service center.
		- Failing to do so may result in an electric or fire hazards.
		• Pull the power plug out of the socket before changing the interior lamps of the
		refrigerator.
		- Otherwise, there is a risk of electric shock.
		• If you experience difficulty changing a non-LED light, contact a Samsung service
		center.
		• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and
		LED lamps yourself.
		- Contact a Samsung service center.
		• Plug the power plug into the wall socket firmly.
		• Do not use a damaged power plug, damaged power cord, or loose wall socket.
		- This may result in an electric shock or fire.

10  English

Untitled-2 10			2016-02-15 7:35:31

Usage cautions

CAUTION

	• Do not re-freeze frozen foods that have thawed completely. Do not place carbonated
	or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the
	freezer.
	- When the contents freeze, the glass may break and cause personal injury.
	• Use only the ice maker provided with the refrigerator.		Safety
	• To get the best performance from the product:
	- Do not place food too close to the vents at the rear of the refrigerator as this can		information
	obstruct free air circulation in the refrigerator compartment.
	- Wrap food up properly or place it in airtight containers before putting it into the
	refrigerator.
	- Do not put glass bottles or carbonated beverages into the freezer. They can freeze
	and break. Broken beverage containers can cause injury.
	- Please observe maximum storage times and expiration dates of frozen goods.
	• Do not put glass containers or bottles or carbonated beverages into the freezer.
	- The container may freeze and break, and this may result in injury.
	• Service Warranty and Modification.
	- Any changes or modifications performed by a 3rd party on this finished appliance
	are not covered under Samsung warranty service, nor is Samsung responsible for
	safety issues that result from 3rd party modifications.
	• Do not block the air vents inside the refrigerator.
	- If the air vents are blocked, especially with a plastic bag, the refrigerator can be
	over cooled. If a cooling period lasts too long, the water filter may break and cause
	water leakage.
	• If the refrigerator is disconnected from the power supply, you should wait for at least
	five minutes before plugging it back in.
	• If large amounts of water enter the refrigerator, pull out the power plug and contact a
	Samsung service center.
	• Do not strike or apply excessive force to any glass surface.
	- Broken glass may result in a personal injury and/or property damage.
	• Fill the water tank and ice cube trays with potable water only (tap water, mineral
	water, or purified water).
	- Do not fill the tank with tea, juice, or a sports drink. They can damage the
	refrigerator.
	• If the refrigerator is flooded, shut off the power to the refrigerator and contact your
	nearest Samsung service center.
	- There is a risk of electric shock or fire.
	English	11

Untitled-2 11			2016-02-15 7:35:31

Safety information

Cleaning cautions

CAUTION

		• Do not spray water directly on the inside or outside the refrigerator.
		- There is a risk of fire or electric shock.
		• Do not use a hair dryer to dry the inside of the refrigerator.
		• Do not place a lighted candle in the refrigerator to remove bad odors.
	Safety	- This may result in an electric shock or fire.
		• Do not spray cleaning products directly on the display.
	information	- Printed letters on the display may come off.
		• Use a clean, dry cloth to remove any foreign matter or dust from the power plug
		• If any foreign substance such as water has entered the appliance, unplug the power
		plug and contact your nearest service center.
		- Failing to do so may result in an electric shock or fire.
		blades. Do not use a wet or damp cloth when cleaning the plug.
		- Otherwise, there is a risk of fire or electric shock.
		• Do not clean the appliance by spraying water directly onto it.
		• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.
		- They may damage the surface of the appliance and may cause a fire.
		• Never put fingers or any objects into the dispenser outlet.
		- This can cause a personal injury or material damage.
		• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
		- Failing to do so may result in an electric shock or fire.

12  English

Untitled-2 12			2016-02-15 7:35:31

Critical disposal warnings

WARNING

• DANGER : Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
- Take off the doors and door latch.
- Leave the shelves in place so that children cannot easily climb inside.
- Children trapped inside a refrigerator can hurt themselves or suffocate to death.	Safety
• Please dispose of the packaging material from this product in an environmentally
friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to	information
disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of
the appliance or the rating label inside the fridge to see which refrigerant is used for
your refrigerator. If this refrigerator contains flammable gas (Refrigerant R-600a),
contact your local authority in regard to the safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that
small children or animals cannot become trapped inside. Children should be supervised
to ensure that they do not play with the appliance.
- If trapped inside, the child could be injured or suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require
a special disposal procedure. Please contact your local authorities in regard to the
environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials
can be dangerous to children.
- If a child places a bag over his or her head, the child could suffocate.

English  13 

Untitled-2 13			2016-02-15 7:35:31

Safety information

information Safety

1. Regulatory Notice

1.1 FCC Notice

FCC CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Contains Transmitter Module FCC ID: A3LSWL-CQ52

This device complies with Part 15 of FCC Rules. Operation is Subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received including interference that cause undesired operation.

For products available in the US and Canadian markets, only channels 1~11 are available.

You cannot select other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver

•Connect the equipment to an outlet that is on a different circuit than the receiver.

•Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it’s antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

14  English

Untitled-2 14			2016-02-15 7:35:31

1.2 IC Notice

Contains Transmitter Module IC: 649E-SWLCQ52

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.

For products available in the US and Canadian markets, only channels 1~11 are available. You cannot select other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it’s antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

SAVE THESE INSTRUCTIONS

information Safety

English  15 

Untitled-2 15			2016-02-15 7:35:31

Installation

Installation

Follow these instructions carefully to prevent accidents and to ensure the proper installation of this refrigerator.

WARNING

•Use the refrigerator only for its intended purpose as described in this manual.

•Any servicing must be performed by a qualified technician.

•Dispose of the product packaging material in compliance with the local regulations.

•To prevent electric shock, unplug the power cord before servicing.

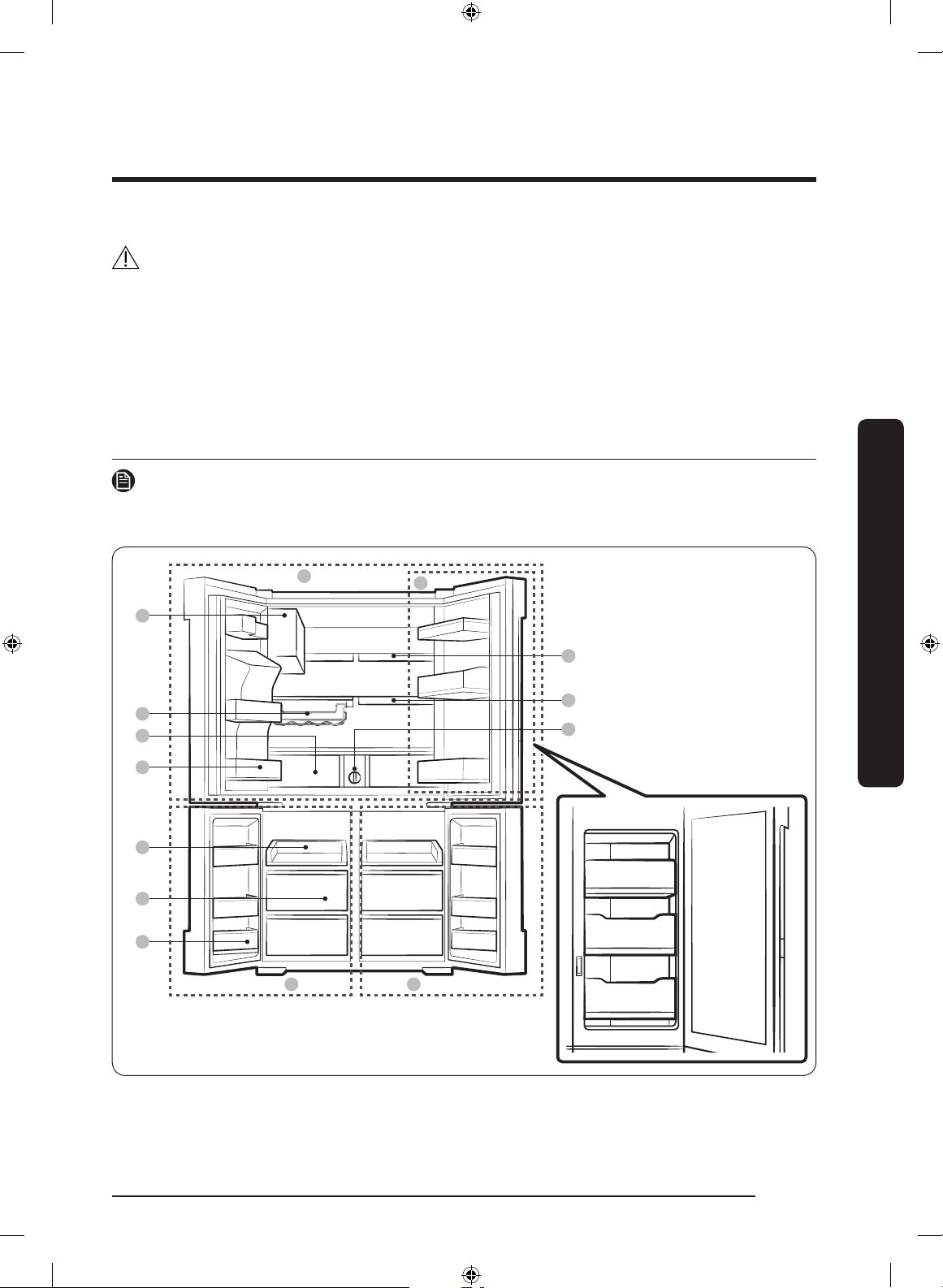

Refrigerator at a glance

NOTE

The images of parts in this manual and the actual provided component parts of the refrigerator may differ, depending on the model and your country.

A B

01

08

09 02 0310

04

05

06

07

C D

16  English

Untitled-2 16			2016-02-15 7:35:31

	01 Auto Ice Maker	A. Fridge
	02 Wine Rack *	B. Showcase Door *
	03 EZ Fresh Vegetable & Fruit Drawers	C. Freezer
	04 Fridge Multi-Purpose Guard	D. Flex Zone
	05 Easy Slide-Shelf
	06 Dry Food and Meat Storage Bin
	07 Freezer door Bins
	08 Fixed Shelf
	09 Quick Space Shelf
	10 Water filter
	* applicable models only
	CAUTION

•When the inner case is open, do not open the show case. The show case is likely to be pushed back and may be damaged.

•When closing the show case, make sure the show case is closed properly. If you close the show case properly, you will hear a clicking sound.

NOTE

•For energy efficiency, keep all shelves, drawers, and baskets in their original positions.

•When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.

•If the vertical hinged section is reversed, put it back into the correct position, and then close the door.

•Moisture may form at times on the vertical hinged section.

•If you close a door by force, the other door may open.

•When the door opens, the interlock switch automatically disables the auger motor of the ice maker for safety reasons.

•If the internal or external LED lamp is out of order, contact a local Samsung service center.

Installation

English  17 

Untitled-2 17			2016-02-15 7:35:31

Installation

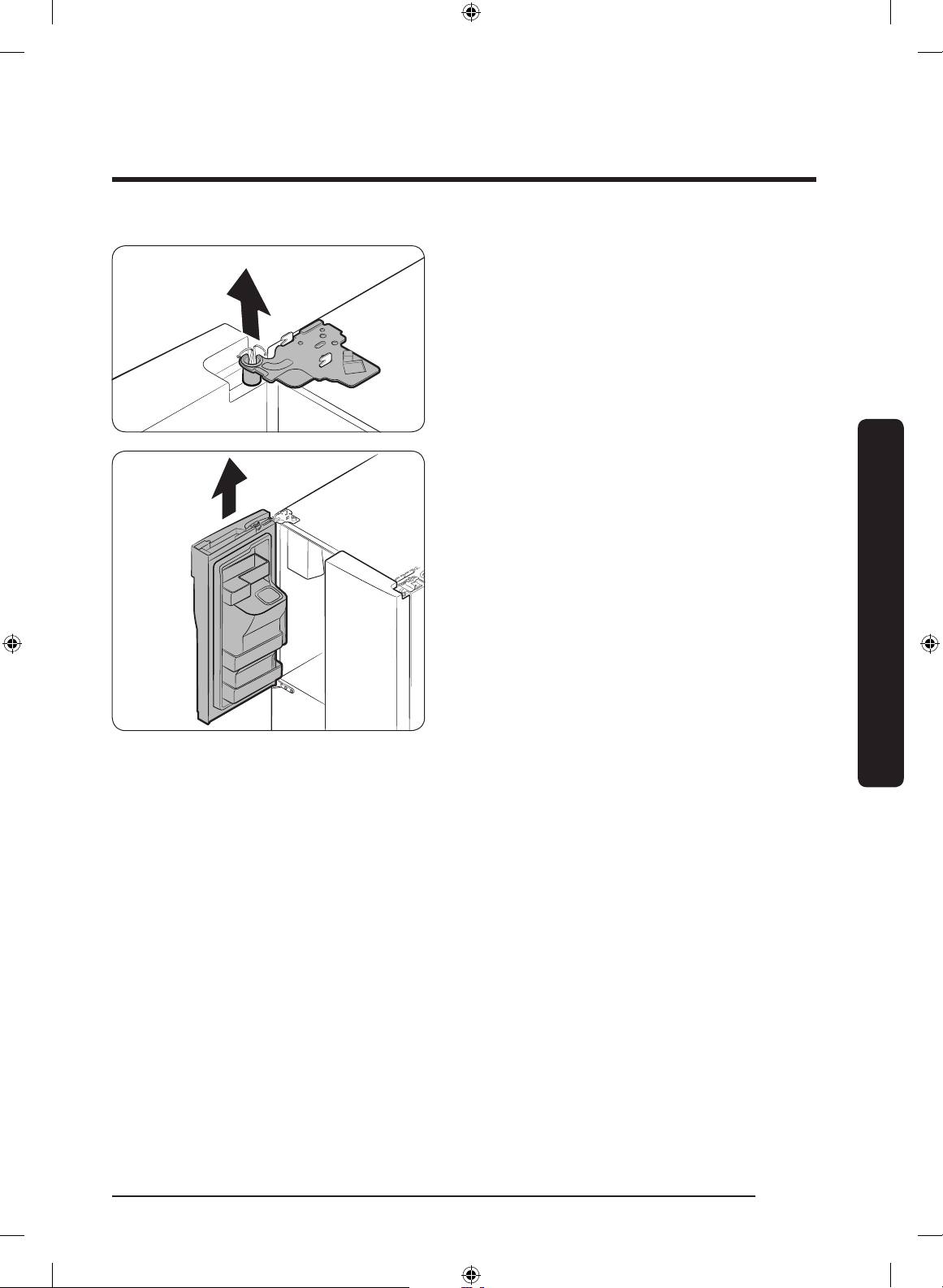

Door removal for entrance

If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 26 for the installation instructions.

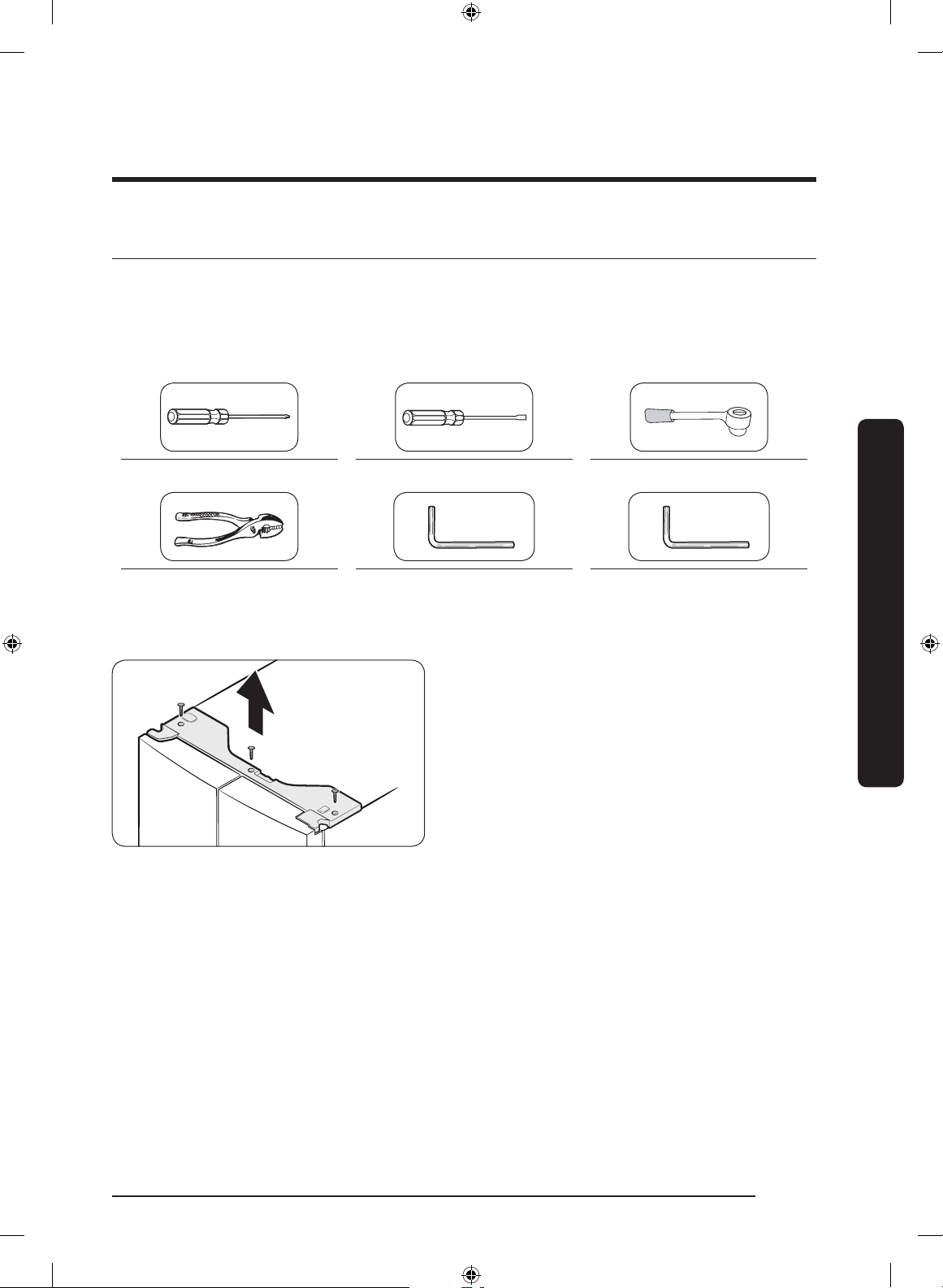

Tools required (not provided)

Installation

Philips screwdriver

Flat-heat screwdriver

Socket wrench (10 mm)

Pliers

Allen wrench (4 mm)

Allen wrench (5 mm)

Detaching the fridge doors

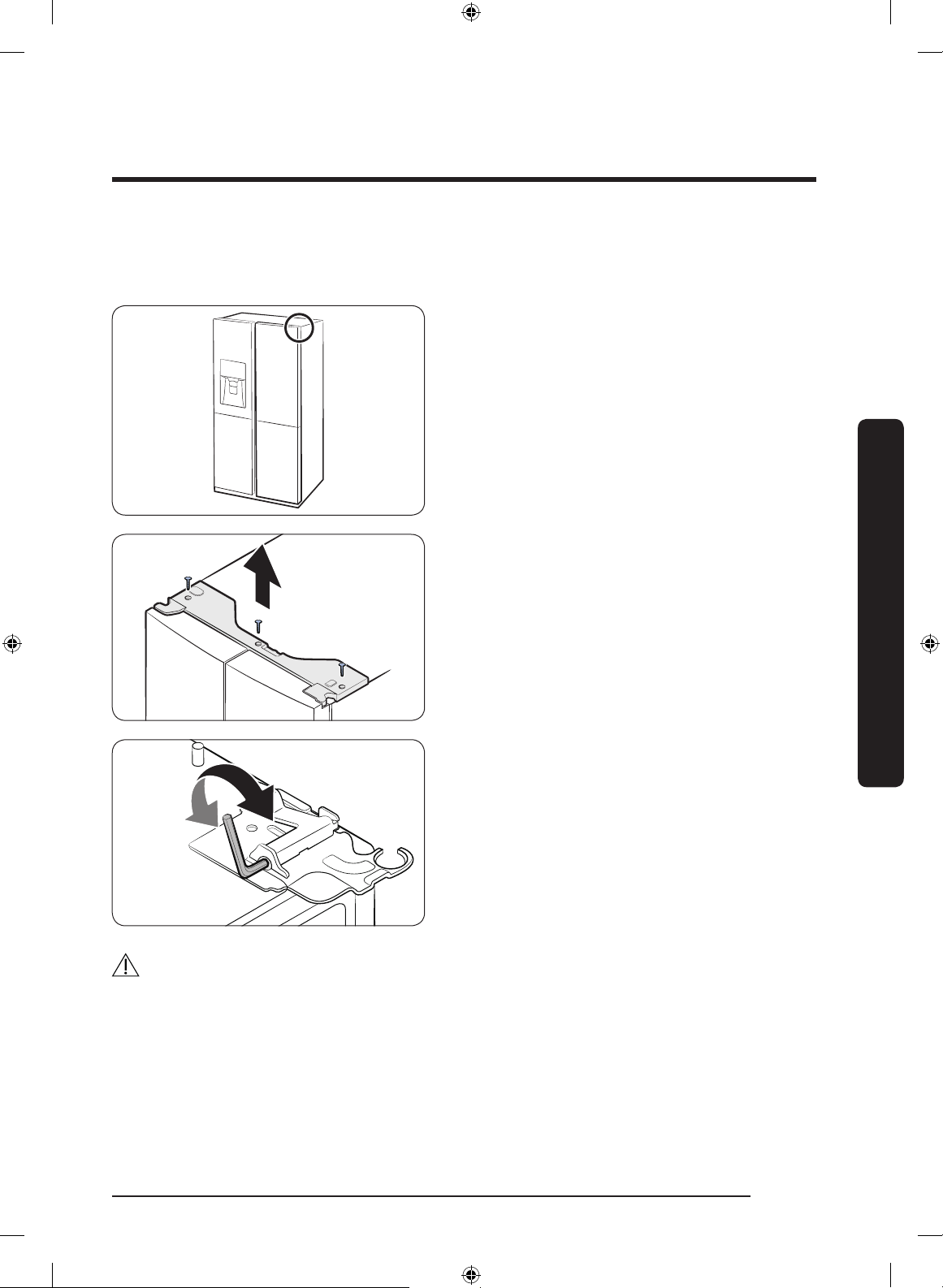

1. With the door closed, use a Philips screwdriver to remove the screws (x3) from the top cover. Pull up and remove the top cover with the connectors.

18  English

Untitled-2 18			2016-02-15 7:35:32

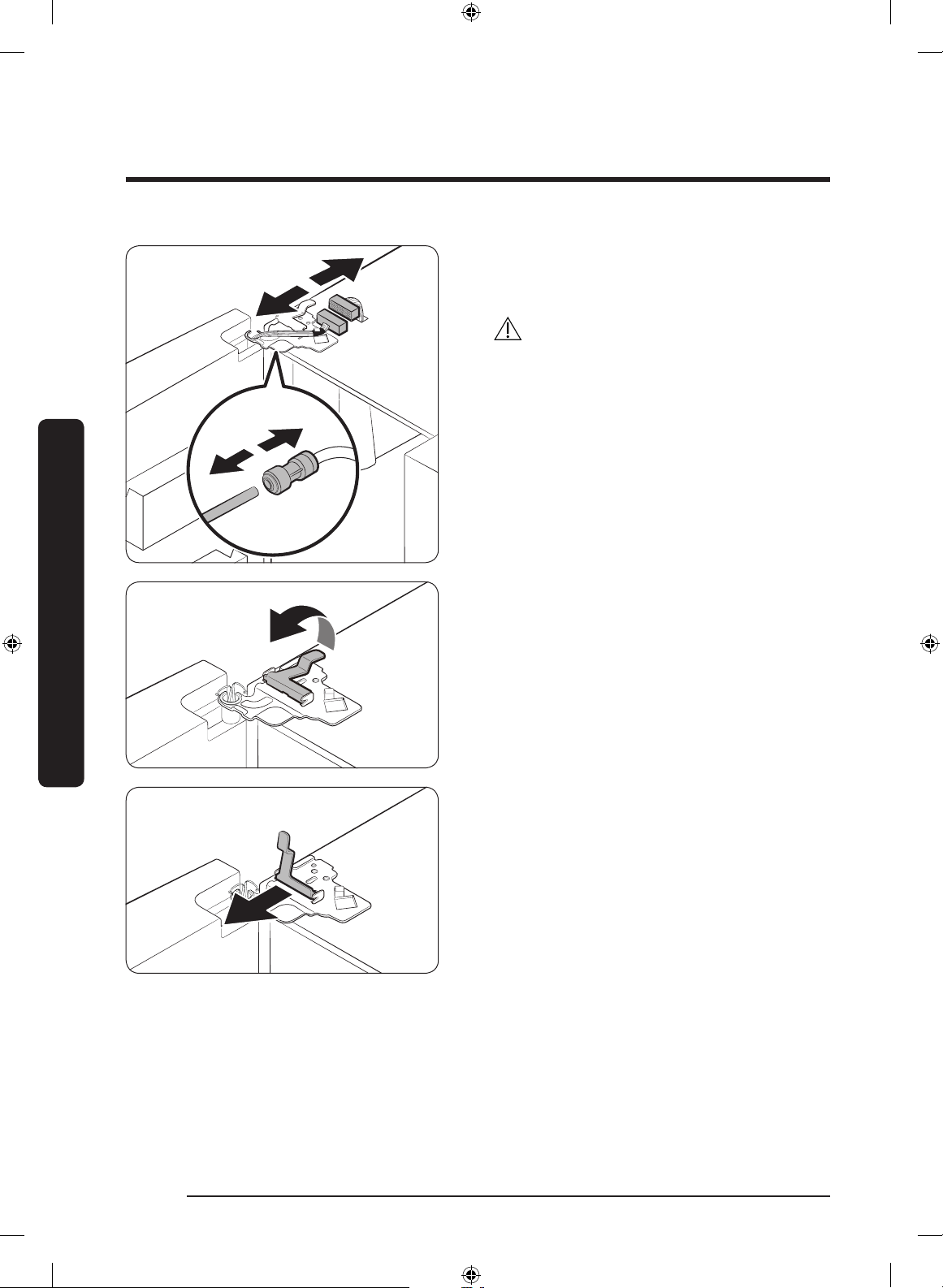

2.Disconnect the two wire connectors on the left door. The position of the connectors differs with the model.

CAUTION

•Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.

•Make sure the refrigerator is off before disconnecting the connectors.

3.Disconnect the water tube from the coupler on the left door as shown.

4.Gently draw up the clamp in several steps. To prevent finger injuries, do not apply a sudden force to the clamp.

5.Pull up the clamp to remove.

Installation

English  19 

Untitled-2 19			2016-02-15 7:35:32

Installation

Installation

6.Open the door 90 degrees. While holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.

7.Gently pull up the door vertically to remove. Do not apply excessive force to the door. The door may fall, causing physical injury.

8.Lay the door down on a flat surface.

9.Repeat the steps above for the other door, except for Step 3. There is no water tube on the right side door.

20  English

Untitled-2 20			2016-02-15 7:35:33

Detaching the freezer doors

CAUTION

•Be sure to remove the fridge doors before removing the freezer doors.

•Use caution when disconnecting the bottom connectors.

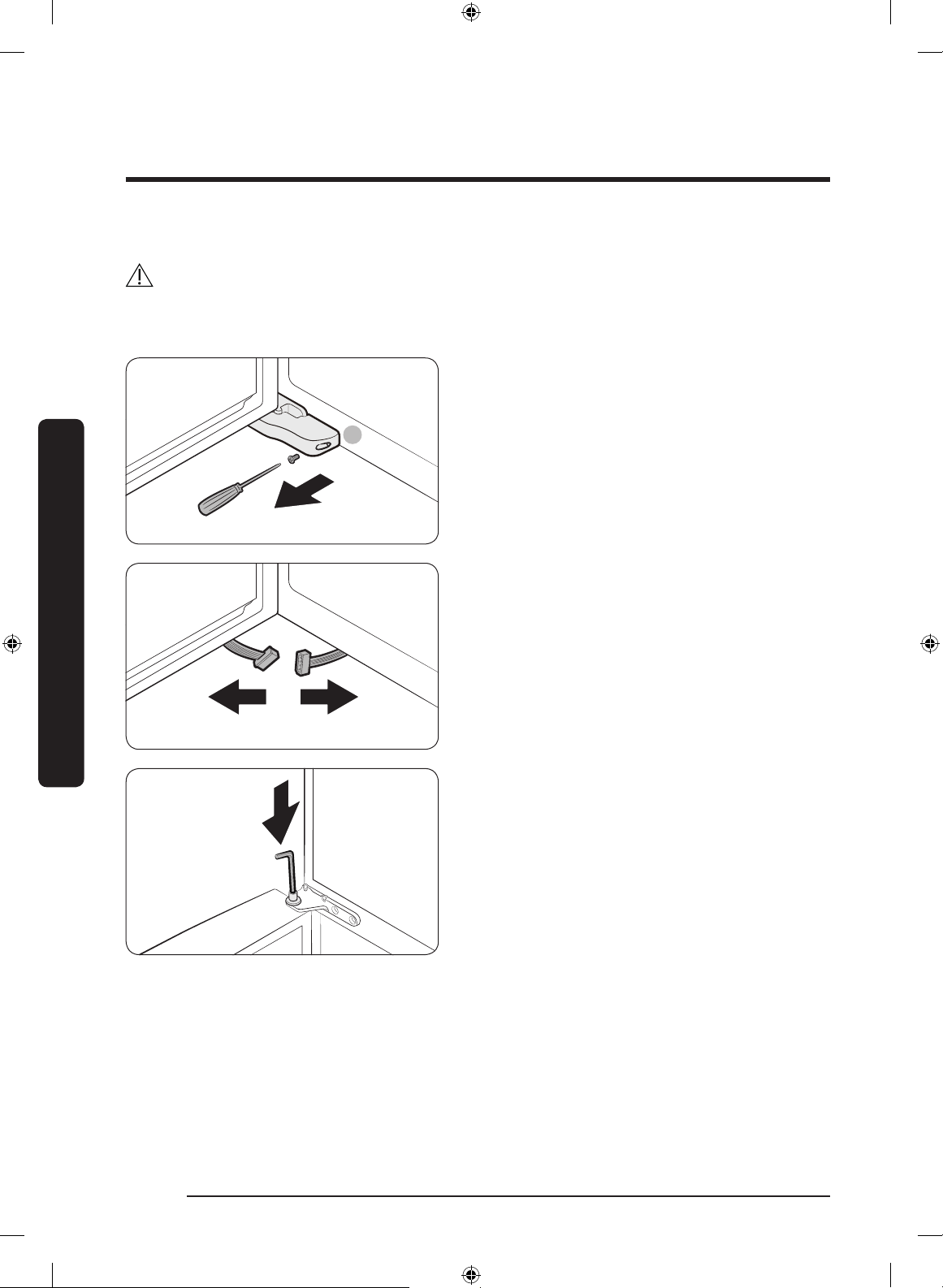

1.With the freezer door open, use a Philips screwdriver to remove the screw holding the cover (A) of the

A	adjustable leg.

2. Disconnect the wire connectors.

3. Locate the hinge shaft. While holding the door with one hand, use a flat-head screwdriver or wrench to press the shaft down. Make sure to hold the door to prevent the door from falling.

Installation

English  21 

Untitled-2 21			2016-02-15 7:35:33

Installation

Installation

4. To prevent contact with the middle hinge, slightly tilt the door to the front, and then lift it up to remove.

5. Repeat the steps above for the other door.

Re-attaching the freezer doors

CAUTION

•Before re-attaching the doors, make sure all the electrical connectors are properly connected.

•The freezer doors must be re-attached before the fridge doors.

•Be careful not to damage or step on the wires during this process.

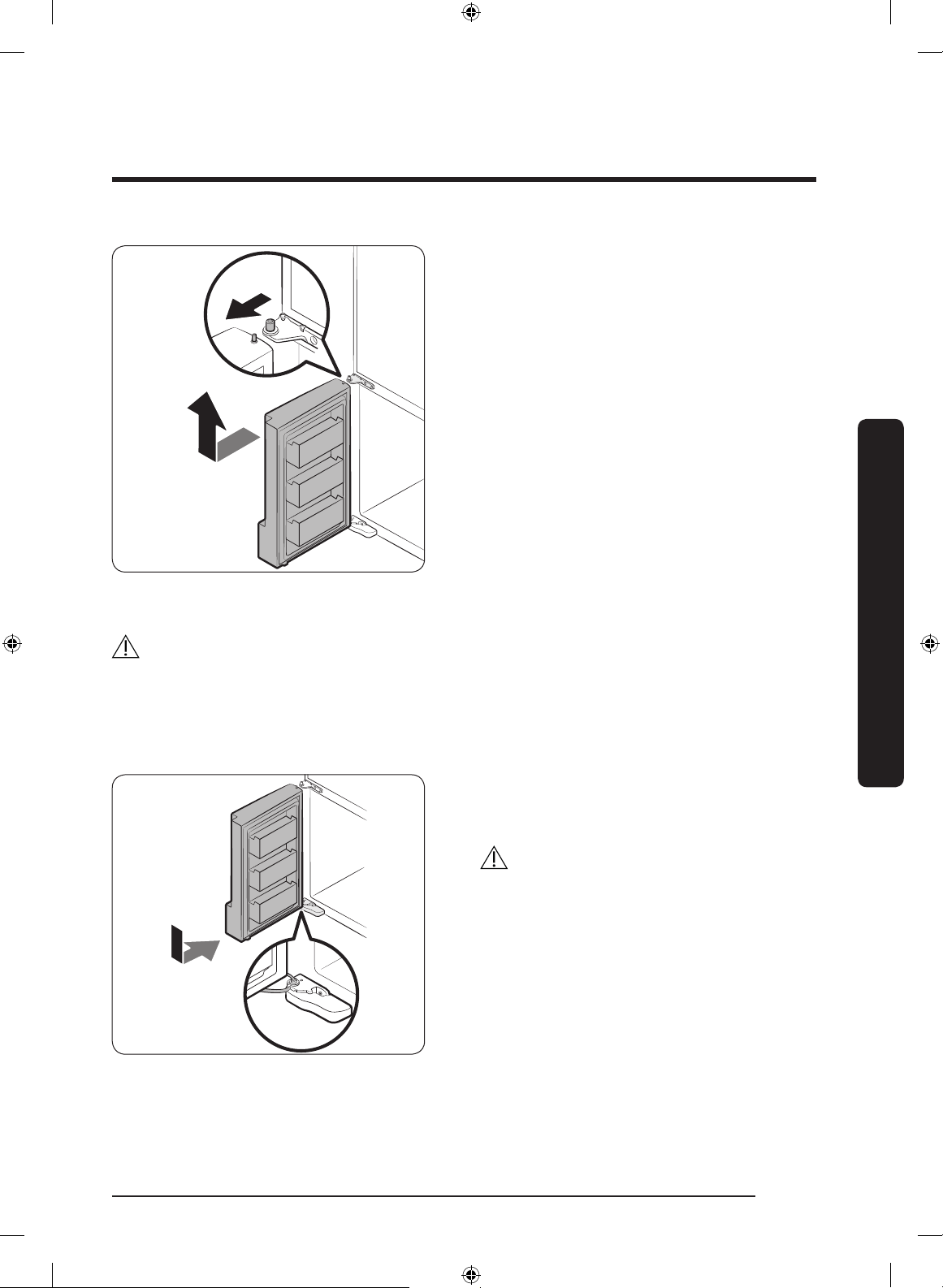

1. Insert the freezer door into the bottom hinge while pushing the freezer door in the direction of the arrow.

CAUTION

• Be careful not to damage or step on the wires during this process.

22  English

Untitled-2 22			2016-02-15 7:35:33

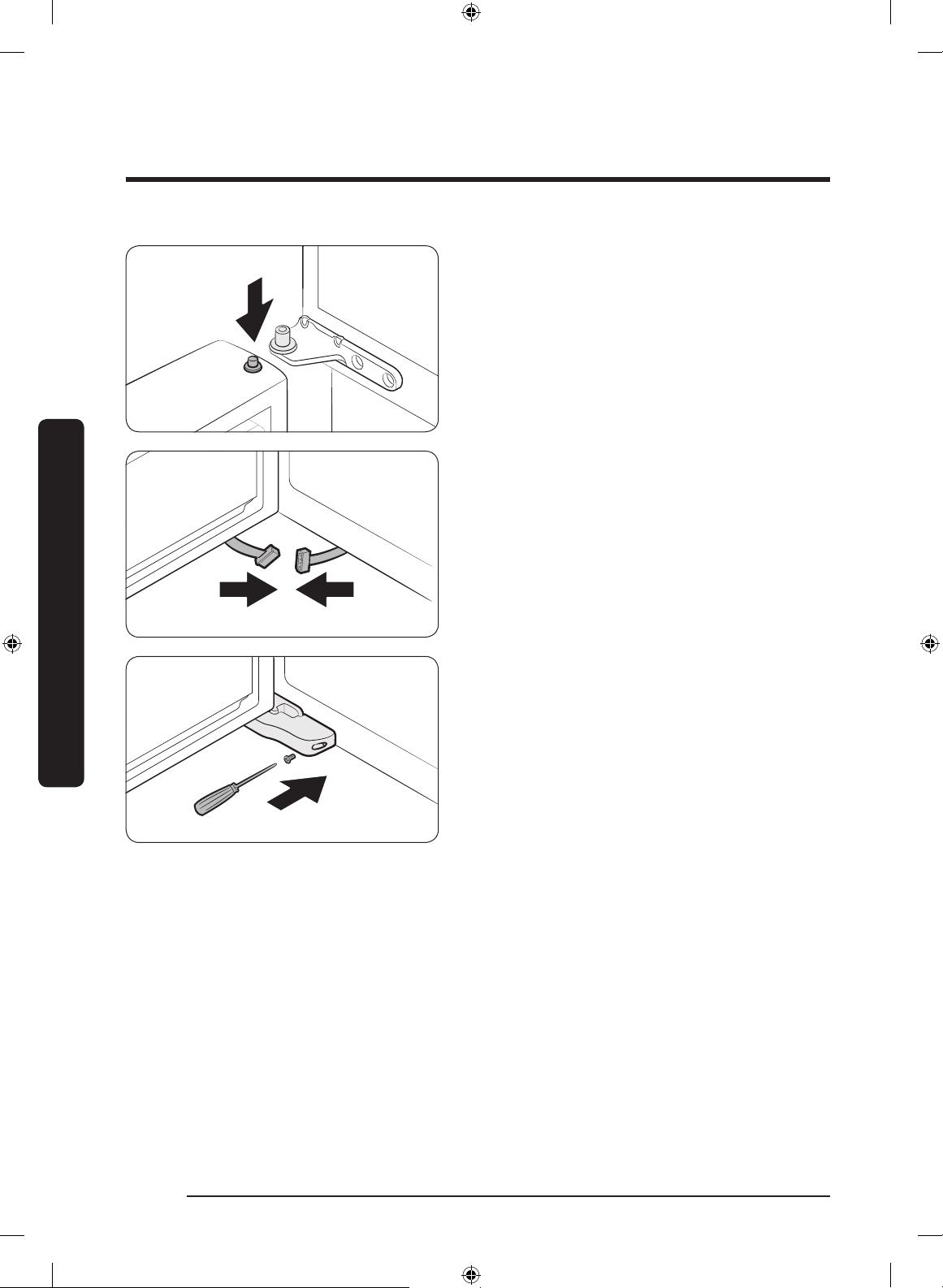

2.	While pressing the hinge shaft down,
	position the door so that the hinge shaft
	is below the shaft hole in the middle
	hinge. Release the hinge shaft so that it
	enters the shaft hole.
3.	With the door open, connect the bottom
	connectors in the direction of the
	arrows.
	Installation
4.	Attach the levelling foot cover using a
	Philips screwdriver. Be careful not to
	damage or step on the connectors.
5.	Repeat the steps above for the other
	door.

English  23 

Untitled-2 23			2016-02-15 7:35:33

Installation

Re-attaching the fridge doors

Installation

1.While holding the door open by more than 90 degrees, insert the shaft on the middle hinge into the hole on the bottom of the door.

2.Put the top hinge into position on the top of the refrigerator, and then insert the hinge shaft into the top hole of the door. Make sure the wires from the door pass through the hole in the hinge shaft.

3.Insert the clamp in the direction of the arrow.

4. Push back the clamp as shown.

24  English

Untitled-2 24			2016-02-15 7:35:34

5. Connect the wire connectors.

CAUTION

•Make sure the wire connectors are connected properly. Otherwise, the display will not operate.

6. Connect the water tube.

CAUTION

•To prevent water leaks, make sure the red clips tighten the coupler properly.

•Keep the clips out of children’s reach.

7.Repeat the above steps for the other door, except for Step 6. The right door does not have a water tube.

8.Attach the top cover with the front side first, and then press down on its back to get it into position. Then, tighten the screws (x3).

Installation

English  25 

Untitled-2 25			2016-02-15 7:35:34

Installation

Installation

Step-by-step installation

STEP  1  Select a site

The site must:

•Have a solid level surface without carpeting or flooring that may obstruct ventilation

•Be out of direct sunlight

•Have adequate room for opening and closing the door

•Be away from any heat source

•Provide room for maintenance and servicing

•Have a temperature range between 50 °F (10 °C) and 110 °F (43 °C)

Clearance

See the pictures and table below and on the next page for installation space requirements.

	B	Depth “A”	34 1/4" (871 mm)
	A	Width “B”	35 3/4" (908 mm)
		Height “C”	70 3/4" (1797 mm)
		Overall Height “D”	71 7/8" (1825 mm)
C		D

26  English

Untitled-2 26			2016-02-15 7:35:34

															01			2" (50 mm)
															02			125°
01															03			59 5/8" (1515 mm)
																	04	11 7/8" (303 mm)
04										04							05	12" (305 mm)
																	06	35 3/4" (908 mm)
																	07	29 3/8" (748 mm)
02						02											08	2 3/4" (70 mm)
																	09	1 3/4" (43 mm)
								05
																	10	49" (1245 mm)
						03
						06
						08
07						09

10

NOTE

The measurements of your refrigerator may differ from those listed above, depending on the measuring method.

English  27 

Installation

Untitled-2 27			2016-02-15 7:35:35

Installation

Installation

STEP  2  Flooring

• The surface of the installation location must support a fully loaded refrigerator.

• To protect the floor, put a large piece of cardboard under each leg of the refrigerator when you move it for installation.

• To protect the floor once the refrigerator is in its final position, do not move it unless necessary. If you have to move it, place thick paper or cloth such as an old carpet, along the movement path.

NOTE

If the refrigerator cannot pass through entrance to your home or kitchen due to its size, see Door removal for entrance on page 18.

28  English

Untitled-2 28			2016-02-15 7:35:35

STEP  3  Adjust the levelling feet

CAUTION

•When installed, the refrigerator must be level on a flat, solid floor. Not leveling the refrigerator can cause damage to the refrigerator or physical injury.

•Levelling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.

•For safety reasons, adjust the front side a little higher than the rear side.

You can level the refrigerator using the rear legs. The rear legs have a special screw

(leveller) for levelling purposes. Use a flat-head screwdriver for levelling.

• To adjust the height of the freezer side: Insert a flat-head screwdriver into the leveller of the freezer-side rear leg. Turn the leveller clockwise to raise the refrigerator. Turn it counterclockwise to lower.

• To adjust the height of the fridge side: Insert a flat-head screwdriver into the leveller of the fridge-side rear leg.

Turn the leveller clockwise to raise the refrigerator. Turn it counterclockwise to lower.

Installation

English  29 

Untitled-2 29			2016-02-15 7:35:35

Installation

STEP  4  Adjust the door height as well as the door gap

Snap ring

The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm).

To adjust the height of a door

1. Check the height difference between the doors, and then raise and hold the lower door.

Installation

2. Insert a suitable-sized snap ring (A) between the door and the hinge as shown.

A

CAUTION

•Insert only one snap ring for this purpose. If you insert two or more snap rings, the rings may slip out or make a rubbing noise.

•Keep the snap rings out of children’s reach, and keep them for future use.

•Do not raise the door too much. The door can contact and damage the top cover.

30  English

Untitled-2 30			2016-02-15 7:35:35
