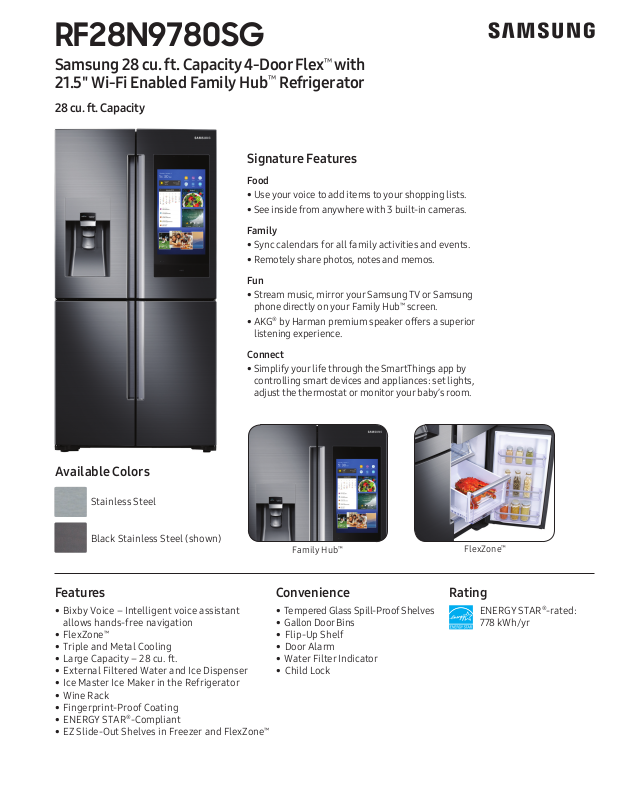

Samsung RF28N9780SR Specifications

RF28N9780SG

Stainless Steel

Samsung 28 cu. ft. Capacity 4-Door Flex™ with

21.5" Wi-Fi Enabled Family Hub

28 cu. ft. Capacity

™

Refrigerator

Signature Features

Food

• Use your voice to add items to your shopping lists.

• See inside from anywhere with 3 built-in cameras.

Family

• Sync calendars for all family activities and events.

• Remotely share photos, notes and memos.

Fun

• Stream music, mirror your Samsung TV or Samsung phone directly on your Family Hub™ screen.

• AKG® by Harman premium speaker offers a superior listening experience.

Connect

• Simplify your life through the SmartThings app by controlling smart devices and appliances: set lights, adjust the thermostat or monitor your baby’s room.

Available Colors

Stainless Steel

Black Stainless Steel (shown)

Features

• Bixby Voice – Intelligent voice assistant allows hands-free navigation

• FlexZone

• Triple and Metal Cooling

• Large Capacity – 28 cu. ft.

• External Filtered Water and Ice Dispenser

• Ice Master Ice Maker in the Refrigerator

• Wine Rack

• Fingerprint-Proof Coating

• ENERGY STAR®-Compliant

• EZ Slide-Out Shelves in Freezer and FlexZone

™

Family Hub

™

Convenience

• T empered Glass Spill-Proof Shelves

• Gallon Door Bins

• Flip-Up Shelf

• Door Alarm

• Water Filter Indicator

• Child Lock

™

FlexZone

™

Rating

ENERGY STAR®-rated: 778 kWh/yr

RF28N9780SG

Samsung 28 cu. ft. Capacity 4-Door Flex™ with

21.5" Wi-Fi Enabled Family Hub

™

Refrigerator

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall

where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and to be able to open refrigerator doors completely, do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product, or download manual online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Dimensions

353/4"

49"

Total Capacity: 27.9 cu. ft.

Refrigerator: 16.4 cu. ft.

• Premium External Filtered Water and Ice Dispenser (Crushed or Cubed Ice)

• Ice Master Ice Maker

• 2 Fresh AirTight Box Crispers

• 2 Gallon Door Bins, 1 Regular Bin

• 5 Tempered Glass Spill-Proof Shelves – 1 Slide-In – 1 Flip-Up – 3 Fixed

• Wine Rack

• Surface LED Lighting

FlexZone™: 5.75 cu. ft.

• 1 EZ Slide-Out Shelf

• 2 Drawers

• 5 Temperature Zones: – 41°F – 35°F – 30°F – 23°F – -8°F – 5°F

• Surface LED Lighting

Freezer: 5.75 cu. ft.

• 1 EZ Slide-Out Shelf

• 2 Freezer Drawers

• High-EfciencyLEDLighting

Warranty

One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on

Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges, handles and doors): 353/4" x 717/8" x 345/16"

Dimensions (WxHxD without hinges and door): 353/4" x 703/4" x 291/2"

Dimensions (WxHxD with hinge and door, no handle):

/4" x 717/8" x 345/16"

Weight: 363.8 lbs.

Shipping Dimensions & Weight (WxHxD)

Dimensions: 38

/16" x 779/16" x 361/4"

Weight: 385.8 lbs.

Color Model # UPC Code

Stainless Steel RF28N9780SR 887276259291 Black Stainless Steel RF28N9780SG 887276259284

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
