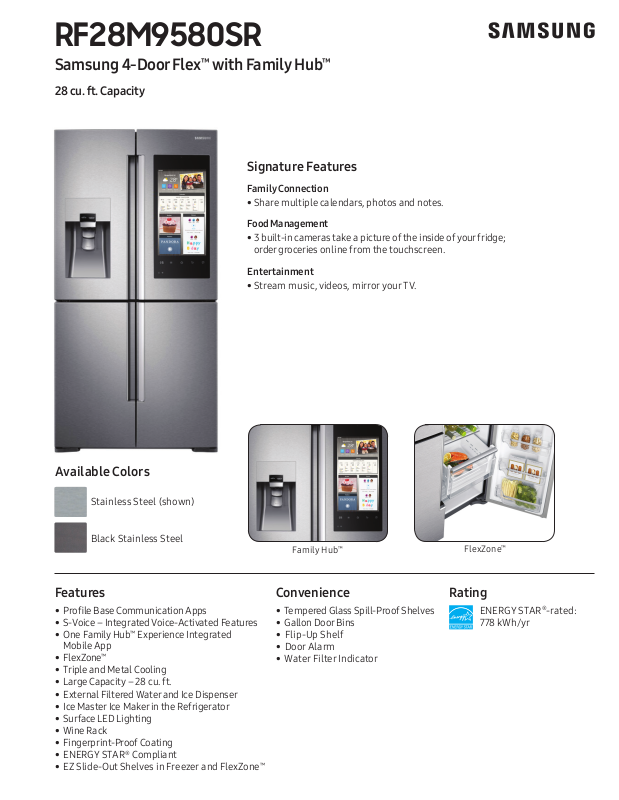

Samsung RF28M9580SG Specsheet

RF28M9580SR

Stainless Steel

Samsung 4-Door Flex™ with Family Hub

28 cu. ft. Capacity

Signature Features

Family Connection

• Share multiple calendars, photos and notes.

Food Management

• 3 built-in cameras take a picture of the inside of your fridge; order groceries online from the touchscreen.

Entertainment

• Stream music, videos, mirror your TV.

™

Available Colors

Stainless Steel (shown)

Black Stainless Steel

Features

• Prole Base Communication Apps

• S-Voice – Integrated Voice-Activated Features

• One Family Hub™ Experience Integrated Mobile App

• FlexZone

• Triple and Metal Cooling

• Large Capacity – 28 cu. ft.

• External Filtered Water and Ice Dispenser

• Ice Master Ice Maker in the Refrigerator

• Surface LED Lighting

• Wine Rack

• Fingerprint-Proof Coating

• ENERGY STAR® Compliant

• EZ Slide-Out Shelves in Freezer and FlexZone

™

Family Hub

™

Convenience

• T empered Glass Spill-Proof Shelves

• Gallon Door Bins

• Flip-Up Shelf

• Door Alarm

• Water Filter Indicator

™

FlexZone

™

Rating

ENERGY STAR®-rated: 778 kWh/yr

RF28M9580SR

Samsung 4-Door Flex™ with Family Hub

™

28 cu. ft. Capacity

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall

where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and to be able to open refrigerator doors completely, do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product, or download manual online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Dimensions

"X"

353/4"

49"

Total Capacity: 27.9 cu. ft.

Refrigerator: 16.4 cu. ft.

• Premium External Filtered Water and Ice Dispenser (Crushed or Cubed Ice)

• Ice Master Ice Maker

• 2 Clear Crispers

• Gallon Door Bins

• 5 Tempered Glass Spill-Proof Shelves – 1 Slide-In – 1 Flip-Up – 3 Fixed

• Wine Rack

• Surface LED Lighting

FlexZone™: 5.75 cu. ft.

• 1 EZ Slide-Out Shelf

• 2 Drawers

• 5 Temperature Zones: – 41°F – 35°F – 30°F – 23°F – -8°F – 5°F

• Surface LED Lighting

Freezer: 5.75 cu. ft.

• 1 EZ Slide-Out Shelf

• 2 Freezer Drawers

• Surface LED Lighting

Warranty

One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on

Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges, handles and doors): 353/4" x 717/8" x 341/4"

Dimensions (WxHxD without hinges and door): 353/4" x 703/4" x 293/8"

Dimensions (WxHxD with hinge and door, no handle):

/4" x 717/8" x 341/4"

Weight: 352.7 lbs.

Shipping Dimensions & Weight (WxHxD)

Dimensions: 38

/16" x 779/16" x 361/4"

Weight: 376.9 lbs.

Color Model # UPC Code

Stainless Steel RF28M9580SR 887276197517 Black Stainless Steel RF28M9580SG 887276197500

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
