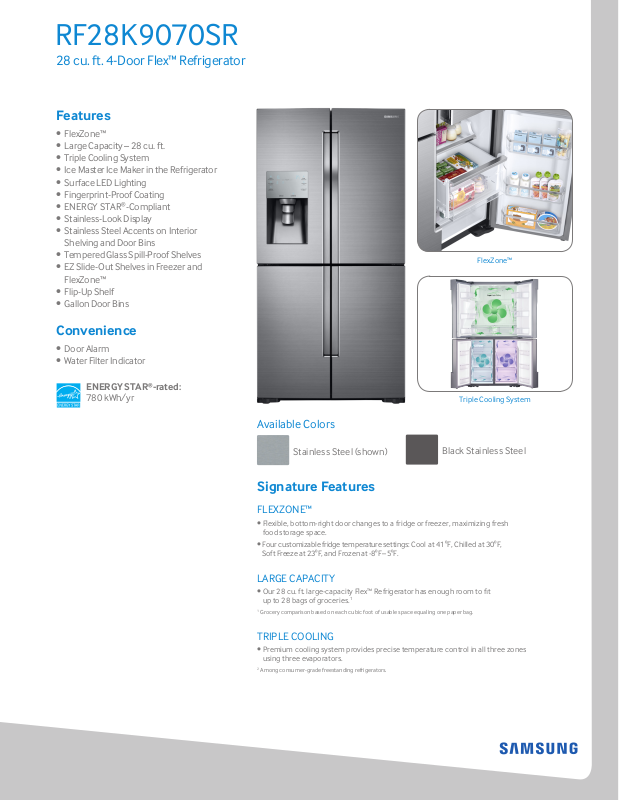

Samsung RF28K9070SR Specifications

RF28K9070SR

28 cu. ft. 4-Door Flex™ Refrigerator

Features

• FlexZone™

• Large Capacity – 28 cu. ft.

• Triple Cooling System

• Ice Master Ice Maker in the Refrigerator

• Surface LED Lighting

• Fingerprint-Proof Coating

• ENERGY STAR®-Compliant

• Stainless-Look Display

• Stainless Steel Accents on Interior Shelving and Door Bins

• Tempered Glass Spill-Proof Shelves

• EZ Slide-Out Shelves in Freezer and FlexZone™

• Flip-Up Shelf

• Gallon Door Bins

Convenience

• Door Alarm

• Water Filter Indicator

FlexZone™

ENERGY STAR®-rated: 780 kWh/yr

Triple Cooling System

Available Colors

Stainless Steel (shown)

Black Stainless Steel

Signature Features

FLEXZONE™

• Flexible, bottom-right door changes to a fridge or freezer, maximizing fresh food storage space.

• Four customizable fridge temperature settings: Cool at 410F, Chilled at 300F, Soft Freeze at 230F, and Frozen at -80F – 50F.

LARGE CAPACITY

• Our 28 cu. ft. large-capacity Flex™ Refrigerator has enough room to t up to 28 bags of groceries.

Grocery comparison based on each cubic foot of usable space equaling one paper bag.

TRIPLE COOLING

• Premium cooling system provides precise temperature control in all three zones using three evaporators.

Among consumer-grade freestanding refrigerators.

RF28K9070SR

28 cu. ft. 4-Door Flex™ Refrigerator

Installing Your Refrigerator

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2" of clearance on hinge side of refrigerator when installing next to a wall where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator to be moved through easily.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product, or download manual online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Total Capacity: 28.1 cu. ft.

Refrigerator: 16.6 cu. ft.

• Premium External Filtered Water and Ice Dispenser (Crushed or Cubed Ice)

• Ice Master Ice Maker

• 2 Clear Crispers

• Gallon Door Bins

• 5 Tempered Glass Spill-Proof Shelves – 1 Slide-In – 1 Flip-Up – 3 Fixed

• Surface LED Lighting

FlexZone™: 5.75 cu. ft.

• 1 EZ Slide-Out Shelf

• 2 Drawers

• 4 Temperature Zones: – 41°F – 30°F – 23°F – -8°F – 5°F

• Surface LED Lighting

Freezer: 5.75 cu. ft.

• 1 EZ Slide-Out Shelf

• 2 Freezer Drawers

• Surface LED Lighting

Accessories

Water Filter: HAF-CIN/EXP

Dimensions

Warranty

One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier, connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges, handles and doors):

353/4"

353/4" x 717/8" x 341/4"

Dimensions (WxHxD without hinges and door):

353/4" x 703/4" x 293/8"

Dimensions (WxHxD with hinge and door, no handle):

353/4" x 717/8" x 341/4"

49"

Weight: 427.7 lbs.

Shipping Dimensions & Weight (WxHxD)

Dimensions: 385/16" x 78" x 361/4"

Weight: 361.5 lbs.

Color Model # UPC Code

Stainless Steel RF28K9070SR 887276134758 Black Stainless Steel RF28K9070SG 887276127385

Actual color may vary. Design, specications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
