Refrigerator

user manual

This manual is made with 100 % recycled paper.

imagine the possibilities

Thank you for purchasing this Samsung product.

Free Standing Appliance

DA68-02952A-02.indb 1DA68-02952A-02.indb 1 2014. 5. 13.  5:082014. 5. 13.  5:08

contents

SAFETY INFORMATION …………………………………………………………………………2
SETTING UP YOUR FRENCH DOOR REFRIGERATOR ……………………………………9
OPERATING YOUR FRENCH DOOR REFRIGERATOR …………………………………… 18
TROUBLESHOOTING ………………………………………………………………………… 34

safety information

SAFETY INFORMATION

Before using your new Samsung French Door
Refrigerator, please read this manual thoroughly to
ensure that you know how to operate the features
and functions that your new appliance offers safely
and effi ciently.
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory, or mental capabilities, or those who lack
experience and knowledge, unless they have been
given supervision or instruction concerning the
use of the appliance by a person responsible for
their safety.
Because the following instructions cover various
models, the characteristics of your refrigerator
may differ slightly from the refrigerator described
in this manual.
If you have any question, contact us
at 1-800-SAMSUNG or fi nd help and
information online at www.samsung.com.

Important safety symbols and
precautions:

WARNING

Hazards or unsafe practices that may result in
severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in
minor personal injury or property damage.

English - 2

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions carefully.
Unplug the power plug from the wall

socket.
Make sure the refrigerator is grounded

to prevent electric shock.
Call the contact center for help.

Note.

These warning symbols are here to prevent
injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe
place for future reference.

DA68-02952A-02.indb 2DA68-02952A-02.indb 2 2014. 5. 13.  5:082014. 5. 13.  5:08

WARNING

CRITICAL INSTALLATION
WARNINGS

• Do not install the refrigerator in a damp
location or place where it may come in
contact with water.

- Deteriorated insulation on electrical parts may
cause an electric shock or fire.

• Do not place this refrigerator in direct sunlight
or expose it to the heat from stoves, room
heaters, or other appliances.

• Do not plug several appliances into the same
multiple power strip.
The refrigerator should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the voltage listed
on the refrigerator’s rating plate.

- This provides the best performance and
also prevents overloading of house wiring
circuits, which could cause a fire hazard from
overheated wires.

• If the wall socket is loose, do not insert the
power plug.

- There is a risk of electric shock of fire.

• Do not use a power cord that has cracks or
abrasion damage along its length or at either
end.

• Do not bend the power cord excessively or
place heavy objects on it.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal
object, place a heavy object on the power
cord, insert the power cord between objects,
or push the power cord into the space behind
the appliance.

• When moving the refrigerator, be careful not to
roll over or damage the power cord.

- This may result in an electric shock or fire.

• Never unplug your refrigerator by pulling on the
power cord.
Always grip the plug firmly and pull straight out
from the outlet.

- Damage to the cord may cause a short-circuit,
fire, and/or electric shock.

• Do not use aerosols near the refrigerator.

- Using aerosols near the refrigerator may cause
an explosion or fire.

• Do not install this appliance near a heater or
inflammable material.

• Do not install this appliance in a humid, oily,
or dusty location, or in a location exposed to

English - 3

direct sunlight or water (rain, etc.).

• Do not install this appliance in a location where
gas may leak.

- This may result in an electric shock or fire.

• This refrigerator must be properly
located and installed in accordance
with the instructions in this manual
before you use it.

• Connect the power plug in the proper position
with the cord hanging down.

- If you connect the power plug upside down,
the wire can get cut o and cause a fire or
electric shock.

• When moving the refrigerator, be careful not to
roll over or damage the power cord.

- This constitutes a fire hazard.

• Make sure that the power plug is not crushed
or damaged by the back of the refrigerator.

• Keep the packing materials out of reach of
children.

- There is a risk of death from suocation if a child
puts the packing materials on his or her head.

• The appliance must be positioned so that the
plug is accessible after installation.

- Failing to do so may result in an electric shock
or fire due to electric leakage.

• You need to remove all the protective plastic
film before you initially plug the product in.

• Children should be supervised to ensure that
they do not play with the fastener.

- There is a risk of death from suocation if a
child swallows the fastener.
Pay special attention to children because it can
be dangerous.
Keep the fastener out of reach of children.

• The refrigerator must be safely
grounded.

- Always make sure that you have grounded the
refrigerator before attempting to investigate or
repair any part of the appliance.
Power leakages can cause severe electric
shock.

• Never use gas pipes, telephone lines, or other
potential lightning attractors as an electrical
ground.

- Improper use of the grounding plug can result
in a risk of electric shock.
If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot receptacle
that will accept the plug on the appliance.
The marked rating of the extension cord

DA68-02952A-02.indb 3DA68-02952A-02.indb 3 2014. 5. 13.  5:082014. 5. 13.  5:08

should be AC 115-120 V, 10 A, or more.
If a grounding adapter is used, make sure the
receptacle box is fully grounded.

• Plug the power plug into the wall socket firmly.
Do not use a damaged power plug, damaged
power cord, or loose wall socket.

- This may result in an electric shock or fire.

• If the power cord is damaged,
have it replaced immediately by the
manufacturer or one of its service
agent.

CAUTION

INSTALLATION CAUTIONS

• Allow sucient space around the
refrigerator and install it on a flat
surface.

- If your refrigerator is not level, the internal
cooling system may not work correctly.

- Keep the ventilation space in the appliance
enclosure or mounting structure clear of
obstructions.

• Allow the appliance to stand for 2 hours after
installation.

• We strongly recommend you have a qualified
technician or service company install the
refrigerator.

- Failing to do so may result in an electric shock,
fire, explosion, problems with the product, or
injury.

WARNING

CRITICAL USAGE WARNINGS

• Do not insert the power plug into a
wall socket with wet hands.

• Do not store articles on the top of the
appliance.

- When you open or close the door, the articles
may fall and cause personal injury and/or
material damage.

• Do not insert hands, feet or metal objects
(such as knives, etc.) into the bottom or the
back of the refrigerator.

- This may result in an electric shock or injury.

- Any sharp edges may cause a personal injury

• Do not put a container filled with water on the
refrigerator.

- If spilled, there is a risk of fire or electric shock.

• Children should be supervised to ensure that
they do not play with the appliance.

- Keep fingers out of “pinch point” areas.
Clearances between the doors and cabinet are
necessarily small. Be careful when you open
the doors if children are in the area.

• Do not let children hang on the door.
A serious injury may occur.

• Do not let children go inside the refrigerator.
They could become trapped.

• Do not insert your hands into the bottom area
under the appliance.

- Any sharp edges may cause personal injury.

• Do not let children step on a drawer cover.

- The drawer may break and cause them to slip.

• Do not overfill the refrigerator with food.

- When you open the door, an item may fall out
and cause personal injury or material damage.

• Do not touch the inside walls of the freezer or
products stored in the freezer with wet hands.

- This may cause frostbite.

• Never put fingers or other objects into the
water dispenser hole, ice chute, or ice maker
bucket.

- It may cause personal injury or material
damage.

• Do not use or place any substances sensitive
to temperature such as inflammable sprays,
inflammable objects, dry ice, medicine, or
chemicals near or inside of the refrigerator.

• Do not keep volatile or inflammable objects
or substances (benzene, thinner, propane
gas, alcohol, ether, LP gas, and other such
products) in the refrigerator.

English - 4

DA68-02952A-02.indb 4DA68-02952A-02.indb 4 2014. 5. 13.  5:082014. 5. 13.  5:08

- This refrigerator is for storing food only.

- This may result in fire or explosion.

• Do not store pharmaceutical products,
scientific materials, or temperature sensitive
products in the refrigerator.

- Products that require strict temperature
controls must not be stored in the refrigerator.

• Do not place or use an electrical appliance
inside the refrigerator, unless it is of a type
recommended by the manufacturer.

• Do not stand on top of the appliance or place
objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal
objects, etc.) on the appliance.
This may result in an electric shock, fire,
problems with the product, or injury.
Do not put a container filled with water on the
appliance.

- If spilled, there is a risk of fire or electric shock.

• Do not use mechanical devices or any other
means to accelerate the defrosting process,
other than those recommended by the
manufacturer.

• Do not damage the refrigerant circuit.

• Do not spray volatile material such as
insecticide onto the surface of the appliance.

- As well as being harmful to humans, it
may also result in an electric shock, fire, or
problems with the product.

• Never stare directly at the UV LED lamp for
long periods of time.

- This may result in eye strain due to the
ultraviolet rays.

• Do not let children hang on the door.
A serious injury may occur.

• Do not let children go inside the refrigerator.
They could become trapped.

• Bottles should be stored tightly together so
that they do not fall out.

• This product is intended only for the storage of
food in a domestic environment.

• If a gas leak is detected, avoid any naked
flames or potential sources of ignition, and air
the room in which the appliance is standing for
several minutes.

- Do not touch the appliance or power cord.

- Do not use a ventilating fan.

- A spark may result in explosion or fire.

• Use only the LED Lamps provided by the
manufacturer or its service agents.

• If the refrigerator emits a burning smell
or smoke, unplug the refrigerator
immediately and contact your
Samsung Electronics service center.

• If you experience diculty changing a non-LED
light, contact a Samsung service energy.

• If the product is equipped with LED Lamps, do
not disassemble the Lamp Covers and LED
Lamps yourself.

- Please contact your service agents.

• If dust or water enters the refrigerator, unplug
the refrigerator and contact your Samsung
Electronics service center.

- There is a risk of fire.

• Do not attempt to repair, disassemble,

• Do not use any fuse (such as cooper, steel

• If your appliance needs to be repaired or

- Failing to do so may result in an electric shock,

• If the interior or exterior LED lamp has gone

• Keep fingers out of “pinch point” areas.

DA68-02952A-02.indb 5DA68-02952A-02.indb 5 2014. 5. 13.  5:082014. 5. 13.  5:08

or modify the appliance yourself.

wire, etc.) other than a standard fuse.

reinstalled, contact your nearest service center.

fire, problems with the product, or injury.

out, please contact your nearest service
center.

• Children should be supervised to
ensure that they do not play with the
appliance.

Clearances between the doors and cabinet are
necessarily small.
Be careful when you open the doors if children
are in the area.

English - 5

CAUTION

USAGE CAUTIONS

• Do not re-freeze frozen foods that
have thawed completely.
Do not place carbonated or fizzy
drinks in the freezer compartment.
Do not put bottles or glass containers
in the freezer.

- When the contents freeze, the glass may break
and cause personal injury.

• Use only the ice maker provided with the
refrigerator.

• Have the refrigerator’s water supply installed
by a suitably qualified person and connected
only to a potable water supply.

To operate the ice maker properly, water
pressure of 20 ~ 125 psi (138 ~ 862 kPa) is
required.
If you will be away from home for a long period
of time (on vacation, for example) and won’t
be using the water or ice dispensers, close the
water valve.

- Otherwise, water leakage may occur.

• If you won’t be using the refrigerator for a very
long period of time, (3 weeks or more) empty
the refrigerator, unplug it, close the water
valve, wipe excess moisture from the inside
walls, and leave the doors open to prevent
odors and mold.

• Service Warranty and Modification.

- Any changes or modifications
performed by a 3rd party on this
finished appliance are not covered
under Samsung warranty service, nor
is Samsung responsible for safety
issues that result from 3rd party
modifications.

• Do not block the air vents inside the
refrigerator.

- If the air vents are blocked, especially with
a plastic bag, the refrigerator can be over
cooled. If this cooling period lasts too long,
the water filter may break and cause water
leakage.

• If the refrigerator is disconnected from the
power supply, you should wait for at least five
minutes before plugging it back in.

• If you have a long vacation planned or do
not intend to use the refrigerator for a long
period of time, (3 weeks or more) empty the
refrigerator, pull out the power plug, close
the water valve, wipe excess moisture from
the inside walls, and leave the doors open to
prevent odors and mold.

- Letting the refrigerator run long periods of time
without using it can cause the insulation to
deteriorate and may cause a fire.

• To get the best performance from the product:

- Do not place food too close to the vents at the
rear of the appliance as it can obstruct free air
circulation in the refrigerator compartment.

- Wrap food up properly or place it in airtight
containers before putting it into the refrigerator.

- Do not place glass bottles or carbonated
beverages into the freezer.
They can freeze and break. Broken beverage

- containers can cause injury.

- Please observe maximum storage times and
expiration dates of frozen goods.

English - 6

- There is no need to disconnect the refrigerator
from the power supply if you will be away for
less than three weeks.
However, if you will be away for more than
three weeks, remove all the food, unplug the
refrigerator, close the water valve, wipe excess
moisture from the inside walls, and leave the
doors open to prevent odors and mold.

• Fill the water tank and ice cube trays with
potable water only (tap water, mineral water, or
purified water).

- Do not fill the tank with tea or a Sports drink.
This may damage the refrigerator.

• Do not strike or apply excessive force to any
glass surface.

- Broken glass may result in a personal injury
and/or property damage.

• If the product is flooded, make sure to
contact your nearest service center.

- There is a risk of electric shock or fire.

CAUTION

CLEANING CAUTIONS

• Do not spray water directly on the
inside or outside the refrigerator.

- There is a risk of fire or electric shock.

• Do not use a hair dryer to dry the inside of the
refrigerator.

• Do not place a lighted candle in the refrigerator
to remove bad odors.

- This may result in an electric shock or fire.

• Use a clean, dry cloth to remove any
foreign matter or dust from the power
plug blades. Do not use a wet or
damp cloth when cleaning the plug.

- Otherwise, there is a risk of fire or electric
shock.

• Before cleaning or performing
maintenance, unplug the appliance
from the wall socket.

- Failing to do so may result in an electric shock
or fire.

DA68-02952A-02.indb 6DA68-02952A-02.indb 6 2014. 5. 13.  5:082014. 5. 13.  5:08

WARNING

• This product contains chemicals known to
the State of California to cause cancer and
reproductive toxicity.

WARNING

CRITICAL DISPOSAL
WARNINGS

• DANGER : Risk of child entrapment.

Before you throw away your old
refrigerator or freezer:

- Take o the doors and door latch.

- Leave the shelves in place so that children
cannot easily climb inside.

- Children trapped inside a refrigerator can hurt
themselves or suocate to death.

• Please dispose of the packaging material from
this product in an environmentally friendly
manner.

• Ensure that none of the pipes on the back of
the appliance are damaged prior to disposal.

• R-600a or R-134a is used as a refrigerant.
Check the compressor label on the rear of
the appliance or the rating label inside the
fridge to see which refrigerant is used for your
refrigerator.
If this product contains flammable gas
(Refrigerant R-600a), contact your local
authority in regard to safe disposal of this
product.

• When disposing of this refrigerator, remove the
door/door seals and door latch so that small
children or animals cannot become trapped
inside.
Children should be supervised to ensure that
they do not play with the appliance.
If trapped inside, the child may get hurt or
suocate to death.

• Cyclopentane is used in the insulation. The
gases in the insulation material require a
special disposal procedure. Please contact
your local authorities in regard to the
environmentally safe disposal of this product.

• Keep all packaging materials well out of the
reach of children, as packaging materials can
be dangerous to children.

- If a child places a bag over his or her head, the
child could suocate.

ADDITIONAL TIPS FOR
PROPER USAGE

• In the event of a power failure, call the local
oce of your Electricity Company and ask how
long it is going to last.

- Most power failures that are corrected in an
hour or two will not aect your refrigerator
temperatures. However, you should minimize
the number of door openings while the power
is o.

- Should the power failure last more than 24
hours, remove and discard all frozen food.

• If a key is provided with refrigerator, the keys
should be kept out of the reach of children and
not be kept in the vicinity of the appliance.

• The appliance might not operate consistently
(frozen contents can thaw or temperatures
can become too warm in the frozen food
compartment) when sited for an extended
period of time in a location where ambient
air temperatures are constantly below the
temperatures for which the appliance is
designed.

• Do not store food which goes bad easily at low
temperature, such as bananas and melons.

• Your appliance is frost free, which means there
is no need to manually defrost your appliance.
This will be carried out automatically.

• Temperature rise during defrosting complies
with ISO requirements.
But If you want to prevent an undue rise in the
temperature of frozen food while the appliance
defrosts, wrap the frozen food in several layers
of newspaper.

• Any increase in the temperature of frozen food
during defrosting can shorten its storage life.

• Do not re-freeze frozen foods that have thawed
completely.

English - 7

DA68-02952A-02.indb 7DA68-02952A-02.indb 7 2014. 5. 13.  5:082014. 5. 13.  5:08

Saving Energy Tips

- Install the appliance in a cool, dry room with
adequate ventilation.
Ensure that it is not exposed to direct sunlight
and never put it near a direct source of heat (a
radiator, for example).

- Never block any vents or grilles on the
appliance.

- Allow warm food to cool down before placing
it in the appliance.

- Put frozen food in the refrigerator to thaw.
You can then use the low temperatures of the
frozen products to cool food in the refrigerator.

- Do not keep the door of the appliance open
for too long when putting food in or taking
food out.
The shorter the time the door is open, the less
frost build-up you’ll have in the freezer.

- Provide sucient clearance to the right, left,
back and top for air circulation when installing
the refrigerator. This will help reduce power
consumption and keep your energy bills lower.

English - 8

DA68-02952A-02.indb 8DA68-02952A-02.indb 8 2014. 5. 13.  5:082014. 5. 13.  5:08

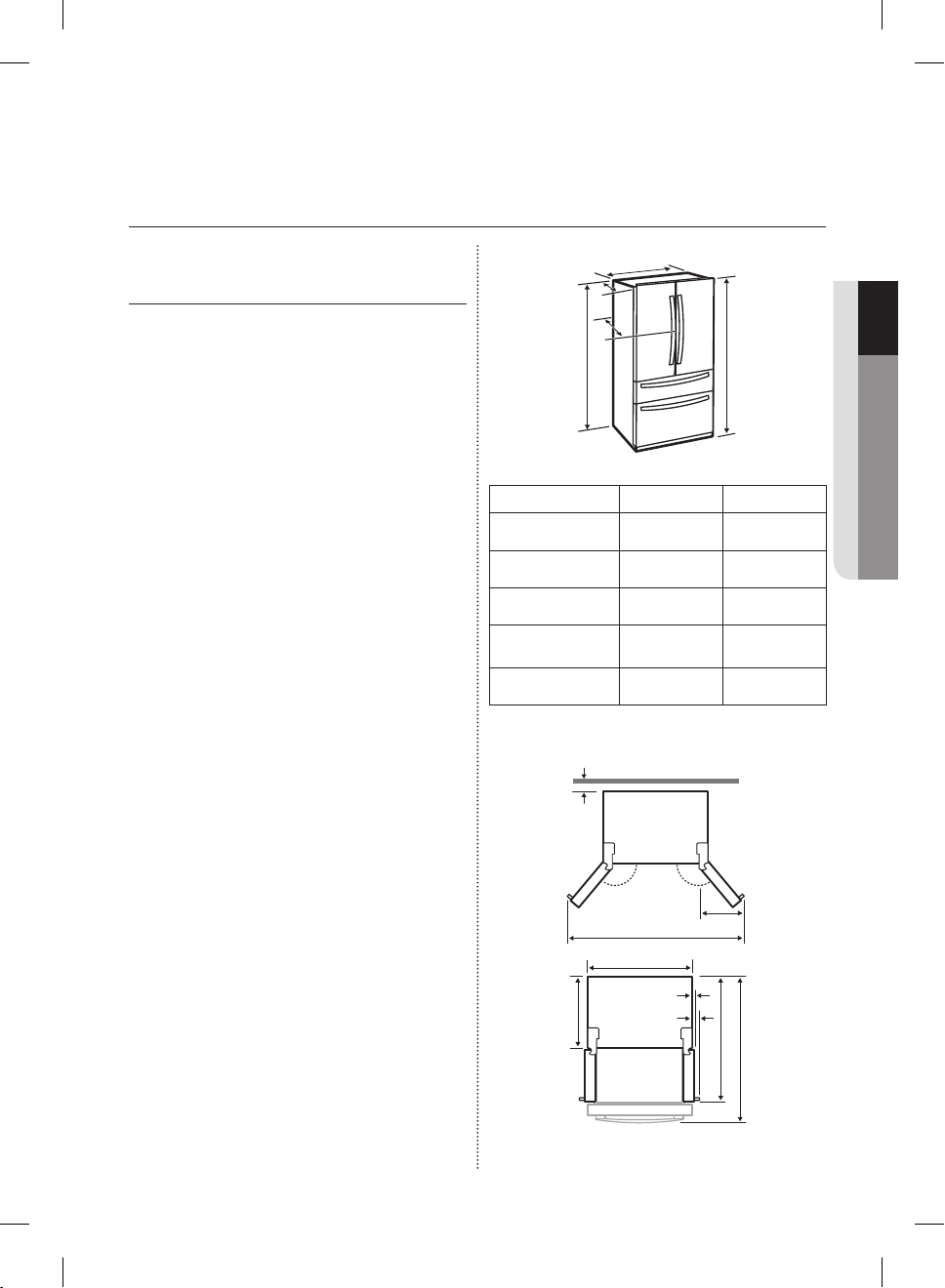

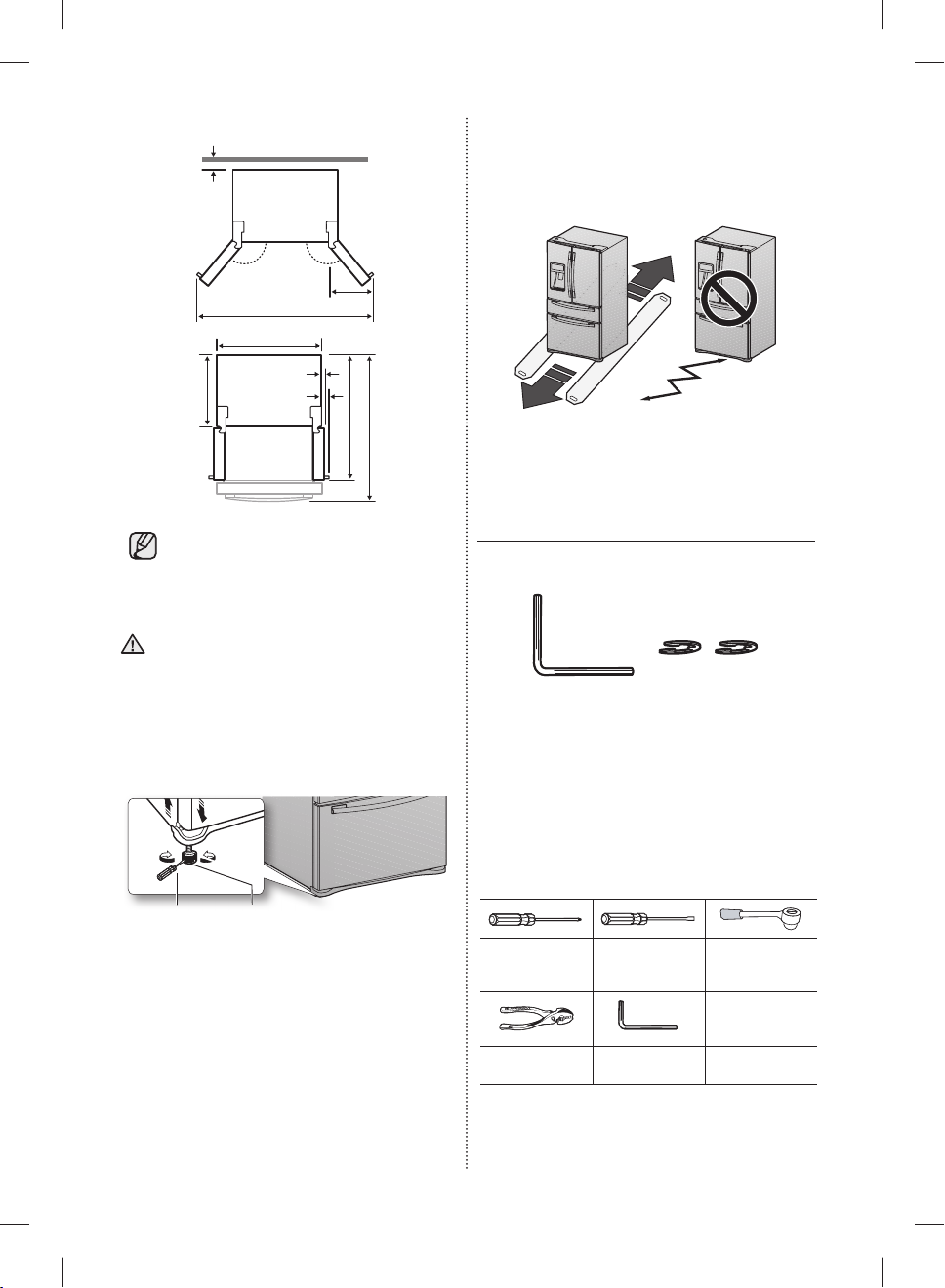

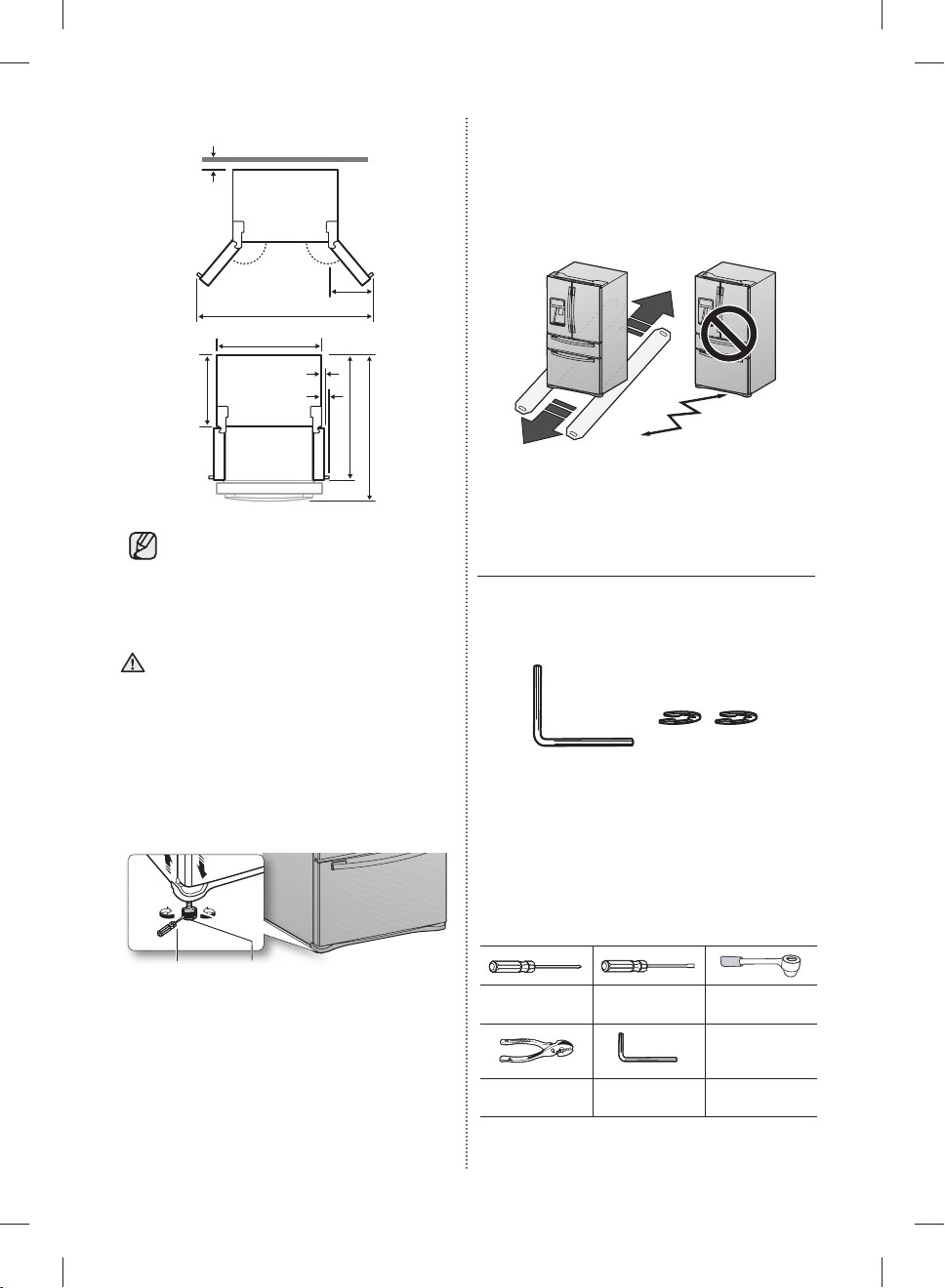

Setting up your French Door

A

B

C

D

E

62 1/8

(1578 mm)

13 2/8”

(335 mm)

125°

125°

2” (50 mm)

35 3/4” (908 mm)

29 3/8”

(748 mm)

48 1/4” (1226 mm)

4 6/8” (122 mm)

2 3/8” (61 mm)

53” (1346 mm)

Refrigerator

GETTING READY TO INSTALL
THE REFRIGERATOR

Congratulations on your purchase of this Samsung
French Door Refrigerator.
We hope you enjoy the state-of-art features and

B

A

E

C

D

01 SETTING UP

e ciencies that this new appliance o ers.

Selecting the best location for the
refrigerator

Choose:

• A location with easy access to a water supply.

• A location without direct exposure to sunlight.

• A location with a level floor.

• A location with enough space for the
refrigerator doors to open easily.

• A location that provides sucient space to the
right, left, back, and top for air circulation.

• A location that allows you to move the
refrigerator easily if it needs maintenance or
service.

• Do not install the refrigerator where the
temperature will go below 50 ºF (10 ºC).

• Do not locate the refrigerator where it may
become wet.

If the refrigerator does not have enough space,
the internal cooling system may not work properly.
If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.
When you install the refrigerator next to a fi xed
wall, you need a minimum clearance of 3 ¾”
(95mm) between the refrigerator and wall to allow
the door to swing open.

Important: Make sure that you can easily move
your refrigerator to its fi nal location by measuring
doorways (both width and height), thresholds,
ceilings, stairways, etc.
The following chart details the exact height and
depth of this Samsung French Door Refrigerator.

English - 9

Model RF28HM** RF25HM**

Depth “A”

Width “B”

Height “C”

Overall Height “D”

Depth “E”

2” (50 mm)

29 3/8”

(748 mm)

35 3/4” (908 mm)

34”

(864mm)

35 6/8”

(908mm)

68 7/8”

(1749mm)

70”

(1777mm)

36 1/2”

(926mm)

<RF28HM**>

125°

4 6/8” (122 mm)

2 3/8” (61 mm)

62 1/8””

(1578 mm)

125°

13 2/8”

(335 mm)

34”

(863mm)

32 3/4”

(830mm)

68 7/8”

(1749mm)

70”

(1777mm)

36 1/2”

(925mm)

48 1/4” (1226 mm)

53” (1346 mm)

DA68-02952A-02.indb 9DA68-02952A-02.indb 9 2014. 5. 13.  5:082014. 5. 13.  5:08

<RF25HM**>

56 1/4

(1430 mm)

11 6/8”

(300 mm)

125°

125°

2” (50 mm)

32 3/4” (830 mm)

29 5/8”

(753 mm)

47 2/8” (1200 mm)

4 2/8” (106 mm)

1 6/8” (45 mm)

52 5/8” (1335 mm)

Flat-blade screw

driver(-)

Control Lever

2” (50 mm)

125°

32 3/4” (830 mm)

4 2/8” (106 mm)

1 6/8” (45 mm)

29 5/8”

(753 mm)

56 1/4””

(1430 mm)

125°

11 6/8”

(300 mm)

Each measurement based on the design
dimension, so it may dier depending on
the measuring method.

CAUTION

47 2/8” (1200 mm)

52 5/8” (1335 mm)

FLOORING

For proper installation, you must place this
refrigerator on a level, hard surface that is the
same height as the rest of the fl oor. This surface
should be strong enough to support a fully loaded
refrigerator. To protect the fi nish of the fl ooring, cut
a large section of the cardboard carton and place
it under the refrigerator where you are working.
When moving a refrigerator, you need to pull and
push it straight forwards or back. Do not wiggle it
from side to side.

ACCESSORIES AND
REQUIRED TOOLS

The following accessories are included with your
refrigerator:

When moving your refrigerator

To prevent fl oor damage, be sure the front
adjusting legs are in the up position (above the
fl oor).
Refer to ‘Adjusting the doors’ on page 14.

Hex wrench Fastener

Required Tools (Not provided)

Flat-blade screw

driver(-)

DA68-02952A-02.indb 10DA68-02952A-02.indb 10 2014. 5. 13.  5:082014. 5. 13.  5:08

Control Lever

You need the following tools to complete the
installation of your refrigerator:

Philips

screwdriver(+)

Pliers

Flat-blade

screwdriver(-)

Allen wrench

(3/16”) (5mm)

English - 10

Socket wrench

(13/32”) (10mm)

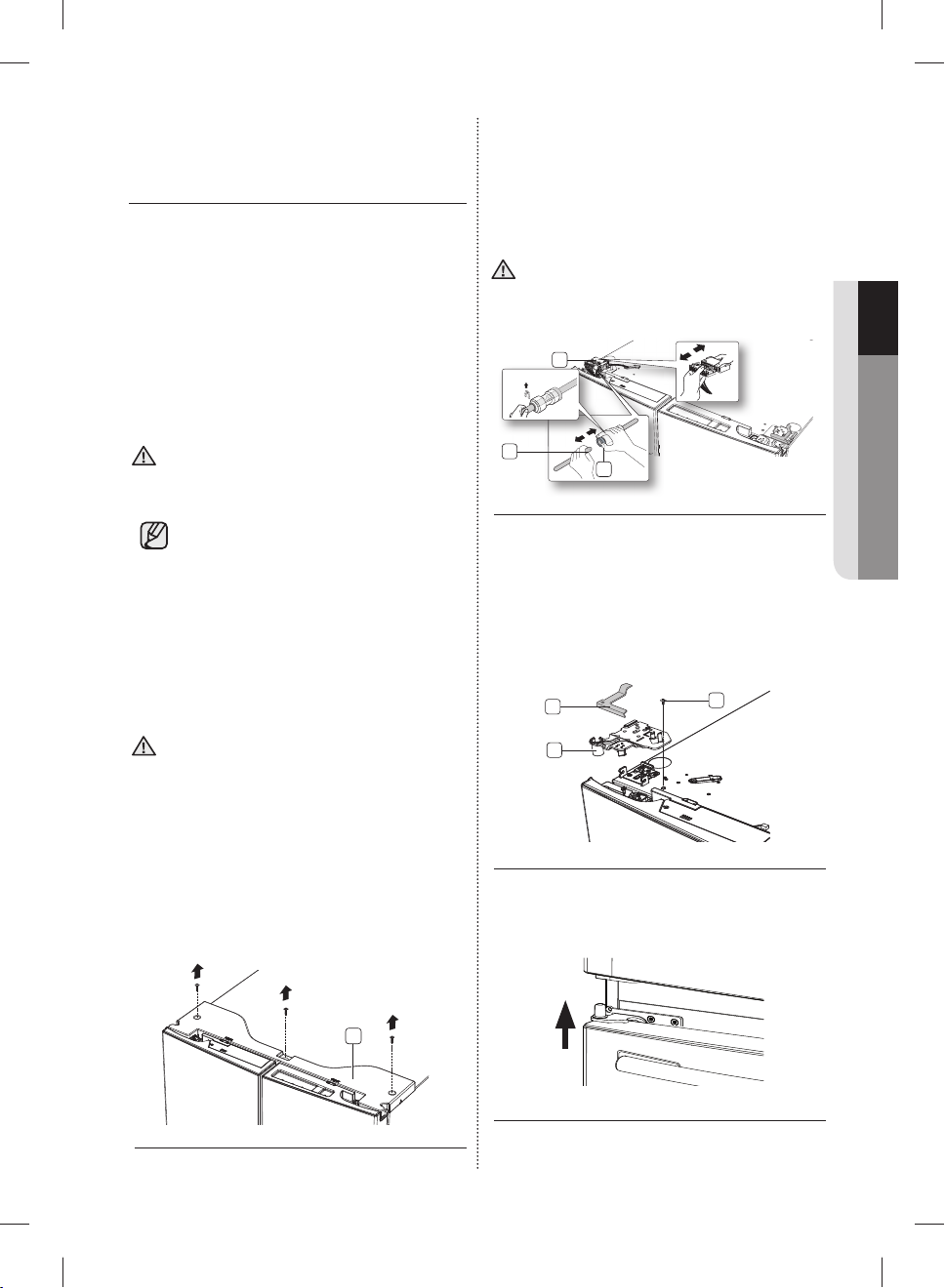

REMOVING THE

Red Clip

(1/4")

REFRIGERATOR DOORS

For some installations, you need to remove the
fridge doors and freezer drawer so you can
move the refrigerator to its fi nal location. Do not

remove the doors/drawers if you don’t need
to. If you do not need to remove the refrigerator

doors or drawers, go to ‘Adjusting the Level’
on page 14. If you need to remove the doors
and drawers. continue below. Before removing
the doors or drawers, make sure you read the
following warnings:

WARNING

Disconnect power to the refrigerator before
removing the door or drawer.

• Be careful not to drop, damage,
or scratch the doors/drawer while
removing them.

• Be careful not to injure yourself while removing
the doors/drawer.

• Reattach the doors/drawer properly to avoid:

- Moisture from air leakage.

- Uneven door alignment.

- Wasting energy due to improper door seal.

2. Disconnect the two connectors ( 2 ) on the

left side door. To remove the water coupler
from the hinge, twist and pull it from the hinge.
Remove the water line ( 3 ) while pressing the
marked part ( 4 ) of the water line coupler.

CAUTION

If a red clip is on the coupler, you must remove it
before removing the tube.

2

Red Clip

(1/4")

3

3. Pull and remove the hinge lever ( 5 ). Remove
the ground screw ( 6 ) attached to the upper
left door hinges with a philips screwdriver (+).
Remove the upper left and right door hinges
( 7 ).

4

01 SETTING UP

WARNING

Disassembling the refrigerator doors

Be careful not to drop and scratch the doors while
removing them.

With the door opened

1. Remove the 3 screws holding down the TOP
TABLE ( 1 ) and separate the connected wires.

1

English - 11

5

7

6

4. Lift the door straight up to remove.

DA68-02952A-02.indb 11DA68-02952A-02.indb 11 2014. 5. 13.  5:082014. 5. 13.  5:08

5. Remove the screw ( 8 ) attached to the

Allen wrench

Center of Transparent coupler

The Guide Lines

Dispenser

clip A (1/4”)

(6.35 mm)

clip A (1/4”)

(6.35 mm)

Type A

Type B

lower left and right door hinges with a philips
screwdriver (+). Remove the 2 hex head bolts
( 9 ) attached to the lower left and right door
hinges with an allen wrench (3/16”). Remove
the lower left and right door hinges ( 10 ).

10

8

9

DISASSEMBLING THE FLEX
DOOR

1. Take out the Flex Zone ( 1 ) by lifting it up.

1

Allen wrench

RE-ATTACHING THE
REFRIGERATOR DOORS

To reattach the fridge doors after you have moved
the fridge to its fi nal location, assemble the parts
in reverse order.

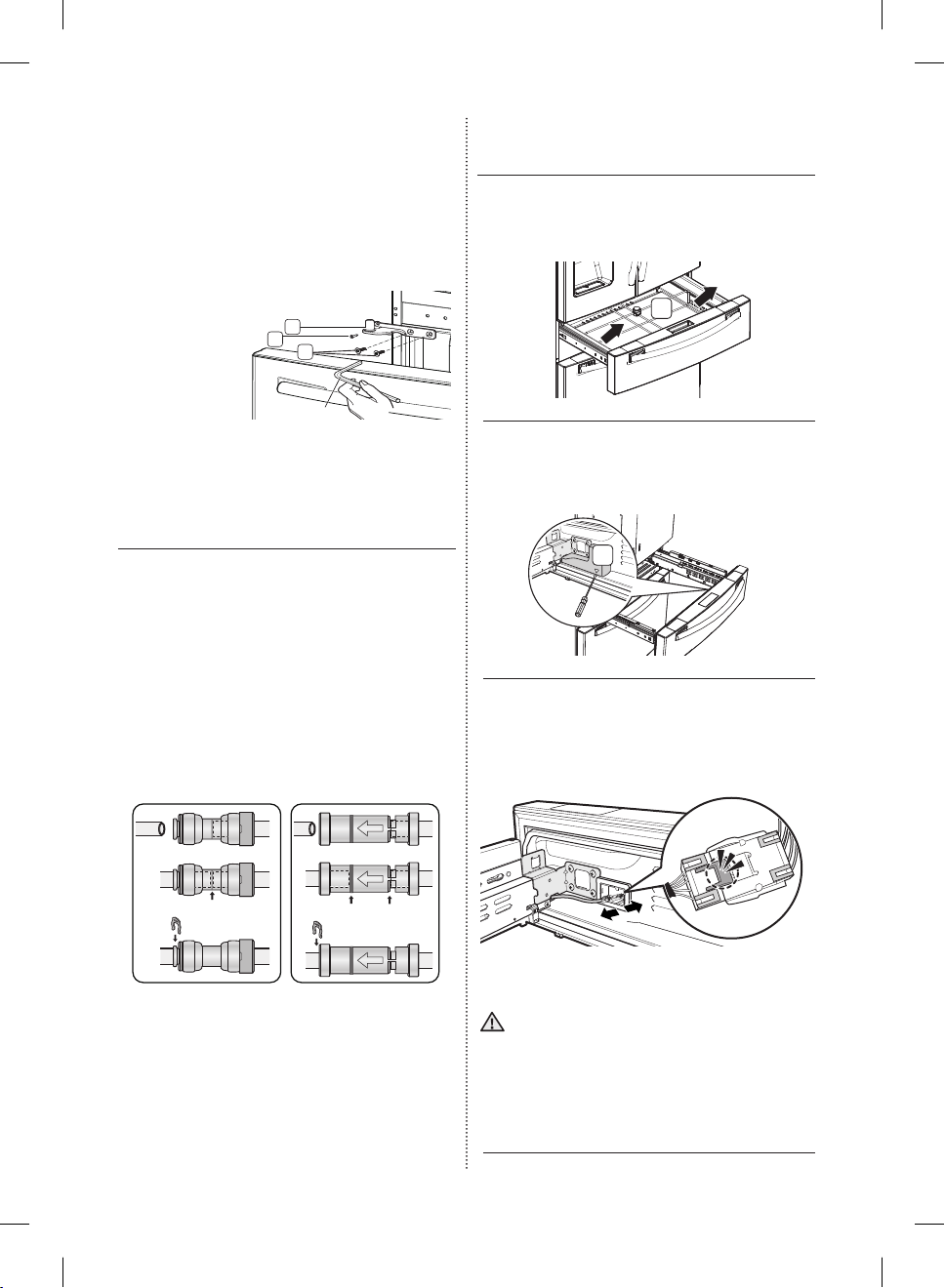

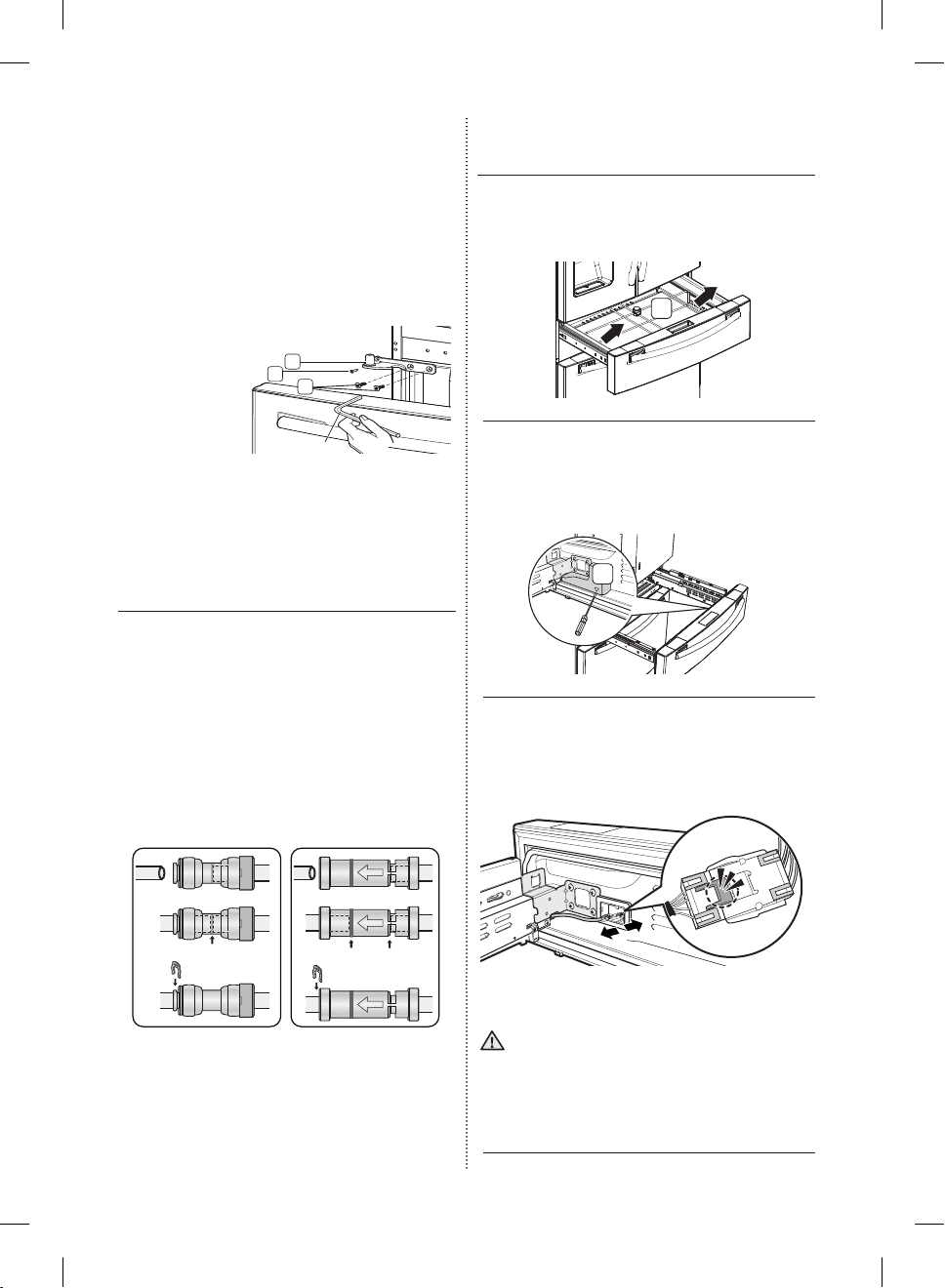

1. The Water Line must be fully inserted into the

center of the transparent coupler (Type A)
or the Guide Lines (Type B) to prevent water
leakage from the dispenser.

Type A

Center of Transparent coupler

clip A (1/4”)

(6.35 mm)

2. Insert the clip in the install pack and check that

it holds the line firmly.

Dispenser

The Guide Lines

Type B

clip A (1/4”)

(6.35 mm)

2. Take o the cover ( 2 ) w/harness with a flat-

blade screwdriver (-).

2

3. Press the locking tab and separate the Wire

Connector.

CAUTION

When reassembling it, be sure to connect the wire
harness.
If it is not connected, the Flex Room does not
work.

English - 12

DA68-02952A-02.indb 12DA68-02952A-02.indb 12 2014. 5. 13.  5:082014. 5. 13.  5:08

4. Remove 1 hex head bolt from each side with a
socket wrench (10 mm).

5. Lift up the Flex door from the rails.

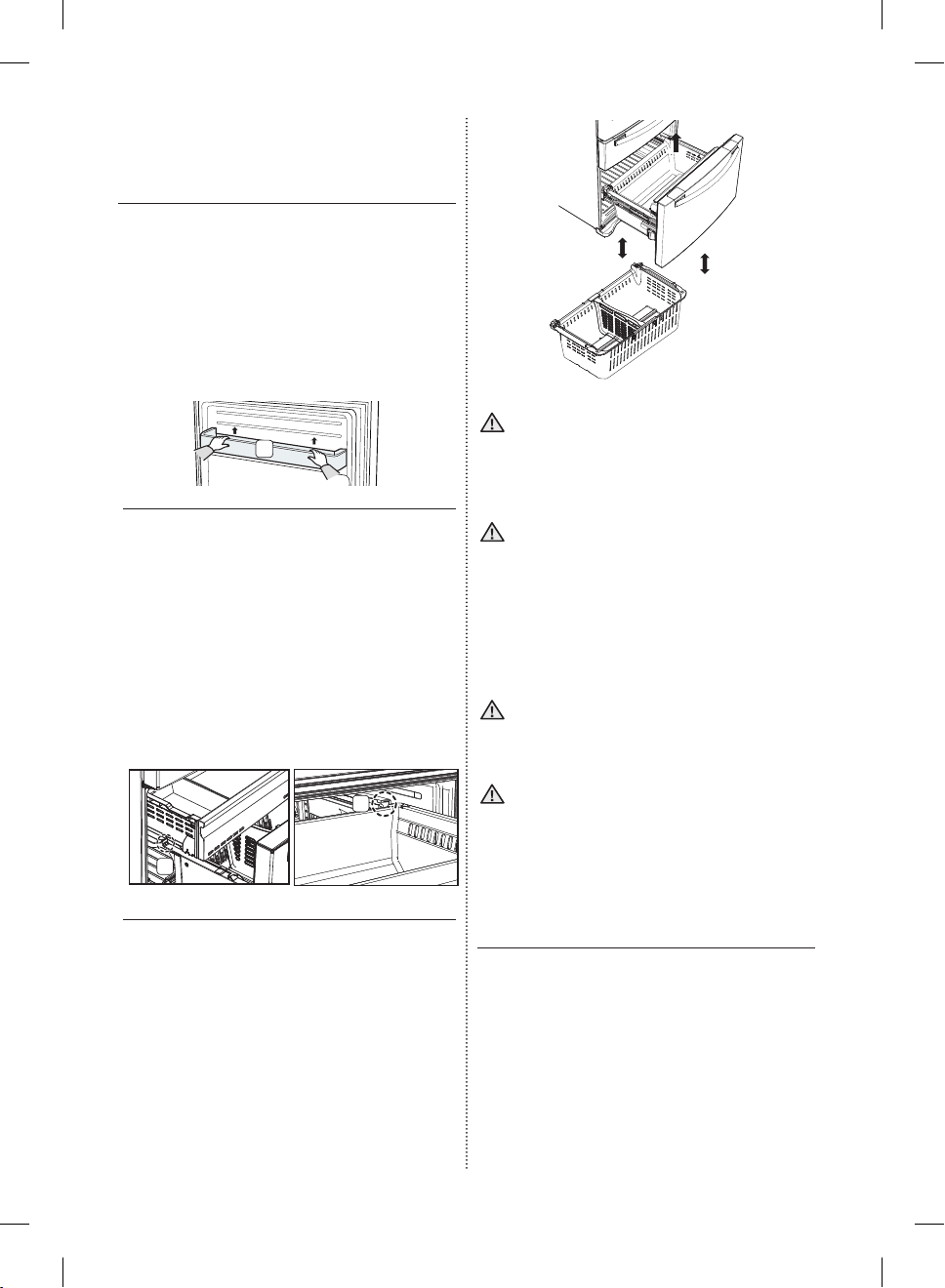

DISASSEMBLING THE
FREEZER DOOR

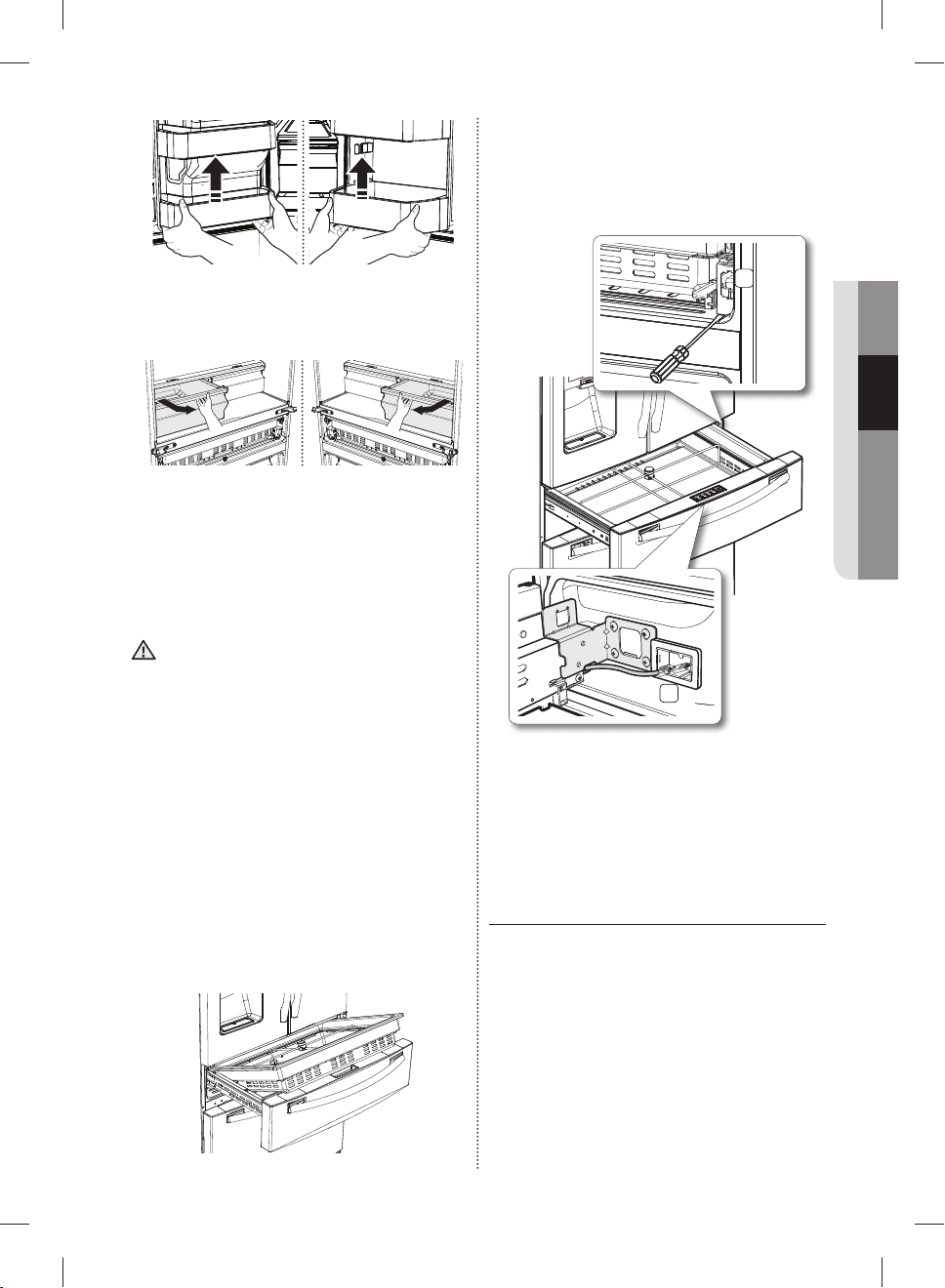

1. Take out the upper drawer by lifting it up.

01 SETTING UP

2. Remove the freeze room guard ( 1 ) by lifting

the guard up.

1

3. Take out the lower basket ( 2 ) by lifting the

basket up from the rail system.

2

RE-ASSEMBLING THE FLEX
DOOR

To reattach the flex doors, assemble parts in
reverse order.

CAUTION

CAUTION

Be sure to connect the Flex Door Wire Connector.
If it is not connected, the Flex Room does not
work.

DA68-02952A-02.indb 13DA68-02952A-02.indb 13 2014. 5. 13.  5:082014. 5. 13.  5:08

You can scratch the side of the bin if you twist it
left or right when disassembling or re-assembling
it.

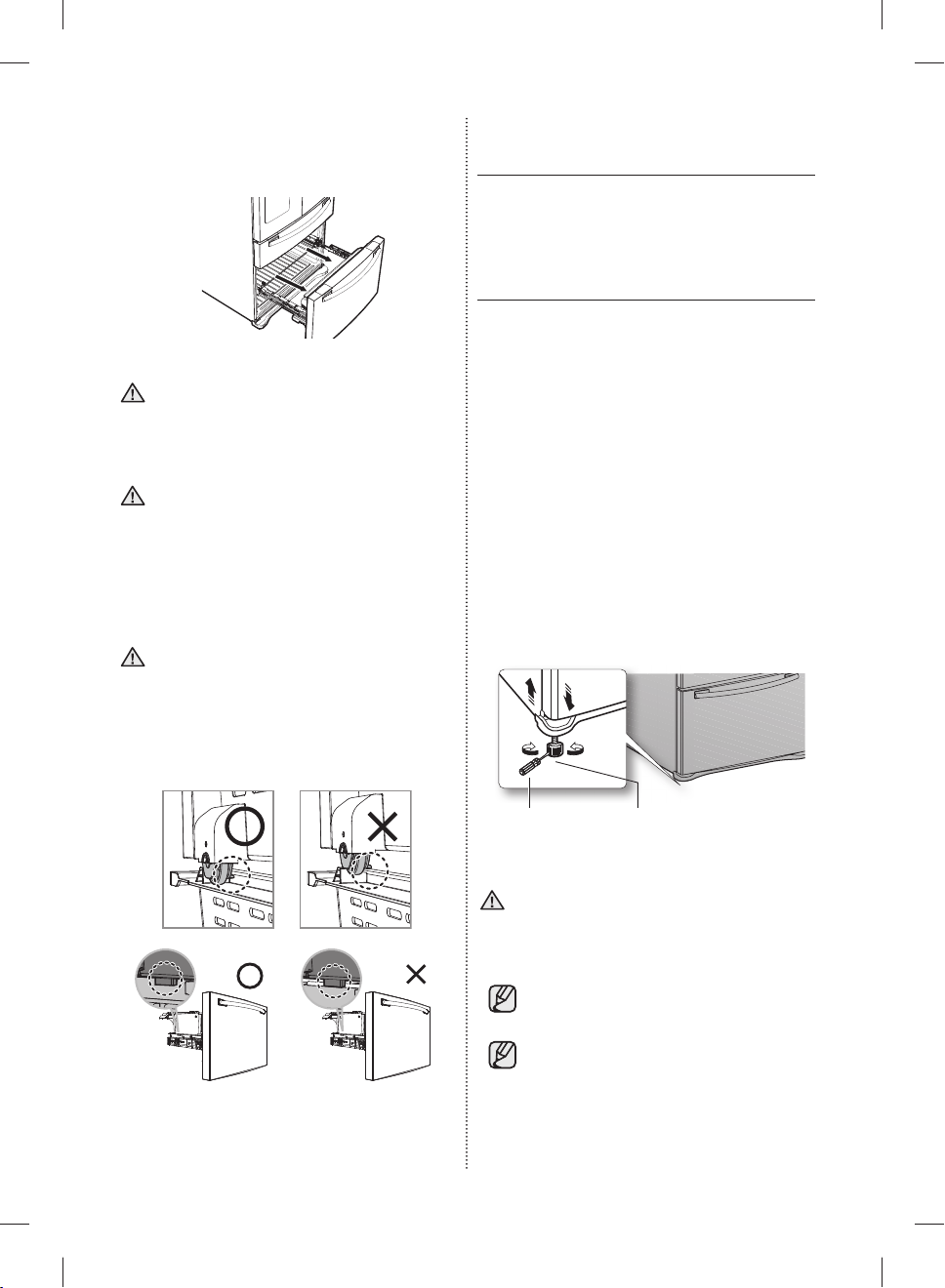

4. Press the fixing hook of the rail system.

English - 13

5. Holding the top of the Freezer Drawer, pull it

flat-blade

screwdriver (-)

Control Lever

out all the way, and then remove it from the rail
system.

CAUTION

Be careful not to scratch or dent the sliding rail by
letting it strike the fl oor.

CAUTION

Make sure that you mount the freezer basket in
the right position when removing / installing the
freezer door. Failing to do so may result in the
door not opening or closing properly.

CAUTION

Putting too much food into the freezer drawers
can prevent the freezer from closing completely
and can cause frost build-up.

RE-ASSEMBLING THE
FREEZER DOOR

To reattach the drawer after you have moved
the fridge to its fi nal location, assemble the parts
in reverse order.

ADJUSTING THE LEVEL

Make sure the refrigerator is level so that you can
make fi nal adjustments. Use a level to test if the
refrigerator is level both side to side and back to
front. If the refrigerator is not level, you will not
be able to get the doors perfectly even, which
may cause moisture condensation and increased
energy bills. Below is an example of how to level
the refrigerator if the left side of the refrigerator is
lower than the right side.

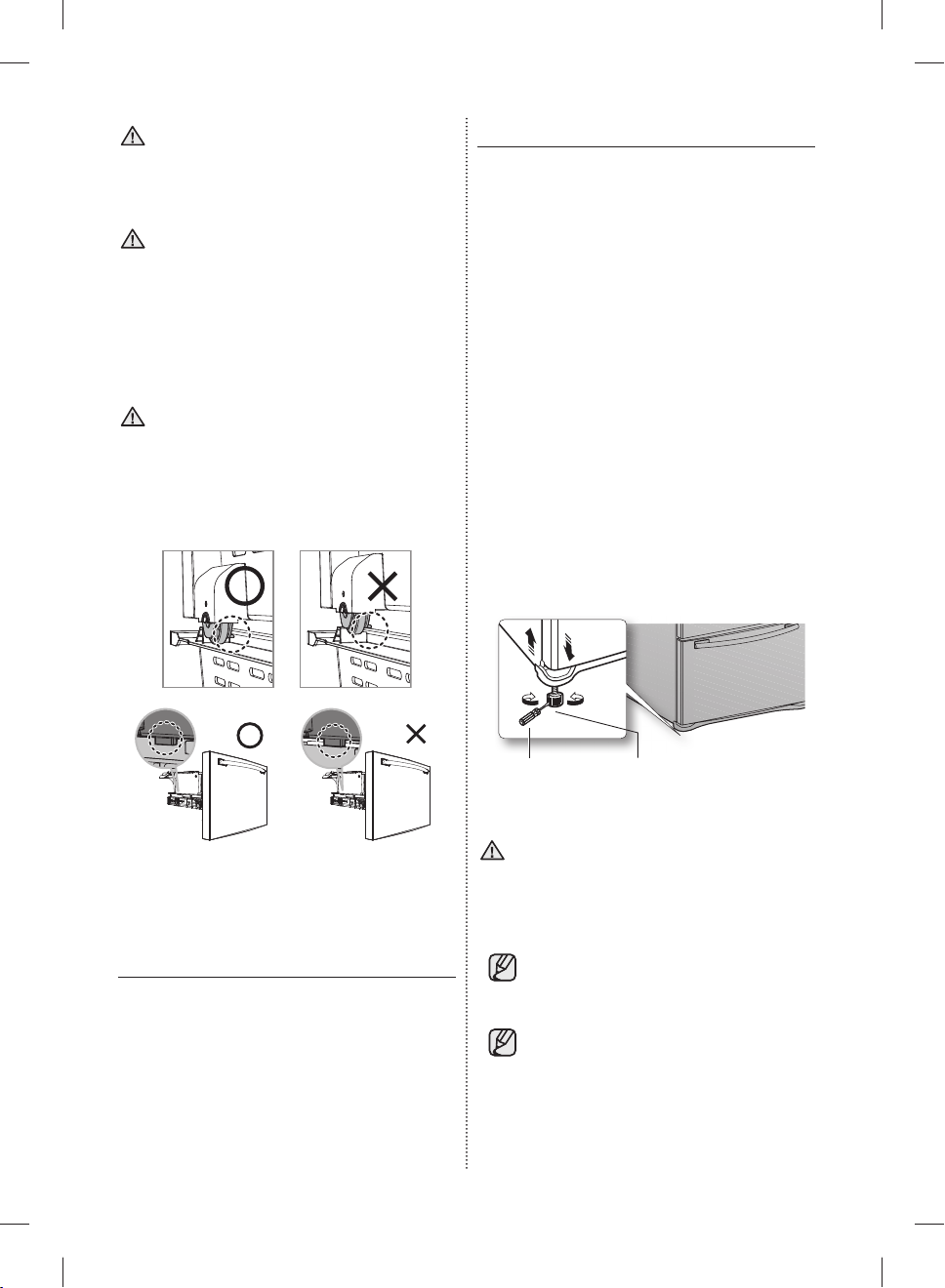

How to adjust the level

1. Open the freezer drawer and remove the lower

basket.

2. Insert a flat-blade screwdriver (-) into the

notch on the left control lever, and then turn
it counter-clockwise to level the refrigerator.
(You turn the lever clockwise to lower the
refrigerator and counterclockwise to raise it.)

flat-blade

screwdriver (-)

CAUTION

Both control levers must be touching the fl oor to
avoid possible personal injury or property damage
because of tipping.

If the right side is lower, perform the same
procedure, but with the right control lever.

It is dicult to remove the cover leg
front from the refrigerator, so we do not
recommend making small adjustments
with the control lever. Instead, refer to the
next page for the best way to make minor
adjustments to the doors.

English - 14

DA68-02952A-02.indb 14DA68-02952A-02.indb 14 2014. 5. 13.  5:082014. 5. 13.  5:08

Control Lever

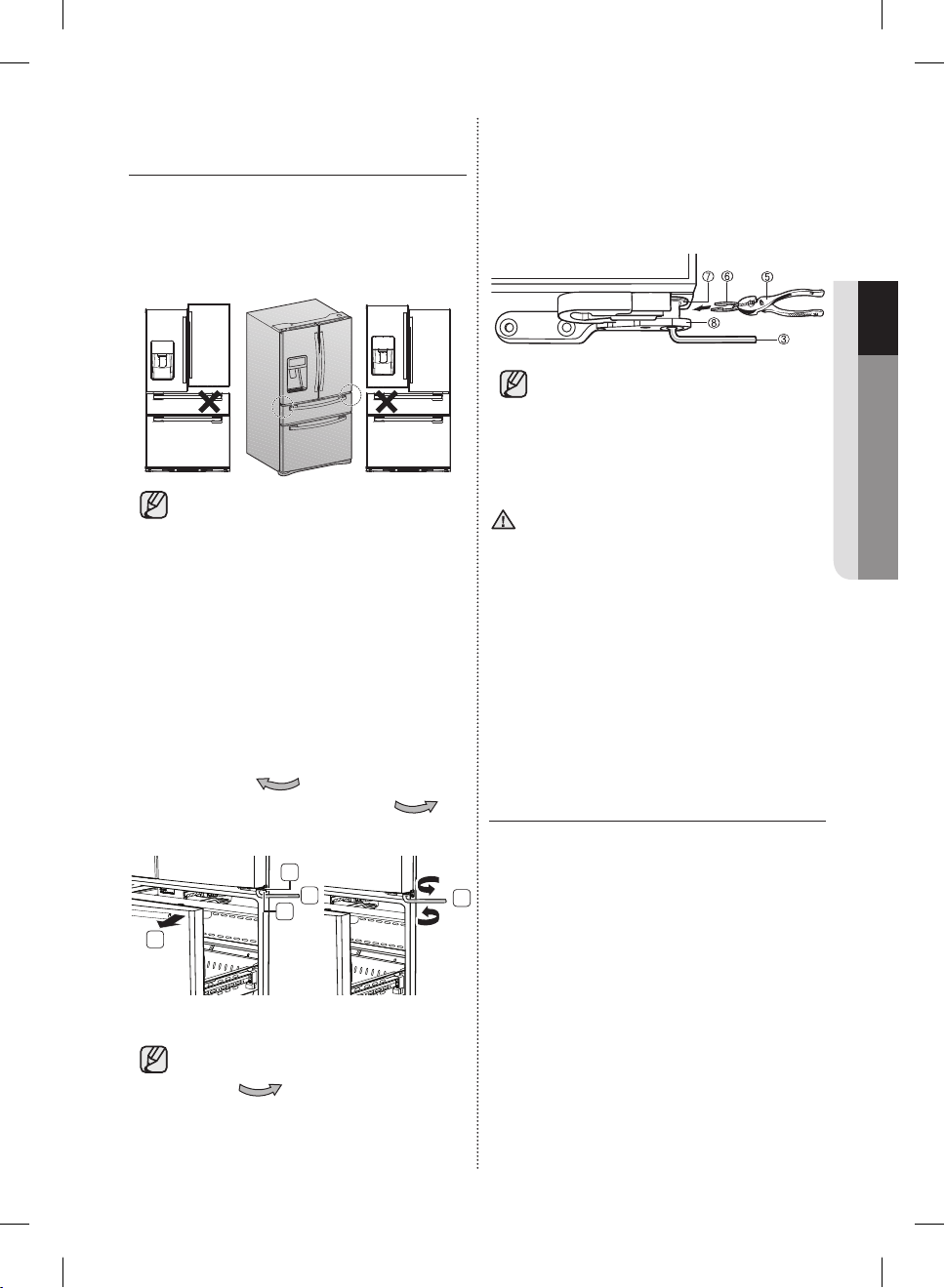

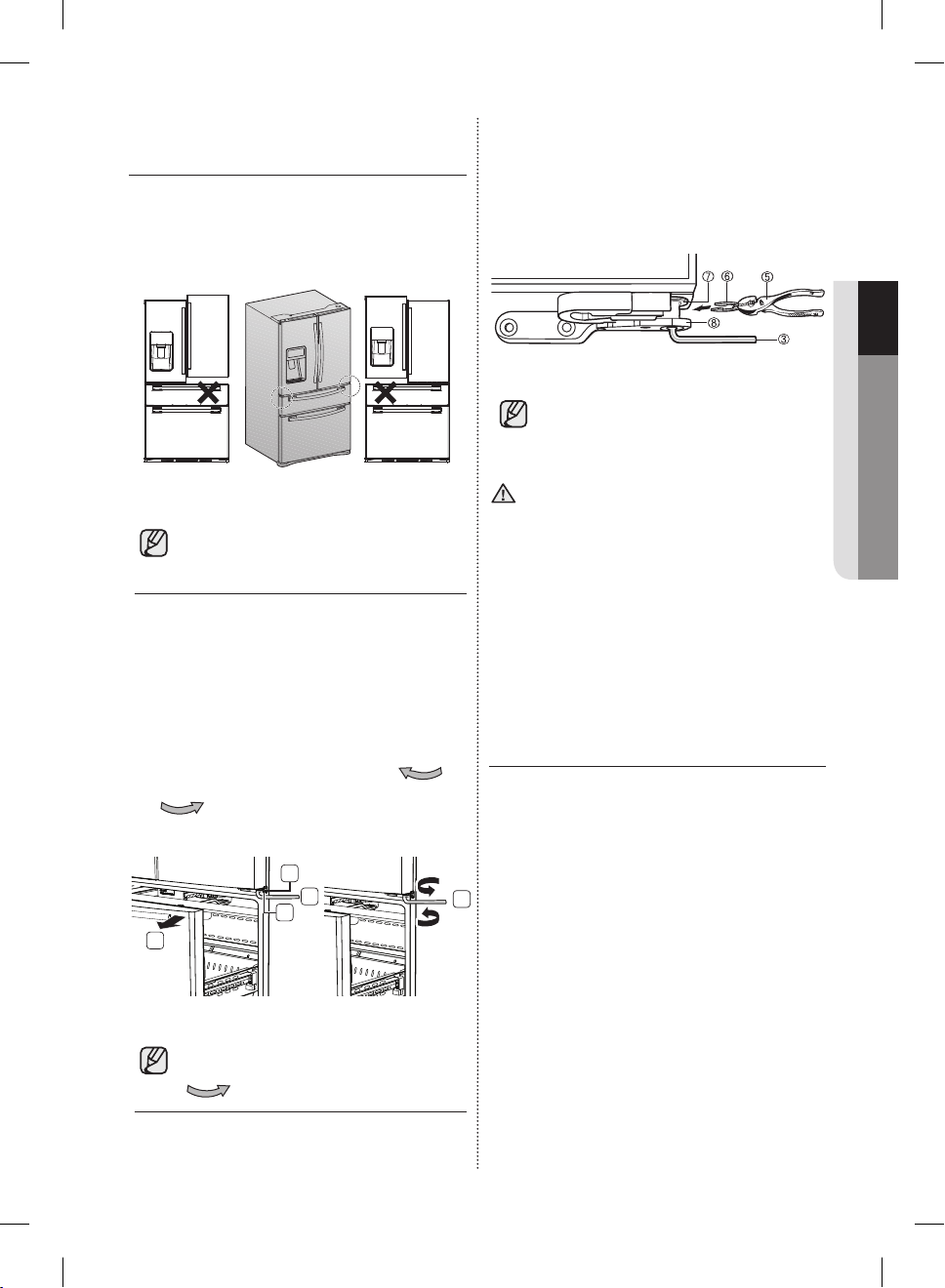

MAKING MINOR

Adjustment

part

Fixed part

DOWN

UP

ADJUSTMENTS TO THE
DOORS

Remember, a leveled refrigerator is necessary
for getting the doors perfectly even. If you need
help, review the previous section on leveling the
refrigerator.

4. After adjusting the doors, please insert the
supplied fastener ( 6 ) using a pliers ( 5 ) in
the gap between the hinge-grommet ( 7 ) and
the lower hinge ( 8 ). The number of fasteners
you’ll need to insert depends on the gap.

01 SETTING UP

2 fastener are enclosed with the
refrigerator.
The thickness of each fastener is 0.04”.

Fixed part

Adjustment

part

The left door is fixed. To make minor
adjustments between doors, adjust only
the right door.

1. Pull out the Convertible door ( 1 ) to expose
the lower hinge ( 2 ).

2. Insert the supplied allen wrench (5/32” (4 mm))
( 3 ) into the shaft ( 4 ) of the lower hinge.

3. Please adjust the height by turning the hex
wrench ( 3 ) clockwise (
clockwise (

1

UP

).

4

DOWN

) or counter-

2

3

When you turn the hex wrench counter­clockwise ( ), the door will move up.

WARNING

• Children should be supervised to ensure that
they do not play with the fastener.

- There is a risk of death from suocation if a
child swallows the fastener.
Pay special attention to children because it can
be dangerous.
Keep the fastener out of reach of children.

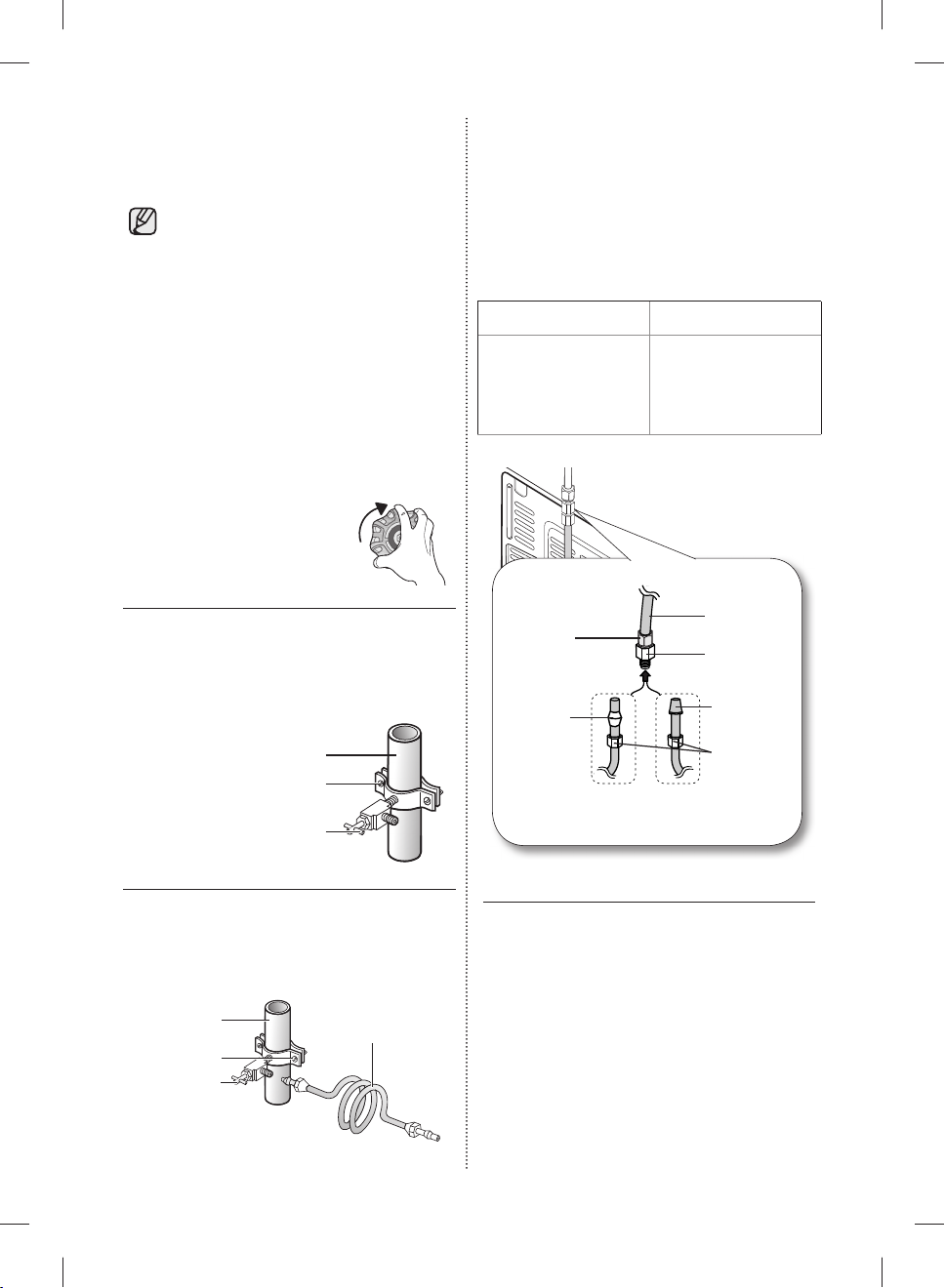

INSTALLING THE WATER
DISPENSER LINE

A water dispenser with a fi lter is one of the helpful
features on your new refrigerator. To help promote
better health, the water fi lter removes unwanted
particles from your water. However, it does not
sterilize the water or destroy microorganisms. You
may need to purchase a water purifying system to
do that.

3

The water line also connects to the ice maker.
For the ice maker to operate properly, water
pressure of 20-125 psi (138 ~ 862 kPa) is
required.
If the refrigerator is installed in an area with low
water pressure (below 20 psi), you can install
a booster pump to compensate for the low
pressure.
After you have connected the water line, make
sure the water storage tank inside the refrigerator
is properly fi lled. To do this, press the water
dispenser lever until the water runs from the water

outlet.

English - 15

DA68-02952A-02.indb 15DA68-02952A-02.indb 15 2014. 5. 13.  5:082014. 5. 13.  5:08

Water line installation kits are available at

Pipe clamp

Cold water line

Shut o valve

Shut o valve

Pipe clamp

Cold water line

Water line installation kit

Compression

Nut (1/4”)

(Assembled)

Ferrule

(Not supplied)

Plastic Tubing
(Assembled)

Compression
Fitting
(Assembled)

Molded
end(Bulb)

Compression
nut (B) (1/4”)
(Not supplied)

or

Copper tubing

(Not supplied)

Plastic tubing (B)

(Not supplied)

Household water supply line

extra cost from your dealer.
We recommend using a water line
installation kit that contains copper tubing
and a ¼” compression nut.

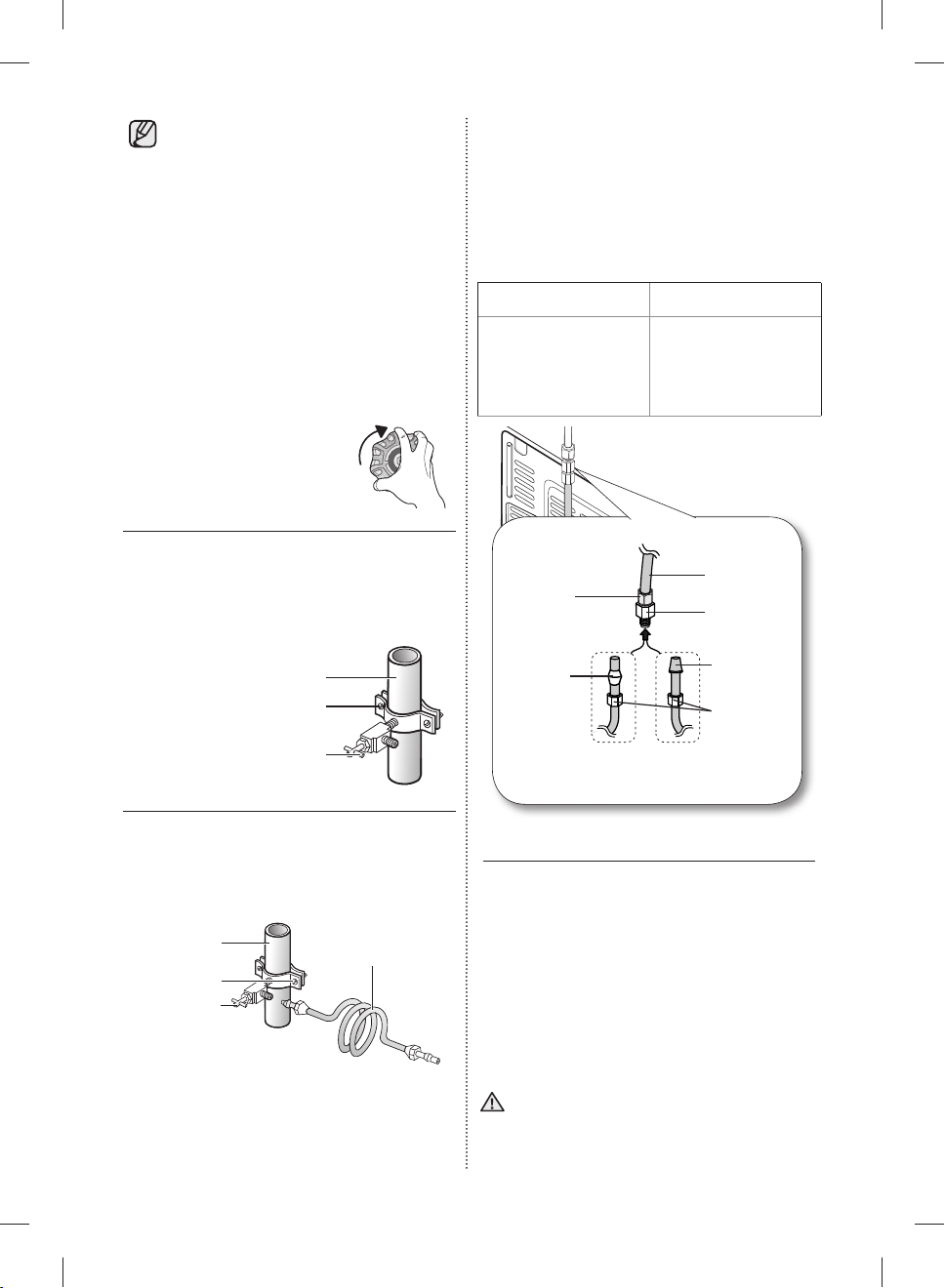

Connecting to the water supply line

1. First, shut o the main water supply.

2. Locate the nearest cold water drinking line and

install the pipe clamp and shut o valve.

Cold water line

3. Connect the water line installation kit to the

shut o valve.

Cold water line

Pipe clamp

Shut o valve

Pipe clamp

Shut o valve

Water line installation kit

Connecting the water supply line to
the refrigerator.

There are several items that you need to purchase
to complete this connection.
You may fi nd these items sold as a kit at your local
hardware store.

Use Copper Tubing Use Plastic Tubing

• ¼” copper tubing

• ¼” compression nut
(1pc)

• Ferrule (2pc)

Compression

Nut (1/4”)

(Assembled)

Ferrule

(Not supplied)

Copper tubing
(Not supplied)

Household water supply line

1. Connect the household water line to the

assembled compression fitting.

If you are using copper tubing, slip the
compression nut ( B ) (not supplied) and ferrule
(not supplied) on the copper tubing (not supplied)
as shown.
If you are using plastic tubing ( B ) , insert the
molded end (Bulb) of the plastic tubing ( B ) into
the compression fitting.

• ¼” plastic tubing
→ Molded end(Bulb)

• ¼” compression nut
(1pc)

Refrigerator

Plastic tubing (B)

or

(Not supplied)

Plastic Tubing
(Assembled)

Compression
Fitting
(Assembled)

Molded
end(Bulb)

Compression
nut (B) (1/4”)
(Not supplied)

CAUTION

Do not use without the molded end (Bulb) of the
plastic tubing ( B ).

English - 16

DA68-02952A-02.indb 16DA68-02952A-02.indb 16 2014. 5. 13.  5:082014. 5. 13.  5:08

2. Tighten the compression nut ( B ) onto the

compression fitting.
Do not over-tighten the compression nut ( B ).

3. Turn the water on and check for any leakage.

If you find water drops or leakage in the
connection areas, turn o the main water
supply. Check the connections and, if
necessary, tighten.

4. Flush 1 gallon of water through the filter

before drinking or using the water from the
refrigerator. (Flush approximately 6 minutes.)
To flush, press a large glass or cup against the
water dispenser lever. Fill the glass, empty it
into the kitchen sink after it is filled, and then
repeat.

5. After you turn on the refrigerator, let the ice

maker make ice for 1 to 2 days. Over that
period of time, throw out the first 1 or 2
buckets of ice the freezer makes to ensure all
impurities have been removed from the water
line.

Only connect the water line to a drinkable

water source.
If you have to repair or disassemble the water line,
cut o 1/4“ of the plastic tubing to make sure you
get a snug, leak-free connection.

You can test the water line quickly using a

paper cup. Under normal conditions, the

water dispenser can fill a 5.75 oz. (170cc)

cup in about 10 seconds.

COMPLETING THE SET UP

Now that you have your new refrigerator installed
in place, you are ready to set up and enjoy the
features and functions of the appliance.
By completing the following steps, your refrigerator
should be fully operational.

1. Make sure your refrigerator is in an appropriate

location with reasonable clearance between it
and the wall. Refer to installation instructions in
this manual.

2. Once the refrigerator is plugged in, make sure

the interior light comes on when you open the
doors.

3. Set the Temperature control to the coldest

temperature and wait for an hour. The freezer
will get slightly chilled and the motor will run
smoothly. Reset the refrigerator and freezer to
the temperatures you want.

4. After you plug the refrigerator in, it will

take a few hours to reach the appropriate
temperature. You can store food and drinks
in the refrigerator after the temperature is
suciently cool.

If condensation or water drops appear
on both sides of the fridge door’s central
part, turn the Energy Saver mode o after
removing the condensation. (See the
explanation of the Energy Saver button in
“Using the Control Panel” on page 18.)

01 SETTING UP

English - 17

DA68-02952A-02.indb 17DA68-02952A-02.indb 17 2014. 5. 13.  5:082014. 5. 13.  5:08

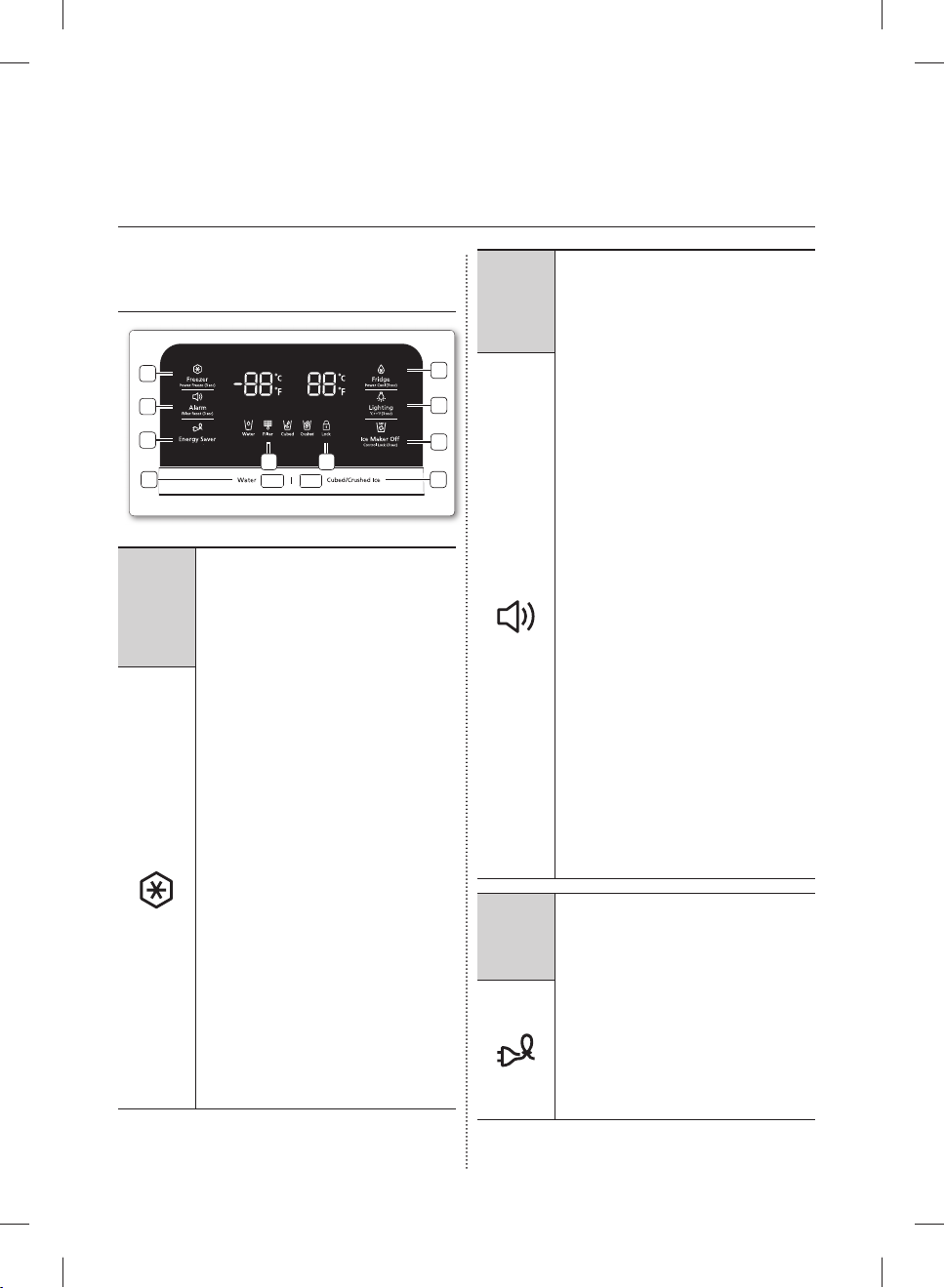

Operating your French Door
Refrigerator

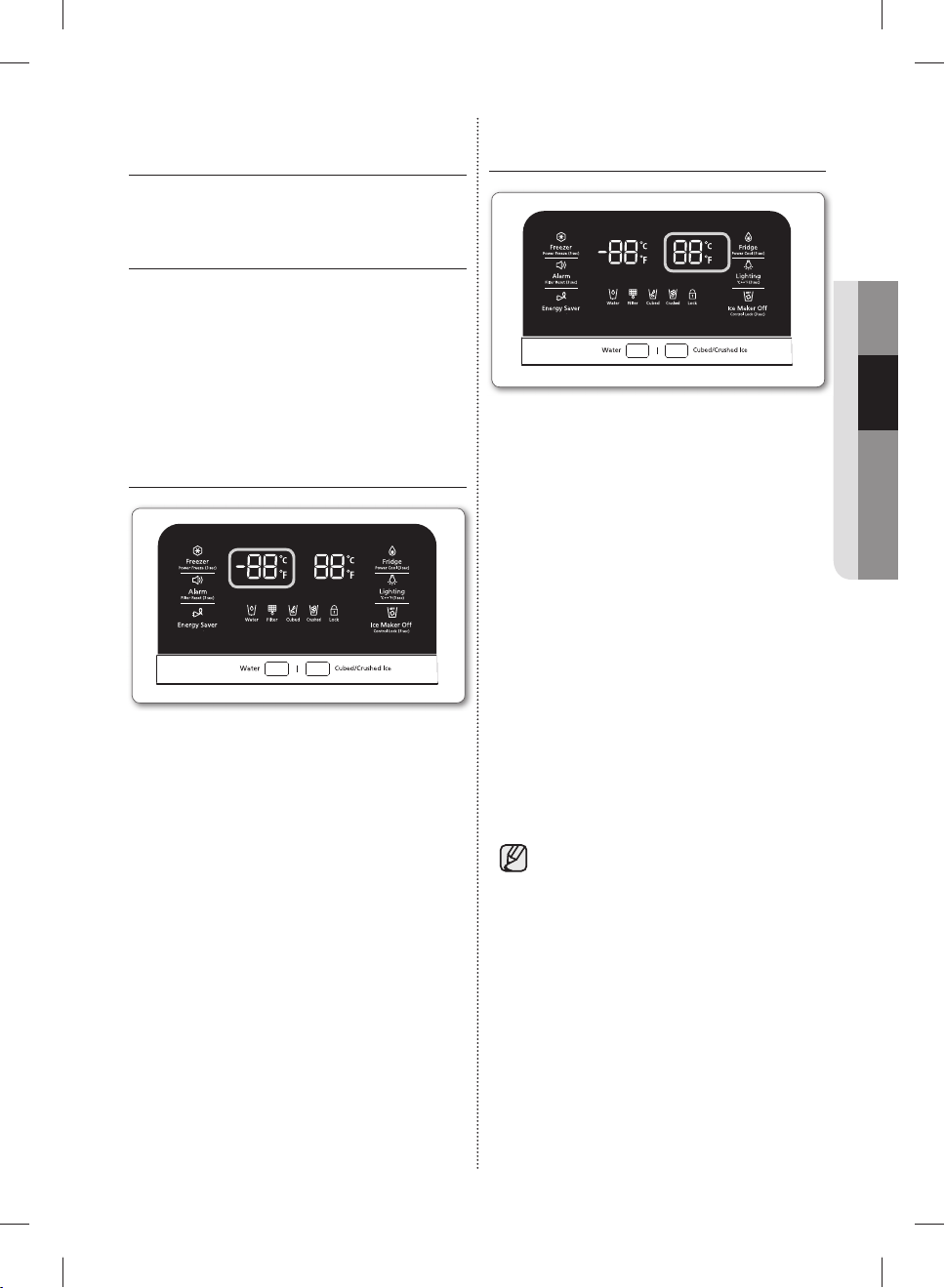

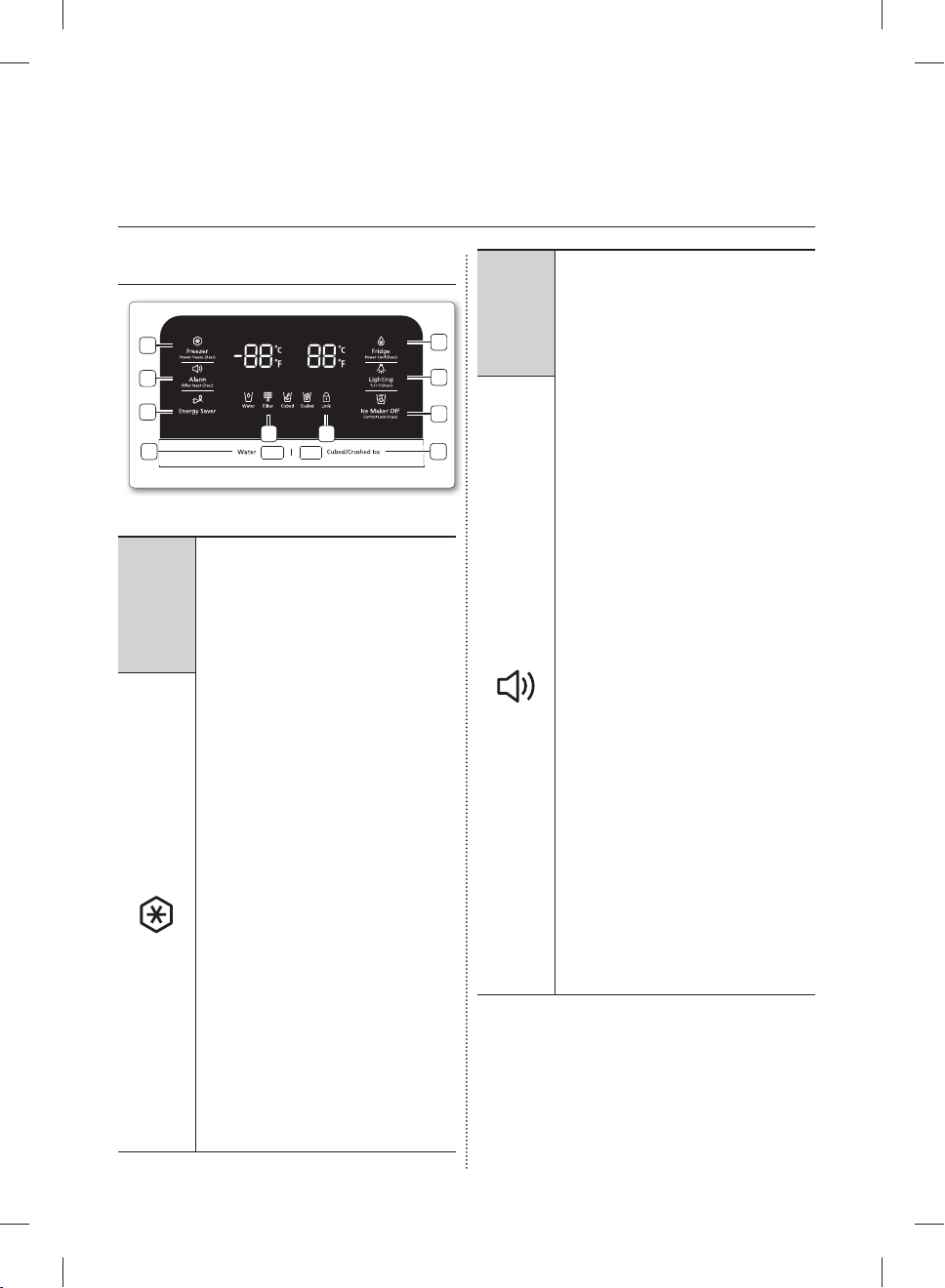

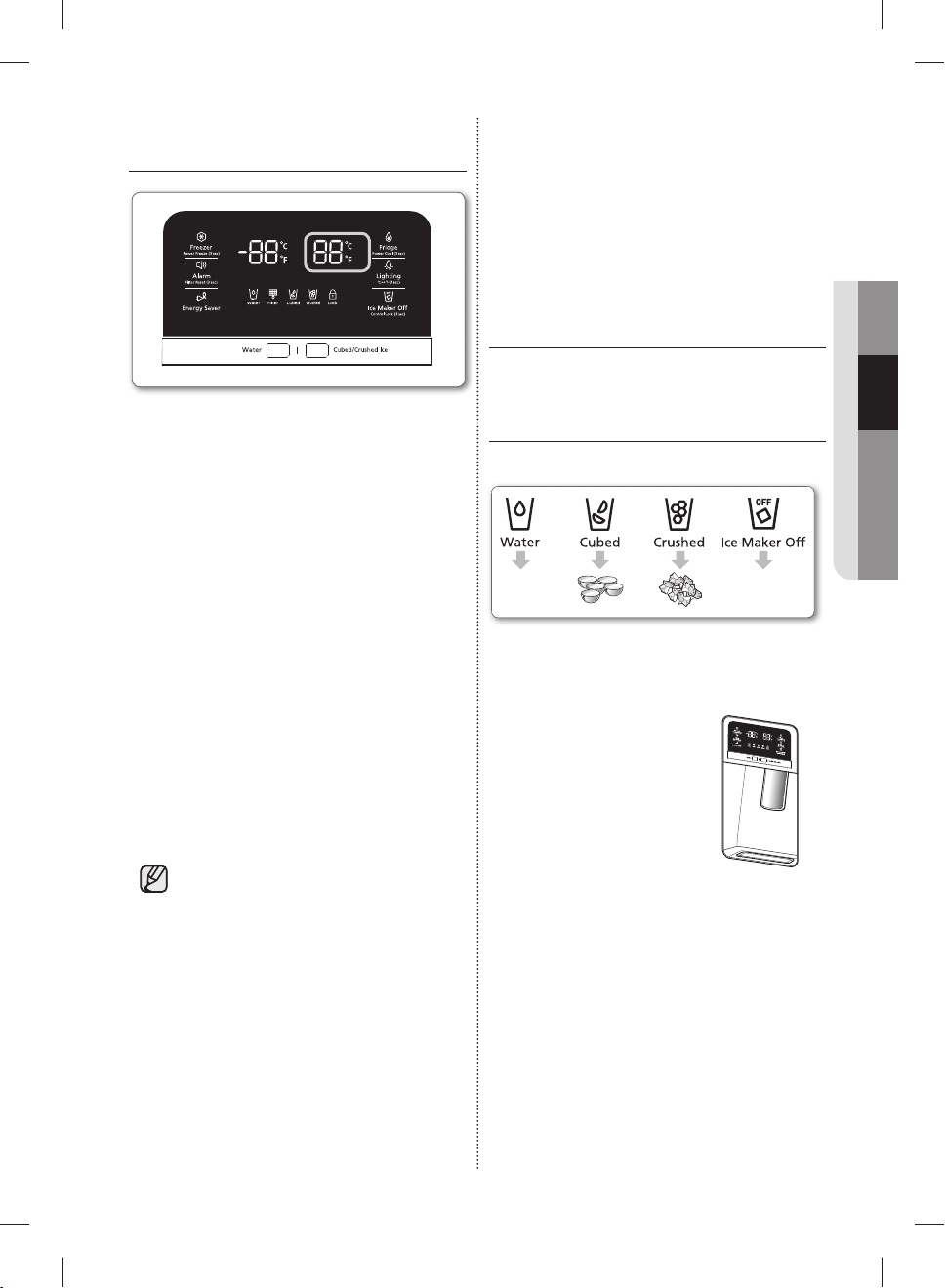

USING THE CONTROL PANEL

1

2

3

7 9

( 1 )

Freezer/

Power
Freeze

(3sec)

The Freezer button serves two purposes:

- To set the Freezer to your desired

- To turn the Power Freeze function on

1) To set the Freezer temperature,
touch the Freezer button. You can set the
temperature between 5 °F (-15 °C) and -8
°F (-23 °C).

1) Power Freeze function
Touch and hold this button for 3 seconds
to decrease the time needed to freeze
products in the Freezer.
It can be helpful if you need to quickly
freeze easily spoiled items or if the
temperature in the freezer has warmed
dramatically (For example, if the door was
left open).
When you use this function, the energy
consumption of the refrigerator will
increase. Remember to turn it o when
you don’t need it and return the freezer
to your original temperature setting. If you
need to freeze a large amount of food,
activate the Power Freeze function at least
24 hours before you put the food into the
freezer.

8 6

temperature.

and o .

( 2 )

Alarm/

Filter

Reset

4

5

10

(3sec)

Energy

Saver

The Alarm button serves two purposes:

- To turn the door open alarm on and o

- To reset the water fi lter life indicator.

1) Door Alarm Function
If the door alarm is set to On, an alarm
beeps if any refrigerator door is left open
for more than three minutes. The beeping
stops when you close the door. The door
alarm function is pre-set to On in the
factory. You can turn it o by pressing and
then releasing the Alarm button. You can
turn it back on in the same fashion. The
icon lights up when the function is on.
When the Door Alarm function is on and
the alarm sound is triggered, the Door
Alarm Icon will blink while the alarm
sounds.

2) Water Filter Life Indicator Function
After you replace the water fi lter, touch
and hold this button for 3 seconds to
reset the water fi lter life indicator. When
you reset the water fi lter life indicator,
the Filter icon on the panel turns O . The
Filter icon will turn red to let you know it
is time to change the water fi lter after six
months (about 300 gallons). Some areas
have large amounts of lime in their water,
which causes the water fi lter to clog more
quickly. If this is the case in your area,
you will have to change the fi lter more
frequently than every six months.

( 3 )

Touching this button turns Energy Saver
mode on and o . When you turn Energy
Saver on, the Energy Saver icon lights.
Turn Energy Saver o and the icon goes
o . The Energy Saver function’s factory
setting is “ON”. If condensation or water
drops appear on the doors, turn the
Energy Saver mode o .

English - 18

DA68-02952A-02.indb 18DA68-02952A-02.indb 18 2014. 5. 13.  5:082014. 5. 13.  5:08

( 4 )

Fridge/

Power

Cool

(3sec)

The Fridge button serves two purposes:

- To set the Fridge to your desired
temperature.

- To turn the Power Cool function on
and o .

1) To set the Fridge temperature, press
the Fridge button. You can set the
temperature between 44°F (7°C) and
34°F (1°C).

2) Power Cool function

Touch and hold this button for 3 seconds
to decrease the time needed to cool
products in the Refrigerator. It can be
helpful if you need to quickly cool easily
spoiled items or if the temperature in
the fridge has warmed dramatically (for
example, if the door was left open).

( 6 )

Ice Maker

O /

Control

Lock

(3sec)

The Ice Maker O button serves two
purposes:

- To turn the Ice maker on and o

- To turn the Control Lock Function on
and o .

1) Ice O Function
If you don’t want to make more ice, press
the Ice Maker O button.

02 OPERATING

2) Control Lock Function
Touch and hold this button for 3 seconds
to lock the display, the Flex Zone panel,
and the dispenser buttons so the buttons
can not be used.
When Control Lock is on, the refrigerator
does not dispense ice or water, even if the
Dispenser Lever is pressed.
The Control Lock icon lights up to
indicate you’ve activated the Control Lock
function. Press 3 seconds to unlock.

( 5 )

Lighting/

ºC ↔ ºF

(3sec)

The Lighting button serves two purposes:

- To turn the dispenser light on and o

- To switch the temperature units
between ºC and ºF

1) Light Function
Touching the Lighting button turns on
the Dispenser LED lamp in continuous
mode so that it stays on continuously.
The button also lights up. If you want the
Dispenser lamp to come on only when
some one uses the dispenser, press the
Lighting button to turn the continuous
mode o .

2) To switch the temperature units
between ºC and ºF

Touch and hold this button for 3 seconds
to select the temperature display you
want.
Each time you press and hold the button,
the ºC and ºF temperature modes
alternate and the ºC or ºF icon lights up,
indicating your selection.

(7)

Water

(8)

Filter

( 9 )

Ice Type

Touch this button to dispense water. This
mode can not be used with the Ice Type
mode simultaneously.
Water mode shuts o when you touch the
Cubed/Crushed Ice button.

Water fi lter usage

This icon lights up when you need
to change the fi lter, usually after the
refrigerator has dispensed about 300
gallons of water (after about 6 months).
After you install the new water fi lter, reset
the fi lter indicator by touching and holding
the Hold 3sec for Filter Reset button for
3 seconds.

- If water is not dispensing or
dispensing slowly, you need to
replace the water fi lter because
the water fi lter is clogged.

- Some areas have large amounts
of lime in their water, which
causes the water fi lter to clog
more quickly.

Touch this button to select your desired
ice type. Cubed and crushed ice modes
alternate when you press the button. This
mode can not be used with the Water
mode simultaneously.

English - 19

DA68-02952A-02.indb 19DA68-02952A-02.indb 19 2014. 5. 13.  5:082014. 5. 13.  5:08

To save electricity, the Panel Display turns o

(Red)

automatically under the following conditions:
When no button has been pressed, when
no doors are open, or when no Dispenser
Lever has been pushed. However, the
icon indicating your cubed or crushed ice
selection, will stay on. When you press a
button, open a door, or push a Dispenser
Lever, the Panel Display will turn on again.
Except for the Energy Saver, Water, and
Cubed/Crushed Ice buttons, all function
buttons will become operational after you
remove your finger from the button you are
currently pressing.

( 10 )

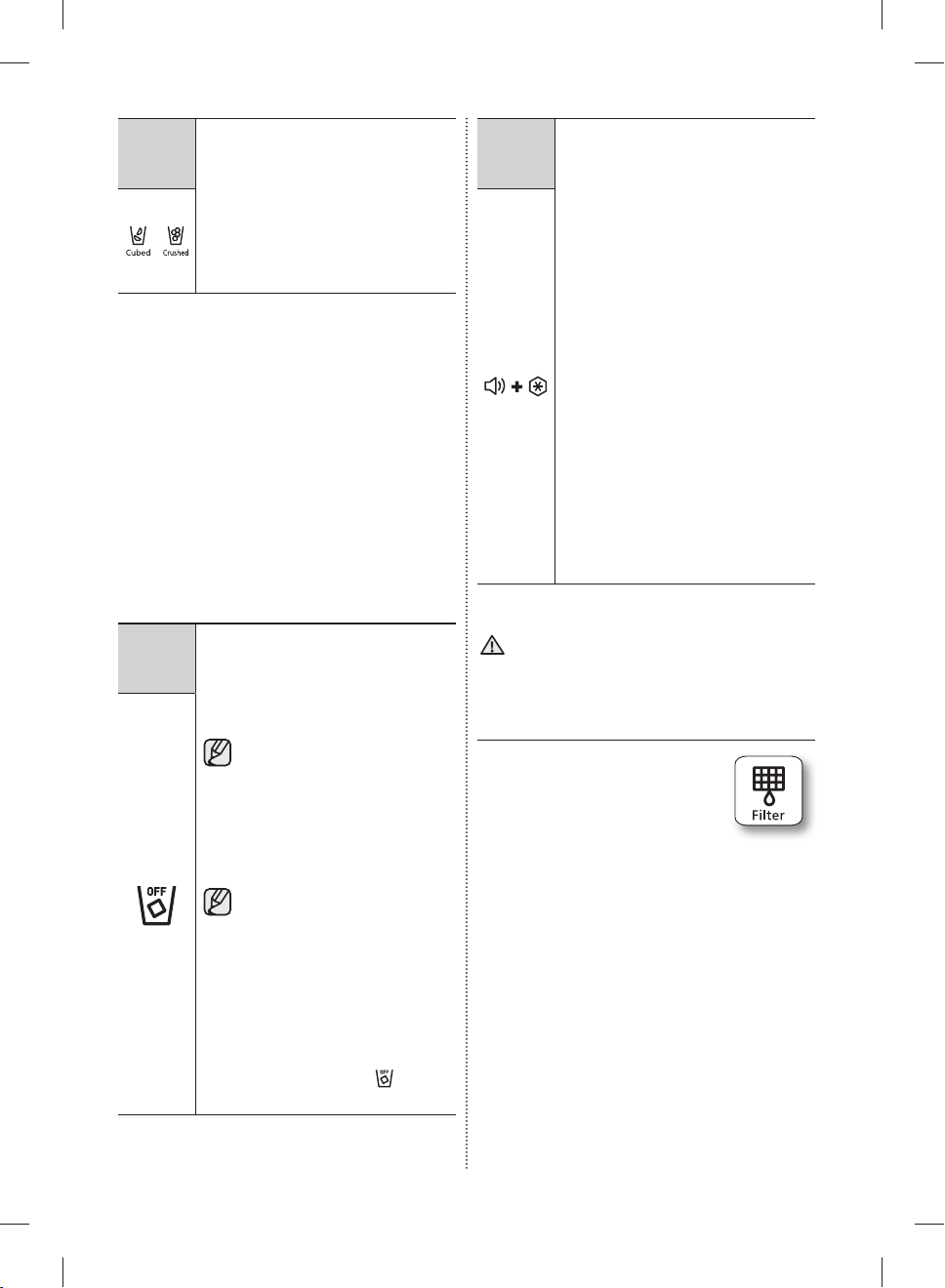

Ice Maker

If you don’t want to make more ice, touch
the Ice Maker O button.

O

The icon will light up and the Ice-Maker
stops making ice.

We recommend you stop ice
making if the following occur:

- There is enough ice in the ice
bucket.

- You want to save water and
energy.

- Water is not being supplied to
the refrigerator.

If the ice maker function is ON, and
the water line is not connected,
there will be a water valve noise
from the back of the unit. If this
occurs, press the Ice Maker O
(Control Lock(3sec)) button for less
than 3 seconds until the Ice O

Indicator (

) illuminates.

WARNING

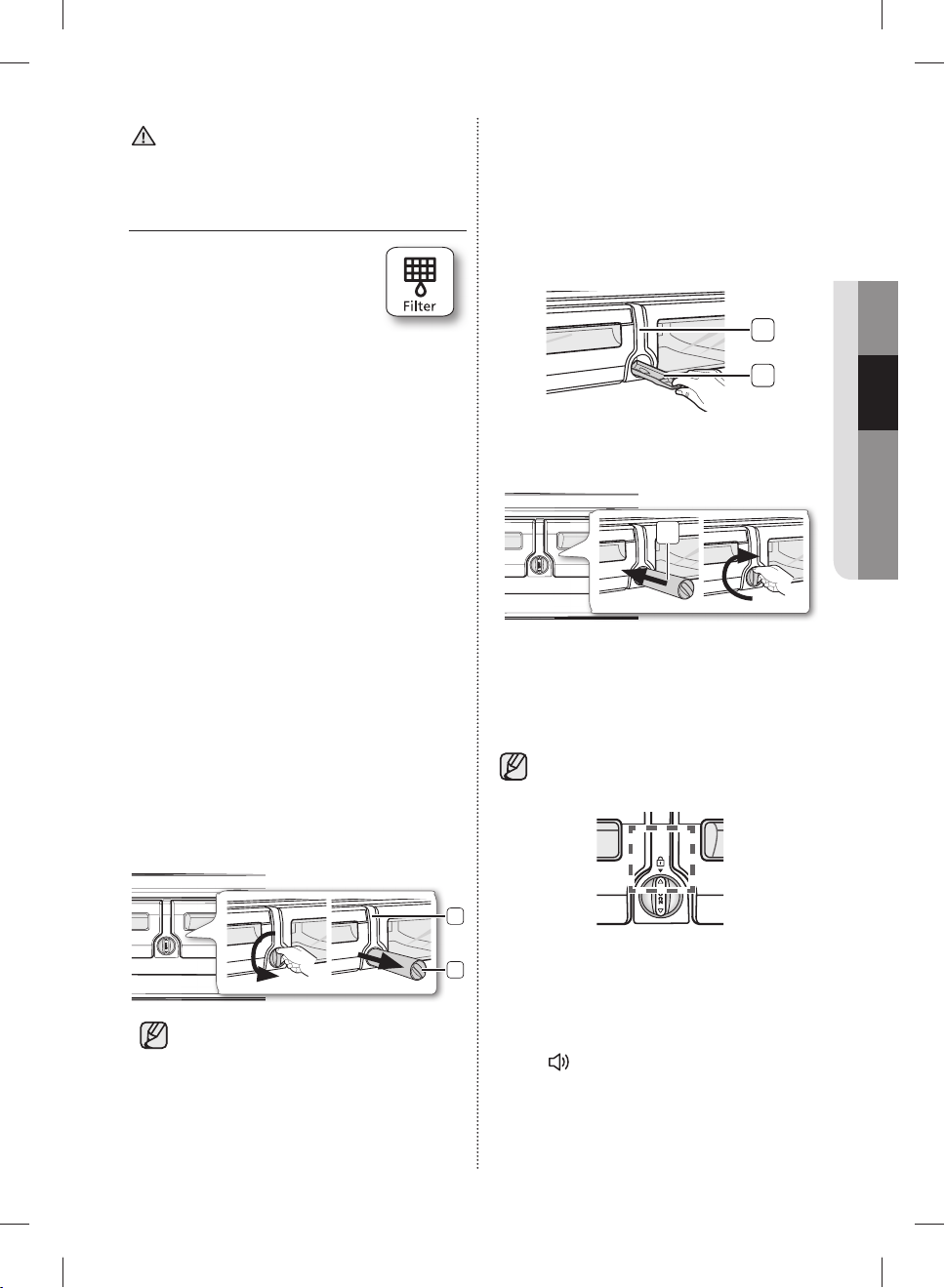

CHANGING THE WATER
FILTER

To reduce risk of water damage
to your property DO NOT use
generic brands of water fi lters
in your SAMSUNG Refrigerator.

USE ONLY SAMSUNG BRAND
WATER FILTERS. SAMSUNG

is not legally responsible for any
damage, including, but not limited
to, property damage caused by
water leakage from the use of a
generic water fi lter. SAMSUNG
Refrigerators are designed to work
ONLY WITH SAMSUNG Water
Filters.

The Filter light turns red to let you know when it is
time to change your water fi lter cartridge.
To give you time to get a new fi lter, the red light
comes on just before the capacity of the current
fi lter runs out.
Changing the fi lter on time provides you with the
freshest, cleanest water from your refrigerator.

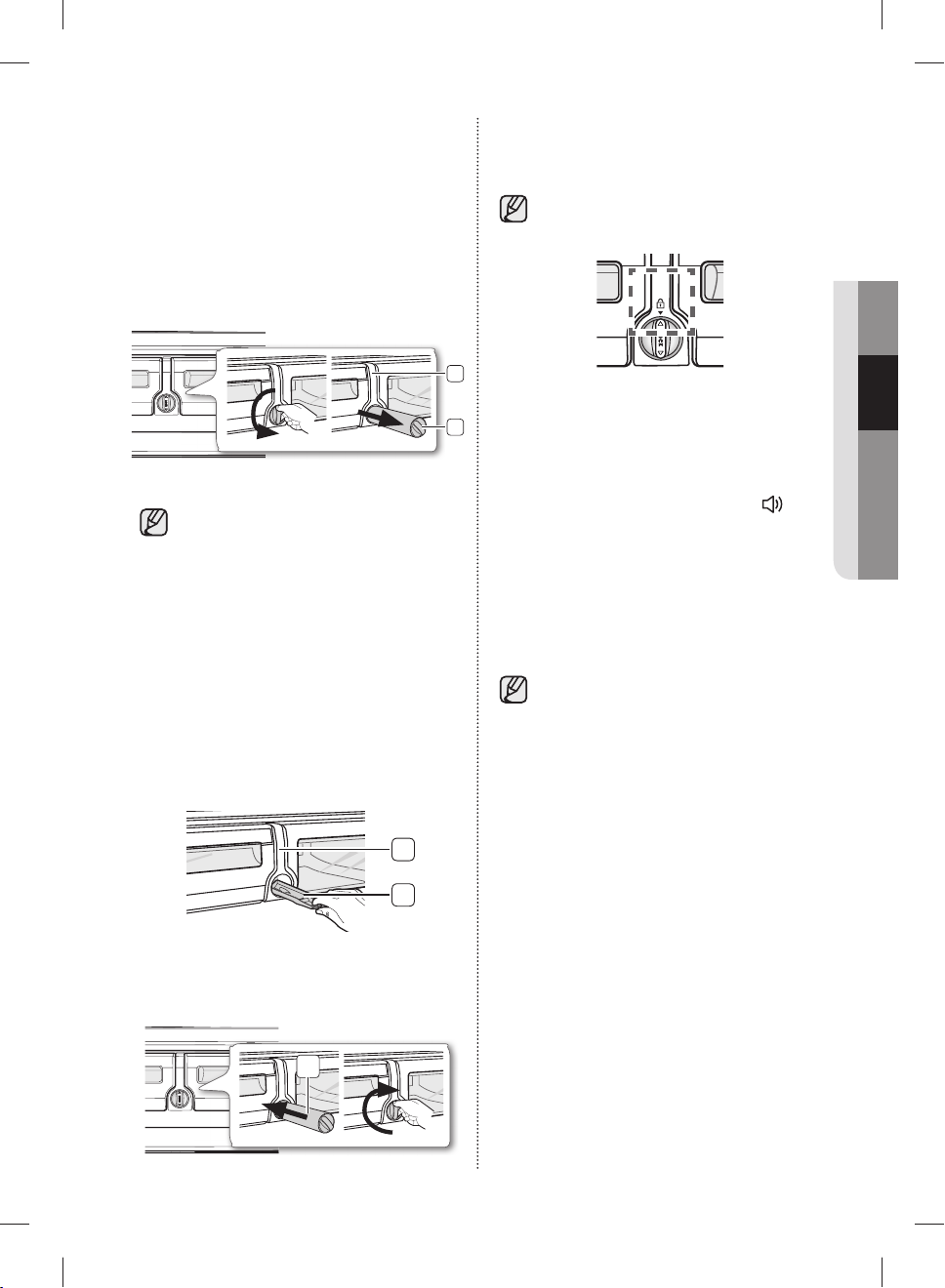

1. Shut o the water supply. Then, turn the water
filter ( 1 ) about 1/4 turn, counter-clockwise.

2. Pull the water filter ( 1 ) from the case filter ( 2 ).

(Red)

Cooling

O Mode

- North American (US and Canadian)
Models Only:

Cooling O mode (also called Shop
mode), is designed for use by retailers
when they are displaying refrigerators on
the shop fl oor. In Cooling O mode, the
refrigerator’s fan motor and lights work
normally, but the compressors do not run,
and the refrigerator and freezer do not get
cold. To start Cooling O mode, touch
and hold the Alarm button and the Freezer
button for 5 seconds during normal
operation. The refrigerator chime sounds
and the temperature display fl ashes OFF.
To cancel Cooling O mode, touch and
hold the Alarm and the Freezer buttons
again for 5 seconds.

• To change the water filter more easily,
shut o the water supply valve.

• Sometimes, it is hard to disassemble the water
filter because impurities in the water cause it
to stick. If you are having diculties, grip the
water filter firmly and pull it hard.

• When you pull the water filter, a little water
can leak from the opening. This is normal.
To minimize the water leaks, keep the filter

2

1

cartridge horizontal when you pull it.

• To prevent overflow, empty the water tray filter
( 3 ) and dry around of case filter ( 2 ).

English - 20

DA68-02952A-02.indb 20DA68-02952A-02.indb 20 2014. 5. 13.  5:082014. 5. 13.  5:08

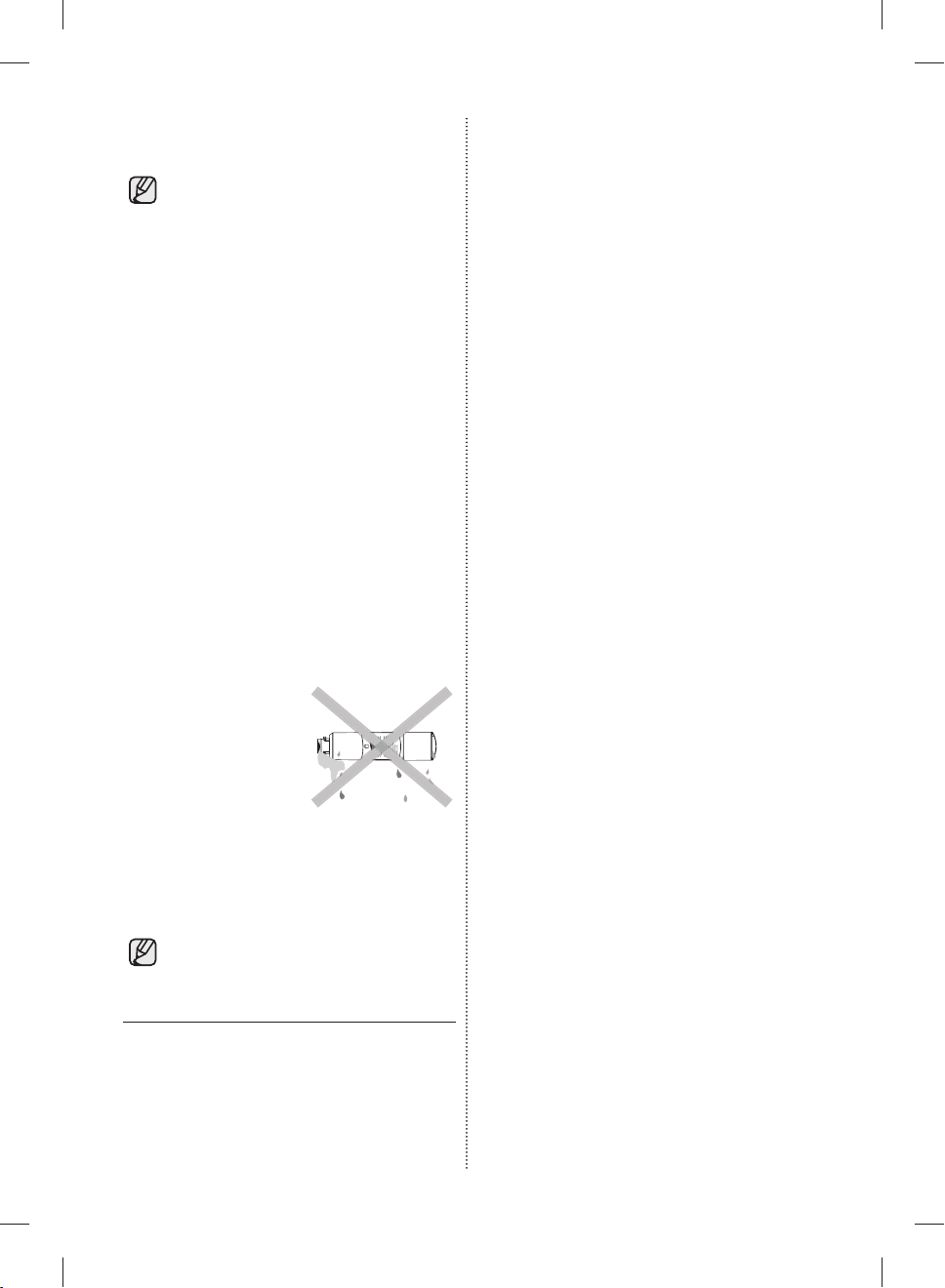

(Filter Reset)

Removing any residual matter inside

2

3

the water supply line after installing
the water fi lter.

1. Turn ON the main water supply and supply

water from water supply line.

3. Insert the new filter into the filter case ( 4 ).

4

4. Push the filter, and then turn it clockwise until

it locks.

• If you have trouble inserting the water
filter because of high water pressure,
shut o the water supply valve.

• The locked symbol should be lined up with the
indicator line.

5. Touch and hold the “Alarm / hold 3 sec for
Filter Reset” button (

seconds to reset the water filter indicator. The
indicator’s red light will turn o.

6. If you turned o the water supply, turn it back
on.

For a replacement water filter, visit your
local home Improvement center or visit
Samsung’s parts distributor on line at:

http://www.samsungparts.com

Be sure the replacement water filter has
the SAMSUNG logo on the box and on the
water filter.

(Filter Reset)

) for about 3

2. Run water through the dispenser until the

water runs clear (approx. 6 to 7 minutes).
This will clean the water supply system and
remove air from the lines.

3. Additional flushing may

be required in some
households.

4. Open the Refrigerator

door and make sure
there are no water
leaks coming from the
water filter.

Be sure to flush the dispenser thoroughly,
otherwise water may drip from the
dispenser.
This means that there is still air in the line.

Reverse Osmosis Water Supply

IMPORTANT : The pressure of the water supply
coming out of a reverse osmosis system going to
the water inlet valve of the refrigerator needs to be
between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water fi ltration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 to 414 kPa.)
If the water pressure to the reverse osmosis
system is less than 40 to 60 psi (276 to 414 kPa):

• Check if the sediment filter in the reverse
osmosis system is blocked. Replace the filter
if necessary.

• Allow the storage tank on the reverse osmosis
system to refill after heavy usage.

• If your refrigerator has a water filter, it may
further reduce the water pressure when used
in conjunction with a reverse osmosis system.
Remove the water filter.

If you have questions about your water pressure,
call a licensed, qualifi ed plumber.

02 OPERATING

English - 21

DA68-02952A-02.indb 21DA68-02952A-02.indb 21 2014. 5. 13.  5:082014. 5. 13.  5:08

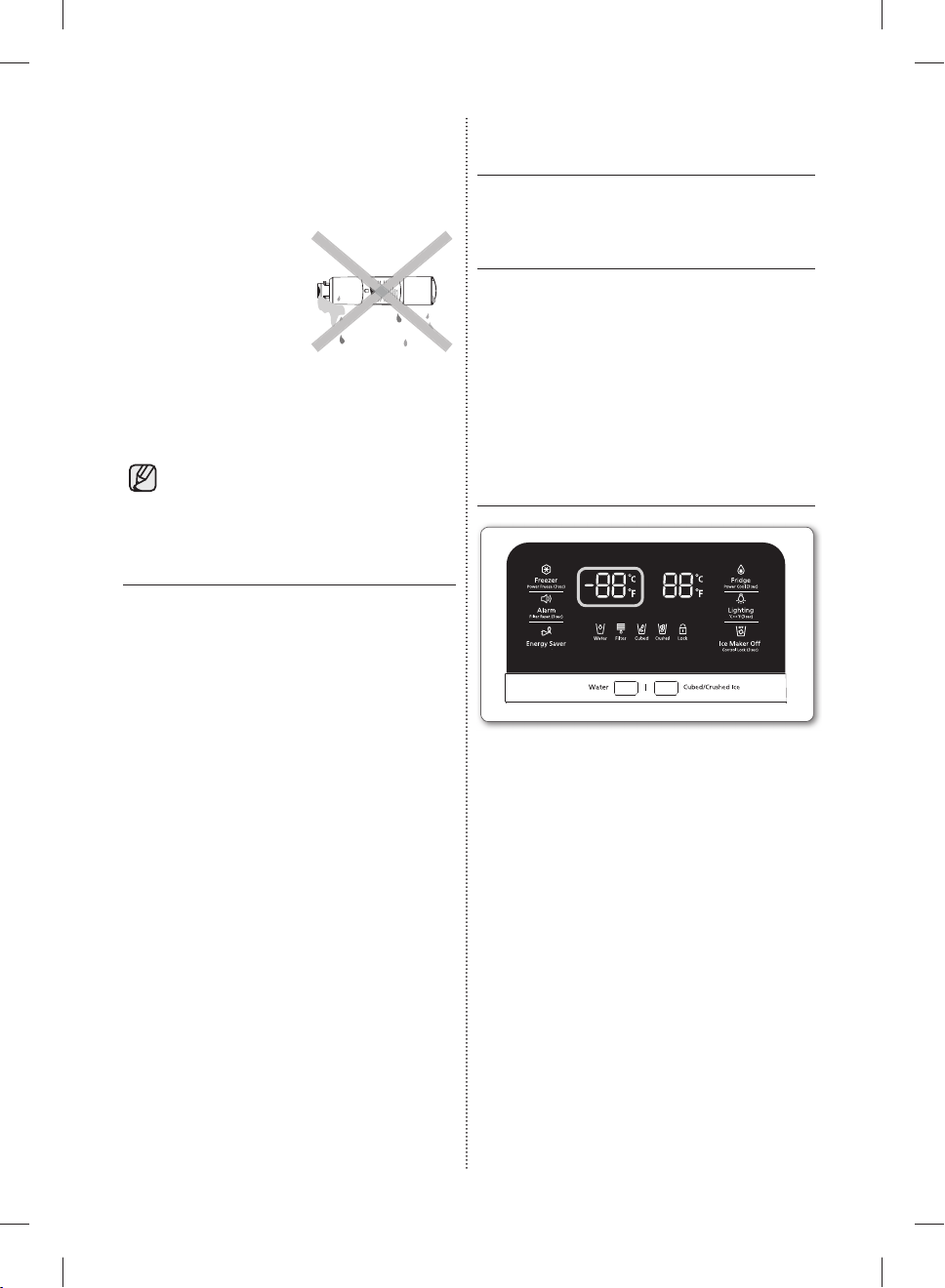

CONTROLLING THE

Recommend Temp (Freezer) : 0 °F (or -18 °C )

Recommend Temp (Fridge) : 37 °F (or 3 °C )

TEMPERATURE

Basic temperature of Freezer and
Refrigerator Compartments

The basic and recommended temperatures of the
Freezer and Fridge compartments are 0°F and
37°F (or -18°C and 3°C) respectively.
If the temperature of the Freezer and Fridge
compartments are too high or low, adjust the
temperature manually.

Controlling the Freezer
temperature

Recommend Temp (Freezer) : 0 °F (or -18 °C )

The Freezer temperature can be set between -8°F
and 5°F (or between -23°C and -15°C) to suit
your particular needs. Press the Freezer button
repeatedly until the desired temperature is shown
in the temperature display. The temperature will
change by 1°F (or 1°C) with each press. See
below.
Fahrenheit : 0°F ➞ -1°F ➞ -2°F ➞ -3°F ➞ -4°F

Centigrade : -18°C ➞ -19°C ➞ -20°C ➞ -21°C

Keep in mind that foods such as ice cream may
melt at 4°F (or -15.5°C). The temperature display
will move sequentially from -8°F to 5°F (or from

-23°C to -15°C).

-5°F ➞ -6°F ➞ -7°F ➞ -8°F ➞

➞

5°F ➞ 4°F ➞ 3°F ➞ 2°F ➞ 1°F ➞
0°F.

-22°C ➞ -23°C ➞ -15°C ➞

➞

-16°C ➞ -17°C ➞ -18°C.

Controlling the fridge temperature

Recommend Temp (Fridge) : 37 °F (or 3 °C )

The fridge temperature can be set between 34 °F
and 44 °F (or between 1 °C and 7 °C) to suit
your particular needs. Press the Fridge button
repeatedly until the desired temperature is shown
in the temperature display. The temperature will
change by 1 °F (or 1 °C) with each press. See
below.
Fahrenheit : 37 °F ➞ 36 °F ➞ 35 °F ➞ 34 °F ➞

Centigrade : 3 °C ➞ 2 °C ➞ 1 °C ➞ 7 °C ➞ 6 °C

The temperature control process for the Fridge
works just like the Freezer process. Press the
Fridge button to set your desired temperature.
After a few seconds, the Fridge will begin
adjusting towards the newly set temperature. This
will be reflected in the digital display.

- A rise in temperature may cause the digital
display to blink. Once the Freezer and
Fridge temperature return to their normal set
temperatures, the blinking will stop.

- If the blinking continues, you may need to
“reset” the Refrigerator. Try unplugging the
appliance, wait for around 10 minutes and
then plug the power cord back in.

- If there is a communication error between the
Display and Main Controller, the Convertible
Display light may blink. If the blinking continues
for a long period of time, please contact a
Samsung Electronics Service Center.

44 °F ➞ 43 °F ➞ 42 °F ➞ 41 °F ➞
40 °F ➞ 39 °F ➞ 38 °F ➞ 37 °F.

➞ 5 °C ➞ 4 °C ➞ 3 °C.

- The temperature of the Freezer or Fridge
may rise when you open the doors too
frequently, or if a large amount of warm
or hot food is placed inside.

English - 22

DA68-02952A-02.indb 22DA68-02952A-02.indb 22 2014. 5. 13.  5:082014. 5. 13.  5:08

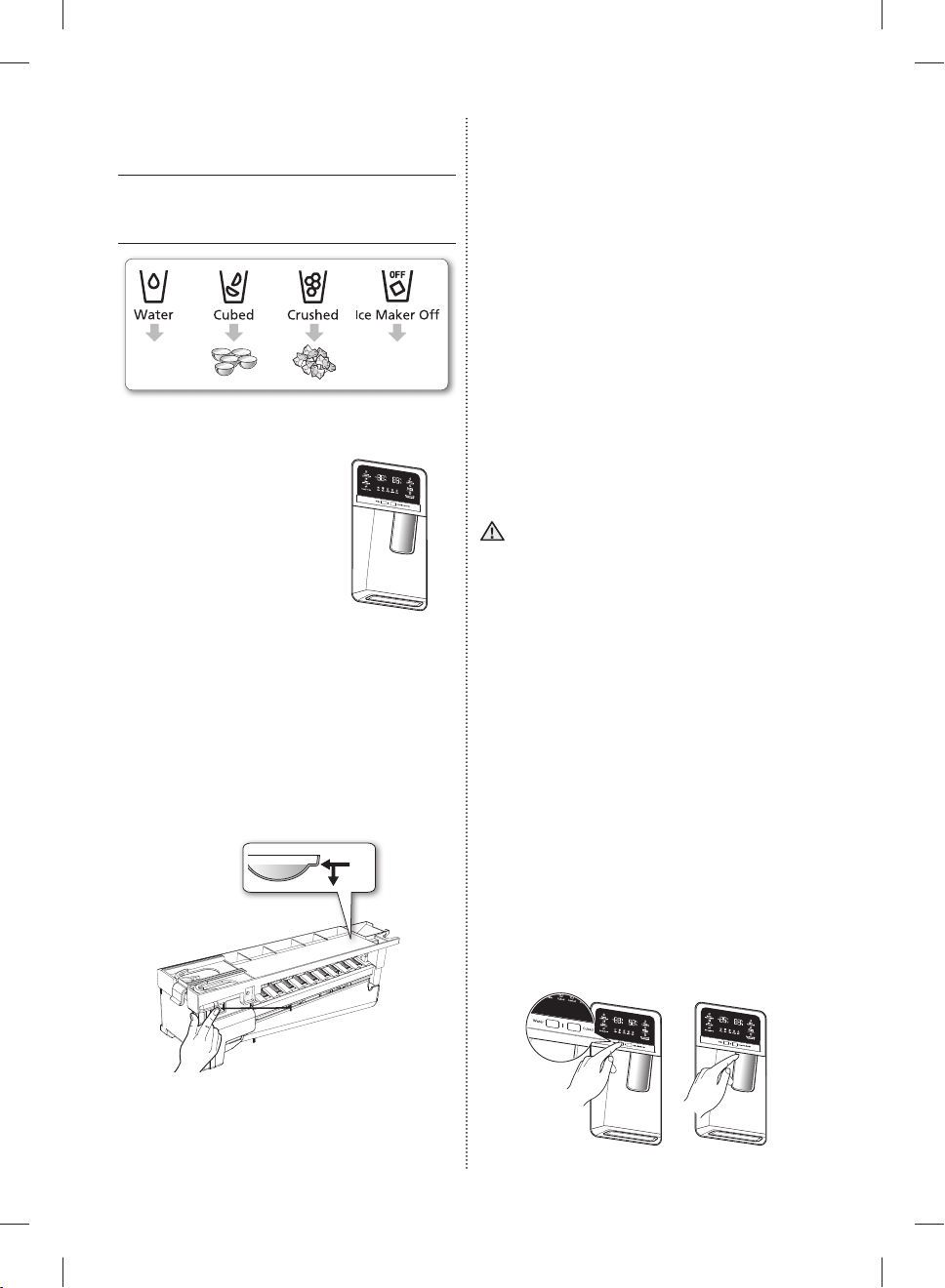

USING THE ONE LEVER

NO ICE

Select this if you want

to turn ice maker o

check

the water

level

Test button

DISPENSER

Push the appropriate ice type
button to select what you want
dispensed.

Test button

the water

check

level

02 OPERATING

NO ICE

Select this if you want

to turn ice maker o

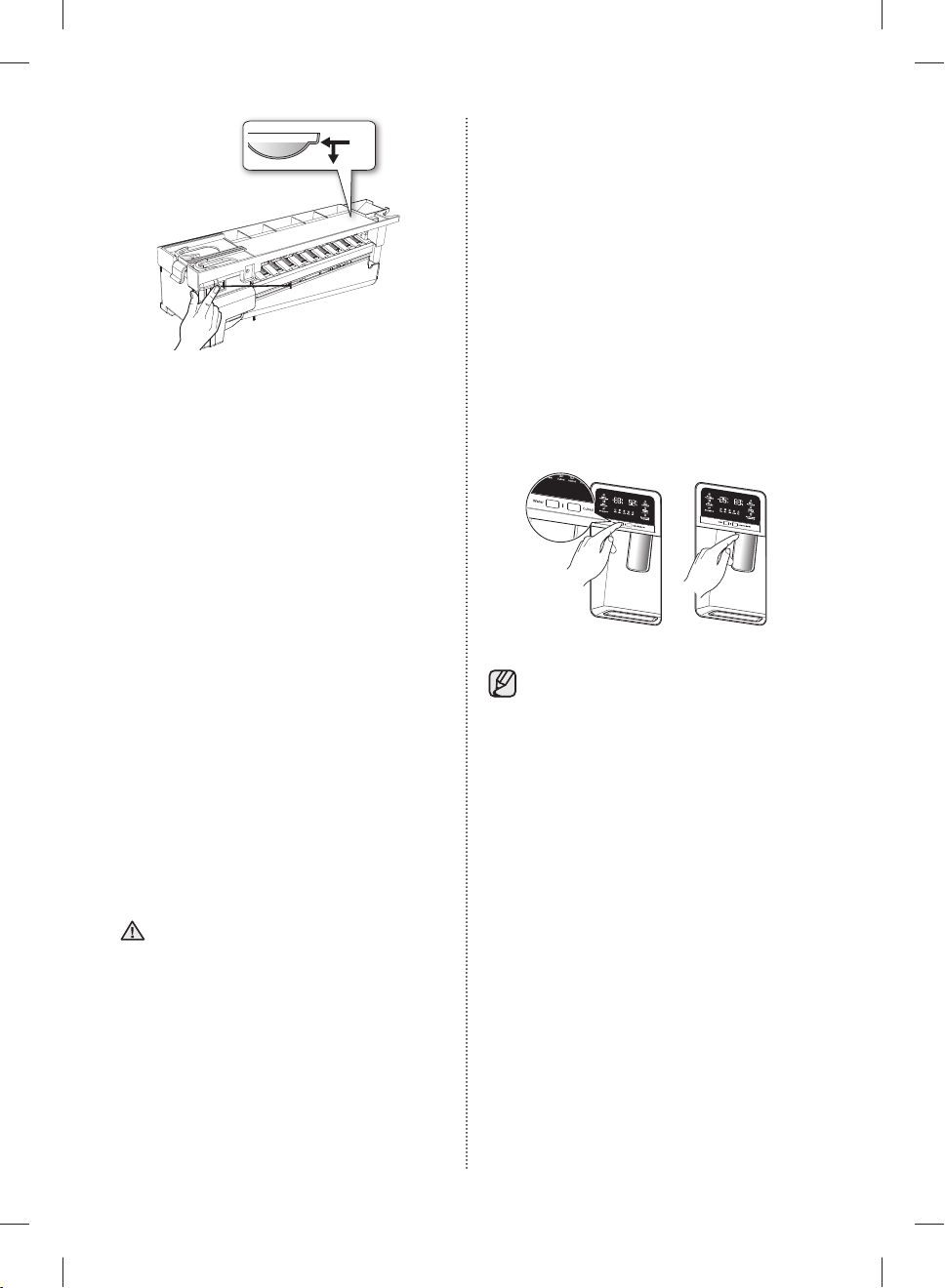

Using the ice Dispenser

Place a glass underneath
the ice dispenser and push
gently against the dispenser
lever with your glass.
Make sure the glass is in line
with the dispenser to prevent
the ice from bouncing out.

• To select water, press the water button on the
display, and then press the dispenser lever.

• To select Ice, press the ICE type button of
your choice on the display, and then press the
dispenser lever.

• If you have selected cubed ice, when you
press the lever, the dispenser may dispense a
small amount of crushed ice first.

• If ice doesn’t come out, pull out the ice bucket
and press the test button located on the right
side of ice maker.

• Do not press the test button continuously
when the tray is filled with ice or water. Water
may overflow or ice may jam the bucket.

• When you press the Test button, you will hear
the refrigerator chime (ding-dong). When the
chime sounds, release the Test button.

• The chime sounds automatically again to let
you know the ice maker is working well.

• Replace the ice bucket.

Ice Making

To fi ll the ice bucket to maximum capacity after
installation, follow these steps:

1. Allow your refrigerator to operate and cool
down for 24 hours (or 1 full day).

- Waiting 24 hours will allow your ice maker to
cool properly.

2. Dispense 4 to 6 ice cubes into the glass.

3. After 8, and then 16 hours, dispense a full

glass of ice.

CAUTION

• To clean the ice bin/bucket, wash with a mild
detergent, rinse well, and dry thoroughly it. Do
not use harsh or abrasive cleaners or solvents.

• When you select Cubed Ice after using the
Crushed Ice mode, a small amount of residual
crushed ice might be produced.

English - 23

DA68-02952A-02.indb 23DA68-02952A-02.indb 23 2014. 5. 13.  5:082014. 5. 13.  5:08

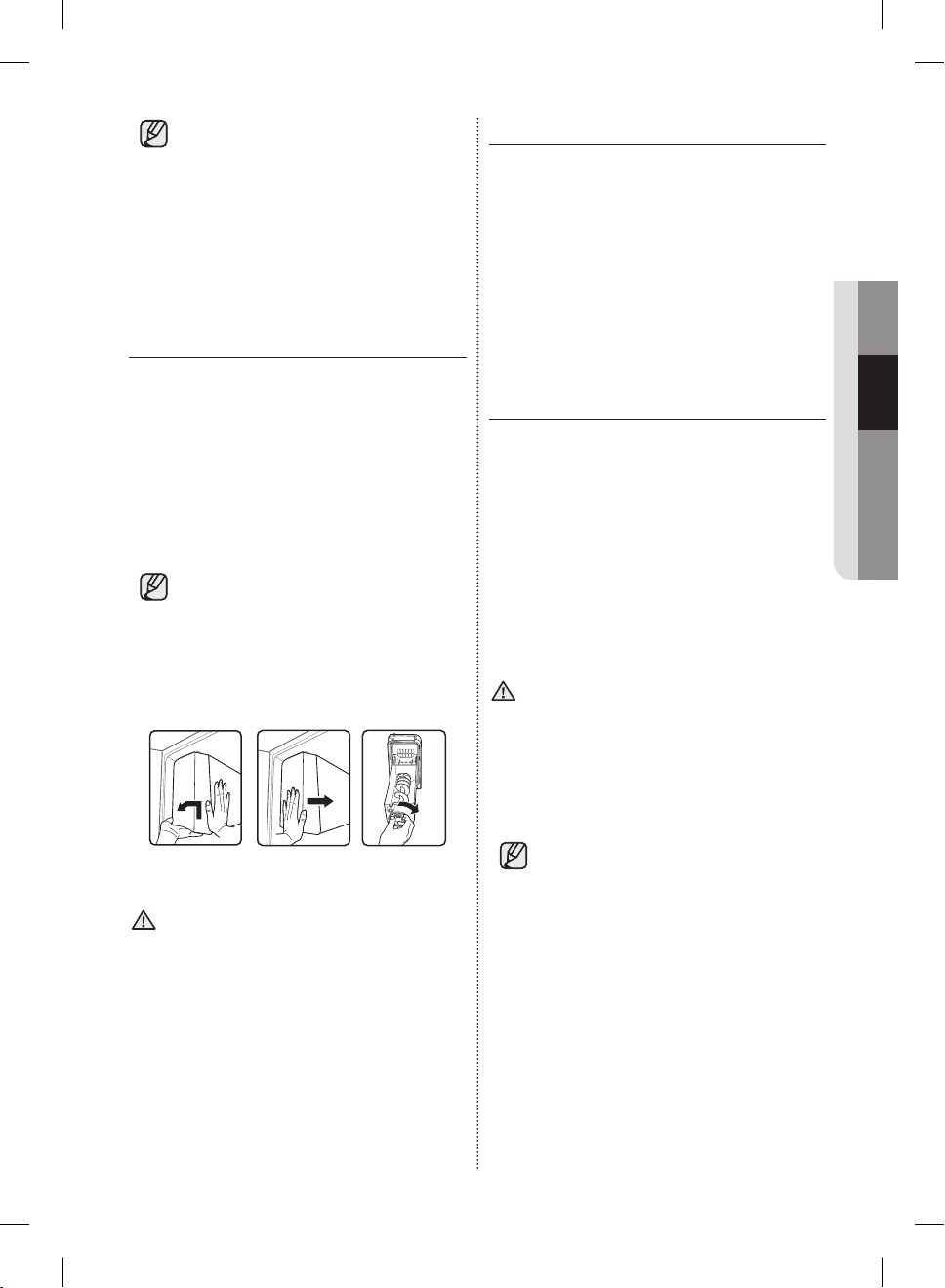

If There is a Power Failure

If a power failure occurs, ice cubes may melt then
freeze together when the power comes back on,
causing the dispenser to be out of order.

To prevent this problem, after a power failure, pull
out the ice bucket and discard the residual ice or
water.
After you dump the ice from the ice bucket, you
should press the dispenser lever once with the
‘Water’ or ‘Ice Type’ function ON. The ice maker
will make new ice faster after you return the ice
bucket to the refrigerator.

CAUTION

• Use only the ice maker provided with
the refrigerator. The water supply to this
refrigerator must only be installed/connected
by a suitably qualified person. Connect to a
potable water supply only.

• To operate the ice maker properly, water
pressure of 20 ~ 125 psi is required.

Going on vacation...

If you are going on a long vacation or business
trip and won’t use the water or ice dispensers for
a long time:

If you use all the ice at once, you must
repeat Steps 2 and 3 on the previous
page. However, only wait 8 hours before
dispensing the first 4 to 6 ice cubes. This
will replenish the ice cubes and ensure
maximum ice production.

USING THE ICE OFF
FUNCTION

When you select the Ice O mode, remove all ice
cubes from the bucket. If you leave the ice cubes
in the bucket, the ice cubes may clump together,
making it di cult to remove them. To remove
the ice bucket safely and avoid injury, hold the
bottom of the bucket with one hand and the side
of the bucket with the other. Then, lift up on the
ice bucket, and pull it straight out. To put the ice
bucket back in, push it fi rmly straight back.

If the ice bucket is not pushed firmly into
place, ice in the bucket can melt.

If the bucket does not fi t, turn the helix 90 degree
(see the last illustration on the right, below) and try
again.

- Close the water valve. Otherwise, water
leakage may occur.

- Remove all food.

- Unplug the refrigerator.

- Wipe excess moisture from inside and leave
the doors open. Otherwise, odor and mold
may develop.

Ice Maker Do’s and Don’ts

• Do not put your fingers, hands or any other
unsuitable objects in the chute or ice-maker
bucket

- It may result in personal injury or material
damage.

• Never put your finger or any other objects in
the dispenser opening.

- It may cause injury.

• Do not try to disassemble the ice maker.

• Do not wash or spray the ice bucket with
water while it is in the refrigerator. Remove it
to clean it

CAUTION

When you insert the Ice maker tray, be sure that
the tray is well centered at the entrance.
Otherwise, the tray may get stuck.

English - 24

DA68-02952A-02.indb 24DA68-02952A-02.indb 24 2014. 5. 13.  5:082014. 5. 13.  5:08

Water clouding phenomenon

All water provided to the refrigerator flows
through the core filter which is an alkaline
water filter. In the filtering process, the
pressure of the water that has flowed out
of the filter is increased, and the water
becomes saturated with oxygen and
nitrogen. When this water flows out into
the air, the pressure plummets and the
oxygen and nitrogen get supersaturated,
which results in gas bubbles. The water
may temporarily look misty or cloudy due
to these oxygen bubbles. After a few
seconds, the water will look clear.

02 OPERATING

English - 25

DA68-02952A-02.indb 25DA68-02952A-02.indb 25 2014. 5. 13.  5:082014. 5. 13.  5:08

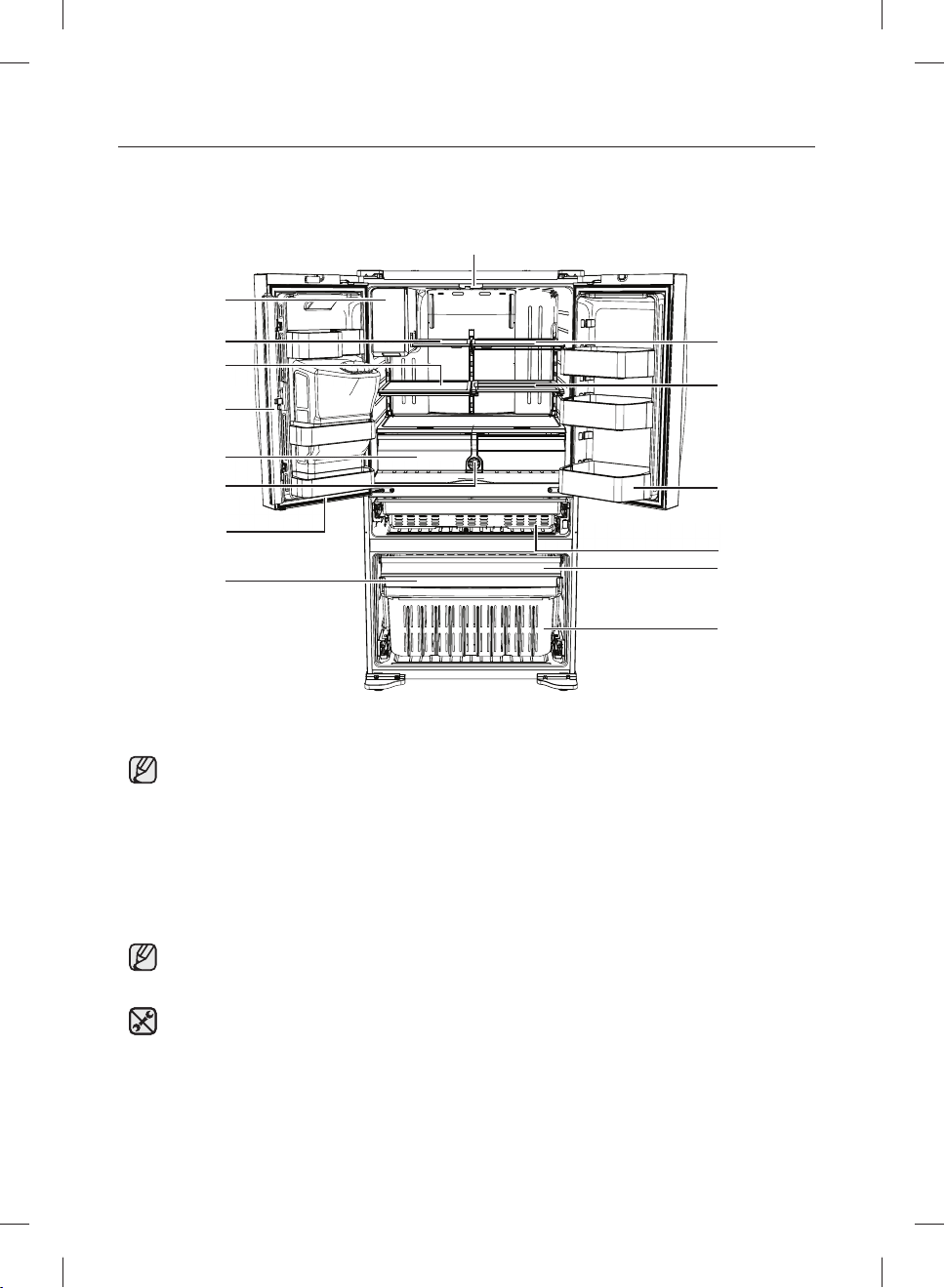

PARTS AND FEATURES

Drawer

Freezer Drawer
Bin

Convertible Room

Review the illustration below to become more familiar with the parts and features of your refrigerator.

Light

FF Ice-Maker

Foldable-Shelf

Fixed-Shelf

Vertical Hinged

Section

Vegetable &

Fruit Drawers

Water Filter

Light

Guard

Slide-Shelf

Quick-Space
Glass Shelf

Door Bins

Convertible Room

Auto Pull Out
Drawer

Freezer Drawer
Bin

When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid
scratching the other door.
If the Vertical Hinged Section is reversed, put it back to the right position and close the door.
Moisture may appear at times on the Vertical Hinged Section.
The door handle may become loose over time. If this happens, tighten the bolts found on the
inside of the door.
If you close one door with too much force, the other door may open.

When the door opens, the interlock switch automatically turns o the auger motor in the ice
maker for safety reasons.

If the interior or exterior LED lamp has gone out, please contact Samsung Customer Support.

English - 26

DA68-02952A-02.indb 26DA68-02952A-02.indb 26 2014. 5. 13.  5:082014. 5. 13.  5:08

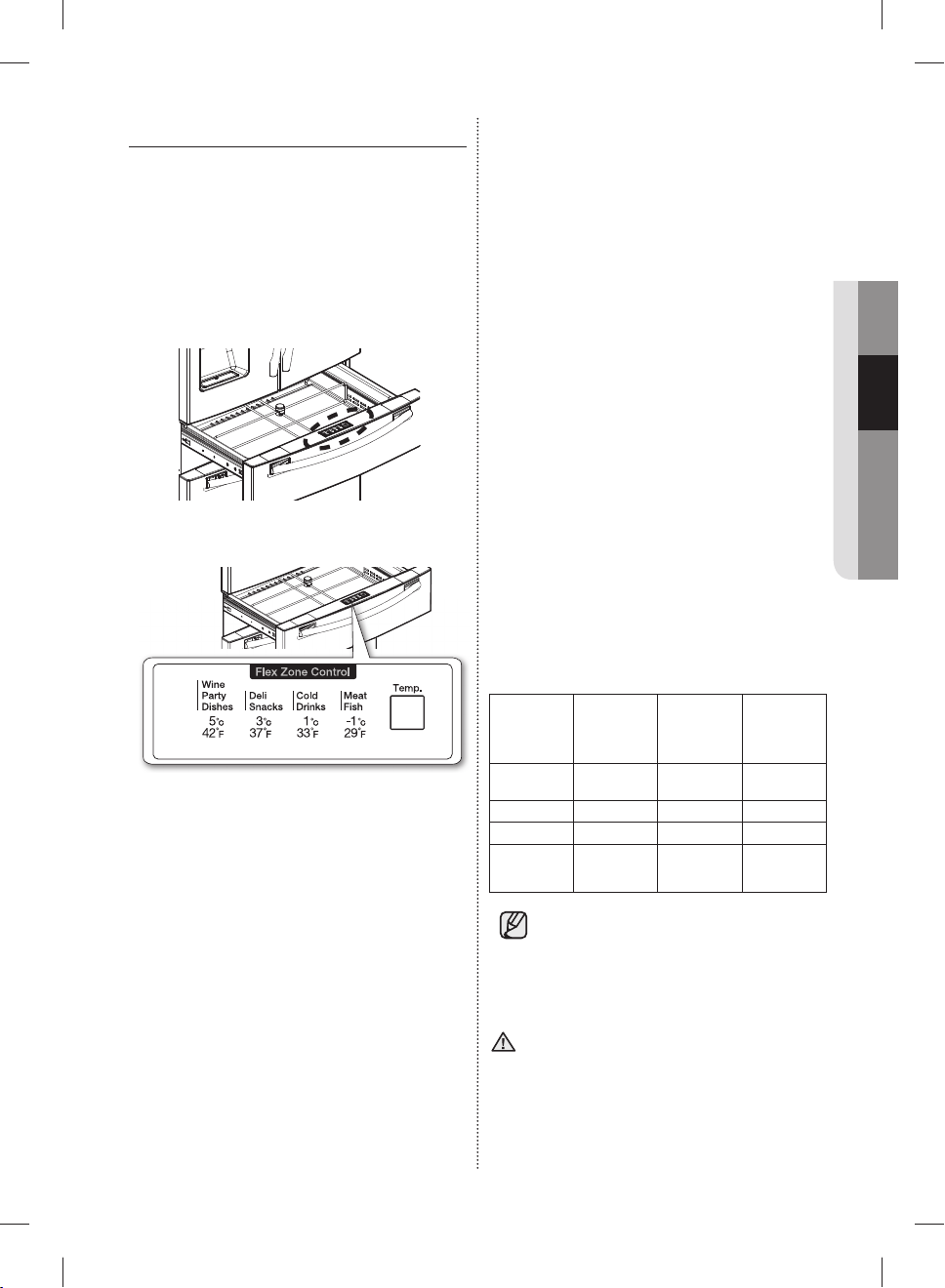

USING THE FLEX ZONE

The Flex Zone is a full-width drawer with an
adjustable temperature control. You can use the
Flex Zone for large party trays, deli items, wines,
pizzas, beverages, or miscellaneous items. There
is a temperature sensor which lets you adjust
the amount of cold air allowed into the Zone.
The control buttons are located on the cap door
center.

Temperature Selection Button

Flex Zone Modes

1. When “Wine/Party Dishes” is selected,

the temperature of the Flex Zone will be kept
around 42 °F (5 °C). This feature helps keep
food fresh for a long time.

2. When “Deli/Snack” is selected, the

temperature of the Flex Zone will be kept
around 37 °F (3 °C). This feature helps keep
food fresh for a longer time.

3. When “Cold Drink” is selected, the

temperature of the Flex Zone will be kept
around 33 °F (1 °C). This feature helps keep
drinks cold and refreshing.

4. When “Meat/Fish” is selected, the

temperature of the Flex Zone will be kept
around 29 °F (-1 °C). This feature helps keep
meat or fish fresh for a longer time.

Examples of food items you can store in the Flex
Zone by temperature setting.

02 OPERATING

• Press the Temp button repeatedly until your
desired mode is lit.

• Each time you press the Temp button, you
change the mode in this order: Meat/Fish
mode (29 °F (-1 °C)), Cold Drinks mode (33 °F
(1 °C)), Deli/Snack mode (37 °F (3 °C)), Wine/
Party Dishes mode (42 °F (5 °C)). Initially, the
Deli/Snacks mode is selected. The refrigerator
will adjust the temperature in the Flex Zone
automatically to the temperature you selected.

• The Flex Zone Temp. Display may change
depending on the number of items inside,
where they are located, the ambient
temperature, and how often the door is
opened.

Wine
Party
Dishes

• wine

• cocktails • lemons • juice • cold cuts

• cakes • biscuits • soft drinks • bacon

• cheeses • potatoes • beer • chili dogs

Deli
Snacks

• pineapples

Cold
Drinks

• bottled
water

Meat
Fish

• steaks

Fruit and vegetables may be damaged if
stored under the “Meat Fish” setting.
Do not store lettuce or other leafy produce
in the Flex Zone.

CAUTION

Do not store glass bottles in the Flex Zone under
the “Cold Drinks” or “Meat/Fish” setting. If they are
frozen, they can break and cause personal injury.

English - 27

DA68-02952A-02.indb 27DA68-02952A-02.indb 27 2014. 5. 13.  5:092014. 5. 13.  5:09

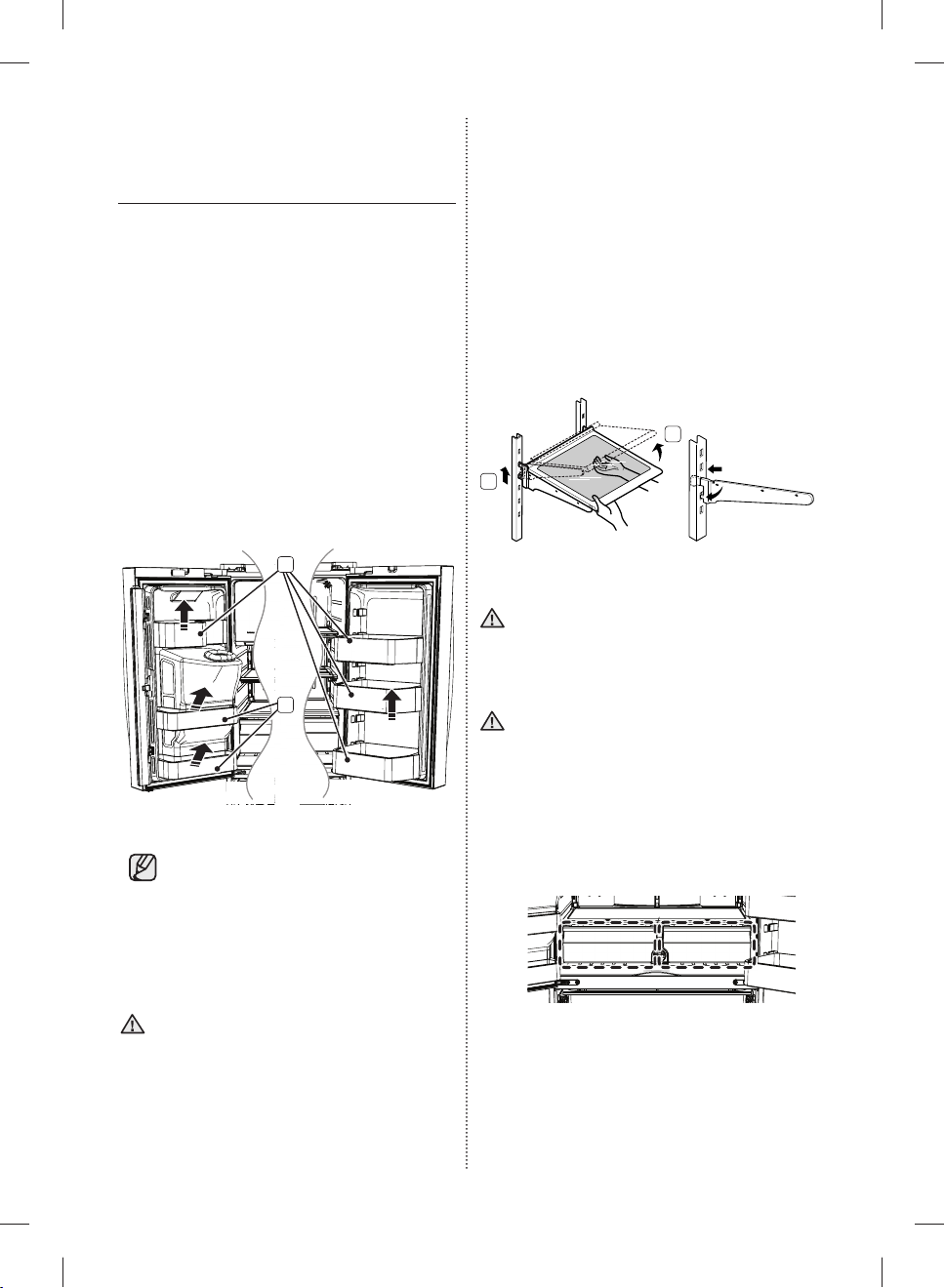

REMOVING THE
REFRIGERATOR
ACCESSORIES

1. Door Bins

• Door Bins (1)

To remove - Simply lift the bin up and pull
straight out.
To relocate - Slide it in above the desired
location and push down until it stops.

• Door Bins (2)

To remove - Take the right side of the bin
out by lifting it at an angle along the guide,
and then take the left side out by pulling it
from the door.
To relocate - Slide it into the original location
and push down until it sticks.

1

2

To re-install - Tilt the front of the shelf up and
guide the shelf hooks into the slots at a desired
height. Then lower the front of the shelf so that the
hooks can drop into the slots.

1

2

CAUTION

The Tempered Glass shelves are heavy.
Use special care when removing them.

CAUTION

After sliding the foldable shelf in and folding it, the
Shelf Front can be removed for your convenience.
If you use the self without removing the Shelf
Front, be aware the Shelf Front can separate from
the shelf.

Injuries can occur if the door bins are not

firmly connected to the doors.
Do not allow children to play with the bins. Sharp
corners of the bins may cause injury.

CAUTION

Do not adjust a bin full of food. Remove the food
fi rst.
To remove dust from the bins, remove the guard
and wash in water.

2. Tempered Glass shelves

To remove - Tilt up the front of the shelf in the
direction shown ( 1 ) and lift it up vertically ( 2 ).
Pull the shelf out.

English - 28

3. Vegetable & Fruit Drawers

To remove

• Simply lift the bin up and pull straight out.

DA68-02952A-02.indb 28DA68-02952A-02.indb 28 2014. 5. 13.  5:092014. 5. 13.  5:09

• Tilt up the front of the drawer and pull straight
towards you. Then, move the drawer slightly
in the direction of the arrow in the illustration
below, and then pull out.

To re-install

• Insert the drawer into the frame rails and push
back into place.

• Slide the bin in above the desired location and
push down until it stops.

CAUTION

The drawers need to be removed before the glass
shelf above them can be lifted out.

4. Flex Zone

If the Flex Zone or LED lighting is not
working, check the connectors [ ( 1 ), ( 2 )
shown below ] for cracks or leaks.

2

02 OPERATING

To remove the Flex Zone – Pull the Flex door
out to full extension. Lift the Flex Zone up, pulling
it to your body with both hands.

To re-install the Flex Zone – Open the Flex door
to full extension. Tilt the front of the Flex Zone up,
place the back of the Flex Zone onto the rails, and
then lower the front until the whole Zone rests on
the rails.

English - 29

1

1. Refer to page 12 for disassembly instructions.

2. Open the cap cover rail with a flat-blade

screwdriver.

Using the doors

Ensure that the doors close all the way and are
securely sealed.
When the refrigerator door is only partially open, it
will automatically close. If the door is opened more
than its auto close range, it will remain open. You
must close it manually.

DA68-02952A-02.indb 29DA68-02952A-02.indb 29 2014. 5. 13.  5:092014. 5. 13.  5:09

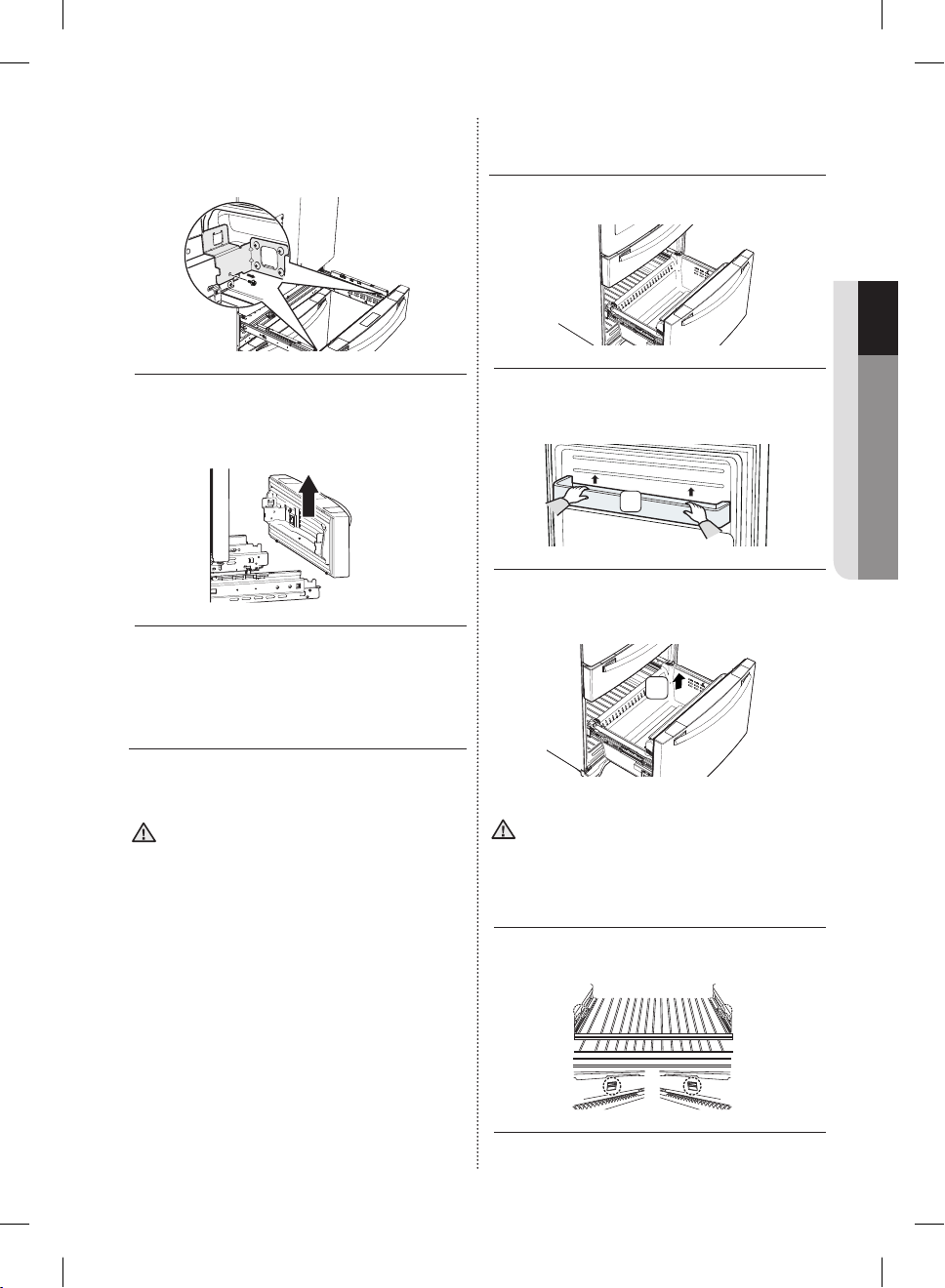

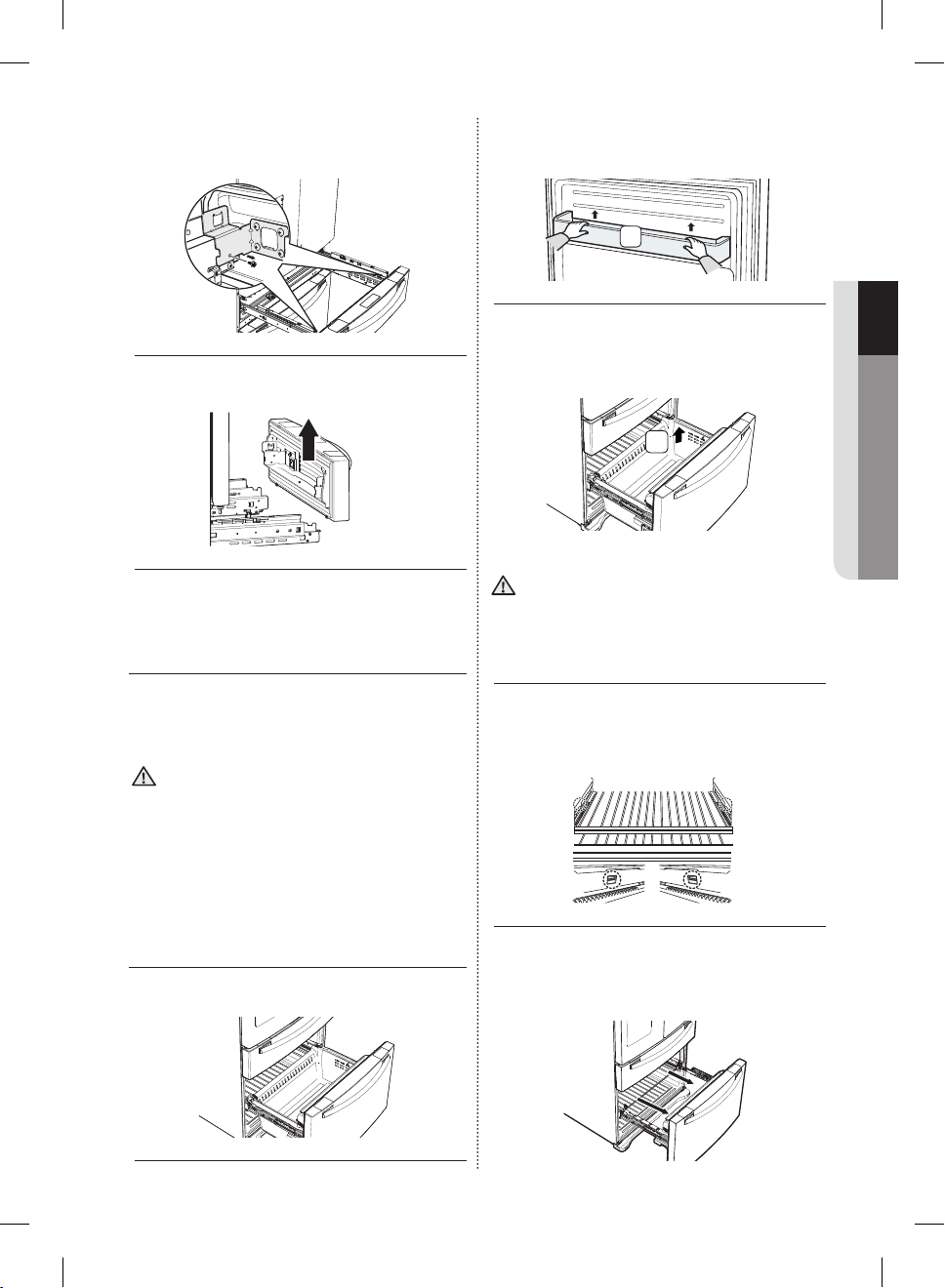

REMOVING THE FREEZER
ACCESSORIES

1. Freezer Room Guard

To remove - Remove the freezer room guard ( 1 )

by lifting the guard up.
To re-install - Push down until the guard ( 1 )
locks into place.

1

CAUTION

You can scratch the side of the bin if you twist it
left or right when disassembling or re-assembling
it.

CAUTION

Do not allow babies or children to go inside the
freezer drawer. They could damage the refrigerator
and seriously injure themselves. Do not sit on the
freezer door. The door may break. Do not allow
children to climb into the freezer drawer.

2. Super Extended Drawer

To remove - Pull the drawer out to full extension.
Tilt up the rear of the drawer and lift straight out.
To re-install - Place the drawer onto the rails ( 4 )
by tilting it up. Lower the drawer into place until it
is horizontal and slide the Drawer ( 3 ) in.

4

3

3. Freezer Drawer

To remove the freezer drawer - Pull the freezer
drawer out fully. Tilt up the rear of the bin and lift it
out to remove.
To re-install the freezer drawer - Place the bin
into the rail assembly.

CAUTION

Do not remove the divider.

WARNING

If trapped inside, children may be injured or
su ocate to death.

CLEANING THE
REFRIGERATOR

Caring for your Samsung French Door Refrigerator
prolongs its life and helps keep it free of odor and
germs.

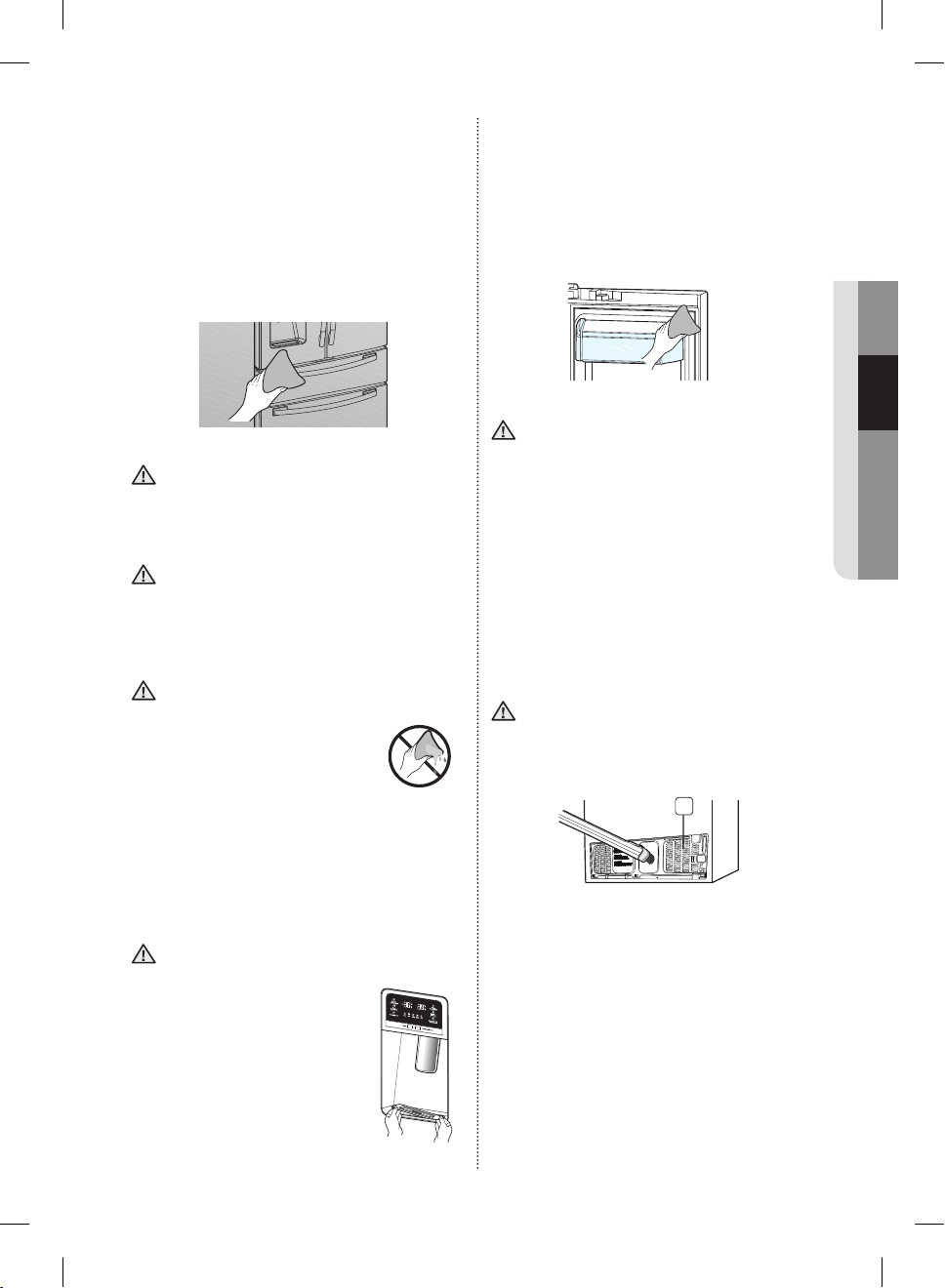

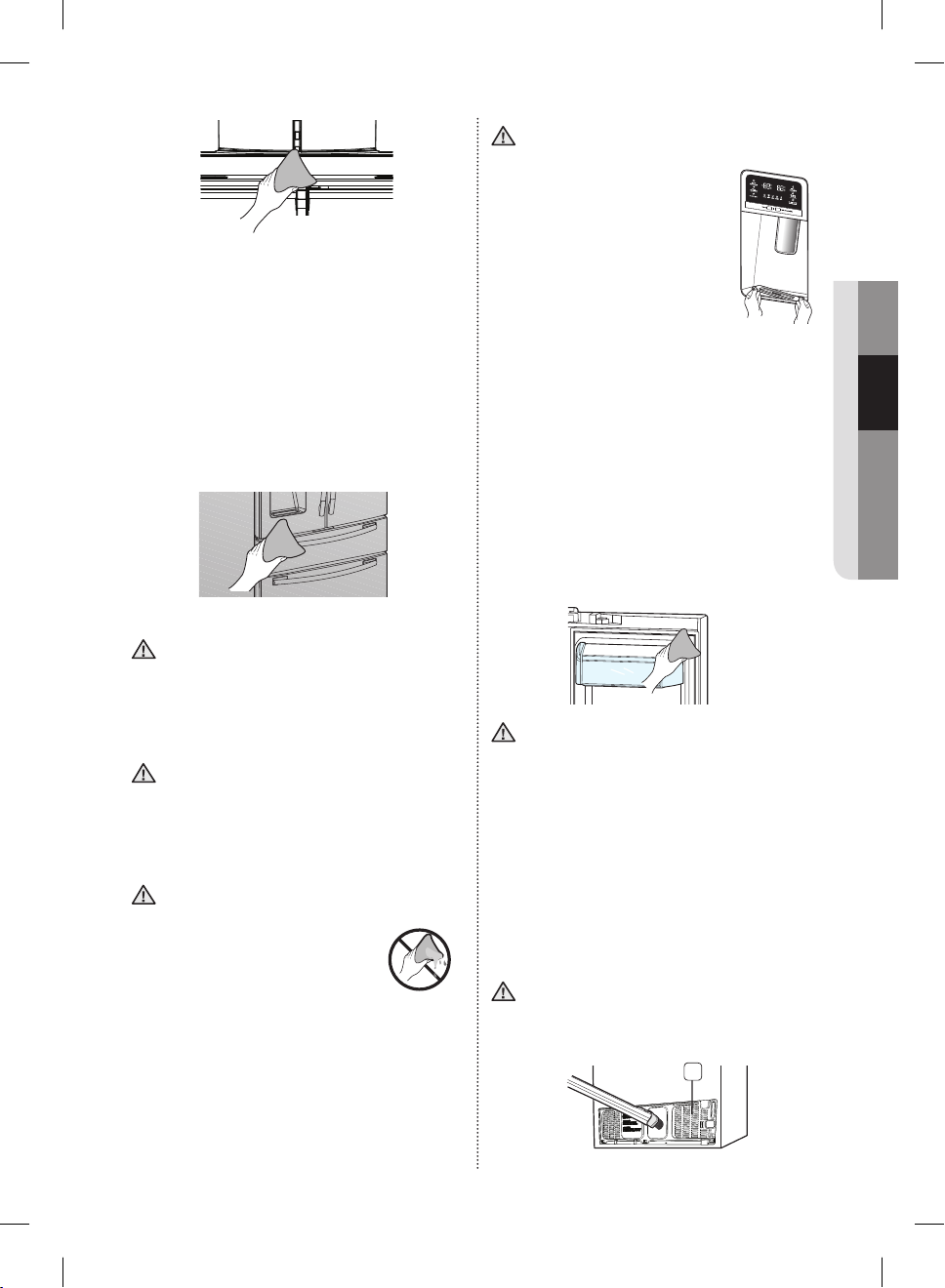

Cleaning the Interior

Clean the inside walls and accessories with a mild
detergent and then wipe dry with a soft cloth. You
can remove the drawers and shelves for a more
thorough cleaning. Just make sure to dry drawers
and shelves before putting them back into place.
