Samsung QL 6000 User Manual

6900 Hotel
6000 Hotel

LED TV

installation manual

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at

www.samsung.com/register

Model _____________ Serial No. _____________

UC6900 호주_중아, UC6000 구주 호텔.indd 1 2010-04-27 오후 2:24:27

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.

Instruction

This TV is provided with interactive functionality through a set-back box (SBB/STB) connected to the TV, and with other TVs in a computer controlled
system for hotels and other hospitality businesses.
Interactive : When the TV is powered-up initially, it sends a command to identify the SBB/STB; if identified, theTV switches to ONLINE mode and full
control is through the SBB/STB.
If the TV is in ONLINE mode, it stops receiving IR(Samsung remote) commands and acts according to interface protocol.

Stand-Alone: If SBB/STB is not identified, the TV should be switched to STAND-ALONE mode with restricted operation.
IPTV: IPTV mode will be started if IPTV is set to On in Stand-Alone mode.

Operational Modes

When this TV (in Hotel mode) is operated with a SBB/STB, it is in one of two states

• ONLINE or STAND-ALONE. In the STAND-ALONE state, the TV will act as a Hotel TV, but without active communication. This is to prevent guests
from trying to cheat the system by disconnecting the SBB/STB.

Power

ON

Hotel Mode On

Hotel TV

SBB/STB Onlineif one

success within 10

attempts

SBB/STB
Online-10

consecutive

fails

Stand-alone

Mode

SBB/STB
Status­Attempt
every 2secs

Normal TV

Hotel Mode Off

Online Mode

Poll Rate 20/sec

To set the details for Stand-alone or interactive mode, refer to pages 16-19(Setting the hotel option data : Stand-alone mode and Interactive mode)

• Some operations may be restricted to prevents guests from "cheating" the TV system.

• No main menu(Interactive mode) or Channel Menu, Plug & Play in Main Menu (Stand-Alone mode)

• Limited Volume and Panel key lock or unlock

Still image warning

Avoid displaying still images (like jpeg picture files) or still image element (like TV Program logo, panorama or 4:3 image format, stock or news bar at screen
bottom etc.) on the screen. Constant displaying of still picture can cause uneven wear of screen phosphor, which will affect image quality. To reduce risk of
this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

x

The appearance may differ depending on the product.

✎

Installation with a stand. Installation with a wall-mount.

10 Cm

10 Cm10 Cm

UC6900 호주_중아, UC6000 구주 호텔.indd 2 2010-04-27 오후 2:24:28

10 Cm

10 Cm10 Cm

10 Cm

Contents

y Accessories .............................................................................................................................................................. 4

y Install the Stand (6900 Hotel) .................................................................................................................................... 5

y Install the Stand (6000 Hotel) .................................................................................................................................... 6

y Viewing the Connection Panel ................................................................................................................................... 7

y Viewing the Control Panel ....................................................................................................................................... 10

y Viewing the Remote Control .................................................................................................................................... 11

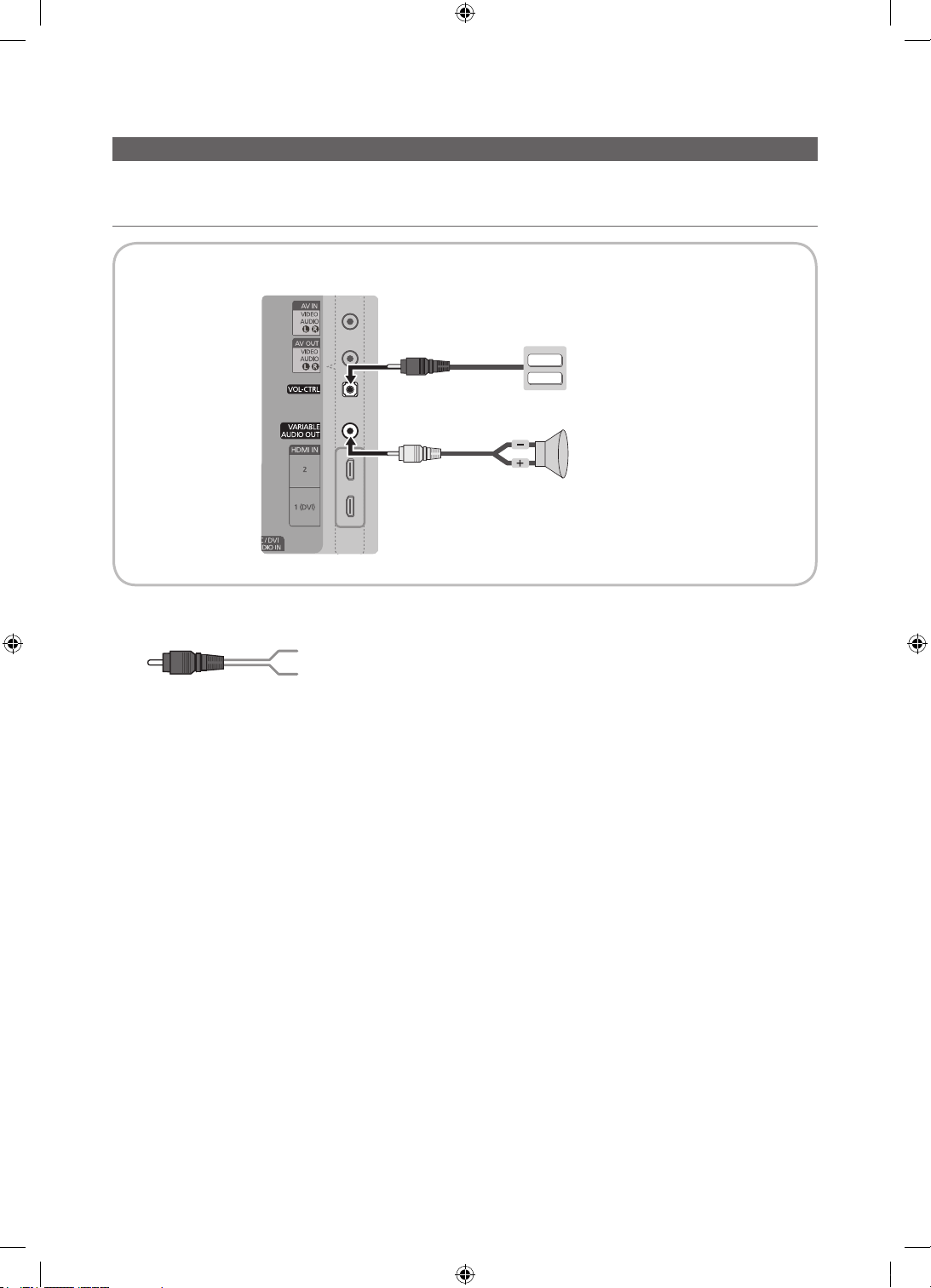

y Connecting the Bathroom Speakers ....................................................................................................................... 13

y Connecting the MediaHub HD ................................................................................................................................ 15

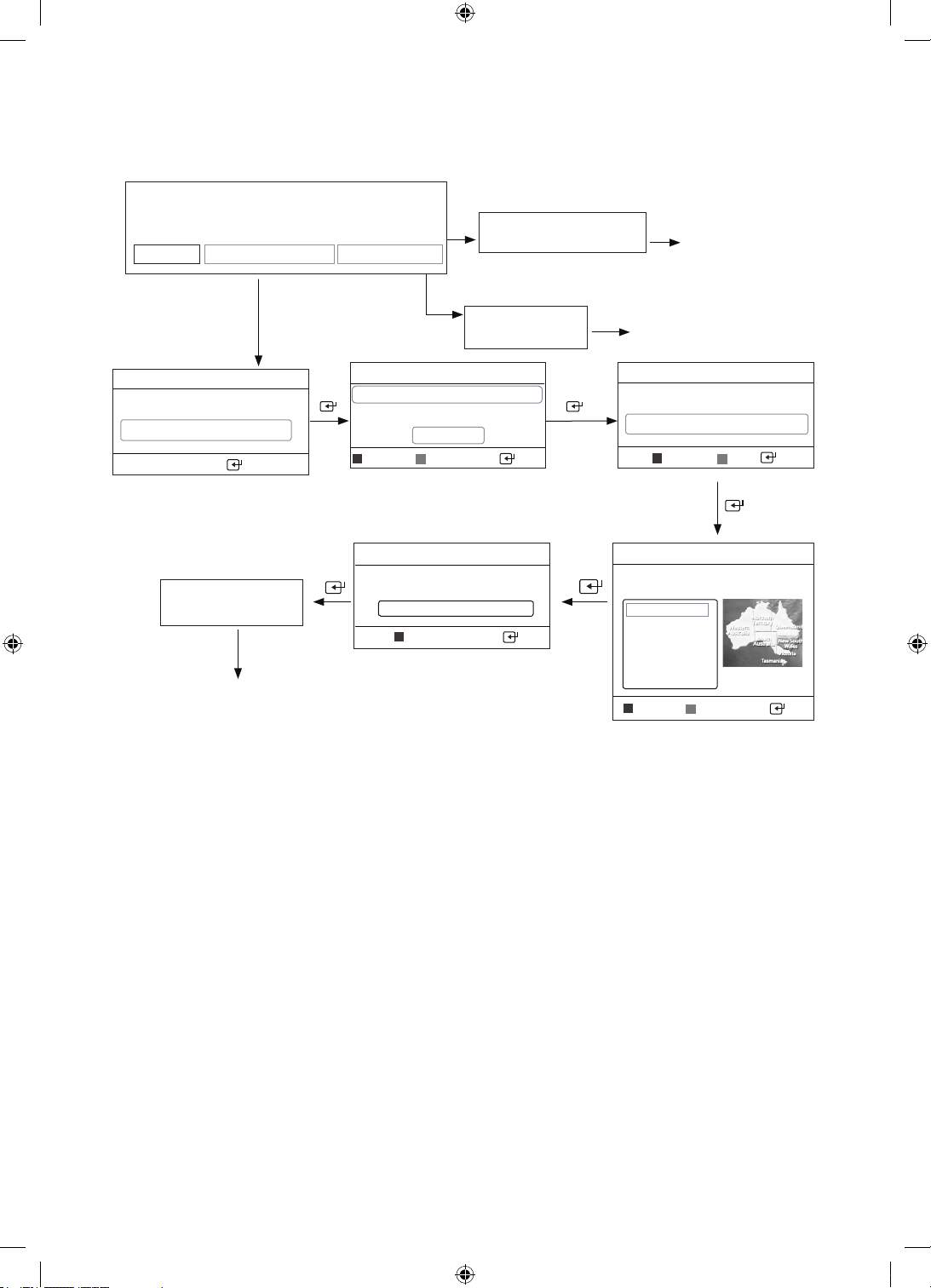

y Setting the Hotel Option Data ................................................................................................................................. 18

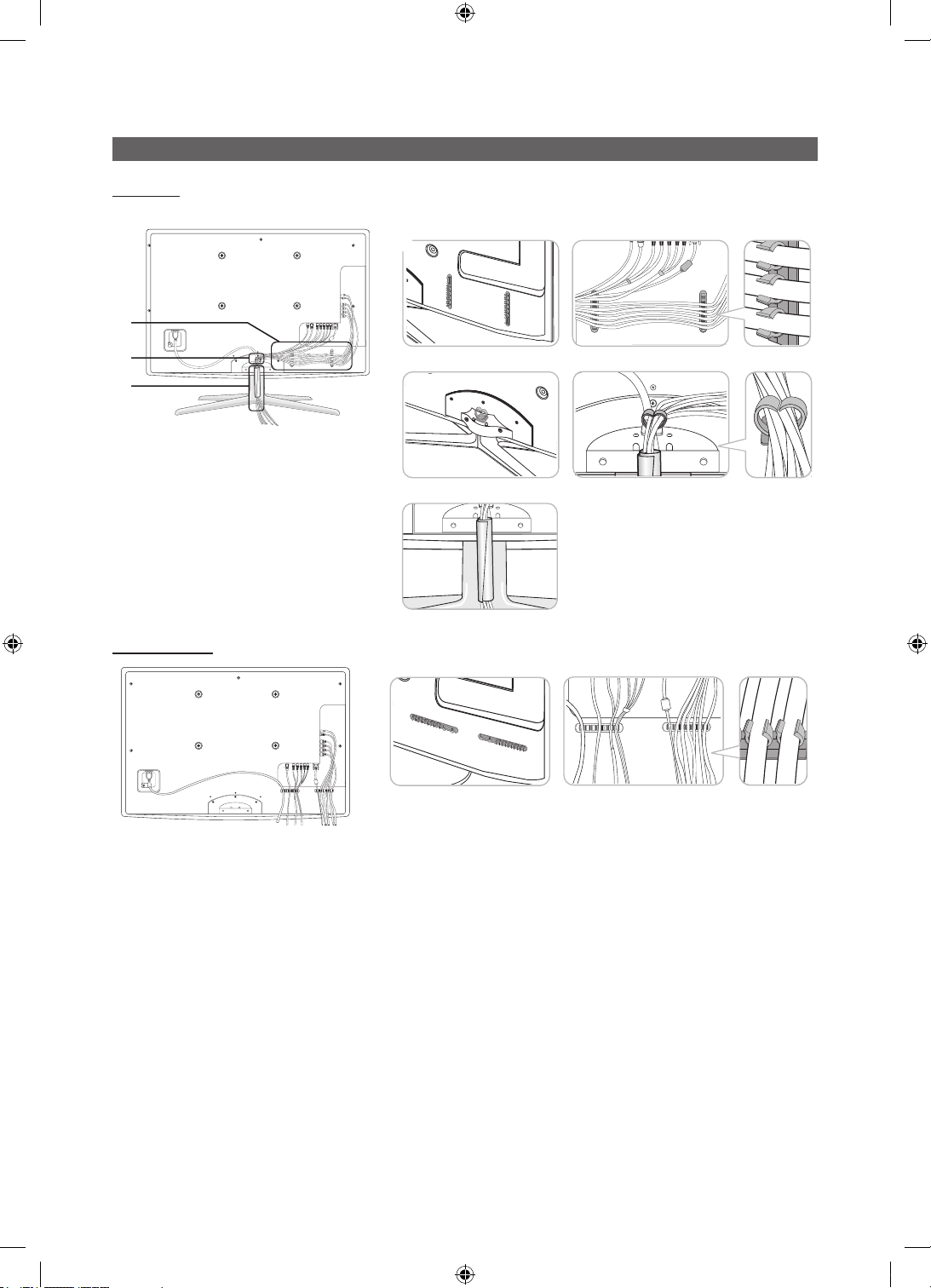

y Assembling the Cables ........................................................................................................................................... 31

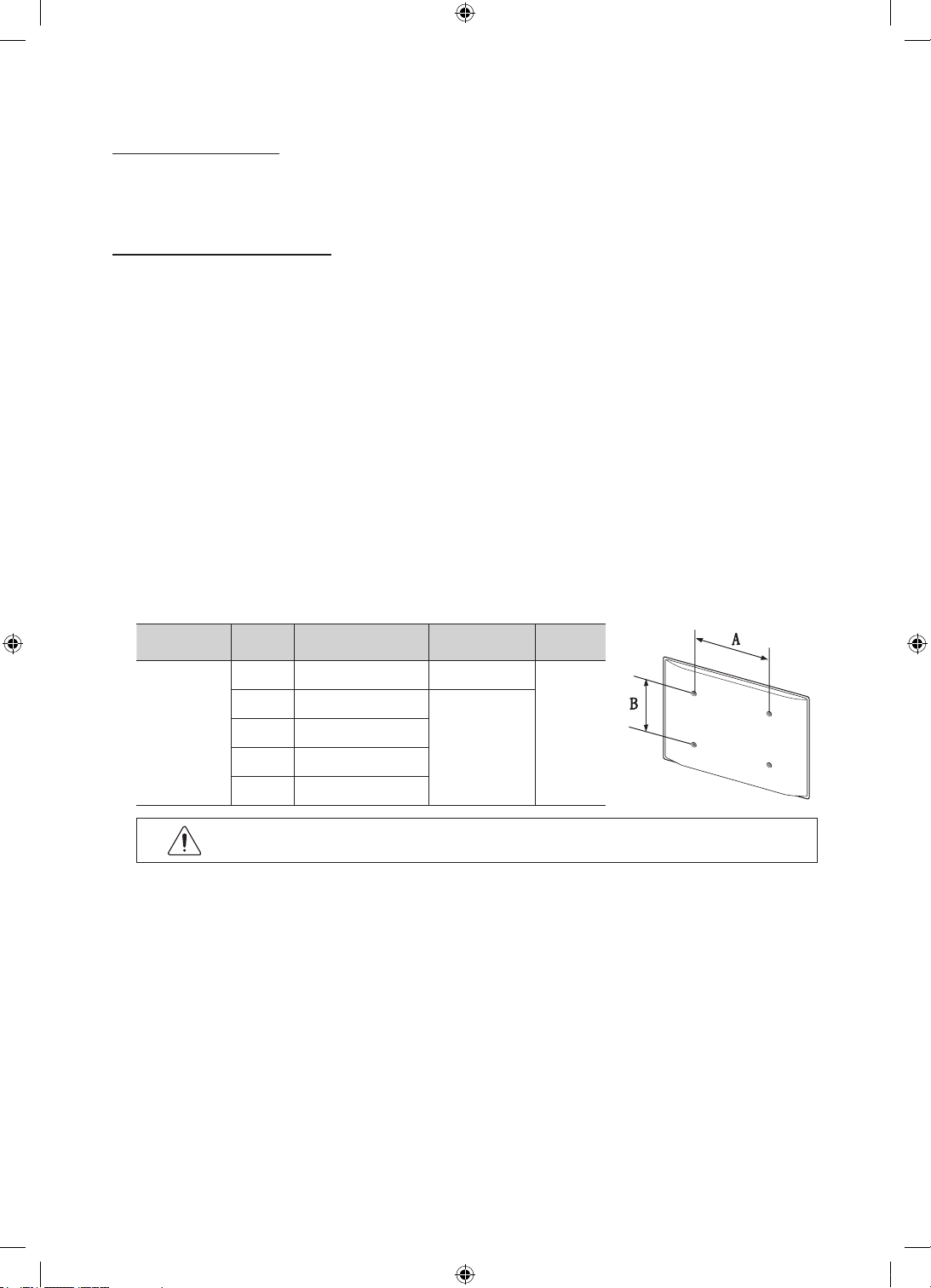

y Installing the Wall Mount ......................................................................................................................................... 32

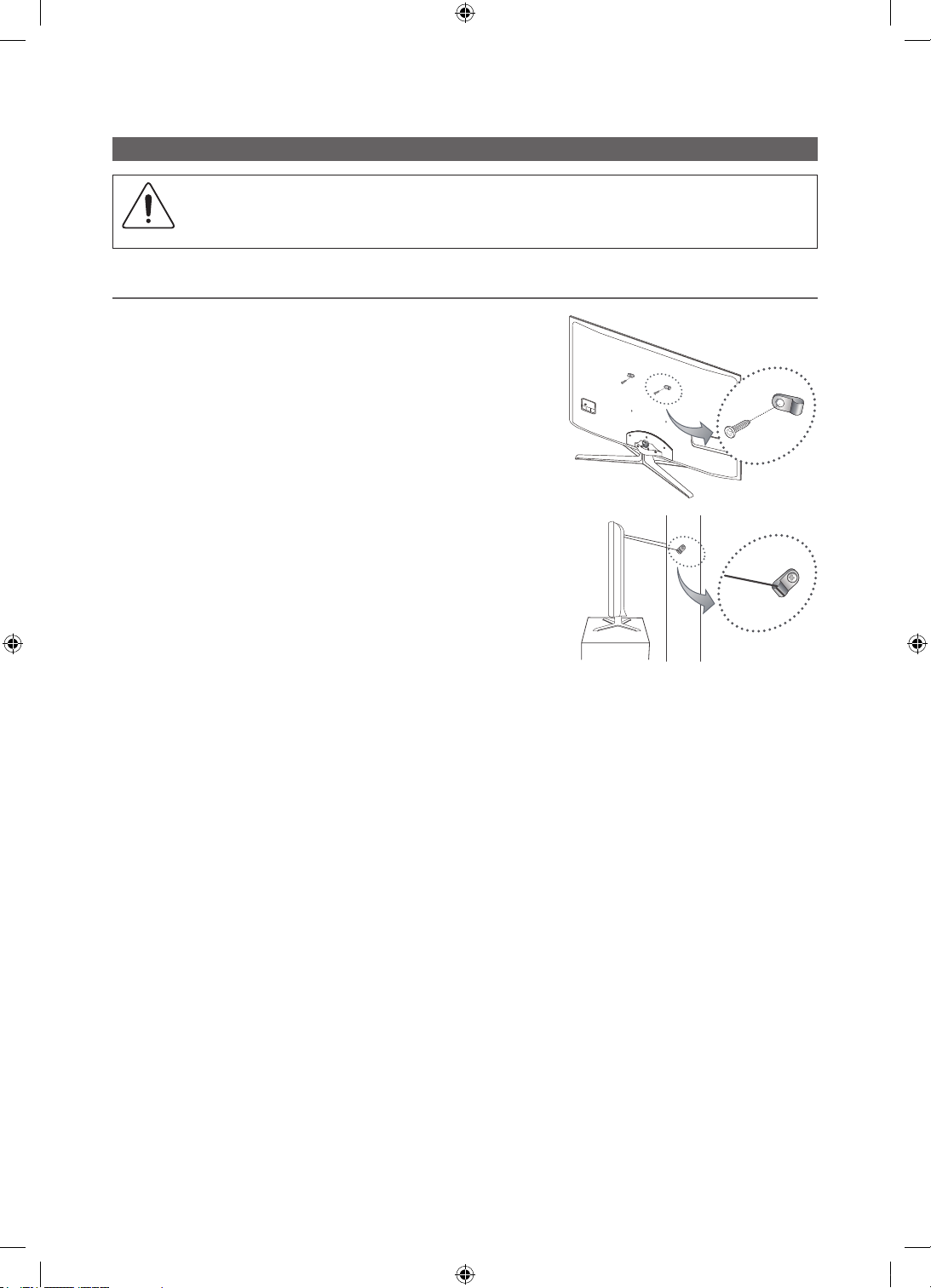

y Securing the TV to the Wall .................................................................................................................................... 34

y Specifications ......................................................................................................................................................... 35

ENGLISH

English

UC6900 호주_중아, UC6000 구주 호텔.indd 3 2010-04-27 오후 2:24:28

3

Accessories

✎

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎

The items’ colour and shapes may vary depending on the models.

y Remote Control & Batteries (AAA x 2)
y Owner’s Instructions
y Warranty Card / Safety Guide (Not available in some locations)

y Blanking Bracket & Screw (1EA) y Holder-Ring (4EA) y Holder-Wire stand

y Holder-Wire (3EA) y Power Code Clamp y Cable Tie y Component Adapter

y Cleaning Cloth
y Power Cord
y Data Cable

y AV Adapter

(Aus, NZ, Singapore : 2EA,

EU, Central Africa : 1EA)

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

y Audio out Adapter

(EU, Central Africa only)

y Maximum thickness - 0.55 inches (14mm)

y SCART Adapter

(EU, Central Africa only)

y Component Sound in

Adapter

English

4

UC6900 호주_중아, UC6000 구주 호텔.indd 4 2010-04-27 오후 2:24:29

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

Install the Stand (6900 Hotel)

Components

When installing the stand, use the provided components and parts.

A

1 EA

y Stand y Guide Stand y Screws

B

s

s

1 EA

s

s

s

C

9EA (M4 X L8)

1

B

s

s

s

A

s

Front

s

3

s

s

s

s

s

Rear

2

4EA

C

Top View

4

s

s

s

s

s

✎

NOTE

Make sure to distinguish between the front and back of each component when assembling them.

x

Make sure that at least two persons lift and move the LED TV.

x

Stand the product up and fasten the screws.

x

If you fasten the screws with the LED TV placed down, it may lean to one side.

UC6900 호주_중아, UC6000 구주 호텔.indd 5 2010-04-27 오후 2:24:35

English

5

Install the Stand (6000 Hotel)

s

s

s

s

s

s

s

s

s

s

Component

When installing the stand, use the provided components and parts.

s

s

s

s

s

Stand (1EA) Guide Stand (1EA) Screws (10EA)

Follow the steps below to connect the TV to the stand.

Screws (M4 X L12)

Guide Stand

Stand

Rear

s

s

s

s

Top view

s

1. Connect the Guide Stand to the Stand using five screws (M4 X L12) as shown.

Front

Rear

(A)

(B)

5EA (M4 X L12)

5EA (M4 X L8)

2

Screws (M4 X L8)

1

2. With your TV upright, connect the TV to the Stand as

shown.

✎

NOTE

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

x

Make sure that at least two persons lift and move the LED TV.

x

Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to

x

3. Fasten two screws (M4 X L8) at position 1, and then
fasten three screws (M4 X L8) at position 2.

one side.

For wall mounting instructions, see page 26.

x

English

6

UC6900 호주_중아, UC6000 구주 호텔.indd 6 2010-04-27 오후 2:24:38

1

2

3

4

5

6

7

8
9

0

!

# @& ^

*

$%

4

5

6

7

8
9

0

!

# @& ^

*

$%

1

3

4

5

6

7

8
9

0

!

# @& ^

*

$%

Viewing the Connection Panel

UA40C6900VHXZN

1

UA46C6900VHXZN
UA55C6900VHXZN

3

4

Power Input

*

UA40C6900VHXXY
UA46C6900VHXXY

$%

# @& ^

5

6

7

8
9

0

!

1

UA55C6900VHXXY

UA40C6900VHXRD
UA46C6900VHXRD
UA55C6900VHXRD

3

4

5

6

7

8

9

0

Power Input

!

*

$

# @& ^

English

7

UC6900 호주_중아, UC6000 구주 호텔.indd 7 2010-04-27 오후 2:24:38

UE40C6000RHXXC
UE46C6000RHXXC

Power Input

1

2

3

4

5

6

7

8
9

0

!

*

✎

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

✎

When connecting an external device, match the color of the connection terminal to the cable.

1 RJP: This port is an RJP (Remote Jack Pack) communication port that enables connecting different devices to additional

module so as to improve device use convenience.

2 COMMON INTERFACE

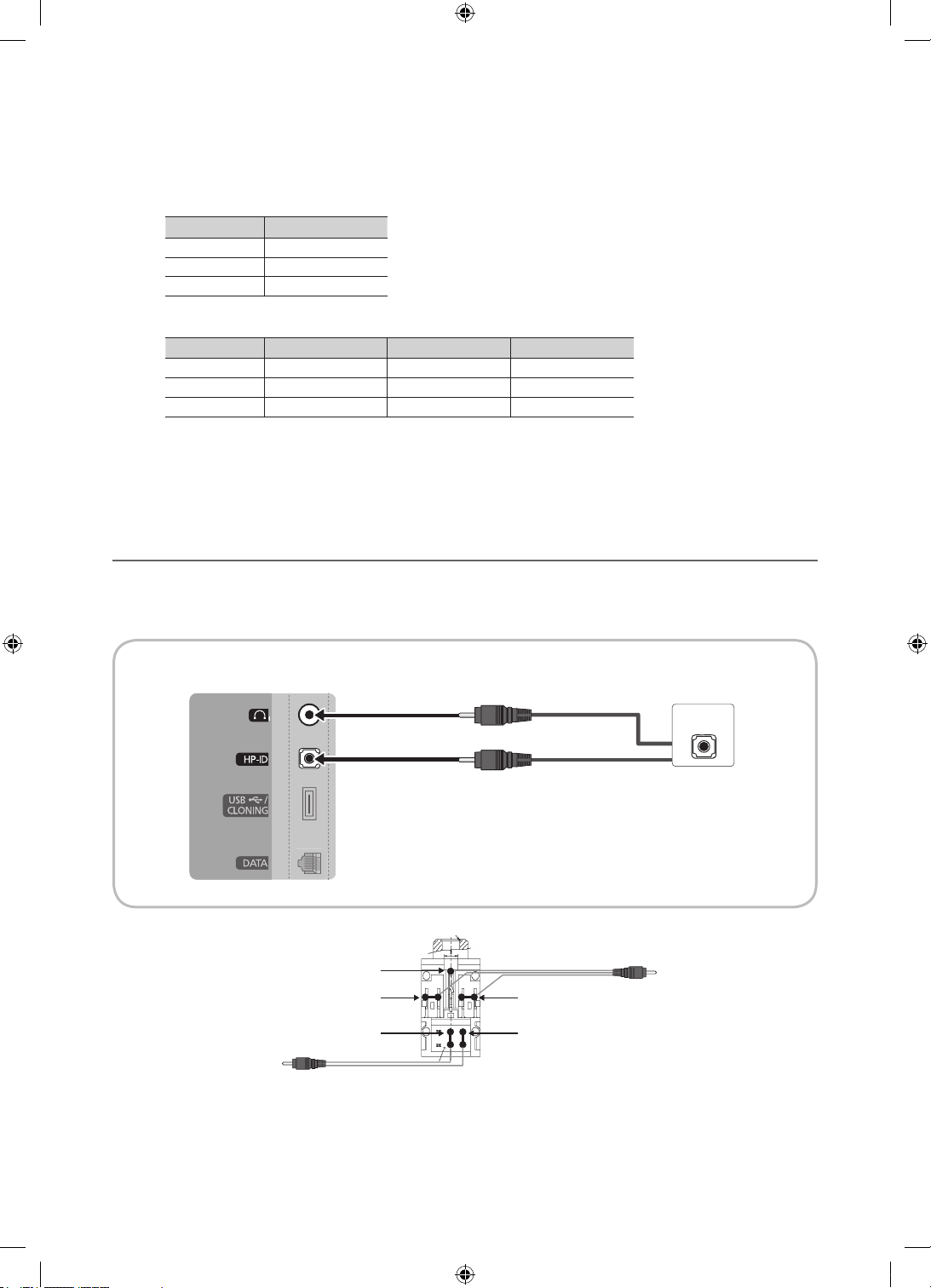

3 Headphones jack

connected, the sound from the built-in speakers will be disabled.

4 HP-ID: Enables to identify whether a headphone jack is inserted into the additionally created head phone box.
5 USB / CLONING

✎

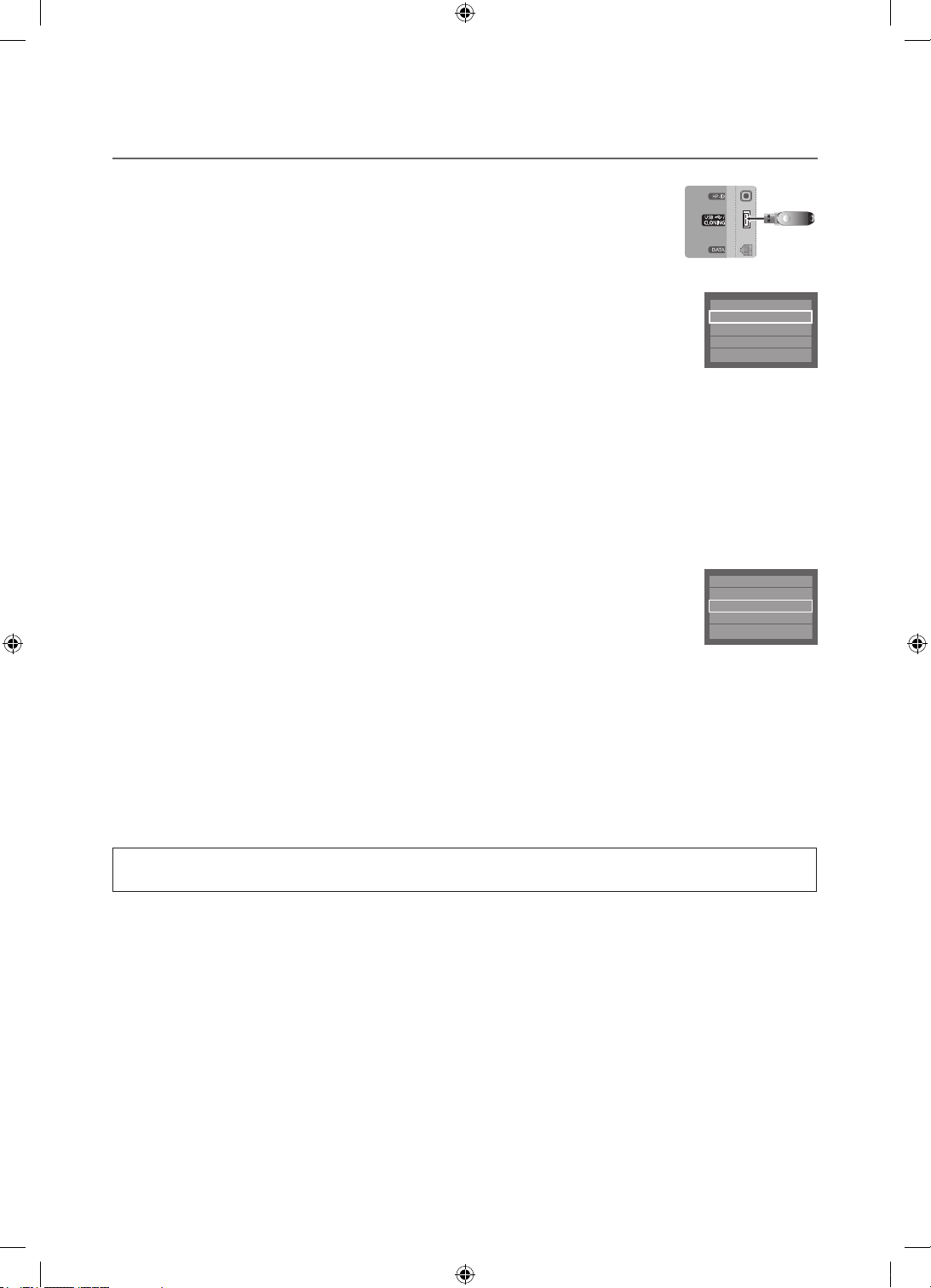

USB Cloning (refer to page 22)

✎

Service connector

✎

Hotel Logo download

6 DATA

– Used to support data communication between the TV and the SBB.
– The TV jack type is RJ-12.

7 AV IN

– Connect a VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
– Connect audio cables to [R-AUDIO-L] on your TV and the other ends to corresponding audio out jacks on the A/V

device.

H

: Headphones may be connected to the headphone jack on your TV. While the headphones are

$%

# @& ^

English

8

UC6900 호주_중아, UC6000 구주 호텔.indd 8 2010-04-27 오후 2:24:39

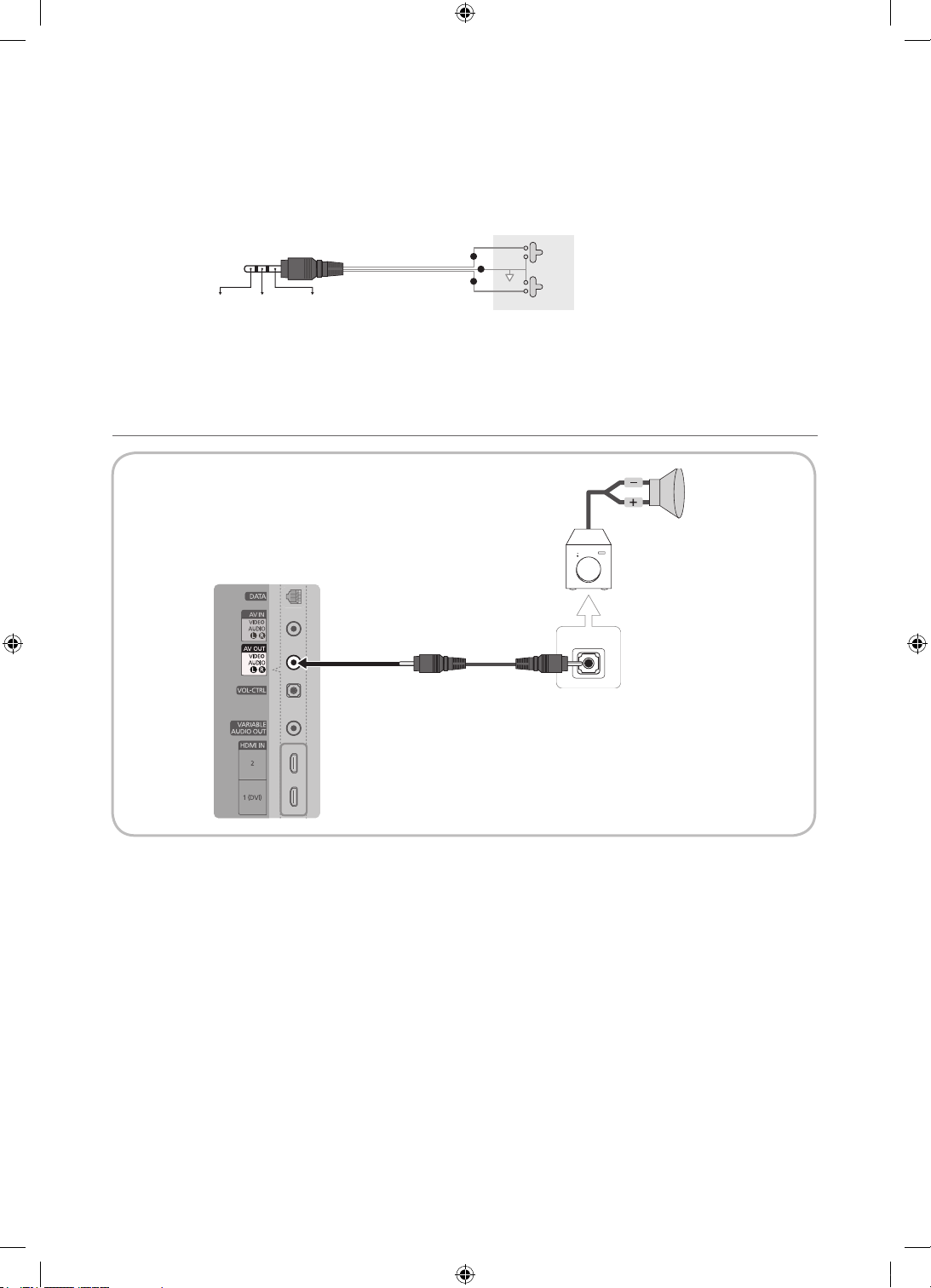

8 AV OUT (Aus, NZ, Singapore) / AUDIO OUT (EU, Central Africa)

– AUDIO OUT: Connects to the audio input jacks on an Amplifier/Home Theater.
– VIDEO OUT: Connect to Video input on an appropriate external display device.

(DTV signal is unsupportable. This output is only for Analogue video signal.)

9 VOL-CTRL: Used to control the volume of the Bathroom speaker. Connect the Bathroom Wall Box and the VOLCTRL

port.

0 VARIABLE AUDIO OUT: Used for the audio output to the Bathroom speaker. Connect the Bathroom Wall Box and the

Variable port (RCA).

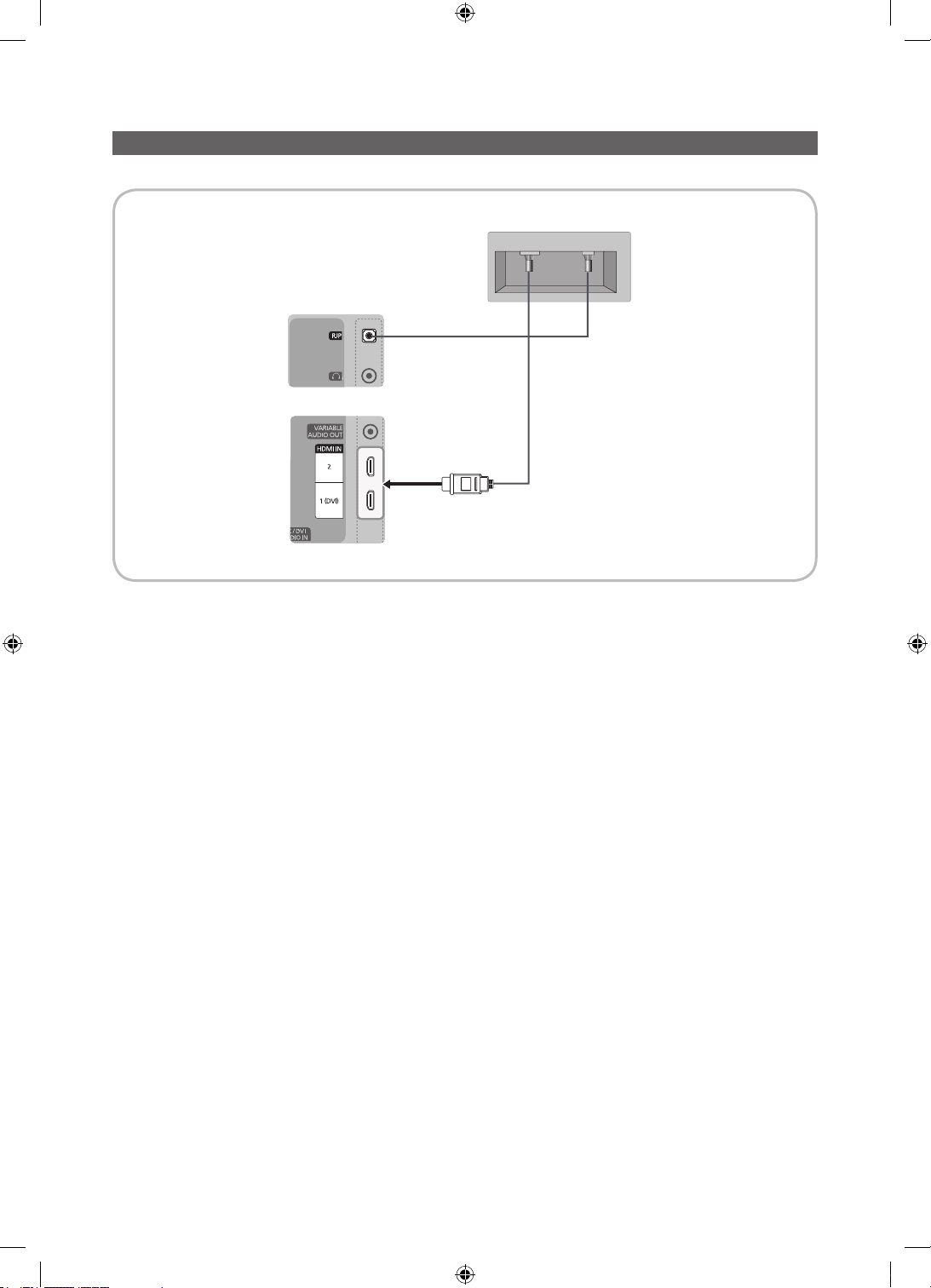

! HDMI IN 1(DVI), 2 : Connects to the HDMI jack of a device with an HDMI output.

✎

No sound connection is needed for an HDMI to HDMI connection.

✎

Use the HDMI IN 1 jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter
(DVI to HDMI) for video connection and the PC/DVI AUDIO IN jacks for audio.

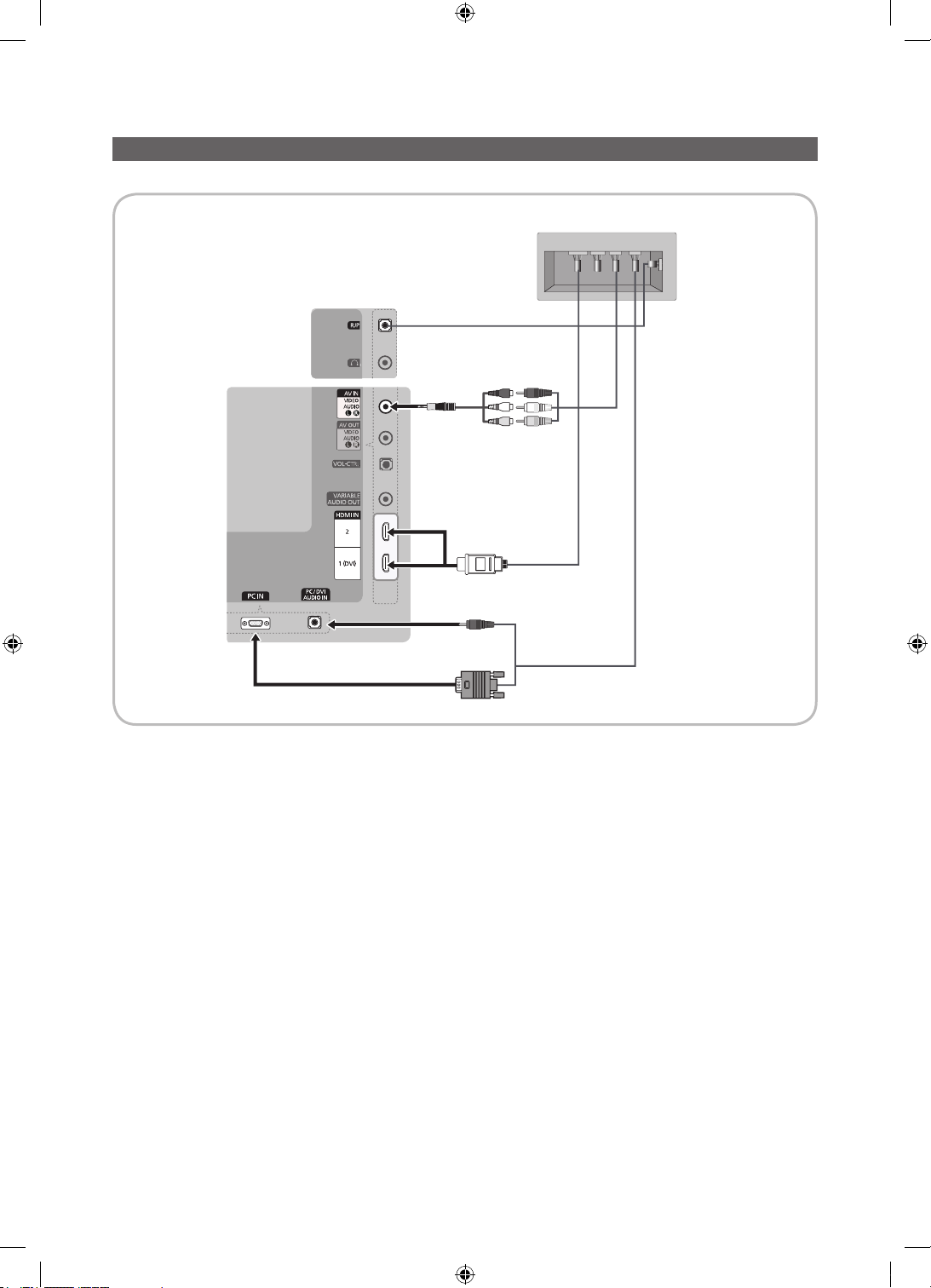

@ PC/DVI AUDIO IN: Connect to the audio output jack on your PC and HDMI/DVI cable.
# PC IN: Connect to the video output jack on your PC.

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

VESA GTF

VESA DMT / DTV CEA

Horizontal Frequency

(KHz)

640 x 350
720 x 400

640 x 480
832 x 624

1152 x 870

720 x 576
1152 x 864
1280 x 720
1280 x 960

640 x 480

640 x 480

640 x 480

800 x 600

800 x 600

800 x 600
1024 x 768
1024 x 768
1024 x 768
1152 x 864

1280 x 1024
1280 x 1024

1280 x 720
1280 x 800
1280 x 800
1280 x 960
1360 x 768
1440 x 900
1440 x 900

1680 x 1050

1280 x 720

1280 x 1024

1920 x 1080p 67.500 60.000 148.500 +/+

31.469

31.469

35.000

49.726

68.681

35.910

53.783

56.456

75.231

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

45.000

49.702

62.795

60.000

47.712

55.935

70.635

65.290

52.500

74.620

Vertical Frequency

(Hz)

70.086

70.087

66.667

74.551

75.062

59.950

59.959

74.777

74.857

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

60.000

59.810

74.934

60.000

60.015

59.887

74.984

59.954

70.000

70.000

Pixel Clock Frequency

(MHz)

25.175

28.322

30.240

57.284

100.000

32.750

81.750

95.750

130.000

25.175

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

108.000

135.000

74.250

83.500

106.500

108.000

85.500

106.500

136.750

146.250

89.040

128.943

Sync Polarity

(H / V)

+/-

-/+

-/-

-/-

-/-

-/+

-/+

-/+

-/+

-/-

-/-

-/­+/+
+/+
+/+

-/-

-/­+/+
+/+
+/+
+/+
+/+

-/+

-/+
+/+
+/+

-/+

-/+

-/+

-/+

-/-

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

x

The interlace mode is not supported.

x

The set might operate abnormally if a non-standard video format is selected.

x

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

x

English

UC6900 호주_중아, UC6000 구주 호텔.indd 9 2010-04-27 오후 2:24:39

9

$ COMPONENT IN

– Connects Component video / audio.
– Connect component video cables (optional) to the component jacks ("PR", "PB", "Y") on the rear of your TV and the

other ends to corresponding component video out jacks on the DVD.

– If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD and connect

the DVD to the component jacks ("PR", "PB", "Y") on your TV.
– The PR, PB and Y jacks on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.
– Connect RCA audio cables (optional) to [R - AUDIO - L] on the rear of the TV set and the other ends to corresponding

audio out jacks on the DVD.

% EXT(RGB)

Connector

EXT 0 0 0 Only TV or DTV output is available

✎

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

^ ANT IN

– To view television channels correctly, a signal must be received by the set from one of the following sources: An outdoor

antenna / A cable television network / A satellite network

& LAN: Connect a LAN cable to this port to connect to the Network.
* Power Input

Video Audio (L/R) RGB Video + Audio (L/R)

Input Output

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Speakers

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.

y

z

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
Remote control sensor Aim the remote control towards this spot on the TV.

P

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

10

UC6900 호주_중아, UC6000 구주 호텔.indd 10 2010-04-27 오후 2:24:39

E

(Power)

English

Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTERE button on the remote control.

Adjusts the volume. In the OSD, use the
◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the
▼ and ▲ buttons on the remote control.

Turns the TV on or off.

Power Indicator / Remote control sensor

y

buttons as you would use the

z

buttons as you would use the

Viewing the Remote Control

✎

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and
Volume buttons.

Turns the TV on and off.

Have direct access to channels.

Alternately selects Teletext, Double

Adjust the volume.

Display channel list on the screen.

View the Media Play.

Quickly select frequently used functions.

Select on-screen menu items and change

Return to the previous menu.

Buttons in the Channel list, Media Play

Use these buttons in the Media Play and

�

: controls recording on Samsung

(

recorders with the Anynet+ feature)

or Mix.

menu values.

menu, etc.

Anynet+ modes.

POWER

TTX/MIX

MEDIA.P

TOOLS

RETURN

A B C D

@ TV

INTERNET

ALARM

SOURCE

HDMI

MUTE

CH LIST

MENU

GUIDE

S.MODE

P.SIZE

PRE-CH

INFO

EXIT

I-II

DUAL

SUBT.

Display and select the available video
sources.

Selects the HDMI mode directly.

Return to the previous channel.

Cut off the sound temporarily.

Change channels.

Display the main on-screen menu.

Electronic Programme Guide (EPG) display.

Press to display information on the TV
screen.

Exit the menu.

INTERNET@TV: Link to various internet

services.

S.MODE: Select the sound mode.
DUAL f-g: Sound effect selection.
ALARM: Enter the hour your want the TV

to turn on.

P.SIZE: Choose the picture size.
SUBT.: Displays digital subtitles.

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from the TV.

x

Bright light may affect the performance of the remote

x

control. Avoid using nearby special fluorescent light or neon
signs.

The colour and shape may vary depending on the model.

x

English

11

UC6900 호주_중아, UC6000 구주 호텔.indd 11 2010-04-27 오후 2:24:40

ETH MODEM

ETH MODEM

ETH MODEM

Connecting the TV with SBB

UA40C6900VHXZN

UA46C6900VHXZN

UA55C6900VHXZN

UA40C6900VHXXY

UA46C6900VHXXY

UA55C6900VHXXY

UA40C6900VHXRD

UA46C6900VHXRD

UA55C6900VHXRD

TV Rear Panel

TV Rear Panel

Hotel Server STB(Set Top Box)
or SBB(Set Back Box)

ETH MODEM

Data Cable

Hotel Server STB(Set Top Box)
or SBB(Set Back Box)

ETH MODEM

Data Cable

TV Rear Panel

UE40C6000RHXXC

UE46C6000RHXXC

Hotel Server STB(Set Top Box)
or SBB(Set Back Box)

ETH MODEM

Data Cable

1. Connect the DATA jack of the TV to the ETH MODEM jack of the STB(SBB) with the Data cable.

✎

Use data communication.

English

12

UC6900 호주_중아, UC6000 구주 호텔.indd 12 2010-04-27 오후 2:24:41

Connecting the Bathroom Speakers

You can connect the Bathroom Speakers in the following method.

¦ Connecting through the Variable Output (available without an external amplifier)

TV Rear Panel

Volume Control Box

VOL+

VOL

2

1

1. Connect the VARIABLE AUDIO OUT port of the TV to the Bathroom Wall Speakers of the hotel.

-

Speaker

Signal wire : Speaker +

Shield wire : Speaker -

2. Connect the VOL-CTRL jack of the TV to the Volume Control Box Switch port of the Bathroom Wall of the hotel.

y Installing the Volume Control

– If you configure the Volume Control Box as shown in the figure, you can control the volume of the bathroom speakers.
– The jack that is connected from the Volume Control Box to the TV is a 3.5mm normal Phone jack.
– Volume Control Box switch consists of Tact switch.

✎

Setting the Sub AMP Mode

– 0: Turns the Sub AMP function off (PWM off).
– 1: Determines the Sub volume according to the main volume control. That is, the sub volume is determined according

to the Power On Volume, the Min Volume, and the Max Volume values of the Hotel Mode.
– 2: Determines the volume according to the bathroom control panel setting.

English

13

UC6900 호주_중아, UC6000 구주 호텔.indd 13 2010-04-27 오후 2:24:42

y Variable Output Port Specifications

– Speaker Wire: Use speaker cable no more than 82 feet (25m) in length.

Volume Control Box

VOL +

VOL

-

VOL - DOWN

( White 1 )

VOL - UP

( Black /Red 2 )

GND
( Shield Wire 3 )

1

3

2

¦ Connect through the Fixed Output (available without an external amplifier)

Audio

TV Rear Panel

AUDIO IN

Amplifier

1 Stereo

cable

1. Connect the AUDIO OUT port of the TV and the Audio In port of the audio amplifier with a stereo cable.

English

14

UC6900 호주_중아, UC6000 구주 호텔.indd 14 2010-04-27 오후 2:24:42

Connecting the MediaHub HD

Output of any external source connected to MediaHub HD on hotel desk.

MediaHub HD Rear

USB RS/232

HDMI

TV Rear Panel

1

RS-232 Data Cable

HDMI cable

2

1. Connect the RJP port of the TV and the RS/232 port of the MediaHub HD.

2. Connect the HDMI port of the TV and the HDMI port of the MediaHub HD.

y MediaHub HD

– The MediaHub HD is a hardware module that has different Audio Video inputs (A/V, Audio, PC, HDMI and USB) and

corresponding outputs. The corresponding output sources are connected from MediaHub to TV. The MediaHub

communicates with the TV via RS232. Hot Plug & Play is a function that allows hotel guests to connect an external

source to the MediaHub. The MediaHub communicates with the TV by sending messages regarding Active/Inactive

sources. The TV will switch to the Active external source.
– You have to connect the HDMI of the MediaHub to the HDMI 1 port of the TV.
– When the TV is on, connect the TV and the RJP within 10 seconds.

y Special features

– PIP
– Bluetooth
– Media Player (MediaHub HD+ only)
– Auto Detection

English

15

UC6900 호주_중아, UC6000 구주 호텔.indd 15 2010-04-27 오후 2:24:42

Connecting the RJP (Remote Jack Pack)

Output of any external source connected to RJP on hotel desk.

RJP Rear

TV Rear Panel

D-sub / PC Audio cable

4

1

2 Video / Audio Cable

3 HDMI cable

USB HDMI S-VIDEO

RCA AUDIO/PC

RS/232

1. Connect the RJP port of the TV and the RS/232 port of the RJP.

2. Connect the AV IN [VIDEO]/[L-AUDIO-R] port of the TV to the RCA port of the RJP.

3. Connect the [HDMI] port of the TV and the HDMI port of the RJP.

4. Connect the PC IN / PC/DVI AUDIO IN port of the TV to the PC/AUDIO port of the RJP.

✎

The RJP (Remote Jack Pack) compatible with this Samsung TV is TeleAdapt TA-7610, TA-7650 (HD) and TA-7660
(HD Plus).

y RJP (Remote Jack Pack): RJP stands for Remote Jack Pack. The RJP is a hardware module that has different Audio

Video inputs (A/V, Audio, PC and HDMI) and corresponding outputs. The corresponding output sources are connected
from RJP to TV. The RJP communicates with the TV via RS232. Hot Plug & Play is a function that allows hotel guests
to connect an external source to the RJP. The RJP communicates with the TV by sending messages regarding Active/
Inactive sources. The TV will switch to the Active external source according to the priority set by the User.

✎

You can select HDMI 1,2 and AV for connecting RJP.

✎

When the T V is on, connect the TV and the RJP within 10 seconds.

y The RJP can be returned to the factory default settings by pressing the A/V and HDMI buttons simultaneously for 10

seconds. All LEDs blink 5 times to Acknowledge that the rest has been performed.

y The RJP will automatically turn off any LEDs after 5 minutes to avoid unnecessary light pollution in the hotel room. The

LEDs that were turned off will turn on again if the guest touches any of the buttons and the 5 minute timer will restart. If the
guest then touches another source button, the TV will change to the selected source and the corresponding LED will be lit.

y After an RJP Reset or a TV Power OFF/ON, it takes approx. 10 seconds to establish communications between the TV and

the RJP.

English

16

UC6900 호주_중아, UC6000 구주 호텔.indd 16 2010-04-27 오후 2:24:43

y The following table shows the approximate time in seconds to switch from the TV to the input source, based on the

priority.

✎

Scenario 1: When no inputs are connected.

Source To Connect

AV 2 Sec

PC 0.7 Sec

HDMI 3.9 Sec

✎

Scenario 2: When two or more inputs are connected and an Input source is disconnected and then reconnected.

Source Disconnect To Connect Total

AV 4.5 Sec 2 Sec 6.5 Sec

PC 0.7 Sec 0.7 Sec 1.4 Sec

HDMI 3.9 Sec 3.9 Sec 7.8 Sec

✎

E.g. If the RJP has all its live sources AV, PC and HDMI connected, AV is viewed as the highest priority. If the RJP is
in HDMI mode, and a guest removes and reconnects the AV, the minimum time required to switch to the AV is 6.5
seconds.

y To connect audio (Ipod or Mp3), Music mode should be ON and Jack Ident detect should be OFF.
y A/V, PC and HDMI input sources are supported.

¦ Audio Loop In

An additionally created Headphone Box can be installed on a bed or business desk so that users can use it conveniently. The
installation procedures are given below.

y Detailed Drawing of the Headphone Box

TV Rear Panel

TV HP-ID jack

Shield wire

Red Wire (Audio-R)

Shield wire

Headphone

Headphone Box

TV Headphones jack

Whitewire (Audio-L)

Red Wire + White wire

English

17

UC6900 호주_중아, UC6000 구주 호텔.indd 17 2010-04-27 오후 2:24:43

Setting the Hotel Option Data

¦ Stand-alone Mode

To Enter: Press the MUTE → 1 → 1 → 9 → ENTER buttons in order.
To Exit from this menu : power off and turn on again.

No Item initial Value Description

1 Hotel Mode On Hotel mode(Stand alone) on/off

2 SI Vendor Off Select the SI Vendor

3 Power On Channel 1 TV will switch on to this particular Channel

4 Channel Type ATV

5 Power On Volume 10 TV will switch on with this Volume Level

6 Min Volume 0 Minimum Volume Level setting user can set

7 Max Volume 100 Maximum Volume Level setting user can set

8 Panel Button Lock Unlock

9 Power On Source TV Select the Input source when TV is turned on initially.

10 Picture Menu Lock OFF Enable or disable Picture Menu.

11 Channel Editor Edit Channel Number and Name.

12 Music Mode AV OFF

13 Music Mode PC OFF

14 Music Mode Comp OFF

15 Music Mode Backlight OFF Backlight On/Off option in Music mode to save energy.

16 RJP Priority AV 1

17 RJP Priority PC 2

18 RJP Priority HDMI 3

19 RJP AV Option AV1 Select RJP AV Source. (AV1)

20 RJP HDMI Option HDMI1/DVI

Provides channel Type description for Power On channel selected. i.e.
Selected channel analog or Digital & antannae selection (Air or Cable)

Front panel(Local key) operation on/off.

• Off: Unlock All panel key

• On: Lock All panel key

• Only Power: Lock All panel key except Power panel key.

To get music output from mp3/audio player in AV Input Source.
Audio enabled, video disabled in this mode.

To get music output from mp3/audio player in PC Input Source.
Audio enabled, video disabled in this mode.

To get music output from mp3/audio player in Component Input
Source. Audio enabled, video disabled in this mode.

If the jack priority is set, the corresponding source is automatically set
when a jack is inserted according to the jack priority.

If the jack priority is set, the corresponding source is automatically set
when a jack is inserted according to the jack priority.

If the jack priority is set, the corresponding source is automatically set
when a jack is inserted according to the jack priority.

Select RJP HDMI Source. (HDMI1/HDMI2)

21 Sub AMP Volume 6 Sub AMP Volume level at power on initial condition.

Determines the Sub AMP operation mode.

• 0: Turns the Sub AMP function off (PWM off).

• 1: Determines the Sub volume according to the main volume

22 Sub AMP Mode 2

English

18

UC6900 호주_중아, UC6000 구주 호텔.indd 18 2010-04-27 오후 2:24:43

control.
That is, the sub volume is determined according to the Power On
Volume, the Min Volume, and the Max

• 2: Determines the volume according to the bathroom control panel
setting.

No Item initial Value Description

Selection of the way to update clock data

• Auto: Use clock data from server when the TV is in the interactive

23 Local time Manual

24 Audio Loop In OFF Audio loop identification or H.P identification selection

25 Menu Display ON

26 Customer Logo OFF

27 Logo Download Download Customer Logo.

28 Logo Display Time Customerl Logo Display Time.

29 Power On Option Last Option

30 Auto Source OFF

31 Energy Saving OFF

32 Clone TV to USB

33 Clone USB to TV

34 Cloning Data Reset OFF Reset the Cloning Data.

35 Welcome Message OFF Display Welcome Message.

36 Edit Welcome Message Edit Welcome Message.

37 Mixed Channel Map OFF Mixed channel Map is a function to mix Air and Cable channels.

38 Channel Auto Store Auto Memorizing channels.

39 Dynamic SI OFF

mode.

• Manual: Use clock data from DVB channel or manual clock setting
when the TV is in the stand-alone mode.

• TTX: manual clock setting (with updating from TTX data)

• On: Main menu display

• Off: Main menu No display

Select Customer Logo.

• OFF: Turn off the customer logo function

• BMP: Sets the TV to display the customer logo(samsung.bmp)

• AVI: Sets the TV to display the customer logo(samsung.avi)

• BOTH: Sets the TV to display the customer logo(samsung.bmp &

samsung.avi)

Power On(AC Power On) Option.

• STN-BY: Stand-By Mode

• Power On: Power On

• LAST OPT: Last Power State

While TV is in power on state, if PC source is connected to TV, TV will
automatically switch to PC mode.

This feature adjusts the brightness of the TV in order to reduce power
consumption.

• Off: Turns off the energy saving function.

• Low: Sets the TV to low energy saving mode.

• Medium: Sets the TV to medium energy saving mode.

• High: Sets the TV to high energy saving mode.

• Auto: Sets the TV to automatically energy saving mode.

USB Clone : TV → USB

USB Clone : USB → TV

• ON : Check the DTV Program channel number.

(DTV channel editor inaccessible)

• Off : No Check of the DTV Program channel number.

(DTV channel editor accessible, but addtional channel program
number update not supported)

English

19

UC6900 호주_중아, UC6000 구주 호텔.indd 19 2010-04-27 오후 2:24:44

¦ Interactive Mode

To Enter: Press the INFO → MENU → 0 → 1 → EXIT buttons in order, in normal operation state.
To Exit from this menu : Power Off and Turn On again. (Press POWER button with general SAMSUNG remocon)

No Item initial Value Description

1 Hotel Mode On Hotel mode(Stand alone) on/off

2 SI Vendor Samsung Select the SI Vendor

3 Power On Channel 1 TV will switch on to this particular Channel

4 Channel Type ATV

5 Power On Volume 10 TV will switch on with this Volume Level

6 Min Volume 0 Minimum Volume Level setting user can set

7 Max Volume 100 Maximum Volume Level setting user can set

8 Panel Button Lock Unlock Front panel(Local key) operation on/off.

9 Power On Source TV Select the Input source when TV is turned on initially.

10 Picture Menu Lock OFF Enable or disable Picture Menu.

11 Channel Editor Edit Channel Number and Name.

12 Music Mode AV OFF To get music output from mp3/audio player in AV Input Source.

13 Music Mode PC OFF To get music output from mp3/audio player in PC Input Source.

14 Music Mode Comp OFF To get music output from mp3/audio player in Component Input

15 Music Mode Backlight OFF Backlight On/Off option in Music mode to save energy.

16 RJP Priority AV 1 If the jack priority is set, the corresponding source is automatically

17 RJP Priority PC 2 If the jack priority is set, the corresponding source is automatically

18 RJP Priority HDMI 3 If the jack priority is set, the corresponding source is automatically

19 RJP AV Option AV1 Select RJP AV Source. (AV1)

20 RJP HDMI Option HDMI1/DVI Select RJP HDMI Source. (HDMI1/HDMI2)

21 Sub AMP Volume 6 Sub AMP Volume level at power on initial condition.

22 Sub AMP Mode 2 Determines the Sub AMP operation mode.

Provides channel Type description for Power On channel selected. i.e.
Selected channel analog or Digital & antannae selection(Air or Cable)

• Off: Unlock All panel key

• On: Lock All panel key

• Only Power: Lock All panel key except Power panel key.

Audio enabled, video disabled in this mode.

Audio enabled, video disabled in this mode.

Source. Audio enabled, video disabled in this mode.

set
when a jack is inserted according to the jack priority.

set
when a jack is inserted according to the jack priority.

set
when a jack is inserted according to the jack priority.

• 0: Turns the Sub AMP function off (PWM off).

• 1: Determines the Sub volume according to the main volume
control.
That is, the sub volume is determined according to the Power On
Volume, the Min Volume, and the Max

• 2: Determines the volume according to the bathroom control panel
setting.

English

20

UC6900 호주_중아, UC6000 구주 호텔.indd 20 2010-04-27 오후 2:24:44

No Item initial Value Description

23 Local time Manual Selection of the way to update clock data

• Auto: Use clock data from server when the TV is in the interactive
mode.

• Manual: Use clock data from DVB channel or manual clock setting
when the TV is in the stand-alone mode.

• TTX: manual clock setting (with updating from TTX data)

24 Audio Loop In OFF Audio loop identification or H.P identification selection

25 Menu Display OFF • On : Main menu display

26 Customer Logo OFF Select Customer Logo.

27 Logo Download Download Customer Logo.

28 Logo Display Time Customerl Logo Display Time.

29 Power On Option Last Option Power On(AC Power On) Option.

30 Auto Source OFF While TV is in power on state, if PC source is connected to TV, TV

31 Energy Saving OFF This feature adjusts the brightness of the TV in order to reduce

32 Clone TV to USB

33 Clone USB to TV

34 Cloning Data Reset OFF Reset the Cloning Data.

35 Welcome Message OFF Display Welcome Message.

36 Edit Welcome Message Edit Welcome Message.

37 Channel Auto Store Auto Memorizing channels.

38 Dynamic SI OFF • ON: Check the DTV Program channel number.

When Interactive mode is On, you cannot enter the Hotel Options by pressing the MUTE → 1 → 1 → 9 → ENTER button. To
exit the Hotel Options, turn the power off.

• Off : Main menu No display

• OFF: Turn off the customer logo function

• BMP: Sets the TV to display the customer logo(samsung.bmp)

• AVI: Sets the TV to display the customer logo(samsung.avi)

• BOTH: Sets the TV to display the customer logo(samsung.bmp &
samsung.avi)

• STN-BY : Stand-By Mode

• Power On : Power On

• LAST OPT : Last Power State

will automatically switch to PC mode.

power consumption.

• Off: Turns off the energy saving function.

• Low: Sets the TV to low energy saving mode.

• Medium: Sets the TV to medium energy saving mode.

• High: Sets the TV to high energy saving mode.

• Auto: Sets the TV to automatically energy saving mode.

USB Clone : TV → USB

USB Clone : USB → TV

(DTV channel editor inaccessible)

• Off: No Check of the DTV Program channel number.

(DTV channel editor accessible, but addtional channel program
number update not supported)

English

21

UC6900 호주_중아, UC6000 구주 호텔.indd 21 2010-04-27 오후 2:24:44

¦ Welcome Message

Welcome message is a feature to display custom message on TV, every time TV is turned on by Guest in Hotel room.

– Welcome message settings are placed in Hotel Option Menu.
– Welcome message should be ON in order to display the message on power on.

Hotel Mode

SI Vendor

Power On Channel

Channel Type

Power On Volume

Min Volume

Max Volume

Panel Button Lock

Power On Source

Picture Menu Lock

Channel Editor Customer Logo

Music Mode AV

Music Mode PC

Music Mode Comp

Music Mode Backlight

ON

Samsung

1

ATV

10

0

100

Unlock

TV

OFF

OFF

OFF

OFF

OFF

RJP Priority AV

RJP Priority PC

RJP Priority HDMI

RJP AV Option

RJP HDMI Option

Sub Amp Volume

Sub Amp Mode

Local time

Audio Loop In

Menu Display

Logo Download

Logo Display Time

Power On Option

Auto Source

1

2

3

AV1

HDMI1/DVI

6

2

Manual

OFF

ON

OFF

...

...

Last Option

OFF

Energy Saving

Clone TV to USB

Clone USB to TV

Cloning Data Reset

Welcome Message

Edit Welcome Message

Channel Auto Store

Dynamic SI

OFF

OFF

OFF

OFF

– Welcome message can be of 25 characters and it can be edited by changing its text in Hotel Service menu.
– Following is the list of characters supported for Welcome message:

✎

In letters from A to Z only in capital letters is allowed.

– Welcome message can be edited by using navigation, color & enter key of a Remote in “Edit Welcome Message” OSD.

Edit Welcome Message

W E L C O M E T O O U

R H O T E L _

A B C D E F G

H I J K L M N

O P Q R S T U

V W X Y Z

Move Enter Return

Move Left

Move Right

Black

Done

– Welcome message and hotel logo cannot be active at the same time.

English

22

UC6900 호주_중아, UC6000 구주 호텔.indd 22 2010-04-27 오후 2:24:44

¦ Customer Logo (Hotel Logo)

Customer Logo is a function that displays picture image or Video file which represents hotel during power on procedure.

– Customer Logo will be in hotel option menu in both Standalone and Interactive mode.
– Lower menus will be enabled when Customer Logo option is on.
– Customer Logo will be displayed if there is picture image or video file which is already stored in memory and Customer

Logo option is on during power on procedure.

– Customer Logo will not be displayed when Customer Logo option is off, even if the picture image or video file exists.

Hotel Mode

SI Vendor

Power On Channel

Channel Type

Power On Volume

Min Volume

Max Volume

Panel Button Lock

Power On Source

Picture Menu Lock

Channel Editor Customer Logo

Music Mode AV

Music Mode PC

Music Mode Comp

Music Mode Backlight

ON

Samsung

1

ATV

10

0

100

Unlock

TV

OFF

OFF

OFF

OFF

OFF

RJP Priority AV

RJP Priority PC

RJP Priority HDMI

RJP AV Option

RJP HDMI Option

Sub Amp Volume

Sub Amp Mode

Local time

Audio Loop In

Menu Display

Logo Download

Logo Display Time

Power On Option

Auto Source

1

2

3

AV1

HDMI1/DVI

6

2

Manual

OFF

ON

OFF

...

...

Last Option

OFF

Energy Saving

Clone TV to USB

Clone USB to TV

Cloning Data Reset

Welcome Message

Edit Welcome Message

Channel Auto Store

Dynamic SI

OFF

OFF

OFF

OFF

y Customer Logo

– This option is to decide if customer logo image or video file will be displayed or not.

y Customer Logo Download

– This option downloads the logo image or video file to TV memory from a USB device.
– Wait will be displayed while the file is copied to the TV.
– Completed will be displayed when the copy operation has finished successfully.
– Failed will be displayed when the copy operation was unsuccessful.
– No USB will be displayed when USB device is not connected.
– No File will be displayed when there is no file to copy in USB.

y Logo File Format (Picture)

– Only BMP format is supported and File name must be samsung.bmp.
– Maximum resolution is 960 x 540.
– Image is not changed on a large or small scale during power on.

y Logo File Format (Video)

– Only AVI format is supported and File name must be samsung.avi.
– AVI file max 50MB, max 1920*1080, no up & down scale
– If press CH UP/DOWN Key or EXIT KEY with Samsung remote controller, you can stop displaying the customer video

logo.

y Logo Display Time

– This option is to decide Logo display time of the picture image.
– 3 sec / 5 sec / 7sec

English

23

UC6900 호주_중아, UC6000 구주 호텔.indd 23 2010-04-27 오후 2:24:45

¦ USB Cloning

USB Cloning is a function to download user configured settings (Picture, Sound, Input,
Channel, Setup and Hotel Setup) from one TV set and upload the same to other TV sets.

All the user-defined settings from the TV (Master Set) can be copied to the USB device.
USB Cloning is in hotel option menu in both Standalone and Interactive mode.

y Cloning from TV to USB: It is an operation to copy the stored data from the specific area on

the EEPROM from the TV set to the USB device.

1. Insert a USB drive into the USB port on the rear of the TV.

2. Enter the Interactive menu by pressing this buttons in order.

Interactive mode : INFO → MENU → 0 → 1 → EXIT

x

Standalone mode : MUTE → 1 → 1 → 9 → ENTER

x

3. Press the ▲ or ▼ button to select “Clone:TV to USB”, then press the ENTER

4. The message “Clone:TV to USB” is displayed, then press the ENTER

5. You can Make sure USB cloning behavior.

In Progress: during copying data to USB.

x

Completed: copy operation was finished successfully.

x

Failed: copy operation was not finished successfully.

x

No USB: any USB is not connected.

x

y Cloning from USB to TV: It is an operation to download the stored data in USB device to TV set.

1. Insert a USB drive into the USB port on the rear of the TV.

2. Enter the Interactive menu by pressing this buttons in order.

Interactive mode : INFO → MENU → 0 → 1 → EXIT

x

Standalone mode : MUTE → 1 → 1 → 9 → ENTER

x

3. Press the ▲ or ▼ button to select “Clone:USB to TV”, then press the ENTER

4. The message “Clone:USB to TV” is displayed, then press the ENTER

5. You can Make sure USB cloning behavior.

In Progress: during copying data to TV.

x

Completed: copy operation was finished successfully.

x

Failed: copy operation was not finished successfully.

x

No USB: any USB is not connected.

x

No File: there is no file to copy in USB.

x

✎

The operation to copy from USB to TV can be executed by pressing ENTERE key for 5 seconds.

E

E

E

button.

E

button.

button.

button.

Energy Saving

Clone:TV to USB

Clone:USB to TV

Welcome Message

Edit Welcome Message

Energy Saving

Clone:TV to USB

Clone:USB to TV

Welcome Message

Edit Welcome Message

Off

On

Off

On

For fast instant cloning during installation!
Insert USB key with master settings from first TV and press Enter key for 5 seconds.

English

24

UC6900 호주_중아, UC6000 구주 호텔.indd 24 2010-04-27 오후 2:24:45

¦ Hotel Plug & Play

Hotel Plug & Play is a function that automatically performs the Hotel mode selection, Country Setup, Clock Setup and Picture
mode Setup once.

– Hotel Plug & Play is available only one time when power is first turned ON.
– After setting up first TV and Clone TV to USB
– Next TV only needs to exit Hotel Plug & Play, connect USB, then Clone USB to TV.

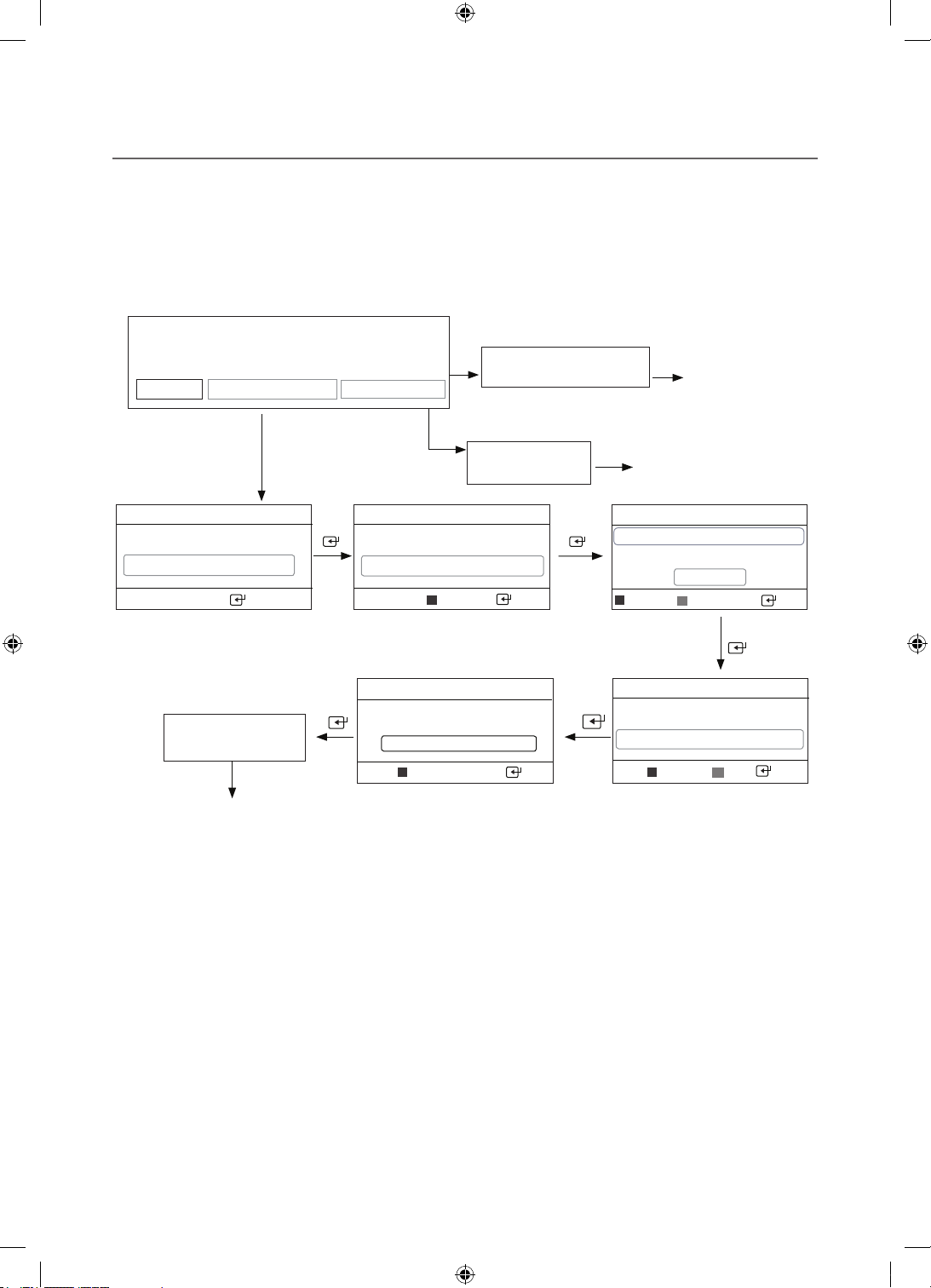

y UI Scenario

Hotel Plug & Play

Easy Set Up

Interactive Standalone Plug & Play

If Standalone Plug & Play

is selected

Hotel Plug & Play

Select the OSD Language

Menu Language : English r

.

Enter

Standalone

Hotel Option Menu

Press Power OFF

to exit.

If Standalone Only is selected

Standalone Only mode is set

Standalone Only

If Interactive is selected

Interactive

Hotel Option Menu

Hotel Plug & Play

Select Country.

Country : United Kingdom

A

Previous

r

Enter

<Depending on Region, this step may not exist.>

Hotel Plug & Play

Dynamic

Standard

A

Previous

U Move

Exit

TV will enter the RF mode.

Press Power OFF to exit.

Hotel Plug & Play

Antenna Source : Air

Channel Source : Digital & Analogue

Search

A

Previous

After Searching

D

U Move

Skip

U

the channels.

Hotel Plug & Play

Set the Clock Mode.

Clock Mode : Auto r

A

Previous

D

Skip

r

Exit

Exit

English

25

UC6900 호주_중아, UC6000 구주 호텔.indd 25 2010-04-27 오후 2:24:45

y UI Scenario (Aus, NZ, Singapore)

Hotel Plug & Play

Easy Set Up

Interactive Standalone Plug & Play Standalone Only

If Standalone Plug & Play

is selected

Hotel Plug & Play

Select Country.

Country : Australia r

Enter

Channel Source : Digital & Analogue

A

Previous

<Depending on Region, this step may not exist.>

Standalone

Hotel Option Menu

Dynamic

Standard

Press Power OFF

to exit.

Hotel Plug & Play

Search

D

U Move

Skip

Hotel Plug & Play

A

Previous

If Standalone Only is selected

Standalone Only mode is set

If Interactive is selected

Interactive

Hotel Option Menu

U

r

After
Searching the

Exit

channels.

U Move

Exit

TV will enter the RF mode.

Press Power OFF to exit.

Hotel Plug & Play

Set the Clock Mode.

Clock Mode : Auto

A

Previous

D

Skip

Hotel Plug & Play

Select the time zone where you
are located.

New South Wales/ACT
Victoria
Queensland
South Australia
Western Australia
Tasmania

A

Previous

D

U Move

Skip

r

Enter

Exit

English

26

UC6900 호주_중아, UC6000 구주 호텔.indd 26 2010-04-27 오후 2:24:45

y Hotel Plug & Play OSD

– Initial Highlight: Interactive
– If Standalone Only button is selected, the Standalone hotel mode is set by default and “Standalone mode is set” OSD is

displayed for 3 seconds.
– TV enters into RF mode automatically after displaying “Standalone mode is set” OSD for 3 seconds.
– When Interactive mode is selected, Interactive Setup Menu is displayed. Press power off button to exit from Interactive

menu.
– When Standalone Plug & Play mode is selected, “Select Menu Language” OSD is displayed.

y Select Menu Language OSD

– When Standalone Plug & Play is selected from “Easy Set Up” OSD, “Select Menu Language” OSD is displayed.
– Initial Highlight : English
– Display time: OSD timeout and operation are the same as Samsung's consumer TV models.
– If ENTER button is pressed, “Select Area” OSD is displayed.

y Auto Search Mode OSD

– If skip option is selected, it goes to Clock setting OSD.
– If ENTER button is pressed, auto searching of channels is performed.
– The OSD Display time, which is from the time that Auto Store is started to the time that Auto Sort is completed, is 30

seconds.

y Clock setting OSD

– Display time: 30 seconds.
– The Clock Set item OSD is displayed
– If ENTER button is pressed after setting the clock or in Auto, Picture Mode OSD is displayed.

y Picture Mode OSD

– Initial Highlight: Standard.
– The Picture Mode OSD is displayed and the Dynamic or a Standard Picture mode can be selected.
– After selecting the picture mode, it enters Standalone Setup Menu OSD, press power off to exit.

English

27

UC6900 호주_중아, UC6000 구주 호텔.indd 27 2010-04-27 오후 2:24:45

¦ Multi Code Remocon

Multi Code Remocon is a special transmitter which is designed to control each TVs with one remote.
This function is useful where there is more than one TV in one location like hospital Set ID number will be displayed in source

osd. It is possible to support up to 10 different remote key transmission for multi code.
Initial ID code which each TV has is “0”.

– ID code could be set and reset in Analog TV mode or PC mode. (not available in DTV channel)
– ID code could be from 0 to 9.
– Press Blue Key for over 3 seconds and the digit key a user wants to set.
– Set ID OSD will be displayed in central position.
– The following words will be displayed. “Remote control code is set to x. If you want to change Remote control code.

Enter the digit you want to change.” (x is the digit number) This OSD will be kept displaying until exit key is input.

Remote control code is set to 0. If you want to
change Remote control code, enter the digit you
want to change.

– For example, TV and Remote will be set ID code #1 if user presses #1.
– The following words will be displayed.“Remote control code is changed to 1” Then TV can be controlled by only remote

which has same ID code with TV’s.
– If ID code does not match between remote and TV, the following words will be displayed. “ TV ID x”(x is the TV’s ID)
– To reset ID code, press Yellow key for over 3 seconds. ID code of both TV and Remote will be reset to “0”. “Remote

control code is set to 0.” will be displayed.

English

28

UC6900 호주_중아, UC6000 구주 호텔.indd 28 2010-04-27 오후 2:24:45

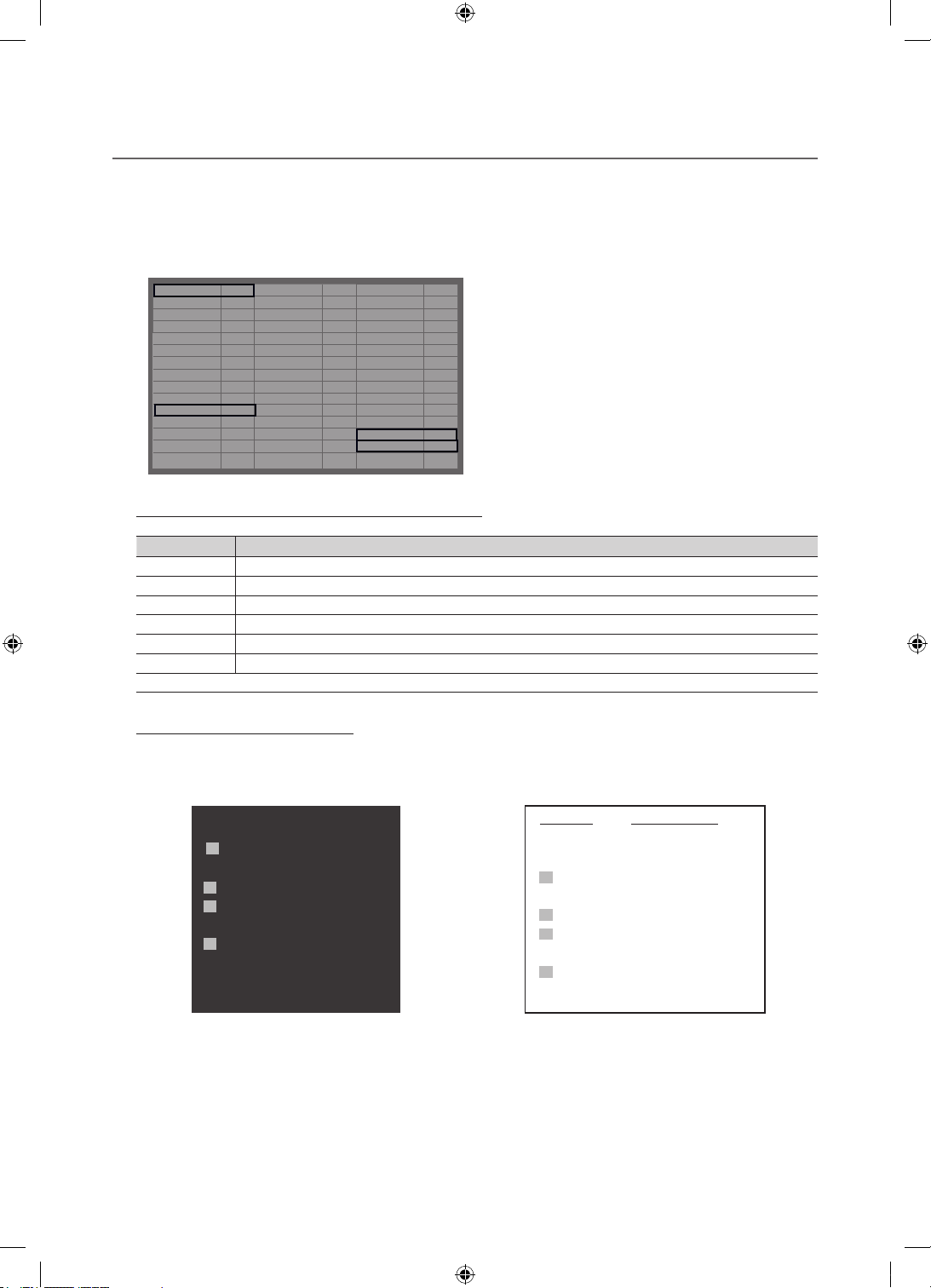

¦ Mixed Channel Map

Mixed Channel Map is a function to mix Air and Cable channels.
[ If there are no Cable channels, you can use this item as channel sorting. ]

– Mixed channel Map, Channel Editor and Channel Auto Store are newly placed in Hotel Option Menu.
– Mixed channel Map should be ON in order to mix Air and Cable channels.
– Use Channel Editor to sort the channels as user-desired channel numbers.

Hotel Mode

SI Vendor

Power On Channel

Channel Type

Power On Volume

Min Volume

Max Volume

Panel Button Lock

Power On Source

Picture Menu Lock

Channel Editor

Music Mode AV

Music Mode PC

Music Mode Comp

Music Mode Backlight

ON

RJP Priority AV

OFF

RJP Priority PC

1

RJP Priority HDMI

ATV

RJP AV Option

10

RJP HDMI Option

0

Sub AMP Volume

100

Sub AMP Mode

Unlock

Local Time

TV

Time Format

OFF

PMOLED Test

PMOLED Mormal Dim.3Edit Welcome Message

OFF

PMOLED Standby Dim.2DC Power Out

OFF

Audio Loop In

OFF

Menu Display

OFF

Hotel Logo

1

2

3

AV1

HDMI1/DVI

6

2

Manual

12 Hour

Failure

OFF

ON

OFF

Logo Download

Logo Display Time

Power On Option

Auto Source

Energy Saving

Clone : TV to USB

Clone : USB to TV

Pan Euro MHEG

Cloning Data Reset

Welcome Message

Mixed Channel Map

Channel Auto Store

Dynamic SI

...

...

Last Option

OFF

Off

OFF

OFF

5V

ON

OFF

<Depending on model and region, some menu items may
not exist>

Simple Steps for channel mixing under Stand-alone Mode

Step Broad Outline

1 Turn on ‘Mixed Channel Map’ in Hotel Option Menu
2 Operate ‘Channel Auto Store’ in Hotel Option Menu (Antenna Source : Air + Cable)
3 Enter ‘Channel Editor’ in Hotel Option Menu
4 Compile a table related to the final channel lists you want to have
5 Rearrange channels with TOOLS Button based on the table you compiled
6 Press EXIT or RETURN Button to exit.

<For better comprehension, please refer to the following details>

Air & Cable Channels Mixing Manual

You can scan for Air and Cable channels by operating Channel Auto Store.
Automatically scanned channels may not have the user-desired channel numbers.
We suggest you compile a table related to the final channel lists you want to have like below.

1 BBC1

A

1 TF1(atv)

2 BBC2

A

2 FR1(atv)

A

3 FR2(atv)

4 Boxer

A

4 M6(atv)
70 Chnal+
900 Disney

Chnnel No. Programme Name

1 BBC1
2 BBC2

A

3 FR1
4 BOXER

A

5 FR2

A

6 TF1
7 Disney

A

8 M6
9 Canal+

<Scanned original Channel List> <User-desired Channel List>

Follow next steps to rearrange Air and Cable channels.

[To edit the channel numbers, enter ‘Stand-alone mode’ first.]
[Hotel Mode ‘ON’, Mixed Channel Map ‘ON’, Operate ‘Channel Auto Store’]

English

29

UC6900 호주_중아, UC6000 구주 호텔.indd 29 2010-04-27 오후 2:24:46

1. Rearrange Air and Cable Channels based on User-desired Channel List in ‘Channel Editor’

a. Check the largest channel number from the user-desired channel list.

Chnnel No. Programme Name

1 BBC1
2 BBC2

A

3 FR1
4 BOXER

A

5 FR2

A

6 TF1
7 Disney

A

8 M6
9 Canal+

← Programme 'Canal+' has the largest channel number

b. Locate cursor to a programme that you want to put it into the largest channel number.

c. Press TOOLS key.

d. Move cursor to Edit Channel Number and press ENTER

E

key.

1 BBC1

A

1 TF1(atv)

2 BBC2

A

2 FR1(atv)

A

3 FR2(atv)

4 Boxer

A

4 M6(atv)
70 Chnal+
900 Disney

Edit channel Number

Edit channel Name

e. Move the programme to the largest channel number by using up/down narrow keys or digit keys

~ When you tr y to change it to an existing channel number, below message will be displayed.

x

"CH.XX has already been used. Change to Ch.XX?".
If you select 'yes', they'll be swapped with each other.

Edit Channel Number

30

English

0~9

Channel

Number

u

9

d

U Adjust

E Enter

Name
Canal+

R Return

UC6900 호주_중아, UC6000 구주 호텔.indd 30 2010-04-27 오후 2:24:46

f. Check the second largest channel number from the user-desired channel list.

Chnnel No. Programme Name

1 BBC1
2 BBC2

A

3 FR1
4 BOXER

A

5 FR2

A

6 TF1
7 Disney

A

8 M6

← Programme 'M6' has the second largest channel number

9 Canal+

g. Locate cursor to the other programme that you want to put it into the second largest channel number.

h. Press TOOLS key.

i. Move cursor to Edit Channel Number and press ENTER

E

key.

1 BBC1

A

1 TF1(atv)

2 BBC2

A

2 FR1(atv)

A

3 FR2(atv)
4 Boxer

A

4 M6(atv)
9 Chnal+

Edit channel Number

Edit channel Name

900 Disney

j. Move the programme to the second largest channel number by using up/down narrow keys or digit keys

Edit Channel Number

Channel

u

8

d

U Adjust

Number

0~9

k. Do this process again for all the other programmes.

Now you can see the mixed channel list like below.

1 BBC1
2 BBC2

A

3 FR1
4 Boxer

A

5 FR2

A

6 TF1
7 Disney

A

8 M6
9 Canal+

Name

M6

R ReturnE Enter

English

31

UC6900 호주_중아, UC6000 구주 호텔.indd 31 2010-04-27 오후 2:24:46

Assembling the Cables

Stand Type

Enclose the cables in the Cable Tie so that the cables are not visible through the transparent stand.

1

1

2

3

Wall-Mount Type

2

3

✎

Do not pull the cables too hard when arranging them. This may cause damage to the product’s connection terminals.

English

32

UC6900 호주_중아, UC6000 구주 호텔.indd 32 2010-04-27 오후 2:24:47

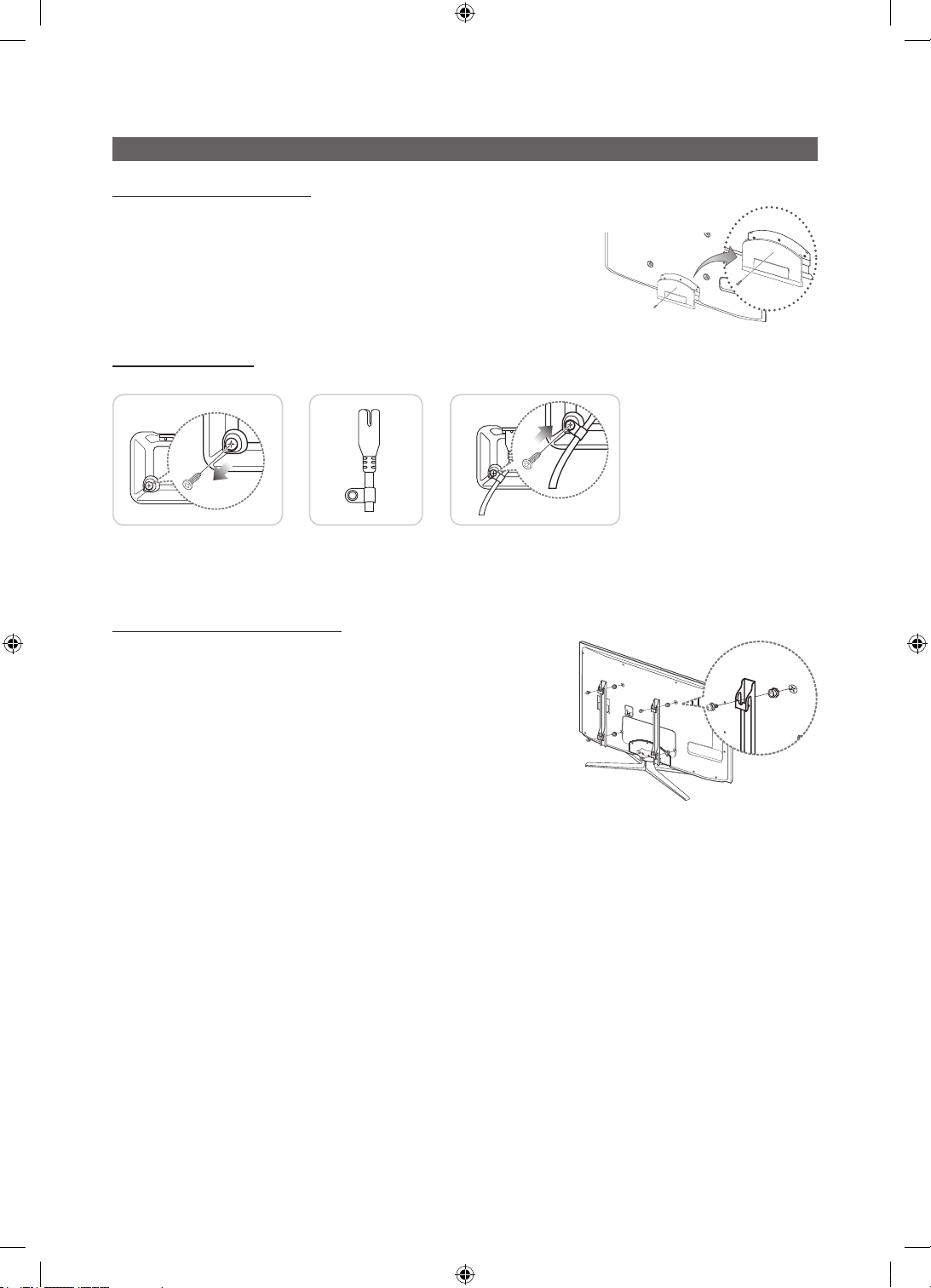

Installing the Wall Mount

Assembling the Blanking Bracket

When installing the TV onto a wall, attach the Blanking Bracket as shown.

Assenbling Power-Cord

When Installing the TV onto a wall, attach the Power-Cord as Shown.

1 2 3

1. Remove the screw shown in the first picture above.

2. Attach the power cord clamp to the power cord.

3. Mount the power cord clamp to the TV, using the removed screw, as shown.

Preparing before installing Wall-Mount

To install a wall-mount from another manufacturer, use the Holder-Ring.

Blanking Bracket

English

33

UC6900 호주_중아, UC6000 구주 호텔.indd 33 2010-04-27 오후 2:24:48

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for

assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or
injury to yourself or others if you elect to install the TV on your own.

Wall Mount Kit Specifications (VESA)

✎

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact
your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎

NOTE

Standard dimensions for wall mount kits are shown in the table below.

x

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

x

Do not use screws that do not comply with the VESA standard screw specifications.

x

Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw

x

specifications. Screws that are too long may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ

x

depending on the wall mount specifications.

Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal

x

injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or

x

the consumer fails to follow the product installation instructions.

Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our dedicated wall

x

mount kit for this model.

Do not mount the TV at more than a 15 degree tilt.

x

Product Family inches VESA Spec. (A * B) Standard Screw Quantity

19~22 75 X 75 M4

23~29 200 X 100

LED-TV

[Ultra-Slim]

32~37 200 X 200

M8

40~55 400 X 400

56~65 600 X 400

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to
electric shock.

4

English

34

UC6900 호주_중아, UC6000 구주 호텔.indd 34 2010-04-27 오후 2:24:48

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do
not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death.
Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device
for safety purposes, as follows.

¦ To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall.

Confirm that the screws have been firmly installed onto the wall.

✎

You may need additional material such as an anchor depending on
the type of wall.

✎

Since the necessary clamps, screws, and string are not supplied,
please purchase these additionally.

2. Remove the screws from the back center of the TV, put the screws into

the clamps, and then fasten the screws onto the TV again.

✎

Screws may not be supplied with the product. In this case, please
purchase the screws of the following specifications.

✎

Screw Specifications

For a 19 ~ 29 inch : M4

x

For a 30 ~ 40 inch : M6

x

For a 46 ~ 80 inch : M8

x

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall

with a strong cable and then tie the string tightly.

✎

NOTE

Install the TV near to the wall so that it does not fall backwards.

x

It is safe to connect the string so that the clamps fixed on the

x

wall are equal to or lower than the clamps fixed on the TV.

Untie the string before moving the T V.

x

4. Verify all connections are properly secured. Periodically check

connections for any sign of fatigue for failure. If you have any doubt about
the security of your connections, contact a professional installer.

Wall

English

35

UC6900 호주_중아, UC6000 구주 호텔.indd 35 2010-04-27 오후 2:24:49

Specifications

Items Specification Comment

TV System PAL, SECAM, DVB-T/C

Speaker out

Audio out

Input

Data

Operating temperature 10°C ~ 40°C (50°F ~ 104°F)

Operating Humidity 10% ~ 80% non-condensing

Variable Audio 4W mono 8 ohm SPK'

Audio out 500mVrms

Component Y, Pb, Pr, Audio-L/R

PC D-sub, Audio-L/R

A/V Audio Video Jack

EXT Scart Jack (EU, Central Africa Only)

HDMI

Antenna 75 ohm Unbalanced, Din Jack VHF/UHF/CATV

DATA RJ-12

RJP RS232

10W x 2 (40" 46")
15W x 2 (55")

RCA Jack output
OTL Sound output

Compatible with the HDMI
Specifications

Jack Pack Only,
TeleAdapt RJP Only

Storage Temperature -20°C ~ 45°C (-4°F ~ 113°F)

Storage Humidity 5% ~ 95% non-condensing

✎

Design and specifications are subject to change without prior notice.

✎

For information about power supply, and more about power consumption, refer to the label attached to the product.
