Samsung PS63A756T1M User Manual

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

AUSTRIA 0810 - SAMSUNG(7267864, € 0.07/min) www.samsung.com/at
BELGIUM 02 201 2418 www.samsung.com/be

CZECH REPUBLIC

DENMARK 8 - SAMSUNG(7267864) www.samsung.com/dk
EIRE 0818 717 100 www.samsung.com/ie

ESTONIA 800-7267 www.samsung.ee
FINLAND

FRANCE

GERMANY 01805 - SAMSUNG(7267864, € 0.14/Min) www.samsung.de
HUNGARY 06 - 80 - SAMSUNG(7267864) www.samsung.com/hu
ITALIA 800 - SAMSUNG(7267864) www.samsung.com/it
KAZAKHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
KYRGYZSTAN 00-800-500-55-500
LATVIA 8000-7267 www.samsung.com/lv
LITHUANIA 8-800-77777 www.samsung.lt
LUXEMBURG 02 261 03 710 www.samsung.com/lu
NETHERLANDS 0900 - SAMSUNG(7267864, € 0.10/Min) www.samsung.com/nl

NORWAY 3 - SAMSUNG(7267864) www.samsung.com/no

POLAND

PORTUGAL 808 20 - SAMSUNG(7267864) www.samsung.com/pt
RUSSIA 8-800-555-55-55 www.samsung.ru
SLOVAKIA 0800 - SAMSUNG(7267864) www.samsung.com/sk
SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com/es
SWEDEN 075 - SAMSUNG(726 78 64) www.samsung.com/se
Switzerland 0848 - SAMSUNG(7267864, CHF 0.08/min) www.samsung.com/ch
TADJIKISTAN 8-10-800-500-55-500
Turkey 444 77 11 www.samsung.com/tr

U.K 0845 SAMSUNG(7267864) www.samsung.com/uk
UKRAINE 8-800-502-0000 www.samsung.ua
UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru

800 - SAMSUNG (800-726786) www.samsung.com/cz
Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8

30 - 6227 515
3260 'dites' SAMSUNG (€ 0,15/Min)

0825 08 65 65 (€ 0.15/Min)

0 - 801 - 1SAMSUNG(172678)
022 - 607 - 93 - 33

Customer Care Centre 

www.samsung.com/fi

www.samsung.com/fr

www.samsung.com/pl

Web Site

Plasma TV

user manual

BN68-01757A-01

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at

www.samsung.com/global/register

Model Serial No.

English - 2

User Instructions

Screen Image retention



Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for
more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such
image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Height



The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do

not install and operate there.

Heat on the top of the PDP TV



The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the

upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children

should be prevented from touching the upper part of the product.

The product is making a ‘cracking’ noise.



A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as

temperature or humidity. This is normal and not a defect of the unit.

Cell Defects



The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology
to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the

performance of the product.

Avoid operating the TV at temperatures below 5°C(41°F)



A still image displayed too long may cause permanent damage to the PDP Panel.



Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on
the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a
DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are
not covered by the Warranty.

Afterimage on the Screen.



Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Warranty



- Warranty does not cover any damage caused by image retention.

- Burn-in is not covered by the warranty.

Installation



Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low
temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc.
Failure to do so may cause a serious damage to your set.

Digital TV (DVB-T) Notice

1. FUNCTIONALITIES RELATED TO DIGITAL TV (DVB) ARE ONLY AVAILABLE IN COUNTRIES OR AREAS WHERE
2

DVB-T (MPEG

AND MPEG4 AVC) DIGITAL TERRESTRIAL SIGNALS ARE BROADCAST. DVB-T is the European

consortium standard for the broadcast transmission of digital terrestrial television. Please check with your local dealer
about the availability of DVB-T service in your area.

2. Although this TV set meets the current DVB-T standards as of [August, 2008], compatibility with future DVB-T digital

terrestrial broadcast cannot be guaranteed.

3. Some Digital TV functions may not be available or operate correctly in some countries or regions.

4. For more information, please contact your local SAMSUNG customer care centre.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG

customer care centre. (See back cover for more informations.)

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Contents

English

Connecting and Preparing Your TV

User Instructions .................................................................2

■

Checking Parts ....................................................................4

■

Using the Stand-Base .........................................................4

■
How to assemble the Stand-Base

■

(depending on the model) ...................................................4

Viewing the Control Panel ...................................................5

■

Viewing the Connection Panel.............................................6

■

Remote Control ...................................................................8

■

Installing Batteries in the Remote Control ...........................9

■

Switching On and Off...........................................................9

■

Placing Your Television in Standby Mode ............................9

■

Viewing the Menus ............................................................10

■

Using the TOOLS Button ...................................................10

■

Using the Wheel button .....................................................10

■

Plug & Play Feature ..........................................................11

■

Channel Control

Storing Channels and channel .........................................11

■

Managing Channels ..........................................................14

■

Picture Control

Changing and Resetting the Picture Settings ....................15

■

Viewing Picture-in-Picture .................................................19

■

Setting up the TV with your PC .........................................19

■

PC Display .........................................................................20

■

Sound Control

Changing the Sound Standard ..........................................21

■

Selecting the Sound Mode ................................................22

■

Function Description

Conguring the Setup Menu ..............................................23

■

Setting the Time ................................................................26

■

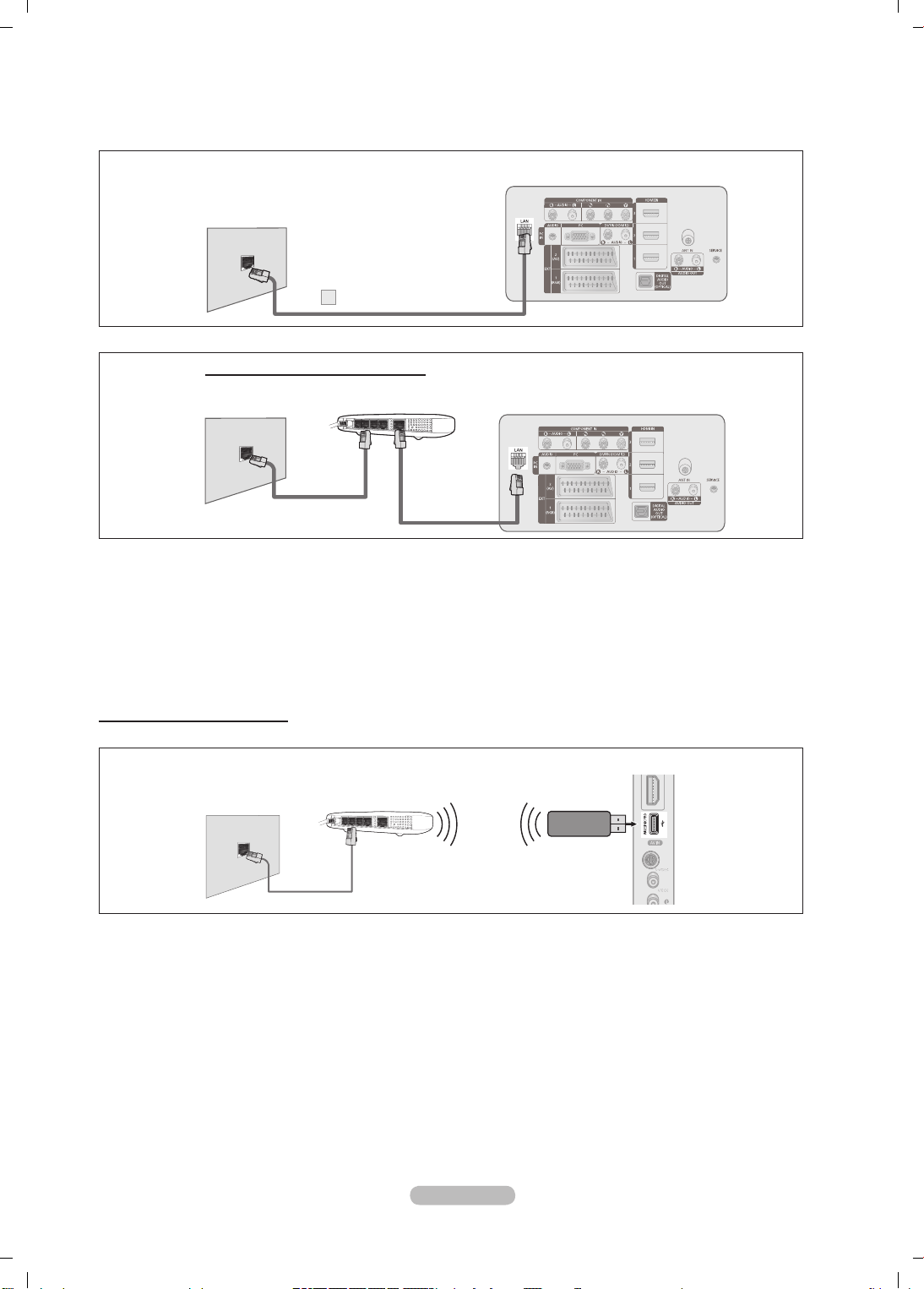

Network Connection ..........................................................27

■

Network Setup ...................................................................29

■

Source List / Edit Name .....................................................31

■

Product Guide ...................................................................31

■

WISELINK Pro-DLNA

Setting the DLNA Network .................................................44

■

Installing the DLNA Application .........................................44

■

Using the DLNA Application ..............................................46

■

Using the DLNA Function ..................................................49

■

Content Library

Activating the Content Library ...........................................50

■

Using the Content Library ..................................................51

■
Using Additional Content Using External USB Memory

■

Storage ..............................................................................52

About Anynet

Connecting Anynet+ Devices ............................................53

■

Setting Up Anynet+............................................................54

■

Scanning and Switching between Anynet+ Devices..........54

■

Recording ..........................................................................55

■

Listening through a Receiver (Home theater) ...................56

■

Troubleshooting for Anynet+ ............................................56

■

+

InfoLive

Using InfoLive ....................................................................57

■

Using the Weather Service ................................................58

■

Using the News Service ....................................................58

■

Using the Stock Service ....................................................59

■

InfoLive Setup ...................................................................60

■

Recommendations for Use

Teletext Feature .................................................................61

■

Wall Mount Kit Specications (VESA) ...............................62

■

Auto Wall-Mount Adjustment (Sold separately) ................63

■

Preparing before installing Wall- Mount on the wall ..........64

■

Securing the TV to the Wall ...............................................64

■

Troubleshooting .................................................................65

■

Specications ....................................................................66

■

Additional Terms of Service ...............................................67

■

WISELINK Pro

Connecting a USB Device .................................................32

■

Using the WISELINK Pro Function ....................................33

■

Using and Sorting Photo List .............................................35

■

Viewing a Photo or Slide Show .........................................36

■

Using and Sorting the Music List .......................................38

■

Playing a Music .................................................................39

■

Using and Sorting the Movie List .......................................40

■

Playing a Movie File ..........................................................41

■

Deleting the Photo/Music/Movie File .................................42

■

Picture/Music Settings Using WISELINK Pro ....................43

■

Using the Setup Menu .......................................................43

■

N O T

Symbol Press Note One-Touch Button TOOLS

English - 3

English - 4

Connecting and Preparing Your TV

Checking Parts

Owner’s Instructions Remote Control/

Cover-Bottom / Screws (2ea)

(PS50A756)

Ferrite Core (Power Cord)

N

The ferrite core is used to shield the cable from interference. When connecting a cable, open the ferrite
core and clip it around the cable near the plug.

AAA Batteries (2ea)

Holder-Ring (4ea)
(Refer to page 64)

Power Cord Cloth-Clean Warranty Card/

Program CD Ferrite Core for Power

Cord (2ea)

Using the Stand-Base

Two or more people should carry the PDP. Never lay the PDP on the floor

N

because of possible damage to the screen. Always keep the PDP upright.

The PDP can rotate 20 degrees in right and left directions.

N

Safety Guide Manual

(Not available in all locations)

-20° ~ 20°

How to assemble the Stand-Base (depending on the model)

Using the 6 screws for securing the stand base and the monitor, firmly
attach the monitor to the stand base.
(The exterior of the set may be different than the picture.)

Warning

Firmly secure the stand to the TV
before moving it, as the stand may
fall and could cause serious injury.

Two or more people should carry the TV.

N

Never lay the TV on the floor because of
possible damage to the screen.

Always store the TV upright.

In case of installing your TV on the wall, close the
cover (1) on the stand-base connection part using two
screws for hiding.

English - 5

Viewing the Control Panel

The product colour and shape may vary depending on the model.

N

Front Panel buttons

Touch each button to
operate.

1

SOURCE

Toggles between all the available input sources

(TV,
HDMI2/DVI,

N

2

MENU

Press to see an on-screen menu of your TV’s features.

– +

3

Press to increase or decrease the volume. In the on-screen

menu, use the –

and ► buttons on the remote control.

4

Press to change channels. In the on-screen menu, use

the
buttons on the remote control. You can use
button to turn on the TV without the remote control.

5

POWER INDICATOR

Blinks

stand-by mode.

6

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

, Ext2, AV, S-Video, Component, PC, HDMI1,

Ext1

HDMI3, HDMI4, USB, DLNA).

In the on-screen menu, use this button as you would
use the ENTER button

C/P.

C/P. buttons as you would use the ▲ and ▼

and turns off when the power is on and lights up in

on the remote control.

+ buttons as you would use the ◄

C/P.

7

SPEAKERS

8 (

POWER)

Touch the silver sensor below the (

on and off.

Silver sensor

) mark to turn the TV

English - 6

Viewing the Connection Panel

Rear Panel

1

0

or

Cable Television

Network

or

2

The product colour and shape may vary depending on the model.

N

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

N

When connecting an external device, match the colour of the connection terminal to the cable.

N

1

POWER IN

Connect the supplied power cord.

2

COMPONENT IN

Audio (AUDIO L/R) and video (Y/P

Component.

3

LAN

Connect a LAN cable to this port to connect to the Network.

4

PC IN(PC) / AUDIO

Connect to the video and audio output jack on your PC.

5

EXT 1, EXT 2

Inputs or outputs for external devices, such as VCR, DVD,

video game device or video disc players.

Input/Output Specification

Connector

EXT 1

EXT 2

6

DIGITAL AUDIO OUT (OPTICAL)

Video

✔ ✔ ✔

✔ ✔

Connect to a Digital Audio Component.

7

AUDIO OUT(AUDIO R/L)

Connect RCA audio signals from the TV to an external

source, such as Audio equipment.

8

SERVICE

Input Output

Audio(L/R) RGB Video + Audio(L/R)

5 7 96

B/PR) inputs for

Only TV or DTV output is

available.

Output you can choose.

9

HDMI IN 1, 2, 3

- No additional Audio connection is needed for an HDMI to
HDMI connection.

- When using an HDMI/DVI cable connection, you must
use the HDMI IN 2 jack.

What is HDMI?

N

- High Definition Multimedia interface allows the
transmission of high definition digital video data and
multiple channels of digital audio.

-

The HDMI/DVI terminal supports DVI connection to

an extended device with the appropriate cable (not
supplied).
that the HDMI device is smaller in size, has the HDCP
(High Bandwidth Digital Copy Protection) coding feature

installed, and supports multi - channel digital audio.

DVI IN(HDMI

DVI audio outputs for external devices.

0

ANT IN

75Ω Coaxial connector for Aerial/Cable Network.

Supported modes for HDMI/DVI and Component

HDMI/DVI 50Hz X X X O O O O
HDMI/DVI 60Hz X O X X O O O

Component O O O O O O O

83 4

The difference between HDMI and DVI is

2) AUDIO L/R

480i 480p 576i 576p 720p 1080i 1080p

Connector for service.

or

English - 7

Side Panel

4

1

2

3

4

The product colour and shape may vary depending on the model.

N

1

COMMON INTERFACE Slot

Insert CI (Common Interface) card into the slot.
(refer to page 25)

−

When not inserting

Signal is displayed on the screen.

− The pairing information containing a telephone number, CI
CARD ID, Host ID, and other information will be displayed
in about 2~3 minutes. If an error message is displayed,

please contact your service provider.

−

When the channel information configuration has finished,

the message Updating Completed is displayed, indicating
that the channel list is now updated.

Insert the CI-Card in the direction marked on it.

N

2

HDMI IN 4

Connect to the HDMI jack of a device with HDMI output.

3

WISELINK PRO

Connect a USB mass storage device to view and play photo

files (JPEG), audio files (MP3) and movie files.
You can connect to SAMSUNG’s network wirelessly.

4

S-VIDEO or VIDEO / AUDIO L/R

Video (S-Video or Video) and audio inputs for external

devices, such as a camcorder or VCR.

in some channels, Scramble

CI CARD

or

5

5

HEADPHONES JACK

You can connect a set of headphones if you wish to

watch a television programme without disturbing the

other people in the room.

Prolonged use of headphones at a high volume may

N

damage your hearing.

English - 8

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV.

The performance of the remote control may be affected by bright light.

N

1

POWER button

(turns the TV on and off)

2

Selects the TV mode directly.

3

Number buttons for direct channel

access

4

One or more digit channel selection

5

Temporary sound switch-off

6

Available source selection

7

Volume increase

Volume decrease

8

Electronic Program Guide (EPG)

display

9

Use to quickly select frequently used

functions.

0

Press the

the wheel button and Enter to select

on-screen menu items and change
menu values. You can navigate
up and down the menu, switch

channels and adjust the volume by
turning the wheel button.

!

Use to see information on the

current broadcast

@

Use these buttons in the Channel

list and WISELINK, etc.

$

Press to select the optional display

and sound modes for sports, cinema
and games.

%

Use these buttons in the Channel

list, WISELINK Pro and Anynet+.

^

ON/OFF

Press to backlight the buttons on the

remote. This function is convenient
for using at night or when the room

is dark. (Using the remote control
with the ON/OFF(
to On will reduce the battery usage
time.)

&

Previous channel

*

Next channel

(

Displays the main on-screen menu

)

This function enables you to view

and play photo (JPEG) , audio
files (MP3) and movie files from an
external device.

a

Returns to the previous menu

▲ / ▼ / ◄ / ►

) light button set

Previous channel

sections of

b

Exit the on-screen menu

c

Press to use the News, Stock

Market and Weather Forecast
information services available over
the network.

d Use this when connecting a

SAMSUNG DMA (Digital Media

Adapter) device through an HDMI

interface and switching to DMA
mode.

(The DMA button is optional.) For

more information on the operating
procedures, refer to the user manual

of the DMA. This button is available

when Anynet+(HDMI-CEC) is On

(see page 54)

e

This function enables you to view

Content Library.

f

Digital subtitle display

Teletext Functions

2

Exit from the teletext display

(depending on the model)

6

Teletext mode selection (LIST/

FLOF)

8

Teletext store

9

Teletext size

!

Teletext reveal

@

Fastext topic selection

#

Teletext display/mix both teletext

information and the normal

broadcast

&

Teletext sub page

*

P :Teletext next page

P

:Teletext previous page

(

Teletext index

a

Teletext hold

b

Teletext cancel

English - 9

Installing Batteries in the Remote Control

1.

Lift the cover at the back of the remote control upward as shown in the gure.

2. Install two AAA size batteries.

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram

N

inside the compartment.

3.

Close the cover

Remove the batteries and store them in a cool, dry place if you won’t be

N

using the remote control for a long time.
Using the remote control with the ON / OFF @ light button set to on will

N

reduce the battery usage time.

If the remote control doesn’t work, check the following:

N

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage or is the power cord unplugged?

5. Is there a special uorescent light or neon sign nearby?

.

Switching On and Off

The mains lead is attached to the rear of your set.

1.

Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

N

Press the POWERP button on your set.

2.
You also can press the POWER

N

The programme that you were watching last is reselected automatically.

N

3. Press the numeric button (0~9) or channel up / down (<

set.

When you switch the set on for the very rst time, you will be asked to choose language in which the menus are to be

N

displayed.

4. T

o switch your set off, press the POWER

P

button or the TV button on the remote control to turn the TV on.

/ >) button on the remote control or >C/P.

P

button again.

P

< button on your

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you
wish to interrupt viewing temporarily (during a meal, for example).

Press the POWER

1.

The screen is turned off and a red standby indicator appears on your set.

N

2.

To switch your set back on, simply press the POWER

button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to

N

unplug the set from the mains and aerial.

P

button on the remote control.

P

, numeric buttons (0~9), TV button or channel up / down (< / >)

English - 10

Viewing the Menus

1. With the power on, press the MENU button. The main menu appears on the

screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input,

Application.

2. Press the ▲ or ▼ button to select one of the icons. Then press the ENTER

E

button to access the icon’s sub-menu.

3. Press the EXIT button to exit.
The on-screen menus disappear from the screen after about one minute.

N

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and
easily. The Tools menu changes depending on which external input mode you are
viewing.

1.

Press the TOOLS button. The Tools menu will appear.

.

Press the ▲ or ▼ button to select a menu, then press the ENTER

2

3. Press the ▲ / ▼ / ◄ / ► / ENTER

E

buttons to display, change, or use the

selected items. For a more detailed description of each function, refer to the

corresponding page.

Anynet+ (HDMI-CEC): see page 53

•

Picture Size: see page 17

•

Picture Mode: see page 15

•

Sound Mode: see page 21

•

Sleep Timer: see page 26

•

SRS TS XT: see page 21

•

Energy Saving: see page 25

•

Dual l ll: see page 22

•

PIP: see page 19

•

Auto Adjustment: see page 19

•

E

button.


Mode

:

Cell Light : 7
Contrast : 95
Brightness : 45
Sharpness : 50
Colour : 50

Tint (G / R) : G50 / R50

Detailed Settings

Tools

Anynet+ (HDMI-CEC)
Picture Size : Auto Wide
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRS TS XT : Off
Energy Saving : Off
Dual l ll : Mono

U

Move E Enter e Exit

Standard

Using the Wheel button

To increase the channel number, turn the wheel clockwise when the Channel



Display is displayed. To decrease the channel number, turn the wheel
counterclockwise.

To turn the volume up, turn the wheel clockwise when the Volume



Control window is displayed. To turn the volume down, turn the wheel

counterclockwise.

To move to a lower menu, turn the wheel clockwise when the menu Display is



displayed. To move to a higher menu, turn the wheel counterclockwise.

English - 11

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

1.

Press the POWER button on the remote control. The message The Menu
Language, Store Demo, Channels and Time will be set. is displayed.

E

.

Press the ENTER

2

automatically displayed. Press the ENTER

button, then Select the OSD Language. menu is

E

button.

The Menu Language, Store Demo, Channels and Time

will be set.

3. Select the appropriate language by pressing the ▲ or ▼ button. Press the

E

ENTER

4. Press the ◄ or ► button to select Store Demo or Home Use, then the ENTER

N
N
N

button to conrm your choice.

E

button.

We recommend setting the TV to Home Use mode for the best picture in your home environment.

Store Demo mode is only intended for use in retail environments.
If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume

button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.
The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is

N

running.

The Screen Saver is activated if there is no operating signal for longer than 15 minutes.

N

5.

Press the

ENTER

E

button. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTERE button to

conrm your choice.

E

6. Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER

N

Digital & Analogue: Digital and Analogue channels.

button to select Start.

Digital: Digital channels.
Analogue: Analogue channels.

The channel search will start and end automatically.

N

Press the ENTER

N
N

After all the available channels are stored, the message Set the Clock Mode. is displayed.

7.

Press the ENTER

If you select Manual, Set current date and time is displayed. (See page 26)

N

If you have received a digital signal, the time will be set automatically. If not, see page 26 to set the clock.

N

8

The message Enjoy your viewing is displayed. When you have nished, press the ENTER

.

E

button at any time to interrupt the memorization process.

E

button. Press the ▲ or ▼ button to select Auto, then Press the ENTERE button.

E

button.

Plug & Play

OK

E Enter

If you want to reset this feature...

Press the

1.
Setup, then press the ENTER

2. Press the ENTER

MENU button to display the menu. Press the ▲ or ▼ button to select

E

button.

E

button again to select Plug & Play.

3. Enter your 4 digit PIN number. The default PIN number of a new TV set is

‘0-0-0-0’.

If you want to change PIN number, refer to 23 page.

N

The Plug & Play feature is only available in the TV mode.

N

Channel Control

Storing Channels and channel

Country

❑

Analogue Channel: You can change the country for analogue channels.



Digital Channel: You can change the country for digital channels.



The PIN number input screen appears. Enter your 4 digit PIN number.

N

Setup

Plug & Play

Language : English

Time

Network Selection
Wireless Network Setup

Cable Network Setup
Child Lock

Change PIN

Channel

Country

Auto Store
Manual Store

Full Guide

Mini Guide

Default

Channel List

Channel Mode :

  ►

: Cable

: On

Guide

 ►

: Mini Guide

Added Ch.

English - 12

Auto Store

❑

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated
programme numbers may not correspond to actual or desired programme numbers.

Digital & Analogue: Digital and Analogue channels.

•

Digital: Digital channels.

•

Analogue: Analogue channels.

•

Scans for all channels with active broadcast stations and stores them in the TV’

N
N

If you want to stop Auto Store, press the ENTER

N

The Stop Auto Store? message will be displayed.

N

Select Yes by pressing the ◄ or ► button, then press the ENTER

N

If a channel is locked using the Child Lock function, the PIN input window appears.

Manual Store

❑

Scans for a channel manually and stores it in the TV’s memory.

N

If a channel is locked using the Child Lock function, the PIN input window appears.

N

Digital Channel



Manual store for digital channels.

Channel: Set the Channel number using the ▲, ▼ or number (0~9

•

Frequency: Set the frequency using the number buttons.

•

Bandwidth: Set the bandwidth using the ▲, ▼ or number (0~9

•

N

When it has nished, channels are updated in the channel list.

Analogue Channel



Manual store for analogue channel.

Programme (Programme number to be assigned to a channel): Sets the programme number using the ▲, ▼ or number

•

(0~9) buttons.

Colour

•

•

•

•

•

System→Auto/PAL/SECAM/NTSC4.43: Sets the colour system value using the ▲ or ▼ button.

Sound System → BG / DK / I / L: Sets the sound system value using the ▲ or ▼ button.
Channel (When you know the number of the channel to be stored): Press the ▲ or ▼ button to select C (Air channel) or S

(Cable channel). Press the ► button, then press the ▲, ▼ or number (0~

N

You can also select the channel number directly by pressing the number (0~9) buttons.

N

If there is abnormal sound or no sound, reselect the sound standard required.

Search

(When you do not know the channel numbers): Press the ▲ or ▼ button to start the search. The tuner scans the

frequency range until the rst channel or the channel that you selected is received on the screen.
Store (When you store the channel and associated programme number): Set to OK by pressing the ENTER

N

Channel mode

-

P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position
numbers from P00 to P99. You can select a channel by entering the position number in this mode.

-

C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in

this mode.

-

S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this

mode.

E

button.

E

) buttons.

) buttons.

s memory

button.

9) buttons to select the required number

.

E

.

button.

Full Guide / Mini Guide

❑

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank
or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new
information becomes available.

For the detailed procedures on using Full Guide and Mini Guide, refer to

N

the descriptions on page 13.
You can also display the guide menu simply by pressing the GUIDE button.

O

(To congure the Default Guide, refer to the descriptions.)

Full Guide:



is displayed which may be scrolled forwards or backwards in time.



Mini Guide:

the current programme onwards according to the programme starting time order.

Displays the programme information as time ordered One hour segments. Two hours of programme information

The information of each programme is displayed by each line on the current channel Mini Guide screen from

English - 13

Default Guide

❑

Mini Guide / Full Guide:



You can decide whether to display either the Mini

Guide or the Full Guide when the GUIDE button on the remote control is

Channel

Fine Tune

Signal Information

LNA : Off

pressed.

Channel List

❑

For the detailed procedures on using the Channel List, refer to the descriptions
on pages 14~15.

❑

Channel Mode

When the press the P >/< button, Channels will be switched within the selected channel list.
Added Ch.: Channels will be switched within the memorized channel list.



Favourite Ch.: Channels will be switched within the favourite channel list.



Fine Tune

❑

If the reception is clear, you do not have to ne tune the channel, as this is done automatically during the search and store
operation. If the signal is weak or distorted, you may have to ne tune the channel manually.

Fine tuned channels that have been saved are marked with an asterisk * on the right-hand side of the channel number in

N

the channel banner.

E

To reset the ne-tuning, select Reset by pressing the ▲ or ▼ button and then press the ENTER

N
N

Only Analogue TV channels can be ne tuned.

Signal Information

❑

button.

You can get information about the signal status.

If the signal status is poor, the Weak or No Signal message is displayed.

N

While viewing a Digital channel, this function can be selected.

N

The technical information for signal status is displayed.

N

- Frequency / Service ID / Multiplex / Network / Bit error level / Signal Strength

►

LNA→Off/On

❑

If the TV is operating in a weak-signal area, the LNA (Low Noise Amplier) function can improve the reception
(a low-noise preamplier boosts the incoming signal).

While viewing an Analogue channel, this function can be selected.

N

Using the Full / Mini Guide

Full Guide

900 f tn
901 ITV Play
902 Kerrang!
903 Kiss
903 oneword
903 Smash Hits!

▼

Watch

DTV Cable 900 f tn 2:10 Tue 1 Jun
Freshmen On Campus
2:00 - 2:30

No Detailed Information

Today 2:00 - 3:00 3:00 - 4:00

Freshmen O..

Street Hypn..

Mint Extra

Loaded

Fresh 40 with Dynamite MC

The Distillery
Smash Hits! Sunday

Information



No Information

No Information
Kisstory
No Information

Mini Guide +24 Hours Exit

Select a programme by pressing the ▲/▼/◄/► button.

▲/▼/◄/►,

(ENTER)

If the next progrmme is selected, it is scheduled with the clock icon displayed. If the ENTER button is
pressed again, press the ▲/▼/◄/► button to select Cancel Schedules, the scheduling is canceled
with the clock icon gone.
For details about scheduling programmes, refer to the section.

RED Toggle between the Mini Guide or Full Guide.

GREEN

YELLOW

Full Guide: Scroll backwards quickly (24 hours).
Mini Guide: Display next page quickly.

Full Guide: Scroll forwards quickly (24 hours).
Mini Guide: Display previous page quickly.

BLUE Exit the guide.

INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level,

INFO

Video Quality Information (HD/SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext
and brief summary of the highlighted programme are included on the detailed information. “…” will be

appeared if the summary is long.

Mini Guide DTV Cable 900 f tn

2:00
2:30

▼

5:00

Watch

Freshmen On Campus

Street Hypnosis

Booze Britain

Information



Full Guide Next Page Exit

English - 14

Managing Channels

Using this menu, you can Add / Delete or set Favourite channels and use the
programme guide for digital broadcasts.

N

Select a channel in the All Channels, Added Channels ,Favourites or
Programmed screen by pressing the ▲ / ▼ buttons, and pressing the

E

ENTER
All Channels:



Added Channels:



Favourites:



Programmed:



button. Then you can watch the selected channel.

Shows all currently available channels.

Shows all added channels.

Shows all favourite channels.

Shows all current reserved programmes.

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch.
Fine Tune

Signal Information

LNA :

f

Of

N

Using the Colour buttons with the Channel List

-

Red (Channel Type): Toggle between your TV, Radio, Data / Other and All.

-

Green (Zoom): Enlarges or shrinks a channel number.

-

Yellow (Select): Selects multiple channel lists.

-

TOOLS (Option): Displays the Delete (or Add), Add to Favourite (or Delete
from Favourite), Lock (or Unlock), Timer Viewing, Edit Channel Name,
Sort, Edit Channel Number, Select All, Deselect All or Auto Store menu.

(The Options menus may differ depending on the situation.)

N

Channel Status Display Icons

An Analogue channel.

A

A channel set as a Favourite.

♥

\

A locked channel.

c

A channel selected by pressing the yellow button.

(

A programme currently being broadcast.

)

A reserved programme

824 UKTV Gold

Added Channels

825 UKTV style

A

1 C --

A

2 C
A 3 ♥ C
A 4 C
A 5 C
A 6 C
A 7 C
A 8 C

All



Channel Type Zoom Select

--

--

--

--

--

--

--

Option

Channel List Option Menu (in All Channels / Added Channels / Favourites)

N

Press the TOOLS button to use the option menu.

N

Option menu items may differ depending on the channel status.

Add / Delete



You can delete or add a channel to display the channels you want.

All deleted channels will be shown on All Channels menu.

N

A gray-coloured channel indicates the channel has been deleted.

N

The Add menu only appears for deleted channels.

N

You can also delete a channel to the Added Channels or Favourite menu

N

in the same manner.

Add to Favourite / Delete from Favourite



You can set channels you watch frequently as favourites.

The ♥ symbol will be displayed and the channel will be set as a favourite.

N

All favourite channels will be shown on Favourite menu.

N

Lock / Unlock



You can lock a channel so that the channel cannot be selected and viewed. This function is available only when the Child
Lock is set to on. (see page 23)

The PIN number input screen appears. Enter your 4 digit PIN number.

N

The default PIN number of a new TV set is 0-0-0-0. You can change the PIN, by selecting Change PIN from the menu.

N

The \ symbol will be displayed and the channel will be locked.

N

Timer Viewing



If you reserve a programme you want to watch, the channel is automatically switched to the reserved channel in the Channel

List; even when you are watching another channel. To reserve a programme , set the current time rst. (See page 26.)

Only memorized channels can be reserved.

N

You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote

N

control.
Reserving a programme will be shown on Programmed menu.

N

Digital Programme Guide and Viewing Reservation

N

When a digital channel is selected, and you press the ► button, the Programme Guide for the channel appears.
reserve a programme according to the procedures described above.

824 UKTV Gold

All Channels

825 UKTV style

A

1 C --

A

2 C
A 3 C
A 4 C
A 5 C
A 6 C
A 7 C
A 8 C

All



Channel Type Zoom Select

--

--

--

--

--

--

--

Delete

Add to Favourite
Lock

Timer Viewing
Edit Channel Name
Sort

▼

Option

You can

English - 15

Edit Channel Name (only analogue channel)



Channels can labeled so that their call letters appear whenever the channel is selected.

The names of digital broadcasting channels are automatically assigned and cannot be labeled.

N

Edit Channel Number (only digital channel)



You can also edit the channel number by pressing the number buttons on the remote control.



Sort

This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after

using the auto store.

The function is only available in Analouge.

N

Select All / Deselect All



Select All: You can select all the channels in the channel list.

•

Deselect All: You can deselect all the selected channels in the channel list.

•

You can perform the add / delete, add to Favourites / delete from Favourites, or lock / unlock function for multiple

N

channels at the same time. Select the required channels and press the yellow button to set all the selected channels at

the same time.
The c mark appears to the left of the selected channels.

N

You can only select Deselect All when there is a selected channel.

N

Auto Store



For further details on setting up options, refer to page 11.

N

If a channel is locked using the Child Lock function, the PIN input window appears.

N

Channel List Option Menu (in Programmed )

You can view, modify or delete a reservation.

N

Press the TOOLS button to use the option menu.

Change Info: Select to change a viewing reservation.



Cancel Schedules: Select to cancel a viewing reservation.



Information: Select to view a viewing reservation. (You can also change



the reservation information.)
Select All: Select all reserved programmes.



Programmed

1 / 1 / 2008

13:59 5 TV1 Quincy, M.E

18:59 2 TV3 The Equalizer
20:59 2 TV3 McMillan & Wife
21:59 2 TV3 M.Spillane’s mike Hammer

All



Channel Type Zoom Select

Change Info

Cancel Schedules
Information
Select All

Option Information

Picture Control

Changing and Resetting the Picture Settings

Mode

❑

You can select the type of picture which best corresponds to your viewing

requirements.

Dynamic: Selects the picture for high-definition in a bright room.



Standard: Selects the picture for the optimum display in a normal



environment.

Movie: Selects the picture for viewing movies in a dark room.



Press the TOOLS button to display Tools menu.

T

You can also set the picture mode by selecting Tools→PictureMode.

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint(G/R)

❑

Your television has several setting options that allow you to control the picture quality.

Cell Light: Adjusts the pixel brightness. 10 is brightest.



Contrast: Adjusts the contrast level of the picture.



Brightness: Adjusts the brightness level of the picture.



Sharpness: Adjusts the edge definition of the picture.



Colour: Adjusts Colour saturation of the picture.




Mode : Standard

Cell Light : 7
Contrast : 95
Brightness : 45
Sharpness : 50
Colour : 50

Tint(G/R) : G50 / R50

Detailed Settings

►

English - 16

Tint(G/R): Adjusts the Colour tint of the picture.



Select a picture mode to be adjusted rst. The adjusted values are saved for each picture mode.

N

When you make changes to Cell Light, Contrast, Brightness, Sharpness, Colour or Tint(G/R), the OSD will be

N

adjusted accordingly.
In Analogue TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function.

N

In PC mode, you can only make changes to Cell Light, Contrast and Brightness.

N

Settings can be adjusted and stored for each external device you have connected to an input of the

N
N

The energy consumed during use can be signicantly reduced if the level of brightness of the picture is reduced, and then

TV

.

this will reduce the overall running cost.

Detailed Settings

❑

Samsung’s new TVs allow you to make even more precise picture settings than
previous models. See below to adjust detailed picture settings.

Detailed Settings is available in Standard or Movie mode.

N

In PC mode, you can only make changes to Dynamic Contrast, Gamma

N

and White Balance from among the Detailed Settings items.

BlackAdjust→Off/Low/Medium/High



Colour : 50

Tint (G / R) : G50 / R50


DetailedSettings  ►

Picture Options

Picture Reset

You can select the black level on the screen to adjust the screen depth.



DynamicContrast→Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.



Gamma

You can adjust the Primary Colour (Red, Green, Blue) Intensity.



Colour Space

Colour Space is a colour matrix composed of red, green and blue colours. Select your favourite Colour Space to experience

the most natural colour.

Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources.

•

Native: Native Colour Space offers deep and rich colour tone.

•

Custom: Adjusts the colour range to suit your preference.

•

Customizing the Colour Space

N

Colour

White Balance



-

-

-

-

→Red/Green/Blue/Yellow/Cyan/Magenta



Adjusts the Colour range to suit your preference. Colour is available when Colour Space is set to Custom.
Red / Green / Blue: In Colour, you can adjust the RGB values for the selected colour.
Reset: Resets the colour space to the default values.

You can adjust the colour temperature for more natural picture colours.

R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: Changing the adjustment value will refresh the adjusted screen.

•

Reset: The previously adjusted white balance will be reset to the factory defaults.

•

Flesh Tone



You can emphasize the pink ‘esh tone’ in the picture.

Changing the adjustment value will refresh the adjusted screen.

N

EdgeEnhancement→Off/On



You can emphasize object boundaries in the picture.



xvYCC→Off/On

Setting the xvYCC mode to on increases detail and colour space when watching movies from an external device (i.e. DVD
player).

xvYCC is available when the picture mode is set to Movie, and the external input is set to HDMI or Component mode.

N

If xvYCC function is active, PIP cannot be selected.

N

Picture Options

❑

In PC mode, you can only make changes to the Colour Tone, Size and

N

Screen Burn Protection from among the items in Picture Options.

Colour Tone→Cool2 / Cool1 / Normal / Warm1 / Warm2



You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected Picture mode.

N

Warm1 or Warm2 is only activated when the picture mode is Movie

N

Tint (G / R) : G50 / R50

Detailed Settings


PictureOptions  ►

Picture Reset

.

English - 17

Size



You can select the picture size which best corresponds to your viewing requirements.

Press the TOOLS button to display Tools menu.

T

You can also set the size by selecting Tools

Auto Wide: Automatically adjusts the picture size to the 1

•

16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

•

Wide Zoom: Magnify the size of the picture more than 4:3.

•

Zoom: Magnies the 16:9 wide picture (in the vertical direction) to t the screen size.

•

4:3: This is the default setting for a video movie or normal broadcasting.

•

Just Scan: Use the function to see the full image without any cutoff when HDMI (720p / 1080i / 1080p)

•

→PictureSize.

6

:9 aspect ratio.

or Component (1080i / 1080p) signals are input.

Depending on the input source, the picture size options may vary.

N

The items available may differ depending on the selected mode.

N

In PC Mode, only 1

N
N

Settings can be adjusted and stored for each external device you have connected to an input of the TV

N

Temporary image retention may occur when viewing a static image on the set for more than two hours.

N

Wide Zoom: Press the ► button to select Position, then press the ENTER
move the screen up / down. Then press the ENTER

N

Zoom: Press the ► button to select Position, then press the ENTER
picture up and down. Then press the ENTER

:9 and 4:3 mode can be adjusted.

6

E

button. Press the ► button to select Size, then press the ENTER

E

button.

.

E

button. Press the ▲ or ▼ button to

E

button. Press the ▲ or ▼ button to move the

E

button. Press the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Then press the

E

ENTER

N

After selecting Just Scan in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode: Select Position by pressing

button.

the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture.

E

N

Reset: Press the ◄ or ► button to select Reset, then press the ENTER

N

If you use the Just Scan function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the

button. You can initialize the setting.

overscan function.

N

When Double (

Screen Mode→16:9 / Wide Zoom / Zoom / 4:3



, ) mode has been set in PIP, the Picture Size cannot be set.

When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3
WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function

is intended for users to select it.

16:9: Sets the picture to 16:9 wide mode.

•

Wide Zoom: Magnify the size of the picture more than 4:3.

•

Zoom: Magnify the size of the picture vertically on screen.

•

4:3: Sets the picture to 4:3 normal mode.

•

This function is available in Auto Wide mode.

N

This function is not available in PC, Component or HDMI mode.

N

Digital NR→Off / Low / Medium / High / Auto



If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any

static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

N

DNIe→Off / Demo / On



This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with
the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for
demonstration purposes. Using this function, you can view the difference in the visual quality.

DNIe™ (Digital Natural Image engine)

N

DNIe™

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white
enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will
t every signal into your eyes.

N

This function is not available in Movie and Standard mode.

HDMI Black Level→Normal / Low



You can directly select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI (RGB signals).

N

English - 18

Real100HzDemo→Off/On



You can get a clear distinction between Real 100Hz and 50Hz, especially when watching fast moving scenes. Therefore, when
seeing slow moving scenes, you will not be able to distinguish between Real 100Hz and 50Hz. Demo 100Hz works only with
50Hz signal. Real 100Hz demo mode is provided for shop demonstration with special pictures.

Movie Plus→Off / Low / Medium / High / Demo



You can view more natural skin and clear text even in fast moving scenes.

Use this function when watching movies.

N

This function is not available in Wide Zoom and Zoom modes.

N

This function is not available when PIP is set to On.

N

It is not supported in HDMI 1080p/24Hz, 25Hz, 30Hz mode.

N

Blue Only Mode→Off / On



This function is for AV device measurement experts. This function displays the blue signal only by removing the red and
green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video
equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred
values appropriate to the signal level of each video device using the Red / Green / Blue / Cyan / Magenta / Yellow Colour Bar
Patterns, without using an additional Blue Filter.

Blue Only Mode is available when the picture mode is set to Movie or Standard.

N

Screen Burn Protection



To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables
you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program
the time between movement of the picture in minutes.

Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after

•
image on the screen.

Set Pixel Shift to On by pressing the ▲ or ▼ button, then press the ENTER button.

N

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

N

Available options: Horizontal Dot, Vertical Line, Time.

N

Optimum condition for pixel shift;

N

PC TV/Ext/AV/Component/HDMI

Horizontal Dot 4 4

Vertical Line 4 4

Time (minute) 4 2 min

N

The Pixel Shift value may differ depending on the monitor size (inches) and mode.

N

This function is not available in the Just Scan mode.

•

All White: This function helps remove after images on the screen by changing the colour of pixels to white. Use this
function when there are remaining after images or symbols on the screen especially when you displayed a still image on the

screen for a long time.

•

Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a
pattern Use this function when there are remaining after images or symbols on the screen especially when you displayed a

still image on the screen for a long time.

•

Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the
white balance on both extreme left and right sides.

-

Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.

-

Light: When you set the screen ratio to 4:3, it brightens the left and right sides.

PictureReset→ResetPictureMode/Cancel

❑

Resets all picture settings to the default values.

Select a picture mode to be reset. The reset is performed for each picture mode.

N

English - 19

Viewing Picture-in-Picture

You can display a sub picture within the main picture of set programme or video

input. In this way, you can watch the picture of set programme or video input from
any connected equipment while watching the main picture.

You may notice that the picture in the PIP window becomes slightly unnatural

N

when you use the main screen to view a game or karaoke.
Press the TOOLS button to display Tools menu.

T

You can also congure PIP related settings by selecting T

PIP→Off / On

❑

You can activate or deactivate the PIP function.

Main picture Sub picture

Component
HDMI 1, HDMI2/DVI, HDMI 3,

HDMI 4

TV, Ext.1, Ext.2, AV

PC



Source

You can select a source of the sub-picture.



Size → / /
You can select a size of the sub-picture.

If main picture is in HDMI mode, Size is available.

N

Position → / / /



You can select a position of the sub-picture.

In Double (

N

Channel



, ) mode, Position cannot be selected.

You can select a channel of the sub-picture only when the Source is set to TV.

Press the TOOLS button to display Tools menu.

T

You can also set the picture mode by selecting Tools

→PIP.

ools

→PIP

Entertainment : Off
Energy Saving : Off

Setup

PIP  ►

Software Upgrade
Common Interface

PIP

PIP : On
Source : TV
Size :
Position :
Channel : ATV 11

L

Move E Enter R Return

Setting up the TV with your PC

Preset: Press the SOURCE button to select PC mode.

N

Auto Adjustment

❑

Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC
video signal. The values of ne, coarse and position are adjusted automatically.

This function does not work in DVI-HDMI mode.

N

Press the TOOLS button to display Tools menu.

T

You can also set the Auto Adjustment by selecting Tools

→Auto

Adjustment.

Screen

❑

Coarse / Fine:



The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed
by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been
reduced, readjust the picture so that it is aligned on the center of screen.



PC Position:

Adjust the PC’s screen positioning if it does not t the TV screen.

Press the ▲ or ▼ button to adjusting the

Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position.



Image Reset:

You can replace all image settings with the factory default values.


Brightness : 45

Sharpness : 50

Auto Adjustment

Screen
Detailed Settings

Picture Options

Picture Reset

►

English - 20

PC Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual
screens on your PC will probably be different, depending upon your particular
version of Windows and your particular video card. However, even if your actual
screens look different, the same basic set-up information will apply in almost all
cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on ‘Control Panel’ on the Windows start menu.

2.

When the control panel window appears, click on ‘Appearance and Themes’

and a display dialog-box will appear

3. When the control panel window appears, click on ‘Display’ and a display dialog-

box will appear.

4. Navigate to the ‘Settings’

The correct size setting (resolution)
Optimum: 1920 X 1080 pixels
If a vertical-frequency option exists on your display settings dialog box, the

correct value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.

tab on the display dialog-box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended.

D-Sub Input



Mode Resolution

IBM

VESA

1280 x 1024
1280 x 1024

CVT 1920 x 1080RB 66.587 59.934 138.500 + / -

1600 x 1200

.

640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600

800 x 600
1024 x 768
1024 x 768
1024 x 768

1360 x 768

Horizontal

Frequency (kHz)

31.469

31.469

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

63.981

79.976

47.712

75.000

Vertical Frequency

(Hz)

70.086

70.087

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

60.020

75.025

60.015

60.000

Frequency (MHz)

Pixel Clock

25.175

28.322

25.175

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

85.500

162.000

Sync Polarity

(H / V)

+ / -

- / +

- / -

- / -

- / ­+ / +
+ / +
+ / +

- / -

- / ­+ / +
+ / +
+ / +
+ / +
+ / +



HDMI / DVI Input

Mode Resolution

640 x 480
800 x 600

VESA

CEA 1920 x 1080p 67.500 60.000 148.500 + / +

When using an HDMI / DVI cable connection, you must use the HDMI IN

N

The interlace mode is not supported.

N

The set might operate abnormally if a non-standard video format is selected.

N

Separate and Composite modes are supported. SOG is not supported.

N

Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080).

N

1024 x 768

1280 x 1024

1360 x 768

1600 x 1200

Horizontal

Frequency (kHz)

31.469

37.879

48.363

63.981

47.712

75.000

Vertical Frequency

(Hz)

59.940

60.317

60.004

60.020

60.015

60.000

jack.

2

Pixel Clock

Frequency (MHz)

25.175

40.000

65.000

108.000

85.500

162.000

Sync Polarity

(H / V)

- / ­+ / +

- / ­+ / +
+ / +
+ / +

English - 21

Sound Control

Changing the Sound Standard

Mode→Standard/Music/Movie/Speech/Custom

❑

You can select the type of special sound effect to be used when watching a
given broadcast.

Press the TOOLS button to display Tools menu.

T

You can also congure the sound mode by selecting Tools

→Sound

Mode.

Equalizer

❑

The sound settings can be adjusted to suit your personal preferences.
Mode: You can select a sound mode to suit your personal preferences.



Balance: Controls the balance between the right and left speakers.



100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): To adjust the level of different bandwidth frequencies



Reset: Resets the equalizer settings to the default values.



SRSTruSurroundXT→Off/On

❑

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers.
TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including
internal television speakers. It is fully compatible with all multichannel formats.

Press the TOOLS button to display Tools menu.

T

You can also set the SRS TruSurround XT by selecting Tools

→SRSTSXT.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT
technology is incorporated under license from SRS Labs, Inc.

Sound

Mode : Custom

Equalizer
SRS TruSurround XT : Off

Audio Language : ---­Audio Format : ----

Audio Description

Auto V

olume : Off

Select Speaker : TV Speaker

 ►

Audio Language

❑

You can change the default value for audio languages. Displays the language information for the incoming stream.

While viewing a digital channel, this function can be selected.

N

You can only select the language among the actual languages being broadcast.

N

AudioFormat→MPEG/DolbyDigital

❑

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding
speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

While viewing a digital channel, this function can be selected.

N

You can only select the language among the actual languages being broadcast.

N

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Audio Description

❑

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles
the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can
turn the Audio Description On or Off and control the volume.

AudioDescription→Off/On: Turn the audio description function on or off.



Volume: You can adjust the audio description volume.



Volume is active when Audio Description is set to On.

N

While viewing a Digital channel, this function can be selected.

N

English - 22

Auto Volume→Off/On

❑

Each broadcasting station has its own signal conditions, and so it is not easy
to adjust the volume every time the channel is changed. This feature lets you
automatically adjust the volume of the desired channel by lowering the sound
output when the modulation signal is high or by raising the sound output when

the modulation signal is low.

❑

SelectSpeaker→ExternalSpeaker/TVSpeaker

If you want to hear the sound through separate speakers, cancel the internal
amplier.

The –

N

If you select External Speaker in the Select Speaker menu, the sound settings will be limited.

N

+, MUTE buttons do not operate when the TV Speaker is set to Off.

TV's Internal Speakers Audio Out (Optical, L / R Out) to Sound System

TV / Ext. / AV / S-Video / Component / PC / HDMI TV / Ext. / AV / S-Video / Component / PC / HDMI

TV Speaker Speaker Output Sound Output

External Speaker Mute Sound Output

Video No Signal Mute Mute

Sound Select

❑

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.
Main: Used to listen to the sound of the main picture.



Sub: Used to listen to the sound of the sub picture.



Press the TOOLS button to display Tools menu.

T

You can also set the sound of the sub picture by selecting Tools→PIP→SoundSelect.

Sound Reset

❑

Reset All / Reset Sound Mode / Cancel:



You can restore the Sound settings to the factory defaults.

Select Speaker : TV Speaker

Sound Select : Main

Sound

SoundReset  ►

Selecting the Sound Mode

You can set the sound mode in the Tools menu. When you set to Dual l ll, the
current sound mode is displayed on the screen.

Type of broadcast

Regular broadcast

(Standard audio)

Regular + NICAM Mono

NICAM
Stereo

A2

Stereo

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

N

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

N

This function is only available in TV mode.

N

NICAM-Stereo

NICAM Dual-I/II

Regular broadcast

(Standard audio)

Bilingual or DUAL-I/II

Stereo Stereo

On-screen indication

Mono (Normal use)

NICAM

NICAM
Stereo

NICAM
Dual-1

Mono (Normal use)

Dual I Dual II

NICAM

Dual-2

(Forced mono)

Mono

(Normal)

Mono

(Normal)

Mono

(Normal)

Mono

Tools

Anynet+ (HDMI-CEC)
Picture Size : Auto Wide
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRS TS XT : Off
Energy Saving : Off
Dual l ll ◄ Mono ►

U

Move L Adjust e Exit

English - 23

Function Description

ConguringtheSetupMenu

❑

Language

You can set the menu language.

❑

ChildLock→Off/On

This feature allows you to prevent unauthorized users, such as children, from
watching unsuitable programmes by muting out video and audio.

Before the setup screen appears, the PIN number input screen appears.

N

Enter your 4 digit PIN number.
The default PIN number of a new TV set is 0-0-0-0. You can change the

N

PIN by selecting Change PIN from the menu.
You can lock some channels in Channel List. (refer to page 14)

N

Child Lock is available only in TV mode. .

N

❑

Change PIN

You can change your personal ID number that is required to set up the TV.

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number.

N

The default PIN number of a new

N
N

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:
POWER (Off), MUTE, 8, 2, 4, POWER (On).

❑

ParentalLock→ParentalRating

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit
PIN (Personal Identication Number) code that is dened by the user.

In the Parental Rating screen, congure the parental ratings.

-

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number

N

The default PIN number of a new

N

When the parental ratings are set, the

N

Allow All: Press to unlock all TV ratings.

N

Block All: Press to lock all TV ratings.

TV set is 0-0-0-0.

TV set is 0-0-0-0. You can change the PIN by selecting Change PIN from the menu.

\

symbol is displayed.

Plug & Play

Setup

Language : English ►

Time

Network Selection : Cable
Wireless Network Setup

Cable Network Setup
Child Lock

: On

Change PIN

Parental Lock

.

❑

Subtitle

You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. Normal under the menu is the basic
subtitle and Hard of hearing is the subtitle for a hearing-impaired person.



Subtitle→Off/On: Switches subtitles off or on.
Mode→Normal/Hardofhearing: Sets the subtitle mode.



Subtitle Language: Set the subtitle language.



N

If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even
though Hard of hearing mode is selected.

N

English is the default in cases where the selected language is unavailable in the
broadcast.

O

You can select these options simply by pressing the SUBT. button on the

remote control.

❑

Teletext Language

You can set the Teletext language by selecting the language type.

English is the default in cases where the selected language is unavailable in the broadcast.

N

English - 24

Preference

❑

Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language /



Primary Teletext Language / Secondary Teletext Language

Using this feature, users can select one of the languages. The language selected here is the default when the user selects a
channel.

If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language

menu are automatically changed to the selected language.

The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages
supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is
only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary
Audio Language, or the Primary Teletext Language of the Preference menu.

DigitalText→Disable/Enable

❑

If the programme is broadcast with digital text, this feature is enabled.

MHEG (Multimedia and Hypermedia Information Coding Experts

N

Group)

An International standard for data encoding systems used in multimedia
and hypermedia. This is at a higher level than the MPEG system which

includes data-linking hypermedia such as still images, character service,
animation, graphic and video les as well as multimedia data. MHEG is
user runtime interaction technology and is being applied to various elds
including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic
Commerce), tele-education, tele-conferencing, digital libraries and network

Teletext Language : ----

Preference

Setup

DigitalText :Enable ►

Light Effect : Watching TV

Wall-Mount Adjustment

Melody :
Entertainment : Off
Energy Saving : Off

PIP

Software Upgrade

Off

games.

LightEffect→Off/InStandby/WatchingTV/Always

❑

You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles

your eyes.

Off: The blue LED is always off.



In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on.



Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off.



Always: The blue LED always lights.



Set the Light Effect to Off to reduce the power consumption.

N

Melody

❑

Off / Low / Medium / High



The TV power on / off melody sound can be adjusted.

The Melody does not play

N

When no sound is output from the TV because the MUTE button has been pressed.

­When no sound is output from the TV because the –

-

-

When the TV is turned off by Sleep Timer function.

Entertainment

❑

(Volume) button has been pressed.

The Entertainment mode enables you to select the optimal display and sound for sports, cinema and games.
Off: Switches the Entertainment function off.



Sports: Provides the optimal picture and sound quality for sports.



Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and



enhanced sound.

Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when



using an external game console connected to the TV.
If you set any of the three Entertainment modes to On, the settings will be locked and can not be adjusted. In addition,

N

Picture and Sound mode settings are not allowed. If you want to make Picture and Sound mode adjustments, the
Entertainment mode must be turned off.

The Entertainment settings are saved for each input source.

N

Entertainment mode is not activated in PC mode.

N

You can press the E.MODE button on the remote control repeatedly to change

O

the Entertainment setting.

English - 25

Energy Saving



4

❑

This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the

Energy Saving mode option to High to reduce eye fatigue as well as power consumption.
Off: Turns off the energy saving function.



Low: Sets the TV to low energy saving mode.



Medium: Sets the TV to medium energy saving mode.



High: Sets the TV to high energy saving mode.



Press the TOOLS button to display Tools menu.

T

You can also set the Energy Saving option by selecting Tools→EnergySaving.

Software Upgrade

❑

To keep your product up-to-date with new Digital Television features then

TV Side Panel

software upgrades are periodically broadcast as part of the normal Television

signal. It will automatically detect these signals and display the software

upgrade banner. You are given the option to install the upgrade.

By USB



USB Drive

Insert a USB drive containing the rmware upgrade into TV. Please be careful
to not disconnect the power or remove the USB drive while upgrades are being

applied. The TV will turn off and turn on automatically after completing the

rmware upgrade. Please check the rmware version after the upgrades are complete. When software is upgraded, video and
audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that

you can easily reset them after the upgrade.

By Channel



Upgrades the software using the broadcasting signal.



Standby Mode Upgrade

To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering
standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen
may be on slightly for the product. This phenomenon may continue for more than 1 hour until the software upgrade is

completed.



Alternative Software

To display the software version information.

Common Interface

❑

Installing the CI Card



a. Purchase the CI CAM module by visiting your nearest dealer or by phone.
b. Insert the CI CARD into the CAM in the direction of the arrow until it ts.

c. Insert the CAM with the CI CARD installed into the common interface slot.

Insert the CAM in the direction of the arrow, right up to the end so that it is

N

parallel with the slot.

d. Check if you can see a picture on a scrambled signal channel.

CI Menu



This enables the user to select from the CAM-provided menu.
Select the CI Menu based on the menu PC Card.



Application Info.

This contains information on CAM inserted in the CI slot and displays it.

The Application Info inserting is about the CI CARD. You can install the CAM
anytime whether the TV is ON or OFF.

1. Purchase the CI CAM module by visiting your nearest dealer or by phone.

2.

Insert the CI CARD into the CAM in the direction of the arrow until it ts.

3. Insert the CAM with the CI CARD installed into the common interface slot. (Insert the CAM in the direction of the arrow

, right

up to the end so that it is parallel with the slot.)

4. Check if you can see a picture on a scrambled signal channel.

English - 26

Setting the Time

Clock

❑

Setting the clock is necessary in order to use the various timer features of the

TV.

The current time will appear every time you press the INFO button.

N

If you disconnect the power cord, you have to set the clock again.

N

Clock Mode



You can set up the current time manually or automatically.

Auto: Set the current time automatically using the time from the digital

•

broadcast.
Manual: Set the current time to a manually specied time.

•

Clock Set



You can set the current time manually.

Set up this item when you have set Clock Mode to Manual.

N

You can set the day, month, year, hour, minute directly by pressing the

N

number buttons on the remote control.

SleepTimer→Off/30min/60min/90min/120min/150min

❑

/ 180 min

The sleep timer automatically shuts off the TV after a preset time (30, 60, 90,
120, 150 and 180 minutes).

The TV automatically switches to standby mode when the timer reaches 0.

N

To cancel the Sleep Timer function, select Off.

N

Press the TOOLS button to display Tools menu.

T

You can also set the sleep timer by selecting T

→SleepTimer.

ools

Plug & Play

Language : English

Setup

Time  ►

Network Selection : Cable
Wireless Network Setup

Cable Network Setup
Child

: On

Lock

Change PIN

Parental Lock
Subtitle

Time

Clock : -- : -- ►
Sleep T

imer : Off

Timer 1 : Inactivated
Timer 2 : Inactivated
Timer 3 : Inactivated

U

Move E Enter R Return

Timer 1 / Timer 2 / Timer 3

❑

Three different on / off timer settings can be made.

On Time:



Set the hour, minute, and Activate / Inactivate.

(To activate timer with the setting you’ve chosen, set to Activate.)



Off Time:

Set the hour, minute, and Activate / Inactivate.

(To activate timer with the setting you’ve chosen, set to Activate.)



Volume:



Contents:

Set the required volume level.

When the On Timer is active, you can turn on a specic channel or play back contents such as photo or audio

les.

TV / USB: Select TV or USB. (Make sure that an USB device is connected to your TV.)

•

Antenna: Select ATV or DTV.

•

Channel: Select the desired channel.

•

Music: Select the folder containing MP3 les on the USB device.

•

Photo: Select the folder containing JPEG les on the USB device.

•

Repeat:



Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun, or Manual.

When Manual is selected, press the ► button to select the desired day of the week. Press the ENTER

N

E

desired day and the c mark will appear.
You must set the clock rst.

N

You can set the hour, minute and channel by pressing the number buttons on the remote control.

N

Auto Power Off

N

When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was
turned on by the timer

. This function is only available in timer On mode and prevents overheating, which may occur if a TV is

on for too long time.

button over the

English - 27

Network Connection

Network Connection - Cable

Cable Connection for a DHCP Environment



The procedures to set up the network using Dynamic Host Conguration Protocol (DHCP) are described below. Since an IP
address, subnet mask, gateway, and DNS are automatically allocated when DHCP is selected, you do not have to enter them

manually.

TV Rear Panel

The Modem Port

on the Wall

1. Connect the [LAN] port on the rear panel of the TV and the external modem with a LAN Cable.

2. Connect the LAN port on the wall and the external modem with a Modem Cable.

You can connect the LAN via a Sharer (Router).

External Modem

(ADSL/VDSL/Cable TV)

Modem Cable

2

IP Sharer

LAN Cable

1

The Modem Port

on the Wall

You can connect the LAN port and the TV directly depending on your network status.

The LAN Port

on the Wall

The terminals (the position of the port and the type) of the external device may differ depending on the manufacturer.

N

If the IP address allocation by the DHCP server has failed, turn the external modem off, turn it on again after at least 10

N

External Modem

(ADSL/VDSL/

Cable TV)

Modem Cable

LAN Cable

LAN Cable

LAN Cable

TV Rear Panel

TV Rear Panel

seconds and then try again.

For the connections between the external modem and the Sharer (Router), refer to the owner’

N

s manual of the corresponding

product.

N

You can connect the TV to the LAN directly without connecting it through a Sharer (Router).

N

You cannot use a manual-connection-type ADSL modem becaus;e it does not support DHCP. You have to use an automatic-

connection-type ADSL modem.

English - 28

LAN Connection for Static IP Environment



The procedures to set up the network using a static IP address are described below. You have to manually enter the IP
address, subnet mask, gateway, and DNS that are provided by your Internet Service Provider (ISP).

TV Rear Panel

The LAN Port

on the Wall

LAN Cable

1

1. Connect the [LAN] port on the rear panel of the TV and the LAN port on the wall using the LAN cable.

You can connect the LAN via a Sharer (Router).

The LAN Port

on the Wall

LAN Cable

The terminals (the position of the port and the type) of the external device may differ depending on the manufacturer.

N

If you are using a static IP address, your ISP will inform you of the IP address, subnet mask, gateway, and DNS. You must

N

IP Sharer

LAN Cable

TV Rear Panel

enter these values to complete the network settings. If you do not know the values, ask your network administrator.
For the information on how to congure and connect a Sharer (Router), refer to the owner’

N

s manual for the corresponding

product.

N

You can connect the TV to the LAN directly without connecting it through a Sharer (Router).

N

If you use an IP Sharer (IP Router) that supports DHCP, you can set up the device as either DHCP or static IP.

N

For the procedures to use a static IP address, ask your Internet Service Provider.

Network Connection - Wireless

You can connect to the network wirelessly through a wireless IP sharer.

TV Side Panel

The LAN Port

on the Wall

Wireless IP sharer

LAN Cable

1. Connect the ‘Samsung Wireless LAN Adapter for InfoLive’ into the Wiselink terminal of the TV.

N

You must use the ‘Samsung Wireless LAN Adapter for InfoLive’(WIS-08BG) to use a wireless network.

N

The ‘Samsung Wireless LAN Adapter for InfoLive’ is sold separately. Contact a Samsung Electronics agent or service center

for purchasing.

N

To use a wireless network, your TV must be connected to a wireless IP sharer.

N

If the wireless IP sharer supports DHCP, you TV can use a DHCP or static IP address to connect to the wireless network.

N

You must use a wireless IP sharer that supports IEEE 802.11 B or IEEE 802.11G.

N

If the wireless IP sharer allows you to turn on / off the Ping connection function, turn it on.

N

Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.

N

Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is
currently being used by another device nearby, this will result in interference and communications may fail.

N

When applying the security key for the AP (wireless IP sharer), only the following is supported.

1) Authentication Mode : WEP, WPAPSK, WPA2PSK

2) Encryption Type : WEP, TKIP, AES
If you apply a security system other than the systems listed above, it will not work with the

Samsung Wireless LAN

Adapter for InfoLive

TV

.

English - 29

Network Setup

Network Selection

❑

Select Cable or Wireless as the method to connect to the network.

The menu is activated only if the ‘Samsung Wireless LAN Adapter’ for

N

InfoLive’ is connected.

Cable:





❑





❑







Connect to network using a cable.

Wireless:

Connect to network wirelessly.

Cable Network Setup

InternetProtocolSetup→AutoSetup/ManualSetup

Network Test:

When unable to connect to a wired network

N

You can test or conrm the network connection status after setting up the network.

If your Internet service provider has registered the MAC address of the device used to connect to the Internet for the rst
time and authenticates the MAC address each time you connect to the Internet, your
the Internet as the MAC address dif

fers from that of the device (PC) used to connect to the Internet the rst time. In this
case, ask your Internet service provider about the procedures to connect devices other than your PC (such as your TV) to
the Internet. If your Internet service provider requires an ID or password to connect to the Internet (network), your TV may
not be able to connect to the Internet. In this case, you have to enter your ID or password when connecting to the Internet
using an Internet Sharer (Router).

The internet connection may fail due to a rewall problem. In this case, contact your Internet service provider. If you

cannot connect to the Internet even if you have followed the procedures of your I
Samsung Electronics Service Center.

Wireless Network Setup

InternetProtocolSetup→AutoSetup/ManualSetup

Network Test: You can test or confirm the network connection status after setting up the network.

When unable to connect to a wireless network

N

Your TV may fail to locate an AP that is congured as a private SSID type. In this case, please change the AP settings and

try again. If your Internet service provider has registered the MAC address of the device used to connect to the Internet

for the rst time and authenticates the MAC address each time you connect to the Internet, your TV may not be able to
connect to the Internet as the MAC address dif
time. In this case, ask your Internet service provider about the procedures to connect devices other than your PC (such
as your TV) to the Internet. If you cannot connect to the Internet even if you have followed the procedures of your Internet

service provider, please contact a Samsung Electronics Service Center.

Select Access Point:

If a wireless Access Point is not in the Access Point list, press the Red button.

N

When the connection is made, you will be returned to the screen automatically.

N

If you selected an Access Point that requires security authentication, enter the security key.

N

If you have selected an Access Point with a security authentication:

N

The Security Key input screen appears.

-

Enter the security key and press the ENTERE button.

-

Using the Remote Control Buttons on the Security Key Input Screen.

-

Setup Screen can be different depending on the security types.

N

You can select the IP sharer to use when using a wireless network.

fers from that of the device (PC) used to connect to the Internet the rst

Language : English

Time

Setup

NetworkSelection :Cable ►

Wireless Network Setup

Cable Network Setup
Child Lock

: On

Change PIN

Parental Lock
Subtitle

Teletext

Language : - - - -

TV may not be able to connect to

nternet service provider, please contact a

Button Operations

▲/▼/◄/►,

(Wheel)

(ENTER)

Red button

Green button

Blue button

Moves the selection up/down/left/right.

Enters (Inputs) the selected character.

Switch between Upper- and Lower-Case Letters

You can delete an already entered character.

Press this button to nish entering the security key.

Cable Network Setup-Auto Setup

If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP) Settings are automatically congured. Please check
if the LAN cable is connected. (See page 27)

Set Network Selection to Cable.

1.
2

Select Cable Network Setup.

.

3. Set

Internet Protocol Setup to Auto Setup.

4. Select

Network Test to check the network connectivity.

Cable Network Setup-Manual Setup

To connect the TV to the LAN using a static IP address, you must set up the Internet Protocol (IP). Please check if the LAN cable is
connected. (See page 27)

1. Set Network Selection to Cable.

2.

Select Cable Network Setup.

3. Set

Internet Protocol Setup to Manual Setup.

4. Set up

Select Network Test to check the network connectivity.

5.

IP Address, Subnet Mask, Gateway and DNS Server.

Press the number buttons on the remote control when you set the Network manually

N

.

Wireless Network Setup-Auto Setup

The menu is activated only if the ‘Samsung Wireless LAN Adapter for InfoLive’ is connected. (See page 28)
If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP) Settings are automatically congured. The wireless
IP sharer to be connected to this product must support DHCP.

Set

Network Selection to Wireless.

1.
2

Select Wireless Network Setup.

.

3. Set

Internet Protocol Setup to Auto Setup.

4. Select an

5. Select

AP through Select Access Point.

Network Test to check the network connectivity.

Wireless Network Setup-Manual Setup

The menu is activated only if the ‘Samsung Wireless LAN Adapter for InfoLive’ is connected. (See page 28)

1. Set Network Selection to Wireless.

2.

Select Wireless Network Setup.

3. Set

Internet Protocol Setup to Manual Setup.

4. Select an

5. Select

AP through Select Access Point.

Network Test to check the network connectivity.

English - 30
