PS51D8000F / PS64D8000F

Плазменный телевизор

руководство пользователя

удивительные возможности

Благодарим за приобретение продукта компании. Для получения более полного обслуживания зарегистрируйте свое устройство по адресу

www.samsung.com/register

Модель____ Серийный номер. _____________

BN68-03451J-00

For more information on how to use e-Manual (p. 14)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this speciﬁcation. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

✎

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconﬁguring TV setting or not.

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

• The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

• Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen. Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

English - 2

Accessories

✎

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

✎

Check that there is no accessory hidden behind packing materials when you open the box.

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

[

• Remote Control & Batteries (AAA x 2)

• Owner’s Instructions

CI Card Adapter Scart Adapter (2 EA) AV/Component Adapter

Ferrite Core (2EA) Ferrite Core (1EA)

✎

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

A Maximum distance between the ferrite core and the end of the cord inserted in

the TV: 6~8 inches

B Maximum distance between the ferrite core and the other end of the cord

inserted in the AC outlet: 3/4 inch

✎

Ferrite Core : The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

• Cleaning Cloth

• Warranty Card (Not available in some locations) / Safety Guide

Power Cord

Antenna Cable/

Component Cable

(sold separately)

• An administration fee may be charged if either – (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual)

– (b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

English - 3

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Control Panel

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s

(Power)

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

features.

Adjusts the volume. In the OSD, use the the ◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the would use the ▼ and ▲ buttons on the remote control.

Turns the TV on or off.

buttons as you would use

buttons as you

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of

the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury

due to the product falling.

✎

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm10 cm

10 cm

English - 4

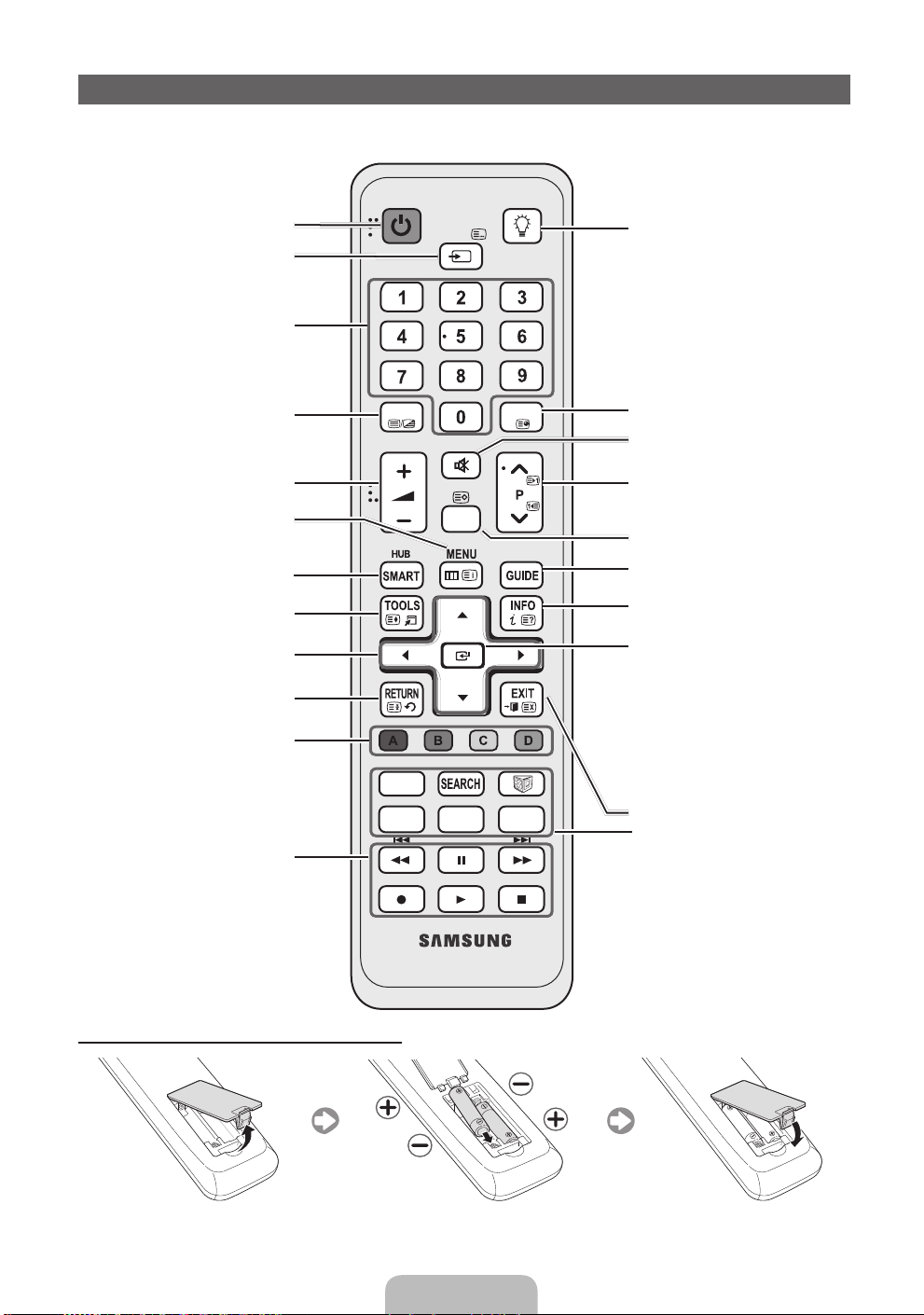

Viewing the Remote Control

✎

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and Volume buttons.

Turns the TV on and off.

Displays and selects the available video

sources.

Have direct access to channels.

Alternately select Teletext ON, Double,

Mix or OFF.

Adjusts the volume.

Opens the OSD.

Link to various application services.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the values seen on the menu.

Returns to the previous menu.

These buttons are for the Channel

Manager, SMART HUB menu, etc.

Use these buttons in a speciﬁc feature.

For details, refer to e-Manual.

POWER

SOURCE

TTX/MIX

CH LIST

SOCIAL

E-MANUAL

P.SIZE

MUTE

ON/OFF

PRE-CH

AD/SUBT.

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to On will reduce the battery usage time.)

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme Guide).

Displays information on the TV screen.

OFN (Optical Finger Navigation) Sensor can be used as a pointer only in Web Browser application. If you don’t press any buttons within 30 seconds, the sensor will turn off automatically. To wake up the sensor, press ENTER, Navigation, Colour, REW,

FF, Return buttons.

While you use this sensor, the backlight will not be operated.

Exits the menu.

SOCIAL TV: Displays the Social TV

screen.

SEARCH: Support to recommendation

search word and search function.

: Sets the video, which provided with

3D signal.

E-MANUAL: Displays the e-Manual. P.SIZE: Selects the Picture size. AD/SUBT.: Turns the audio description on

and off (not available in some locations). / Displays digital subtitles.

Installing batteries (Battery size: AAA)

English - 5

Changing the Input Source

Source

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

■ TV / Ext. / PC / AV / Component

/ HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB / AllShare

✎

In the Source, connected inputs will be highlighted.

✎

Ext. and PC always stay activated.

SOURCE

Edit Name

In the Source, press the TOOLS button, and then you can set an external input sources name you want.

■ VCR / DVD / Cable STB / Satellite STB / PVR

STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the

input jacks to make your input source selection easier.

✎

When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you should set the TV to PC mode under Edit Name.

✎

When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode under Edit Name.

✎

When connecting an AV devices to the HDMI IN

1(DVI) port with HDMI to DVI cable, you should

set the TV to DVI Devices mode under Edit Name.

Edit Favourites

In the Source, press the TOOLS button to select Edit Favourites. You can set an external input source to

Favourites.

Information

You can see detailed information about the selected external device.

Refresh

In the Source, If the external devices is not displayed, press the TOOLS button to select Refresh. Searching for connected devices.

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

• Maximum thickness - 0.55 inches (14mm)

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the mains and antenna.

✎

The PDP device may interfere with an amateur radio or AM radio.

✎

When using two-way radio mobile and portable units or amateur radio or AM radio near by your TV, this may cause the TV to malfunction.

VHF/UHF AntennaCableorSatellite

ANT 2 IN

ANT 1 IN

(SATELLITE)

English - 6

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the POWERP button. Plug & Play is available only when the Source is set to TV.

✎

Before turning on the TV, make sure the antenna cable is connected (p. 6).

Selecting the OSD

Language Setting up the

Network

Software Upgrade Select Next to upgrade TV software. Your TV will automatically upgrade, if your

Selecting the usage

mode

Select Country

(Depending on the country)

Setting the Clock

Mode

Selecting search

options for auto tuning

Enjoy your TV. If you want to watch a broadcast Programme, select Close. If you want to enjoy

Press the ▲ or ▼ button, then press the ENTER Select the desired OSD (On Screen Display) language. Set up your network connection. Press the ENTER

not know your network set up information or want to set to it later, select Skip. We suggest you skip network connection setup now and refer to “Network menu” in the e-Manual for set up requirements and instructions, and the Network Connection section of this manual (p. 13).

You can set up the network connection later using the Network menu.

TV need a software upgrade. If you want to upgrade later, select the Skip. For more information, refer to “Software Upgrade” (Preference Features → Support Menu) in the e-Manual.

✎

This may take some time, depending on network status.

Press the ▲ or ▼ button to select Home Use, and then press the ENTER button twice.

✎

Select the Home Use mode. Store Demo mode is for retail environments.

Press the ▲ or ▼ button, then press the ENTER appropriate country.

✎

After selecting the country in the Countr y menu, some models may proceed with an additional option to setup the pin number.

✎

When you input the PIN number, 0-0-0-0 is not available.

Set the Clock Mode automatically or manually.

Auto: Select the time zone where you are located. Manual: Allows you to manually set the current date and time.

Press the ▲ or ▼ button, then press the ENTER source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Tuning.

✎

When Air or Cable is selected first: After all Air or Cable channels are stored, the step for storing Satellite channels is displayed.

✎

When Satellite is selected first: After all Satellite channels are stored, the step for storing Air or Cable channels is displayed.

✎

Press the ENTERE button at any time to interrupt the memorisation process.

the Smart Hub, select the Smart Hub. The Smart Hub will start. For more detailed information, refer to “Smart Hub” in the e-Manual.

button.

button to start. If you do

button. Select the

button. Select the channel

If You Want to Reset This Feature...

Select System - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0”. If you want to change the PIN number, use the Change PIN function.

You should do Plug & Play (Menu → System) again at home although you did in shop.

✎

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to “0-0-0-0”: MUTE → 8 → 2 → 4 → POWER (on).

English - 7

Connecting to AV devices

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite

receiver, VCR, Digital Audio System, Ampliﬁer, DVD home Theatre, PC

HDMI connection

HDMI OUT

(ARC)

(DVI)

Using an HDMI or an HDMI to DVI connection cable (up to 1080p)

✎

HDMI IN 1(DVI), 2(ARC), 3, 4 / PC/DVI AUDIO IN

For better picture and audio quality, connect to a digital device using an HDMI cable.

An HDMI cable supports digital video and audio signals, and does not require an audio cable.

– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and

audio cables.

The picture may not display normally (if at all) or the audio may not work if an external device that

uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to use an HDMI cable with a thickness of 14 mm or less.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection

error may occur.

A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support

the ethernet function via HDMI.

This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note

that the ARC function is supported by the HDMI IN 2(ARC) port only.

– If 3D Auto View is set to On, some functions such as SMART HUB may be disabled. In this case,

set 3D Auto View or 3D Mode to Off.

The ARC function allows digital audio to output via the HDMI IN 2(ARC) port. It can be enabled only

when the TV is connected with an audio receiver that supports the ARC function.

HDMI to DVI connection

DVI OUT

AUDIO OUT

R-AUDIO-L

English - 8

ANT 1 IN

ANT 2 IN

(SATELLITE)

NT 2 I

(

)

SATELLITE

Component connection

SCART connection

EXT

Using a Component (up to 1080p) or an Audio/Video (480i only) and a Scart Cable

✎

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

✎

When connecting to AV IN, connect the AV connector(yellow) to the TV jack(Green).

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

COMPONENT OUT

PRPBY

AUDIO OUT

R-AUDIO-L

AV connection

AUDIO OUT

R-AUDIO-L

VIDEO OUT

English - 9

Connecting to a PC and Audio device

¦ Using an HDMI cable or an HDMI to DVI cable or a D-sub cable

✎

Connecting through the HDMI cable may not be supported depending on the PC.

PC connection

HDMI OUT

(ARC)(ARC)

(DVI)

Display Modes (D-Sub and an HDMI to DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)

IBM

MAC

VESA DMT

VESA DMT /

DTV CEA

640 x 350 720 x 400

640 x 480 832 x 624

1152 x 870

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864

1280 x 1024 1280 x 1024

1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900

1680 x 1050

1920 x 1080p 67.500 60.000 148.500 +/+

31.469

35.000

49.726

68.681

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

49.702

62.795

60.000

47.712

55.935

70.635

65.290

70.086

70.087

66.667

74.551

75.062

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

59.810

74.934

60.000

60.015

59.887

74.984

59.954

25.175

28.322

30.240

57.284

100.000

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

83.500

106.500

108.000

85.500

106.500

136.750

146.250

DVI OUT

AUDIO OUT

PC OUT

+/-

-/+

-/-

-/+/+ +/+ +/+

-/-

-/+/+ +/+ +/+ +/+

-/+

-/+ +/+ +/+

-/+

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

English - 10

¦ Available devices: digital audio system, ampliﬁer, DVD home theatre

DVD home theatre connection

OPTICAL

Headphones connection

Using an Optical (Digital) or a Headphone Connection

✎

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the

volume of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack.

When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-TopBox) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

Headphones H: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

English - 11

Connecting to a COMMON INTERFACE slot

Attaching the CI Card Adapter

Attach the adapter as shown below. To connect the CI CARD Adapter, follow these steps.

✎

We recommend attaching the adapter before installing the wall mount, or inserting the “CI or CI+ CARD”.

1. Insert the CI CARD Adapter into the two holes on the

product 1.

✎

Please find a two holes on the rear of the TV. A two holes is beside the COMMON INTERFACE port.

2. Connect the CI CARD Adapter into the COMMON

INTERFACE port on the product 2.

3. Insert the “CI or CI+ CARD”.

We recommand that you insert the CI card before you mount the TV on a wall. It may be difﬁcult to insert after the mounting.

Insert the card after attaching the CI-Adapter on TV. It is difﬁcult to attach the module if you insert the card before attaching.

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

• If you don’t insert the “CI or CI+ CARD”, some channels will display the message “Scrambled Signal”.

• The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

• When the conﬁguration of channel information has ﬁnished, the message “Updating Completed” is displayed, indicating the channel list is updated.

✎

NOTE

You must obtain a “CI or CI+ CARD” from a local cable service provider.

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+

CARD” may cause damage to it.

Insert the “CI or CI+ CARD” in the direction marked on the card.

The location of the COMMON INTERFACE slot may be different depending on the model.

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or

will not be seen.

TV Rear

English - 12

Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem.

The LAN Port on

the Wall

Wireless IP sharer

(Router having DHCP server)

LAN Cable

Samsung’s Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play the video over a IEEE 802.11b/g connection, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key.

If Pure High-throughput (Greenﬁeld) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certiﬁcation speciﬁcations.

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below:

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

TV Rear Panel

The LAN Port on the Wall

LAN Cable

✎

It is not supported when the network speed is under 10 Mbps.

✎

Use Cat 5 cable for the connection.

English - 13

LAN CableModem Cable

TV Rear Panel

How to view the e-Manual

E-MANUAL

You can read the introduction and instructions about the TV features stored in your TV.

MENUm → Support → e-Manual → ENTER

✎

If you want to return to e-Manual, press E-MANUAL button on remote.

✎

You can’t use the Tr y Now function, if the menu is not activated.

Screen Display

TV Screen: Displays the current input

Help: Displays the e-Manual Guide

or Product guide. Press ENTER

source screen.

button.

Basic Features

Changing the Preset Picture Mode

Adjusting Picture Settings

Changing the Picture Size

Changing the Picture Options

Setting up the TV with Your PC

Using the Help

Display the e-Manual Guide & the Product Guide by pressing Help.

 How to view the e-Manual

You can read the introduction and instructions about the TV features stored in your TV.

→ Support → e-Manual → ENTER

O MENU

Basic Features

Changing the Preset Picture Mode

Adjusting Picture Settings

Changing the Picture Size

Changing the Picture Options

Setting up the TV with Your PC

IndexHelp

Change the category. Press button to select category you want.

Displays the sub-menu list. Press

ENTER

menu you want.

IndexHelp

Index: Displays index screen. X: Exit the e-Manual.

button to select sub-

Sync media from multiple devices with AllShare

AllShare™ syncs your digital devices so you can enjoy music, movies and photos from your PC, camera and mobile devices, on your larger TV screen. Connects you to multiple PCs, as well.

or r

Return

<E-manual Guide>

The e-Manual guide appears as above.

The product guide appears as above.

How to toggle between the e-Manual and the corresponding menu(s).

Basic Features > Changing the Preset Picture Mode (5/10)

 Changing the Preset Picture Mode

■

Picture Mode t

Select your preferred picture type.

N When an input source is set to PC, the Picture Mode is only available the

Standard and Entertain.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

for LED TV

for PDP TV

/ Relax

• Natural

• Movie: Suitable for watching movies in a dark room.

• Entertain (In PC mode only): Suitable for watching movies and games.

Help Try Now Home Zoom Index

✎

This function is not enabled in some menus.

: Suitable for reducing eye strain.

Try Now

E-MANUAL

English - 14

Return


Picture Mode Standard

Backlight 14

Contrast 100

Brightness 45

Sharpness 50

Colour 50

Tint (G/R) G 50 R 50

Method 1 Method 2

1. Select Try Now, if you want to execute the

corresponding menu(s).

2. To return to the e-Manual screen, press the

E-MANUAL button.

Viewing the Contents

Basic Features > Changing the Preset Picture Mode (5/10)

 Changing the Preset Picture Mode

O MENUm → Picture → Picture Mode → ENTER

■

Picture Mode t

Select your preferred picture type.

N When an input source is set to PC, the Picture Mode is only available

the Standard and Entertain.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

for LED TV

for PDP TV

/ Relax

• Natural

• Movie: Suitable for watching movies in a dark room.

• Entertain(In PC mode only): Suitable for watching movies and games.

Help Try Now Home Zoom Index

Try Now: Displays the corresponding menu(s). Home: Moves to the e-Manual home screen. Zoom: Magniﬁes a screen. Index: Displays index screen.

: Suitable for reducing eye strain.

1. Press the ENTER

button when selecting

Contents Area. The “Are you sure?” is displayed.

Select Yes and then press the ENTER button. The OSD window will be displayed.

2. To return to the e-Manual screen, press the

E-MANUAL button.

Contents Area: You can view the corresponding contents, if you selected a sub-menu. To move

previous or next page, press the

or r button.

Using the Zoom mode

When you view the e-Manual instruction, select the Zoom to magnify the screen. You can scroll through the magniﬁed screen by using the

✎

To return to the previous screen, press the

or d buttons.

RETURN button.

How to search a keyword by using index page

✎

This function may not supported depending on the language.

1. If you want to search a keyword, press the

2. Press the

3. Press the

or r button to select a character order you want, and then press the ENTERE button.

or d button to select a keyword you want to see, and then press the ENTERE button.

/ d / l / r button to select Index.

4. You can view the corresponding e-Manual instruction screen.

✎

To close the Index screen, press the RETURN button.

 Changing the Preset Picture Mode

O MENUm → Picture → Picture Mode → ENTER

■

Picture Mode t

Select your preferred picture type.

N When an input source is set to PC, the Picture Mode is only available the Standard

and Entertain.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

for LED TV

• Natural

• Movie: Suitable for watching movies in a dark room.

/ Relax

for PDP TV

: Suitable for reducing eye strain.

Return

English - 15

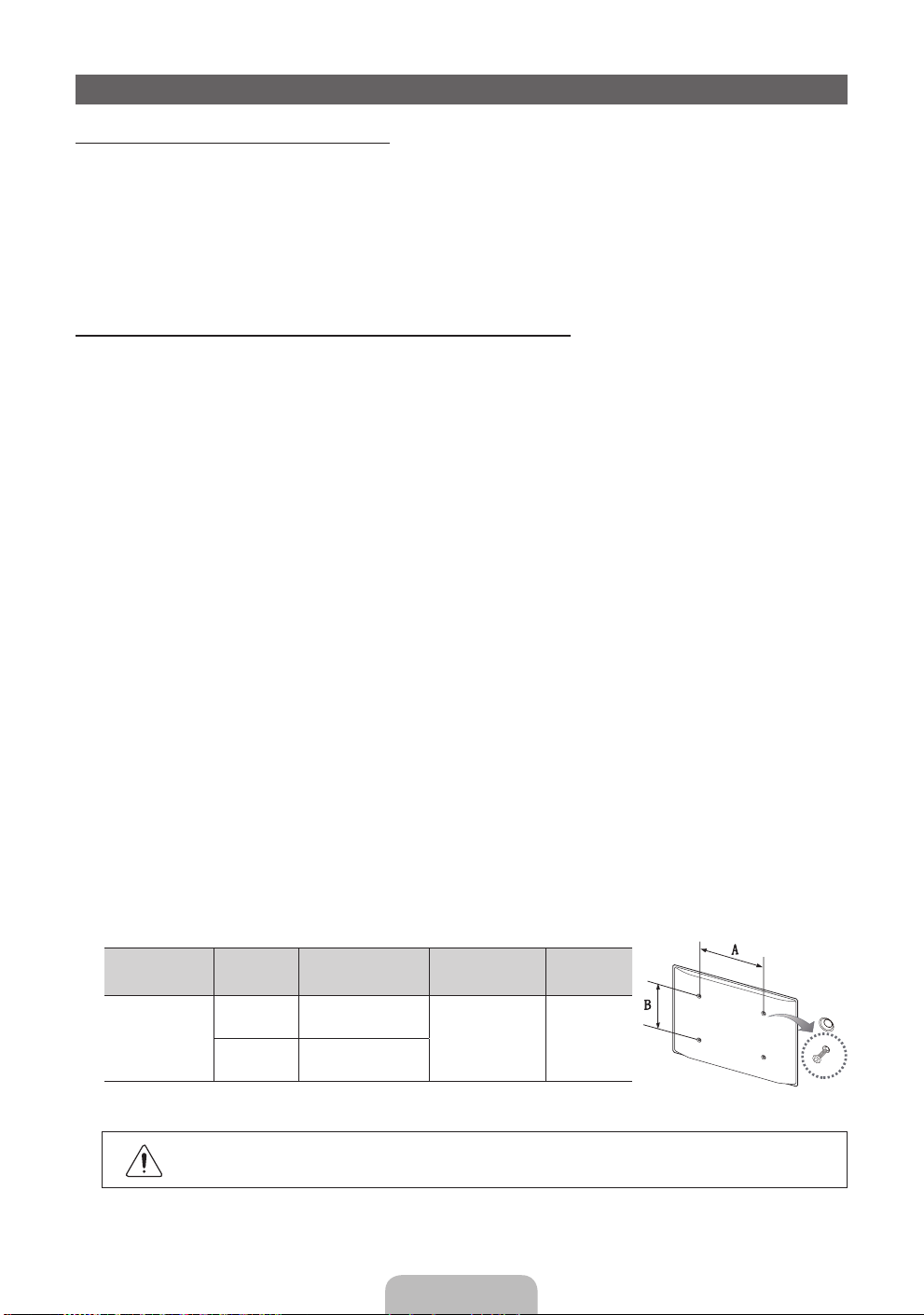

Installing the Wall Mount

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a

technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect

to install the TV on your own.

Wall Mount Kit Speciﬁcations (VESA)

✎

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the ﬂoor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎

NOTE

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly

are provided.

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use screws that are longer than the standard dimension or do not comply with the VESA standard

screw specifications. Screws that are too long may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications, the length of the

screws may differ depending on the wall mount specifications.

Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall,

leading to personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall

mount is used or the consumer fails to follow the product installation instructions.

Our 55” model do not comply with VESA Specifications. Therefore, you should use our dedicated wall

mount kit for this model.

Do not mount the TV at more than a 15 degree tilt.

Product Family inches VESA Spec. (A * B) Standard Screw Quantity

PDP-TV

[Ultra-Slim]

✎

Unscrew the hole around before installing Wall-Mount on the wall.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

51 400 X 400

M8 4

59~64 600 X 400

English - 16

Troubleshooting

If you have any questions about the TV, ﬁrst refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the TV and external

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

✎

Some of above pictures and functions are available at specific models only.

✎

You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com →

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns

on, refer to “Remote control does not work” below.

devices).

• Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

• Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for

the SAMSUNG TV code.

Support → Downloads) by USB.

Licence

List of Features

Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed without a cable box / STB (Set-Top-Box) satellite receiver.

This exciting new feature enables you to view 3D content.

SMART HUB

The Gateway to all content integrated in one place

• It’s all integrated to guide you to easier and diverse entertainment choices

• Control your entertainment life with easy and simple user friendly UI

• Access to diverse Apps that are adding up every day

• Customize your TV, by App grouping & sorting to your taste

AllShare™

AllShare™ connects your TV and compatible Samsung mobile phones/devices through a network.

Anynet+(HDMI-CEC)

Allows you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote.

Skype

With Skype you can say hello or share a laugh with anyone, anywhere. Communicate with people around the world!

English - 17

Securing the TV to the wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the included Safety Flyer. For added stability and safety, install the anti-fall device as follows.

To Avoid the TV from Falling

1. Put the screws into the clamps and ﬁrmly fasten them onto the wall.

Conﬁrm that the screws have been ﬁrmly installed onto the wall.

✎

You may need additional material such as an anchor depending on the type of wall.

✎

Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

✎

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

✎

Screw Specifications

3. Connect the clamps ﬁxed onto the TV and the clamps ﬁxed onto the wall with a strong cable and then tie the string tightly.

✎

NOTE

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the

clamps fixed on the TV.

Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Wall

Storage and Maintenance

✎

If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.

Do not spray water or a cleaning agent directly onto the product. Any liquid that goes into the product may cause a failure, ﬁre, or electric shock.

Clean the product with a soft cloth dapped in a small amount of water.

English - 18

Speciﬁcations

Display Resolution 1920 x 1080

Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

TV System Analogue: B/G, D/K, L, I (Depending on your country selection)

Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

Sound System BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC. HDMI IN Video: 1080 24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

Stand Swivel (Left / Right) -20˚ ~ 20˚ Model Name PS51D8000F PS64D8000F Screen Size 51 inches 64 inches Sound

(Output) 10 W X 2 15 W X 2 Dimensions (WxDxH)

Body With stand

Weight Without Stand With Stand

✎

Design and specifications are subject to change without prior notice.

✎

For information about power supply, and more about power consumption, refer to the label attached to the

Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0

Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.

1195.9 X 37.2 X 719.4 mm

1195.9 X 309.5 X 802.0 mm

22.4 kg

24.8 kg

product.

✎

Hereby, Samsung, declares that this PDP TV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Digital: DVB-T/DVB-C/DVB-S2

1487.9 X 37.1 X 888.9 mm

1487.9 X 351.6 X 979.2 mm

35.0 kg

38.3 kg

English - 19

ELECTRONICS

Declaration of Conformity

For the following

Product : PDP TV Model(s) : PS51D8000F PS64D8000F

Year of Afﬁxing CE Marking : 2011

Manufactured at:

F1: Samsung Electronics Co., Ltd. 416, Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea F2: Samsung Electronics Slovakia s.r.o Hviezdoslavova 807 924 27 Galanta, Slovak Republic F3: Samsung Electronics Hungarian Co., Ltd. H-5126 Jaszfenyszaru, Samsung ter 1

(Factories name and address)

We hereby declare under our sole responsibility that the electrical product above is in compliance with the essential requirements of R&TTE Directive (1995/5/EC), the Low Voltage Directive (2006/95/EC) and Electromagnetic Compatibility Directive (2004/108/EC) by application of

EN 60065: 2002+A1:2006+A11:2008 EN55022: 2006+A1:2007 EN61000-3-2:2006 EN 300 328-1 v1.7.1 EN 301 489-17 v1.3.2 :2008 EN 300 440-1 v 1.5.1

EN61000-3-3:1995+A1:2001+A2:2005 EN55024:1998+A1:2001+A2:2003 EN55013:2001+A1:2003+A2 :2006 EN55020:2007 EN 301 489-1 v1.8.1 :2008 EN 300 440-2 v.1.3.1

and the Eco-Design Directive (2009/125/EC) implemented by Regulation (EC) No 642/2009 for televisions.

The Technical documentation is kept at the below Manufacturer’s address.

Manufacturer

Samsung Electronics Co., Ltd. 416 Maetan-dong, Young-Tong gu, Suwon, Korea 442-742

05 Jan 2011

(Place and date of issue)

Chang Seub Eum / Manager

(Name and signature of authorized person)

Representative in the EU :

Samsung Electronics Euro QA Lab. Blackbushe Business Park Saxony Way, Yateley, Hampshire GU46 6GG, UK

06 Jan 2011

(Place and date of issue)

Joong Hoon Choi / Lab. Manager

(Name and signature of authorized person)

Note : It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.

This page is intentionally

left blank.

Дополнительные сведения об использовании электронного руководства (стр. 14)

Рисунки и иллюстрации в данном руководстве пользователя представлены только для справки. Они могут отличаться от реального внешнего вида устройства. Конструкция и характеристики устройства могут быть изменены без предварительного уведомления.

Примечание относительно цифрового телевещания

1. Функции цифрового телевидения (DVB) доступны только в тех странах и регионах, где передаются цифровые наземные сигналы DVB-T (MPEG2 и MPEG4 AVC) или где имеется доступ к совместимой услуге кабельного телевидения DVB-C (MPEG2 и MPEG4 AAC). Узнайте у местного дилера о возможности приема сигнала DVB-T или DVB-C.

2. DVB-T – это стандарт цифрового наземного телевещания, принятый консорциумом европейских организаций DVB, а DVB-C – это стандарт цифрового кабельного телевидения. Однако некоторые дифференцированные функции, такие как EPG (Electric Programme Guide), VOD (Video on Demand) и другие, не входят в эту спецификацию. Поэтому в настоящее время они не работают.

3. Несмотря на то, что данный телевизор поддерживает последние стандарты DVB-T и DVB-C [с августа 2008 года], компания не гарантирует совместимость с последующими стандартами цифрового наземного телевещания DVB-T и цифрового кабельного вещания DVB-C.

4. В зависимости от того, в какой стране или регионе используется телевизор, некоторые поставщики услуг кабельного телевидения могут взимать отдельную плату за данную услугу. При этом пользователю необходимо будет принять условия предоставления услуги.

5. Некоторые функции цифрового ТВ могут быть недоступны в отдельных странах или регионах, кроме того, не все поставщики услуг кабельного телевидения могут обеспечить правильную работу DVB-C.

6. Для получения более подробной информации обратитесь в местный центр по обслуживанию клиентов Samsung.

Качество приема телепрограмм может варьироваться в разных странах в зависимости от способа телевещания. Чтобы узнать,

✎

можно ли повысить качество приема с помощью настроек телевизора, обратитесь к местному официальному дилеру SAMSUNG или в Центр обслуживания клиентов Samsung.

Инструкции для пользователя

• Неподвижное изображение

Не следует оставлять неподвижное изображение на плазменной панели более чем на несколько минут (например, при использовании игровой приставки), поскольку это может привести к возникновению эффекта остаточного изображения. Эффект остаточного изображения также известен как “выгорание экрана”. Чтобы избежать подобной проблемы, уменьшите уровень яркости и контрастности экрана при воспроизведении неподвижных изображений.

• Нагрев верхней части плазменного телевизора

Вследствие продолжительного использования верхняя часть устройства может нагреваться, так как тепло выделяется через вентиляционные отверстия в верхней панели изделия. Это нормальное явление, не указывающее на неисправность или дефект устройства. Не следует разрешать детям дотрагиваться до верхней части устройства.

• Устройство издает легкое потрескивание.

Легкое потрескивание может возникнуть, когда экран устройства расширяется или сжимается из-за изменения условий окружающей среды, например температуры или влажности. Это нормальное явление, не указывающее на дефект устройства.

• Дефекты ячеек

Плазменная панель состоит из множества пикселов (от 2 360 000 для уровня HD до 6 221 000 для уровня FHD), и ее изготовление требует применения наиболее совершенных технологий. Однако на экране может быть несколько темных или светлых пикселов. Эти отдельные пикселы не влияют на качество работы изделия.

• Не включайте телевизор при температуре ниже 5°C.

• Длительное отображение неподвижного изображения может стать причиной непоправимого повреждения плазменной панели.

При длительном просмотре плазменного телевизора в формате 4:3 в его правой, левой и центральной частях могут появиться следы границ изображения. Причиной этого является неравномерное световое излучение в разных областях экрана. Воспроизведение дисков DVD или использование игровой приставки может привести к появлению на экране аналогичного эффекта. Повреждения, вызванные вышеуказанным эффектом, не подлежат гарантийному ремонту.

• Остаточное изображение на экране.

Длительное отображение неподвижных изображений, например, при подключении экрана к видеоигре и компьютеру, может вызвать появление остаточных изображений. Чтобы избежать подобной проблемы, уменьшите уровень яркости и контрастности экрана при длительном воспроизведении неподвижных изображений.

• Гарантия

Гарантия не распространяется на повреждения, вызванные длительным отображением неподвижного изображения. Гарантия не распространяется на повреждения, связанные с выгоранием экрана.

Правильная утилизация данного изделия (утилизация электрического и электронного оборудования)(действует во всех странах Европейского союза и других странах Европы, принявших систему разделения отходов)

Подобная маркировка на изделии, принадлежностях или в руководстве предупреждает, что по истечении срока службы изделие или электронные принадлежности (например, зарядное устройство, наушники, кабель USB) не следует выбрасывать вместе с другим бытовым мусором. Чтобы избежать вредного воздействия на окружающую среду или на здоровье человека от неконтролируемой утилизации отходов, следует отделять маркированные подобным образом изделия от другого мусора для соответствующей переработки и повторного использования в качестве сырья. За подробной информацией о месте и способе экологически безопасной утилизации бытовым потребителям следует обращаться к продавцу данного изделия или в органы местного самоуправления. Промышленным потребителям необходимо обратиться к поставщику, чтобы проверить сроки и условия договора купли-продажи. Подобные изделия и электронные принадлежности не следует утилизировать вместе с другими производственными отходами.

Правильная утилизация батарей данного устройства (действует во всех странах Европейского союза и других странах Европы, принявших систему отдельного возврата батарей)

Подобная маркировка на батарее, руководстве или упаковке свидетельствует о том, что батареи данного устройства в конце срока его использования нельзя утилизировать с другими бытовыми отходами. Символы химических элементов Hg, Cd или Pb в маркировке указывают на то, что в батарее содержится ртуть, кадмий или свинец в концентрации, превышающей уровни, установленные директивой EC 2006/66. В случае нарушения требований по утилизации эти вещества могут нанести вред здоровью людей или окружающей среде. Для защиты природных ресурсов и в целях повторного использования материалов не выбрасывайте батареи с другими бытовыми отходами, а утилизируйте их в соответствии с правилами местной системы возврата батарей.

Русский - 2

Принадлежности

✎

Убедитесь, что следующие принадлежности входят в комплект поставки телевизора. Если какойлибо элемент комплекта отсутствует, обратитесь к своему дилеру.

✎

Цвет и форма устройств могут различаться в зависимости от модели.

✎

Кабели, не входящие в комплект поставки, можно приобрести дополнительно.

✎

Открывая коробку, убедитесь, что все принадлежности на месте (некоторые из них могут быть скрыты под упаковочным материалом).

ВНИМАНИЕ! ВСТАВЬТЕ НАДЕЖНО, ЧТОБЫ ИСКЛЮЧИТЬ ВЕРОЯТНОСТЬ ОТСОЕДИНЕНИЯ

[

• Пульт дистанционного управления и батареи (AAA x 2)

• Руководство пользователя • Гарантийный талон (прилагается не во всех

Адаптер карты CI Адаптер SCART (2 шт.) AV/Компонентный адаптер

Ферритовый сердечник (2 шт.) Ферритовый сердечник (1 шт.)

✎

Ферритовый сердечник для кабеля питания. Ферритовые сердечники используются для защиты кабелей от помех. При подключении кабеля раскройте ферритовый сердечник и закрепите его вокруг кабеля вблизи разъема, как показано на рисунке.

A Максимальное расстояние между ферритовым сердечником и концом

кабеля, подключенным к телевизору: 6~8 дюймов B Максимальное расстояние между ферритовым сердечником и другим

концом кабеля, подключенным к сетевой розетке: 3/4 дюйма

✎

Ферритовый сердечник: Ферритовые сердечники используются для защиты кабелей от помех. При подключении кабеля раскройте ферритовый сердечник и закрепите его вокруг кабеля вблизи разъема, как показано на рисунке.

• Чистящая салфетка

странах)/Инструкция по технике безопасности

Кабель питания

Антенный кабель/

компонентный кабель

(приобретается

отдельно).

• Плата за обслуживание может взиматься в следующих случаях. – (а) Если вы вызовете специалиста, и он не обнаружит неисправности устройства

(это возможно, если вы не знакомы с настоящим руководством).

– (б) Если вы передадите устройство в ремонтный центр, и его специалисты не обнаружат

неисправности устройства (это возможно, если вы не знакомы с настоящим руководством).

• Размер этой платы будет сообщен вам перед тем, как сотрудник компании выедет на место.

Русский - 3

+ 53 hidden pages
