SAMSUNG PS-50C680 User Manual

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

EIRE 0818 717 100 www.samsung.com/ie

U.K 0845 SAMSUNG(7267864) www.samsung.com/uk

Customer Care Centre 

Web Site

Plasma TV

user manual

BN68-02113G-01

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model Serial No.

User Instructions

English

Screen Image retention

■

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Height

■

The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there.

Heat on the top of the PDP TV

■

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

The product is making a ‘cracking’ noise.

■

A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

Cell Defects

■

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Avoid operating the TV at temperatures below 5°C(41°F)

■

A still image displayed too long may cause permanent damage to the PDP Panel.

■

Afterimage on the Screen.

■

Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Warranty

■

Warranty does not cover any damage caused by image retention.



Burn-in is not covered by the warranty.



Installation

■

Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.

Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Digital TV Notice

■

Functionalities related to Digital TV(DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you have access to a compatible DVB-C(MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

■

DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Program Guide), VOD (Video on Demand) and so on, are not included in this specification. So, they cannot be supported at this moment.

■

Although this TV set meets the latest DVB-T and DVB-C standards[August,2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

■

Some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.

■

Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with all providers.

■

For more information, please contact your local Samsung customer care centre.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See

back cover for more informations.)

English

Trademark & Label License Notice

TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DivX Certified to play DivX video, including premium content.

Symbol

Press

Note

One-Touch Button

TOOLS

Contents

English

6 Checking Parts

Using the Stand-Base

Assembling the Cables

How to assemble the Stand-Base (depending

on the model)

Viewing the Control Panel

Viewing the Connection Panel

Connecting a AV device

Connecting an audio device

Connecting a PC

Remote Control

Installing Batteries in the Remote Control

Using the Remote Control Backlight Buttons

Switching On and Off

Placing Your Television in Standby Mode

14 Plug & Play Feature

15 Viewing the Menus

Using the TOOLS Button

Channel Menu

22 Picture Menu

26 PC Display

Getting Started

Basic Operation

Using the Menus

16 Country

Auto Store

Manual Store

Full Guide /Mini Guide / Default Guide

Channel List

Channel Mode

Fine Tune

22 Mode

Cell Light / Contrast / Brightness / Sharpness /

Colour / Tint (G/R)

Advanced Settings

Picture Options

Picture Reset

Auto Adjustment

Screen

Sound Menu

28 Mode

Equalizer

SRS TruSurround HD

Audio Language

Audio Format

Audio Description

Auto Volume

Speaker Select

Sound Select

Sound Reset

30 Setup Menu

30 Language

Time

31 Setup Menu

31 Game Mode

Child Lock

Change PIN

Parental Lock

Subtitle

Teletext Language

Preference

Digital Text

Light Effect (PS58B680/PS63B680 only)

Melody

Energy Saving

Common Interface

34 Network Connection

Setting the Network

37 Network Type

Network Setup

40 Input Menu

40 Source List

Edit Name

41 Support menu

41 Legal Notice

Product Guide

Self Diagnosis

HD Connection Guide

Contact Samsung

English

Media Play

Home Network Centre

43 Connecting a USB Device

Media Play Function

Sorting the Photo List

Viewing a Photo or Slide Show

Sorting the Music List

Playing a Music

Sorting the Movie List

Playing a Movie File

Picture / Music Settings Using Media Play

Using the Setup Menu

Media Play-DLNA

58 Setting the DLNA Network

Installing the DLNA Application

Using the DLNA Application

Using the DLNA Function

Anynet+

63 Connecting Anynet+ Devices

Setting Up Anynet+

Switching between Anynet+ Devices

Recording

Listening through a Receiver

Troubleshooting for Anynet

81 About the Home Network Centre

Connecting to the Home Network Centre

Setting Up the Home Network Centre

Using the Message Function

Using the Media Function

Other Information

86 Teletext Feature

Wall Mount Kit Specications (VESA)

Preparing before installing Wall- Mount on the

wall

Securing the TV to the Wall

Securing the Installation Space

Troubleshooting

Specications

Software License

Content Library

69 Activating the Content Library

Using the Content Library

Internet@TV

72 Getting Started with Internet@TV

Editing Snippets in the Dock

Using the Prole Widget

Using the Yahoo!® Widget Gallery

Using the Yahoo!® Weather Widget

Using the Yahoo!® News Widget

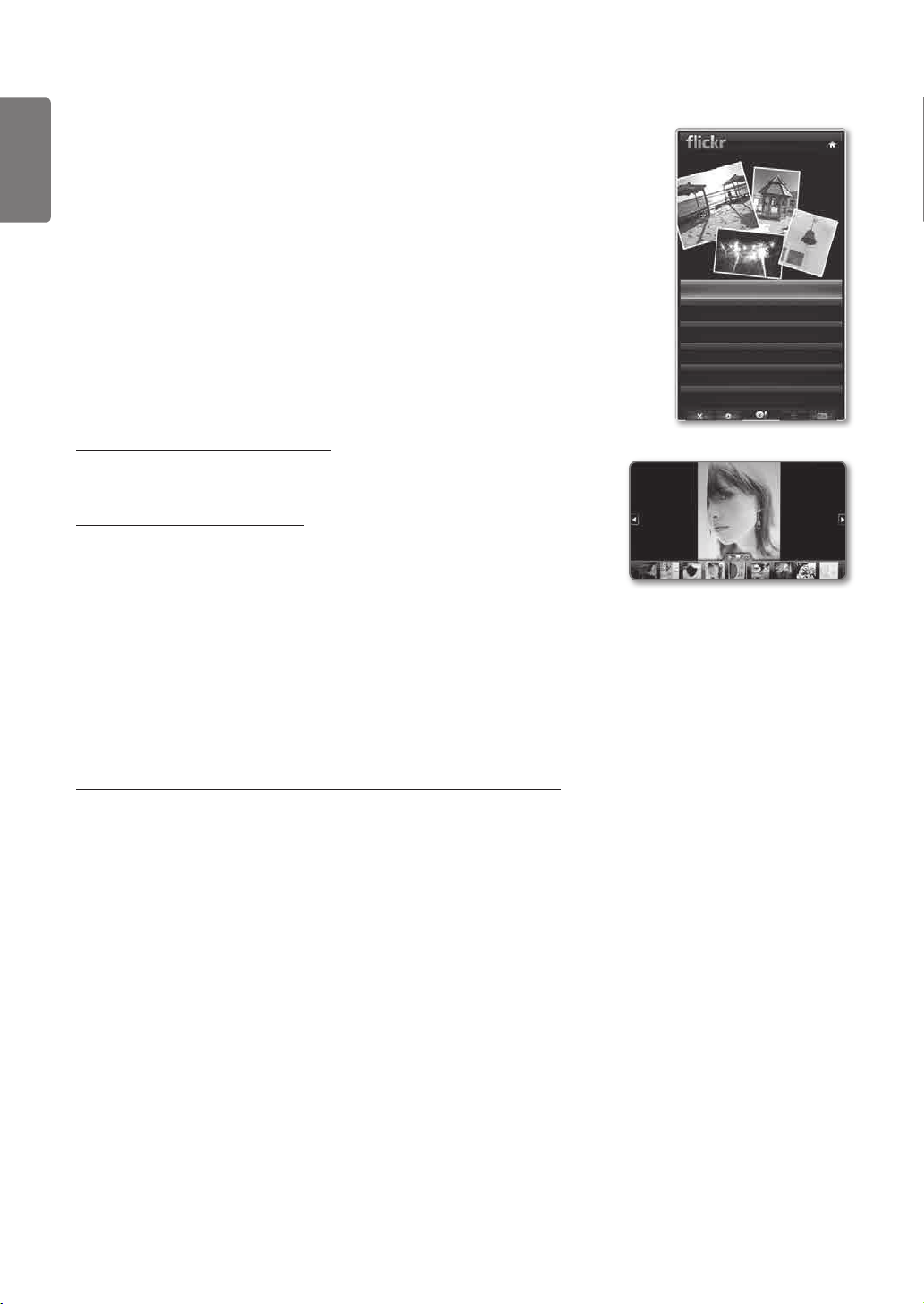

Using the Yahoo!® Flickr Widget

Using the Yahoo!® Finance Widget

Troubleshooting for Internet@TV

Help Website

Getting Started

English

Checking Parts

Getting Started

Owner’s

Instructions

Screw (4ea)

The ferrite core is used to shield the cable from interference. When connecting a cable,

■

open the ferrite core and clip it around the cable near the plug.

Remote Control/

AAA Batteries (2ea)

Cover-Bottom

(PS50B650 only)

Power Cord Cloth-Clean

Cover-Bottom /

Screws (2ea)

(PS58B680 /

PS63B680 only)

Ferrite Core for

Power Cord

Using the Stand-Base

Two or more people should carry the PDP. Never lay the PDP on the

■

floor because of possible damage to the screen. Always keep the PDP upright.

The PDP can rotate 20 degrees in right and left directions.

■

Holder-Wire

Cable

Ferrite Core for

Headphone

(PS63B680 only)

Program CD

Ferrite Core for

Power Cord

(PS63B680 only)

Holder-Ring

(4ea)

Assembling the Cables

Enclose the cables in the Holder-Wire Cable so that the cables are not visible through the transparent stand.

-20° ~ 20°

English

Getting Started

How to assemble the Stand-Base (depending on the model)

주의

Using the screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different than the picture.)

Firmly secure the stand to the TV before

■

moving it, as the stand may fall and could cause serious injury. Two or more people should carry the TV.

■

Never lay the TV on the floor because of possible damage to the s creen. Alway s store the TV upright.

(PS50B650) (PS58B680/PS63B680)

In case of installing your TV on the wall, close the cover 1 on the stand-base connection part using two screws for hiding.

Viewing the Control Panel

The product colour and shape may vary depending on the model.

■

Touch each button to operate.

■

(PS50B650)

(PS58B680/PS63B680)

Speakers

Press to turn the TV on and off.

Toggles between all the available input sources In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

Press to see an on-screen menu of your TV’s features.

Press to increase or decrease the volume. In the on-screen menu, use the + – buttons as you would use the ◄ and ► buttons on the remote control.

Press to change channels. In the onscreen menu, use the CH buttons

as you would use the ▲ and ▼ buttons on

the remote control. You can use CH button to turn on the TV without the remote control

Blinks and turns off when the power is on and lights up in stand-by mode

Aim the remote control towards this spot on the TV.

Viewing the Connection Panel

English

Getting Started

543

90 67

TV Rear Panel

The product colour and shape may vary depending on the model.

■

Whenever you connect an audio or video system to your set, ensure that all

■

elements are switched off. When connecting an external device, match the colour of the connection terminal to

■

the cable.

TV Side Panel

English

Getting Started

1 LAN

Connect a LAN cable to this port to connect to the Network

COMPONENT IN

Audio (AUDIO L/R) and video (Y / PB / PR) inputs for Component.

HDMI IN 1, 2(DVI), 3, 4

No additional Audio connection is needed for an HDMI to HDMI connection.

■

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 (DVI) jack.

■

What is HDMI? High Definition Multimedia interface allows the transmission of high definition digital video data and multiple channels



of digital audio. The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The



difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

DVI AUDIO IN

DVI audio outputs for external devices. Supported modes for HDMI/DVI and Component

■

HDMI/DVI 50Hz X X X O O O O HDMI/DVI 60Hz X O X X O O O

Component O O O O O O O

ANT IN

75Ω Coaxial connector for Aerial/Cable Network.

AUDIO OUT(AUDIO R/L)

Connect RCA audio signals from the TV to an external source, such as Audio equipment.

SERVICE

Connector for service.

DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio Component.

HEADPHONE

Connect a set of headphones if you wish to watch a television program without disturbing other people in the room.

■

Prolonged use of headphones at a high volume may damage your hearing.

EXT 1, EXT 2

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

■

In EXT mode, DTV Out only supports MPEG SD Video and Audio.

■

In EXT Mode, Game mode is not available

■

Input/Output Specification

Connector

EXT 1 EXT 2

480i 480p 576i 576p 720p 1080i 1080p

Input Output

Video Audio (L / R) RGB Video + Audio (L / R)

✔ ✔ ✔

✔ ✔

Only TV or DTV output is available.

Output you can choose.

PC IN(PC) / (AUDIO)

Connect to the video and audio output jack on your PC.

COMMON INTERFACE Slot

Insert CI (Common Interface) card into the slot.

When not inserting CI CARD in some channels, Scramble Signal is displayed on the screen.



The pairing information containing a telephone number, CI CARD ID, Host ID, and other information will be displayed in



about 2~3 minutes. If an error message is displayed, please contact your service provider. When the channel information configuration has finished, the message Updating Completed is displayed, indicating



that the channel list is now updated. Insert the CI-Card in the direction marked on it.

■

CAM is not supported in some countries and regions,check with your authorized dealer.

■

USB 1(HDD), USB 2

Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3) or movie files. You can connect to SAMSUNG's network wirelessly.USB 1(HDD) jack is also used as the HDD jack. HDD (Hard disk drive) is device which stores digitally encoded data.

AV IN (VIDEO, AUDIO L/R)

Video and audio inputs for external devices, such as a camcorder or VCR.

WY R

W YR

W R

English

Connecting a AV device

Getting Started

Best

Normal

HDMI/DVI

PC/COMPONENT

EXT/VIDEO

HD connection

Using an HDMI Cable

DVD / Blu-Ray player / HD Cable Box / HD Satellite receiver (STB)

HDMI OUT

HD connection

Using a DVI Cable

DVD / Blu-Ray player / Cable Box

/ Satellite receiver (STB)

AUDIO OUTDVI OUT

Audio/Video connection

Using an Audio/Video Cable

VCR

AUDIO OUTVIDEO OUT

Component connection

Using a Component Cable

DVD / Blu-Ray player / Cable

Box / Satellite receiver

AUDIO OUT COMPONENT OUT

Using a Scart Cable

VCR / DVD

EXT

English

Getting Started

Connecting an audio device

Best

OPTICAL (Digital)

AUDIO (Analog)

Normal

Connecting a PC

Analog Audio connection

Using a Audio Cable

Amplier / DVD Home Theater

AUDIO IN

Digital Audio connection

Using an Optical Cable

Digital Audio System

OPTICAL

HD connection

Using a D-Sub Cable

Using an HDMI Cable

HDMI OUT

HD connection

Using a D-Sub Cable

Using an HDMI/DVI Cable

DVI OUTAUDIO OUT

Using a D-Sub Cable

PC OUTAUDIO OUT

English

Getting Started

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV.

■

The performance of the remote control may be affected by bright light.

POWER button (turns the TV on and off)

Selects the TV mode directly. (p.86)

Number buttons for direct channel access

Use to select on-screen menu items

Temporary sound switch-off

Volume increase Volume decrease

Available source selection (p.40)

Press to backlight the buttons on the remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the ON/OFF( to On will reduce the battery usage time.) (p.13)

Previous channel

Next channel Previous channel

Displays the main on-screen menu

Displays the favourites channel list. (p.20)

) light button set

Used to display Channel Lists on the screen (p.19)

Use to quickly select frequently used functions. (p.15)

Control the cursor in the menu

This function enables you to view Internet@TV. (p.72)

Use these buttons in the Channel List and Media Play, etc.

Use to see information on the current broadcast (p.30)

Use these buttons in the Channel list, Media Play and Anynet+.

8 4

Colour buttons Fastext

Teletext mode selection (LIST / FLOF)

Teletext store

Teletext

size

topic selection

Teletext

cancel

Teletext Functions (p.86)

Teletext

: 1 2

reveal

Exit from the Teletext display

Teletext

sub page

Teletext

Teletext on / mix

Returns to the previous menu

Exit the on-screen menu

This function enables you to view Media Play. (p.44)

This function enables you to view Content Library. (p.69)

Digital subtitle display

Electronic Program Guide (EPG) display (p.18)

Teletext previous page

Teletext

6 9 3

index

Teletext

hold

Teletext previous page

English

Getting Started

Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the figure.

Install two AAA size batteries.

■

2 3

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside the compartment.

Replace the cover.

■

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time.

■

If the remote control doesn’t work, check the following:



Is the TV power on?



Are the plus and minus ends of the batteries reversed?



Are the batteries drained?



Is there a power outage or is the power cord unplugged?



Is there a special fluorescent light or neon sign nearby?

Using the Remote Control Backlight Buttons

Use this feature in dark surroundings and when you are unable to see the remote control buttons clearly.

Press the ON/OFF( ) light button

■

When ON, the button backlight is turned on for a moment.

■

Pressing a remote control button when the remote control is on turns the button backlight on for a moment. If you touch or move the remote control and the motion is detected by the sensor of the remote control, the button backlight will be turned on for a moment.

Since there is a vibrating device inside the remote control, shaking the remote control will result in a sound generated by

■

the device. The button backlight will not be turned on when the remote control is turned off.

■

Switching On and Off

The mains lead is attached to the rear of your set.

Plug the mains lead into an appropriate socket.

■

1 2

The standby indicator lights up on your set.

Press the POWERP button on your set.

■

You also can press the POWERP button or the TV button on the remote control to turn the TV on. The programme that you were watching last is reselected automatically.

Press the numeric button (0~9) or channel up / down (< / >) button on the remote control or < CH > button on your set.

■

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

To switch your set off, press the POWERP button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWERP button on the remote control.

■

1 2

The screen is turned off and a red standby indicator appears on your set.

To switch your set back on, simply press the POWERP, numeric buttons (0~9), TV button or channel up / down (< / >)

button again.

■

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

English

Basic Operation

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

Press the POWER button on the remote control. Select the OSD Language. menu

is automatically displayed. Select the appropriate language by pressing the ▲ or ▼

button. Press the ENTERE button to confirm your choice.

Press the ◄ or ► button to select Store Demo or Home Use, then the

ENTERE button.

We recommend setting the TV to Home Use mode for the best picture in

■

your home environment. Store Demo mode is only intended for use in retail environments.

■

If the unit is accidentally set to Store Demo mode and you want to return

■

to Home Use (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

Press the ENTEREbutton. Select the appropriate country by pressing the ▲ or ▼

button. Press the ENTERE button to confirm your choice.

Press the ▲ or ▼ button to memorize the channels of the selected connection,

then press the ENTERE button.

Air: Air antenna signal.

■

Cable: Cable antenna signal.

■

Press the ▲ or ▼ button to select the channel source to memorize. Press the

ENTERE button to select Start.

Digital & Analogue: Digital and Analogue channels.

■

Digital: Digital channels.

■

Analogue: Analoguechannels.oguechannels.e channels.

■

•

For more detailed description of selecting Cable mode, refer to page 16.

•

The channel search will start and end automatically.

The message Set the Clock Mode is displayed. Press the ENTERE button.

Press the ▲ or ▼ button to select Auto, then Press the ENTERE button.

If you select Manual, Set current date and time is displayed.

■

If you have received a digital signal, the time will be set automatically.

■

The brief instruction on How to get the best performance from your new HDTV

is displayed. Press the ENTERE button.

This menu is available HD Connection Guide in the Support menu.

■ You can change previous or next page by pressing the ◄ / ► button.

■

The message Enjoy your TV. is displayed.

If you want to view the TV immediately, select the Watch TV.

■

If you want to view the See Product Guide, press the ENTER

■

button.

Plug & Play

Select the OSD Language.

Menu Language :

If you acc ide nta lly sele ct the

■

wrong country for your TV, the characters on the screen may be wrongly displayed.

The Screen Saver is activated

■

if there is no remote control key inpu t f or long er than 1minute while Plug & Play is running.

The Screen Saver is activated if

■

there is no operating signal for longer than 15 minutes.

Nederlands

English

Eesti

▲

▼

E Enter

If you want to reset this feature...

Press the MENU button to display the menu. Press the ▲ or ▼ button to select

Setup, then press the ENTERE button.

Press the ENTERE button again to select Plug & Play.

Enter your 4 digit PIN number.

■

The default PIN number of a new TV set is ‘0-0-0-0’.

■

If you want to change PIN number, refer to page 31.

Setup

Plug & Play ►

Language : English

Time

Game Mode : Off

BD Wise : On

Network Type : Cable

Network Setup

Child Lock : On

The Plug & Play feature is only

■

available in the TV mode.

Using the Menus

Viewing the Menus

English

With the power on, press the MENU button. The main menu appears on the

screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input, Application, Support.

Press the ▲ or ▼ button to select one of the icons. Then press the ENTERE

button to access the icon’s sub-menu.

Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

■

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The Tools menu changes depending on which external input mode you are viewing.

Press the TOOLS button. The Tools menu will appear.

Press the ▲ or ▼ button to select a menu, then press the ENTERE button.

Press the ▲ / ▼ / ◄ / ► / ENTERE buttons to display, change, or use the selected

items. For a more detailed description of each function, refer to the corresponding page.


Mode

Cell Light : 4

Contrast : 95

Brightness : 45

Sharpness : 50

Colour : 50

Tint (G/R) : G50/R50

Advanced Settings

Pictur Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS HD : Off Energy Saving : Off Dual l ll : Mono Add to Favourite

Anynet+ (HDMI-CEC)

e Size : Auto Wide

Standard

Tools

Move E Enter e Exit

Using the Menus

English

Channel Menu

Using the Menus

Option Description

Country

Auto Store

Channel

Digital Channel

■

You can change the country for digital channels.

Analogue Channel

■

You can change the country for analogue channels.

•

The PIN number input screen appears. Enter your 4 digit PIN number.

Scans for all channels with active broadcast stations (and availability depends on your country) and stores them in the TV's memory.

You can memorize the channels of the selected connection.

■

Air / Cable

Antenna source to memorize

Channel

When selecting Cable,

Search Mode → Quick

•

Network ID: Displays the network identification



code. Frequency: Displays the frequency for the



channel. Modulation: Displays available modulation



values. Symbol Rate: Displays available symbol rates.



Search Mode → Full / Network

•

Start Frequency: Displays the frequency start



values. End Frequency: Displays the frequency stop



values. Modulation: Displays available modulation



values. Symbol Rate: Displays available symbol rates.



You can memorize the Channel source

•

Digital & Analogue: Digital and Analogue channels.

•

Digital: Digital channels.

•

Analogue: Analogue channels.

Country ►

Auto Store

Manual Store

Full Guide

Mini Guide

Default Guide : Full Guide

Channel List

Channel Mode : Added Ch.

If you want to stop Auto Store,

■

press the The Stop Auto Store? message will be displayed. Select Yes by pressing the

◄ or ► button, then press

the ENTERE button.

ENTERE

button.

English

Using the Menus

Option Description

Manual Store

Channel

Scans for a channel manually and stores it in the TV’s memory.

■

Digital Channel (Digital)

Manual store for digital channels.

•

Channel: Set the Channel number using the ▲, ▼ or

number (0~9) buttons.

•

Frequency: Set the frequency using the number (0~9) buttons.

•

Bandwidth: Set the bandwidth using the ▲, ▼buttons.

When it has finished, channels are updated in the channel list.

■

Analogue Channel

Manual store for analogue channel.

•

Programme (Programme number to be assigned to a channel)

Sets the programme number using the ▲, ▼ or

number (0~9) buttons.

•

Colour System

Sets the colour system value using the ▲ or ▼ button.

•

Sound System

Sets the sound system value using the ▲ or ▼ button.

•

Channel (When you know the number of the channel to be stored)

Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). Press the ► button, then press the

▲, ▼ or number (0~9) buttons to select the required number.

If there is abnormal sound or no sound, reselect



the sound standard required.

Search (When you do not know the channel numbers):

•

Press the ▲ or ▼ button to start the search. The tuner

scans the frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated

•

programme number): Set to OK by pressing the

ENTER

→→ Auto / PAL / SECAM / NTSC4.43

→→ BG / DK / I / L

button.

Digital Channel is only

■

available in DTV mode.

Analogue Channel is only

■

available in analogue TV mode.

Channel mode

■



C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.



S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

English

Using the Menus

Option Description

Full Guide / Mini Guide / Default Guide

Full Guide

900 f tn 901 ITV Play 902 Kerrang! 903 Kiss 903 oneword 903 Smash Hits!

▼

Watch

DTV Cable 900 f tn 2:10 Tue 1 Jun Freshmen On Campus 2:00 - 2:30 No Detailed Information

Today 2:00 - 3:00 3:00 - 4:00

Freshmen O..

Street Hypn.. Mint Extra Loaded Fresh 40 with Dynamite MC The Distillery Smash Hits! Sunday

Information

◀◀ ▶▶

Page

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

■

Displays the programme information as time ordered One hour segments. One hours of programme information is displayed which may be scrolled forwards or backwards in time.

■

The information of each programme is displayed by each line on the current channel Mini Guide screen from the current programme onwards according to the programme starting time order.

■

You can decide whether to display either the Full Guide or the Mini Guide when the GUIDE button on the remote control is pressed.

No Information

No Information Kisstory No Information



Mini Guide +24 Hours Exit

Channel

Full Guide

Mini Guide

Default Guide → Full Guide / Mini Guide

Mini Guide

Mini Guide DTV Cable 900 f tn

(Red)

2:00 2:30

▼

5:00

Freshmen On Campus Street Hypnosis Booze Britain

Watch

Information

You can also display the guide

■

menu simply by pressing the GUIDE button.



Full Guide Exit

Page

◀◀ ▶▶

▲ / ▼ / ◄ / ►,

ENTER

RED

GREEN

YELLOW

BLUE

INFO

Select a programme by pressing the ▲/▼/◄/►/ENTERE button.

Toggle between the Mini Guide or Full Guide.

Full Guide: Scroll backwards quickly (-24 hours). Mini Guide: Display previous page quickly

Full Guide: Scroll forwards quickly (+24 hours). Mini Guide: Display next page quickly.

Exit the guide.

INFO button for the detailed information.

English

Using the Menus

Option Description

Channel List

Channel

Using this menu, you can Add / Delete or set Favourite channels and use the programme guide for digital broadcasts.

■

All Channels

Shows all currently available channels.

■

Added Channels

Shows all added channels.

■

Favourites

Shows all favourite channels.

■

Programmed

Shows all current reserved programmes.

Select a channel in the All Channels, Added Channels, Favourites, or Programmed screen by pressing the ▲ / ▼ buttons, and pressing the ENTERE button.Then you can watch the selected channel.

•

Using the Colour buttons with the Channel List Red (Channel Type): Toggle between your TV,



Radio, Data/Other and All. Green (Zoom): Enlarges or shrinks a channel



number. Yellow (Select): Selects multiple channel lists.



Channel Status Display Icons

•

An Analogue channel.

A channel set as a Favourite.

♥

A locked channel.

A channel selected by pressing the

(

A programme currently being broadcast.

)

A reserved programme

Channel List Tools Menu (in All Channels / Added Channels / Favourites)

•

Press the TOOLS button to use the Tools menu.

•

Tools menu items may differ depending on the channel status.

■

Add / Delete

You can delete or add a channel to display the channels you want.

•

All deleted channels will be shown on All Channels menu.

•

You can also delete a channel to the Added Channels or Favourites menu in the same manner.

All Channels

824 UKTV Gold

825 UKTV style

A 1 C --

A 2 C

A 3 ♥ C

A 4 C

A 5 C

A 6 C

A 7 C

A 8 C

All



TOOLS (Tools): Displays

■

Channel Type Zoom Select

the Delete (or Add), Add to

Favourite (or Delete from Favourite), Timer Viewing, Edit Channel Name, Edit Channel Number, Sort, Lock (or Unlock), Select All (or Deselect All), or Auto Store

menu. (The Options menus may differ depending on the situation.)

Press the CH LIST button on

■

the remote control to bring up the channel lists.

A gray-coloured channel

■

indicates the channel has been deleted.

The Add menu only appears

■

for deleted channels.

Tools

English

Using the Menus

Option Description

Channel List

Channel

Add to Favourite / Delete from Favourite

■

You can set channels you watch frequently as favourites.

•

■

You can lock a channel so that the channel cannot be selected and viewed. This function is available only when the Child Lock is set to On.

•

■

If you reserve a programme you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a programme set the current time first.

•

■

Channels can labeled so that their call letters appear whenever the channel is selected.

•

■

You can also edit the channel number by pressing the number buttons on the remote control.

■

This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

symbol will be displayed and the channel will

The “♥”

be set as a favourite. All favourite channels will be shown on

menu.

Favourite

Lock / Unlock

The PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is ‘0-0-0-0’. You can change the PIN, by selecting Change PIN from the menu.

The “\” symbol will be displayed and the channel will be locked.

Timer Viewing

Only memorized channels can be reserved. You can set the channel, month, day, year, hour and

minute directly by pressing the number buttons on the remote control.

Reserving a programme will be shown on

Programmed menu. Digital Programme Guide and Viewing Reservation

When a digital channel is selected, and you press

the ► button, the Programme Guide for the channel

appears. You can reserve a programme according to the procedures described above.

Edit Channel Name (only analogue channel)

The names of digital broadcasting channels are automatically assigned and cannot be labeled.

Edit Channel Number (only digital channel)

Sort (only analogue channel)

All Channels

Press the TOOLS button to

■

display Tools menu. You can also add the favourite channel by selecting Tools →

→Add to Favourite (or Delete from Favourite).

To select the Favourite

■

channels you have set up, press the FAV.CH button on the remote control.

824 UKTV Gold

825 UKTV style

A 1 C --

A 2 C A 3 C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Delete

Add to Favourite

Lock

Timer Viewing

Edit Channel Name

Sort

▼

Tools

English

Using the Menus

Option Description

Channel List

Channel Mode

Channel

Select All / Deselect All

■

You can deselect or select all channels in the channel list.

•

You can perform the Delete from Favourites, or Lock / Unlock function for multiple channels at the same time. Select the required channels and press the yellow button to set all the selected channels at the same time.

The ✓ mark appears to the left of the selected

•

channels. You can only select Deselect All when there is a

•

selected channel.

Auto Store

■

For further details on setting up options, refer to page

•

16.

Channel List Tools Menu (in Programmed)

You can view, modify or delete a reservation.

Press the TOOLS button to use the tools menu.

•

Change Info: Select to change a viewing reservation.

■

Cancel Schedules: Select to cancel a viewing

■

reservation. Information: Select to view a viewing reservation.

■

(You can also change the reservation information.) Select All / Deselect All: Select or deselect all

■

reserved programmes

When the press the P </> button, Channels will be switched within the selected channel list.

■

Added Ch.

Channels will be switched within the memorized channel list.

■

Favourite Ch.

Channels will be switched within the favourite channel list.

Add / Delete, Add to Favourites /

If a channel is locked using the

■

Child Lock function, the PIN input window appears.

Programmed

1 / 1 / 2009

13:59 5 TV1 Quincy, M.E

18:59 2 TV3 The Equalizer

20:59 2 TV3 McMillan & Wife

21:59 2 TV3 M.Spillane’s mike Hammer

All



Zoom Select

Change Info

Cancel Schedules

Information

Select All

Tools Information

Fine Tune

If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, you may have to fine tune the channel manually.

•

Fine tuned channels that have been saved are marked with an asterisk * on the right-hand side of the channel number in the channel banner.

If you do not store the fine-tuned channel in memory,

•

adjustments are not saved. To reset the fine-tuning, select Reset by pressing the

•

▼ button and then press the ENTERE button.

Only Analogue TV channels

■

can be fine tuned.

English

Using the Menus

Picture Menu

Option Description

Mode

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

You can select the type of picture which best corresponds to your viewing requirements.

■

Dynamic / Standard / Eco / Movie

Your television has several setting options that allow you to control the picture quality.

■

Cell Light: Adjusts the pixel brightness.

■

Contrast: Adjusts the contrast level.

■

Brightness: Adjusts the brightness level.

■

Sharpness: Adjusts the sharpness.

■

Colour: Adjusts the colour saturation of the picture using the bar on the screen.

■

Tint (G/R): Adjusts the colour tint of the picture.

•

When you make changes to Cell Light, Contrast, Brightness, Sharpness, Colour or Tint (G/R), the OSD will be adjusted accordingly.

•

In Analogue TV, Ext., AV modes of the PAL system, you cannot use the Tint Function.

•

In PC mode, you can only make changes to Cell Light, Contrast and Brightness.

•

Each adjusted setting will be stored separately according to its input mode.

•

The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and then this will reduce the overall running cost.


Press the TOOLS button to

■

display Tools menu. You can also set the picture mode by selecting Tools → Picture Mode.


Mode : Standard ►

Cell Light : 4

Contrast : 95

Brightness : 45

Sharpness : 50

Colour : 50

Tint (G/R) : G50/R50

Advanced Settings

English

Using the Menus

Option Description

Advanced Settings


You can adjust the advanced settings for your screen including the colour and contrast.

■

Black Tone

You can enhance the picture depth by adjusting the black colour density.

Dynamic Contrast

■

You can adjust the screen contrast so that the optimal contrast is provided.

Gamma

■

You can adjust the primary colour (Red, Green, Blue) Intensity.

Colour Space

■

Colour Space is a colour matrix composed of red, green and blue colours. Select your favourite Colour Space to experience the most natural colour.

•

Auto: Automatically sets the colour range depending on the input video source.

•

Native: Sets a colour range wider than that of the input video source.

•

Custom: Adjusts the colour range to suit your preference.

Customizing the Colour Space



■

White Balance

You can adjust the colour temperature for more natural picture colours.

•

R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: Changing the adjustment value will refresh the

adjusted screen. Reset: Resets the default white balance.

•

Flesh Tone

■

You can emphasize the pink flesh tone in the picture.

•

Changing the adjustment value will refresh the adjusted screen.

Edge Enhancement

■

You can emphasize object boundaries in the picture.

xvYCC

■

Setting the xvYCC mode to on increases detail and colour space when watching movies from an external device (i.e. DVD player).

→→ Off / Dark / Darker / Darkest

→→ Off / Low / Medium / High

Adjusts the Colour range to suit your preference. Colour is available when Colour Space is set to Custom.

Colour → Red / Green / Blue / Yellow / Cyan / Magenta

Red / Green / Blue: In Colour, you can adjust the RGB values for the selected colour.

Reset: Resets the colour space to the default values.

→→ Off / On

Colour : 50

Tint (G/R) : G50/R50


Advanced Settings ►

Picture Options

Picture Reset

Advanced Settings is

■

available in Standard or Movie mode.

In PC mode, you can only

■

make changes to Dynamic Contrast, Gamma and White Balance from among the Advanced Settings items.

xvYCC is available when the

■

picture mode is set to Movie, and the external input is set to HDMI or Component mode.

English

Using the Menus

Option Description

Picture Options


Colour Tone →→ Cool / Normal / Warm1 / Warm2 /

■

Warm3

You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the

•

selected Picture mode. Warm1, Warm2 or Warm3 is only activated when the

•

picture mode is Movie.

Size

■

You can select the picture size which best corresponds to your viewing requirements.

Auto Wide: Sets the picture in Auto Wide format.

•

16:9: Sets the picture to the 16:9 aspect ratio.

•

Wide Zoom: Select this menu to view 4:3 aspect ratio pictures over a 16:9 aspect ratio TV by stretching the 4:3 picture vertically.

Zoom: Stretches the 16:9 aspect ratio picture vertically.

•

4:3: Sets the picture to the 4:3 aspect ratio.

•

Screen Fit: Displays the full native HD signal that

•

cannot be viewed using a normal TV. Wide Zoom: Press the ► button to select Position,



then press the ENTERE button.

Press the ▲ or ▼ button to move the screen up /

down. Then press the ENTERE button. Zoom: Press the ► button to select Position, then



press the ENTERE button. Press the ▲ or ▼ button to move the picture up and down. Then press the ENTERE button. Press the ► button to select Size, then press the ENTERE button. Press the

▲ or ▼ button to magnify or reduce the picture size

in the vertical direction. Then press the ENTERE button.

After selecting Screen Fit in HDMI (1080i / 1080p)



or Component (1080i / 1080p) mode: Select Position by pressing the ◄ or ►button. Use the ▲,

▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select Reset,



then press the ENTERE button. You can initialize the setting.

If you use the Screen Fit function with HDMI 720p



input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■

Screen Mode → 16:9 / Wide Zoom / Zoom / 4:3

When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

■

Digital NR → Off / Low / Medium / High / Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

•

When the signal is weak, select one of the other options until the best picture is displayed.

■

HDMI Black Level

You can directly select the black level on the screen to adjust the screen depth.

•

This function is active only when the external input connects to HDMI (RGB signals).

→→ Normal / Low

Tint (G/R) : G50/R50

Advanced Settings


Picture Options ►

Picture Reset

In PC mode, you can only

■

make changes to the Colour Tone, Size and Screen Burn Protection from among the

items in Picture Options.

Depending on the input source,

■

the picture size options may vary.

The items available may differ

■

depending on the selected mode.

In PC Mode, only 16:9 and 4:3

■

mode can be adjusted. When Double (

■

has been set in PIP, the Picture Size cannot be set.

Settings can be adjusted and

■

stored for each external device you have connected to an input of the TV.

Temporary image retention

■

may occur when viewing a static image on the set for more than two hours.

You can select these options

■

simply by pressing the P.SIZE button on the remote control.

This function is available in

■

Auto Wide mode. This function is not available

■

in PC, Component or HDMI mode.

, ) mode

English

Using the Menus


Option Description

1080 Full HD Motion Demo → Off / On

Picture Options

Optimum condition for pixel shift

■

Samsung's new generation PDP panels deliver stunning Full HD motion clarity when viewing fast action sports, movies, and games.

•

This function is not available in PC, Game or Media Play mode.

■

Film Mode

You can optimize the picture mode for watching movies.

•

Off: Turn the Film Mode function off.

•

Auto1: Improves the picture quality for fast motion scenes.

•

Auto2: Allows a smoother text motion on fast motion scenes.

•

Cinema Smooth: Offers the ultimate cinema experience.

Film mode is supported in TV, Video,



Component(480i / 1080i) and HDMI(1080i).

Real 100Hz Demo → Off / On

■

You can get a clear distinction between Real 100Hz and 50Hz, especially when watching fast moving scenes. Therefore, when seeing slow moving scenes, you will not be able to distinguish between Real 100Hz and 50Hz. Demo 100Hz works only with 50Hz signal. Real 100Hz demo mode is provided for shop demonstration with special pictures.

Blue Only Mode → Off / On

■

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.

•

Blue Only Mode is available when the picture mode is set to Movie or Standard.

■

Screen Burn Protection

To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical) and side to side (Horizontal). The Time setting allows you to program the time between movement of the picture in minutes.

•

Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

Item TV/Ext./AV/Component/HDMI/PC

Horizontal 0~2 2

Vertical 0~4 4

Time (minute) 1~4 min 2 min

The Pixel Shift value may differ

■

depending on the monitor size (inches) and mode.

This function is not available in

■

the Screen Fit mode

Scrolling: This function helps remove after images

•

on the screen by moving all the pixels on the PDP according to a pattern Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.

Side Grey: When you watch TV with the screen ratio

•

of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

Light: When you set the screen ratio to 4:3, it



brightens the left and right sides. Dark: When you set the screen ratio to 4:3, it



darkens the left and right sides.

English

Using the Menus

Option Description

Picture Reset

Option Description

Auto Adjustment

Screen


Reset Picture Mode / Cancel

■

Resets all picture settings to the default values.

•

Select a picture mode to be reset. The reset is performed for each picture mode.

Picture (In the PC mode)

Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Finetuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen.

■

Coarse

Adjusts the frequency when vertical noise appears on the screen.

■

Fine

Adjusts the screen to be clearer.

■

PC Position

Adjust the PC’s screen positioning if it does not fit the TV

screen. Press the▲ or ▼ Press the button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the

Horizontal-Position.

■

Image Reset

You can replace all image settings with the factory default values.

Brightness : 45

Sharpness : 50


Auto Adjustment ►

Screen

Advanced Settings

Picture Options

Picture Reset

Press the TOOLS button to

■

display Tools menu. You can also set the adjustment by selecting Tools → Auto Adjustment.

Preset: Press the SOURCE

■

button to select PC mode. This function does not work in

■

DVI-HDMI mode.

PC Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on ‘Control Panel’ on the Windows start menu.

When the control panel window appears, click on ‘Appearance and Themes’

and a display dialog-box will appear.

When the control panel window appears, click on ‘Display’ and a display

dialog-box will appear.

Navigate to the ‘Settings’ tab on the display dialog-box.The correct size setting

(resolution) Optimum: 1920 X 1080 pixels

If a vertical-frequency option exists on your display settings dialog box, the correct value is ‘60’ or ‘60 Hz’. Otherwise, justIf a vertical-frequency option exists on your display settings dialog box, the correct value is ‘60’ or ‘60 Hz’. Otherwise, just

click ‘OK’ and exit the dialog box.

English

Using the Menus

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub and HDMI/DVI Input

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

VESA DMT /

DTV CEA

VESA GTF

640 x 350 31.469 70.086 25.175 + / -

720 x 400 31.469 70.087 28.322 - / +

640 x 480 35.000 66.667 30.240 - / -

832 x 624 49.726 74.551 57.284 - / -

1152 x 870 68.681 75.062 100.000 - / +

720 x 576 35.910 59.950 32.750 - / +

1152 x 864 53.783 59.959 81.750 - / +

1280 x 720

1280 x 960 75.231 74.857 130.000 - / +

640 x 480

800 x 600

1024 x 768

1152 x 864 67.500 75.000 108.000 + / +

1280 x 800

1280 x 960 60.000 60.000 108.000 + / +

1280 x 1024

1360 x 768 47.712 60.015 85.500 + / +

1440 x 900

1680 x 1050 65.290 59.954 146.250 - / +

1920 x 1080p 67.500 60.000 148.500 + / +

1280 x 720 52.500 70.000 89.040 - / +

1280 x 1024 74.620 70.000 128.943 - / -

Horizontal Frequency

(kHz)

44.772 59.855 74.500 - / +

56.456 74.777 95.750 - / +

31.469 59.940 25.175 - / -

37.861 72.809 31.500 - / -

37.500 75.000 31.500 - / -

37.879 60.317 40.000 + / +

48.077 72.188 50.000 + / +

46.875 75.000 49.500 + / +

48.363 60.004 65.000 - / -

56.476 70.069 75.000 - / -

60.023 75.029 78.750 + / +

49.702 59.810 83.500 - / +

62.795 74.934 106.500 - / +

63.981 60.020 108.000 + / +

79.976 75.025 135.000 + / +

55.935 59.887 106.500 - / +

70.635 74.984 136.750 - / +

Vertical Frequency

(Hz)

Pixel Clock Frequency

(MHz)

Sync Polarity (H/V)

■

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 (DVI) jack.

■

The interlace mode is not supported.

■

The set might operate abnormally if a non-standard video format is selected.

■

Separate and Composite modes are supported. SOG is not supported.

■

Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080).

English

Using the Menus

Sound Menu

Option Description

Mode

Equalizer

SRS TruSurround HD

Audio Language

Audio Format

Audio Description

Auto Volume

You can select the type of special sound effect to be used when watching a given broadcast.

■

The sound settings can be adjusted to suit your personal preferences.

■

SRS TruSurround HD is the combined technology of TruSurround and FOCUS, TruBass.

SRS TruSurround HD is down mixing technology that makes the Surround Sound effect of virtual 5.1 channel via two speakers. This function provide not only rich deep bass at a low-pitched sound but also improve the resolution at a high-pitched sound.

•

You can change the default value for audio languages. Displays the language information for the incoming stream.

■

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

•

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

■

Turn the audio description function on or off.

■

You can adjust the audio description volume.

•

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

Sound

Standard / Music / Movie / Clear Voice / Custom

Mode: You can select a sound mode to suit your

personal preferences. Balance: Controls the balance between the right and

left speakers. 100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth

Adjustment): To adjust the level of different bandwidth frequencies

Reset: Resets the equalizer settings to the default values.

If the sound is abnormal while TV is playing music, please adjust the equalizer and SRS TruSurround HD (Off/On).

You can only select the language among the actual languages being broadcast.

Audio Description→ Off / On

Volume

Volume is active when Audio Description is set to On.

Press the TOOLS button to

■

display Tools menu. You can also configure the sound mode by selecting Tools → Sound Mode.

Press the TOOLS button to

■

display Tools menu. You can also set the SRS

TruSurround HD by selecting Tools → SRS TS HD.

Audio Language, Audio

■

Format , and Audio Description is only available in

DTV mode.

English

Using the Menus

Option Description

Speaker Select

Sound

External Speaker / TV Speaker

■

If you want to hear the sound through separate speakers, cancel the internal amplifier.

•

The –=+, MMUTE buttons do not operate when the Speaker Select is set to External Speaker.

•

If you select External Speaker in the Speaker Select menu, the sound settings will be limited.

TV's Internal Speakers

TV / Ext. / AV / Component / PC

TV Speaker Speaker Output Sound Output

External Speaker Mute Sound Output

Video No Signal Mute Mute

Sound Select

Sound Reset

/ HDMI

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

■

Main: Listen to the sound of the main picture.

■

Sub: Listen to the sound of the sub picture. You can select this option when PIP is set to On.



Reset All / Reset Sound Mode / Cancel

■

You can restore the Sound settings to the factory defaults.

Audio Out (Optical, L / R Out) to

Sound System

TV / Ext. / AV / Component / PC /

HDMI

Selecting the Sound Mode

When you set to Dual l ll, the current sound mode is displayed on the screen.

NICAM

Stereo

Type of broadcast

Regular broadcast

(Standard audio)

Regular + NICAM

Mono

NICAM-Stereo

On-screen indication

Mono (Normal use)

NICAM

NICAM Stereo

Mono

(Normal)

zMono

(Normal)

Press the TOOLS button to to

■

display Tools menu. You can also set the sound of the sub picture by selecting Tools → PIP → Sound Select.

NICAM Dual-I/II

Regular broadcast

Stereo

■

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

■

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

■

This function is only available in TV mode.

(Standard audio)

Bilingual or DUAL-I/II Dual I

Stereo Stereo

NICAM Dual-1

NICAM

Dual-2

Mono (Normal use)

Dual II

Mono

(Forced mono)

Mono

(Normal)

Press the TOOLS button to to

■

display Tools menu. You can also select the sound mode by selecting Tools → Dual l ll.

English

Using the Menus

Setup Menu

Option Description

Language

Time

You can set the menu language.

■

Setting the clock is necessary in order to use the various timer features of the TV.

•

You can set up the current time manually or automatically.



•

You can set the current time manually.



■

The sleep timer automatically shuts off the TV after a preset time. (30, 60, 90, 120, 150 and 180 minutes)

•

■

You can set the TV to turn on or off at a desired time.

•



 

Setup

Clock

Clock Mode

Auto: Set the current time automatically using the

time from the digital broadcast. Manual: Set the current time to a manually specified

time.

Clock Set

Set up this item when you have set Clock Mode to Manual.

You can set the Day, Month, Year, Hour, Minute directly by pressing the number buttons on the remote control.

Sleep Timer

The TV automatically switches to standby mode when the timer reaches 0.

To cancel the Sleep Timer function, select Off.

Timer 1 / Timer 2 / Timer 3

On Time: Set the hour, minute, am/pm, and Activate/

Inactivate. (To activate timer with the setting you’ve chosen, set to

Activate.) Off Time: Set the hour, minute, am/pm, and Activate/

Inactivate. (To activate timer with the setting you’ve chosen, set to

Activate.) Volume: Set the required volume level. Source : Selects TV, or USB device.

When you select the TV, you can set the Antenna and Channel.

Antenna: Selects Air or Cable. Channel: Select the desired channel.

When you select the USB, you can set the Contents. Contents: Selects the desired contents on the USB. Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun, or Manual.

When Manual is selected, press the ► button to select the desired day of the week. Press the ENTERE button over the desired day and the ✓ mark will appear.

The whole folder on the USB are supports English 64 character.

You must set the clock first. You can set the hour, minute and programme by

pressing the number buttons on the remote control.

Plug & Play

Setup

Language : English ►

Time

Game Mode : Off

BD Wise : On

Network Type : Cable

Network Setup

Child Lock : On

Change PIN

If you disconnect the power

■

cord, you have to set the clock again.

The current time will appear

■

every time you press the INFO button.

Press the TOOLS button to

■

display Tools menu. You can also set the sleep timer by selecting Tools →

Sleep Timer.

Auto Power Off

■

When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

+ 72 hidden pages
