Plasma TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-02574A-00

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours

as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the

product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

• The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or

humidity. This is normal and not a defect of the unit.

• Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel. Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of

the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen. Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

Securing the Installation Space

Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Installation with a stand. Installation with a wall-mount.

10 cm

English

10 cm

Contents

Getting Started

Connections

Basic Features

Advanced Features

Other Information

4 Accessories 4 Viewing the Control Panel 5 Viewing the Remote Control 6 Connecting to an Antenna 6 Plug & Play (Initial Setup)

7 Connecting to an AV Device 8 Connecting to an Audio Device 8 Changing the Input Source

9 How to Navigate Menus 9 Using the INFO button (Now & Next guide) 9 Planning Your Viewing 11 Channel Menu 12 Picture Menu 15 Sound Menu 17 Setup Menu 19 Support Menu

20 Connecting to a PC 21 Media Play 27 Anynet+

ENGLISH

30 Analogue Channel Teletext Feature 31 Installing the Wall Mount 32 Securing the TV to the wall 33 Troubleshooting 36 Speciﬁcations 37 Index



This function can be used by pressing the

TOOLS button on the remote control.

Check the Symbol!

Note One -Touch Button

Indicates additional information. Check here for instructions on how to open

the relevant submenu within the OSD (on

screen display).

English

Getting Started

Accessories

✎

Please make sure the following items are included with your PDP TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

y Remote Control & Batteries (AAA x 2) y Owner’s Instructions y Warranty Card / Safety Guide (Not available in some locations)

y Blanking Bracket y Ferrite Core for Power Cord (2EA)

✎

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

Distance between the ferrite core and one end of the cord put into the TV set

y A : below 50 mm y B : below 20 mm

y Cleaning Cloth y Power Cord

(50-Inch only)

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Power Indicator

Speakers

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s features.





Power Indicator Blinks and turns off when the power is on and lights up in standby mode.



Remote control sensor Aim the remote control towards this spot on the TV.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.



(Power)

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.

Adjusts the volume. In the OSD, use the and ► buttons on the remote control.

Changes the channels. In the OSD, use the ▼ and ▲ buttons on the remote control.

Turns the TV on or off.





Remote control sensor

buttons as you would use the ◄

buttons as you would use the

English

Viewing the Remote Control

01 Getting Started

Turns the TV on and off.

Have direct access to channels.

Alternately selects Teletext, Double or Mix.

Adjusts the volume.

Opens the OSD.

Displays Media Play (USB) (p. 21).

Quickly select frequently used functions.

Returns to the previous menu.

These buttons are for the Channel

Manager, Media Play (USB) menu, etc.

Use these buttons in Media Play

(USB) and Anynet+ (HDMI-CEC)

(



: Controls recording for Samsung

recorders that have the Anynet+

modes (p. 21, 27).

feature)

SOURCE

TTX/MIX

CH LIST

MEDIA.P

RETURN

A B C D

P.MODE

S.MODE DUAL

AD P.SIZE

INFO

SUBT.

Displays and selects the available video sources (p. 8).

Returns to the previous channel.

To mute all TV output sound

Changes channels.

Displays channel lists on the screen (p. 11).

Displays the EPG (Electronic Programme Guide). (p. 9)

Displays information on the TV screen.

Selects the on-screen menu items and changes the values seen on the menu.

Exits the menu.

ΕΧΙΤ

P.MODE: Press to select the picture

mode (p. 12).

S.MODE: Press to select the sound

mode (p. 15).

DUAL -: Sound effect selection

(p. 16).

AD: Turns the audio description on

and off (not available in some locations) (p. 16).

P.SIZE: Selects the picture size (p. 13). SUBT.: Displays digital subtitles (p. 18).

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from TV.

Bright light may affect the per formance of the remote

control. Avoid to use nearby special fluorescent light or neon sign.

The colour and shape may vary depending on the model.

English

Getting Started

POWER

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the power cord and antenna.

VHF/UHF Antenna

Cable

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

Selecting Store Demo

or Home Use

Selecting a country

Selecting a channel

source Selecting a channel

Setting the Clock

Mode

Time zone

Viewing the HD

Connection Guide. Enjoy your TV.

Press the ◄ or ► button, then press the ENTER

y Select the Home Use mode. Store Demo Mode is for retail

environments.

y To return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the

volume OSD, press and hold MENU for 5 sec. Press the ▲ or ▼ button, then press the ENTER Select the appropriate country. If the desired country does not exist on

the menu, select Others. Press the ▲ or ▼ button, then press the ENTER

Digital or Analogue. Press the ▲ or ▼ button, then press the ENTER Select the channel source to memorise. For more information, refer to Channel → Auto

Store (p. 11).

✎

Press the ENTER button at any time to interrupt the memorization process. Set the Clock Mode automatically or manually.

y Auto: Allows you to select time zone. y Manual: Allows you to manually set the current date and time.

Press the ▲ or ▼ button to highlight the time zone for your local area. Press the ENTER

The connection method for the best HD screen quality is displayed.

Press the ENTER



button (Australia only).



button.



button.



button.



button. Select Digital & Analogue,



button.

ANT OUT

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to change the PIN number, use the Change PIN function.

English

Connections

Connecting to an AV Device

Using an HDMI or HDMI/DVI cable: HD connection (up to 720p/1080i)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

02 Connections

DVD /

Blu-ray player

Red White

HDMI OUT

DVD /

Blu-ray player

DVI OUT

AUDIO OUT

W R

✎

HDMI IN 1(DVI), 2, 3, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable

R-AUDIO-L

connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the PC/DVI

AUDIO IN jacks for audio.

If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI

versions older than 1.3 is connected, the T V may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you

suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a

connection error may occur.

Using a Component (up to 720p/1080i) or Audio/Video (480i only) Cable

Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver

Red

White

R GB

Red

Blue Green

DVD / Blu-ray player

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

AUDIO OUT

R-AUDIO-L

R GB

R B G

COMPONENT OUT

PR PB Y

R W

Red

White

VCR

Yellow

AUDIO OUT

R-AUDIO-L

VIDEO OUT

English

Connections

SOURCE

Connecting to an Audio Device

Using an Optical (Digital) or Headphone Connection

Available devices: digital audio system, ampliﬁer, DVD home theatre

OPTICAL

✎

DIGITAL AUDIO OUT (OPTICAL)

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the T V is connected to an external device supporting 5.1 CH.

When the receiver (amplifier or DVD home theatre) is set to on, you can hear sound output from the TV’s

optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD home theatre. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the T V via HDMI, only 2 CH audio will be heard from the amplifier or DVD home theatre. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

Headphones : You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

digital audio system

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

Changing the Input Source

Source List

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

■ TV / AV / Component1 / Component2

/ PC / HDMI1/DVI / HDMI2 / HDMI3 / USB

✎

In the Source List, connected inputs will be highlighted.

✎

PC always stay activated.

English

Edit Name

■ VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your input source selection easier.

✎

When connecting an HDMI/DVI cable to the HDMI IN

1(DVI) port, you should set to DVI PC or DVI Devices

mode under Edit Name.

Basic Features

INFO

SOU

RCE

H LI

TTX/MI

How to Navigate Menu

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

3 4

1 MENU button: Displays the main on-screen menu. 2 ENTER

select an item. Conﬁrm the setting.

3 RETURN button: Returns to the previous menu. 4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

▲ / ▼ Select an icon with the ▲ or ▼

ENTER

▲ / ▼

◄ / ►

ENTER

EXIT

MEDIA.P

RETURN



/ Direction button: Move the cursor and



The main menu options appear on

ΕΧΙΤ

the screen:

Picture, Sound, Channel, Setup, Input, Application, Support.

button.



Press ENTER to access the sub-menu.

Select the desired submenu with the ▲ or ▼ button.

Adjust the value of an item with the ◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.



Press ENTER to complete the conﬁguration.



Press EXIT.

Using the INFO button (Now & Next guide)

The display identiﬁes the current channel and the status of certain audio-video settings.

The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time.

y Scroll ◄, ► to view information for a

desired programme while watching the current channel.

y Scroll ▲, ▼ to view information for other channels. If you

want to move to the currently selected channel, press the ENTER

DUWH

DTV

All

350



button.

Karl de r GroBe (2/ 3)

Dual

576i

Spiefilm Fr ankreich / It alien 1994 “Ka rl der GroBe” war der Wegber eiter Europas, De r abenteuerli che dreiteilig e Fernsehfilm widmet sich de m ...



4:3

Multi | Movie

4:45 - 6:20

INFO

5:46 Su n 2 May

Watch

Informat ion

Planning Your Viewing

Guide

(Australia & Singapore Only) The EPG (Electronic Programme Guide)

information is provided by broadcasters. Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the speciﬁed time. Programme entries may appear blank or out of date depending on a channel status.

Using Channel View

Guide

DTV Air 800 five

Home and Away 18:00 - 18:30

Drama

800 ﬁve

Channel View - All

Today 18:00 - 19:00 19:00 - 20:00

27 28 800 24 16 6

Dani is devastated when scott makes clear his views on marriage...

Discovery DiscoveryH&L five price-drop.tv QVC R4DTT

View Mode +24 Hours Ch. Mode  Information  Page

1 2 3 4 5 6

American Chopper

Programmes resume at 06:00 Home and... No Information QVC Selection No Information

)

Family Affairs

Tine Team

Fiv...

)

GUIDE

2:10 Tue 1 Jun

Dark Angel



Watch

02 Connections

English

Basic Features

Using Scheduled View

Guide

Family Affairs

) )

Dark Angel

800 800

View Mode

1 6



button again and

DTV Air 800 five

Family Affairs 18:00 - 18:30

Drama

10 TEN Digital

Scheduled View

18:30 19:15

1

Red (View Mode): View the list of programmes that

Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

Wed 29 Jul Thu 24 Dec

are playing now or coming up.

2

Yellow (+24 Hours): Viewing the list of programmes to

be broadcasted after 24 hours.

3

Blue (Ch. Mode): Select the type of channels you want to display on the Channel View window. (All, TV, Radio, Data/Other, My Channel 1~4)

4 Information: Displays details of the selected

programme.

5



(Page): Move to next or previous page.

6 ENTER



button

– When selecting the current programme, you can

watch the selected programme.

– When selecting the future programme, you can

reserve to watch the selected programme. To cancel the schedule, press the ENTER select Cancel Schedules.

2:10 Tue 1 Jun

five five



Cancel

 Seeing Channels

Channel Manager

Delete or set favourites channels. Select a channel in the Channels, My Channels or Scheduled screen.

Channels

All

TV Radio Data/Other Analogue

Zoom Select Sort  Page

■

Channels: Shows the channel list according to

channel type.





My Channels: Shows the group of the channel.

■

Scheduled: Shows all the currently reserved

programmes.

✎

Using the colour buttons with the Channel Manager

Green (Zoom): Enlarges or shrinks a channel

number.

Yellow (Select): Selects multiple channel lists.

Select desired channels and press the Yellow button to set all the selected channels at the same time. The



mark appears to the left of the selected channels.

Blue (Sor t): Change the list ordered by channel

name or channel number.



(Page): Move to next or previous page.



(Tools): Displays the Channel Manager option

menu. (The options menus may differ depending on the situation.)

Channel Status Display Icons

358 ORF1 359 ORF2 0

360 ORF2 S

361 * BBC World 728 \ bid-up.tv c729 Boonerang

1 C1

2 C2



Tools

Icons Operations

An analogue channel.



A channel selected.



A channel set as a Favourite.



A programme currently being broadcast.



A locked channel.



A reserved programme.



English

 Using Favourite Channels

CH LIST

Channel Menu

03 Basic Features





My Channels

(in Channel Manager) Shows all favourite channels.

■ Edit My Channels channels to desired my channels group.

✎

The “” symbol will be displayed and the channel will be set as a My Channels.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups

you want among 1, 2, 3 and 4.

One or more groups can be selected.

3. After you have changed the settings, the channel list

for each group can be viewed in My Channels.

Channels

Zoom Select Sort  Page



All

TV Radio Data/Other Analogue

: You can set the selected

358 ORF1 359 ORF2 0

360 ORF2 S

Edit My Channels

Lock

Timer Viewing

361 * BBC World

Edit Channel Number

728 \ bid-up.tv

Delete

c729 Boonerang

Select All

1 C1

2 C2



Tools

▼

Channel List

You can see all the channels searched.

 Returning Channels

Country

You can change the country. The PIN input screen appears. Enter your 4 digit PIN number.

Auto Store

Scans for a channel automatically and stores in the TV.

✎

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears.

■ Channel Source (Digital & Analogue / Digital / Analogue): Select the channel source to memorise.

Manual Store

Scans for a channel manually and stores in the TV.

■ Digital Channel (Channel, Frequency, Bandwidth): When scanning has ﬁnished, channels are updated in the channel list.

✎

The Bandwidth function is supported in New zealand and Singapore only.

■ Analogue Channel (Programme, Colour System, Sound System, Channel, Search): If there is abnormal sound or no sound, reselect the sound standard required.

✎

Channel mode

P (programme mode): When tuning is complete,

the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

C (aerial channel mode) / S (cable channel mode):

These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

 Editing Channels

Channel Manager Option Menu (in Channel Manager)

1. Select a channel and press the TOOLS button.

2. Edit the channel name or number using the Edit Channel Name or Edit Channel Number menu.

■ Edit Channel Name (analogue channels only): Assign your own channel name.

■ Edit Channel Number (digital channels only) (Australia, Singapore only): Edit the number by pressing the number buttons desired.

English

Basic Features

 Other Features

Channel Manager

Channel Manager Option Menu Set each channel using the Channels menu options (Lock /

Unlock, Timer Viewing, Sort, Delete, Select All / Deselect All). Option menu items may differ depending on the channel

status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■ Lock / Unlock: Lock a channel so that the channel cannot be selected and viewed.

✎

NOTE

This function is available only when the Child Lock

is set to On. The PIN input screen appears. Enter your 4-digit PIN,

the default of which is “0-0-0-0.” Change the PIN using the Change PIN option.

■ Timer Viewing: You can set a desired channel to be displayed automatically at the reserved time. Set the current time ﬁrst to use this function.

✎

When a digital channel is selected, press the ► button to view the digital Programme.

■ Sort (analogue channels only): This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

■ Delete: You can delete a channel to display the channels you want.

■ Select All / Deselect All: Select all the channels or deselect all the selected channels in the channel manager.

Scheduled

(in Channel Manager) You can view, modify or delete a show you have reserved to

watch.

■ Change Info: Change a show you have reserved to watch.

■ Cancel Schedules: Cancel a show you have reserved to watch.

■ Information: Display a show you have reserved to watch. (You can also change the reservation information.)

■ Select All / Deselect All: Select or deselect all reserved programmes.

Edit Channel Number (Disable / Enable)

(New Zealand only) Edit the number by pressing the number buttons desired.

Fine Tune

(analogue channels only) If the signal is weak or distorted, ﬁne tune the channel

manually.

✎

Fine tuned channels are marked with an asterisk “*.”

✎

To reset the fine-tuning, select Reset.

Picture Menu

 Changing the Preset Picture Mode

Mode

Select your preferred picture type.

■ Dynamic: Suitable for a bright room.

■ Standard: Suitable for a normal environment.

■ Movie: Suitable for watching movies in a dark room.

P.MODE

 Adjusting Picture Settings

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE

In analogue TV, AV modes of the PAL system, the

Tint (G/R) function is not available. In PC mode, you can only make changes to Cell

Light, Contrast and Brightness. Settings can be adjusted and stored for each

external device connected to the TV.

English

 Economical Solutions

Eco Solution

■ Energy Saving (Off / Low / Medium / High /

Picture Off)

the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen. Until the screen turns on again, a distorted picture will be displayed for about 4 seconds.

■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room.

Min Cell Light: When Eco sensor is On, the minimum screen brightness can be adjusted manually.

■ No Signal Power Off (Off / 15 min / 30 min / 60 min): Sets how quickly the TV switches to standby mode, if no picture is being received.

 Changing the Picture Options



✎

If you adjust the Cell Light, the Eco Sensor will be set to Off.

✎

If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

✎

Disabled when the PC is in power saving mode.

: This adjusts the brightness of

Advanced Settings

(available in Standard / Movie mode) You can adjust the detailed setting for the screen including

colour and contrast.

✎

In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance.

Advanced Settings

Black Tone : Off ►

Dynamic Contrast : Medium

Gamma : 0

RGB Only Mode : Off

Colour Space : Native

White Balance

Flesh Tone : 0

■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth.

■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.

■ Gamma: Adjust the primary colour intensity.

▼



Move



Enter



Return

■ RGB Only Mode (Off / Red / Green / Blue): You can adjust Colour or Tint (G/R) of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.).

■ Colour Space (Auto / Native): Adjust the range of colours available to create the image.

■ White Balance: Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.

Reset: Resets the White Balance to it’s default settings.

■ Flesh Tone: Emphasize pink “Flesh Tone.”

■ Edge Enhancement (Off / On): Emphasize object boundaries.

Picture Options

✎

In PC mode, you can only make changes to the Colour Tone, Size and Screen Burn Protection.

Picture Options

Colour Tone : Normal ►

Size : 16:9

Digital Noise Filter : Auto

MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off

Screen Burn Protection



Move



Enter



Return

■ Colour Tone (Cool / Normal / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.

✎

Settings can be adjusted and stored for each external device connected to an input on the T V.

■ Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

Auto Wide (New Zealand, Singapore only): Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom: Magniﬁes the picture size more than 4:3.

✎

Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magniﬁes the 16:9 wide pictures vertically to ﬁt the screen size.

✎

Adjusts the Position or Size by using ▲, ▼ button.

P.SIZE

03 Basic Features

English

Basic Features

4:3 : The default setting for a movie or normal broadcasting.

✎

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

✎

NOTE

Depending on the input source, the picture size

options may vary. The available items may differ depending on the

selected mode. In PC mode, only 16:9 and 4:3 modes can be

adjusted. Settings can be adjusted and stored for each

external device connected to an input on the T V. After selecting Screen Fit in HDMI (1080i / 1080p)

or Component (1080i / 1080p) mode: Adjusts the Position or Size by using ▲, ▼, ◄, ► button.

If you use the Screen Fit function with HDMI 720p

input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■ Screen Mode (16:9 / Wide Zoom / Zoom / 4:3) (New Zealand, Singapore only): Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

✎

Not available in PC, Component or HDMI mode.

■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualization): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.

Auto Visualization: When changing analogue channels, displays the intensity of the current signal and deﬁnes the screen noise ﬁlter.

✎

Only available for analogue channels.

■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality.

■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth.

✎

Available only in HDMI mode (RGB signals).

■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process ﬁlm signals from all sources and adjust the picture for optimum quality.

✎

Available in TV(Digital TV for resolution 576i & 1080i and All Analogue TV), AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

■ Screen Burn Protection: To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. The Time setting allows you to programme the time between movement of the picture in minutes.

Pixel Shift (Off / On): Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

✎

Optimum condition for pixel shift

Item

Horizontal 0~4 4

Vertical 0~4 4

Time (minute) 1~4 min 4 min

✎

The Pixel Shift value may differ depending on the monitor size (inches) and mode.

✎

This function is not available in the Screen Fit mode.

Auto Protection Time (10 min / 20 min / 40 min / 1 hour / Off): If the screen remains idle with a still

image for a certain period of time deﬁned by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

Scrolling: This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen, especially when you displayed a still image on the screen for a long time.

✎

The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen. If the after-image is not removed after performing the function, repeat the function again.

✎

Press any key on the remote control to cancel this feature.

Side Grey (Light / Dark): When you watch TV with the screen ratio set to 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

TV/AV/Component/

HDMI/PC

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

 Setting up the TV with Your PC

Set the input source to PC.

Auto Adjustment

Adjust frequency values/positions and ﬁne tune the settings automatically.

✎

Not available when connecting with an HDMI/DVI cable.



English

Screen

■ Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

■ Position: Adjust the PC screen position with direction button (▲ / ▼ / ◄ / ►).

■ Image Reset: Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card,

the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

y The correct size setting (resolution) [Optimum:

PS42C450, PS42C451: 1024 X 768 / PS50C450, PS50C451: 1360 X 768 pixels]

y If a vertical-frequency option exists on your display

settings dialog box, the correct value is “60”or “60 Hz.” Otherwise, just click “OK” and exit the dialog box.

 Adjusting Sound Settings

03 Basic Features

Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R: Adjusts the balance between the right and left speaker.

■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

■ Reset: Resets the equalizer to its default settings.

 Sound Systems, Etc.

Virtual Surround (Off / On)

(standard sound mode only) This function provides a virtual 5.1 channel surround sound

experience through a pair of speakers or headphones using HRTF (Head Related Transfer Function) technology.

Dialog Clarity (Off / On)

(standard sound mode only) This function allows you to increase the intensity of a voice

over background music or sound effects so that dialog can be heard more clearly.

Sound Menu

 Changing the Preset Sound Mode

Mode

■ Standard: Selects the normal sound mode.

■ Music: Emphasizes music over voices.

■ Movie: Provides the best sound for movies.

■ Clear Voice: Emphasizes voices over other sounds.

■ Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.

S.MODE

Audio Language

(digital channels only) Change the default value for audio languages.

✎

The available language may dif fer depending on the broadcast.

Audio Format

(digital channels only) When sound is emitted from both the main speaker and the

audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

✎

Audio Format option may differ depending on the broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable.

English

Basic Features

Audio Description

(not available in all locations) (digital channels only)

This function handles the Audio Stream for the

AD (Audio Description) which is sent along with

the Main audio from the broadcaster.

■ Audio Description (Off / On): Turn the audio description function on or off.

■ Volume: Adjust the audio description volume.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

✎

When Speaker Select is set to External Speaker.

TV Speaker: Off, External Speaker: On

✎

When Speaker Select is set to TV Speaker.

TV Speaker: On, External Speaker: On

✎

If there is no video signal, both speakers will be mute.

Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

✎

By connecting to 5.1ch speakers in a Dolby Digital setup, maximize your interactive 3D sound experience.

Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

■ Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

✎

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than

-31dB (reference) to either -20dB or -31dB. RF: Set the output level for signals greater or less than

-20dB (reference) to either -10dB or -20dB.

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

¦ Selecting the Sound Mode

When you set to Dual f-g, the current sound mode is displayed on the screen.

DUAL

Additional Setting

■ DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

✎

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

✎

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

English

Audio

Type

Stereo

NICAM Stereo

✎

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

✎

Only activated in stereo sound signal.

✎

Only available when the Input source is set to TV.

Mono Mono

Stereo

Dual

Mono Mono

Stereo

Dual

f-g

Stereo  Mono

 Dual

Dual

Mono  Stereo Mono  Dual

 Dual g 

Default

Automatic

change

Dual

Automatic

change

Dual

Setup Menu

 Setting the Time

Time

■ Clock: Setting the clock is for using various timer features of the TV.



The current time will appear every time you press the INFO button.

✎

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

✎

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

✎

The antenna must be connected in order to set the time automatically.

Clock Set: Set the Day, Month, Year, Hour and Minute manually.

✎

Available only when Clock Mode is set to

Manual.

Time Zone (Australia only): Select your time zone.

✎

This function is only available when the Clock

Mode is set to Auto.

 Using the Sleep Timer

■ Sleep Timer TV after a preset period of time. (Off, 30, 60, 90, 120, 150 and 180 minutes).

✎



To cancel Sleep Timer, select Off.

: Automatically shuts down the

On Time / Off Time: Set the hour, minute, and activate

/ inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)

Volume: Set the desired volume level. Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select ATV or DTV.

Channel (when the Source is set to TV): Select the

desired channel. Contents (when the Source is set to USB): Select a

folder in the USB device containing music or photo ﬁles to be played when the TV is turned on automatically.

✎

NOTE

If there is no music file on the USB device or the

folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB

device, the Slide Show will not play. If a folder name is too long, the folder cannot be

selected. Each USB you use is assigned its own folder.

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you

select Manual, you can set up the day you want to activate the timer.

✎

The  mark indicates the day is selected.

✎

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

03 Basic Features

 Setting the On / Off Timer

■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock ﬁrst.

On Time

▲

Inactivate

▼

Off Time

Inactivate

Volume

10 TV ATV 1

Repeat

Once

Timer 1

00 00

Source Antenna Channel

Sun Mon Tue Wed Thu Fri Sat



Move

Adjust 

Enter



Return

 Locking Programmes

Security

✎

The PIN input screen appears before the setup screen.

✎

Enter your 4-digit PIN, the default of which is “0-0-0-0.” Change the PIN using the Change PIN option.

■ Child Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme.

✎

Available only when the Input source is set to TV.

English

Basic Features

■ Parental Lock: Prevent unauthorized users, such as children, from watching unsuitable programme with a user-deﬁned 4-digit PIN code. If the selected channel is locked, the "” symbol will be displayed.

Allow All: Unlock all TV ratings.

✎

The items of Parental Lock differs depending on the country.

■ Change PIN: Change your personal ID number required to set up the TV.

✎

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off) →

MUTE → 8 → 2 → 4 → POWER (on).

 Other Features

Language

■ Teletext Language: Set a desired language for teletext.

✎

English is the default in cases where the selected language is unavailable in the broadcast.

■ Preference (Primary Audio Language / Secondary

Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language): Select

a language, which will be the default language when a channel is selected.

General

■ Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

✎

NOTE

Precautions and limitations for game mode

– To disconnect the game console and connect

another external device, set Game Mode to Off in the setup menu.

– If you display the TV menu in Game Mode, the

screen shakes slightly.

Game Mode is not available when the input source

is set to TV or PC. After connecting the game console, set Game Mode

to On to prevent poor picture quality. If Game Mode is On: Picture mode is set to

Standard and Sound mode is set to Movie. Selecting Reset after adjusting the equalizer returns

the equalizer to its default settings.

■ Menu Transparency (Bright / Dark): Set the Transparency of the menu.

■ Melody (Off / Low / Medium / High): Set so that a melody plays when the TV is turned on or off.

 Picture In Picture (PIP)

Subtitle

Use this menu to set the Subtitle mode.

■ Subtitle (Off / On): Switches subtitles on or off.

■ Mode (Normal / Hearing Impaired): Sets the subtitle mode.

■ Subtitle Language: Sets the subtitle language.

✎

If the programme you are watching does not support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected.

✎

English is the default in cases where the selected language is unavailable in the broadcast.

SUBT.

Digital Text (Disable / Enable)

(New Zealand only) If the programme broadcasts with digital text, this feature is

enabled.



PIP

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

✎

NOTE

For PIP sound, refer to the Sound Select

instructions. If you turn the T V off while watching in PIP mode, the

PIP window will disappear. You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main screen to view a game or karaoke.

PIP settings

Main picture Sub picture Component1,2, HDMI1/

DVI, HDMI2, HDMI3, PC

■ PIP (Off / On): Activate or deactivate the PIP function.

■ Channel: Select the channel for the sub-screen.



■ Size (

■ Position ( sub-picture.

■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

/ ): Select a size for the sub-picture.



/  /  / ): Select a position for the

English

Support Menu

Self Diagnosis

■ Picture Test (Yes / No): Use to check for picture problems.

■ Sound Test (Yes / No): Use the built-in melody sound to check for sound problems.

✎

If you hear no sound from the TV’s speakers, before per forming the sound test, make sure

Speaker Select is set to TV Speaker in the Sound menu.

✎

The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

■ Signal Information (digital channels only): HDTV channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

■ Troubleshooting: If the TV seems to have a problem, refer to this description.

✎

If none of these troubleshooting tips apply, contact the Samsung customer service centre.

Software Upgrade

Software Upgrade can be performed via a broadcasting

signal or downloading the latest ﬁrmware from “www. samsung.com,” to a USB memory device.

✎

Software is represented as “Year/Month/Day_Version.”

Software Upgrade

Current Version 2010/01/18_000322

By USB ►

By Channel

Standby Mode Upgrade : 2 Hours Later

Alternative Software 2010/01/15_00321

Installing the Latest Version

■ By USB: Insert a USB drive containing the ﬁrmware upgrade ﬁle, downloaded from “www. samsung.com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade.

■ By Channel: Upgrade the software using the broadcasting signal.

✎

If the function is selected during the software transmission period, software will be automatically searched and downloaded.

✎

The time required to download the software is determined by the signal status.

■ Standby Mode Upgrade: A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the PDP product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

■ Alternative Software (backup): If there is an issue with the new ﬁrmware and it is affecting operation, you can change the software to the previous version.

✎

If the software was changed, existing software is displayed.

USB Drive

TV Side Panel

HD Connection Guide

Refer to this information when connecting external devices to the TV.

03 Basic Features



Move



Enter



Return

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centres, and how to download products and software.

English

Advanced Features

Using an HDMI/DVI cable / a D-sub Cable

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution

y PS42C450: 1024 X 768 @ 60Hz y PS50C450: 1360 X 768 @ 60Hz

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

VESA GTF

640 x 350 720 x 400

640 x 480 832 x 624

720 x 576

1280 x 720

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 720 1360 x 768

1280 x 720 52.500 70.000 89.040 -/+

Horizontal

Frequency

(KHz)

31.469

35.000

49.726

35.910

56.456

31.469

37.500

37.861

37.879

46.875

48.077

48.363

56.476

60.023

45.000

47.712

Connecting to a PC

Vertical

Frequency

(Hz)

70.086

70.087

66.667

74.551

59.950

74.777

59.940

75.000

72.809

60.317

75.000

72.188

60.004

70.069

75.029

60.000

60.015

Pixel Clock

Frequency

(MHz)

25.175

28.322

30.240

57.284

32.750

95.750

25.175

31.500

40.000

49.500

50.000

65.000

75.000

78.750

74.250

85.500

Sync Polarity

(H / V)

+/-

-/+

-/-

-/+

-/-

-/+/+ +/+ +/+

-/-

-/+/+ +/+ +/+

AUDIO OUT

PC OUT

DVI OUT

AUDIO OUT

PS42C450 PS50C450

 

        

 

         



✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set may operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

English

Media Play

SUM

04 Advanced Features

MEDIA.P

Enjoy photos, music and/or movie ﬁles saved on a USB Mass Storage Class (MSC) device.

MediaPlay

Videos

Change Device

View Devices

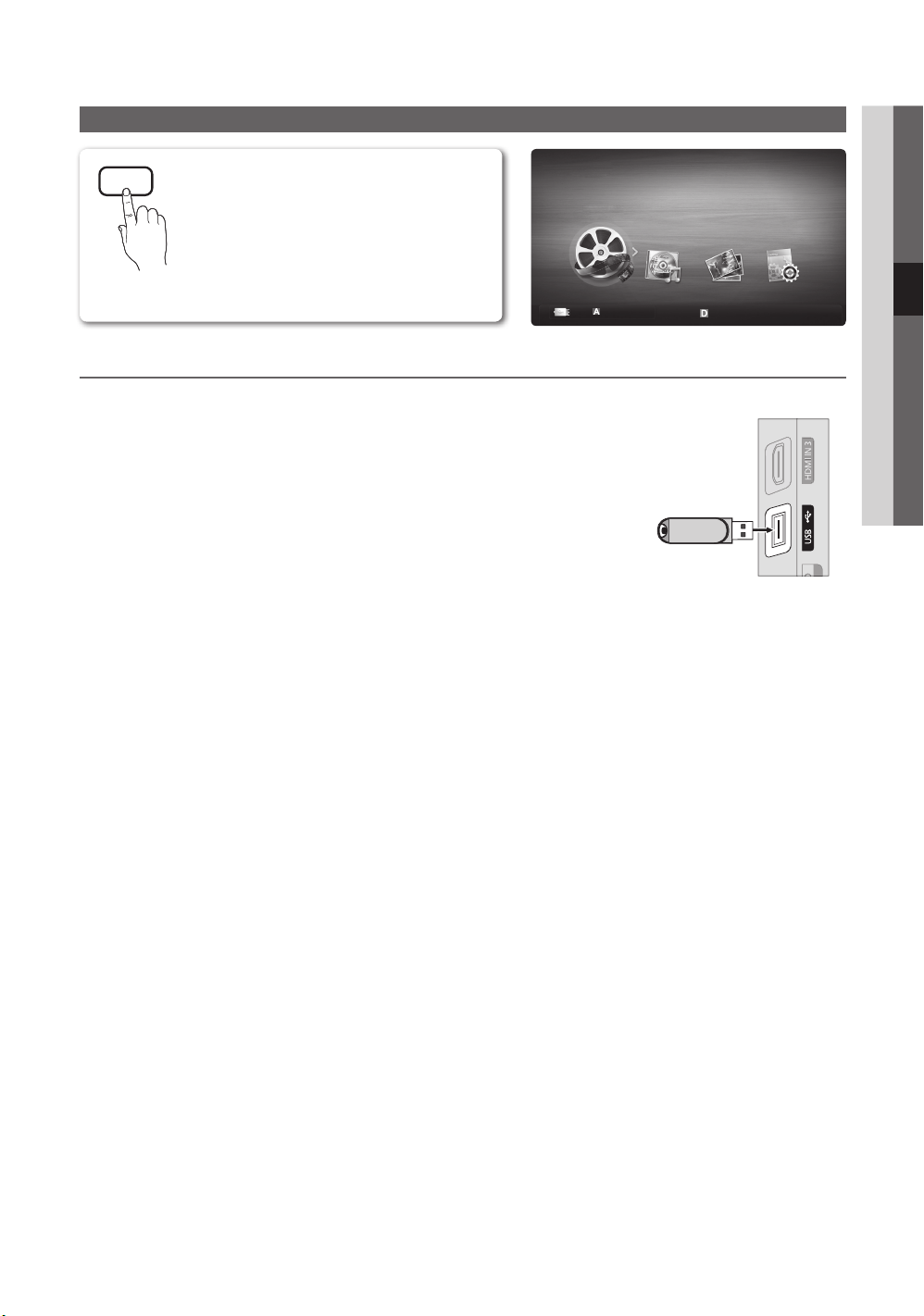

 Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie ﬁles to the USB

jack on the side of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select Media Play.

USB Drive

✎

It might not work properly with unlicenced multimedia files.

✎

Need-to-Know List before using Media Play (USB)

MTP (Media Transfer Protocol) is not supported.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss. Connect a USB HDD to the dedicated port, USB por t.

Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

power (more than 500mA or 5V) may not be supported.



Enter



TV Side Panel

Return

English

Advanced Features

If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

be recognized or may malfunction. If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

The power-saving mode of some external hard disk drives may be released automatically when connected to the T V.

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

not played, connect the USB device to the PC, format the device and check the connection. If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC

to permanently delete the file.

 Screen Display

Move to the ﬁle you desired using the up/down/right/left buttons and then press the ENTER or  (Play) button. The ﬁle is played.

✎

Supports the View Devices and Home in Media Play homepage.

You can ascertain the selected

ﬁle name and the number of ﬁles

Displays sorting standard.

Sorting standard is

✎

different depending on the contents.

Information:

and page.

Sort List Section:

Videos

/Movie 01.avi 1/1

Movie 01.avi

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

SUM

Change Device

Operation Buttons

Red (Change Device): Selects a connected device. Green (Preference): Sets the ﬁle preference. (not supported in Basic view) Yellow (Select): Selects multiple ﬁles from ﬁle list. Selected ﬁles are marked with a symbol. Blue (Sorting): Selects the sort list.



Tools: Displays the option menu.

Using the  (REW) or  (FF) button, ﬁle list can move to next or previous page.

✎

Jan.10.2010

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi



Select Sorting

Jan.10.2010



Tools

Page

File List Section: You can conﬁrm the ﬁles and groups that is sorted by each category.

English

Videos

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

Playing Video

1. Press the ◄ or ► button to select Videos, then press the ENTER

2. Press the ◄/►/▲/▼ button to select the desired ﬁle in the ﬁle list.

3. Press the ENTER



button or  (Play) button.

– The selected ﬁle is displayed on the top with its playing time. – If video time information is unknown, play time and progress bar are not displayed. – During playing the video, you can search using the ◄ and ► button.

✎

In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself.

y Supported Subtitle Formats

Name File extension Format

MPEG-4 time-based text .ttxt XML

SAMI .smi HTML

SubRip .srt string-based

SubViewer .sub string-based Micro DVD .sub or .txt string-based

y Supported Video Formats

File Extension Container Video Codec Resolution

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

*.avi

*.mkv

*.asf ASF

*.wmv ASF Window Media Video v9 1920x1080 6 ~ 30 25 WMA

*.mp4 MP4

*.3gp 3GPP

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

AVI

MKV

VRO VOB

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

XVID 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

MPEG1 1920x1080 24 / 25 / 30 30

MPEG2 1920x1080 24 / 25 / 30 30

MPEG1 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

MPEG2 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

VC1 1920x1080 6 ~ 30 25



button in the Media Play menu.

Frame rate

(fps)

Bit rate (Mbsp)



Pause



Jump



Tools



Return

Audio Codec

MP3 / AC3 / LPCM /

ADPCM / DTS Core

MP3 / AC3 / LPCM /

ADPCM / WMA

MP3 / ADPCM / AACMPEG4 SP / ASP 1920x1080 6 ~ 30 8

ADPCM / AAC / HE-AAC

AC3 / MPEG / LPCM

AC3 / MPEG / LPCM / AACMPEG2 1920x1080 24 / 25 / 30 30

AC3 / AAC / MP3 / DD+ /

HE-AAC

04 Advanced Features

English

Advanced Features

3/15

I Love you

Jhon

Music 1

No Singer

Music 2

No Singer

Music 3

No Singer

Music 4

No Singer

Music 5

No Singer

I Love You

Jhon

1st Album Pop 2010

4.2MB

01:10 / 04:02

SUM

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

Other Restrictions

✎

NOTE

If there are problems with the contents of a codec, the codec will not be suppor ted.

If the information for a Container is incorrect and the file is in error, the Container will not be able to play

correctly. Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec

listed in the table above. If the Index Table is in error, the Seek (Jump) function is not supported.

Video Decoder Audio Decoder

• Supports up to H.264, Level 4.1

• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.

• GMC is not supported.

• H.263 is not supported.

Playing movie ﬁle continuously (Resume Play)

If you exit the playing videos function, it can be played later from the point where it was stopped.

1. Select the movie ﬁle you want to play continuously by pressing the ◄ or ► button to select it from the ﬁle list section.

2. Press the



(Play) / ENTER button.

3. Select Play Continuously (Resume Play) by pressing the Blue button. The Movie will begin to play from where it was stopped.

✎

The Blue button is available when resuming play.

✎

If the Cont. movie play help function is set to On in the Settings menu, a pop-up message will appear when you resume play a movie file.

• Supports up to WMA 7, 8, 9, STD

• WMA 9 PRO does not support 2 channel excess multi channel or lossless audio.

• WMA sampling rate 22050Hz mono is not supported.

Play continuously

Resumes playing from the last viewed scene.

Play continuously



Pause



Jump



Tools



Return

Music

Playing Music

1. Press the ◄ or ► button to select Music, then press the

ENTER



button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired ﬁle in the ﬁle

list.

3. Press the ENTER

✎

– During playing the music, you can search using the ◄ and ►

button.

–



(REW) and  (FF) buttons do not function during play.

Only displays the files with MP3 and PCM file extension. Other file extensions are not displayed, even if they are saved on the same USB device.

If the sound is strange when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)

English



button or  (Play) button.



Pause



Playlist

Jump



Tools



Return

Photos

Image1024.jpg 1024x768 2010/2/1 3/15

SUM

1/1

/Movie 01.avi

SUM

Movie 01.avi

Jan.10.2010

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos, then press the

ENTER



button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired ﬁle in the ﬁle

list.

3. Press the ENTER – While a photo list is displayed, press the

ENTER button on the remote control to start slide show.

– All ﬁles in the ﬁle list section will be displayed in the slide show. – During the slide show, ﬁles are displayed in order from

currently being shown.

✎

Music files can be automatically played during the Slide Show if the Background Music is set to On.

✎

The BGM Mode cannot be changed until the BGM has finished loading.

 Playing the Multiple Files



button or  (Play) button.



(Play) /

Normal



Pause



Previous/Next



Tools

04 Advanced Features



Return

Playing the selected video/music/photo ﬁles

Videos

1. Press the Yellow button in the ﬁle list to select the desired ﬁle.

2. Repeat the above operation to select multiple ﬁles.

✎

NOTE

The  mark appears to the left of the selected files.

To cancel a selection, press the Yellow button again.

To deselect all selected files, press the TOOLS button

and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

Change Device

Playing the video/music/photo ﬁle group

1. While a ﬁle list is displayed, move to the any ﬁle in desired group.

2. Press the TOOLS button and select Play Current Group.

 Media Play Additional Function

Sorting the ﬁle list

Press the Blue button in the ﬁle list to sort the ﬁles.

Category Operations Videos Music Photos

Basic View

Title

Preference

Latest Date

Earliest Date

Artist

Album

Genre

Mood

Monthly

It shows whole folder. You can view the photo by selecting the folder.

It sorts and displays the ﬁle title in Symbol/Number/Alphabet/Special order.

It sorts and displays the ﬁle by preference. You can change the ﬁle preference in the ﬁle list section using the Green button.

It sorts and shows ﬁles by latest date.

It sorts and shows ﬁles by earliest date.

It sorts the music ﬁle by artist in alphabetical.

It sorts the music ﬁle by album in alphabetical order.

It sorts music ﬁles by the genre.

It sorts music ﬁles by the mood. You can change the music mood information.

It sorts and shows photo ﬁles by month. It sorts only by month (from January to December) regardless of year.

  

 

2 les selected Page

Select Sorting



English



Tools



Advanced Features

Videos/Music/Photos Play Option menu

During playing a ﬁle, press the TOOLS button.

Category Operations Videos Music Photos Title You can move the other ﬁle directly. Repeat Mode You can play movie and music ﬁles repeatedly. Picture Size You can adjust the picture size for preference.

Picture Setting You can adjust the picture setting. (p. 12, 13, 14, 15) Sound Setting You can adjust the sound setting. (p. 15, 16) Subtitle Setting You can play the video ﬁle with Subtitle. This function only works if the subtitles are the same

Stop Slide Show / Start Slide Show

Slide Show Speed You can select the slide show speed during the slide show. Slide Show Effect You can set variously the slide show effect. Background Music You can set and select background music when watching a slide show. Zoom You can zoom into images in full screen mode. Rotate You can rotate images in full screen mode. Home Background You can move the ﬁle to the Media Play desktop. Information You can see detailed information about the played ﬁle.

ﬁle name as the video ﬁle. You can start or stop a slide show.

Settings

Using the Setup Menu

■ Cont. movie play help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie playback.

■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web site and register the registration code with a personal account, you can download VOD registration ﬁle. If you play the VOD registration using Media Play, the registration is completed.

✎

For more information on DivX® VOD, visit “www.DivX.com.”

■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.

■ Information: Select to view information about the connected device.

        



     

  

English

Anynet+

04 Advanced Features

What is Anynet+?

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to Home Theatre

1. Connect the HDMI IN (1(DVI), 2 or 3) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using

an HDMI cable.

2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

✎

NOTE

Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input

on the Home Theatre. When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound

from the Home Theatre’s Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / satellite box (i.e. Anynet Device 1 or 2) directly to the Amplifier or Home Theatre, not the TV.

Connect only one Home Theatre.

You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.

Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.

Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.



TV Rear Panel

Optical Cable

HDMI Cable

Anynet+ Device

1,2

HDMI Cable

Home Theatre

Anynet+

Device 3

HDMI Cable

English

Advanced Features

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu Description

View TV Changes Anynet+ mode to TV broadcast mode.

Device List Shows the Anynet+ device list.

(device_name) MENU Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of

(device_name) INFO Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the

Recording: (*recorder) Starts recording immediately using the recorder. (This is only available for devices that

Stop Recording: (*recorder) Stops recording.

Receiver Sound is played through the receiver.

If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name).

 Setting Up Anynet+

■ Setup Anynet+ (HDMI-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.

✎

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.

✎

The active source on the T V must be set to TV to use the Anynet+ function.

✎

Even if an external device is still recording, it may turn off.

the DVD recorder will appear.

play menu of the DVD recorder will appear.

support the recording function.)

 Switching between Anynet+ Devices

1. Anynet+ devices connected to the TV are listed.

✎

If you cannot find a device you want, press the Red button to refresh the list.

2. Select a device and press the ENTER

✎

Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.

Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching

operation. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function.

Make sure to switch to an Anynet+ device by using the Device List.



button. You can switch to the selected device.

 Recording

You can make a recording of a TV programme using a Samsung recorder.

1. Select Recording.

✎

When there are more than two recording devices.

When multiple recording devices are connected, the recording devices are listed. Select one recording device in

the Device List.

✎

When the recording device is not displayed, select Device List and press the Red button to search devices.

2. Press the EXIT button to exit.

✎

You can record the source streams by selecting Recording: (device_name).

✎

Pressing the  (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded.

✎

Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual.

English

 Listening through a Receiver

You can listen to sound through a receiver (i.e Home Theatre) instead of the TV Speaker.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

✎

If your receiver supports audio only, it may not appear in the device list.

✎

The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO

OUT (OPTICAL) jack of the TV.

✎

When the receiver (i.e Home Theatre) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV (aerial) signal, the TV will send out 5.1 channel sound to the receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the receiver.

✎

NOTE

You can only control Anynet+ devices using the TV remote control, not the buttons on the T V.

The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.

The Anynet+ functions do not operate with other manufacturers’ products.

 Troubleshooting for Anynet+

Problem Possible Solution

Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.

I want to start Anynet+. • Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to

I want to exit Anynet+. • Select View TV in the Anynet+ menu.

The message “Connecting to Anynet+ device...” appears on the screen.

The Anynet+ device does not play. • You cannot use the play function when Plug & Play (Initial setup) is in progress.

• Connect only one receiver (home theatre).

• Check if the Anynet+ device power cord is properly connected.

• Check the Anynet+ device’s Video/Audio/HDMI cable connections.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Check whether the TV remote control is in TV mode.

• Check whether it is Anynet+ exclusive remote control.

• Anynet+ doesn’t work in certain situations. (Searching channels, operating Media Play (USB) or Plug & Play (Initial setup), etc.)

• When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again.

• Check if the Anynet+ Function of Anynet+ device is set on.

On in the Anynet+ Setup menu.

• Press the TOOLS button to display the Anynet+ menu and select a menu you want.

• Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices.

• Press P

• You cannot use the remote control when you are conﬁguring Anynet+ or switching to a view mode.

• Use the remote control when the Anynet+ setting or switching to view mode is complete.

/

tuner-embedded Anynet+ device is not connected.)

and PRE-CH to change the TV mode. (Note that the channel button operates only when a

04 Advanced Features

The connected device is not displayed.

The TV programme cannot be recorded.

The TV sound is not output through the receiver.

• Check whether or not the device supports Anynet+ functions.

• Check whether or not the HDMI cable is properly connected.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Search Anynet+ devices again.

• You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions.

• If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.

• Check whether the antenna jack on the recording device is properly connected.

• Connect the optical cable between TV and the receiver.

English

Other Information

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

✎

You can change Teletext pages by pressing the numeric buttons on the remote control.



(Teletext on/mix): Activate the Teletext mode after selecting the channel providing the Teletext service. Press it twice to overlap the Teletext mode with the current broadcasting screen.



(store): Store the Teletext

pages.



(index): Display the index (contents) page at any time while you are viewing Teletext.



(size): Display the double-size letters on the upper half of the screen. For the lower half of the screen, press it again. To display the normal screen, press it once again.



(hold): Hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

Colour buttons (red/green/ yellow/ blue): If the FASTEXT system is used by a broadcasting company, the different topics covered on a Teletext page are colourcoded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.



(mode): Select the Teletext mode (LIST/ FLOF).

If you press this button in the LIST mode, the mode is switched into the List save mode. In the List save mode, you can save a Teletext page into list using the



(store) button.

TTX/MIX

CH LIST

RETURN

A B C D

SOURCE

INFO

ΕΧΙΤ



(sub-page): Display the

available sub-page.



(page up): Display the next



(page down): Display the



(reveal): Display the hidden

text (answers to quiz games, for

example). To display the normal



(cancel): Display the current

broadcast when searching for a

Typical Teletext page

Part Contents

A Selected page

B Broadcasting channel

C Current page number

D Date and time. E Text. F Status information.

Teletext page.

previous Teletext page.

screen, press it again.

page.

number.

identity.

or search indications.

FASTEXT information.

English

Installing the Wall Mount

Assembling the Blanking Bracket

When installing the TV onto a wall, attach the Blanking Bracket as shown.

Blanking Bracket

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for

assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the

TV on your own.

Wall Mount Kit Speciﬁcations (VESA)

✎

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the ﬂoor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎

NOTE

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw

specifications. Screws that are too long may cause damage to the inside of the TV set. For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ

depending on the wall mount specifications. Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to

personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or

the consumer fails to follow the product installation instructions. Do not mount the TV at more than a 15 degree tilt.

05 Other Information

Product Family inches VESA Spec. (A * B) Standard Screw Quantity

42~50 400 X 400

58~63 600 X 400

PDP TV

✎

Unscrew the hole around before installing Wall-Mount on the wall.

70~79 800 X 400

80~ 1400 X 800

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

M8 4

English

Other Information

Securing the TV to the wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the included Safety Flyer. For added stability and safety, install the anti-fall device as follows.

 To Avoid the TV from Falling

1. Put the screws into the clamps and ﬁrmly fasten them onto the wall.

Conﬁrm that the screws have been ﬁrmly installed onto the wall.

✎

You may need additional material such as an anchor depending on the type of wall.

✎

Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

✎

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

3. Connect the clamps ﬁxed onto the TV and the clamps ﬁxed onto the wall with a strong cable and then tie the string tightly.

✎

NOTE

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the string so that the clamps fixed on the

wall are equal to or lower than the clamps fixed on the TV. Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Wall

English

Troubleshooting

If you have any questions about the TV, ﬁrst refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

Picture Quality First of all, please perform the Picture Test and conﬁrm that your TV is properly displaying test image.

The TV image does not look as good as it did in the store.

The picture is distorted: macro block error, small block, dots, pixelization

Colour is wrong or missing. • If you’re using a component connection, make sure the component cables are connected to the

There is poor colour or brightness. • Adjust the Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness)

There is a dotted line on the edge of the screen.

Picture is black and white. • If you are using an AV composite input, connect the video cable (yellow) to the Green jack of

When changing channels, the picture freezes or is distorted or delayed.

Sound Quality First of all, please perform the Sound Test to conﬁrm that your TV audio is properly operating.

There is no sound or the sound is too low at maximum volume.

The picture is good but there is no sound. • Set the Speaker Select option to TV Speaker in the sound menu (p. 16).

The speakers are making an inappropriate noise.

(go to MENU - Support - Self Diagnosis - Picture Test) (p. 19) If the test image is properly displayed, the poor picture may caused by the source or signal.

• If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high deﬁnition) picture quality.

• Cable/Satellite subscribers: Try HD stations from the channel line up.

• Antenna connection: Try HD stations after performing Auto programme.

Many HD channels are up scaled from SD(Standard Deﬁnition) contents.

✎

• Adjust the Cable/Set top box video output resolution to 1080i or 720p.

• Make sure you are watching the TV at the minimum recommended distance based on the size and deﬁnition of the signal.

• Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies.

• Low signal level or bad quality can cause picture distortion. This is not a TV issue.

correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.

(p. 12)

• Adjust Energy Saving option in the TV menu. (go to MENU - Picture - Eco Solution - Energy Saving) (p. 13)

• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset) (p. 14)

• If the picture size is set to Screen Fit, change it to 16:9 (p. 14).

• Change cable/set top box resolution.

component input 1 on the TV.

• If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.

• Set the output resolution of the cable box to 1080i or 720p.

(go to MENU - Support - Self Diagnosis - Sound Test) (p. 19) If the audio is OK, the sound problem may caused by the source or signal.

• Please check the volume the of external device connected to your TV.

• If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.

• If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s audio option to HDMI when you have a HDMI connected to your TV).

• If you are using a DVI to HDMI cable, a separate audio cable is required.

• If your TV has a headphone jack, make sure there is nothing plugged into it.

• Check the cable connections. Make sure a video cable is not connected to an audio input.

• For antenna or Cable connections, check the signal strength. Low signal level may cause sound distortion.

05 Other Information

English

Other Information

Issues Solutions and Explanations

No Picture, No Video

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

The TV turns off automatically. • Ensure the Sleep Timer is set to Off in the Setup menu (p. 17).

There is picture/Video. • Check cable connections (remove and reconnect all cables connected to the of TV and external

RF(Cable/Antenna) Connection

The TV is not receiving all channels. • Make sure the Antenna cable is connected securely.

The picture is distorted: macro block error small block, dots, pixelization

PC Connection

A “Mode Not Supported” message appears.

“PC” is always shown on the source list, even if a PC is not connected.

The video is OK but there is no audio. • If you are using a HDMI connection, check the audio output setting on your PC.

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below.

• If your PC is connected to the TV, check your PC power settings.

• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

• When watching TV from an antenna or cable connection, the TV will turn off after 10 - 15 minutes if there is no signal.

devices).

• Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the TV’s correct source by pressing the SOURCE button on the TV remote.

• Please try Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU - Setup - Plug & Play (Initial setup) and wait for all available channels to be stored (p. 6).

• Verify the Antenna is positioned correctly.

• Compression of video contents may cause picture distortion, especially with fast moving pictures such as sports and action movies.

• A low signal can cause picture distortion. This is not a TV issue.

• Set your PC’s output resolution and frequency so they match the resolutions supported by the TV (p. 20).

• This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected.

Others

The picture won’t display in full screen. • HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3)

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

Plasma TV is making humming noise. • Plasma TVs typically make a soft humming sound. This is normal. It’s caused by the electrical charges

Image Retention (Burn In) Issue. • To minimize the possibility of screen burn, this unit is equipped with screen burn reduction technology.

English

contents.

• Black bars on the top and bottom will appear during movies that have aspect ratios different from your TV.

• Adjust the picture size options on your external device or TV to full screen.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

that are used to create the images on the screen.

• If the humming sound is loud, you may have set the brightness on the TV too high. Try setting the brightness lower.

• You can also have loud humming if the back of your Plasma TV is too close to a wall or other hard surface. Also try rerouting your connection cables.

• Improper installation of wall mount can create excessive noise.

Pixel Shift technology enables you to set picture movement up/ down (Vertical Line) and side to side (Horizontal Dot).

Issues Solutions and Explanations

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

A “Mode Not Supported” message appears.

There is a plastic smell from the TV. • This smell is normal and will dissipate over time.

The TV Signal Information is unavailable in the Self Diagnostic Test menu.

The TV is tilted to the side. • Remove the base stand from the TV and reassemble it.

There are difﬁculties assembling the stand base.

The channel menu is greyed out. (unavailable)

Your settings are lost after 30 minutes or every time the TV is turned off.

You have intermittent loss of audio or video.

You see small particles when you look closely at the edge of the frame of the TV.

The PIP menu is not available. • PIP functionality is only available when you are using a HDMI, PC or components source (p. 18).

You turned the TV off 45 minutes ago, and it turned on again.

There are recurrent picture/sound issues. • Check and change the signal/source.

A reaction may occur between the rubber cushion pads on the base stand and the top ﬁnish of some furniture.

• Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

• Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to the resolution settings on page 20 of this manual.

• This function is only available with digital channels from an Antenna / RF/Coax connection (p. 19).

• Make sure the TV is placed on a ﬂat surface. It is necessary to use magnetized screw driver if you cannot remove the screws from the TV.

• The Channel menu is only available when the TV source is selected.

• If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Plug & Play (Initial setup) procedure. Press the SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play (Initial setup) → ENTER

• Check the cable connections and reconnect them.

• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are ﬂexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.

• This is part of the product’s design and is not a defect.

• It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade ﬁrmware downloaded whilst your watching TV.

• To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.



. (p. 6)

05 Other Information

✎

Some of above pictures and functions are available at specific models only.

English

Other Information

Speciﬁcations

Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right) -20˚ ~ 20˚ Model Name PS42C450

Screen Size 42 icnhes 50 icnhes Sound

(Output) 10W x 2 Dimensions (WxDxH)

Body With stand

Weight Without Stand With Stand

Panel native 1024 X 768 @ 60Hz 1360 X 768 @ 60Hz

✎

Design and specifications are subject to change without prior notice.

✎

For information about power supply, and more about power consumption, refer to the label attached to the product.

PS42C451

1031 x 70.9 x 631.0 mm

1031 x 284.5 x 695.5 mm

17.5 kg

19.5 kg

 Licence

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

PS50C450 PS50C451

1202.5 x 69.5 x 720.5 mm

1202.5 x 284.5 x 788 mm

23.4 kg

25.4 kg

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certiﬁed to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an ofﬁcial DivX Certiﬁed device that plays DivX video. Visit www.divx. com for more information and software tools to convert your ﬁles into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁed® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Open Source Licence Notice

In the case of using open source software, Open Source Licences are available on the product menu.

English

Index

05 Other Information

Amplify 15 Anynet+ 27 Auto Adjustment 14 Auto Volume 16

Background Music 26 Balance L/R 15 Basic View 25 Batteries 5 Black Tone 13 Blanking Bracket 31 Brightness 12

Change PIN 18 Channel Menu 11 Clock 17 Colour Tone 13 Component 7 Connecting to a PC 20 Connecting to an Audio Device 8

DIGITAL AUDIO OUT 8, 27

DivX® VOD 26 D-sub 20 Dynamic 12 Dynamic Contrast 13

Eco Sensor 13 Edit Name 8 Editing Channels 11 Energy Saving 13 Equalizer 15 External Speaker 16

Favourite Channel 11 Film Mode 14 Fine Tune 12 Flesh Tone 13 Frequency 20

HDMI 7, 27 Home Theatre 8, 27

Installation Space 2

Language 18 Licence 36 Lock 12

Media Play 21 Melody 18 Menu Transparency 18 Music 24

Navigate 9

Optimal resolution 20

Photos 25 Picture Size 13, 26 PIP (Picture in Picture) 18 Plug & Play 6 Power Indicator 4

Receiver 29 Recording 28 Remote Control 5 Repeat Mode 26 RGB Only Mode 13 Rotate 26

Select All 12 Self Diagnosis 19 Sharpness 12 Signal Information 19 Sleep Timer 17 Slide Show 25 Software Upgrade 19 Source List 8 Speaker Select 16 Speciﬁcations 36 Standby mode 4 Subtitle 18 Symbol 3

Timer 17 Title 25 Tools 3 Troubleshooting 33 TV Speaker 16

USB Drive 19, 21

VCR 7 Video Formats 23 Videos 23 Virtual Surround 15 Volume 4

Wall Mount 31 Warm 13 White Balance 13

English

This page is intentionally

left blank.

Samsung PS50C451B2D, PS50C450B1M, PS42C450B1M, PS42C451, PS42C451B2D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
