Samsung PS50A556, PS50A557, PS50A556S2F User Manual

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country	Customer Care Centre 	Web Site
EIRE	0818 717 100	www.samsung.com/ie
U.K	0845 SAMSUNG (7267864)	www.samsung.com

Plasma TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model

Serial No.

BN68-01427D-00

User Instructions

Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Height

The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there.

Heat on the top of the PDP TV

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

The product is making a ‘cracking’ noise.

A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

Cell Defects

The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Avoid operating the TV at temperatures below 5°C(41°F)

A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console

may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Afterimage on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Warranty

-Warranty does not cover any damage caused by image retention.

-Burn-in is not covered by the warranty.

Installation

Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.

Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

English -

Contents
General Information
 User Instructions..............................................	2
 Checking Parts................................................	4
 Using the Stand-Base......................................	4
 Control Panel ..................................................	5
 Connection Panel............................................	6
 Viewing the Remote Control............................	8
Operation
 Switching Your Television On and Off..............	9
 Viewing the Menus..........................................	9
 Plug & Play Feature.......................................	10
 Using the TOOLS Button...............................	12
 Viewing External Signal Sources...................	12
 Editing Device Names...................................	13
Channel Control
 Storing Channels Automatically.....................	13
 Storing Channels Manually............................	14
 Adding / Locking Channels............................	15
 Sorting the Stored Channels.........................	16
 Assigning Names to Channels......................	16
 Fine Tuning Channel Reception....................	17
 LNA(Low NoiseAmplifier).............................	17
Picture Control
 Changing the Picture Standard.....................	18
 Customizing the Picture Settings...................	18
 Configuring Detailed Settings on the Picture.....	19
 Picture Options..............................................	20
 Resetting the Picture Settings to the Factory
Defaults.........................................................	22
Sound Control
 Sound Features.............................................	23
 Selecting the Sound Mode
(depending on the model)..............................	24
 Connecting Headphones (Sold separately)...	24

PC Display
 Setting up Your PC Software
(Based on Windows XP)................................	28
 Input Mode (PC)............................................	29

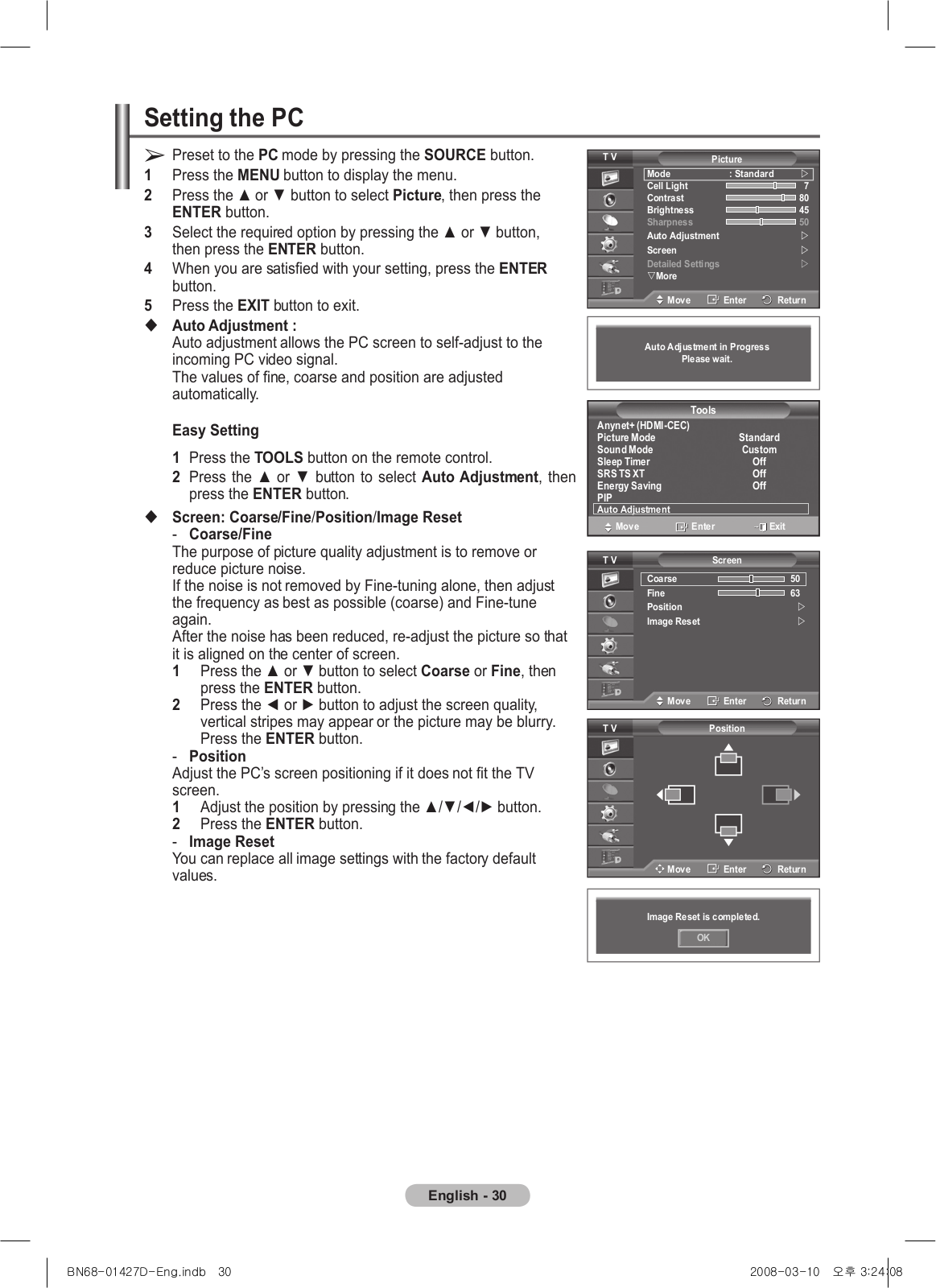

 Setting the PC...............................................	30
Using the DTV Feature
 Previewing the DTV Menu System................	31
 Displaying Programme Information...............	32
 Operating the DTV Menu...............................	33

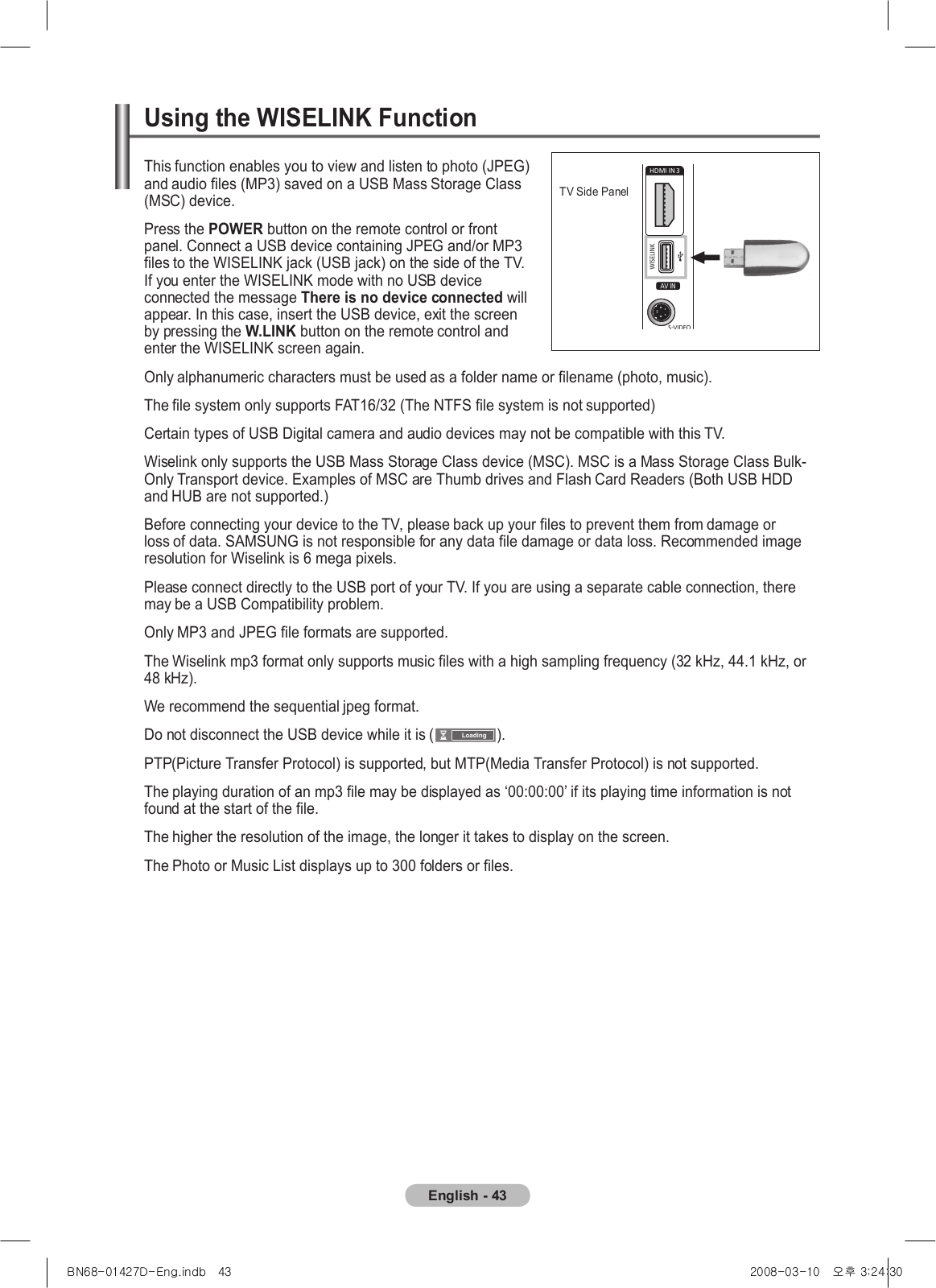

WISELINK
 Using the WISELINK Function......................	43
 Using the WISELINK Menu...........................	44

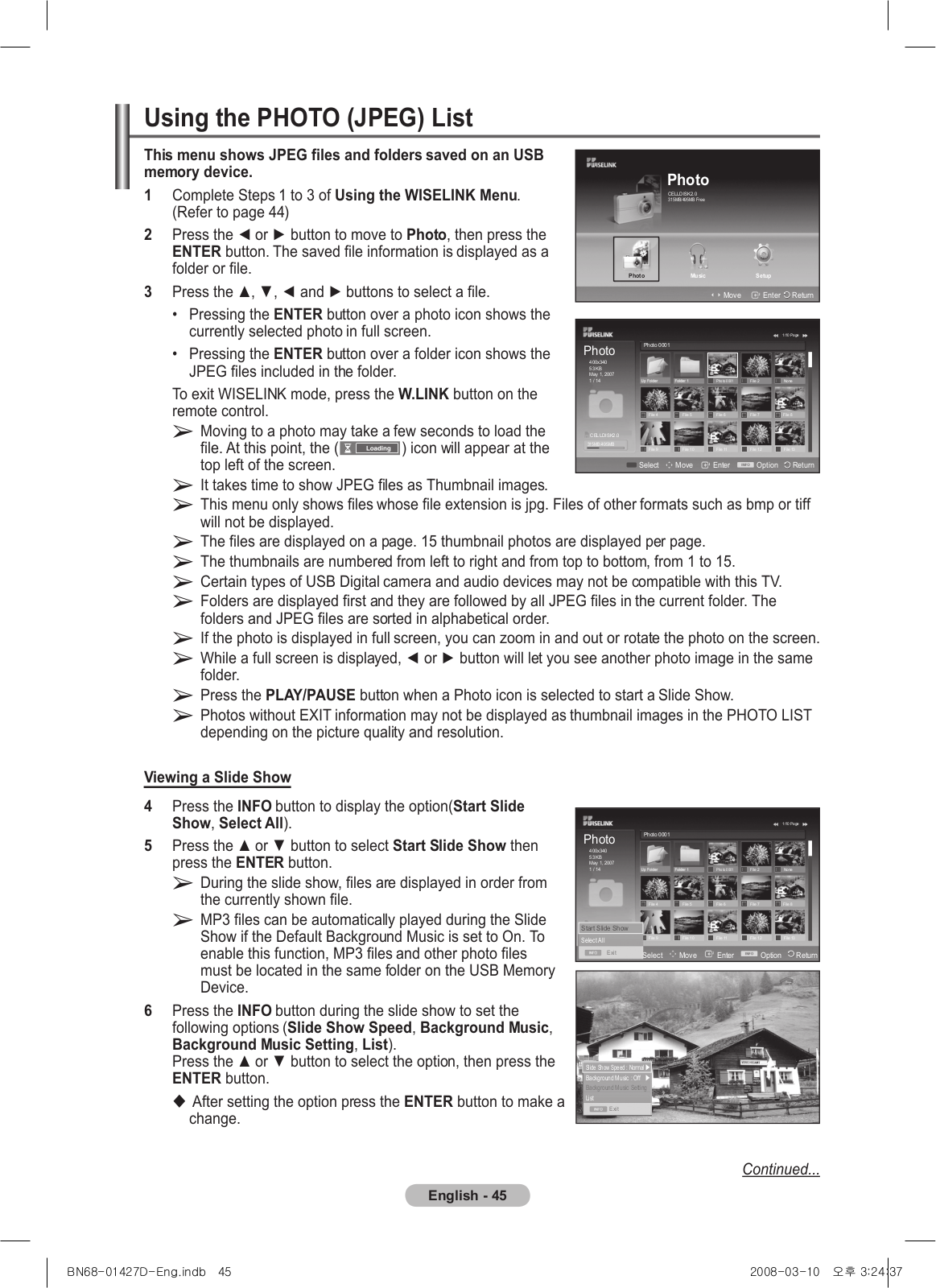

 Using the PHOTO (JPEG) List......................	45
 Using the MP3 List........................................	48
 Using the Setup Menu...................................	49

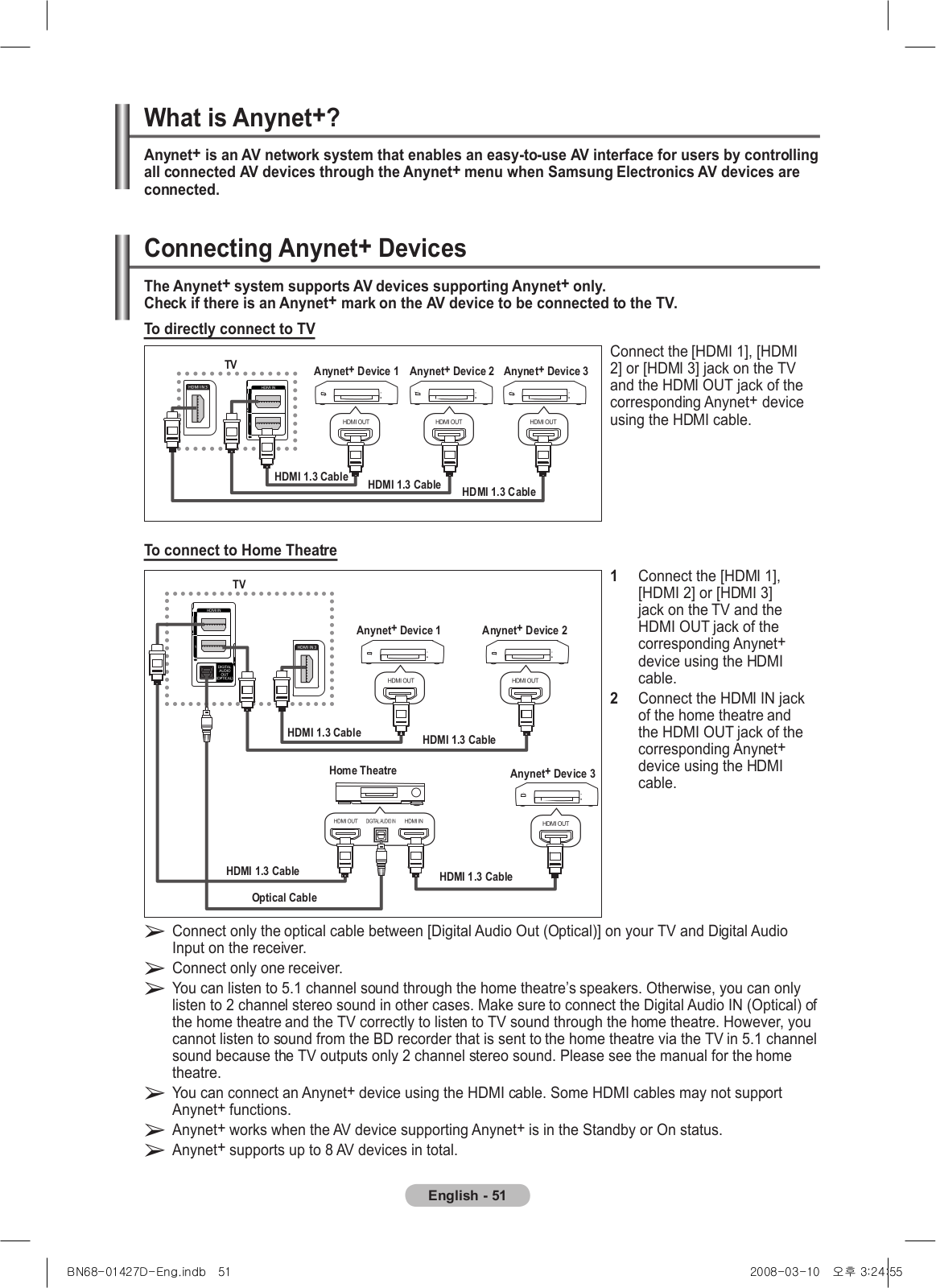

About Anynet+
 What is Anynet+?...........................................	51
 Connecting Anynet+ Devices.........................	51

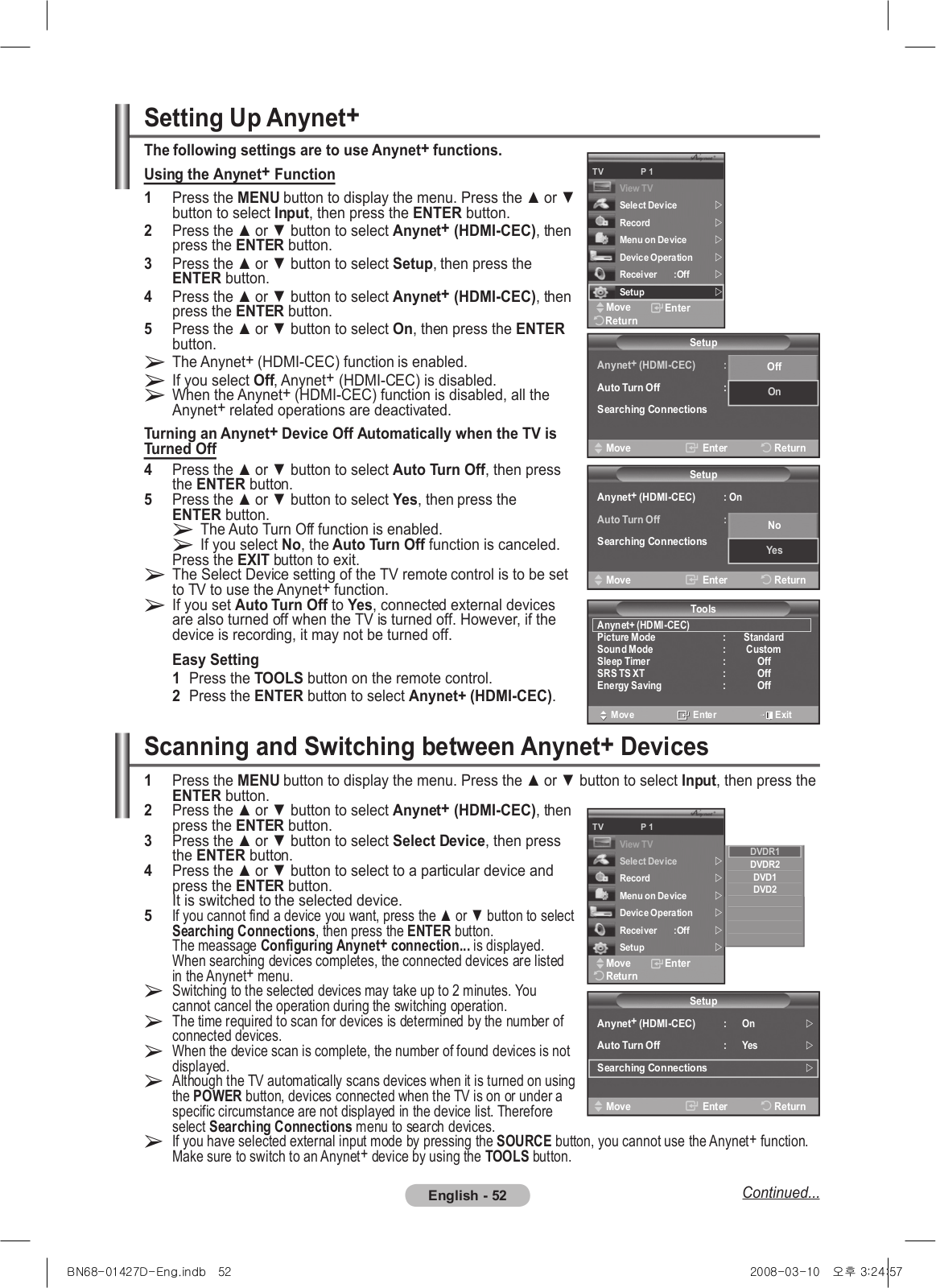

 Setting Up Anynet+........................................	52
 Scanning and Switching between
Anynet+ Devices............................................	52
 Recording......................................................	53

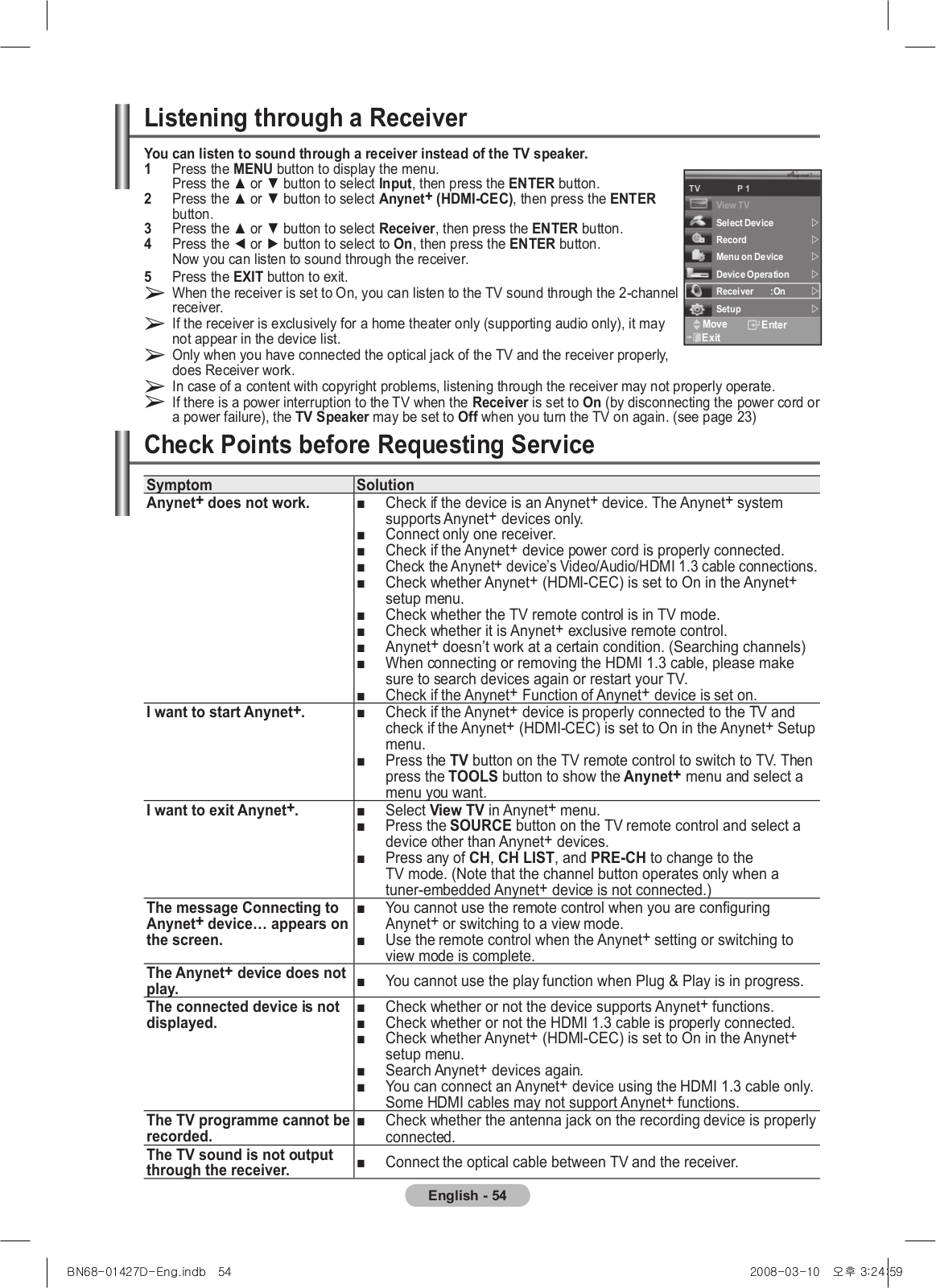

 Listening through a Receiver.........................	54
 Check Points before Requesting Service......	54
Appendix
 Teletext Feature (depending on the model)...	55
 Wall Mount Kit Specifications (VESA)...........	57
 Wallmount adjustment (Sold separately).....	58
 How to assemble the Stand-Base
(depending on the model)..............................	59
 Troubleshooting.............................................	60
 Specifications................................................	61

Function Description

	Time Features................................................	25
 Language / Light Effect / Melody /
	Entertainment / Energy Saving / PIP.............	26

Symbols		
Press	Important	Note

English -

Checking Parts

Owner’s Instructions	Remote Control/	Power Cord	Cloth-Clean	Registration Card
	AAA Batteries

Cover-Bottom / Screws (2ea)	Ferrite Core for	Ferrite Core for	Ferrite Core for
(Refer to page 59)	Power Cord	S-Video	Component

Sold Separately

Antenna Cable

Component Cables

Audio Cables

PC Cable

Scart Cable

PC Audio Cable

HDMI Cable

HDMI/DVI Cable

 Ferrite Core (Power Cord, S-Video, Component)

The ferrite cores are used to shield the cables from interference.

When connecting a cable, open the ferrite core and clip it around the cable near the plug.

Using the Stand-Base

  Two or more people should carry the PDP. Never lay the PDP on the

floor because of possible damage

to the screen. Always keep the PDP upright.

 The PDP can rotate 20 degrees in

right and left directions.

-20° ~ 20°

English -

Control Panel

Front Panel

 The product colour and shape may vary depending on the model.

1 SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC,

HDMI1, HDMI2, HDMI3, DTV).

In the on-screen menu, use this button as you would use the ENTER button on the remote control.

2MENU

Press to see an on-screen menu of your TV’s features.

3– +

Press to increase or decrease the volume. In

the on-screen menu, use the – + buttons as you would use the ◄ and ► buttons on the remote control.

4

Press to change channels.

In the on-screen menu, use the

buttons as you would use the ▲ and ▼ buttons on the remote control.

5Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

6 POWER

Press to turn the TV on and off.

7Remote Control Sensor

Aim the remote control towards this spot on the TV.

8Speakers

English -

Connection Panel

Rear Panel
1
					or	9
					Cable Television
						Network
						or
2	3	4	5	6	7	8

The product colour and shape may vary depending on the model.

 Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

 When connecting an external device, match the colour of the connection terminal to the cable.

1POWER IN

Connect the supplied power cord.

2COMPONENT IN

Audio (AUDIO L/R) and video (Y/PB/PR) inputs for Component.

3PC IN(PC) / (AUDIO)

Connect to the video and audio output jack on your PC.

4EXT 1, EXT 2

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

Input/Output Specification

Connector		Input		Output
	Video	Audio(L/R)	RGB	Video + Audio(L/R)
EXT 1				Only TV or DTV
				output is available.
EXT 2				Output you can
				choose.

5DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio Component.

6Connecting external Audio Devices

Connect RCA audio signals from the TV to an external source, such as Audio equipment.

7SERVICE

−Connector for service.

−Connect the serial jack between the electro-motion wall mount bracket and your TV when you want to adjust the TV viewing angle using your remote control.

Continued...

English -

8 HDMI IN 1,2	DVI IN (HDMI 2) AUDIO R/L
− No additionalAudio connection is needed	DVI audio outputs for external devices.
for an HDMI to HDMI connection.	9 ANT IN
- When using an HDMI/DVI cable connection,
you must use the HDMI IN 2 jack.	75Ω Coaxial connector forAerial/Cable
 What is HDMI?	Network.
- “High Definition Multimedia interface”	Supported modes for HDMI/DVI and Component
allows the ansmission of high definition
digital video data and multiple channels		480i	480p	576i	576p	720p 1080i 1080p
of digital audio.	HDMI/DVI 50Hz	X	X	X	O	O	O	O
- The HDMI/DVI terminal supports DVI	HDMI/DVI 60Hz	X	O	X	X	O	O	O
connection to an extended device with	Component	O	O	O	O	O	O	O
the appropriate cable (not supplied).
The difference between HDMI and DVI
is that the HDMI device is smaller in
size, has the HDCP (High Bandwidth
Digital Copy Protection) coding feature
installed, and supports multi - channel
digital audio.
Side Panel
					1

2

3

4

or

5

 The product colour and shape may vary depending on the model.

1COMMON INTERFACE Slot

Insert CI (Common Interface) card into the slot. (refer to page 42)

−When ‘CI Card’ isn’t inserted in some channels, “Scramble Signal” is displayed on the screen.

−The pairing information containing a telephone number, CI CARD ID, Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

−When the channel information configuration has finished, the message “Updating Completed” is displayed, indicating that the channel list is now updated.

 Inserton it. the CI-Card in the direction marked

2HDMI IN 3

Connect to the HDMI jack of a device with HDMI output.

3WISELINK

Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3).

4S-VIDEO or VIDEO / AUDIO L/R

Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR.

5Headphones jack

You can connect a set of headphones if you wish to watch a television programme without disturbing the other people in the room.

Prolonged use of headphones at a high volume may damage your hearing.

English -

Viewing the Remote Control

 The performance of the remote control may be affected by bright light.

1POWER button

(turns the TV on and off)

2Selects the TV and DTV mode directly

3Number buttons for direct channel access

4One/Two-digit channel selection

5Temporary sound switch-off

6 Volume increase

Volume decrease

7Electronic Program Guide (EPG) display

8Use to quickly select frequently used functions.

9Control the cursor in the menu

0Use to see information on the current broadcast

#Press to select the optional display and sound modes for sports, cinema and games.

$ VCR/DVD Function (Rewind,

Stop, Play/Pause, Fast/ Forward)

% Available source selection ^ Previous channel

&Next channel

Previous channel

*Displays the main on-screen menu

( This function enables you to view and play photo (JPEG) and audio files (MP3) from an external device. (See page 45 (JPEG), 48 (MP3))

) Returns to the previous menu

aExit the on-screen menu

bPicture size selection

cUse this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface

and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet+(HDMI-CEC)" is “On” (see page 52)

dDigital subtitle display

eChannel control button (Refer to page 15)

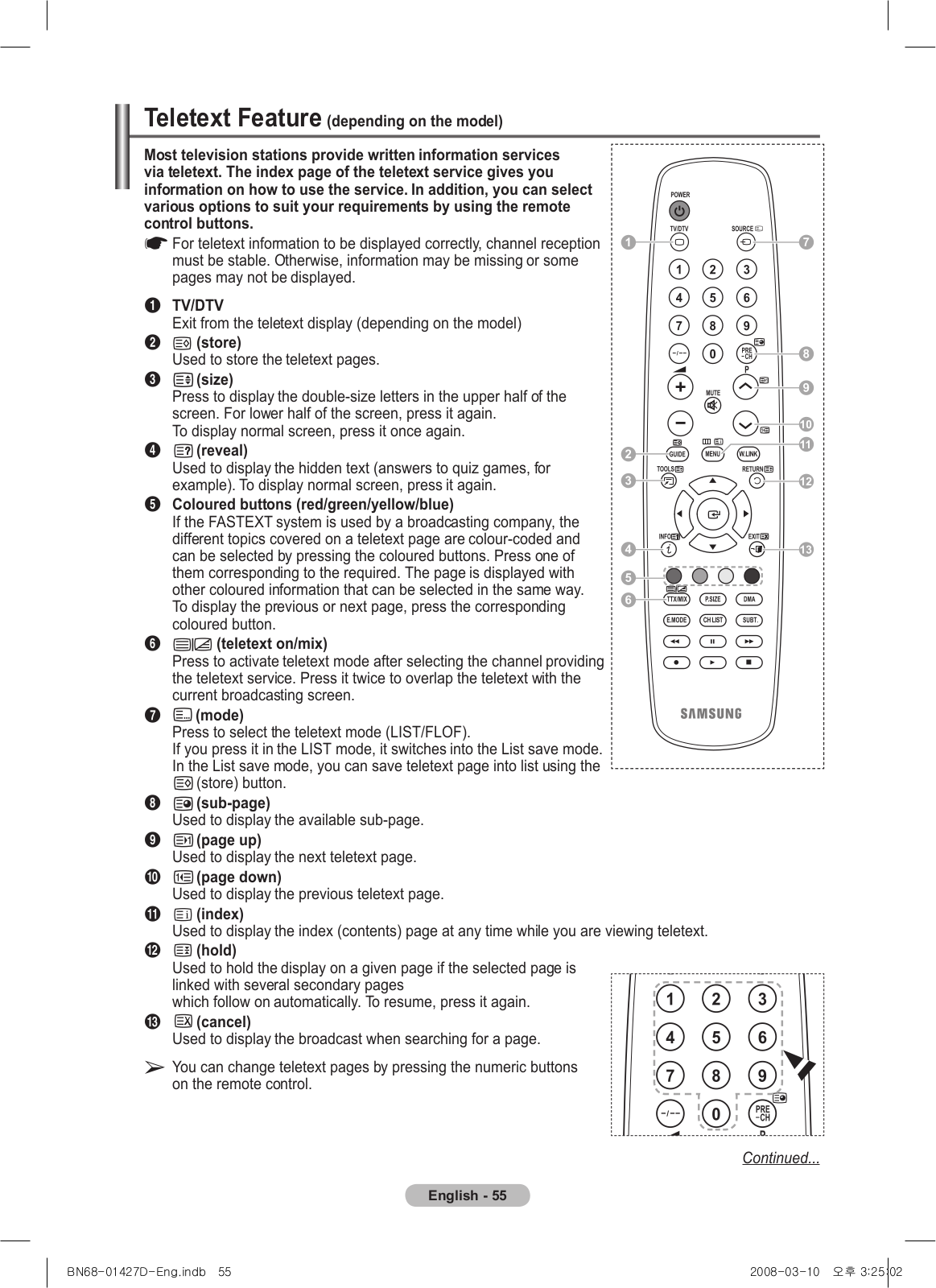

Teletext Functions

(Refer to page 55)

2Exit from the teletext display (depending on the model)

7Teletext store

8Teletext size

0Teletext reveal

! Fastext topic selection

@ Teletext display/mix both teletext information and the normal broadcast

%Teletext mode selection (LIST/FLOF)

^ Teletext sub page

&P :Teletext next page

P :Teletext previous page

* Teletext index ) Teletext hold a Teletext cancel

Continued...

English -

Installing Batteries in the Remote Control

1Lift the cover at the back of the remote control upward as shown in the figure.

2Install two AAA size batteries.

 Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.

 Do not mix battery types, i.e. alkaline and manganese.

3Close the cover as shown in the figure.

Remove the batteries and store them in a cool and dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn’t work! Check the following:

1.Is the TV power on?

2.Are the plus and minus ends of the batteries reversed?

3.Are the batteries drained?

4.Is there a power cut, or is the power cord unplugged?

5.Is there a special fluorescent light or a neon sign nearby?

Switching Your Television On and Off

The mains lead is attached to the rear of the television.

1Plug the mains lead into an appropriate socket.

 The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz.

2Press the (Power) button (On/Off) on the front of the television or press the POWER button on

the remote control to switch the television on. The channel that you were watching last is re-selected automatically. If you have not yet stored any channels, no clear picture appears. Refer to “Storing Channels Automatically” on page 13 or “Storing Channels Manually” on page 14.

If the television is initially powered on, several basic customer settings proceed automatically. Refer to “Plug & Play Feature” on page 10.

3	To switch the television off, press the				(Power) button (On/Off) on the front of the television or press
	the POWER button on the remote control.
4	To switch the TV on, press the		(Power) button (On/Off) on the front of the TV or press the POWER
	button or number buttons on the remote control.

Viewing the Menus

1Press the MENU button.

The main menu is displayed on the screen.

Its left side has six icons: Picture, Sound, Channel, Setup, Input, and Digital Menu.

2Press the ▲ or ▼ button to select one of the icons.

Press the ENTER button to access the icon’s sub-menu.

3Press the ▲ or ▼ button to move to items in the menu.

Press the ENTER button to enter items in the menu.

4Press the ▲/▼/◄/► button to change the selected items.

Press the RETURN button to return to the previous menu.

5Press the EXIT button to exit from the menu.

T V	Picture
Mode	: Standard	
Cell Light
Contrast		0
Brightness		45
Sharpness		50
Colour		50
Tint	G50	R50
Detailed Settings		
More
Move	Enter	Exit

English -

Plug & Play Feature

When the television is initially powered on, several basic customer settings proceed automatically and subsequently. The following settings are available.

If you accidentally select the wrong country for your TV, the characters on the screen may be wrongly displayed.

Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

1If the television is in standby mode, press the POWER button on the remote control. The message Start Plug & Play is displayed. Press the ENTER button.

2The Language menu will automatically appear after several seconds.

3Select the appropriate language by pressing the ▲ or ▼ button.

Press the ENTER button. The message Select ‘Home Use’ when installing this TV in your home. is displayed.

4Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTER button. The message to check the connected status of the antenna is displayed.

The default selection is Home Use.

We recommend setting the TV to Home Use mode for the best picture in your home environment.

Store Demo mode is only intended for use in retail environments.

If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button. When the volume OSD is displayed, press and hold the MENU button for 5 seconds.

5Make sure that the antenna is connected to the TV.

Press the ENTER button. The Country menu is displayed.

6Select your country or area by pressing the ▲ or ▼ button.

Press the ENTER button.

The message Some DTV functions may not be available. Digital Scan? is displayed.

This function is supported for all countries except for the following countries: France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria.

If your country supports the DTV functions, the message is not displayed. Then you can follow the instructions from step 12. When the local service provider does not support DTV broadcasting but you choose a DTV supporting country, it enters the DTV Plug & Play but DTV functions may not work properly.When No is selected, follow the instructions from step 7 to 10. When Yes is selected, follow the instructions from step 11.

Plug & Play

Start Plug & Play.

OK

Enter

Plug & Play

English

Language Deutsch

Français

Italiano

▼

Move Enter

Plug & Play

Select ‘Home Use’

when installing this TV in your home.

	Store Demo	Home Use
Move		Enter

Plug & Play

Check antenna input.

OK

Enter

Plug & Play

▲

Country United Kingdom Austria

Eastern Europe

Others

Move Enter

Plug & Play

Some DTV functions may not be available. Digital Scan?

		Yes				No
Move				Enter				Skip
				Plug & Play
P 1			C --					40 MHz
								0 %
				Start
Enter				Skip

Continued...

English - 10

7Select No pressing the ◄ or ► button, then press the ENTER button. Auto Store menu is displayed.

8Press the ENTER button to start search the channels. The channel search will start and end automatically. After all the available channels are stored, Clock Set menu is automatically displayed. Press the ENTER button.

To stop the search before it has finished, press the ENTER button with Stop selected.

9Press the ◄ or ► button to select Month, Day, Year, Hour, or

Minute. Set these by pressing the ▲ or ▼ button.

You can set the Month, Day, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control.

10Press the ENTER button to confirm your setting. The message

Enjoy your viewing is displayed. When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

11Select Yes pressing the ◄ or ► button, then press the

ENTER button. Auto Store menu is displayed.

12Press the ENTER button to start search the analog channels. The analog channel search will start and end automatically. After all the available analog channels are stored, the screen for searching digital channels is automatically displayed.

To stop the search before it has finished, press the ENTER button with Stop selected.

13Press the ENTER button to start search the digital channels.

The digital channel search will start and end automatically. After all the available digital channels are stored, the screen to select a time zone is displayed depending on the country.

To stop the search before it has finished, press the

ENTER button with Stop selected.

If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV.

For detailed descriptions about DTV channel update, refer to page 33 of this manual.

14Press the ▲ or ▼ button to select required time zone, then press the ENTER button. The screen for setting the time is displayed. Press the ENTER button.

15Press the ◄ or ► button to select Month, Day, Year, Hour, or

Min. Set these by pressing the ▲ or ▼ button.

You can set the Month, Day, Year, Hour, or Min directly by pressing the numeric buttons on the remote control.

16Press the ENTER button to confirm your setting. The message Enjoy your viewing is displayed. When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

If you want to reset this feature …

1Press the MENU button to display the menu.

2Press the ▲ or ▼ button to select Setup, then press the

ENTER button.

3Press the ENTER button again to select Plug & Play. The message Start Plug & Play is displayed.

Plug & Play

Clock Set
	Month		Day	Year
	
	01		15	2008
			Min
	Hour
12			00
Move			Adjust	Enter

Plug & Play

0%

Services found: 0		Channel: -
		Start
Enter	Skip

Plug & Play

Scanning for digital services...

29%

Services found: 6		Channel: 35
		Stop
Enter	Skip

Plug & Play

The Iberian Peninsula and Balears Islands

Canarian Islands

		Move			Select			Skip
				<Spain only>
				Plug & Play
		Set the current time.
				Month		Day	Year
				
				01		15	2008
						Min
				Hour
				12		00
		Adjust		Move			Enter	Skip
				Enjoy your viewing
						OK
		T V				Setup
			Plug & Play						
			Language				: English		
			Time				: In Watching TV		
			Light Effect						
			Auto Wall-Mount				: Off		
			Melody						
			Entertainment				: Off		
			Energy Saving				: Off		
			PIP						
				Move			Enter	Return

English - 11

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing.

1Press the TOOLS button. The Tools menu will appear.

2Press the ▲ or ▼ button to select a menu, then press the

ENTER button.

3Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items.

For a more detailed description of each function, refer to the corresponding page.

•Anynet+(HDMI-CEC), see page 52

•Picture Mode, see page 18

•Sound Mode, see page 23

•Sleep Timer, see page 25

•SRS TS XT, see page 23

•Energy Saving, see page 27

•Dual I-II, see page 24

Tools

Anynet+ (HDMI-CEC)
Picture Mode		:	Standard
Sound Mode		:	Custom
Sleep Timer		:	Off
SRS TS XT		:	Off
Energy Saving		:	Off
Dual I-II		:	Mono
Move	Enter		Exit

Viewing External Signal Sources

You can switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box, and the TV source (broadcast or cable).

1Press the MENU button to display the menu.

2Press the ▲ or ▼ button to select Input, then press the ENTER button.

3Press the ENTER button again to select Source List.

4Press the ▲ or ▼ button to select the signal source, then press the ENTER button.

Available signal sources: TV, Ext.1, Ext.2, AV, S-Video,

Component, PC, HDMI1, HDMI2, HDMI3, DTV

You can choose only those external devices that are connected to the TV.

T V	Input
Source List	: TV	
Edit Name		
Anynet + (HDMI-CEC)
WISELINK
Move	Enter	Return
T V	Source List
TV
Ext.1	: −−−−
Ext.2	: −−−−
AV	: −−−−
S-Video	: −−−−
Component	: −−−−
PC	: −−−−

More

Move

Enter

Return

You can select these options simply by pressing the SOURCE button on the remote control.

To watch television programme again, press the TV/DTV button and select the channel number required.

English - 12

Editing Device Names

You can give a name to the external source.

1Press the MENU button to display the menu.

2Press the ▲ or ▼ button to select Input, then press the

ENTER button.

3Press the ▲ or ▼ button to select Edit Name, then press the

ENTER button.

4Press the ▲ or ▼ button to select the external source to be edited, then press the ENTER button.

5Select the required device by pressing ▲ or ▼, then press the

ENTER button.

Available device names: VCR, DVD, Cable STB, Satellite

STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, DMA.

6Press the EXIT button to exit.

T V		Input
	Source List	: TV		
	Edit Name			
	Anynet + (HDMI-CEC)
	WISELINK
	Move	Enter		Return
T V		Edit Name
	Ext.1	:		−−−−
	Ext.2	:		VCR
	AV	:		DVD
	S-Video	:	Cable STB
			Satellite STB
	Component	:	PVR STB
	PC	:
			AV Receiver
	HDMI1	:		
	HDMI2	: −−−−
	HDMI3	: −−−−
	Move	Enter		Return

Storing Channels Automatically

 Not available in DTV or external input mode.

You can scan for the frequency ranges available to you (availability depends on your country).

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch.

1Press the MENU button to display the menu.

2Press the ▲ or ▼ button to select Channel, then press the

ENTER button.

3Press the ENTER button again. The available countries are listed.

4Select your country by pressing the ▲ or ▼ button, then press the ENTER button.

Even though you have changed the country setting in this menu, the country setting for DTV is not changed. Use the Plug & Play function to change the country setting for DTV. (Refer to pages 10 to 11)

5Press the ▲ or ▼ button to select Auto Store, then press the

ENTER button.

6Press the ENTER button again to start the search. The search will end automatically.

To stop the search before it has finished, press the MENU or the ENTER button.

T V						Channel
			Country				:				▲
			Auto Store						Switzerland
			Manual Store						United Kingdom
											Austria
			Channel Manager
									Eastern Europe
			Sort
											Others
			Name
			Fine Tune								
			LNA				: Off				
				Move			Enter				Return
T V						Channel
			Country				: United Kingdom
			Auto Store								
			Manual Store								
			Channel Manager								
			Sort								
			Name								
			Fine Tune								
			LNA				: Off				
				Move			Enter				Return
					Auto Store
P			1	C --							40 MHz
											0 %
					Start
Enter					Return

English - 13

Storing Channels Manually

 Not available in DTV or external input mode.
		T V	Channel
You can store television channels, including those received via			Country	: United Kingdom
cable networks.			Auto Store		
When storing channels manually, you can choose:			Manual Store		
			Channel Manager		
 Whether or not to store each of the channels found.			Sort		
 The programme number of each stored channel which you wish			Name		
	to identify.		Fine Tune		
1			LNA	: Off	
	Press the MENU button to display the menu.
2	Press the ▲ or ▼ button to select Channel, then press the		Move	Enter	Return
	ENTER button.
		T V	Manual Store
3	Press the ▲ or ▼ button to select Manual Store, then press
	the ENTER button.		Programme	: P 1
4			Colour System	: Auto	
	Select the required option by pressing the ▲ or ▼ button, then		Sound System	: BG	
	press the ENTER button.		Channel	: C
5			Search	: 175	MHz
	When you are satisfied with your setting, press the ENTER		Store	: ?
	button.
6	Press the EXIT button to exit.

 Programme (Programme number to be assigned to a channel)	Move	Enter	Return

−Press the ▲ or ▼ button until you find the correct number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

Colour System: Auto/PAL/SECAM/NTSC4.43

−Press the ▲ or ▼ button to select the required colour standard.

Sound System: BG/DK/I/L

−Press the ▲ or ▼ button to select the required sound standard.

Channel (When you know the number of the channel to be stored)

−Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).

−Press the ► button, then press the ▲ or ▼ button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

If there is abnormal sound or no sound, re-select the sound standard required.

Search (When you do not know the channel numbers)

−Press the ▲ or ▼ button to start the search.

−The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number)

−Set to OK by pressing the ENTER button.

Channel mode

P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.

S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

English - 14

Adding / Locking Channels

 Not available in DTV or external input mode.
		T V		Channel
Using the Channel Manager, you can conveniently lock or add			Country	: United Kingdom
channels.			Auto Store		
1	Press the MENU button to display the menu.		Manual Store		
			Channel Manager		
2	Press the ▲ or ▼ button to select Channel, then press the
			Sort		
	ENTER button.		Name		
			Fine Tune		
3	Press the ▲ or ▼ button to select Channel Manager, then		LNA	: Off	
	press the ENTER button.		Move	Enter	Return
 Adding channels
	Using the Channel List, you can add channels.	T V	Channel Manager
4	Select Channel List by pressing the ENTER button.		Channel List		
			Child Lock	: Off	

5Move to the () field by pressing the ▲/▼/◄/► buttons, select a channel to be added, and press the ENTER button to add the channel.

If you press the ENTER button again, the ) symbol next to the channel disappears and the channel is not added.

 Locking channels	Move	Enter	Return
This feature allows you to prevent unauthorized users, such as		Channel List
children, from watching unsuitable programmes by muting out video	P 1 C 6		1 / 10
and audio.
	Prog.

6Press the ▲ or ▼ button to select Child Lock, then press the ENTER button.

7Select On by pressing the ▲ or ▼ button, then press the ENTER button.

8Press the ▲ or ▼ button to select Channel List, then press the

ENTER button.

9Move to the () field by pressing the ▲/▼/◄/► buttons, select a channel to be locked, and press the ENTER button.

If you press the ENTER button again, the ) symbol next to the channel disappears and the channel lock is canceled.

A blue screen is displayed when Child Lock is activated.

10Press the EXIT button to exit.

 You can select these options simply by pressing the CH LIST button on the remote control.

0	C 1	▲
1	C 6
2	C 5
3	C 8
4	C 11
5	C 22
6	C 26
7	C 36
8	C 52
9	C 24	▼
	Add	Lock
	Move	Enter
	Page	Return

English - 15

Sorting the Stored Channels

 Not available in DTV or external input mode.

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

1Press the MENU button to display the menu.

2Press the ▲ or ▼ button to select Channel, then press the

ENTER button.

3Press the ▲ or ▼ button to select Sort, then press the

ENTER button.

4Select the channel that you wish to move by pressing the

▲ or ▼ button, then press the ENTER button.

5Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button.

Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly.

6Repeat steps 4 to 5 until you have moved all the channels to the required programme numbers.

7Press the EXIT button to exit.

T V			Channel
	Country		: United Kingdom
	Auto Store				
	Manual Store				
	Channel Manager				
	Sort				
	Name				
	Fine Tune				
	LNA		: Off		
	Move		Enter	Return
T V			Sort
	Prog.	Ch.	Name
					
	0	C- -
1		C04
2		C05
3		C08
4		C09
		
	Move		Enter	Return

Assigning Names to Channels

 Not available in DTV or external input mode.

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1Press the MENU button to display the menu.

2Press the ▲ or ▼ button to select Channel, then press the

ENTER button.

3Press the ▲ or ▼ button to select Name, then press the

ENTER button.

4Press the ▲ or ▼ button to select the channel to be assigned to a new name, then press the ENTER button.

5Press the ▲ or ▼ button to select a letter, a number, or a symbol (Results in this sequence: A~Z, 0~9, +, -, *, /, blank).

Move on to the previous or next letter by pressing the ◄ or ► button, then press the ENTER button.

6Repeat steps 4 to 5 for each channel to be assigned to a new name.

7Press the EXIT button to exit.

T V			Channel
	Country		: United Kingdom
	Auto Store				
	Manual Store				
	Channel Manager				
	Sort				
	Name				
	Fine Tune				
	LNA		: Off		
	Move		Enter	Return
T V			Name
	Prog.	Ch.	Name
		
0		C- -	−−−−−
	1	C04	−−−−−
2		C05	−−−−−
3		C08	−−−−−
4		C09	−−−−−
		
	Move		Enter	Return

English - 16

Fine Tuning Channel Reception

 Not available in DTV or external input mode.

If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation.

If the signal is weak or distorted, you may have to fine tune the channel manually.

1Press the MENU button to display the menu.

2Press the ▲ or ▼ button to select Channel, then press the

ENTER button.

3Press the ▲ or ▼ button to select Fine Tune, then press the

ENTER button.

4To obtain a sharp, and clear picture and good sound quality, press the ◄ or ► button until you reach the optimal setting.

Press the ENTER button.

Fine Tune Store will change the colour of the Channel OSD (On Screen Display) from White to Red and add the “*” mark.

To reset the fine tuning to 0, select Reset by pressing the

▲ or ▼ button. Press the ENTER button.

5Press the EXIT button to exit.

LNA (Low Noise Amplifier)

	T V			Channel
		Country			: United Kingdom
		Auto Store				
		Manual Store				
		Channel Manager				
		Sort				
		Name				
		Fine Tune				
		LNA			: Off	
		Move			Enter	Return
			Fine Tune
	P 1					+ 3
			Reset
	Adjust		Save			Return
	P 1 *
	Mono
	Picture		: Dynamic
	Sound		: Custom
	SRS TS XT		: Off
	−− : −−

This function is very useful in the situation that the TV is used in weak signal.

LNA amplifies the TV signal in the weak signal area, a low-noise preamplifier boosts the incoming signal.

1	Press the MENU button to display the menu.
		T V		Channel
2	Press the ▲ or ▼ button to select Channel, then press the		Country	: United Kingdom
	ENTER button.		Auto Store		
3			Manual Store		
	Press the ▲ or ▼ button to select LNA, then press the ENTER		Channel Manager		
	button.		Sort		
			Name		
4	Select Off or On by pressing the ▲ or ▼ button, then press		Fine Tune		
	the ENTER button.		LNA	: Off	
5	Press the EXIT button to exit.		Move	Enter	Return
 Depending on areas, factory mode of LNA, will be set up as
	On or Off.

English - 17

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1Press the MENU button to display the menu.

2Press the ENTER button to select Picture.

3Press the ENTER button again to select Mode.

4Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button.

Available modes: Dynamic, Standard, Movie

 Thesource.settings values may vary depending on the input

5Press the EXIT button to exit.

 Choose Dynamic for viewing the TV during the day or when there is bright light in the room.

Choose Standard for general TV watching mode.

Choose Movie when viewing the movie.

Easy Setting

1Press the TOOLS button on the remote control.

2Press the ▲ or ▼ button to select Picture Mode.

3Press the ◄ or ► button to select the required option.

T V


Mode

: Standard



Cell Light

Contrast

0

Brightness

45

Sharpness

50

Colour

50

Tint

G50

R50

Detailed Settings



More

Move

Enter

Return

T V


Mode

Dynamic

Cell Light

Standard

Movie

Contrast

0

Brightness

45

Sharpness

50

Colour

50

Tint

G50

R50

Detailed Settings

More

Move

Enter

Return

		Tools
	Anynet+ (HDMI-CEC)
	PictureMode	◄	Standard ►
	Sound Mode	:	Custom
	Sleep Timer	:	Off
	SRS TS XT	:	Off
	Energy Saving	:	Off
	Dual I-II	:	Mono
	Move	Adjust	Exit

Customizing the Picture Settings

Your television has several setting options that allow you to


T V

control the picture quality.

Mode

: Standard



1

Press the MENU button to display the menu.

Cell Light

Contrast

0

2

Press the ENTER button to select Picture.

Brightness

45

Sharpness

50

3

Press the ENTER button again to select Mode.

Colour

50

4

Select the required mode by pressing the ▲ or ▼ button, then

Tint

G50

R50

Detailed Settings



press the ENTER button.

More

5

Available modes: Dynamic, Standard, Movie

Move

Enter

Return

Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

6

When you are satisfied with your setting, press the ENTER button.

7

Press the EXIT button to exit.

 Cell Light - Contrast – Brightness – Sharpness – Colour – Tint

 In Analog TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function.  In PC mode, you can only make changes to Cell Light, Contrast, and Brightness.

Press the ◄ or ► button until you reach the optimal setting.

English - 18

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

1Press the MENU button to display the menu.

2Press the ENTER button to select Picture.

3Press the ▲ or ▼ button to select Detailed Settings, then press the ENTER button.

4Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

Available options: Black Adjust, Dynamic Contrast, Gamma, Colour Space, White Balance, Flesh Tone, Edge Enhancement, xvYCC

5When you are satisfied with your setting, press the ENTER button.

6Press the EXIT button to exit.

Detailed Settings is available in Standard or Movie mode.

In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance from among the Detailed Settings items.

T V


Mode

: Standard



Cell Light

Contrast

0

Brightness

45

Sharpness

50

Colour

50

Tint

G50

R50

Detailed Settings



More

Move

Enter

Return

T V

Detailed Settings

Black Adjust

: Off



Dynamic Contrast : Low



Gamma

:

0



Colour Space

: Native



White Balance



Flesh Tone

:

0



Edge Enhancement : On



xvYCC

: Off



Move

Enter

Return

Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.

Gamma: -3 ~ +3

You can adjust the middle brightness of pictures.

Press the ◄ or ► button until you reach the optimal setting.

Colour Space : Auto/Native/Custom

Colour space is a colour matrix composed of red, green and blue colours. Select your favorite colour space to experience the most natural colour.

−Auto:Auto Colour Space automatically adjusts to the most natural colour tone based on program sources.

−Native: Native Colour Space offers deep and rich colour tone.

−Custom:Adjusts the colour range to suit your preference. (see “Customizing the Colour Space”)

Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

Colour is available when Colour Space is set to Custom.

Press the ▲ or ▼ button to select Red, Green, Blue, Yellow, Cyan or Magenta. Press the ENTER button.

−Red/Green/Blue: In Colour, you can adjust the RGB values for the selected colour.

Press the ▲ or ▼ button to select Red, Green or Blue to change it. Press the ENTER button.

Press the ◄ or ► button to decrease or increase the value of a particular item.

Press the ENTER button.

−Reset: Resets the colour space to the default values.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

Continued...

English - 19

Flesh Tone:-15~+15

You can emphasize the pink tone in the picture.

Press the ◄ or ► button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

Edge Enhancement: Off/On

You can emphasize object boundaries.

xvYCC: Off/On

Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature.

The xvYCC function works only in Component or HDMI(Y, Cb, Cr) mode.

Picture Options

You can set detailed picture settings.

T V


1

Press the MENU button to display the menu.

Mode

: Standard



Cell Light

2

Press the ENTER button to select Picture.

Contrast

0

3

Press the ▲ or ▼ button to select Picture Options, then

Brightness

45

Sharpness

50

press the ENTER button.

Colour

50

4

Tint

G50

R50

Select the required option by pressing the ▲ or ▼ button,

Detailed Settings



then press the ENTER button.

More

5

When you are satisfied with your setting, press the

Move

Enter

Exit

ENTER button.

T V

Picture Options

6

Press the EXIT button to exit.

Colour Tone

: Normal



Size

: Auto Wide 

 In PC mode, you can only make changes to the Colour Tone,

Screen Mode

: 16:9



Size and Screen Burn Protection from among the items in

Digital NR

: Auto



DNle

: On



Picture Options.

HDMI Black Level

: Normal



 Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

Movie Plus

: Low



Blue only mode

: Off



 When the picture mode is set to Dynamic or Standard,

Screen Burn Protection



Warm1 and Warm2 cannot be selected.

Move

Enter

Return

 Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your

T V

Size

viewing requirements.

Auto Wide

− Auto Wide: Expanding and pulling up the picture from 4:3 to

16:9

16:9 ratio.

Wide Zoom

− 16:9: Sets the picture to 16:9 wide mode.

Zoom

4:3

− Wide Zoom: Magnify the size of the picture more than 4:3.

Just Scan

Move the screen up/down using the ▲ or ▼ button after

selecting the

by pressing the ► or ENTER button.

− Zoom: Magnify the size of the picture vertically on screen.

Move

Enter

Return

− 4:3: Sets the picture to 4:3 normal mode.

− Just Scan: Use this function to see the full image

without any cutoff when HDMI(720p/1080i/1080p),

Component(1080i/1080p) or DTV(1080i) signals are input.

After selecting Just Scan in HDMI (1080i/1080p) or

Component (1080i/1080p) mode: Press the ◄ or ► button

to select

, then press the ENTER button. Press the ▲, ▼, ◄ or ► button to move the picture

up, down, left and right. Reset: Press the ◄ or ► button to select Reset, then press the ENTER

button. You can initialize the setting.

With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off or a specific colour appears on the screen.

For an HDMI (1080p) connection of 24, 25, 30, 50, and 60 Hz, and for a Component (1080p) connection of 50 and 60Hz, only the input source is supported.

You can change the picture size simply by pressing the P.SIZE button on the remote control.

Depending on the input source, the picture size options may vary.

The items available may differ depending on the selected mode.

When Double (, ) mode has been set in PIP, the Picture Size cannot be set.

In PC Mode, only "16:9" and "4:3" mode can be adjusted.

Continued...

English - 20
