Samsung PPM42M8H, PPM50M8H User Manual

Download
Professional PDP Display (PLASMA DISPLAY PANEL)
PPM42M8H PPM50M8H
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
Intended for Commercial Use and Operation
ON-SCREEN MENUS
VIDEO WALL
MDC (Multiple Display Control)
Screen Burn Protection
SRS TruSurroundXT
Register your product at www.samsung.com/global/register Record your Model and Serial number here for future reference.
■
Model ________________ ■Serial No. ________________

User Instructions

◆ Screen Image retention
Do not display a still image (such as on a video game or when hooking up a PC to this PDP Display) on the plasma PDP Display panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
◆ Height
The PDP Display can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height, so do not install and operate there.
◆ Heat on the top of the PDP Display
The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.
◆ The product is making a ‘cracking’ noise.
A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.
◆ Cell Defects
The PDP Display uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
◆ Avoid operating the PDP Display at temperatures below 5°C(41°F)
◆ A still image displayed too long may cause permanent damage to the PDP Display Panel
Watching the PDP Display in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damage caused by the above effect are not covered by the Warranty.
◆ Afterimage on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may
produce partial afterimages.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images for a
long time.
◆ Warranty
- Warranty does not cover any damage caused by image retention.
- Burn-in is not covered by the warranty.
◆ Installation
Be sure to contact an authorized service center, when installing your PDP Display in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates for 24 hours such as the airport, the train station or etc. Failure to do so may cause a serious damage to your PDP Display. Installing the product in an airtight place may shorten the lifetime of the product.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
English - 2

Checking Parts

➢
Ferrite Core (Power Cord, Speaker Wire)
The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug.
(Not available in all locations)
(Refer to page 14)
Quick Setup Guide User’s Guide
Remote Control/
Power Cord
Ferrite Cores for Speaker Wire (2EA)
Ferrite Core for Power Cord
PC Cable
Stand-Base (2EA)
Screws (4EA)
AAA Batteries
English - 3

Contents

◆ FOREWORD
■ User Instructions............................................................................................ 2
◆ CONNECTING AND PREPARING YOUR DISPLAY
■ Control Panel................................................................................................. 6
■ Infrared Remote Control ................................................................................ 8
■ Inserting the Batteries in the Remote Control................................................ 9
■ Assembling the Stand-Base .......................................................................... 9
■ Installing the Display on the Wall Attachment Panel ..................................... 10
■ Installing the Display Vertically ...................................................................... 12
■ Before Using the Video Wall and the Multiple Display Control function ........ 12
■ Connecting Speakers .................................................................................... 13
■ Switching Your PDP Display On and Off....................................................... 15
■ Choosing Your Language.............................................................................. 15
◆ USING YOUR DISPLAY
■ Changing the Picture Standard ..................................................................... 16
■ Customizing the Picture Settings................................................................... 17
■ Adjusting the RGB Color (PC Mode) ............................................................. 18
■ Setting the Picture (PC Mode)....................................................................... 18
■ Using Zoom function (PC Mode) ................................................................... 20
■ Selecting the Picture Size.............................................................................. 21
■ Freezing the Current Picture ......................................................................... 22
■ Changing the Sound Standard ...................................................................... 22
■ Customizing the Sound Settings ................................................................... 23
■ Setting the TruSurround XT........................................................................... 24
■ Activating Panel Button Lock......................................................................... 25
■ Activating Remote Control Button Lock......................................................... 26
■ Setting Up Your Personal ID Number............................................................ 27
English - 4
Continued...
Contents
◆ USING YOUR DISPLAY (CONTINUED)
■ Setting the MDC (Multiple Display Control) ................................................... 28
■ Preventing Screen Burn-in ............................................................................ 29
■ Reducing the Effects of Screen Burn ............................................................ 30
■ Setting the Screen Burn Protection Timer ..................................................... 31
■ Setting the Multiple Screen............................................................................ 32
■ Displaying the Setting Information................................................................. 33
■ Setting and Displaying the Current Time....................................................... 33
■ Switching the PDP Display On and Off Automatically ................................... 34
■ Selecting the Fan........................................................................................... 36
■ Viewing the Picture in Picture (PIP)............................................................... 37
■ Viewing an External Signal Source ............................................................... 38
◆ ADDITIONAL INFORMATION AND CONNECTIONS
■ Connecting to the Audio/Video Input............................................................. 39
■ Connecting to the S-Video Input.................................................................... 40
■ Connecting to the Component Input.............................................................. 40
■ Connecting to the DVD/DTV Receiver Input ................................................. 41
■ Connecting to the DVI Input .......................................................................... 41
■ Connecting to the PC Input ........................................................................... 42
■ Setting up Your PC Software (Windows only) ............................................... 43
■ Input Mode (PC/DVI) ..................................................................................... 44
■ Power Saver (PC1 mode only) ...................................................................... 45
◆ RECOMMENDATIONS FOR USE
■ Troubleshooting: Before Contacting Service Personnel................................ 46
■ Technical Specifications ................................................................................ 47
Symbols
Press Important Note
☛
➢
English - 5

Control Panel

➢

Front of the PDP Display

The actual configuration of your PDP Display may be different, depending on your model.
Speaker
(Optional)
a
SOURCE
- Select the external input source.
- Store your settings in the menu.
- When the Main menu is displayed on screen, the Main menu is not operated with source key.
MENU
Display the on-screen menu.
-
VOL +
- Adjust the volume.
- Adjust an option value respectively.
(VOL + : Enter to the selected menu.)
SEL
Control the cursor in the menu.
I /
Press to turn the PDP Display on and off.
Speaker
(Optional)
a b c
b
Power Indicator
- Power Off; Black
- Power On; Green
c
Remote Control Sensor
Aim the remote control towards this spot on the PDP Display.
➢
English - 6
◆ You can use the mode depending on the model.
◆ The VOL on the remote control.
◆ If the remote control no longer works or you have misplaced it, you can use the controls on the panel of the PDP Display.
-,+ and
SEL ,
SEL ,
buttons to switch on the PDP Display when it is in standby
buttons have the same function as the ▲/▼/œ/√ buttons
Continued...

Rear Panel

a) POWER IN
Connect the supplied power cord.
b) EXT SPEAKER (8Ω)
Connect external speakers.
c) DVI/PC AUDIO IN
Connect to the audio output jack on your PC or DVI.
AUDIO is an audio input jack for PC1 and PC2
➢
modes.
d) DVI IN
Connect to the video output jack for device with DVI output.
e) PC IN1/PC OUT1
-
PC IN1 : Connect to the video output jack on
your PC.
-
PC OUT1 : Connect to the video input jack on
external devices.
f) PC IN2 (BNC)
Connect for RGB HV video signal input from the PC.
“PC Mode” from this page onward means
➢
PC1/PC2 mode using
RGB2(PC2).
RGB1(PC1) and
g) RS-232C
-
IN : Used for the MDC function when connecting
PC or RS-232C output of another PDP Display.
-
OUT : Used for the MDC function when
connecting with RS-232C input of another PDP Display.
For further details about connections, refer to
➢
Page 12.
h) COMPONENT IN
Video (Y/PB/PR) and audio (L/R) inputs for component.
i) AV (VIDEO/AUDIO L/R)
-
IN : Video and audio inputs for external devices,
such as a camcorder or VCR.
-
OUT : Outputs for external devices.
j) S-VIDEO IN
Video input for external devices with an S-Video output, such as a camcorder or VCR.
For further details about connection, refer to pages 39~42.
➢
Whenever you connect an audio or video system to your PDP Display, ensure that all elements are
➢
switched off. Refer to the documentation supplied with your equipment for detailed connection instructions and associated safety precautions.
English - 7

Infrared Remote Control

PDP DISPLAY ON
DIRECT CHANNEL SELECTION
PDP DISPLAY OFF
NOT AVAILABLE
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
VOLUME DECREASE
SETTING THE TIMER
MENU DISPLAY
MOVE TO THE REQUIRED MENU
ADJUST AN OPTION VALUE
PICTURE EFFECT SELECTION
AUTO ADJUSTMENT IN PC MODE
- PIP ACTIVATION OR DEACTIVATION
- SOURCE SELECTION (SOURCE)
OPTION/
RESPECTIVELY
PIP FUNCTIONS:
(PIP)
PICTURE STILL
NEXT CHANNEL
EXTERNAL INPUT SELECTION
PREVIOUS CHANNEL
INFORMATION DISPLAY
EXIT FROM ANY DISPLAY
CONFIRM YOUR CHOICE (STORE OR ENTER)
SOUND EFFECT SELECTION
PICTURE SIZE
ULTIPLE DISPLAY CONTROL
M
SCREEN EFFECT SELECTION (BURNING PROTECTION)
English - 8
The performance of the remote control may be affected by bright light.
➢

Inserting the Batteries in the Remote Control

You must insert or replace the batteries in the remote control when you:
◆ Purchase the PDP Display
◆ Find that the remote control is no longer operating
correctly
1 Remove the cover on the rear of the remote control by pressing
the symbol ( ) downwards and then pulling firmly to remove it.
2 Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆-on the battery against -on the remote control
◆+on the battery against +on the remote control
3 Replace the cover by aligning it with the base of the remote
control and pressing it back into place. Do not mix battery types, i.e. alkaline and manganese.

Assembling the Stand-Base

1 Assemble the PDP Display with the stand and firmly
secure the PDP Display using 4 screws provided.
Two or more people should carry the PDP Display.
➢
Never lay the PDP Display on the floor because of possible damage to the screen. Always store the PDP Display upright.
English - 9

Installing the Display on the Wall Attachment Panel

Refer to the correct installation guide according to your wall bracket.
➢

Installation Notes

◆
Contact a technician for installing the wall bracket.
◆
Samsung Electronics is not responsible for any damages to the product or harm to customers when the installation is done by the customer.
◆
This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.

Components

◆
Only use the components and accessories shipped with the product.
Wall Bracket
1 Left: 1 Right: 1
Hinge

Wall Bracket Assembly

1 Insert and tighten the Captive Screw in
the direction of the arrow. When done, mount the wall bracket on the wall.
Captive Screw
Hinge (Left)
There are two hinges (left and right). Use the correct one.
Wall Bracket
Hinge (Right)
Accessories
Plastic Hanger: 4 Screw : 11
Screw : 4
Anchor : 11
2 Before drilling into the wall, check if the length
between the two locking holes at the back of the product is correct. If the length is too short or long, loosen all or some of the 4 screws on the wall bracket to adjust the length.
Length between the two locking holes
3 Check the installation diagram and mark the drill
points on the wall. Use the 5.0 mm bit to drill holes deeper than 35 mm. Fix each anchor in the corresponding hole. Match each of the brackets and hinge holes to the corresponding anchor holes and insert and tighten the 11 screws .
Continued...
English - 10

To mount the product on the wall bracket

◆ The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and the screw are the same)
1 Remove the 4 screws on the back of the product.
3 Tighten the 4 screws in step 2 (plastic hanger
+ screw ) to the rear holes of the product.
2 Insert the screw into the plastic hanger.
(See the figure below)
◆ Mount the product on the wall bracket
☛
4
Remove safety pin (#) and insert the 4 product holders into the corresponding bracket holes ( place the product ( bracket. Make sure to reinsert and tighten the safety pin (
PDP Display
and make sure it is properly fixed to the left and right plastic hangers.
◆ Be careful when installing the product on the bracket as fingers can be caught in the holes.
◆ Make sure the wall bracket is securely fixed to the wall, or the product may not stay in place after installation.
!). Then
@) so that it is firmly fixed to the
#) to securely hold the product to the bracket.

Wall Bracket Angle Adjustment

Adjust the bracket angle to -
➢
1 Fix the product to the wall bracket.
2 Hold the product at the top in the center and pull it
forward (direction of the arrow) to adjust the angle. (See the figure to the right)
3 You can adjust the bracket angle between -2° and 15°.
2obefore installing it on the wall.
Wall Bracket
Make sure to use the top center, and not the left or the right side of the product to adjust the angle.
Wall
English - 11

Installing the Display Vertically

➢
❋
Samsung shall not be liable for damages caused by installing the product at the different direction from the figure below.

Before Using the Video Wall and the Multiple Display Control function

1 Please create ID for each PDP Display before
installing them close together. It may be difficult to create IDs when operating the remote control for PDPs that are installed close to each other.
You can install the PDP Display vertically. In this case, the fan automatically works. If you wish to stop the fan, position the PDP Display horizontally and then set “ in the “
Function” menu.
Please use the wall attachment panel exclusively when installing vertically. And you have to put the bottom of the PDP Display with menu buttons on the left when viewed from front.
Example for 2x2 Video Wall function
Fan” to “Off ”
2 For details about Video Wall configuration and
operation, refer to “Setting the Multiple Screen” on page 32.
Example for 2x2 Video Wall connections
Rear of the PDP Display Rear of the PDP Display
②
①
◆ Select ID input on the menu. Use the numeric
buttons to enter the ID for PDP Display adjustment. You can operate the remote control only for the PDP Display that has been selected.
◆ For details about Multiple Display Control, refer to “Setting the MDC (M on page 28.
ultiple Display Control)”
Example for Multiple Display Control connections
English - 12

Connecting Speakers

Speakers are optional. You have to purchase the speakers
➢
additionally.
1 Remove the screws on the rear of the PDP Display.
PPM42M8H PPM50M8H
2 Hang the two “T” shaped hangers
on the square holes on the rear of the PDP Display.
3 Tighten the PDP Display and the speaker bracket using the screws removed from the PDP Display.
PPM42M8H PPM50M8H
PPM42M8H PPM50M8H
When moving your PDP Display, do NOT hold the speaker connected to your PDP Display. It may
➢
damage the bracket clamping the speaker and your PDP Display together and result in a drop of your PDP Display and a risk of personal damage and injury.
Continued...
English - 13
Connect the speaker audio cable to the external speaker output jack on the rear of the PDP Display matching the “+” and “
◆ The speakers MUST have a power handling capability of 10 watts minimum (impedance 8Ω).
➢
◆ When you connect the speaker wire to the external speaker out connector, first bind the
-
” ends of the cable with the diagram on the PDP Display.
speaker wire round the ferrite core to secure it.
English - 14
Ferrite Cores
The ferrite cores are used to attenuate undesired signals. When connecting cables, attach one of these ferrite cores to the cable near the connector.

Switching Your PDP Display On and Off

The mains lead is attached to the rear of your PDP Display.
1 Plug the mains lead into an appropriate socket.
Result
: The Standby indicator on the front of the PDP Display
lights up.
The main voltage is indicated on the rear of the PDP
➢
Display and the frequency is 50 or 60Hz.
2 Press the “ ” button on the front of the PDP Display (or the ON
() button on the remote control) to switch the PDP Display on.
3 To switch your PDP Display off, press the “ ” button again (or
the
OFF () button on the remote control).

Choosing Your Language

Front of the PDP Display
When you start using your PDP Display for the first time, you must select the language which will be used for displaying menus and indications.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Language.
Press the Result
ENTER () button.
: The available languages are listed.
5 Select the appropriate language by pressing the … or † button.
Press the
ENTER () button.
6 Press the EXIT button to exit.
Setup
Time
Language : English
PC
Move Enter Return
Setup
Time
Language : English
PC
Move Enter Return
English - 15
English
Français
Deutsch
Italiano
Español
Português
††

Changing the Picture Standard

You can select the type of picture which best corresponds to your
Mode : Dynamic
Color Control
Size : 16:9
PIP
Move Enter Return
viewing requirements.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
:
3 Press the ENTER () button.
Result
:
The
Picture menu is displayed.
The
Mode is selected.
Mode
Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Color 55
Tint G 50 R 50
Color Tone : Cool1 Reset
Move Enter Return
Mode
Mode : Dynamic
Contrast 100 Brightness 50 Sharpness 75 Color 55
Tint G 50 R 50
Color Tone : Cool1 Reset
Move Enter Return
Dynamic
Standard
Movie
Custom
4 Press the ENTER () button again.
Result
:
The
Mode menu is displayed.
5 Press the ENTER () button.
Result
: The following
options
are available.
Dynamic - Standard - Movie - Custom
6 Select the required option by pressing the … or † button.
7 Press the ENTER () button.
8 Press the EXIT button to exit.
You can also set these options simply by pressing the
➢
P.MODE (Picture Mode) button on the remote control.
English - 16

Customizing the Picture Settings

Your PDP Display has several setting options that allow you to control the picture quality.
1 Press the MENU ()button.
: The main menu is displayed.
Result
2 Press the … or † button to select Picture.
:
The
Result
Picture menu is displayed.
Mode : Dynamic
Color Control
Size : 16:9
PIP
3 Press the ENTER () button.
:
The
Result
Mode is selected.
4 Press the ENTER () button again.
:
The
Result
Mode menu is displayed.
5 Press the ENTER () button.
: The following
Result
Dynamic - Standard - Movie - Custom
options
are available.
6 Select the required option by pressing the … or † button.
7 Press the ENTER () button.
8 Select the required option by pressing the … or † button.
: The following
Result
◆ Contrast - Brightness - Sharpness - Color -
◆ Contrast - Brightness - Color : PC or DVI
Tint (NTSC only)
Mode.
options
are available.
9 Press the ENTER () button.
: The horizontal bar is displayed.
Result
Press the setting.
◆ Press the … or † button to select other option(s).
➢
◆ The settings values may vary depending on the input
source. (ex. AV, Component, PC, or DVI.)
œ or √ button until you reach the optimal
Move Enter Return
Mode
Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Color 55
Tint G 50 R 50
Color Tone : Cool1 Reset
Move Enter Return
Contrast 100
Mode
Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Color 55
Tint G 50 R 50
Color Tone : Cool 1
Reset
Move Enter Return
Cool2
Cool1
Normal
Warm1
Warm2
10 Press the MENU () button to return to Mode menu.
Press the Press the
… or † button to select Color Tone.
ENTER () button.
11 Select the required option by pressing the … or † button.
: The following
Result
Cool2 - Cool1 - Normal - Warm1 - Warm2
options
are available.
12 Press the ENTER () button.
13 To return the factory defaults, select Reset by pressing the … or
† button. Press the ENTER () button.
: The previously adjusted settings will be reset to the
Result
factory defaults.
The reset function is set for each mode (Dynamic,
➢
Standard, Movie, or Custom).
The reset function is also set for each Color Tone (Cool2,
➢
Cool1, Normal, Warm1, or Warm2).
14 Press the EXIT button to exit.
Mode
Mode : Dynamic Contrast 100 Brightness 50 Sharpness 75 Color 55
Tint G 50 R 50
Color Tone : Cool1 Reset
Move Enter Return
English - 17

Adjusting the RGB Color (PC Mode)

Preset to the PC mode by pressing the SOURCE button.
➢
Mode : Dynamic
Color Control
Size : 16:9
PIP
Move Enter Return
Color Control
Red 50
Green 50
Blue 50
Move Enter Return
Red 50
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
: The Picture menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Color Control.
Press the
ENTER () button.
5 Select the required option (Red, Green, or Blue) by pressing the
… or † button.
6 Press the ENTER () button.
Result
: The horizontal bar is displayed.
Press the
œ or √ button until you reach the optimal
setting.
Press the … or † button to select other option(s).
➢
7 Press the ENTER () button.
8 Press the EXIT button to exit.

Setting the Picture (PC Mode)

Preset to the PC mode by pressing the SOURCE button.
➢
Setup
Time
Language : English
PC
Move Enter Return
PC
Image Lock
Position
Auto Adjustment Image Reset Zoom
Move Enter Return
English - 18
1 Press the MENU ()button.
2 Press the … or † button to select Setup.
3 Press the ENTER () button.
4 Press the … or † button to select PC.
5 Press the ENTER () button to select Image Lock.
Result
: The main menu is displayed.
Result
: The
Press the
Result
: The PC menu is displayed.
Setup menu is displayed.
ENTER () button.
Continued...
6 Press the … or † button to select the option (Coarse or Fine) to
be adjusted. Press the
Result
: The horizontal bar is displayed.
Press the setting.
Press the … or † button to select other option(s).
➢
ENTER () button.
œ or √ button until you reach the optimal
Image Lock
Coarse 50
Fine 30
7 Press the ENTER () button.
8 Press the MENU ()button.
Result
: The PC menu is displayed again.
9 Press the … or † button to select Position.
Press the
ENTER () button.
10 Adjust the position by pressing the …, †, œ, or √ button.
11 Press the ENTER () button.
12 Press the … or † button to select Auto Adjustment.
Press the
Result
ENTER () button.
: The screen quality and position are automatically reset.
The settings are all finished, and the PDP Display will automatically return to the previous picture.
13 To return the factory defaults, select Image Reset by pressing
the
… or † button. Press the ENTER () button.
Result
: The previously adjusted settings will be reset to the
factory defaults.
14 Press the EXIT button to exit.
Move Enter Return
Coarse 50
Position
Move Enter Return
Auto Adjustment in Progress
Please wait.
Image Reset is completed.
Return
English - 19

Using Zoom function (PC Mode)

Preset to the PC mode by pressing the SOURCE button.
➢
a
Setup
Time
Language : English
PC
1 Press the MENU ()button.
Result
2 Press the … or † button to select Setup.
Result
3 Press the ENTER () button.
: The main menu is displayed.
: The Setup menu is displayed.
Move Enter Return
PC
Image Lock
Position
Auto Adjustment Image Reset Zoom
Move Enter Return
Zoom
Zoom : 0
Position
Reset
Move Enter Return
Zoom : 1
Position
Reset
0
1
2
3
4
5
6
Zoom
4 Press the … or † button to select PC.
Press the
Result
ENTER () button.
: The PC menu is displayed.
5 Press the … or † button to select Zoom.
Press the
ENTER () button.
6 Press the ENTER () button again.
Select the required option by pressing the
Result
: The following options are available.
0 - 1 - 2 - 3 - 4 - 5 - 6
◆ Option 0 represents a normal screen.
➢
The greater the number, the more magnified the screen.
◆ You can select the position and reset functions by selecting options 1 through 6. (If you select option 0, the position and reset functions are not selected.)
◆ If you have selected the Zoom function as between 1~6, you will not be able to select the Auto Adjustment function.
… or † button.
7 Press the ENTER () button.
8 Press the … or † button to select Position.
Press the
ENTER () button.
9 Adjust the position by pressing the …, †, œ, or √ button.
10 Press the MENU () button.
Result
: The
Zoom menu is displayed again.
Move Enter Return
Zoom
Zoom : 1
Position
Reset
Move Enter Return
English - 20
11 To return the factory defaults, select Reset by pressing the … or
† button. Press the ENTER () button.
Result
: The previously adjusted settings will be reset to the
factory defaults.
12 Press the EXIT button to exit.

Selecting the Picture Size

You can select the picture size which best corresponds to your viewing requirements.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Picture.
Result
: The Picture menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Size.
Press the
5 Select the required option by pressing the … or † button.
Result
◆ 16:9 : Sets the picture to 16:9 wide mode.
◆ Wide 4:3 : Magnify the size of the picture more than 4:3.
◆ Zoom : Magnify the size of the picture vertically on
◆ 4:3 : Sets the picture to 4:3 normal mode.
6 Press the ENTER () button.
7 Press the EXIT button to exit.
ENTER () button.
: The following options are available.
Move the screen up/down using the button after selecting the by pressing the √ or ENTER ()button.
screen.
… or †
Mode : Dynamic
Color Control
Size : 16:9
PIP
Move Enter Return
Size
16:9
Wide 4:3
Zoom
4:3
Move Enter Return
PC to DVI Mode
Size
16:9
Wide 4:3
Zoom
4:3
◆ You can select these options simply by pressing the P.SIZE
➢
button on the remote control.
◆ If you change the picture size when PIP is On, PIP will automatically be turned Off.
◆ Depending on the input source, the P.SIZE options may vary.
◆ PC and DVI modes, only 16:9 & 4:3 modes can be selected.
Positioning and Sizing the screen using Zoom
◆ Resizing the screen using the Zoom enables the positioning
➢
and sizing of the screen to up/down direction using the † button as well as the screen size.
◆ Move the screen up/down using the … or † button after selecting the by pressing the
œ or √ button.
◆ Resize the screen vertically using the … or † button after selecting the by pressing the (Pressing the
… button extends it upward and pressing the
œ or √ button.
† button extends it downward.)
◆ Screen enlargement operates only in Video/S-Video/ Component input modes.
◆ PC/DVI modes prevent the screen enlargement function.
Move Enter Return
… or
English - 21

Freezing the Current Picture

You can freeze the picture when watching a moving picture simply by pressing the “STILL” button. To return to normal viewing, press it again.
In PIP mode, Still function will be applied to the main and
➢
sub picture at the same time.

Changing the Sound Standard

You can select the type of special sound effect to be used when
Sound
Mode : Custom
Equalizer
SRS TS XT : Off
watching a given broadcast.
1 Press the MENU ()button.
Result
: The main menu is displayed.
Move Enter Return
Sound
Mode : Custom
Equalizer
SRS TS XT : Off
Move Enter Return
Standard
Music
Movie
Speech
Custom
2 Press the ▲ or ▼ button to select Sound.
Result
: The
Sound menu is displayed.
3 Press the ENTER () button.
Result
: The Mode is selected.
4 Press the ENTER () button again.
Select the required option by pressing the
Result
: The following options are available.
Standard - Music - Movie - Speech - Custom
5 Press the ENTER () button.
6 Press the EXIT button to exit.
You can select these options by simply pressing the
➢
S.MODE (Sound Mode) button on the remote control.
▲ or ▼ button.
English - 22

Customizing the Sound Settings

Your PDP Display has several settings which allow you to control the sound quality.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Sound.
Result
3 Press the ENTER () button.
The
:
Sound menu is
displayed.
Sound
Mode : Custom
Equalizer
SRS TS XT : Off
Move Enter Return
4 Press the … or † button to select Equalizer.
Press the
Result
ENTER () button.
:
The
Equalizer menu is
displayed.
5 Select the required option (balance or equalizer) by pressing the
œ or √ button.
6 Press the … or † button until you reach the
Press the
ENTER () button.
optimal
setting.
7 Press the EXIT button to exit.
If you make any changes to the sound settings, the sound
➢
standard is automatically switched to
Custom.
Equalizer
R
+
0
-
L
Balance
100Hz 300Hz 1KHz 3KHz 10KHz
Move Adjust Return
+
0
-
English - 23

Setting the TruSurround XT

TruSurround XT is a patented SRS technology that solves the
Sound
Mode : Custom
Equalizer
SRS TS XT : Off
Move Enter Return
Sound
Mode : Custom
Equalizer
SRS TS XT : Off
Move Enter Return
Off
On
problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal PDP Display speakers. It is fully compatible with all multichannel formats.
1 Press the MENU ()button.
2 Press the … or † button to select Sound.
3 Press the ENTER () button.
4 Press the … or † button to select SRS TS XT.
5 Select Off or On by pressing the … or † button.
6 Press the EXIT button to exit.
Result
: The main menu is displayed.
Result
:
The
Sound menu is
Press the ENTER () button.
Press the
ENTER () button.
displayed.
English - 24

Activating Panel Button Lock

This feature allows you to lock the PDP Display panel buttons so that it cannot be operated via the PDP Display panel. It can, however, still be operated via the remote control. Only remote control can release the panel lock setting, so keep the remote control away from unauthorized users.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the ▲ or ▼ button to select Function.
Result
:
The
Function
3 Press the ENTER () button.
4 Press the ▲ or ▼ button to select Safety Lock.
Press the
ENTER () button.
5 Press the ENTER () button again to select Key Lock.
6 Select Off or On by pressing the ▲ or ▼ button.
Press the
ENTER () button.
7 Press the EXIT button to exit.
menu is
displayed.
Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
Move Enter Return
Safety Lock
Key Lock : Off
IR Lock
Change PIN
Move Enter Return
Safety Lock
Key Lock : Off
IR Lock
Change PIN
Off
On
Move Enter Return
English - 25

Activating Remote Control Button Lock

This feature allows you to lock the remote control so that it cannot
Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
be operated via the remote control. It can, however, still be operated via the PDP Display Panel buttons.
1 Press the MENU ()button.
Result
: The main menu is displayed.
Move Enter Return
Safety Lock
Key Lock : Off
IR Lock
Change PIN
Move Enter Return
IR Lock : On
2 Press the ▲ or ▼ button to select Function.
Result
:
The
Function
menu is
displayed.
3 Press the ENTER () button.
4 Press the ▲ or ▼ button to select Safety Lock.
Press the
ENTER () button.
5 Press the ▲ or ▼ button to select IR Lock.
Press the
ENTER () button.
6 Press the EXIT button to exit.
When IR Lock is set to On, you will not be able to use the
➢
remote control even if the remote control button is pressed. To unlock the Remote Control Button Lock, enter the PIN using the numeric keys on the remote control. ‘IR LOCK : OFF’ will appear. The default PIN is “0000”. You can set the PIN in the “Change PIN” menu.
English - 26

Setting Up Your Personal ID Number

This feature sets viewing restrictions and prevents unauthorized access to your PDP Display through the PIN (Personal Identification Number), which is a 4 digit number.
1 Press the MENU ()button.
Result
: The main menu is displayed.
Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
2 Press the ▲ or ▼ button to select Function.
Result
:
The
Function
menu is
displayed.
3 Press the ENTER () button.
4 Press the ▲ or ▼ button to select Safety Lock.
Press the
ENTER () button.
5 Press the ▲ or ▼ button to select Change PIN.
Press the
ENTER () button.
6 Press the number buttons to enter your current 4-digit pin number.
The default pin number for a new PDP Display set is “0000”.
➢
7 Press the numeric buttons to enter your new 4-digit pin number.
Re-enter your new pin number to confirm.
8 Press the EXIT button to exit.
If you forget the pin number, press the remote control
➢
buttons in the following sequence, which resets the pin to 0-0-0-0: MUTE, 1, 8, 6.
Move Enter Return
Safety Lock
Key Lock : Off
IR Lock
Change PIN
Move Enter Return
Change PIN
Enter PIN
Enter New PIN
0 .. 9: Enter PIN Return
Change PIN
Enter PIN
****
Enter New PIN
0 .. 9: Enter PIN Return
English - 27

Setting the MDC (Multiple Display Control)

This function enables you to easily control the connected PDP
Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
Move Enter Return
Displays on the PC by specifying IDs to connected PDP Displays.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the ▲ or ▼ button to select Function.
Result
:
The
Function
3 Press the ENTER () button.
menu is displayed.
Multi Control
ID Setup : 00
ID Input :
Move Enter Return
ID Setup :
ID Input :
Move Enter Return
ID Setup : 00
ID Input :
0 .. 9: Enter ID Input Number
--
Multi Control
--
Multi Control
--
00
4 Press the ▲ or ▼ button to select Multi Control.
5 Press the ENTER () button.
Result
: The Multi Control menu is displayed with t
Setup
selected.
6 Press the ENTER () button again.
Select the ID setup number by using the numeric buttons. Press the
ENTER () button.
7 Press the ▲ or ▼ button to select ID Input.
Press the
ENTER () button.
8 Enter ID input number by using the numeric buttons.
9 Press the EXIT button to exit.
To operate the multi control function, PDP1 and PDP2
➢
should be set in the ID Setup mode. When entering the ID Input number of PDP1 while the PDP Display is set in the ID Input mode, only PDP1 is switched to the Menu screen and you can operate the remote control. At this time, PDP2 doesn't operate with the remote control and displays the standby mode of ID Input.
For further details, refer to the MDC program guide.
➢
You can select these options by simply pressing the MDC
➢
(Multiple Display Control) button on the remote control.
You can download the MDC program from the
➢
“www.samsung.com” download center.
he
ID
English - 28

Preventing Screen Burn-in

To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Function.
Result
: The
3 Press the ENTER () button.
4 Press the … or † button to select Screen Burn Protection.
Press the
Result
: The Screen Burn Protection menu is displayed
5 Press the ENTER () button again.
Result
: The Pixel Shift menu is selected.
You can select these options by simply pressing the
➢
S.EFFECT button on the remote control.
6 Press the ENTER () button.
Select
On by pressing the … or † button for making the screen
move per regular hour and preventing the residual image. Press the
Pixel Shift: Using this function, you can minutely move
➢
pixels on the PDP in horizontal or vertical direction to prevent after image on the screen.
7 Select the required option (Horizontal Dot, Vertical Line, or
Time) by pressing the … or † button.
Press the
8 Press the … or † button until you reach the optimal setting.
Press the
Optimum condition for pixel shift;
➢
Function menu is displayed.
ENTER () button.
with the
Pixel Shift selected.
ENTER () button.
ENTER () button.
ENTER () button.
Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
Move Enter Return

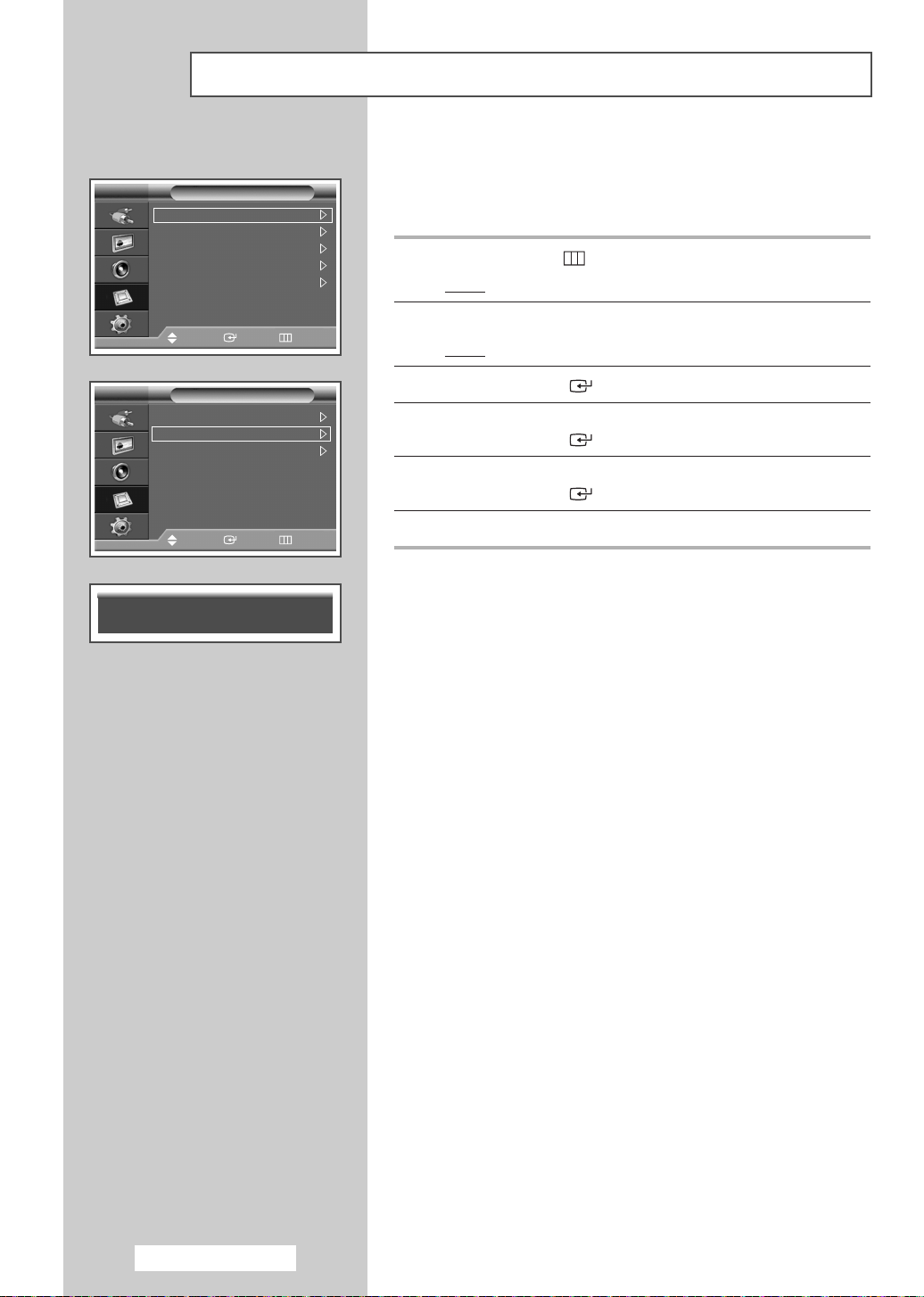

Screen Burn Protection
Pixel Shift
All White
Signal Pattern
Inverse
Bar
Bar & Inverse
Timer
Move Enter Return
Pixel Shift
Pixel Shift : Off
Horizontal Dot : 4
Vertical Line : 4
Time : 4 min.
Move Enter Return
Pixel Shift : On
Horizontal Dot : 4
Vertical Line : 4
Time : 4 min.
Move Enter Return
Off
On
Pixel Shift
PPM42M8H
Horizontal Dot
Vertical Line
Time
2
4
4 min.
9 Press the EXIT button to exit.
PPM50M8H
4
4
4 min.
English - 29

Reducing the Effects of Screen Burn

If screen burn has occurred, you can select a white screen or
Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
Move Enter Return
inverse function to help remove screen burn artifacts.
1 Press the MENU ()button.
: The main menu is displayed.
Result
2 Press the … or † button to select Function.
: The Function menu is displayed.
Result
3 Press the ENTER () button.
Screen Burn Protection
Pixel Shift
All White
Signal Pattern
Inverse
Bar
Bar & Inverse
Timer
Move Enter Return
Screen Burn Protection
Pixel Shift
All White
Signal Pattern
Inverse
Bar
Bar & Inverse
Timer
Move Enter Return
4 Press the … or † button to select Screen Burn Protection.
Press the
Result
ENTER () button.
: The Screen Burn Protection menu is displayed
Pixel Shift selected.
with the
5 Press the … or † button to select the option (All White, Signal
Pattern
() button.
➢
➢
➢
➢
➢
, Inverse, Bar or Bar & Inverse). Press the ENTER
All White: This function removes after images on the
screen by changing the color of pixels to white. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.
Signal Pattern:
This function removes after images on the screen by moving all the pixels on the PDP Display according to a pattern. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.
Inverse: This function removes after images on the screen when the PDP Display is remained on for proloned periods by converting RGB input signal into GBR. Compared to All White and Signal Pattern function, this function can reduce burn in when you watch PDP Display. Using the inverse function when you watch PDP Display can cause the color reversal on the screen. (ex. The colors in red line can be shown as the colors in green line on the screen.)
Bar:
This function removes after images on the screen when the PDP Display is remained on for proloned periods by crossing the vertical white bar from left to right. Compared to All White and Signal Pattern function, this function can reduce burn in when you watch PDP Display. Using the bar mode function when you watch PDP Display can cause poor picture quality with the vertical white bar appeared on some parts of the screen.
Bar & Inverse:
This function removes after images on the screen when the PDP Display is remained on for proloned periods by converting RGB input signal into GBR and crossing the vertical white bar from left to right. Compared to All White and Signal Pattern function, this function can reduce burn in when you watch PDP Display. Using the inverse function when you watch PDP Display can cause the color reversal on the screen. (ex. The colors in red line can be shown as the colors in green line on the screen.)
English - 30
6 Press the ENTER () button.
To remove after images on the screen, use either All White,
➢
Signal Pattern, Inverse, Bar or Bar & Inverse function. Although both of the four functions remove after images on the screen, “
The after image removal function has to be executed for a long
➢
time (approximately 1 hour) to effectively remove after images on the screen. If after image is not removed after the execution of the function, repeat the function additionally.
Signal Pattern” is more effective.

Setting the Screen Burn Protection Timer

You can set the timer for Screen Burn Protection (hours, minutes). If you start the operation to erase any residual image, the operation will be performed for the set period of time and then automatically finish.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the … or † button to select Function.
Result
: The Function menu is displayed.
Screen Burn Protection
Pixel Shift
All White
Signal Pattern
Inverse
Bar
Bar & Inverse
Timer
Move Enter Return
3 Press the ENTER () button.
4 Press the … or † button to select Screen Burn Protection.
Press the
ENTER () button.
5 Press the … or † button to select Timer.
Press the
Result
ENTER () button.
: The Timer menu is displayed.
6 Press the ENTER () button again.
7 Select On by pressing the … or † button.
Press the
ENTER () button.
8 Select the required option by pressing the … or † button.
Result
: The following options are available.
◆ Mode : All White, Signal Pattern, Inverse, Bar, Bar & Inverse
◆ Period : Hour(1~24)
◆ Time : Minute(1~30)
9 Press the EXIT button to exit.
Timer
Timer : Off
Mode : Signal Pattern
Period : 1 Hour
Time : 30 min.
Move Enter Return
Timer : On
Mode : Signal Pattern
Period : 01 Hr.
Time : 05 min
Move Enter Return
Timer : On
Mode : All White
Period : 01
Time : 30 min.
Timer
All White
Signal Pattern
Inverse
Bar
Bar & Inverse
Timer
▲
01
▲
Off
On
Move Enter Return
Timer
Timer : On
Mode : All White
Period : 1 Hour
Time : 30
Move Enter Return
▲
30
▲
English - 31

Setting the Multiple Screen

You can get various display effects with many PDPs.
Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
Move Enter Return
1 Press the MENU ()button.
2 Press the ▲ or ▼ button to select Function.
3 Press the ENTER () button.
Result
: The main menu is displayed.
Result
:
The
Function
menu is
displayed.
Video Wall
Video Wall : Off
Format : Full
Screen Divider
Move Enter Return
Video Wall
Video Wall : Off
Format : Full
Screen Divider
Move Enter Return
Video Wall
Video Wall : On
Format : Full
Screen Divider
Off
On
Full
Natural
4 Press the ▲ or ▼ button to select Video Wall.
5 Press the ENTER () button.
Result
: The
Video Wall menu is displayed with t
Wall
selected.
he
6 Press the ENTER () button.
Select
On by pressing the ▲ or ▼ button.
Press the
ENTER () button.
7 Press the ▲ or ▼ button to select Format.
Press the
ENTER () button.
8 Select the required option by pressing the ▲ or ▼ button.
Result
: The following options are available.
◆
➢
Press the
Full : This option displays divided images on multiple
PDP Displays without missing parts as if only the viewable part of the separate PDP Displays were simply part of a large single PDP Display.
◆
Natural : This option displays divided images on multiple
PDP Displays as if the separate PDP Displays were simply part of a large single PDP Display. Therefore there are missing parts on the edge of the PDP Displays.
ENTER () button.
Video
Move Enter Return
Screen Divider
2x2
3x3
4x4
5x1
1x5
1 2
34
Move Enter Return
English - 32
9 Press the ▲ or ▼ button to select Screen Divider.
Press the
ENTER () button.
10 Select the option (2x2, 3x3, 4x4 , 5x1, or 1x5 ) by pressing the
▲ or ▼ button. Press the ENTER () button.
11 Press the œ or √ button to select the position of the screens.
12 Press the EXIT button to exit.
◆ The PIP function and Picture Size do not work during
➢
the Video Wall operation.
◆ The VESA Format input does not support the Video Wall function in DVI mode.

Displaying the Setting Information

You can view the setting status you select by pressing the “INFO” button on the remote control.

Setting and Displaying the Current Time

AV
Picture : Dynamic Sound : Custom SRS TS XT : Off
--: --
You can set the PDP Display’s clock so that the current time is displayed by pressing the “INFO” button. You must also set the time if you wish to use the automatic on or off timers.

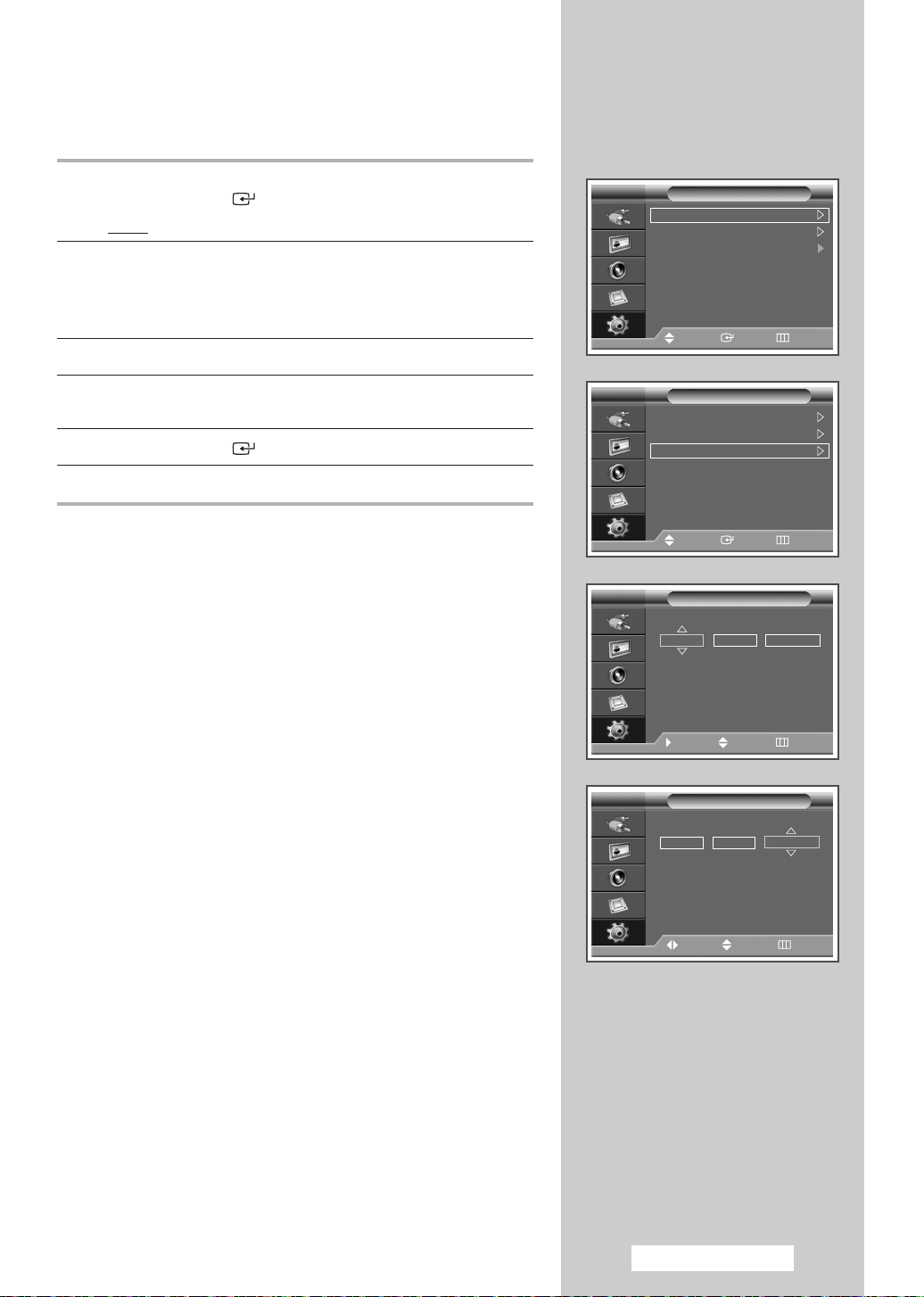

1 Press the MENU () button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The
Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Time.
Press the Result
ENTER () button.
: The Clock Set is selected.
5 Press the ENTER () button again.
6 Press the œ or √ button to select Hour or Minute.
Set these by pressing the
You can set the hour and minute directly by pressing
➢
the numeric buttons on the remote control.
… or † button.
7 Press the ENTER () button.
8 Press the EXIT button to exit.
In the event of a power interruption or the set being turned off at
➢
the supply, the settings for the Clock will be lost.
Setup
Time
Language : English
PC
Move Enter Return
Time
Clock Set 12: 00
On Timer 12: 00 Off
Off Timer 12: 00 Off
Move Enter Return
Clock Set
Hour
Minute
12 00
Move Adjust Return
English - 33

Switching the PDP Display On and Off Automatically

You can set the on or off timers so that the PDP Display will:
Setup
Time
Language : English
PC
◆ Switch on automatically and tune source of your choice at the time you select.
◆ Switch off automatically at the time you select.
The first step is to set the PDP Display’s clock (refer to
➢
“Setting and Displaying the Current Time” on page 33).
Move Enter Return
Time
Clock Set 12: 00
On Timer 12: 00 Off
Off Timer 12: 00 Off
Move Enter Return
On Timer
Hour
12 00
Source
Component
Volume
10
Move Adjust Return
Hour
12 00
Source
Component
Volume
10
Move Adjust Return
Minute
Activation
No
On Timer
Minute
Activation
Yes
1 Press the MENU () button.
Result
: The main menu is displayed.
2 Press the … or † button to select Setup.
Result
: The Setup menu is displayed.
3 Press the ENTER () button.
4 Press the … or † button to select Time.
Press the
Result
ENTER () button.
: The Time menu is displayed.
5 Press the … or † button to select On Timer.
Press the
Result
ENTER () button.
: The
On Timer menu is displayed.
6 Select Hour, Minute , Source (AV , S-Video, Component, PC1, PC2 , or
DVI), or Volume by pressing the œ or √ button.
Set these by pressing the
You can set the hour and minute directly by pressing
➢
… or † button.
the numeric buttons on the remote control.
7 Press the œ or √ button to select Activation.
8 To activate On Timer with the setting entered, select Yes by
pressing the
… or † button.
9 Press the ENTER () button.
Result
: The Time menu is displayed again.
English - 34
Continued...
10 Press the … or † button to select Off Timer.
Press the
Result
ENTER () button.
: The Off Timer menu is displayed.
11 Select Hour or Minute by pressing the œ or √ button.
Set these by pressing the
You can set the hour and minute directly by pressing
➢
the numeric buttons on the remote control.
… or † button.
12 Press the œ or √ button to select Activation.
Setup
Time
Language : English
PC
Move Enter Return
13 To activate Off Timer with the setting entered, select Yes by
pressing the
… or † button.
14 Press the ENTER () button.
15 Press the EXIT button to exit.
Auto Power Off
➢
When you set the timer “On”, the PDP Display will eventually turn off, if no controls are operated for 3 hours after the PDP Display was turned on by timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a PDP Display is on for too long.
Time
Clock Set 12: 00
On Timer 12: 00 Off
Off Timer 12: 00 Off
Move Enter Return
Off Timer
Hour
Minute
Activation
12 00
Move Adjust Return
Off Timer
Minute
Activation
Yes
Hour
12 00
No
Move Adjust Return
English - 35

Selecting the Fan

Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
Move Enter Return
Function
Screen Burn Protection
Safety Lock
Multi Control
Video Wall
Fan : Off
Move Enter Return
Off
On
Fans inside the PDP Display are used to lower the temperature of the tops and the front of the PDP Display. To reduce the noise of the fan, you may stop the fan by setting the
Fan to “Off”. The temperature of the top and the front of the PDP Display may increase when you watch the PDP Display for a long period of time while the fan is stopped, but the PDP Display will operate normally.
1 Press the MENU ()button.
Result
: The main menu is displayed.
2 Press the ▲ or ▼ button to select Function.
Result
: The Function menu is displayed.
3 Press the ENTER () button.
4 Press the ▲ or ▼ button to select Fan.
Press the
ENTER () button.
5 Select Off or On by pressing the ▲ or ▼ button.
Press the
ENTER () button.
6 Press the EXIT button to exit.
◆ If your PDP Display is displayed vertically, the fan
➢
automatically works.
◆ The message Check Fan is displayed if there is a fan problem.
◆ Please use the fan when the temperature is over 35 degrees.
English - 36

Viewing the Picture in Picture (PIP)

You can display a sub picture within the main picture of external A/V devices. In this way you can PDP Display the video input from any connected devices while monitoring other video inputs.
1 Press the MENU ()button.
: The main menu is displayed.
Result
2 Press the … or † button to select Picture.
: The Picture menu is displayed.
Result
Mode : Dynamic
Color Control
Size : 16:9
PIP
Move Enter Return
3 Press the ENTER () button.
4 Press the … or † button to select PIP.
Press the
Result
ENTER () button.
: The PIP is selected.
5 Press the ENTER () button again.
To activate, set Press the
PIP to On by pressing the … or † button.
ENTER () button.
6 Press the … or † button to select Source.
Press the
Result
ENTER () button.
: The following options are available.
AV - S-Video
7 Select a source of the sub picture by pressing the … or † button.
Press the
ENTER () button.
8 Press the … or † button to select Position.
Press the
Result
ENTER () button.
: The following options are available.
---
9 Select a position of the sub picture by pressing the … or †
button. Press the ENTER () button.
10 Press the EXIT button to exit.
PIP
PIP : Off
Source : AV
Position :
Move Enter Return
PIP : On
Source : AV
Position :
Move Enter Return
PIP : On
Source : AV
Position :
Off
On
PIP
AV
S-Video
PIP
Easy functions of the remote control.
Buttons Feature
PIP Used to activate or deactivate the PIP function directly.
SOURCE Used to assign a source of the sub picture (AV , S-Video).
Table of PIP Settings
Sub
Main
AV(CVBS)
S-Video
Component
PC1
PC2
DVI
AV(CVBS)
X
X
X
O
O
O
S-Video
X
X
X
X
X
O
X - This PIP combination is not available. O - This PIP combination is available.
Component
X
X
X
X
X
X
PC1
X
X
X
X
X
X
PC2
X
X
X
X
X
X
DVI
X
X
X
X
X
X
Move Enter Return
English - 37

Viewing an External Signal Source

Once you have connected up your various audio and video
Input
Source List : AV
Edit Name
systems, you can view different sources by selecting the appropriate input.
1 Press the MENU () button.
Result
: The main menu is displayed.
Move Enter Return
Source List
AV :
S-Video :
Component :
PC1 :
PC2 :
DVI :
Move Enter Return
Source List : AV
Edit Name
Move Enter Return
AV :
S-Video :
Component :
PC1 :
PC2 :
DVI :
----
----
----
----
----
----
Input
Edit Name
----
----
----
----
----
----
----
VCR
DVD
D-VHS
Cable STB
2 Press the … or † button to select Input.
Result
: The Input menu is displayed.
3 Press the ENTER () button.
Result
: The Source List is selected.
4 Press the ENTER () button again.
5 Press the … or † button to select the signal source, press the
ENTER () button.
Result
: The available signal sources are listed.
◆
➢
AV, S-Video, Component, PC1, PC2 , or DVI
◆
You can also set these options simply by pressing the
SOURCE button on the remote control.
6 Repeat steps 1 to 3.
Result
: The Input menu is displayed again.
7 Press the … or † button to select Edit Name.
Press the
ENTER () button.
8 Press the … or † button to select external source to be edited.
Press the
Result
ENTER () button.
: The available device names are listed.
VCR, DVD , D-VHS, Cable STB, HD STB, Satellite STB, AV Receiver, DVD Receiver , Game, Camcorder, DVD Combo, DHR (DVD HDD Recorder),or PC
9 Select the required device by pressing the … or † button.
††
Press the
ENTER () button.
Move Enter Return
English - 38
10 Press the EXIT button to exit.
If you change the external source while viewing, it might
➢
take a short period of time for picture to be switched.

Connecting to the Audio/Video Input

The "AV IN" connectors are used for the equipment with an Composite Video output, such as video game devices or video disc players.
Rear of the PDP Display
(Input)
The "AV OUT" connectors are used for the equipment with an Composite Video input, such as a camcorder or VCR.
Rear of the PDP Display
(Output)
VCR
①
DVD
Decoder /
Video game device
Video disc player
Camcorder
Satellite receiver
②
①
If you have a second VCR and wish to copy cassettes tape, connect the source VCR to target VCR to
②
When you wish to record a programme, connect the receiver to you can redirect the signal from
Signal is outputted through the AV OUT only when the signal source is AV.
➢
Whenever you connect an audio or video system to your
☛
PDP Display, ensure that all
Refer to the documentation supplied with your equipment for detailed connection instructions and associated safety precautions.
“AV OUT”
so that you can redirect the signal from
“AV IN”
to
“AV OUT”
elements are switched off.
.
“AV IN”
“AV IN”
to
“AV OUT”
and the VCR to
“AV IN”
.
“AV OUT”
English - 39
and the
so that

Connecting to the S-Video Input

The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output, such as a camcorder or VCR.
Rear of the PDP Display
①
and
①
To play picture and sound, both the S-VIDEO and RCA connectors must be used.

Connecting to the Component Input

Camcorder
VCR
Rear of the PDP Display
The COMPONENT IN connectors are used for DTV receiver or DVD. (480i,p/576i,p/720p/1080i)
English - 40
DVD
DTV Receiver

Connecting to the DVD/DTV Receiver Input

Rear of the PDP Display
Y / PB / PR
L / R
The “COMPONENT IN” (or “Y/PB/PR” (video) and “AUDIO”) connectors are
used for equipment with a DVD/ DTV Receiver output. (480i, 576i, 480p, 576p, 720p, 1080i)
DVD
Digital Set-Top Box

Connecting to the DVI Input

The “DVI IN” (video) and “AUDIO” connectors are used for equipment with a DVI output.
Rear of the PDP Display
Personal Computer
and
English - 41

Connecting to the PC Input

The “PC 1” (or “PC IN2 (BNC)”) and “AUDIO” connectors are used for interfacing with your PC.
Rear of the PDP Display
Personal Computer
or
Only when watching PDP Display in PC1 mode, you can use the RGB OUT port to connect the current screen to another PDP in the same mode.
English - 42

Setting up Your PC Software (Windows only)

The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
1 Right click the mouse on the Windows Desktop,
then click on The
Display Properties will be displayed.
2 Click on Settings tab, then set the Display Mode
with reference to the Display Modes Table. You do not need to change the Colours settings.
Properties.
3 Click on Advanced. A new settings dialog box
will be displayed.
4 Click on the Monitor tab, then set the Screen
2
3
refresh rate
Table. Set the Vertical Frequency and Horizontal Frequency individually if you can do so instead of setting the
5 Click on OK to close the window, then Click on
OK button to the Display Properties window.
Automatic re-booting may commence at this moment.
with reference to the Display Modes
Screen refresh rate.
6 Shutdown the PC, and connect it to your PDP
Display. (“Connecting to the PC Input” on page
42)
◆
➢
4
5
The actual screens on your PC may look different, depending on your particular version of Windows and the type of your PC.
◆
When you use your PDP Display as a PC monitor, it supports Colours up to 32 bits.
◆
In this case, the display on the PDP Display may look different depending on your particular version of Windows or the PC manufacturer.
◆
When connecting a PC (including the DVI connection), you must set it to the display settings that are supported by the PDP Display. Otherwise, the message
input range
will be displayed.
Out of
English - 43

Input Mode (PC/DVI)

Both screen position and size will vary depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported:
VGA
SVGA
XGA
WVGA
SXGA
WXGA
UXGA
Resolution
640 x 350
720 x 400
640 x 480
800 x 600
1024 x 768
848 x 480
❉852 x 480
❉1152 x 864
❉1280 x 1024
❉1280 x 768
1360 x 768
❉1600 x 1200
Vertical
frequency (Hz)
70 85 70 85 60 72 75 85 56 60 72 75 85 60 70 75
❉85
60 72 75
❉85
60 75 60 75 60 75 60 60
Horizontal
frequency (kHz)
31.5
37.9
31.5
37.9
31.5
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
48.4
56.5
60.0
68.7
29.8
35.1
36.0
37.0
31.8
67.5
64.0
80.0
47.7
60.1
47.8
75.0
PPM42M8H PPM50M8H
✔
✔
✔
❉✔ ❉✔ ❉✔
✔
✔ ✔ ✔ ✔
/
✔ ✔ ✔ ✔
/
✔ ✔ ✔ ✔ ✔
/
✔
✔
✔
/
✔ ✔ ✔
✔
✔
✔
✔
❉✔ ❉✔ ❉✔
✔
✔ ✔/
✔ ✔ ✔ ✔
/
✔ ✔ ✔ ✔
/
✔ ✔ ✔ ✔ ✔
/
✔
✔
✔
/
✔ ✔
/
✔
◆ “❉” mode does not work with DVI mode.
◆ The interlace mode is not supported.
◆ The PDP might operate abnormally if a non-standard video format is selected.
◆ The 852 x 480 mode is only supported by a particular video card (PIXEL PERFECT made by IMAGINE
GRAPHICS Ltd.
◆ In 1360 x 768 resolution, the screen displays 1360 pixels horizontally.
◆ A “✔” mark means that this mode can be supported.
◆ A “ ” mark means that this mode is recommended. The picture may be blurred when the resolution is not a
recommended resolution.
◆ In DVI mode, this product does not support DDC in DTV format (1080i/720p/480p); some of DVD/STBs supporting DTV format may display the poor picture.
English - 44
).

Power Saver (PC1 mode only)

This PDP Display has a built-in power management system called Power Saver. This power management system saves energy by switching your PDP Display into a low-power mode when it has not been used for a certain amount of time. You use a software utility installed on your computer to set up this feature. See the table below for details.
State
Horizontal Sync
Vertical Sync
Video
Power Indicator
◆ If the horizontal sync is inactive and the vertical sync active, this PDP Display goes to the screen mute state.
◆ This PDP Display automatically returns to normal operation when horizontal and vertical sync return.
◆ This occurs when moving the computer’s mouse or pressing a key on the keyboard.
◆ For energy conservation, turn your PDP Display OFF when it is not needed, or when leaving it unattended for
long periods.
Normal
Operation
Active
Active
Active
Green On
Suspend Mode
Position A1
Active
Inactive
Blanked
Green Blinking
(3 sec Interval)
Power-saving Function Mode
Power-off Mode
Position A2
Inactive
Inactive
Blanked
Green Blinking
(3 sec Interval)
English - 45

Troubleshooting: Before Contacting Service Personnel

Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the PDP Display and contact your local dealer.
No sound or picture
Normal picture but no sound
No picture or black and white picture
Sound and picture interference
Remote control malfunctions
Screen is black and power indicator light blinks steadily.
◆ Check that the mains lead has been connected to a wall socket.
◆ Check that you have pressed the ON or OFF button on the remote
control.
◆ Check the picture contrast and brightness settings.
◆ Check the volume.
◆ Check the volume.
◆ Check whether the volume MUTE button on the remote control has
been pressed.
◆ Adjust the color settings.
◆ Check that the video system selected is correct.
◆ Plug your PDP Display into a different mains socket.
◆ Replace the remote control batteries.
◆ Clean the upper edge of the remote control (transmission window).
◆ Check the battery terminals.
◆ On your computer check: Power, Signal Cable.
The PDP Display is using its power management system. Move the computer's mouse or press any key on the keyboard.
English - 46

Technical Specifications

Dimensions PPM42M8H (W x D x H) PPM50M8H
Weight PPM42M8H (Without stand) PPM50M8H
Screen aspect ratio 16:9 Screen size PPM42M8H
PPM50M8H
Native pixel resolution PPM42M8H (H x V) PPM50M8H
Color systems PAL, SECAM, NTSC (NT3.58/NT4.43)
Sound Stereo, SRS TS XT
Audio output power 10W + 10W (8Ω)
Video inputs VIDEO IN -AV/S-VIDEO
COMPONENT IN RGB1(PC1) IN-D-SUB, 15P RGB2(PC2) IN
VGA~UXGA (R/G/B/H/V)
DVI IN-DVI-D type
PDP Display outputs VIDEO OUT -VIDEO/L/R (RCA, 3P)
Audio inputs VIDEO IN -L/R
COMPONENT IN AUDIO (Stereo jack for RGB1/2(PC1/2) and DVI input, 2 x mini jack)
-
1027 x 96.5 x 630.5 mm ; 40.43 x 3.79 x 24.82 inches
-
1204 x 96.6 x 724.1 mm ; 47.4 x 3.8 x 28.5 inches
-
35.0 kg
-
41.0 kg
-
42 inch
-
50 inch
-
1024 x 768
-
1366 x 768
-
Y/PB/PR(RCA, 3P, 480i~1080i)
-
L/R (RCA, 2P)
Audio outputs EXT SPEAKER (8Ω) - R+/-, L+/
External control RS232C -IN/OUT (D-SUB, 9P)
This device is a Class B digital apparatus.
➢
Design and specifications are subject to change without prior notice.
➢
For the power supply and Power Consumption, refer to the label attached to the product.
➢
-
English - 47
This page is intentionally
left blank.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
