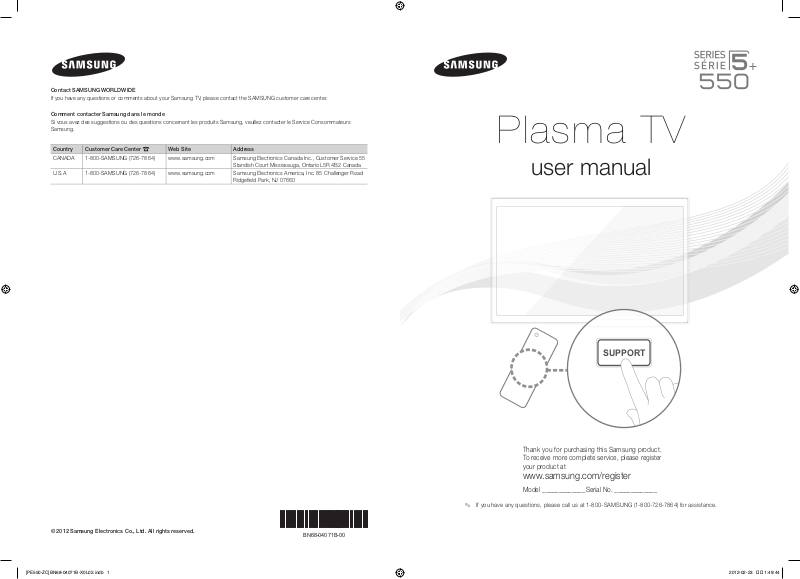

Samsung PN64E550D1F QUICK GUIDE

Contact SAMSUNG WORLDWIDE

SUPPORT

If you have any questions or comments about your Samsung TV, please contact the SAMSUNG customer care center.

Comment contacter Samsung dans le monde

Si vous avez des suggestions ou des questions concernant les produits Samsung, veuillez contacter le Service Consommateurs Samsung.

Country

CANADA 1-800-SAMSUNG (726-7864) www.samsung.com Samsung Electronics Canada Inc., Customer Service 55

U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com Samsung Electronics America, Inc. 85 Challenger Road

Customer Care Center

Web Site Address

Standish Court Mississauga, Ontario L5R 4B2 Canada

Ridgeﬁ eld Park, NJ 07660

Plasma TV

user manual

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________Serial No. _____________

[PE550-ZC]BN68-04071B-X0L02.indb 1 2012-02-23 �� 1:49:44

BN68-04071B-00

✎ If you have any questions, please call us at 1-800-SAMSUNG (1-800-726-7864) for assistance.

A detailed User’s Manual is built into your TV. For more information about how to view this e-Manual see page 27.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearances. Product design and speciﬁcations may be changed without notice.

Important Warranty Information Regarding

Wide screen format PDP Displays (with 16:9 aspect ratios, the ratio of the screen width to height) are primarily designed to view wide screen format fullmotion video. The images displayed on them should primarily be in the wide screen, 16:9 ratio format, or expanded to ﬁll the screen, if your model offers this feature, with the images constantly in motion. Displaying stationary graphics and images on the screen, such as the dark sidebars on non-expanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.

Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of PDP Displays that leave subtle, but permanent burned-in ghost images in the PDP picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On PDP models that offer picture sizing features, use these controls to view different formats as a full screen picture.

Be careful about the television formats you select and the length of time you view them. Uneven PDP aging as a result of format selection and use, as well as burned in images, are not covered by your Samsung limited warranty.

• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally speciﬁed, and to the Original Purchaser only.

The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.

Excluded, but not limited to, are any originally speciﬁed provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables.

For the location of a SAMSUNG Authorized Service Center, please call toll-free: – In the United States : 1-800-SAMSUNG (1-800-726-7864) – In Canada : 1-800-SAMSUNG

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as ‘screen burn’. To avoid such image retention, refer to e-Manual to reduce the degree of brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the TV.

• The product is making a ‘cracking’ noise.

A ‘cracking’ noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

• Cell Defects

Your plasma TV has a panel containing 2,360,000 (HD-level) to 6,221,000 (FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen. Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games or a PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

• Caution

Your Samsung Plasma TV is a high quality television that has been carefully packaged to protect the integrity of its glass panel and component parts during shipment. It is, nonetheless, a fragile piece of electronics that requires careful handling. Refrain from putting undue stress on any part of the packaging when shipping or unpacking the TV. Use care when installing the TV. Avoid placing the TV in a location where it may be struck, exposed to sharp impacts, or fall. Panel breakage caused by a fall or impact strike is not covered under the manufacturer's warranty.

The glass screen of your PDP TV can break if you accidently drop the TV. Handle the TV with care. When moving the TV, always have two or more people pick it up and carry it as a safety precaution. Do not lay the TV ﬂat on its

face or back.

English - 2

[PE550-ZC]BN68-04071B-X0L02.indb 2 2012-02-23 �� 1:49:45

List of Features

• 3D: This exciting new feature enables you to view 3D content.

• SMART HUB: Your gateway to all your content, integrated in one place.

− Provides diverse entertainment choices.

− Lets you control your entertainment life with an easy-to-use, user friendly user interface.

− Gives you easy access to diverse apps, with more being added every day.

− Lets you customize your TV by grouping and sorting apps to your taste.

• AllShare Play: Lets you access, view, or play photos, videos, or music located on USB devices,

digital cameras, cell phones, and PCs. PCs and cell phones can be accessed wirelessly, through your wireless network.

• Anynet+ (HDMI-CEC): Allows you to control all connected Samsung devices that support Anynet+

with your Samsung TV’s remote.

• e-Manual: Provides a detailed, on-screen user's manual that's built into your TV. (page 27)

Accessories and Cables

Please make sure the following items are included with your TV. If any items are missing, contact your

✎

dealer. The items’ colors and shapes may vary depending on the model.

✎

Make sure that there are no accessories hidden behind or under packing materials after you open the

✎

box.

• Remote Control (AA59-00579A) & Batteries (AAA x 2)

• Warranty Card / Safety Guide

• User Manual

• Cleaning Cloth (BN63-01798B)

• 3D Active Glasses

• Power Cord

Input Cables (Sold Separately)

You will need one or more of these cables to connect your TV to your antenna or cable outlet and your peripheral devices (Blu-ray players, DVD players, etc.)

To purchase the RS232 cable, contact www.SamsungParts.com.

RS232 (AA39-00311A) HDMI HDMI-DVI Audio

Component Composite (AV) Coaxial (RF)

English - 3

[PE550-ZC]BN68-04071B-X0L02.indb 3 2012-02-23 �� 1:49:46

Make sure you have the correct cable before plugging it in. Illustrations of common plugs and jacks

✎

are below.

Cable Plugs Ports / Jacks

HDMI

USB

Optical

Do not plug cables in upside down. Be sure to check the orientation of the plug before plugging it in.

Warning

Providing Proper Ventilation for Your TV

When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a ﬁre or a problem with the product caused by an increase in its internal temperature.

Whether you install your TV using a stand or a wall-mount, we strongly recommend you use parts

✎

provided by Samsung Electronics only.

• If you use parts provided by another manufacturer, it may cause difﬁculties with the product or result in injury caused by the product falling.

Installation with a stand. Installation with a wall-mount.

4 inches

Other Warnings

The actual appearance of the TV may differ from the images in this manual, depending on the model.

✎

Be careful when you touch the TV. Some parts can be somewhat hot.

✎

4 inches

English - 4

[PE550-ZC]BN68-04071B-X0L02.indb 4 2012-02-23 �� 1:49:47

Stand Parts:

Installing the Stand

Stand x 1 Guide Stand x 1 Screws x 8

(M4 X L12)

Follow the steps below to connect the TV to the stand. For more detailed instructions, see the separate stand installation guide.

DO NOT USE

CHEMICALS

Top View

ATTENTION

DO NOT USE

GREASE

DO NOT USE OIL

Place a soft cloth over a table to protect the TV, and then

✎

place the TV on the cloth screen side down. Insert the Stand Guide into the slot on the T V's bottom.

✎

x4 (M4 X L12)

Front

Rear

Side View

(Incorrect assembly)(Correct assembly)

x4 (M4 X L12)

English - 5

[PE550-ZC]BN68-04071B-X0L02.indb 5 2012-02-23 �� 1:49:48

NOTE

✎

• Make sure to distinguish between the front and back of each component when assembling them.

• Make sure that at least two people lift and move the TV.

• Stand the product up before you tighten the screws. If you tighten the screws with the TV lying down, it may lean to one side when you stand it up.

Do not insert your fingers into the stand base slot of the TV when installing the stand base.

[

Installing the Wall Mount (Optional)

Wall or Ceiling Mounting

If you mount this product on a wall, it should be mounted only as recommended by the manufacturer. Unless it is correctly mounted, the product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.

Installing the Wall Mount Kit

The wall mount kit (sold separately) lets you mount the TV on the wall. For detailed information about installing the wall mount, see the instructions provided with the wall mount.

We recommend you contact a technician for assistance when installing the wall mount bracket. We do not advise you to do it yourself. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own.

To order the wall mount kit, contact Samsung Customer Care at 1-800-SAMSUNG (1-800-726-7864).

English - 6

[PE550-ZC]BN68-04071B-X0L02.indb 6 2012-02-23 �� 1:49:48

VESA Wall Mount Kit Notes and Speciﬁcations

Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to

✎

surfaces other than plaster board, please contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

✎

• Standard dimensions for wall mount kits are shown in the table below.

• Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.

• Do not use screws that do not comply with the VESA standard screw speciﬁcations.

• Do not use screws that are longer than the standard length or do not comply with the VESA standard screw speciﬁcations. Screws that are too long may cause damage to the inside of the TV set.

• For wall mounts that do not comply with the VESA standard screw speciﬁcations, the length of the screws may differ depending on the wall mount speciﬁcations.

• Do not fasten the screws too ﬁrmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

• Samsung is not liable for product damage or personal injury when a non-VESA or non-speciﬁed wall mount is used or the consumer fails to follow the product installation instructions.

• Do not mount the TV at more than a 15 degree tilt.

• Always have two people mount the TV on a wall.

Product Family

PDP TV

Remove the screws in the mounting holes before you install the wall mount.

✎

TV size in

inches

43 – 51 400 X 400

60 – 64 600 X 400

VESA screw hole specs

(A * B) in millimeters

Standard

Screw

M8 4

Quantity

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Installing a Wall Mount from Another Manufacturer

To install a wall-mount from another manufacturer, use the HolderRing.

English - 7

[PE550-ZC]BN68-04071B-X0L02.indb 7 2012-02-23 �� 1:49:49

Connecting the Power Cord and the Antenna or Cable Connection

VHF/UHF Antenna

Antenna Cable (Not Supplied)

Cable

Power Input

Plug the power cord into a wall outlet only after you have made all other connections.

✎

If you are connecting your TV to a cable or satellite box using HDMI, Component, or Composite

✎

connections, you do not need to connect the ANT IN jack to an antenna or a cable connection. The Plasma TV may interfere with an amateur radio or AM radio.

✎

Using two-way radio mobile and portable units or amateur radio or AM radio near your TV may cause

✎

the TV to malfunction. Use caution when you move or swivel the TV if the antenna cable is tightly connected. You could

✎

break the antenna jack off the TV.

ANT OUT

English - 8

[PE550-ZC]BN68-04071B-X0L02.indb 8 2012-02-23 �� 1:49:49

Connecting to AV Devices (Blu-ray Players, DVD Players, etc.)

Using an HDMI Cable for an HD connection (up to 1080p, HD digital signals)

For the best quality HD picture, we recommend using an HDMI connection. Use with DVD players, Blu-ray players, HD cable boxes, and HD Set-Top-Box satellite receivers.

Device

HDMI IN 1 (DVI), HDMI IN 2 (ARC), HDMI IN 3

✎

HDMI Cable (Not Supplied)

HDMI OUT

• For the best picture and audio quality, connect digital devices to the TV using HDMI cables.

• An HDMI cable supports digital video and audio signals, and does not require an audio cable.

− To connect the TV to a digital device that does not support HDMI output, use an HDMI to DVI

cable and audio cables.

• If you connect an external device to the TV that uses an older version of HDMI, the video and audio may not work. If this occurs, ask the manufacturer of the device about the HDMI version and, if it is out of date, request an upgrade.

• Be sure to purchase a certiﬁed HDMI cable. Otherwise, the picture may not display or a connection error may occur.

• We recommend using a basic high-speed HDMI cable or an HDMI cable that is Ethernet compatible. Note that this product does not support the Ethernet function via HDMI.

• This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the ARC function is supported by the HDMI IN 2 (ARC) port only.

• The ARC function allows digital audio to output via the HDMI IN 2 (ARC) port on the TV. It can be enabled only when the TV is connected with an audio receiver that supports the ARC function.

English - 9

[PE550-ZC]BN68-04071B-X0L02.indb 9 2012-02-23 �� 1:49:50

Using a Component Cable (up to 1080p HD signals) or an Audio/Video Cable (480i analog signals only)

Use with DVD players, Blu-ray players, cable boxes, STB satellite receivers, VCRs.

Red

Blue

Green

Red

White

Yellow

Red White

Component Cable (Not Supplied)

Audio Cable (Not Supplied)

Video Cable (Not Supplied)

Device Device

For better picture quality, we recommend the Component connection over the A/V connection.

✎

When you connect a Video cable to COMPONENT / AV IN, the color of the COMPONENT / AV IN

✎

[VIDEO] jack (green) will not match the video cable (yellow).

English - 10

[PE550-ZC]BN68-04071B-X0L02.indb 10 2012-02-23 �� 1:49:50

Connecting to Audio Devices

Using an Optical (Digital) Cable Connection

Use with Digital Audio Systems, Ampliﬁers, and Home Theaters.

Digital Audio System

OPTICAL

Optical Cable (Not Supplied)

DIGITAL AUDIO OUT (OPTICAL)

✎

• When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.

• 5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.

• When the receiver (or home theater) is set to on, you can hear sound output from the TV’s optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and you connected it to the TV via HDMI, you will only hear 2 CH audio from the home theater receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an ampliﬁer or home theater.

English - 11

[PE550-ZC]BN68-04071B-X0L02.indb 11 2012-02-23 �� 1:49:50

Connecting to a PC

AUDIO OUT

DVI OUT

HDMI OUT

Using an HDMI cable or an HDMI to DVI cable

Your PC may not support an HDMI connection.

✎

Use your PC speakers for audio.

✎

HDMI Cable (Not Supplied)

HDMI to DVI Cable (Not Supplied)

Audio Cable (Not Supplied)

The optimal resolution is 1920 X 1080 @ 60 Hz. See the Display Resolution page for all available resolutions (page 36).

NOTE

✎

• For an HDMI to DVI cable connection, you must use the HDMI IN 1 (DVI) jack.

• For PCs with DVI video out jacks, use an HDMI to DVI cable to connect the DVI out on the PC to the HDMI IN 1 (DVI) jack on the TV. Use the PC's speakers for audio.

• PC (D-Sub) input is not supported.

The EX-Link Cable Connection

The EX-LINK connection is for service only.

English - 12

[PE550-ZC]BN68-04071B-X0L02.indb 12 2012-02-23 �� 1:49:51

Connecting to a Network

You can set up your TV so that it can access SMART TV applications through your local area network (LAN) using a wired or wireless connection.

After you have “physically” connected your TV to your network, you must configure the network

✎

connection to complete the process. You can configure the connection during the Initial Setup process (see page 17) or after the Initial Setup process, through the TV’s menu (see page 25).

Network Connection - Wireless

You can connect your TV to your local area network (LAN) through a standard wireless router or modem.

Wireless IP Router or Modem

The LAN Port on the Wall

LAN Cable (Not Supplied)

that has a DHCP Server

This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. If you play video using IEEE 802.11a, b, or g, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network through an access point or AP (typically a wireless router or modem) to transmit an encrypted security code called an access key.

Your TV is compatible with the following security protocols:

• Authentication Mode: OPEN, SHARED, WPAPSK, WPA2PSK

• Encryption Type: WEP, TKIP, AES

If you select Pure High-throughput (Greenﬁeld) 802.11n mode and the Encryption type is set to WEP or TKIP on your AP or wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certiﬁcation speciﬁcations.

English - 13

[PE550-ZC]BN68-04071B-X0L02.indb 13 2012-02-23 �� 1:49:52

Network Connection - Wired

There are three main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated starting below:

The Modem Port on the Wall

Modem Cable (Not Supplied)

The LAN Port on the Wall TV Rear Panel

External Modem

(ADSL / VDSL / Cable TV)

External Modem

(ADSL / VDSL / Cable TV)

IP Router that has a

DHCP Server

LAN Cable

(Not Supplied)

LAN Cable (Not Supplied)Modem Cable (Not Supplied)

LAN Cable

(Not Supplied)

TV Rear Panel

LAN Cable (Not Supplied)

The TV does not support network speeds less than or equal to 10Mbps.

✎

Use Cat 5 or 6 (STP Type*) cable for the connection. (*Shielded Twisted Pair)

✎

English - 14

[PE550-ZC]BN68-04071B-X0L02.indb 14 2012-02-23 �� 1:49:53

The Remote Control

Installing batteries (Battery size: AAA)

Match the polarity of the batteries to the symbols in the battery compartment.







NOTE

✎

• Install the batteries so that the polarity of the batteries (+/-) matches the illustration in the battery compartment.

• Use the remote control within 23 feet of the TV.

• Bright light may affect the performance of the remote control. Avoid using it near ﬂuorescent lights or neon signs.

• The color and shape of the remote may vary depending on the model.

English - 15

[PE550-ZC]BN68-04071B-X0L02.indb 15 2012-02-23 �� 1:49:53

The Remote Control Buttons

Learn where the function buttons are on your remote. Especially note SOURCE, MUTE, VOL, CH, MENU,

TOOLS, E, INFO, CH LIST, RETURN, and EXIT.

This remote control has Braille points on the Power, Channel, and Volume buttons and can be used

✎

by visually impaired persons.

Turns the TV on and off.

Displays and selects the available video

sources. (page 21)

Gives direct access to channels.

Press to select additional digital

channels being broadcast by the same

digital station. For example, to select

channel ‘54-3’, press ‘54’, then press

‘-’ and ‘3’.

Adjusts the volume.

Displays channel lists on the screen.

Opens the OSD (Menu).

Quickly select frequently used functions.

Use this button in a speciﬁc feature. For

details, refer to the e-Manual.

Moves the cursor, selects the on-screen

menu items, and changes the values

seen on the TV's menu.

Returns to the previous menu.

Use these buttons according to the

directions on the TV's screen.

Use these buttons in a speciﬁc feature.

For details, refer to the e-Manual.

SOURCE

MUTE

LIST

TOOLS

RETURN

BCD

Family Story

SUPPORTP.SIZE

MTS

PRE-CH

INFO

EXIT

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to On will reduce the battery usage time.)

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Brings up the Smart Hub applications. See e-Manual chapter Advanced Features → Smart Hub.

Starts search function. See e-Manual chapter Advanced Features → Search.

Displays information on the TV screen.

Exits the menu.

Family Story: Connect to the Family

Story application. See e-Manual chapter

Advanced Features → Family Story.

MTS: Press to select a sound track

you want to listen from among the ones being broadcasted. See e-Manual chapter Basic Features → Adjusting

Sound Settings.

: Turns the 3D image on or off. See e-Manual chapter Advanced Features → 3D.

SUPPORT: Lets you use various

support functions including the e-Manual. (page 27)

P.SIZE: Lets you select the Picture

Size. See e-Manual chapter Basic

Feature → Changing the Picture Size.

CC: Displays digital subtitles. See

e-Manual chapter Preference Features → Other Features.

English - 16

[PE550-ZC]BN68-04071B-X0L02.indb 16 2012-02-23 �� 1:49:54

Conﬁguring the Basic Settings in Initial Setup

When you turn the TV on for the ﬁrst time, a sequence of screens and on-screen prompts will assist you in conﬁguring the TV’s basic settings. Plug the power cord into a wall outlet, and then press the P button to turn on the TV.

Setup is available only when the input source is set to TV. See "Changing the Input Source" (page 21).

✎

To return to the previous step in the Setup sequence, select Previous.

✎

If you are not using a cable box or satellite box, make sure you have connected the TV to an antenna

✎

or cable connection before you turn on the TV. See page 8 for instructions. If you want to configure a wired network connection during Setup, make sure you've connected

✎

a LAN cable to your TV. See pages 14 for instructions. If you want to configure a wireless network connection during Setup, make sure your wireless modem or router is on and working.

Menu Language:

Select a Language.

Use Mode: Select

the Home Use Mode.

Network Settings:

Conﬁgure the network settings

To configure

✎

later, select Skip. You can set up the network connection later using the onscreen Network menu.

After you press the P button, the Start screen appears. Select Next to continue. The Menu Language screen appears. Select the menu language you want using your remote, and then select Next. The TV will display on-screen menus using the language you select beginning with the next step in the Setup process.

On the Use Mode screen, select the Home Use using your remote, and then select Next. The Network Settings screen appears.

Store Demo is for retail environments only. If you select Store

✎

Demo, some functions will not work, and the TV will reset all functions to their factory default after a certain period of time. For more information about Store Demo, go to the end of this section.

To conﬁguring your network settings, select Start using your remote, and then go to 3A - Wireless Network or 3B - Wired Network on the next page.

If you do not know your network conﬁguration information or want to conﬁgure the settings later, or do not have a network, select Skip, and then go to 6 - Auto Program (1) on page 19.

To conﬁgure network settings later, refer to “Setting up the Wired or Wireless Network” in the e-Manual or see the Network Connection sections in this manual (pages 13 and 25).

English - 17

[PE550-ZC]BN68-04071B-X0L02.indb 17 2012-02-23 �� 1:49:54

Wireless Network 1. The TV searches for and then displays all the wireless networks

within range. When done, it displays a list of the networks. In the list of networks, move the Highlight to select a network, and then select Next. If the selected network requires a Security Key, the Security Key screen appears.

If you have a WPS(PBC) compatible router, select WPS(PBC)

✎

instead, and then follow the directions on the screen. When done, go to Step 4.

2. Enter your network security key or WPS PIN using your remote.

Enter numbers and letters using your remote.

✎

• You can enter numbers by pressing the number buttons on the remote.

• To enter a letter, move the Highlight to the letter, and then select it. You can enter numbers in the same fashion if you choose.

To display capital letters (or redisplay small letters if capital letters

✎

are displayed), select Caps or Shift. To display symbols and punctuation, select F. To redisplay

✎

letters, select F again.

3. When done, select Next if you have entered a security key or WPS PIN if you have entered a WPS PIN.

4. The TV checks the wireless connection. If the connection is successful, the You are connected to the Internet. If you have any problems using online services, please contact your Internet Service Provider. message appears. Select Next, and then go to 4 Software Upgrade Step.

If the connection fails, select Previous, repeat Step 1 and 2,

✎

carefully re-enter your security key or WPS PIN, then repeat Steps 3 and 4. If it fails again, select Next on the “Connection Failed” screen, and then go to 6 - Auto Program (1) on the next page. Configure your network later through Network Settings in the TV’s Menu. For more information, refer to “Setting up the Wired or Wireless Network” in the e-Manual or see the Network Connection sections in this manual (pages 13 and 25).

[PE550-ZC]BN68-04071B-X0L02.indb 18 2012-02-23 �� 1:49:54

Wired Network The TV checks the network connection, then displays the You are

connected to the Internet. If you have any problems using online services, please contact your Internet Service Provider. message appears. Select Next. The Software Upgrade screen appears.

English - 18

Software Upgrade:

Update the software to the latest version

To update later,

✎

select Skip.

When Network Settings is complete, your TV will check for a new software version automatically. If new software is available, the TV downloads and installs the new software. When the download is complete, select Next.

If you want to upgrade later, select Skip. For more information, refer

✎

to Software Update (Preference Features → Support Menu) in the e-Manual.

This may take some time, depending on your network status.

✎

You can only upgrade software if your TV has an active network

✎

connection. If no new update software is available, a no new updates message

✎

appears on the screen. Select OK.

Agreement

Auto Program (1):

Select where your TV signal comes from.

Auto Program (2):

Select the search options.

The Terms of Service Agreement screen appears.

The screen can take a few seconds to display.

✎

The General Disclaimer screen appears. Select Agree. The Privacy Policy screen appears. Select Agree.

To use Smart Hub, you must select Agree for the Terms of Service

✎

Agreement.

Select the appropriate option for your TV using your remote, and then select Next.

• I use an aerial cable to connect to TV.: Select if you have an

antenna or a cable connection without a set-top box. If you select this option, go to 7 - Auto Program (2) Step.

• I use a set-top box.: Select if you have a satellite or cable set-top box. You do not need to run Auto Program. If you select this option, go to 9 - Clock on the next page.

1. Select Air or Cable using your remote. A check appears on your selection. When done, select Next. You can check both if you have both connected.

2. If you selected Air, go to 8 - Auto Program (3).

3. If you selected Cable, you’ll go to the cable system screen. Select Digital Cable System. The option window appears. Select the

correct cable signal format; STD, HRC, or IRC. Most cable systems use STD (Standard). Repeat the same process with Analog Cable

System.

4. When done, select Next.

English - 19

[PE550-ZC]BN68-04071B-X0L02.indb 19 2012-02-23 �� 1:49:55

Auto Program (3):

Channel memorization

Clock: Set the Clock Select Auto or Manual, and then select Next.

Channel memorization stars. Channel memorization can take up to 45 minutes, depending on your cable system.

For more information, refer to Auto Program (Channel Menu → Memorizing Channels) in the e-Manual.

Select Stop at any time to halt the memorization process.

✎

If you selected I have a set-top box. in 6 - Auto Program (1), you

✎

can only set the current time and date manually, using your remote.

Auto

If you selected Auto, the TV will automatically download the correct time from a digital channel. The Time Zone screen will appear. Select your Time Zone, and then select Next. The DST (Daylight Savings Time) screen will appear. The DST function sets the time ahead one hour to adjust the clock for Daylight Savings Time. Select On if you want to turn the DST adjustment on. Select Off to turn off the DST adjustment. You can also turn the DST function on through the TV's on screen menu (Menu → System → Time → Clock → DST).

Manual

If you selected Manual, you’ll go to the Clock screen. Select Date or Time. You can set the current date and time using your remote. When done setting the Date and Time, select Next.

Setup Complete Review the Setup data, and then select Close to ﬁnish.

If You Want to Rerun Setup...

Menu → System → Setup

If You Want to Turn the Store Demo Mode On or Off.

To set or unset Store Demo mode outside of Setup, press and release the Controller when the power is on. The Function menu screen appears. Push the Controller to the left (to MENU (m)) and hold for more than 5 seconds. The Store Demo mode is set. To cancel Store Demo, bring up the Function menu using the Controller, push the Controller to the right (to Source (s)) and hold for more than 5 seconds. See page 23 for information about the Controller.

The completed settings are displayed.

✎

English - 20

[PE550-ZC]BN68-04071B-X0L02.indb 20 2012-02-23 �� 1:49:55

Changing the Input Source

Source

™ → Source

When you are watching TV and you want to watch a movie on your DVD player or Blu-ray player or switch to your cable box or STB satellite receiver, you need to change the Source.

■ TV / HDMI1/DVI / HDMI2 / HDMI3 / AV / Component

1. Press the ™ button on your remote. The Smart Hub screen appears.

2. Select Source. The Source screen appears.

3. Select a desired external input source.

Alternatively, you can access the Source screen by pressing the SOURCEs button on your remote.

✎

You can only choose external devices that are connected to the TV. In the displayed Source list,

✎

connected inputs are highlighted.

How to Use Edit Name

Edit Name lets you associate a device name to an input source. To access Edit Name, press the

TOOLST button on your remote when the Source list is displayed. The following selections appear under

Edit Name:

■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Select an input jack, and then select the

name of the device connected to that jack from the list that appears. For example, if you have your Bluray player attached to HDMI IN 2 (ARC), select Blu-ray for that input.

If you connect a PC to the HDMI IN 1 (DVI) port with an HDMI cable, assign PC to HDMI1/DVI in

✎

Edit Name. If you connect a PC to the HDMI IN 1 (DVI) port with an HDMI to DVI cable, assign DVI PC to

✎

HDMI1/DVI in Edit Name. If you connect an AV device to the HDMI IN 1 (DVI) port with an HDMI to DVI cable, assign DVI

✎

Devices to HDMI1/DVI in Edit Name.

SOURCE

Information

You can see detailed information about the selected external device.

Refresh

If the external devices are not displayed in the Source list, open the Tools menu, select Refresh, and then search for the connected devices.

Alternatively, you can refresh the Source list by pressing the a button on your remote.

✎

English - 21

[PE550-ZC]BN68-04071B-X0L02.indb 21 2012-02-23 �� 1:49:56

How to Navigate Menus

Your TV’s Main and Tools menus contains functions that let you control the TV’s features. For example, in the Main menu you can change the size and conﬁguration of the picture, its brightness, its contrast and so on. There are also functions that let you control the TV’s sound, channel conﬁguration, energy use, and a host of other features. To access the main, on-screen menu, press the MENUm button on your remote. To access Tools menus, press the TOOLST button. Tools menus are available when the TOOLST menu Icon is displayed on the bottom right of the screen

The illustration below displays the buttons on the remote you use to navigate the menus and select and adjust different functions.

1 MENUm button: Displays the main on-screen menu. 2 TOOLST button: Displays the Tools menus when available. 3 E and Direction buttons: Use the Direction buttons to move the cursor and highight an item. Use the

Enter button to select an item or conﬁrm the setting.

4 RETURNR button: Returns to the previous menu. 5 EXITe button: Exits the on-screen menu.

How to Operate the Main Menu (OSD - On Screen Display) Using the Remote

TOOLS

RETURN

EAR

INF

EXIT

The access steps may differ depending on the menu option you select.

MENUm

u / d Select a main menu option on the left side of the screen with the u or d

E Press E to access the sub-menus.

u / d Select the desired submenu with the u or d button.

u / d / l / r Adjust the value of an item with the l, r, u, or d button. The

E Press E to conﬁrm the selection.

EXITe Press EXITe.

[PE550-ZC]BN68-04071B-X0L02.indb 22 2012-02-23 �� 1:49:56

The main menu options appear on the screen: Picture, Sound, Channel, Network, System, Support.

button.

adjustment in the OSD may differ depending on the selected menu.

English - 22

Using the TV's Controller (Panel Key)

The TV's Controller, a small joy stick like button on the bottom left side of the TV, lets you control the TV without the remote control.

The product color and shape may vary depending on the model.

✎

Function menu

Down (Front)

Remote control sensor

RightLeft

TV Controller

Up (Rear)

Follow these instructions facing the front of your TV.

✎

When selecting the function by moving the controller to the up/down/left/right directions, be sure

✎

not to press the controller. If you press it first, you cannot operate it to move the up/down/left/right directions.

Power on Turn the TV on by pressing the Controller when the TV is in standby

mode.

Adjusting the volume Adjust the volume by moving the Controller from side to side when

the power is on.

Selecting a channel Select a channel by moving the Controller backwards and forwards

when the power is on.

Using the Function menu To view and use the Function menu, press and release the Controller

when the power is on. To close the Function menu, press and release the Controller again.

Selecting the SMART HUB (™) With the Function menu visible, select SMART HUB (™) by moving

the Controller backwards. The SMART HUB main screen appears. Select an application by moving the Controller, and then pressing the Controller.

Selecting the MENU (m) With the Function menu visible, select the MENU (m) by moving the

Controller to the left. The OSD (On Screen Display) Menu appears. Select an option by moving the Controller to the right. Move the Controller to the right or left, or backwards and forwards to make additional selections. To change a parameter, select it, and then press the Controller.

Selecting a Source (s) With the Function menu visible, open the Source (s) list by moving

the Controller to the right. The Source list screen appears. To select a source, move the Controller back and forth. When the source you want is highlighted, press the Controller.

Power Off (P) With the Function menu visible, select Power Off (P) by moving the

Controller forwards, and then press the Controller.

To close the Menu, Smart Hub, or Source, press the Controller for more than 1 second.

✎

English - 23

[PE550-ZC]BN68-04071B-X0L02.indb 23 2012-02-23 �� 1:49:57

+ 53 hidden pages
