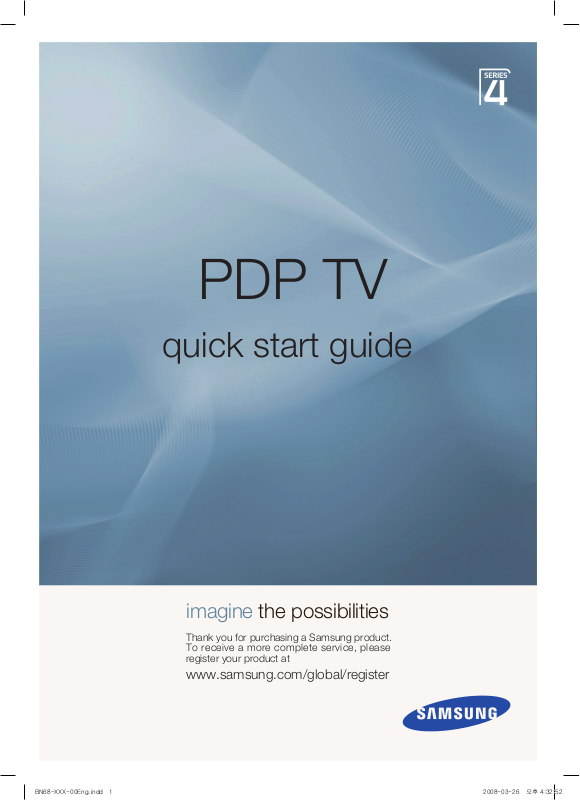

Samsung PDP TV User Manual

PDP TV

quick start guide

imagine the possibilities

Thank you for purchasing a Samsung product.
To receive a more complete service, please
register your product at

www.samsung.com/global/register

connections

Caution

● When connecting an external device, match the colour of the connection terminal to the cable.
Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel con guration.

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA HDMI

TV REAR PANEL TV SIDE PANEL

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

HDMI Cable (Not supplied)

1.

Connect an HDMI Cable(Not supplied) between the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on

the Cable Box/Satellite receiver (Set-Top Box).

➢

No additional Audio connection is needed for an HDMI to HDMI connection.

1

or

1
