2. Introduction and Specification

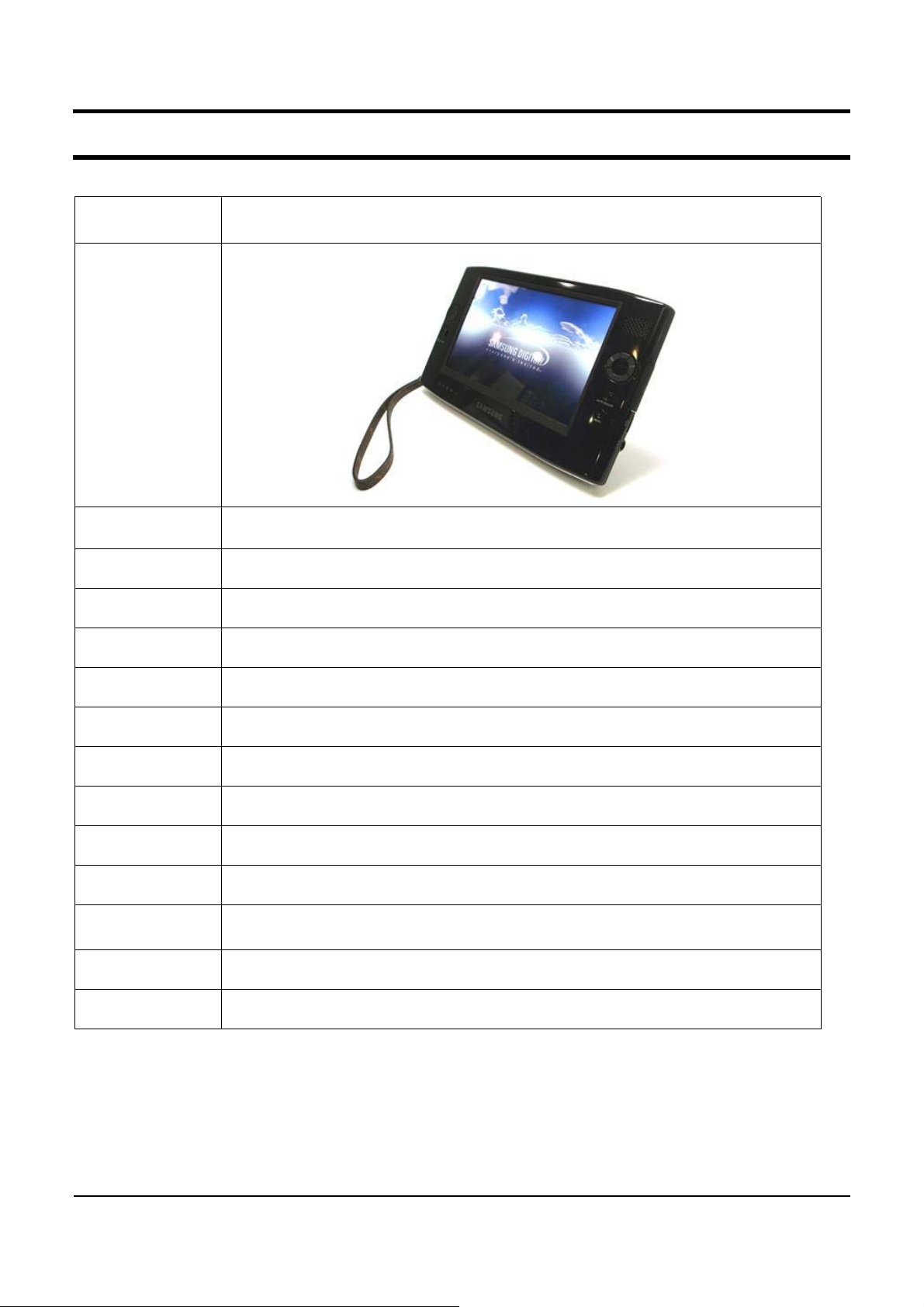

Product Characteristic
1)
SENS Q-1 < 2 - 1 >
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Specification
2)
Processor and Motherboard X11
CPU Intel Celeron M ULV Processor
Speed Dothan 900MHz
Cache 1MB L2 cache(Celeron M)
Chipset Intel 915GMS+ICH6M
BIOS 8 Mbit, Flash upgradable
Thermal Design Performance MAX. 5W
Memory
Memory/Max.Memory 256MB / Max.1GB
Memory type PC2-3200(400MHz) SODIMM
Memory Modules 256MB, 512MB, 1GB SODIMM
Sockets 1SODIMMSocket
Display and Graphics
LCD 7" WVGA with TSP
LCD Vendor
LCD Viewable Area 152.4(H) x 91.44(V)mm (HxV)
LCD Resolution 800 x 480 x 262K color
Pixel Pitch 0.1905mm
Viewing angle Hor. 140 degree ,Ver. 100degree
Contrast Ratio Typ.400:1
Brightness Typ.180(cd/m2)
Response time Typ 30ms
Graphics Controller
Intel GMA 900 Intel 915GMS
Video Memory DVMT Max 128MB
Max.Resolution for LFP LVDS
Max.Resolution for External
Monitor
CPT (CLAA070VA03T)
Intel Graphic Media Accelerator 900
800*480x32Bitscolor(WVGA)
2048 x 1536 @75HZ (CRT)
Audio
Sound High Definition Audio comliant
Controller HD Audio CODEC, AD1986A
Conversion Built-in high performance 20-bit ADC & 24-bit DAC
Speaker Power Rating 2 Speakers x 2 Watt with enclosure each
External Interfaces Array MIC, Headphone
Controls Keyboard volume control, SRS enable / disable
Output Impedance
SENS Q-1 < 2 - 2 >
2.2KΩ
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Storage
Hard Disk Drive 5/8 mmH 1.8" SFF HDD
Supports SMART UltraDMA-33/66/100 support, DMA Mode 2/4, PIO Mode 4
Average Access Time 15m sec.
Speed 4200rpm
Capacity 5mm 30GB / 8mm 40GB, 60GB
Network Tools
LAN 10/100 Ethernet UTP
Chipset Mavell 88E8036
Features RJ45 Output
802.11b/g Wireless LAN Askey Athros AR5BXB61 : 802.11 b/g
Type Mini card
Chipset Atheros
Antenna Integrated 1 Antenna
Bluetooth BCM92045NMD : Factory Option
Type USB daughter card with integrated PIFA antenna
Chipset Broadcom BCM2045
Standard version 2.0
DMB Module SDM-1000 : Factory Option / Alternative with SIO port
-Type USB I/F
- Antenna Int. Cable & Rod Antenna
I/O Interface
CF CardBus Slots 1TypeIICard
Controller Ricoh R5C801
Support 32bit CardBus cards
I/O Ports
USB Port 2 (USB2.0, Powered USB)
Video Port VGA port (15 pin)
Audio Jacks Head Phone-out
Modem/LAN RJ45
Power 1 (8.4pie)
Input Devices
Joystick 4 way direction button
Buttons
TSP(Touch Screen Panel)
QuickAccessButton
Auto Scaler, Enter, Menu, 4 User Define button, Volume
Up/Down
,Hold Switch
4-Wire resistive type
MIO / Power Swtich
SENS Q-1 < 2 - 3 >
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Sepcial Feature
AV Station Now
OS XP Embedded
Funtion DVD Player / MP3 player / Picture slide show
Boot-up time 12 sec(Including HDD Navigation)
Control Button TSP(Touch Screen), 4 Way-slide Button
Power and Power
Management
Battery (Standard) AA-PB0UC3B (3cells, Smart Li-Ion Battery)
- Dimension 270x33.5x22.5mm
- Weight 180g (max)
-RechargeTime 2 hours to 100% with Windows on & off
- Battery Life over 3.5hour ( Battery mark 4.01)
- Details of Cell 3cells (1Parallel 3Serial)
- Voltage 11.1 Vdc
- Battery Capacity 2600mAh
- Battery Rating 11.1V / 2600mAh (28.86Wh)
AC Adapter AD-6019S
Output Power 60Watts
Dimension 108 X 47 X 28mm
Weight (AC Adapter) 270g (typ)
Worldwide Compatibility Auto-sensing 100 - 240VAC
Line Frequency 50 / 60Hz
Adapter Rating - Input 100V - 240V, 1.8A
Adapter Rating - Output 19.0VDC / 3.16A
Power Management Features
System Dimensions
ACPI 1.0b support, Standby(S3), Hibernate(S4)
Dimensions (W X D X H) 227.5 x 139.5 x 24.5~26.5 mm
799g (w/o DMB, ODD)
Weight (Full system w/ 3Cell)
Materials Front: PC, Back: PC/ABS
SENS Q-1 < 2 - 4 >
Status : No options, 3cell battery, 1.8" 40GB HDD,
7" TSP LCD(200 nit)
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Product specification comparison
3)
Section Q1
Feature
CPU Intel Celeron M ULV (Dothan)
Chipset 915GM / ICH6
M
Memory DDR II 400MHz(Max.1GB)
Graphic Intel 915GMA 900(Internal)
LCD 7” WVGA
Wireless 802.11 b/g, DMB, Bluetooth
Lan Mavell 88E8036,10/100
HDD 1.8” HDD(30GB)
ODD External ODD,
Port 2 USB, 1 PC card, VGA, LAN, HP Jack, Array MIC, DC-in
Battery
3 Cell (38.5W, 3.5hrs) /
Power Pack 8 Cell (77W, 9hrs)
Dimesion 227.5 x 139.5 x 24.5~26.5mm
Weight 799g
SENS Q-1 < 2 - 5 >
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
4) Wireless LAN

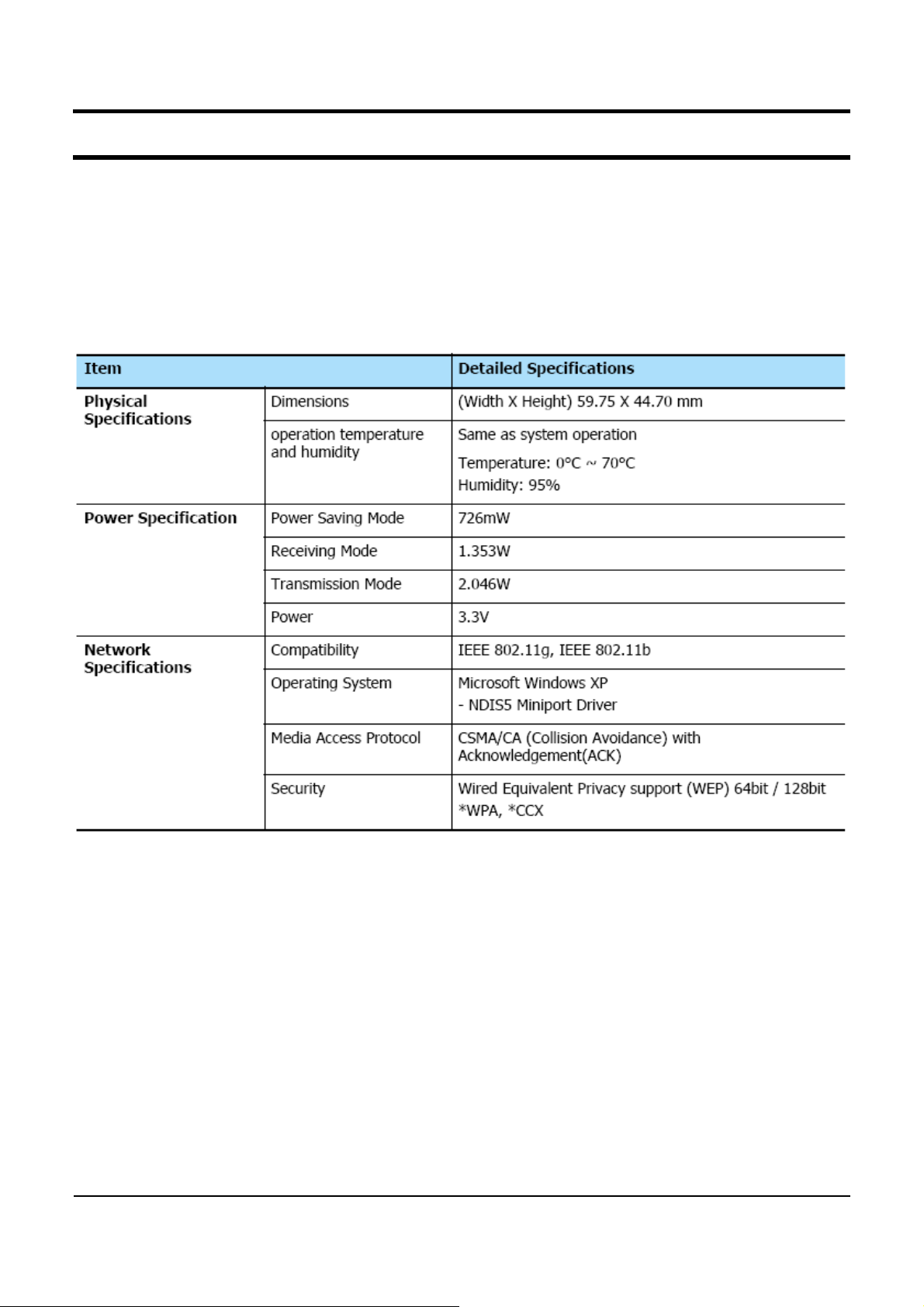

Wireless LAN product standard (802.11BG card)
(1)
Atheros AR5006EX Wireless Network Adapter
■ Form registration device name : Specific crops power wireless radio device for wireless data
Specification
device
communication system
SENS Q-1 < 2 - 6 >
- This Document can not be used without Samsung's authorization -

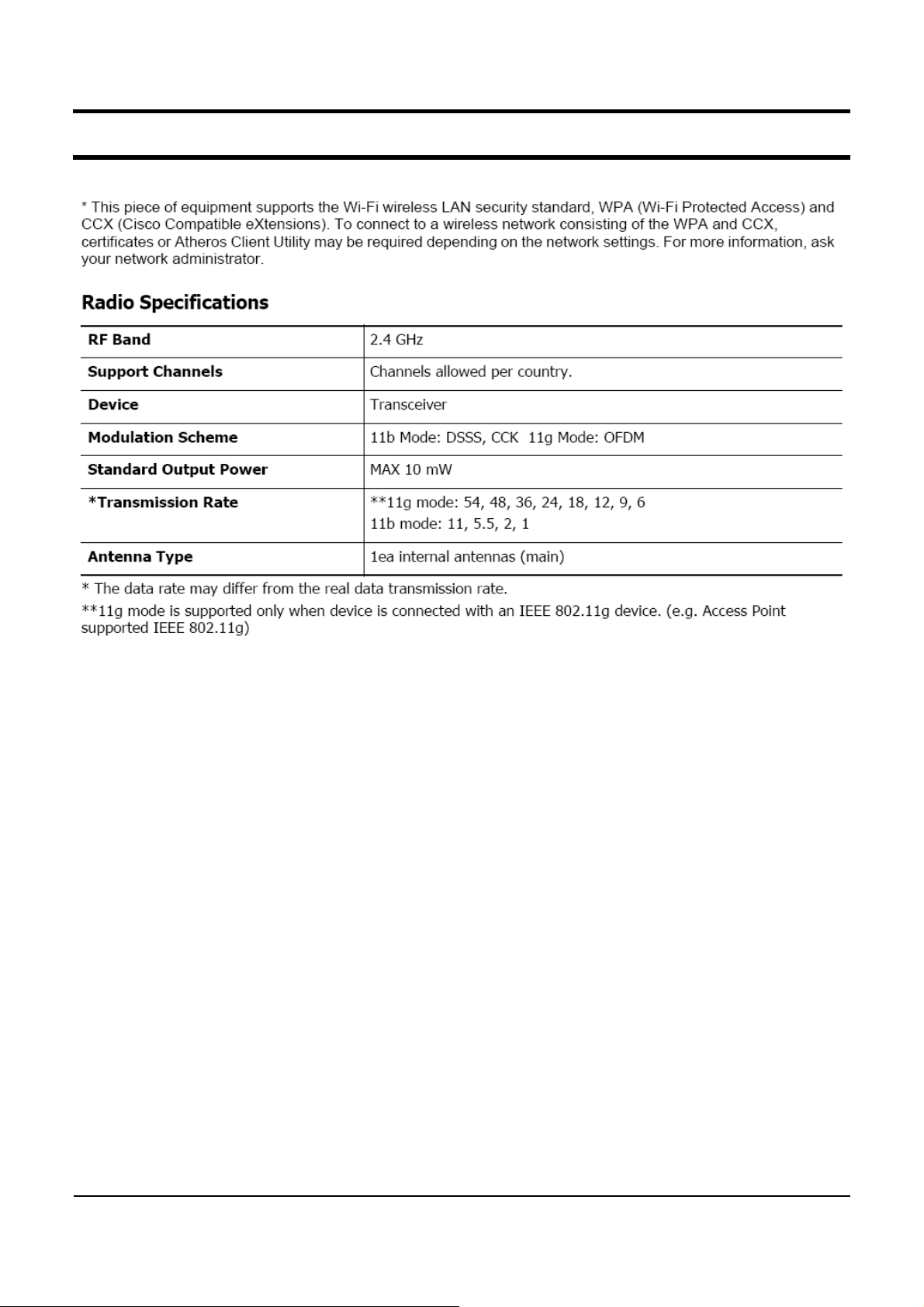

2. Introduction and Specification
SENS Q-1 < 2 - 7 >
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Option Material List
5)
HDD
BA59-01841A HDD(30G) 30G,HTC426030G5CE00,S63,H16,C16383,5.0MM,1.8INCH,PATA,30G/P,4200RPM,FDB
BA59-01872A HDD(60G) 60G,HTC426060G8CE00,S63,H16,C16383,5.0MM,1.8INCH,PATA,30G/P,4200RPM,FDB
BA59-01871A HDD(40G) 40G,HTC426040G8CE00,S63,H16,C16383,5.0MM,1.8INCH,PATA,30G/P,4200RPM,FDB
HDD FPC
BA41-00618A HDD FPC(AFC) SANTAFE,1.0,Cu,Ni,COVERPLAY,90Pins(40+50),0.3?0.05mm,Goldplating,2Layers
BA41-00616A HDD FPC(CMI) SANTAFE,1.0,Cu,Ni,COVERPLAY,90Pins(40+50),0.3?0.05,Goldplating,2Layers
LCD FPC
BA41-00619A LCD FPC(AFC) SANTAFE,1.0,Cu,Ni,COVERPLAY,50Pins,0.3?0.05mm,Goldplating,2Layers,50Pins
BA41-00617A LCD FPC(CMI) SANTAFE,1.0,Cu,Ni,COVERPLAY,50Pins,0.3?0.05,Goldplating,2Layers,50Pins
SUB BOARD FPC
BA41-00622A SUBBOARD FPC(AFC) SANTAFE,1.0,Cu,Ni,COVERPLAY,20Pins,0.3?0.05mm,Goldplating,2Layers
BA41-00616A SUBBOARD FPC(CMI) SANTAFE,1.0,Cu,Ni,COVERPLAY,20Pins,0.3?0.05,Goldplating,2Layers
SENS Q-1 < 2 - 8 >
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
MEMORY
1105-001606 256M(SEC) DDR2 400Mhz 256MB M470T3354BG0
1105-001612 256M(IN) DDR2 400Mhz 256MB HYS64T32000HDL
1105-001607 512M(SEC) DDR2 400Mhz 512MB M470T6554BG0
1105-001613 512M(IN) DDR2 400Mhz 512MB HYS64T64020HDL
1105-001608 1G(SEC) DDR2 400Mhz 1GB M470T2953BS0
BLUETOOTH
BA59-01691A BLUETOOTH BCM92045NMD
BA39-00572A
WLAN
BA59-01843A 802.11b/g WLL3140-D99(MOW-ROHS,WMAC+RF,2.4GHz,IEEE802.11b/g,Mini Card,CCK/OFDM,11C
BA59-01842A 802.11b/g WLL3140-D99(ROHS),WMAC+RF,2.4GHz,IEEE802.11b/g,CCK/OFDM,Mini Card,13CH
DMB Module & Antenna(Option)
BA59-01503A DMB module SDM-1000
BA59-01810A DMB Antenna DMB SUB,-,W250*L110mm,DMB SUB B/D
BLUETOOTH
HARNESS
8Pins,60,RED/BLK/YRL,AWG32,51021-0800,08SUR-32S,BULK,-,1
SENS Q-1 < 2 - 9 >
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Option Sales List
6)
Power Bank Charge
AA-PL0UC8B / X
ODD - 12.7mm
AA-EB0U12B
AA-ES0U12B / X 12.7mm Super-multi
ODD - 9.5mm
/X
Power Bank Charge & Extend Battery
12.7mm DVD-COMBO
AA-EB0U09B / X 9.5mm DVD-COMBO
KEYBOARD
AA-SK0TKBD / Xx USB Keyboard
SENS Q-1 < 2 - 10 >
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Option Sales List
6)

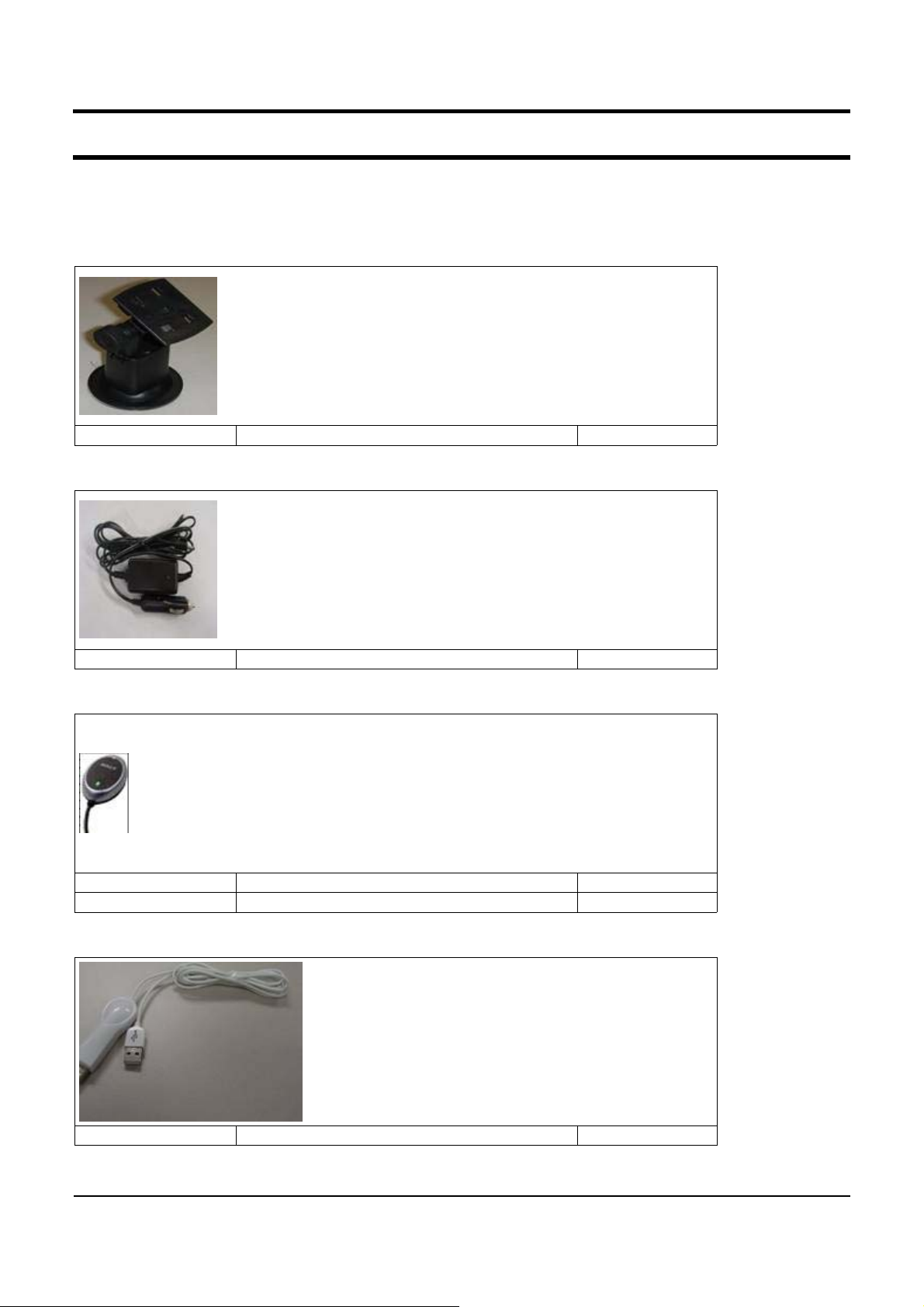

Car Cradle
AA-EX0UCAR / X
Car Adapter
AA-PC0NCAR / X
GPS
AA-EX0UNAV GPS Module
AA-EX0UMAP GPS Map
차량용 거치대
차량용 어댑터
DATA CABLE
AA-EX0TSYN / X DATA SINK CABLE
SENS Q-1 < 2 - 11 >
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Option Sales List
6)
Organizer
AA-EX0UORG / X
BAG#1
AA-EX0UBAG / X BAG
BAG#2
오거나이져
AA-EX1UBAG / X BAG
POUCH
AA-EX0UPOU / X Set Pouch
SENS Q-1 < 2 - 12 >
