Samsung NEXiO S160 Reference Manual

Wireless Hand PC

NEXiO

(Samsung S160)

Quick Reference Guide

SAMSUNG DIGITall

everyone's invited

- 1 -

- 2 -

NEXiO

Samsung S160

- 3 -

NEXiO

Powerful Mobile Office

- Pocket Internet Explorer 5.5

- Pocket Office(Word, Spreadsheet, PPT)

- PIMS compatible w/MS Outlook

- Smart Presentation

Full Internet Capability

- 800*480 WVGA

: No horizontal scrolling !

- JVM, Flash Player built-in

- 802.11b(11Mbps) built-in

Highest Performance

- Intel 400MHz CPU

- 64MB FROM, 128MB RAM

- WLAN built-in

Various Expandability

- standard USB slot

-CFIIslot

: Camera, Memory, WAN module

- PCMCIA adapter(optional)

- 4 -

- 5 -

Big&vividWidescreen

- 5inch wide screen LCD

- Clear & Bright Transflective LCD

- Low power consumption LCD

Enforced Battery Solution

- Li-Polymer rechargeable battery

: 3hrs for continuous Internet use

- 2nd Li-Polymer option Battery pack

: 3hrs talking time

Digital Entertainments

- MP3, MPEG Player

-e-BookViewer

- Games

- Camera & Image viewer

Outstanding Design

- Slim & Sexy

: 154*91*13.4, 250g

- Homogeneous design

: keyboard cover, 2nd battery

Unpacking

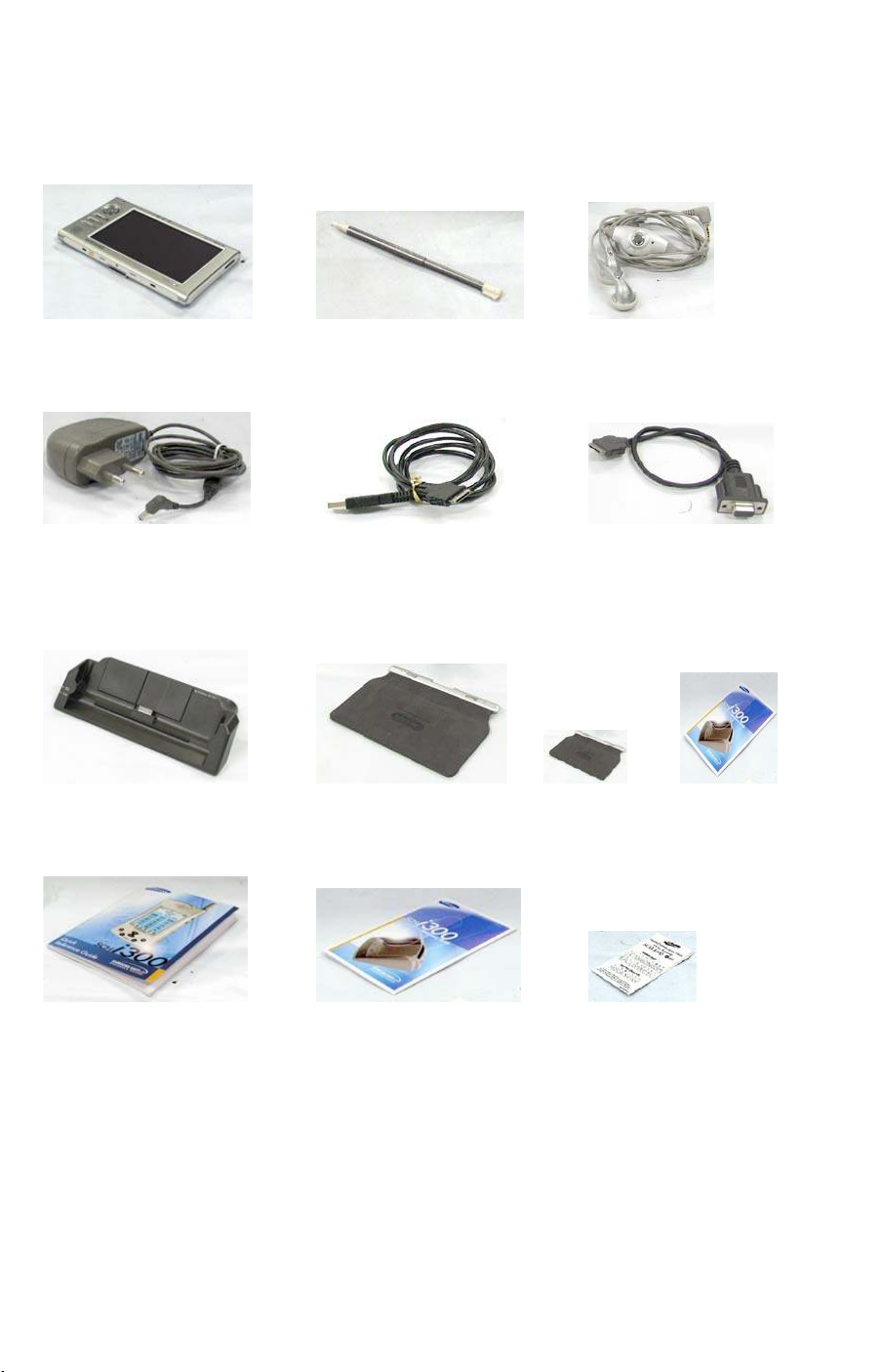

Your package contains the following items.

NEXiO (Samsung S160) Stylus Ear-microphone

AC Adapter Communication Cable External Display

Cable

Cradle Leather Cover Stand NEXiO CD

Quick Reference Guide Accessory Guide Handwriting

Guide

- 6 -

NEXiO (Samsung S160)

Nickname of Samsung S160

Stylus

Stylus that is appropriate for operating NEXiO. Kept in stylus
slot on the right side.

Ear-microphone

Listen to music and record sound

AC Adapter

Supply DC power and charge battery

Communication Cable

Connect NEXiO to computer and transfer data between two
devices

External Display Cable

Connect NEXiO to External Display and enable to view NEXiO
screen through external display device (ex : Monitor, Project)

Cradle

Enable to use NEXiO at more comfortable angle and charge
external battery

Leather Cover

Protect LCD screen

Stand

Inserted in the back side and stand NEXiO. Kept in CF card
slot in the right side.

NEXiO CD

Install program in NEXiO from computer or read online manual

Quick Reference Guide

Explain basic operation skill

Accessory Guide

Show Accessory and Option items that can be purchased
separately

Handwriting Guide

Show handwriting method

- 7 -

NEXiO Overview

NEXiO Overview

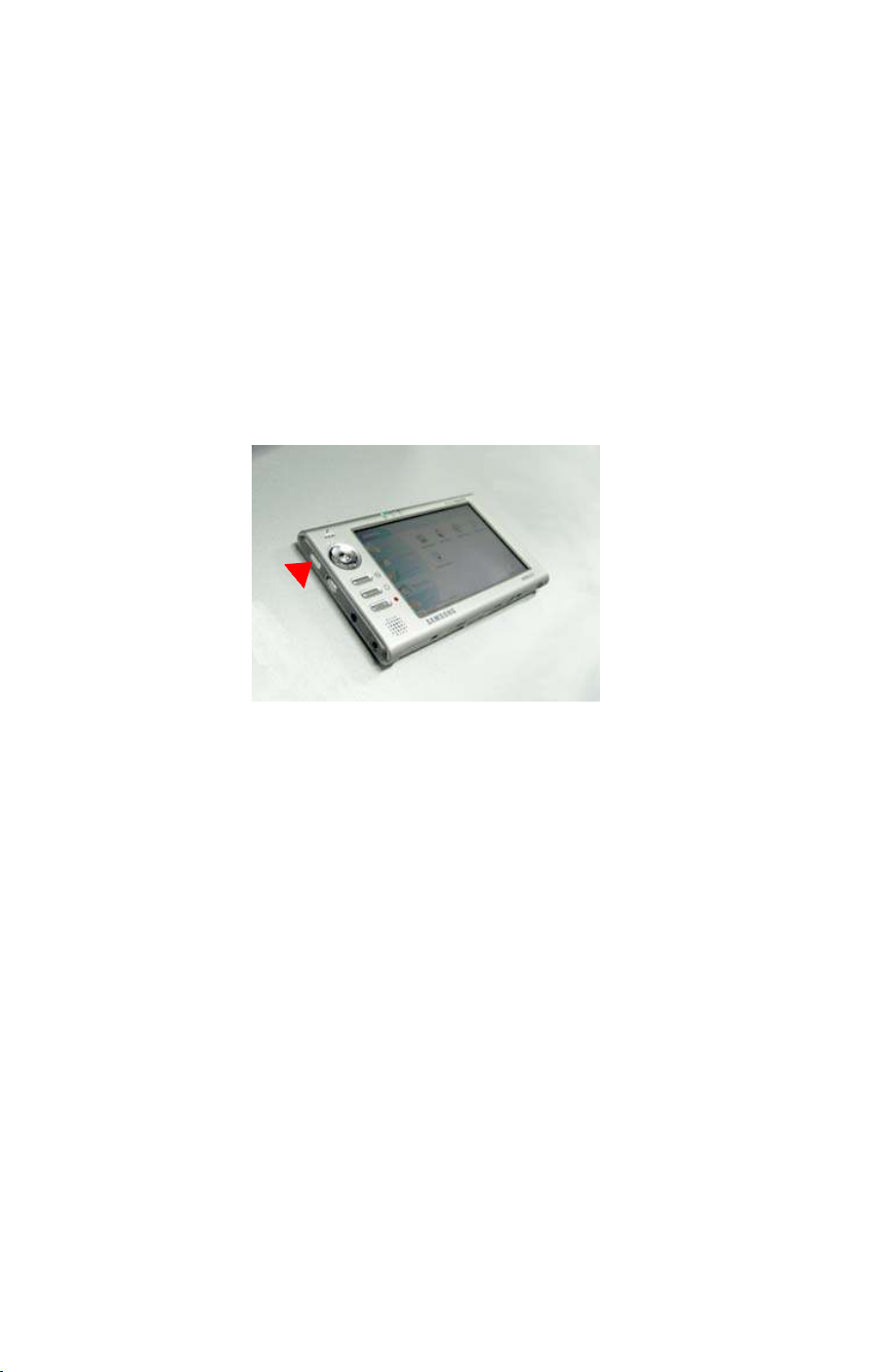

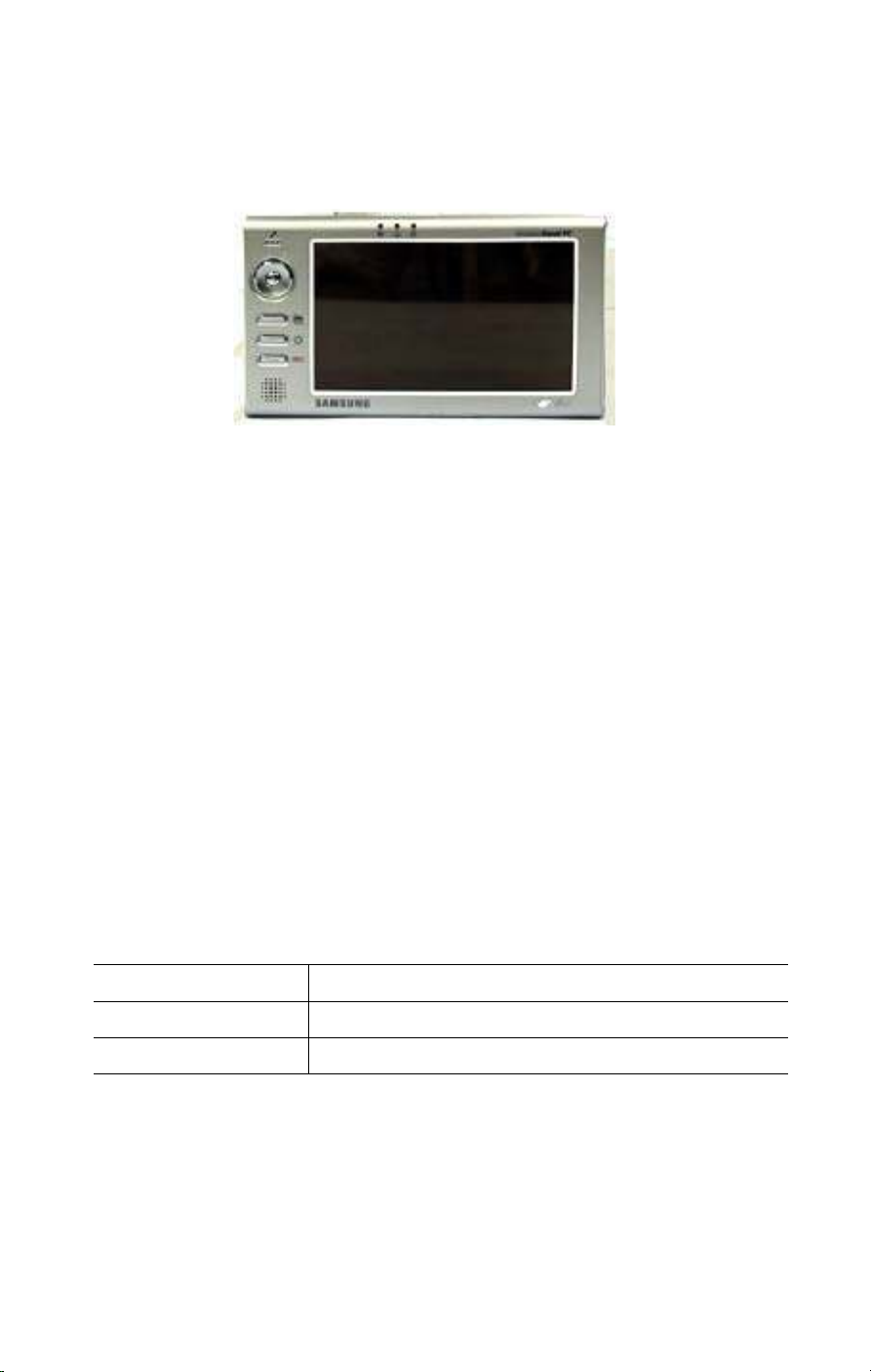

Front View

Indicator

Show NEXiO operation status

Microphone
Arrow Key

Move cursor(item) to up/down/left/right

Enter Key

Run selected program

Hot Key

Short cut to run program

Speaker

Note

Hot Key

Launcher Run NEXiO Programs
Backlight Turnon/offbacklight
REC Run recorder program

- 8 -

Indicator

Network

Show wireless LAN connection status

- On after 2 blinking : connection
trial. network icon is activated if
connection is successful

- On: connected to network

- Off : not connected to network

Reminder

Power

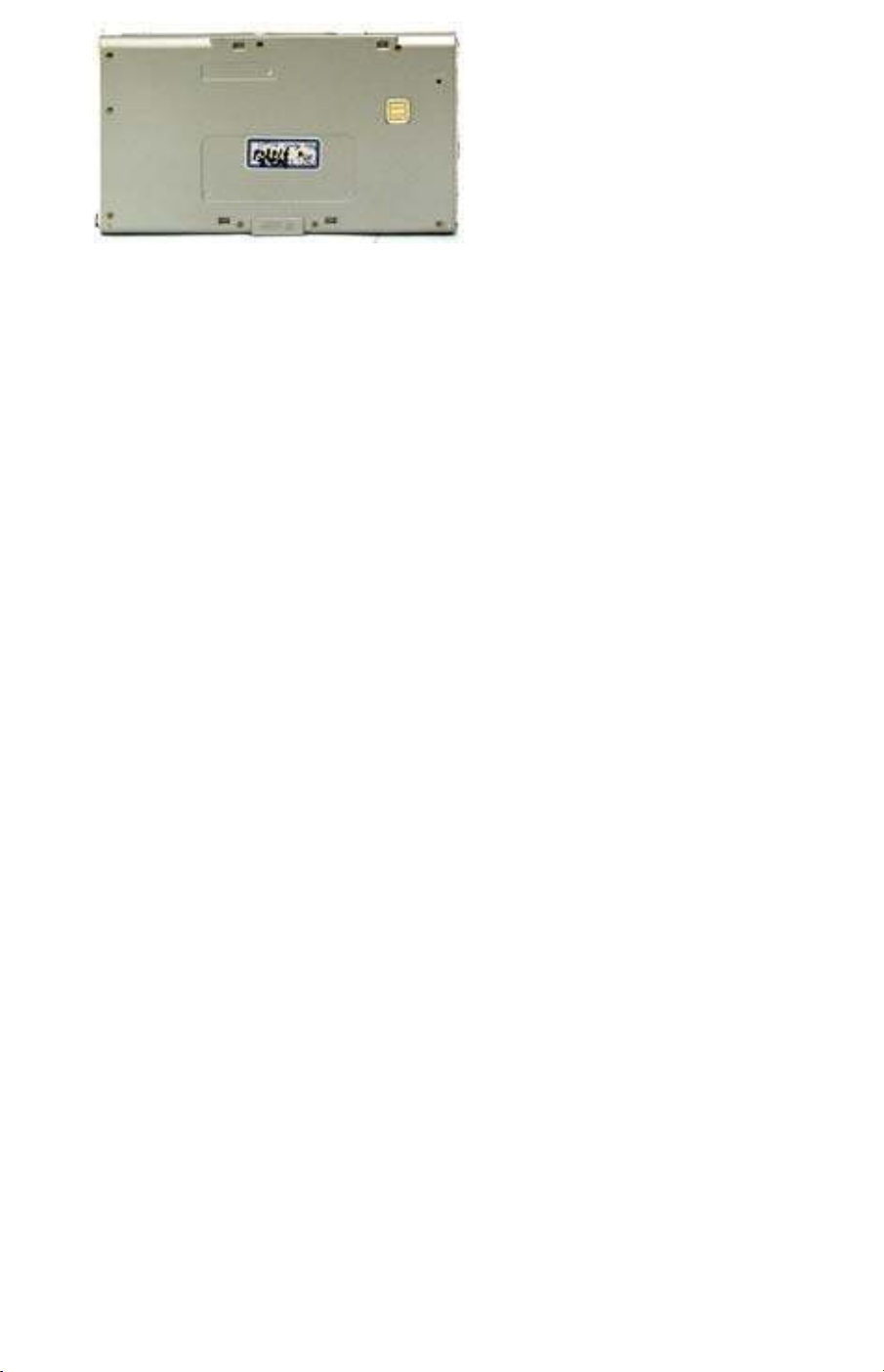

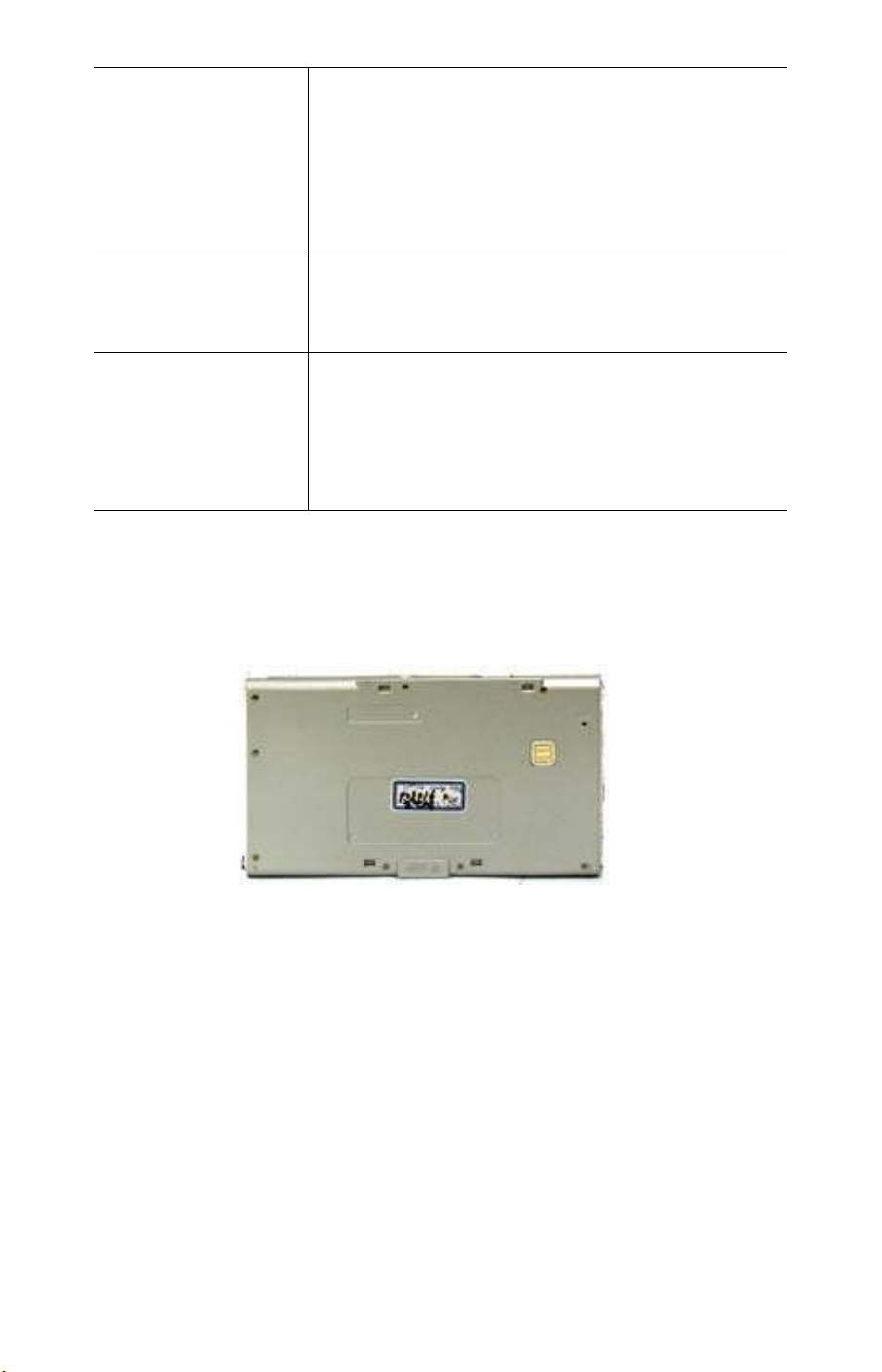

Rear View

Blinks at set-up

Show internal battery charge status
when connected to adapter

- Green: Charging complete

- Red: Charging proceeding

- Red Blinker: Low Battery

reminder

time

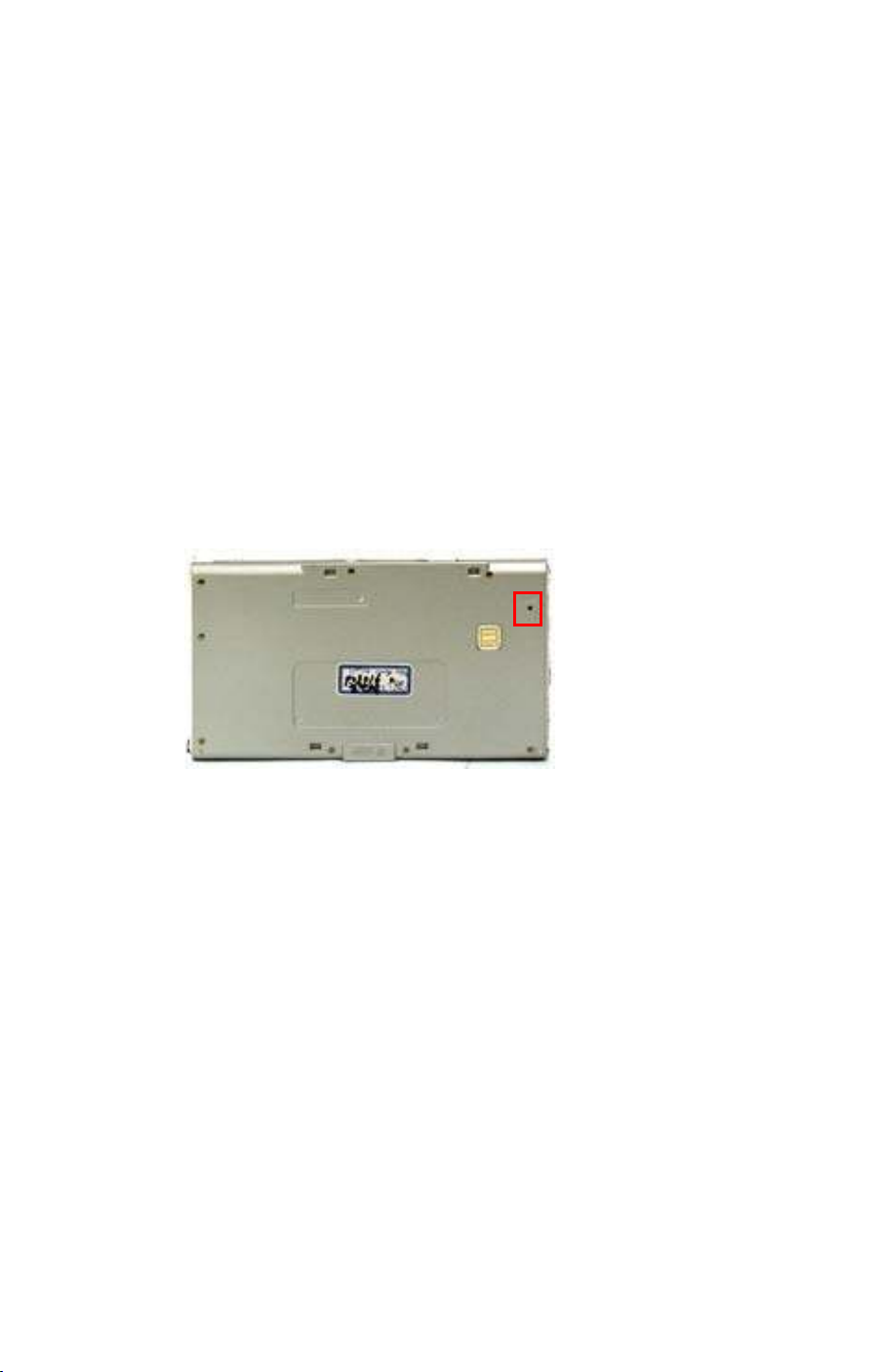

Reset Hole

Recover NEXiO when it does not operate normally

(refer "Resetting")

External Battery Connector

Protection Hole

Fix External Battery or stick stand in to use NEXiO in a more
comfortable angle

- 9 -

Left View

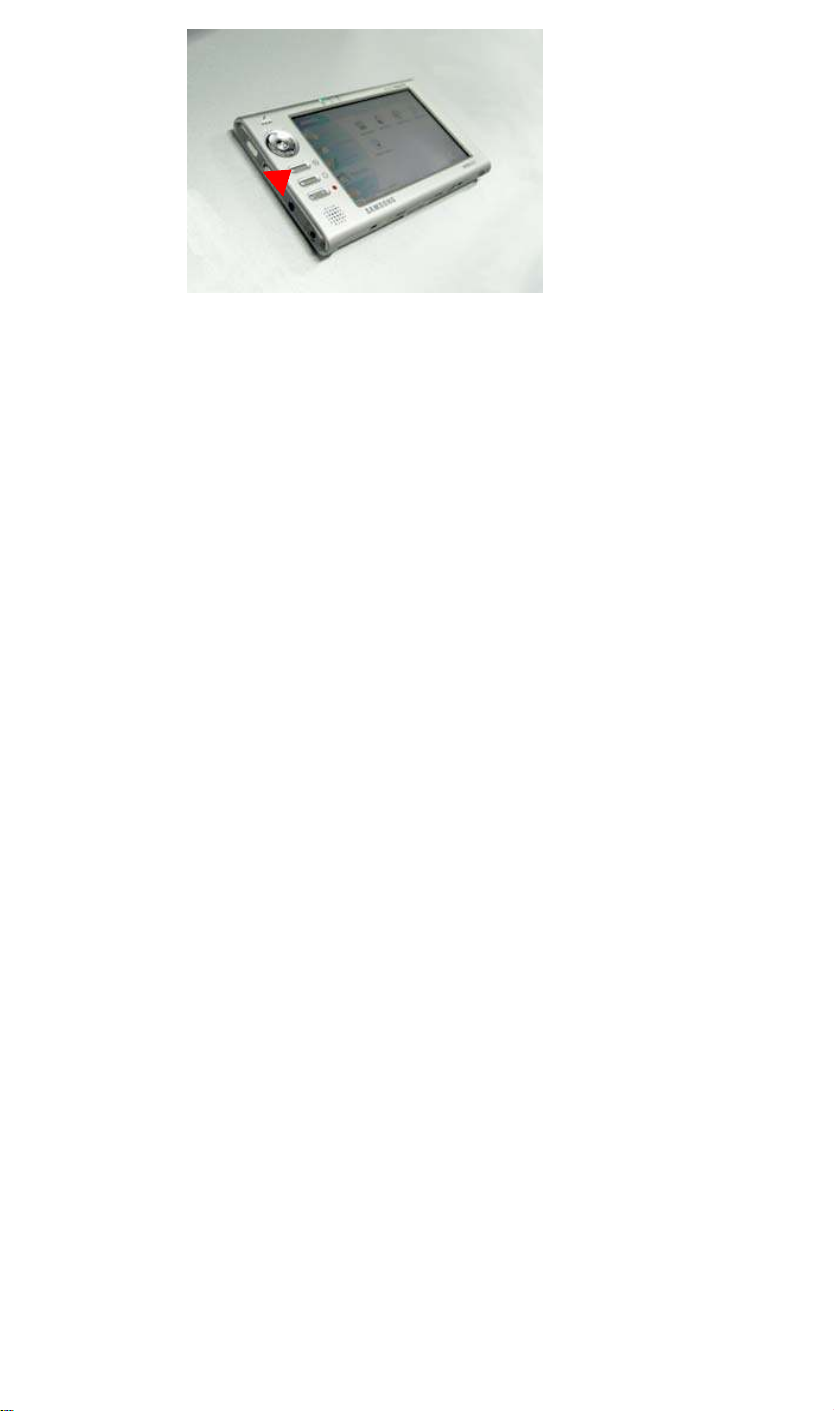

Power Button

Turn on/off NEXiO

Hold Button

Only power button is activated in HOLD
status. Touch screen is activated when
power is on.

Ear-microphone Port

AC Adapter Port

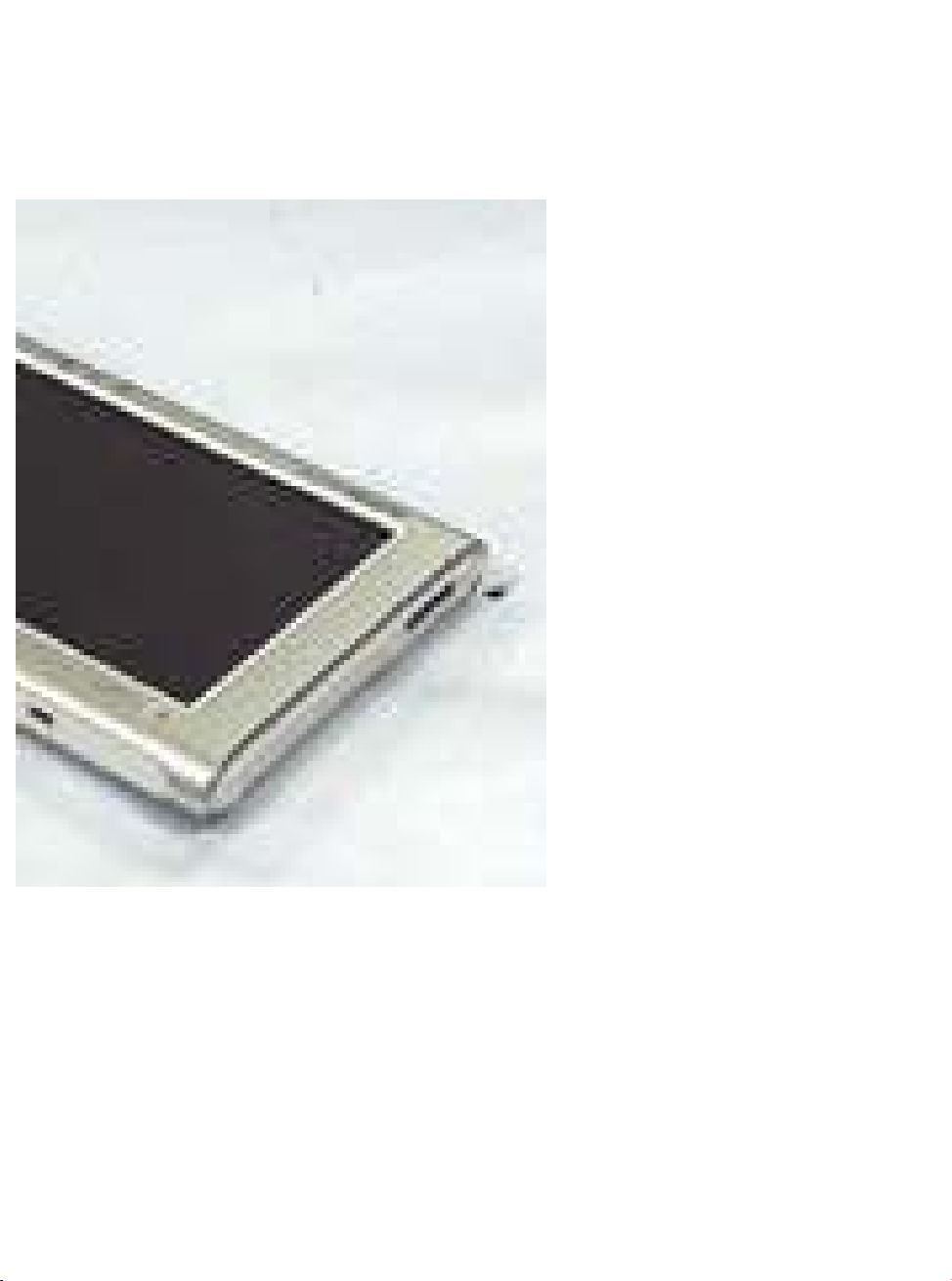

Right View

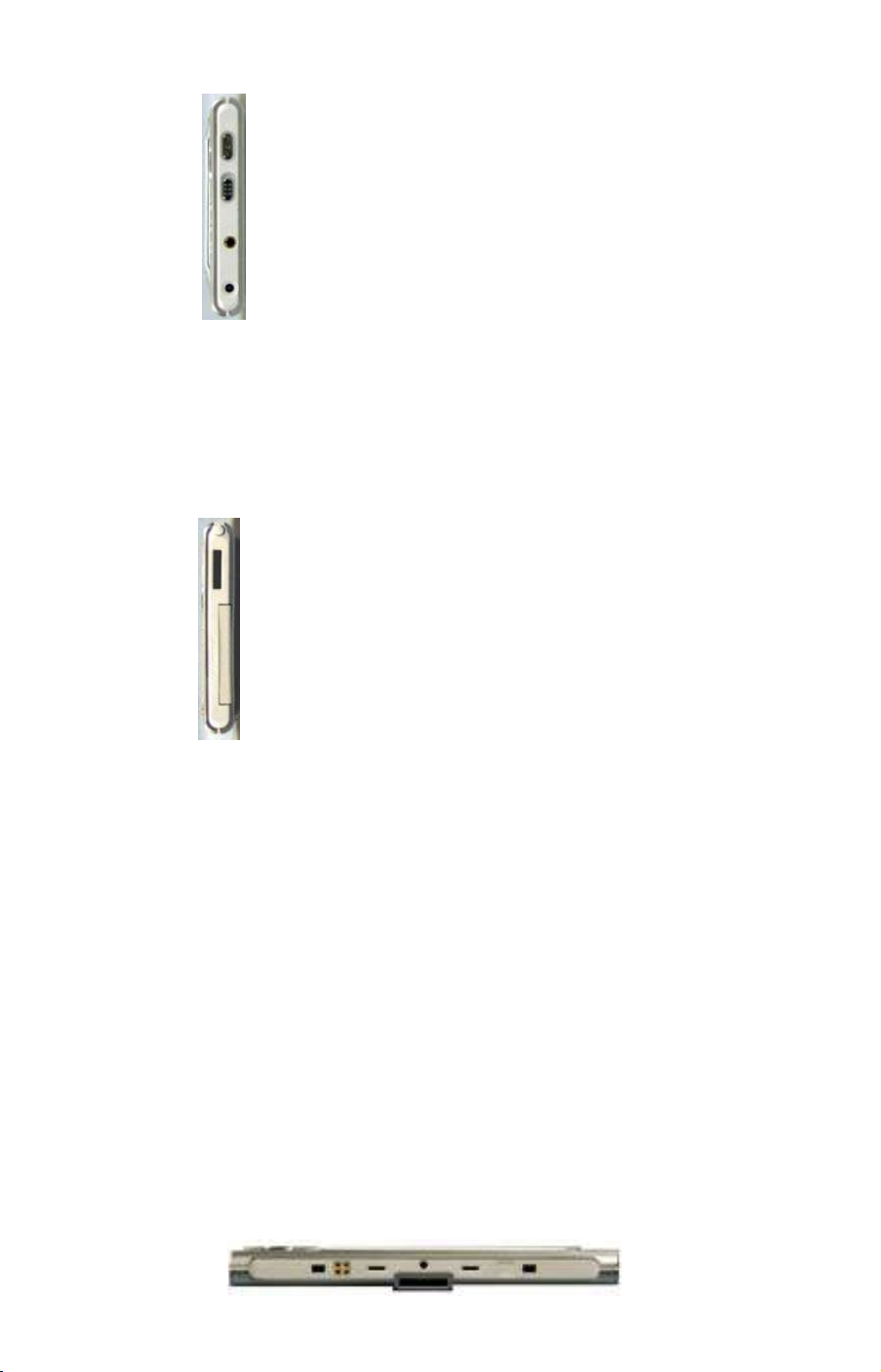

Bottom View

Stylus Slot

Keep Stylus

PCMCIA Adapter Port

Insert PCMCIA Adapter (option)

CF Card Slot

Insert CF Card

Note

PCMCIA Adapter Port and CF Card
Slot, you cannot use CF Card when
you are already using PCMCIA Adapter.

Since PCMCIA Adapter uses both

- 10 -

Communication Port

Connect to Computer, External Display, or Cradle

(refer to "Connecting to Computer", "Using External Display
Device", "Using Cradle")

External Keyboard Connector

Protection Hole

Fix Leather Cover or External Keyboard

- 11 -

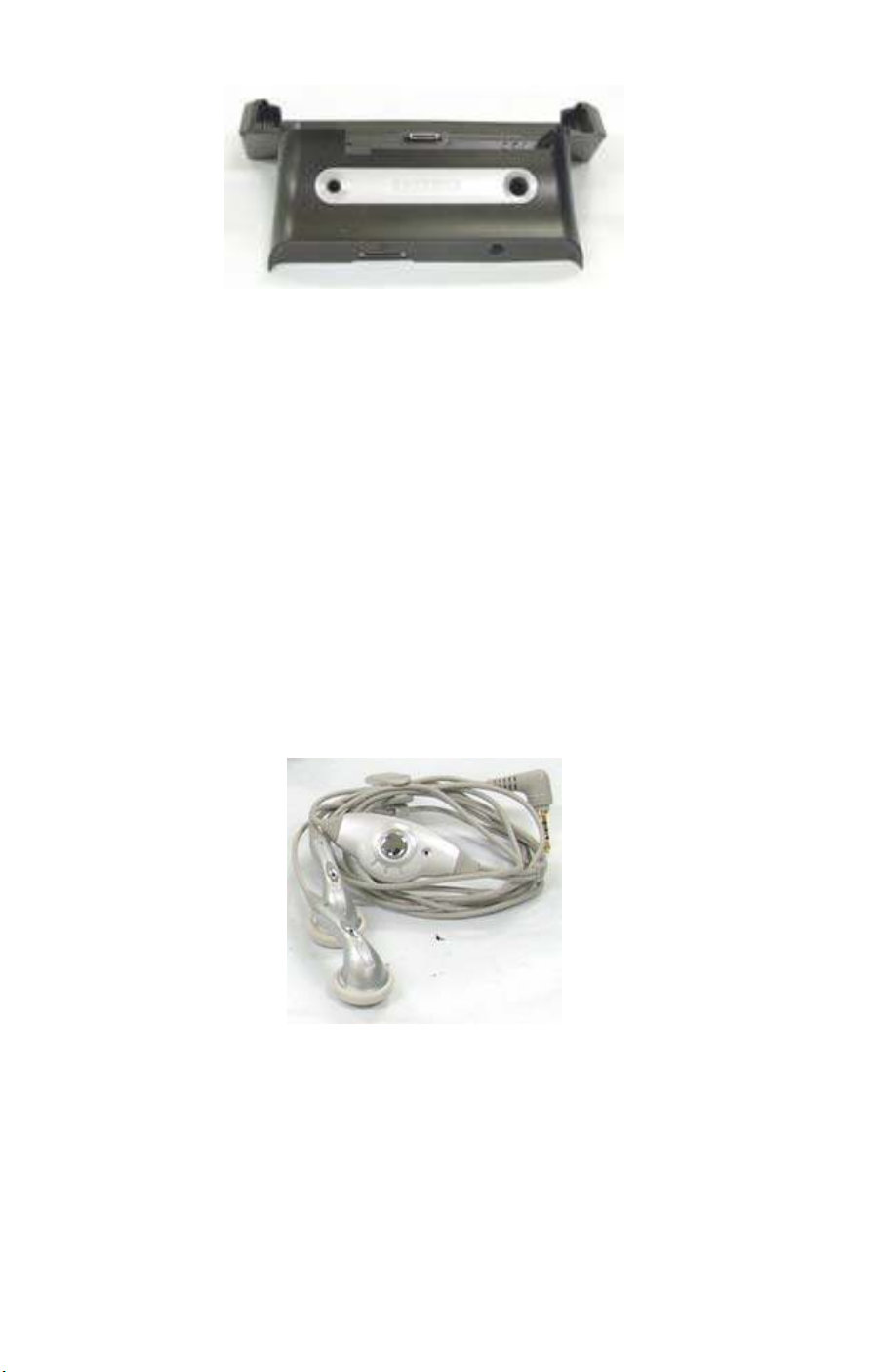

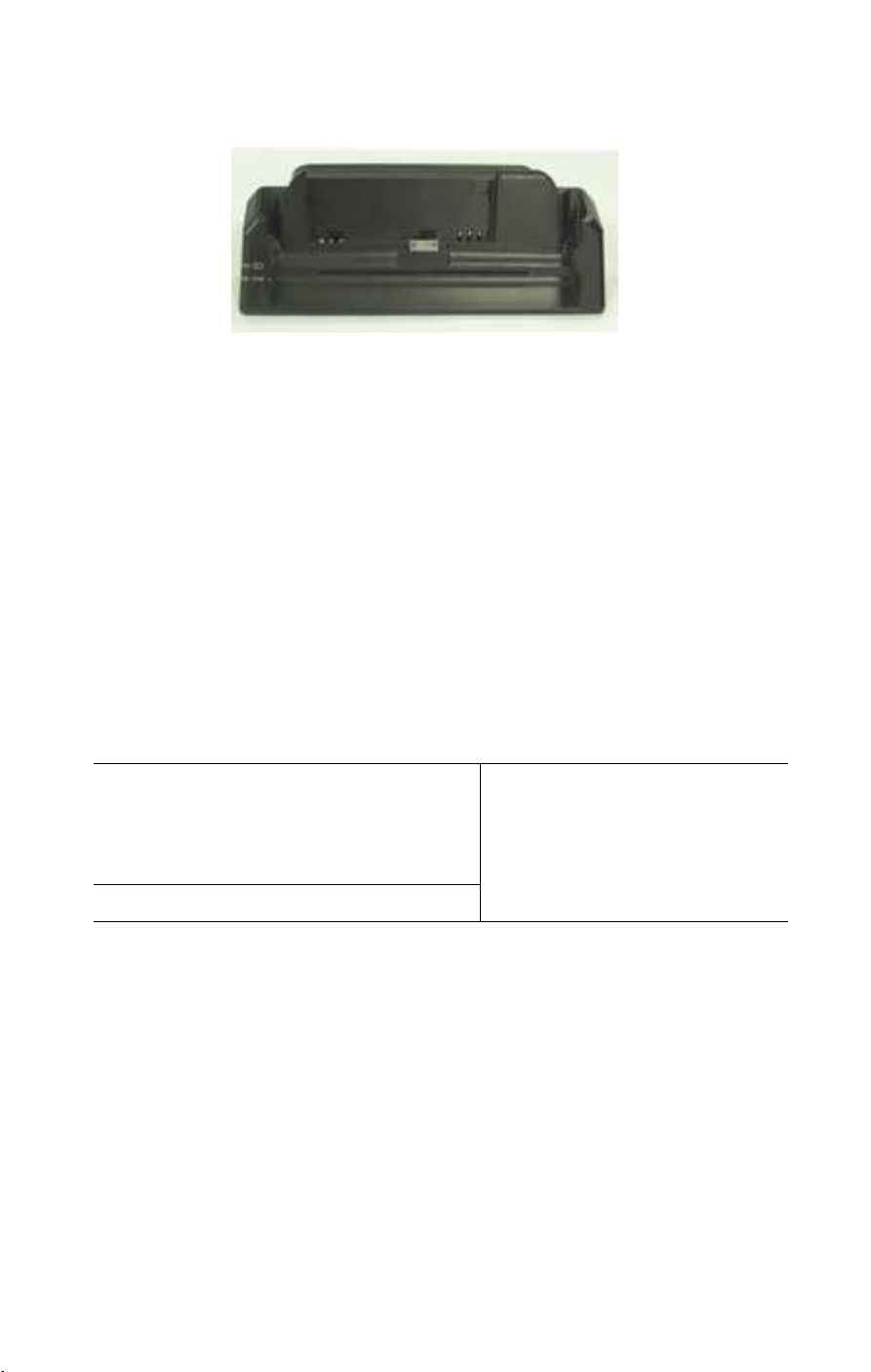

Cradle overview

Front

Indicator

Show battery charge status when connected to adapter

External Battery room

Attach and charge External Battery

Dummy

External Battery Connector

NEXiO Connector

Connect to Communication Port of NEXiO

Note

Indicator

- Green: Charging

NEXiO internal Battery

External Battery

* When you charge NEXiO internal Battery and External
Battery at the same time, external battery starts being
charged after internal battery is fully charged.

complete

- Red: Charging
proceeding

- 12 -

Back

Communication Port

Connect to Computer or External Display

(refer to "Connecting to Computer", "Using External Display
Device", "Using Cradle")

AC Adapter Port

Stylus/Pen Stand

Ear-microphone overview

Ear-phone

Microphone

Volume control dial

- 13 -

Connecting NEXiO with peripherals

This part explains connecting NEXiO with peripherals such as AC
Adapter, Cradle and using.

NEXiO power is supplied with AC Adapter or internal battery.
Battery should be sufficiently charged with AC adapter to be in
use.

Note Sufficiently charge internal battery.

It takes 2 1/2 hours to fully charge internal battery. If
you want to charge quickly, charge 2 hours and you will
be able to use.

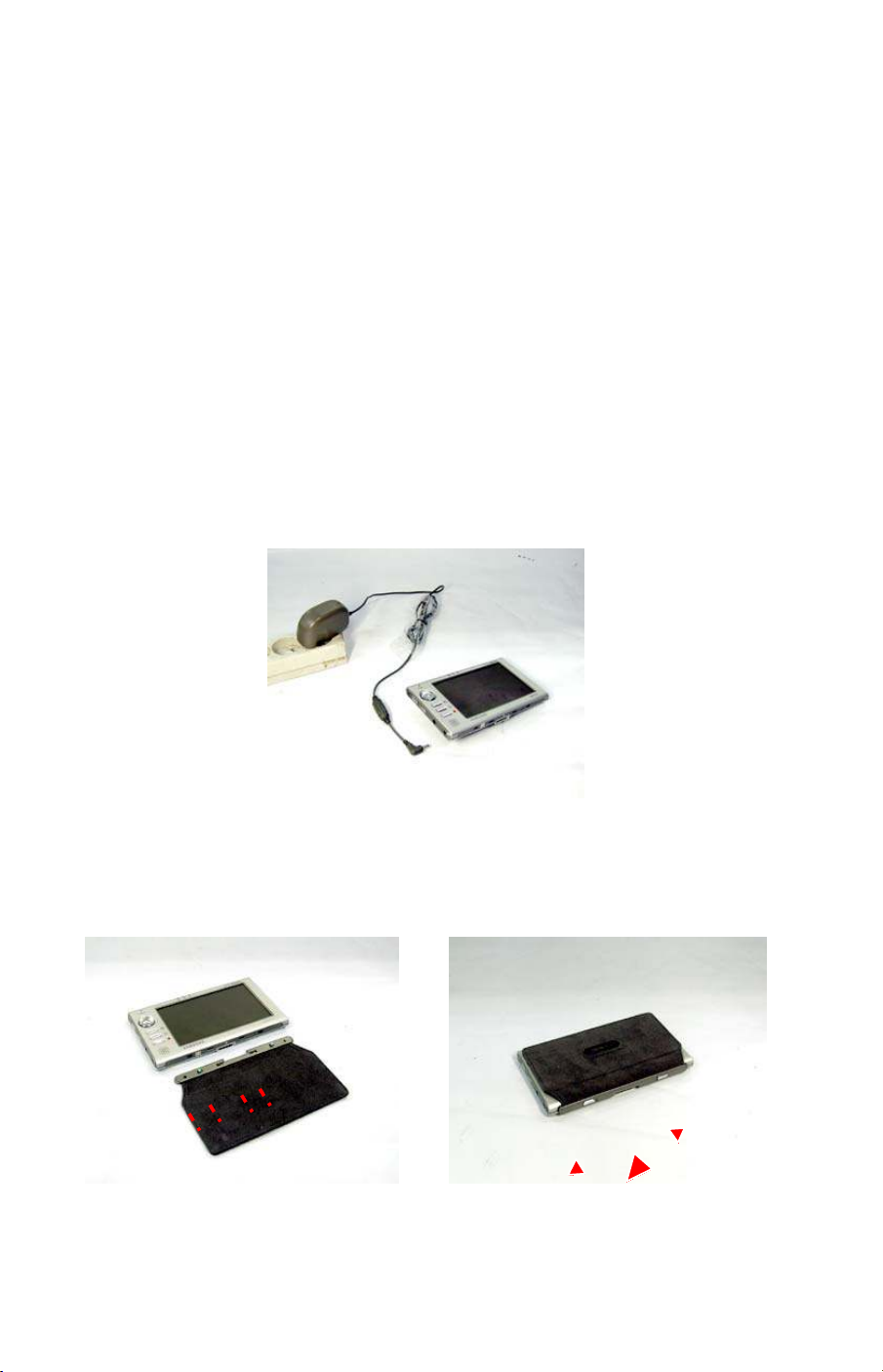

Connecting AC Adapter

②

①

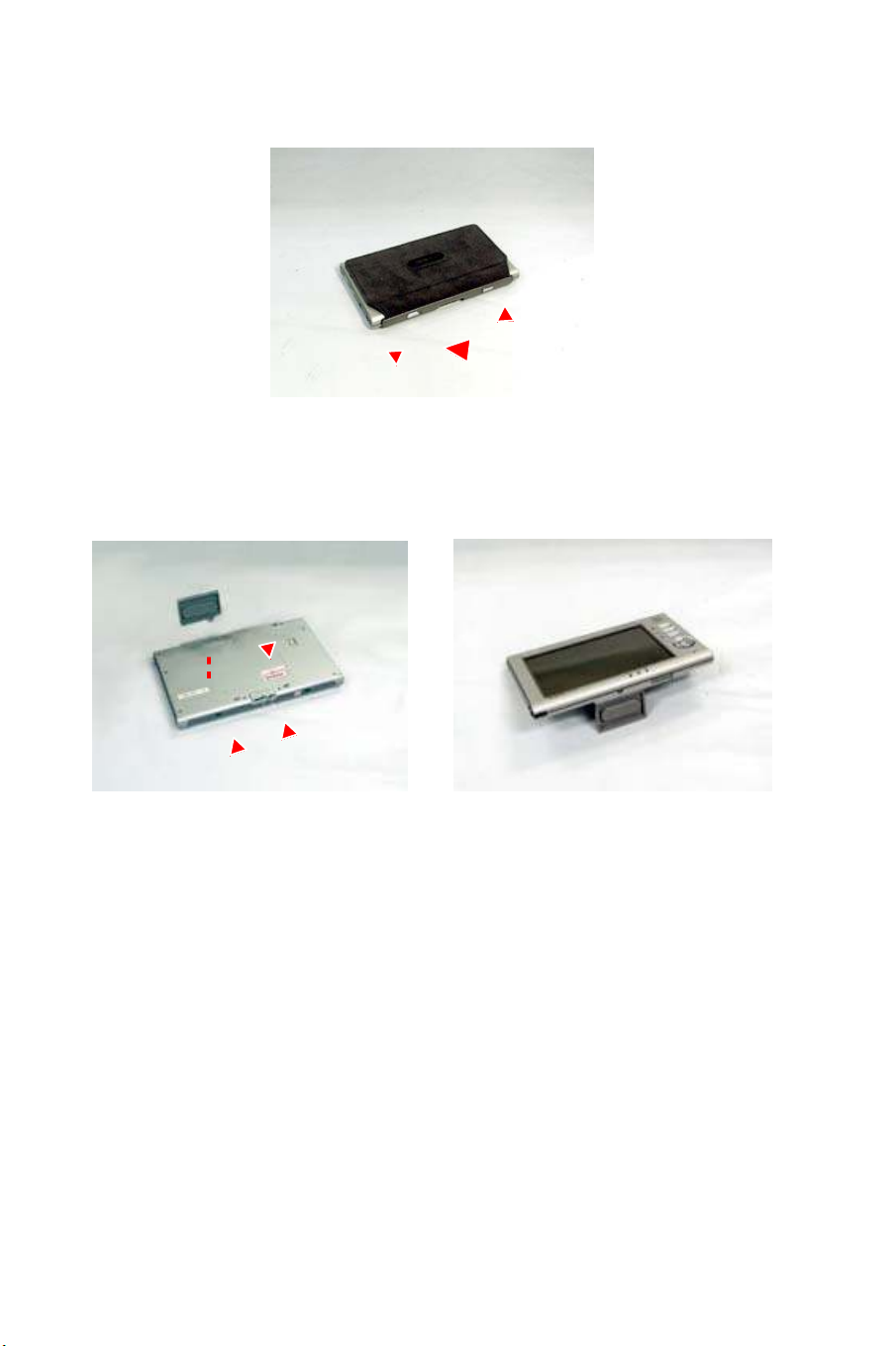

Attaching Cover

②

②

Fit cover to 4 protection holes in the NEXiO bottom. While
pressing cover against NEXiO, slide two lock buttons to arrow
direction and fix cover.

①

- 14 -

To detach cover from NEXiO, slide two lock buttons in the

opposite direction of arrow and pull cover out.

①

①

②

Attaching Stand

Fit stand to one of 4 protection holes in the rear. You can use
NEXiO in a more comfortable angle.

- 15 -

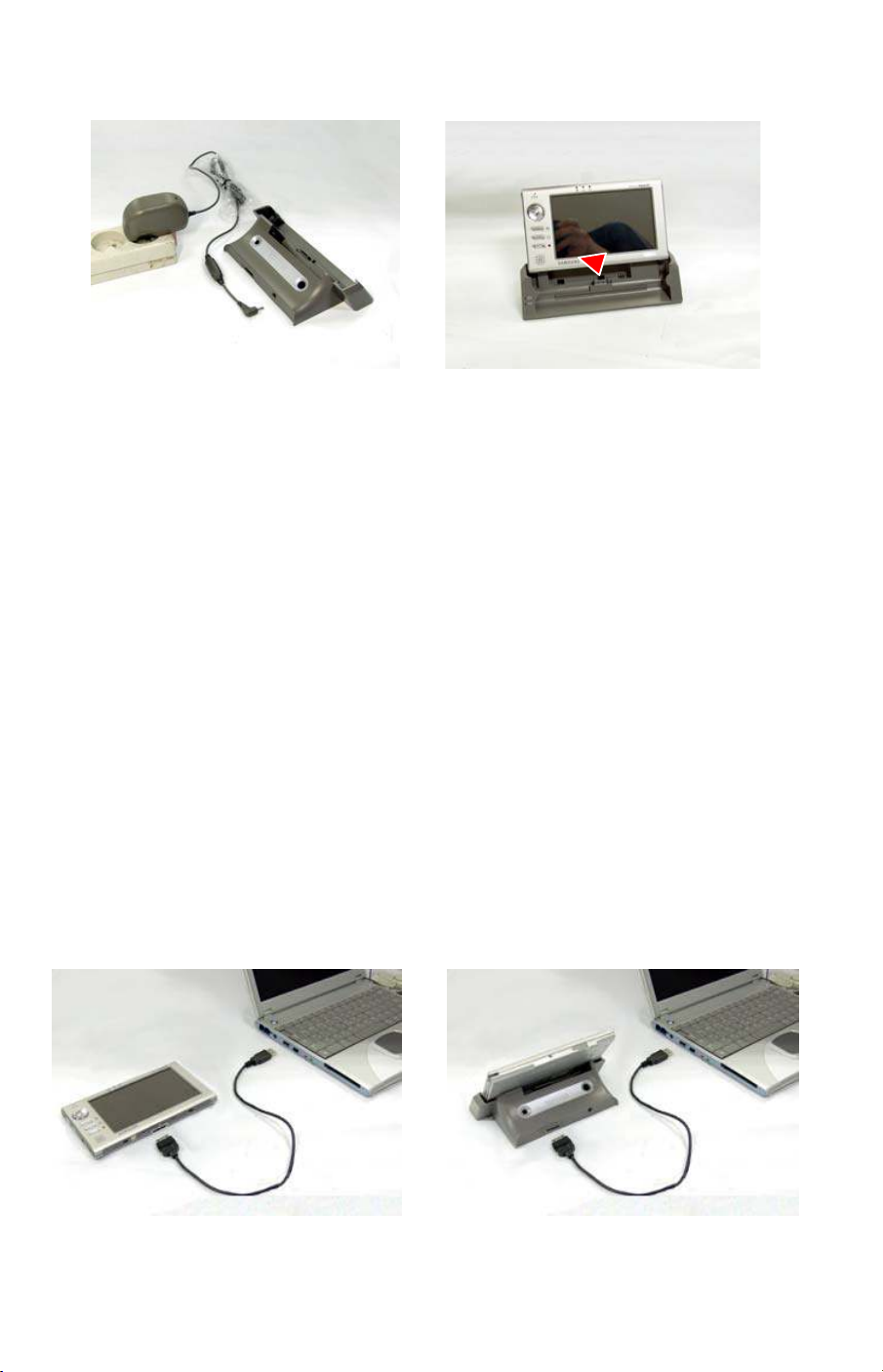

FittingtoCradle

②

①

connecting adapter fitting NEXiO to cradle

Note

connected to NEXiO. To use cradle, connect adapter to the back
side of cradle.

You cannot use fit NEXiO to cradle when AC adapter is

Connecting to Computer

You can transfer data and install program in NEXiO by connecting
Communication Port of NEXiO to a Computer.

(refer to "Connecting to computer")

Connect Communication Port of NEXiO and USB Port of computer
with Communication Cable.

②

①

directly connecting with NEXiO connecting through Cradle

①

②

- 16 -

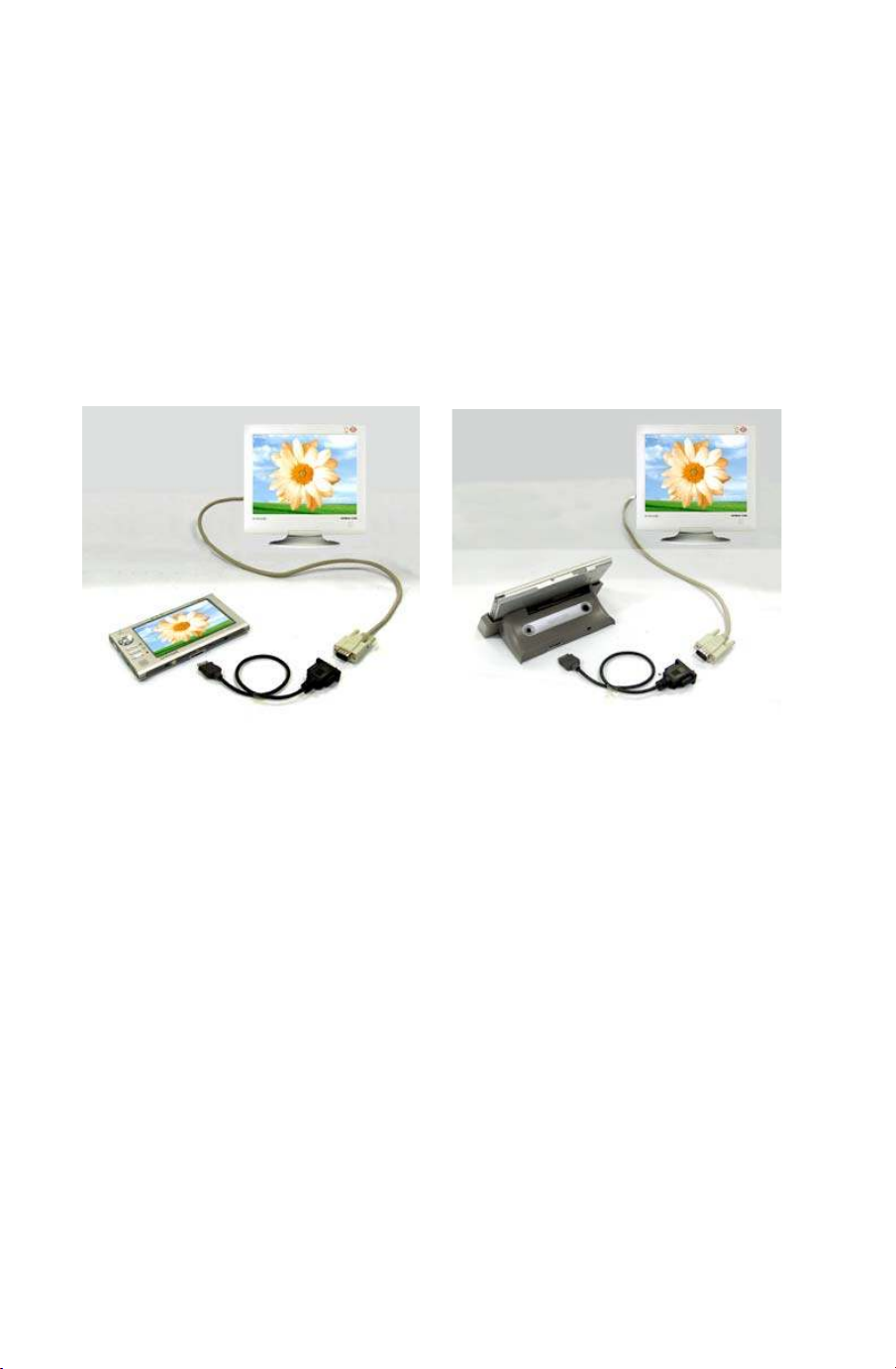

Connecting External Display Device

You can view NEXiO screen through external display device and
present reports by connecting External Display Device such as
Monitor and Projection. (refer to "Connecting external display
device")

Connect Communication Port of NEXiO and Monitor Cable with
External Display Cable.

①

directly connecting with NEXiO connecting through Cradle

②

①

②

- 17 -

Basic uses of NEXiO

Turning on/off NEXiO

Note

internal battery sufficiently with AC Adapter before using. (Refer to
"Charging battery")

Press power button on the left side of NEXiO, then NEXiO will be
turned on.

When you turn on NEXiO for the first time, Stylus calibration
setting screen will appear.

When you are first using NEXiO, you have to charge

Stylus calibration setting

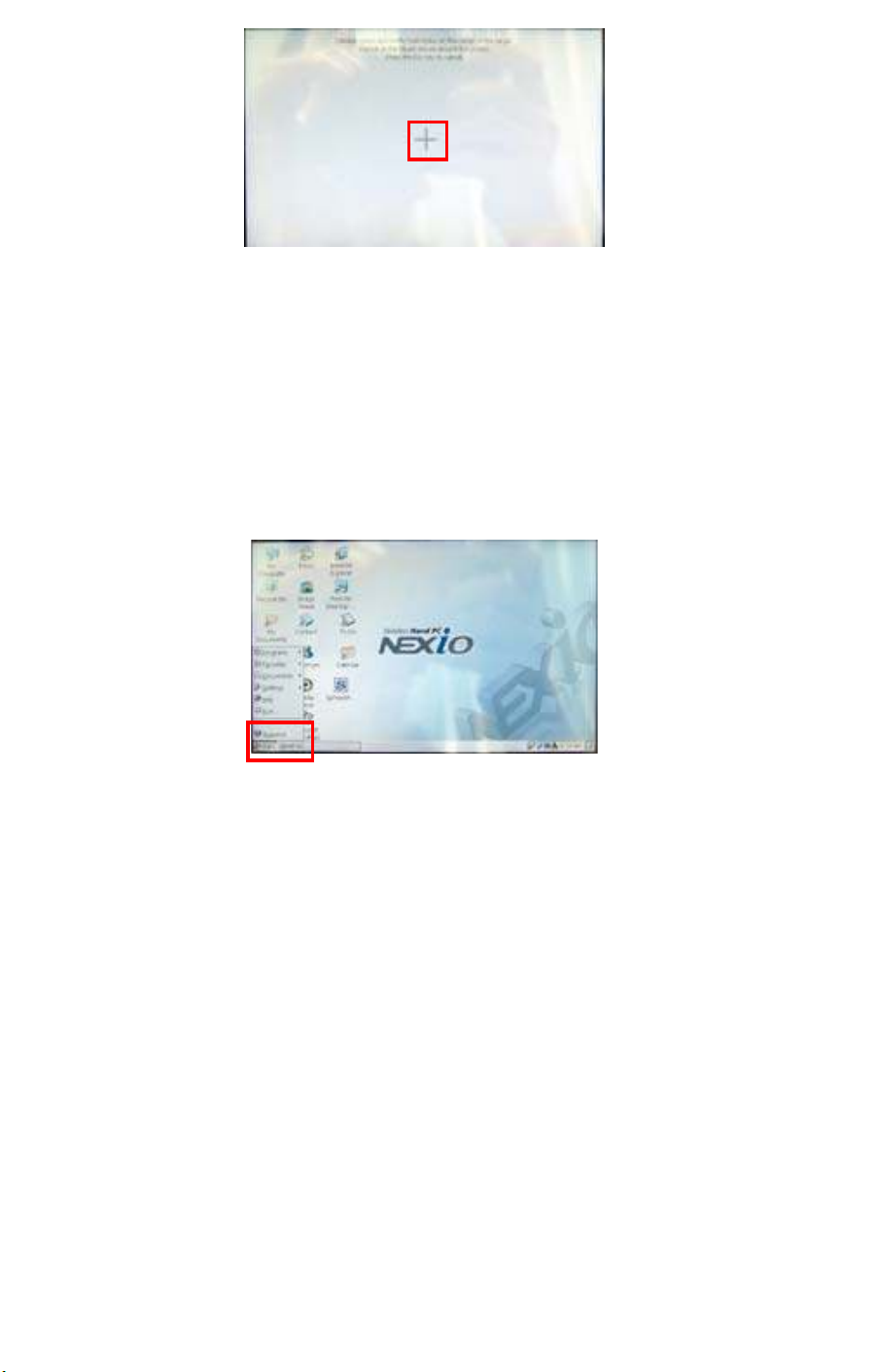

When you turn on NEXiO for the first time, + mark will be shown
on Stylus calibration setting screen. Tap on + mark to correspond
stylus and the location on screen.

Follow instructions on screen and tap on the + marks with

1.

stylus. + marks disappears after tapping 5 times.

- 18 -

Tap screen once, then setting will be completed and NEXiO

2.

screen appears.

Turning off NEXiO

Press power button once more, then NEXiO will be turned off.

Or you can tap Start > Suspend on taskbar with stylus.

NEXiO runs on Flash memory, so when you turn off and on
again, last screen status before turning off will be shown.

Note

"Using Stylus" for more information.

Tap is softly pressing LCD screen with stylus. Refer to

NEXiO is automatically turned off when no action is
occured in set time. To change setting, refer to "...".

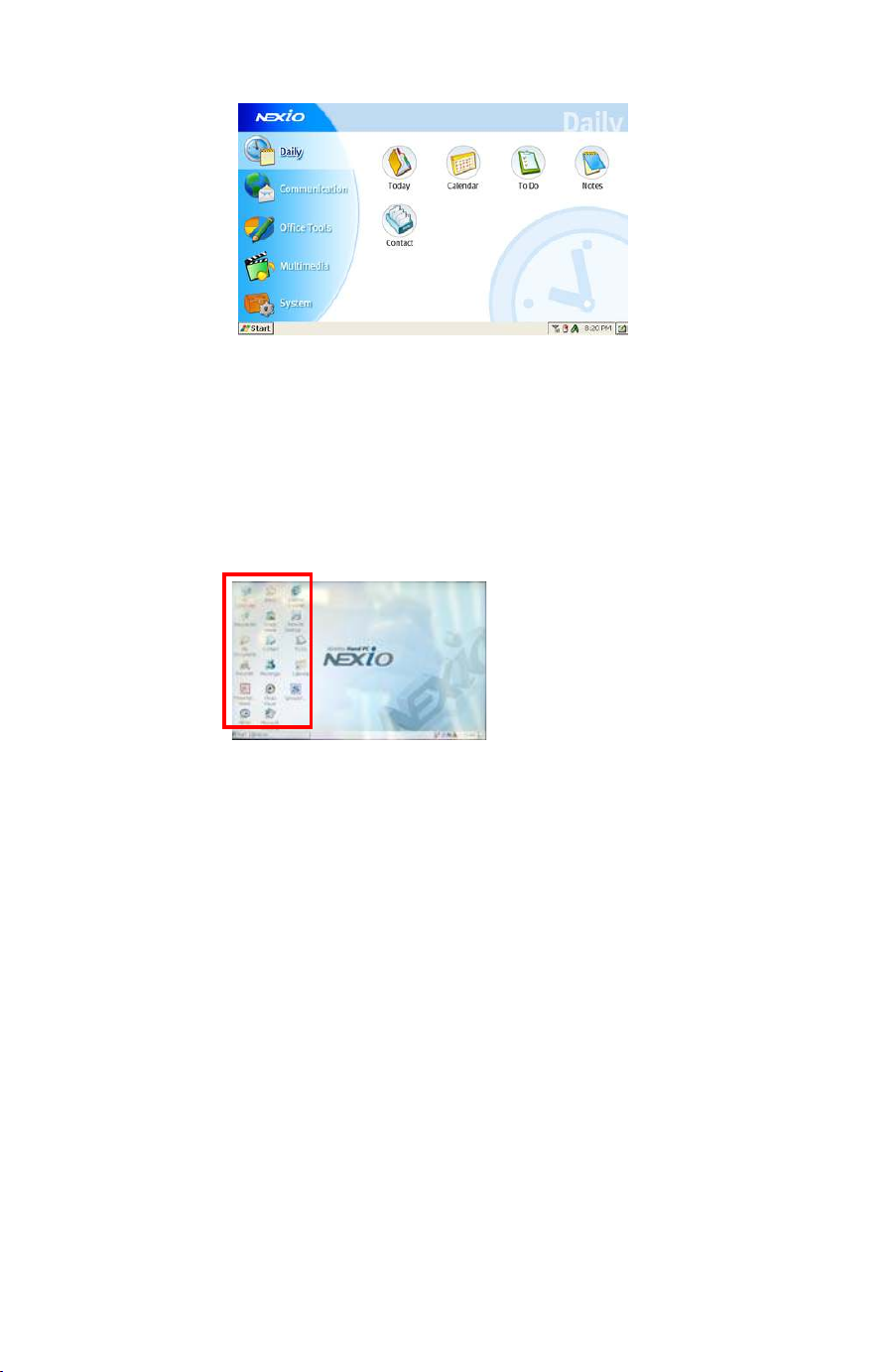

Learning NEXiO Program

When you turn on NEXiO and finish Stylus calibration setting,
NEXiO Program appears. NEXiO Program is a launch program
that lets you run programs easily.

- 19 -

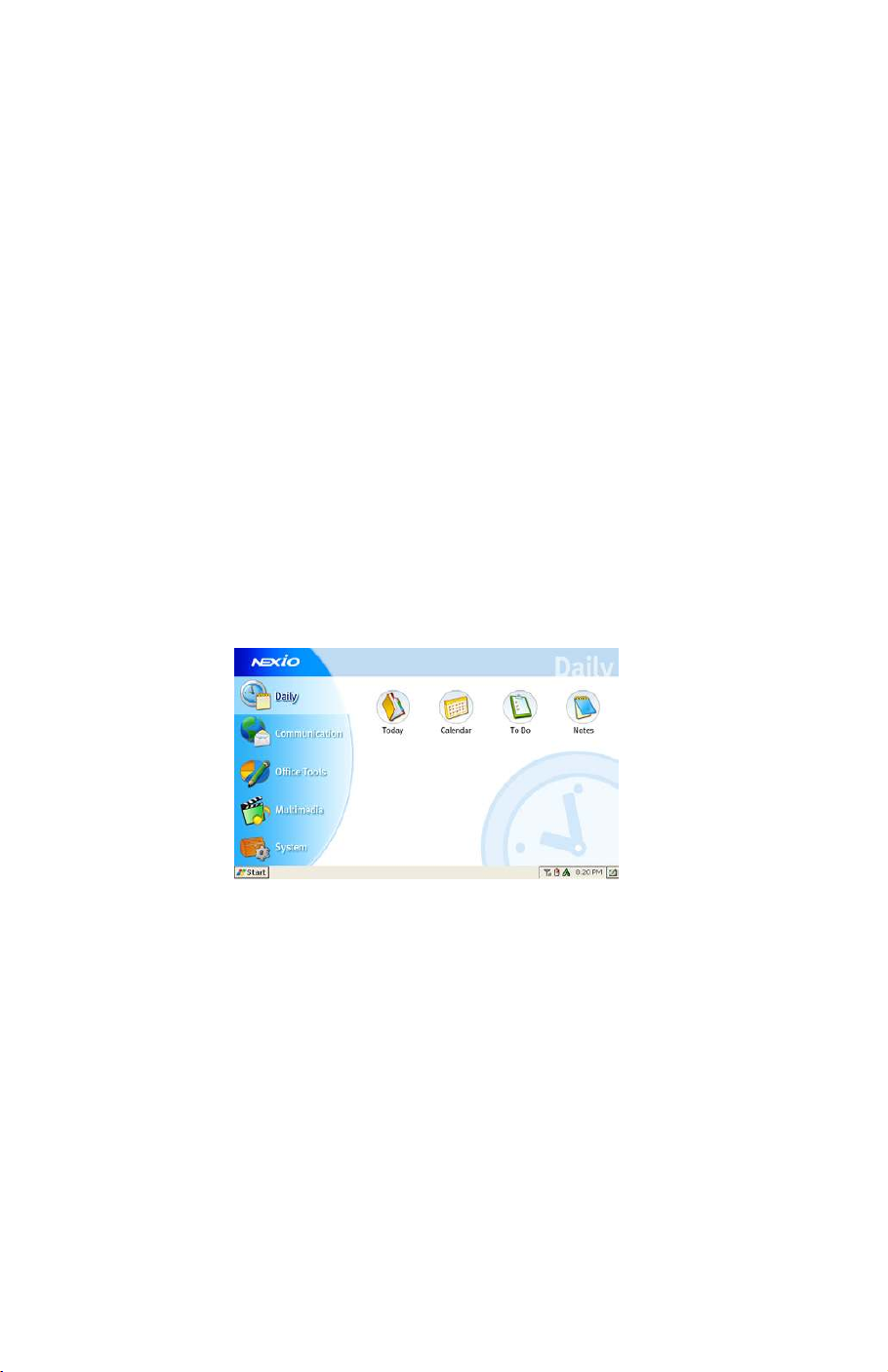

You will first learn about components on screen..

Task bar

Start Menu Button, Task bar Icon are shown.

Start
Task bar icon
Background icon

more go back to former view.

corresponding program.

Task bar icon
Software keyboard Icon

to input letters will be shown

Power

is connected.

Charging is completed
Charging is proceeding

W-LAN
Network

Comm

Activate Wireless Lan

Off not connected to network

List of programs that are currently running and s

You can run NEXiO Programs or see help.
Time and Task icon are shown.

You can see Background. Press once

(Background)

Program Icon: Press icon twice to run

Software Keyboard which lets you

Shows internal battery charge status when adapter

On connected to network

Shows if NEXiO is connected with computer

Note

- 20 -

To see basic user guide about Windows CE, which is

operating system of NEXiO, refer to help on Start > Help >
Windows CE Basics.

For more information on how to use NEXiO Programs,
referto"UsingNEXiOPrograms".

Using Stylus

Stylus is a screen touch pen to operate NEXiO, and corresponds
to mouse in computers. In this section, you will learn how to input
using stylus.

Note

will be damaged if you use sharp tools, so be careful.

tapping.

Always use stylus to input data into screen. LCD screen

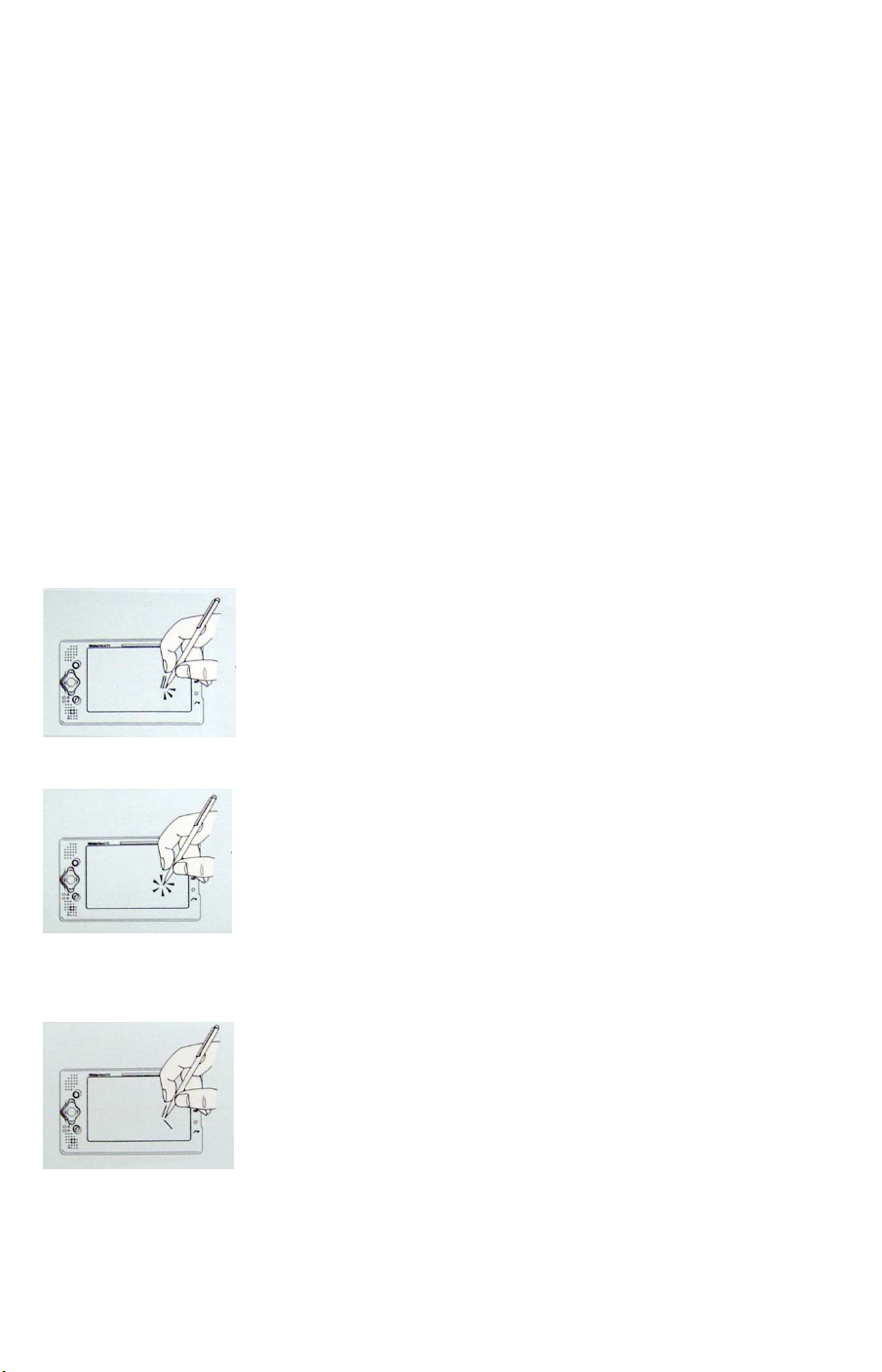

Tap

Pressing screen one time. Corresponds to
clicking left button in mouse.
You can select item or run program by
tapping.

Double Tap

Pressing screen two times continuously.
Corresponds to double clicking left button in
mouse.
You can run some programs by double

Drag

Move to intended point while you are pressing
screen.
You can select an area on screen or select
multiple items at once by dragging.

- 21 -

Tap and Hold

Press screen for about 2 seconds.
Correspones to clicking right button in mouse
You can see additional functions of the
selected item.

If you want to use Tap and Hold function,
you have to change setting. (Refer to
"Mouse right button function")

Note

"Recalibrating")

If stylus is not operating normally, recalibrate. (Refer to

- 22 -

Entering Text

There are several ways to enter text in NEXiO.

- Using Software Keyboard which is internally embedded in NEXiO

- Using External Keyboard which is an option (refer to Accessory
Guide)

Software Keyboard is provided in NEXiO. so let's learn how to
use Software Keyboard with stylus.

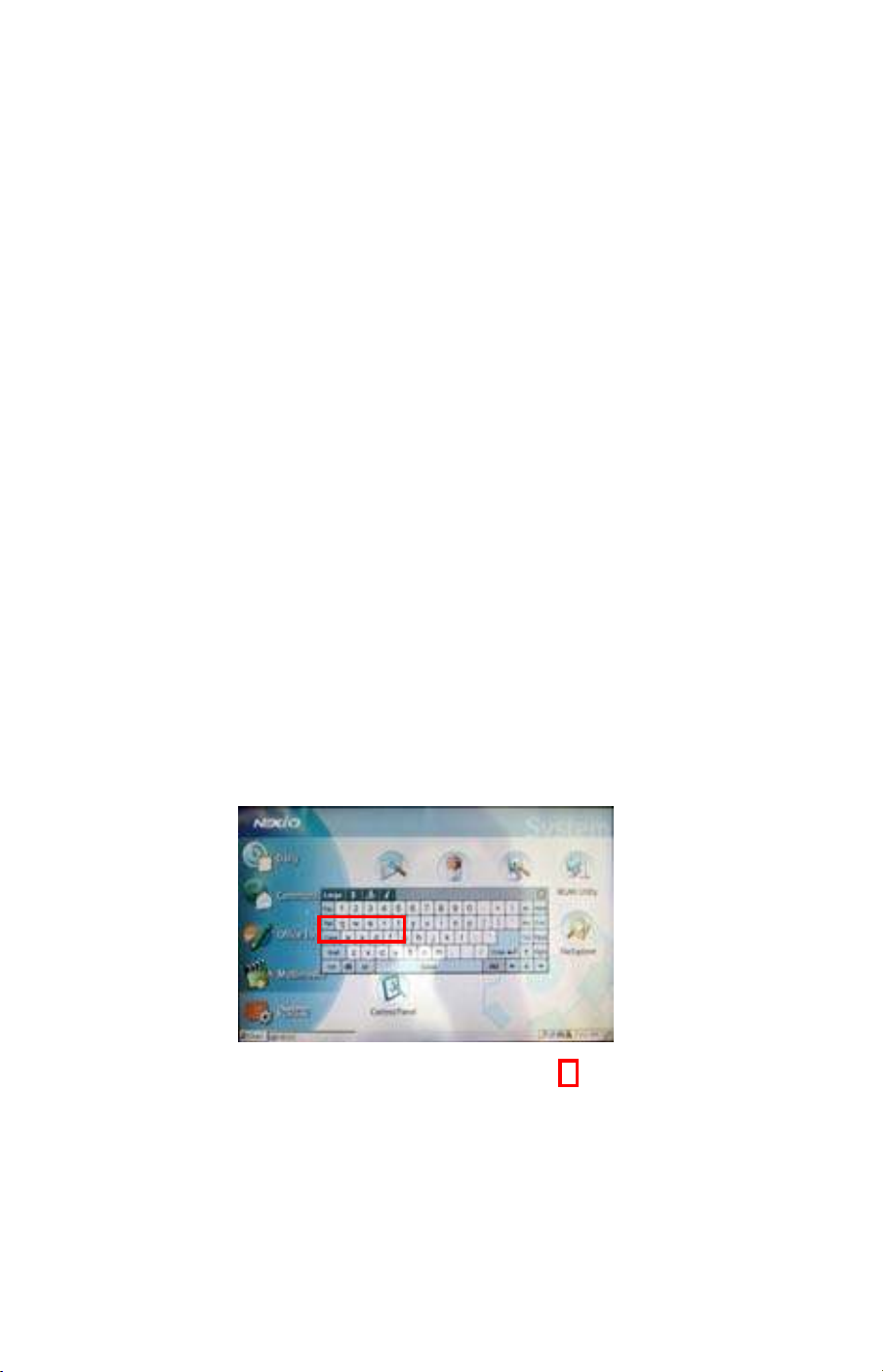

Using Software Keyboard

Software Keyboard is a keyboard shown on the screen. Software
Keyboard is made up of Keyboard Mode, Hand Writing Mode, and
Internet Mode.

Tap Keyboard (
will appear.
When you first run Keyboard, Small Size Keyboard in Keyboard
Mode will be shown. When you change keyboard mode and run
keyboard again, recently changed mode will be shown.

위치 지시선

(
Software Keyboard
Keyboard Mode
Hand Writing Mode

그림

) Icon on the taskbar, then Software Keyboard

)

Internet Mode

- 23 -

Retting(Normalizing NEXiO)

You can reset to normalize NEXiO when NEXiO is not operating
properly.
There are two ways of resetting : Soft reset, which is just shutting
down all running programs, and hard reset, which is initializing
NEXiO to the state when you first bought it.

Soft Reset

When you soft reset, all running programs are shut down and
NEXiO is turned on again.

To soft reset, press reset hole in the rear side with stylus.

reset hole

Hard Reset

When NEXiO does not operate normally even after soft resetting,
hard reset. When you hard reset, NEXiO is initialized to the state
when you first bought it.

Note

Reter to "Backup and restore" to save data before hard reset.

To hard reset, press reset hole in the rear side with stylus while
you are pressing power button.

When you hard reset, data and password are deleted.

- 24 -

power button + reset hole

Note

appear. Refer to stylus calibration section of "Turning on/off
NEXiO" to finish setting.

After hard resetting, Stylus calibration setting screen will

- 25 -

Leaning about NEXiO Programs

NEXiO Programs is a launcher program that lets users to use
programs in NEXiO easily.
In this chapter, you will learn about how to use NEXiO Program
and what programs are provided in NEXiO.

Note

programs.

Refer to online manual for more specific guide on using

Programs provided with NEXiO can be added or deleted
afterward and may be different from this guide.

Running NEXiO Programs

When you turn on NEXiO, NEXiO Programs will be shown on the
screen.

NEXiO Programs screen is made up of menu and list of programs.

-menu classified in 5 categories

-program programs that comes under each category are
shown

Note

button on the front side of NEXiO.

If NEXiO programs is not automatically run, press NEXiO

- 26 -

Or tap Start > Programs > NEXiO from the taskbar,

or double tab NEXiO ( ) icon on the background.

- 27 -

Notices

No part of this publication may be reproduced, stored in a retrieval system,
or transmitted, in any form or by any means, mechanical photocopying,
recording or otherwise, without the prior written permission of the
manufacturer.

The information within this manual is subject to change without notice.

The manufacturer shall not be held liable for technical or editorial errors or
omissions contained in herein; nor for incidental or consequential damages
resulting from the furnishing, performance or use of this material.

Microsoft Windows is a registered trademark of the Microsoft Corporation.

Product names mentioned herein are for identification purposes only, and
may be trademarks and/or registered trademarks of their respective
companies.

Important Safety Information

Safety Instructions

Your system is designed and tested to meet the latest standards for safety
of information technology equipment. However, to ensure safe use of this
product, it is important that the safety instructions marked on the product
and in the documentation are followed.

Always follow these instructions to help guard against personal injury and
damage to your system.

Setting Up your System

Replacement Parts and Accessories

Use only replacement parts and accessories recommended by
manufacturer.

To reduce the risk of fire, use only No. 26 AWG or larger
telecommunications line cord.

Do not use this product in areas classified as hazardous. Such areas
include patient care areas of medical and dental facilities, oxygen rich
environments, or industrial areas.

Battery Disposal

Do not put rechargeable batteries or products powered by non-removable
rechargeable batteries in the garbage.

- 28 -

Contact the Samsung Helpline for information on how to dispose of
batteries that you cannot use or recharge any longer.

Follow all local regulations when disposing of old batteries.

Power Cord Requirements

The power cord set (wall plug, cable and AC adapter plug) you received
with your computer meets the requirements for use in the country where
you purchased your equipment.

Power cord sets for use in other countries must meet the requirements of
the country where you use the computer. For more information on power
cord set requirements, contact your authorized dealer, reseller, or service
provider.

General Requirements

The requirements listed below are applicable to all countries:

·

227The length of the power cord set must be at least 6.00 feet (1.

8m) and a maximum of 9.75 feet (3.0m).

·

All power cord sets must be approved by an acceptable accredited
agency responsible for evaluation in the country where the power cord
set will be used.

·

The power cord set must have a minimum current capacity of 7 A
and a nominal voltage rating of 125 or 250 volts AC, as required by
each country's power system.

·

The appliance coupler must meet the mechanical configuration of
an EN 60 320/IEC 320 Standard Sheet C13 connector, for mating with
appliance inlet on the computer.

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz Band, may be present
(embedded) in your notebook system. The following section is a general
overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed
in the specific country sections (or country group sections). The wireless
devices in your system are only qualified for use in the countries identified
by the Radio Approval Marks on the system rating label. If the country you
will be using the wireless device in, is not listed, please contact your local
Radio Approval agency for requirements. Wireless devices are closely

- 29 -

regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded
in your notebook is well below the RF exposure limits as known at this
time. Because the wireless devices (which may be embedded into your
notebook) emit less energy than is allowed in radio frequency safety
standards and recommendations, manufacturer believes these devices are
safe for use. Regardless of the power levels, care should be taken to
minimize human contact during normal operation.

This transmitter must not be collocatedoroperateinconjunctionwithany
other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of
common restrictions are listed below:

Radio frequency wireless communication can interfere with equipment on
commercial aircraft. Current aviation regulations require wireless devices to
be turned off while traveling in an airplane. 802.11B (also known as
wireless Ethernet or Wifi) and Bluetooth communication devices are
examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services
is harmful or perceived as harmful, the option to use a wireless device may
be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable
gas laden atmospheres are limited examples where use of wireless devices
may be restricted or eliminated. When in environments where you are
uncertain of the sanction to use wireless devices, ask the applicable
authority for authorization prior to use or turning on the wireless device.

Every country has different restrictions on the use of wireless devices.
Since your system is equipped with a wireless device, when traveling
between countries with your system, check with the local Radio Approval
authorities prior to any move or trip for any restrictions on the use of a
wireless device in the destination country.

If your system came equipped with an internal embedded wireless device,
do not operate the wireless device unless all covers and shields are in
place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way.
Modification to a wireless device will void the authorization to use it. Please
contact manufacturer for service.

Only use drivers approved for the country in which the device will be used.
See the manufacturer System Restoration Kit, or contact manufacturer
Technical Support for additional information.

United States of America

Unintentional Emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1) this device may not cause

- 30 -

harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits
for a Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generate uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

·

Reorient or relocate the receiving antenna.

·

Increase the separation between the equipment and receiver.

·

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected

·

Consult the dealer or an experienced radio/TV technician for help.

If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user may find
the following booklet helpful:밪omething About Interference.?This is
available at FCC local regional offices. Our company is not responsible
for any radio or television interference caused by unauthorized
modifications of this equipment or the substitution or attachment of
connecting cables and equipment other than those specified by our
company. The correction will be the responsibility of the user. Use
only shielded data cables with this system.

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz Band, may be
present (embedded) in your notebook system. This section is only
applicable if these devices are present. Refer to the system label to
verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use
intheUnitedStatesofAmericaifanFCCIDnumberisonthe
system label.

This transmitter must not be collocated or operate in conjunction with
any other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any

- 31 -

way. Modification to a wireless device will void the authorization to use
it. Contact manufacturer for service.

FCC RF EXPOSURE INFORMATION

In August 1996 the Federal Communications Commission (FCC) of the
United States with its action in Report and Order FCC 96-326 adopted
an updated safety standard for human exposure to radio frequency
electromagnetic energy emitted by FCC regulated transmitters. Those
guidelines are consistent with the safety standard previously set by
both U.S. and international standards bodies.

The design of this Hand PC complies with the FCC guidelines and
these international standards. Use only the supplied or an approved
antenna. Unauthorized antennas, modifications, or attachments could
result in violation of FCC regulations.

Body-worn Operation

This device was tested for typical body-worn operations with the

device directly contacted to the human body to the back and side of

the Hand PC. To maintain compliance with FCC RF exposure

compliance requirements, use other accessories should not contain

metallic components in its assembly. The use of accessories that do

not satisfy these requirements may not comply with FCC RF exposure

compliance requirements, and should be avoided.

Face Held Operation

This device was tested for Face Held operations with the separation
distance of 2.5 cm between the microphone of the device to the
human face. While using face held operation, hold the Hand PC at
least 2.5 cm(1 inch) from your face and speak in a normal voice.

- 32 -

SAMSUNG HANDHELD PERSONAL COMPUTER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by Samsung
Electronics America, Inc. (SAMSUNG) and delivered new, in the original
carton to the original consumer purchaser, is warranted by SAMSUNG
against manufacturing defects in materials and workmanship for a limited
warranty period of:

One (1) Year Parts and Labor Carry-In/Ship-In Service*

(*90 Days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid
only on products purchased and used in the United States. To receive
warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures. Warranty service can only be
performed by a SAMSUNG authorized service center. The original dated
bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG's authorized service center. Transportation of the
product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if
found to be defective during the limited warranty period specified above.
All replaced parts and products become the property of SAMSUNG and
must be returned to SAMSUNG. Replacement parts and products assume
the remaining original warranty, or ninety (90) days, whichever is longer.

SAMSUNG does not warrant uninterrupted or error-free operation of the
product, and shall not be liable for the loss or destruction of data or media
resulting from the use or service of this product. It is the purchaser's
responsibility to secure all programs and data contained in or affected by
the product. The purchaser is cautioned that product performance may be
affected by installation, system configuration, software, applications,
equipment compatibility, purchaser data and operator control of the system,
among other factors, and it is the purchaser's responsibility to determine the
functional implementation.

SAMSUNG's obligations with respect to software products distributed by
SAMSUNG under the SAMSUNG brand name are set forth in the
applicable end user license agreement. Non-SAMSUNG hardware and
software products, if provided, are on an “ AS IS” basis. Non-SAMSUNG
manufacturers, suppliers, publishers, and service providers may provide their
own warranties.

This limited warranty covers manufacturing defects in materials and
workmanship encountered in normal, and except to the extent otherwise
expressly provided for in this statement, noncommercial use of this product,
and shall not apply to the following, including, but not limited to: damage
which occurs in shipment; delivery and installation; applications and uses for
which this product was not intended; altered product or serial numbers;

- 33 -

cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water,
lightning or other acts of nature; use of products, equipment, systems,
utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied or authorized by
SAMSUNG, or which damage this product or result in service problems;
incorrect electrical line voltage, fluctuations and surges; customer
adjustments and failure to follow operating instructions, cleaning,
maintenance and environmental instructions that are covered and prescribed
in the instruction book; product removal or reinstallation; reception or display
problems and distortion related to noise, echo, interference or other signal
transmission and delivery problems; reduced screen brightness related to
normal tube and lamp aging, or burned-in images.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED
AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS
STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR
GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR
ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,
REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS
BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY
KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND
CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR
LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S
PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF
THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY
SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF
SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO
ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT,
IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts,
or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights, which vary
from state to state.

To obtain warranty service, please contact SAMSUNG at:

SAMSUNG CUSTOMER CARE CENTER

400 Valley Road, Suite 201, Mt. Arlington, NJ 07856

Tel: [phone], Fax: [phone]

XXX-XXX-XXXX

and

www.SAMSUNGUSA.com

- 34 -

specification

OS

WinCE.net (4.0 PB)

CPU

PXA250 300(400)MHz (Intel)

Display

5 inch Transflective WVGA TFT LCD (800*480, 64K color)

Memory

Flash ROM 64MB(NAND type)
SDRAM128MB(upto256MB)

Wireless Comm.

WLAN(802.11b) built-in (11Mbps)
(Support CF II, PCMCIA type WAN solution)

Interface

CF II slot, Standard USB(Host) ,
USB docking port (PC sync.,VGA-out,Power charging)
Keyboard port (4pin), Earphone jack (stereo)

Battery

Li-polymer 1500mAH (Quick charging, 2.5hrs @ 90%)
( * battery life : PDA 9hrs, WLAN 3hrs )

Sound

Φ

Speaker (17Φ, mono), Mic (6
Earphone (stereo, VOIP support)

, mono)

LED Indicator

3 ea ; Red/Green (power), Orange (Alarm), Blue (Data TRX status, Email
alarm)

Key Buttons

4 way navigation + enter button,
2 Hot button (Launcher, Backlit), Rec.,
Reset, Hold switch

Cover

Leather cover

Stylus

102.2mm, 4.5

Φ

Size

155 * 91 * 13.4 (w/ leather cover)

- 35 -

Weight

280g (incld. Battery, keyboard cover)
250g (incld. Battery, leather cover)

Accessories

Cradle

LED (power), 2 Holes(Stylus & Pen)
Charging slot for 2nd battery
Detachable Sync. Cable & AC adapter
**Leather/keyboard Cover can be open on cradle
**Device with 2nd battery can be mounted on cradle

Earphone

2.5Φ,StereoMP3,Mic.Support

Standing module

CF slot built-in type, Simple & Rugged style

VGA-out cable

800*600, 640*480 support,
Enhanced compression rate

- 36 -

SAMSUNG DIGITall

everyone's invited

SAMSUNG CUSTOMER CARE CENTER
400 Valley Road, Suite 201, Mt. Arlington, NJ 07856

Tel: [phone], Fax: [phone]

www.samsungnexio.com

Printed in Korea.

- 37 -
