Network Printer Server
Samsung Electronics
Service Manual
11-1
1
1
1
1

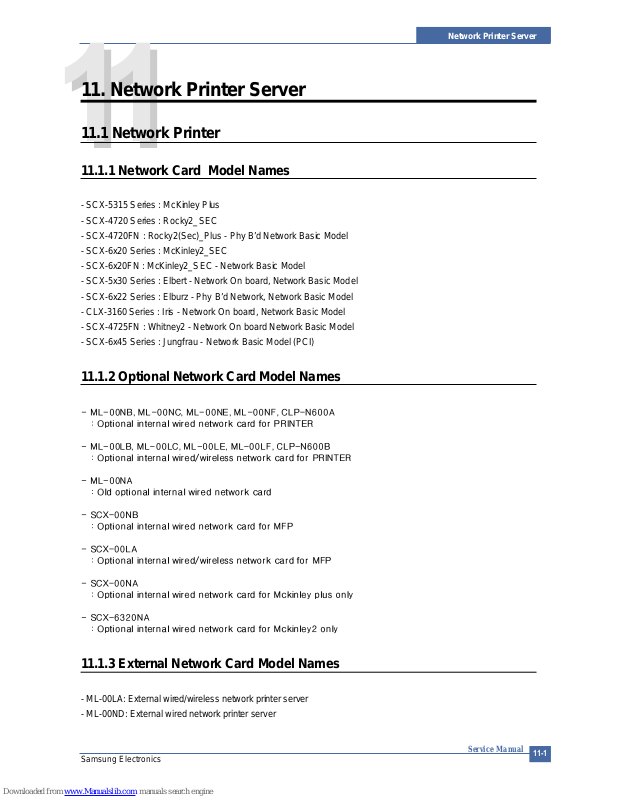

1 1. Network Printer Server
1 1.1 Network Printer
1 1.1.1 Network Card Model Names
- SCX-5315 Series : McKinley Plus
- SCX-4720 Series : Rocky2_SEC
- SCX-4720FN : Rocky2(Sec)_Plus - Phy B’d Network Basic Model
- SCX-6x20 Series : McKinley2_SEC
- SCX-6x20FN : McKinley2_SEC - Network Basic Model
- SCX-5x30 Series : Elbert - Network On board, Network Basic Model
- SCX-6x22 Series : Elburz - Phy B’d Network, Network Basic Model
- CLX-3160 Series : Iris - Network On board, Network Basic Model
- SCX-4725FN : Whitney2 - Network On board Network Basic Model
- SCX-6x45 Series : Jungfrau - Network Basic Model (PCI)
1 1.1.2 Optional Network Card Model Names
1 1.1.3 External Network Card Model Names
- ML-00LA: External wired/wireless network printer server
- ML-00ND: External wired network printer server
Page 2
Samsung Electronics
Service Manual
Network Printer Server
11-2
1 1.2 Printer Connection Method
- Network Card Type
- PHY Board T ype
- Network Printer on-board Type
Printer Main B'd
(Printer SW only)
Network Card
(SW + HW)
+
Printer Main B'd
(Printer + Network SW)
PHY B'd
(HW only)
+
Printer Main B'd
(Printer + Network SW & HW)
Page 3
Network Printer Server
Samsung Electronics
Service Manual
11-3
- Network Card (SCX-6320NA/SEE)
1
2
3
4
RJ- 45 Modular Jack
Activity LEDLink LED
Serial Interface for Debugging
Flash
DRAMPHY
EEPROM
Transceiver
CPU
1
2
3
4
Flash
DRAMPHY
EEPROM
Transceiver
CPU
1
2
3
4
Flash
DRAMPHY
EEPROM
Transceiver
CPU
1
2
3
4
Page 4
Samsung Electronics
Service Manual
Network Printer Server
11-4
- Network Card (NPC3H)
ML-3561N CLP-N600A
CLP-600N CLP-N600B
ML-00NF/00LF SCX-6x45 Series
1
2
RJ- 45 Modular Jack
Activity LED
3 Link LED
4
Printer I/F Connector
1
2
3
4
- Link Sequence
Activity LED
Turning Off
LINK LED Always On
Page 5
Network Printer Server
Samsung Electronics
Service Manual
11-5
- Network Data Reception
Activity LED
Blinking Irregularly
LINK LED
Always On
10101 100
10001 001
11001 010
01010 011
10101 100
10001 001
11001 010
01010 011
- Network Data T ransmission
Activity LED
Blinking Irregularly
LINK LED
Always On
10101 100
10001 001
11001 010
01010 011
10101 100
10001 001
11001 010
01010 011
10101 100
10001 001
11001 010
01010 011
Page 6
Samsung Electronics
Service Manual
Network Printer Server
11-6
1 1.3 Network Card Firmware
Firmware Components
- Boot code ROM
- Application code ROM
Boot Code ROM
- Power-on initialization
- Mostly model-independent
Application Code ROM
- Doing major functions
- Model-dependent program
Application
Boot
Application
Boot
128KB
Up to
2MB
NPC3 Flash Memory
1 1.4 Network Card Firmware : Upgrade
Firmware Upgrade
- To upgrade network card firmware with latest version
- Use TFTP Protocol (Network Card Type Only)
- Use HTTP Protocol (Embedded Web Server, SWS, SWAS)
Requirements
- Target Network Card
Well Configuration of TCP/IP Protocol
In Local Area Network with Server Computer
- Server Computer
Well Configuration of TCP/IP Protocol
Samsung SyncThru Application in case of using TFTP.
SyncThru Web Service (SWS) in case HTTP .
Page 7
Network Printer Server
Samsung Electronics
Service Manual
11-7
1 1.5
SyncThru Web Admin Service Web based Printer Management Solution
- Detecting device on the network
- Performing Maintenance operations
- Getting detailed reports and statistics on device events
NW PrinterNW Printer
MFPMFP
Administrator's PCAdministrator's PC
MFPMFP
SNMPSNMP
SNMPSNMP
SNMPSNMP
HTTPHTTP
NW PrinterNW Printer
MFPMFP
Administrator's PCAdministrator's PC
MFPMFP
SNMPSNMP
SNMPSNMP
SNMPSNMP
HTTPHTTP
Page 8
Samsung Electronics
Service Manual
Network Printer Server
11-8
1 1.5.1 SWAS Features
3.xx.xx
4.xx.xx
Plug-ins
Version Model Remark
Kestrel (ML-3560),
Dove (ML-3051ND),
Falcon (ML-8800),
Elbert (SCX-5530FN),
DaVinci (CLP-600),
DaVinci PDL (CLP-650),
Iris (CLX-3160FN)
Oriole (ML-2570),
Stork (ML-4551ND),
Elbruz (SCX-6322DN),
Whitney2 (SCX-4725)
Jungfrau And upcoming
model
- Detecting device on the network
- Performing Maintenance operations
- Display general , Supply , Protocols, Status, Usage
meters, Alert, Diagnostics information
- Grouping and Managing devices
- Setting of detection Protocol
- Upgrading Firmware group of device
- Reporting information of Alert and Consumables by
HTML or Email
- Discovery Status Checking
- Set IP
- Online Toner Ordering
- SSL / User Authentication
- IPv6
- SNMP V3
- 13 Languages (Hungarian, Brazilian Portuguese,
Turkish)
Plug-in will be released in the samsung download
center
Plug-ins can be installed on the SyncThru4.0 (Addon functions)
- Restrict user permission and monitor actual usage
information (Job Accounting Plug-in)
- Copy configuration settings into multiple devices
(Device Cloning Plug-in)
- Add, delete, copy and move files between devices
(File Storage Plug-in)
- Discovery and monitor about non- network printers
(Local Device Discovery Plug-in)
- Get the latest driver and management driver files
(Driver Management Plug-in)
- Pre-configure and install drivers in the remote hosts
(Driver Management Plug-in)
Page 9
Network Printer Server
Samsung Electronics
Service Manual
11-9
1 1.5.2 Version Identifier
Version 3.00.52
SWAS 3.x and SWAS 4.x is available
Page 10
Samsung Electronics
Service Manual
Network Printer Server
11-10
1 1.5.3 SW AS Device Menu
Detecting and Displaying devices on the network
Device information in the network
Display general , Supply , Protocols, Status, Usage meters, Alert, Diagnostics information
Detail informationDetail information
of device of device
by doubleby double --clickclick
Page 11
Network Printer Server
Samsung Electronics
Service Manual
11-11
Grouping and Managing devices
Grouping devices
Setting of detection Protocol
IP broadcasting is a
default Setting
Page 12
Samsung Electronics
Service Manual
Network Printer Server
11-12

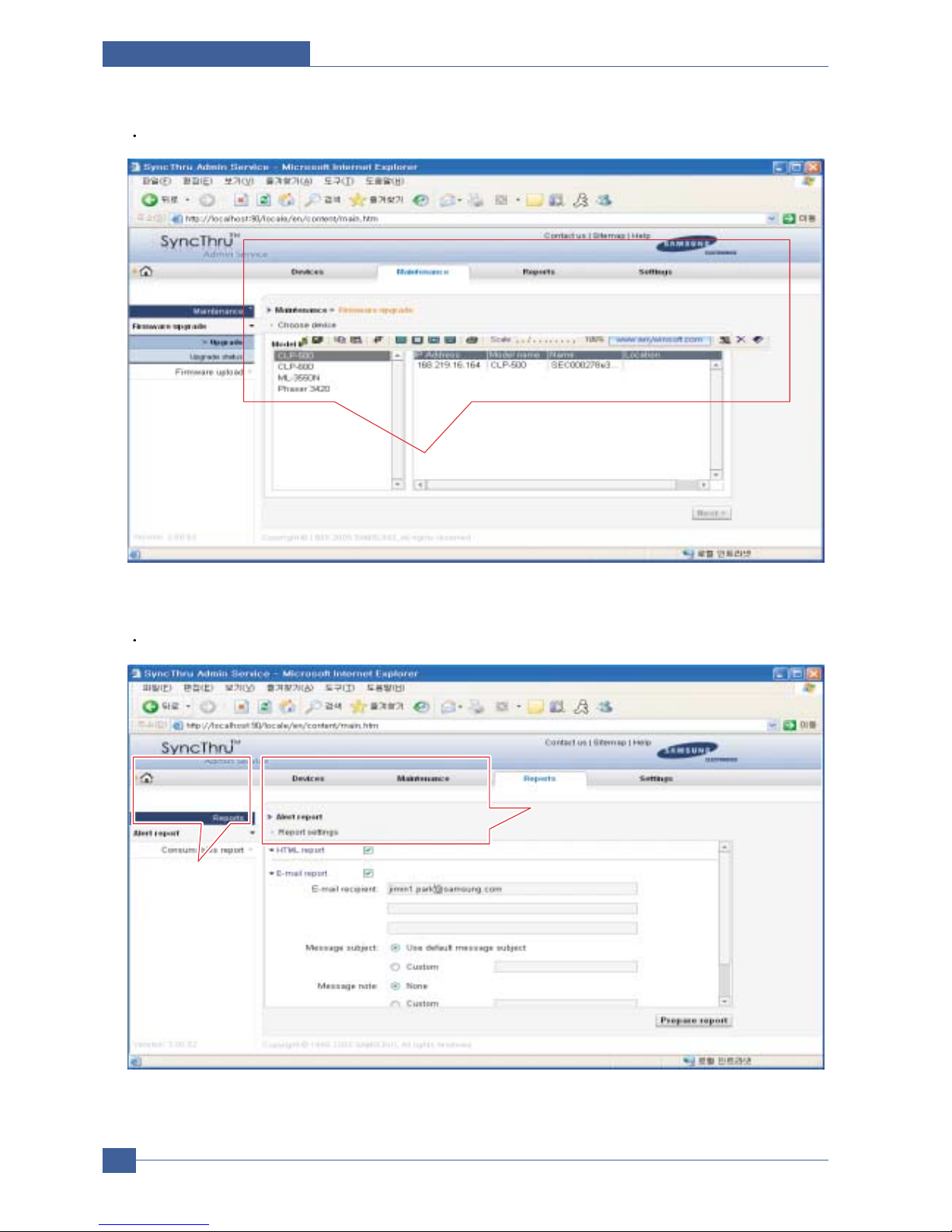

Upgrading Firmware to multiple devices
Upgrading Firmware
Reporting information of Alert and Consumables by HTML or Email
Alert and Consumables Report
Email and HTML Reporting
Alert and Consumables Report
Email and HTML Reporting
Page 13
Network Printer Server
Samsung Electronics
Service Manual
11-13

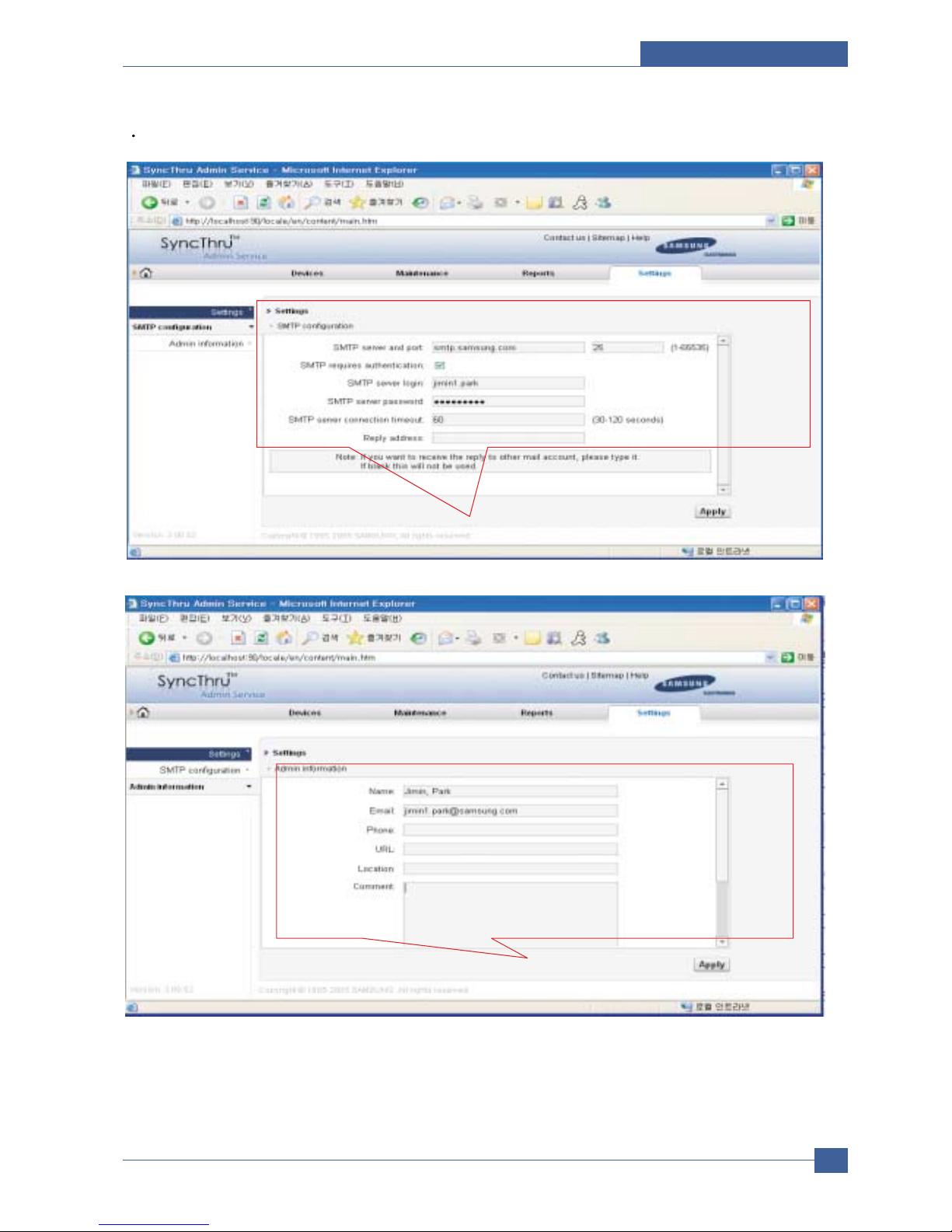

Configure SMTP Server and Admin Information
Configure SMTP
Configure Admin Information
Page 14
Samsung Electronics
Service Manual
Network Printer Server
11-14

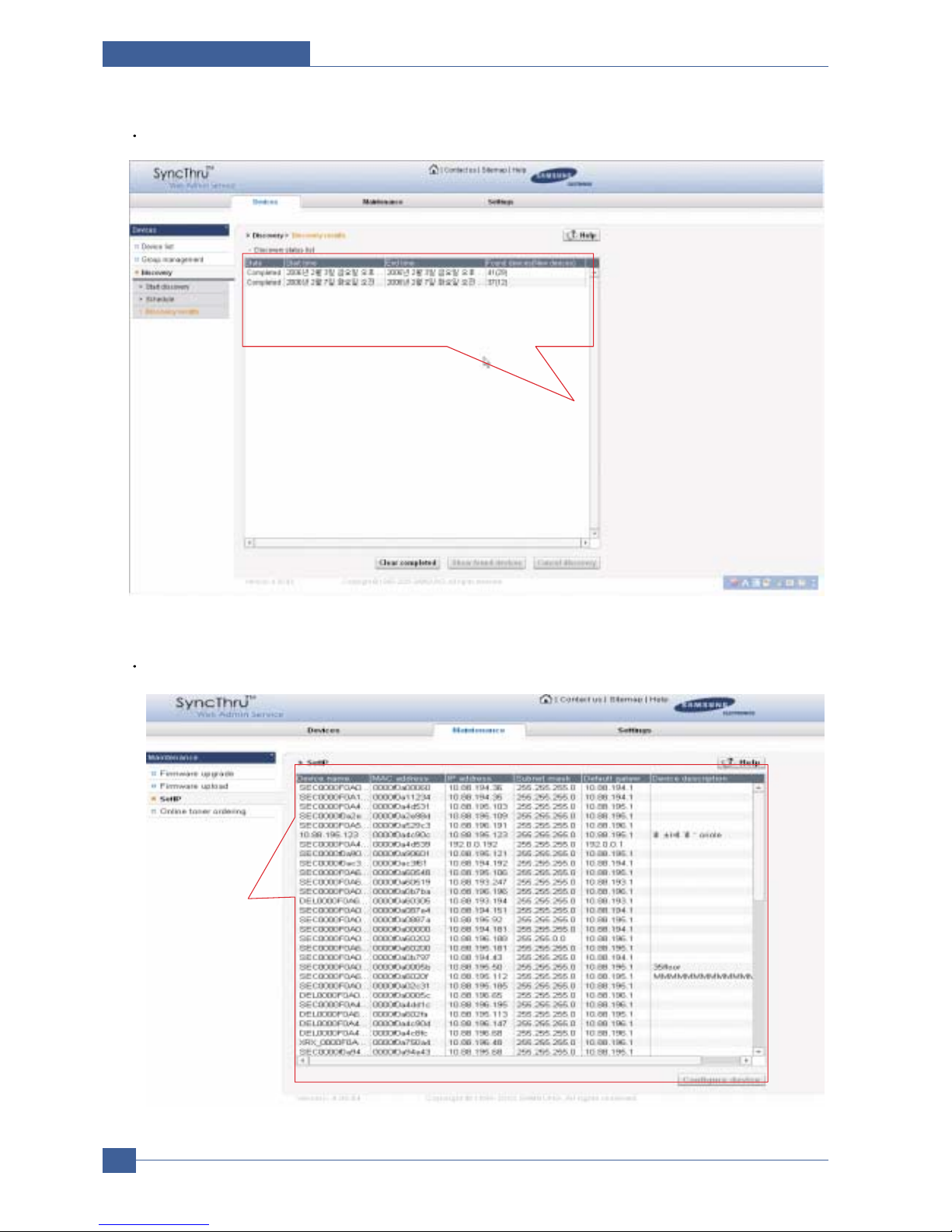

Discovery results
Checking discovery process

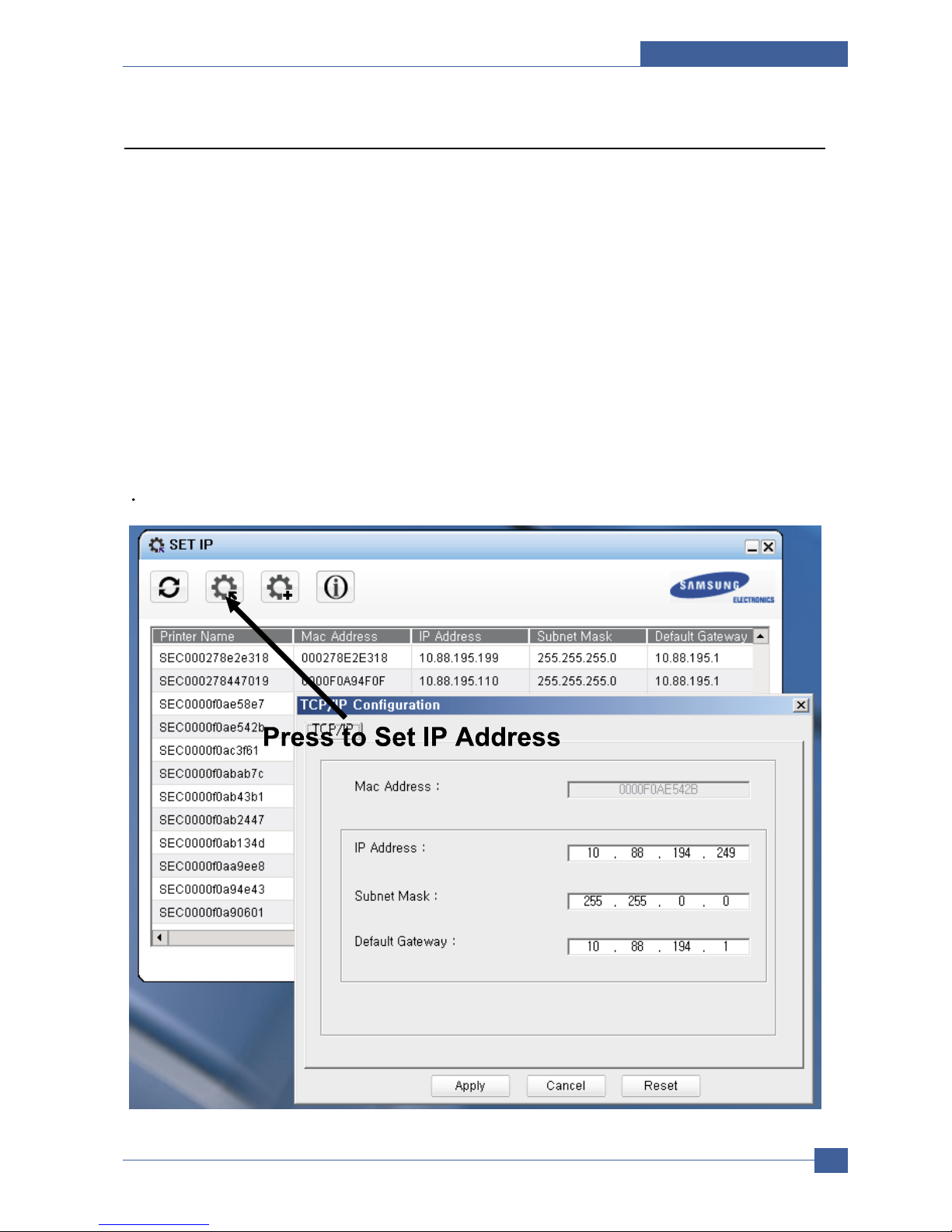

Set up IP
Set up IP Address
Page 15
Network Printer Server
Samsung Electronics
Service Manual
11-15

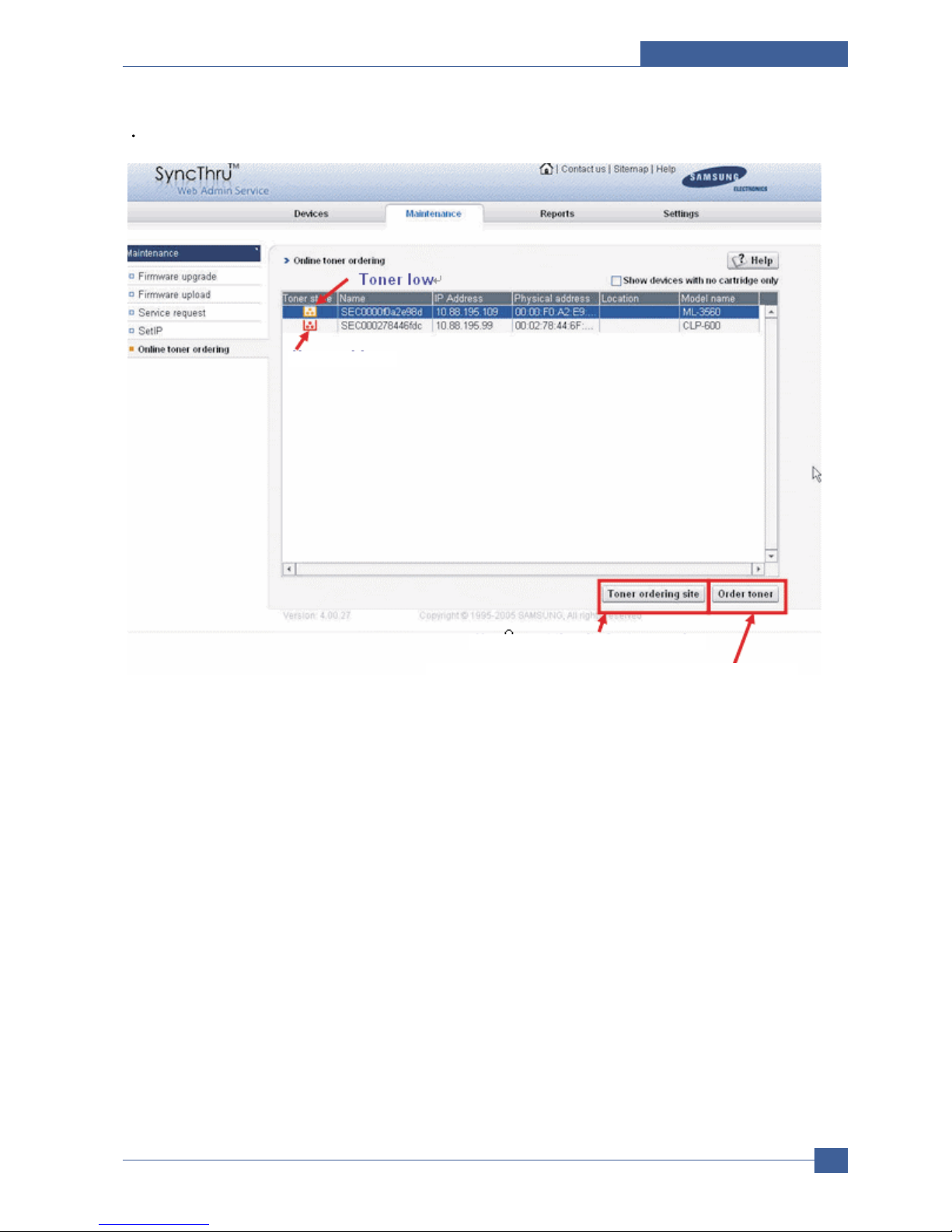

Online toner ordering
No cartridge
This button opens the page set in the toner ordering site.
You can set the site for toner order.
Page 16
Samsung Electronics
Service Manual
Network Printer Server
11-16

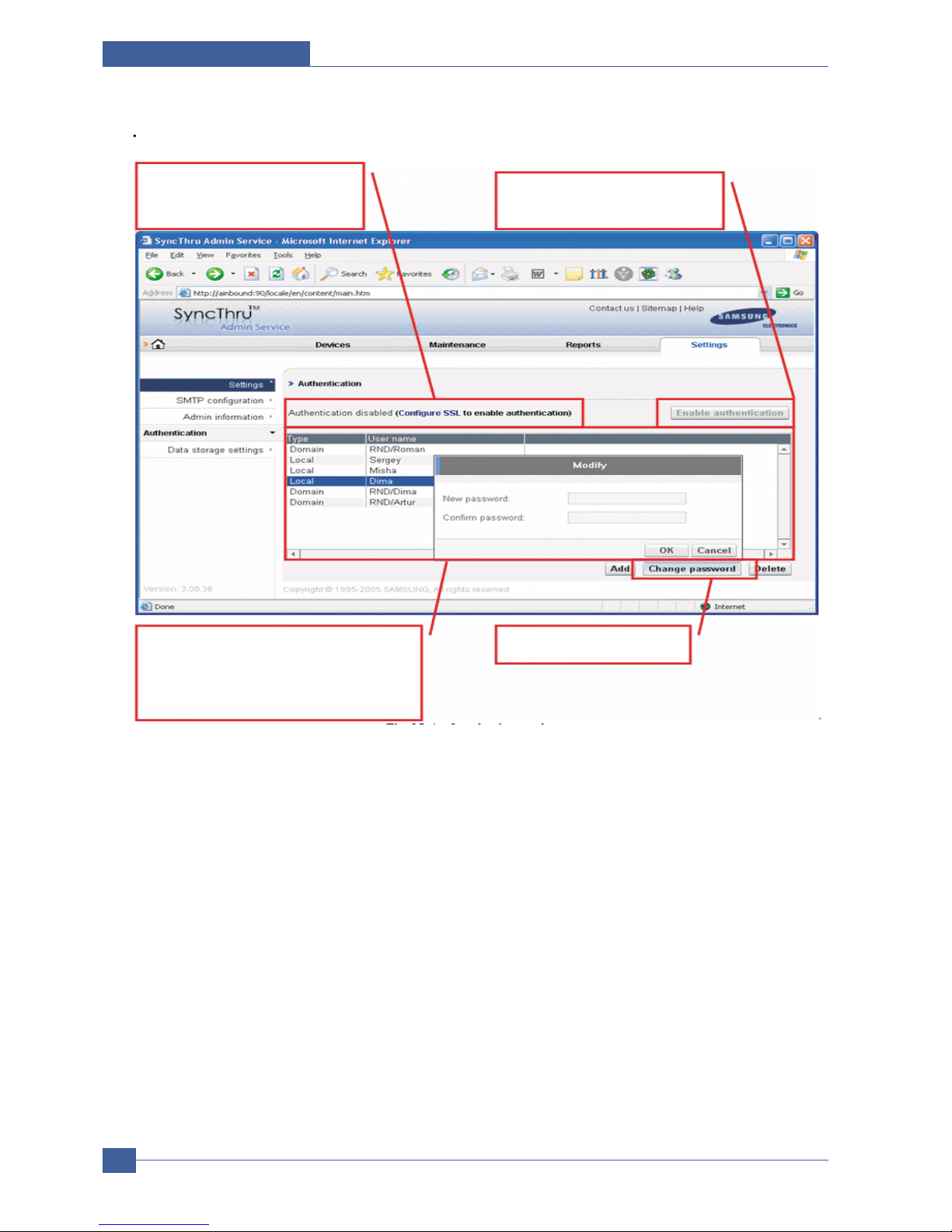

Authentication settings
If SSL is not enabled and configured
then it's not possible to enable
authentication. The link leads to SSL
configuration.
User list shows user accounts both from
Domain and Local. The method of
authentication is used according the type of
user profile (Local or Domain).
Change password for Local
users only.
Authentication can be enabled with
the button.
Authentication works only when
SSL is enabled.
Page 17
Network Printer Server
Samsung Electronics
Service Manual
11-17
1 1.6 Samsung SyncThru Web Service: General Information (MFP)

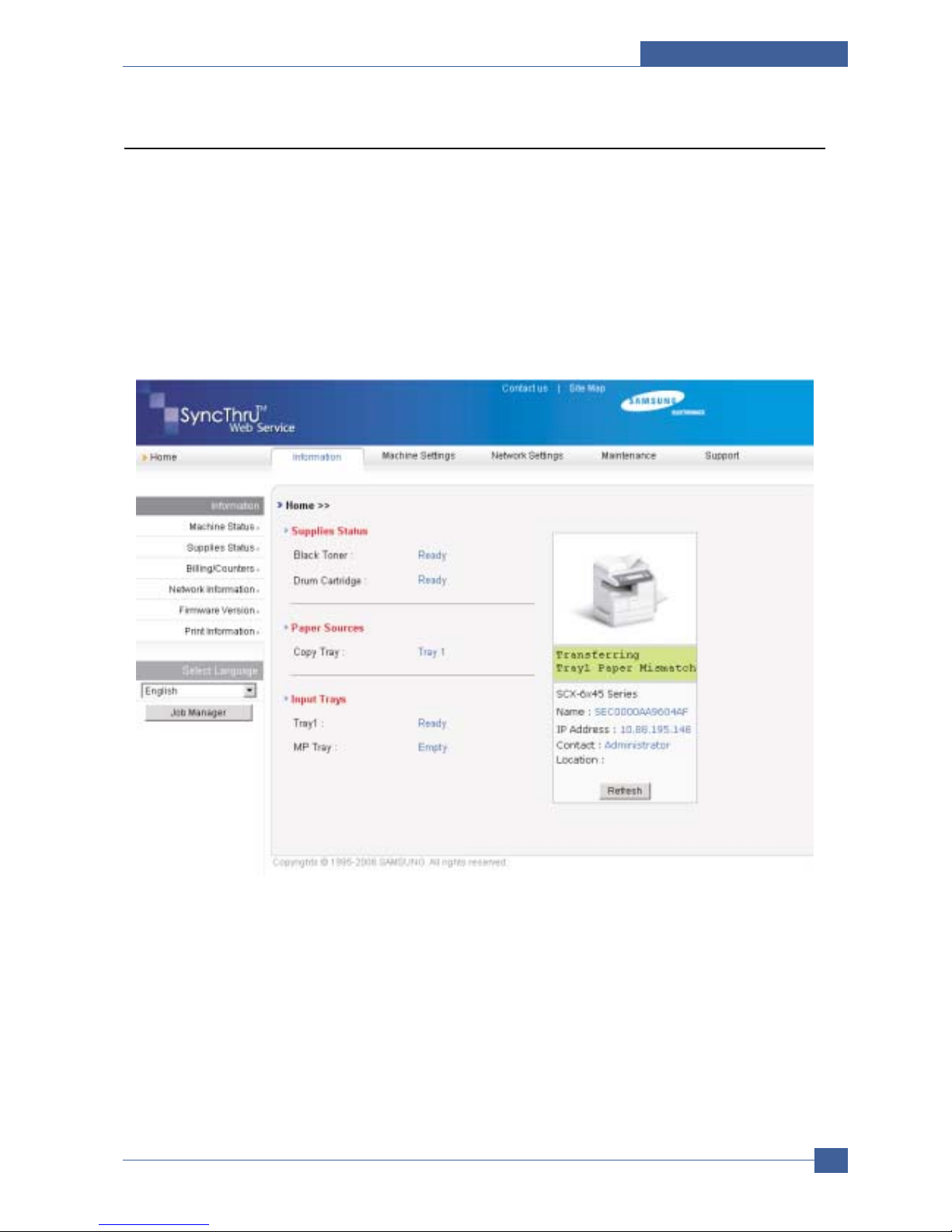

General Information
- Machine Status
- Supplies Status
- Billing/Counters
- Network Information
- Firmware Version
- Print Information
Page 18
Samsung Electronics
Service Manual
Network Printer Server
11-18
1 1.7 Samsung SyncThru Web Service: Machine Settings (MFP)

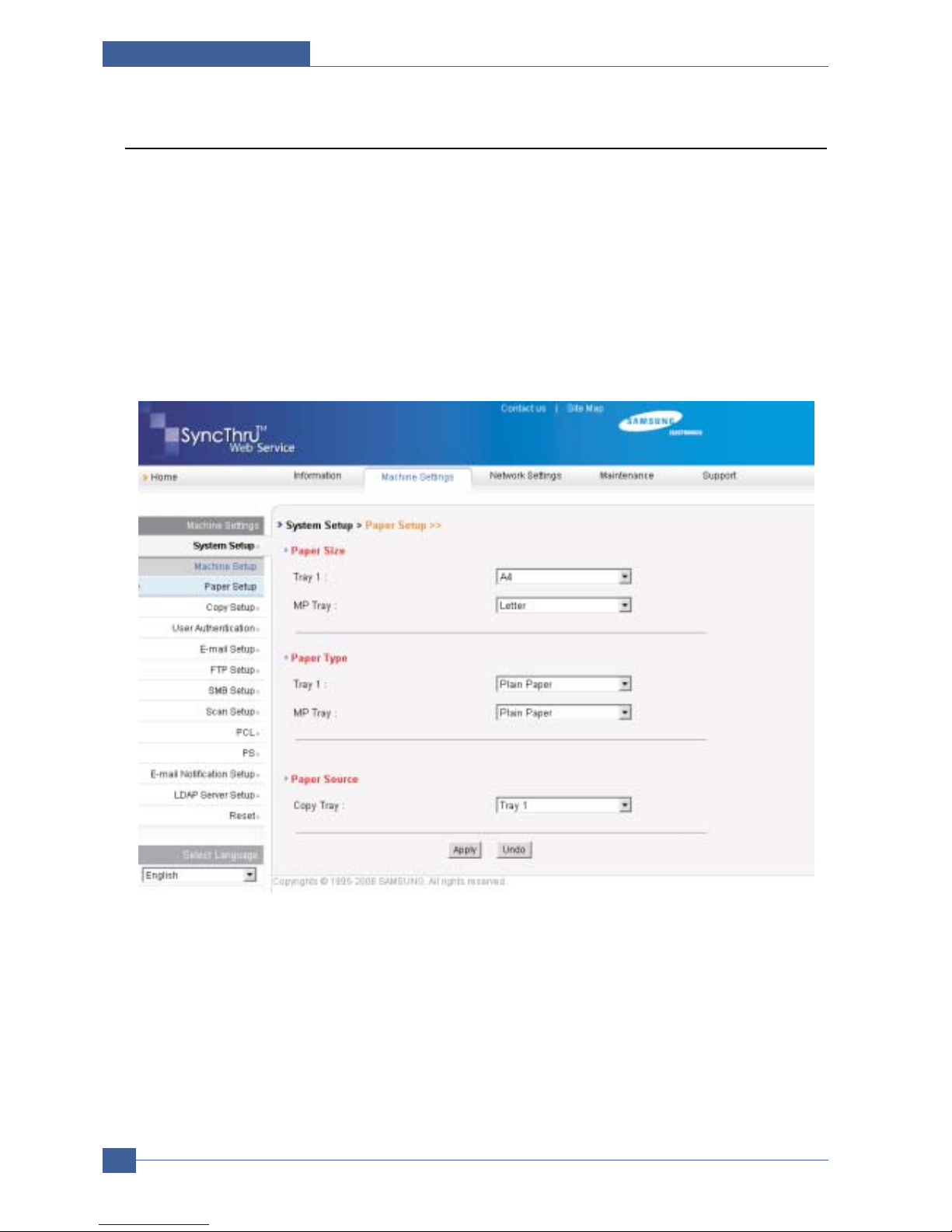

Machine Settings
- System Setup
- Copy Setup
- User Authentication Setup
- E-mail Setup
- E-mail Notification Setup
- Reset
- ...
Page 19
Network Printer Server
Samsung Electronics
Service Manual
11-19

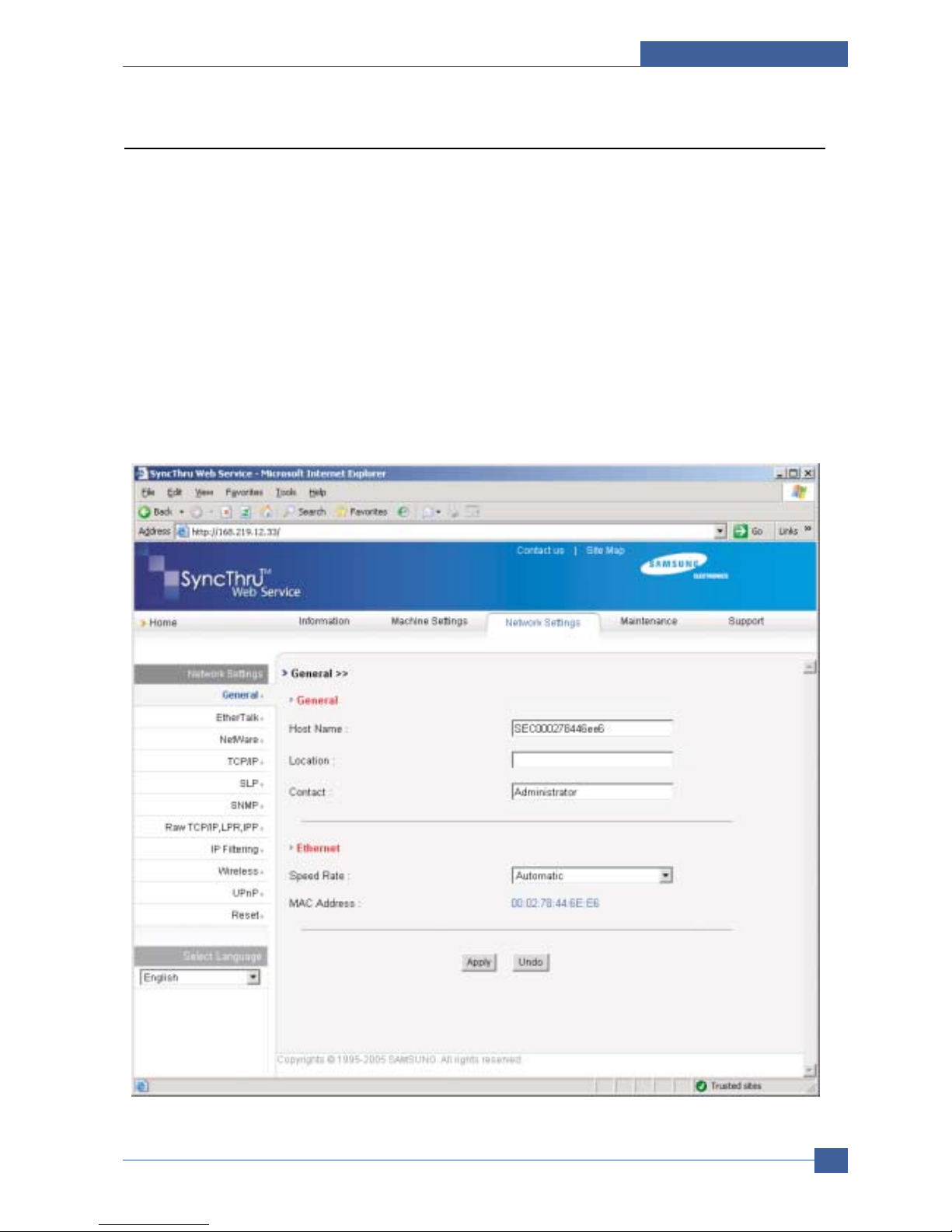

1 1.8 Samsung SyncThru Web Service: Network Settings
Network Settings
- General
- NetWare
- TCP/IP
- SLP
- SNMP
- Raw TCP/IP , LPR, IPP
- IP Filtering
- Wireless
- UPnP
- Reset
Page 20
Samsung Electronics
Service Manual
Network Printer Server
11-20
1 1.9 Samsung SyncThru Web Service: Maintenance
Maintenance

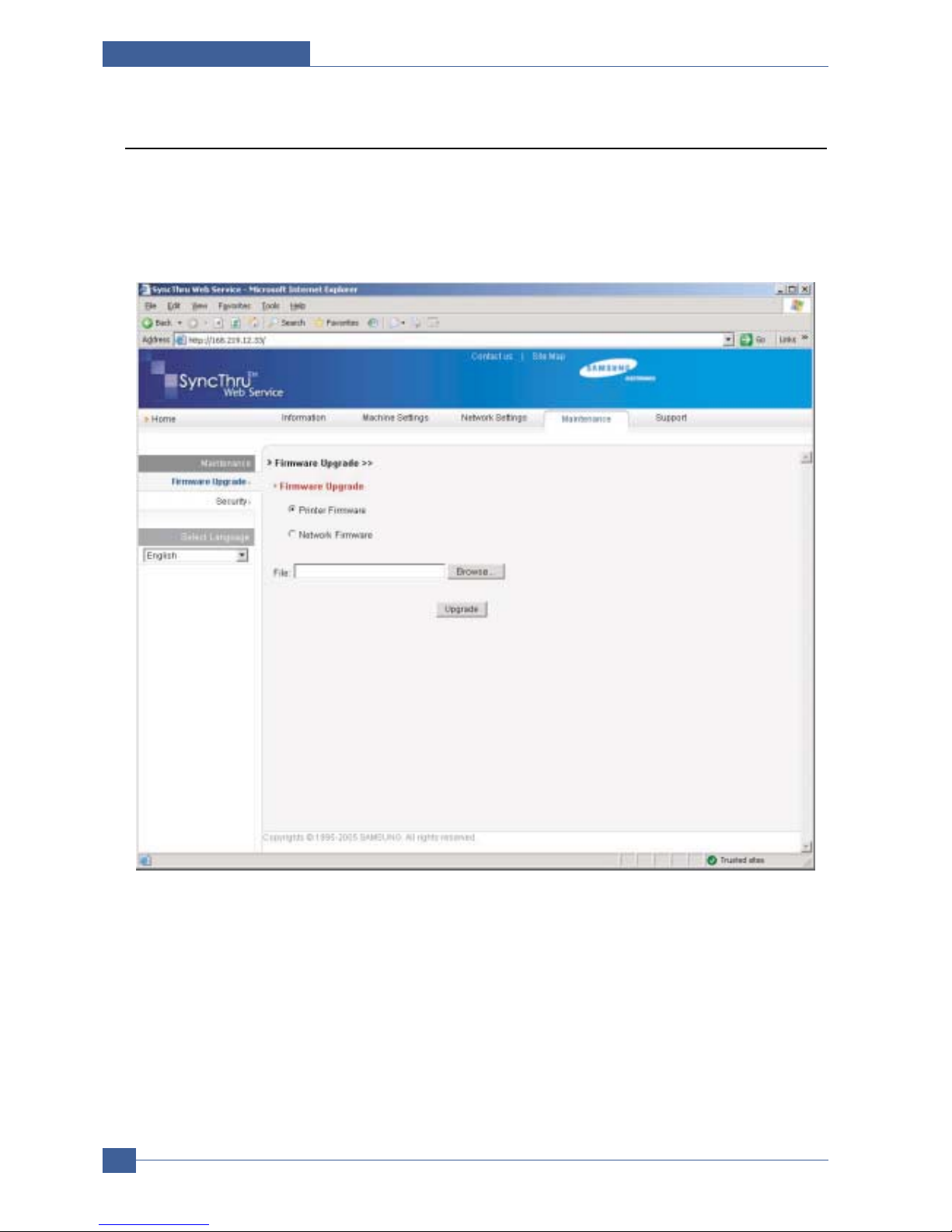

- Firmware Upgrade
- Security
Page 21
Network Printer Server
Samsung Electronics
Service Manual
11-21
1 1.10 Samsung SyncThru Web Service: Support

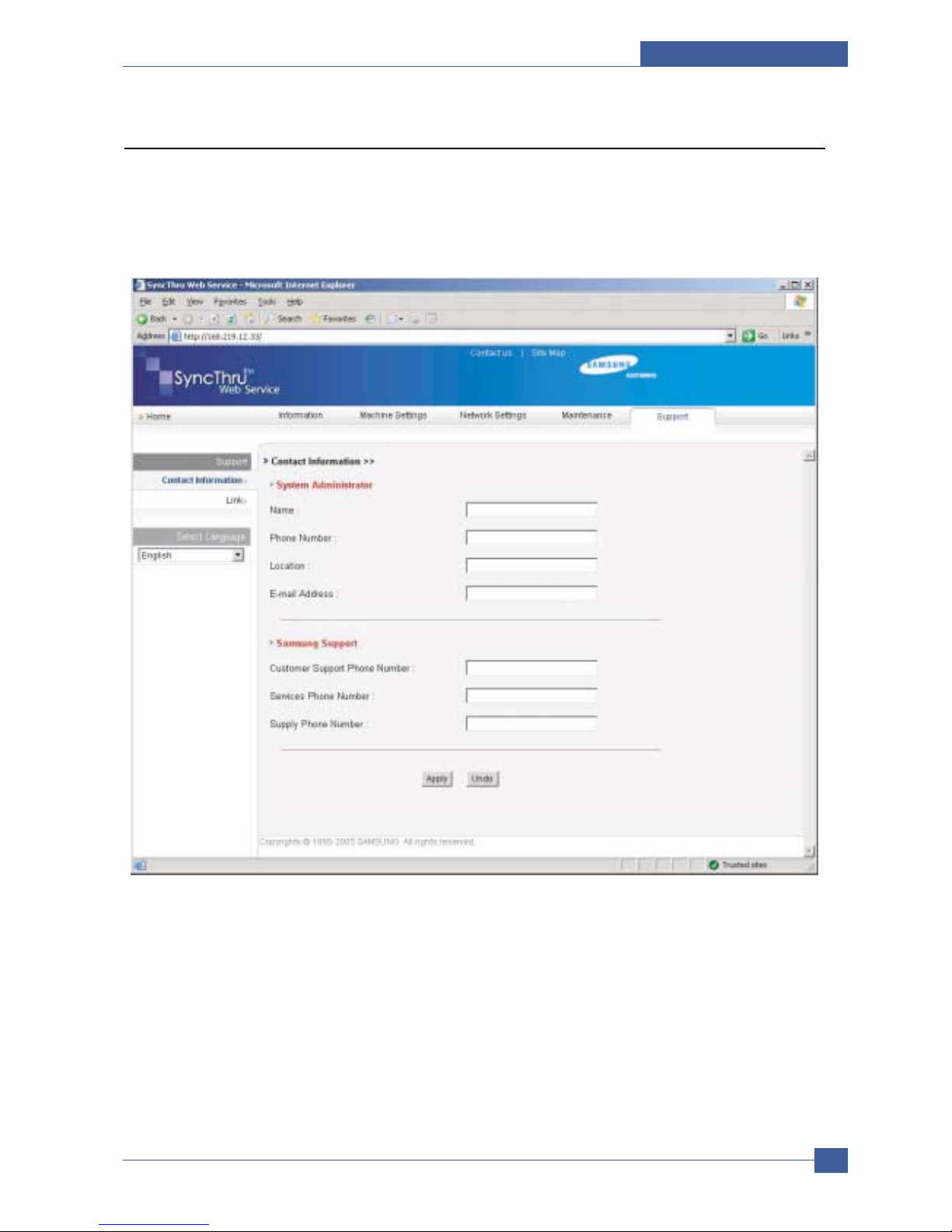

Support
- Contact Information
- Link
Page 22
Samsung Electronics
Service Manual
Network Printer Server
11-22
1 1.11 Samsung SyncThru Web Service: Service (MFP)

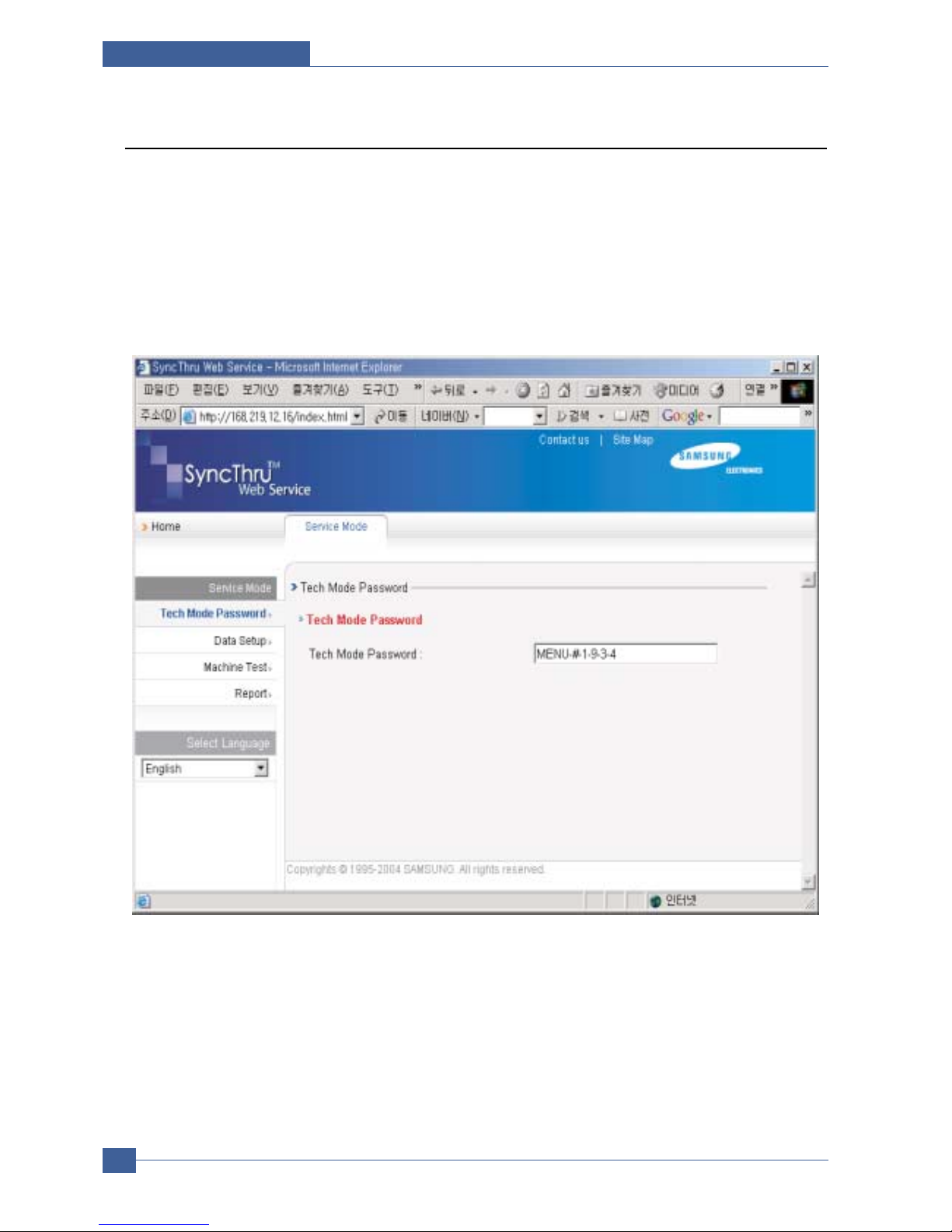

Service
- http://NPC-IP-Address/service.html
- Tech Mode Password
- Data Setup
- Machine Test
- Report
Page 23
Network Printer Server
Samsung Electronics
Service Manual
11-23
1 1.12 Samsung SyncThru Web Service: Authentication

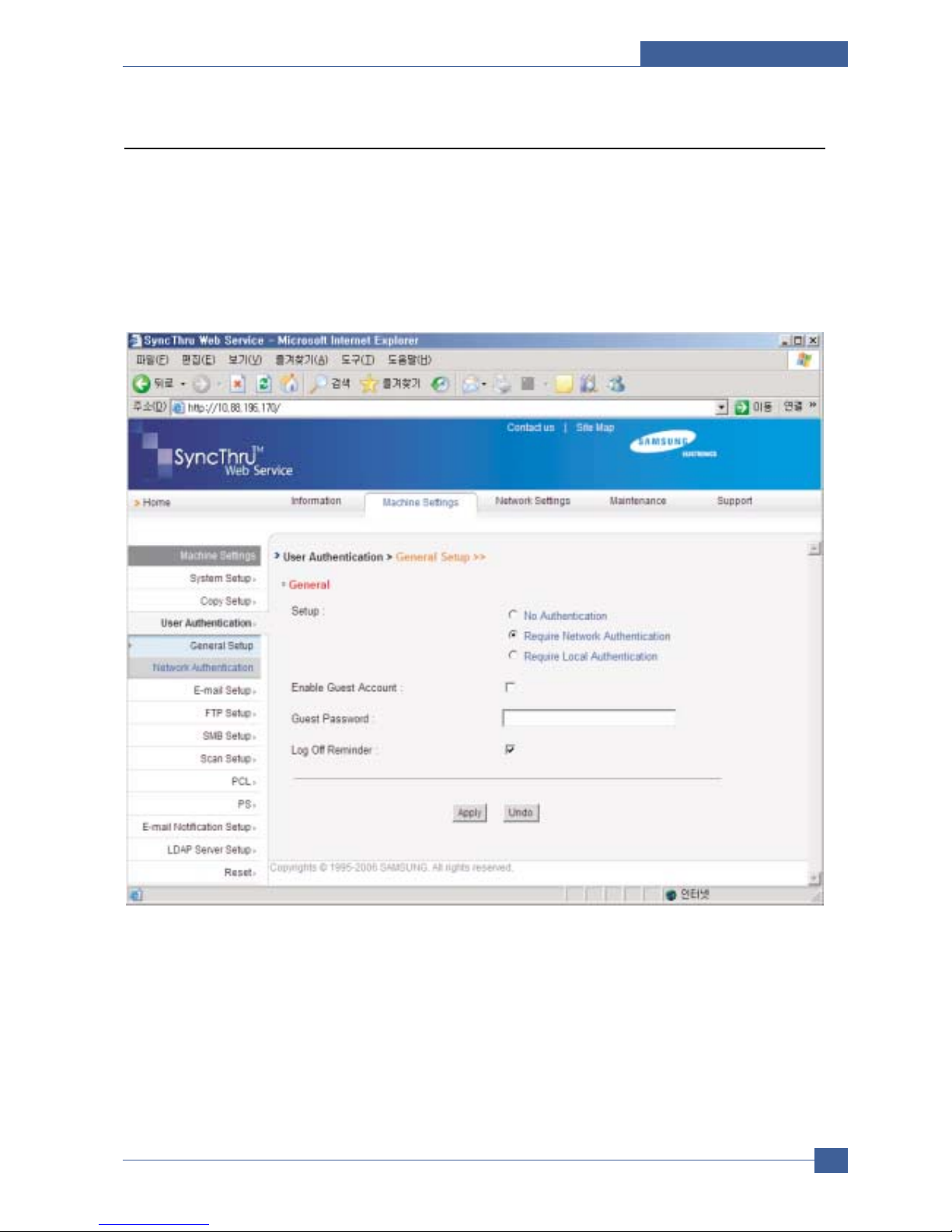

General Setup
- Setup
- Enable Guest Account
- General Password
- Log Off Reminder
Page 24
Samsung Electronics
Service Manual
Network Printer Server
11-24
1 1.13 Samsung SyncThru W eb Service: Authentication (Local
Authentication)

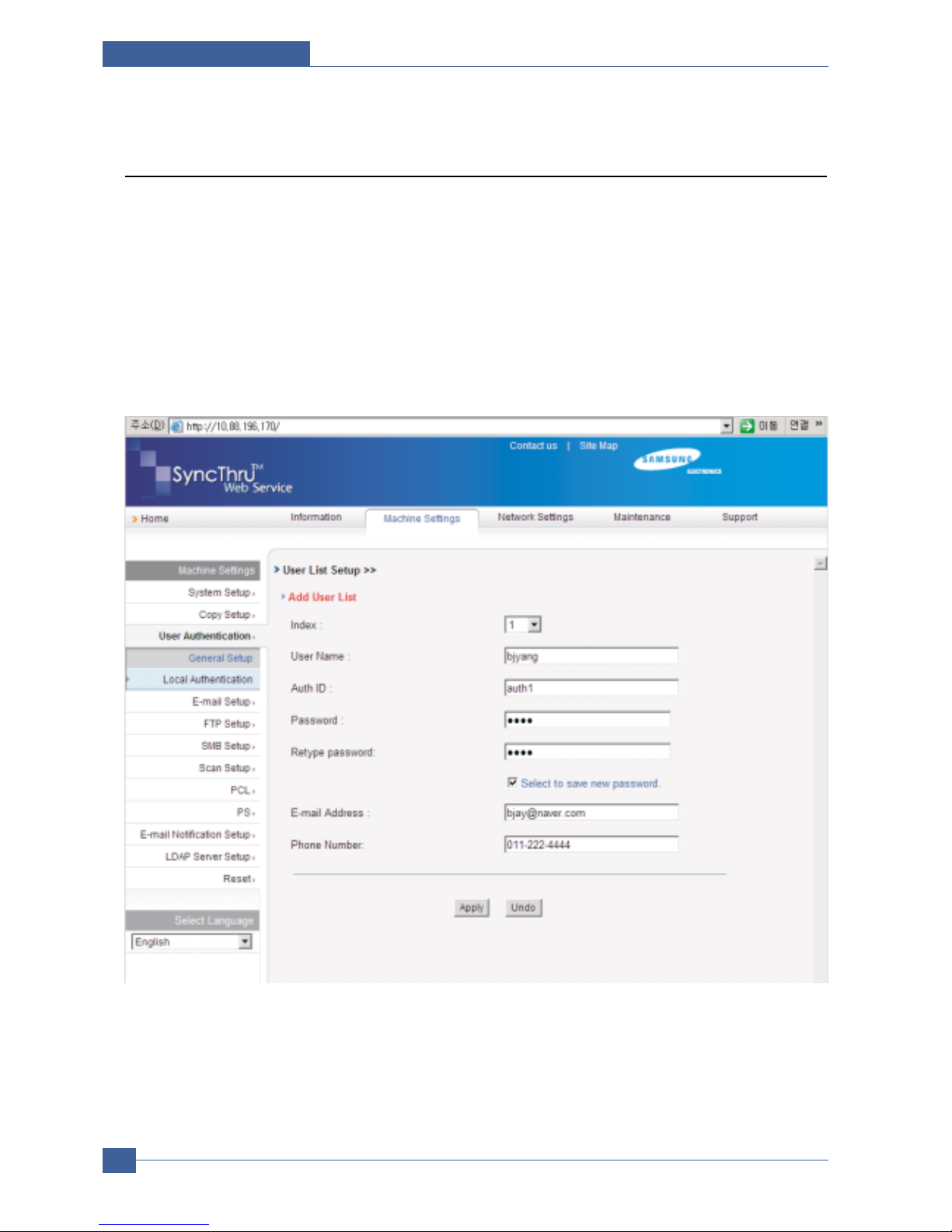

Local Authentication
- Index
- User Name
- Auth ID
- Password
- E-mail Address
- Phone Number
Page 25
Network Printer Server
Samsung Electronics
Service Manual
11-25
1 1.14 Samsung SyncThru W eb Service: Authentication (Network
Authentication)
Network Authentication

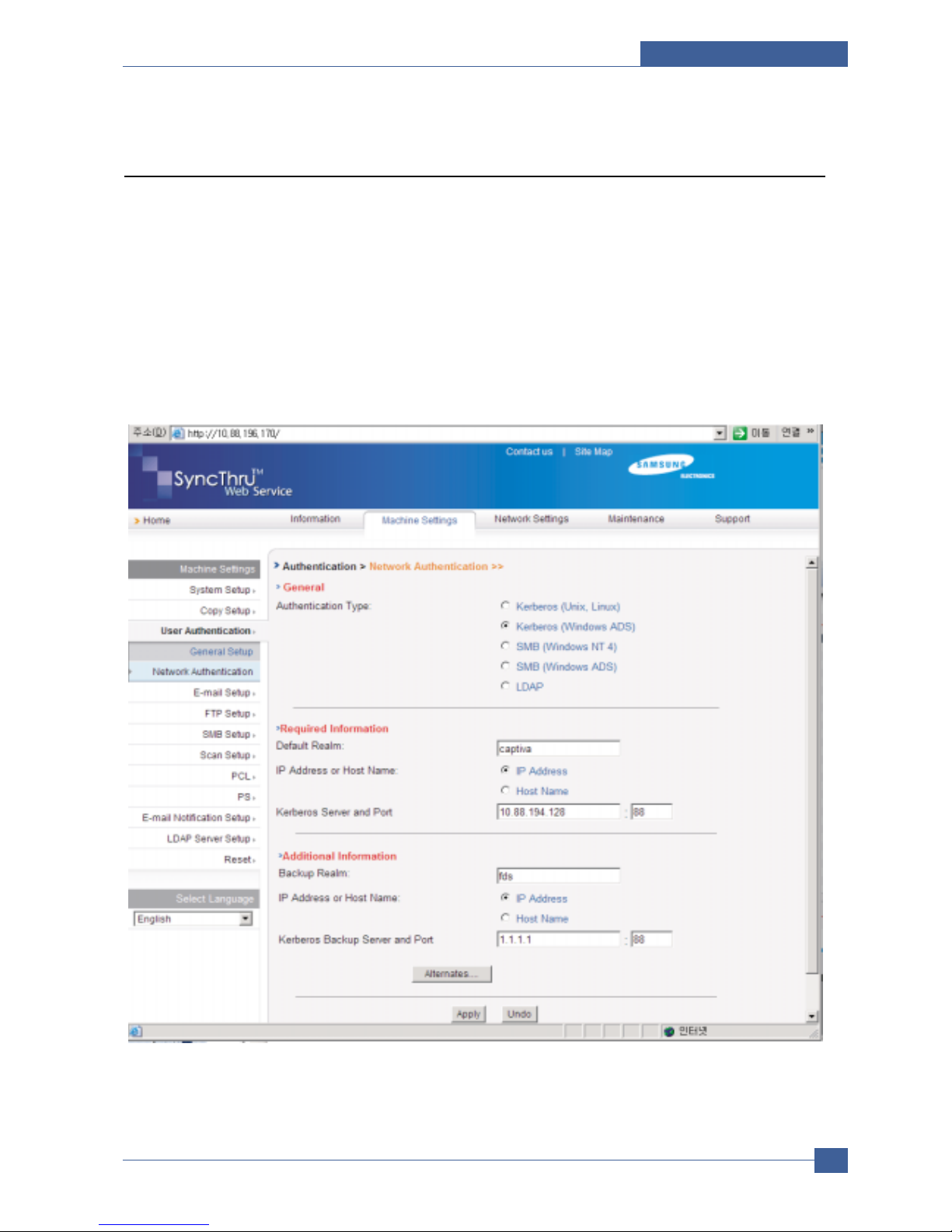

(Kerberos Setup)
- Default Realm
- IP address or Host Name
- Kerberos Server and Port
- Backup Realm
- IP address or Host Name
- Kerberos Backup Server and Port
Page 26
Samsung Electronics
Service Manual
Network Printer Server
11-26
Network Authentication

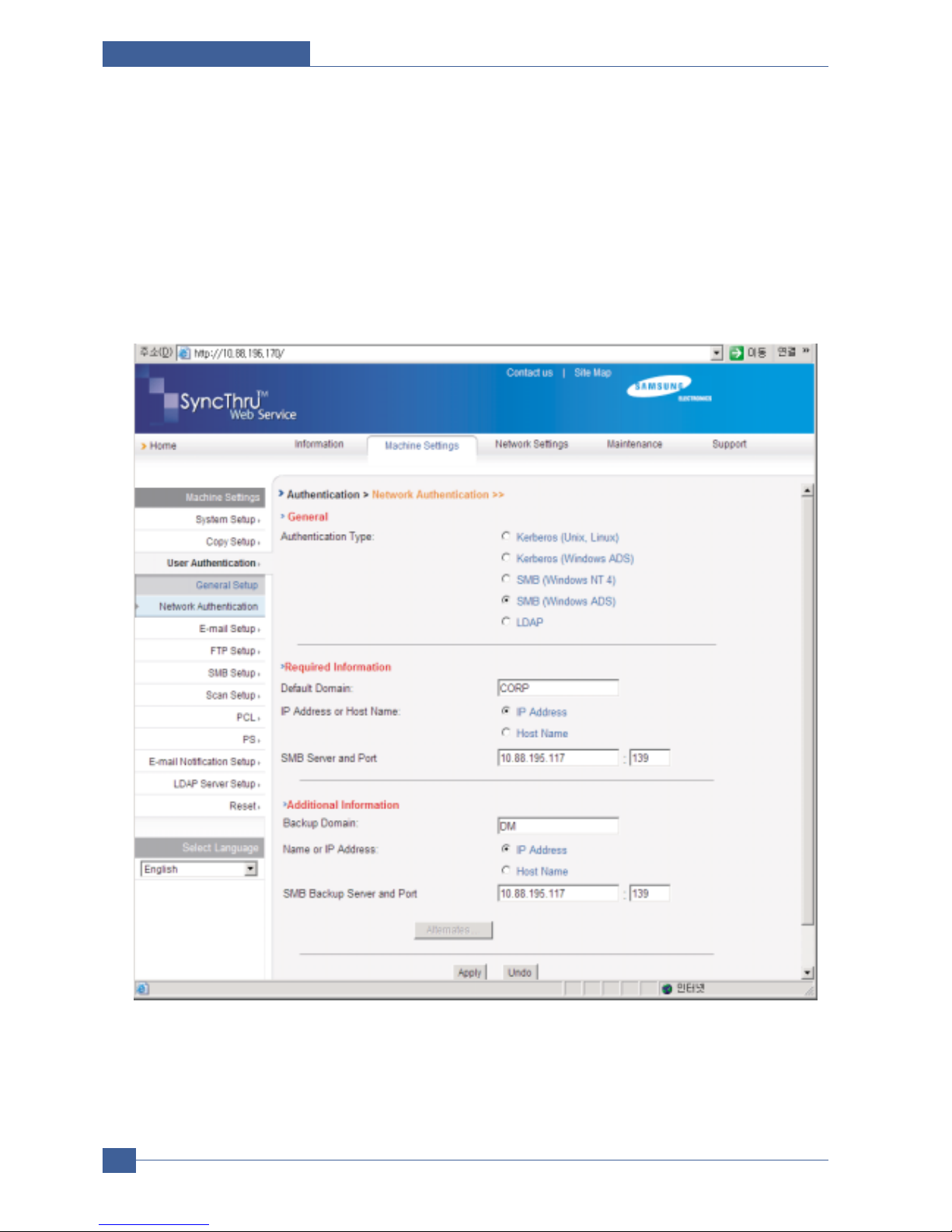

(SMB Setup)
- Default Domain
- IP address or Host Name
- SMB Server and Port
- Backup Domain
- IP address or Host Name
- SMB Backup Server and Port
Page 27
Network Printer Server
Samsung Electronics
Service Manual
11-27
Network Authentication

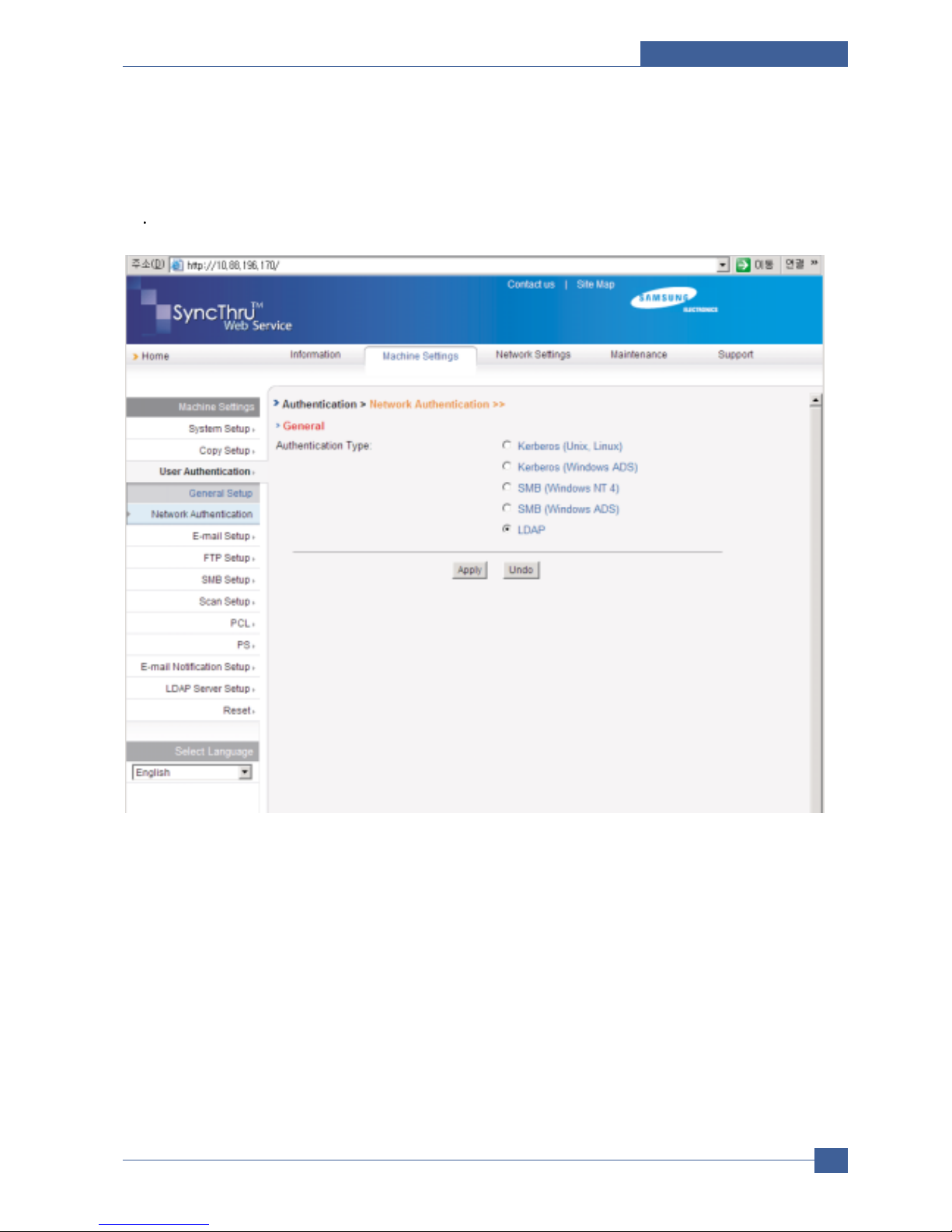

(LDAP Setup)
- There is no setup of LDAP Server
Server configuration of LDAP Server item is used to Auth Login
Page 28
Samsung Electronics
Service Manual
Network Printer Server
11-28
1 1.15 Samsung SyncThru Web Service: LDAP Server Setup

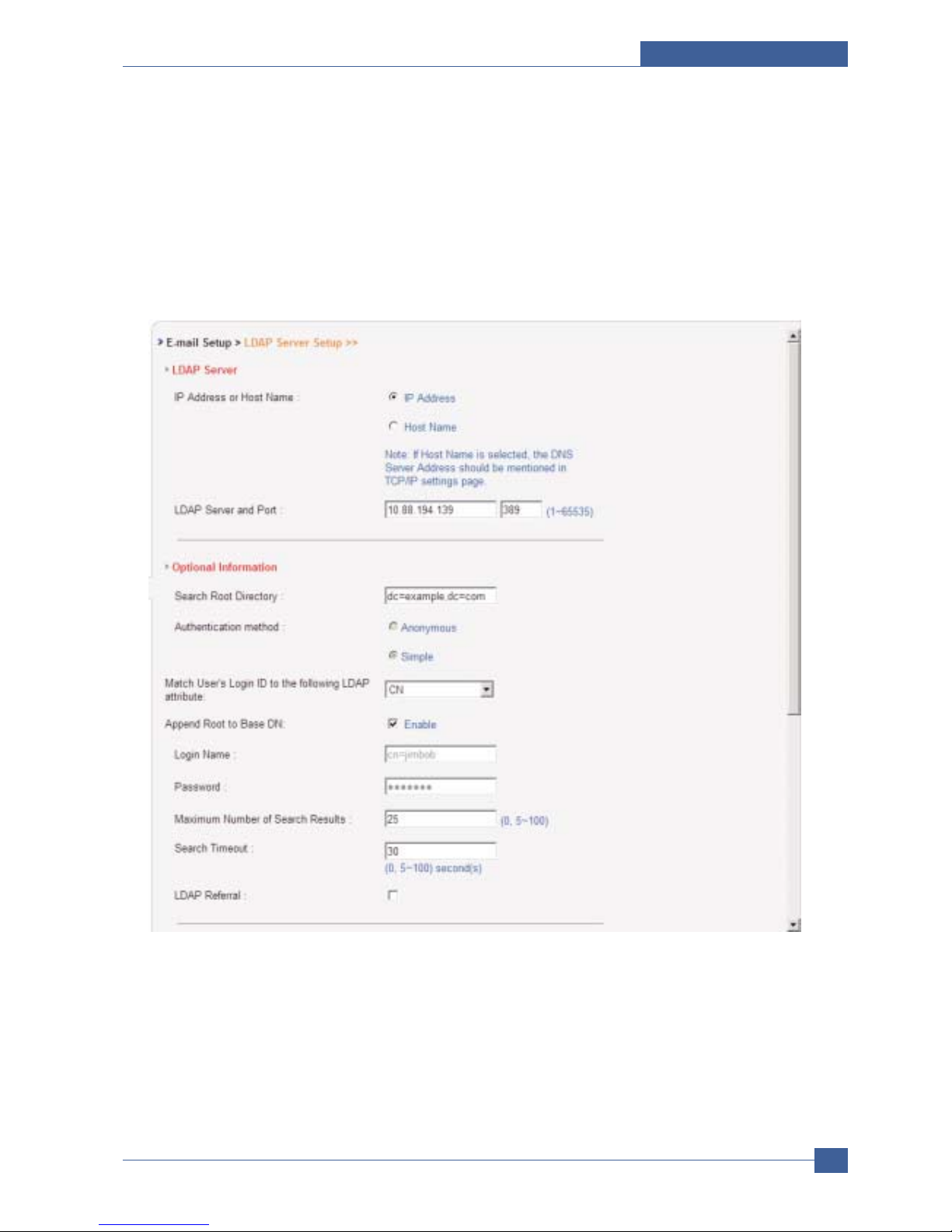

LDAP Server Setup_1
- IP address or Host Name
- LDAP Server and Port
- Search Root Directory
- Authentication Method
- Match User’s Login ID to the Following LDAP attribute:
Page 29
Network Printer Server
Samsung Electronics
Service Manual
11-29

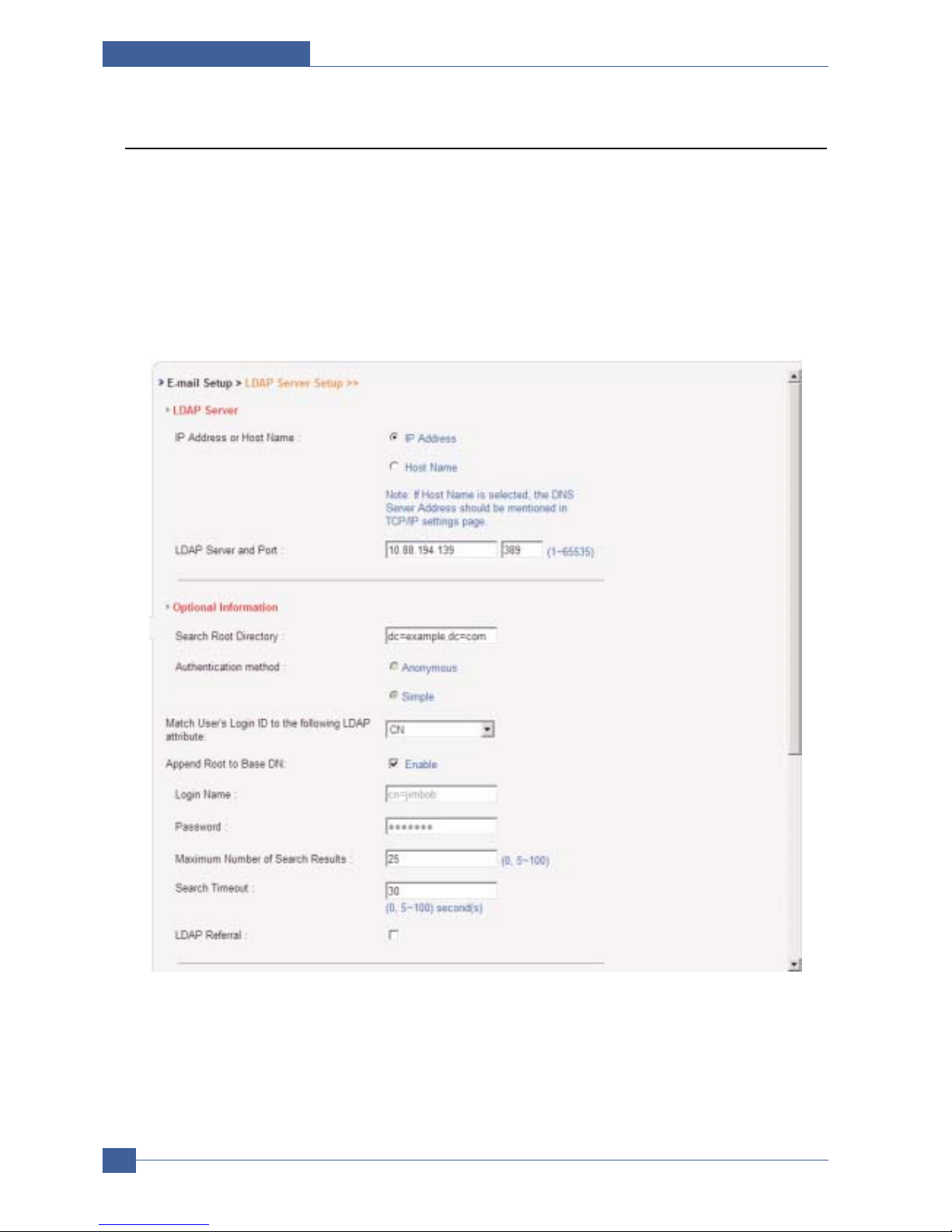

LDAP Server Setup_2
- Append Root to Base DN
- Login Name
- Password

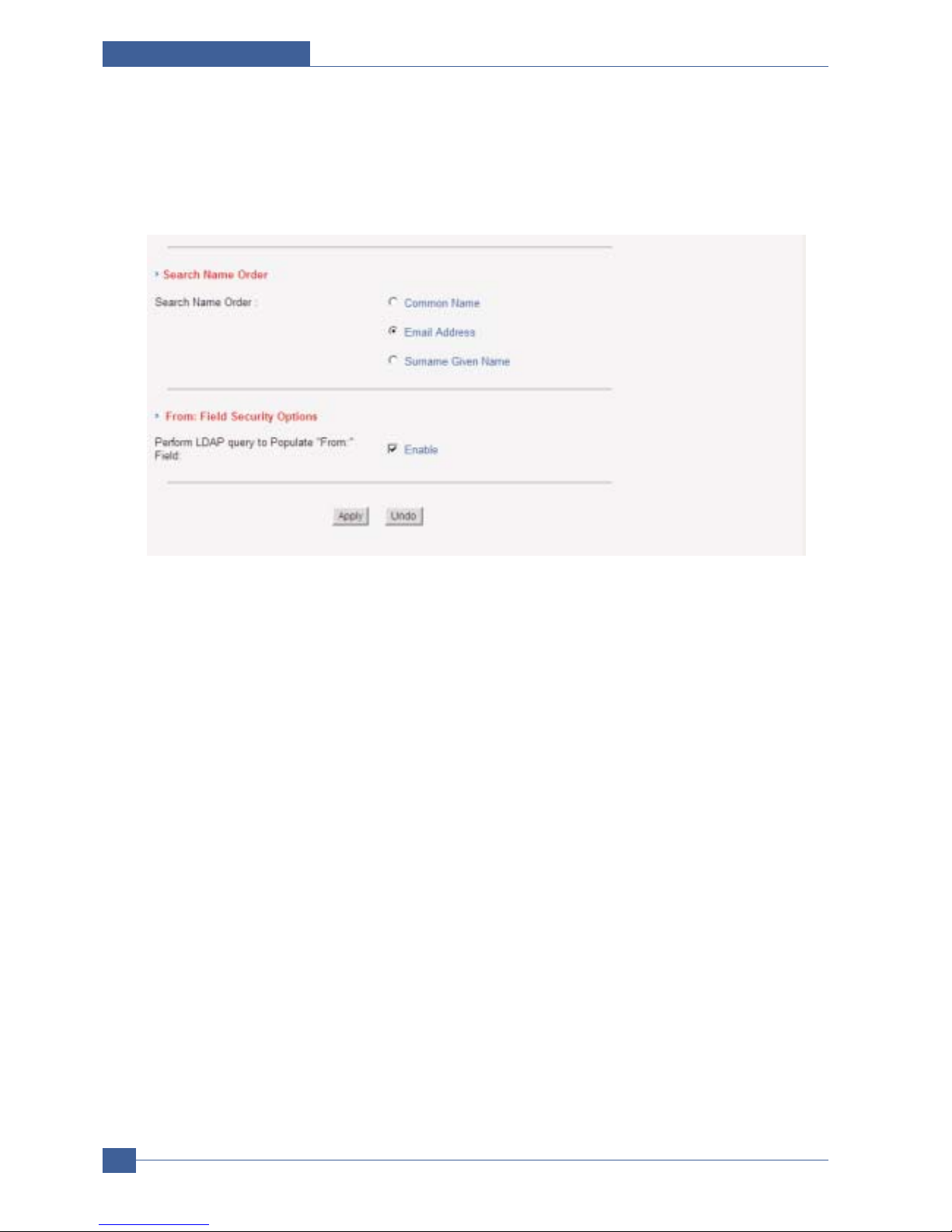

- Maximum Number of Search Result
- Search Timeout
- LDAP Referral
Page 30
Samsung Electronics
Service Manual
Network Printer Server
11-30
LDAP Server Setup_3
- Search Name Order
- From: Field Security Options
Page 31
Network Printer Server
Samsung Electronics
Service Manual
11-31
1 1.16 Samsung SetIP
Configuration of IP Address
- Mostly used at first installation of network printer
- IP address setting with MAC address only
- MAC address is written on printer’s backside
Samsung SetIP Utility
- Running on Microsoft Windows OS only
- Automatic detection of Samsung network printers
- Manual setting of undetected network printers
Samsung SetIP: Application
Page 32
Samsung Electronics
Service Manual
Network Printer Server
11-32
1 1.17 TCP/IP Printing Protocol
Samsung Network Printer Port Printing
- TCP Port : 2000
- Port Monitor installation
- OS : Windows95/98/NT/ME
LPD (Line Printer Daemon) Printing
- TCP Port : 515
- OS : Unix, Linux, Windows OS (Win NT, 2K ~)
Microsoft Standard TCP/IP Printing
- TCP Port : 9100
- OS : Windows OS (Win 2K~)
IPP Printing Protocol
- TCP Port : 631
- OS : Windows OS (Win 2K~), Mac OS (MAC 10.3~)
Page 33
Network Printer Server
Samsung Electronics
Service Manual
11-33

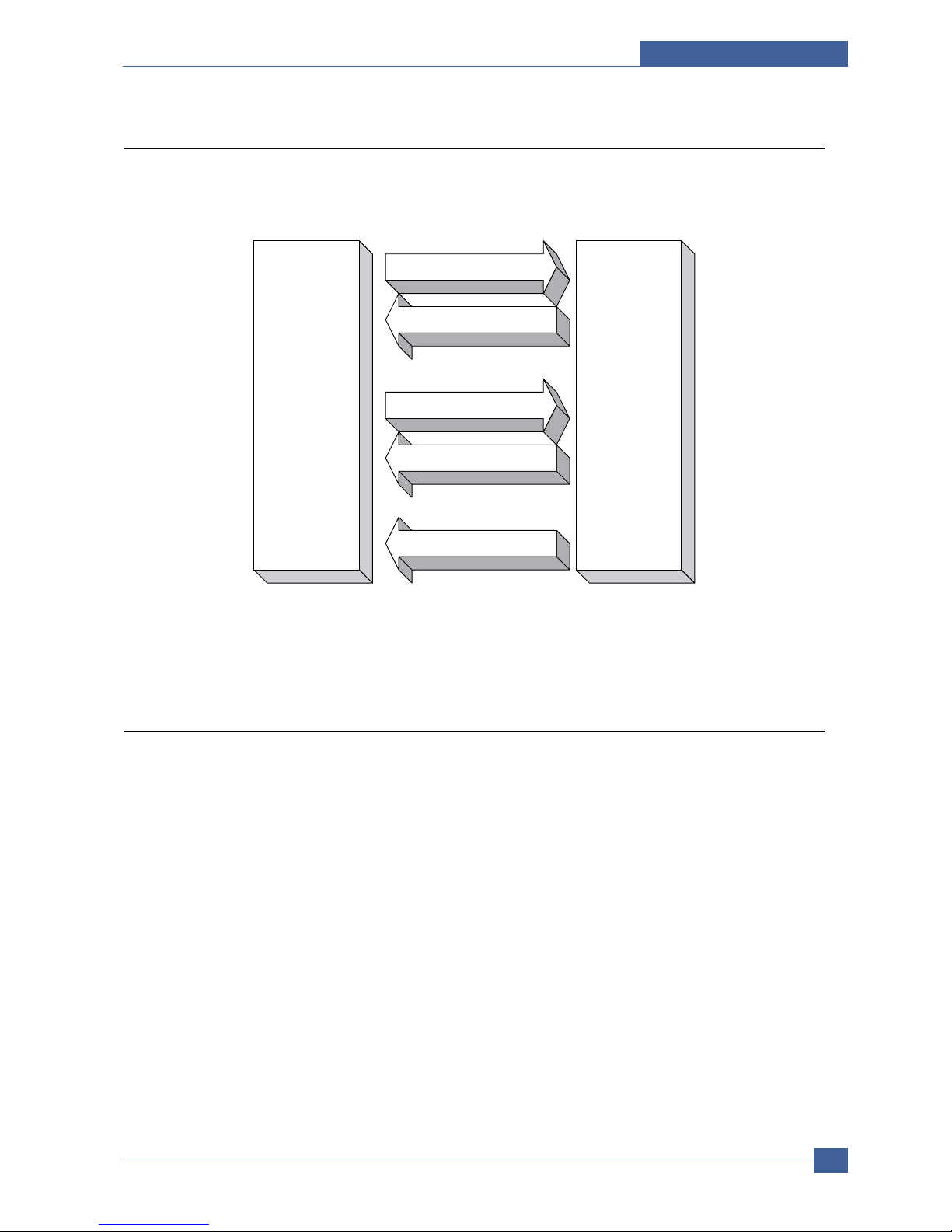

1 1.18 Management Protocol
SNMP means Simple Network Management Protocol
SyncThru
(SNMP
Maneger)
NPC
(SNMP
Agent)
Get Request
Get Response
Set Request
Set Response
Trap
1 1.19 HTTP
Web Server Protocol
- Used in Samsung SyncThru Web Admin Service
- Used in SyncThru Web Service (Embedded Web Server)
- Used in IPP 1.1 Protocol
Page 34
Samsung Electronics
Service Manual
Network Printer Server
11-34
OXXXXXXXXNetwork
Authentication
X
X
O
O
3.0
X
X
X
Platfor
m
On-
Board
Iris
CLX-
3160
Series
X
X
X
X
4.0
X
O
X
Platfor
m
On-
Board
Whitne
y2
SCX-
4725
Series
OOOXXXXScan To FTP
OOOXXXXScan To SMB
OOOXXXXScan To Email
OOOXXXXNetwork Scan
4.054.03.03.04.04.03.0SWAS
XXXXOptXOptWireless
OOOXOOOEtherTalk
OOOXOXONetWare
Platfor
m
Platfor
m
Platfor
m
Platfor
m
Platfor
m
Platfor
m
Platfor
m
Software
Platform
NPC3
-H
Phy-
Board
On-
Board
On-
Board
Phy-
Board
On-
Board
On-
Board
Network Type
Jungfr
au
ElburzElbertGoghStorkOrioleDoveProject Name
SCX-
6x45
Series
SCXñ
6x22
Series
SCX-
5x30
Series
CLP-
300
Series
ML-
4550
Series
ML-
2570
Series
ML-
3050
Series
Model Name
OXXXXXXXXNetwork
Authentication
X
X
O
O
3.0
X
X
X
Platfor
m
On-
Board
Iris
CLX-
3160
Series
X
X
X
X
4.0
X
O
X
Platfor
m
On-
Board
Whitne
y2
SCX-
4725
Series
OOOXXXXScan To FTP
OOOXXXXScan To SMB
OOOXXXXScan To Email
OOOXXXXNetwork Scan
4.054.03.03.04.04.03.0SWAS
XXXXOptXOptWireless
OOOXOOOEtherTalk
OOOXOXONetWare
Platfor
m
Platfor
m
Platfor
m
Platfor
m
Platfor
m
Platfor
m
Platfor
m
Software
Platform
NPC3
-H
Phy-
Board
On-
Board
On-
Board
Phy-
Board
On-
Board
On-
Board
Network Type
Jungfr
au
ElburzElbertGoghStorkOrioleDoveProject Name
SCX-
6x45
Series
SCX-
6x22
Series
SCX-
5x30
Series
CLP-
300
Series
ML-
4550
Series
ML-
2570
Series
ML-
3050
Series
Model Name
1 1.20 Network models
Loading...
