Using Your Documentation 1

Using Your Documentation

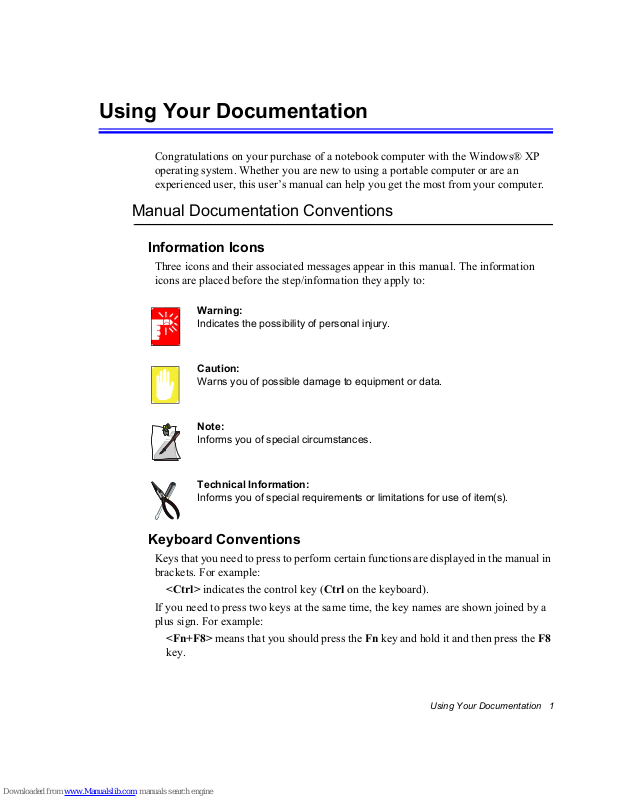

Congratulations on your purchase of a notebook computer with the Windows® XP operating system. Whether you are new to using a portable computer or are an experienced user, this user’s manual can help you get the most from your computer.

Manual Documentation Conventions

Information Icons

Three icons and their associated messages appear in this manual. The information icons are placed before the step/information they apply to:

Warning:

Indicates the possibility of personal injury.

Caution:

Warns you of possible damage to equipment or data.

Note:

Informs you of special circumstances.

Technical Information:

Informs you of special requirements or limitations for use of item(s).

Keyboard Conventions

Keys that you need to press to perform certain functions are displayed in the manual in brackets. For example:

<Ctrl> indicates the control key (Ctrl on the keyboard).

If you need to press two keys at the same time, the key names are shown joined by a plus sign. For example:

<Fn+F8> means that you should press the Fn key and hold it and then press the F8 key.

Page 2

2 Users Manual

CD-ROM Device Naming Convention

In many installation programs you will have to get a program from the CD-ROM device. The program installation sequence assumes that the CD is drive d:\, however this is not always the case. The name of the CD-ROM drive is the letter following the letter assigned to your last HDD. For instance, if you have one HDD with two partitions, the HDD is drives C: and D: and the CD-ROM drive is then drive E.

Touchpad Conventions

You may be asked to click or double-click on items on the display screen. As a general note the touchpad actions act much in the same way as a wheel mouse, any differences are explained fully.

The object that needs to be clicked upon will be displayed in Bold text or shown in a small figure such as the “Start Button” shown on the right =>.

Table 1. Touchpad Click Conventions

Windows Conventions:

Almost all “Windows” programs will display the name/function of a button or icon if you place the touchpad pointer on the item you want information about.

Software User Documentation

Your computer is shipped from the factory with several software programs installed. The software may include its own online or printed documentation. Refer to the documentation or the Help options in the software for more information.

The figures and illustrations in this manual may not be identical to those on your system.

General Icon Note:

Some of the Icons used in Windows XP may be placed on the taskbar by selecting (ex: Place the volume icon in the taskbar) in the properties dialog box.

Action Process

Click Depress the touchpad left button and release

Double-click Quickly click the left touchpad button two times

Page 3

Getting Started 3

Getting Started

Introducing Your Computer

The photographs used in this user manual may be somewhat different in shape and colour to those of your computer depending on the model of your computer.

Front View

Memory Card Slot

(p 30)

Touchpad Button

Touchpad (p12)

Keyboard (p8)

LCD Panel

Status Lights (LED) (p15)

Page 4

4 Users Manual

Right View

Left View

Back View

USB Port

(2.0)

Power Button

Modem port

(p36)

LAN Port

(p37)

CF Card Slot

(p33)

DC-In Port

USB Port

(2.0)

Monitor Port

1394 Port

(6 Pin)

Headphone/

S/PDIF

Jack

Microphone

Jack

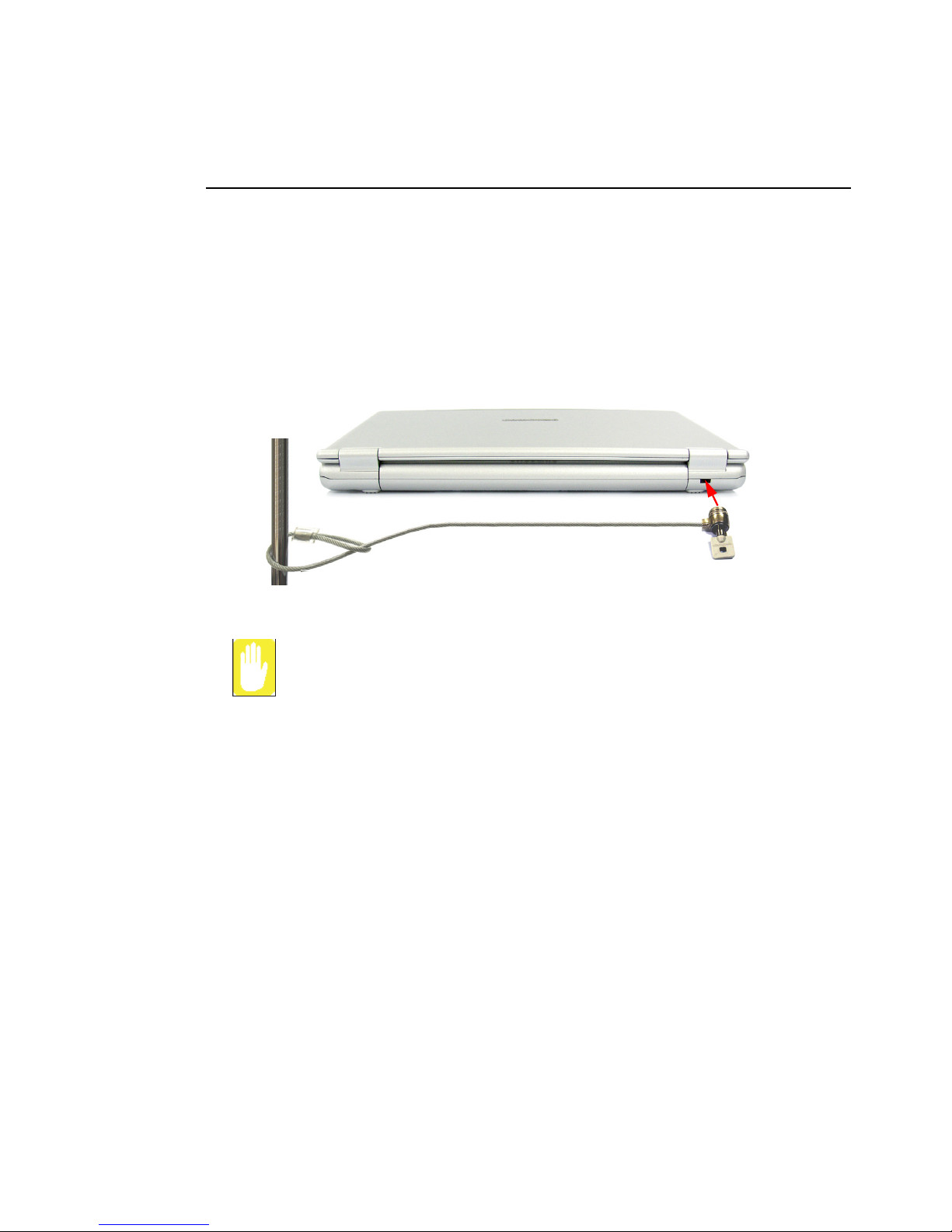

Security Lock Port (p81)

Battery (p78)

Page 5

Getting Started 5

Bottom View

Battery Latches

3D Speaker

Page 6

6 Users Manual

Turning the Computer On and Off

To turn on the computer

1. Insert the battery and connect the AC adapter according to the Installation Guide.

2. Slide the LCD latch to the right and open the LCD panel.

3. Press the power button.

Since opening the LCD panel by hand might cause damage to the panel, please use both hands when opening the panel.

To turn off the computer

1. Click the start button ( ) on the taskbar.

2. Click Turn Off Computer.

Page 7

Getting Started 7

3. Click Turn Off.

If the computer is not turned off properly due to a system error, press <Ctrl>+<Alt>+<Delete>. When [Windows Task Manager] dialog box appears, click Shut Down > Turn Off to turn off the computer. Your unsaved work may be lost/damaged.

If <Ctrl>+<Alt>+<Delete> keys do not operate either, press the power button for more than 4 seconds to turn off the computer. Your unsaved work may be lost/damaged. When you turn on the computer next time, it will perform a disk checking process.

Page 8

8 Users Manual

Using the Keyboard

Your computer has an 82-key keyboard. By pressing designated key combinations, you can have access to all the key functions of a full-sized keyboard.

Although the layout of the keys on your computer’s keyboard is different from that on a desktop computer’s keyboard, the keyboard feels like a full-sized keyboard when you use it.

You can use a symbol of , if press Fn and F3 simultaneously depending on a kind of keyboard.

Embedded Numeric Keypad

Screen Brightness and

Volume Adjustment /

Direction Keys

Windows

Key

Function

Key

Function & Special Purpose Keys

Page 9

Getting Started 9

The keys on the keyboard can be grouped into the following categories:

• Full-sized Alphanumeric typewriter keys are arranged like a standard

typewriter keyboard and are used for text entry. The Windows keys on either side of the spacebar open Windows menus and perform other special functions.

• Function keys, when pressed together with the <Fn> key, enable special

functions.

• Cursor and Screen control keys move the cursor. They may perform other

functions, depending on your software.

To clean the computer keyboard, use slightly damp cotton swabs. Scrub the keys and the surface around the keys.

Do not allow liquid to drip into the keyboard or you may damage the keyboard.

Using the Numeric Keypad

Your keyboard includes a numeric keypad, which is a group of keys that you can set to type numbers and mathematical symbols, such as the plus sign. A number or symbol on the corner of each keypad key shows its numeric function.

Press <Fn+Num Lock> to turn on the embedded numeric keypad. The numeric functions of the keypad are enabled and the Num Lock LED turns on. (See ”Reading the Status Indicators” on page 15 for the location of the Num Lock LED.)

While the numeric functions are enabled, you can temporarily return a key to its normal function by pressing the key and the <Fn> key. For example to type the letter m, press <Fn+M>, this operation displays the letter m.

To turn the numeric keypad off, press <Fn+Num Lock> again. The Num Lock LED turns off.

Num Lock LED

Page 10

10 Users Manual

Using Special Function Keys

The function key activates special functions when it is pressed in combination with another keys.

<Fn> Key Combinations

Key Name Key Function

<Esc/ > Rest Puts the computer into suspended mode. To escape suspended mode,

press the power button. (p74).

<F2/ > Gauge Shows the current power source and the remaining battery charge.

<F4/ > LCD/CRT Switches the display between the LCD and external display device

when an external display device is connected. (p72)

<F5/Backlit> Backlight Turns the LCD on and off.

<F6/Mute> Mute Turns the audio output on and off.

<F7/ > 3D sound Extends the spatial sound of the stereo speakers so that the listener

can experience even greater stereophonic sound.

Note. The 3D sound function is only supported through the internal speaker of the computer and the headphones. This function is not supported through the S/PDIF port. Note. When using the 3D function, even if the balance is turned completely to the left or right, some audio may still be heard through the other speaker.

Caution. Some distortion may be experienced when the 3D function is used, depending on the audio source.

<F8/ > Wireless LAN

On/Off

Turns the wireless LAN service on and off for models with wireless LAN installed.

<F9/ > Touchpad Turns the touchpad function on and off.

<F11/Num Lock> Number Lock Enables the numeric keypad. (p9)

<F12/Scroll> Scroll Lock Scrolls the screen up and down while the cursor position does not

change in some applications.

Pause/Break In DOS mode, pauses the scroll of the screen or exits a running

program.

Turns 3D sound on Turns 3D sound off

Turns Touchpad on Turns Touchpad off

Page 11

Getting Started 11

When you press a function key combination, the system sound may be temporarily muted.

<PgUp/Home> Home Moves to the beginning of the sentence.

<PgDn/End> End Moves to the end of the sentence.

</> Volume Down Decreases the audio volume.

</> Volume Up Increases the audio volume.

</> Brightness Up Makes the LCD screen brighter.

</> Brightness Down Makes the LCD screen dimmer.

Page 12

12 Users Manual

Using the Touchpad

In Windows, you always see a small graphical image on the screen that indicates the location where you can take the next action. This image is called a pointer, and is usually displayed in arrow shape ( ) or ‘I’ shape ( ).

The touchpad on your computer allows you to move the pointer on the LCD screen, just like a mouse that is used with a desktop computer. The touchpad buttons allow you to take actions with the pointer, such as selecting an item or executing a command.

Locking the touchpad

You can lock the touchpad and use only the keyboard and mouse. To lock the touchpad function, press the <Fn>+<F9> key combination.

Touchpad Buttons

Touchpad

Page 13

Getting Started 13

You can perform various actions with your touchpad as described below.

Action Function Process

Move Move the pointer Place your finger on the touchpad

and slide your finger to a destination.

Click Select an object, open a menu, or

execute a button

Place the pointer over an object, then press left touchpad button once.

Or, place the pointer over an object, then tap the touchpad once with your finger.

Double-Click Launch a program or open a file Place the pointer over an object,

then quickly press left touchpad button twice.

Or, place the pointer over an object, then quickly tap the touchpad twice with your finger.

Right-Click Display a short cut menu Place the pointer over an object,

then press right touchpad button once.

Drag

Move an object, or select an area or multiple objects

Drag and drop a part to the required place.

Page 14

14 Users Manual

Make sure to use your finger to move the pointer with the touchpad. Do not use any sharpened tool because it may damage your touchpad.

Operating the touchpad or touchpad button while starting your system may increase the time required for starting Windows.

Scroll Display upper/lower/left/right part

of the content within a window

(Applicable to certain programs only)

Place your finger on the right edge or bottom edge of the touchpad and move vertically or horizontally.

Action Function Process

Page 15

Getting Started 15

Reading the Status Indicators

Shows the operating status of the computer.

Num Lock Turns on when the numeric keypad is activated.

Caps Lock Turns on when all alphabet characters you type will be in upper case.

Scroll Lock Turns on when it is set to scroll the screen up and down while the cursor

position does not change in some applications.

Hard disk drive Blinks when the hard disk drive is in operation.

Wireless LAN Turns on when wireless LAN function is enabled. (This light does not operate

for the models without wireless LAN.)

Battery Turned blue - when the battery is fully charged, or when the battery is not

installed. Turns amber - when the battery is being charged. Blinks - when the battery is not properly installed.

Power Turned blue - when the computer is turned on.

Blinks - when the computer is in Standby mode.

Page 16

16 Users Manual

Adjusting LCD Brightness

There are 8 levels of LCD brightness (1: Dimmest ~ 8: Brightest).

Press <Fn>+< > or <Fn>+< > keys from the keyboard to adjust LCD brightness. When changed, the current LCD brightness is displayed on the top left corner of the LCD screen for a few seconds.

Whenever you turn the system on or change the power source the brightness level changes according to the settings.

• when operating on AC power: Brightness Level 8

• when operating on battery power: Brightness Level 2

Maintaining your LCD brightness settings after turning the system off and on

1. Turn the system on. When the Samsung Logo appears, press the <F2> key to enter Setup.

2. In the Boot menu, change the Brightness Control Mode option to User Control.

3. Save the settings and exit Setup.

To save the battery charge

When your computer is operating on battery power, adjusting the LCD brightness level to dimmer diminishes the battery power consumption.

Bad pixels in the LCD

The limits of the LCD manufacturing technology allow a maximum of 10 abnormal or bad pixels, which do not affect system performance. This system may have the same level of abnormal or bad pixels as any other company’s products.

Maintenance Instructions

When cleaning the LCD panel, use only computer specific cleaners on a soft cloth, and lightly wipe in one direction.

Page 17

Getting Started 17

Adjusting the Volume

To adjust using keyboard

Press <Fn>+< > or <Fn>+< > from the keyboard.

To adjust using volume adjustment program

Click the Volume icon( ) on the taskbar, and move the Volume slider to a desired level.

For advanced volume control options, double-click the Volume icon( ), and adjust the volume level in the volume control program.

When you turn the system on, a booting noise may occur.

Page 18

18 Users Manual

Introducing Windows

Understanding the Desktop

The desktop is the working area on the computer. It consists of the large workspace and a taskbar at the bottom.

Start Button

Opens the Start menu.

Taskbar

Displays programs that are currently running. Frequently used icons can be placed here.

Recycle Bin

Deleted files or folders are sent here.

Language Bar

Switches text input language.

Start Button

Taskbar

Shortcut

Icons

Start Menu

Recycle Bin Language Bar

System Tray with Clock

Page 19

Introducing Windows 19

Understanding the Start Menu

The Start menu includes everything that is required to start Windows. From the Start menu it is possible to run a program, open a file, assign system users with Control Panel, receive support by clicking Help and Support, and search desired items from the computer or Internet by clicking Search.

My Computer

Displays the contents of the hard disk, the CD-ROM drive, the network drive(s), and floppy disks. It can also be used to search and open files and folders.

Control Panel

Enables users to configure settings on the computer.

Help and Support

Provides on-line help, information on Windows and troubleshooting.

Enables users to search for information in files or the Internet.

Run

Run programs or documents.

My Computer

Control Panel

Help and Support

Start Button

All Programs

Frequently used programs

Page 20

20 Users Manual

Understanding a Window

A window is the basic component in working with the computer. The My Computer window, which is a window for the computer's hard drive, will be used as an example here to show the basic composition of a window.

Click Start > My Computer.

Double-click the hard drive (local disk) to view internal folders and files stored in it. If the contents do not appear, click Show the contents of this folder.

What is a drive?

A storage device in which files and folders are saved in, and read from.

What is a folder?

A folder is used to group and manage files systematically, and may include files in sub-folders. It is similar to a bookshelf.

What is a file?

A file is a document or various kinds of material that is generated as a result of program operation. It is also called data.

To view the entire structure of the drive

Click the Folder icon in the taskbar to view the entire structure. Click again to return to the Quick Task Window.

Close Button

Maximize Button

Minimize Button

Folders

Files

Title Bar

Menu Bar

Quick Task

Window

Folder Icon

Double-click Shared Documents or Local Disk. You can see files and folders.

Page 21

Introducing Windows 21

Help and Support Center

Help and Support Center provides references and troubleshooting information regarding computer use.

Click Start > Help and Support.

Windows XP Tour

You can tour elementary functions provided by Windows XP.

Click Start > Tour Windows XP.

Or click Start > All Programs > Accessories > Tour Windows XP.

Click on the topics to find out about important functions of Windows XP.

Page 22

22 Users Manual

Using the Computer

Using the CD Drive(Optional)

For this computer, a 1394 external CD-RW/CD-ROM combo or DVD multi drive is provided.

To connect a CD drive

Connect the CD drive to the 1394 port.

To use a CD drive

1. Push the eject button on the CD drive.

Page 23

Using the Computer 23

2. When the tray slides out, place a CD onto the tray with the label facing up, and push the CD down until it clicks.

3. Push the tray in gently until it clicks.

To eject a CD

1. Stop any process that accesses the CD drive and ensure the CD access LED is turned off.

2. Press the eject button on right side of the CD drive.

3. When the tray slides out, remove the CD from the tray.

4. Push the tray in gently until it clicks.

If you remove the CD when the CD access LED is on, the disk and the data in it may be damaged.

Emergency Eject Hole

To eject a CD when the CD drive is not working or the computer is turned off, unfold a paperclip, and insert the unfolded end of the clip into the emergency eject hole and press until the CD tray opens.

To clean a CD or DVD title

Clean the disc with a soft clean cloth by wiping from the center outwards.

Emergency Eject Hole

Eject Button

CD Access LED

Page 24

24 Users Manual

To play a DVD

You have to install the DVD software provided on a separate CD to view a DVD title.

To use the Windows Media Player

The Windows Media Player allows you to play audio and video files from the computer or the Internet.

To launch the Windows Media Player, click Start > All Programs > Accessories > Entertainment > Windows Media Player.

Windows Media Player tour

For more information about using the Windows Media Player, run the Windows Media Player and click Help > Help Item.

To play a video CD

If a video CD does not run automatically, follow these steps.

1. Insert a video CD into the CD drive.

2. When the CD drive window appears, double-click the MPEGAV folder.

3. Double-click the .dat file.

4. When the [Caution] dialog appears, click Open With.

Features

Playback Control Area

Playlist

Page 25

Using the Computer 25

5. Select “Select the program from a list” and click OK.

6. Select the Windows Media Player, and click OK. The video starts playing.

Above procedure applies only to the video CDs that has a .dat file as the execution file. Playing procedure may be different according to video CDs.

To write data on a CD (Option)

If your computer has CD-RW functionality, you can copy data to a blank CD or create an audio CD.

An additional CD writing program is supplied in an additional CD.

You cannot write to a CD that already has data in it.

1. Insert a blank CD into the CD drive.

2. On the [CD Drive] dialog, select Open Writable CD Folder and click OK. The

CD drive window appears.

3. Click Start > My Computer.

Page 26

26 Users Manual

4. In My Computer window, select files and folders to copy, then drag and drop them onto the CD drive window.

5. Click Write these files to CD in the CD drive window.

6. When the CD Writing Wizard appears, enter the CD label, and click Next. The

data begins copying.

7. When copying is completed, a ‘completed’ message appears and the CD drive window opens automatically.

For more information on writing CDs

Click Start > Help and Support. Type “CD copy” in the search field, and click the Search icon ( ).

For more information on creating an audio CD

Run the Windows Media Player program, click the Help > Help Item. Click Using Windows Media Player > Using CDs > Creating your own CDs > To create your own CD.

My Computer window

5. Click Write these files to CD.

CD drive window

4. Drag and drop folders or files to copy.

Page 27

Using the Computer 27

Enjoying Home Theater (S/PDIF Port)

Your computer supports 5.1 channel output, which is a basic function for home theater systems, and DVD drives. It provides 3D surrounding sound and vivid screen.

What is a home theater system?

Home theater system usually consists of a TV, DVD, 5.1 channel speaker, and digital amp and provides a high-resolution screen (MPEG2) and 3D surrounding sound (Dolby 5.1 or DTS). With a home theater system, you can enjoy a vivid screen and sound in your home as if you are in a movie theater.

The following devices are required to enjoy a home theater system.

To use home theater system, complete the following procedures:

• Step 1. Connect 5.1 channel speaker system to your computer.

• Step 2. Configure digital sound output on the computer.

• Step 3. Enable S/PDIF output on the DVD program.

5.1 channel speaker system (amplifier, speakers, connection cables) Purchased separately

DVD drive and DVD playing program on the computer Optional

DVD title that supports 5.1 channel Purchased separately

Page 28

28 Users Manual

Step 1. Connect 5.1 channel speaker system to your computer

1. Connect the S/PDIF jack on the left-hand side of the system and the 5.1 channel amplifier.

2. Connect speakers to the amplifier. (Refer to speaker system’s manual.)

You need a TV that supports VGA port to display through a TV.

Step 2. Configure digital sound output on the computer

1. Click Start > Control Panel > Sounds, Speech and Audio Devices > Sounds and Audio Devices.

2. In the Device volume field on the Volume tab, click Advanced.

3. In the [Master Volume] dialog, click Option > Advanced Controls. Then Advanced button is displayed on the bottom of the dialog.

4. Click Advanced, select “AC3 SPDIF”, then click Close.

Front Left Speaker

Surround Left Speaker Surround Right Speaker

Center

Speaker

Front Right Speaker

Digital Amplifier

Computer

Sub

Woofer

Page 29

Using the Computer 29

Step 3. Enable S/PDIF output on the DVD program

To use 5.1 channel speakers, you need to install the Power DVD program from the DVD Installation CD provided with your computer, then change the settings as per the following.

1. Run Power DVD program and click the Settings icon ( ).

2. On the Audio tab, set the Audio Output setting to “Use SPDIF” and click OK.

Now, you can enjoy home theater using DVD titles.

To control volume for your 5.1 channel speaker, use the control on the digital amp. (Please refer to the speaker manual.)

Page 30

30 Users Manual

Using Memory Card Slot

Through the memory card slot, you can use memory cards such as memory stick, SD (Secure Digital) memory card, and MMC (Multi Media Card). You can use the memory cards as a removable disk, and use them to exchange data between your computer and digital devices such as a digital camera.

Restrictions on using Memory Stick/SD Memory Card

You can use Memory Stick, SD Memory Card and Memory Stick Pro (256MB~1GB, approximately 1 MB/s) for storing data only. Copyright protection function is not supported.

To insert and use a memory card

Before using the memory card slot, remove the slot protector.

Press the end of the slot protector softly to pop it outward, then remove it.

You should insert the memory card upside down.

Inserting wrong side up may cause damage in the memory card and the computer.

Memory Stick

SD (Secure Digital) Memory Card /

MMC (Multi Media Card)

Page 31

Using the Computer 31

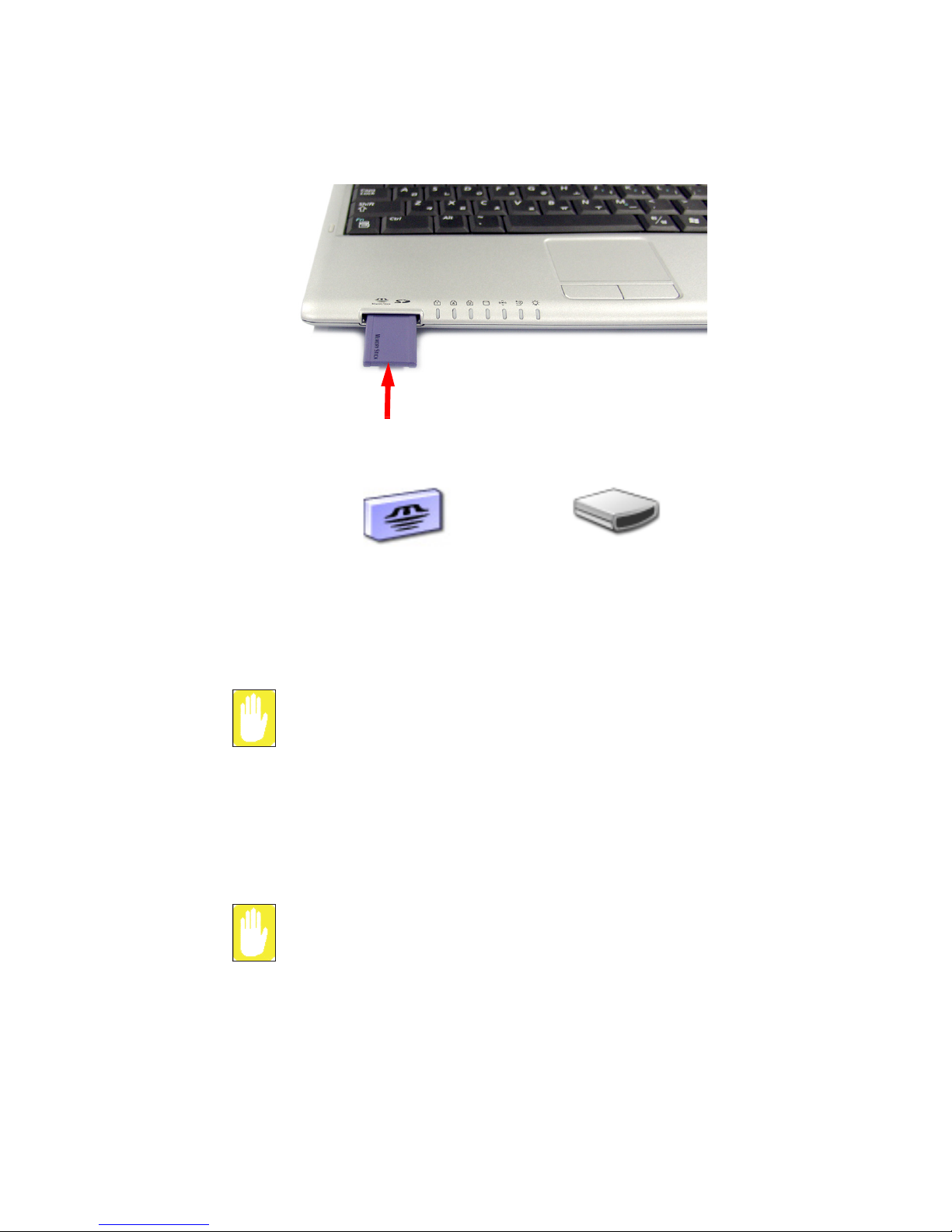

1. Insert the card into the memory card slot, logo side facing upwards.

2. Click Start > My Computer. The inserted memory card is displayed.

3. You can write data to the memory card. If the memory card is not formatted yet,

format the memory card before use.

Since the memory card may be easily mislaid when moving your computer, keep the memory card separately.

To remove a memory card

1. Press the end of the memory card softly to pop it outward.

2. Remove the memory card.

Do not remove a memory card for about 20 seconds after format, write, or delete operation in Windows 2000, Me, or 98SE. Removing a memory card immediately after the operations may cause damage to the memory card caused by the inherent problem of the Windows operating system.

Memory Stick

SD (Secure Digital) Memory Card /

MMC (Multi Media Card)

Page 32

32 Users Manual

To format a memory card

You can use a memory card after the format operation. The procedures to format a memory card are described below.

Since format operation deletes all data in the memory card, please make sure that there is no important data in the memory card before formatting.

To protect the data in the memory card

Set the write protection tab of the Memory Stick or SD memory card to the Lock position.

1. Click Start > My computer.

2. Press the right touchpad button on the memory card drive, and select Format from

the pop-up menu.

3. Click Start to start the format operation.

To use a memory card in both the computer and other digital device such as digital camera, it is recommended to format the memory card in the digital device. If you format the memory card in the computer, you may have to format the memory card in other digital device again to use the memory card in the digital device.

To format Memory Stick Pro

You cannot format Memory Stick Pro using Windows XP or Memory Stick Formatter. Format it in other digital devices.

To use a Memory Stick Duo

Insert a Memory Stick Duo into the Memory Stick Duo adapter and insert the adapter into the Memory Stick slot of the computer.

To Re-install the Memory Stick (Card) Driver

The Memory Stick (Card) needs to be removed prior to installing the driver.

If the driver is installed when the Memory Stick (Card) is installed, remove the Memory Stick (Card), then select Start > Control Panel > System > Hardware tab > Device Manager, remove Other Device and re-install the Memory Stick (Card) driver using the System Software CD.

Page 33

Using the Computer 33

Using the CF Card Slot

You can insert a CF card, used in multimedia devices such as digital cameras, into the CF card slot and exchange data between the CF card and the computer.

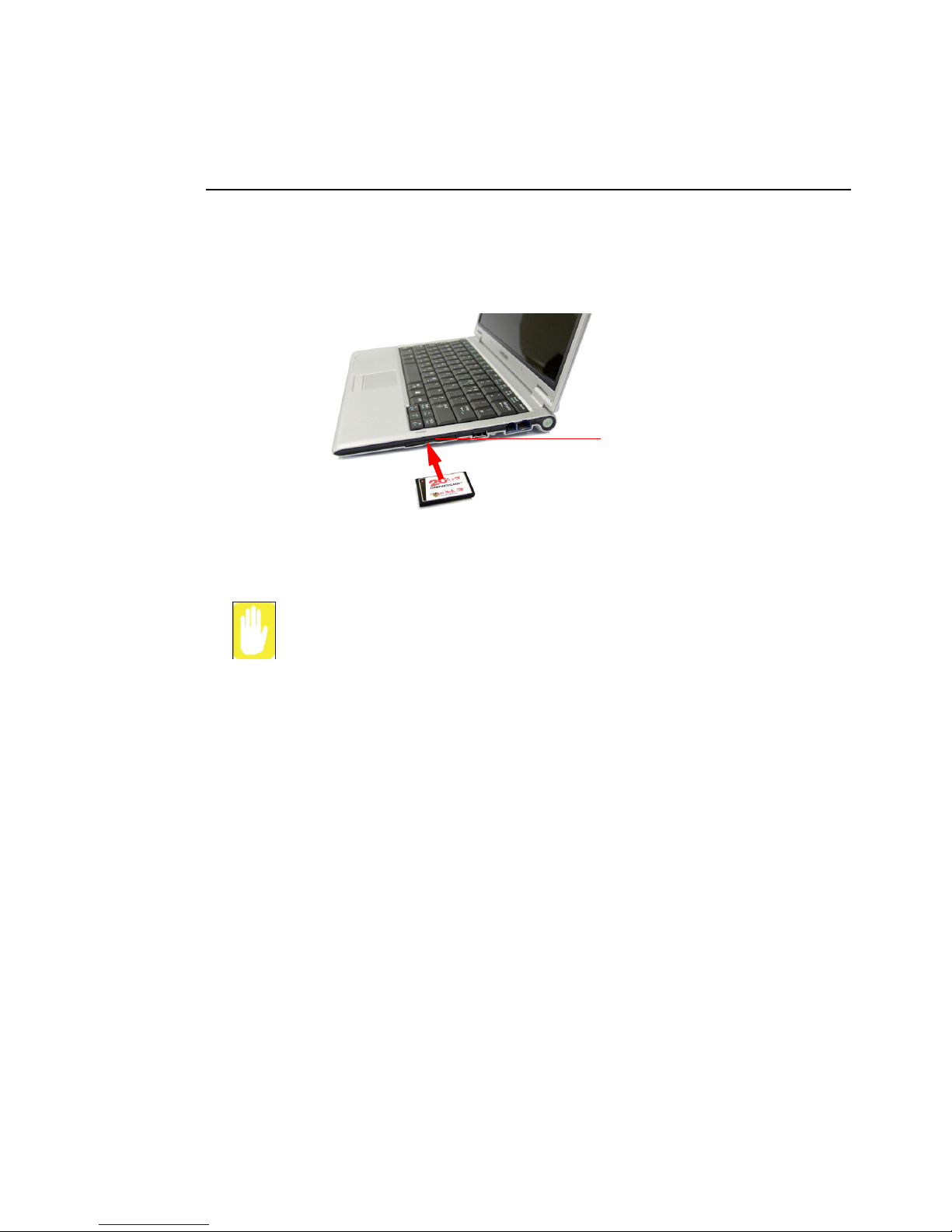

1. Insert a CF card into the CF card slot at the side of the system.

2. If you insert a CF card, the Removable Disk window appears and you can use the

CF card.

To remove a CF card

Close the Removable Disk window and pull the CF card, holding the lower side of the card. Since using your nails to pull the card may cause injury to your nails, please use your fingers to pull the card.

CF Card Slot

Page 34

34 Users Manual

Using Samsung Smart Screen

Use Samsung Smart Screen program to arrange desktop icons as desired and manage them effectively.

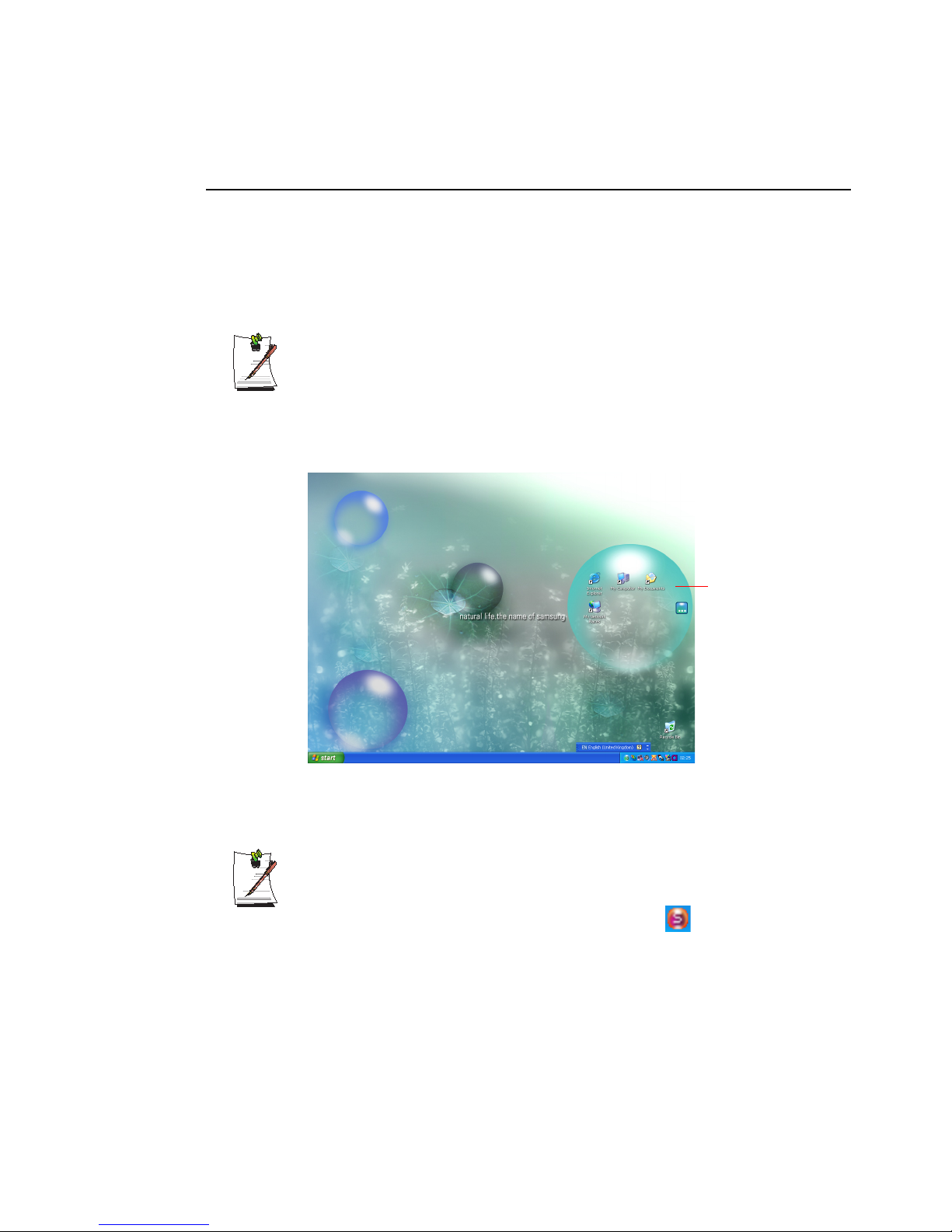

1. Click Start > All Programs > Samsung > Samsung Smart Screen.

When you launch Samsung Smart Screen for the first time, a dialog box asking whether to register the program as a start program or not appears. If you select OK, the program is automatically launched when you start your computer.

2. Samsung Smart Screen appears. When you run the program for the first time, water drop image is displayed.

3. To move an icon, click a water drop to open it, then drag an icon to another water drop.

To return to Windows desktop

Right-click on Samsung Smart Screen and click Windows desktop. Windows desktop is displayed.

To return to Samsung Smart Screen, double-click ( ) icon on the taskbar.

To change background or skin

Right-click on Samsung Smart Screen and select desired item.

Click a water drop to open and close the group.

Page 35

Using the Computer 35

Using Samsung Theme

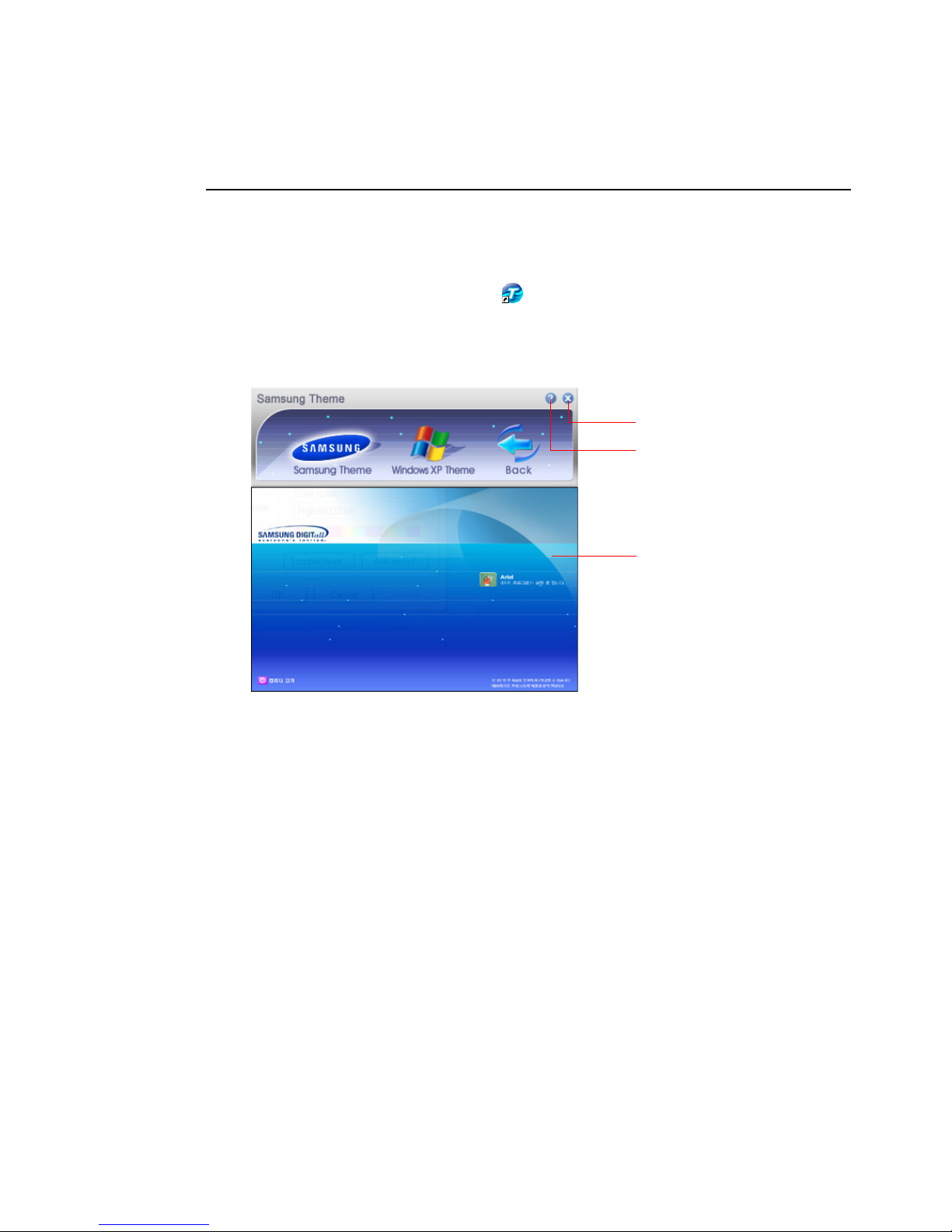

Samsung Theme is a program that enables a user to easily switch a theme (desktop, logon screen and sound effect).

Double-click the Samsung Theme ( ) icon on the desktop.

(Or select Start > All Programs > Samsung > Samsung Theme > Samsung Theme.)

• Samsung Theme: Switches to Samsung Theme (desktop, logon screen and

sound effects on booting).

• Windows XP Theme: Switches to the Windows XP default Theme.

• Back: Restores the theme to its previous status.

Close button

Help button

Move the mouse pointer over Samsung Theme item, then the Samsung Theme will be displayed below.

Page 36

36 Users Manual

Connecting to the Internet

Connecting with a Modem

Before Start:

• Prepare a telephone line that is not digital.

• Contact an internet service provider (ISP) for instructions on how to connect to

and disconnect from the Internet.

1. Connect a telephone line to the computer’s modem port.

2. Connect to the Internet according to the instructions provided by your ISP.

If the Internet connection is not disconnected properly, additional telephone charges may be imposed.

Page 37

Connecting to the Internet 37

Connecting Through a Wired LAN

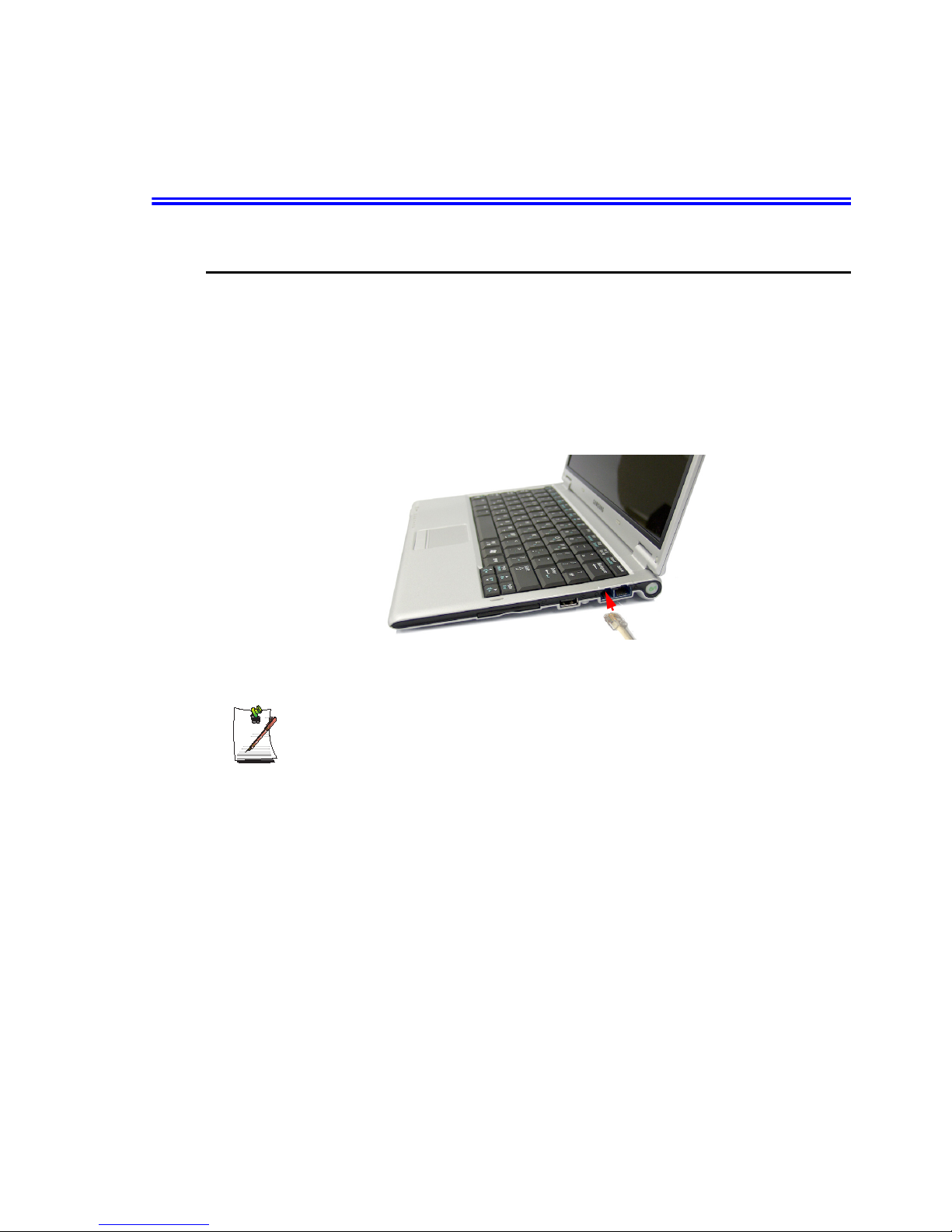

1. Connect a LAN cable to the computer’s LAN port.

2. Click Start > Control Panel.

3. Click Network and Internet Connections in the [Control Panel] window.

4. Click Network Connections in the [Network and Internet Connections] window.

5. Right-click the Local Area Connection icon and click Properties.

Page 38

38 Users Manual

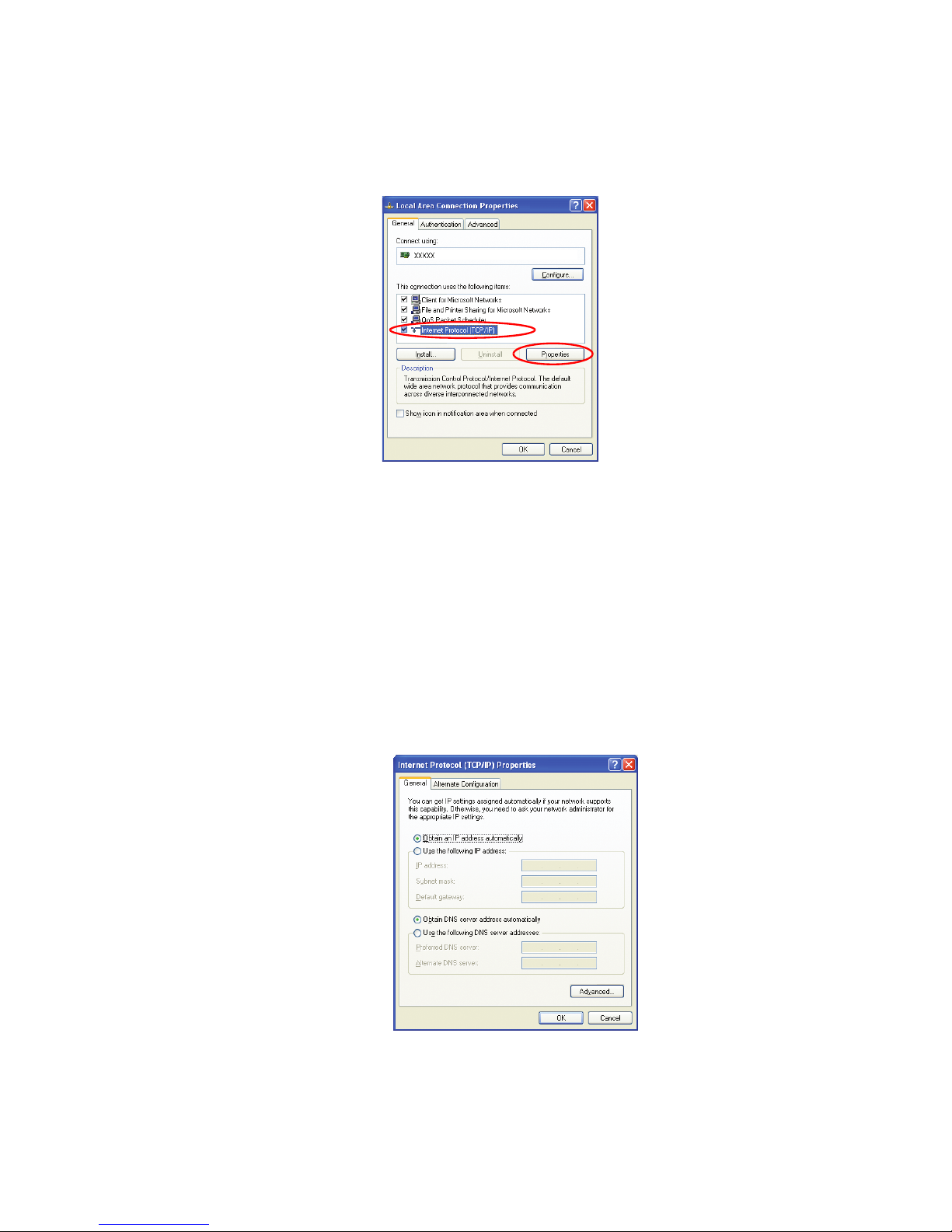

6. On the General tab, select “Internet Protocol(TCP/IP)” and click Properties.

7. To use DHCP:

On the General tab, select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click OK.

To use a static IP:

On the General tab, select “Use the following IP address” and fill in the IP address, Subnet mask, Default gateway, Preferred DNS server, and Alternative DNS server fields. Click OK.

To use both DHCP and static IP simultaneously:

On the Alternate Configuration tab, click User configured and fill in the fields. Click OK.

Page 39

Connecting to the Internet 39

Using Samsung Network Manager

Use Samsung Network Manager to configure network setting.

Using the program, you can do the following.

• You can save network settings (including IP address) according to network

places such as office and home. When you change places, simply select a network place and the network settings will be automatically changed accordingly.

• You can easily find out your current IP.

To configure network setting

1. Connect LAN cable to the computer's LAN port.

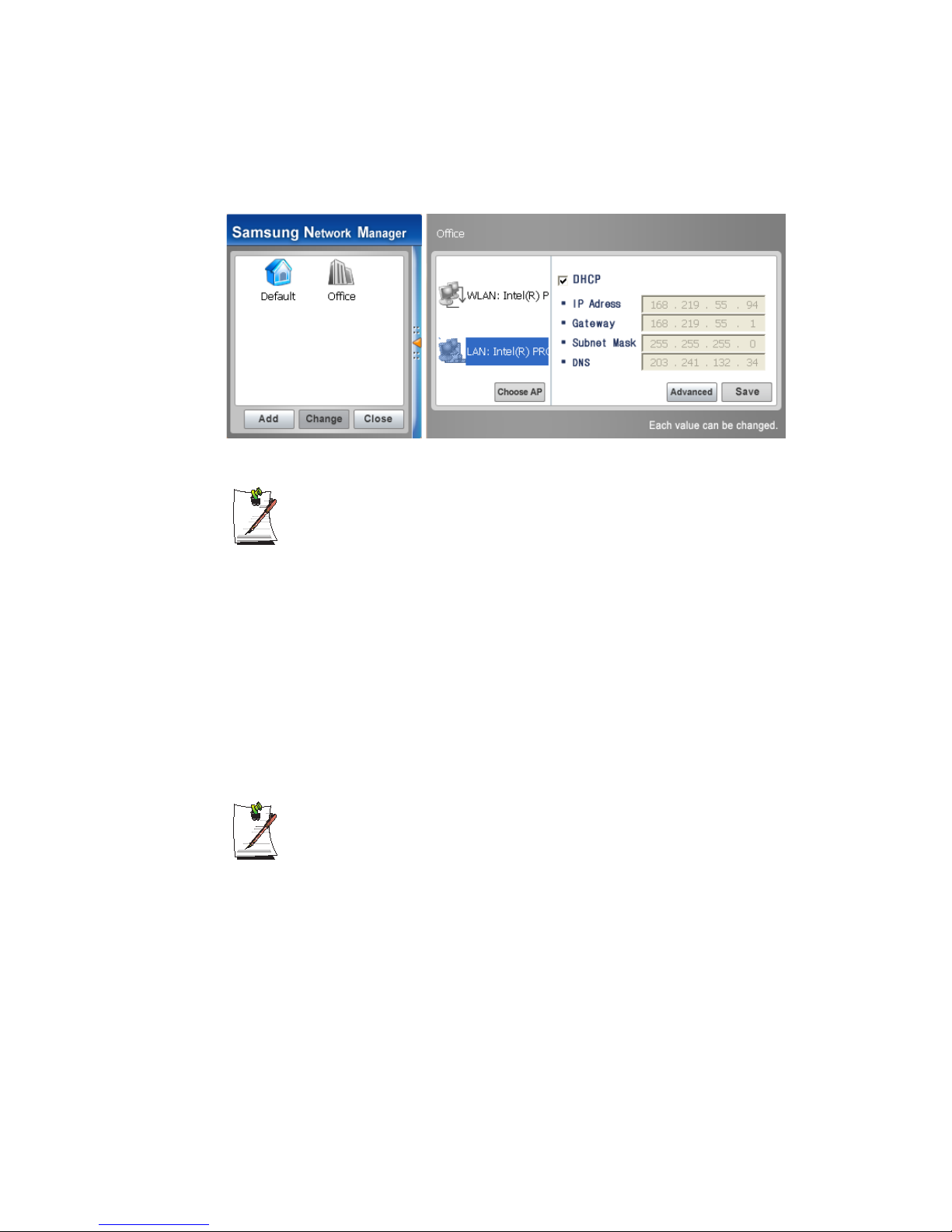

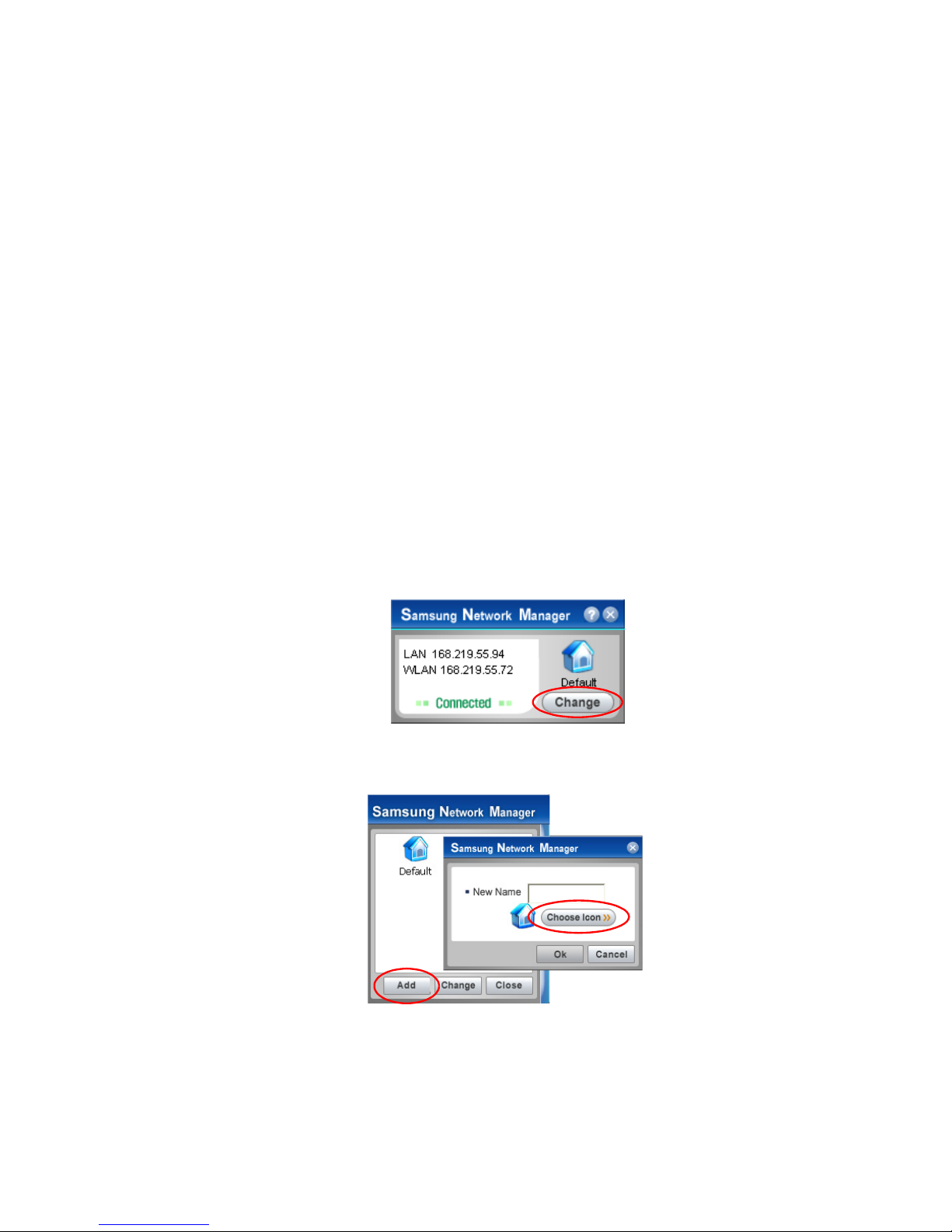

2. Double-click Samsung Network Manager icon on the desktop. Or click Start > All Programs > Samsung Network Manager > Samsung Network Manager.

3. When you are using DHCP, available IP's are displayed in the status dialog box. Click Change.

4. Click Add, click Choose Icon and select an icon. Enter a place name in New Name field and click Ok.

Page 40

40 Users Manual

5. New place icon is displayed and full dialog box appears. Check your IP and click Close. Network setting is saved.

To configure network setting of some place other than current place, click the place icon and configure each network device. If you are using DHCP, select 'DHCP' check box and click Save.

If you are using a static IP, clear 'DHCP' check box, enter appropriate network setting and click Save.

Ask ISP or network administrator for IP address.

To change network places

You can change network places as below.

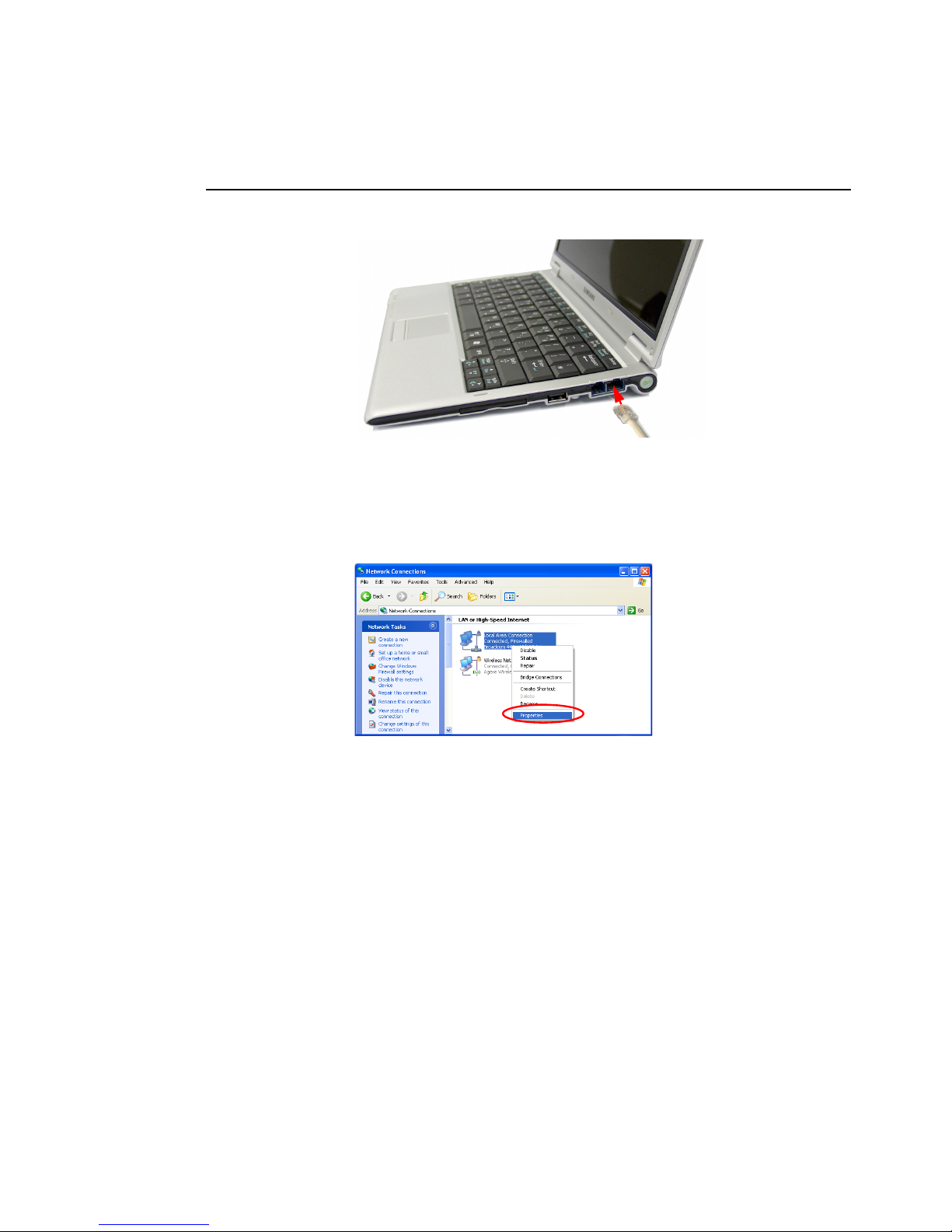

1. Connect LAN cable to the computer's LAN port, and double-click Samsung Network Manager icon on the desktop.

If you used static IP in previous place, previous static IP is displayed in the status dialog box.

Page 41

Connecting to the Internet 41

2. Click Change, select a place icon then click Change.

3. On "Do you want to change the location setting?" dialog box, click Ok.

4. When the network place is changed, corresponding place icon is displayed in color

and full dialog box appears. In the right area of full dialog box, network setting is displayed.

5. Click Close to close the dialog box.

Example) changing to Office

Page 42

42 Users Manual

Connecting Through a Wireless LAN (Option)

A wireless network (Wireless LAN) environment is a network environment that enables communication between multiple computers at home or a small-size office through wireless LAN devices.

Using the wireless network connections between the systems, you can use normal network functions such as sharing of files, folders and printers. When a computer-tocomputer network has been constructed, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet. For details, see “Using Network Services” on page 59.

The description in this section concerns the Intel(R) PRO/Wireless LAN 2100 3B Mini PCI Adapter (hereafter referred to as a 11b card), the Intel(R) PRO/ Wireless LAN 2200BG Network Connection (hereafter referred to as a 11g card) and the Intel(R) PRO/Wireless 2915ABG Network Connection device (hereafter referred to as a 11a/g card).

A wireless LAN interface is an optional device that you can select when you purchase this product. You can connect to the Internet over a wireless connection when your computer has a wireless LAN (WLAN) device.

To view the installed wireless LAN card, click Start > Control Panel >

Performance and Maintenance > System > Hardware tab > Device Manager.

The images actually displayed may differ from the figures shown in this section according to the installed device and the connection state.

To turn off the Wireless LAN

If the wireless LAN is turned on, the computer consumes more power, therefore shortening the amount of time you can run on battery. If you are not using the WLAN or if you are in an environment that does not provide WLAN, you are recommended to turn off the WLAN by pushing the WLAN button (p10) on the computer.

Wireless network connections can be classified into two categories.

1) Access Point (AP)

You can connect to an AP to use the network. This is possible only in an environment equipped with an AP. For details, see “Connecting to an Access Point (AP)” on page

43.

Page 43

Connecting to the Internet 43

What is an Access Point (AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP.

2) Computer-to-computer (ad hoc)

This is also called a peer-to-peer network.

In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. For details, see “Connecting to computerto-computer networks (peer-to-peer or ad hoc)” on page 45.

Connecting to an Access Point (AP)

This section describes how to connect to an AP. You can use the network when you are connected to an AP.

The connection setup is described for a computer running on Windows XP Service Pack 2. If you are using the Windows 2000 system, refer to (p 51). For more detailed information such as the network key (encryption key), ask your network administrator.

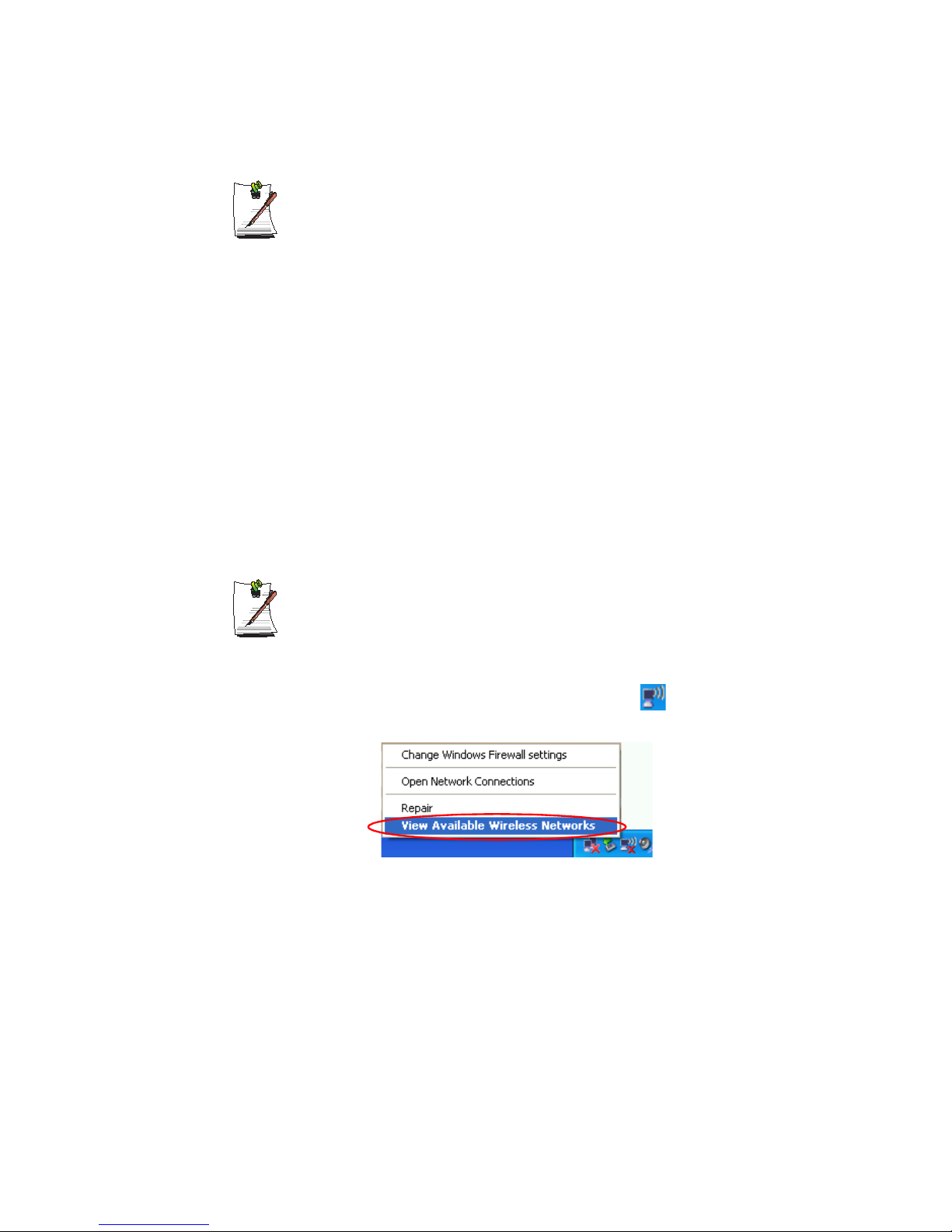

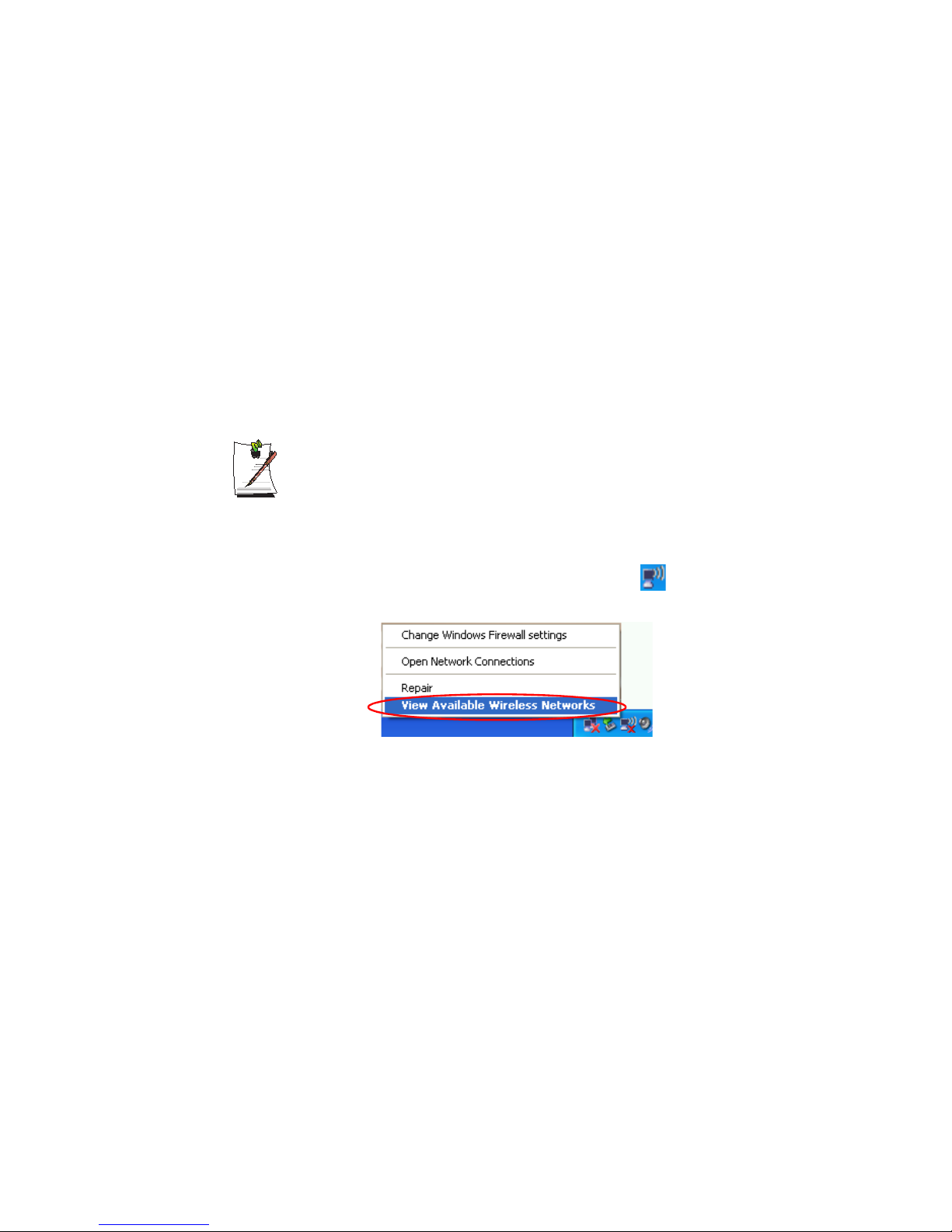

1. Right-click on the Wireless Network Connection ( ) icon on the taskbar, and select View Available Wireless Networks.

Page 44

44 Users Manual

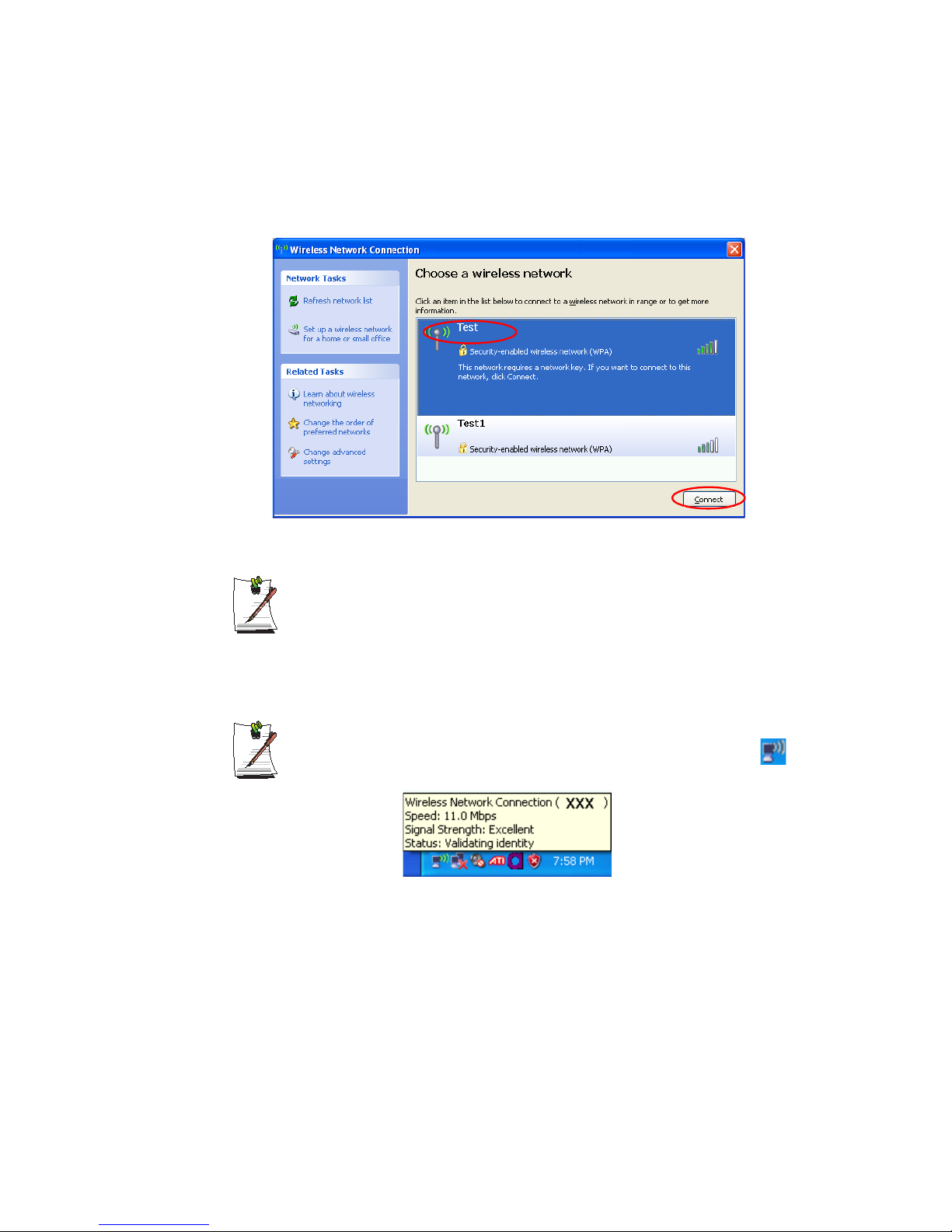

2. Select an AP (E.g. Test) to connect to and click Connect. When the network key dialog box appears, enter the network key and click Connect.

When a network key is not defined for a selected AP, click on Link to display the warning message box. Then click Connect again in the box.

Now when Connected in AP is displayed, and you can access the network.

Checking the connection status

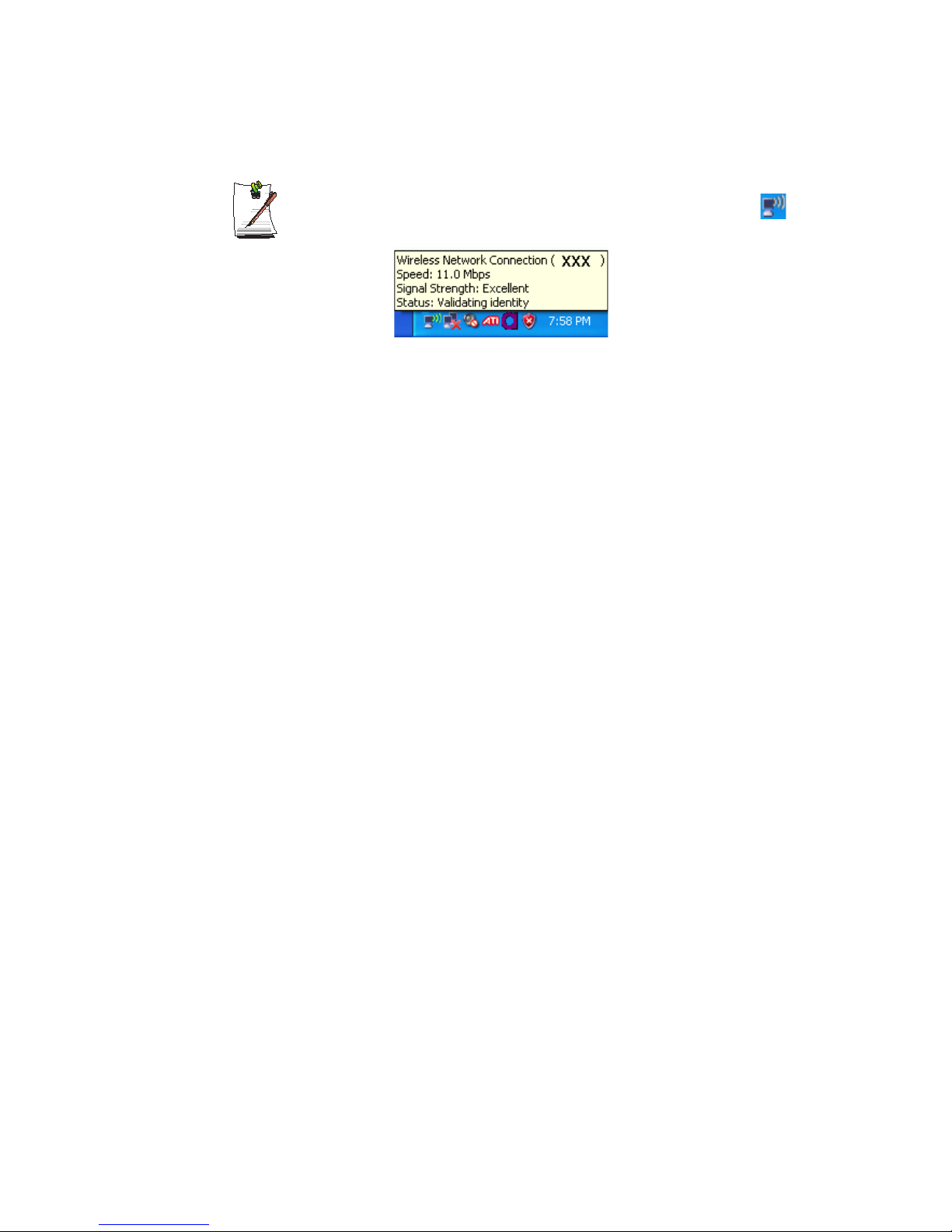

Move the mouse pointer over the Wireless Network Connection ( ) icon on the taskbar, and the connection status is displayed.

Page 45

Connecting to the Internet 45

Connecting to computer-to-computer networks (peer-to-peer or

ad hoc)

In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. Using this method, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet. (Refer to (p 64).)

You can connect by completing the following steps:

• Step 1. Set up a computer-to-computer network on a computer.

• Step 2. Connect to the configured computer from other computers.

The connection setup is described for computers running Windows XP Service Pack 2. If you are using the Windows 2000 system, refer to (p 51).

Step 1. Setting up a computer-to-computer network

1. Right-click on the Wireless Network Connection ( ) icon on the taskbar, and select View Available Wireless Networks.

Page 46

46 Users Manual

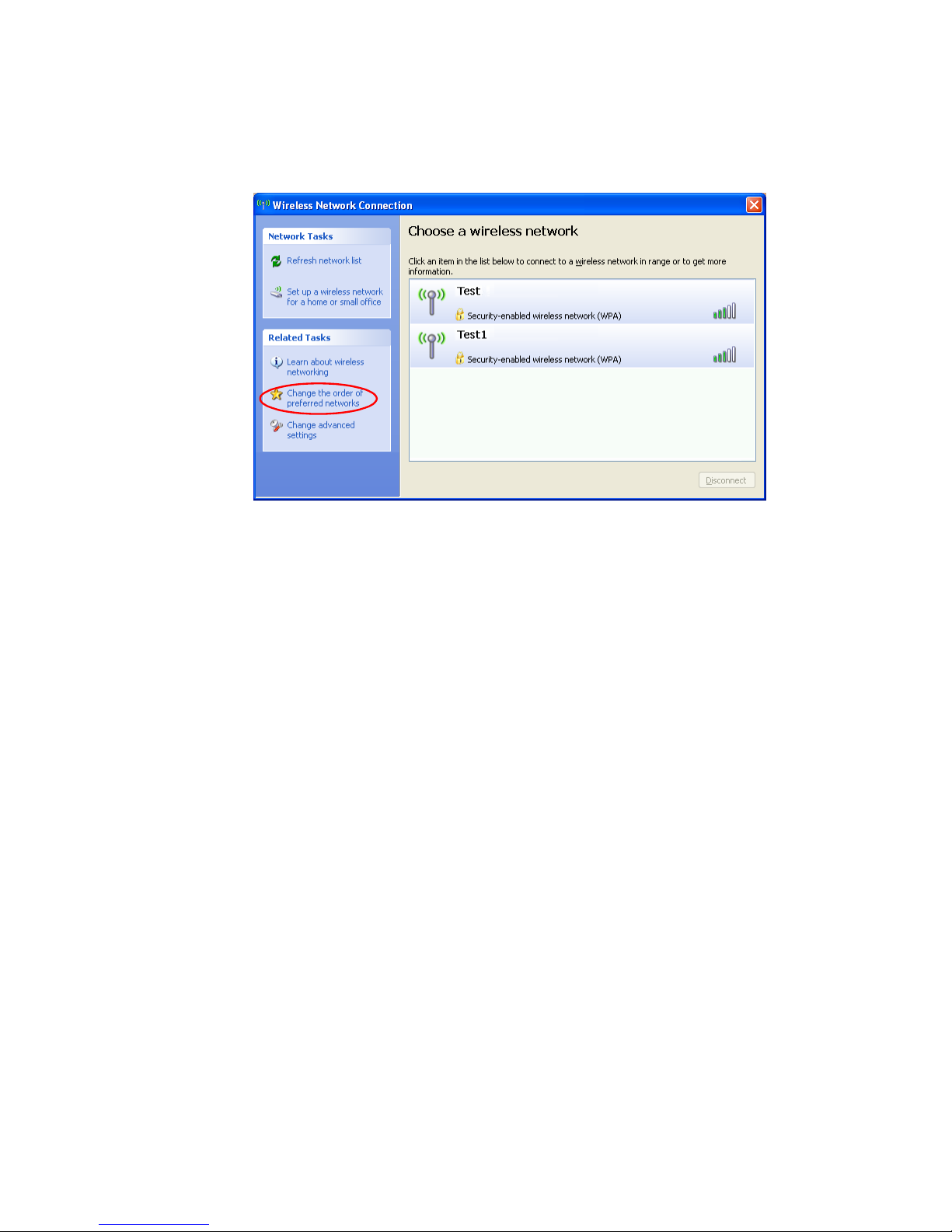

2. Click Change the order of Preferred Networks.

3. On the Wireless Network tab, click Advanced.

4. Clear 'Automatically connect to non-default network' check box, if it is selected. Select 'Computer-to-computer (ad hoc) networks only', and click Close.

5. In the Wireless Networks tab, click Add.

Page 47

Connecting to the Internet 47

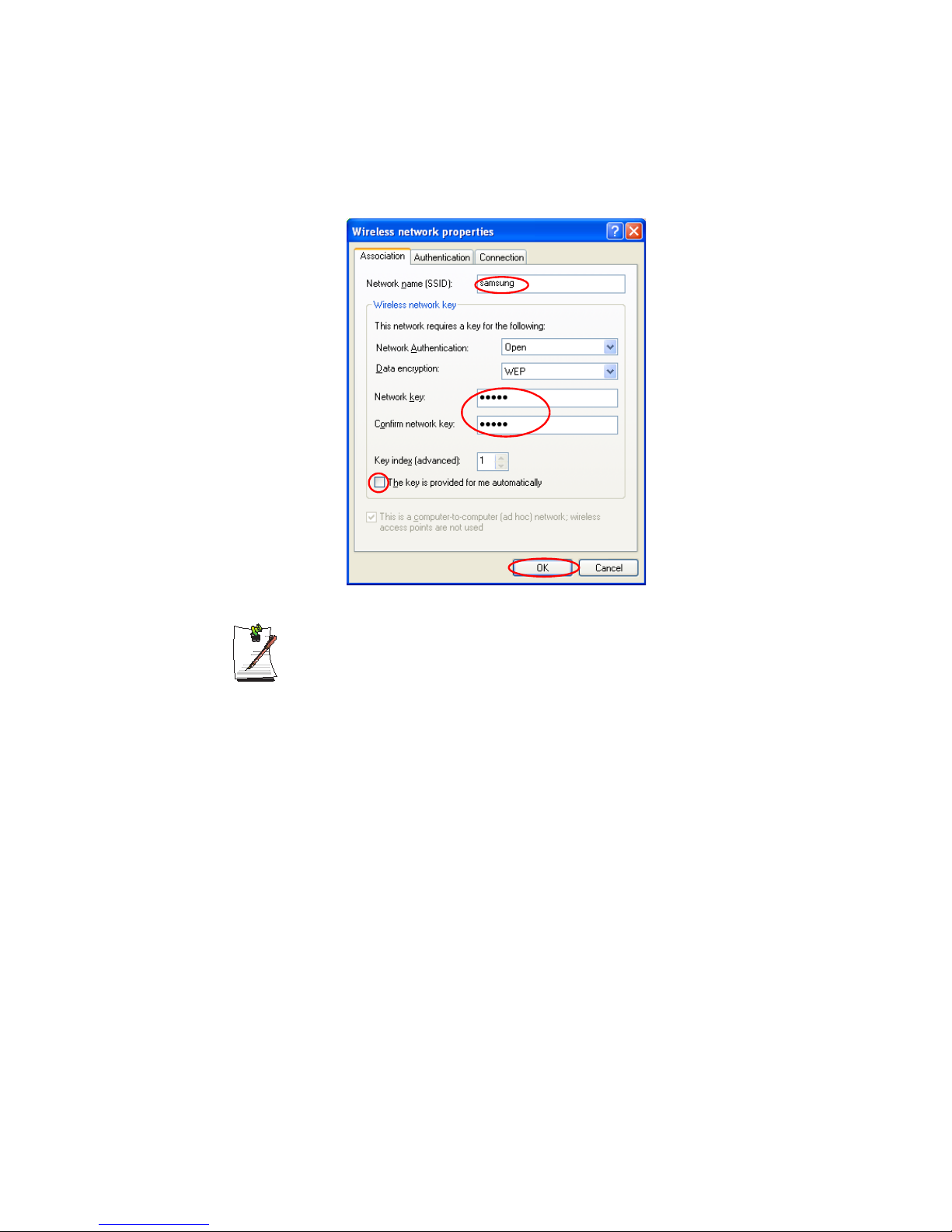

6. Enter the network name (e.g. samsung), and unselect 'The key is provided for me automatically'. Enter the encryption key in the Network key field, and click OK.

To prevent a network connection from an unauthorized user, it would be better to configure a network key (encryption key). A network key consists of 5 or 13 alphanumeric characters (e.g. magic), or of 10 or 26 hexadecimal numbers (a hexadecimal number is represented by numbers '0' to '9' or letters 'a' to 'f').

Page 48

48 Users Manual

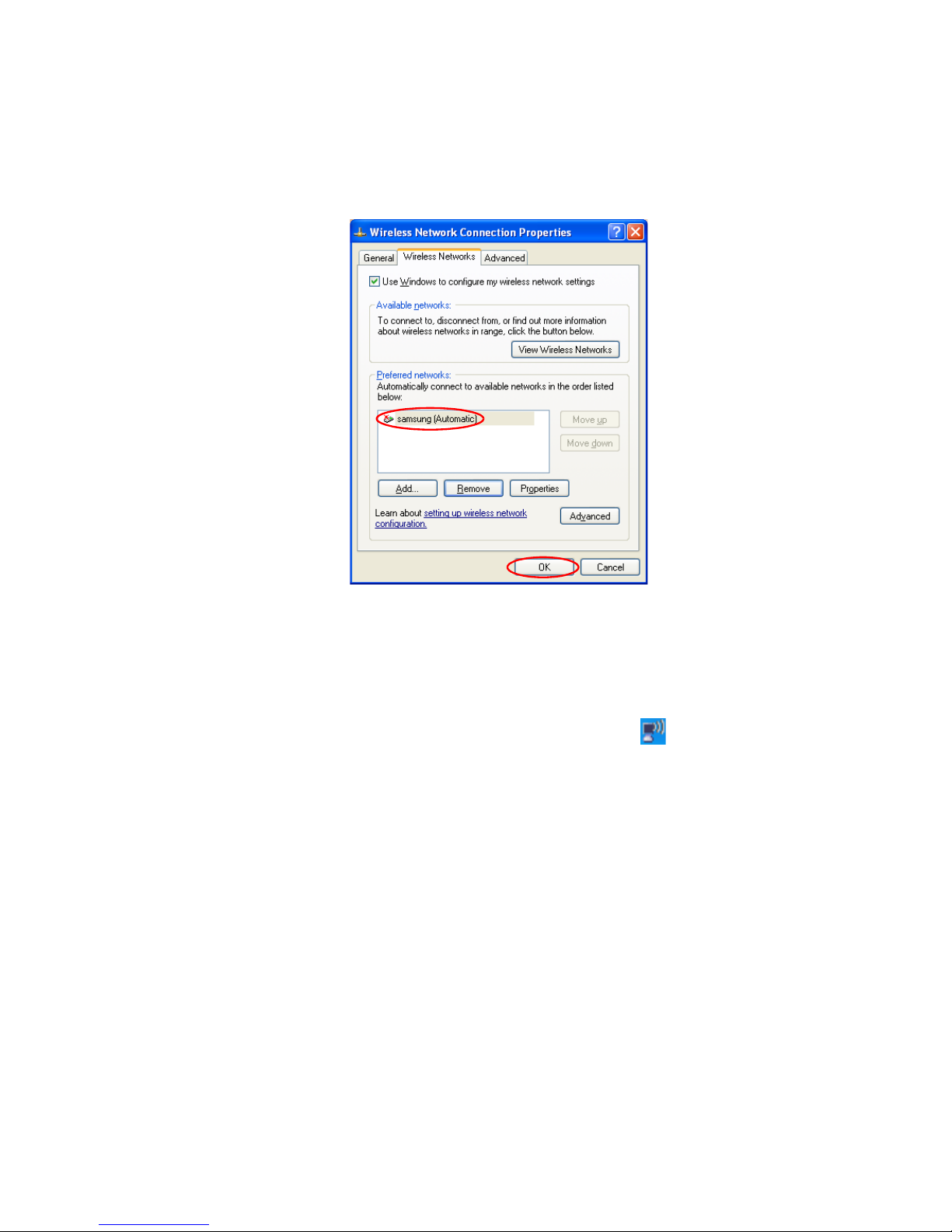

7. Check that the configured network name (e.g. samsung) is in the ’Preferred networks’ item, and click OK.

Now your wireless network setup has been completed.

Step 2. Connecting to the configured computer

1. Right-click on the Wireless Network Connection ( ) icon on the taskbar, and select View Available Wireless Networks.

Page 49

Connecting to the Internet 49

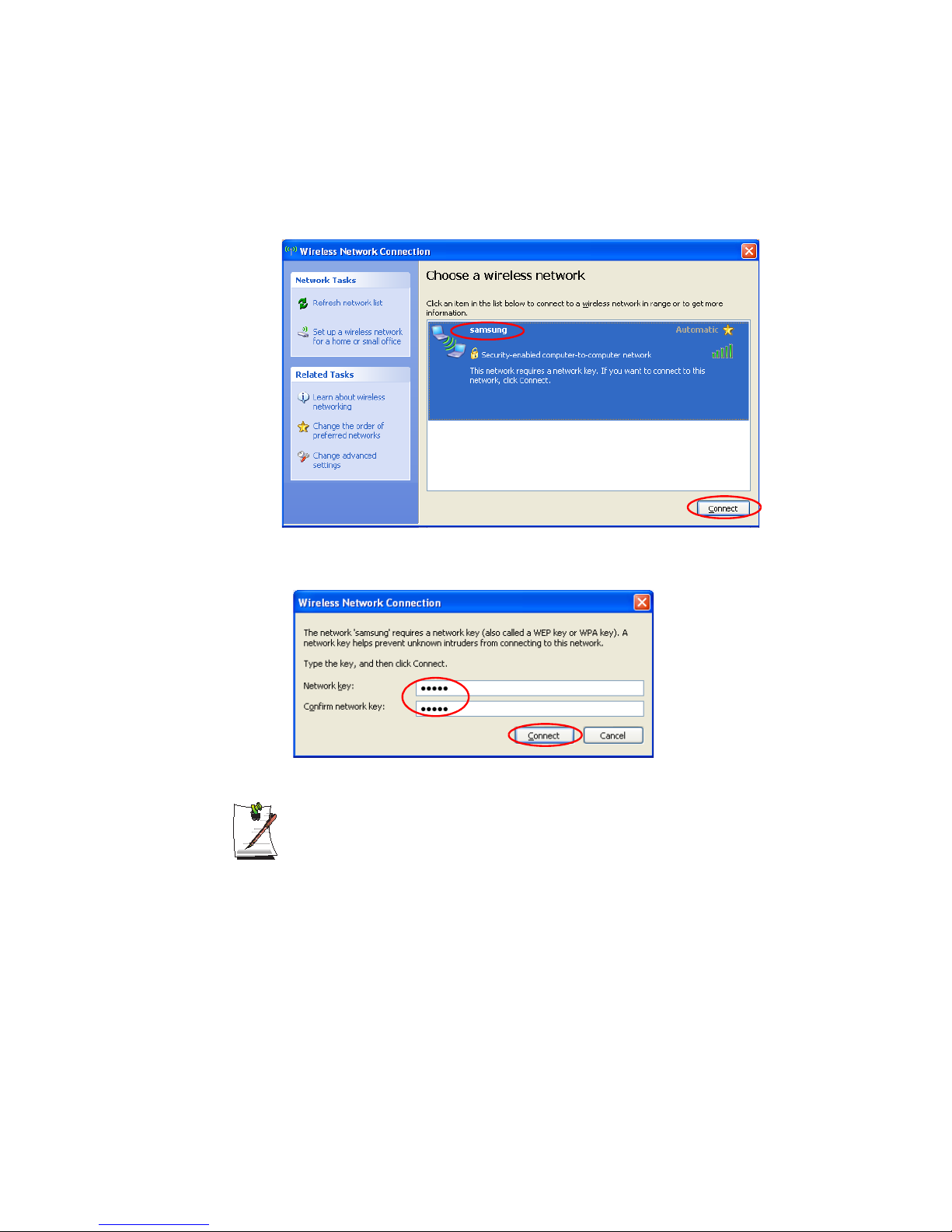

2. Select the wireless network name (e.g. samsung) specified in ”Connecting to computer-to-computer networks (peer-to-peer or ad hoc)” on page 45, and click

Connect.

3. Enter a cryptographic key in the network key box and click Connect.

If the network key is not configured in ”Connecting to computer-to-computer networks (peer-to-peer or ad hoc)” on page 45, just click Connect, without any keystrokes.

When connected to the wireless network, the system displays Connected in the selected network of the Network Connection window.

Page 50

50 Users Manual

Checking the connection status

Move the mouse pointer over the Wireless Network Connection ( ) icon on the taskbar, and the connection status is displayed.

Page 51

Connecting to the Internet 51

Wireless Network Setup Using the Wireless LAN Setup Program(for an 11a/g and 11g card)

You can use a wireless LAN by using a wireless LAN configuration program (PROSet) provided separately.

For an 11b card, see ”Wireless Network Setup Using the Wireless LAN Setup Program(for an 11b card)” (p55).

To use wireless network connection, complete the following procedures.

• Step1. Install the wireless LAN configuration program (PROSet).

• Step2. Configure wireless network settings through the wireless LAN

configuration program.

Step 1. Installing the wireless LAN configuration program (PROSet)

You can install the wireless LAN client administrator program following the instruction displayed automatically when you insert the system software CD. Insert the system software CD into the CD-ROM drive, and install the wireless LAN configuration program.

Step 2. Using the wireless LAN configuration program (PROSet)

Double-click the wireless LAN program ( ) icon on the taskbar.

(Or, click Start > All Programs > Intel PROSet Wireless > Intel PROSet Wireless.)

In some languages, some buttons on the window may not be displayed. If this is the case, resize the window to use the program.

Configure wireless network settings in PROSet following the procedures below.

Page 52

52 Users Manual

To connect to an Access Point:

To connect to an access point or existing computer-to-computer (Ad Hoc) network, refer to the following procedures. (To create a new computer-to-computer network, refer to the following "To create computer-to-computer (Ad Hoc) network" section.)

1. In Available Networks, click on Refresh.

2. Select the name of desired access point or computer-to-computer network to connect from the searched available networks list, and click Configure.

If your desired network does not appear, click Refresh.

An access point is represented by the ( ) icon, and a computer-to-computer network is represented by the ( ) icon. An ( ) icon is displayed in front of an access point or a computer-to-computer network with configured security settings.

3. Enter Profile Name and click Next.

4. In the Search Security Settings window, the wireless network security search message will appear. Click Next.

5. Enter the network authentication, data encryption (WEP), encryption level, key index, and wireless security password configured for the target access point

or computer-to-computer network in the Security Settings window, and click Next.

The network authentication, data encryption (WEP), key index, and password of a access point are configured in the access point management program. For information on the security information, check the security settings of the access point or ask your wireless network administrator.

To connect to an existing computer-to-computer (Ad Hoc) network, enter the password configured when creating the computer-to-computer network for the first time. You do not need to enter network authentication or key index.

Security Settings

- Network authentication: The network authentication option includes Open System and Shared Key. When you select Open System, no authentication is

Page 53

Connecting to the Internet 53

applied (however, encryption is supported). When you select Shared Key, a WEP key is used for authentication. The default setting is Open System.

- Data encryption (WEP): The IEEE 802.11 WEP (Wired Equivalent Privacy) standard defines two levels of encryption, a 64-bit key (this is sometimes represented by 40bits) and a 128-bit key.

- Key index: Select the current encryption key index used by the access point out of 1 to 4.

- To use encryption key: Click Use pass phrase to activate, and enter 5 (for 64-bit) or 13 (for 128-bit) alphanumeric characters (represented by 0-9, a-z, or A-Z).

6. The Done window appears, click OK.

When a wireless connection to an access point is established, the connection icon ( ) appears in front of the name of the connected profile.

To create a computer-to-computer (Ad Hoc) network:

To create a new computer-to-computer (Ad Hoc) network or to connect to a hidden access point (Stealth/Closed Mode), refer to the following procedures.

A hidden access point is an access point that exists, but is configured not to be detected by the scan operation to prevent access attempts from unauthorized users.

1. In Profiles, click on Add.

2. Enter Profile Name and Network name (SSID), select Operating Mode, then click Next.

What is a network name (SSID)?

Network name (SSID) is a name that a wireless adapter uses for identifying connection. Enter the name of computer-to-computer network to create (e.g., samsung) or the name of access point to connect. The network name identifies cases. (capital and lowercase) For the name of access point, check the settings of the access point, or ask your wireless network administrator.

Operating Mode:

- Network (Infrastructure) - Connect to an Access Point - Select to connect to an access point.

- Device to device (Ad hoc) - Connect directly to other computers - Select to create a computer-to-computer (Ad Hoc) network.

Page 54

54 Users Manual

3. Configure password setting to be used for computer-to-computer network connection in the Security Settings window. To connect to an access point, enter the network authentication, data encryption (WEP), encryption level, key index, and wireless security password configured in the access point.

It is recommended to configure data encryption for security purposes when creating a computer-to-computer network connection profile. For more information on security settings refer to the security settings in Connecting to AP or Help.

When you are creating a computer-to-computer network connection profile, the network authentication setting is disabled.

4. When a profile creation is completed, the new created profile appears in the profiles list. Select corresponding profile, and click Connect to connect to the created profile.

When a wireless connection to the created profile is established, the connection icon ( ) appears in front of the name of the connected profile.

Page 55

Connecting to the Internet 55

Wireless Network Setup Using the Wireless LAN Setup Program(for an 11b card)

You can use a wireless LAN by using a wireless LAN configuration program (PROSet) provided separately.

For an 11a/g card, see ”Wireless Network Setup Using the Wireless LAN Setup Program(for an 11a/g and 11g card)” (p51).

To use wireless network connection, complete the following procedures.

• Step1. Install the wireless LAN configuration program (PROSet).

• Step2. Configure wireless network settings through the wireless LAN

configuration program.

Step 1. Installing the wireless LAN configuration program (PROSet)

To disable the 'Intel Configuration Service' window afterward

After installing the wireless LAN configuration program, select "Do not show this again." check box, then click Close.

Step 2. Using the wireless LAN configuration program (PROSet)

Double-click the wireless LAN program ( ) icon on the taskbar.

(Or, click Start > All Programs > Intel Network Adapters > Intel(R) PROSet for Wireless.)

In some languages, some buttons on the window may not be displayed. If this is the case, resize the window to use the program.

Page 56

56 Users Manual

Configure wireless network settings in PROSet following the procedures below.

To connect to an Access Point:

1. Click Scan in the Networks tab.

2. Select the name of desired access point or computer-to-computer network to connect from the searched available networks list, and click Connect.

If your desired network does not appear, click Refresh.

3. Select "Yes, create a profile for this Network.", and click OK.

4. Enter Profile Name and click Next.

5. Enter the network authentication, data encryption (WEP), key index, and password configured for the target access point or computer-to-computer network in the Security Settings window, and click Finish.

Security Settings

- Network authentication: The network authentication option includes Open System and Shared Key. When you select Open System, no authentication is

Page 57

Connecting to the Internet 57

applied (however, encryption is supported). When you select Shared Key, a WEP key is used for authentication. The default setting is Open System.

- Data encryption (WEP): The IEEE 802.11 WEP (Wired Equivalent Privacy) standard defines two levels of encryption, a 64-bit key (this is sometimes represented by 40bits) and a 128-bit key.

- Key index: Select the current encryption key index used by the access point out of 1 to 4.

- To use pass phrase: Click Use pass phrase to activate, and enter 5 (for 64bit) or 13 (for 128-bit) alphanumeric characters (represented by 0-9, a-z, or AZ).

- To use WEP key: Click Use WEP keys to activate, and enter a hexadecimal number (represented by 0-9 and A-F) of 10 (for 64-bit) or 26 (for 128-bit) digits in the WEP key field.

When a wireless connection to an access point is established, the connection icon ( ) appears in front of the name of the connected profile.

To create a computer-to-computer (Ad Hoc) network:

To create a new computer-to-computer (Ad Hoc) network or to connect to a hidden access point (Stealth/Closed Mode), refer to the following procedures.

A hidden access point is an access point that exists, but is configured not to be detected by the scan operation to prevent access attempts from unauthorized users.

1. Click Add in the Networks tab.

2. Enter Profile Name and Network name (SSID), select Operating Mode, then click Next.

What is a network name (SSID)?

Operating Mode:

- Infrastructure - Connect to an Access Point - Select to connect to an access point.

Page 58

58 Users Manual

- Ad hoc - Connect directly to other computers - Select to create a computer-to-computer (Ad Hoc) network.

3. Configure password setting to be used for computer-to-computer network connection in the Security Settings window. To connect to an access point, enter the network authentication, data encryption (WEP), key index, and password configured in the access point.

When you are creating a computer-to-computer network connection profile, the network authentication setting is disabled.

4. When a profile creation is completed, the new created profile appears in the profiles list in the Networks tab. Select corresponding profile, and click Connect to connect to the created profile.

When a wireless connection to the created profile is established, the connection icon ( ) appears in front of the name of the connected profile.

Page 59

Connecting to the Internet 59

Using Network Services

While the computer is connected to the network, you can use network services to share files, folders, and printers. Using computer-to-computer wireless networks, you can access the Internet through a computer that is connected to the Internet even if your computer is not directly connected to the Internet.

Network services are provided for the computers that are connected to the network through wired or wireless network connections. For details, see “Connecting Through a Wired LAN” on page 37 and see “Connecting Through a Wireless LAN (Option)” on page 42.

Sharing files or folders

This section describes how to share files and folders between computers connected to the network.

To share files, complete the following procedures:

• Step 1. Configuring the sharing of files and folders on a computer.

• Step 2. Accessing shared files and folders from another computer.

When a file or folder is shared, anyone connected to the network can open and delete the shared file or folder. Configure a file sharing network only when the network is secure, and do not share important data.

Page 60

60 Users Manual

Step 1. Configuring Sharing

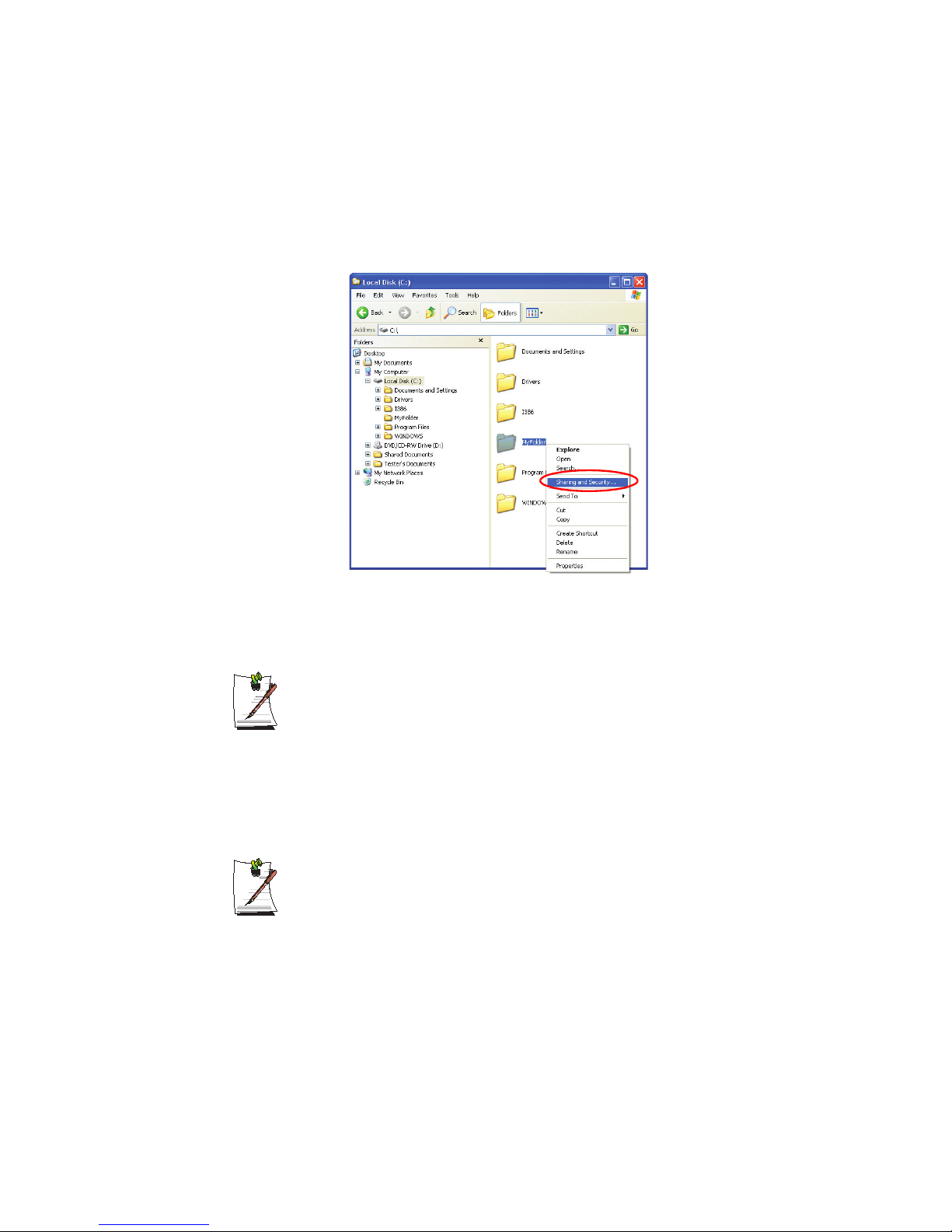

1. Right-click the target file or folder to share in My Computer, and select Sharing and Security.

2. Click 'IF you understand the security risks but want to share files without running

the wizard, click here'.

It has the same security effect as that of the 'Network Setup Wizard'. This screen does not appear if Internet Sharing Network Wizard has been installed in the computer-to-computer wireless network environment.

3. Select 'Just enable file sharing', and click OK.

4. In the 'Network sharing and security' field, select 'Share this folder on the network', enter the share name, and click OK.

Be cautious when selecting 'Allow network users to change my files' since other network users can change the files in the shared folder.

The file and folder sharing configuration has been completed.

Page 61

Connecting to the Internet 61

Step 2. Using Shared Files or Folders

This section describes how to access shared files or folders if your computer is a member of the same workgroup.

1. Double-Click My Network Places of desktop under Other Places.

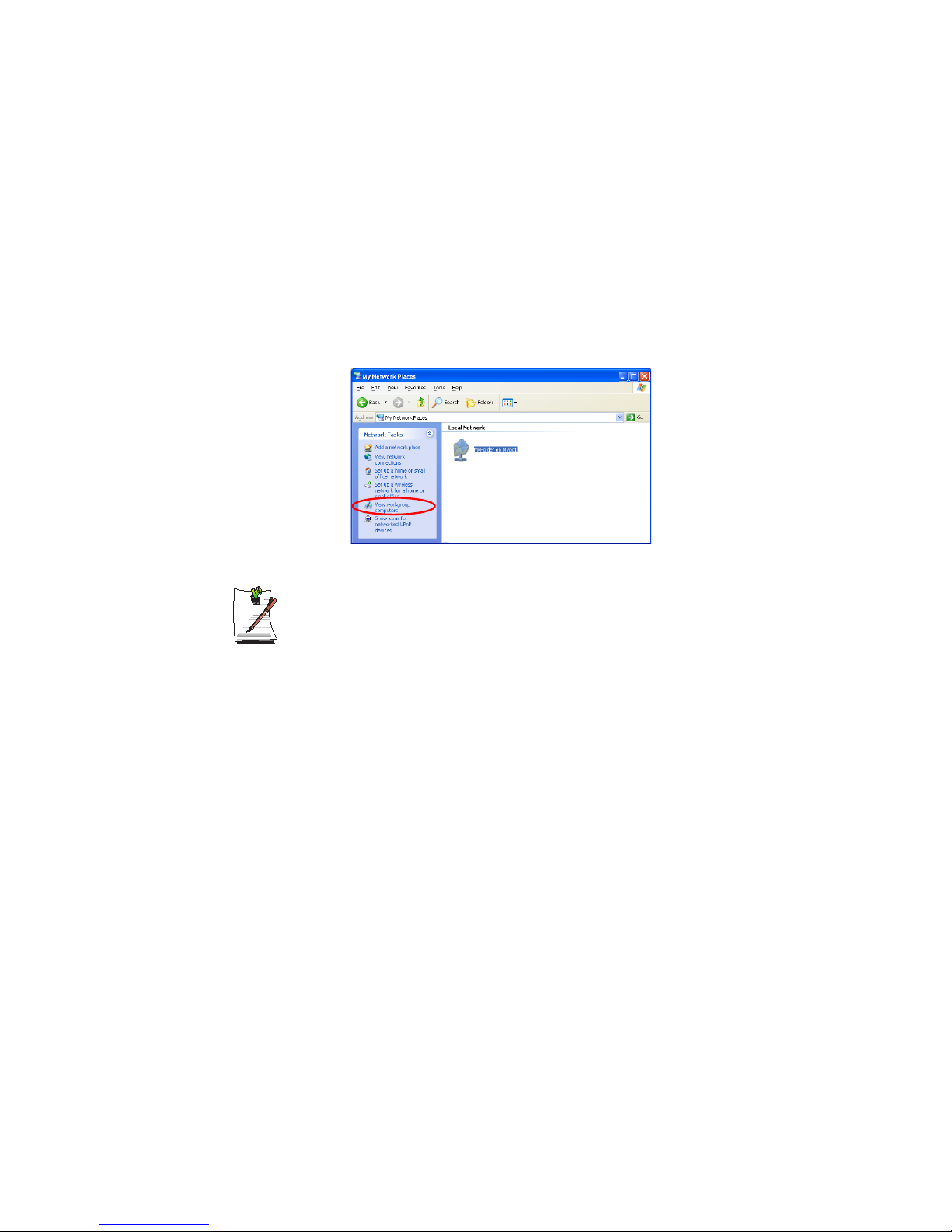

2. Click 'View workgroup computers', and click the desired computer to access the

shared file.

If your computer is a member of another workgroup:

1. Click Other Places > Microsoft Windows Network.

2. Click the desired workgroup.

3. Click the desired computer to display the shared files or folders.

Sharing Printers

This section describes how to share a printer between computers connected to a network.

To share a printer, complete the following procedures:

• Step 1. Configure printer sharing in the computer connected to the printer.

• Step 2. Add and use the shared printer in other computers on the network.

Page 62

62 Users Manual

Step 1. Configuring Printer Sharing

1. From the computer connected to the printer, click Start > Printers and Faxes.

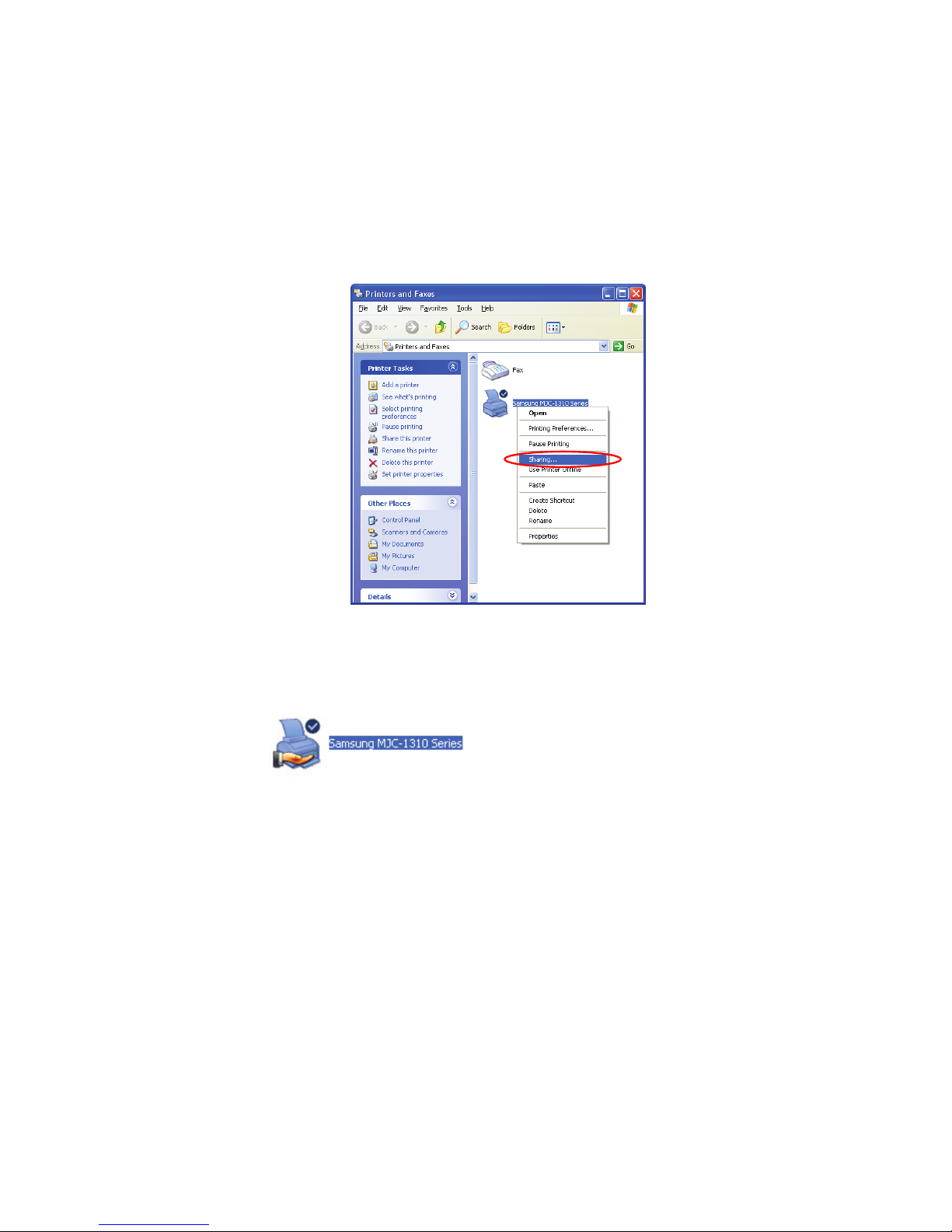

2. Right-click the printer you want to share, and click Sharing.

3. Select 'Share this printer', enter a share name for the shared printer, and click OK.

4. In the Printers and Faxes window, you will find the printer icon has been changed

to another icon on a hand.

Step 2. Adding and Using a Shared Printer.

1. From a different computer that wants to use the shared printer, click Start > Printers and Faxes.

2. Click Add a printer.

3. In the Add Printer Wizard, click Next.

4. Select 'A network printer, or a printer attached to another computer', and click Next.

Page 63

Connecting to the Internet 63

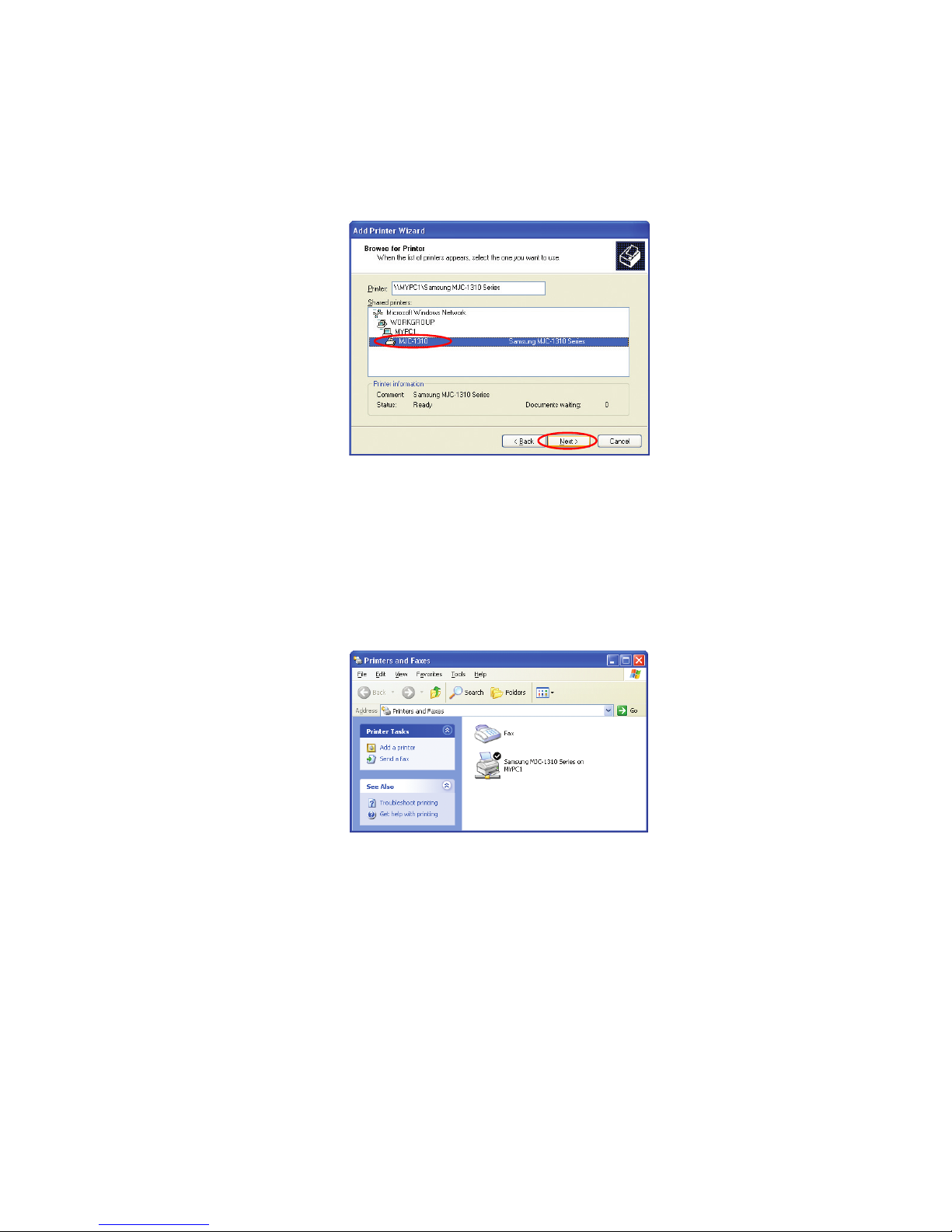

5. Select 'Browse for a printer', and click Next.

6. Select the workgroup or computer, select the desired printer, and click Next.

If you cannot find the desired printer, try again after a while.

7. Read the warning about a shared printer, and click Yes to install the shared printer.

8. Select Yes for 'Do you want to use this printer as a default printer?', and click Next.

9. Click Finish.

10. When the printer sharing configuration has been completed, the shared printer

appears in the Printers and Faxes window.

Now you can print using the shared printer even if your computer is not directly connected to a printer.

Page 64

64 Users Manual

Sharing an Internet connection through a wireless network

By connecting your computer to another computer, which is connected to the Internet over a wired connection, through a wireless network (Peer-to- Peer), you can access the Internet from your computer.

To share an Internet connection, the computers should be connected to a computer-to-computer (peer-to-peer) wireless network. For details, see “Connecting to computer-to-computer networks (peer-to-peer or ad hoc)” on page 45. Also, one of the computers has to be connected to the Internet (external network). The description for Sharing Internet access is for the operating system Windows XP Service Pack 2.

To share an Internet connection, complete the following procedures:

• Step 1. Configuring a Internet connection sharing from the computer connected

to the Internet.

• Step 2. After completing the shared Internet connection configuration, check

that the other computers can access the Internet through the shared Internet connection.

Step 1. Configuring Internet Sharing.

Configuring a shared Internet connection on the computer connected to the Internet.

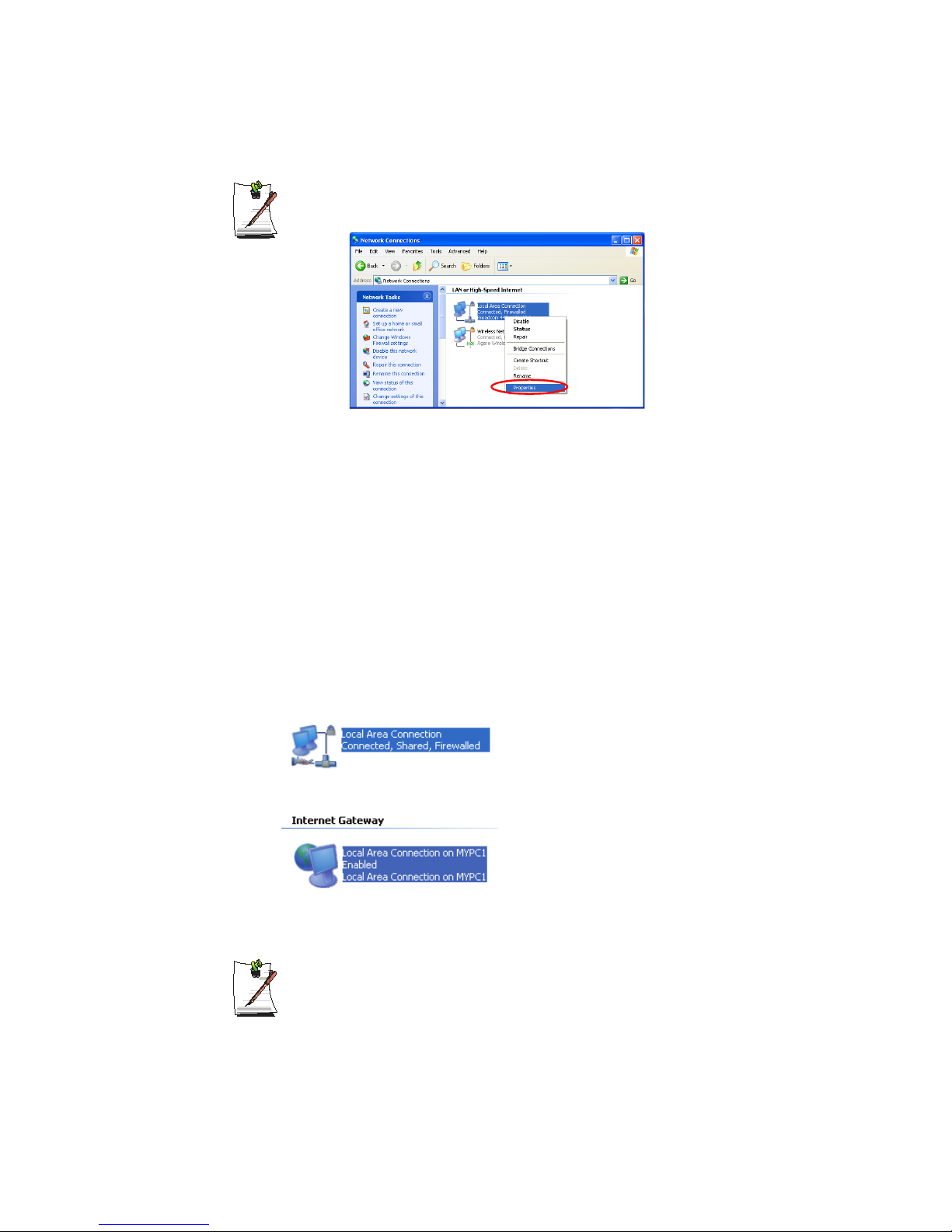

1. Click Start > Control Panel > Network and Internet Connections > Network Connections.

2. Right-click on the device connected to the Internet, the external network, and

select Properties.

Page 65

Connecting to the Internet 65

If the computer is connected to the Internet through a wired LAN, select 'Local Area Connection'.

3. On the Advanced tab, select 'Allow other network users to connect through this computer's Internet connection', and click OK.

Step 2. Checking the Shared Internet Connection.

When the Internet connection sharing configuration has been completed, the network icon in the Network Connections window is displayed as follows:

Click Start > Control Panel > Network and Internet Connections > Network Connections.

– A computer connected to the Internet.

– A computer sharing the remote Internet connection (other computer).

If the icon does not appear after a long time, restart the computer.

Computers on the network can access the Internet through the shared Internet connection only when the computer connected to the Internet is turned on.

Page 66

66 Users Manual

Customizing Your Computer

Using System Setup

The System Setup (BIOS) program enables you to configure your computer hardware and set security and power-savings options. The settings you choose are stored in battery-maintained CMOS memory that saves the information even when the computer’s power is turned off. When your computer is turned back on, it is configured with the values found in this memory.

Run System Setup if you get a message prompting you to run the program. You may also want to run System Setup, particularly the first time you use your computer, to set the time and date, use security or power-management features, or alter the settings of other features.

BIOS Caution:

If you are not familiar with BIOS setup and what the parameters mean, seek help from a person who is knowledgeable. Incorrect settings may cause your system to malfunction or "Crash”.

Your computer’s version of System Setup may not include all the fields listed here or may include additional fields. Field names and order of appearance can vary according to the version of the BIOS (basic input/output system) on your computer.

Page 67

Customizing Your Computer 67

Starting System Setup

To start System Setup, turn on your computer and then press <F2> and hold until the System Setup screen appears.

Table 2. System Setup Menus

To open the menu you need to use, use the left or right arrow keys to select the menu name.

Table 3. System Setup Navigation Keys

Menu Function

Main Changes the basic system.

Advanced Configures advanced features on your computer.

Security Enables security features, including passwords.

Boot Specifies the order of boot devices and configures boot

features.

Exit Specifies how to exit System Setup.

Navigation Key Function

<F1> Displays the General Help window.

<Esc> Exits the current menu.

<> or <> Moves the cursor up and down between fields.

<> or <> Selects different menus. Pressing the <Esc>key at the Main

menu brings you to the Exit menu.

<F5> Scrolls backwards through the options for the highlighted field.

<F6> Scrolls forward through the options for the highlighted field.

<F9> Sets the parameters for the current menu to their default values.

<F10> Save changes and exit system setup.

<Enter> Executes commands or opens a submenu.

Page 68

68 Users Manual

Changing Booting Priority

You can select the booting priority among the devices such as the hard drive, CD-ROM drive, etc. The following example describes how to configure the hard drive as the first booting device when the CD-ROM drive is configured as the first booting device by default.

1. Select the Boot menu in System Setup.

2. Press <Enter> on Boot Device Priority item.

3. Use <> key to move to the Hard Drive item, and press <F6> until it is at the

very top.

4. Press <F10> to save the changed configuration, and exit System Setup. Now you can boot the system with the hard disk drive as the first booting device.

Page 69

Customizing Your Computer 69

Configuring the Password

Setting the Supervisor Password

By configuring a supervisor password, you can restrict system access to authorized users only.

Do not lose or forget your password. If you have forgotten your password, contact the Samsung service center.

1. Select the Security menu in the System Setup. To enter System Setup, see “Starting System Setup” on page 67.

2. On the Set Supervisor Password item, press <Enter>.

3. Enter a password, press <Enter>, re-enter the password for confirmation, and press <Enter> again.

4. When a message confirming the password configuration appears in the [Setup Notice] window, press <Enter>.

Setting the User Password

You can configure user passwords so that other users can use the system.

Before configuring a user password, a supervisor password must have been configured. Users can start the system with their user password, but cannot enter into the System Setup. Deactivating the supervisor password also deactivates the user password.

On the Set User Password item, press <Enter>, and complete step 3-4 of "Setting the Supervisor Password".

Page 70

70 Users Manual

Activating the Booting Password

Before activating the booting password, the supervisor password must have been configured.

Set the Password on boot option to [Enabled].

From now on, system booting will not proceed without the password.

Deactivating the Password

1. On the password to delete, press <Enter>. (e.g. supervisor password)

2. Enter the current configured password, and press <Enter>.

3. Leave the 'Enter New Password' and 'Confirm New Password' field empty, and press <Enter> to deactivate the password.

Page 71

Customizing Your Computer 71

Configuring Resolution and Color Depth

Screen resolution is the number of pixels displayed on the screen. High resolution makes the overall screen area large, although individual items appear small. Color quality is determined by the number of bits used to represent a pixel on the screen. High color quality displays more number of colours on your screen.

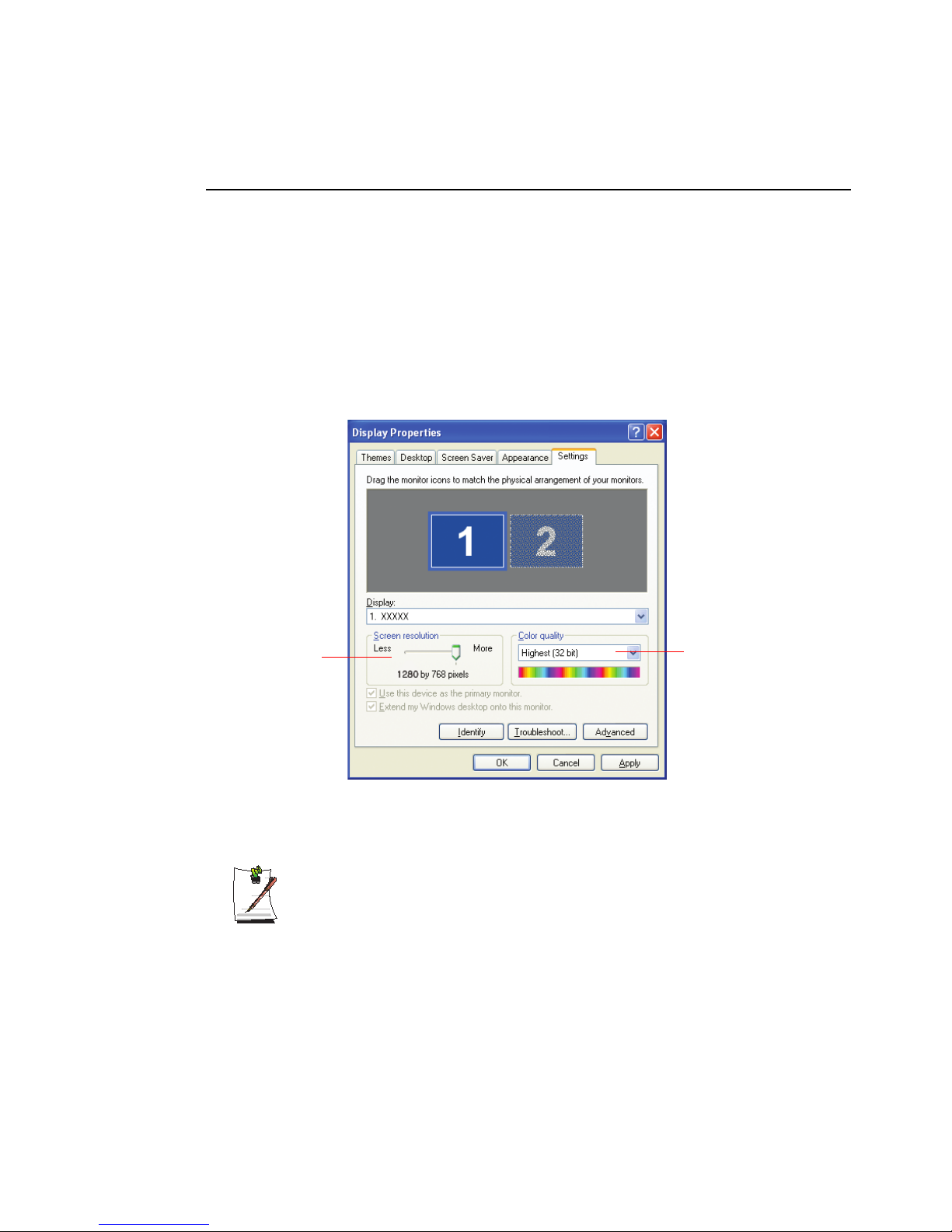

1. Select Start > Control Panel > Appearance and Themes > Change the screen resolution.

2. Make changes on the Settings tab of the [Display Properties] dialog box.

3. When you have completed configuration, click Apply.

It is recommended setting the resolution to 1280x768, and the number of colours to Highest (32bit).

To change the number of colors displayed on a monitor, select an appropriate colour quality.

To change your screen

resolution, move the slider

to select an appropriate

resolution.

Page 72

72 Users Manual

Using External Display Devices

Using external display devices such as monitor or projector, you can view the screen images alternatively or simultaneously. You can extend the screen into two display devices to use larger workspace.

Using external display devices would be especially useful when you are giving presentations or watching a video file.

1. Connect a monitor or a projector to the monitor port of the computer or the docking station.

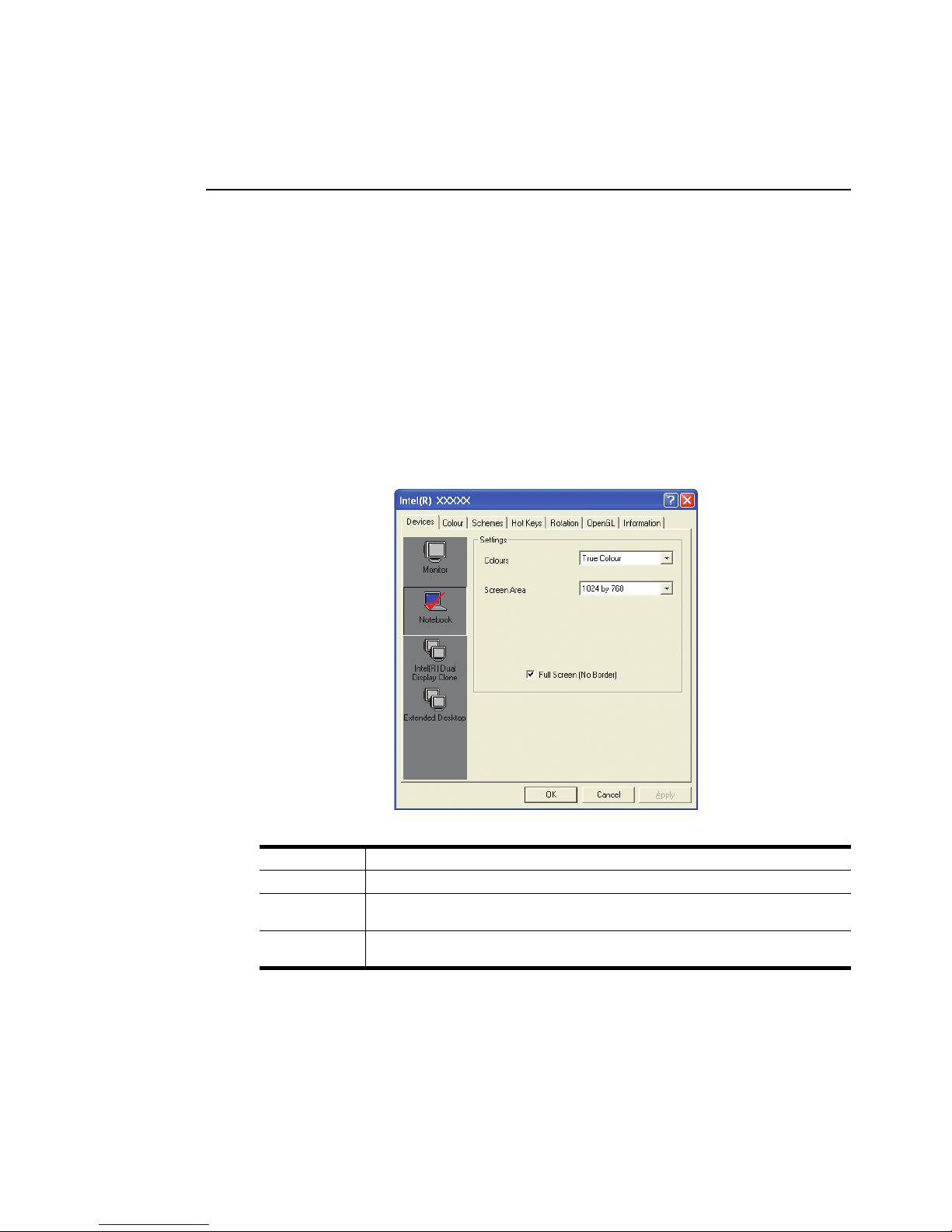

2. Right-click on the desktop, and select Graphics Options > Graphics Properties.

3. On the Devices tab, select your desired display device, and click OK. (The

displayed device list is determined by the currently connected devices.)

Monitor Displays on an external device such as monitor or a projector.

Notebook Displays on the notebook LCD only.

Intel(R) Dual Display Clone

Displays the same screen on the notebook LCD, and an external device such as monitor or projector.

Extended Desktop

Extends the screen into the notebook LCD and an external device such as monitor or projector to use a 2 times larger workerspace.

Page 73

Customizing Your Computer 73

To switch display devices using shortcut key

You can switch display devices easily by pressing <Fn>+<F4/ > shortcut key.

Provided that the CRT monitor is connected, the display order will be LCD > CRT > LCD+CRT whenever the <Fn>+<<F4/ > key is pressed.

You cannot use the <Fn>+<F4/ > shortcut key in the full screen mode DOS prompt.

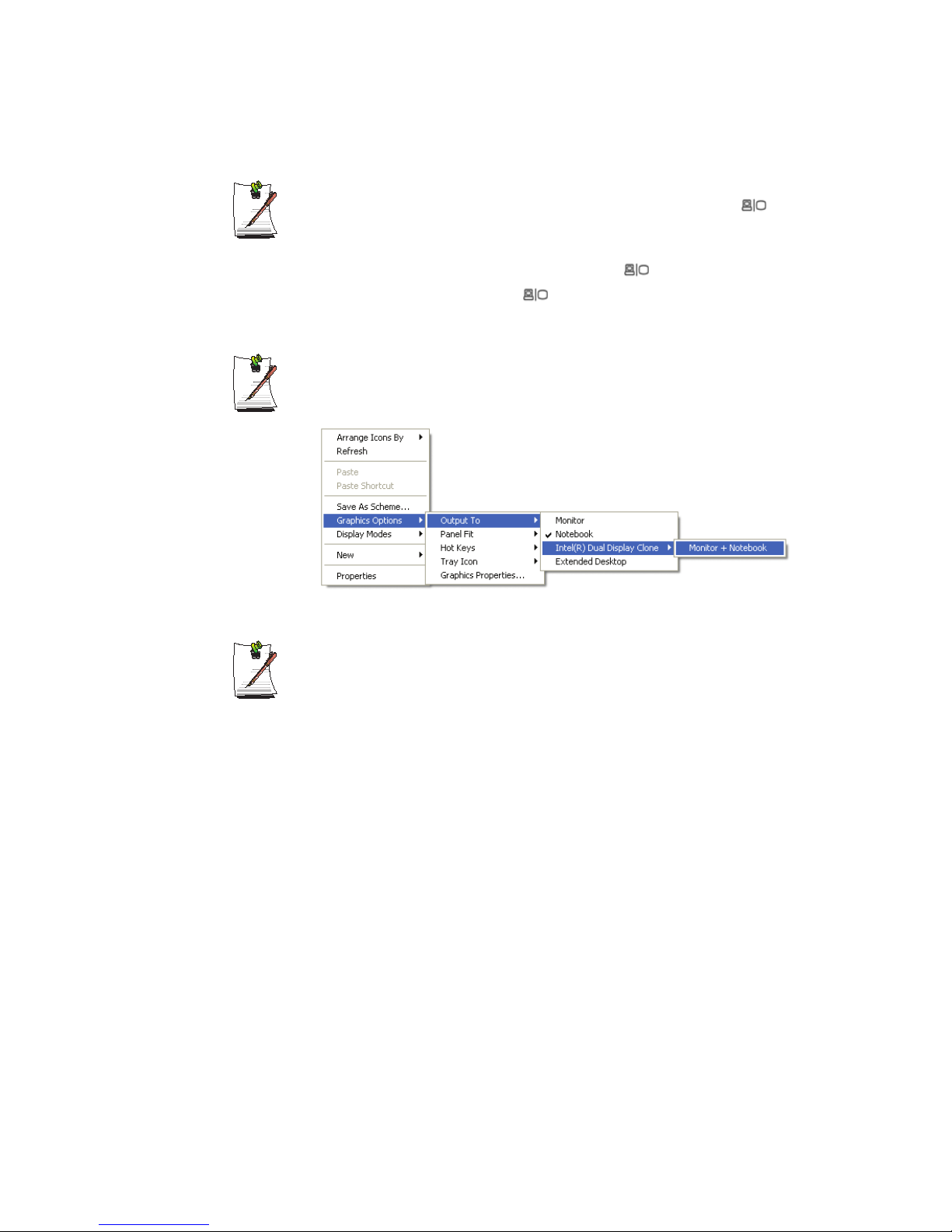

To change display devices easily

Right-click on the desktop, and select Graphics Options > Output To to change the current display device easily.

To change the screen resolution and color quality

If the screen does not appear clearly, please try to change the screen resolution and colour quality. In the figure of step 3, select a device, and configure the color, screen area, and refresh rate.

Page 74

74 Users Manual

System Management

Using Power Management Options

Your computer includes Power Management options that can help the battery charge last longer and extend the life of the battery. Power-management options will slow down or shut off system components when the components are not being used.

Power management may slow down system performance. Your computer runs fastest with the power cord attached, whereby power management is disabled.

In the next sections, basic and advanced methods of power management will be discussed.

Basic Power Management Schemes

This section discusses the basic schemes of power management when the computer is operating on battery power or using AC power.

Standby vs. Hibernation

Hibernation is a state where the contents of memory are stored in a special file on the hard disk, and Standby simply keeps a small holding current through the memory to keep the data. You are more likely to sustain loss of data in Standby mode so it is recommended to save all open files before entering Standby.

Changing Devices:

Do not change PC Cards while in standby or hibernate modes.

To enter the power management window complete the following:

1. Click Start > Control Panel > Performance and Maintenance.

2. Click icon to display the Power Options Properties window.

Page 75

System Management 75

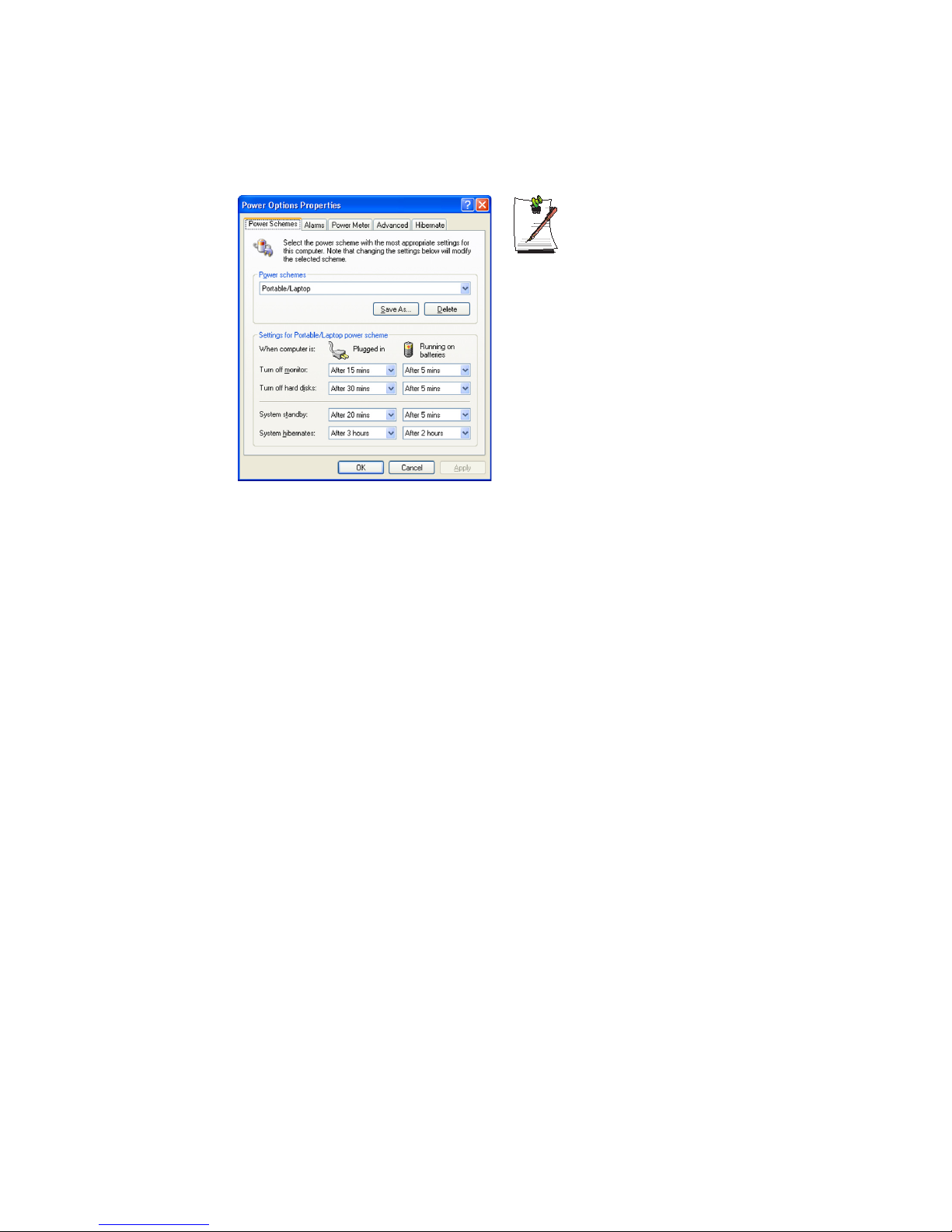

3. Click the Power Schemes tab to display the basic power management options.

4. Select the time that you wish each of the following actions to occur in Battery and AC power mode.

• Turn off monitor

• Turn off hard disks

• System standby

• System hibernates

Turning off the monitor and HDDs will save a substantial amount of battery power, therefore when in battery only mode select the shortest time practical.

Hibernate Mode (Power Management or Manual Method)

When hibernation is used, your computer turns off and when you power up again, everything is restored exactly as you left it—including programs and documents you may not have saved or closed. Everything in memory gets saved to the HDD, and the monitor and hard disk get turned off.

By default, the power scheme is configured to SAMSUNG mode. SAMSUNG mode extends the battery life and optimizes the Intel Speedstep function. Since the CPU power consumption is automatically optimized to conserve power when the computer is operating on battery power, an application may be executed slower than when it is operating on AC power.To use SAMSUNG mode after reinstalling Windows, install the PowerCFG program using the system software CD.

Page 76

76 Users Manual

If You Reinstall Windows:

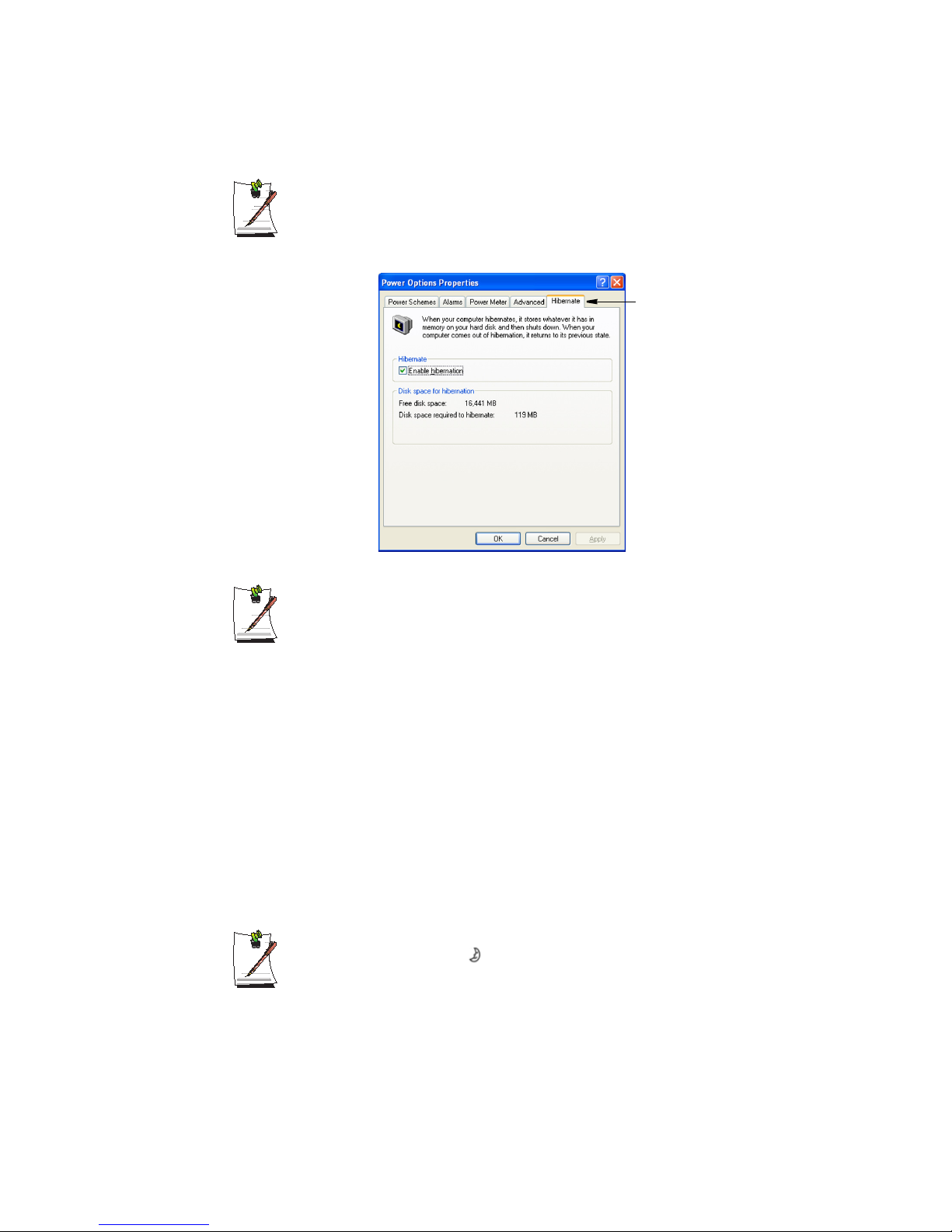

You should re-establish hibernate in power options by opening

Power

Options Properties window and click on the Hibernate tab then click

“Enable Hibernation”.

Frequent Interruptions:

If you experience frequent interruptions, you might also consider putting your computer into automatic hibernation after a specified number of minutes using the power management options.

Standby Mode (Power Management or Manual Method)

Standby is used mainly for conserving battery power in your notebook computer. It also gives you the benefit of getting right back to your work without waiting for the computer to restart. Standby turns off your monitor and hard disks, placing your entire system in a low-power state. When you return to your computer, restores your desktop exactly as you left it. It is recommended that you do not enter standby mode with less than 20% battery power.

5. Click OK to set your power management options and close the window.

Rest Key:

The manual <Fn+Esc/ > key combination will not activate Standby or Hibernate modes while you are playing a multimedia program or have an active USB device connected.

Hibernate Tab

Page 77

System Management 77

Advanced Power Management Schemes

This section discusses the advanced power management schemes. There are two buttons that you can use to manually conserve power.

To enter the power management window complete the following:

1. Click Start > Control Panel > Performance and Maintenance.

2. Click icon to display the Power Options Properties window.

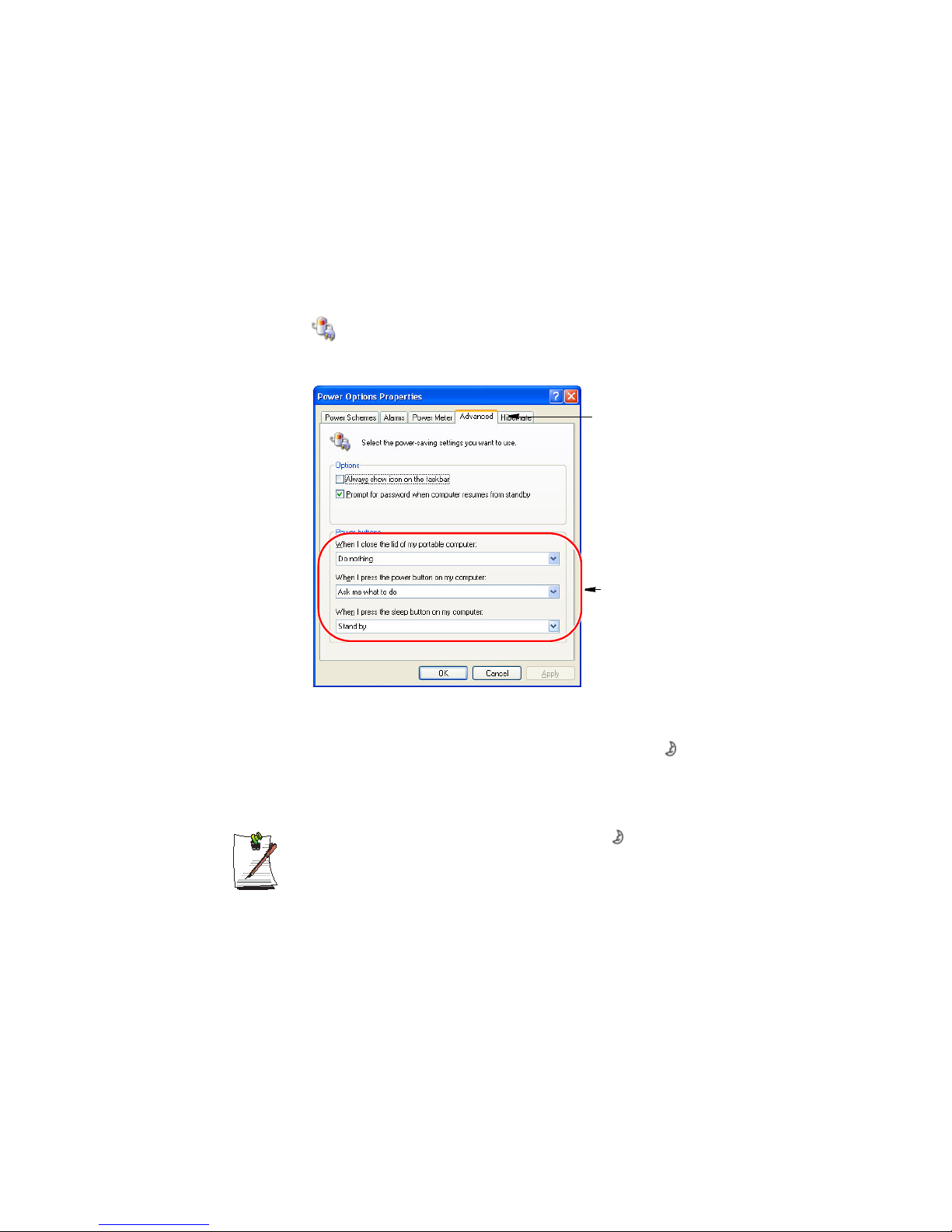

3. Click the Advanced tab to display the advanced power management options.

4. Select the mode (Do nothing/Ask me what to do/Standby/Hibernate/Shut down) assigned to the Power button and/or Rest <Esc/ > key. Also select the

action (Do nothing/Standby/Hibernate) associated with closing the computer lid.

The “Rest” key is assigned to the <Fn+Esc/ > key combination. See ”Basic Power Management Schemes” on page 74 for a better understanding of Standby and Hibernate modes.

5. Click OK to set your power management options and close the window.

You can return to normal operation after you have used one of the “Power Management” buttons by quickly pushing and releasing the Power button.

Advanced Tab

Power & Sleep Button Programming Windows

Page 78

78 Users Manual

Using the Battery

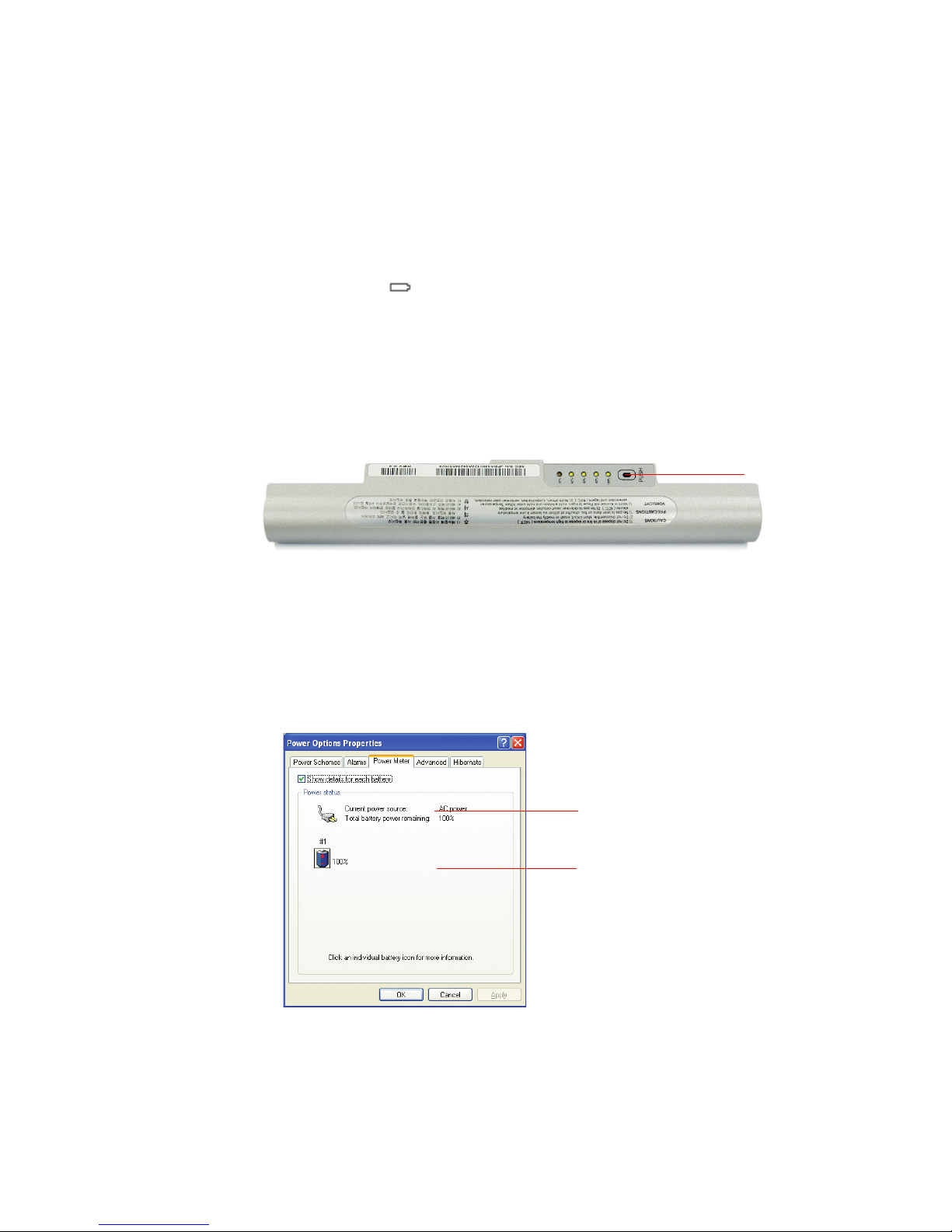

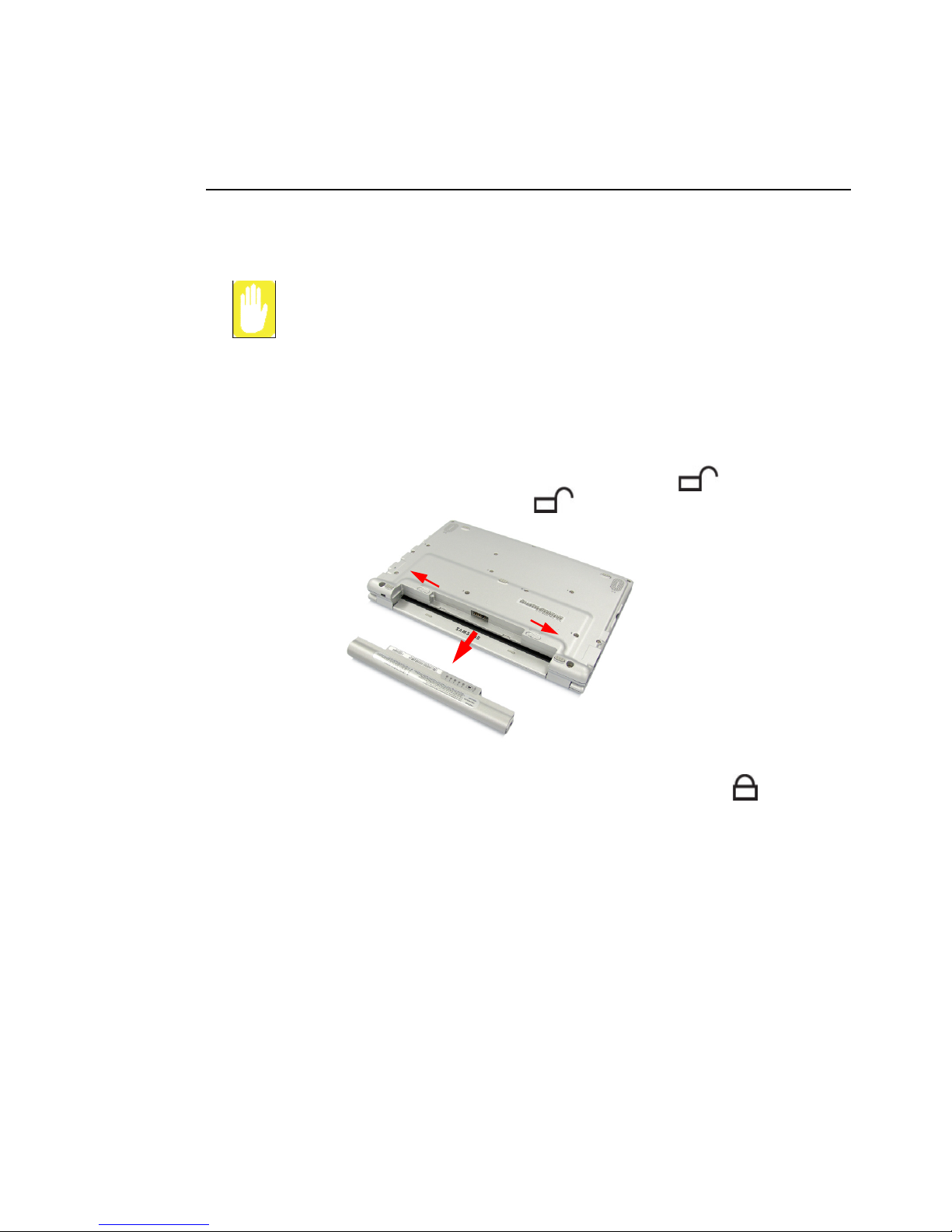

Please refer to the following instructions when running the computer on battery power without connecting the AC power.

Please read the instructions on the battery before use.

Please refer to the system operation environment (p114) of this manual and operate and store the battery at room temperature.

Ejecting and Attaching Battery

1. Shutdown the system and close LCD.

2. Put the computer upside down on a flat surface.

3. First, slide the right battery latch in the direction of open( ), slide the left

battery latch in the direction of open( ) and remove the battery.

4. To install the battery again, insert the battery into the battery compartment of the system and slide the right battery latch in the direction of closed( ) to fix the battery.

Page 79

System Management 79

Monitoring the Battery Charge

You can view the battery charge status by completing the following procedures.

To use the shortcut key to view

Press the <Fn>+<F2/ > key combination on the keyboard and then the current power source and the current remaining battery charge are displayed at the top left of the screen.

To view on the battery

Click the PUSH button on the battery. The remaining battery charge (%) will be displayed.

To view through the Control Panel

Select Start > Control Panel > Performance and Maintenance > Power Option > Power Measure tab.Then you can view the current power source and the current

remaining battery charge.

Push button

Power Supply Status

Remaining Battery Charge

Page 80

80 Users Manual

Using the battery

Battery is an expendable supply, so when you use it for a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of the initial time, we recommend that you purchase a new battery to use.

Battery Warning

You will hear an alarm when the remaining battery charge is under 10%. Connect the power cable or turn off the computer and install a fully charged battery.

When the remaining battery charge is under 3%, the computer automatically saves current work and turns off. This may be different according to the settings in Control Panel > Performance and Maintenance > Power Options > Alarms tab.

Battery Calibration

Calibrating your battery once a month is one of the recommended methods of increasing your computer’s battery life. To calibrate the battery complete the following steps:

Calibration Notes:

You should start the battery calibration process with a fully charged battery, battery status LED is green. The power meter may not show 100%.

Before you commence the battery calibration process you should fully charge, then fully discharge and finally fully recharge the battery again.

1. Disconnect the AC power adapter after turning off the system.

2. Restart your computer and press <F2> to enter BIOS setup.

3. Using the arrow keys, highlight Smart Battery Calibration in the Boot menu.

4. Press <Enter> to start calibration process. The calibration usually takes 3 to 5

hours depending on the current battery charge.

5. When the calibration process is complete, recharge the battery fully.

Page 81

System Management 81

Using the Security Lock Port

The security lock is a device used to physically 'fix' the system when using it in a public place. The locking device needs to be purchased separately. The shape and methods of use may differ depending on the manufacturer. Please refer to the manual provided with the security lock for proper use.

1. Connect a security lock cable to a fixed object.

2. While holding the security lock port lever to the left, connect the cable to the

security lock port.

Any damage to the machine caused by using a locking / security device is not covered under warranty.

Page 82

82 Users Manual

Tips for Using Your Computer

The following information helps you avoid potential problems as you use your computer:

Do not try to disassemble your computer. Opening the system chassis voids your warranty. Only an authorised manufacturer service center can replace or add any parts inside the chassis.

• Follow all the instructions and cautions in your computer user documentation.

• The LCD has a polarized surface and can be damaged easily. To prevent

damage, avoid touching the screen.

• Use only approved AC adapters, auto adapters, memory modules and other

options.

• Because a notebook computer is small and has restricted air flow around

components, it is more likely to overheat than a desktop computer. A fan inside your computer runs when needed to help eliminate heat. Make sure the fan vent on the left side of your computer is not blocked when you use the computer. Occasionally check the vents and remove any accumulated dust on the outside.

• Avoid using or storing the computer in extremely hot or cold areas, such as a

car on a hot day. Keep the computer away from heaters and out of direct sunlight. Exposure to excessive heat may damage computer components. If you have left your computer in a hot place, let it cool down slowly to room temperature (with the LCD panel open) before using it.

• Do not remove the memory-module compartment door, or try to install a

memory module when the computer is on.

• Set up your computer work area to avoid physical strain. Sit with your back

straight and supported by your chair. Adjust your chair or work table so that your arms and wrists can remain in a relaxed position, parallel with the floor. Avoid bending or twisting your wrists as you work. Your hands should “float” slightly above the keyboard. Refer to a book on office ergonomics for more information on setting up your work area.

• Take frequent breaks from working at the computer to rest your eyes and

stretch your muscles.

• Remember to save your data files frequently and to make backup copies of your

files.

Page 83

System Management 83

Travelling with Your Computer

Air Travel

If you are travelling by air, follow these tips:

• Take the computer with you as carry-on luggage. Do not check the computer

with your baggage.

• Allow the computer and disks to go through the X-ray security devices. Do not

hand-carry disks through the walk-through metal detectors, which can cause loss of data.

• Make sure that the battery is charged or the power cord is easily accessible.

You may be required to turn on the computer for airport security personnel.

• Be prepared to turn off the computer during take off and landing.

Handling Spills

Do not spill anything on your computer. The best way to avoid spills is to avoid eating and drinking around your computer. If you do spill something on your computer, turn off your computer, unplug it immediately, and do the following:

• If you spill liquid on the keyboard, drain as much of the liquid from the

keyboard as possible. Be careful not to let the liquid drip onto the LCD panel. Allow the system to dry for several days before trying to use it.

• If you spill liquid on an external keyboard or keypad, unplug it and drain as

much of the liquid as possible. Allow the keyboard to sit at room temperature for a full day before trying to use it.

Sweet liquids leave a sticky residue that may jam the keyboard despite your efforts to dry it.

• If you spill liquid on the LCD panel, clean it immediately with a soft cloth and

denatured alcohol or a proprietary LCD screen cleaner. Do not use water, window cleaner, acetone, aromatic solvent, or dry, rough towels to clean it.

Some liquids damage the polarized LCD screen. If your screen is damaged, contact your authorized manufacturer’s service center for a replacement.

Page 84

84 Users Manual

Storing the Computer for Long Periods

If you will not be using the computer for a long period of time (a month or more), you should discharge the battery completely then remove the battery from the computer. This extends the life of the battery.

Page 85

Troubleshooting 85

Troubleshooting

Complete the following in the order presented until your system is functioning properly. If all of the steps below fail then contact your local reseller for assistance.

 Questions and Answers

Please see “Questions and Answers” on page 86 for assistance in correcting any computer operational problems.

 Check the Connections

Verify all of the power and peripheral cables are securely plugged into their sockets and that your system and power supply is on.

 Norton AntiVirus

Run Norton AntiVirus to ensure a virus is not affecting your computer.

To run Norton AntiVirus proceed as follows:

Click Start > All Programs > Norton AntiVirus > Norton AntiVirus 2003.

 Windows Help and Support

Run Windows Help and Support to find problem that may be affecting your computer.

To run Windows Help and Support proceed as follows:

Click Start > Help and Support.

 Frequently Asked Questions

To view FAQ’s on your computer, please visit www.samsungpc.com.

 Reinstalling Software

If for some reason your system crashes you may corrupt your HDD, Windows operating system and/or some of your device drivers. If this is the case, use System Recovery CD to reinstall OS and System Software CD to reinstall the corrupt device drivers.

System Recovery Precaution:

Before you start restoring your windows operating system insure you backup all data on your hard drive. Samsung is NOT responsible for any data loss.

Page 86

86 Users Manual

Questions and Answers

This section provides information on possible problems, solutions and other references for system use.

Windows Related

Q1 The system does not shutdown properly.

A When the system does not shutdown normally, press and hold the Power button

until the system manually shuts off. If the Power-Saving Mode is configured into the Power button, press and hold for more than 4 seconds to shut the system off. When the system is turned on after such manual shutdown, Scandisk will run to check errors in the system.

Q2 The system freezes during program operation

A1 There is an error with the program currently being used. Press the <Ctrl>, <Alt>,

and <Delete> keys simultaneously and click and Task in the [Windows Task Manager] window.

A2 There is an error with the Windows OS. Reboot the system by using the Power

button.

Page 87

Troubleshooting 87

Display Related

Q1 The LCD screen is blank.

A Adjust the LCD screen brightness. Use the <Fn>+< >, <Fn>+< > keys.

Q2 The screen saver disturbs screen viewing during Media Player or video file

operation.

A Under the Media Player Tools, Options > Player > Enable Screen Saver During

Use, uncheck the box and restart the player.

Q3 In DOS mode, changing the full screen DOS mode by pressing

<ALT>+<Enter> key displays a broken image for a short period.

A The DOS mode which supports 2 Byte characters such as Korean and Japanese

runs in graphic not in text mode. In this case, a broken image may be displayed while changing the video mode settings.

Q4 The screen blinks, displays noise for a short time, or the screen resolution is

changed.

A This may happen in the following cases (resolution change, display device

change, removal of AC adapter, system restart, and the implementation or termination of stand-by mode or maximum power saving mode)

This happens while the system is detecting display devices connected to the system. During the detection operation, the connected display devices may blink or some noise may occur. If you continually view an afterimage on the screen, right-click on the Desktop and select Refresh or restart the system.

Q5 Extended Desktop is not configured on [Display Properties] dialog. (Start >

Control Panel > Appearance and Themes > Display > Settings tab)

A Change the setting to extended desktop on [Graphics Controller Properties]

dialog. (Refer to (p 72).)

Q6 I pressed <Fn>+<F4/ > keys, then the screen blinks.

A This problem may occur when you pressed <Fn>+<F4/ > keys to convert

display devices while there is no external display device connected. Connect an external display device first, then convert display devices.

Page 88

88 Users Manual

Q7 When I pressed <Fn>+<F4/ > keys to change display devices, the screen

resolution is changed.

A Change the resolution again on [Graphics Controller Properties] dialog. (Refer to

”Using External Display Devices” (p72).)

Q8 <Fn>+<F4/ > keys do not operate.

A When you are playing a video file such as a video CD, an MPEG file, or a DVD,

when no external display is connected, or when you are using the extended desktop mode or full screen DOS mode, you cannot change display devices.

Q9 Desktop is displayed abnormally or some icons disappear while the system

is operating.

A This problem may occur when you entered hibernate mode while using the

Extended Desktop mode, removed the monitor and then pushed power button to exit hibernate mode. When the desktop is displayed abnormally, press right touchpad button on the desktop and click Refresh. When the icons disappear, press <Fn>+<F4/ > or <Ctrl>+<Alt>+<F3> to change the display setting.

Q10 When I played DVD/MPEG/AVI in Windows 2000, the screen is not

displayed properly.

A1 When you play DVD/MPEG/AVI in Windows 2000 while the display setting is

in Extended Desktop mode, the operation may be abnormal due to the limitations of the operating system. Press <Fn>+<F4/ > to change the display setting to Dual Display mode, then play the video clip.

A2 If above method does not solve the problem, change the setting to display only

on the LCD.

Q11 When I played DVD or Video CD in Dual Display Clone mode or Extended

Desktop mode, actions such as changing display setting or volume operates slowly.

A Playing DVD or Video CD requires separate data handling. When you are using

Dual Display Clone mode or Extended Desktop mode, problem may occur because the data exceeds the capacity of the video chip. Change the display device to display only on LCD or only on CRT.

Page 89

Troubleshooting 89

Modem Related

Q1 I cannot hear the modem sound.

A1 Check that the telephone line is properly connected to the modem.

A2 Check that the modem driver is installed properly.

1. Click Start > Control Panel > Performance and Maintenance > System.

2. Select Hardware tab > Device Manager > Modems in the System Properties

window, and check if there is a yellow exclamation mark on the installed modem icon. If there is, delete the modem device driver and reinstall the driver, because the yellow exclamation mark represents a not properly installed driver.

3. If there is no yellow exclamation mark, double-click the installed modem, and

click Diagnostics tab > Query Modem in the Modem Properties window to diagnose the modem.

No message in either of Command and Response in the Diagnostics tab means that the modem is not operating properly.

Diagnose the modem again after restarting the system or reinstalling the driver.

(You have to exit all programs using modem in the advance of diagnostics of the modem).

A3 Although I can make a connection with the modem, I cannot hear the dial tone

and modem connection sound. In this case check the following list:

1. Click Start > All Programs > Accessories > Entertainment > Volume Control.

2. Clear the Mute check box in the Telephone Line item.

(Depending on the sound driver, it may be displayed as another name such as Modem, Phone, Mono. If there is no corresponding item, click Options > Properties > Volume Control, select 'Playback', and select the 'Telephone Line' under the 'Display the following volume controls'. Click OK.)

Q2 I cannot make a call using an extension line.

A In general, the dial tone of a PBX or a digital phone switching system is not a

continuous one, unlike that of a trunk line.

Therefore, the modem may not make a call because the modem mistakes the dial tone from a PBX or a digital phone switching system as a busy tone.

In this case, complete the following procedures.

Page 90

90 Users Manual

- Using an AT command

As an initialization command, use the command, ATX3.

Otherwise, enter the ATX3 command manually before making a call.

It can correct this problem by skipping the dial tone check step.

- Configuring the Modem through the Control Panel

1. Click Start > Control Panel > Network and Internet Connections.

2. Under See Also, click Phone and Modem Options.

3. In the Modems tab, select the installed modem, and click Properties.

4. In the Modem tab of the Modem Properties window, clear the 'Wait for dial tone

before dialing' check box.

5. When the configuration is completed, click OK.

Q3 How do I use my modem when dialing from overseas?

A1 Check that the modem is correctly configured according to the current country.

Because the values for communication may differ according to the country, you may not be able to connect via the modem due to an incorrect modem configuration.

1. Click Start > Control Panel > Network and Internet Connections.

2. Under See Also, click Phone and Modem Options.

3. In the Dialing Rules tab, click Edit.

4. In the General tab in the Edit Location window, select the current country from

the Country/region radio box, specify the Area code, and click OK.

A2 Because the shape of the telephone plug may differ according to the country, you

have to purchase and use the appropriate telephone plug for that particular country.

Q4 How do I receive a fax while the system is in power saving mode (Rest mode)

(For Windows XP and 2000)?

A To receive a fax when the system is in power saving mode, and the operating

system is Windows XP or 2000, configure the system as follows:

1. The automatic fax reception function of the fax program needs to be activated.

(For more information, refer to the corresponding fax program manual.)

2. Click Start > Control Panel > Network and Internet Connections.

3. Under See Also, click Phone and Modem Options.

Page 91

Troubleshooting 91

4. In the Modems tab, select the installed modem, and click Properties.

5. In the Power Management tab of the Modem Properties window, select the “With

this device, exit the computer from stand-by mode” item and then click OK.

The above setting enables the modem to turn on the system and receive a fax

when in power saving mode.

Page 92

92 Users Manual

Wired LAN Related

Q1 <Wake On LAN> function

A <Wake On LAN> is a function that activates the system in rest mode when a

signal (such as ping or magic packet commands) arrives from network (wired LAN).

To use <Wake On LAN> function:

1. Select My Network Places > View network connections from the Desktop.

2. Click the right button on the touchpad over Local Area Connection, and select

Properties.

3. Click Configure, and select Power Management tab. Select ’Allow this device to

bring the computer out of standby’, then click OK. Restart the system.

- If the system in rest mode is activated when there is no received signal, use the system after disabling <Wake On LAN> function.

- Connecting wired LAN while using wireless LAN may not execute <Wake On LAN> function. Configure wireless LAN to ’Disable’ to use <Wake On LAN> function.

Q2 When I connected 100Mbps wired LAN and the computer exits standby/

hibernate mode, a message informing 10Mbps wired LAN connection appears.

A When the computer exits standby/hibernate mode, restoring the network takes

about 3 seconds. When the network is restored, it operates in 100Mbps.

Page 93

Troubleshooting 93

Wireless LAN Related

Refer to ”Connecting Through a Wireless LAN (Option)” (p42) for the basic uses of a wireless LAN.

Q1 The Wireless LAN device is operating properly, but I cannot connect to the

Internet or to another computer.

This is due to an incorrect configuration, or a configuration error. Check the following check lists:

A1 If you are using a computer-to-computer (Ad Hoc) network connection, check

that the name of the configured network (SSID) is correct. The network name (SSID) is case sensitive.

A2 If you are using a network key (encryption key), you have to use the same

network keys for an AP (Access Point) or a computer-to-computer network (Ad Hoc). The network key of the AP is configured in the AP management program. Ask your network administrator or AP manager for more detailed information.

A3 Check that the device driver is properly installed. If the driver is not properly

installed, you will find a yellow exclamation mark on the network icon by clicking Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager > Network adapters > Wireless LAN adapter. If there is a yellow exclamation mark, please reinstall the device driver with the system software CD.

A4 Referring to A2 of Q3, Check that the network bridge configuration is correct.

Q2 The signal strength is excellent, but I cannot connect to the network.

Even if the signal strength is excellent, the network connection may not operate properly if the TCP/IP properties are not properly configured, or the network key (encryption key) is incorrect.

A1 Check that the TCP/IP properties are configured properly. When you connect to

an AP, click the Wireless Network Connection icon on the taskbar and select the Support tab. If the IP is not allocated properly, the IP address will be displayed as follows (e.g. 169.254.xxx.xxx). If the network does not provide DHCP, you have to specify the correct IP address by asking your network administrator. Even if the network provides DHCP, the server may not allocate an IP address to the client properly, and the client station cannot connect to the network.

A2 Referring to A2 of Q1, check that the network key is correct.

A3 Referring to Q4, check that AP is operating properly.

Page 94

94 Users Manual

Q3 I cannot share an Internet connection.

A1 It may require some time to synchronize the computers to share an Internet

connection after the Internet connection sharing configuration is completed. If you cannot share Internet connection even after a longer period, restart the computer.

A2 Check if the connection between the network adapters is configured to bridge. If

there is a configured bridge connection between the network adapters through the network configuration wizard, remove the network bridge, and reconfigure the Internet connection sharing.

A bridge connection is created when you ran Network Setup Wizard from the [Network Connections] window, and selected both the internal connection adapter and another adapter in the wizard.

Q4 I cannot connect to the AP.

Check the Computer Settings

A1 Verify whether the wireless LAN function of the computer is on by doing the

following. If the wireless LAN function is off, turn it on.

- For Windows XP, verify that the wireless network connection has been set to "Enable" in Start > Control Panel > Network Connections.

- If there is a Wireless LAN On/Off button, check if the wireless LAN button is pressed.

A2 Verify whether the same network key (encryption key) has been entered in both

the AP and the computer.

The network key is an encryption key for encrypting data transmitted between the AP and the computer. It is recommended setting the network key manually.

Check the AP Settings

For the AP settings, refer to the User's Guide provided by the AP manufacturer.

A3 Verify whether the environment is suitable for using a wireless LAN.

The use of a wireless LAN may be restricted according to the environment and distance. Obstacles such as walls or doors affect the use of a wireless LAN. Install the AP in a high and open space 50cm from the wall and far removed from any other radio signal sources.

A4 Verify whether the AP is operating properly.

- When the AP is not operating normally, turn off the AP and after a short while turn it on again.

Page 95

Troubleshooting 95

- Verify whether the AP's firmware is the most recent version. (Contact the AP manufacturer or the place where you purchased the AP for details of the AP firmware.)

A5 Verify whether the AP has been properly connected to the network.

Verify whether the network is operating normally by connecting the wired network cable, which has been connected to the AP, to your computer.

A6 Check the network key settings (encryption key).

When automatic code conversion (a passphrase function) has been selected and data communication is not functioning even with a normal wireless connection, it is recommended entering the network key (encryption key) manually.

A7 Check the AP settings as follows. (The following is recommended for a standard

environment and thus may differ according to the specific wireless network environment.)

- When several APs are present simultaneously, check the channel setting for each AP. When different APs are using nearby channels, interference may occur between electronic waves. Set the APs' channels further apart from each other. (Ex: Ch1, Ch5, Ch9, Ch13)

- When an AP's SSID (Service Set ID) option is set to "Hide", you cannot search for that AP on the computer. We recommend canceling the "Hide" option for an AP. The SSID is a name for distinguishing one wireless LAN from another wireless LAN.

- It is recommended using Long Preamble. Preamble is a signal for data transmission synchronization. Short Preamble may be supported by some types of APs but may cause compatibility problems.

- It is recommended using a static IP.

- Since static channel selection is more reliable than auto channel selection, it is recommended setting a static channel.

Q5 In the Windows XP 'Available wireless networks' window, the Wireless

Network Connection is displayed as 'Not Available'.

A1 When there is a Wireless LAN button, ensure that the Wireless LAN button is

turned on.

A2 Check if there is additional program for a wireless LAN connection installed.

Windows XP supports wireless LAN connections through the Wireless Zero Configuration (WZC) service. Therefore, an additional program for wireless LAN connection is not required, unless the network requires a specific program. However, installation of some wireless LAN related programs may sometimes

Page 96

96 Users Manual

disable the [View Available Wireless Networks] window supported by WZC service. Exit the wireless LAN related program then check whether the window is enabled.

A3 Initialize the device driver.

Click Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager > Network adapters, and select the wireless LAN adapter. Right-click the network adaptor and select 'Disable'. Then rightclick over the network adaptor and select 'Enable' after a short wait to check that the device is operating properly.

A4 Right-click the My computer icon, and select Manage. When the Computer

Management window appears, double-click Services and Applications on the left, and then click Services from the sub menu tree. Select the Standard tab in the right pane, double-click Wireless Zero Configuration and check that Startup Type is configured to Automatic, and the Service status is Started.

A5 In the case of Windows XP, click Advanced in the [Wireless Network

Connection] dialog box (see ”Connecting to an Access Point (AP)” (p43)) and make sure that 'Use Windows to configure my wireless network settings' is selected.

This may happen when a third-party wireless network setup program (e.g. PROSet) other than Windows XP default program is installed. For setting up a wireless network using the Windows XP program, this option should be selected.

Q6 When connecting to a computer-to-computer (Ad Hoc) network, I cannot

connect to another computer connected to the same computer-to-computer network.

A1 Make sure that the security settings and network name of the computer-to-

computer (Ad Hoc) network is correct.

A2 Check the TCP/IP properties of the computers to be connected through the

computer-to-computer (Ad Hoc) network. All of the computers to be connected through a computer-to-computer (Ad Hoc) network should be configured so that their IP addresses are within the same subnet range.

- If the IP address is configured to DHCP (Obtain an IP address automatically) in TCP/IP properties, IP address is configured within the same subnet range automatically.

- If the IP address is configured to static IP in TCP/IP properties, select Use the following IP address in the TCP/IP properties of the wireless adapter, configure IP address:10.0.0.1~10.0.0.254, and Subnet mask: 255.255.0.0, and then try again.

Page 97

Troubleshooting 97

Q7 When using a computer-to-computer (Ad Hoc) network, sometimes I cannot

search the access point.

A It may happen occasionally when you are using a computer-to-computer (Ad

Hoc) network connection. Even if you cannot find some access points, the computer-to-computer (Ad Hoc) network is operating properly. Click Refresh to view the latest search result.

Q8 Running Help file while running Profile Wizard in the wireless LAN

program (PROSet) makes the PROSet window white.

A It will be displayed properly when you finish the profile wizard. It dose not affect

the program operation.

Q9 The network does not operate properly when both the wireless and the wired

network connections are simultaneously configured with the same IP address.

A You cannot use the wireless and the wired network connections using the same

IP address simultaneously. To use either the wireless or the wired network in turn with the same IP address, you have to Disable whichever network device will not be using in the network connection of the Control Panel.

Q10 The wireless LAN does not work properly when there is a device operating

on an adjacent frequency in the vicinity of the product.

A1 Channel interference may occur when a wireless video transceiver or a

microwave oven is being used.If you experience channel interference from other equipment, it is recommended changing the channel to connect to the AP. For more information about AP settings, refer to the User Manual supplied by the AP manufacturer.

A2 IEEE802.11g equipment operates in hybrid mode when there is active

IEEE802.11b equipment. This may result in data rate degradation.

Q11 An established wireless LAN connection is disconnected after 2~3 minutes,

and the connection is not recovered.

A1 This may be caused by channel interference. Change the channel of the AP, and

reconnect.

A2 This may be caused by selecting the ’Use IEEE 802.1x network authentication’

option when IEEE 802.1x authentication is not available.

Page 98

98 Users Manual

Check the properties of the AP in the wireless network settings. If the ’Use IEEE

802.1x authentication in this network’ option is selected, deselect the option on the Authentication tab.

For more detailed information about authentication server, ask your network administrator.

A3 If the AP is configured to ’Use network authentication (Shared Key)’

If the AP is configured to authentication shared mode, all computers to be connected should be configured as follows:

- If you are using Windows XP, select network authentication(shared mode) in the wireless network settings.

Click Start > Control Panel > Network and Internet Connections > Network Connections. Right-click the Wireless Network Connection icon, and click View Available Wireless Networks > Advanced. In the Wireless Networks tab, select an AP in the Available Networks field and click Configure and select ’Network Authentication (Shared Mode).

- If you are using Windows 2000, check that the network authentication mode is configured to Share in the security settings of the wireless LAN program (PROSet).

For more network authentication procedures, ask your AP (Access Point) administrator.

Q12 Although I have turned the wireless LAN off using the Off Button on the

PROSet, the wireless LAN operating light is still on.

A This is normal. The Off Button for the Wireless LAN on the PROSet only turns

off the S/W and not the H/W for the Wireless LAN.

Q13 After installing the PROSet, I cannot manage the wireless network under

Windows.

A Click on "Use Microsoft Client" in the Tools menu of the PROSet program to

manage a wireless network in Windows.

To manage a wireless network in the PROSet program, click on "Use Inter

PROSet/Wireless" in the Tools menu of the PROSet program.

Page 99

Troubleshooting 99

Games and Programs Related

Q1 3D game is not executed, or some functions are not working.

A Change the graphic setting of the game to '2D' or 'Software Renderer', then

execute the program again.

Q2 I launched a game right after installing it, and the game is not executed.

A This problem may occur when the game is not compatible with Windows XP.

Launch the game again, and it will be executed properly.

Q3 When I play a game, the screen is displayed in reduced size.

A1 Before executing a game, press touchpad right button on the desktop, and click

Graphics Options > Panel Fit > Enable.

A2 Change the display setting to extended desktop mode before executing a game.

1. Press touchpad right button on the desktop.

2. Click Graphic Options > Graphic Properties > Devices tab.

3. Select Notebook, then select ‘Full Screen’ check box.

4. Click OK.

Q4 When I pressed <Fn>+<F4/ > keys to convert display devices while

playing a 3D game, the computer does not operate.

A Do not press <Fn>+<F4/ > keys while playing a 3D game, since it may cause

a system error.

Q5 When you press the <Fn>+<F4/ > or <Fn>+<F2/ > keys while running

a game, the screen is not properly displayed.

A This may happen in some games. Press the <Fn>+<F4/ > or <Fn>+<F2/ >

keys before running a game and do not press the button combination while running the game.

Page 100

100 Users Manual

Q6 The running speed of a game is too slow or fast.

A Change the setting of Power Schemes to 'Always On'.

(Click Start > Control Panel > Performance and Maintenance > Power Options > Power Schemes tab, then configure the Power schemes field to 'Always On'.)

Q7 When I pressed <Fn>+<F10 or F11> keys while playing a game, the

computer does not operate properly.

A Do not press <Fn>+<F10 or F11> keys while playing a game, since it may cause

a system error.

Q8 When I played 'The Sims: House Party' game in Dual Display Clone mode,

a mouse afterimage is displayed.

A1 Press <Fn>+<F4/ > to change the display setting to Dual Display mode, then

play the game.

A2 If above method does not solve the problem, change the setting to display only

on the LCD.
