MICROWAVE OVEN

Owner’s Instructions

MW102P

Oven .........................................................................................	2
Accessories...............................................................................	2
Control Panel ............................................................................	2
Using this Instruction Booklet....................................................	3
Safety Precautions ....................................................................	3
Installing Your Microwave oven ................................................	4

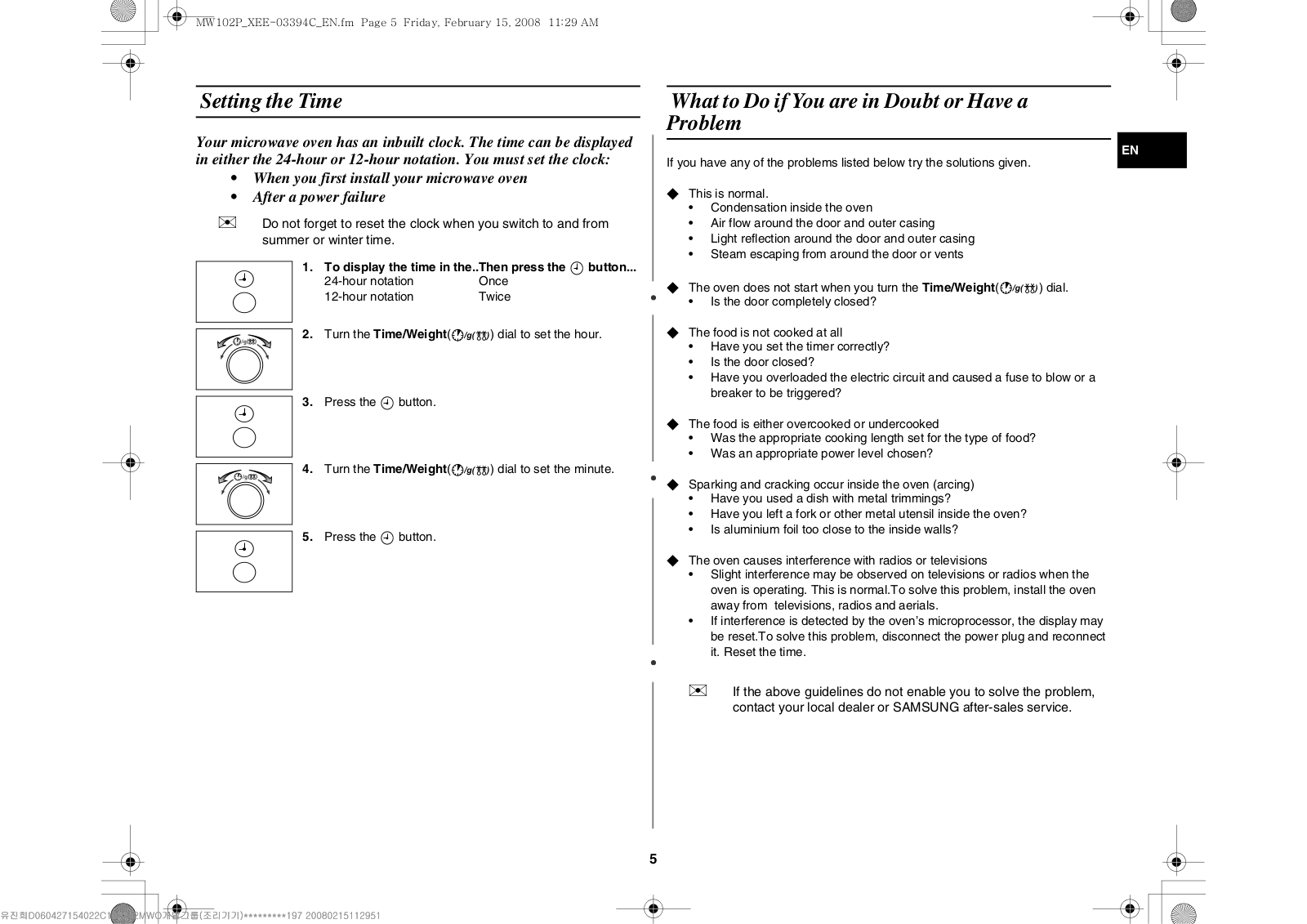

Setting the Time ........................................................................	5
What to Do if You are in Doubt or Have a Problem ..................	5

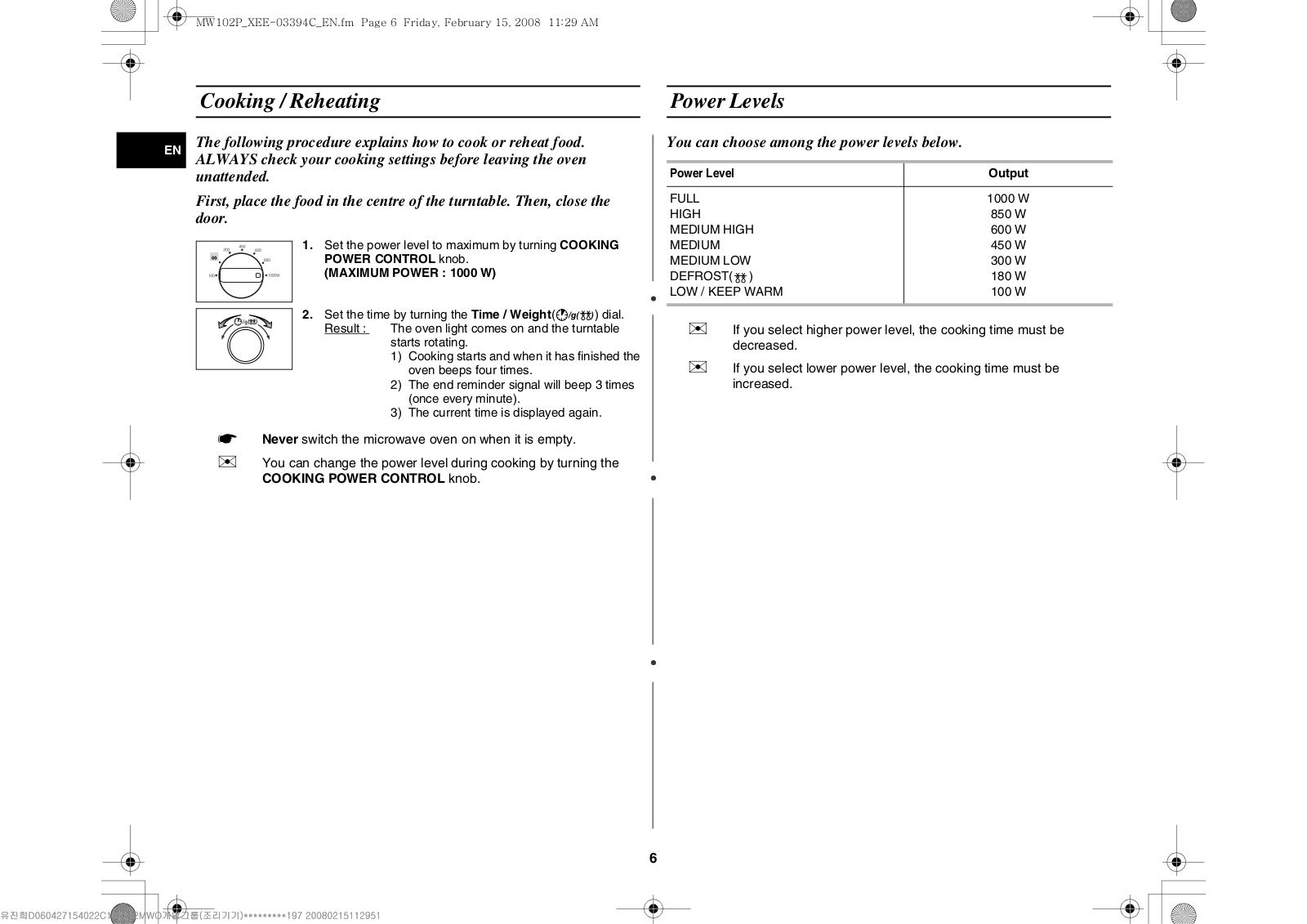

Cooking / Reheating..................................................................	6
Power Levels.............................................................................	6

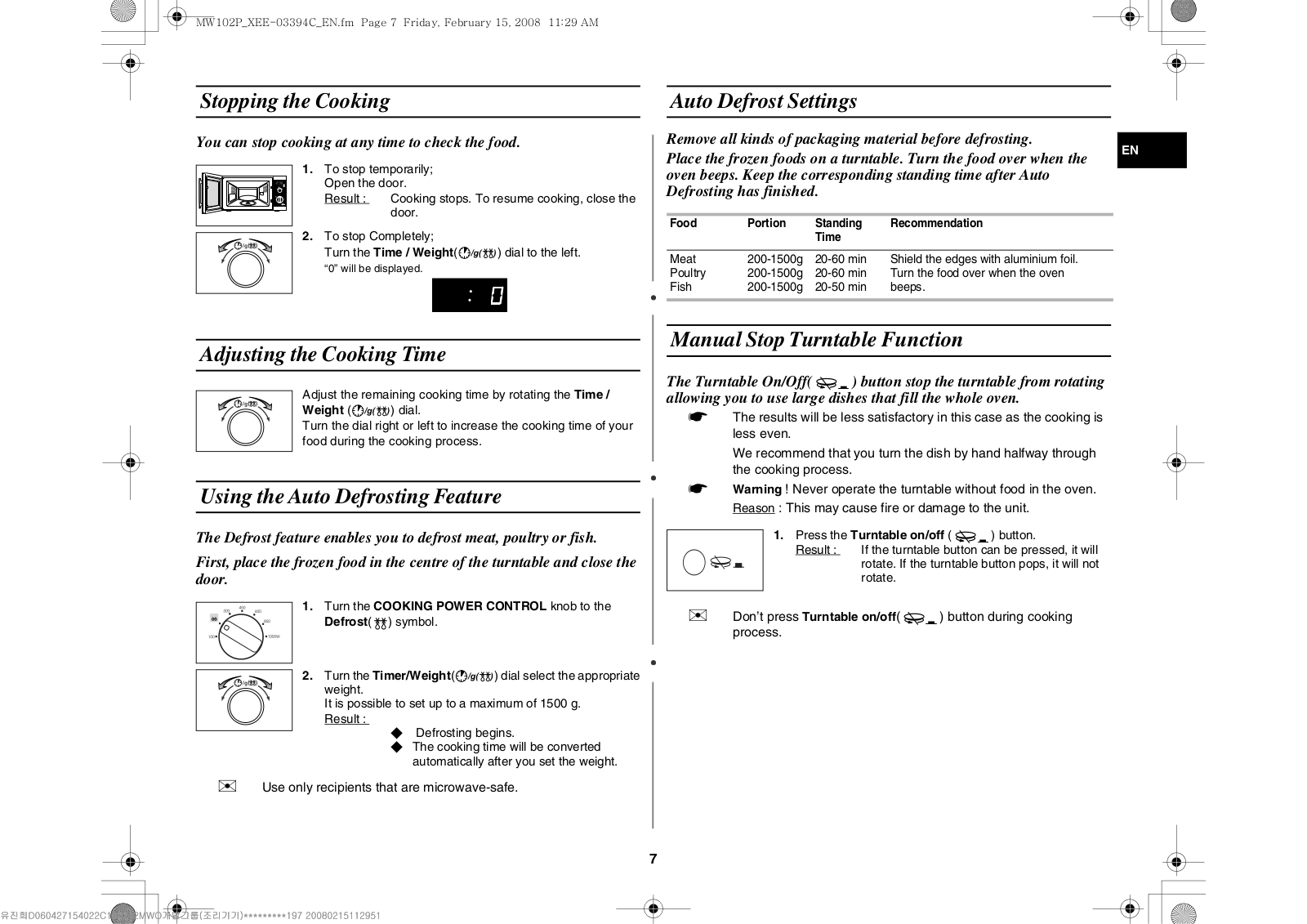

Stopping the Cooking................................................................	7
Adjusting the Cooking Time ......................................................	7
Using the Auto Defrosting Feature............................................	7
Auto Defrost Settings ................................................................	7
Manual Stop Turntable Function...............................................	7

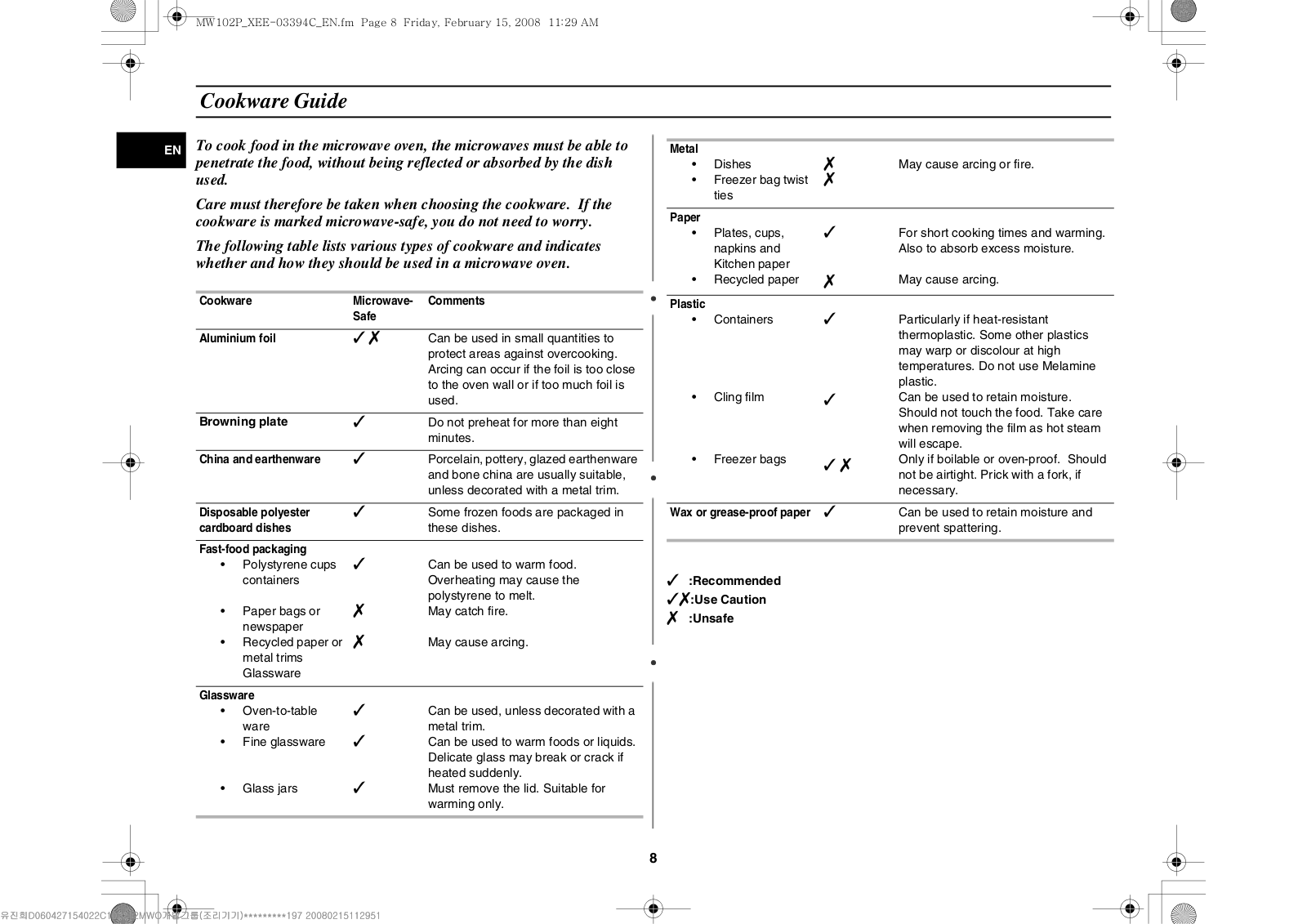

Cookware Guide .......................................................................	8

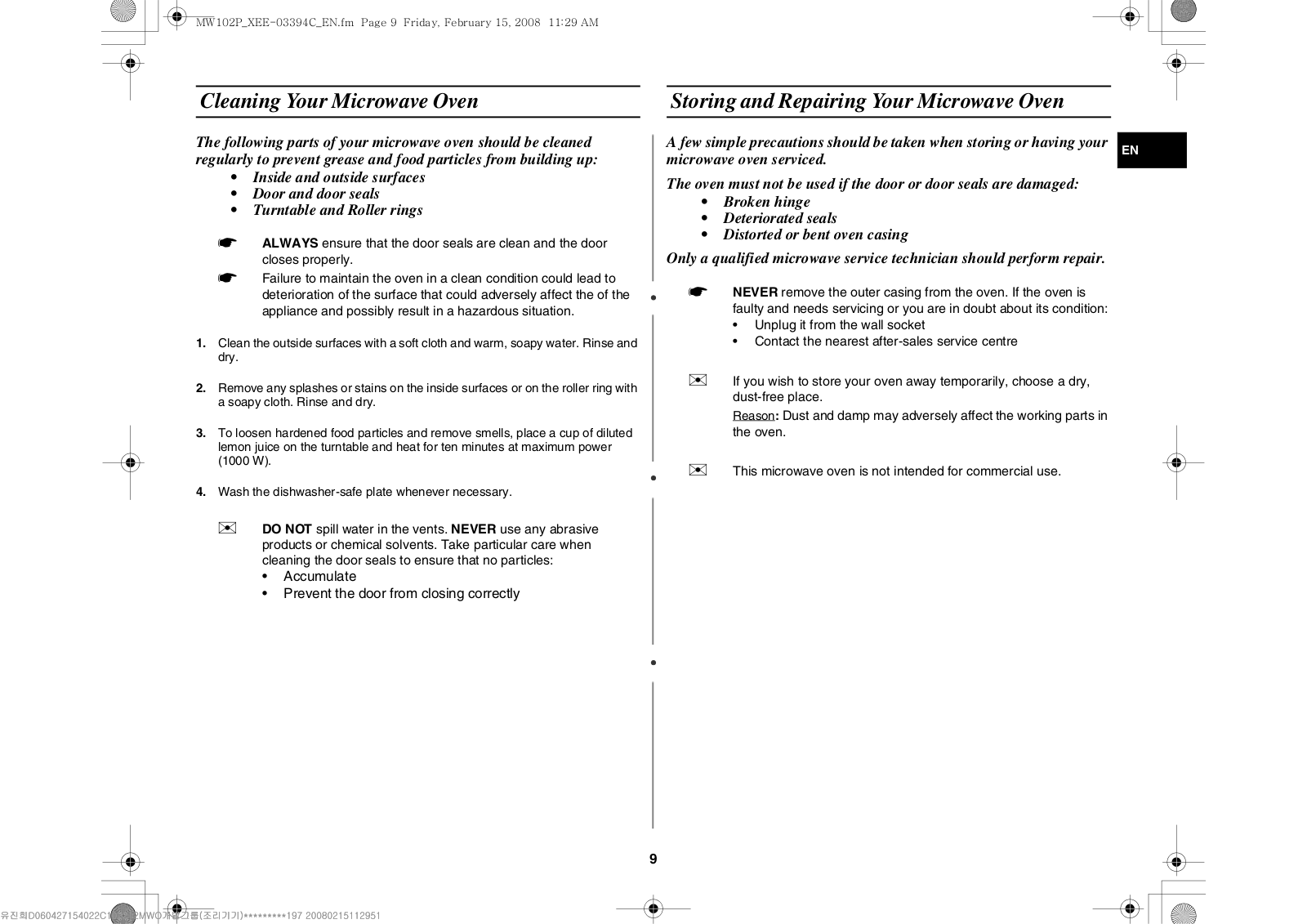

Cleaning Your Microwave Oven ...............................................	9
Storing and Repairing Your Microwave Oven...........................	9

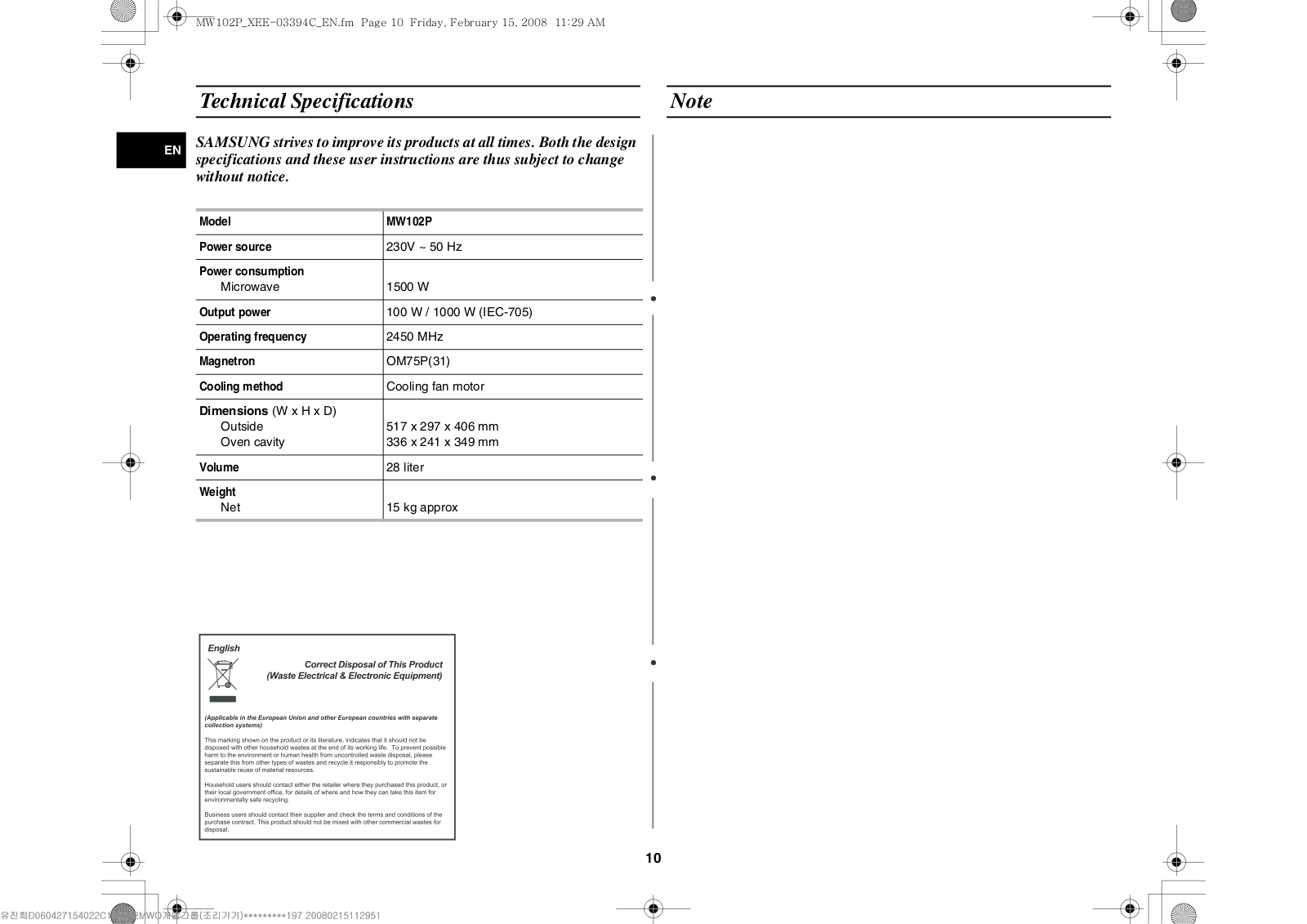

Technical Specifications..........................................................	10

Oven	Control Panel
VENTILATION HOLES
EN	LIGHT
DOOR HANDLE	TIME/WEIGHT
	DIAL

					1
					4
DOOR				VARIABLE	2
				COOKING POWER
		ROLLER RING
TURN TABLE				CONTROL KNOB
DOOR LATCHES	COUPLER		SAFETY INTERLOCK
			HOLES
					3
Accessories					5

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

1.	Coupler, already placed over the motor shaft in the
	base of the oven.
	Purpose	The coupler rotates the turntable.	6
2.	Roller ring, to be placed in the centre of the oven.
	Purpose	The roller ring supports the turntable.

3.Turntable, to be placed on the roller ring with the centre fitting to the coupler.

Purpose The turntable serves as the main cooking surface; it can be easily removed for cleaning.

DO NOT operate the microwave oven without the roller ring and turntable.

1.	DISPLAY	5.	VARIABLE COOKING POWER
2.	TIME/WEIGHT DIAL	6.	CONTROL KNOB
3.	DEFROST		TURNTABLE ON/OFF BUTTON
4.	CLOCK SETTING BUTTON

2

Using this Instruction Booklet

You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain much valuable information on cooking with your microwave oven:

•Safety precautions

•Suitable accessories and cookware

•Useful cooking tips

At the front of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily.

The step-by-step procedures use three different symbols.

Important

Note

Turn

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a)Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.

(b)Do not place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.

(c)Do not operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

(1)Door (bent)

(2)Door hinges (broken or loose)

(3)door seals and sealing surfaces

(d)The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

Safety Precautions

IMPORTANT SAFETY INSTRUCTIONS.

EN

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken.

•Only use utensils that are suitable for use in microwave ovens;

DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc.

Remove wire twist ties from paper or plastic bags.

Reason: Electric arcing or sparking may occur and may damage the oven.

•When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

Do not use your microwave oven to dry papers or clothes.

•Small amounts of food require shorter cooking or heating time. If normal times are allowed they may overheat and burn.

•If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

•Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation

ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize.

Stir during heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions:

*Immerse the scalded area in cold water for at least 10 minutes.

*Cover with a clean, dry dressing.

*Do not apply any creams, oils or lotions.

•NEVER fill the container to the top and choose a container that is wider at the top than at the bottom to prevent the liquid from boiling over. Bottles with narrow necks may also explode if overheated.

NEVER heat a babys bottle with the teat on, as the bottle may explode if overheated.

•The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

•Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts in shells, tomatoes etc.

•The oven should be cleaned regularly and any food deposits removed;

•Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;

•DO NOT cover the ventilation slots with cloths or paper. They may catch fire as hot air is evacuated from the oven.

The oven may overheat and automatically switch itself off. It will remain inoperable until it has cooled sufficiently.

•ALWAYS use oven gloves when removing a dish from the oven to avoid unintentional burn.

3

Safety Precautions (continued)

	EN	• DO NOT touch heating elements or interior oven walls until the oven be
		cooled down.
		• Do not immerse the power cable or plug in water and keep the power cable
		away from heated surfaces.
		Do not operate this appliance if it has a damaged power cable or plug.
		• Stand at arms length from the oven when opening the door.
		Reason: The hot air or steam released may cause scalding.
		• You may notice a Clicking sound during operation(especially when the	oven is
		defrosting).
		Reason: This sound is normal when the electrical power output is changing.
		• DO NOT operate the microwave oven when it is empty. The power will	be cut
		off automatically for safety. You can operate normally after letting it stand for
		over 30 minutes.
		It is best to leave a glass of water inside the oven at all times.The water will
		absorb the microwaves energy if the oven accidently started.
		• The microwave oven shall not be placed in a cabinet.

IMPORTANT

•Young children should NEVER be allowed to use or play with the microwave oven. Nor should they be left unattended near the microwave oven when it is in use. Items of interest to children should not be stored or hidden just above the oven.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance.

WARNING:

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING:

It is hazardous for anyone other than a comperent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING:

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING:

Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Installing Your Microwave oven

Place the oven on a flat level surface 85cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

20cm	10cm
above	behind

10cm of the side

1.When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above.

2.Remove all packing materials inside the oven. Install the roller ring and turntable.

Check that the turntable rotates freely.

3.This microwave oven has to be positioned so that plug is accessible.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

For your personal safety, plug the cable into a 3-pin, 230 Volt, 50Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by a special cable.

Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

4
