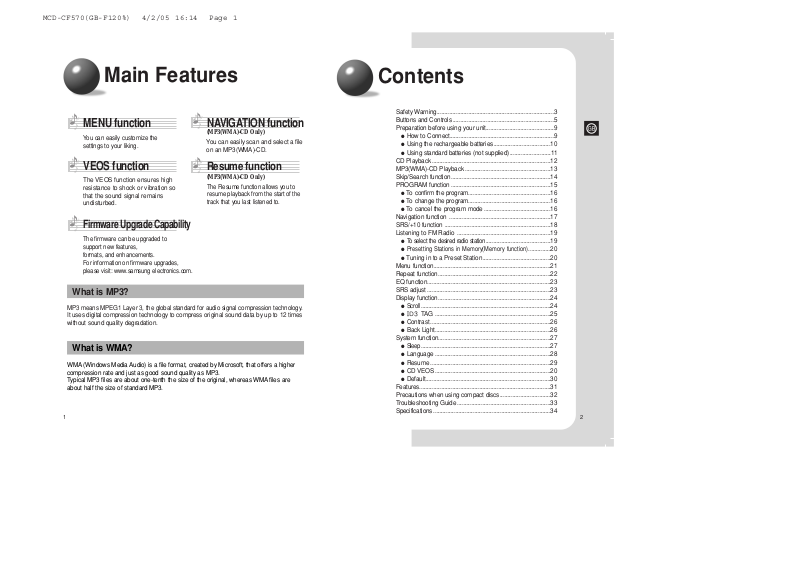

What is MP3?
MENU function
You can easily customize the
settings to your liking.
VEOS function
The VEOS function ensures high
resistance to shock or vibration so
that the sound signal remains
undisturbed.
Firmware Upgrade Capability
The firmware can be upgraded to
support new features,
formats, and enhancements.
For information on firmware upgrades,
please visit: www.samsung electronics.com.
NAVIGATION function
(MP3(WMA)-CD Only)
You can easily scan and select a file
on an MP3(WMA)-CD.
Resume function
(MP3(WMA)-CD Only)
The Resume function allows you to
resume playback from the start of the
track that you last listened to.
MP3 means MPEG1 Layer 3, the global standard for audio signal compression technology.
It uses digital compression technology to compress original sound data by up to 12 times
without sound quality degradation.
Safety Warning..........................................................................3
Buttons and Controls ................................................................5
Preparation before using your unit...........................................9
● How to Connect..................................................................9
● Using the rechargeable batteries....................................10
● Using standard batteries (not supplied)..........................11
CD Playback ...........................................................................12
MP3(WMA)-CD Playback ......................................................13
Skip/Search function...............................................................14
PROGRAM function ...............................................................15
● To confirm the program....................................................16
● To change the program....................................................16
● To cancel the program mode ..........................................16
Navigation function ................................................................17
SRS/+10 function ...................................................................18
Listening to FM Radio ...........................................................19
●
To select the desired radio station
.........................................19
●
Presetting Stations in Memory(Memory function)
..............20
● Tuning in to a Preset Station ...........................................20
Menu function..........................................................................21
Repeat function.......................................................................22
EQ function..............................................................................23
SRS adjust ..............................................................................23
Display function.......................................................................24
●
Scroll
..................................................................................24
● TAG .........................................................................25
● Contrast ............................................................................26
● Back Light.........................................................................26
System function.......................................................................27
●
Sleep
..................................................................................27
● Language .........................................................................28
● Resume ............................................................................29
● CD VEOS .........................................................................20
● Default...............................................................................30
Features...................................................................................31
Precautions when using compact discs ................................32
Troubleshooting Guide ...........................................................33
Specifications ..........................................................................34
Main Features
Contents
What is WMA?
WMA (Windows Media Audio) is a file format, created by Microsoft, that offers a higher
compression rate and just as good sound quality as MP3.
Typical MP3 files are about one-tenth the size of the original, whereas WMA files are
about half the size of standard MP3.
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 1
Page 2
43
Road safety
●
Do not use the earphones while riding a bicycle, driving any kind of motor
vehicle or motorcycle.
This is very dangerous and is illegal in certain regions.
It is dangerous to listen to earphones at high volume while crossing roads.
In order to protect your hearing
●
Do not wear the earphones with the volume set too high.
Doctors state that listening to music at high volume for prolonged periods is
harmful to hearing.
●
If you experience a ringing in your ears, reduce the volume or stop listening.
Earphones
●
Your unit consists of materials which can be recycled if disassembled by a
specialized company. Please observe local regulations regarding the
disposal of packing materials, exhausted batteries and old equipment.
Environmental information
●
Ambient temperature : 5°C~35°C (41°F~95°F)
●
Humidity : 10~75%
Ambient operating conditions
Safety Warning
Take care not to allow dust
or other contaminants to
come into contact with your
player.
Do not apply heavy
pressure to the player.
Do not leave your player
in direct sunlight or
near a heat source.
Do not put anything other
than a CD (CD-R or CD-RW)
inside your player.
●
Such actions will damage
your player.
Do not use broken or
scratched MP3 CDs.
Do not use your player on
uneven or unstable surfaces.
●
Your player may not
operate properly.
Do not touch the lens
with your finger or
scratch it.
●
Your player may not
operate properly.
Do not place your player
in a dusty or humid
location.
Do not attempt to take
apart, repair or modify
your player.
●
Such actions will damage
your player.
Unplug the power cord
when not using the
player for long periods
of time.
Do not touch the AC
Adaptor with wet hands
when it is plugged in.
Avoid places of low
temperature (below 5°C)
or high temperature
(above 35°C).
●
Use of controls adjustments or performance of
procedures other than those specified herein
may result in hazardous radiation exposure.
●
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1 LASER product.
●
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND
INTER LOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 3
Page 3
65
Accessories
EarphoneRemote Control
Main Unit
Buttons and Controls
4
1
32
HOLD switch
Bottom of the Main Unit
Rechargeable Batteries
(Ni-MH: 1350mAh 1.2V) x 2
External
battery pack
AC adaptor
●
SKIP
●
POWER ON/OFF
●
PLAY/PAUSE (
√»
)
VOLUME
OPEN switch
2.
1.
Remote control Connection jack
AC Adaptor & External Battery
Pack Connector
3.
4.
User Manual
User Manual
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 5
Page 4
87
0:03:15
001
Boyz II MEN
001
End [Boyz II MEN]
128 kbps
44KHz
NOR
ONE
FLAT
ALLDIRNOR
L
R
WOW
SRS
TB
POP
CLASSIC
ROCK
FLAT
JAZZ
Display
The picture of the display panel below is based on MP3-CD playback.
Buttons and Controls
Remote Control
876
Earphone jack
HOLD switch
Main Unit connection jack
2.
3.
4.
1.
●
+10 button
- FM button (FM)
●
NAVI. button
- MENU button
●
PRESET button (FM)
●
PROGAM button
●
MEMORY button (FM)
●
SRS button
●
STEREO/MONO button (FM)
6.
7.
8.
5.
●
SEL
●
VOLUME ( , )
●
PLAY/PAUSE (√»)
●
SKIP/SEARCH
(
Iî
,
ï
I
)
●
STOP (■)/ POWER OFF
1.
Play Time Indicator
5.
Directory Name Indicator
(MP3(WMA)-CD Only)
6.
7.
8.
9.
10.
11.
• L/R Channel Level Indicator
Sampling Frequency Indicator
(MP3(WMA)-CD Only)
Track Number Indicator
Title Indicator
(MP3(WMA)-CD Only)
Bit Rate Indicator
(MP3(WMA)-CD Only)
Directory Number Indicator
(MP3(WMA)-CD Only)
2.
EQ/SRS Mode Indicator
3.
Playback or Repeat Mode
Indicator
4.
Remaining Battery Power Indicator
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 7
Page 5
An AC adaptor must be connected to the AC outlet and
power input.
•
Charging of the rechargeable batteries will commence.
AC adaptor : DC 4.5V, 500mA
109
How to Connect
2
Preparation before using your unit
Note
•
Time taken to fully charge the battery : 10 hours
•
Battery life of fully charged battery
WMA-CD : 18 hours max.
CD : 10 hours max
Using rechargeable batteries
Open the cover of the battery
compartment.
1
Insert the rechargeable batteries
into the battery compartment.
•
Carefully check the correct orientation
of the positive and negative terminals
of the battery.
2
3
Connect the Earphones to
the remote control.
Connect the main unit
connection jack to the
main unit.
3
1
Connect the AC adaptor to the power input jack.
Then, connect the AC plug of the adaptor to the AC outlet.
●
Only use the AC adaptor supplied with your product.
When you are not using this product,
disconnect the AC adaptor from the AC outlet.
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 9
Page 6
1211
Open the cover of the battery
compartment.
2
Attach the external battery pack as
shown in the picture.
1
Carefully check the correct orientation
of the positive and negative terminals
of the batteries.
•
Use two AA/LR6 type 1.5 V batteries.
3
Use two AA/LR6 alkaline batteries.
Manganese batteries have a shorter battery life.
•
The external battery pack cannot charge, as it does not have the capacity
to charge.
•
Do not mix old and new batteries.
•
Remove the batteries if they will not be used for a long time.
•
Remove the standard batteries when you use an AC adaptor.
•
Standard batteries cannot be recharged.
Warning
•
Replace the batteries if the remaining battery power indicator “ ” flashes.
Using standard batteries (not supplied)
Time for
Battery
Replacement
Rechargeable Rechargeable Batteries +
Batteries Battery Pack (type AA/LR6)
WMA-CD 18 hours 45 hours
CD 10 hours 25 hours
Battery Life (Using alkaline batteries)
Preparation before
using your unit
0:03:15
TRACK 05
PLAY
CDDA
NOR
FLAT
L
R

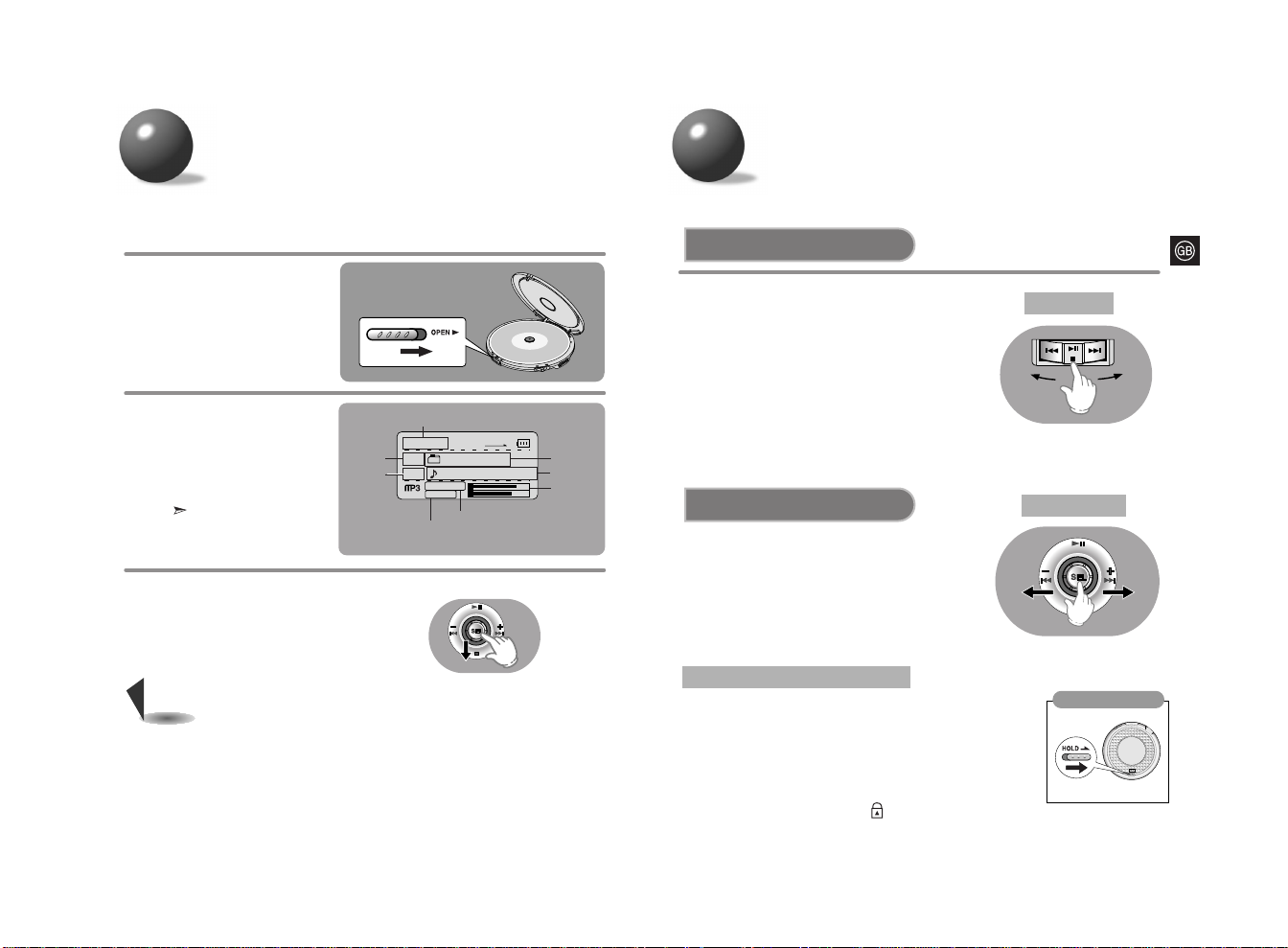

Slide the OPEN button to
open the door.
Insert a CD.
•
Push the door to close it.
1
Press the SEL key to the
√»
position.
•
Once the CD is recognized,
playback commences.
•
To pause playback,
press the SEL key to
the √»position.
•
To resume playback,
press the SEL key to
the √»position again.
2
To stop playback, press the SEL key to the
■
position.
•
Press and hold the SEL key to the ■position to
switch off the unit.
•
If no buttons are pressed, the power will autom
atically switch off after 15 seconds.
3
Track Number Indicator
Playtime Indicator
CD Playback
•
The battery life-time is based on continuous use.
•
These AA/LR6 batteries are alkaline batteries.
- Remote Control: Press the SEL button to display volume bar.
You can adjust volume level by pressing the
SEL key to the left or right.
- Main Unit: Press and hold the SEL key to the left or right to
adjust the volume.
To Adjust the Volume
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 11
Page 7
1413
0:03:15
001
Boyz II MEN
001
End [Boyz II MEN]
128 kbps
44KHz
NOR
FLAT
L
R
Slide the OPEN button to
open the door, and insert
an MP3(WMA)-CD.
•
Push the door to close it.
1
Press the SEL key to the
√»
position.
•
The inserted MP3(WMA)-CD
will be scanned for about
30~90 seconds. Playback will
then commence.
Your CD Player will take a
few moments to scan through
all the tracks and the sessions
recorded on a MP3(WMA)-CD.
2
To stop playback, press the SEL
key to the
■
position.
•
Press and hold the SEL key to the
■
position to switch off the unit.
3
• If a music file is corrupted and a particular section cannot be read, only
that section will be skipped. But if the file continues to be unreadable,
the player will skip to the next file.
•
Files that do not conform to specifications (refer to P. 34) will be skipped.
• When the OPEN switch is slid to open the door, playback will stop.
• The quality of MP3(WMA)-CD playback may vary depending on the condition of the
disc containing the music files or the condition of the recorder with which the disc
was created.
• If different types of files or unnecessary folders are on the same disc, you will have
problems with playback.
Note
MP3(WMA)-CD Playback
Skip
Press the SEL key to the left or right.
(Slide the
Iî
or
ï
I to the left or right on the
main unit.)
• Press the SEL key to the
ï
I
position to play the next track.
Press the SEL key to the
Iî
position to go back to the
beginning of the current track. (Press the SEL key to the
Iî
position twice to repeat the previous track).
• Press the SEL key to the
ï
I
position while the unit is in
“Stop” (no playback) mode. Track 2 will be played back.
Press the SEL key to the
Iî
position to play back the
previous song.
Search
Press and hold the SEL key to the left or
right during playback of a CD.
•
Press and hold
the SEL key to the left or right.
The CD will play back in fast forward or fast reverse
mode.
•
Release the key to return to normal playback mode.
• Buttons pressed during CD playback will not function.
• Use the HOLD function when carrying your CD Player around with you.
Use of this function will allow you to conserve battery life as it prevents
the CD Player from being turned on if a button is pressed unintentionally.
• The remote control will still operate while the HOLD function on the main
unit is active. (On the display, the “HOLD” indicator will be displayed.)
• The main unit will still operate while the HOLD function on the remote
control is active.(On the display, the “ ” indicator will be displayed.)
HOLD function
Main Unit
Remote Control
Skip/Search function
Bottom of the Main Unit
DIR
Number
indicator
Track
Number
indicator
DIR Name indicator
Title indicator
L/R Channel
Level Indicator
Playtime
indicator
Bit rate indicator
Sampling Frequency
Indicator
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 13
Page 8
1615

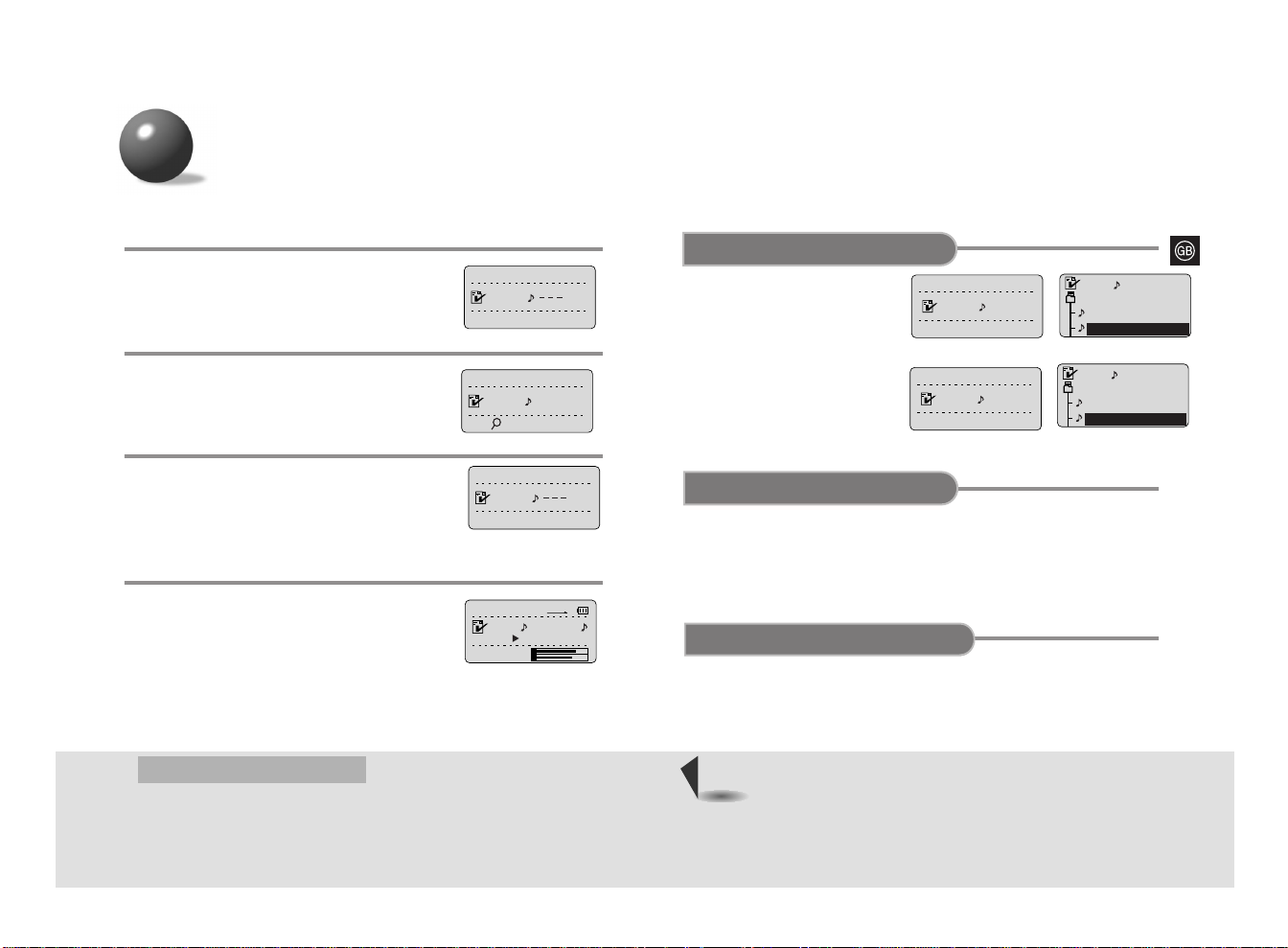

PROGRAM function
You can store up to 30 tracks.
• During programming, if no action is performed for about 40 seconds,
the player will automatically turn itself off to conserve battery power
consumption.
Warning
• In the stop mode, press and hold
the
PROG.
button.
• Each time the NAVI. is pressed,
track numbers will be shown on the
display according
to their program sequence.
To confirm the program
•
To change the programmed tracks during program confirmation,
press the SEL key to the left or right to select the track to change.
•
Press the
SEL key.
To change the program
• Press the SEL key to the
■
position twice during program playback.
• The Program mode will also be canceled if the lid opens during
programming.
To cancel the program mode
PROGRAM
SELECT
001 004
PROGRAM
SELECT
002 007
005
001
JANET JACKSON
What have you don
Come back to me
006
002
JANET JACKSON
Rush
Come back to me
Example: When storing track number 4 to program number 1.
In the stop mode, press and hold the
PROG.
button
.
1
Press the SEL key.
•
Track number 4 is stored under program
number 1 and you will be taken to
program number 2.
•
Continue to program the desired tracks.
3
Press the PROG.
button when programming
is complete.
4
Press the SEL key to the left or right to
select the desired track.
2
• Press the SEL key to the ■position.
• The total number of programmed tracks as well as the total number of tracks in a given
disk will be shown on the display.
• Press the SEL key to the
√»
position button to resume program playback.
To stop program playback
PROGRAM
SELECT
001
PROGRAM
SEARCH...
001 004
PROGRAM
SELECT
002
0:03:15
NOR
FLAT
L
R
002 TRACK 7
PLAY
CDDA
CD
CD
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 15
Page 9
1817

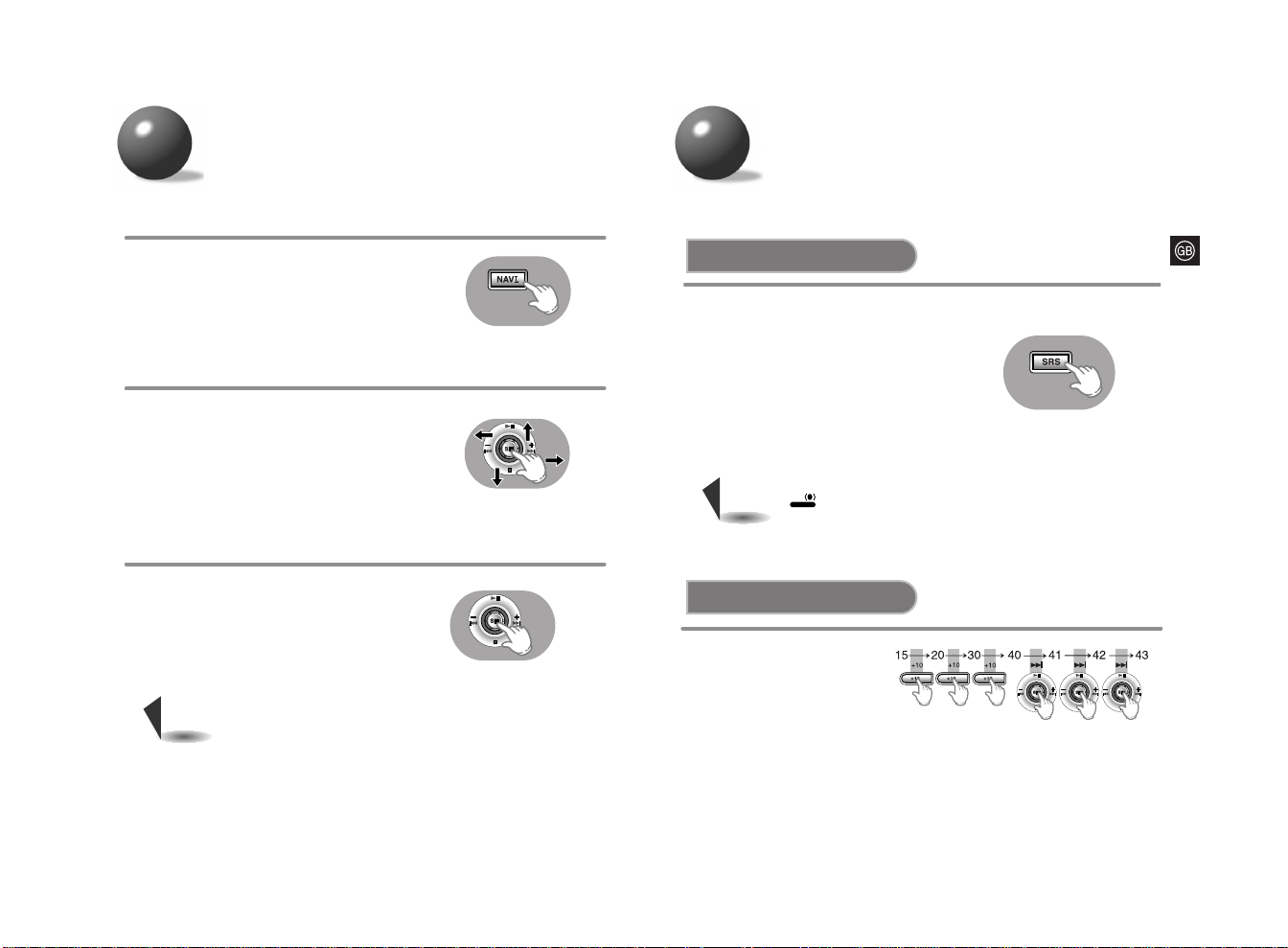

Navigation function
1
Use the SEL key on the remote control
to select the desired file.
2
You can easily select and play any directory or file.
Press the NAVI. button on the remote control.
●
When in stop mode, the root directory and
subdirectories or files will be displayed.
●
During playback mode, the file will be displayed.
Press the SEL button.
●
The selected file will be played back.
3
●
Iî
:
To go up to a higher directory.
●
ï
I
:
To go down to a lower directory or file.
●
√»
/■:
To go up or down.
●
NAVI. :
To exit to the display.
●
If no button is pressed for 20 seconds while navigating, you will be
exited to the display.
Note
SRS/+10 Function
You can enjoy a 3D sound with a sense of presence using the SRS, TruBass, and WOW
functions.
+10 function
SRS function
●
Press the +10 button briefly
while playing back a CD.
Playback will skip 10 tracks.
Example : If you want to select track 43 during
playback of track 15, press the +10
button three times, then press the
ï
I
button three times.
Press the SRS button to select
the desired setting.
●
FLAT : The selected FLAT mode will be used to
play back music files.
●
SRS : Select this for 3D surround sound.
●
TB : Select this to boost bass for more realistic sound.
●
WOW : This mode is a combination of SRS and TB.
●
is a trademark of SRS Labs, lnc.
WOW technology is incorporated under license from SRS Labs, Inc.
Note
SRS
WOW
●
This function is not available during
playback of a WMA-CD.
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 17
Page 10
2019

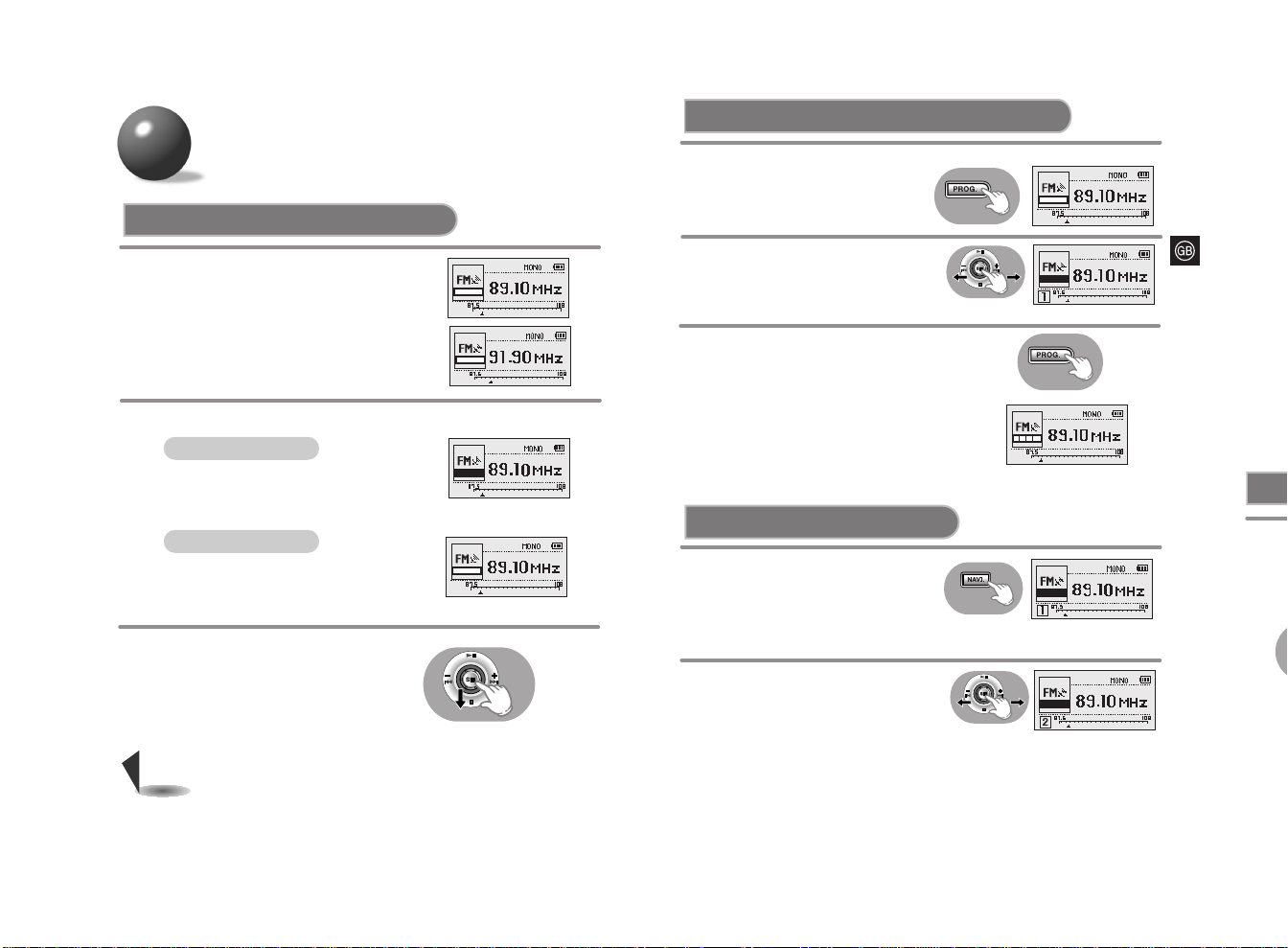

Listening to FM Radio
To select the desired radio station
Automatic Tuning
Press and hold the FM button on
the remote control.
●
The frequency of the received station
appears on the display.
●
Briefly press the SRS button to select either
STEREO or MONO.
1
To turn off the radio, press
and hold the STOP (■) button
on the remote control.
3
Press and hold
the
Iî orïI.
●
Automatically scans and tunes to the next
available station.
Press the
Iî orï
I
.
●
Press the button repeatedly to tune in the
desired station manually.
2
●
The reception may not be clear in a weak signal area.
●
If the reception of an FM station is weak, press the SRS button to
switch to MONO for improved sound quality.
●
Even if the reception mode is set to STEREO, if you are in a weak
signal area, the mode will automatically switch to MONO.
Note
Manual Tuning
●
Press the PLAY/PAUSE (√»)
button on
the remote control to switch to CD
mode.
Use the
Iî ,ï
I
buttons to tune in to a desired radio station.
AUTO SCAN
Press the
Iî orï
I
to select the
preset “P.MEMORY 2”.
●
Each time the button is pressed a
higher or lower preset number is selected.
2
*
You can either manually or
automatically preset and
store FM stations.
Presetting Stations in Memory(Memory function)
EXAMPLE: Storing an FM station at 89.10 MHz into preset number 2
Tune into a station of 89.10
MHz, and then press the
PROG. button on the
remote control.
1
Press the PROG. button again to
store the station.
●
The preset number disappears,
indicating that the station has been stored.
●
Repeat steps 1 to 3 to change the station
or store other stations.
You can preset up to 15 stations.
3
Tuning in to a Preset Station
Press the
Iî orï
I
to select the
desired preset number.
●
"PRESET" remains, and the frequencies
of the preset stations are displayed in turn.
2
PRESET
If you have already stored stations
into memory, press the NAVI.
button on the remote control.
1
PRESET
●
"PRESET" and the station frequency stored
under that preset number appear on the display.
P.MEMORY
Auto Memory Function
●
Press and hold the SRS button
to store up to 15 of the received
stations automatically.
AUTOMEM
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 19
Page 11
2221
You can customize the settings to your liking.

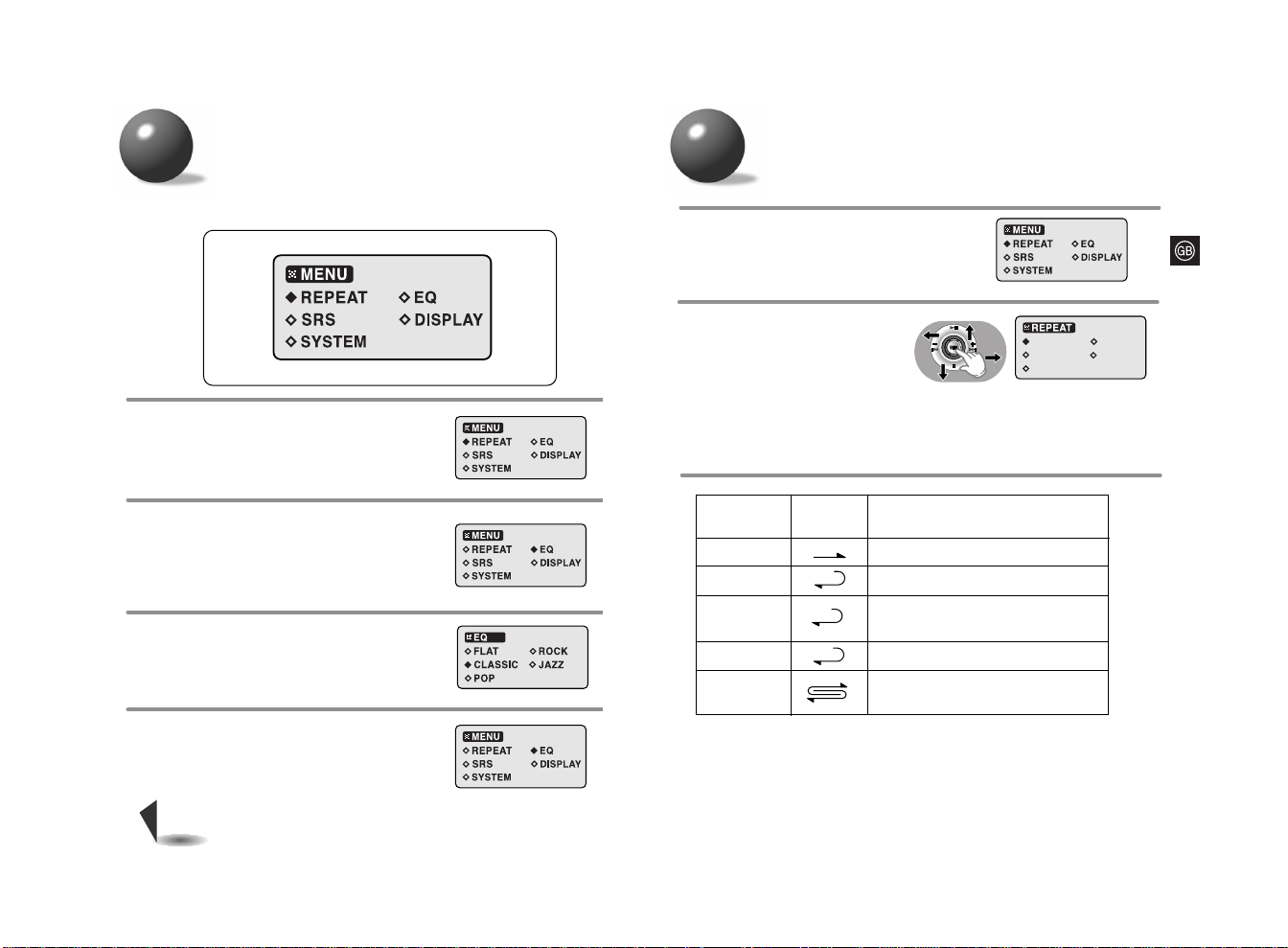

Menu function
Repeat function
●
Menu Structure
Press the
NAVI.
button to move to a
higher level menu.
•
If no button is pressed for 20 seconds,
you will be exited to the main unit display.
4
Use the
SEL key(Iî ,ï
I,■
,√»)
to select the desired function, and then
press the SEL button.
3
Use the
SEL key(Iî ,ï
I,■
,√»)
to select the desired menu, and then press
the SEL button.
•
A list of functions will appear.
2
Press and hold the
NAVI. button.
•
A group of menu icons will appear.
1
•
While the Disc is being read, you won't be able to use the Menu function.
Note
Select REPEAT from the main menu.
1
Use
the
SEL key(Iî ,ï
I
,■,√»)
to select the
desired REPEAT mode.
●
Press the NAVI. button to go
back to the higher level menu or to exit to the display.
(“Repeat Directory” only works for an MP3(WMA)-CD
which contains directories.)
2
Normal
Directory
Random
One
All
Mode
Repeat Mode
indicator
NORMAL
REPEAT ONE
REPEAT
DIRECTORY
REPEAT ALL
RANDOM
Description
- Plays all of the tracks on a CD once.
- Repeatedly plays one song.
- Repeatedly plays all of the songs in
the selected directory.
-
Repeatedly plays all of the tracks on a CD.
- Plays all of the tracks on a CD in
random order.
NOR
ONE
ALL
DIR
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 21
Page 12
2423

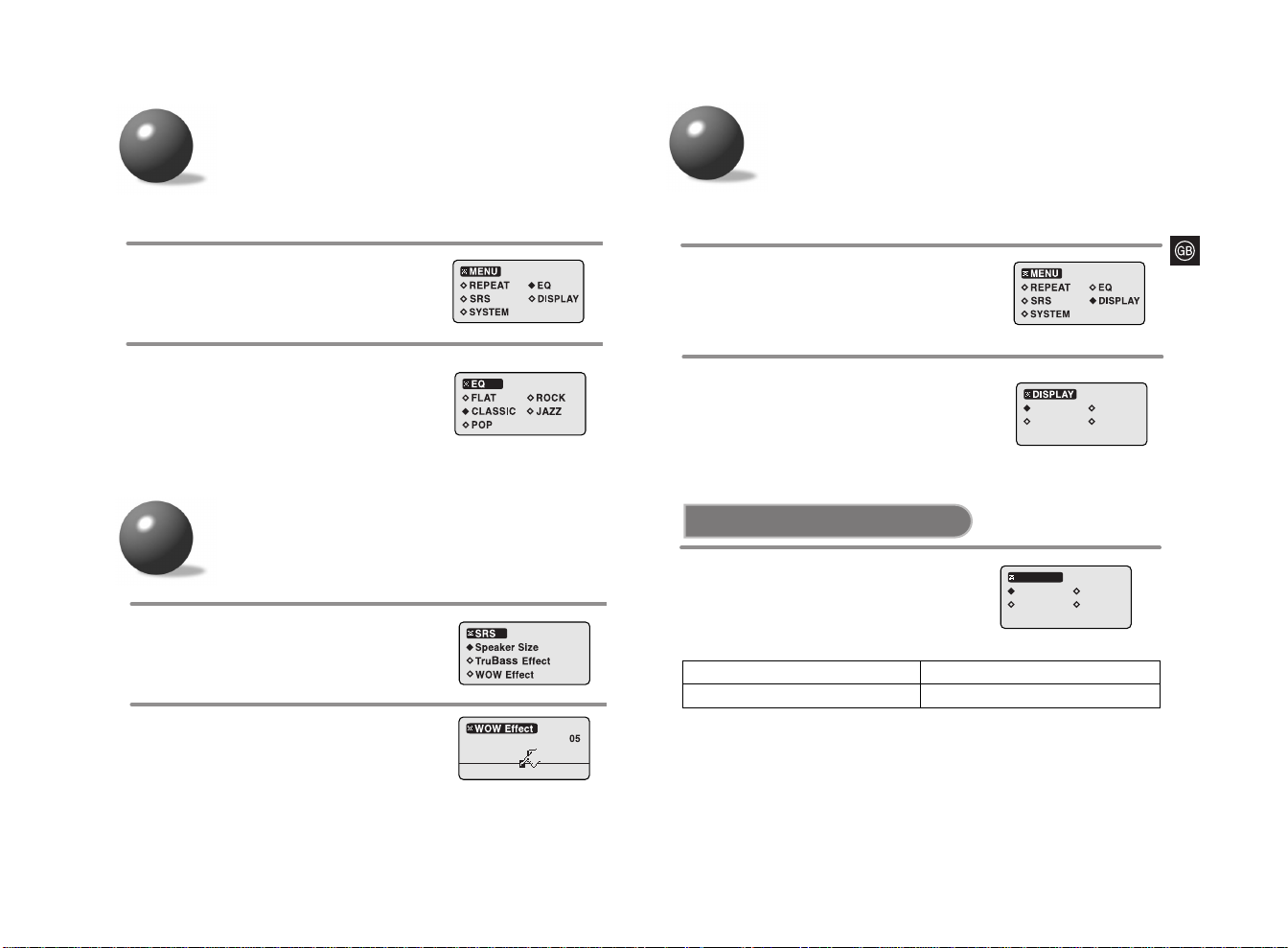

EQ function
SRS adjust
Use the
SEL key(Iî ,ï
I,■
,√»)
to select the desired EQ mode.
•
FLAT ➝ ROCK ➝ CLASSIC ➝ JAZZ ➝ POP
2
Select EQ from the main menu.
1
Use the
SEL key(Iî ,ï
I
)
to select the level you want.
• TruBass Effect, WOW Effect : The setting range of
the TruBass effect and WOW effect is 0 to 10.
• Speaker Size : The setting range of the speaker
size is 0 to 8.
2
Select SRS from the main menu.
•
You can adjust the Speaker, TruBass
and WOW level.
1
Display function
Select DISPLAY from the
main menu.
1
Use the
SEL key(Iî ,ï
I
,■,√»)
to select the desired
menu, and then press the SEL
button.
•
A list of functions will appear.
2
●
Use the
SEL key(Iî ,ï
I,■
,√»)
to set the scroll speed.
●
You can adjust the scroll speed of the
song titles.
1X
3X
2X
4X
Scroll
Scroll
●
1X : Scrolls at normal speed.
●
2X : Scrolls at two times the normal speed.
●
3X : Scrolls at three times the normal speed.
●
4X : Scrolls at four times the normal speed.
Scroll
Contrast
ID3 Tag
Back Light
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 23
Page 13
2625

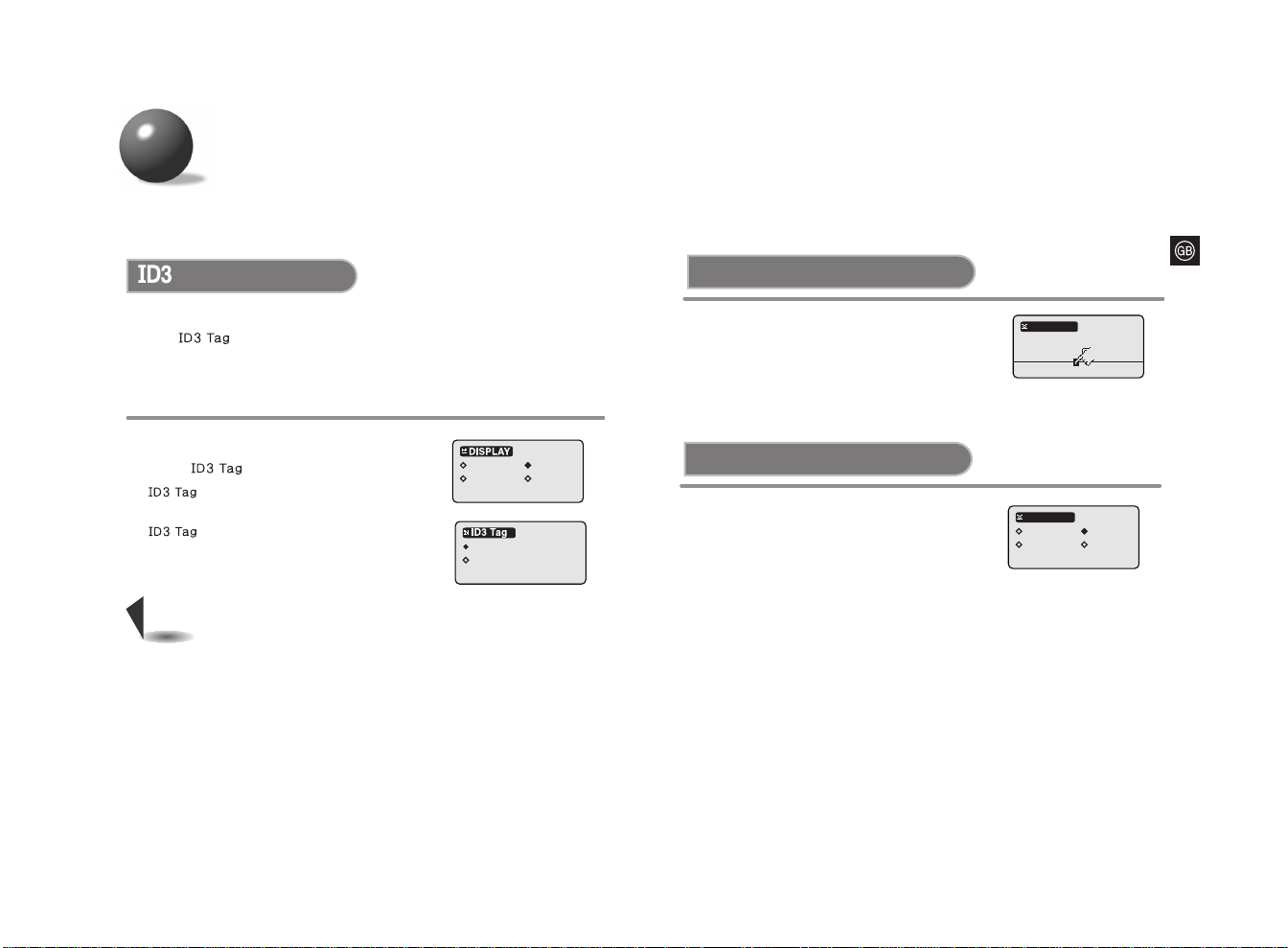

Display function
TAG
*
This function is only available during
playback of an MP3(WMA)-CD.
•
This function displays the tag information from all of the songs on an MP3/WMA-CD.
What is ?
•
This is what is attached to an MP3 audio file to carry information relevant to the file,
such as the title, artist, album, year, genre and a comment field.
Scroll
Contrast
Back Light
ID3 Tag
●
Use the
SEL key(■
,√»)
to select ON or OFF.
ON
OFF
•
If no tag information is present in the file, the song title or artist cannot be
displayed.
Only the file name is displayed.
Note
•
ON : Tag information of the song
file is displayed.
•
OFF : Only the name of the song
file is displayed.
●
Use the
SEL key(Iî ,ï
I
)
to set the
contrast.
●
The setting range of the contrast, which
adjusts the brightness of the screen, is 0 to 19.
Contrast
09
Contrast
OFF
5 sec
3 sec
10 sec
Back Light
●
Use the SEL key
(
Iî
,
ï
I,■
, √»
) to set
the backlight-on time.
●
OFF: Turns off the backlight.
●
3 SEC : Turns on the backlight for 3 seconds.
●
5 SEC : Turns on the backlight for 5 seconds.
●
10 SEC : Turns on the backlight for 10 seconds.
Back Light
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 25
Page 14
2827

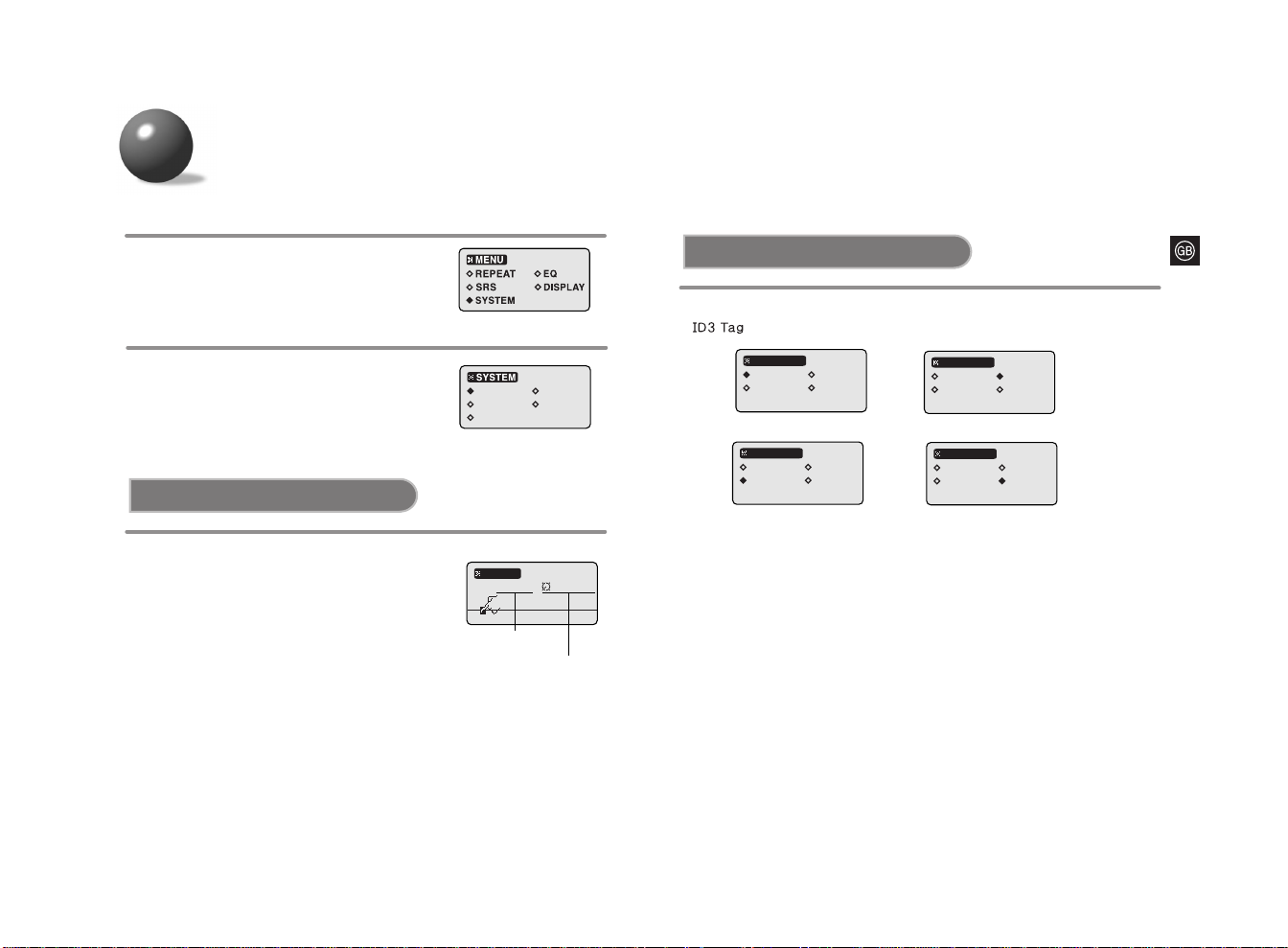

System function
Select SYSTEM from the main menu.
1
Use the
SEL key(Iî ,ï
I,■
,√»)
to select the desired menu, and then
press the SEL button.
2
Sleep
●
Use the
SEL key(Iî ,ï
I
)
to set the sleep
time.
●
Use this function to set the player to power off
automatically after a preset time has elapsed.
●
You can turn off the sleep timer or select from
10 to 120 minutes in 10 minute increment:
OFF → 010 →
● ● ● ● ●
120.
Language
●
Languages Supported
- Western Europe: Albanian, Catalan, Danish, Dutch, English, Faeroese, Finnish,
French, Galician, German, Icelandic, Italian, Norwegian,
Portuguese, Spanish, Swedish
- Eastern Europe: Croatian, Czech, Estonian, Hungarian, Latvian, Lithuanian, Polish,
Romanian, Slovak, Slovene
- Russian: Bulgarian, Byelorussian, Macedonian, Russian, Serbian, Ukrainian
ENGLISH
RUSSIAN
WEST EU EAST EU
Language
ENGLISH
RUSSIAN
WEST EU EAST EU
Language
ENGLISH
RUSSIAN
WEST EU EAST EU
Language
ENGLISH
RUSSIAN
WEST EU EAST EU
Language
→
English
Russian
→
Western European
Languages
Eastern European
Languages
→
●
Use the
SEL key(Iî ,ï
I,■
,√»)
to select the language in which the
of music files will be displayed.
Sleep
Resume
Default
Language
CD VEOS
020min. 010 min
Sleep
Setting Time
Remaining Time
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 27
Page 15
3029
SYSTEM function
Resume Default
CD VEOS
●
Use the
SEL key(■
,√»)
to select RESUME
ON or OFF.
●
ON: Resumes playback from the last turn-off
track.
●
OFF: Plays the first track on the CD.
●
Use
SEL key(■
,√»)
to select CD
VEOS ON or OFF.
●
This function prevents music from skipping
during movement by buffering ahead in the data
stream.
●
CD VEOS OFF : For an Audio CD, the player buffers
up to 45 seconds of CD data.
●
CD VEOS ON : For an Audio CD, the player buffers up
to 180 seconds of CD data.
●
480 seconds of data stream for an MP3-CD and 960 seconds for a
WMA-CD will be buffered automatically.
What is VEOS(Versatile ESP Operating System)?
VEOS (Versatile ESP Operating System) combines the strengths of
Memory Buffering and Fast Recovery System to store the contents of a
CD in memory before playing back and to recover from CD skips in the
shortest amount of time.
Note
●
Use the
SEL key(■
,√»)
to select
DEFAULT NO or YES.
●
YES: Initializes all settings to their default values.
●
No: Maintains the existing settings.
Default Settings
●
REPEAT : NORMAL
●
EQ : FLAT
●
SCROLL SPEED : 2X
●
ID3 TAG : ON
●
LCD CONTRAST : 9
●
SRS : OFF
●
BACKLIGHT : 3 sec
●
LANGUAGE : ENGLISH
●
RESUME : ON
●
CD VEOS : ON
●
SLEEP : OFF
●
DEFAULT : NO
●
VOL : 20
●
TRU EFFECT : 6
●
WOW EFFECT : 8
●
SPEAKER SIZE : 2
OFF
ON
Resume
OFF
ON
YES
NO
Default
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 29
Page 16
3231

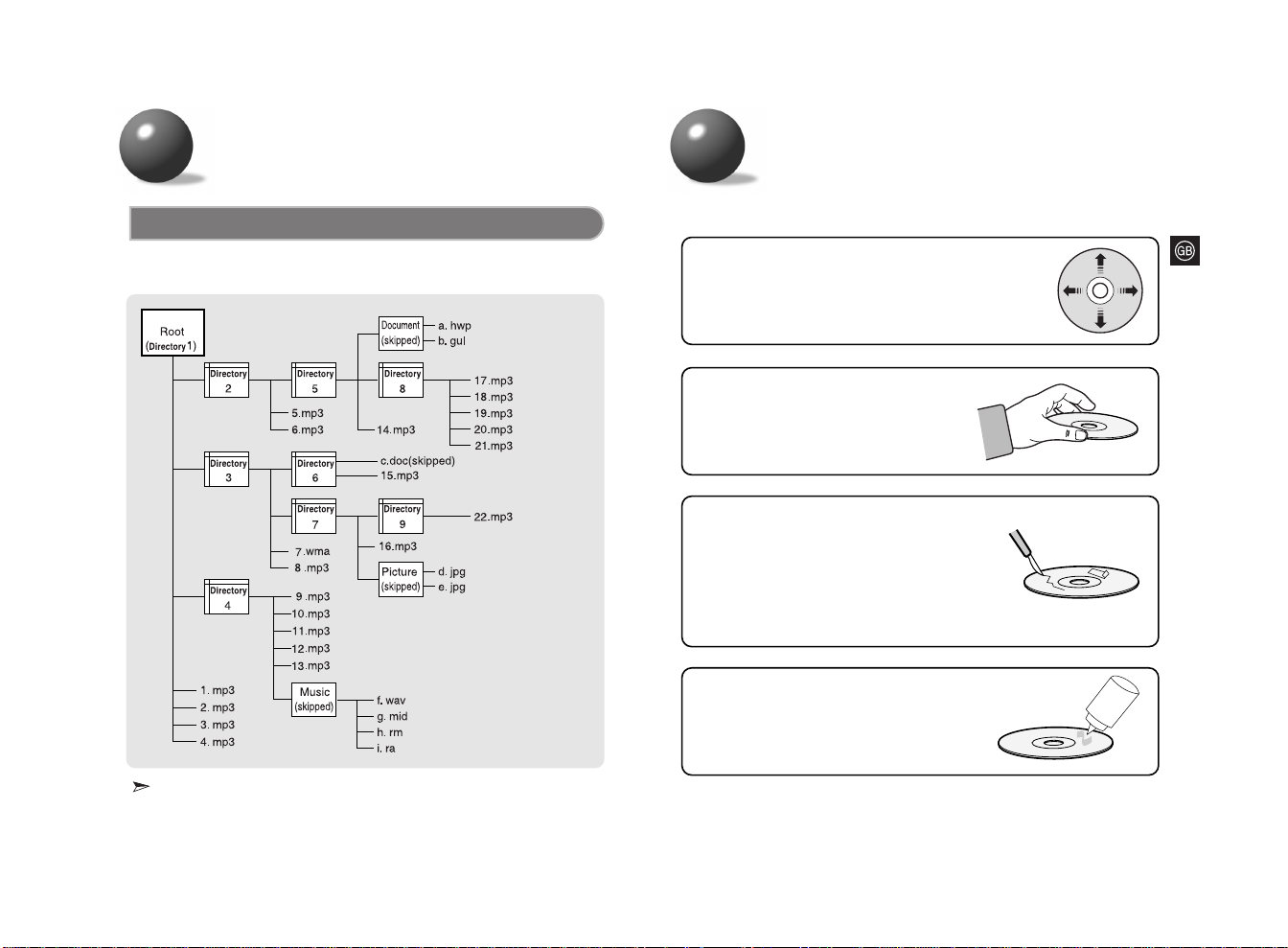

Playback sequence of directories and tracks
• Directorise with .jpg, .wav or .doc are not audio files and therefore will be skipped.
Features
Looking after your CDs
Wash the disc with a neutral detergent diluted in water, and
then wipe gently with a soft dry cloth from the center of the
disc to the outside.
Handling your CDs
Carefully pick up the disc by its edge without
touching the disc’s surface.
Do not attach stickers to the
signal surface (the side with
shiny, rainbow colors).
Do not write on the labeled (printed) side with
a ballpoint pen or a pencil.
Do not clean your CDs with record
spray or anti-static.
Do not use volatile chemicals
such as benzene or thinners.
Precautions when using compact discs
The player can recognize up to about 999 files.
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 31
Page 17
3433
Problem Check
Unit has no power.
● Did you insert the battery with the correct
polarity?
● Are the batteries drained?
● Is the AC adaptor connected correctly?
● Is the door open?
Earphones don’t work.
● Is the volume control on the unit at the minimum
setting?
A sound or track is
skipped.
● Was the unit jolted or knocked?
● Is there dust, fingerprints or scratches on the
disc?
Some of the MP3(WMA) files
on a CD are not recognized.
● Check if the unreadable files have .mp3 (.WMA)
as their extension on your PC.
Firmware cannot be
upgraded.
● The CD door may have been open or power may
have been disconnected during the upgrade.
Burn the upgrade file onto a CD-ROM in ISO
9660 format and perform the upgrade again.
Playback does not
function.
● Is the disc inserted correctly?
● Is the disc damaged or deformed?
● Has the unit been locked with the HOLD switch?
● Has the unit been moved from a cold place to a
hot place?
Abrupt change of temperature may cause
condensation to form on the lens. Keep your CD
Player in a warm place until the condensation
on the lens has disappeared.
Troubleshooting Guide
Item Description
*
Frequency range 20Hz ~ 20KHz
*
Earphone output 320mV(RMS), 6.4mW/CH, 16Ω
*
Signal/noise ratio 90dB (1kHz)
*
Total harmonic distortion 0.1% (1kHz, 0dB)
Format Support
CD-DA (8Cm/12Cm)
CD-ROM Mode 1, Mode 2 Form 1
CD-R/RW Readability
ISO 9660, Joliet
Romeo, Multi-session
File Support MPEG 1 Layer 3, WMA
Bit Rate
8kbps~320kbps (MP3)
32kbps~320kbps (WMA)
FM Frequency Range 87.5MHz ~ 108.0MHz
FM Distortion 0.5% (MONO)
FM S/N Ratio 51dB
FM Stereo Separation 35dB
Tag Support ID3 V1, ID3 V2
Power Adapter DC 4.5V 500mA
Internal Rechargeable Batteries
Two Square-shaped 1350 mAh Ni-MH Batteries
External Batteries 1.5V AA/LR6 type
x 2
Dimensions 136(W) X 19.2(H) X 136(D)
Weight 192g
Specifications
File Compatibility
● Only files in MP3 Format (Mpeg1 Layer3), with an .mp3 as the file extension, and
WMA files with .WMA extension can be played back.
How many MP3 files can a CD-R or CD-RW disc record?
● The maximum capacity of one CD-R or CD-RW disc is 700MB.
Normally, one MP3 file has a capacity of 4MB, therefore approximately 170 files
can be recorded on a single disc.
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 33
Page 18
Portable MP3-CD Player
MP3-CD, WMA-CD, CD-DA Playback
MCD-CF570
Instruction Manual
AH68-01590T
SRS
WOW
MCD-CF570(GB-F120%) 4/2/05 16:14 Page 35
Loading...
