Instruction Manual

THREE-CD CHANGER VIDEO-CD MINI-COMPACT SYSTEM

MP3-CD/CD-R/RW PLAYBACK

MAX-VB630G

Page 2

Safety Warnings

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

Page 3

Contents

Thank you for buying this SAMSUNG mini-compact system.

Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features.

Press Push Important Note

AFETYWARNINGS

.................................................................................................................................................................................................. 2

NSTALLINGYOURMINI-COMPACTSYSTEM

Front Panel View...................................................................................................................................................................................................... 4

Remote Control ........................................................................................................................................................................................................ 5

Rear Panel View ...................................................................................................................................................................................................... 6

Where to Install Your Mini-Compact System............................................................................................................................................................ 7

Connecting your System to the Power Supply ........................................................................................................................................................ 7

Inserting Remote Control Batteries.......................................................................................................................................................................... 8

Connecting the Loudspeakers.................................................................................................................................................................................. 8

Connecting to an External Source............................................................................................................................................................................ 9

Connecting to the Equipment .................................................................................................................................................................................. 9

Connecting the AM (MW)/LW Aerial ........................................................................................................................................................................ 10

Connecting the FM Aerial ........................................................................................................................................................................................ 10

Connecting the SW Aerial (OPTION) ...................................................................................................................................................................... 10

Demo/Dimmer function ............................................................................................................................................................................................ 11

Multi Jog Function.................................................................................................................................................................................................... 11

Setting the Clock...................................................................................................................................................................................................... 11

VCD/MP3-CD/CD-P

LAYER

Loading and Changing Compact Discs.................................................................................................................................................................... 12

To replay the CD/MP3-CD........................................................................................................................................................................................ 12

Selecting a CD in the Disc changer ........................................................................................................................................................................ 13

MP3-CD PLAYBACK .............................................................................................................................................................................................. 13

Selecting a Track...................................................................................................................................................................................................... 13

Searching for a Specific Music Passage on a CD .................................................................................................................................................. 14

Function to skip through 10 tracks at a time............................................................................................................................................................ 14

Shuffle Play Function .............................................................................................................................................................................................. 14

Repeating One or All Tracks on the Compact Discs................................................................................................................................................ 14

Programming the Order of Playback........................................................................................................................................................................ 15

Checking or Changing Programmed Tracks............................................................................................................................................................ 15

Video CD Player Playback ...................................................................................................................................................................................... 16

Search Functions .................................................................................................................................................................................................... 16

Time Searchy Function ............................................................................................................................................................................................ 16

When adjusting play speed...................................................................................................................................................................................... 17

NTSC/PALSelection Method .................................................................................................................................................................................. 17

Sound Selection Function ........................................................................................................................................................................................ 17

KEY CONTROL Function ........................................................................................................................................................................................ 17

VCD VIEW function.................................................................................................................................................................................................. 18

ZOOM Function ........................................................................................................................................................................................................ 18

Last Memory Function.............................................................................................................................................................................................. 18

UNER

Searching for and Storing the Radio Stations ........................................................................................................................................................ 19

Selecting a Stored Station........................................................................................................................................................................................ 20

Improving Radio Reception...................................................................................................................................................................................... 20

APEDECK

Listening to a Cassette ............................................................................................................................................................................................ 21

CD Synchro Record Feature .................................................................................................................................................................................... 21

Recording a Compact Disc ...................................................................................................................................................................................... 21

Recording a Radio Program .................................................................................................................................................................................... 22

Copying a Cassette (Dubbing) ................................................................................................................................................................................ 22

Selecting the Cassette Playback Mode(DECK 2 only) ............................................................................. ............................................................. 23

Tape Counter ............................................................................................................................................................................................................ 23

THERFUNCTIONS

Timer Function.......................................................................................................................................................................................................... 24

Cancelling the Timer ................................................................................................................................................................................................ 24

Mute Function .......................................................................................................................................................................................................... 25

Selecting an Equalizer Preset.................................................................................................................................................................................. 25

How to adjust User EQ? .......................................................................................................................................................................................... 25

Power Surround Function ........................................................................................................................................................................................ 25

Setting the System to Switch off Automatically........................................................................................................................................................ 26

Subwoofer Level Function........................................................................................................................................................................................ 26

Microphone Function ................................................................................................................................................................................................ 26

Connecting Headphones .......................................................................................................................................................................................... 26

ECOMMENDATIONS FORUSE

Safety Precautions .................................................................................................................................................................................................. 27

Cleaning Your Mini-Compact System ...................................................................................................................................................................... 27

Precautions When Using Compact Discs ................................................................................................................................................................ 28

Precautions When Using Audio Cassettes .............................................................................................................................................................. 28

Before Contacting the After-Sales Service .............................................................................................................................................................. 28

Technical Specifications .......................................................................................................................................................................................... 29

Symbols

Page 4

Front Panel View

1. Compact Disc Compartment

2. Display Window

3. Demo/Dimmer

4. AI Sleep

5. Timer On/Off

6. Timer/Clock

7. Standby/On

8. Function Select buttons

9. MIC1,MIC2 Jack

10. MIC Echo button

11. MIC Volume Knob

12. FM Mono/Stereo

13. Memory

14. Cassette Deck 1

15. REC/Pause/PAL/NTSC

16. Stop/Tuning Mode/Search Function buttons

17. CD Synchro Recording

18. Cassette Deck 2

19. Program

20. CD Repeat

21. Enter(Return)

22. Headphone Jack Connector

23. Power Surround

24. Multi Jog

25. Subwoofer Level

26. TAPE Normal Speed Dubbing

27. Sound Mode

28. Volume

29. Tape Reverse Mode

30. Open/Close

31. Disc Change

32. Disc Selection buttons

33. Tape Counter Reset

34. Deck 1/2

4 5

6 7

11 12

16 17

24 23

3233

Page 5

Remote Control

1. Standby/On

2. Digit Buttons/Direction Buttons

3. FM Mono/Stereo

VCD Zoom

4. +10/0

5. Track Previous

6. CD Stop

7. CD Repeat

8. Radio Station Search

9. Volume Decrease

10. Deck 1/2

11. TAPE Rewind

12. TAPE Fast-Forward

13. AI Sleep

14. VCD/CD Shuffle Play/MP3-CD Random Play

15. VCD Sound

16. VCD Slow Play

17. Key Control

18. Key Control

19. Return

20. Time Search (Last Memory)

21. TAPE Stop

22. TAPE Play

23. Tuner/Band

24. Tuning Mode

25. Volume Increase

26. Disc Number Skip

27. Disc Play/Pause

28. Track Next

29. Disc View

30. Sound Mode

31. Subwoofer Level

32. Timer On/Off

33. Mute

18 17

4 5

6 7

11 12

13 14

15 16

Page 6

Rear Panel View

AUDIO OUT

VIDEO

OUT

1 2 3 4

5 6 7

1. FM Aerial Connector Terminal

2. SW Aerial Connector Terminal (OPTION)

3. AM Aerial Connector Terminals

4. Loudspeaker Connector Terminals

5. SUBWOOFER Speaker Connector Terminals

6. AUDIO(DISC) Output Connectors

7. VIDEO(DISC) Output Connectors

8. AUX-Input

9. Voltage Selector (OPTION)

Page 7

The main lead must be plugged into an appropriate socket.

Before plugging your system into a main socket, you must check the voltage setting (OPTIONAL). If the voltage of the socket does not correspond to the setting on the rear of the unit, you may seriously damage your system.

Check the position of the Voltage selector on the rear of the system (OPTIONAL).

Plug the main lead (marked AC Cord on the rear of the system) into an appropriate socket.

Press the Standby/On button to switch your mini-compact system on.

To take full advantage of your new mini-compact system, ollow these installation instructions before connecting the unit.

Install the system on a flat, stable surface. Never place this unit on carpeting. Never place this unit in an outdoor area. Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes. Make sure that you have enough room to open the compact disc compartment easily. Place the loudspeakers at a reasonable distance on either side of the system to ensure good stereo sound. Direct the loudspeakers towards the listening area. For optimum performance, make sure that both speakers are placed at an equal distance above the floor.

Where to Install Your Mini-Compact System

Connecting your System to the Power Supply

1 2

Page 8

The loudspeaker and subwoofer connector terminals are located on the rear of the system.

The subwoofer generates low-pitched tones.

(Ex. Explosion, the sound of spacecraft flying, the sound of pondering,

etc.)

Press and hold the clamp of the speaker terminal on the rear of the unit.

Insert the end of the speaker cord into the terminal.

Match the polarity (colors): Red (+) to red (+) and black (–) to black (–).

Match the polarity (colors): Blue (+) to blue (+) and black (–) to black (–); Red (+) to red (+) and black (–) to black (–).

Release the finger from the clamp.

Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

Connecting the Loudspeakers

1 2

Directions in Installing Speaker

Installation in a place near heating apparatus, under direct lay of light or with high humidity may cause performance degradation of the speaker.

Do not install on the wall or on a high place of pole or other unstable place to prevent any safety accident caused by falling of the speaker.

Do not take the speaker apart from TV or computer monitor. The speaker near the TV or computer monitor may influence the quality of the screen display.

Insert or replace remote control batteries when you:

Purchase the mini-compact system Find that the remote control is no longer operating correctly

When replacing the batteries, use a new set of batteries and never mix alkaline and manganese batteries.

Place your thumb on the position marked on the battery compartment cover (rear of the remote control) and push the cover in the direction of the arrow.

Insert two AA, LR6 or equivalent batteries, taking care to respect the polarities:

+ on the battery against + in the battery compartment – on the battery against – in the battery compartment

Replace the cover by sliding it back until it clicks into position.

If you will not be using the remote control for a long time, remove the batteries to prevent corrosion.

Inserting Remote Control Batteries

Match the polarity (colors): Blue (+) to blue (+) and black (–) to black (–); Red (+) to red (+) and black (–) to black (–).

Speaker Cord

(Red/Black)

Speaker Cord

(Blue/Black)

Page 9

The auxiliary input can be used to take advantage of the sound quality of your mini-compact system when listening to other sources.

Examples

: A television

A video disc player A Hi-Fi stereo video cassette recorder

To connect the external source, the source must have an audio output. In addition, you need an RCA connection cable.

Set the system to standby mode and disconnect it and the external source from the main.

Connect the audio cable to the rear of the mini-compact system.

Connect the... To the connector marked...

Red jack R (right) White jack L (left)

For optimum sound quality, do not invert the right and left channels.

Plug the system back into the main socket and press Standby/On to switch it on.

Select the AUX source by pressing AUX. Result

: AUX is displayed. Switch the external source on. Adjust the volume and balance as required:

Volume Equalizer

Example: You can watch a film and take advantage of stereo sound

provided that the original sound track is in stereo (as if you were in a cinema).

Connecting to an External Source

1 2

3 4 5

Using the Audio Cord, Connect the Audio Output Terminals (Left, Right) of the System with the Audio Input Terminals (Left, Right) of the Video Input Cassette Recorder, so as to Record VCD.

Using the Video Cord, Connect the Video Output Terminal of the system with the Video Input Terminal of TV.

Turn on the TV and Select the Video mode by pressing the TV/VIDEO SELECT button to the VIDEO Position.

Please Pay Attention not to Connect the Audio Output Terminals (left, right) of the System with the Audio Input Terminal of TV.

Connecting to the Equipment

AMPLIFIER

AUDIO INPUT VIDEO INPUT

AUDIO OUT

VIDEO

OUT

Page 10

The AM aerial (for long and medium waves) can be:

Placed on a stable surface

Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM .

To avoid noise interference, check that the loudspeaker wires do not run close to the aerial wires. Always keep them at least 2 inches (5 cm) away.

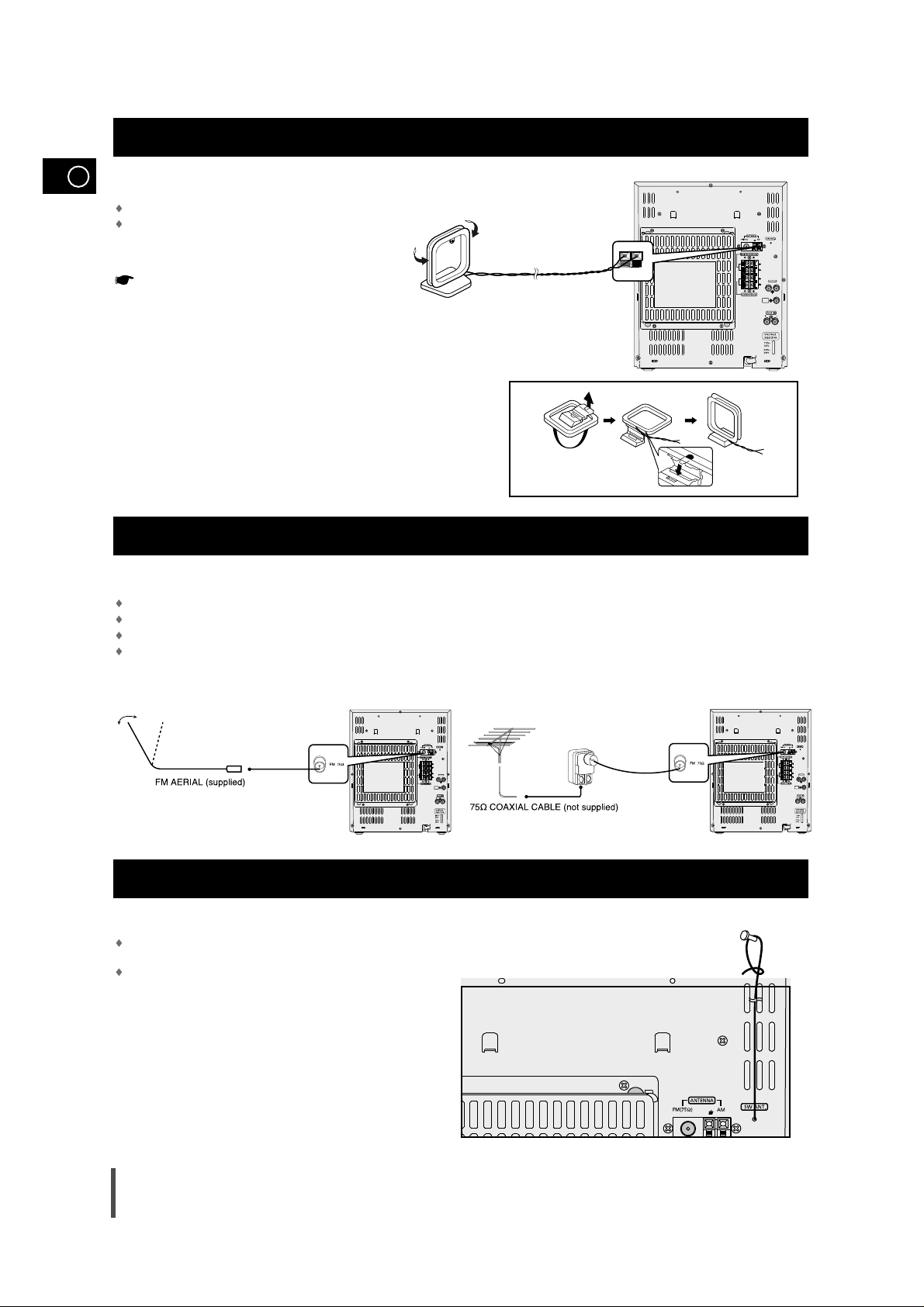

Connecting the AM (MW)/LW Aerial

How to connect a COAXIAL TYPE aerial.

Connect a 75Ω antenna to the FM antenna terminal.

Plug the connector on the FM aerial supplied into the coaxial socket (75Ω) marked FM on the rear of the system.

Follow the instructions given on Page 19 to tune into a radio station, and determine the best position for the aerial.

If reception is poor, you may need to install an outdoor aerial.

To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).

Connecting the FM Aerial

How to connect a WIRE TYPE aerial.

Spread the SW aerial out and attach the ends to a wall, in the

position providing the best reception.

If reception is poor (e.g. distance from transmitter too great,

walls blocking the radio waves, etc.), install an outdoor aerial.

Connecting the SW Aerial (OPTION)

AUDIO OUT RL

VIDEO OUT

AUDIO OUT RL

VIDEO OUT

AUDIO OUT RL

VIDEO OUT

Page 11

All functions available on the system can be viewed on the display and the display's brightness can be switched between "on" and "off".

Press the Demo/Dimmer button. Result: All functions available on the system appear on the front

panel display.

Each of these are explained in detail in this guide. Please refer to the relevant section.

Press the Demo/Dimmer button again. Result: The Dimmer function is selected and the display darkens.

Press the Demo/Dimmer button once again to brighten the front panel display.

A display brightness control can only be performed while the system power is on.

Your mini-compact system has a Multi Jog Function.

You can turn Multi Jog to instead of pressing / in CD or

Tuner function or setting the clock function etc.

Your system is equipped with a clock which allows you to turn your system on and off automatically. You should set the clock:

When you first purchase the mini-compact system After a power failure After unplugging the unit

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

Switch the system on by pressing Standby/On. Press Timer/Clock twice.

Result:

CLOCK is displayed.

Press Enter. Result:

The hour flashes.

To... Turn the

Multi Jog

knob to the...

Increase the hours Right Decrease the hours Left

When the correct hour is displayed, press Enter. Result:

The minutes flash.

To... Turn the

Multi Jog

knob to the...

Increase the minutes Right Decrease the minutes Left

When the correct time is displayed, press Enter. Result:

The clock starts and is displayed, even when the system is in standby mode.

You can display the time, even when you are using another function, by pressing Timer/Clock once.

You can also use / buttons to instead Multi Jog knob in step 4, 6.

Setting the Clock

1 2

3 4

5 6

Multi Jog Function

3,5,7

4,6

1,2

Demo/Dimmer function

Page 12

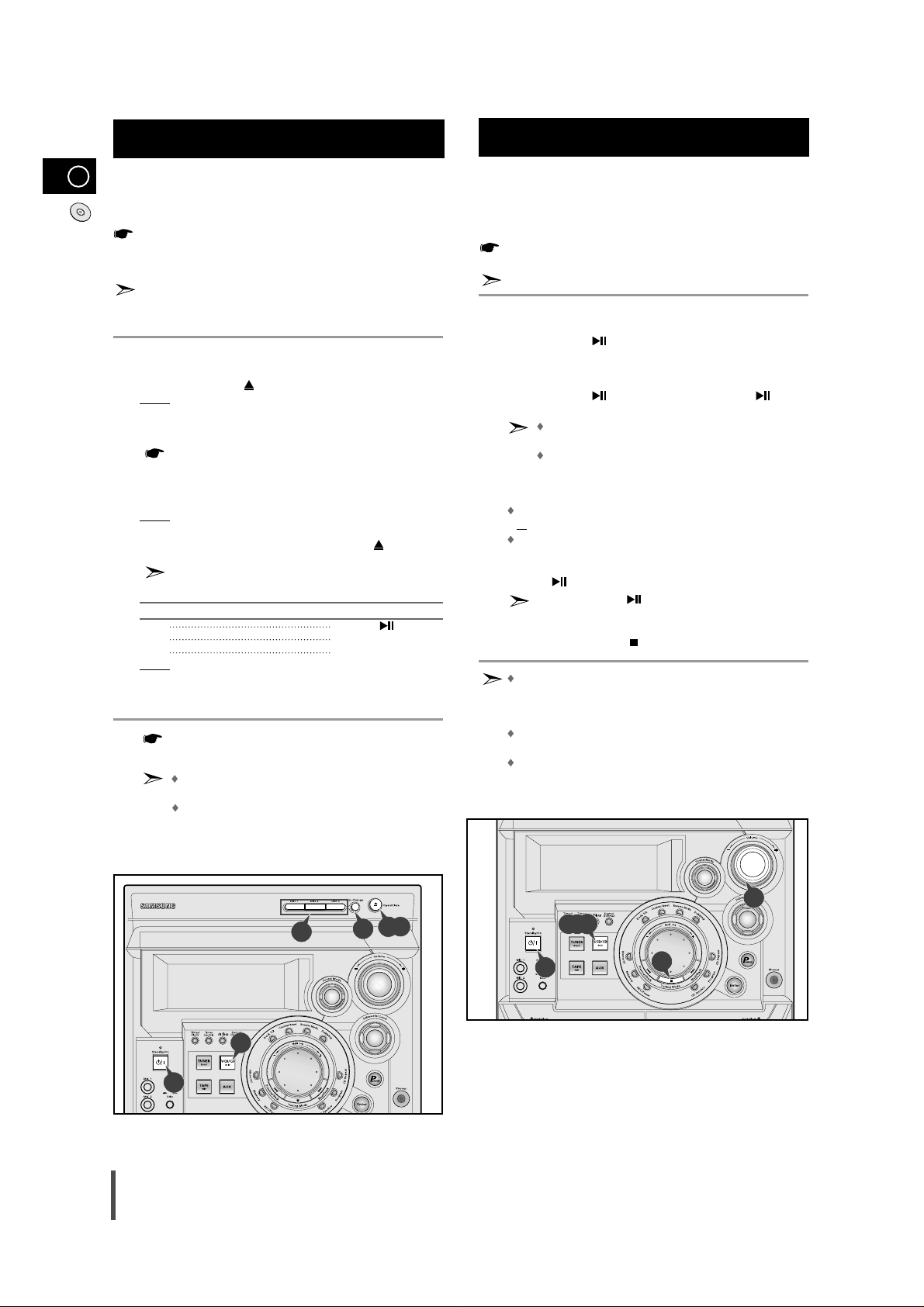

The disc changer can contain up to three 12 cm or 8 cm compact discs without using an adapter.

Never force the compact disc carrousel when opening and closing the compartment.

Never press down or place objects on the carrousel. Always treat your compact discs with care; refer, if necessary, to

the section entitled “Precautions When Using Compact Discs” on page 28.

Switch the system on by pressing Standby/On.

Press the Open/Close( ) button on the front panel. Result:

The compartment opens.

Place one or two discs in the front slots of the carrousel, with the label on the discs facing upwards.

Check that the compact disc has been correctly inserted in

the holder before closing the compartment.

If you wish to load a third compact disc, press the Disc Change button on the front panel (or Disc Skip on the remote control). Result:

The carrousel rotates by 120°.

Close the compartment by pressing the Open/Close( ) button again.

If you wish to start playing a disc directly, you can also proceed as follows.

To play... Press...

Disc 1 VCD/CD ( ) or Disc 1 Disc 2 Disc 2 Disc 3 Disc 3 Result:

The compartment closes automatically and the disc selected starts playing.

To change or unload the compact disc changer, repeat Steps 2 to 5.

Keep the compartment closed whenever you are not using it, to prevent dust from entering.

You can load or unload compact discs when the radio, tape or auxiliary source function is selected.

The function will be automatically entered VCD/CD from the other source when you press CD Open/Close button.

Loading and Changing Compact

Discs

1 2

This is a player that enables the playback of audio CD, CD-R, CD-RW and MP3-CD and does not possess the function that saves MP3 files.

Do not use CDs of irregular shapes like heart or octagon shapes. The performance of the player may be degraded.

At least more than one CD should be inserted for playbacks.

Press the Standby/On button to switch on the power.

Press the VCD/CD( ) of the main unit to select the CD function. Insert more than one CD or a MP3-CD.

Press the VCD/CD( ) button on the front panel or the button of the remote control.

If there is more than one CD or an MP3-CD inserted, replays are then processed in order.

Your CD Player will take a few moments to scan through all the tracks recorded on a particular MP3-CD.

Adjust the volume according to needs with the following procedures.

Turn the Volume control on the front panel or

Press the VOL. + or – button on the remote control.

If it is desired to stop while the playback is processing, press the

VCD/CD() button.

Press the VCD/CD( ) button once again to playback again.

To stop playback, press the button.

A new disc may be inserted in the remaining two compartments excluding the CD which is being played back. Press the Disc Changer button to open the CD tray. The revolving part does not turn during playbacks.

If there is not even one CD inserted in the CD tray, it is indicated as “NO DISC”.

If the CD Repeat function is not selected, 3 CDs are played back which automatically stops.

1 2 3

To replay the CD/MP3

2,5

2,4,6

Page 13

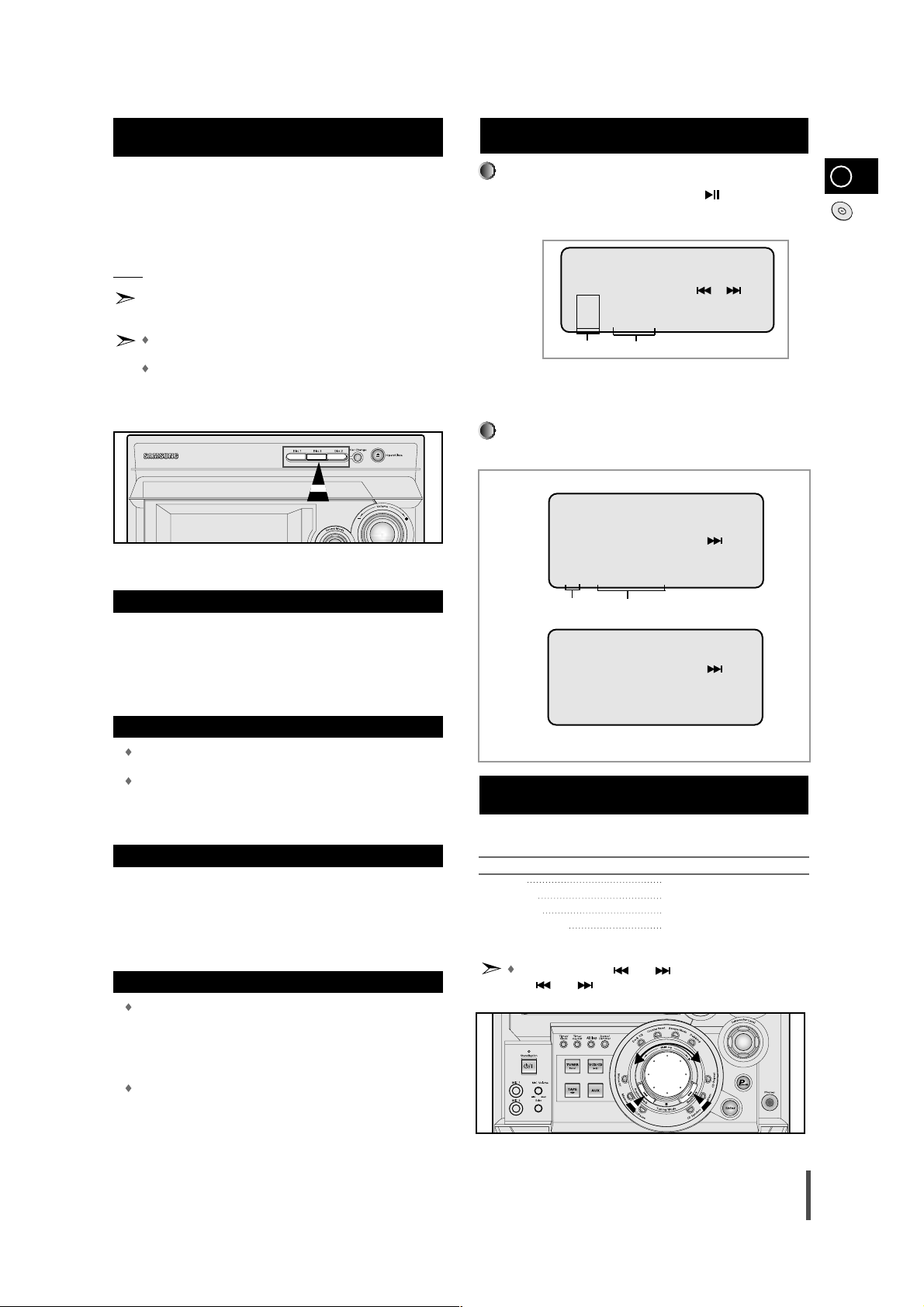

The CD function is automatically selected when Disc Skip is pushed.

To select a specific disc, press the corresponding Disc (1, 2, 3) button on the front panel or Disc Skip on the remote control, until the required disc indicator flashes. Result: All the discs will be played in turn, starting with the one selected.

If you wish to play the current disc only, press CD Repeat on the front panel one or more times, until 1 CD is displayed.

If you use the Disc (1, 2, 3) function when listening to the radio or to a tape, the system switches automatically to the CD mode.

If the disc selected is not loaded, the next disc is played automatically.

You can select the track you wish to listen to, either when the compact disc player is stopped or when a disc is playing.

To start playback at the beginning of the... Turn the Multi Jog knob...

Next track One notch to the right Current track One notch to the left Previous track Two notches to the left Track of your choice The appropriate number of

notches to the right or to the left

You can also use the and buttons on the front panel, or the and buttons on the remote control to select a track.

Selecting a CD in the Disc changer

Selecting a Track

What is MP3?

MP3 means MPEG1 Layer 3, the global standard for audio signal compression technology. It uses digital compression technology to compress original sound data by up to 12 times without sound quality degradation.

File Compatibility

The unit will playback files created in MP3 format (Mpeg1.Layer3) with *.mp3 as their extension.

Playback will be impossible for the file of MP2 or 22KHz.

How many MP3 files can a CD-R or CD-RW disc record?

The maximum capacity of one CD-R or CD-RW disc is 680MB. Normally, one MP3 file has a capacity of 4MB, therefore approximately 170 files can be recorded on a single disc.

Regarding the playback of CD-R/RW

In the case of an original CD-R(Recordable) recorded in audio CD format, CD-RW(Rewitable) and editing by the user, playback is processed on the respective completed status. (The player may not be played back according to the characteristics of the CD or recorded status.)

The CD-RW is comparably less reflexive than CD which causes more time delay to read.

HOW TO PLAYBACK MP3-CD directly

 I

: MP3 File display 7 tracks on the PAL TV screen every time;5 tracks on the NTSC TV screen every time. Select the No of song on the remote control Digits button and you can enjoy the Music.

MP3 TOTAL: 150

PAGE 003/030

TR : 017 0 : 02 : 39

016 PBAY  I 017 DON’T FOR  I

After inserting MP3-CD in the Set, Press button or Number button after Reading.

You can see the information of Disc on the TV.

Track No

Song name

HOW TO PLAYBACK MP3-CD on MENU MODE

After inserting MP3-CD in the Set, Press the “DISC VIEW” button.

Select the Number of Directory.You can see the following Display.

Select the No of song on the remote control Digits button and you can enjoy the Music.

MP3 TOTAL: 150

PAGE 001/003

TR : 000 0 : 00 : 00

1 DIRECTORY NAME 2 ABC 3 KBG 4 CDEG123

You can see the following information of Disc on the TV.

Directory No

Directory name

MP3 TOTAL: 150

PAGE 001 / 004 TR : 000 0 : 00 : 00 DIRECTORYNAME

1 DIRECTORY NAME  I 2 ABC  I 3 KBG  I 4 CDEG123  I

MP3-CD PLAYBACK

Page 14

When listening to a compact disc, you can quickly search for a specific music passage on a track.

It is recommended that you turn the volume down before using this function.

To search through the tracks... Press and hold down...

Forwards for at least one second Backwards for at least one second

You can aslo press and hold down / on the front panel to auto search through the tracks.

Searching for a Specific Music Passage on a CD

Function to skip through 10 tracks at a time

Press the +10/0 button briefly while playing back a CD and VCD. The track 10 tracks after the current one will then be played back.

Example:

If you want to select track 43 during playback of track 15, press the +10/0 button four times, and then press

the button three times or Digit 3 button once.

15 ➝10➝20 ➝30 ➝40 ➝41 ➝42 ➝43

You can listen to the tracks on a compact disc in a different order each time, as the various tracks will be selected automatically in a random sequence.

Press the Shuffle button. Result: The SHUFFLE(CD/VCD) or RANDOM(MP3-CD) indication appears

and all the tracks are played in a random order. Both the track number and the playing time are displayed.

If this button is pressed when the CD is being played back or stopped, any track recorded in the CD may be selected to playback again.

The CD plays back without repetitions and in the case of the MP3-CD, a track once played back may also be played back again repeatedly.

When playing tracks in a random order, you can:

Move on to the next track (selected at random) by pressing

/ or turning Multi Jog one notch to the right

Search quickly for a specific point in the current track by pressing

/ or turning Multi Jog one notch to the left

When you have finished the random playback, press or press the Shuffle button again.

The Repeat and CD Synchro function is not supported from the Shuffle playback mode.

Playback of video CD Version 2.0

– When pressing the Shuffle button during the playback,

the operation will stop.

–

When pressing the Shuffle button during the stop, the playback will operate with reading the video CD Version 2.0 as a Version 1.1.

Shuffle Play Function

You can repeat indefinitely:

A specific track on a compact disc. All tracks on the compact disc selected. All discs loaded in the carrousel

To repeat... Press CD Repeat on the Front

Panel one or more times until...

The current track indefinitely REPEAT 1 is displayed The selected disc REPEAT 1 CD is displayed All discs loaded REPEAT ALL CD is displayed

When you wish to stop the Repeat function, press CD Repeat until ALL CD or 1 CD is displayed, or press .

Repeating One or All Tracks on the Compact Discs

In selecting a track on MP3-CD, digit “0” will be entered if the button of +10/0 is pressed.

Example:

If you want to select a track 40 during the playback of a certain track, press both buttons of

4 and +10/0.

Page 15

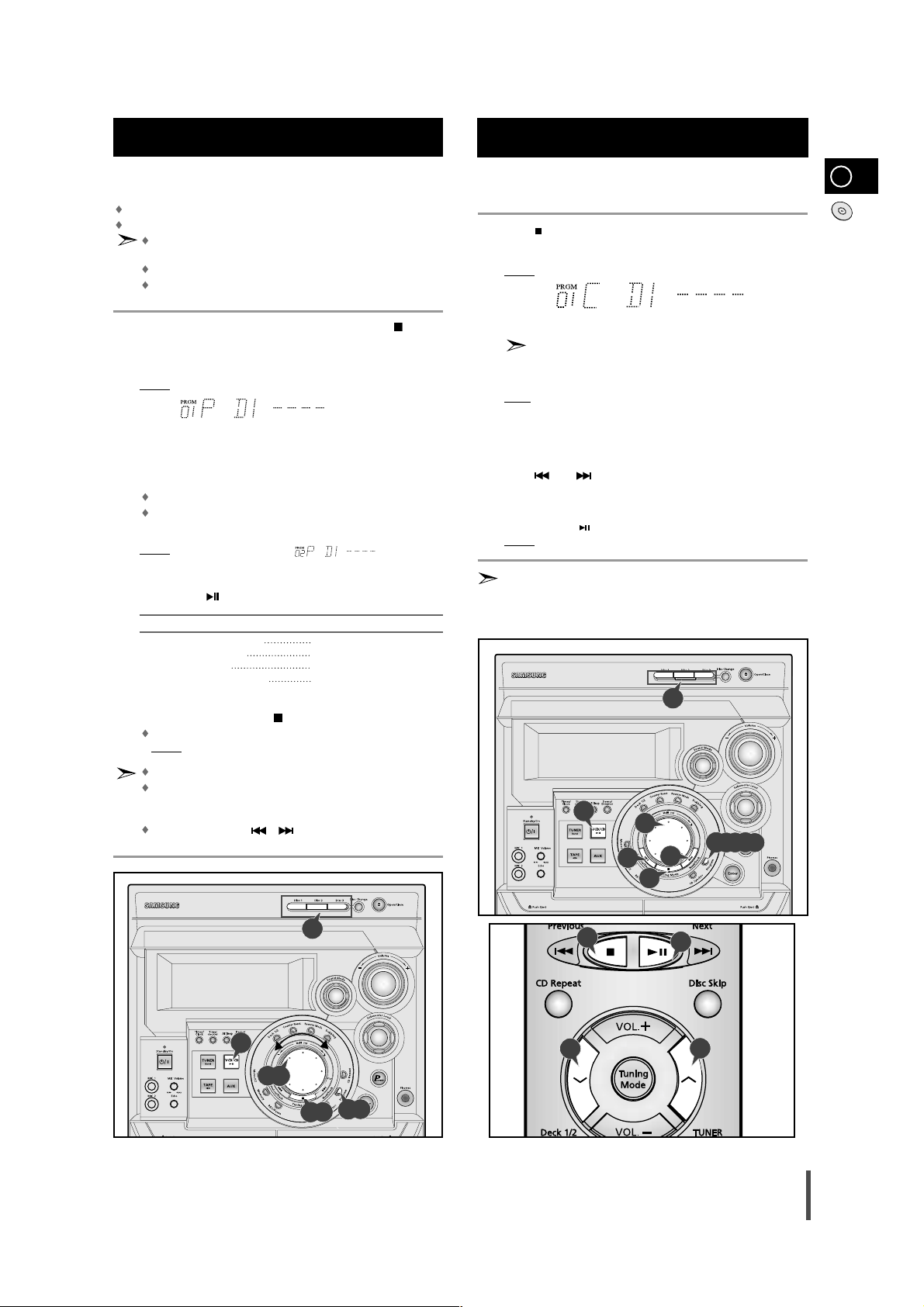

You can check or change your selection of tracks at any time.

Press once if you have started listening to the selection. Press Program.

Result: The following indications are displayed:

(C = Check, 01=Program No, DI = Disc No, – – – – = Track No on the disc)

If you have already programmed 30 tracks, C is displayed

instead of P when you press Program.

Press Program again. Result: The first track selected is displayed, together with the letter C (Change).

Press Program one or more times until the track to be changed is displayed. If necessary, press the corresponding Disc (1, 2, 3) button to change discs. Press and or turn Multi Jog to select a different track.

Press Program to confirm your change.

Press VCD/CD ( ) to start listening to the selection. Result: The first track selected is played.

When selecting the tracks of numbers larger than 3 digit figures (figures from the number 100), please use the Digit buttons.

Checking or Changing Programmed Tracks

1 2

3 4

5 6 7

You can decide:

The order of the track desired to listen The track not desired to listen

A maximum of up to 30 order of tracks desired to listen may be programmed.

Before selecting the track, the CD player should be stopped. This function may be used simultaneously with the CD Repeat

function.

If the CD function is selected, stop the player by pressing . Load the selected CDs. Press Program.

Result:

The following indications are displayed:

(01 = Program no., DI = Disc no., – – – – = Track no. on the disc) If necessary, select the disc containing the required track by pressing

the corresponding Disc (1, 2, 3) button. Select the required track by turning the Multi Jog knob:

To the left to move back through the tracks To the right to move forward through the tracks

Press Program to confirm your selection. Result:

The selection is stored and is displayed.

To select other tracks, repeat Steps 4 to 6. Press VCD/CD ( ) to listen to the track selection in the order programmed.

To... Turn the Multi Jog knob...

Listen to the current track again One notch to the left Listen to the previous track Two notches to the left Listen to the next track One notch to the right Skip forwards or backwards one The appropriate number of or more tracks notches to the right or to the left

To cancel the selection, press .

Once if the compact disc player is stopped Result:

PRGM is no longer displayed.

If you open the compartment, the selection is cancelled. If you select the number of a disc which is not loaded or a

track which does not exist on the CD, the selection skips to the next programmed track.

You can also use the / buttons to select the required tracks in step 5, 9.

1 2 3

4 5

6 7

8 9

Programming the Order of Playback

2,3,4,7

5,9

3,6

1,10

Page 16

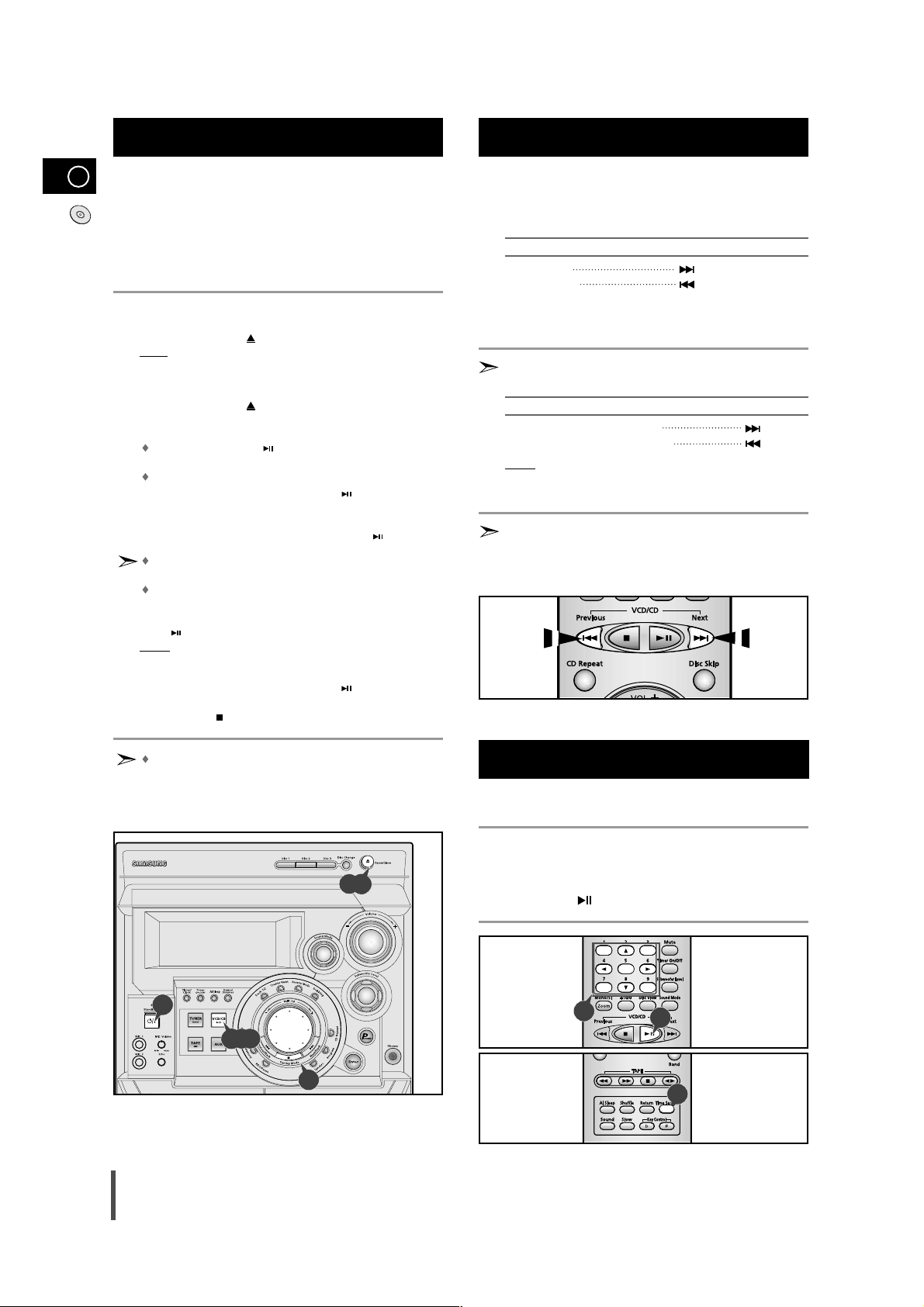

In order to playback video VIDEO-CD(‘S), make sure that your unit is connected to your TV set.

This unit is designed for playback of video CD(‘S), version 1.1 and 2.0. Only with version 2.0, is it possible to call up the on screen menu function. This unit will not play back any other video VIDEO-CD(‘S) other than 1.1 and 2.0 versions.

Turn on the Standby/On switch and set the VCD mode.

Press the Open/Close ( ) button on the unit, to open the CD tray. Result

: “OPEN” is displayed and CD tray slides open.

Load a video-CD(’S) with the label facing upwards in the tray.

Press the Open/Close ( ) button again to close the CD tray. To playback:

In version 1.1, press the button for direct access to the film, as there is no menu-on-screen.

In version 2.0, load a video CD, “Video CD2.0”, and “MENU ON” are displayed on the TV screen. Press the button and the

menu is displayed on the TV screen. Select a number from the menu using Digits button on the remote

control or Multi Jog knob and press the VCD/CD( ) button. To return to the previous menu, press the Return button on the

Remote control or Enter button on the front panel .

When playing a video-CD(‘S) version 2.0, reading time on the display may take longer, depending on the disc’s contents.

Press button on the remote control to receive a still picture. Result:

Pause is displayed, a still picture appears and the sound is muted.

To return to normal playback, press VCD/CD( ) button.

Press the Stop ( ) button to stop playback.

Please make sure that the VIDEO-CD(‘S) to be played is not flawed optically, as this may cause a distorted sound or the unit to malfunction.

Video CD Player Playback

1 2

3 4

7 8

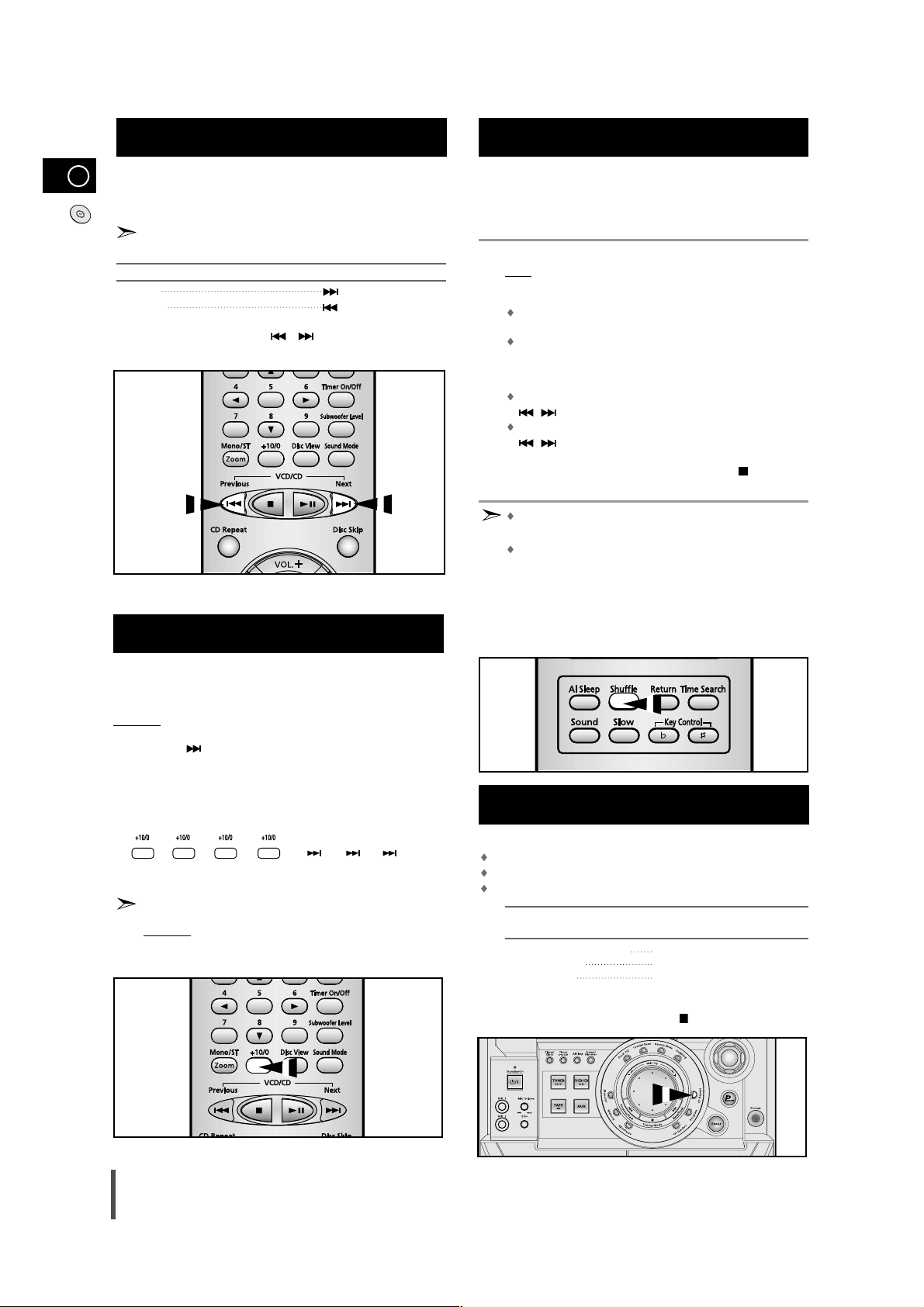

You can find a certain passage faster during playback. This function is possible in CD or VCD Ver 1.1 or Ver 2.0 menu off mode.

To... Press and hold down...

Scan forwards Scan backwards

Release the Skip/Search buttons when the desired passage has been found.

In the video CD version 1.1, where the disc’s contents are over 15 minutes long, you can scan up or down by intervals of five minutes.

To... Press...

Scan forwards by 5 minute intervals Scan backwards by 5 minute intervals

Result:

The picture is still, and the disc’s contents are forwarded or

reversed by 5 minute intervals. Playback then resumes from this new position.

In the SKIP/SEARCH or SCAN mode, the sound can only be partially heard and the picture scenes will change sporadically, until the required passage has been found.

Search Functions

Please use this function for reproducing a desired track in a certain time of playback.

Press the Time Search button. Set a desired time by pressing the Digit buttons.

Press the Play ( ) button.

Time Search Function

(This function is available only during the playback of a CD/VCD)

1 2 3

2,4

5,6,7

Page 17

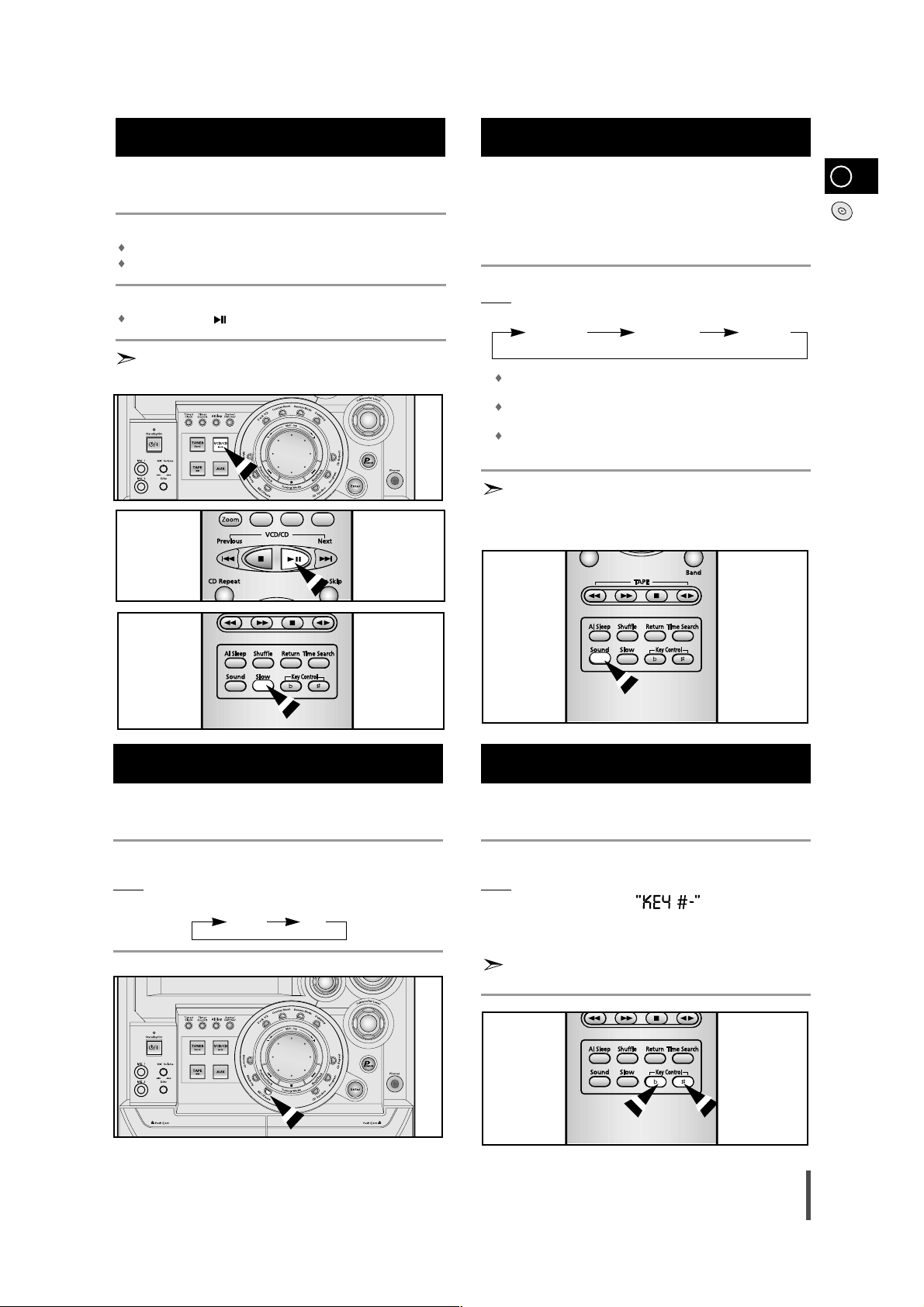

Turn on the TV and set video mode.

Press the Slow button on the remote controller when the play function is on.

Voices do not come out when the Slow button is pressed. Slow playing is 1/2, 1/4, 1/8 the normal playing speed.

To return to normal operation.

Press the

VCD/CD ()

button.

When the slow mode or frame mode is selected a disc will only forward operation.

When adjusting play speed

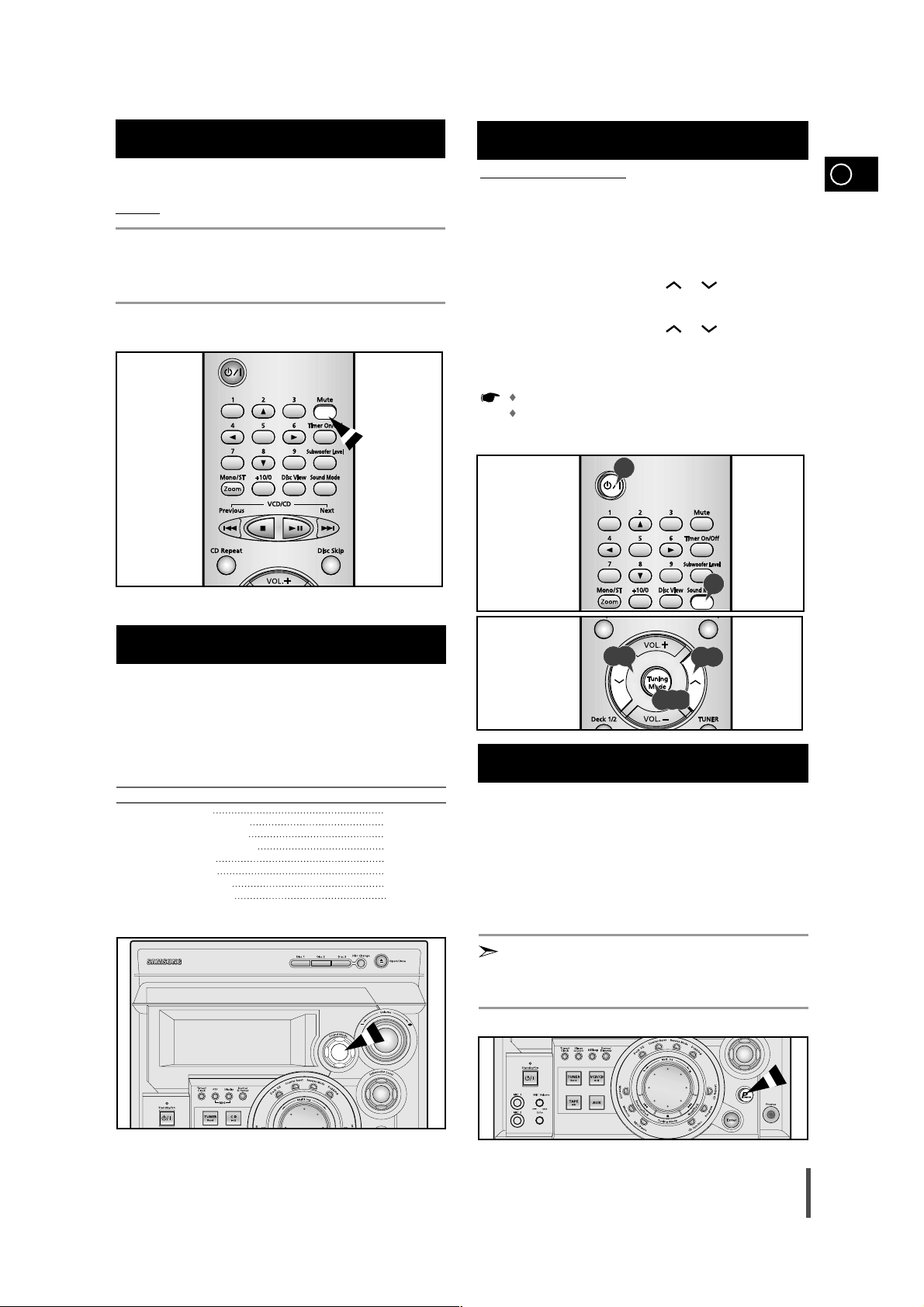

With this function, you can playback video CD’s that provide 2-channel tone(bilingual) in the original language. Similarly, with karaoke video CD’s, you can select between the channel for music without vocals for sing-along purpose, or the channel complete with music and vocals.

During playback, press the Sound button on the remote control. Result: Each time the Sound button is pressed, the following appears in

the display and on the TV screen:

Lch MONO : Only the left channel (instrumental parts) is played back

through both the right and left speakers.

Rch MONO : Only the right channel (vocal parts) is played back

through both the right and left speakers.

STEREO : Cancels the Multiplex Sound (normal stereo playback

resumes).

You can select between listening to the tone from the left channel, the right channel or both channels.

Sound Selection Function

This function can work only at VCD mode when microphone is connected.

Press the Key Control button to adjust the key to your voice. (the 15 step key control you can select ) Result: Each time the Key Control #, b button is pressed, the following

appears on the TV screen:

b : Low-Pitched Key # : High-Pitched Key

Key control function and VCD slow playing do not work at the same time .

KEY CONTROL Function

NTSC/PAL Selection Method

According to a DISC or TV, Press the REC/Pause button on the front panel.

Set the system to stadnby(power off) mode, press the REC/Pause button on the front panel. Result: Each time the REC/Pause button is pressed, the following appears

in the display:

NTSC PAL

Lch MONO Rch MONO STEREO

( L-CH ) ( R-CH )

Page 18

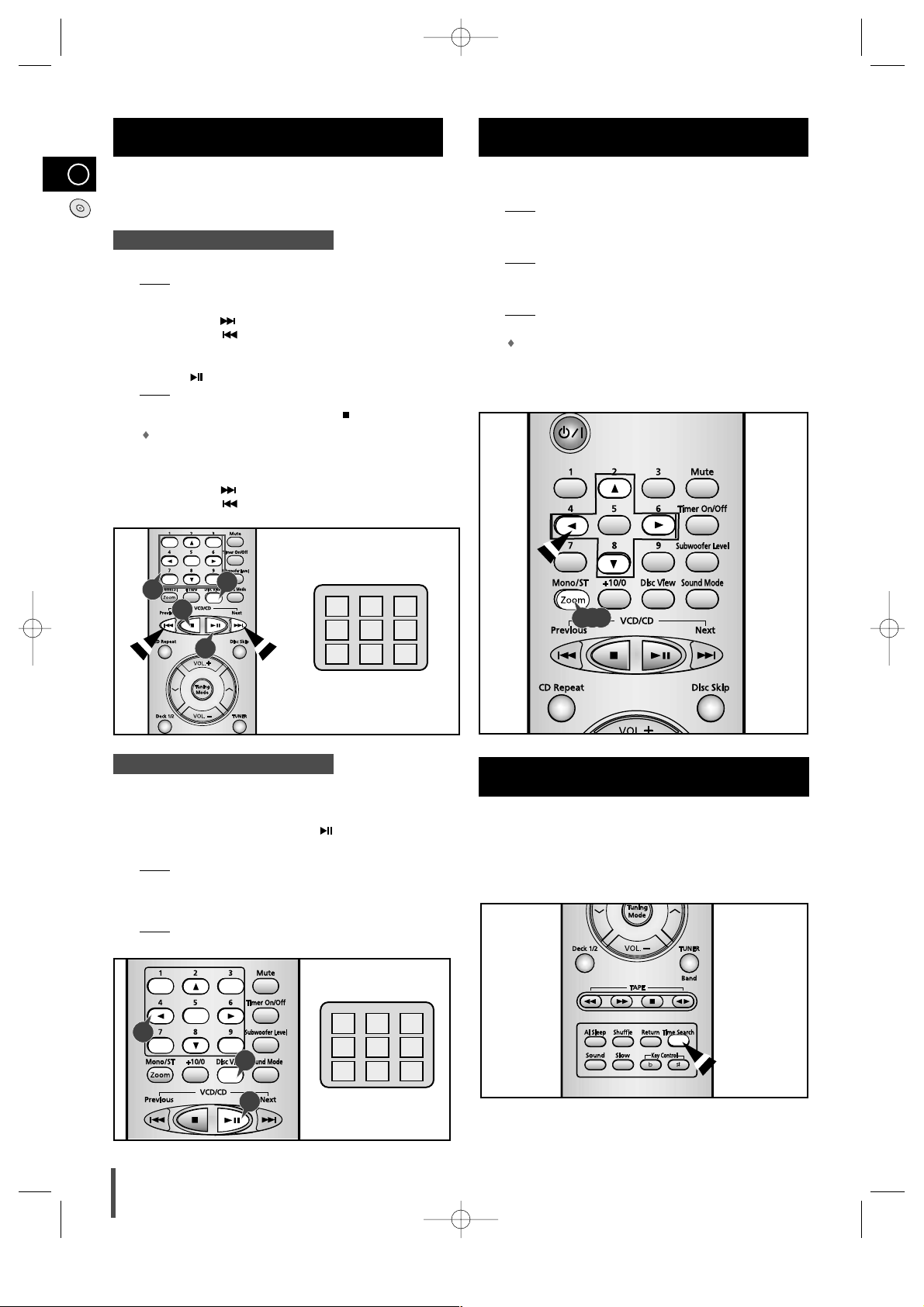

When CD playback is selected again after your CD player has been stopped or turned off, this function allows playback from the start of the track that you last listened to.

Last Memory Function

This function can be used conveniently to search a desired track in a VCD. This function is possible in CD or VCD Ver 1.1 or Ver 2.0menu off mode.

Press the Disc View button in the pause state. Result:

"TRACK VIEW" menu is displayed on the screen.

The screen is split into 9 with each screen picture being

reproduced for 4 seconds. – Press NEXT( ) button to see the rest tracks. – Press PREV.( ) button to see the previous tracks.

Select a track by pressing the Digits buttons. Press the

()

button.

Result:

The picture that you selected is displayed in full screen.

When you wish to stop the DISC VIEW function, press button.

When using more than 10 tracks :

Press the Digits and +10/0 button, select the desired track number (Reference page 14). – Press NEXT( ) button to see the next track. – Press PREV.( ) button to see the previous track.

VCD VIEW function

Press Zoom button during playback. Result: The picture being reproduced will be enlarged twice as large

as the previous one.

Press Zoom button once more in the state of double sized zoom. Result: The picture being reproduced is enlarged four times as large

as the initial one.

Press Zoom button in the state of four times sized zoom. Result:

The picture will return to the initial size.

During operating the zoom function, if you want to move the picture upward/downward/leftward/rightward, please press the respective Digits button (2,4,6,8).

ZOOM Function

When you want to select a track

2 3

This function is convenient to search a desired scene as it displays a track reproduced by time.

Reproduce the pictures by pressing the

()

button.

Press the Disc View button. Result:

"INDEX VIEW" menu is displayed on the screen.

The screen is split into 9 with each screen picture being reproduced for 4 seconds.

Reproduce the pictures by pressing a desired Digits button. Result:

The one of nine picture is displayed in full screen.

When you want to select an INDEX

1 2

TRACK VIEW

456

789

1,2,3

MAX-VB630G GB-1~18 6/12/03 15:01 Page 18

TRACK VIEW

456

789

Page 19

You can store up to:

15 FM stations 15 AM stations

15 FM stations

8 AM(MW) stations 7 LW stations

15 FM stations

5 MW stations 5 SW1 stations 5 SW2 stations

Switch the system on by pressing Standby/On. Select the TUNER function by pressing TUNER. Select the required frequency band by pressing TUNER (Band)

again on the front panel or Band on the remote control. Result

: The appropriate indication is displayed:

FM Frequency Modulation AM(MW) Medium Wave LW(OPTION) Long Wave SW1, SW2(OPTION) Short Wave

To search for a Press Tuning Mode on the front panel station... or on the remote control

Manually One or more times until MANUAL is

displayed.

Automatically One or more times until AUTO is

displayed.

Select the station to be stored by:

Turning the Multi Jog knob to the right or to the left to increase or decrease the frequency respectively or

Pressing Tuning or on the remote control

To scroll through the frequencies faster when searching manually, hold down the Tuning Mode Down or Up buttons.

The automatic search procedure may stop on a frequency that does not correspond to a radio station. If this happens, use the manual search mode.

Adjust the volume by:

Turning the Volume knob on the front panel or

Pressing the VOL. + or – buttons on the remote control

Select the stereo or mono mode by pressing Mono/ST. If you do not want to store the radio station found, revert to Step 4

and search for another station. Otherwise: a Press Memory.

Result:

The PRGM is displayed for a few seconds.

b Press Tuning Mode Down and Up to assign a program number

between 1 and 15.

c Press Memory to store the radio station.

Result:

PRGM is no longer flashed and the station is stored.

To store any other radio frequencies required, repeat Steps 3 to 8.

The PROGRAM function can be used to assign a new station to an existing program number.

Searching for and Storing the Radio Stations

1 2 3

7 8

OPTION

2,3

Page 20

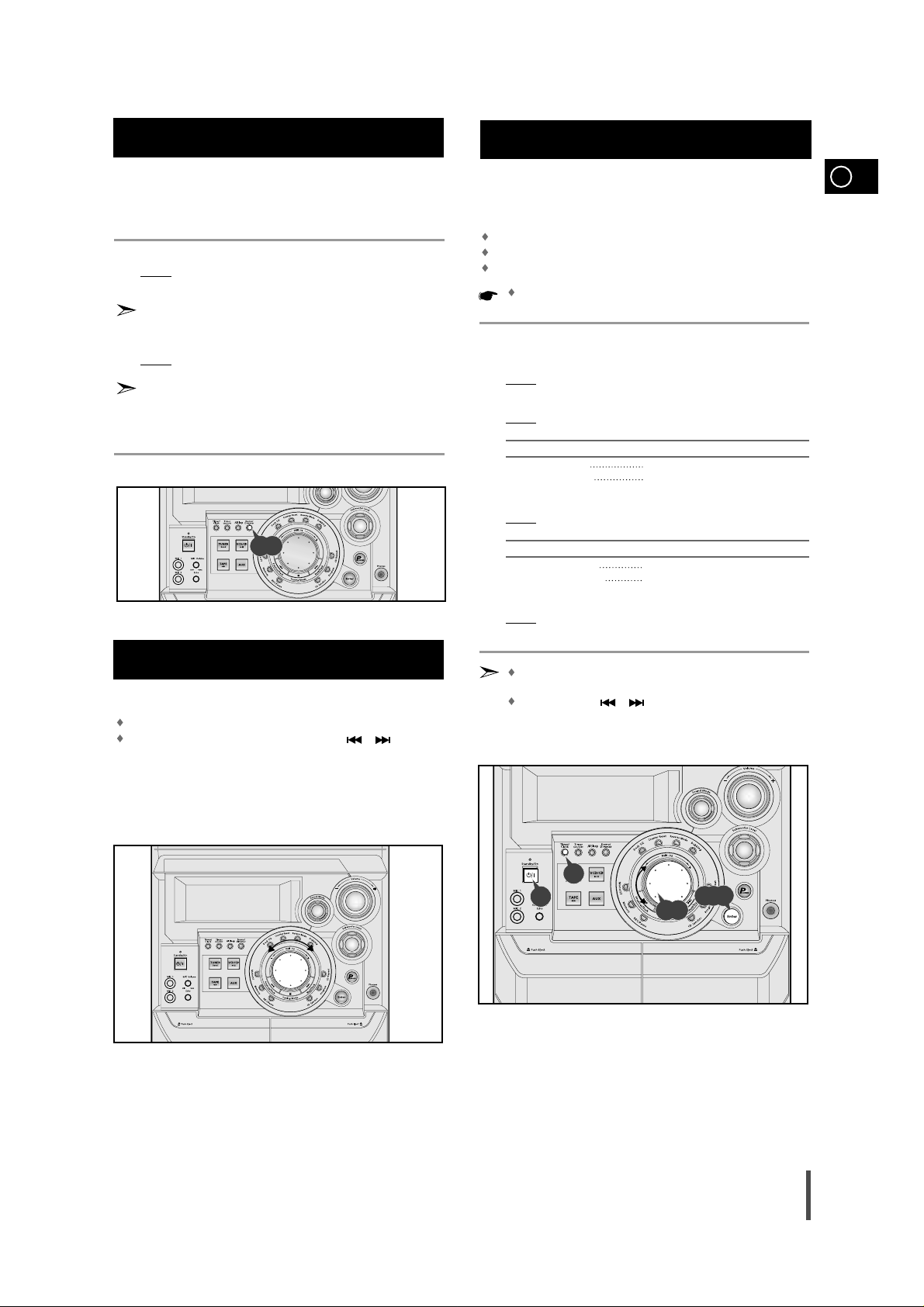

You can improve the quality of radio reception by:

Rotating the FM or AM(MW) aerial Testing the positions of the FM and AM(MW) aerials before fixing them

permanently

If reception from a specific FM radio station is poor, press Mono/ST. to switch from stereo mode to mono. The quality of the sound will be improved.

You can listen to a stored radio station as follows:

Switch the system on by pressing Standby/On. Select the TUNER function by pressing TUNER (Band) on remote control. Select the required frequency band by pressing TUNER (Band) on

the remote control or TUNER (Band) again on the front panel. Press the Tuning Mode button on the front panel of the unit, or the

Tuning Mode button on the remote control until “PRESET” is displayed.

Turning Multi Jog on the front panel left or right until the desired station is found or press / to select the desired station. or Select the desired station by pressing the station number stored, using the Tuning or button on the remote control. Result:

The desired station is now received.

Selecting a Stored Station

1 2 3

Improving Radio Reception

2,3

Page 21

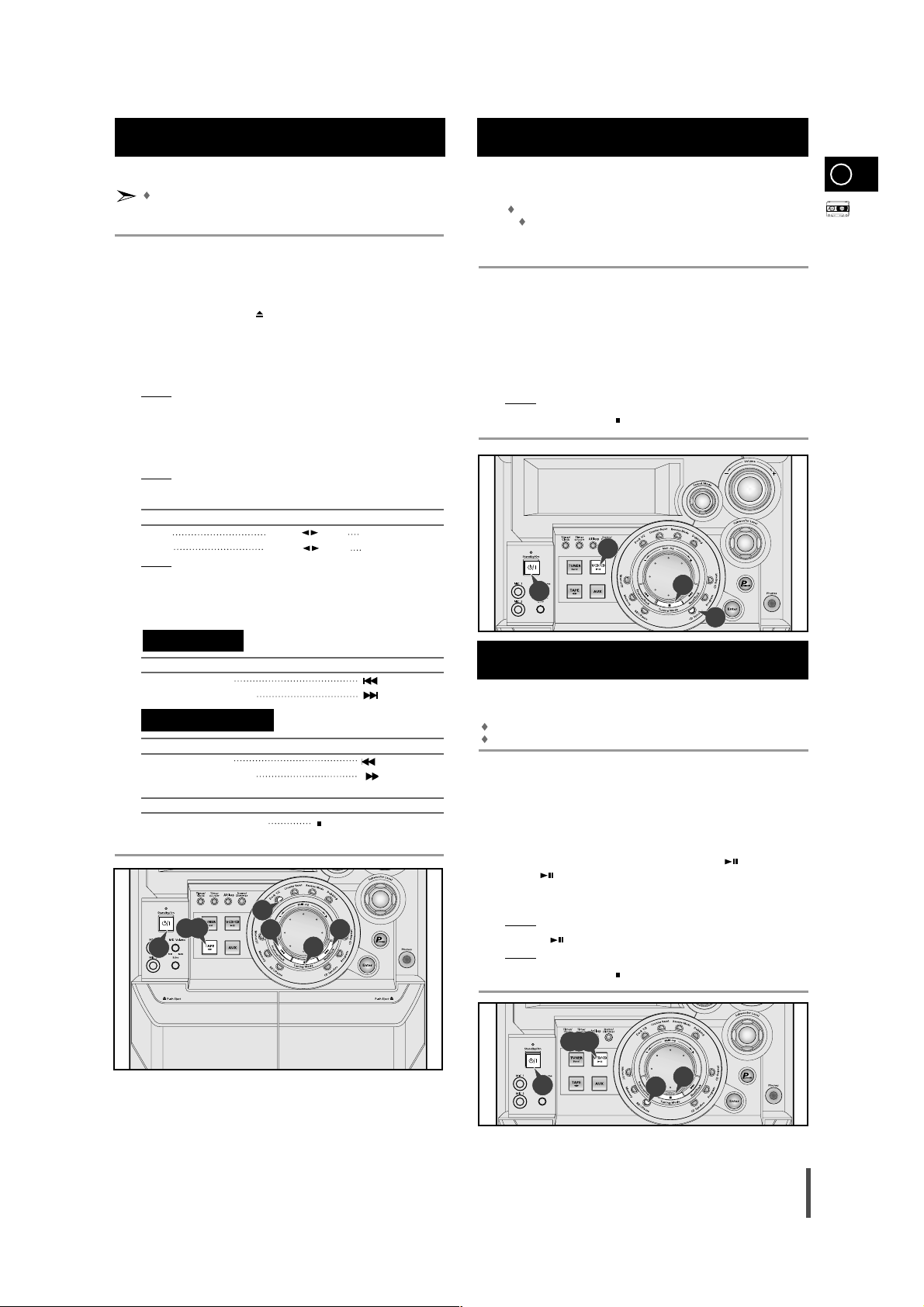

Always treat your cassettes with care; refer, if necessary, to the section entitled “Precautions When Using Audio Cassettes” on page 28.

Switch the system on by pressing the Standby/On button. Select the TAPE function by pressing TAPE on the front panel. Open either cassette deck 1 or 2 by pushing and releasing the deck

cover where Push Eject ( ) is written. Insert the pre-recorded cassette with the open edge of the tape

facing downward. Close the deck by pushing on it until it clicks into place.

Result: Depending on the deck selected, the 1 or 2 indication is

displayed in front of the counter number.

If you have inserted two cassettes, press Deck 1/2 on the front panel or directly the Deck 1/2 button on the remote control to select the cassette to be played.

Result:

Depending on the deck selected, the TAPE 1 or TAPE 2 indication is displayed.

To listen to... Press ...

Side A TAPE ( ) once DECK1andDECK2 Side B TAPE ( ) twice DECK2 ONLY

Result: The cassette starts playing.

When the cassette is stopped, select one of the following functions as required.

To... Press ...

Rewind the cassette Fast-forward the cassette

To... Press ...

Rewind the cassette Fast-forward the cassette

To... Press...

Stop the playback or search

You can record a compact disc on a cassette in two different ways:

Synchronised recording

Direct recording

This feature enables you to synchronize the start of the recording with the start of the disc or track of your choice.

Switch the system on by pressing Standby/On. Insert a blank cassette in Deck 2. Select the VCD/CD function by pressing VCD/CD on the front panel. Load a compact disc. Select the required disc. Select the required track and press CD Synchro or press CD

Synchro directly to start recording at the beginning of the disc. Result:

“REC” is displayed in red and recording starts.

To stop recording, press .

The direct recording mode enables you to start recording with any track on the compact disc.

You can only record on cassettes in Deck 2. You do not need to adjust the volume, as it has no effect on the recording.

Switch your system on by pressing Standby/On. Insert a blank cassette in Deck 2. Select the VCD/CD function by pressing VCD/CD on the front panel. Load the compact disc. Select the required disc. Select the required track on the compact disc and press on the front

panel or on the remote control to set the compact disc player to Pause mode.

Press the REC/Pause. Result:

“REC” is displayed in red and recording starts.

Press the to start playing the track. Result:

The track is recorded on the cassette.

To stop recording, press .

CD Synchro Record Feature

Recording a Compact Disc

Listening to a Cassette

1 2

3 4

1 2 3 4 5 6

2 3 4 5

6 7

8 9

2,7

3,6,8

Main Unit

Remote Control

Page 22

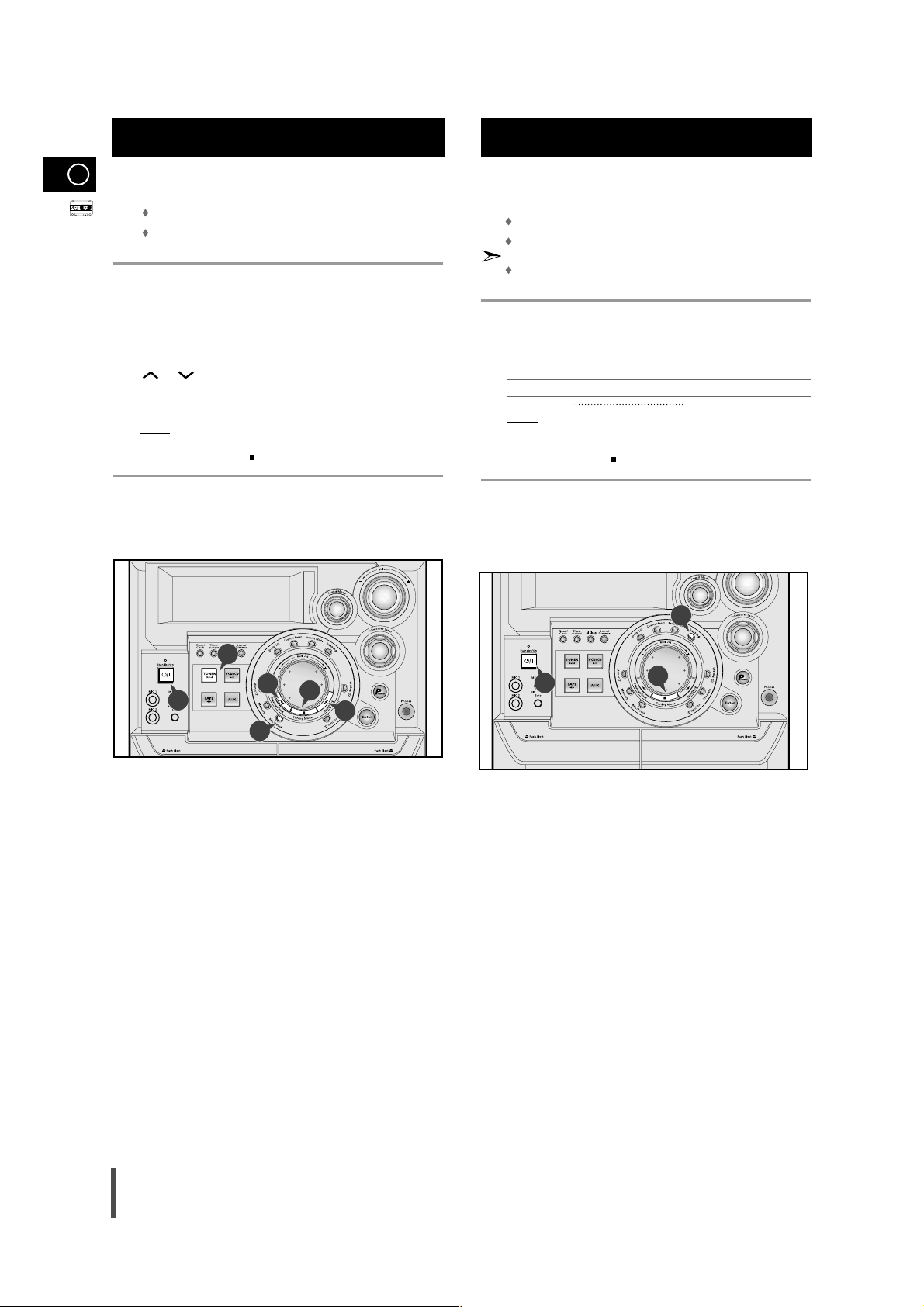

You can record a radio program of your choice.

You can only record on cassettes in Deck 2. You do not need to adjust the volume, as it has no effect on

the recording.

Switch the system on by pressing Standby/On. Insert a blank cassette in Deck 2. Select the TUNER function by pressing TUNER. Select the radio station that you wish to record by pressing Tuning

or on the remote control or by press the Preset/Manual

Down or Up on the front panel. Press REC/Pause.

Result:

“REC” is displayed in red and recording starts.

To stop recording, press .

Recording a Radio Program

1 2 3 4

5 6

You can copy a cassette from Deck 1 to Deck 2. Two options are available:

Normal speed dubbing You do not need to adjust the volume, as it has no effect on the

recording. Take care not to insert the tape to be copied in Deck 2, as it will

be erased when you start recording.

Switch your system on by pressing Standby/On. Insert a blank cassette in Deck 2. Insert the tape to be copied in Deck 1.

To copy a cassette at... Press...

Normal speed Dubbing Result:

The appropriate indications are displayed and the cassette in Deck 1 is copied to the cassette in Deck 2.

To stop dubbing, press .

Copying a Cassette (Dubbing)

1 2 3

Page 23

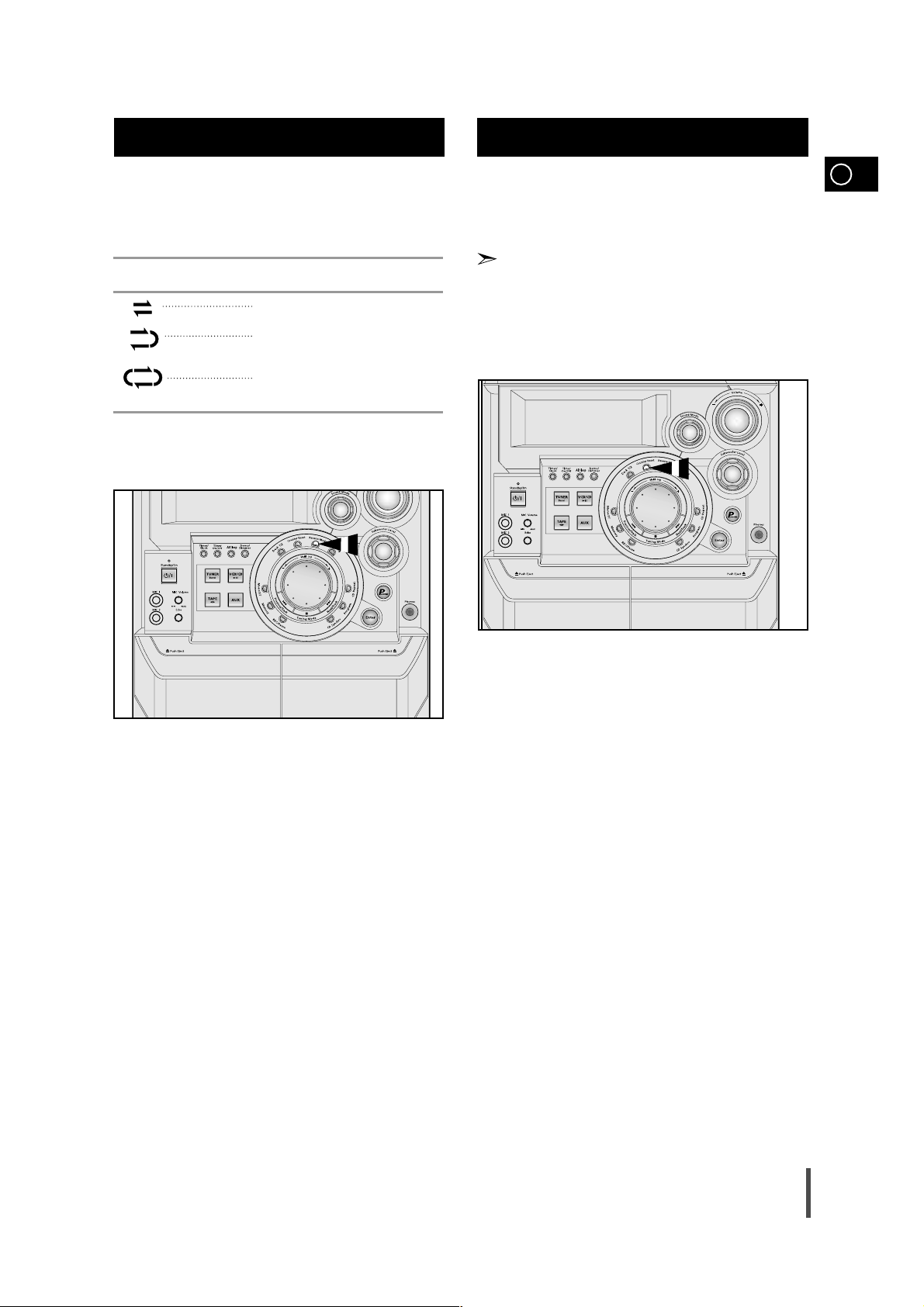

Your mini-compact system has three cassette playback modes which enable you to listen to both sides of a cassette automatically. Press Reverse Mode until the appropriate symbol is displayed.

When the display indicates... The mini-compact system plays back...

One side of the selected cassette and then stops.

One side of the cassette. The other side of the cassette and then stops.

Both sides of the cassette indefinitely until you press stop.

Selecting the Cassette Playback Mode (DECK 2 only)

When playing a cassette, a counter is displayed to enable you to take note of the counter value at the start of each track and thus start playback at the beginning of the track to which you wish to listen.

The counter is only displayed when a cassette is being played.

Before starting to record a cassette for which you wish to take note of the counter values at the beginning of each track, reset the counter by pressing Counter Reset.

Tape Counter

Page 24

After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it.

You can stop the timer at any time (system on or in standby mode).

To... Press Timer On/Off...

Cancel the timer Once.

Result: is no longer displayed.

Restart the timer Twice.

Result

: is displayed again.

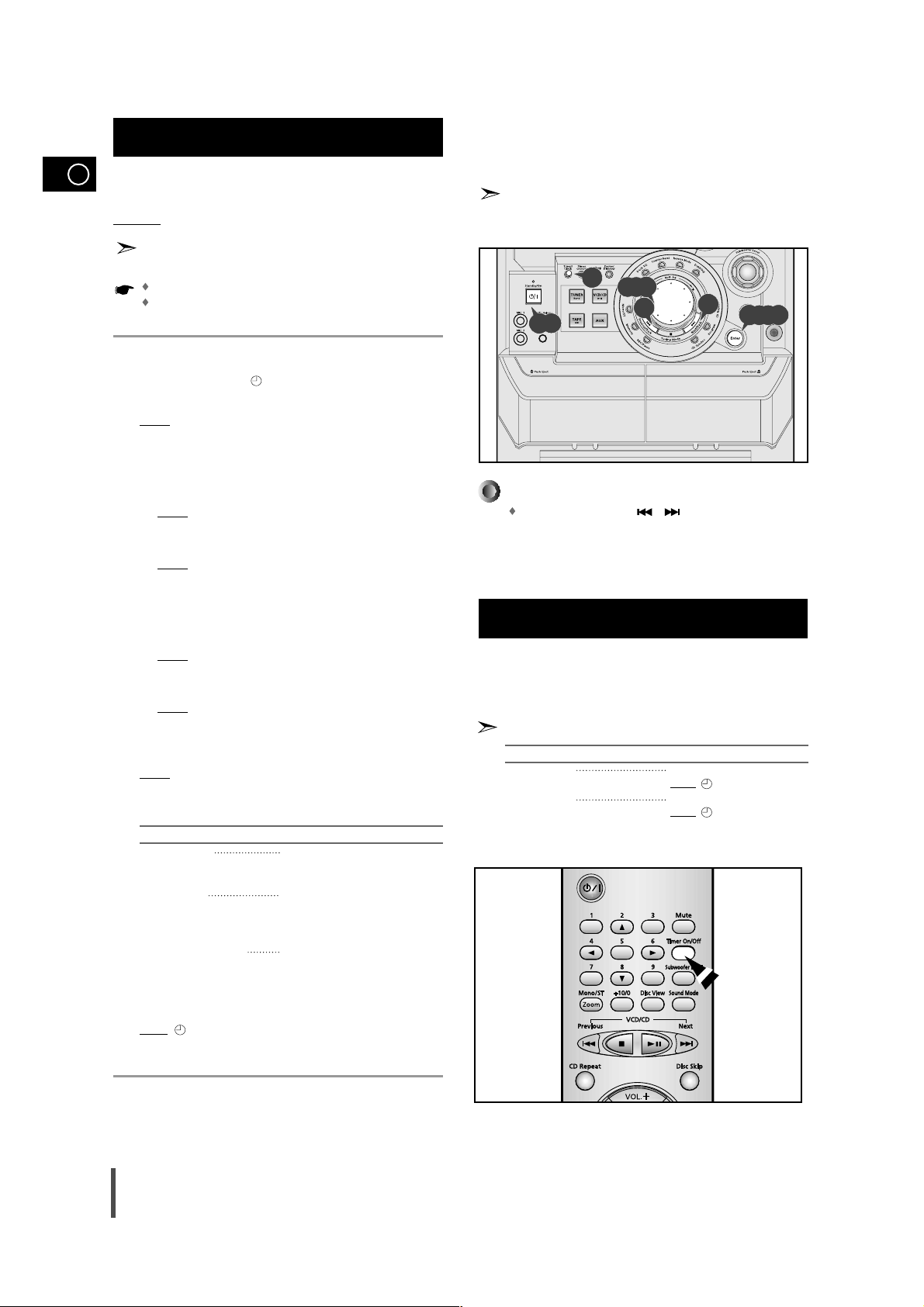

Cancelling the Timer

If the timer switch on and off times are identical, the word ERROR is displayed.

The timer enables you to switch the system on or off at specific times. Example:

You wish to wake up to music every morning.

If you no longer want the system to be switched on or off automatically, you must cancel the timer.

Before setting the timer, check that the current time is correct. For each step, you have a few seconds to set the required

options. If you exceed this time, you must start again.

Switch the system on by pressing Standby/On. Press Timer/Clock until TIMER is displayed. Press Enter.

Result:

ON TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-on time already set; you can set the timer switch-on time.

Set the timer switch-on time.

Set the hour by tuning the Multi Jog knob to the right or to the left.

b Press Enter.

Result: The minutes flash.

c Set the minutes by tuning the Multi Jog knob to the right or to

the left.

d Press Enter.

Result:

OFF TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-off time already set; you can now set the timer switch-off time.

Set the timer switch-off time.

Set the hour by tuning the Multi Jog knob to the right or to the left.

b Press Enter.

Result: The minutes flash.

c Set the minutes by tuning the Multi Jog knob to the right or to

the left.

d Press Enter.

Result:

VOL XX is displayed, where XX corresponds to the volume already set.

Press Preset/Manual Down and Up to adjust the volume level and press Enter. Result:

The source to be selected is displayed.

Turn the Multi Jog knob to select the source to be played when the system switches on.

If you select... You must also...

TAPE (cassette) Insert a recorded cassette in one of

the decks before setting the system to standby.

TUNER (radio) a Press Enter.

b Select a preset station by tuning

the Multi Jog knob to the right or to the left.

VCD/CD (compact disc) a Load one or more compact discs.

b Select the required disc. Press Enter to confirm the timer. Press Standby/On to set the system to standby mode.

Result

: is displayed to the bottom left of the time, indicating that

the timer has been set. The system will switch on and off automatically at the required times.

Timer Function

8 9

1 2 3

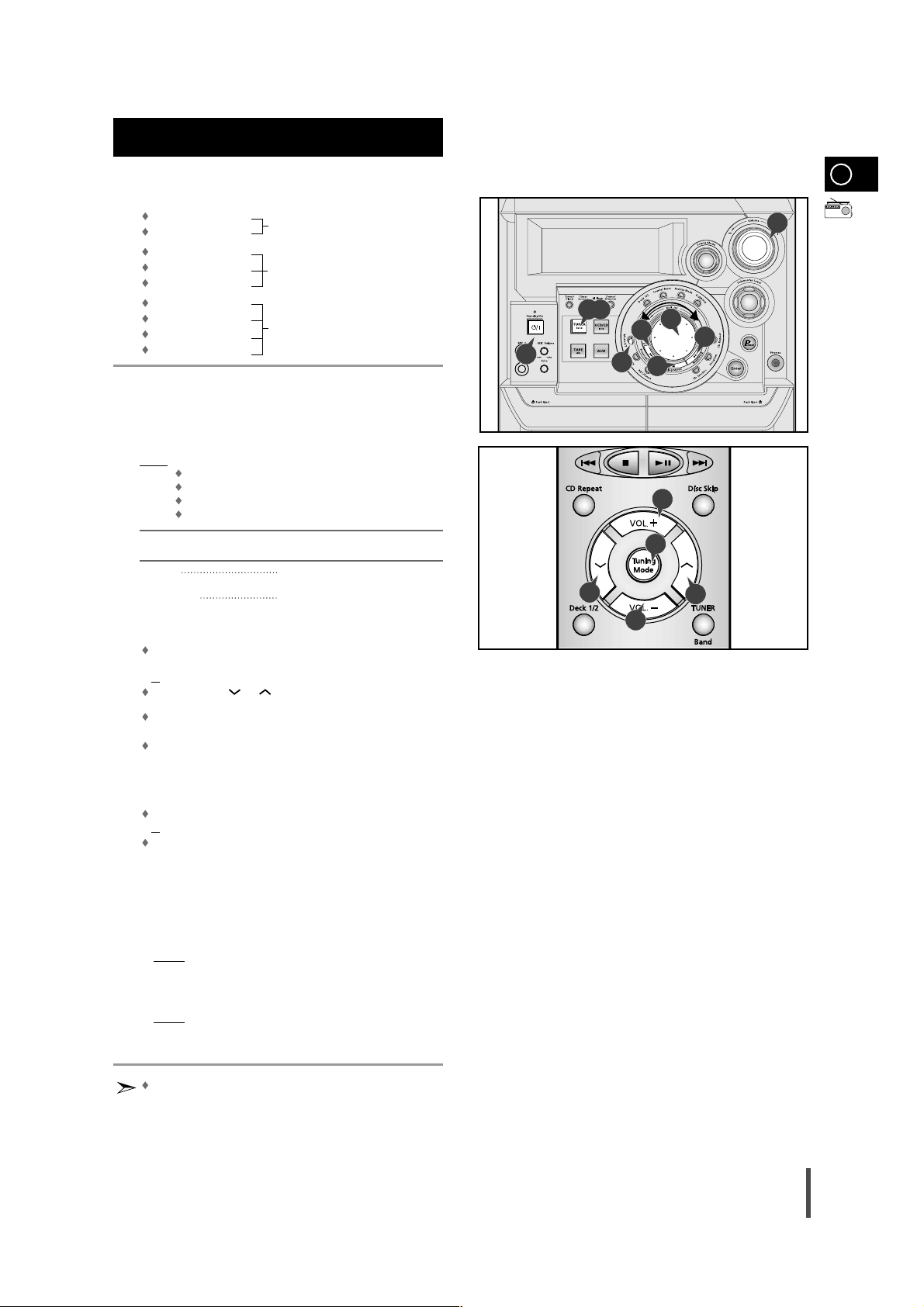

To set the timer function

You may use Multi Jog or / buttons to adjust in step 4, 5, 6, 7.

1,9

4,5,7

3,4,5,6,7,8

Page 25

Your mini-compact system is equipped with the function of Power Surround.

The Power Surround replaces conventional stereo sound with a wider and more true-to-life sound. It creates the feeling of being right at the centre of the music and being surrounded by total music sound.

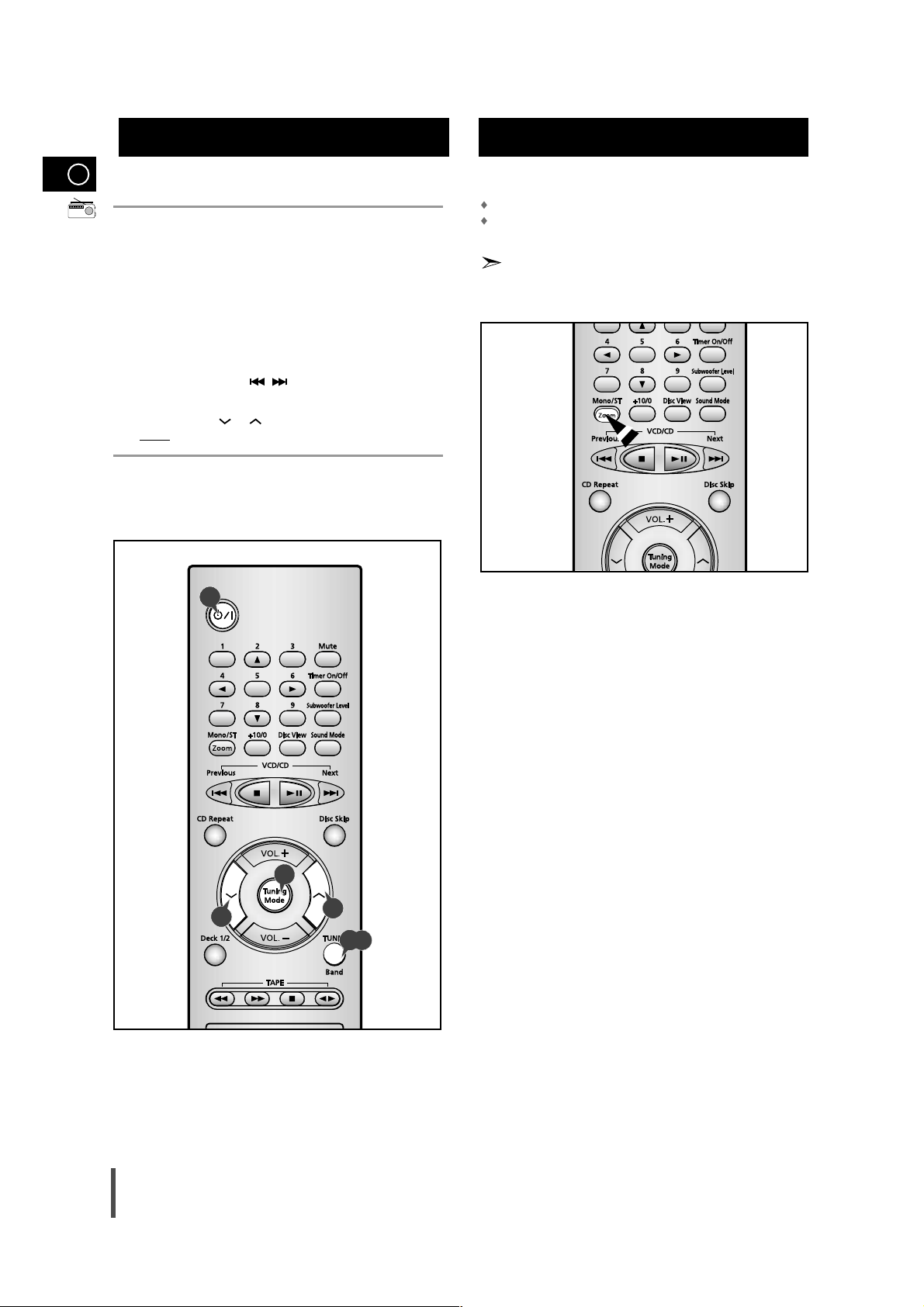

Press P.Surround button on the front panel until the required option is selected. Each time the P. Surround but- ton is pressed, “P,SURR, ” is selected or cancelled in this order.

You can turn the sound off temporarily on your system. Example: You wish to answer a telephone call.

Press Mute. To switch the sound back on (at the same volume as before), press

Mute again or the Volume buttons.

Mute Function

Power Surround Function

Selecting an Equalizer Preset

Your mini-compact system is equipped with a preset equalizer that allows you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to.

Press Sound Mode on the front panel until the required option is selected.

To obtain a... Select...

Normal balance (linear) PASS Balance suitable for pop music POP Balance suitable for rock music ROCK Balance suitable for classic music CLASSIC Balance suitable for hall HALL Balance suitable for live LIVE Balance suitable for cinema CINEMA Balance suitable for User EQ USER EQ

How to adjust USER EQ?

3,4

3,4,5

On the remote control only: You can select the USER EQ level as you enjoy.

Switch the system on by pressing Standby/On.

Press Sound Mode button until USER EQ is displayed and flashed.

Press Tuning Mode and then press or button to adjust the HIGH tone level .

Press Tuning Mode and then press or button to adjust the LOW tone level .

Press Tuning Mode to finish the setting.

USER EQ can be adjusted in -6dB~+6dB by 2dB space. For each step, you have a few seconds to set the required

options. If you exceed this time, you must start again.

4 5

Page 26

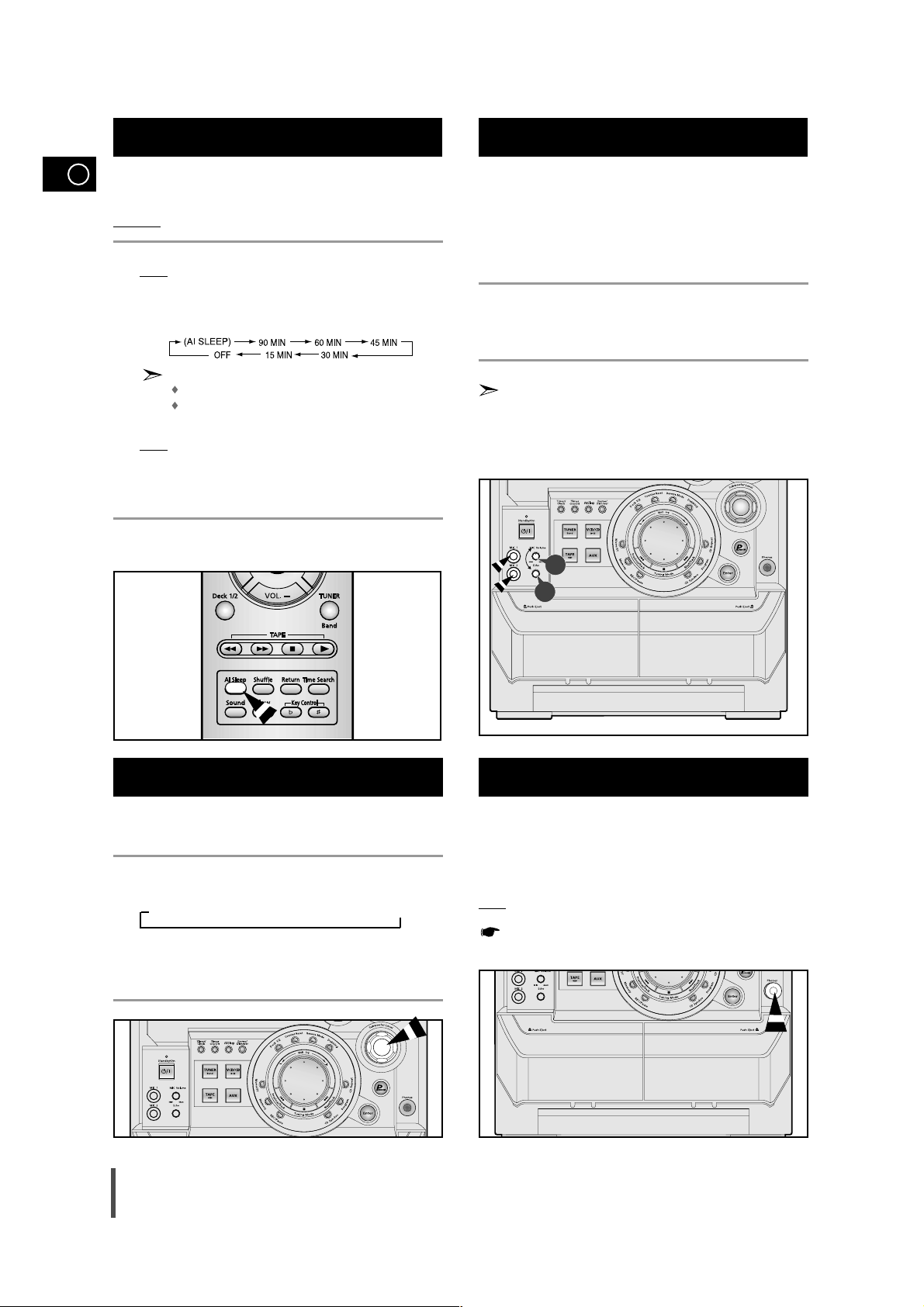

You can connect a set of headphones to your mini-compact system so that you can listen to music or radio programmers without disturbing other people in the room. The earphones must have a 3.5

ø jack or an appropriate adapter.

Connect the headphones to the Phones jack on the front panel. Result

: The loudspeakers are no longer used to output the sound.

Prolonged use of headphones at a high volume may damage your hearing.

Connecting Headphones

While listening to a compact disc or a cassette, you can set the system to switch off automatically Example: You wish to go to sleep to music.

Press AI Sleep. Result: playback starts and the following indications are displayed:

Press AI Sleep one or more times to indicate how long the system should continue playing before it switches off:

At any time, you can:

Check the remaining time by pressing AI Sleep Change the remaining time by repeating Steps 1 and 2

Press AI Sleep one or more times until AI SLEEP is displayed. Result

: The system will automatically switch off at the end of the disc

or cassette.

To cancel SLEEP function, press AI Sleep one or more times until

OFF is display.

Setting the System to Switch off Automatically

90 MIN

Subwoofer function stresses low tones providing thudding sound effects.

Turn Subwoofer Level knob on the front panel or press the Subwoofer Level button on the remote control.

Press the button on the remote control repeatedly to select

➞

“OFF ➞WOOFER1 ➞ WOOFER2 ➞ WOOFER3 ➞ WOOFER4”.

or turn the knob on the front panel repeatedly to select “OFF

↔

WOOFER1 ↔WOOFER2 ↔WOOFER3 ↔WOOFER4”.

You can select the level of low tones you desire.

Subwoofer Level Function

The microphone enables the user to mix in his or her vocals to sing-along with the music.

Preparation Plug the microphone with a 6.3ø mic jack into microphone terminal.

Turn the Mic Volume knob to adjust the MIC1, MIC2 volume.

Press Echo button.

The Power Surround function is not available if pluging the Microphone into Mic jacks.

Microphone Function

1 2

Page 27

Ambient operating conditions: Ambient temperature 5°C-35°C Humidity 10-75%

Do not expose the unit to direct sun radiation or other heat sources. This could lead to overheating and malfunction of the unit.

Do not place heavy items on the main lead. Main cable damage can lead to damage of the equipment (fire hazard) and can cause electric shock.

Do not remove any equipment panels. The inside of the unit contains live components, which cause electric shock.

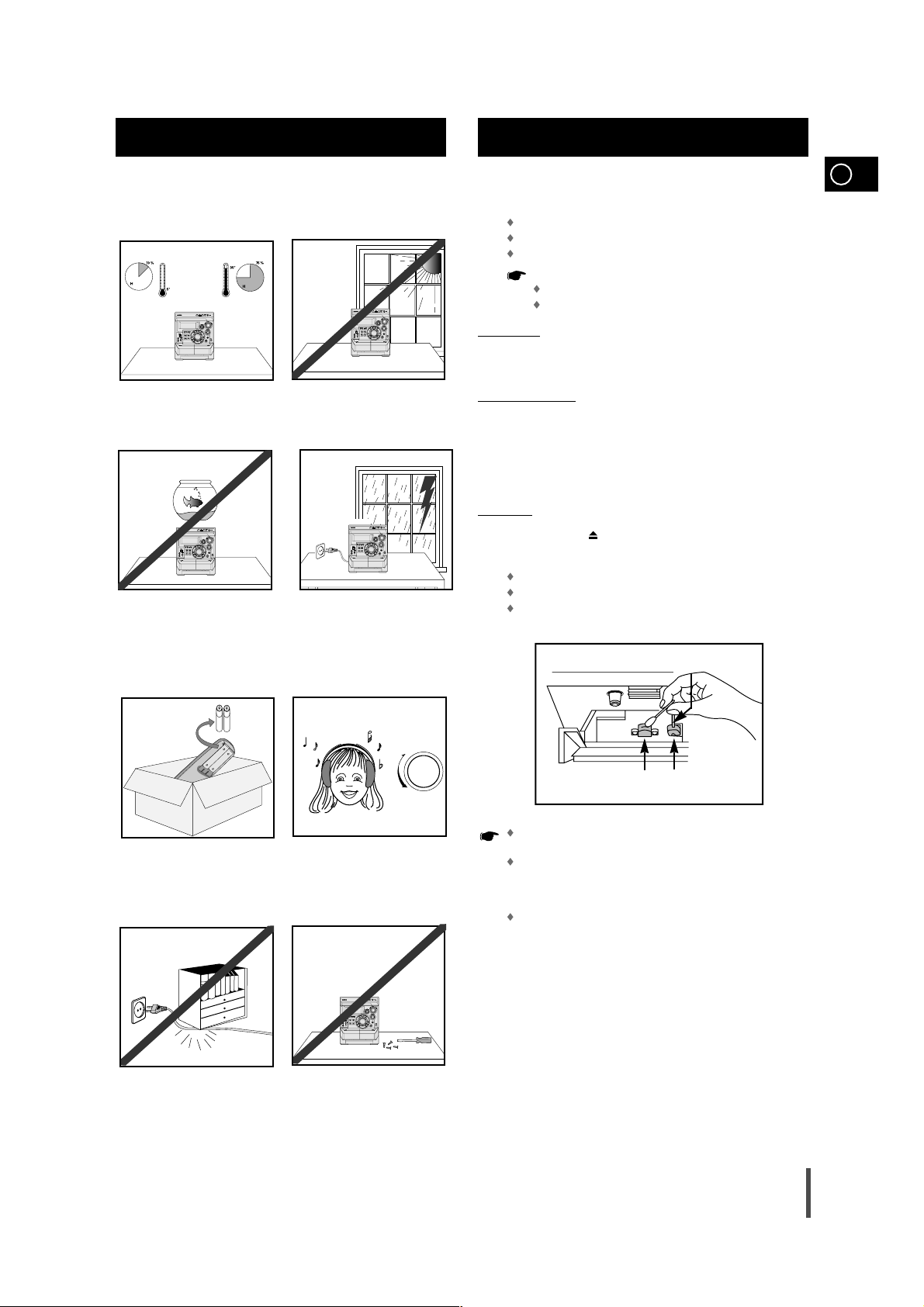

The following diagrams illustrate the precautions to be taken when using or moving your mini-compact system.

Safety Precautions

Remove the batteries from the remote control, if not used for any extended period. Leaking batteries can cause serious damage to the remote control.

When using headphones, take care not to listen at excessive volumes. Extended use of headphones at high volumes will lead to hearing damage.

To obtain the best possible results from your mini-compact system, you must clean the following elements regularly:

The outer casing The compact disc player The cassette players (heads, rollers and drive capstans)

Always unplug the system from the wall outlet:

Before cleaning it If you are not going to be using it for a long time

Outer Casing

Clean the outer casing regularly using a soft cloth and a light detergent. Do not use abrasive powders, liquids or aerosol cleaners. Never let any liquids get into the system.

Compact Disc Player

Before playing a compact disc, clean it with a special CD cleaning agent. Do not use the same cleaning agents as for vinyl LP records. Carefully wipe the disc from the centre outward.

Regularly clean the player with a special cleaning disc (available from your local dealer).

ape Decks

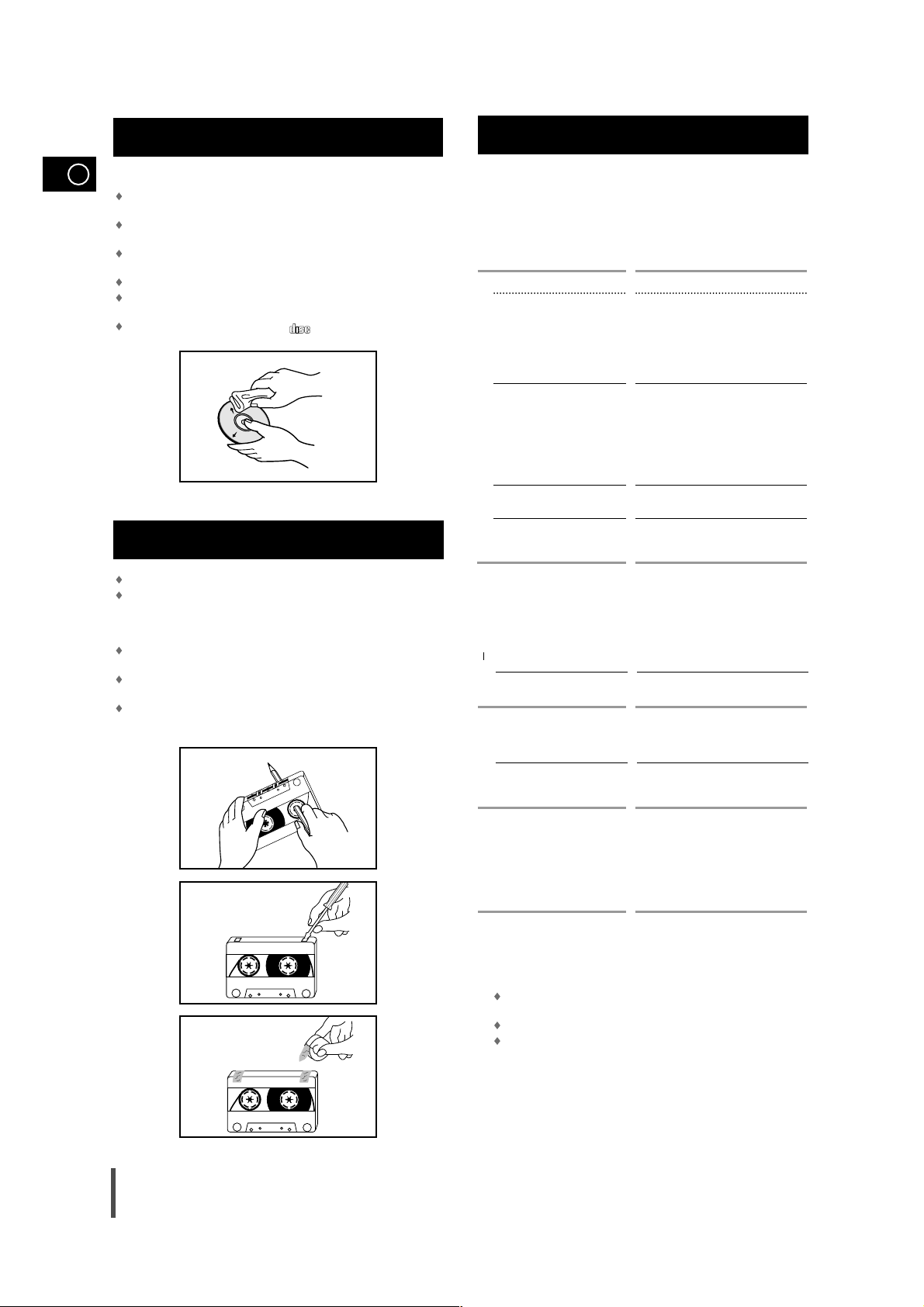

Press Push Eject( ) to open the cassette deck. Use a cotton bud and a special cassette cleaning agent to clean the:

Head (1) Rollers (2) Drive capstans (3)

If you will not be using the remote control for a long time, remove the batteries to prevent corrosion.

Although your system is very hard-wearing, it should not be used in an excessively dusty environment or subjected to shocks or extreme heat (close to heating appliances or in direct sunlight, etc.).

If the unit emits an unpleasant odor when in use, unplug it from the main supply and contact the after-sales service.

Cleaning Your Mini-Compact System

Do not place potted plants or vases on top of the unit. Moisture entering the unit could lead to dangerous electric shock and can cause equipment damage. In such events immediately disconnect the main plug from the socket.

During thunderstorms, disconnect the main plug from the socket. Main voltage peaks due to lightning could damage the unit.

VOLUME

DOWN

Page 28

It always takes a little time to become familiar with a new appliance. If you have any of the problems listed below, try the solutions given. They may save you the time and inconvenience of an unnecessary service call.

If the above guidelines do not allow you to solve the problem, take a note of:

The model and serial numbers, normally printed on the rear of the system

Your warranty details A clear description of the problem

Then contact your local dealer or SAMSUNG after-sales service.

Check that the tape in the cassette is sufficiently taught. To prevent erasing a cassette that you wish to keep, remove the

safety tab on the upper edge of the cassette. To record a cassette, where the tab has been broken, simply cover the opening with adhesive tape.

When you have finished playing a cassette, always put it back in its case.

Store your cassettes in a clean place, out of direct sunlight, where they will not be exposed to high temperatures.

Avoid using 120-minute cassettes as they place unnecessary strain on the tape mechanism.

Handle your compact discs with care. Always hold them by the edges to avoid leaving fingerprints on the shiny surface.

When you have finished playing a compact disc, always put it back in its case.

Do not fix paper or adhesive tape to the discs and do not write on the label.

Clean them with a special-purpose cloth. Store your compact discs in a clean place, out of direct sunlight,

where they will not be exposed to high temperatures. Always use compact discs marked .

Precautions When Using Compact Discs

Before Contacting the After-Sales Service

Precautions When Using Audio Cassettes

Problem

The system does not work

There is no sound

The Timer does not work

In case it does not work, even the action is taken as above.

The compact disc player does not start playing

The MP-3 CD player cannot be played.

The tape does not start playing

The volume falls off The cassette is not erased correctly There is excessive wow and flutter

Reception is poor or no radio stations are received at all

G E N E R A

C D

/ M P

C D

R A D

I O

C A S S E T T E S

Checks/Explanation

• The main lead is not correctly plugged into a wall socket or the wall socket is not switched on.

• The remote control batteries need replacing or the polarity has not been respected.

• The Standby/On button has not been pressed.

• The volume has been completely turned down.

• The correct function (TUNER, CD, TAPE, AUX) has not been selected.

• You have connected a set of earphones.

• The loudspeaker wires have been disconnected.

• The Mute button has been pressed.

• The timer has been stopped by pressing Timer On/Off.

• Press the P.Surround button for 5 seconds in power ‘OFF’(standby), then it is returned the original position (RESET)

• The CD function has not been selected.

• The disc has been inserted face down or is either dirty or scratched.

• The laser sensor is dirty or dusty.

• The system has not been installed on a flat, horizontal surface.

• Condensation has formed in the player; leave the system in a warm, airy room for at least one hour.

• Use the PC to confirm if the extension is *.mp3.

• The TAPE function has not been selected.

•

The cassette has not been inserted correctly.

• The cassette player has not been closed.

• The tape is either slack or broken.

• The audio heads are dirty.

• The rollers or drive capstans are dirty.

• The tape is worn.

• The TUNER function has not been selected.

• The radio frequency has not been correctly selected.

• The aerial has been disconnected or is not facing the right way. Turn it until you find the best orientation.

• You are in a building that blocks radio waves; you must use an outside aerial.

DIGITAL AUDIO

COMPACT

Page 29

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Technical Specifications

RADIO

SW(option)

Usable sensitivity 40 dB

LW(option)

Usable sensitivity 60 dB

AM (MW)

Signal/noise ratio 40 dB Usable sensitivity 54 dB Total harmonic distortion 2 %

Signal/noise ratio 62 dB Usable sensitivity 10 dB Total harmonic distortion 0.3 %

COMPACT DISC PLAYER

Capacity 3 discs Frequency range 20 Hz - 20 KHz (± 1 dB) Signal/noise ratio 90 dB (at 1 KHz) with filter Distortion 0.05 % (at 1 KHz) Channel separation 74 dB Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm

TAPE DECK

Frequency range 125 Hz ~ 10 KHz Signal/noise ratio 40 dB Channel separation 35 dB Erasing effect 60 dB

AMPLIFIER

Output power

Main (4 Ω) 40 Watts/CH RMS, (total harmonic distortion: 10 %)

Subwoofer (6 Ω) 80 Watts/CH RMS,(total harmonic distortion: 10 %) Channel separation 50 dB Signal/noise ratio 75 dB

GENERAL

Dimensions 270 (W) x 317 (H) x 370 (D) mm

Page 30

ELECTRONICS

THIS APPLIANCE IS MANUFACTURED BY:

AH68-01146C
