Page 1
Instruction Manual
THREE-CD CHANGER
MINI-COMPACT SYSTEM
DVD / VIDEO-CD / CD
MAX-DN64
Page 2
GB
Press Push Important Note
Symbols
3
2
Safety Warnings Contents
S
AFETYWARNINGS
................................................................................. 2
I
NSTALLINGYOURMINI-COMPACTSYSTEM
Front Panel View .................................................................................... 4
Remote Control....................................................................................... 5
Rear Panel View..................................................................................... 6
Where to Install Your Mini-Compact System.......................................... 7
Inserting Remote Control Batteries ........................................................ 7
Connecting your System to the Power Supply....................................... 7
Connecting the Loudspeakers................................................................ 8
Connection of the Super Woofer (optional)
............................................ 8
Connection of the TV monitor (optional) and VCR (optional)................. 8
Connection of the Scart Jack (optional) ................................................. 9
Connection of the MD recorder (optional) .............................................. 9
Connecting the AM (MW)/LW Aerial ....................................................... 10
Connecting the FM Aerial....................................................................... 10
Viewing the Various Functions on Your System ..................................... 11
Setting the Clock .................................................................................... 11
DVD/VCD/CD-P
LAYER
Loading and Changing Compact Discs .................................................. 12
Playing a Disc......................................................................................... 12
Video Output Selection........................................................................... 12
Selecting a Disc in the CD changer ....................................................... 13
Searching & Skipping thourgh a Chapter or Track................................. 14
Using the Display Function..................................................................... 14
Repeat Play ............................................................................................ 15
Using the Repeat A B Function.......................................................... 16
Program Playback in a specific Order.................................................... 17
Using the Disc View Function................................................................. 18
Selecting Audio....................................................................................... 19
Selecting the Subtitle Language............................................................. 20
Selecting the Desired Screen Angle....................................................... 21
Using the zoom....................................................................................... 21
Using the Bookmark Function ................................................................ 21

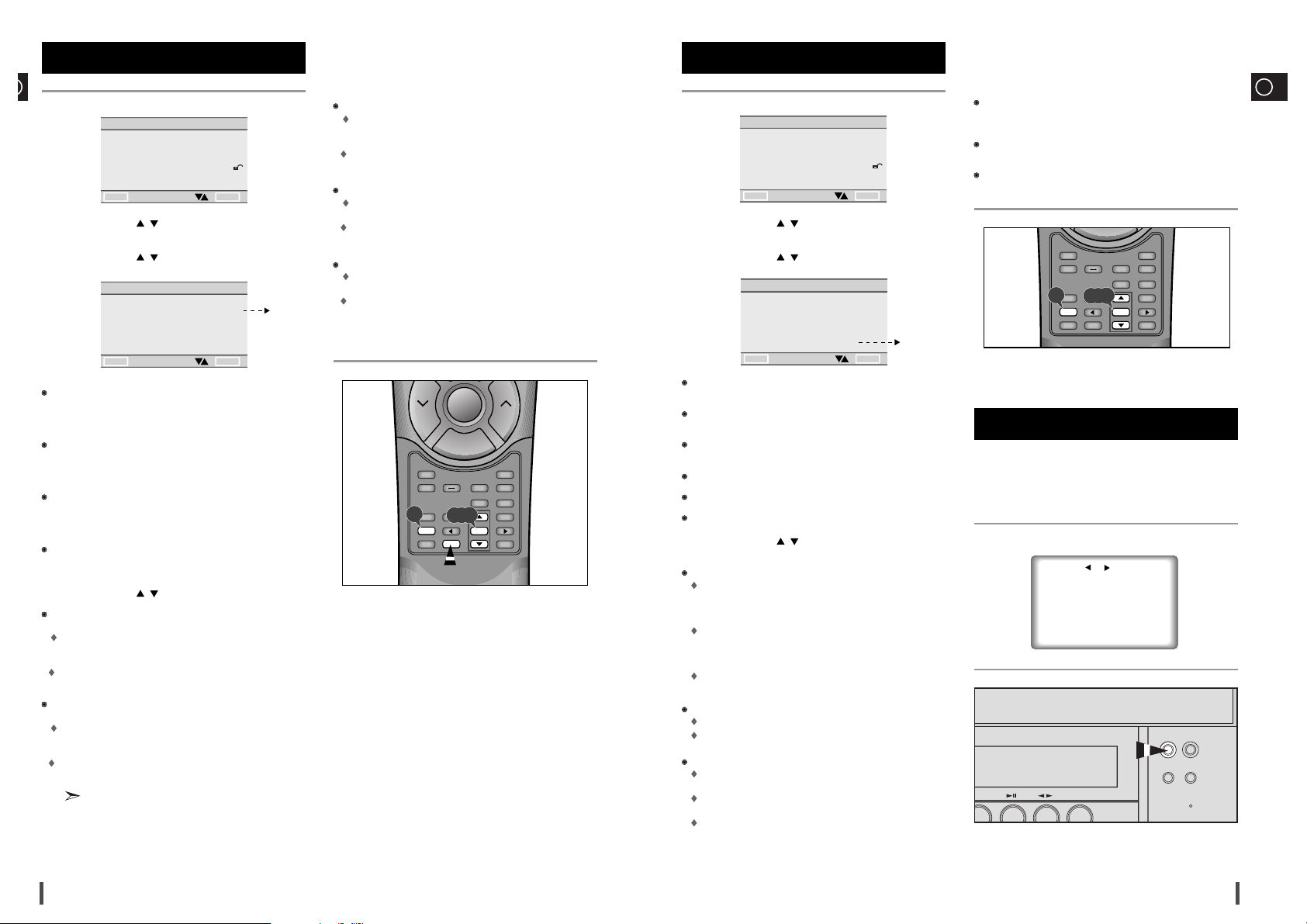

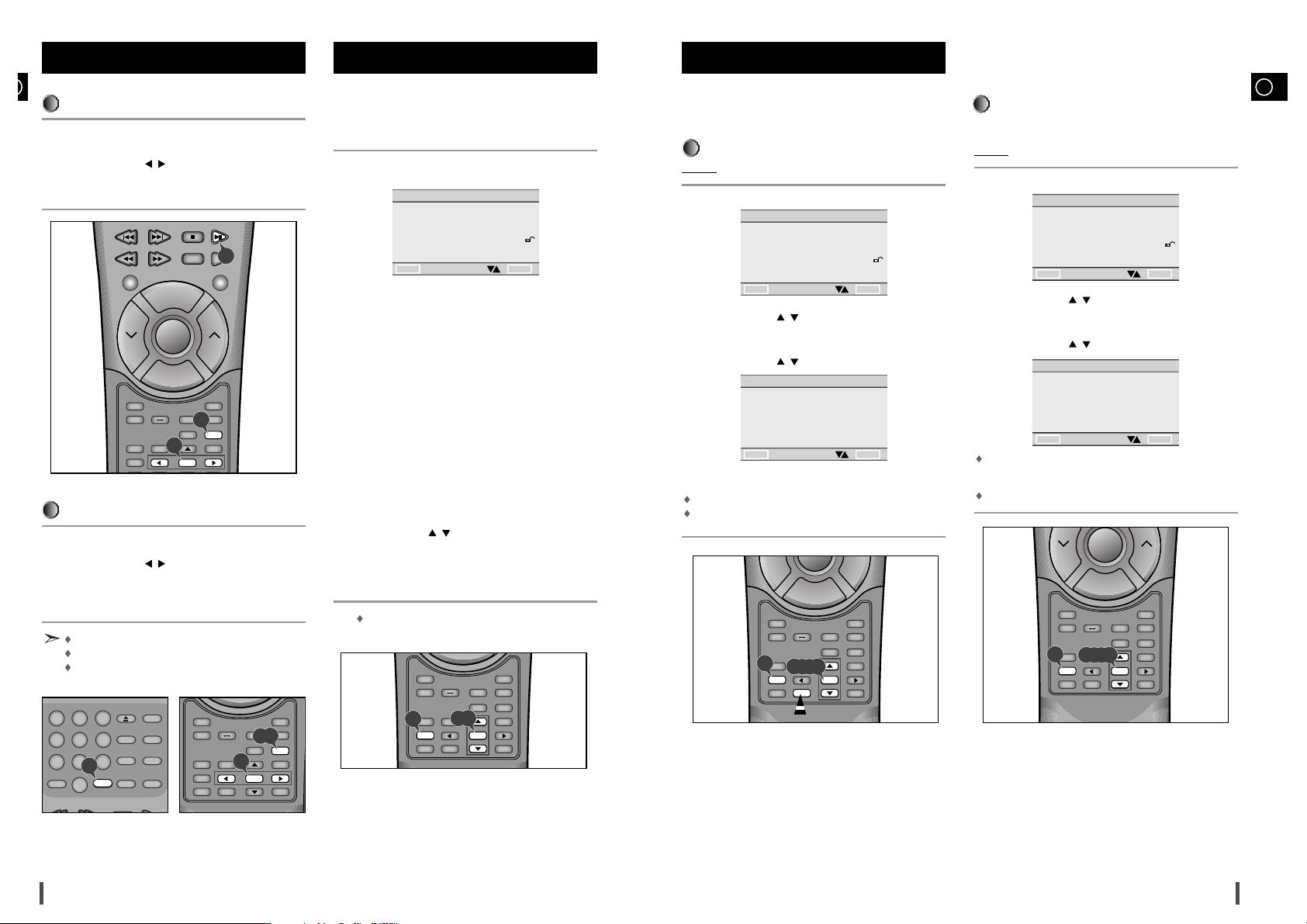

Using the setup Menu............................................................................. 22
Setting up the language features ........................................................... 23
Setting up the parental level................................................................... 25
Setting up audio options......................................................................... 26
Setting up display options....................................................................... 27
Using the 3D Sound Function ................................................................ 27
T
UNER
Searching for and Storing the Radio Stations ....................................... 28
Selecting a Stored Station...................................................................... 29
Improving Radio Reception .................................................................... 29
About RDS broadcasting ........................................................................ 30
About RDS DISPLAY function ............................................................... 30
PTY (Program Type) indication and PTY-SEARCH function.................. 31
T
APEDECK
Listening to a Cassette........................................................................... 32
CD Synchro Record Feature .................................................................. 32
Recording a Compact Disc..................................................................... 33
Recording a Radio Program................................................................... 33
Copying a Cassette (Dubbing) ............................................................... 34
Selecting the Cassette Playback Mode (Deck 2 Only)........................... 34
Tape Counter.......................................................................................... 34
O
THERFUNCTIONS
Timer Function........................................................................................ 35
For the Protection of being Recorded .................................................... 35
Mute Function......................................................................................... 36
Selecting an Equalizer Preset ................................................................ 36
Power Sound Function ........................................................................... 36
Cancelling the Timer............................................................................... 36
Setting the System to Switch off Automatically ...................................... 37
Super Bass Sound.................................................................................. 37
Connecting Headphones ........................................................................ 37
Connecting to an External Source.......................................................... 38
R
ECOMMENDATIONS FORUSE
Safety Precautions.................................................................................. 38
Cleaning Your Mini-Compact System..................................................... 39
Precautions When Using Compact Discs............................................... 39
Precautions When Using Audio Cassettes............................................. 39

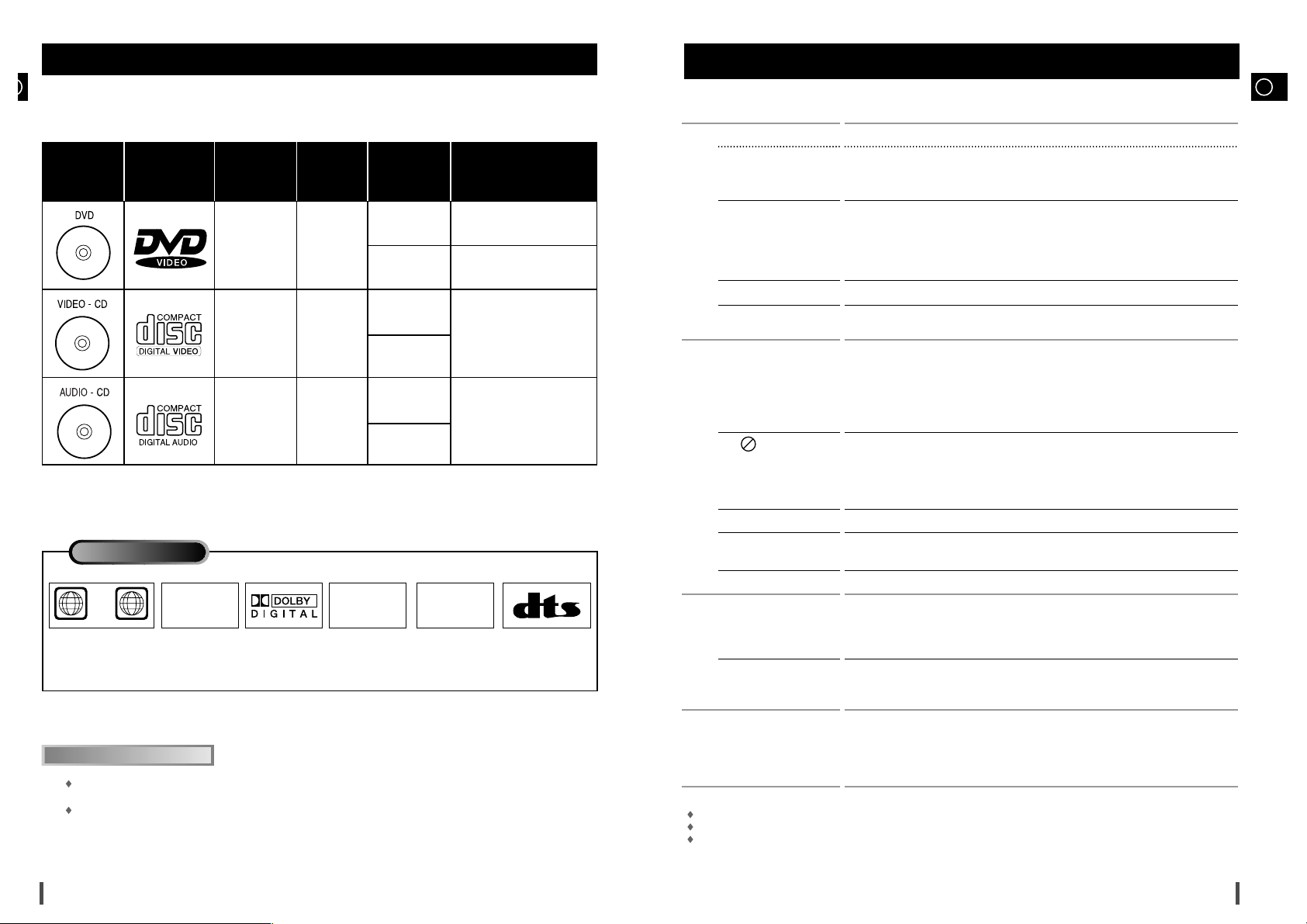

Disc type and characteristics.................................................................. 40
Before Contacting the After-Sales Service............................................. 41
Technical Specifications.......................................................................... 42
Thank you for buying this
SAMSUNG mini-compact system.
Please take time to read these instructions.
They will allow you to operate your
system with ease and take full advantage
of its features.
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
Wiring the Main Power Supply Plug(UK Only)
IMPORTANT NOTICE
The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin
face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same
colour as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you
should obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the
plug to a main socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.
IMPORTANT
The wires in the main lead are coloured in accordance with the following code:–
BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN
AND YELLOW.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE REAR COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
CAUTION
Page 3
GB
5
4
Front Panel View Remote Control
1. On/Standby
2. Numeric Buttons
3. Disc Number Skip
4. Two-Digit Track, Selection/+10 (Tuner)
5. DVD/CD Function Selection Buttons
6. Deck 1/2
7. Volume
8. Repeat A B
9. Timer On/Off
10.
Sleep
11. DVD/CD Display
12. Setup
13. AUX
14. Title
15. Return
16. Enter (Up/Down, Left/Right)
17. Sub Title
18. Menu
19. Step
20. Book Mark
21. Audio
22. Zoom
23. Angle
24. Tuning Mode
25. Radio Station Search
26. Radio selection
27. Cassette Function Selection buttons
28. Clear
29. Program
30. Repeat
31. S. Bass
32. Power Sound
33. EQ
34. Digital 3D Sound
35. Sound Cut-Off Selection
36. Compact Disc Compartment Open/Close
Timer On/Off
Sleep Repeat
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
A B
On/Standby
+
Volume
Tuning
Mode
Volume
–
DECK
Open/Close
Digital
3D Sound
Power Sound
S.Bass
Disc Skip
Deck 1/2 Band
Clear Repeat
Program
EQ
Mute
10/0
123
456
789
DVD/CD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
1. Compact Disc Compartment
2. Function Selection buttons
3. CD Track or radio station search (Down/Up)
4. Display (RDS)
5. Demo
6. On/Standby
7. Timer/Clock
8. PTY (RDS)
9. Mono/ST
10. Display
11. Headphone Jack Connector
12. Enter
13. Cassette Deck 1
14. Counter Reset
15. CD Synchro
16. Deck 1/2
17. Rec/Pause
18. TAPE Normal / Hi-Speed Recording
19. Record Lock
20. Rev. Mode
21. Cassette Deck 2
22. Memory
23. Multi Jog
24. Volume
25. Communication LED
26. EQ
27. S.Bass
28. 3-D Sound
29. Power Sound
30. Disc Change
31. Open/Close
32. Disc Selection buttons
33. Tuning Mode or Stop button
Disc1 Disc2
Disc3 Disc Change
Open/Close
On/Standby
Demo
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Volume
Communication
EQ S.Bass
3-D Sound Power Sound
Enter
Phones
Timer/
Clock
RDS
PTY
1323323
4
5
6
7
8
9
11
10
12
13
14
15
16
17 18 19
20
21
22
23
24
26
25
27
28
29
30
31
Page 4
The main lead must be plugged into an appropriate socket.
Before plugging your system into a main socket, you must check
the voltage.
Plug the main lead (marked AC Cord on the rear of the system) into
an appropriate socket.
Press the On/Standby button to switch your mini-compact system
on.
GB
7
To take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit.
Install the system on a flat, stable surface.
Never place this unit on carpeting.
Never place this unit in an outdoor area.
Maintain an open space of approximately 6 inches (15 cm) on the
sides and rear of the system, for ventilation purposes.
Make sure that you have enough room to open the compact disc
compartment easily.
Place the loudspeakers at a reasonable distance on either side of
the system to ensure good stereo sound.
Direct the loudspeakers towards the listening area.
For optimum performance, make sure that both speakers are placed
at an equal distance above the floor.
Where to Install Your Mini-Compact System
Connecting your System to the Power Supply
Disc1 Disc2
Disc3 Disc Change
Open/Close
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Volume
EQ S.Bass
3-D Sound Power Sound
Enter
Phones
Communication
1
2
SP
6
Rear Panel View
1. SUPER WOOFER PRE OUT
2. FM AERIAL CONNECTOR TERMINAL
3. AM AERIAL CONNECTOR TERMINAL
4. DVD/CD DIGITAL OUT JACK
5. LINE OUT
6. AUX INPUT
7. LOUDSPEAKER CONNECTOR TERMINALS
8. VIDEO OUT
9. S-VIDEO OUT
FRONT
SPEAKERS
(6Ω)
LINE OUT
DIGITAL OUT
OPTICAL
AUX IN
AM ANT.
FM 75Ω
VIDEO
OUT
SUPER
WOOFER
PRE OUT
S-VIDEO
OUT
1
2
3
4
5
6
7
89
Insert or replace remote control batteries when you:
Purchase the mini-compact system
Find that the remote control is no longer operating correctly
When replacing the batteries, use a new set of batteries and
never mix alkaline and manganese batteries.
Place your thumb on the position marked on the battery compartment cover (rear of the remote control) and push the cover in the
direction of the arrow.
Insert two AAA, LR03 or equivalent batteries, taking care to respect
the polarities:
+ on the battery against + in the battery compartment.
– on the battery against – in the battery compartment.
Replace the cover by sliding it back until it clicks into position.
Inserting Remote Control Batteries
1
2
3
Page 5
GB
9
If the TV input is the Scart Jack type, please connect it as shown below.
The following show examples of connections commonly used to connect the MAX-DN64 player with a External Source.
(Example : TV, VCR, DAT CD-RW, etc)
When S-VIDEO is connected, S-VIDEO has priority.
Connection of the Scart Jack (optional)
Connection of the MD recorder (optional)
8
Connecting the Loudspeakers
The loudspeaker connector terminals are located on the
rear of the system.
There are four terminals on the system:
Two for the left speaker (marked L)
Two for the right speaker (marked R)
To achieve the correct sound quality, connect the:
Red wire to the + terminals
Black wire to the – terminals
To connect a wire to a terminal, push the tab as far as it will go:
To the right on the system
Insert the wire, up to the plastic sheathing, in the hole.
Push the tab back:
To the left on the system, until it clicks into place
To the top on the loudspeaker
Result:
The wire is pinched and held firmly in place.
Repeat the operation for each wire.
1
2
3
4
FRONT
SPEAKERS
(6Ω)
LINE OUT
DIGITAL OUT
OPTICAL
AUX IN
AM ANT.
FM 75Ω
VIDEO
OUT
SUPER
WOOFER
PRE OUT
S-VIDEO
OUT
TV monitor
Scart Input Jack
Scart Jack
Composite video (Supplied)
Audio Cord
VIDEO INPUT
AUDIO INPUT
LINE OUT
VIDEO
OUT
FRONT
SPEAKERS
(6Ω)
LINE OUT
DIGITAL OUT
OPTICAL
AUX IN
AM ANT.
FM 75Ω
VIDEO
OUT
SUPER
WOOFER
PRE OUT
S-VIDEO
OUT
PLAY OUT
RECORD IN
OPTICAL RECORD IN
AUX IN
LINE OUT
DIGITAL OUT
OPTICAL
MD recorder
Refer to page 38 to give a full detail of the peripheral connection methods
This unit can output DVD/CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment.
(DAT deck, MD recorder, etc.).
Remove the dust cap (1) from the DVD/CD DIGITAL OUT jack. Then, connect an optical cable plug to the DVD/CD DIGITAL
OUT jack.
When the DVD/CD DIGITAL OUT jack is not being used
Attach the supplied dust cap.
DVD/CD Digital Out Jack
FRONT
SPEAKERS
(6Ω)
LINE OUT
DIGITAL OUT
OPTICAL
AUX IN
AM ANT.
FM 75Ω
VIDEO
OUT
SUPER
WOOFER
PRE OUT
S-VIDEO
OUT
FRONT
SPEAKERS
(6Ω)
(+) (–) (+) (–)
FRONT
SPEAKERS
(6Ω)
LINE OUT
DIGITAL OUT
OPTICAL
AUX IN
AM ANT.
FM 75Ω
VIDEO
OUT
SUPER
WOOFER
PRE OUT
S-VIDEO
OUT
SUPER
WOOFER
PRE OUT
Powered Super woofer
• When subwoofer is used, connect the cord to the Super Woofer Preout port.
The subwoofer generates low-pitched tones.
(Ex. Explosion, the sound of spacecraft flying, the sound of pondering, etc.)
Connection of the Super Woofer (optional)
Connection of the TV monitor (optional) and VCR (optional)
LINE IN
FRONT
SPEAKERS
(6Ω)
LINE OUT
DIGITAL OUT
OPTICAL
AUX IN
AM ANT.
FM 75Ω
VIDEO
OUT
SUPER
WOOFER
PRE OUT
S-VIDEO
OUT
TV monitor VCR
Video cord Audio cord
S-Video
Composite video (Supplied)
LINE OUT
VIDEO
OUT
S-VIDEO
OUT
LINE INLINE OUT
Page 6
GB
11
10
You can view the various functions available on your system.
Press the Demo button.
Result: The various functions available are listed in turn on the dis-
play.
All these functions are described in detail in this booklet.
For instructions on how to use them, refer to the appropriate
sections.
To cancel this function, press Demo again.
If the temperature of the set is too higher, the Volume will be
adjust till VOL. 20 automatically.
Your system is equipped with a clock which allows you to
turn your system on and off automatically. You should set the
clock:
When you first purchase the mini-compact system
After a power failure
After unplugging the unit
Remember to reset the clock when the time changes from
regular to daylight savings and vice verse.
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
Switch the system on by pressing On/Standby.
Press Timer/Clock twice.
Result:
CLOCK is displayed.
Press Enter.
Result:
The hour flashes.
To... Turn the Multi Jog knob to the...
Increase the hours Right
Decrease the hours Left
When the correct hour is displayed, press Enter.
Result:
The minutes flash.
To... Turn the Multi Jog knob to the...
Increase the minutes Right
Decrease the minutes Left
When the correct time is displayed, press Enter.
Result:
The clock starts and is displayed, even when the system is in
standby mode.
You can display the time, even when you are using another function, by pressing Timer/Clock once.
Setting the Clock
Viewing the Various Functions on Your System
2
1
1
2
3
4
5
6
7
The AM aerial (for long and medium waves) can be:
Placed on a stable surface
Fixed to the wall (you must first remove the base)
The AM aerial connector terminals are located on the rear of the system and are
marked AM .
To avoid noise interference, check that the loudspeaker wires do not run
close to the aerial wires.
Always keep them at least 2 inches (5 cm) away.
Connecting the AM (MW)/LW Aerial
How to connect a COAXIAL TYPE aerial.
Connect a 75Ω antenna to the FM antenna terminal.
Plug the connector on the FM aerial supplied into the coaxial socket (75Ω) marked FM on the rear of the system.
Follow the instructions given on Page 28 to tune into a radio station, and determine the best position for the aerial.
If reception is poor, you may need to install an outdoor aerial.
To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).
Connecting the FM Aerial
1
2
4,6
3,5,7
AM ANT.
SUPER
WOOFER
PRE OUT
S-VIDEO
OUT
VIDEO
OUT
FM 75Ω
AM ANT.
DIGITAL OUT
OPTICAL
LINE OUT
AUX IN
FRONT
SPEAKERS
(6Ω)
On/Standby
Demo
Timer/
Clock
Display
RDS
PTY
Mono/ST.
Band
R
TUNER DVD/CD TAPE AUX
Down Tuning Mode Up
Multi Jog
Demo
On/Standby
Timer/
Clock
Display
RDS
PTY
Mono/ST.
Display
Enter
Phones
Band
R
TUNER DVD/CD TAPE AUX
Tuning Mode Up
Down
Counter
Memory REV.Mode
Reset
Deck 1/2
Dubbing
Normal High
CD Synchro REC/Pause Record Lock
Multi Jog
3-D Sound Power Sound
EQ S.Bass
Communication
Volume
Page 7
GB
13
12
Several options are available during DVD playback.
Stopping Playback
Press the Stop button in playback.
Removing Disc
Press the Open/Close ( )button
Pausing Playback
Press the Play/Pause or Step button on the remote during
playback.
– Screen stops, no sound.
– To resume again, press Play/Pause button once again.
Step Motion Playback (Except CD)
Press the Step button on the remote during playback.
– Each time the button is pressed, a new frame will appear.
– No sound is heard during STEP mode.
– Press Play/Pause to resume normal playback.
(You can only perform step motion playback in the forward direction.)
Slow Motion Playback (Except CD)
Press the FWD ( ) or REV SEARCH ( ) button on the
remote during PAUSE or STEP mode.
– By pressing or shuttling, you can select slow motion playback for
1/8, 1/4 or 1/2 of normal speed.
– No sound is heard during slow mode.
– Press Play/Pause to resume normal playback.
–
When playing a VCD, the reverse slow motion playback will not work.
Playing a Disc (Cont'd)
The CD function is automatically selected when DISC SKIP is
pushed.
To select a specific disc, press the corresponding Disc (1, 2, 3) button
on the front panel or Disc Skip on the remote control, until the
required disc indicator flashes.
If you use the Disc (1, 2, 3) function when listening to the
radio or to a tape, the system switches automatically to the
DVD/CD mode.
If the disc selected is not loaded, the next disc is played automatically.
Selecting a Disc in the CD changer
1
2
3
4
5
DVD/CD
DECK
Open/Close
Digital
3D Sound
Power Sound
S.Bass
Disc Skip
Deck 1/2 Band
Clear Repeat
Program
EQ
Mute
10/0
123
456
789
1
3,4,5
3,4,5
2
5
When you stop disc play, the player remembers where you stopped,
so when you press Play again, it will pick up where you left off
(unless the disc is removed, the Stop button is pressed twice or the
player is unplugged.).
If the player is left for 5 minutes in pause mode, it will stop.
If the player is left in the stop mode for more than one minute
without any user interaction, a screensaver will be activated, and
the TV screen will fade in and fade out repeatedly. Press Play but-
ton to resume normal play.
RESUME function
Playback
Press the Open/Close( ) button.
Place a disc gently into the tray with the disc's label facing up.
Press the Play/Pause button or Open/Close( ) button to close the
disc tray.
Press the 3-D Sound button in POWER OFF, then it is converted to
“ ” and select the TYPE you want.
Example :
Select PAL, if TV is for PAL.
When disk is set to NTSC in PAL, it doesn't operate.
The CD disc changer can contain up to three 12 cm or 8 cm
compact discs without using an adapter.
Never force the compact disc carrousel when opening and closing the compartment.
Never press down or place objects on the carrousel.
Always treat your compact discs with care; refer, if necessary, to
the section entitled “Precautions When Using Compact Discs” on
page 39.
Switch the system on by pressing On/Standby.
Press the Open/Close( ) button on the front panel.
Result:
The compartment opens.
Place one or two discs in the front slots of the carrousel, with the
label on the discs facing upwards.
Check that the compact disc has been correctly inserted in
the holder before closing the compartment.
If you wish to load a third compact disc, press the Disc Change button on the front panel (or Disc Skip on the remote control).
Result: The carrousel rotates by 120°.
Close the compartment by pressing the Open/Close( ) button
again.
If you wish to start playing a disc directly, you can also
proceed as follows.
To play... Press...
Disc 1 DVD/CD ( ) or DISC 1
Disc 2 DISC 2
Disc 3 DISC 3
Result:
The compartment closes automatically and the disc selected
starts playing.
To change or unload the compact disc changer, repeat Steps 2 to 5.
Keep the compartment closed whenever you are not using
it, to prevent dust from entering.
You can load or unload compact discs when the radio,
tape or auxiliary source function is selected.
Playing a Disc
Video Output Selection
1
2
3
Loading and Changing Compact Discs
1
2
3
4
5
6
NTSC PAL SECAM
Disc1 Disc2
Disc3 Disc Change
Open/Close
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Volume
EQ S.Bass
3-D Sound Power Sound
Enter
Communication
5
1
5
2,5
4
Disc1 Disc2
Disc3 Disc Change
Open/Close
Band
R
TUNER DVD/CD TAPE AUX
Multi Jog
Volume
EQ S.Bass
3-D Sound Power Sound
Communication
1,3
3
Disc1 Disc2
Disc3 Disc Change
Open/Close
3-D Sound Power Sound
DVD/CD
DVD/CD
Band
R
TUNER DVD/CD TAPE AUX
Down Tuning Mode Up
Counter
Memory REV.Mode
Reset
Multi Jog
3-D Sound Power Sound
EQ S.Bass
Communication
Volume
Timer On/Off
Sleep Repeat
Display
Set up
A B
Title
Angle
Step
Step
n
Zoom
Audio
Book Mark
Menu
Page 8
14
During playback, you can search quickly through a chapter or
track or use the skip function to jump to the next selection.
Searching through a Chapter or Track
Press the REV () or FWD SEARCH ( ) button on the
remote during PLAY mode.
Press the REV () or FWD SEARCH ( ) button on the
remote and press again to search at a faster
speed(2X/8X/16X/32X/normal speed, in order)on DVD.
Press the REV () or FWD SEARCH ( ) button on the
remote and press again to search at a faster speed(4X/8Xnormal
speed in order) on VCD and CD.
To return to normal speed playback, press the Play/Pause button.
Skipping Tracks
(It may use the SKIP function in MULTIJOG)
Press the NEXT SKIP ( ) or BACK SKIP ( ) button
during playback.
When playing a DVD, if you press the NEXT SKIP ( ) but-
ton, it moves to next chapter. If you press the BACK SKIP (
) button, it moves to the beginning of the chapter. One more press
makes it move to the beginning of the previous chapter.
When playing a VCD 2.0 in MENU OFF mode, a VCD 1.1 or a
CD, if you press NEXT SKIP ( ) button, it moves to next
track. If you press BACK SKIP ( ) button, it moves to the
the beginning of the track. One more press makes it move to the
beginning of the previous track.
If a track exceeds 15 minutes when playing a VCD and you press
NEXT SKIP ( ) button, it moves forward 5 minutes. If you
press BACK SKIP ( ) button, it moves backward 5 minutes.
When playing a VCD 2.0 in the MENU MODE or Track View function, if you press NEXT SKIP ( ) button, it move to the next
MENU or the next Track View display. If you press BACK SKIP
( ) button, it moves to the previous MENU or the previous
Track View display.
While in search (8X/16X/32X)on DVD or high-speed playback on
VCD, no sound will be heard.
Though 2X SCAN AUDIO in ON in SETUP MENU, no sound will
be heard on discs which are recorded with LPCM or DTS.
Depending on the disc, audio may or may not be heard when a
disc is in 2X playback mode.
Searching & Skipping through a Chapter or Track

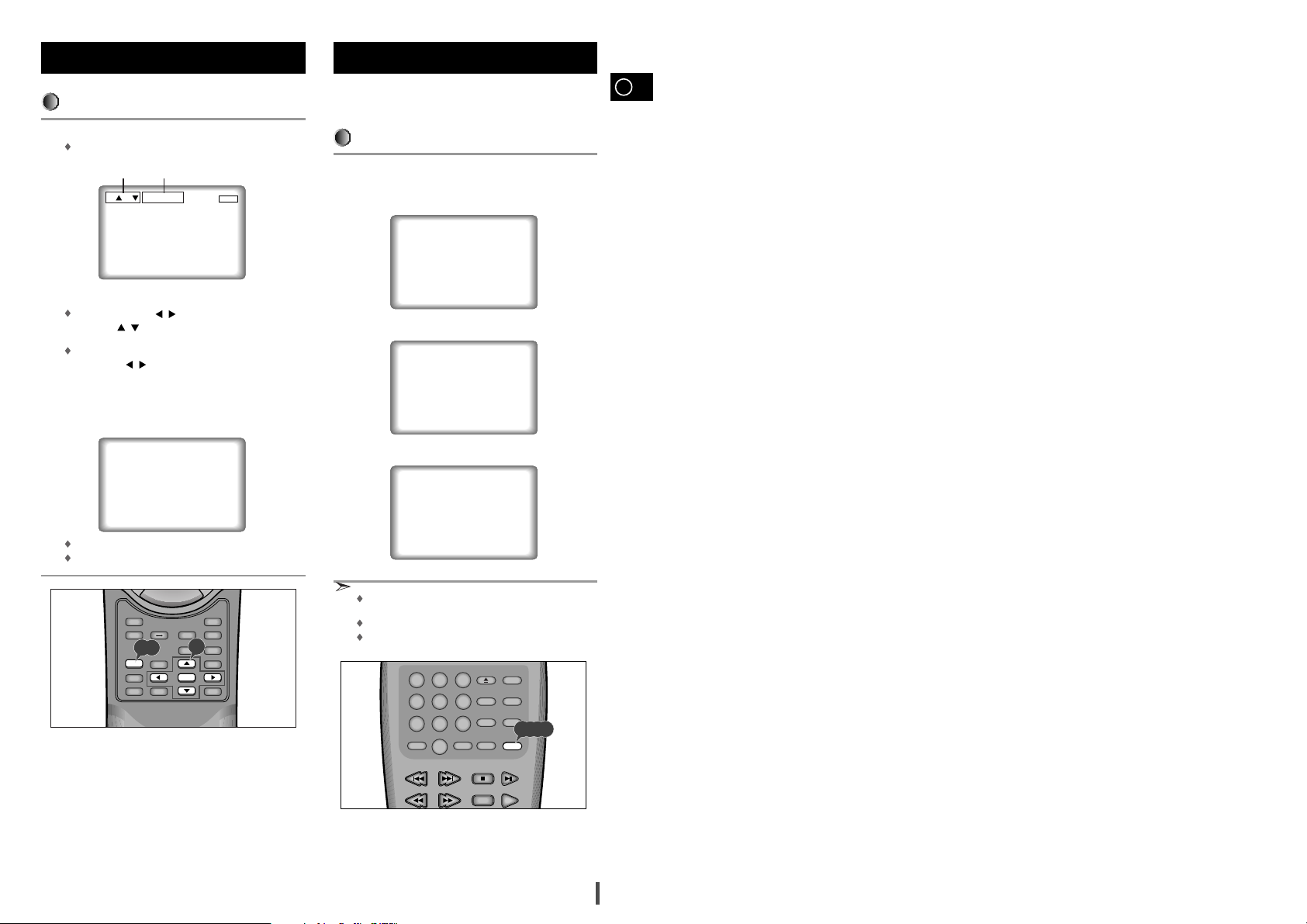

If you want to display the title, chapter, time, audio and subtitle information on a DVD, press the DISPLAY button. If you
want to display the track and time information on a VCD or
CD, press the Display button.
When Playing a DVD
During playback, press the Display button on the remote.
– Current title, chapter number and elapsed time will be displayed.
Use the LEFT/RIGHT ( / ) button to select a title or a chapter
number.
Use the UP/DOWN ( / ) button or Number buttons to enter a
different title or chapter number, then press the Enter button.
To enter the time from which you want to start, use the
LEFT/RIGHT ( / ) button to select, then use the Number buttons to enter the time.
Then press the Enter button.
Press the Display button on the remote twice.
– Current audio and subtitle information will appear.
– To make the screen disappear, press the Display button again.
What is a Chapter?
Each Title on a DVD can be divided into chapters (similar to tracks
on an audio CD).
What is a Title?
A DVD may contain several different titles. : for example, if a disc
contains four different movies, each might be considered a title.
Using the Display Function
1
2
DVD/CD
+
Volume
DECK
Power Sound
S.Bass
Disc Skip
Deck 1/2 Band
Clear Repeat
Program
10/0
789
2
1
1
2
T : 01 C : 04 TIME 0:06 : 54
ENTER
AUDIO : ENG DOLBY DIGITAL 5.1CH
SUBTITLE : ENG ON
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Volume
–
1,2
1
Title number
display
Chapter number
display
Time display
Enter
Page 9
GB
15
When Playing CD/VCD
During playback, press the Display button on the remote.
Current track number and elapsed time will be displayed.
Use the LEFT/RIGHT ( / ) button to select a track. Use the
UP/DOWN ( / ) button or Number buttons to enter a different
track number, then press the Enter button.
To enter the time from which you want to start, use the
LEFT/RIGHT ( / ) button to select, then use the Number but-
tons to enter the time.
Then press the Enter button.
Press the Display button on the remote twice.
Elapsed time and remain time will appear.
To make the screen disappear, press the Display button again.
Using the Display Function
(Cont’d)
Repeat play allows you to repeat a track, title, or the entire
disc.
When playing a DVD
Press the Repeat button once to display the current status.
Press the Repeat button twice to repeat the chapter currently playing.
Press the Repeat button a third time to repeat the title currently playing.
Press the Repeat button again to turn off the repeat feature.
DVD repeats playback by chapter or title, CD and VCD repeat
playback by disc or track.
Depending on the disc, the Repeat function may not work.
When in VCD 2.0 mode (MENU ON mode), this function does not
Repeat Play
1
2
T : 01 TIME 0:12 : 43
T:02 0:00:03
T:05 1:07:47 REMAIN
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Vo ume
–
1,2
1
REPEAT : CHAPTER
REPEAT : TITLE
REPEAT : OFF
1
2
3
4
DVD/CD
DECK
Open/Close
Digital
3D Sound
Power Sound
S.Bass
Disc Skip Clear Repeat
Program
EQ
Mute
10/0
123
456
789
1,2,3,4
ENTER
Time display
Track number
display
EnterEnter

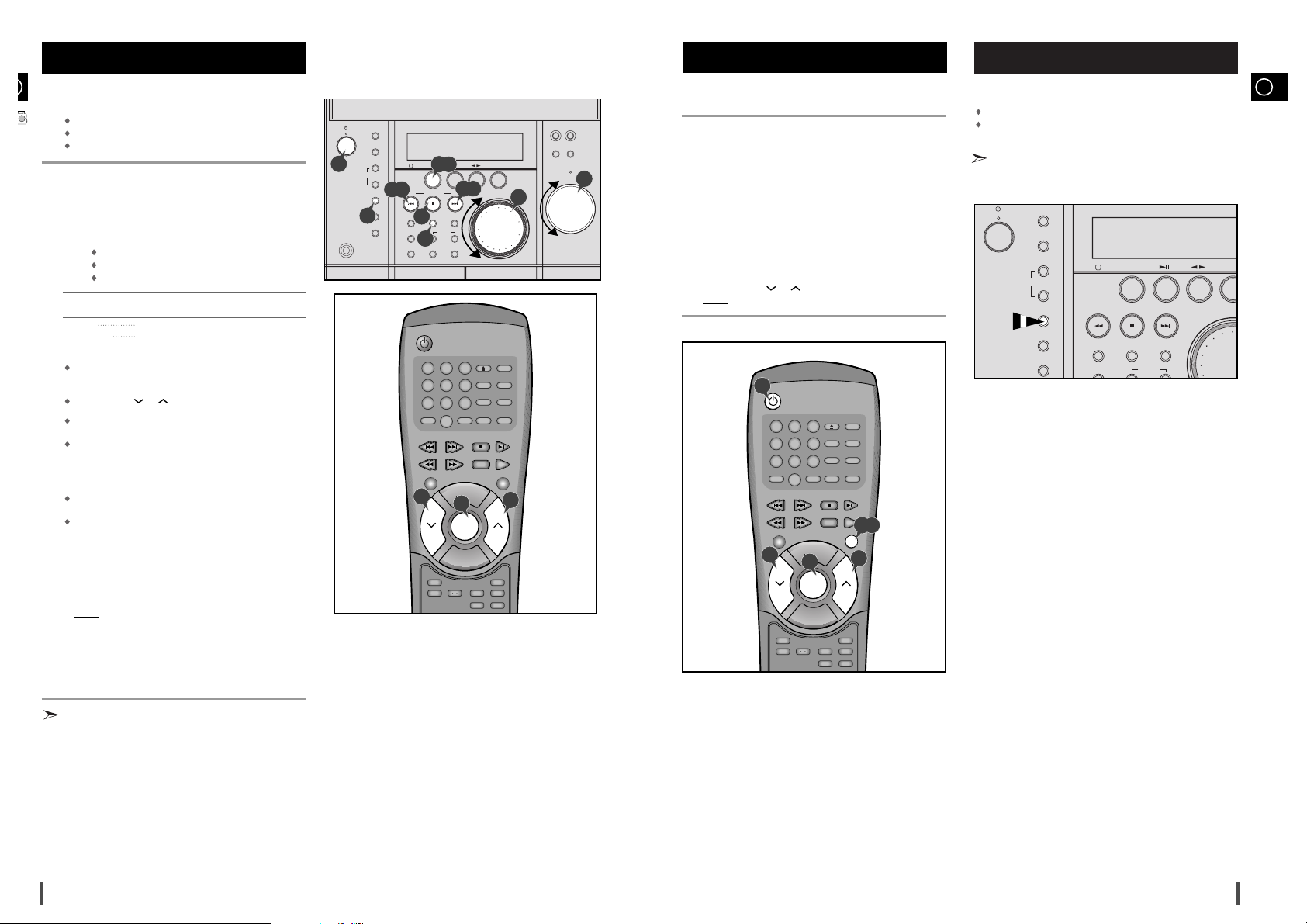

Page 10
1716
Program VCD or CD
Example:
To program tracks 3 and 8 in order.
In stop mode, press the Program button.
Use the LEFT/RIGHT ( / ) button to select Program.
Press the Enter button.
Use the LEFT/RIGHT ( / ) or UP/DOWN ( / ) button to
select 03 and press Enter.
Then select 08 and press the Enter button.
Press the Play/Pause button. The disc will be played back in pro-
grammed order.
Press Clear button to resume normal Playback.
To start RANDOM playback.
Press the Program button while in stop mode.
Use the LEFT/RIGHT ( / ) button to select RANDOM and press
the Enter button.
– The disc will be played back in random order.
The function of RANDOM is operated in only VCD/CD.
Press Clear button to resume normal Playback.
Program Playback in a specific
Order (Cont’d)
1
2
4
1
2
TRACK PROGRAM ORDER
01
02 03 04
05 06 07 08
09 10 11 12
13 14 15 16
03 08 -- --
-- -- -- --
-- -- -- --
-- -- -- --
RETURN ENTER
CLEAR LAST TRACK
CLEAR ALL TRACKS
PRESS TO START
PLAY
1
4
2,3
When playing a CD/VCD
Press the Repeat button once to display the current status.
Press the Repeat button twice to repeat the current track.
Press the Repeat button a third time to repeat all tracks.
Press the Repeat button again to turn off the repeat feature.
Repeat Play (Cont’d)
Program playback lets you set up a specific order for playback of titles, chapters or tracks on a disc only. This function
works in stop mode only.
If the microphone is connected in the middle of programming,
it may not operate normally.
Program DVD
Example: To program chapters 5 and 7 in order.
In stop mode, press the Program button.
Use the LEFT/RIGHT ( / ) button to select CHAPTER.
Press the Enter button.
Use the LEFT/RIGHT ( / ) or UP/DOWN ( / ) button to
select 05 and press Enter. Then select 07 and press Enter button.
Press the Play/Pause button. The disc will be played back in pro-
grammed order.
Press Clear button to resume normal Playback.
Use the UP/DOWN ( / ) button to select CLEAR LAST TRACK (or
CHAPTER, or TITLE).
Press the Enter button to delete the last track (or chapter, or title) in the
program order.
Program Playback in a specific Order
REPEAT : TRACK
REPEAT : ALL
REPEAT : OFF
1
2
3
4
DVD/CD
DECK
Open/Close
Digital
3D Sound
Power Sound
S.Bass
Disc Skip
Deck 1/2 Band
Clear Repeat
Program
EQ
Mute
10/0
123
456
789
1,2,3,4
1
3
4
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Title
Menu
Enter
10/0
1
4
2,3
When you make a wrong selection during programming
Use the UP/DOWN ( / ) button to select CLEAR ALL TRACKS (or
CHAPTERS, or TITLES).
Press the Enter button to delete all tracks, chapters or titles in the pro-
gram order. All programmed tracks, chapters or titles are also deleted
when the disc is removed or the DVD player is turned off.
Depending on the disc, the Program Playback function may not work.
When you want to delete the entire program
The Repeat A B function lets you mark a segment to repeat
between the beginning (A) and the end (B) of the segment you
want to review.
To set up Repeat A B
Press the Repeat A B button at the beginning (A) of the segment
you want to review.
Press the Repeat A B button again at the end (B) of the segment
you want to review.
The segment will begin repeating.
To clear Repeat A B
Press the Repeat A B button.
The Repeat A B function works on the same title or track.
If the title or track is completed before marking the end (B), the
end of title or track becomes B automatically.
Depending on the disc, the Repeat A B function may not work.
When in VCD 2.0 mode (MENU ON mode), this function does not
work.

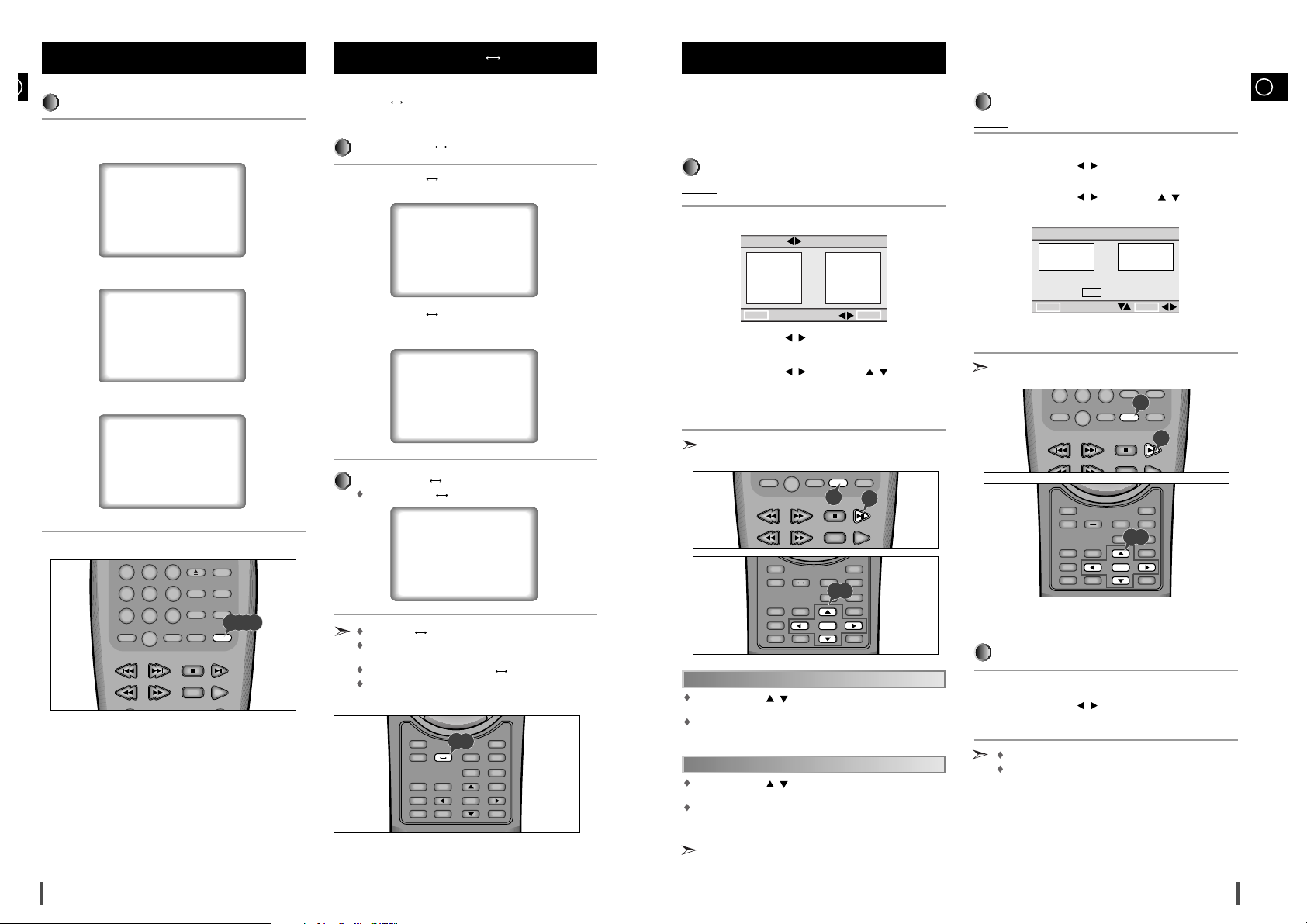

Using the Repeat A B Function
REPEAT : A–
REPEAT : A–B
REPEAT : OFF
1
2
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
–
TITLE CHAPTER
01 02 03 04
05 06 07 08
09 10 11 12
13 14 15 16
-- -- -- --
-- -- -- --
-- -- -- --
-- -- -- --
RETURN ENTER
3
1, 2
2
Disc Skip Clear Repeat
Program
DVD/CD
DECK
Disc Skip Clear Repeat
789
10/0
Program
DVD/CD
DECK
–
Angle
Step
Enter
EnterEnter
Zoom
Audio
Book Mark
Menu
Sub Title
Timer On/Off
Sleep Repeat
Display
Set up
AUX
A B
Title
Return
A B
Page 11
1918
Using the MENU Button
When playing a DVD
Press the Menu button.
Use the UP/DOWN ( / ) button to select AUDIO information.
(An example of a disc menu)
Press the Enter button.
Use the UP/DOWN ( / ) button to select 'ENGLISH'.
(An example of a disc menu)
Press the Enter button.
When playing a VCD
In disc version 2.0, the Menu button works as a conversion switch between
MENU ON and MENU OFF mode.
When playing a VCD 1.1 or CD the Menu button will not work.
Selecting Audio (Cont’d)
3 AUDIO
4 SUBTITLE
1 ENGLISH
2 FRANCAIS
1
2
3
4
5
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Volume
–
1
2,3,4,5

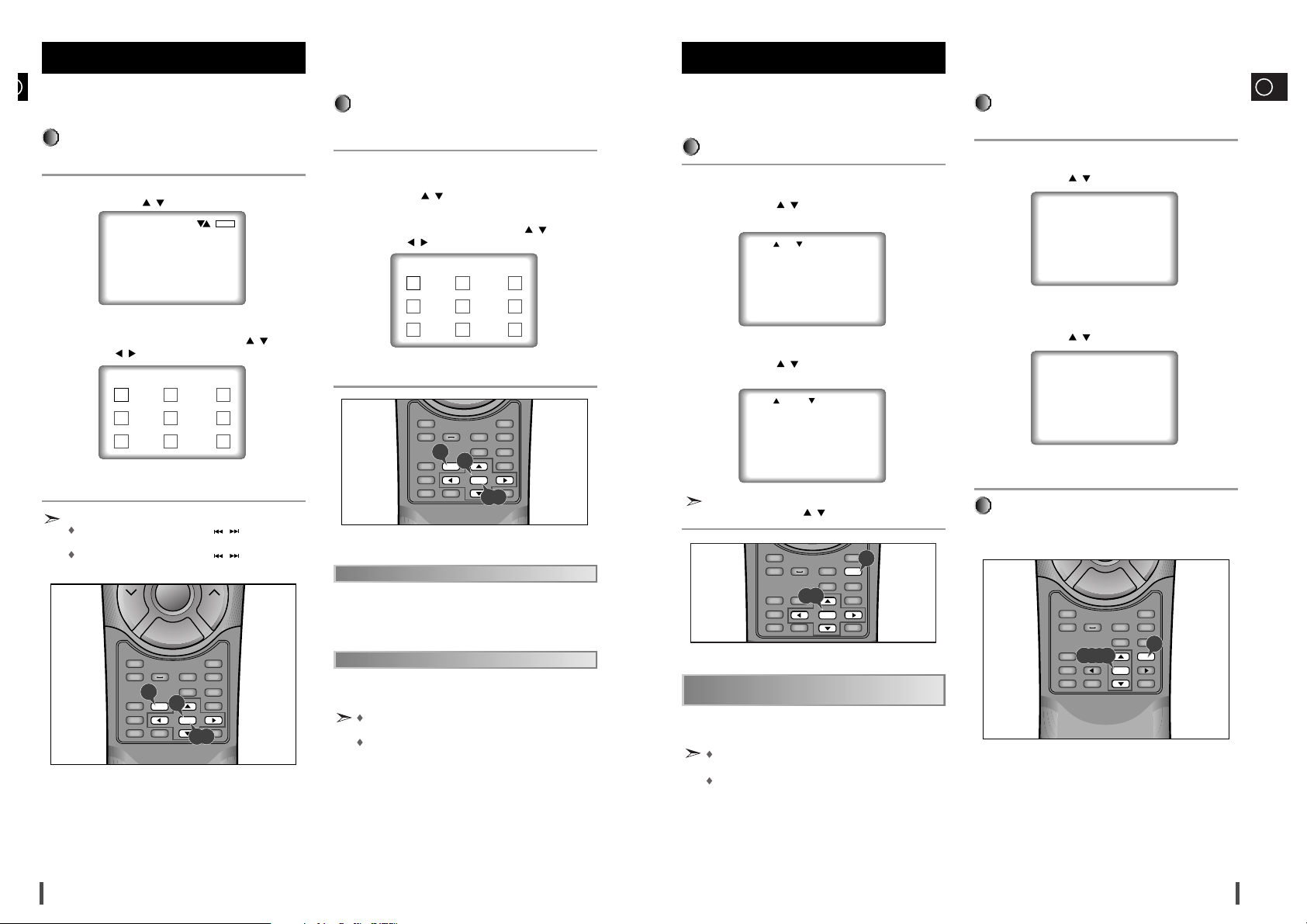

Index View (VCD)
Displays the beginning view of each track and the track number
Press the Title button in playback.
Press UP/DOWN ( / ) button to select INDEX VIEW. Press the
Enter button.
Select the desired view by pressing UP/DOWN ( / ) or
LEFT/RIGHT ( / ) buttons.
Press the Enter button.
The unit enters the INTRO SCAN mode. INTRO SCAN lets you listen to
the beginning of each track for about 10 seconds.
When in VCD 1.1 & 2.0 mode (MENU OFF mode), this function
works.
In stop mode on VCD, press the TITLE button and the TRACK
VIEW will be displayed directly.
The disc's TITLE MENU function will come up. A disc must have at least
two titles for the TITLE MENU function to work.
Using the Disc View Function
(Cont’d)
You can select a desired language quickly and easily with the
Audio button. If a menu is encoded on the disc, you can also
select by using the Menu button.
Using the Audio Button
Press the Audio button.
Use the UP/DOWN ( / ) button to select the desired language on
a DVD.
- The audio and subtitle languages are represented by abbreviations.
Use the UP/DOWN ( / ) button to select STEREO, R CHANNEL
or L CHANNEL on a VCD/CD.
Even when the microphone has been connected, press the audio
button and the UP/DOWN ( / ) button to select a wanted action.
Selecting Audio
INDEX VIEW
01 02 03
04 05 06
07 08 09
1
2
3
4
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
–
1
2
3,4,
When you press Title button during DVD playback
When you press Title button during CD playback
AUDIO : ENG DOLBY DIGITAL 5.1CH
AUDIO : STEREO
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
1
Title
Menu
Enter
2,3
Refer to "Setting Up the Language Features" on page 23.
This function depends on what languages are encoded
on the disc and may not work with all DVDs.
A DVD disc can contain up to 8 audio languages.
How to have the same audio language come up
whenever you play back a DVD.
1
2
3
The desired music or video display can be accessed directly
without using the menu function.
Track View (VCD)
Displays the beginning view of each track and the track number
Press the Title button in playback
Press the UP/DOWN ( / ) button to select TRACK VIEW.
Press the Enter button.
Select the desired view by pressing the UP/DOWN ( / ) or
LEFT/RIGHT ( / ) buttons.
(An example of a Track View)
Press the Enter button.
Using the Disc View Function
DISC VIEW
1 TRACK VIEW
2 INDEX VIEW
TRACK VIEW
1
2
3
4
01 02 03
04 05 06
07 08 09
ENTER
GB
In case the number of tracks is or than 10.
Use the Multi-Jog knob or UP/DOWN ( / ) button watching
the tracks bellow.
Use the Multi-Jog knob or UP/DOWN ( / ) button watching
the previous tracks.
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Tuning
Mode
Volume
–
1
2
3,4,
Title
EnterEnter
Menu
Title
EnterEnter
Enter
Page 12
2120
Using the Zoom Function (DVD/VCD)
During playback or pause mode, press the Zoom button on the
remote. The square shadow will be displayed on screen.
Use the UP/DOWN ( / ) or LEFT/RIGHT ( / ) button to
select the part of the screen you want to zoom.
Press the Enter button.
During DVD playback, press Enter to zoom in 2X/4X/normal in order.
During VCD playback, press Enter to zoom in 2X/normal in order.
Using the zoom
The Bookmark function lets you select parts of a DVD or VCD
(MENU OFF mode) so that you can quickly find the section at
a later time.
Using the Bookmark Function (DVD/VCD)
During playback, press the Book Mark button on the remote.
Then 'MARKER' will be displayed.
Use the LEFT/RIGHT ( / ) button to move to the desired bookmark icon.
When you reach the scene you want to mark, press the Enter button.
The icon will change to a number (1, 2, or 3).
Press the Book Mark button to turn off the display.
Using the Bookmark Function
1
2
3
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
–
1
2,3
MARKER : MARK
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
1,4
2,3
1
2
3
4
ENTER
Using the Menu button
Press the Menu button.
Use the UP/DOWN ( / ) button to select SUBTITLE information
(An example of a disc menu)
Press the Enter button.
Use the UP/DOWN ( / ) button to select the desired language.
(An example of a disc menu)
Press the Enter button.
When playing a VCD
In disc version 2.0, the Menu button works as a conversion switch between
MENU ON and MENU OFF mode.
When playing a VCD 1.1 or CD, the Menu button will not work.
Selecting the Subtitle Language
(Cont’d)

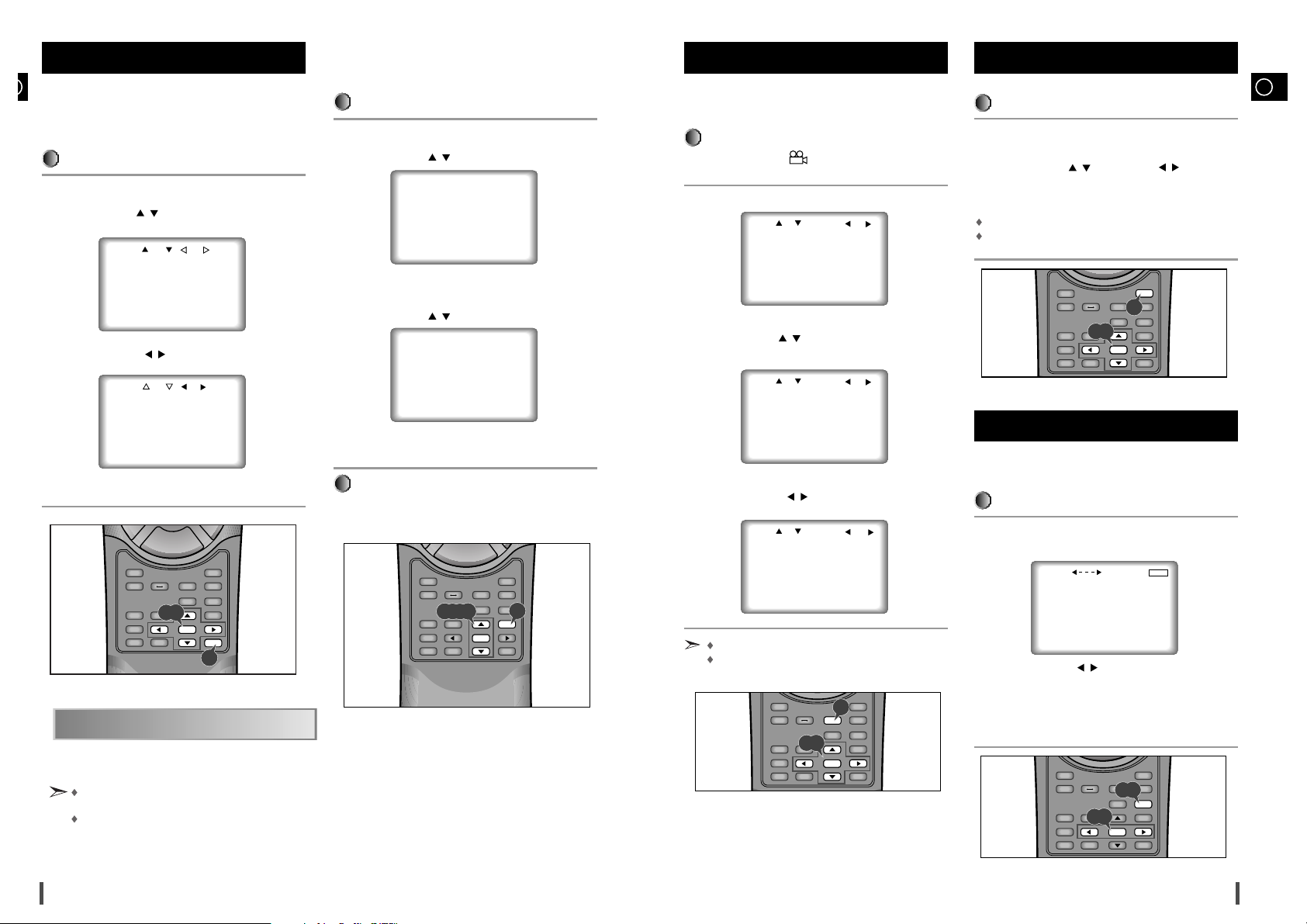

When a DVD contains multiple angles of a particular scene,
you can select the Angle function.
Using the Angle button
Check to see if an 'ANGLE( )’ mark is present at the upper right
hand corner of the screen.
When an 'ANGLE' mark is shown, press the Angle button.
(An example of Angle information display)
Use the UP/DOWN ( / ) button to select the desired screen
angle.
Then press the Enter button.
(An example of Angle information display)
Use the LEFT/RIGHT ( / ) button to determine whether or not
the 'ANGLE' mark will be displayed.
This function is disc-dependent, and may not work with all DVDs.
This function does not work when a DVD has not been recorded
with a multi-camera angle system.
Selecting the Desired Screen Angle
3 AUDIO
4 SUBTITLE
1 ENGLISH
2 FRANCAIS
1
2
3
4
5
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Volume
–
2,3,4,5
1
ANGLE : 1/6 MARK : ON
ANGLE : 5/6 MARK : ON
ANGLE : 5/6 MARK : OFF
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
1
2,3
1
2
3
When a DVD is recorded with subtitles, you can use the
Subtitle feature to view the subtitles on-screen.
If a menu is encoded on the disc, you can also select by using
the MENU button.
Using the Sub Title button
Press the Sub Title button.
Use the UP/DOWN ( / ) button to select the desired subtitle language.
Use the LEFT/RIGHT ( / ) button to determine whether or not
the subtitle will be displayed.
– Initially the subtitling will not appear on screen.
– The audio and subtitle languages are represented by abbreviations.
Selecting the Subtitle Language
SUBTITLE : ENG OFF
SUBTITLE : ENG ON
1
2
3
How to have the same subtitle language come up
whenever you play back a DVD.
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Volume
–
1
Refer to "Setting Up the Language Features" on page 23.
This function depends on what languages are encoded
on the disc and may not work with all DVDs.
A DVD disc can contain up to 32 subtitle languages.
2,3
EnterEnterEnter
EnterEnter
Enter
Menu
EnterEnter
Enter
Page 13
2322
If you set the player menu, disc menu, audio and subtitle language in advance, it will come up automatically every time
you watch a movie.

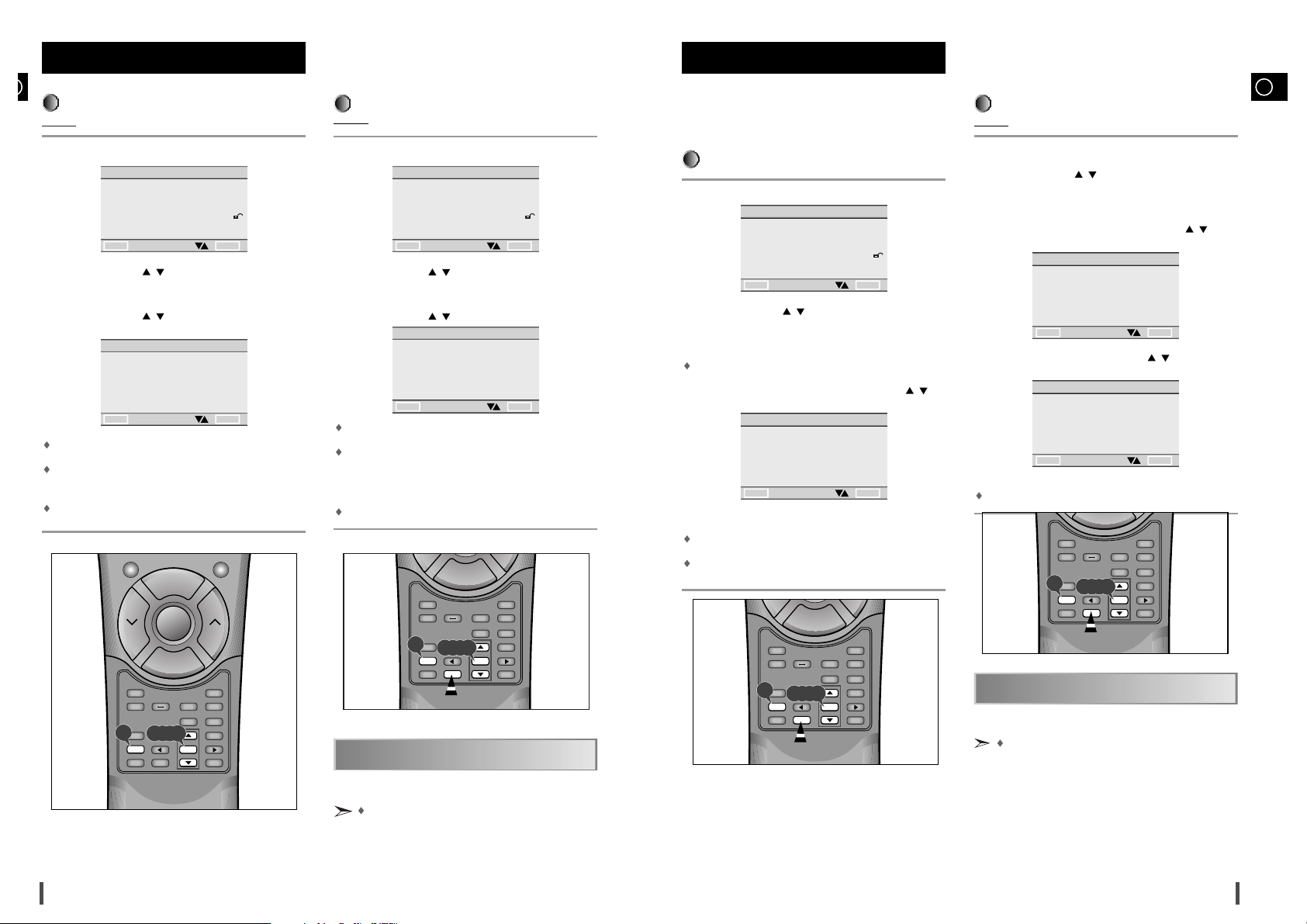

Using the Player Menu
Example:
Setting up in ENGLISH.
Press the Setup button on the remote in the play or stop mode.
Use the UP/DOWN ( / ) button to select the PLAYER MENU.
Press the Enter button.
Use the UP/DOWN ( / ) button to select 'ENGLISH'.
Press the Enter button.
ENGLISH is selected and the screen returns to SETUP MENU.
To make the SETUP MENU disappear, press the Return button.
Setting up the language features
Using the Disc Menu Language
This function changes the language only for the text on the disc menu
screens.
Example:
Setting up in ENGLISH
Press the Setup button on the remote in the play or stop mode.
Use the UP/DOWN ( / ) button to select DISC MENU.
Press the Enter button.
Use the UP/DOWN ( / ) button to select ' ENGLISH'.
Select "OTHERS" if the language you want is not listed.
Press the Enter button.
ENGLISH is selected and the screen returns to SETUP MENU.
Setting up the language features
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE ENGLISH
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
RETURN ENTER
PLAYER MENU LANGUAGE
1 ENGLISH
2 FRANCAIS
3 DEUTSCH
4 ESPAÑOL
5 ITALIANO
6 NEDERLANDS
RETURN ENTER
DISC MENU LANGUAGE
1 ENGLISH
2 FRANCAIS
3 DEUTSCH
4 ESPAÑOL
5 ITALIANO
6 NEDERLANDS
7 OTHERS
RETURN ENTER
1
2
3
4
5
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Mode
Volume
–
2,3,4,5
1
2
3
4
5
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Tuning
Mode
Volume
–
2,3,4,5
1
Recalling a Marked Scene
During playback, press the Book Mark button on the remote.
Use the LEFT/RIGHT ( / ) button to select a marked scene.
Press the Play/Pause button to skip to the marked scene.
Clearing a Bookmark
During playback, press the Book Mark button on the remote
Use the LEFT/RIGHT ( / ) button to select the bookmark number
you want to delete.
Press the Clear button to delete a bookmark number.
Press the Book Mark button to turn off display.
Up to three scenes may be marked at the same time.
When in VCD 2.0 mode (menu on mode), this function does not work.
Depending on the disc, the Bookmark function may not work.
Using the Bookmark Function
(Cont’d)
The Setup menu lets you customize your MAX-DN64 player by
allowing you to select various language preferences, set up a
parental level, even adjust the player to the type of television
screen you have (i.e. widescreen).
Press the Setup button on the remote in the play (only DVD) or stop
mode.
•
PLAYER MENU : Setup of the Display Language (See P23)
Use the Player preference menu to select the language for the player's
on-screen displays.
•
DISC MENU : Setup of the Menu Language (See P23)
Use the Menu preference menu to select the language you want a DVD's
disc menu to be displayed in.
•
AUDIO : Setup of the Audio Language (See P24)
Use the Audio preference menu to select the soundtrack language.
•
SUBTITLE : Setup of the Subtitle Language (See P24)
Use the Subtitle preference menu to select the language the disc’s subtitles are to be displayed in.
•
PARENTAL : Setup of the Parental Level (See P25)
Allows users to set the level necessary to prevent children from viewing
unsuitable movies such as those with violence, adult subject matter, etc.
•
AUDIO OPTIONS : Setup of the Audio Options (See P26)
Use to set up the audio options such as digital out setup.
•
DISPLAY OPTIONS : Setup of the Display Options (See P28)
Use to select which type of screen you want to watch and several display
options.
Use the UP/DOWN ( / ) button on the remote to access the different features.
Press the Enter button to access the sub features.
To make the setup screen disappear after setting up, press Setup
button again.
Depending on the disc, some SETUP menu selections may not
work.
Using the setup Menu
1
2
3
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
DVD/CD
+
Volume
Tuning
Mode
Volume
–
DECK
Deck 1/2 Band
1
3
2
1
2
3
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
–
1,3
2
DVD/C
Open/Close
Digital
3D Sound
Power Sound
S.Bass
Disc Skip Clear Repeat
Program
EQ
Mute
10/0
123
456
789
3
1
2
3
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
–
2,3
1
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE ENGLISH
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
RETURN ENTER
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE ENGLISH
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
RETURN ENTER
1
Enter
Enter
EnterEnter
Enter
Enter
Page 14
2524
The Parental Level function works in conjunction with DVDs
that have been assigned a rating - which helps you control the
types of DVDs that your family watches. There are up to 8 rating levels on a disc.
SETTING THE PASSWORD
Press the Setup button on the remote in the play or stop mode.
Press the UP/DOWN ( / ) button to select PARENTAL.
Press the Enter button and enter your 4-digit password by pressing
the 0-9 button.
'7777' is the original password that has been encrypted in the player.
Move to CHANGE PASSWORD by using the UP/DOWN ( / )
button and press the Enter button.
Enter the new password.
After entering the new password, reenter it one more time to make sure
the password works.
The Parental Level function is compatible only with parental level encoded discs.
Setting up the parental level
SETTING THE PARENTAL LEVEL
Example:
Setting up in LEVEL 6
Press the Setup button on the remote in the play or stop mode.
Press the UP/DOWN ( / ) button to select PARENTAL.
Press the Enter button and enter your 4-digit password by pressing
the 0-9 button.
Move to the RATING LEVEL by using the UP/DOWN ( / ) button
and press the Enter button.
Move to LEVEL 6 by using the UP/DOWN ( / ) button and press
the Enter button.
The disc which contains LEVEL 7 or LEVEL 8 will now not play.
Press Return button.
What if a DVD's rating exceeds the player's rating level?
The player alerts you when you try to play a DVD with a rating
that exceeds the level you've set.
The message, "Your selection exceeds the rating level for this
player." appears on screen.
Some discs are authorized with a rating override feature included
When you play a disc with this feature, the message, "Your selection exceeds the rating level for this player. Override the level?" is
displayed. Select "Override" or "Cancel." If you choose to override
the rating level, you will need to enter your 4-digit password to
begin playback.
Setting up the parental level
PARENTAL CONTROL
1 RATING LEVEL
2 CHANGE PASSWORD
RETURN ENTER
PARENTAL CONTROL
1 RATING LEVEL
2 CHANGE PASSWORD
RETURN ENTER
RATING LEVEL
UNLOCK
LOCK LEVEL 8ADULT
LEVEL 7
LEVEL 6
LEVEL 5
LEVEL 4
LEVEL 3
LEVEL 2
LEVEL 1 KIDS SAFE
RETURN ENTER
1
5
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Volume
–
2,3,4,5
1
1
2
3
4
5
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Vo ume
–
2,3,4,5
1
How to make the SETUP MENU disappear or
return to menu screen during set up.
Using the Audio Language
Example:
Setting up in ENGLISH.
Press the Setup button on the remote in the play or stop mode.
Press the UP/DOWN ( / ) button to select to Audio.
Press the Enter button.
Press the UP/DOWN ( / ) button to select ENGLISH.
Select "ORIGINAL" if you want the default soundtrack language to be
the original language the disc is recorded in.
Select "OTHERS" if the language you want is not listed.
Press the Enter button.
ENGLISH is selected and the screen returns to SETUP MENU.
Setting up the language features
(Cont’d)
Using the Subtitle Language
Example:
Setting up in ENGLISH.
Press the Setup button on the remote in the play or stop mode.
Use the UP/DOWN ( / ) button to select Sub Title.
Press the Enter button.
Use the UP/DOWN ( / ) button to select 'ENGLISH'.
Select "AUTOMATIC" if you want the subtitle language to be the same
as the language selected as the audio preference.
Select "OTHERS" if the language you want is not listed. Some discs
may not contain the language you select as your initial language; in that
case the disc will use its original language setting.
Press the Enter button.
ENGLISH is selected and the screen returns to SETUP MENU.
Setting up the language features
(Cont’d)
AUDIO LANGUAGE
1 ENGLISH
2 FRANCAIS
3 DEUTSCH
4 ESPAÑOL
5 ITALIANO
6 NEDERLANDS
7 ORIGINAL
8 OTHERS
RETURN ENTER
SUBTITLE LANGUAGE
1 AUTOMATIC
2 ENGLISH
3 FRANCAIS
4 DEUTSCH
5 ESPAÑOL
6 ITALIANO
7 NEDERLANDS
8 OTHERS
RETURN ENTER
1
3
4
5
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
+
Volume
Tuning
Mode
Volume
–
Deck 1/2 Band
2,3,4,5
1
5
How to make the SETUP MENU disappear or
return to menu screen during set up.
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Volume
–
2,3,4,5
1
Press Return button.
If the selected language is not recorded on the disc, the original
pre-recorded language is selected.
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE ENGLISH
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
RETURN ENTER
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE ENGLISH
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
RETURN ENTER
2
2
3
4
2
3
4
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE ENGLISH
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
RETURN ENTER
1
EnterEnter
Enter
EnterEnter
EnterEnter
Page 15
Press the Setup button on the remote in the play or stop mode.
Use the UP/DOWN ( / ) button to select DISPLAY OPTIONS.
Then press the Enter button.
Use the UP/DOWN ( / ) button to select the desired item. Then
press the Enter button.
TV ASPECT : Depending on the type of television you have, you may
want to adjust the screen setting (aspect ratio).
ANGLE MARK : Use to turn on or off the on-screen displays when DVDs
plays multiple angles of a particular scene.
STILL MODE : Prevent picture shaking in still mode and display small
text clearer.
SCREEN MESSAGES : Use to turn on-screen messages on or off.
BLACK LEVEL
QUASI – PAL (PAL Only)
Use the UP/DOWN ( / ) button to select the desired item.
Then press the Enter button
TV ASPECT
4:3 LETTER BOX :
Select when you want to see the total 16:9 ratio screen DVD supplies,
even though you have a TV with a 4:3 ratio screen. Black bars will
appear at the top and bottom of the screen.
4:3 PAN-SCAN :
Select this for conventional size TVs when you want to see the central
portion of the 16:9 screen.
(Extreme left and right sides of movie picture will be cut off.)
16:9 WIDE :
You can view the full 16:9 picture in your widescreen TV.
ANGLE MARK
ON : Displays ANGLE MARK in the upper right corner of screen.
OFF : Doesn’t display it.
STILL MODE
FIELD : Select this feature when the screen shakes in the AUTO
mode.
FRAME : Select this feature when you want to see small letters more
clearly in the AUTO mode.
AUTO : When selecting AUTO, FIELD/FRAME mode will be automati-
cally converted.
Setting up display options
SCREEN MESSAGES
Use this feature to turn the on-screen displays that appear in screen on
or off.
BLACK LEVEL
Adjust the brightness of screen.
QUASI – PAL (PAL Only)
Depending on a disc, you can play a NTSC DVD disc by QUASI-PAL
mode.
The simulated surround effect depends on the disc contents.
This function is enhance sound quality and produce a greater
surround effect.
(Discs which are recorded with LPCM or DTS will not work.
When DIGITAL OUTPUT is set on BITSTREAM in SETUP MENU,
3D Sound function will not work.)
During playback, press the 3D Sound button.
Setting up display options
Using the 3D Sound Function
4
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
–
1
2,3,4
DISPLAY OPTIONS
1 TV ASPECT WIDE
2 ANGLE MARK ON
3 STILL MODE AUTO
4 SCREEN MESSAGES ON
5 BLACK LEVEL OFF
6 QUASI – PAL ON
RETURN ENTER
2
3
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE ENGLISH
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
RETURN ENTER
1
1
26
Press the Setup button on the remote in the play or stop mode.
Use the UP/DOWN ( / ) button to select AUDIO OPTIONS. Then
press the Enter button.
Use the UP/DOWN ( / ) button to select the desired item. Then
press the Enter button.
DOLBY DIGITAL OUT/MPEG-2 DIGITAL OUT (PAL Only)
A digital surround sound format that is recorded by Dolby Digital/MPEG-2
Audio. Select the suitable output signal type of DIGITALAUDIO OUTPUT/MPET-2 DIGITAL OUT (Bitstream/PCM) during playback.
DTS
This program features discrete 5.1 channel sound-track and must be
played though DTS-capable equipment. When played through DTS
equipment, sound will be heard from all five system speakers and a subwoofer.
DYNAMIC COMPRESSION
Compresses the dynamic range (quietest to loudest sound) of a disc's
soundtrack. This function is disc-dependent, and may not work with all
DVDs.
2 x SCAN AUDIO
Turns audio off or on when a disc is in 2 x playback mode.
Use the UP/DOWN ( / ) button to select the desired item. Then
press the Enter button.
DOLBY DIGITAL OUTPUT
PCM
Converts to PCM(2CH) of 48kHz/16Bit. Select PCM when using the
Analog Audio Outputs.
BITSTREAM
Convert to Dolby Digital BITSTREAM (5.1CH). Select BITSTEREAM
when using the Digital Audio Output.
MPEG-2 DIGITAL OUT (PAL Only)
PCM
Converts to PCM (2CH) of 48KHz/16Bit. Select PCM when using the
Analog Audio Outputs.
BITSTREAM
Convert to MPEG-2 Audio BITSTREAM. Select BITSTEREAM when
using the Digital Audio Output.
Be sure to select the correct Digital Output or no audio will be
heard.
DTS
ON
Outputs DTS BITSTREAM via only digital output. Select DTS when
connecting to a DTS DECODER.
OFF
Doesn't output digital signal.
DYNAMIC COMPRESSION
ON
To select dynamic compression.
OFF
To select the standard range.
2X SCAN AUDIO
ON
Turn 2 x audio on.
OFF
Turn 2 x audio off.
Though 2 x SCAN AUDIO is ON in SETUP MENU, no sound will be heard
on discs which are recorded with LPCM or DTS.
Setting up audio options
AUDIO OPTIONS
1 DOLBY DIGITAL OUT BITSTREAM
2 MPEG-2 DIGITAL OUT BITSTREAM
3 DTS OFF
4 DYNAMIC COMPRESSION ON
5 2X SCAN AUDIO OFF
RETURN ENTER
4
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Tuning
Mode
Volume
–
2,3,4
1
2
3
SETUP MENU
1 PLAYER MENU ENGLISH
2 DISC MENU ENGLISH
3 AUDIO ENGLISH
4 SUBTITLE ENGLISH
5 PARENTAL UNLOCKED
6 AUDIO OPTIONS
7 DISPLAY OPTIONS
RETURN ENTER
1
3-D SOUND : ON
GB
27
PAL Only
PAL Only
Volume
EQ S.Bass
3-D Sound Power Sound
Communication
EnterEnter
EnterEnter
Page 16
GB
29
You can improve the quality of radio reception by:
Rotating the FM or AM(MW) aerial
Testing the positions of the FM and AM(MW) aerials before fixing them
permanently
If reception from a specific FM radio station is poor, press Mono/ST.
to switch from stereo mode to mono. The quality of the sound will be
improved.
Improving Radio Reception
Sleep Repeat
A B
Angle
Audio
Display
Book Mark
Zoom
Step
Timer On/Off
DVD/CD
On/Standby
+
Volume
Tuning
Mode
Volume
–
DECK
Open/Close
Digital
3D Sound
Power Sound
S.Bass
Disc Skip
Deck 1/2 Band
Clear Repeat
Program
EQ
Mute
10/0
123
456
789
+
Volume
Tuning
Mode
Volume
You can listen to a stored radio station as follows:
Switch the system on by pressing On/Standby.
Select the TUNER function by pressing Band on remote control.
Select the required frequency band by pressing Band on the remote
control or TUNER (Band) again on the front panel.
Press the Tuning Mode button on the front panel of the unit, or the
Tuning Mode button on the remote control until “PRESET” is dis-
played.
Tuning the Multi-Jog on the front panel left or right until the desired
station is found.
or
Select the desired station by pressing the station number stored,
using the Tuning or button on the remote control.
Result:
The desired station is now received.
Selecting a Stored Station
1
2
3
4
5
1
2,3
5
4
5
28
You can store up to:
15 FM stations
8 MW stations
7 LW stations
Switch the system on by pressing On/Standby.
Select the TUNER function by pressing TUNER on the front panel.
Select the required frequency band by pressing TUNER (Band)
again on the front panel or Tuner (Band) on the remote control.
Result: The appropriate indication is displayed:
FM Frequency Modulation
AM(MW) Medium Wave
LW Long Wave
To search for a Press Tuning Mode
station...
Manually One or more times until MANUAL is displayed.
Automatically One or more times until AUTO is displayed.
Select the station to be stored by:
Turning the Multi Jog knob to the right or to the left to increase or
decrease the frequency respectively
or
Pressing Tuning or on the remote control
To scroll through the frequencies faster when searching manually, hold down the Tuning Mode Down or Up buttons.
The automatic search procedure may stop on a frequency that
does not correspond to a radio station. If this happens, use the
manual search mode.
Adjust the volume by:
Turning the Volume knob on the front panel
or
Pressing the VOL. + or – buttons on the remote control
Select the stereo or mono mode by pressing Mono/ST.
If you do not want to store the radio station found, revert to Step 4
and search for another station.
Otherwise:
a Press Memory.
Result:
The PRGM is displayed for a few seconds.
b Press Tuning Mode Down and Up to assign a program number
between 1 and 15.
c Press Memory to store the radio station.
Result:
PRGM is no longer displayed and the station is stored.
To store any other radio frequencies required, repeat Steps 3 to 8.
The PROGRAM function can be used to assign a new station to
an existing program number.
Searching for and Storing the Radio Stations
Searching for and Storing the Radio
Stations
1
2
3
4
5
6
7
8
9
Sleep Repeat
A B
Angle
Audio
Display
Book Mark
Zoom
Step
Timer On/Off
DVD/CD
On/Standby
+
Volume
Tuning
Mode
Volume
–
DECK
Open/Close
Digital
3D Sound
Power Sound
S.Bass
Disc Skip
Deck 1/2 Band
Clear Repeat
Program
EQ
Mute
10/0
123
456
789
+
Volume
Tuning
Mode
Volume
5
4
5
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Volume
EQ S.Bass
3-D Sound Power Sound
Enter
Phones
Communication
1
2,3
8
4
7
5,8
5,8
5
6
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2 Dubbing
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi J
Enter
TUNER
Page 17

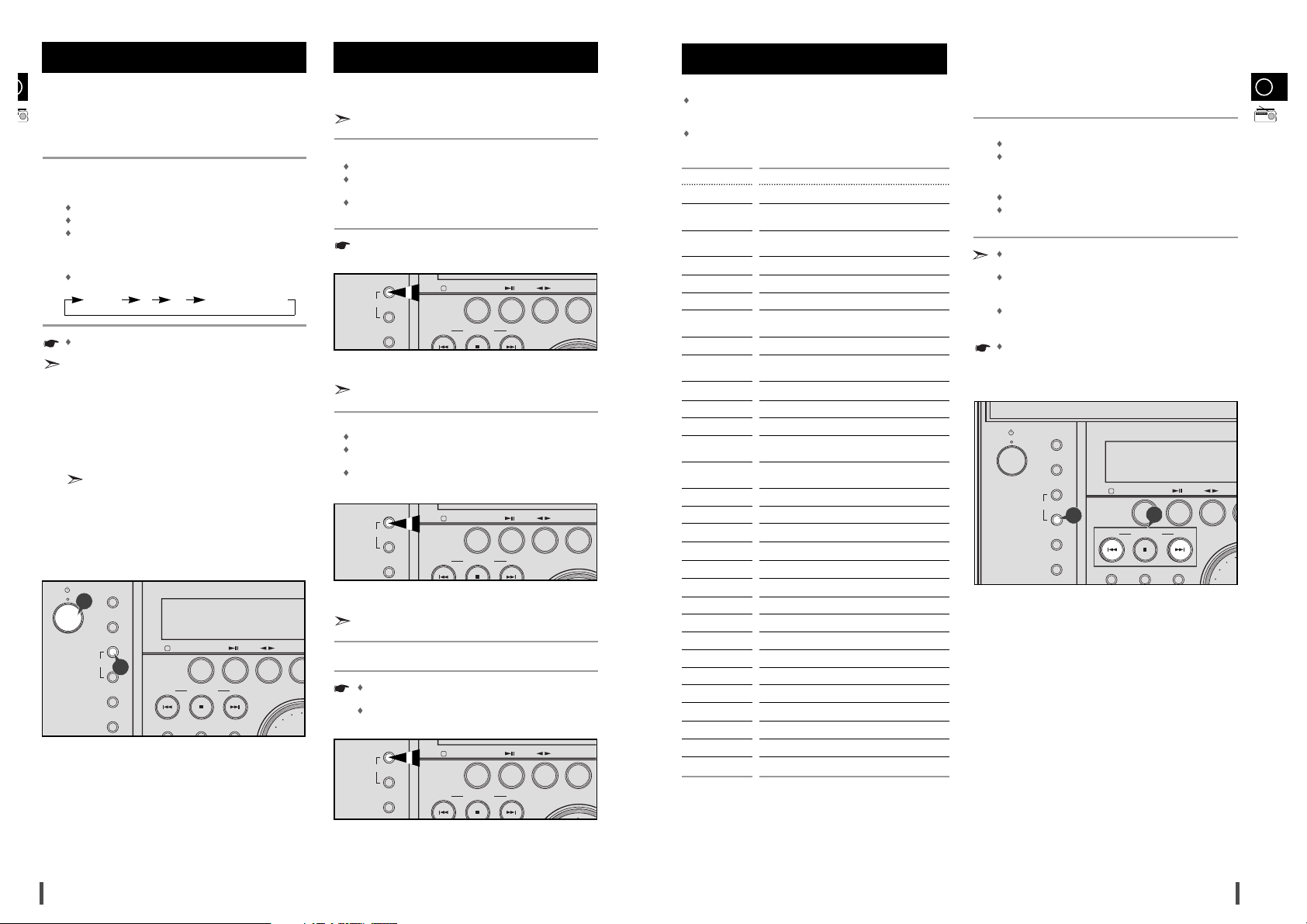

GB
31
The PTY information is composed of an identification symbol,
which helps the FM radio to recognize the program type of each FM
station.
The 30 PTY modes are shown in the display by pressing the PTY
button.
About PTY-SEARCH
Tuned to an FM station broadcasting a PTY MODE.
See the FM receiving method on the page 28.
If the received station is transmitting the RDS information, "RDS"
lights up.
Press the PTY button.
The PTY MODE(NEWS, AFFAIRS, etc) appears on the display.
Press the Tuning Mode Down or Up button to select the desired
PTY MODE.
If the station is transmitting no PTY information, 'NO PTY' shows
on the display.
When the PTY MODE is selected(The PTY MODE is shown in the
display), press the PTY KEY once again to convert into
PTY-SEARCH MODE and auto-search the station sequentially.
If a station is found broadcasting required PTY MODE then the
search station and the stop is selected.
If the PTY MODE isn’t found it is retuned to the original station frequency at beginning the PTY SEARCH and auto-search and PTY
SEARCH are suspended.
PTY (Program Type) indication and
PTY-SEARCH function
Display
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
M.O.R.M
LIGHT M
CLASSIC
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL A
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATIONAL M
OLDIES
FOLK M
DOCUMENT
TEST
Program Type
• News including an announced opinion and report
• Several matters including a current incident, documentary,
discussion and analysis.
• Information including weights and measures, returns and fore-
cast, matters interesting the customer, medical information, etc.
• Sports
• Education
• Drama-Radio serial, etc.
• Culture-National or local culture including the religious problem,
social science, language, theater,etc.
• Natural science and technology
• Others-Speech, amusing program (quiz, game), interview,
comedy and satirical play, etc.
• Pop music
• Rock music
• M.O.R- Comfortable music, occasionally vocal or piece
• Light classical music- Classical music and instrumental
and chorus music
• Heavy classical music-Orchestra music, symphony, chamber
music and opera
• Other music - Jazz, R&B country music
• Weather
• Finance
• Children’s programmes
• Social affairs
• Religion
• Phone in
• Travel
• Leisure
• Jazz Music
• Country Music
• National Music
• Oldies Music
• Folk Music
• Documentary
• Alarm Test
2
1
30
This unit has the RDS (Radio Data System) function, which
enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Rock,
Classic, etc.) to be received from the FM RDS station together
with normal radio signal.
Press the On/Standby button.
Receive the FM radio.
See the radio receiving method on the page 28.
FM and frequency are shown on the display
If the received station transfers the RDS information, 'RDS'
appears automatically on the display.
Press the RDS Display button to select the desired RDS mode.
Whenever the button is pressed, RDS mode changes as follows.
PS NAME RT CT Current FM frequency
The RDS function is available only in FM broadcasting.
Description on RDS function
1. PTY (Program Type) : Displays the type of programme cur-
rently being broadcast
2. PS NAME (Program Service Name) : Indicates the name of
broadcasting station and is composed of 8 characters.
3. RT (Radio Text) : Decodes the text broadcast by a station (if
any) and is composed of maximum 64 characters.
4. CT (Clock Time) :
Decodes the real time clock from the FM frequency.
Some stations may not transmit PTY, RT or CT information
therefore this may not be displayed in all cases.
5. TA (Traffic Announcement) : When this symbol flashes it
shows that the traffic announcement is in progress.
6. EON (Enhanced Other Networks Information) : Offers the RDS
information on other networks.
About "PS NAME" MODE
Displays the name of broadcasting station.
Press the RDS Display button to select the PS NAME.
"PS NAME" appears on the display.
If the PS information is being received, the PS name (BBC, AFO,
NDR, etc.) is shown on the display.
If the PS information isn't received, the original FM frequency is
shown.
Even though no RDS Display button is pressed, the reception
of PS information ensues the PS name is displayed.
About 'RT' MODE
Displays the character transmitted from the broadcasting station.
Press the RDS Display button to select the RT MODE.
"RT" appears on the display.
If the RT information is being received, the received information is
shown on the display.
If the RT information isn't received, the "NO RT" is shown.
On the display.
About CT(Clock Time)
Sets the time of RDS clock.
To select the CT time, set the RDS Display button to CT MODE.
The CT information will take up to 2 minutes to be decoded therefore the clock isn’t displayed immediately.
If there is no received CT information, "NO CT" is displayed.
About RDS DISPLAY function About RDS broadcasting
3
1
2
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi
1
3
RDS
PTY
Display
Mono/ST.
Down Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Multi Jog
2
2
Display
RDS
PTY
Mono/ST.
Band
R
TUNER DVD/CD TAPE AUX
Down Tuning Mode Up
Display
RDS
PTY
Mono/ST.
Band
R
TUNER DVD/CD TAPE AUX
Down Tuning Mode Up
Multi Jog
Multi Jog
RDS
Demo
Timer/
Clock
Display
PTY
Mono/ST.
Display
Band
R
TUNER DVD/CD TAPE
Down Tuning Mode Up
Counter
Memory REV.Mode
Reset
On/Standby
Page 18

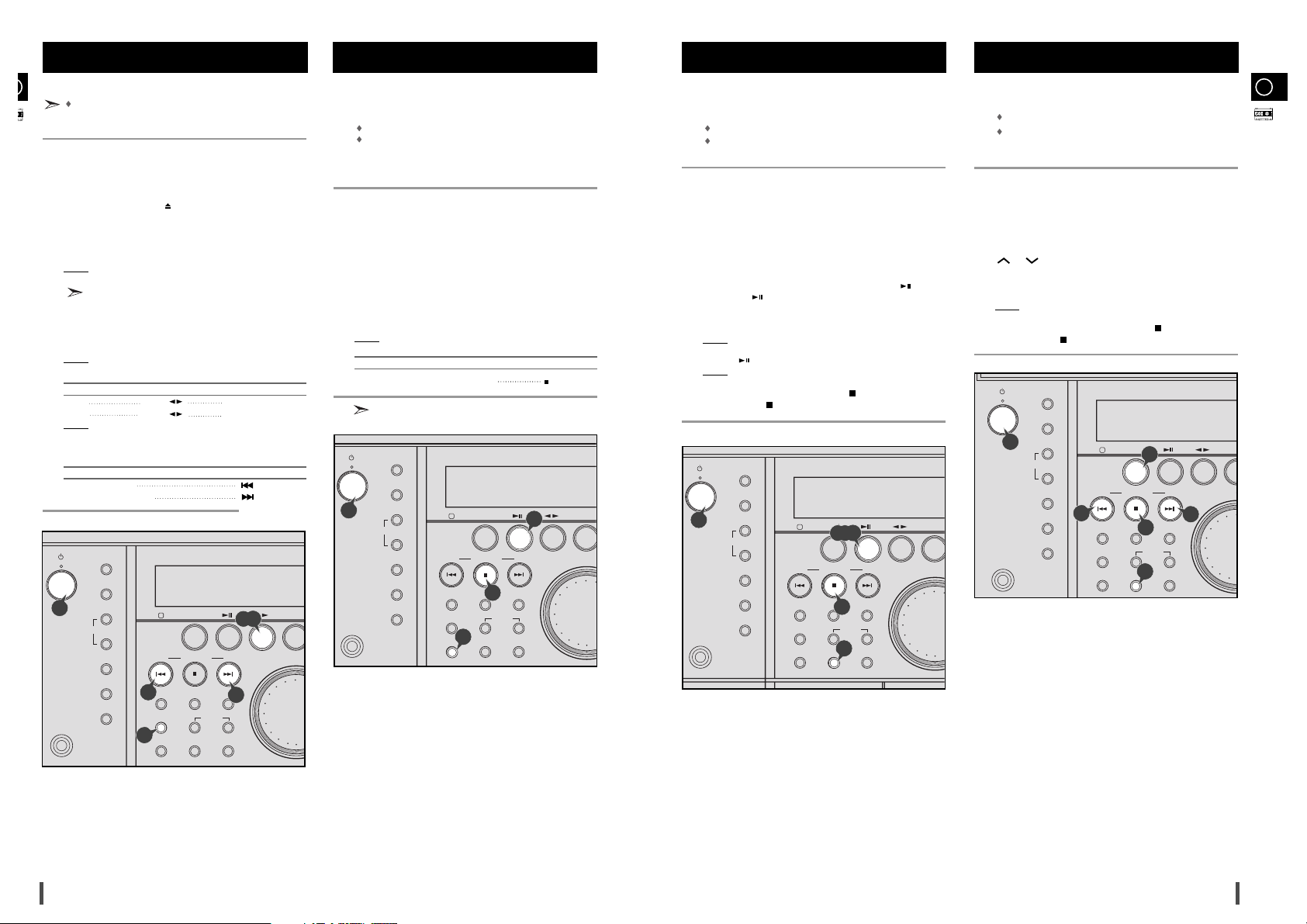

GB
33
The direct recording mode enables you to start recording with
any track on the compact disc.
You can only record on cassettes in Deck 2.
You do not need to adjust the volume, as it has no effect on
the recording.
Switch your system on by pressing On/Standby.
Insert a blank cassette in Deck 2.
Select the DVD/CD function by pressing DVD/CD on the front panel.
Load the compact disc.
Select the required disc.
Select the required track on the compact disc and press on the
front panel or on the remote control to set the compact disc player to Pause mode.
Press the REC/Pause.
Result:
REC flashes.
Press the to start playing the track.
Result:
The track is recorded on the cassette.
When you have finished recording, press for Deck 2 on the
remote control or on the front panel to stop recording.
Recording a Compact Disc
You can record a radio program of your choice.
You can only record on cassettes in Deck 2.
You do not need to adjust the volume, as it has no effect on
the recording.
Switch the system on by pressing On/Standby.
Insert a blank cassette in Deck 2.
Select the TUNER function by pressing TUNER on the front panel.
Select the radio station that you wish to record by pressing Tuning
or on the remote control or by press the Tuning Mode
Down or Up on the front panel.
Press REC/Pause.
Result:
REC is displayed in red and recording starts.
When you have finished recording, press the for Deck 2 on the
remote control or on the front panel to stop recording.
Recording a Radio Program
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
32
You can record a compact disc on a cassette in two different
ways:
Synchronised recording
Direct recording
This feature enables you to synchronize the start of the
recording with the start of the disc or track of your choice.
Switch the system on by pressing On/Standby.
Insert a blank cassette in Deck 2.
Select the DVD/CD function by pressing DVD/CD on the front panel.
Load a compact disc.
Select the required disc.
Select the required track and press CD Synchro or press CD
Synchro directly to start recording at the beginning of the disc.
Result:
REC is displayed and recording starts.
To stop... Press ...
Recording and playing the compact disc
The function of CD Synchro is operated in only CD.
Always treat your cassettes with care; refer, if necessary, to
the section entitled “Precautions When Using Audio Cassettes”
on page 39.
Switch the system on by pressing the On/Standby button.
Select the TAPE function by pressing TAPE on the front panel.
Open either cassette deck 1 or 2 by pushing and releasing the deck
cover where PUSH EJECT ( ) is written.
Insert the pre-recorded cassette with the open edge of the tape facing downward.
Close the deck by pushing on it until it clicks into place.
Result: Depending on the deck selected, the 1 or 2 indication is
displayed in front of the counter number.
If you insert a cassette in both decks, the system selects the
deck in which you inserted the second cassette.
If you have inserted two cassettes, press Deck 1/2 on the front panel
or directly the Deck 1/2 button on the remote control to select the
cassette to be played.
Result: Depending on the deck selected, the TAPE 1 or TAPE 2 indi-
cation is displayed.
To listen to... Press ...
Side A TAPE ( ) DECK 1 and DECK 2
Side B TAPE ( ) DECK 2 only
Result: The cassette starts playing.
When the cassette is stopped, select one of the following functions
as required.
To... Press ...
Rewind the cassette
Fast-forward the cassette
CD Synchro Record FeatureListening to a Cassette
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jo
Enter
Phones
1
2,7
6
8
8
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Enter
Phones
1
3
6
7
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Enter
Phones
1
3,6,8
9
7
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AU
Memory REV.Mode
Mult
Enter
Phones
4
4
1
3
5
6
DVD/CD
DVD/CD
TUNER
TAPE
Page 19

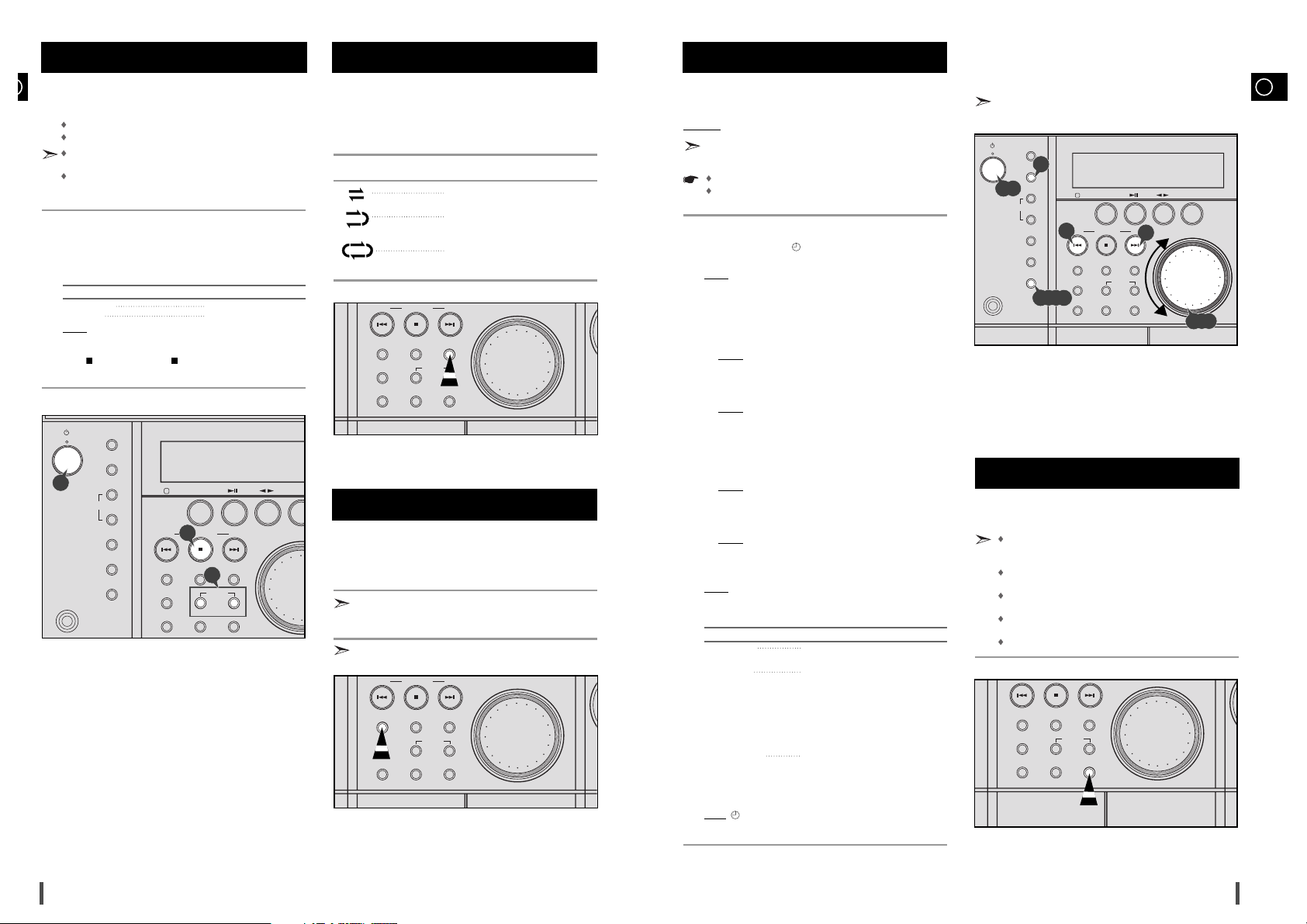

GB
35
The timer enables you to switch the system on or off at specific times.
Example:
You wish to wake up to music every morning.
If you no longer want the system to be switched on or off automatically, you must cancel the timer.
Before setting the timer, check that the current time is correct.
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
Switch the system on by pressing On/Standby.
Press Timer/Clock until TIMER is displayed.
Press Enter.
Result:
ON TIME is displayed (instead of the equalizer symbols) for
a few seconds, followed by any switch-on time already set;
you can set the timer switch-on time.
Set the timer switch-on time.
a Set the hour by tuning the Multi Jog knob to the right or to the left.
b Press Enter.
Result:
The minutes flash.
c Set the minutes by tuning the Multi Jog knob to the right or to
the left.
d Press Enter.
Result: OFF TIME is displayed (instead of the equalizer symbols)
for a few seconds, followed by any switch-off time already
set; you can now set the timer switch-off time.
Set the timer switch-off time.
a Set the hour by tuning the Multi Jog knob to the right or to the left.
b Press Enter.
Result:
The minutes flash.
c Set the minutes by tuning the Multi Jog knob to the right or to
the left.
d Press Enter.
Result:
VOL XX is displayed, where XX corresponds to the volume already set.
Press Tuning Down and Up to adjust the volume level and press
Enter.
Result:
The source to be selected is displayed.
Turn the Multi Jog knob to select the source to be played when the
system switches on.
If you select... You must also...
TAPE (cassette) Insert a recorded cassette in one of the
decks before setting the system to standby.
TUNER (radio) a Press
Enter.
b Select the FM or AM frequency band by
tuning the
Multi Jog knob to the right or
to the left.
c Press
Enter.
d Select a preset station by tuning the
Multi Jog knob to the right or to the left.
CD (compact disc) a Load one or more compact discs.
b Select the required disc.
Press Enter to confirm the timer.
Press On/Standby to set the system to standby mode.
Result
: is displayed to the bottom left of the time, indicating that
the timer has been set. The system will switch on and off
automatically at the required times.
If the timer switch on and off times are identical, the word ERROR is
displayed.
Press Record Lock (recording protection) button.
When Record Lock (recording protection) lamp is lighted up
all of the buttons are not activated. (Volume, Demo key is
activated.)
It is a function that the recording stop is prevented by other
button action during recording.
Record Lock (recording protection) is activated only during
recording.
When the Record Lock is on (the lamp is on), do not open
the cassette door.
When releasing, press Record Lock button once again.
Timer Function
For the Protection of being Recorded
7
8
9
5
6
1
2
3
4
You can copy a cassette from Deck 1 to Deck 2. Two options
are available:
Normal speed dubbing
High-speed dubbing
You do not need to adjust the volume, as it has no effect on the
recording.
Take care not to insert the tape to be copied in Deck 2, as it will
be erased when you start recording.
Switch your system on by pressing On/Standby.
Insert a blank cassette in Deck 2.
Insert the tape to be copied in Deck 1.
To copy a cassette at... Press...
Normal speed Normal
High speed Hi-Speed
Result:
The appropriate indications are displayed and the cassette in
Deck 1 is copied to the cassette in Deck 2.
Press on the front panel or for each deck on the remote control when you have finished recording.
Your mini-compact system has three cassette playback modes
which enable you to listen to both sides of a cassette automatically.
Press REV. Mode until the appropriate symbol is displayed.
When the display indicates... The mini-compact system plays back...
One side of the selected cassette and
then stops.
One side of the cassette.
The other side of the cassette and then
stops.
Both sides of the cassette indefinitely until
you press stop.
When playing a cassette in one of the cassette decks, a
counter is displayed to enable you to take note of the counter
value at the start of each track to start playback at the beginning of the track to which you wish to listen.
Before starting to record a cassette for which you wish to take note of
the counter values at the beginning of each track, reset the counter
by pressing Counter Reset on the front panel.
Each cassette deck has a separate counter.
34
Copying a Cassette (Dubbing)
Selecting the Cassette Playback Mode (Deck 2 Only)
Tape Counter
1
2
3
4
5
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi
Enter
Phones
1
5
4
T.
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Memory REV.Mode
Multi Jog
1,9
2
6
6
3,4,5,6,7,8
4,5,7
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Memory REV.Mode
Multi Jog
T.
Tuning Mode Up
Down
Counter
Memory REV.Mode
Reset
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Multi Jog
Demo
On/Standby
Timer/
Clock
Phones
Display
RDS
PTY
Mono/ST.
Display
Enter
Band
R
TUNER DVD/CD TAPE AUX
Tuning Mode Up
Down
Counter
Reset
Deck 1/2
CD Synchro REC/Pause Record Lock
Memory REV.Mode
Dubbing
Normal High
Multi Jog
Page 20

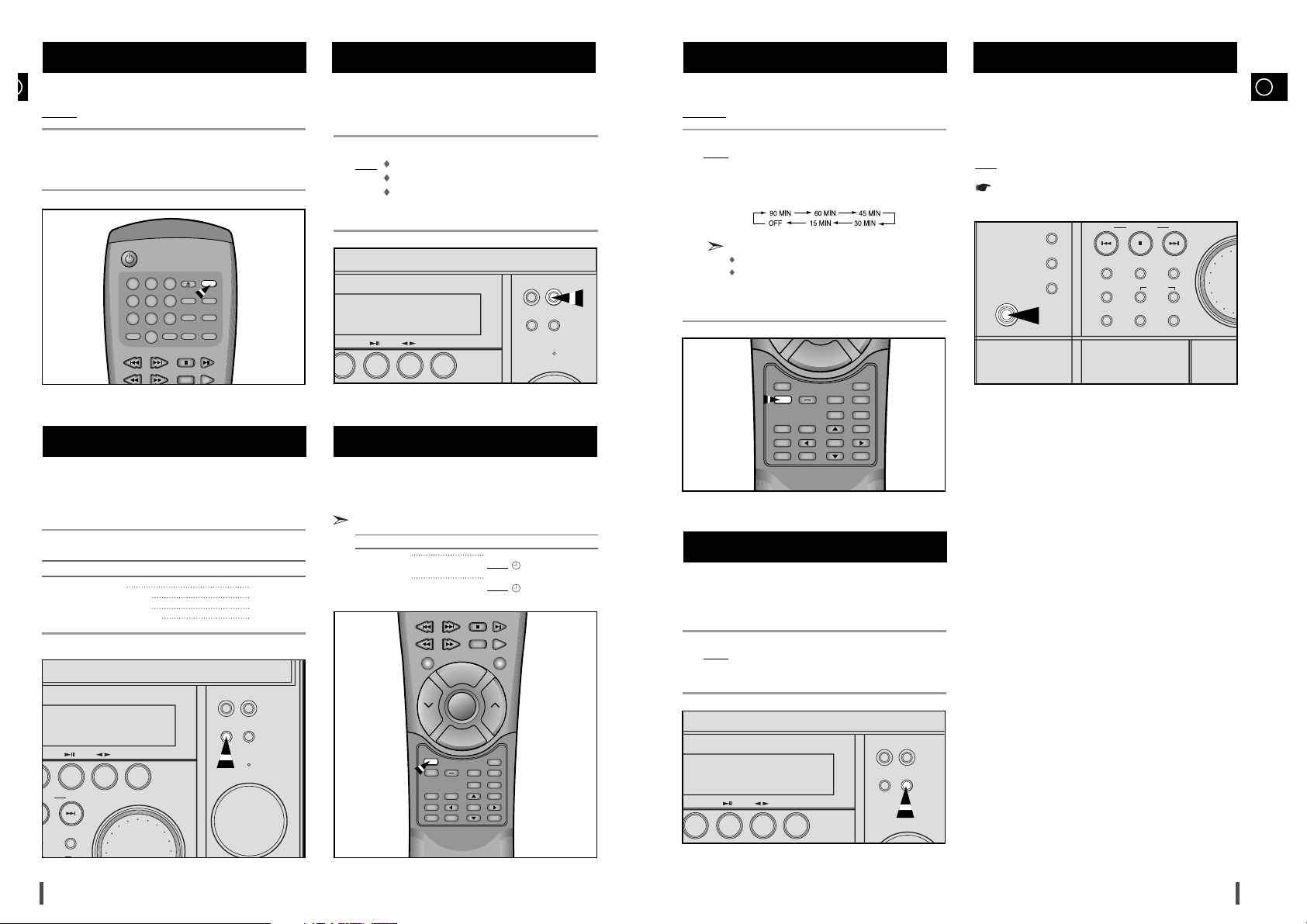

GB
37
You can set the system to switch off automatically.
Example:
You wish to go to sleep to music.
Press Sleep.
Result: The following indications are displayed:
Press Sleep one or more times to indicate how long the system
should continue playing before it switches off:
At any time, you can:
Check the remaining time by pressing Sleep
Change the remaining time by repeating Steps 1 and 2
To cancel the automatic switch-off, press Sleep one or more times
the word SLEEP disappears.
Your mini-compact system has a bass amplification function
called S.Bass (Super Bass Sound). This function makes the
bass more powerful.
Press the S. Bass button on the front panel.
Result:
SBS ON is displayed for a few seconds.
To cancel this function, press S. Bass again.
You can connect a set of headphones to your mini-compact
system so that you can listen to music or radio programmers
without disturbing other people in the room. The earphones
must have a 6.3 mm jack or an appropriate adapter.
Connect the headphones to the Phones jack on the front panel.
Result
: The loudspeakers are no longer used to output the sound.
Prolonged use of headphones at a high volume may damage
your hearing.
1
2
Setting the System to Switch off Automatically
Super Bass Sound
Connecting Headphones
Sleep Repeat
A B
Title
Angle
Audio
Display
Set up
Return
AUX
Book Mark
Menu
Sub Title
Zoom
Step
Enter
Timer On/Off
Volume
–
1
2
3
90 MIN
36
You can turn the sound off temporarily on your system.
Example: You wish to answer a telephone call.
Press Mute.
To switch the sound back on (at the same volume as before), press
Mute again or the Volume buttons.
Your mini-compact system is equipped with a preset equalizer
that allows you to choose the most appropriate balance
between treble and bass frequencies, according to the type of
music you are listening to.
Press EQ on the front panel or EQ on the remote control until the required
option is selected.
To obtain a... Select...
Normal balance (linear) PASS
Balance suitable for pop music POP
Balance suitable for rock music ROCK
Balance suitable for classic music CLASSIC
This system is equipped with the Power Sound feature, which
makes the sound more powerful and full-bodied.
Press Power Sound button on the front panel.
Result
: The Power Sound button on the front panel lights up red.
P. SOUND is displayed for a few seconds.
A more powerful resonant sound is diffused.
To cancel this function, press Power Sound again.
After having set the timer, it will start automatically as shown
by the TIMER indication on the display. If you no longer wish
to use the timer, you must cancel it.
You can stop the timer at any time (system on or in standby mode).
To... Press Timer-On/Off...
Cancel the timer Once.
Result: is no longer displayed.
Restart the timer Twice.
Result
: is displayed again.
Mute Function
Selecting an Equalizer Preset
Cancelling the Timer
2
1
Power Sound Function
DVD/CD
On/Standby
DECK
Open/Close
Digital
3D Sound
Power Sound
S.Bass
Disc Skip Clear Repeat
Program
EQ
Mute
10/0
123
456
789
1
2
Multi Jog
Volume
EQ S.Bass
3-D Sound Power Sound
Communication
3-D Sound Power Sound
EQ S.Bass
Band
TUNER DVD/CD TAPE AUX
Communication
Volume
Mono/ST.
Display
Enter
Phones
Down
Tuning Mode Up
Counter
Memory REV.Mode
Reset
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
M
Deck 1/2 Band
Timer On/Off
+
Volume
Tuning
Mode
Volume
–
Angle
Sleep Repeat
A B
Book Mark
Step
Display
Title
Set up
Enter
Return
AUX
Sub Title
DVD/CD
DECK
Zoom
Audio
Menu
Band
TUNER DVD/CD TAPE AUX
3-D Sound Power Sound
EQ S.Bass
Communication
Volume
Page 21

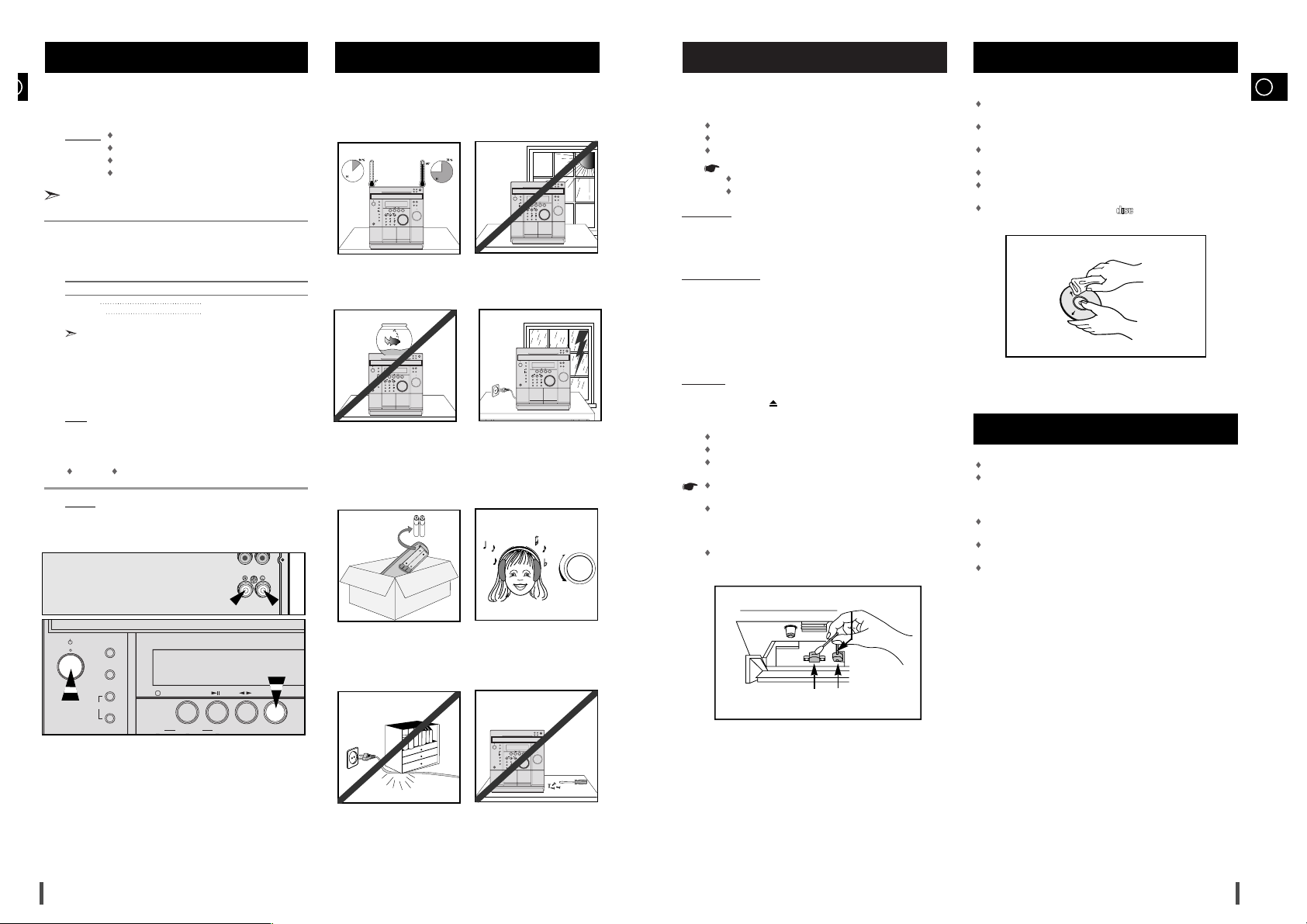

GB
39
To obtain the best possible results from your mini-compact
system, you must clean the following elements regularly:
The outer casing
The compact disc player
The cassette players (heads, rollers and drive capstans)
Always unplug the system from the wall outlet:
Before cleaning it
If you are not going to be using it for a long time
Outer Casing
Clean the outer casing regularly using a soft cloth and a light detergent. Do
not use abrasive powders, liquids or aerosol cleaners. Never let any liquids
get into the system.
Compact Disc Player
Before playing a compact disc, clean it with a special CD cleaning
agent. Do not use the same cleaning agents as for vinyl LP records.
Carefully wipe the disc from the centre outward.
Regularly clean the player with a special cleaning disc (available from
your local dealer).
T
ape Decks
Press Push Eject ( ) to open the cassette deck.
Use a cotton bud and a special cassette cleaning agent to clean the:
Head (1)
Rollers (2)
Drive capstans (3)
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Although your system is very hard-wearing, it should not be
used in an excessively dusty environment or subjected to
shocks or extreme heat (close to heating appliances or in
direct sunlight, etc.).
If the unit emits an unpleasant odor when in use, unplug it
from the main supply and contact the after-sales service.
Handle your compact discs with care. Always hold them by the
edges to avoid leaving fingerprints on the shiny surface.
When you have finished playing a compact disc, always put it back
in its case.
Do not fix paper or adhesive tape to the discs and do not write on
the label.
Clean them with a special-purpose cloth.
Store your compact discs in a clean place, out of direct sunlight,
where they will not be exposed to high temperatures.
Always use compact discs marked .
Check that the tape in the cassette is sufficiently taught.
To prevent erasing a cassette that you wish to keep, remove the
safety tab on the upper edge of the cassette. To record a cassette,
where the tab has been broken, simply cover the opening with
adhesive tape.
When you have finished playing a cassette, always put it back in its
case.
Store your cassettes in a clean place, out of direct sunlight, where
they will not be exposed to high temperatures.
Avoid using 120-minute cassettes as they place unnecessary strain
on the tape mechanism.
Cleaning Your Mini-Compact System
Precautions When Using Compact Discs
Precautions When Using Audio Cassettes
1
1
2
2
3
21
38
The auxiliary input can be used to take advantage of the
sound quality of your mini-compact system when listening to
other sources.
Examples
: A television
A video disc player
A DAT cassette player
A Hi-Fi stereo video cassette recorder
To connect the external source, the source must have an audio
output. In addition, you need an RCA connection cable.
Set the system to standby mode and disconnect it and the external
source from the main.
Connect the audio cable to the rear of the mini-compact system.
Connect the... To the connector marked...
Red jack R (right)
White jack L (left)
For optimum sound quality, do not invert the right and left
channels.
Plug the system back into the main socket and press On/Standby to
switch it on.
Select the AUX source by pressing AUX on the front panel one or
more times.
Result: AUX is displayed.
Switch the external source on.
Adjust the volume and balance as required:
Volume Equalizer
Example: You can watch a film and take advantage of stereo sound
provided that the original sound track is in stereo(as if you
were in a cinema).
The following diagrams illustrate the precautions to be taken
when using or moving your mini-compact system.
Connecting to an External Source Safety Precautions
1
2
3
4
5
6
Ambient operating conditions:
Ambient temperature 5°C-35°C
Humidity 10-75%
Do not expose the unit to direct sun
radiation or other heat sources.
This could lead to overheating and
malfunction of the unit.
Disc1 Disc2
Disc3Disc Change
Open/Close
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Volume
EQ S.Bass
3-D SoundPower Sound
Enter
Phones
Communication
Disc1 Disc2
Disc3Disc Change
Open/Close
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Volume
EQ S.Bass
3-D SoundPower Sound
Enter
Phones
Communication
Do not place potted plants or vases
on top of the unit. Moisture entering
the unit could lead to dangerous
electric shock and can cause
equipment damage. In such events
immediately disconnect the main
plug from the socket.
During thunderstorms, disconnect
the main plug from the socket.
Main voltage peaks due to lightning could damage the unit.
Disc1 Disc2
Disc3Disc Change
Open/Close
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Volume
EQ S.Bass
3-D SoundPower Sound
Enter
Phones
Communication
Remove the batteries from the
remote control, if not used for any
extended period.
Leaking batteries can cause serious
damage to the remote control.
When using headphones, take care
not to listen at excessive volumes.
Extended use of headphones at
high volumes will lead to hearing
damage.
Do not place heavy items on the
main lead. Main cable damage can
lead to damage of the equipment (fire
hazard) and can cause electric
shock.
Do not remove any equipment panels.
The inside of the unit
contains live components, which
cause electric shock.
Disc1 Disc2
Disc3Disc Change
Open/Close
On/Standby
Demo
Timer/
Clock
RDS
PTY
Display
Mono/ST.
Display
Counter
Reset
Down
Deck 1/2
CD Synchro REC/Pause Record Lock
Dubbing
Normal High
Tuning Mode Up
Band
R
TUNER DVD/CD TAPE AUX
Memory REV.Mode
Multi Jog
Volume
EQ S.Bass
3-D SoundPower Sound
Enter
Phones
Communication
(6Ω)
AUX IN
FRONT
SPEAKERS
Demo
On/Standby
Timer/
Clock
Display
RDS
PTY
Mono/ST.
Band
R
TUNER DVD/CD TAPE AUX
Down Tuning Mode Up
Multi Jog
Disc1 Disc2
Open/Close
Disc3Disc Change
3-D SoundPower Sound
Demo
On/Standby
Timer/
EQ S.Bass
Clock
Display
Band
R
Communication
RDS
PTY
TUNER DVD/CD TAPE AUX
Volume
Tuning Mode Up
Down
Multi Jog
Mono/ST.
Display
Counter
Memory REV.Mode
Reset
Enter
Deck 1/2
Dubbing
Phones
Normal High
CD Synchro REC/Pause Record Lock
AUX
VOLUME
UP
DOWN
DIGITAL AUDIO
COMPACT
Page 22
GB
41
It always takes a little time to become familiar with a new appliance. If you have any of the problems listed below,
try the solutions given. They may save you the time and inconvenience of an unnecessary service call.
If the above guidelines do not allow you to solve the problem, take a note of:
The model and serial numbers, normally printed on the rear of the system
Your warranty details
A clear description of the problem
Then contact your local dealer or SAMSUNG after-sales service.
Before Contacting the After-Sales Service
PROBLEM
The system does not work
There is no sound
The Timer does not work
System still doesn’t work, even
after following steps above.
The compact disc player
does not start playing
The icon appears on
screen.
Disc Menu doesn’t appear.
Playback mode differs from
the Setup Menu selection
The screen ratio cannot be changed.
The tape does not start
playing
The volume falls off
The cassette is not erased correctly
There is excessive wow and flutter
Reception is poor or no radio
stations are received at all
G
E
N
E
R
A
L
C
D
/
D
V
D
R
A
D
I
O
C
A
S
S
E
T
T
E
S
CHECKS/EXPLANATION
•
The main lead is not correctly plugged into a wall socket or the wall socket is not switched on.
• The remote control batteries need replacing or the polarity has not been respected.
• The On/Standby button has not been pressed.
• The volume has been completely turned down.
• The correct function (TUNER, CD, TAPE, AUX) has not been selected.
• You have connected a set of earphones.
• The loudspeaker wires have been disconnected.
• The Mute button has been pressed.
• The timer has been stopped by pressing Timer On/Off.
• Press the S. Bass button for 5 seconds in power ‘OFF’(standby), the system is
returned the original position (RESET)
• The CD function has not been selected.
• The disc has been inserted face down or is either dirty or scratched.
• The laser sensor is dirty or dusty.
• The system has not been installed on a flat, horizontal surface.
• Condensation has formed in the player; leave the system in a warm, airy room for at least one hour.
• This player cannot play CD-ROMs, DVD-ROMs, CD-R, etc. Insert a DVD, a VIDEO-CD or a CD.
• The features or action cannot be completed at this time because:
1. The DVD’s software restricts it.
2. The DVD’s software doesn’t support the feature (e.g., angles).
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is out of range.
• Check if the disc has a Menu.
• Some of the functions selected in the Setup Menu may not work properly if the disc
is not encoded with the corresponding function.
• The Screen Ratio is fixed on your DVDs.
• The TAPE function has not been selected.
• The cassette has not been inserted correctly.
• The cassette player has not been closed.
• The tape is either slack or broken.
• The audio heads are dirty.
• The rollers or drive capstans are dirty.
• The tape is worn.
• The TUNER function has not been selected.
• The radio frequency has not been correctly selected.
•
The aerial has been disconnected or is not facing the right way. Turn it until you find the
best orientation.
• You are in a building that blocks radio waves; you must use an outside aerial.
40
This DVD player is capable of playing the following types of discs, having the corresponding logos:
Disc type and characteristics
Disc Types Logos
Recording
Disc Size
Max.
Characteristics
Types
Playing
Time
Audio
+
Video
12 cm
Single-sided 2 layers 240 min.
Double-sided 2 layers 480 min.
Single-sided 2 layers 80 min.
Double-sided 2 layers 160 min.
8 cm
12 cm 74 min.
• DVD contains excellent sound
and video due to Dolby Digital
and MPEG2 system.
• Various screen and audio functions can be easily selected
through the on-screen menu.
• Video with CD sound, VHS quality & MPEG1 compression technology.
*
DO NOT play CD-ROM, CD-I, CD-R and DVD-ROM in this player! (CDGs play audio only, not graphics.)
• Playback Region
Number
• An LP is recorded as an analog
signal with more distortion. CD is
recorded as a Digital Signal with
better audio quality, less distortion and less deterioration of
audio quality over time.
20 min.
74 min.
20 min.
8 cm
12 cm
8 cm
Audio
+
Video
Audio
Disc Markings
1 6
~
• NTSC broadcast
system in U.S.A,
Canada, Korea,
Japan, etc.
NTSC
• Dolby Digital disc • Digital Audio disc
DIGITAL
SOUND
• Stereo disc
STEREO
• DTS disc
Both the MAX-DN64 player and the discs are coded by region. These regional codes must match in order for the disc to play.
If the codes do not match, the disc will not play.
The Region Number for this player is described on the rear panel of the player.
Playback Region Number
Page 23
42
SAMSUNG strives to improve its products at all times. Both the design specifications and these user
instructions are thus subject to change without notice.
Technical Specifications
RADIO
LW
Usable sensitivity 60 dB
AM (MW)
Signal/noise ratio 40 dB
Usable sensitivity 54 dB
Total harmonic distortion 2 %
FM
Signal/noise ratio 60 dB
Usable sensitivity 10 dB
Total harmonic distortion 0.3 %
COMPACT DISC PLAYER
Capacity 3 discs
Frequency range 20 Hz - 20 KHz (± 1 dB)
Signal/noise ratio 90 dB (at 1 KHz) with filter
Distortion 0.05 % (at 1 KHz)
Channel separation 74 dB
Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm
TAPE DECK
Frequency range 125 Hz ~ 12 KHz
Signal/noise ratio 40 dB
Channel separation 35 dB
Erasing effect 60 dB
AMPLIFIER
Output power (6Ω) 2 x 100 Watts RMS (total harmonic distortion: 10 %)
Channel separation 50 dB
Signal/noise ratio 75 dB
GENERAL
Dimensions 270 (W) x 317 (H) x 340 (D) mm
Page 24
ELECTRONICS
THIS APPLIANCE IS MANUFACTURED BY:
AH68-00665B
Loading...
