Page 1

AH68-02106Y

DVD MINI COMPONENT SYSTEM

WITH USB HOST

DVD/CD/MP3-CD/CD-R/RW PLAYBACK

user manual

MAX-DA79

imagine the possibilities

Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at

www.samsung.com/global/register

Page 2

12 Safety Warnings Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

Protect the player from moisture(i.e. vases) , and excess heat(e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.

Use of this product is for personal use only. Condensation may occur if your player or disc have been stored in cold

temperatures. If transporting the player during the winter, wait approximately 2 hours

until the unit has reached room temperature before using.

During thunderstorms, disconnect AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

The battery used with this product contain chemicals that

are harmful to the environment.

Do not dispose of batteries in the general household trash.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not

expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUCT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE REAR COVER. NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED

SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

CAUTION

PREPARATION

(Saudi Arabian Standards Organisation)

THIS APPLIANCE IS FITTED WITH 220V SASO APPROVED PLUG.THE CUSTOMER IS ENTITLED TO A FREE SASO APPROVED 127V PLUG FROM THE LOCAL DEALER.

Phones

•

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

ENG

This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains

• plug shall be readily operable. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,such as vases,shall be

• placed on the apparatus.

Page 3

Features

PREPARATION

Safety Warnings ............................................................................................................................................................................................1

Precautions....................................................................................................................................................................................................2

Features.........................................................................................................................................................................................................3

Notes on Discs...............................................................................................................................................................................................5

Description.....................................................................................................................................................................................................7

CONNECTIONS

Connecting the Speakers ..............................................................................................................................................................................11

Connecting the video Out to your TV.............................................................................................................................................................13

HDMI Function...............................................................................................................................................................................................14

Connecting External Components .................................................................................................................................................................15

Connecting the FM Antennas ........................................................................................................................................................................16

Setting the Clock............................................................................................................................................................................................17

OPERATION

Disc Playback ................................................................................................................................................................................................18

MP3/WMA-CD Playback................................................................................................................................................................................19

JPEG File Playback .......................................................................................................................................................................................20

DivX Playback................................................................................................................................................................................................21

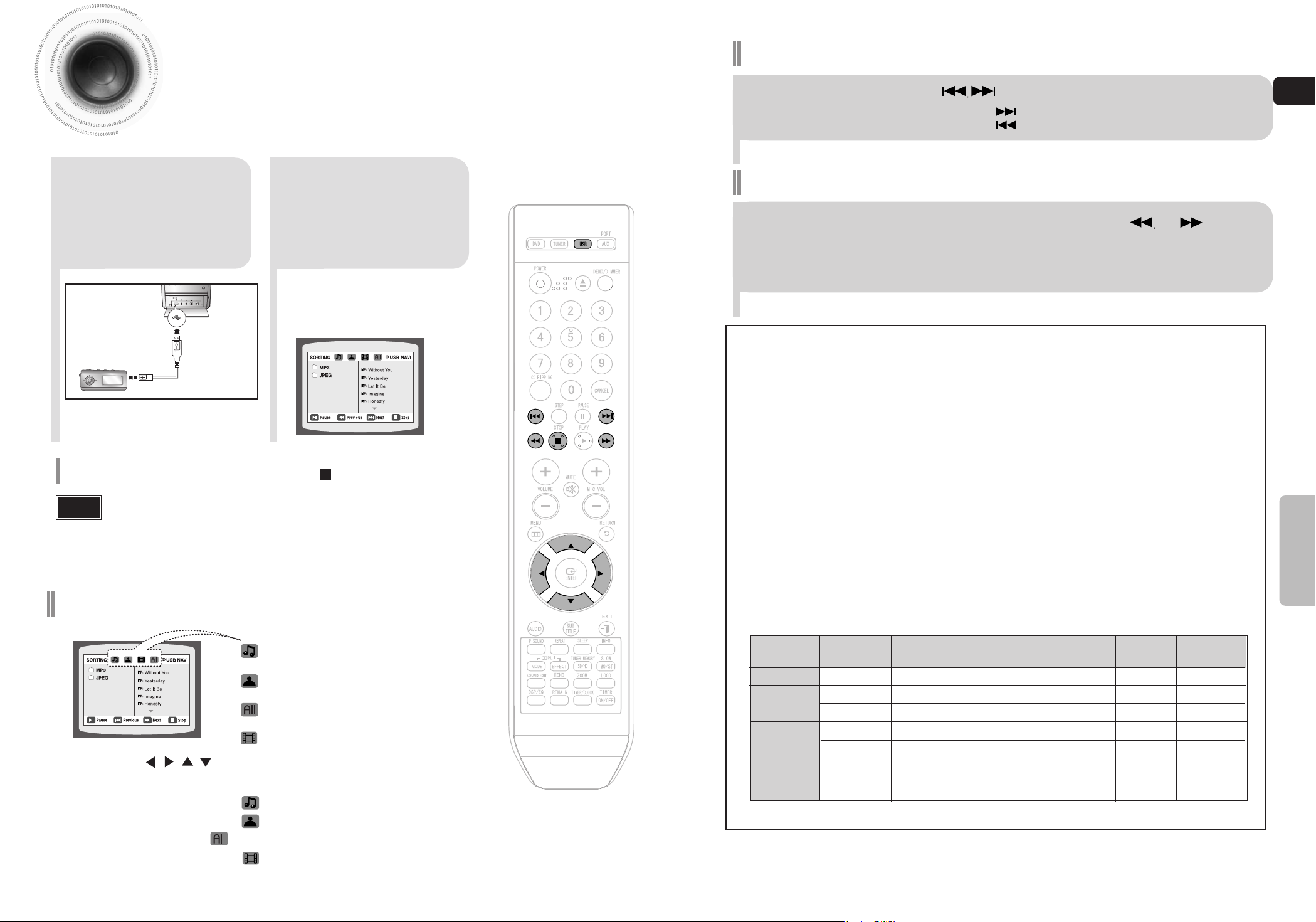

Playing Media Files using the USB feature ...................................................................................................................................................23

Using Bluetooth(Option) ................................................................................................................................................................................25

Displaying Disc Information ...........................................................................................................................................................................27

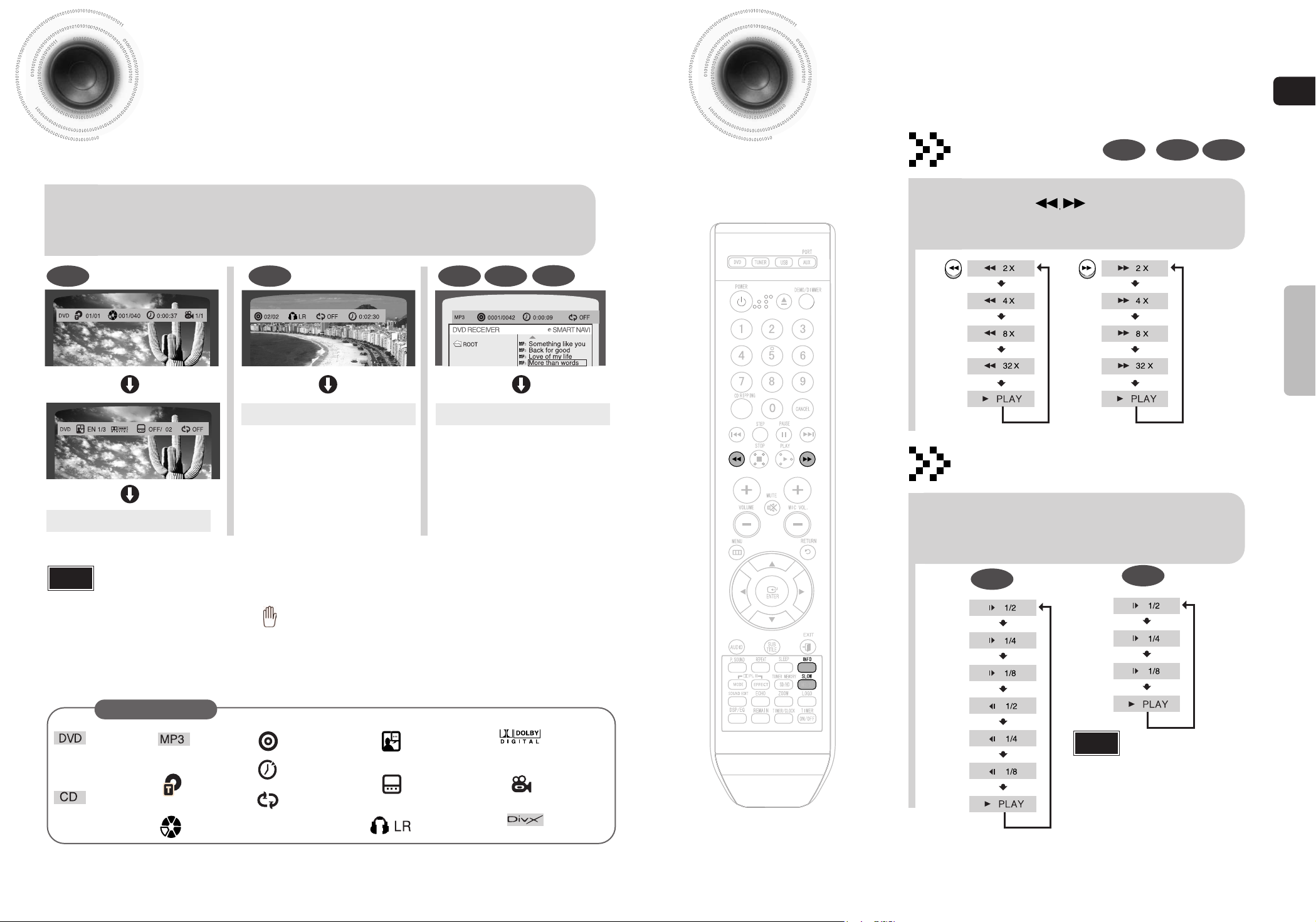

Fast/Slow Playback .......................................................................................................................................................................................28

Skipping Scenes/Songs.................................................................................................................................................................................29

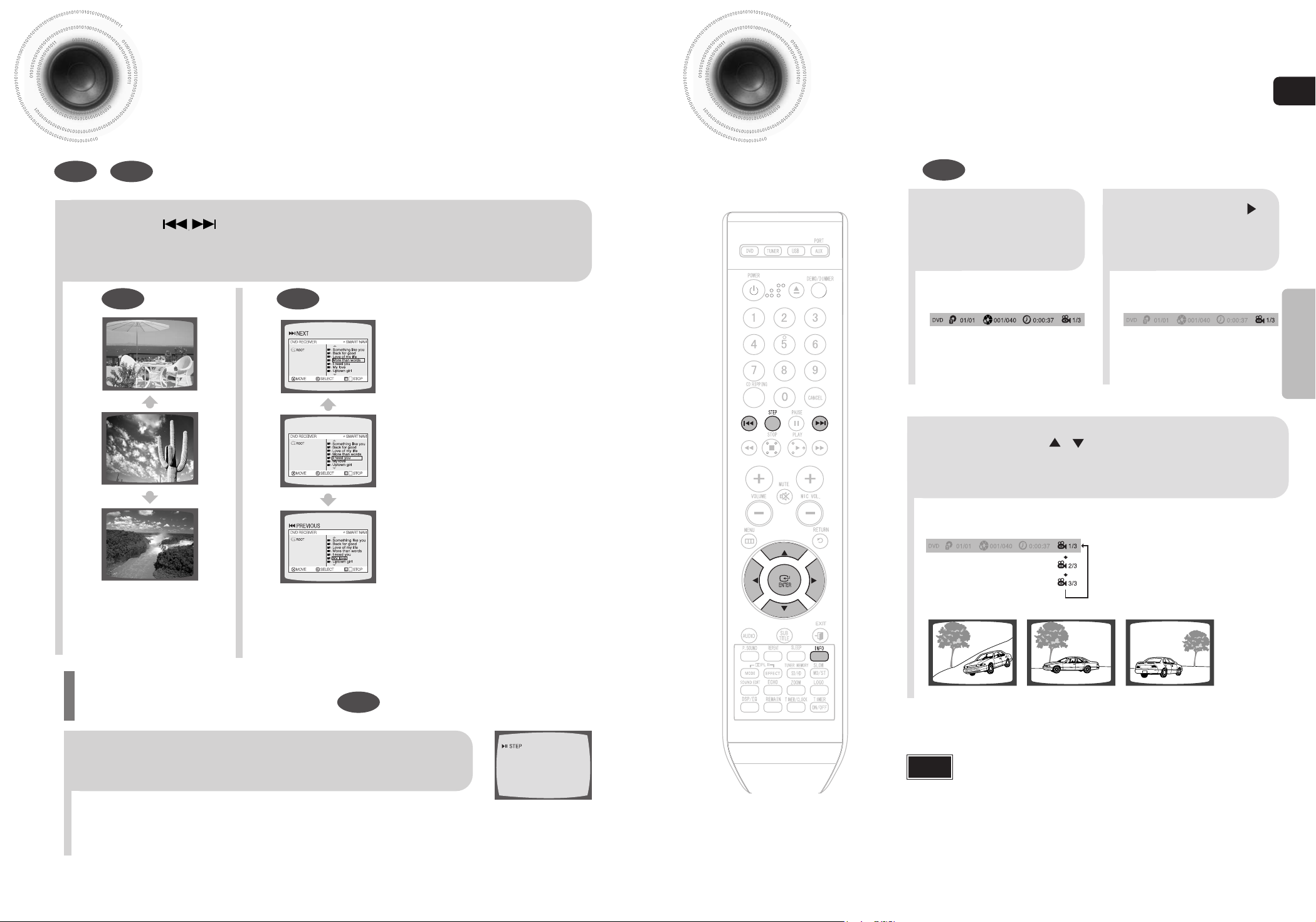

Angle Function...............................................................................................................................................................................................30

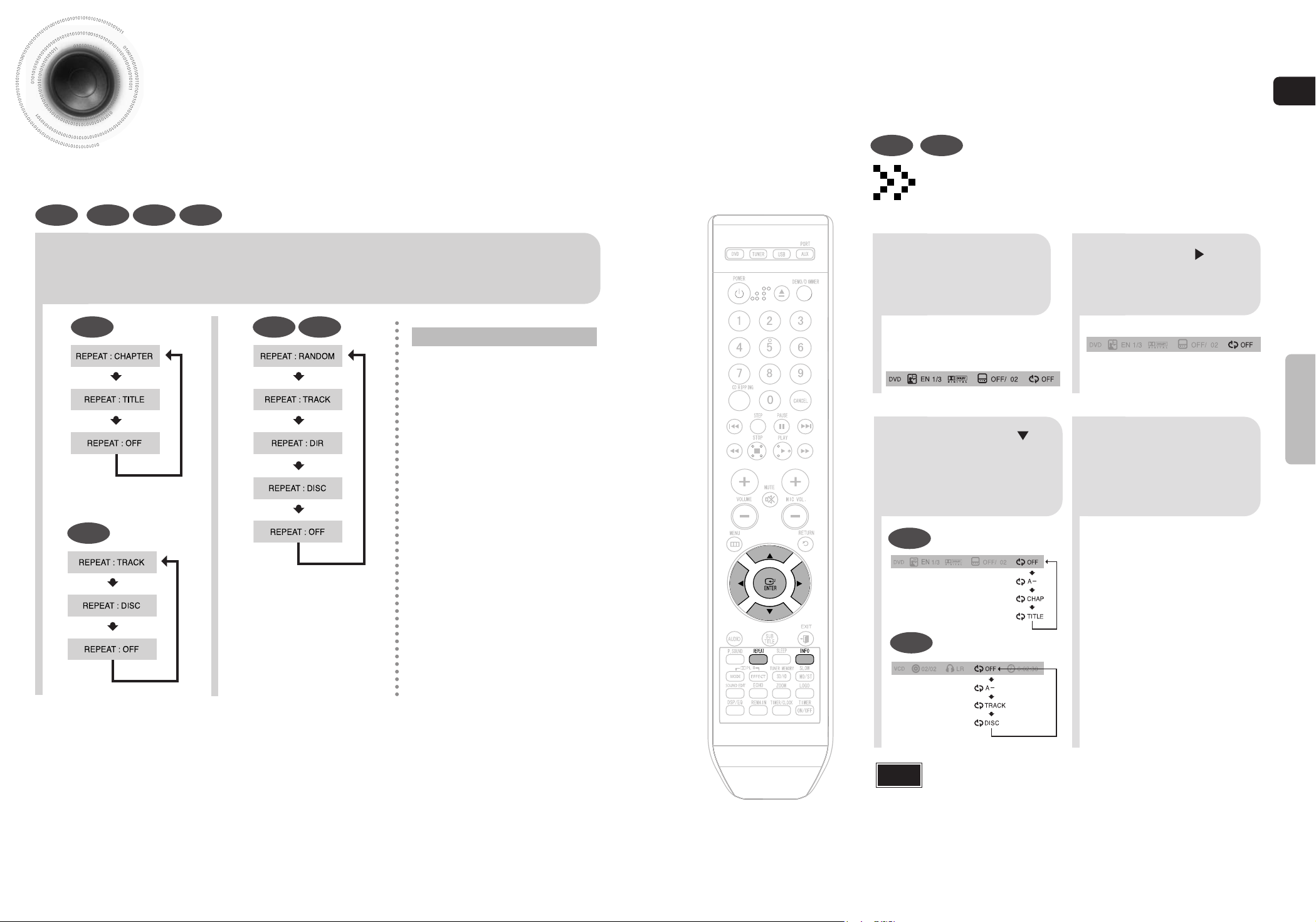

Repeat Playback............................................................................................................................................................................................31

A-B Repeat playback ....................................................................................................................................................................................33

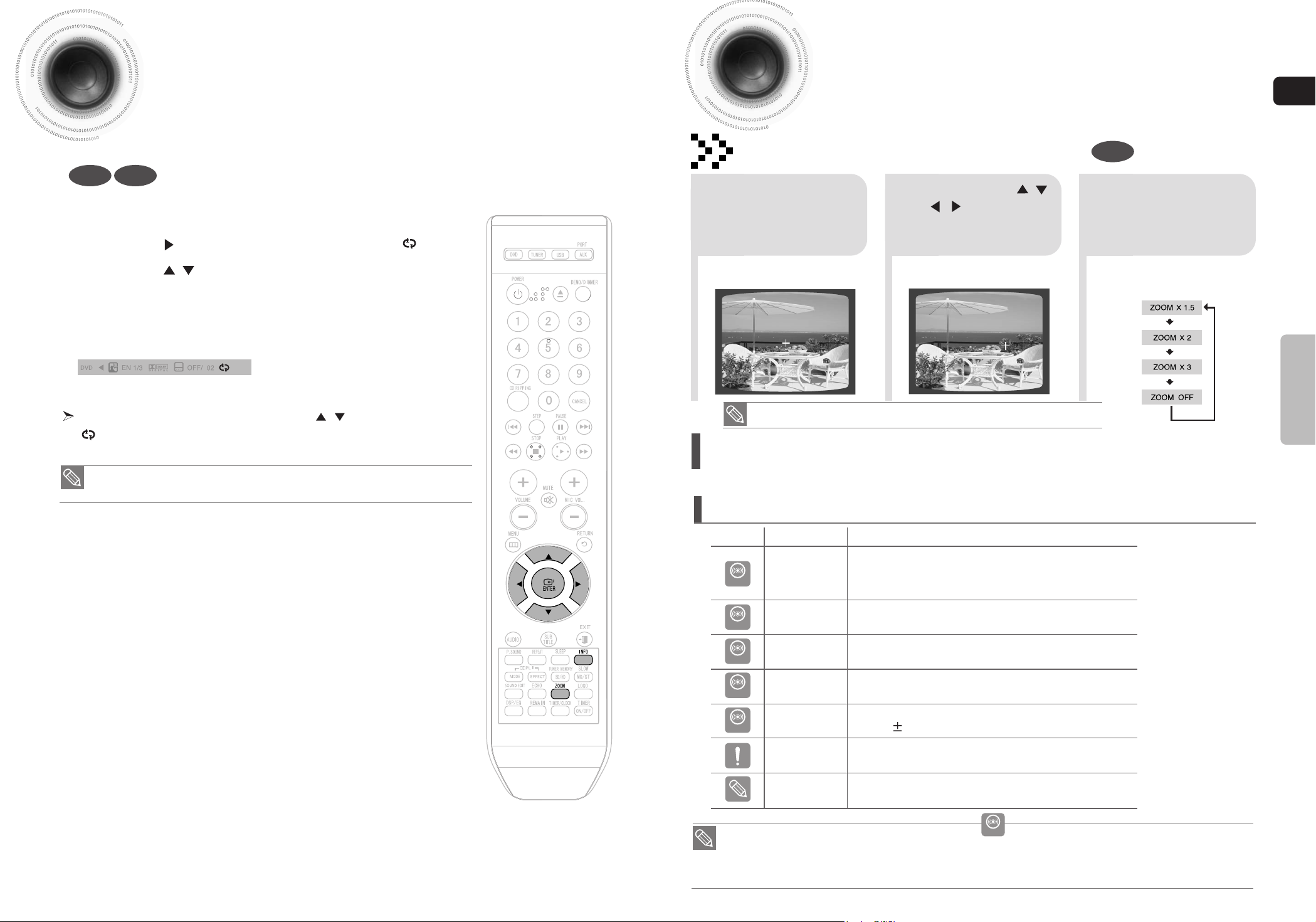

Zoom Function...............................................................................................................................................................................................34

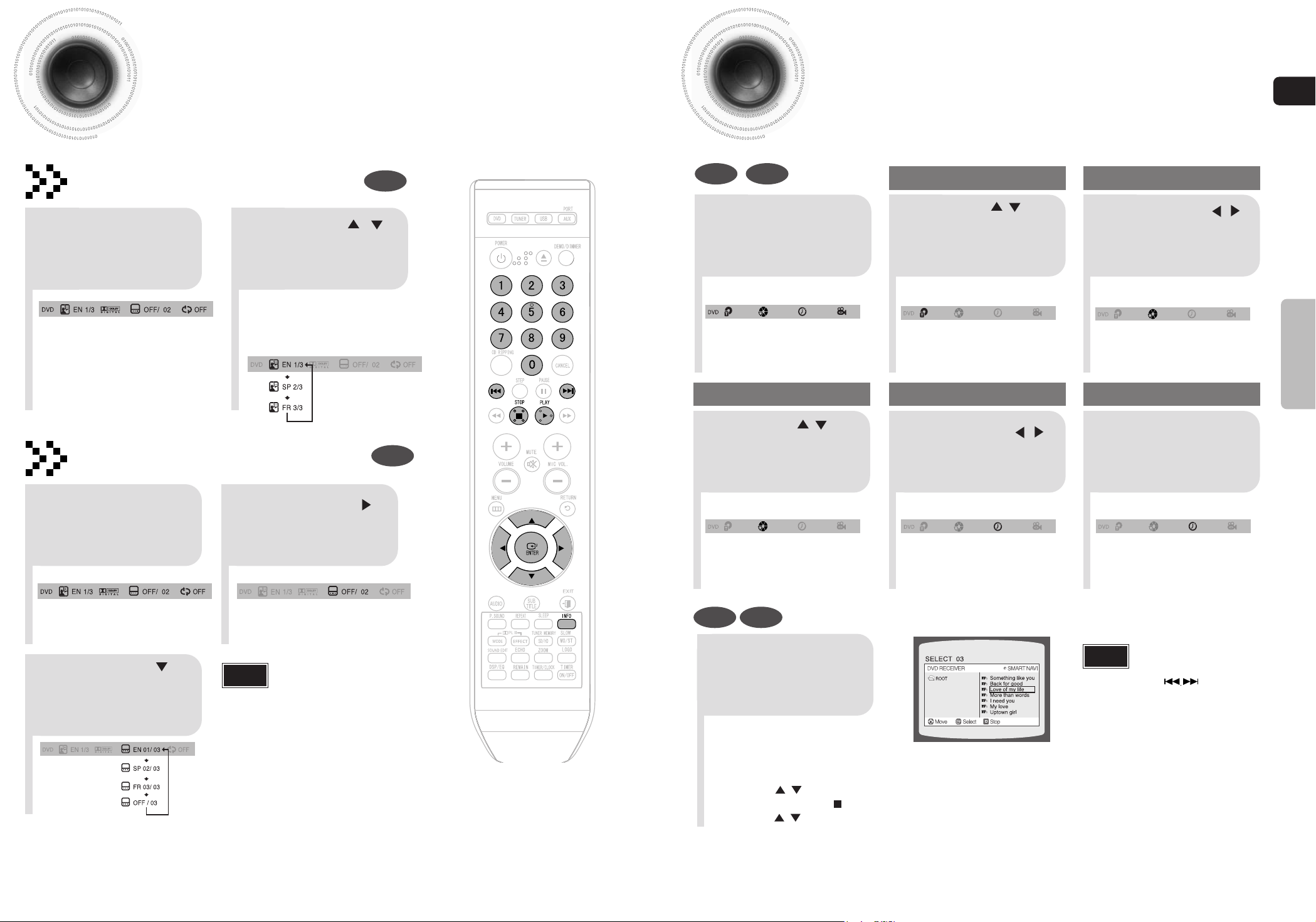

Selecting Audio Subtitle Language................................................................................................................................................................35

Moving Directly to a Scene/Song...................................................................................................................................................................36

Using Disc Menu............................................................................................................................................................................................37

Using the Title Menu......................................................................................................................................................................................38

SETUP

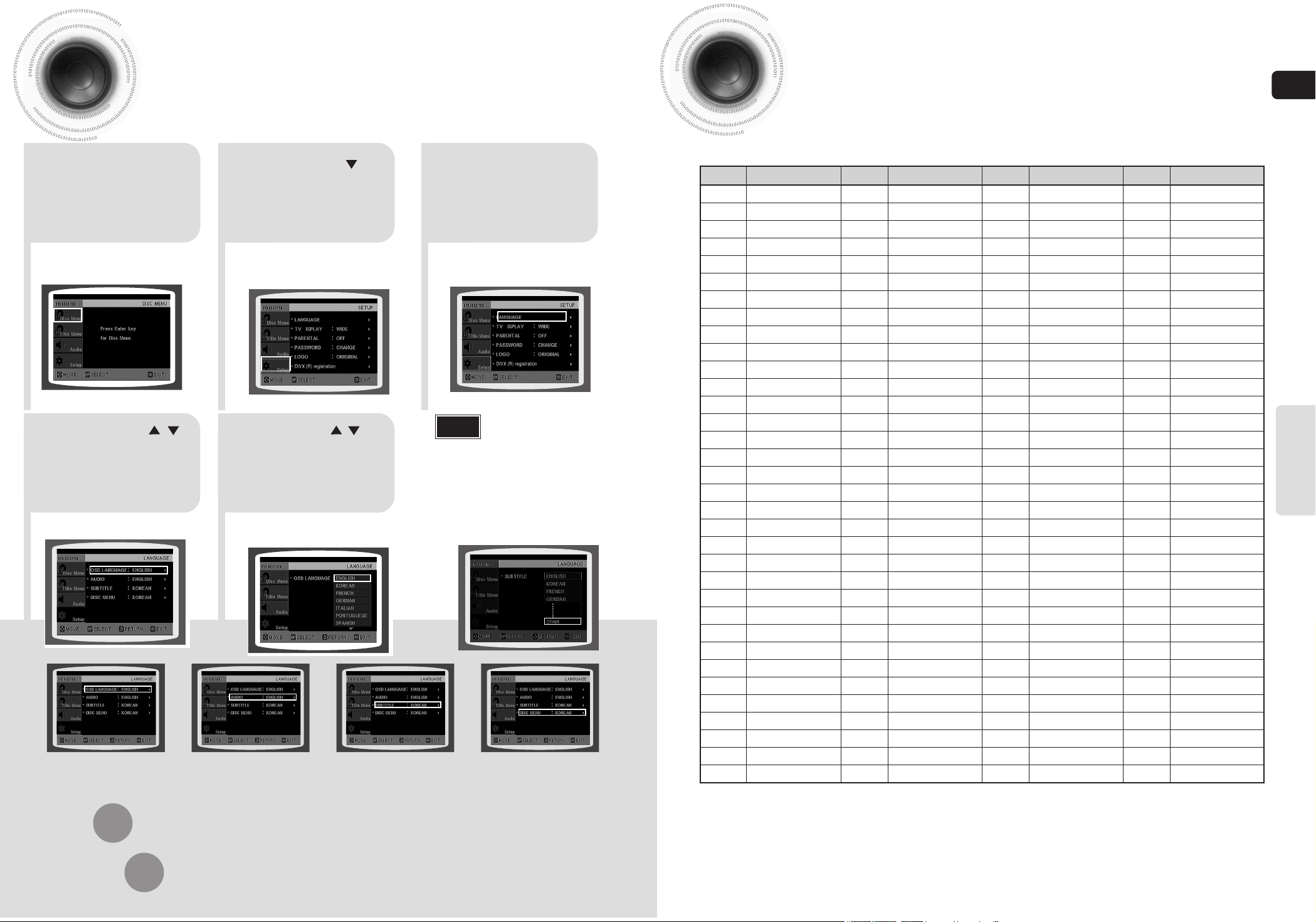

Setting the Language.....................................................................................................................................................................................39

Language Code List.......................................................................................................................................................................................40

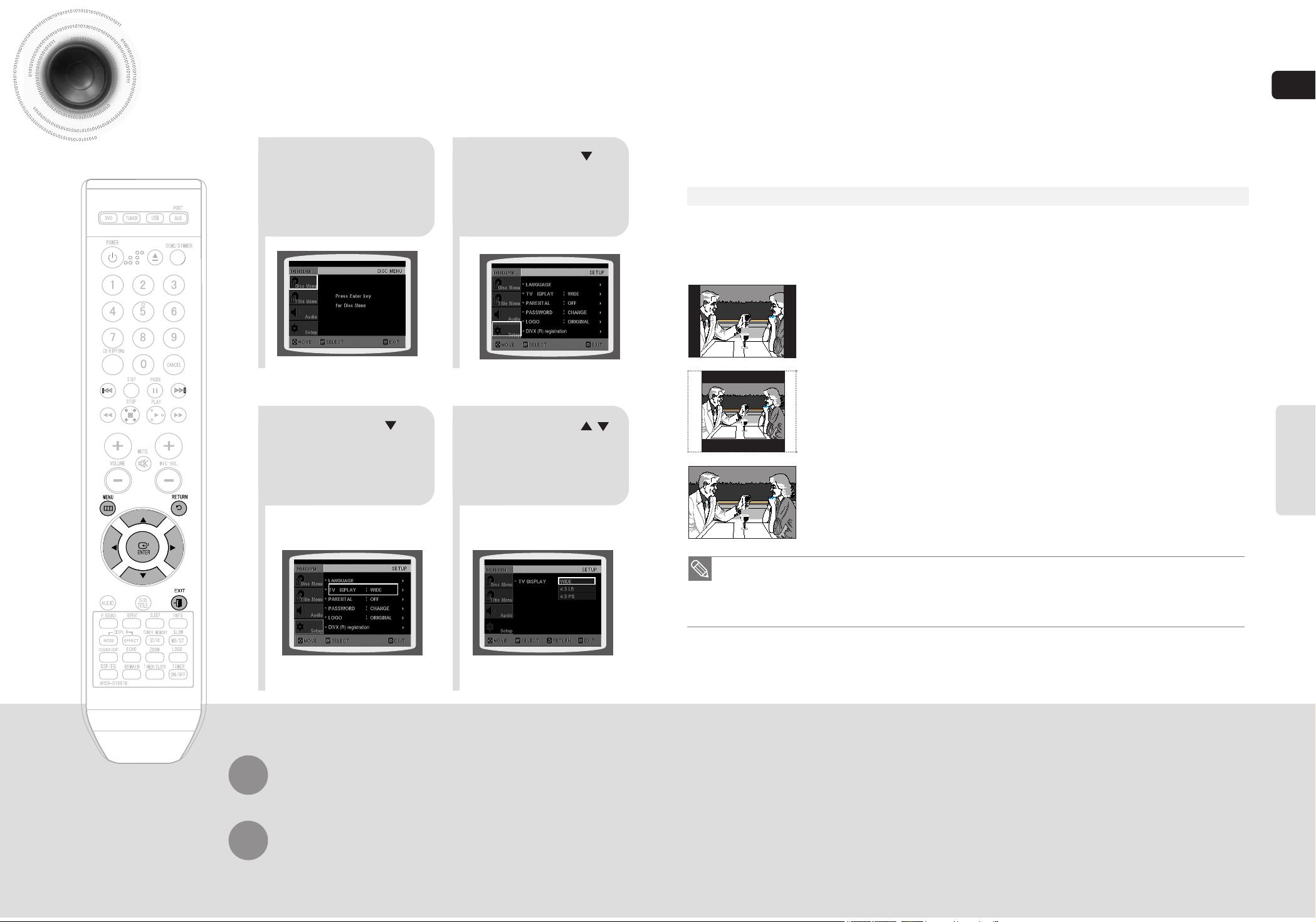

Setting TV Screen type..................................................................................................................................................................................41

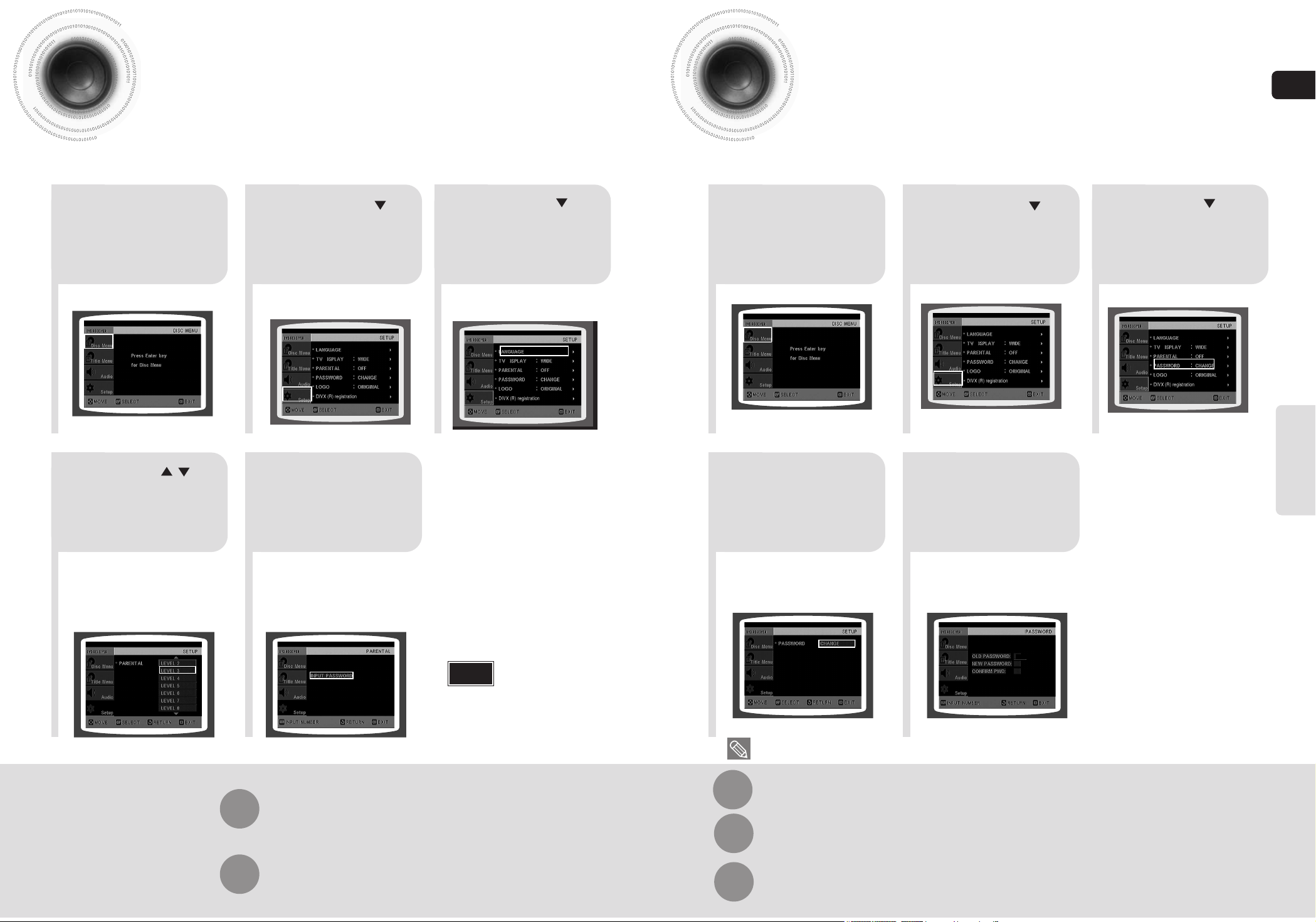

Setting Parental Controls (Rating Level) .......................................................................................................................................................43

Setting the Password.....................................................................................................................................................................................44

Setting the Wallpaper ....................................................................................................................................................................................45

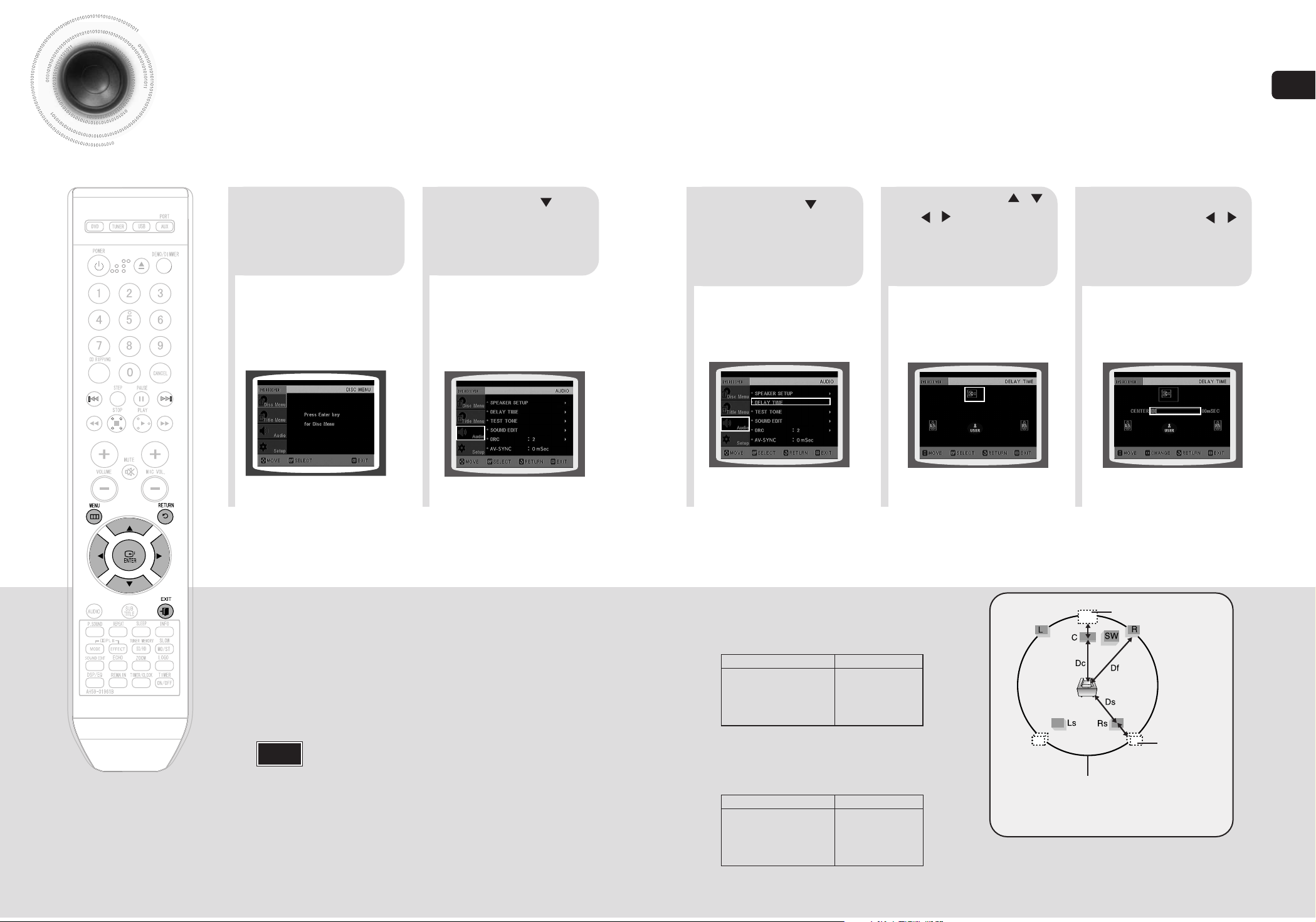

Setting the Speaker Mode ............................................................................................................................................................................47

Setting the Test Tone ....................................................................................................................................................................................48

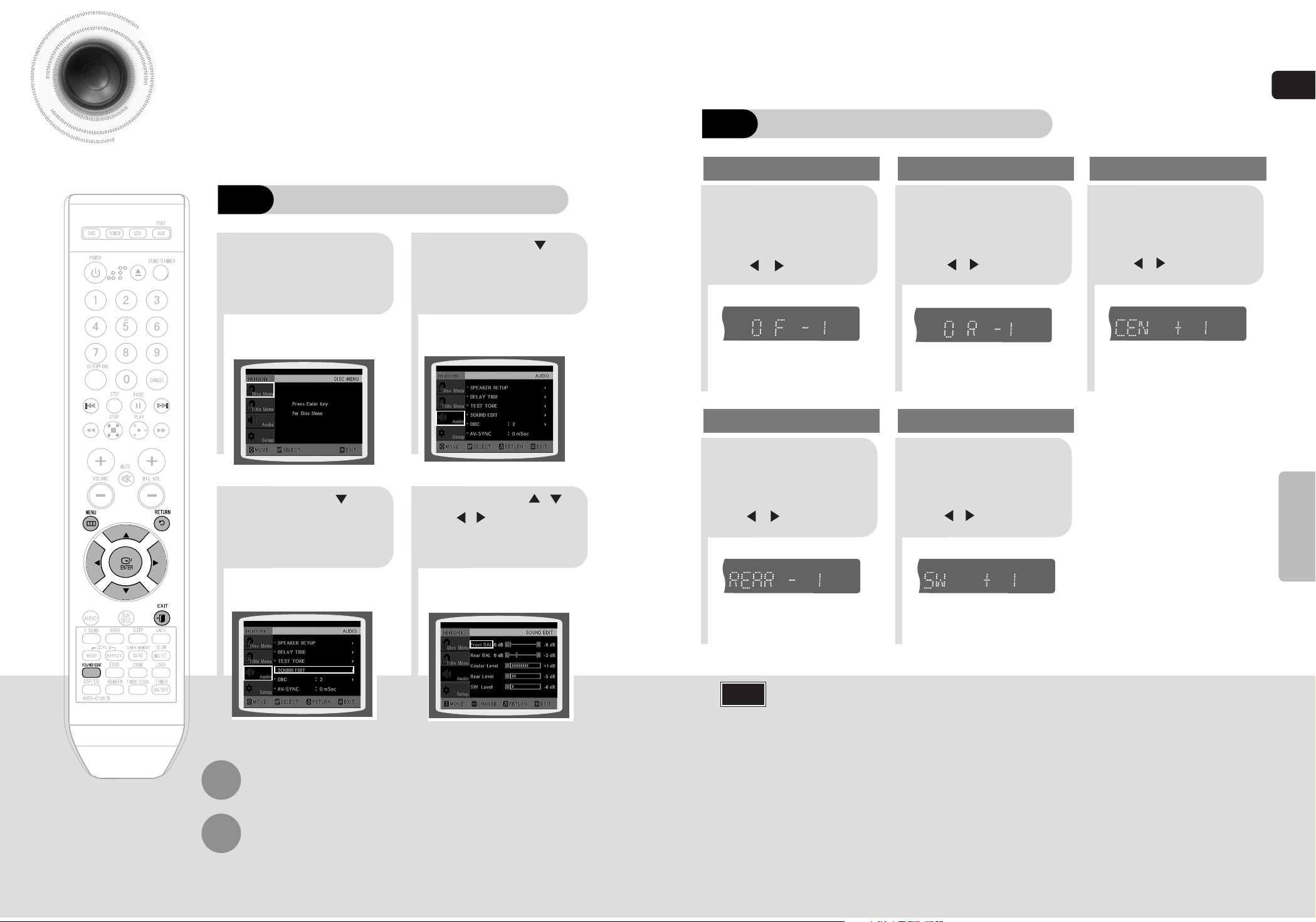

Setting the Delay Time ..................................................................................................................................................................................49

Setting the Audio Quality ...............................................................................................................................................................................51

Setting the DRC (Dynamic Range Compression) .........................................................................................................................................53

AV SYNC Setup ............................................................................................................................................................................................54

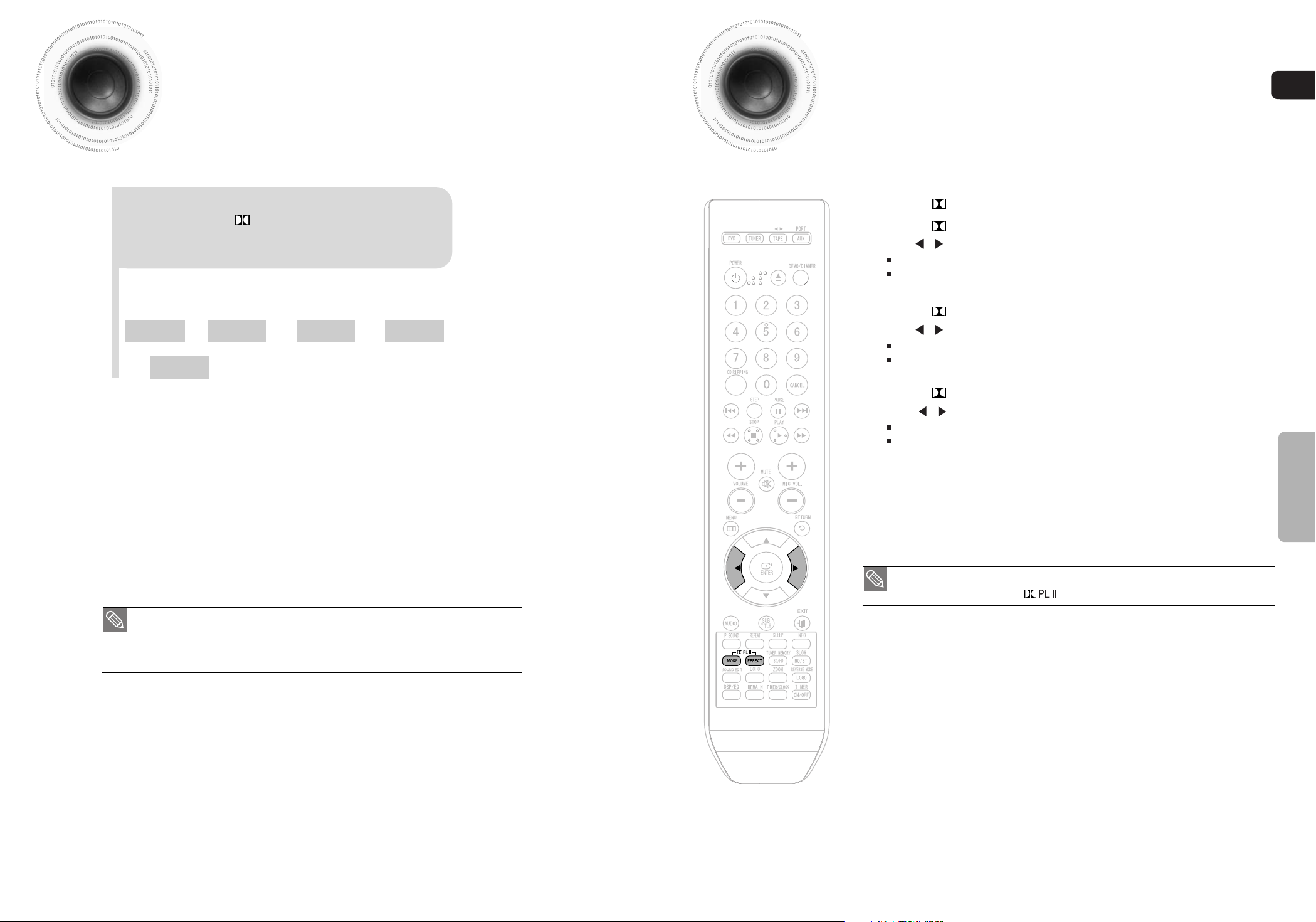

Dolby Pro Logic II Mode ...............................................................................................................................................................................55

Dolby Pro Logic II Effect ...............................................................................................................................................................................56

RADIO OPERATION

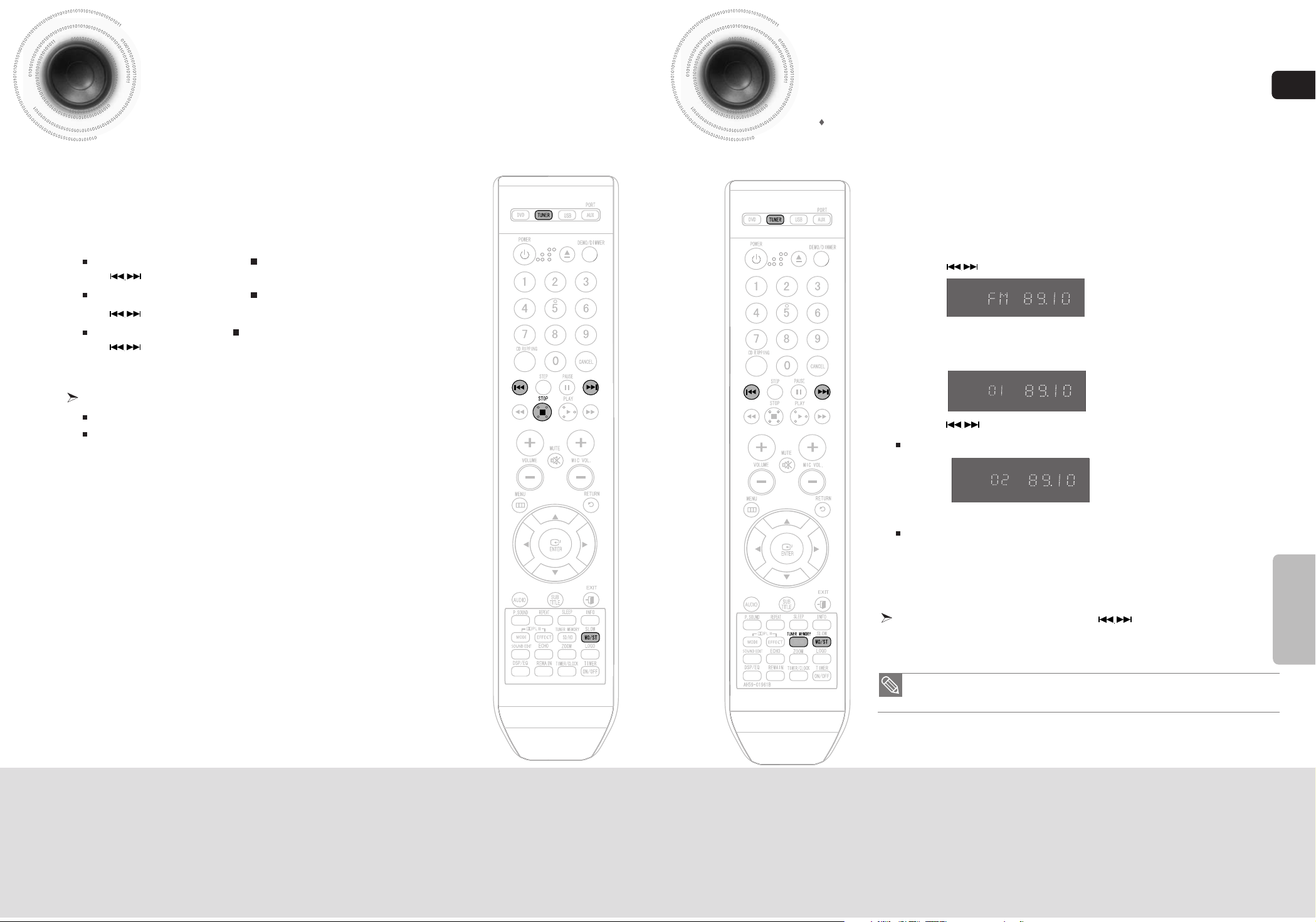

Listening to Radio ..........................................................................................................................................................................................57

Presetting Stations.........................................................................................................................................................................................58

MISCELLANEOUS

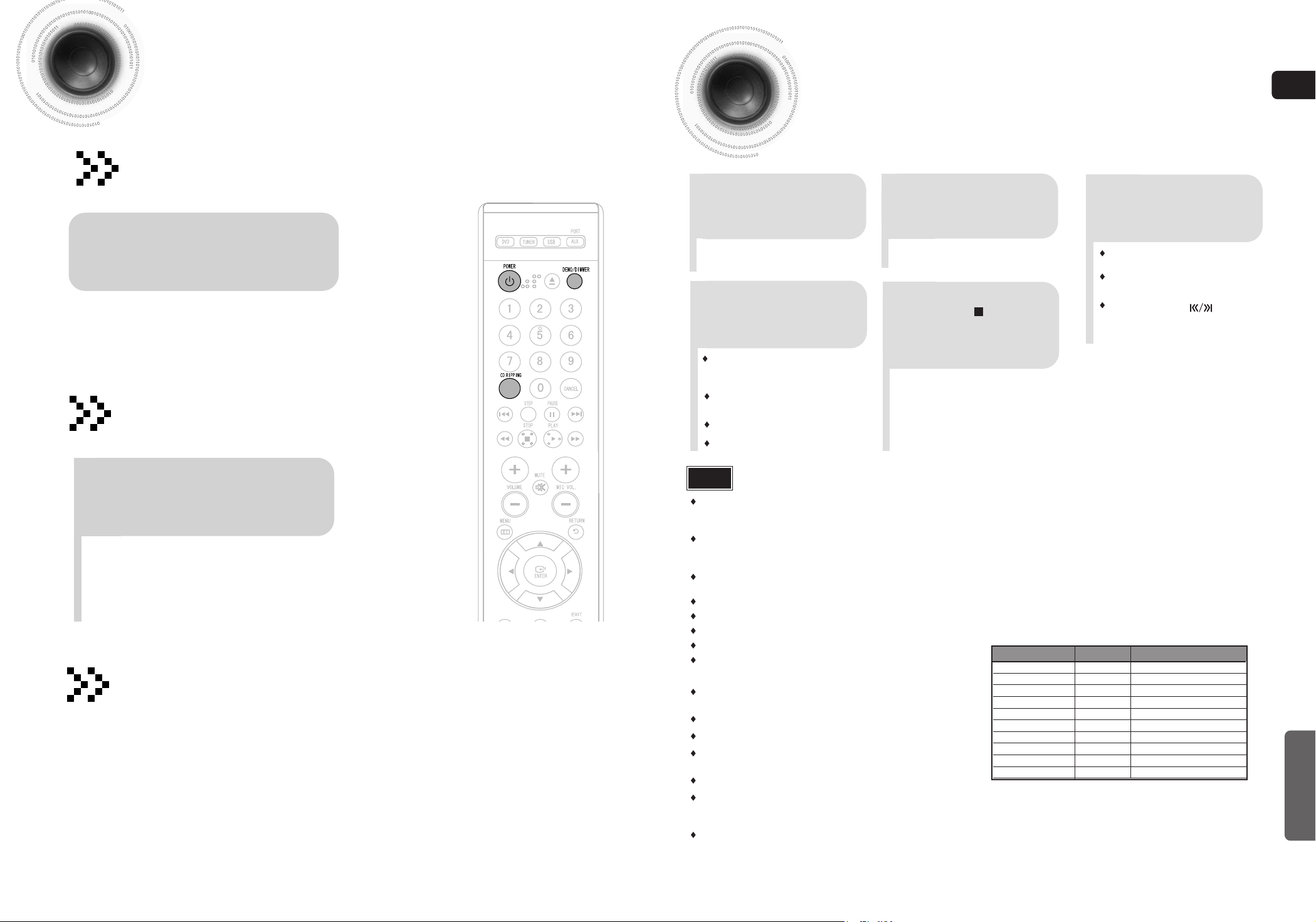

Timer Function...............................................................................................................................................................................................59

Canceling the Timer.......................................................................................................................................................................................60

POWER SOUND/DSP/EQ Function .............................................................................................................................................................61

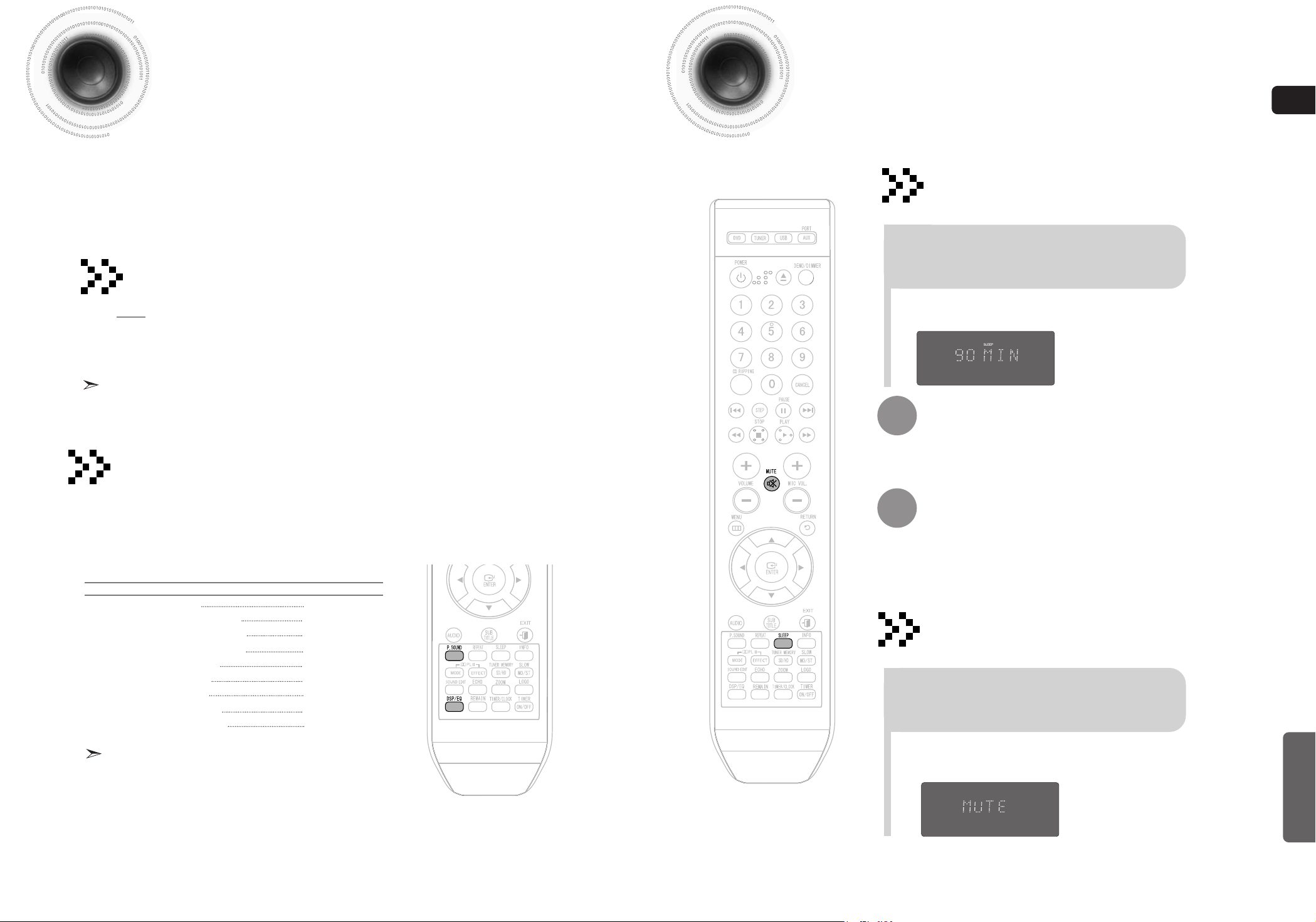

Sleep Timer Function / Mute Function...........................................................................................................................................................62

DEMO Function / DIMMER Function/ECO Function ....................................................................................................................................63

CD Ripping Function......................................................................................................................................................................................64

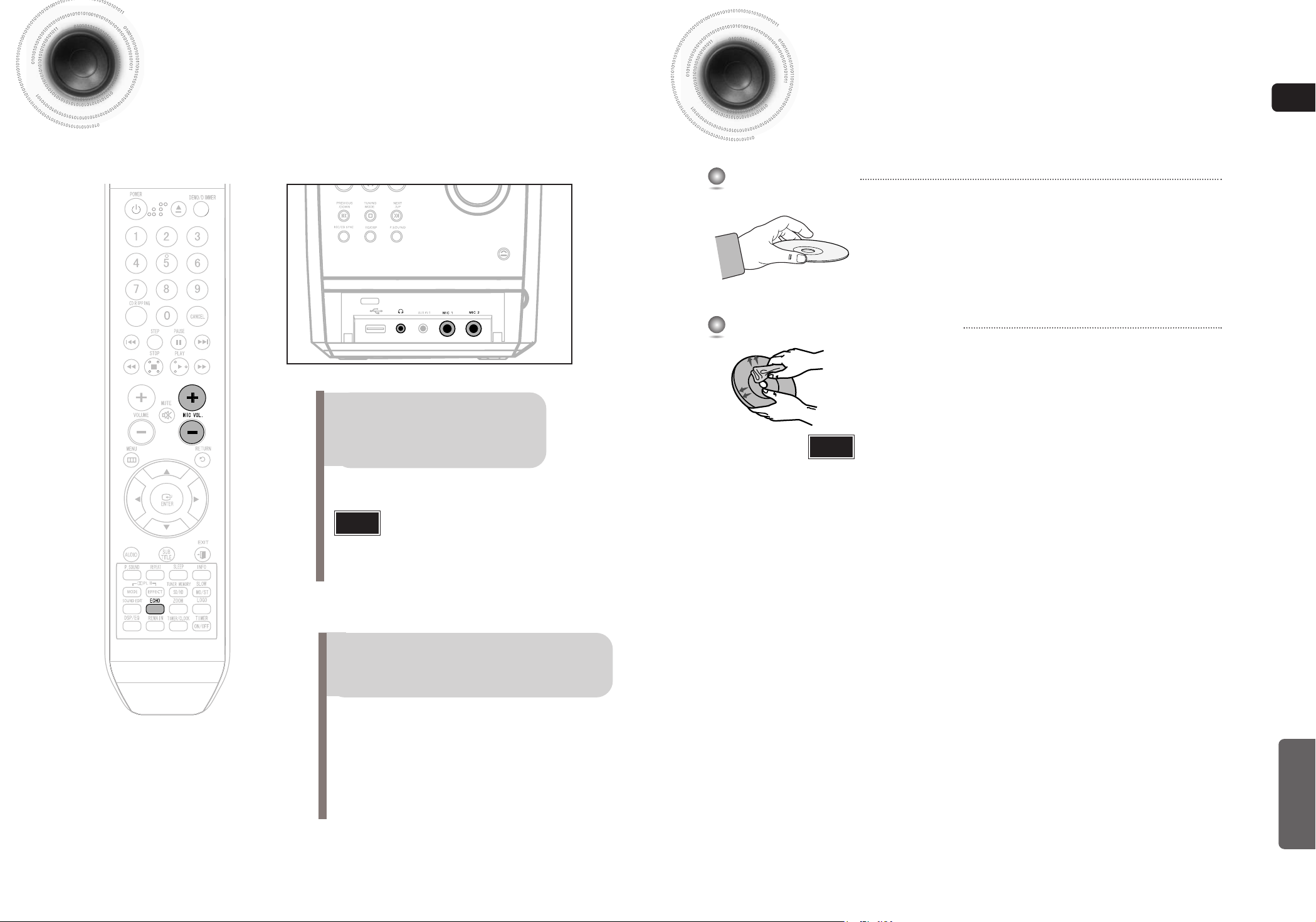

Connecting Headphones/Microphone ...........................................................................................................................................................65

Cautions on Handling and Storing Discs .......................................................................................................................................................66

Before Calling for Service ..............................................................................................................................................................................67

Specifications.................................................................................................................................................................................................69

USB Host Feature Supported Products.........................................................................................................................................................70

Notes on Terminology....................................................................................................................................................................................71

TV Screen Saver Function

If the main unit remains in the Stop mode for 3 minutes,the Samsung logo appears on the TV screen. The MAX-DA79 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.

Power Saving Function

The MAX-DA79 automatically shuts itself off after 20 minutes in the stop mode.

Customized TV Screen Display

The MAX-DA79 allows you to select your favorite image during JPEG, DVD playback and set it as your background wallpaper.

Multi-Disc Playback & FM Tuner, USB HOST.

The MAX-DA79 combines the convenience of multi-disc playback capability, including DVD-VIDEO, CD, MP3-CD, CD-R, CD-RW, DivX,JPEG and DVDR/RW, with a sophisticated FM tuner, USB HOST all in a single player.

PREPARATION

USB Host support

You can enjoy media files such as pictures, movies and music saved on an MP3 player, digital camera or USB memory stick by connecting the storage device to the USB port of the Mini Component.

HDMI

HDMI transmits DVD video and audio signals simultaneously,and provides a clearer picture.

ENG

Page 4

ENG

Notes on Discs

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

V I D E O

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes.)

1 6

•

LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.

If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.

•

DVD discs purchased abroad may not play on this player.

If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message

appears on the TV screen.

•

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

•

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Playable Discs

Do not use the following types of disc!

Copy Protection

V I D E O

COMPACT

DIGITAL AUDIO

Mark (Logo)

Video

DVD-VIDEO

AUDIO-CD

DivX

12cm

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

74 min.

20 min.

74 min.

20 min.

8cm

12cm

8cm

12cm

8cm

Audio

Audio + Video

Recorded Signals

Disc Type Disc Size Max. Playing Time

CD-R Discs

•

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.

•

Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minute as they may not be playback.

•

Some CD-RW (Rewritable) media, may not be playable.

•

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R JPEG Discs

•

Only files with the "jpg" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

•

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

•

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.

•

A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

CD-R MP3 Discs

•

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

•

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

•

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only files with the "mp3" and extensions can be played.

•

Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.

•

If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

•

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

•

A maximum of 500 tracks can be played per CD.

•

A maximum of 300 folders can be played per CD.

DVD R/RW, CD-R/RW DivX Discs

•

Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play.

•

Software updates for incompatible formats are not supported. (Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)

•

Sections with a high frame rate might not be played while playing a DivX file.

•

For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".

This product does not support Secure (DRM) Media files.

Disc Recording Format

PREPARATION

Page 5

ENG

—Rear Panel—

Video Cable

FM Antenna

Remote Control

User's Manual

HDMI Cable

Description

Accessories

PREPARATION

1. STANDBY/ON

/ECO

2. VOLUME

3. USB BUTTON

4. DVD/CD BUTTON

5. TUNER BUTTON

6. SEARCH FUNCTION BUTTONS/TUNING MODE OR STOP BUTTON/SKIP BUTTON

7. MUTE

8. EQ/DSP

9. POWER SOUND

10. DISC TRAY OPEN HOLE(NO POWER STATE)

11. USB HOST JACK

12. PHONES

13. AUX IN 1

14. MIC 1

15. MIC 2

16. DISC TRAY

17. OPEN BUTTON

18. MULTI JOG

19. AUX/PORT

20. ENTER

• You can use MULTI JOG KNOB to instead of SKIP BUTTON .

• You can clockwise turn the gear to open CD-DOOR by hand in no power state.Do not use this unless necessary.

FM Antenna Connector

5.1 Channel Speaker Output

Terminals

3. External

Digital Optical Input Jack

4. HDMI OUT Jack

AUX IN 2 Jacks

6. Component Video Output Connectors

Connect a TV with component video input jacks to

these jacks.

7. Video Output Connector

Connect the TV's video input jacks (VIDEO IN) to

the VIDEO OUT connector.

MAX-DA79

—Front Panel—

4 5

6 7

12 13

Page 6

ENG

—Remote Control—

Description

PREPARATION

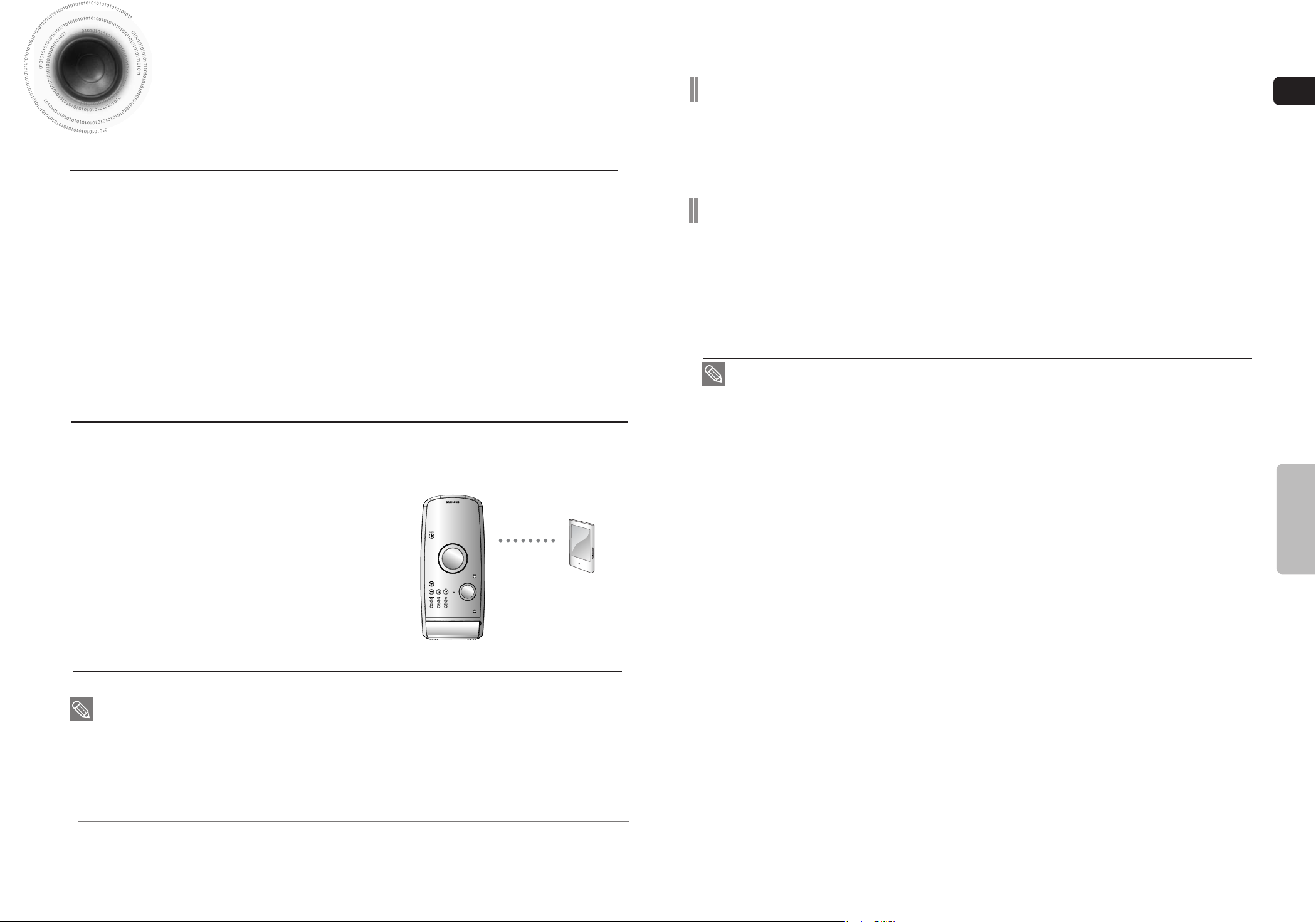

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Range of Operation of the Remote Control

Caution

Remove the battery cover in the direction of the arrow.

Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).

Replace the battery cover.

Follow these precautions to avoid leaking or cracking cells:

•

Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).

•

Use the correct type of batteries.Batteries that look similar may differ in voltage.

•

Always replace both batteries at the same time.

•

Do not expose batteries to heat or flame.

Insert Remote Batteries

SOUND EDIT

MODE

EFFECT

POWER SOUND button

VOLUME button

MENU button

POWER button

TUNER button

DVD button

CANCEL button PAUSE button

Number(0~9) buttons

DEMO/DIMMER button

OPEN/CLOSE button

PORT/AUX button

USB button

Cursor/Enter button

EXIT button

SLOW/MO/ST button

TIMER/CLOCK button

TUNER MEMORY/SD/HD button ZOOM button

TIMER ON/OFF button

RETURN button

INFO button

SLEEP button

AUDIO button

MIC VOLUME CONTROL button

SOUND EDIT button

PL II MODE button

PL II EFFECT button

ECHO button

CD RIPPING button

STEP button

Tuning Preset/CD Skip button

SUBTITLE button

REPEAT button

Play button

SEARCH buttons

Stop button

DSP/EQ button

LOGO button

REMAIN button

MUTE button

Page 7

ENG

CONNECTIONS

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connect the connecting jacks (2) to the back of mini-component system.

Make sure the polarities (+and -) are correct.

• Installation in a place near heating apparatus, under direct lay of light or with high humidity may cause

performance degradation of the speaker.

•

Do not install on the wall or on a high place of pole or other unstable place to prevent any safety accident caused by falling of the speaker.

• Do not take the speaker near from TV or computer monitor.

The speaker near the TV or computer monitor may influence the quality of the screen display.

Directions in Installing Speaker

• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.

• Do not let children play with or near the speakers. They could get hurt if a speaker falls.

• Keep the speaker out of reach of children so as to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker.

• Do not hang the subwoofer on the wall through the duct (hole).

Caution

Note

The cooling fan supplies cool air to the unit to prevent overheating.

Please observe the following cautions for your safety.

•

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise and may damage it.

•

Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Cooling Fan

MAX-DA79

Rear Speakers

•

Place these speakers behind your listening position.

•

If there isn't enough room, place these speakers so they face each other.

•

Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.

Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.

Sound will be heard from the rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.

Front Speakers

•

Place these speakers in front of your listening position, facing inwards (about 45°) toward you.

•

Place the speakers so that their tweeters will be at the same height as your ear.

•

Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker

•

It is best to install it at the same height as the front speakers.

•

You can also install it directly over the main unit, and you should better install them directly over or under the TV.

Position of the DVD Player

•

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.

Example : For 32" TVs 2~2.4m (6~8feet)

For 55" TVs 3.5~4m (11~13feet)

Subwoofer

•

The position of the subwoofer is not so critical. Place it anywhere you like.

Page 8

ENG

Connecting the Video Out to your TV

Choose one of the three methods for connecting to a TV.

HDMI Function

CONNECTIONS

If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the Component Video Output (Pr, Pb and Y) jacks on the back of the panel of the main unit to the corresponding jacks on your television.

METHOD 2 : Component Video ....... (Better Quality)

METHOD 3

METHOD 2

METHOD 1

Connect the HDMI cable from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV.

METHOD 1 : HDMI ....... (Best Quality)

The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.

1 In Stop mode, press the MENU button.

Press the Cursor button to move to <Audio> and then press the ENTER button.

3 Press the Cursor button to move to <HDMI AUDIO> and then press

the ENTER button.

4 Press the Cursor , button to select <ON> or <OFF> and then press

the ENTER button.

• ON : Both video and audio signals are transmitted over the HDMI connection cable, and audio

is output through your TV speakers only.

• OFF : Video is transmitted over the HDMI connection cable only, and audio is output through

the home theater speakers only.

Press the RETURN button to return to the previous level. Press the EXIT button to exit the setup screen.

Setting the HDMI Audio

MOVE ENTER EXITRETURN

MOVE SELECT EXITRETURN

Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the VIDEO IN jack on your TV.

METHOD 3 : Composite Video....... (Good Quality)

• The default setting of this function is HDMI AUDIO OFF.

• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.

• P.BASS/CD RIPPING/MIC VOLUME UP/DOWN/ECHO/P.SOUND/EQ/DSP function is not available when HDMI AUDIO is ON.

•

This product operates in Interlace scan mode for Component Output.

In Stop mode, press and hold the SD/HD (Standard Definition/High Definition)

button on the remote control.

■

Resolutions available for the HDMI output are 576p/480p, 720p, 1080i.

■

SD(Standard Definition) resolution is 576p/480p and HD(High Definition) resolution is 720p/1080i.

Resolution Selection

•

If the TV does not support the configured resolution, you will not be able to see the picture properly.

• When an HDMI cable is connected, composite and component video signals

are not output.

• See your TV owner's manual for more information on how to select the TV's Video Input source.

This function allows the user to select the screen resolution for HDMI output.

Why use HDMI (High Definition Multimedia Interface)?

This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection.

Note

Page 9

ENG

Connecting External Components

Connecting the FM Antennas

FM Antenna (supplied)

FM antenna connection

1. Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal as a temporary measure.

2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

•

If reception is poor, connect an outdoor antenna. Before attaching a 75Ω coaxial cable (with a standard type connector), disconnect the supplied FM antenna.

CONNECTIONS

Connect Audio In on the DVD player to Audio Out on the external analog component.

•

Be sure to match connector colors.

Example: Analog signal components such as a VCR, Camcorder, and TV.

Connecting an External Analog Component

Audio Cable

If the external analog component has only one Audio Out, connect

either left or right.

Press AUX/PORT to select AUX 1.

•

‘

AUX 1’ appears in the display.

(not supplied)

Connect the Digital Input(OPTICAL) on the Mini Component to the Digital Output of the external digital component.

Digital signal components such as a Cable Box/Satellite receiver(Set -Top Box).

OPTICAL:Connecting an External Digital Component

Press the AUX/PORT button to select DIGITAL IN.

Optical Cable (not supplied)

Extermal Digital Component

• This unit does not receive AM broadcasts.

Note

AUX2 : Rear Panel

Audio Cable

(not supplied)

If the external analog component has only one Audio Out, connect either left or right.

1 Connect AUX IN 2 (Audio) on the MINI COMPONENT

rear panel to the Audio Out of the external analog component.

■

Be sure to match connector colors.

2 Press the AUX//PORT button to select <AUX2> input.

The mode switches as follows : AUX 1 ➝ AUX 2.

AUX2 : Connecting an External Analog Component

Analog signal components such as a VCR.

Page 10

ENG

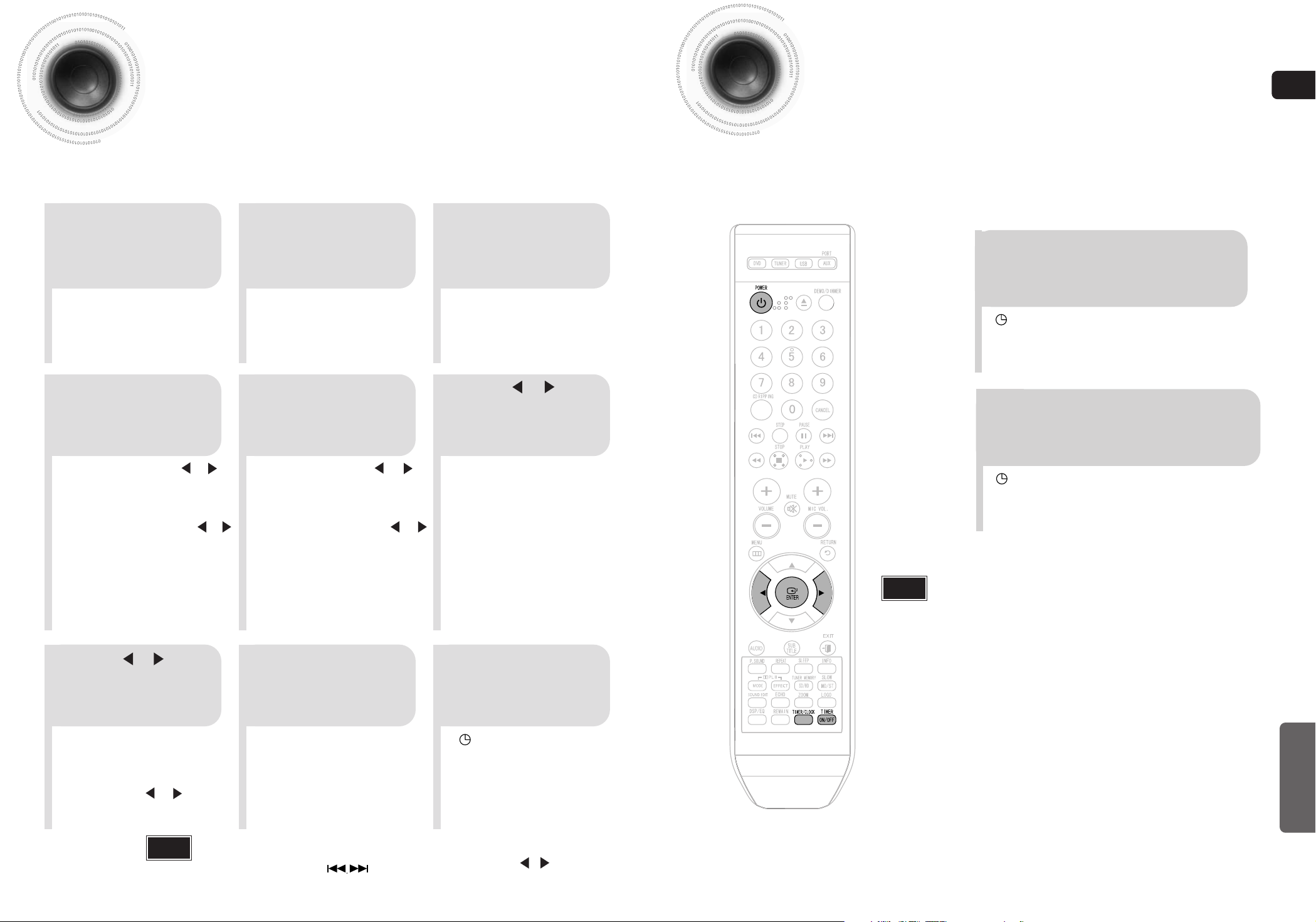

Setting the Clock

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

•

You can also use Multi-Jog or button on the panel front

instead of , buttons in step 3,4.

Note

OPERATION

•

You can display the time, even when you are using another function, by pressing TIMER/CLOCK once.

•

CLOCK is displayed.

Press TIMER/CLOCK twice.

Switch the system on by pressing STANDBY/ON button.

•

"TIMER" appears in the display.

•

The current time is now set.

When the correct time is displayed, press ENTER.

•

Increase the minutes :

•

Decrease the minutes :

When the correct hour is displayed, press ENTER. The minutes flash.

•

Increase the hours :

•

Decrease the hours :

Press ENTER. The hour flashes.

Note

Checking the Remaining Time

Each time the REMAIN button is pressed

Press the REMAIN button.

•

For checking the total and remaining time of a title or chapter being played.

Disc Playback

Load a disc.

•

Insert a disc that the disc’s label facing up.

•

Depending on the content of the disc, the initial screen may appear different.

•

Depending on the recording mode, some MP3-CDs cannot be played.

•

Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc.

To open/close the disc tray,press OPEN/CLOSE button.

DVD CD

•

Playback starts automatically.

DivX

MP3

JPEG

•

Playback starts automatically.

•

If the TV is on, a list of MP3s on the CD will appear on the TV screen.

Note

•

To resume playback, press PLAY( ) button again.

To temporarily pause playback, press PAUSE button during playback.

•

If pressed once, the stop position will be stored in memory. If PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)

•

If pressed twice, “STOP” is displayed, and if PLAY ( ) button is pressed, playback starts from the beginning.

To stop playback, press STOP button during playback.

DVD

MP3

CHAPTER REMAIN

TITLE REMAIN

CHAPTER ELAPSED

TITLE ELAPSED

TRACK REMAIN

TOTAL ELAPSED

TOTAL REMAIN

TRACK ELAPSED

TRACK REMAIN

TRACK ELAPSED

Page 11

ENG

OPERATION

MP3/WMA-CD Playback

•

Depending on the recording mode, some MP3/WMA-CDs may not play.

•

Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.

Note

In Stop mode, use

to select

the album, and then press the ENTER button.

•

The MP3/WMA menu screen will appear and playback will start.

•

The appearance of the menu depends on the MP3/WMA disc.

•

WMA-DRM files cannot be played.

•

Use to select the track.

Load the MP3/WMA

disc.

Press the STOP button to stop playback.

•

To select another album and track, repeat Steps 2 and 3 above.

To change the album, use to select another album in Stop mode, and then press the ENTER button.

•

Music File Icon

•

Image File Icon

•

Movie File Icon

•

All File Icon

Press the button when it is in stop status and select a desired icon from the top part of the menu.

•

To play music files only, select the Icon.

•

To view image files only, select the Icon.

•

To view movie files only, select the Icon.

•

To select all files select the Icon.

To play a file icon in the screen,

Rotate/Flip Function

button: Flip Vertically

button: Flip Horizontally

button: Rotate 90° Counterclockwise

button: Rotate 90° Clockwise

Press Cursor , , , buttons during playback.

Original Image

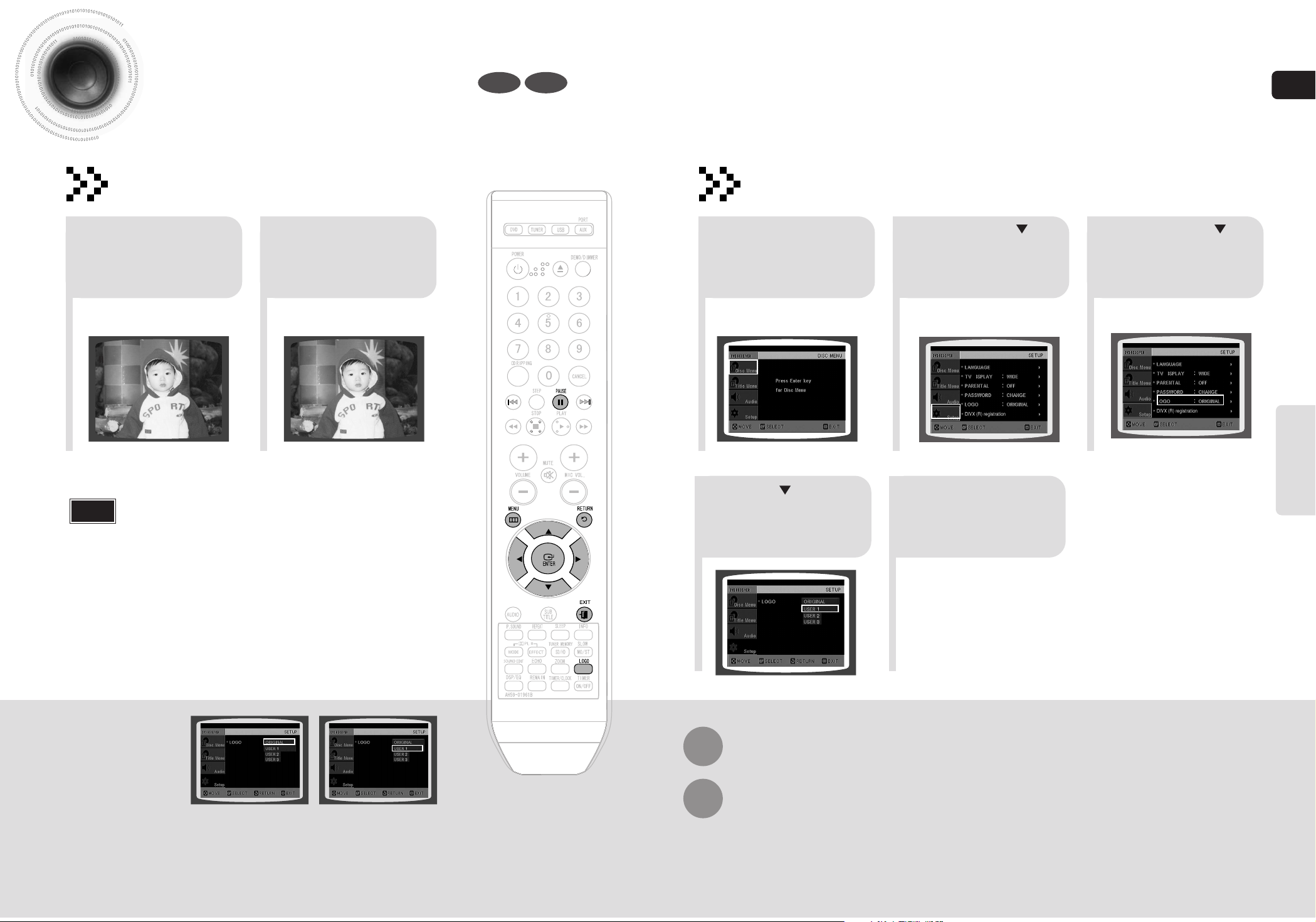

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player.

JPEG

Page 12

ENG

Fast playback

DivX Playback

Skip Forward/Back

During playback, press the button.

•

Go to the next file whenever you press button, if there are over 2 files in the disk.

•

Go to the previous file whenever you press button, if there are over 2 files in the disk.

Press and hold button.

•

Each time the button is held down during playback, the playback speed changes as follows:

•

When playing the DivX disk, you can play the file with extension of AVI only.

•

Among the available DivX audio formats, DTS Audio is not supported.

•

WMV V8 is not supported for WMV files.

•

When burning a subtitle file to a CD-ROM with your PC, be sure to burn it as an SMI file.

•

Divx Disc does not playing when its sampling frequency is lower than 32KHz.

•

Some of the discs recorded in DivX or XviD depending on the way of recording could be played back not correctly or couldn’t be played back at all.

•

MP3 file support: MPEG1 LAYER3 (BITRATE : 128KBPS~320KBPS , SAMPLING FREQ.: 32K/44.1K/48KHz) .

Note

OPERATION

Subtitle Display

Press the SUBTITLE button.

DivX Feature Table

DivX Supported Avi files are used to contain the audio and video data; these must be stored on CD in the ISO 9660 format.

MPEGs containing DivX can be divided into Video and Audio.

•

Video compatibility : All versions of DivX later than 3.11 (including the latest 5.1) are supported. In addition, XviD is supported. For WMV, V1, V2, V3, and V7 formats are possible. The initial resolution is 720X480 and may support up to 720X576 .

•

Audio compatibility : MP3s encoded at bitrates from 80kbps to 384kbps, AC3s from 128kbps to 384kbps, and WMAs from 56kbps to 128kbps are supported.

•

In addition, for subtitles, this unit will support Text format (SMI).

SPEC

VIDEO Compatibility DivX3.11 Up to the latest VERSION

WMV WMV V1/V2/V3/V7

AUDIO Compatibility MP3 CBR : 80kbps~384kbps

AC3 CBR : 128kbps~384kbps

WMA CBR : 56kbps~128kbps

•

Each time you press the button, your selection will toggle between “SUBTITLE ON” and “SUBTITLE OFF”.

•

If the disc has only one subtitle file, it will be played automatically.

•

Up to 8 subtitle languages are supported.

•

" " is displayed when there is one supported language in the disc.

Note

Press the AUDIO button.

•

If there are multiple audio tracks on a disc, you can toggle between them.

•

Each time you press the button, your selection will toggle between “AUDIO(1/1, 1/2 ...)” and

“”.

Audio Display

Page 13

ENG

•

Video files (DivX, WMV, MPEG, etc.) are supported.

•

To prevent the loss of data saved in the USB device, please turn the unit off or switch it to another mode before disconnecting the USB cable.

•

Music File Icon

•

Image File Icon

•

All File Icon

•

Movie File Icon

Note

Press the USB button to select the USB mode.

•

“USB” appears on the display screen and

then disappear.

•

USB SORTING screen appears on the TV screen and the saved file is played.

connect the USB

cable.

Press the button when it is in stop status and select a desired icon from the top part of the menu.

•

To play music files only, select the Icon.

•

To view image files only, select the Icon.

•

To select all files select the Icon.

•

To view movie files only, select the Icon.

You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the player's USB function.

To stop playback, press the STOP ( ) button.

To play a file in the USB menu screen,

Fast playback

Skip Forward/Back

During playback, press the button.

•

When there is more than a file, when you press the button, the next file is selected.

•

When there is more than a file, when you press the button, the previous file is selected.

To playback the disc at a faster speed, press and hold or during playback.

•

Each time you press and hold either button, the playback speed will change as follows:

2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

Compatible Devices

1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.)

2. MP3 Player: HDD and flash type MP3 player.

3. Digital camera: PTP protocol is not supported.

•

Devices which require additional program installation when you have connected it to a computer, are not supported.

4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.

•

You may experience a difference in playback quality when you connect a USB1.1 device.

•

For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.

5. USB card Reader: One slot USB card reader and Multi slot USB card reader

•

Depending on the manufacturer. the USB card reader may not be supported.

•

If you install multiple memory devices into a multi card reader, you may experience problems.

File name

File

Bit rate Version Pixel

Sampling

extension Frequency

Still Picture JPG .JPG .JPEG – – 640*480 –

Music

MP3 .MP3 80~384kbps – – 44.1kHz

WMA .WMA 56~128kbps V8 – 44.1kHz

Movie

VCD MPG.MPEG .DAT 1.5Mbps VCD1.1,VCD2.0 320*480 44.1KHz

WMV .WMV 4Mbps V1,V2,V3,V7 720*480

44.1KHz~48KHz

(V9 is not supported)

DivX .AVI,.ASF 4Mbps DivX3.11~DivX5.1,Xvid 720*480 44.1KHz~48KHz

●

Supported Formats

OPERATION

•

A device using NTFS file system is not supported.(Only FAT file system is supported.)

Playing Media Files using the USB feature

The USB host function of this product does not support all USB devices. For the information on the supported devices,pls see the P70.

Page 14

ENG

Using Bluetooth(Option)

You can use a Bluetooth device to let you enjoy music with high qualitystereo sound,all without wires!

What is Bluetooth?

Bluetooth is a new technology that enables Bluetooth-compliant devices to easily interconnect with each other using a short wireless connection.

•

A Bluetooth device may cause a noise or malfunction, depending on usage.

•

When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device or the Mini Component System.

•

Electrical variation from electrical jamming by the wall, corner or office partitioning.

•

Electrical interference from the same frequency-band devices including medical equipment, microwave oven and wireless LAN.

•

Pair the Mini Component System with the Bluetooth device while maintaining a close distance.

•

The further the distance is between Mini Component System and Bluetooth device, the worse the quality. If the distance exceeds the Bluetooth operational range, the connection is lost.

•

In poor reception-sensitivity areas, the Bluetooth connection may not work properly.

•

The Mini Component System has an effective reception range of up to 10 m in all directions if there are no obstacles. The connection will be automatically cut off if the distance is out of this range. Even within this range, the sound quality may be deteriorated by obstacles such as walls or doors.

To connect the Mini Component System to a bluetooth device

Check if the Bluetooth device supports the Bluetooth-compliant stereo headset function.

Press the AUX/PORT button of the

Mini Component system repeatedly until the "BT AUDIO"

appears.

•

You will see “WAIT” for serval seconds and then “READY” on the front display

of the Mini Component System.

Select the Bluetooth menu on the Bluetooth device you want to connect. (refer to Bluetooth device's user manual)

Select a Stereo headset menu on the Bluetooth device.

•

You will see a list of scanned devices.

Select "Samsung Mini Component" from the searched list.

•

When the Mini Component System is connected to the

Bluetooth device, the Mini Component System will display "Connect" on the front display, followed by the device name of the connected Bluetooth device.

•

The Mini Component System connection is complete.

Play music on the connected device.

•

You can listen to the music playing on the connected Bluetooth device over the Mini Component system.

•

You may be required to enter a PIN code(password) when connecting the Bluetooth device to the home cinema system. If the PIN code input window appears, enter <0000>.

•

The Mini Component System may control play related function only when connected device supports the function.

•

If connected device dose not support some play related function, the Mini Component System can't control the device.

•

The Mini Component System only supports Middle Quality SBC data(up to 237kbps@48kHz), and does not support High Quality SBC data([email protected]).

You can disconnect the Mini Component System from the Bluetooth device (refer to Bluetooth devices’ user manual).

•

The Mini Component System will be disconnected.

•

When the Mini Component System is disconnected from the

Bluetooth device, the Mini Component System will

display

"DISCONNECT" on the front display.

Press the AUX/PORT button of the Mini Component system to switch from “BT AUDIO” to another mode.

•

The bluetooth device connected will wait a certain time for response from the Mini Component system When the Mini Component System is disconnected from the

before terminating the connection. (Time to

disconnection may differ, depending on the bluetooth device)

•

The currently connected device will be disconnected.

•

In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Mini Component System and the Bluetooth device exceeds 10 m. If the distance is returned to the effective range or you restart the Bluetooth device, the Bluetooth connection can be restored.

•

With some bluetooth devices, some functions may not work properly.

To disconnect the Bluetooth device from the Mini Component System

To disconnect the Mini Component System from the Bluetooth device

Connect

Bluetooth Device

OPERATION

Page 15

ENG

Fast/Slow Playback

Fast Playback

DVD CD MP3

Press and hold .

•

Each time the button is held down during playback, the playback speed changes as follows:

Press SLOW button.

•

Each time the button is pressed during playback, the playback speed changes as follows:

Slow Playback

DVD

DivX

Displaying Disc Information

You can view playback information on the disc on the TV screen.

Press INFO button on the remote control .

•

Each time the button is pressed, the display changes as follows:

DVD

Display disappears

Display disappears Display disappears

CD MP3 JPEG

•

What is a Title?

A movie contained in a DVD disc.

•

What is a Chapter?

Each title on a DVD disc is divided into several smaller sections called "chapters".

•

appears on the TV screen!

If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played.

•

What is a Track (File)?

A section of video or a music file recorded on a CD, or MP3-CD.

Screen Display

DVD display

MP3 CD display

TITLE display

CHAPTER display

TRACK (FILE) display

AUDIO LANGUAGE display

SUBTITLE display

STEREO (L/R) display

DOLBY DIGITAL display

ANGLE display

•

Depending on the disc, the disc information display may appear different.

Note

DivX

DivX display

•

Reverse slow playback does not work with DivX.

Note

•

During fast playback of a CD or MP3-CD, sound is heard only at

2x speed, and not at 4x, 8x, and 32x speeds.

•

No sound is heard during slow playback and step motion

playback.

OPERATION

CD display

REPEAT PLAYBACK display

TRACK (FILE) display

Page 16

ENG

Angle Function

This function allows you to view the same scene in different angles.

DVD

Press Cursor button to move to ANGLE display.

Press INFO button.

•

Each time the button is pressed, the angle changes as follows:

Press Cursor , buttons or numeric buttons to select the desired angle.

•

The Angle function works only with discs on which multiple angles have been recorded.

Note

Skipping Scenes/Songs

DVD MP3

Briefly press .

•

Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will be played.

•

But, you cannot skip chapters consecutively.

TITLE 01/05 CHAPTER 002/040

TITLE 01/05 CHAPTER 004/040

OPERATION

Step Function

DVD

Press STEP button.

•

The picture moves forward one frame each time the button is pressed during playback.

•

No sound is heard during slow playback and step motion playback.

Page 17

ENG

DVD

•

For MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.

Note

Press Cursor button to move to REPEAT PLAYBACK display.

Press INFO button twice .

Press ENTER button.

Press Cursor button to select the desired Repeat Playback mode.

DVD CD

To Select a Repeat Playback Mode in the Disc Information Screen

•

For a CD,Press INFO button

once.

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

Press REPEAT button.

•

Each time the button is pressed during playback, the repeat playback mode changes as follows:

DVD

MP3 JPEG

CHAPTER

Repeatedly plays the selected chapter.

TITLE

Repeatedly plays the selected title.

RANDOM

Plays tracks in random order. (A track that has already been played may be played again.)

TRACK

Repeatedly plays the selected track.

DIR

Repeatedly plays all tracks in the selected folder.

DISC

Repeatedly plays the entire disc.

OFF

Cancels Repeat Playback.

DVD CD MP3 JPEG

Repeat Playback Options

OPERATION

Page 18

ENG

Zoom Function

This function allows you to enlarge a particular area of the displayed image.

Zoom (Screen Enlarge) Function

DVD

Press Cursor , ,

, buttons to move to the area you want to enlarge.

Press ZOOM button.

•

Each time the button is pressed, the zoom level changes as follows:

Press ENTER button.

SELECT ZOOM POSITION

A↔B Repeat Playback

OPERATION

DVD CD

Before Reading the User's Manual

Icons that will be used in manual

Make sure to check the following terms before reading the user manual.

• In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO, DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is mentioned, it is indicated separately.

• If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.

DVD

Icon Term Definition

DVD

MP3

JPEG

DivX

CAUTION

NOTE

DVD

MP3

JPEG

DivX

This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode.

This involves a function available with a data CD (CD-R or CD-RW).

This involves a function available with CD-R/-RW discs.

This involves a function available with MPEG4 discs. (

DVD R/RW,CD-R or CD-RW)

This involves a case where a function does not operate or settings may be cancelled.

This involves tips or instructions on the page that help each function operate.

• The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.

1 Press the INFO button twice. 2 Press the Cursor button to move to the REPEAT PLAYBACK ( ) display.

3 Press the Cursor , button to select <A-> and then press the ENTER

button at the beginning of the desired segment.

■

When the ENTER button is pressed, the selected position will be stored in memory.

4 Press the ENTER button at the end of the desired segment.

■

The specified segment will be played repeatedly.

To return to normal playback, press the Cursor , button to select

OFF.

A - B

REPEAT: A-B

• The Zoom function does not operate with DivX discs.

Page 19

ENG

Moving Directly to a Scene/Song

•

The selected file will be played.

•

A MP3 or JPEG disc cannot be moved from the disc information screen.

•

When playing a MP3 or JEPG disc, you cannot use , to move a folder. To move a folder, press (Stop) and then press , .

DVD CD

MP3 JPEG

Press Cursor , buttons or numeric buttons to select the desired title/track and then press ENTER button.

Press INFO button.

01/05

001/040 0:00:37 1/1

03/05

001/002 0:00:01 1/1

01/05

001/040 0:00:01 1/1

Moving to a Title/Track

Press Cursor , buttons or numeric buttons to select the desired chapter and then press ENTER button.

01/05

025/040 0:00:01 1/1

Moving to a Chapter

Press the numeric buttons to select the desired time and then press ENTER button.

01/05

028/040 1:30:00 1/1

Moving to a Specific Time

Press Cursor , buttons to move to Chapter display.

Moving to a Chapter

01/05

025/040 1:17:30 1/1

Press Cursor , buttons to move to time display.

Moving to a Specific Time

Press the numeric buttons.

•

You can press on the remote control to move directly to the desired title, chapter, or track.

•

Depending on the disc, you may not be able to move to the selected title or time.

Note

OPERATION

Selecting Audio Subtitle Language

•

Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPAIN,JAPANESE, etc.) is selected each time the button is pressed.

Press Cursor , buttons or numeric buttons to select the desired audio language.

Press INFO button twice.

•

You can use the SUBTITLE button on the remote control to select a subtitle language.

•

Depending on the disc, the Subtitle and Audio Language functions may not work.

Audio Language Selection Function

DVD

Subtitle Language Selection Function

DVD

Note

Press Cursor button to move to SUBTITLE display.

Press INFO button twice.

Press Cursor button or numeric buttons to select the desired subtitle.

Page 20

ENG

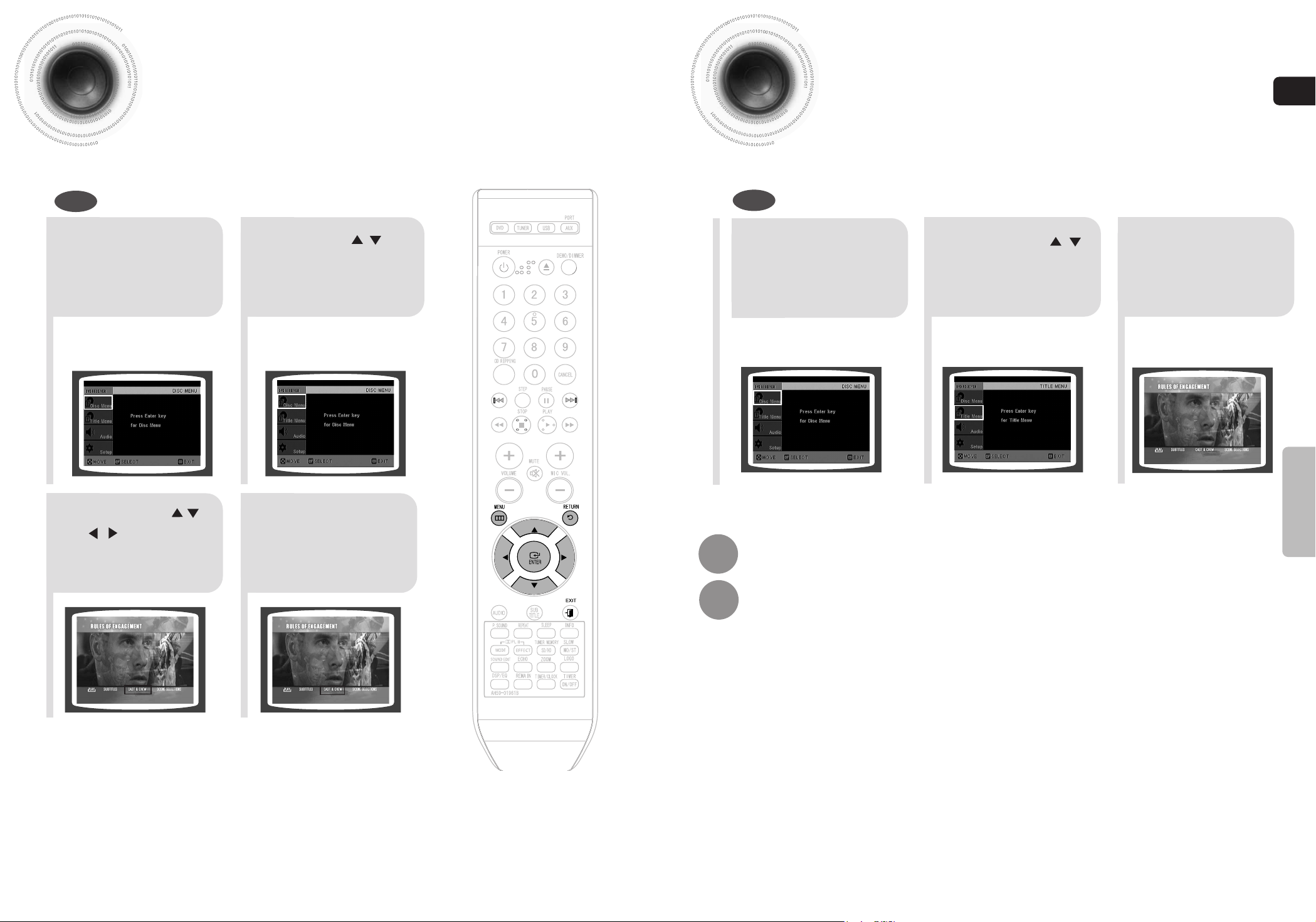

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, this function may either not work at all or may work differently.

Press Cursor , button to move to ‘Title Menu’.

DVD

In stop mode Press

MENU button.

Press ENTER button.

•

The title menu appears.

Using Disc Menu

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

DVD

•

When you select the disc menu that is not supported by the disc, the "This menu is not supported" message appears on the screen.

In stop mode,Press MENU button.

Press Cursor , buttons to move to ‘DISC MENU’ and then press ENTER button.

Press ENTER button.

Press Cursor , ,

, buttons to select

the desired item.

OPERATION

Press MENU/EXIT button to exit the setup screen.

Press RETURN button to return to the previous level.

Page 21

ENG

If the language you selected is not recorded on the disc, menu language will not change even if you set it to your desired language.

Selecting the

OSD Language

Selecting the

Audio Language

(recorded on the disc)

Setting the Language

OSD language is set to English by default.

In stop mode,Press

MENU button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

•

Once the setup is complete, if the language was set to English, OSD will be displayed in English.

Selecting the

Subtitle Language

(recorded on the disc)

Selecting the Disc Menu

Language (recorded on the disc)

Press ENTER

button.

Press Cursor , button to select the desired item and then

press ENTER button.

Press Cursor , button to select the desired language and then

press ENTER button.

Press RETURN button to return to the previous level.

Press MENU/EXIT button to exit the setup screen.

SETUP

39 40

• To select other language, select OTHER and enter the language code of your country. (See 40 page for language code of countries) AUDIO, SUB TITLE and DISC MENU language can be selected.

Note

Language Code List

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 39).

Code Language Code Language Code Language Code Language

1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian

1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan

1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona

1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali

1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian

1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian

1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati

1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho

1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese

1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish

1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili

1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil

1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu

1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik

1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai

1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya

1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen

1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog

1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana

1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga

1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish

1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga

1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar

1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi

1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian

1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu

1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek

1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese

1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk

1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof

1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa

1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba

1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese

1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu

Page 22

ENG

41 42

Setting TV Screen type

In stop mode,Press

MENU button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

•

Once the setup is complete, you will be taken to the previous screen.

Press Cursor button to move to ‘TV DISPLAY’ and then

press ENTER button.

Press Cursor , button to select the desired item and then

press ENTER button.

Press RETURN button to return to the previous level.

Press MENU/EXIT button to exit the setup screen.

SETUP

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

For a standard TV, select either <4:3PS> or <4:3LB> option according to personal preference. Select <WIDE/HDTV> if you have a widescreen TV.

Adjusting the TV Aspect Ratio (Screen Size)

4:3PS (4:3 Pan&Scan)

Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.

■

You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).

4:3LB (4:3 Letterbox)

Select this to play a 16:9 picture in the letter box mode on a conventional TV.

■

Black bars will appear at the top and bottom of the screen.

WIDE/HDTV

Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.

■

You can enjoy the widescreen aspect.

• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.

• Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.

• When using HDMI, the screen is automatically converted to Wide mode.

Page 23

ENG

43 44

Setting Parental Controls (Rating Level)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

•

This function works only if a DVD disc contains the rating level information.

Press RETURN button to return to the previous level.

Press MENU/EXIT button to exit the setup screen.

Press RETURN button to return to the previous level.

Press MENU/EXIT button to exit the setup screen.

in stop mode,Press

MENU button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

•

The password is set to "7890" by default.

•

Once the setup is complete, you will be taken to the previous screen.

•

If you have selected Level 6, you cannot view DVDs with Level 7 or higher.

•

The higher the level, the closer the content is to violent or adult material.

Press Cursor button to move to ‘PARENTAL’ and then

press ENTER button.

Press Cursor , button to select the desired rating level and then press

ENTER button.

Enter the password and then press

ENTER button.

Note

Press MENU button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

•

Enter the old password, a new password, and confirm new password.

•

The setting is complete.

Press Cursor button to move to ‘PASSWORD’

and then press ENTER

button.

Press ENTER

button.

Enter the password and then press

ENTER button.

Setting the Password

You can set the password for the Parental (rating level) setting.

SETUP

Press CANCEL button to cancel the error numeric when you inputting password.

• The password is set to “7890” by default.

Page 24

ENG

SETUP

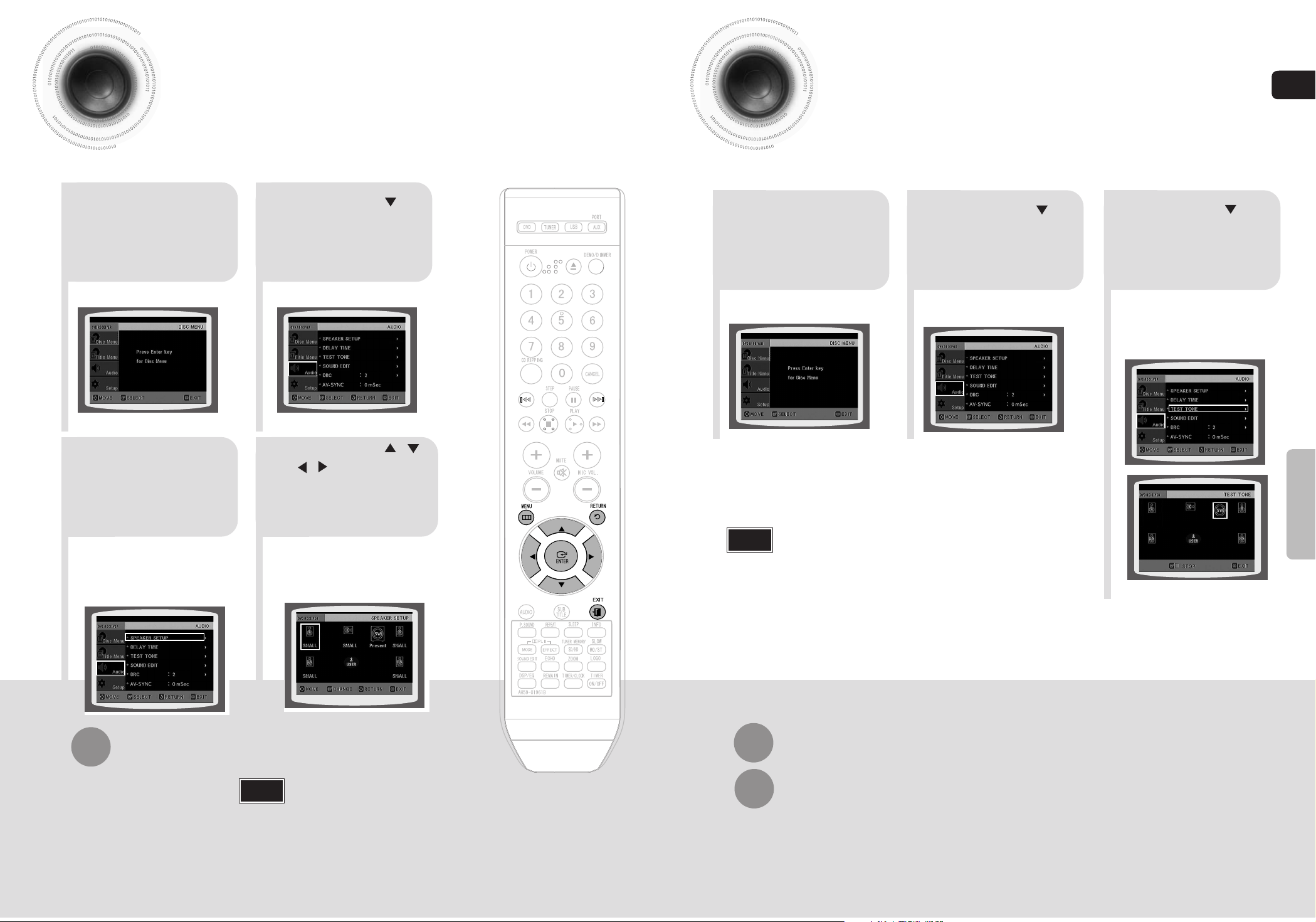

Setting the Wallpaper

While watching a DVD, JPEG CD, you can set the image you like as a wallpaper.

DVDJPEG

During playback, press

PAUSE button when

the image you like comes up.

Press LOGO

button.

PAUSE

COPY LOGO DATA

Setting the Wallpaper

21 3

Press MENU

button.

Press Cursor button to move to ‘Setup’ and then

press ENTER button.

Press Cursor button to move to ‘LOGO’ and then

press ENTER button.

To Change the Wallpaper

Press EXIT

button to exit the setup screen.

Press to select the desired ‘USER’, and then press

ENTER.

Select this to set the Samsung Logo image as your wallpaper.

Select this to set the desired image as your wallpaper.

Press RETURN button to return to the previous level.

Press MENU/EXIT button to exit the setup screen.

45 46

•

“COPY LOGO DATA” will be

displayed on the TV screen.

•

The selected wallpaper will be displayed.

•

You can repeat Steps 1 and 2 to set up to 3 wallpapers.

•

The power will turn off and turn on automatically and back on the display mode.

Note

Page 25

ENG

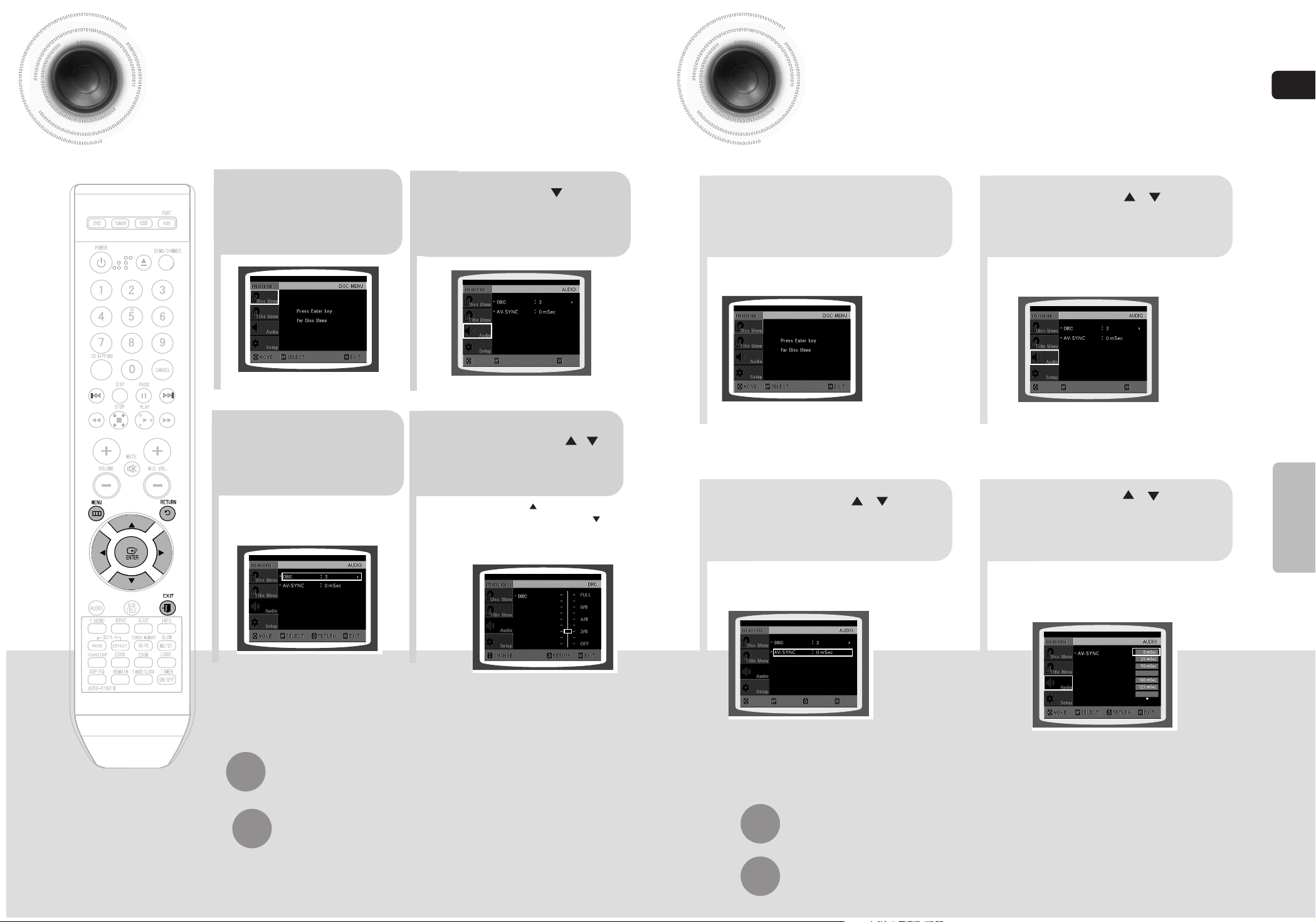

Setting the Speaker Mode

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.

Setting the Test Tone

Press the Test Tone to check the speaker connections and to adjust the speaker levels.

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Audio’ and then

press ENTER button.

In the Speaker Setup, press the

ENTER button again.

Press Cursor , ,

, buttons to move to the desired speaker and then

press ENTER button.

•

For C,SL, and SR, each time the button is pressed, the mode switches

alternately as follows: SMALL ➝ NONE.

•

For L and R, the mode is set to SMALL.

SETUP

SMALL

: Select this when using the speakers.

NONE : Select this when no speakers are installed.

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Audio’ and then

press ENTER button.

Press Cursor button to move to ‘TEST TONE’ and then press

ENTER button.

•

Although Center CH can toggle between SMALL and NONE,it is not relevant to speaker settings be signals are distributed to FRONT L-CH and R-CH by creating a virtual Center CH.(Default setting is SMALL).

•

SPEAKER SETUP ---Available only in DVD.

Note

•

The test tone functin is not available while HDMI AUDIO ON.

Note

•

The test tone will be sent to L ➝ C ➝ R ➝ SR ➝ SL ➝ SW in that order.

If the ENTER button is pressed again at this time, the test tone will stop.

Press MENU/EXIT button to exit the setup screen.

Press RETURN button to return to the previous level.

Page 26

ENG

Setting the Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the rear speakers.

49 50

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Surround Speakers.

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Audio’ and

then press ENTER

button.

43 5

Press Cursor button to move to ‘DELAY TIME’ and then press

ENTER button.

Press Cursor , ,

, buttons to move to the desired speaker and then

press ENTER button.

Press Cursor , to set the Delay time.

•

With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

•

The Center Speaker setting is not available for no center speaker.

Note

•

You can set the delay time for C between 00 and 05mSEC and for LS and RS between 00 and 15mSEC.

Df: The distance from FRONT SPEAKER Dc: The distance from CENTER SPEAKER Ds: The distance from REAR SPEAKER

Ideal CENTER SPEAKER placement

It is desirable to place all speakers within this circle.

Ideal SPEAKER placement

0 ms 3 ms 6 ms

9 ms 12 ms 15 ms

• Setting REAR () SPEAKERS

If the distance of Df is equal to the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

•

Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Dc Delay Time

Delay Time

0 ms 1 ms 2 ms 3 ms 4 ms 5 ms

Distance between Df and Ds

0.00 m

0.34 m

0.68 m

1.02 m

1.36 m

1.70 m

0.00 m

1.02 m

2.04 m

3.06 m

4.08 m

5.10 m

Page 27

ENG

Setting the Audio Quality

You can adjust the balance and level for each speaker.

SETUP

Adjusting Front/Rear Speaker Balance

•

You can select between 00 and –06 and OFF.

•

The volume decreases as you move closer to –6.

Adjusting Center/Rear/Subwoofer Speaker Level

•

The volume level can be adjusted in steps from +6dB to –6dB.

•

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Method 2

When manually adjusting with the SOUND EDIT button

Adjusting Front Speaker Balance Adjusting Rear Speaker Balance

Press SOUND EDIT button and

then press Cursor

, .

Adjusting Center Speaker Level

4 5

Adjusting Rear Speaker Level

Adjusting Subwoofer Speaker Level

Press SOUND EDIT button and

then press Cursor

, .

Press SOUND EDIT button and

then press Cursor

, .

Press SOUND EDIT button and

then press Cursor

, .

Press SOUND EDIT button and

then press Cursor

, .

Note

TITLE

CHAP

PRGM RDS RT

TUNED

kHz MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz MHz

TITLE

CHAP

PRGM RDS

TUNED

kHz MHz

TITLE

CHAP

PRGM RDS RT

TUNED

kHz

In Stop mode,

press MENU

button.

Press Cursor button to move to ‘Audio’ and then press

ENTER button.

Press Cursor button to move to ‘SOUND EDIT’ and then press

ENTER button.

Press Cursor , ,

, buttons to select

the desired item and then

press ENTER button.

Method 1

When adjusting the audio quality using the setup screen

Press RETURN button to return to the previous level.

Press MENU/EXIT button to exit the setup screen.

Page 28

ENG

Press RETURN button to return to the previous level.

Press MENU/EXIT button to exit the setup screen.

53 54

SETUP

AV SYNC Setup

•

'Audio' menu appears.

•

Setup menu appears.

•

AV-SYNC screen appears.

Press Cursor , buttons to move to ‘Audio’ and then

press ENTER button.

•

You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.

Press Cursor , buttons to select the Delay Time of AV-SYNC and then press the

ENTER button.

Video may look slower than the audio if it is connected with digital TV. In this case, adjust the delay time of audio to optimal status to fit the video.

Press Cursor , buttons to move to ‘AV-SYNC’ and

then press ENTER button.

Press the MENU button.

Setting the DRC (Dynamic Range Compression)

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

Press MENU button.

Press Cursor button to move to ‘Audio’ and then

press ENTER button.

If “DRC” is

selected, press

ENTER.

Press Cursor , to adjust the ‘DRC’.

Press RETURN button to return to the previous level.

Press MENU/EXIT button to exit the setup screen.

•

The more times the Cursor button is pressed, the greater the effect, and the more times Cursor button is pressed, the smaller the effect.

MOVE ENTER RETURN

EXIT

Page 29

ENG

55 56

SETUP

You can select the desired Dolby Pro Logic II audio mode.

Each time the button is pressed, the mode changes as follows.

PRO LOGIC II

• MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.

• CINEMA : Adds realism to the movie soundtrack.

• PRO LOGIC : You will experience a realistic multi-channel effect, as if using

five speakers, while using just the front left and right speakers.

• MATRIX : You will hear 5.1 channel surround sound.

• STEREO : Select this to listen to sound from the front left and right speakers

and the subwoofer only.

• When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

CINEMA

PRO LOGIC

MATRIX

STEREO

MUSIC

➝ ➝ ➝

➝

Dolby Pro Logic II Mode

Press the PL II MODE button.

• When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and the (Dolby Pro Logic II) button does not work.

1 Press the PL II MODE button to select <MUSIC> mode. 2 Press the PL II EFFECT button to select <PANORAMA>, then press the

Cursor , buttons to select the desired effect setting.

You can select either 0 or 1. This mode extends the front stereo image to include the surround speakers for an exciting

"wraparound" effect with side wall imaging.

3 Press the PL II EFFECT button to select <C-WIDTH>, then press the

Cursor , button to select the desired effect setting.

You can select between 0 and 7. This sets the width of the center image. The higher the setting, the less sound comes from the

center speaker.

4 Press the PL II EFFECT button to select <DIMENSION>, then press the

Cursor , button to select the desired setting

You can select between 0 and 6. Incrementally adjusts the sound field (DSP) from the front or rear.

This function works only in Dolby Pro Logic MUSIC mode.

Dolby Pro Logic II Effect

Page 30

ENG

57 58

Listening to Radio

Presetting Stations

You can store up to:

15 FM stations

RADIO OPERATION

1 Press the TUNER button to select the FM band. 2 Select a broadcast station.

Automatic Tuning 1 : Press the STOP () button to select <PRESET> and then press the button to select the preset station.

Automatic Tuning 2 : Press the STOP () button to select <AUTO> and then press

the button to automatically search the band. Manual Tuning : Press the STOP () button to select <MANUAL> and then briefly press

the button to tune in to a lower or higher frequency.

Press the MO/ST button to listen in Mono/Stereo.

Each time the button is pressed, the sound switches between <STEREO> and <MONO>.

In a poor reception area, select MONO for a clear, interference-free broadcast.

Example : Presetting FM 89.10 in the memory

• This unit does not receive AM broadcasts.

1 Press the TUNER button to select the FM band. 2 Press the button to select <89.10>.

3 Press the TUNER MEMORY button.

4 Press the button to select preset number.

You can select between 1 and 15 presets.

5 Press the TUNER MEMORY button again.

The station is stored in memory.

6 To preset another station, repeat steps 2 to 5.

To tune in to a preset station, press the button on the remote

control to select a channel.

kHz

MHz

kHz

MHz

kHz

MHz

Page 31

ENG

Timer Function

•

The timer enables you to switch the system on or off at specific times.

•

If you no longer want the system to be switched on or off automatically, you must cancel the timer.

•

Before setting the timer, check that the current time is correct.

•

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

Example: You wish to wake up to music every morning.

•

ON TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-on time already set; you can set the timer switch-on time.

•

The source to be selected is displayed.

Switch the system on by pressing

POWER.

Press

TIMER/CLOCK

until TIMER is displayed.

Press the ENTER

button.

•

is displayed to the top right of

the time, indicating that the timer has been set.

•

The system will switch on and off automatically at the required

times.

Press or button to select the source to be played when the system switches on.

Press ENTER to

confirm the timer.

Press

POWER

to set the system to standby mode.

a. Set the hour by pressing or

button.

b. Press ENTER .

•

The minutes flash.

c. Set the minutes by pressing or

button.

d. Press ENTER.

•

OFF TIME is displayed (instead of the equalizer symbols) for a few

seconds, followed by any switchoff time already set; you can now set the timer switch-off time.

•

TAPE (cassette) : Insert a cassette

tape.

•

TUNER (radio) : a Press ENTER.

b Select a preset

station by pressing

or .

•

DVD/CD (compact disc) : Load on or

more compact disc.

•

USB :Insert a USB.

a. Set the hour by pressing or

button.

b. Press ENTER.

•

The minutes flash.

c. Set the minutes by pressing or

button.

d. Press ENTER.

•

VOL 10 is displayed, where 10 corresponds to the volume

already set.

Set the timer switch-off time.

Press or button to adjust the volume level and press

ENTER.

Set the timer switch-on time.

MISCELLANEOUS

Note

•

If the timer switch on and off times are identical, the word ERROR is displayed.

•

You can also use Multi Jog or button on the front panel to instead , button on the

remote control in step 4,5,6,7.

Canceling the Timer

Note

•

You can cancel the timer while the power is on or while the player is in standby.

After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it.

• is no longer displayed.

To cancel the timer, press TIMER ON/OFF once.

• is displayed again.

To resume the timer, press TIMER

ON/OFF again.

Page 32

ENG

MISCELLANEOUS

Sleep Timer Function / Mute Function

•

The remaining time before the DVD player will shut itself off is displayed.

•

Pressing the button again changes the sleep time from what you have set earlier.

To confirm the sleep timer setting, press SLEEP button.

•

Each time the button is pressed, the selection changes as follows:

90 MIN ➝ 60 MIN ➝ 45 MIN ➝ 30 MIN ➝ 15 MIN ➝ OFF.

Press SLEEP button.

Sleep Timer Function

You can set the time that the DVD player will shut itself off.

To cancel the sleep timer, press SLEEP button until

OFF appears on the display.

•

‘

MUTE ’ appears in the display.

•

To turn off mute, press the button again.

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

kHz

MHz

kHz MHz

POWER SOUND /

DSP/EQ

Function

Your mini-compact system is equipped with the function of Power Sound. The function of Power Sound amplifies bass and improves high key or bass twice as much for you to appreciate powerful real sound.

Result:“P.SOUND” is displayed for a few seconds. To cancel this function, press P.SOUND again, “PASS” is displayed for a few seconds, and P.SOUND disappears.

Your mini-compact system is equipped with a preset equalizer that allows you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to.

Press the P.SOUND button

Press DSP/EQ on the remote control until the required option is selected.

When CD Ripping,the P.SOUND function can’t work and the

P.SOUND automatically convert to “OFF” mode .

To obtain a... Select...

Normal balance (linear) PASS Balance suitable for pop music POPS Balance suitable for jazz music JAZZ Balance suitable for rock music ROCK Balance suitable for studio STUDIO Balance suitable for club CLUB Balance suitable for hall HALL Balance suitable for movie MOVIE Balance suitable for chur ch CHURCH

When CD Ripping,the DSP/EQ function can’t work and the DSP/EQ automatically convert to “PASS” mode.

Page 33

ENG

MISCELLANEOUS

•

The various functions available are listed in turn on the display.

•

All these functions are described in detail in this booklet. For instructions on how to use them, refer to the appropriate sections.

DEMO Function

You can view the various functions available on your system.

To cancel this function, press

DEMO/DIMMER again.

Press DEMO/DIMMER button.

DEMO Function / DIMMER Function/ ECO Function

•

Each time the button is press, the brightness changes as

follows: DIMMER ON(Dim) ➞ DIMMER

OFF(Bright).

DIMMER Function

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press DEMO/DIMMER button.

You can save the power consumption while the unit is turned off(on standby).

ECO Mode Function

•

To activate the ECO mode,Press POWER while the unit is turned off (on standby),The

display illumination(including the display demonstration) disappears.

•

While ECO mode is activated, the display demonstration is canceled temporarily.

CD RIPPING Function

You can rip a compact disc as a MP3 file on the USB This feature enables you to ripping with the start of the disc or track of your choice.

Don’t disconnected USB and AC Cord during CD-Ripping.This may cause the file damage.If you want to stop CD-Ripping during CD-Ripping,you must press stop Key first and after the CD Stopped,then you can remove the USB device.

If you disconnected USB device when CD Ripping,the main unit will be power off and you may not delete the ripped file,In this case, please connect the USB on the PC and backup the USB data on the PC first and then formate the USB device .

On the CD playing ,connect the USB,the CD play will be paused and will resume

playing till the USB initilization finished.

According the different USB the initilization time maybe different.

When the USB memory is not enough,it will be displayed “NOT ENOUGH MEMORY”

DTS-CD can’t for CD Ripping.

Starting CD ripping within 5 seconds can’t create the CD Ripping file.

Ripping file is only created when CD Ripping is stopped afters 5 seconds

(ex. SAM-0001.MP3).

With external HDD,FAT format the USB can be CD Ripping,but not NTFS.The CD

Ripping function of this product does not support all USB devices.

When you use CD high speed search function,the CD Ripping can’t work.

When CD Ripping, CD audio can’t be out.

During CD Ripping,do not deal impact.If is shocked while CD Ripping,CD Ripping

maybe disengage.

Sometimes, some of USB devices, CD Ripping time is long.

If you use scratched disc for CD Ripping, or connect/disconnect HDMI cable during CD Ripping, there might be some noise and broken sound on ripped file.

When HDMI audio on, the CD RIPPING can’t work.

Connect the USB.

Switch the system on by pressing

STANDBY/ON.

Load a compact disc(Digital Audio).

Press CD RIPPING button on remote control to starting ripping.

Press the OPEN/CLOSE button to open the disc tray.

Insert a CD and press the OPEN/CLOSE button to close the disc tray.

Use the CD selection ( ) buttons to

select the desired song.

If the system is either at pause or playing state,turn the CD RIPPING dial down or press CD RIPPING button on the remote control to start the ripping for the current track. Turn CD RIPPING dial up or press and hold CD RIPPING button on the remote control to start ripping the all tracks of Disc. “CD Ripping” is displayed in red and CD RIPPING

starts.

During CD ripping, do not disconnect USB device.

To stop ripping, press STOP button.and

then automatically create and save as the MP3 file.

After CD-Ripping,a directory named “RIPPING” will be created in your device.The file name follows the format:”SAMXXXX”.MP3.

CD Ripping Feature Supported Player

YP-T8 Samsung MP3 Player YP-T7F Samsung MP3 Player YP-D1 Samsung MP3 Player YP-T8N Samsung MP3 Player YP-U2 Samsung MP3 Player YP-T9 Samsung MP3 Player YP-K5 Samsung MP3 Player YP-K3 Samsung MP3 Player YV-150 Samsung MP3 Player YP-U3 Samsung MP3 Player

Product Company Type

Note

Page 34

ENG

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

•

When cleaning, wipe gently from the inside to the outside of the disc.

Handling discs

Handling and Storing Discs

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause breaks in playback. Be especially careful not to scratch discs when handling them.

•

Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Note

•

The loudspeakers are no longer used to output the sound.

•

Connect the Microphone.

•

Press the

MIC VOL

buttons

to adjust the MIC level.

•

Press the ECHO button to select ECHO1,ECHO2, and ECHO OFF.

•

When connected a MIC,HDMI output is not available.

Connect the headphones

to the PHONES jack on

the front panel.

You can connect a set of headphones to your micro component system so that you can listen to music or radio programmers without disturbing other people in the room. The earphones must have a 3.5ø jack or an appropriate adapter.

•

Prolonged use of headphones at a high volume may damage your hearing.

•

HDMI AUDIO ON is converted to OFF when connected the headphones.

•

When CD ripping,CD Audio can’t be out.

Note

Plug the microphone with a 6.3ø MIC

jack into microphone terminal.

Connecting Headphones/Microphone

MISCELLANEOUS

Page 35

ENG

Before Calling for Service

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

MISCELLANEOUS

•

Is the power cord plugged securely into the outlet?

•

Turn off the power and then turn it back on.

•

Check the region number of the DVD. DVD discs purchased from abroad may not be playable.

•

CD-ROMs and DVD-ROMs cannot be played on this DVD player.

•

Make sure that the rating level is correct.

•

Are you using a deformed disc or a disc with scratches on the surface?

•

Wipe the disc clean.

Disc tray does not open.

Playback does not start.

Playback does not start immediately when the Play/Pause button is pressed.

•

No sound is heard during fast playback, slow playback, and step motion playback.

•

Are the speakers connected properly? Is the speaker setup correctly customized?

•

Is the disc severely damaged?

Sound is not produced.

•

Was the DVD player suddenly moved from a cold place to a warm one? When condensation forms inside the player, remove the disc and let the player stand for 1 or 2 hours with the power on. (You can use the player again after condensation disappears.)

Picture does not appear, sound is not produced, or the disc tray opens 2 to 5 seconds later.

Symptom Check/Remedy

•

Is the TV power on?

•

Are the video cables connected properly?

•

Is the disc dirty or damaged?

•

A poorly manufactured disc may not be playable.

• Disc is rotating but no picture is produced.

• Picture quality is poor and picture is shaking.

•

Is the remote control being operated within its operation range of angle and distance?

•

Are the batteries exhausted?

The remote control does not work.

•

Audio language and subtitles will not work for DVDs not containing them. And depending on the disc, they may work differently.

Audio language and subtitles do not work.

•

Are you using a disc that does not contain menus?

Menu screen does not appear even when the menu function is selected.

•

While the player is in “NO DISC” mode, hold the main unit's STOP

button for longer than 5 seconds. “INITIAL” appears on the display and all settings will return to the default values.

•

Press the POWER button.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

•

Turn off the power and hold the STOP button on the main unit for

longer than 5 seconds.

Using the RESET function will erase all stored settings. Do not use this unless necessary.

The password for rating level has been forgotten.

•

The main unit is not working.

(Example: The power goes out or strange noise is heard.)

• The DVD player is not working normally.

•

Is the antenna connected properly?

•

If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

Can't receive radio broadcast.

Symptom Check/Remedy

•

You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

Aspect ratio cannot be changed.

Page 36

ENG

Specifications

USB Host Feature Supported Products

DIGITAL CAMERA

Product Company Type Product Company Type

Finepix-A340 Fuji Digital Camera U300 Olympus Digital Camera Finepix-F810 Fuji Digital Camera X-350 Olympus Digital Camera Finepix-F610 Fuji Digital Camera C-760 Olympus Digital Camera Finepix-f450 Fuji Digital Camera C-5060 Olympus Digital Camera

Finepix S7000 Fuji Digital Camera X1 Olympus Digital Camera

Finepix A310 Fuji Digital Camera U-mini Olympus Digital Camera

KD-310Z Konica Digital Camera Lumix-FZ20 Panasonic Digital Camera Finecam SL300R Kyocera Digital Camera DMC-FX7GD Panasonic Digital Camera Finecam SL400R Kyocera Digital Camera Lumix LC33 Panasonic Digital Camera

Finecam S5R Kyocera Digital Camera LUMIX DMC-F1 Panasonic Digital Camera

Finecam Xt Kyocera Digital Camera Optio-S40 Pentax Digital Camera Dimage-Z1 Minolta Digital Camera Optio-S50 Pentax Digital Camera Dimage Z1 Minolta Digital Camera Optio 33LF Pentax Digital Camera

Dimage X21 Minolta Digital Camera Optio MX Pentax Digital Camera Coolpix4200 Nikon Digital Camera Digimax-420 Samsung Digital Camera Coolpix4300 Nikon Digital Camera Digimax-400 Samsung Digital Camera Coolpix 2200 Nikon Digital Camera Sora PDR-T30 Toshiba Digital Camera Coolpix 3500 Nikon Digital Camera Coolpix 5900 Nikon Digital Camera Coolpix 3700 Nikon Digital Camera Coolpix S1 Nikon Digital Camera Coolpix 4100 Nikon Digital Camera Coolpix 7600 Nikon Digital Camera Coolpix 5200 Nikon Digital Camera DMC-FX7 Panasonic Digital Camera

Stylus 410 digital Olympus Digital Camera Dimage Xt Minolta Digital Camera

300-digital Olympus Digital Camera AZ-1 Olympus Digital Camera 300-digital Olympus Digital Camera Digital Camera

USB FLASH DISC

Product Company Type Product Company Type

Cruzer Micro Sandisk

USB 2.0 USB Flash Drive 128M

XTICK LG USB 2.0 128M Cruzer Mini Sandisk USB 2.0 128M Micro Mini Iomega USB 2.0 128M Cruzer Mini Sandisk USB 2.0 256M iFlash Imation USB 2.0 64M

SONY Micro Vault Sony USB 2.0 64MB LG XTICK(M) USB 2.0 64M

FLEX DRIVE Serotech USB 2.0 32MB RiDATA EZDrive USB 2.0 64M

AnyDrive A.L tech USB 2.0 128MB

MP3 PLAYER

Product Company Type Product Company Type

Creative MuVo NX128M

Creative 128 MB MP3 Player YP-780 Samsung MP3 Player

Iriver H320 Iriver 20G HDD MP3 Player YP-35 Samsung MP3 Player

YH-920 Samsung 20G HDD MP3 Player YP-55 Samsung MP3 Player

YP-T7 Samsung MP3 Player iAUDIO U2 Cowon MP3 Player

YP-MT6 Samsung MP3 Player iAUDIO G3 Cowon MP3 Player

YP-T6 Samsung MP3 Player iAudio M3 Cowon HDD MP3 Player YP-53 Samsung MP3 Player SI-M500L Sharp 256MB MP3 Player

YP-ST5 Samsung MP3 Player H10 Iriver MP3 Player

YP-T5 Samsung MP3 Player YP-T5 VB Samsung MP3 Player YP-60 Samsung MP3 Player YP-53 Samsung 256MB MP3 Player

MISCELLANEOUS

Weight Dimensions (W x H x D) Operating Temperature Range Operating Humidity Range Usable Sensitivity S/N Ratio Distortion Composite Video

Component Video

HDMI Front speaker output Center speaker output Rear speaker output Subwoofer speaker output Frequency range

S/N Ratio

Channel separation

Input sensitivity

GENERAL

TUNER

VIDEO OUTPUT

AMPLIFIER

4.8 Kg 180 x 390 x 350 mm +5 °C~+35 °C 10 % ~ 75 % 10 dB 60 dB

0.5 %

1.0 Vp-p(75 Ω load) Y:1.0 Vp-p(75 Ω load) Pr:0.70 Vp-p(75 Ω load) Pb:0.70 Vp-p(75 Ω load) Impedance: 85~115 Ω 135 W x 2(3 Ω) 135 W(3 Ω) 135 W x 2(3 Ω) 180 W(3 Ω) 20 Hz~20 KHz

70 dB

50 dB

(AUX)500 mV

100 W

Speaker system

Impedance Frequency range Output sound pressure level Rated input Maximum input

Dimensions (W x H x D)

Weights

SPEAKER

Subwoofer speaker

3 Ω 35 Hz~160 Hz 90 dB 180 W 360 W

Front/

Rear

Center

Front/

Rear

Center

Front/Center/Rear speaker

3 Ω 140 Hz~20 kHz 88 dB 135 W 270 W

5.1ch speaker system

Power Consumption

167 x 387 x 235 mm

255 x 111 x149 mm

Front:4.0 Kg, Rear:3.6 Kg

1.8 Kg

170 x 387 x 328 mm

4.5 Kg

Page 37

ENG

MISCELLANEOUS

Notes on Terminology

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.



North America

CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com

Latin America

ARGENTINE 0800-333-3733 www.samsung.com/ar BRAZIL 0800-124-421 , 4004-0000 www.samsung.com CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl NICARAGUA 00-1800-5077267 HONDURAS 800-7919267 COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung.com/latin GUATEMALA 1-800-299-0013 www.samsung.com/latin JAMAICA 1-800-234-7267 www.samsung.com/latin PANAMA 800-7267 www.samsung.com/latin PUERTO RICO 1-800-682-3180 www.samsung.com/latin REP. DOMINICA 1-800-751-2676 www.samsung.com/latin TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin VENEZUELA 0-800-100-5303 www.samsung.com/latin COLOMBIA 01-8000112112 www.samsung.com.co

Europe

BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be

CZECH REPUBLIC

844 000 844 Distributor pro Českou republiku: Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4

www.samsung.com/cz

DENMARK 70 70 19 70 www.samsung.com/dk FINLAND 030-6227 515 www.samsung.com/ﬁ

FRANCE

3260 SAMSUNG (

0,15/Min),

08 25 08 65 65 (

0,15/Min)

www.samsung.com

GERMANY

01805 - SAMSUNG(726-7864) ( 0,14/Min)

www.samsung.com HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com ITALIA 800-SAMSUNG(726-7864) www.samsung.com LUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/be NETHERLANDS

0900-SAMSUNG(726-7864) ( 0,10/Min)

www.samsung.com/nl NORWAY 815-56 480 www.samsung.com/no POLAND 0 801 801 881 , 022-607-93-33 www.samsung.com/pl PORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/pt SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk SPAIN 902 10 11 30 www.samsung.com SWEDEN 0771-400 200 www.samsung.com/se U.K 0845 SAMSUNG (7267864) www.samsung.com EIRE 0818 717 100 www.samsung.com/ie AUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/at SWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/ch

CIS

RUSSIA 8-800-555-55-55 www.samsung.com KAZAHSTAN 8-10-800-500-55-500 www.samsung.kz UZBEKISTAN 8-10-800-500-55-500 www.samsung.uz KYRGYZSTAN 00-800-500-55-500 TADJIKISTAN 8-10-800-500-55-500 UKRAINE 8-800-502-0000 www.samsung.com LITHUANIA 8-800-77777 www.samsung.lt LATVIA 800-7267 www.samsung.com/lv ESTONIA 800-7267 www.samsung.ee

Asia Paciﬁ c

AUSTRALIA 1300 362 603 www.samsung.com NEW ZEALAND 0800SAMSUNG(726-7864) www.samsung.com/nz CHINA 800-810-5858 , 010-6475 1880 www.samsung.com HONG KONG 3698-4698 www.samsung.com/hk INDIA 3030 8282 , 1800 110011 www.samsung.com INDONESIA 0800-112-8888 www.samsung.com JAPAN 0120-327-527 www.samsung.com/jp MALAYSIA 1800-88-9999 www.samsung.com/my PHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/ph SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com THAILAND 1800-29-3232 , 02-689-3232 www.samsung.com TAIWAN 0800-329-999 www.samsung.com/tw VIETNAM 1 800 588 889 www.samsung.com

Middle East &

Africa

TURKEY 444 77 11 www.samsung.com SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com U.A.E 800-SAMSUNG (726-7864), 8000-4726

www.samsung.com

Region Country Customer Care Center Web Site

Recorded onto some DVD discs are scenes which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left , from the right , etc.). With such discs, the Angle button can be used to change the angle of view for specific scenes.

ANGLE

These numbers are recorded on DVD discs. A Title is subdivided into many sections, each of which is numbered, and specific parts of the video can be searched quickly using these numbers.

A high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG-2) and high-density recording technology, a DVD disc comprises two 0.6 mm thick discs bonded together.

Both the DVD player and DVD discs are encoded with a region number. If the region number on the DVD disc does not correspond to the region number of the DVD player, the player cannot play the disc.

Translated appearing at the bottom of the screen. A DVD disc can contain up to 32 subtitle languages.

These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as Title 1, Title 2, etc.

These numbers are assigned to the tracks which are recorded on video and audio CDs. They enable specific tracks to be located quickly.

5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs recorded as a digital signals (with disc marking). With better sound quality, dynamic range, and directionality than traditional Dolby surround technology, you can enjoy dynamic, realistic sound.

CHAPTER

NUMBER

DVD

REGION NUMBER

SUBTITLES

TITLE NUMBER

TRACK NUMBER

Samsung MAX-DA79 User Manual

12

Safety Warnings Precautions

Features

Contents

Notes on Discs

Description

Connecting the Speakers

Connecting the Video Out to your TV

HDMI Function

Setting the HDMI Audio

Connecting External Components

Connecting the FM Antennas

Setting the Clock

Disc Playback

MP3/WMA-CD Playback

JPEG File Playback

DivX Playback

Playing Media Files using the USB feature

Using Bluetooth(Option)

Fast/Slow Playback

Displaying Disc Information

Angle Function

Skipping Scenes/Songs

Repeat Playback

Zoom Function

A↔B Repeat Playback

Before Reading the User's Manual

Moving Directly to a Scene/Song

Selecting Audio Subtitle Language

Using the Title Menu

Using Disc Menu

Setting the Language

Language Code List

Setting TV Screen type

Setting Parental Controls (Rating Level)

Setting the Password

Setting the Wallpaper

Setting the Speaker Mode

Setting the Test Tone

Setting the Delay Time

Setting the Audio Quality

AV SYNC Setup

Setting the DRC (Dynamic Range Compression)

Dolby Pro Logic II Mode

Dolby Pro Logic II Effect

Listening to Radio

Presetting Stations

Timer Function

Canceling the Timer

Sleep Timer Function / Mute Function

DEMO Function / DIMMER Function/ ECO Function

CD RIPPING Function

Cautions on Handling and Storing Discs

Connecting Headphones/Microphone

Before Calling for Service

Specifications

USB Host Feature Supported Products

Notes on Terminology
