Samsung MAX-DA75T, MAX-DA75 User Manual
AH68-02065Y
DVD MINI COMPONENT SYSTEM
WITH USB HOST
DVD/CD/MP3-CD/CD-R/RW PLAYBACK
user manual
MAX-DA75
MAX-DA76
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
12
Safety Warnings Precautions
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots
are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become
hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to
the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply,
remove the main plug from the wall outlet, especially when left unused for a long period of time.
Protect the player from moisture(i.e. vases) , and excess
heat(e.g.fireplace) or equipment creating strong magnetic or electric
fields (i.e.speakers...). Disconnect the power cable from the AC supply if
the player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.
The battery used with this product contain chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household trash.
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUCT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE REAR COVER. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
CAUTION
PREPARATION
(Saudi Arabian Standards Organisation)
THIS APPLIANCE IS FITTED WITH 220V SASO APPROVED PLUG.THE CUSTOMER IS
ENTITLED TO A FREE SASO APPROVED 127V PLUG FROM THE LOCAL DEALER.
Phones
•
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
ENG
This apparatus shall always be connected to a AC outlet with a protective grounding connection.
•
To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains
•
plug shall be readily operable.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,such as vases,shall be
•
placed on the apparatus.
Features
3
4
Contents
PREPARATION
Safety Warnings ............................................................................................................................................................................................1
Precautions....................................................................................................................................................................................................2
Features.........................................................................................................................................................................................................3
Notes on Discs...............................................................................................................................................................................................5
Description.....................................................................................................................................................................................................7
CONNECTIONS
Connecting the Speakers ..............................................................................................................................................................................11
Connecting the video Out to your TV.............................................................................................................................................................13
HDMI Function...............................................................................................................................................................................................14
Connecting External Components .................................................................................................................................................................15
Connecting the FM Antennas ........................................................................................................................................................................16
Setting the Clock............................................................................................................................................................................................17
OPERATION
Disc Playback ................................................................................................................................................................................................18
MP3/WMA/CD Playback................................................................................................................................................................................19

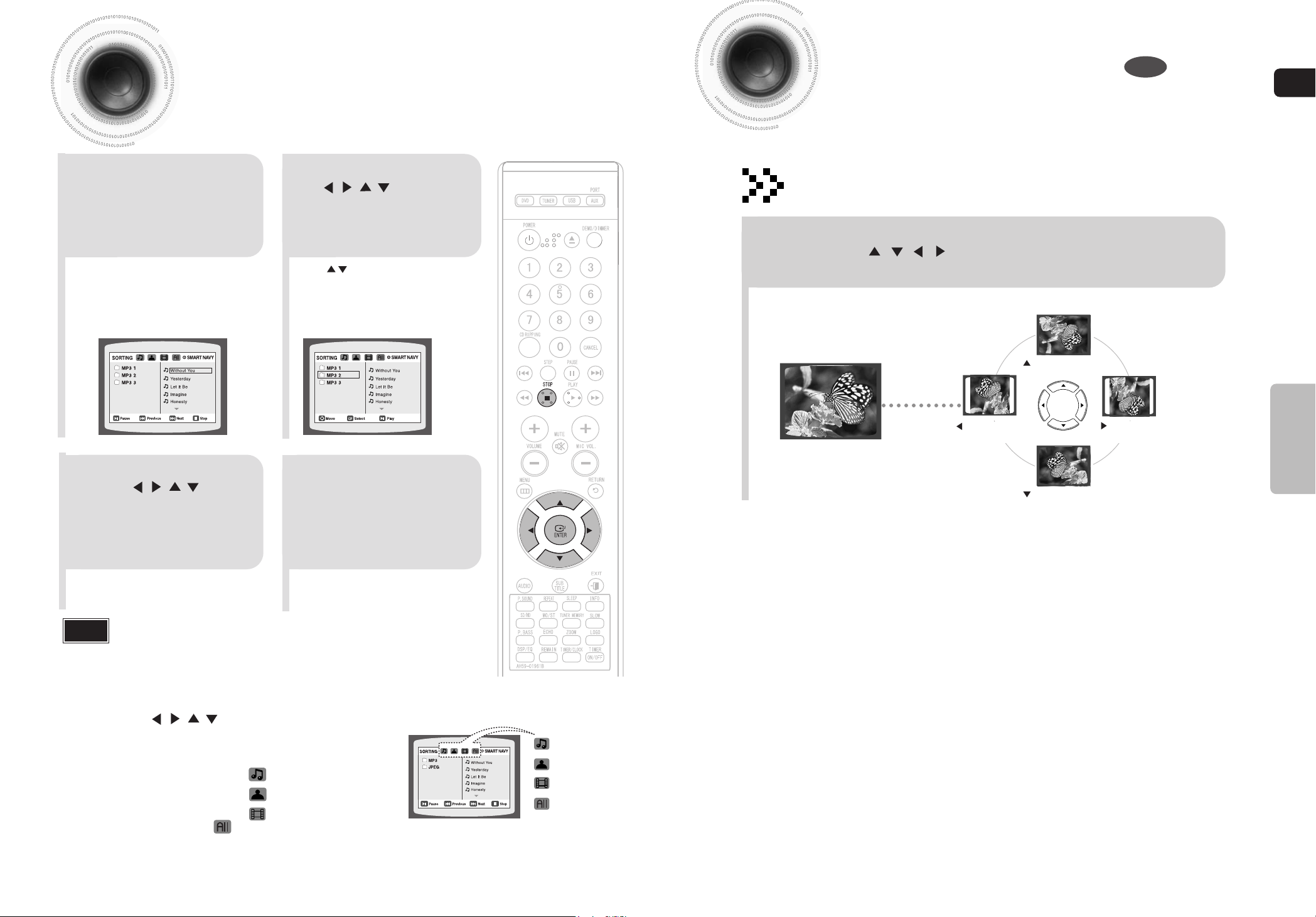

JPEG File Playback .......................................................................................................................................................................................20
DivX Playback................................................................................................................................................................................................21

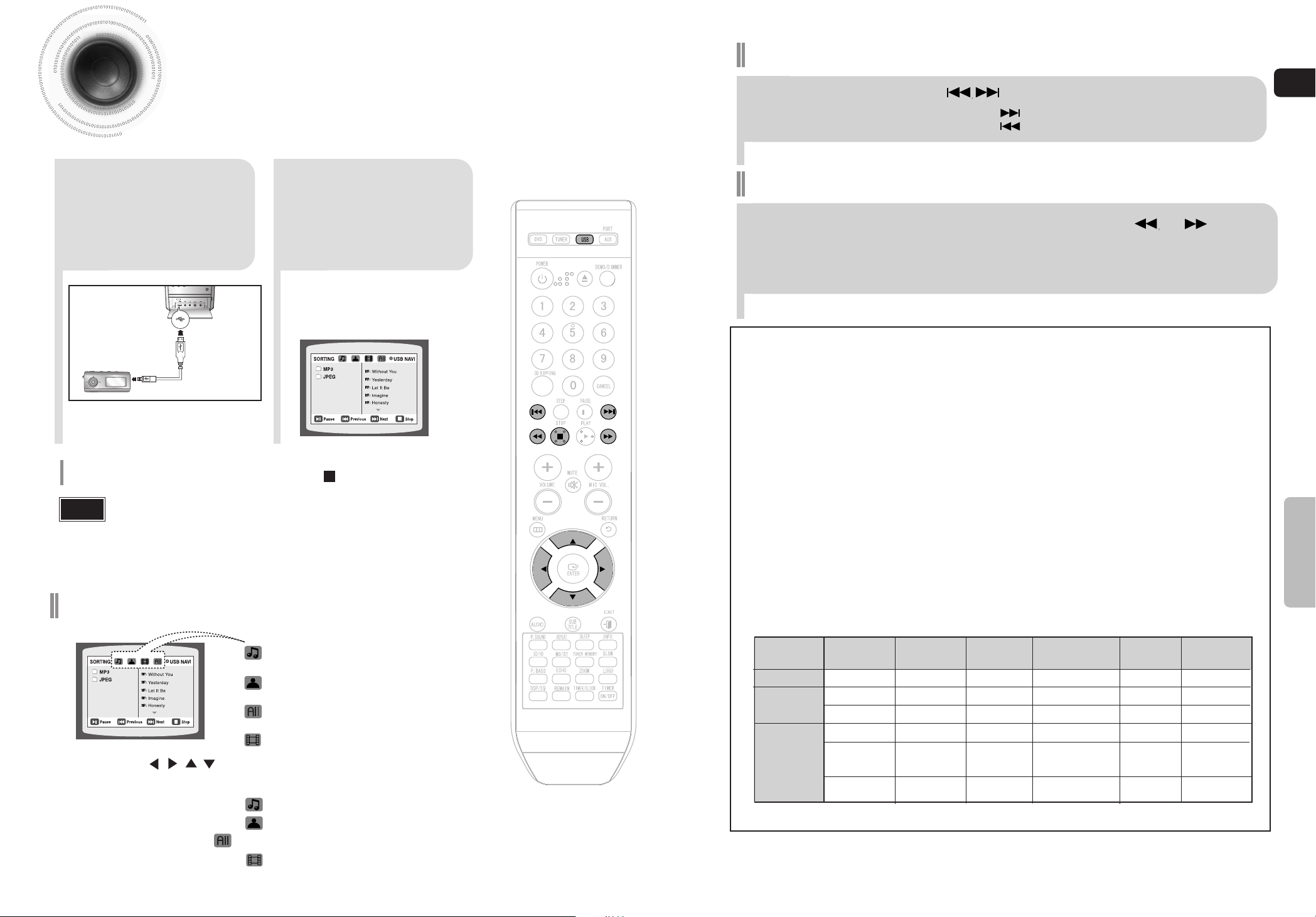

Playing Media Files using the USB feature ...................................................................................................................................................23

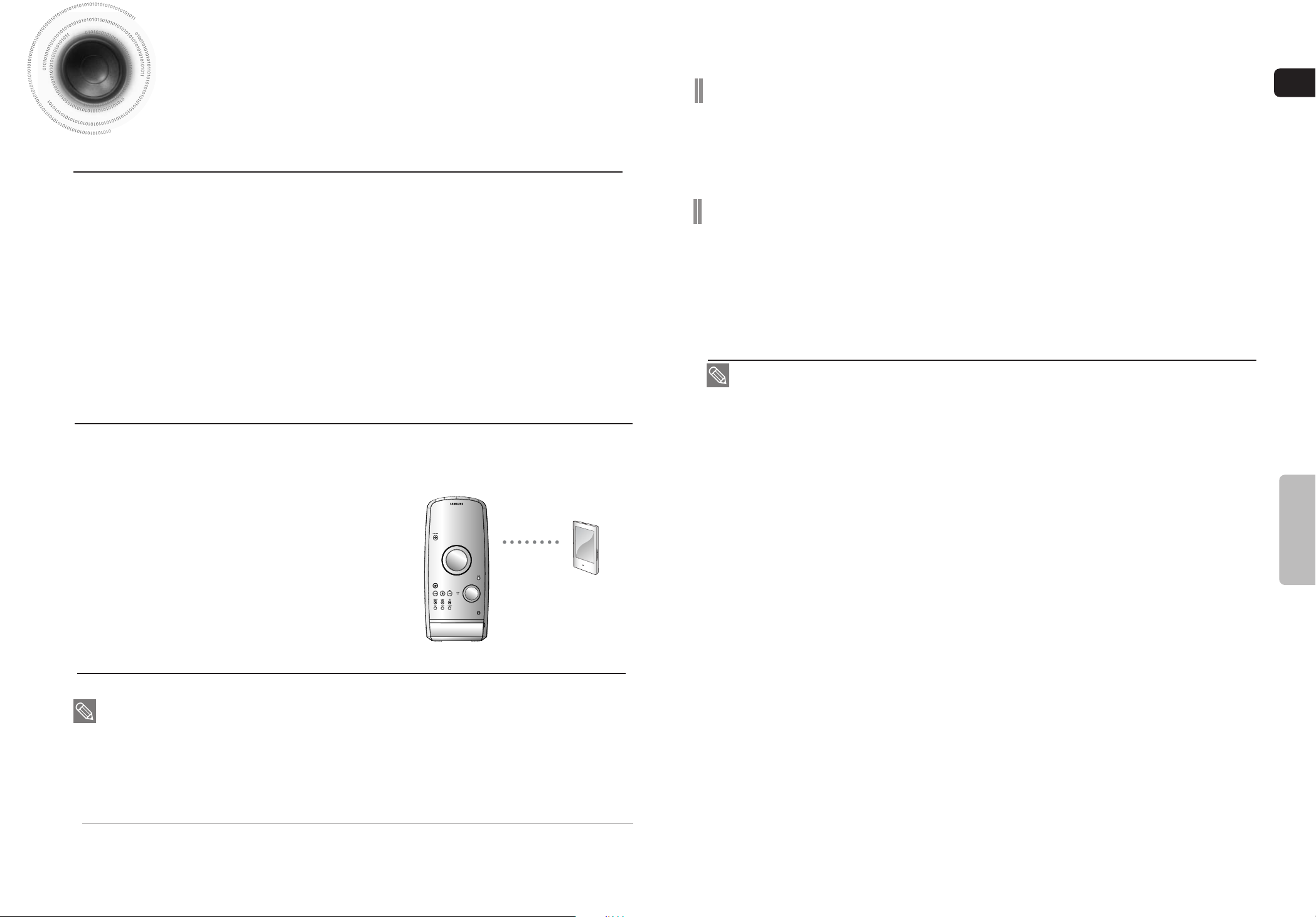

Using Bluetooth(Option) ................................................................................................................................................................................25
Displaying Disc Information ...........................................................................................................................................................................27

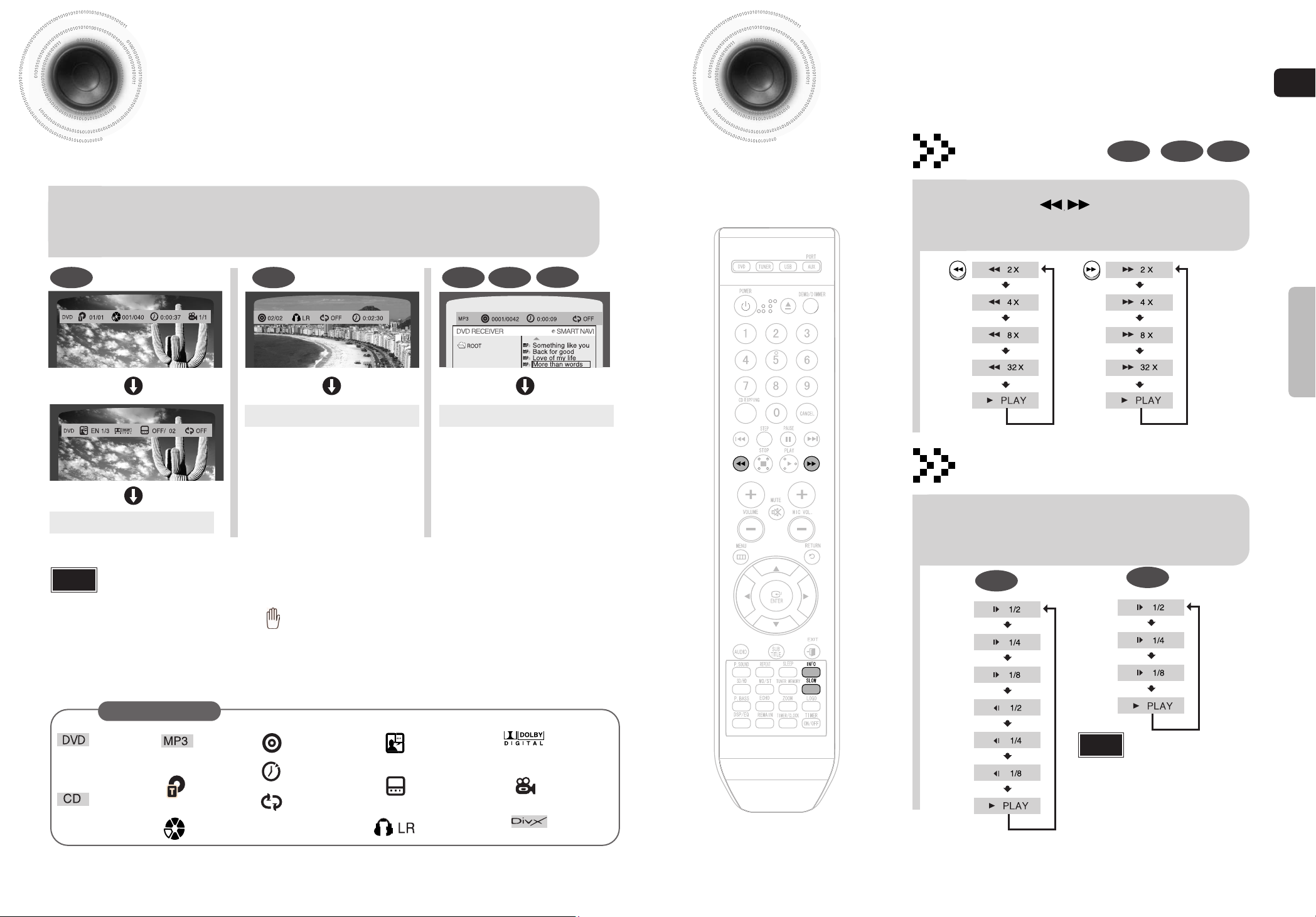

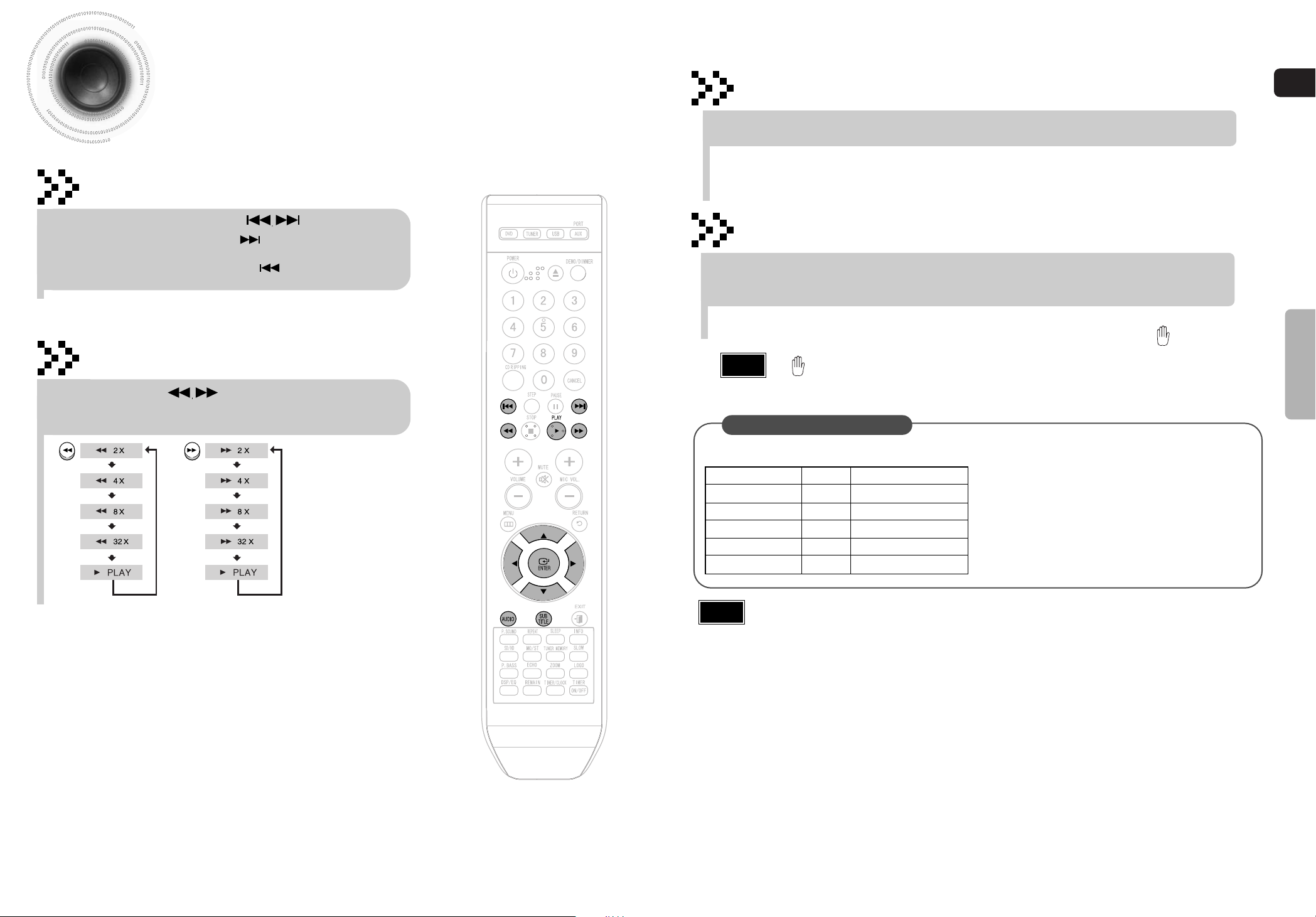

Fast/Slow Playback .......................................................................................................................................................................................28
Skipping Scenes/Songs.................................................................................................................................................................................29

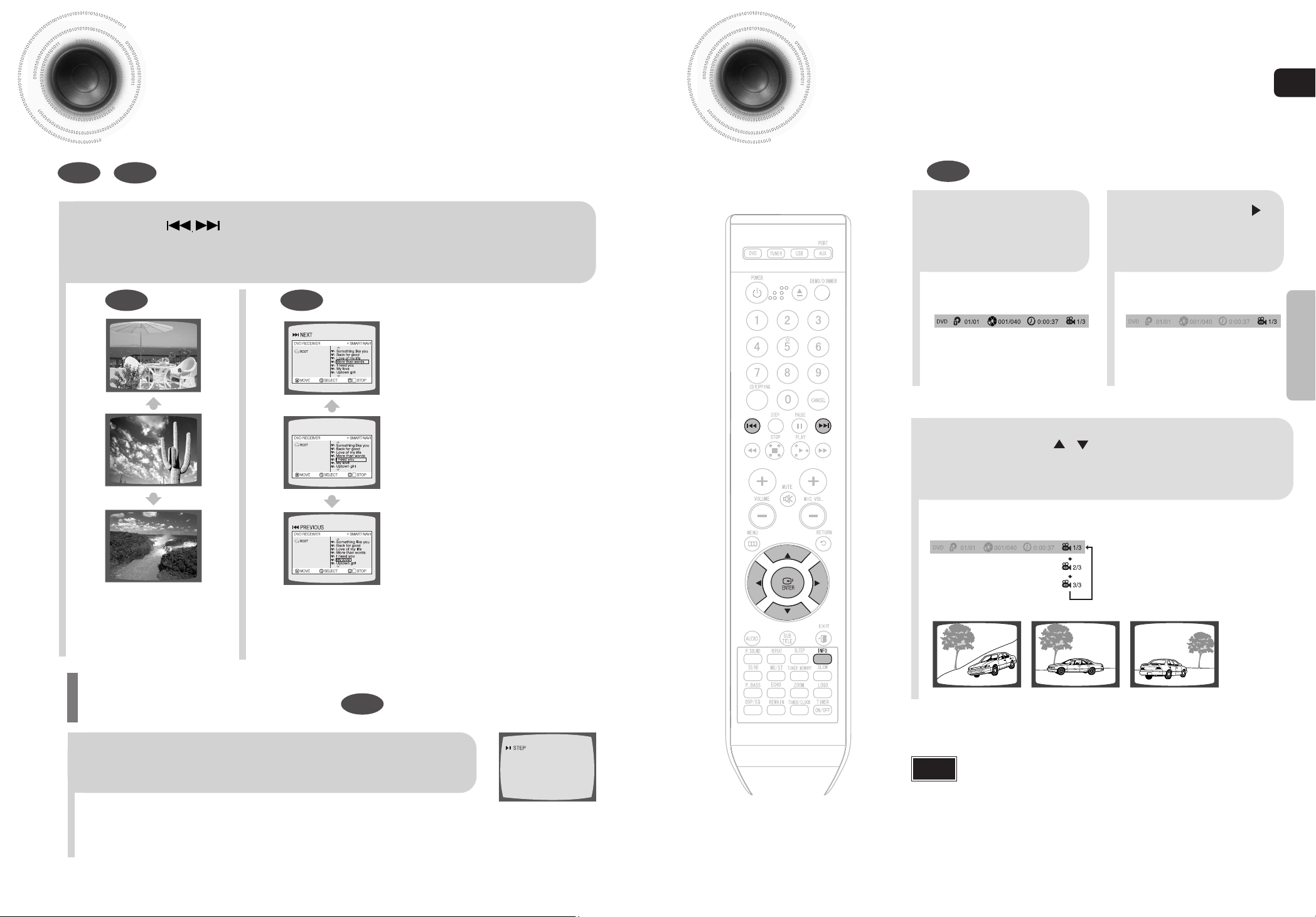

Angle Function...............................................................................................................................................................................................30

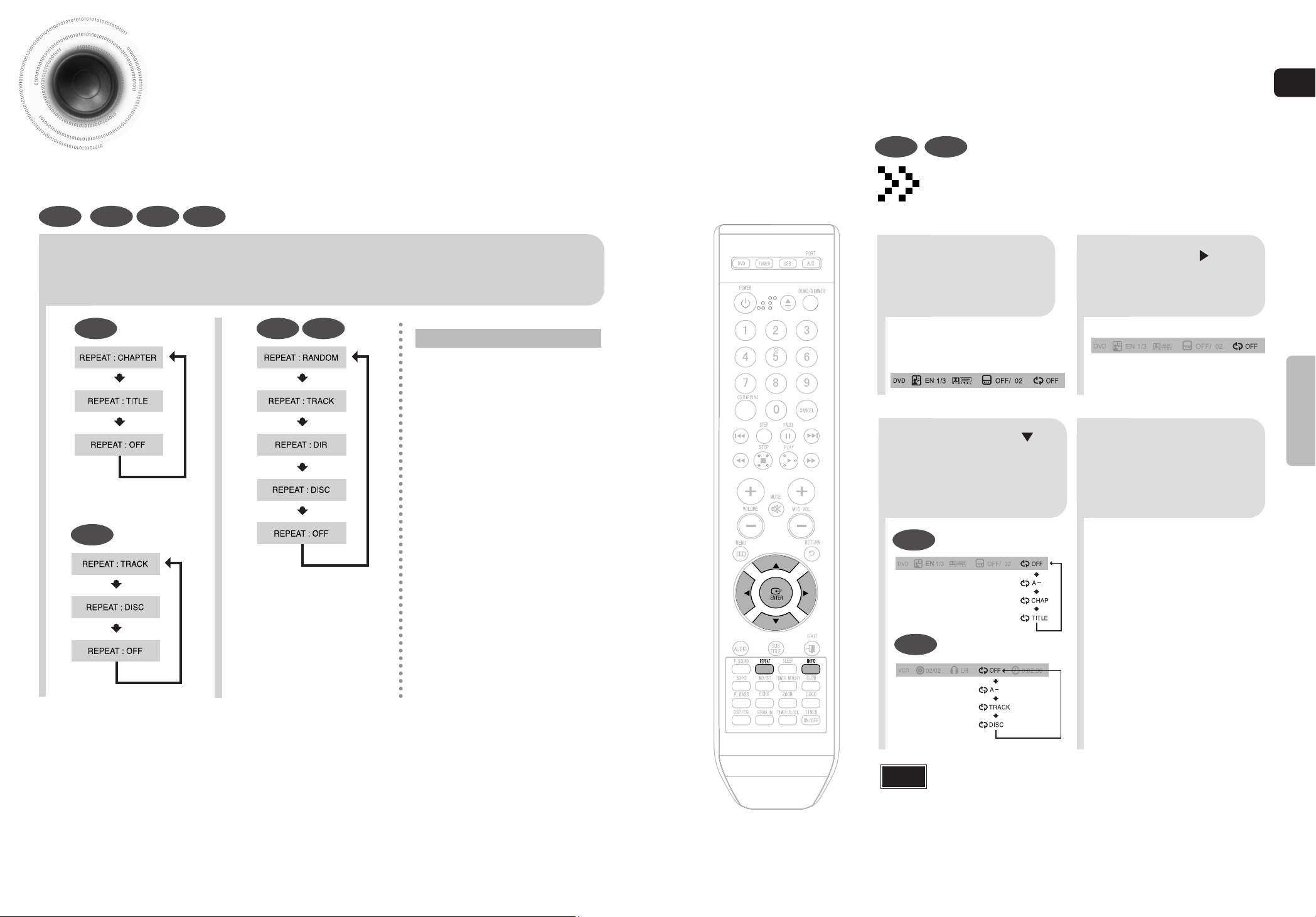

Repeat Playback............................................................................................................................................................................................31
A-B Repeat playback ....................................................................................................................................................................................32

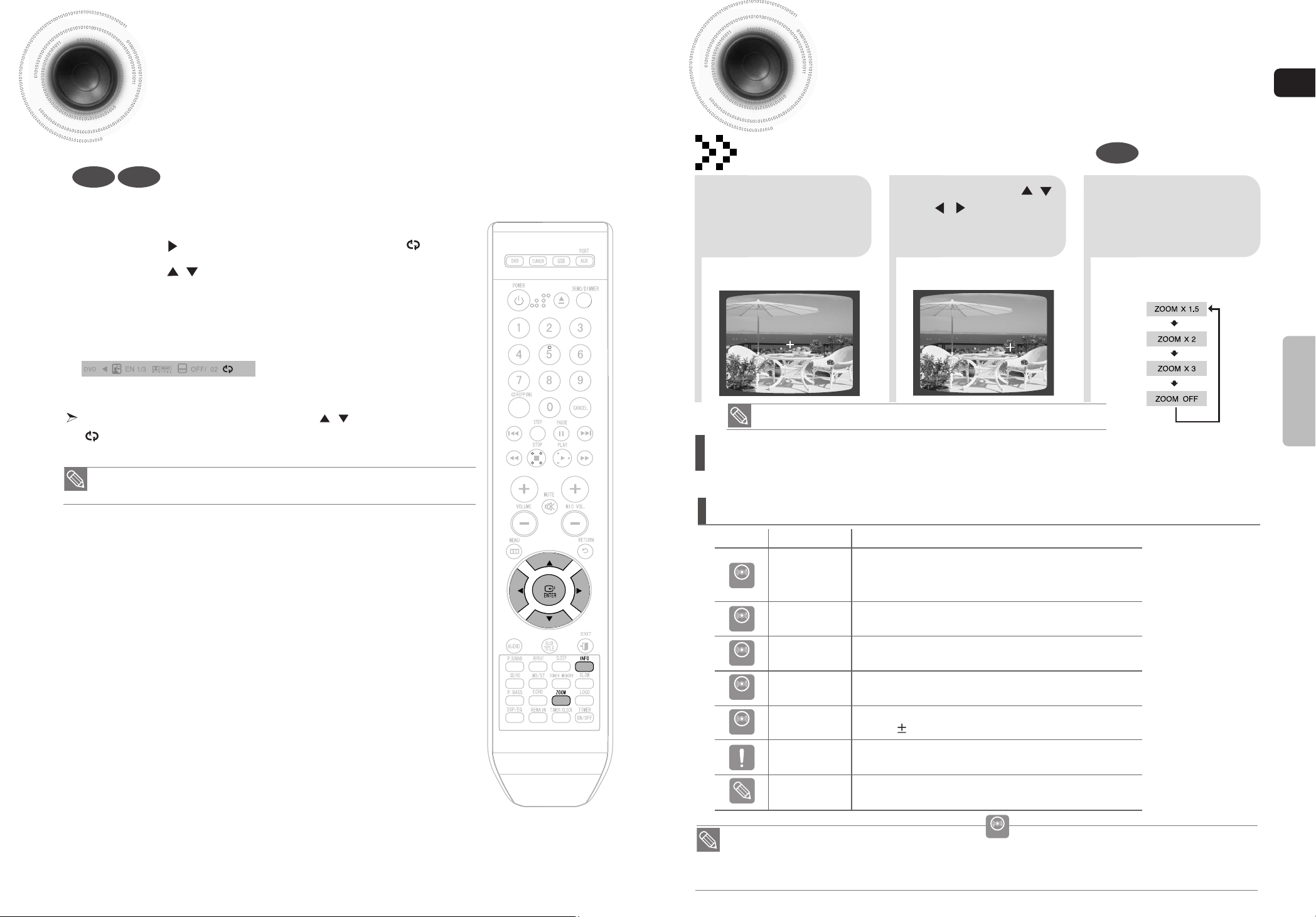

Zoom Function...............................................................................................................................................................................................34

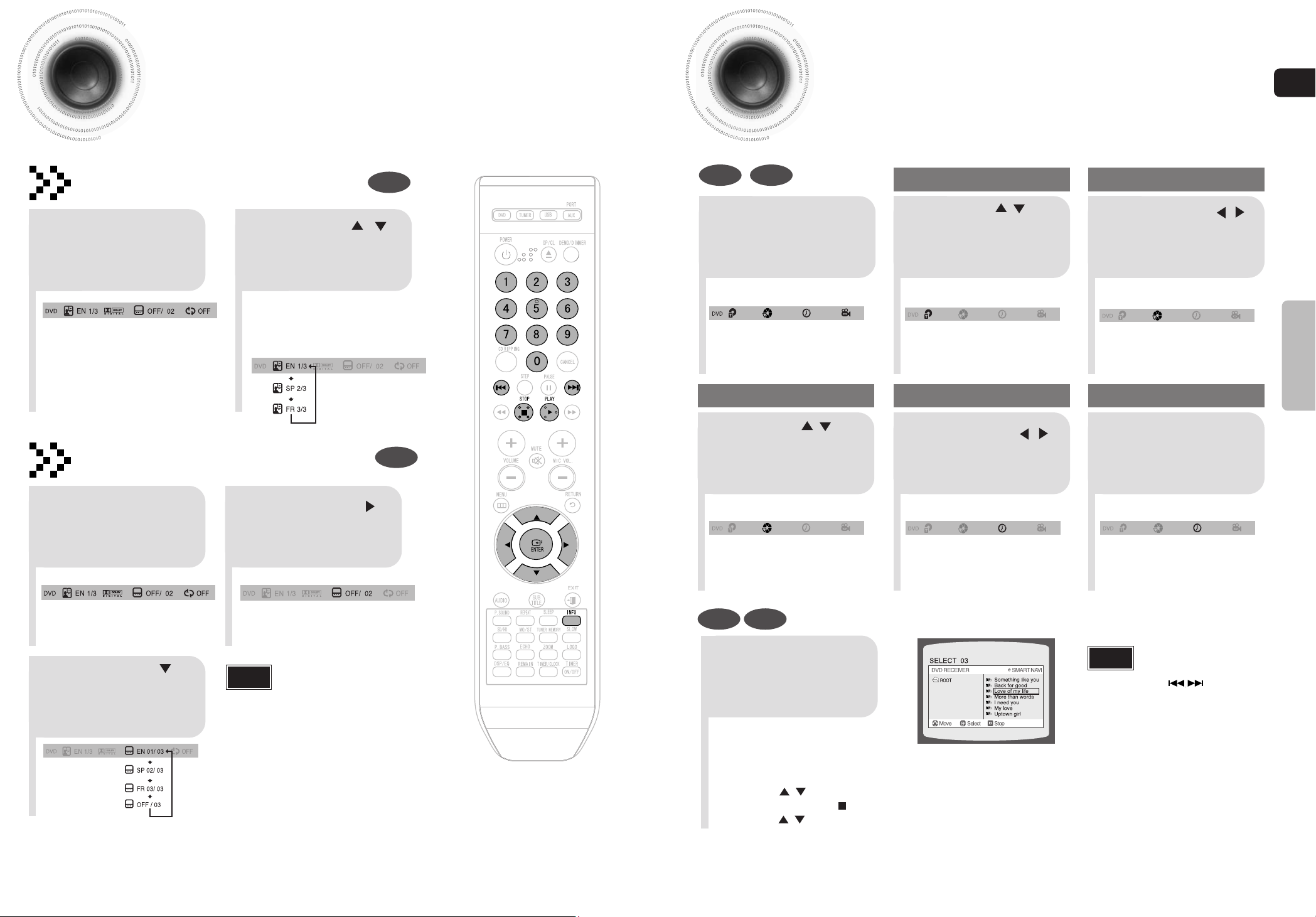

Selecting Audio/Subtitle Language................................................................................................................................................................35
Moving Directly to a Scene/Song...................................................................................................................................................................36

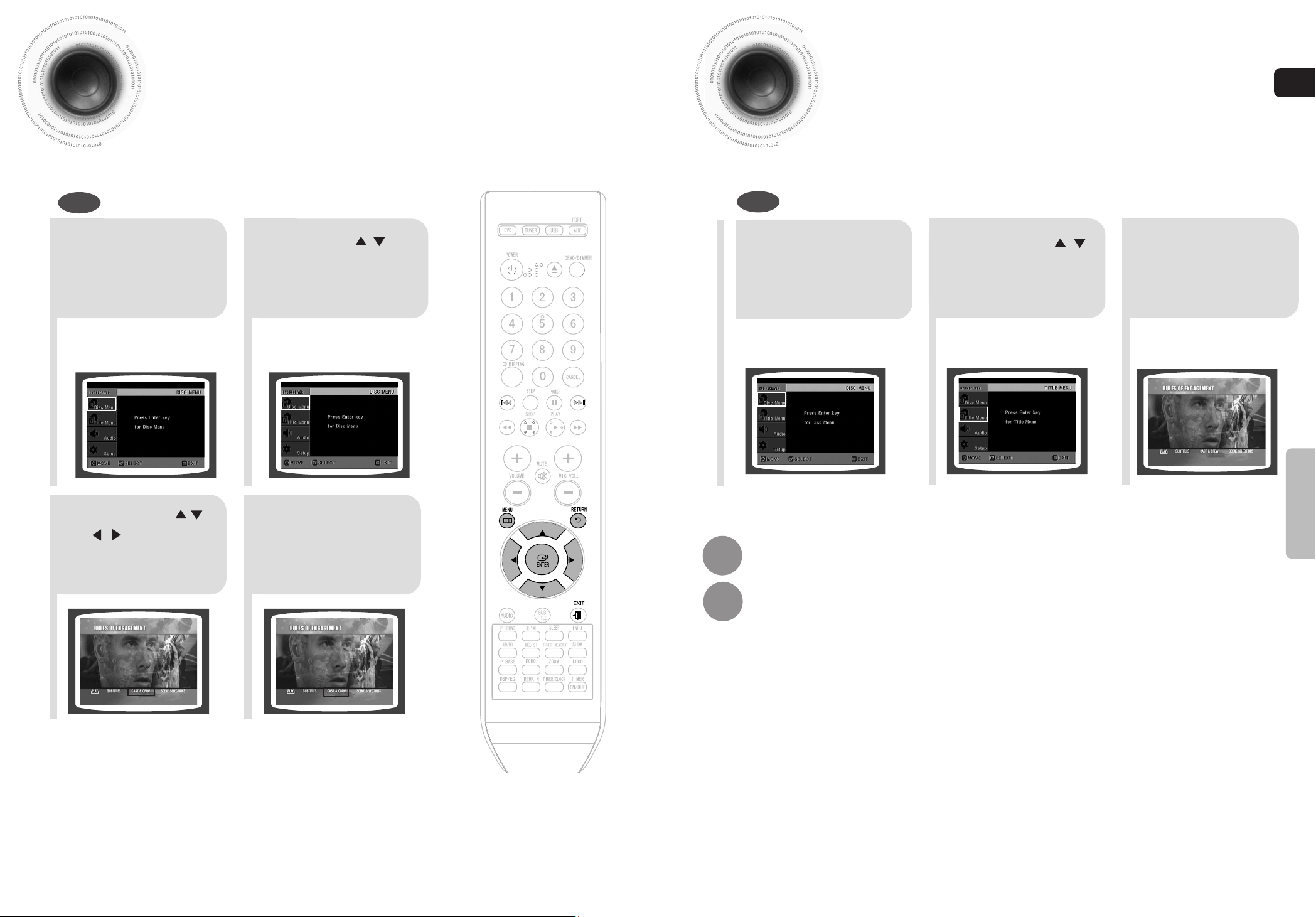

Using Disc Menu............................................................................................................................................................................................37
Using the Title Menu......................................................................................................................................................................................38
SETUP

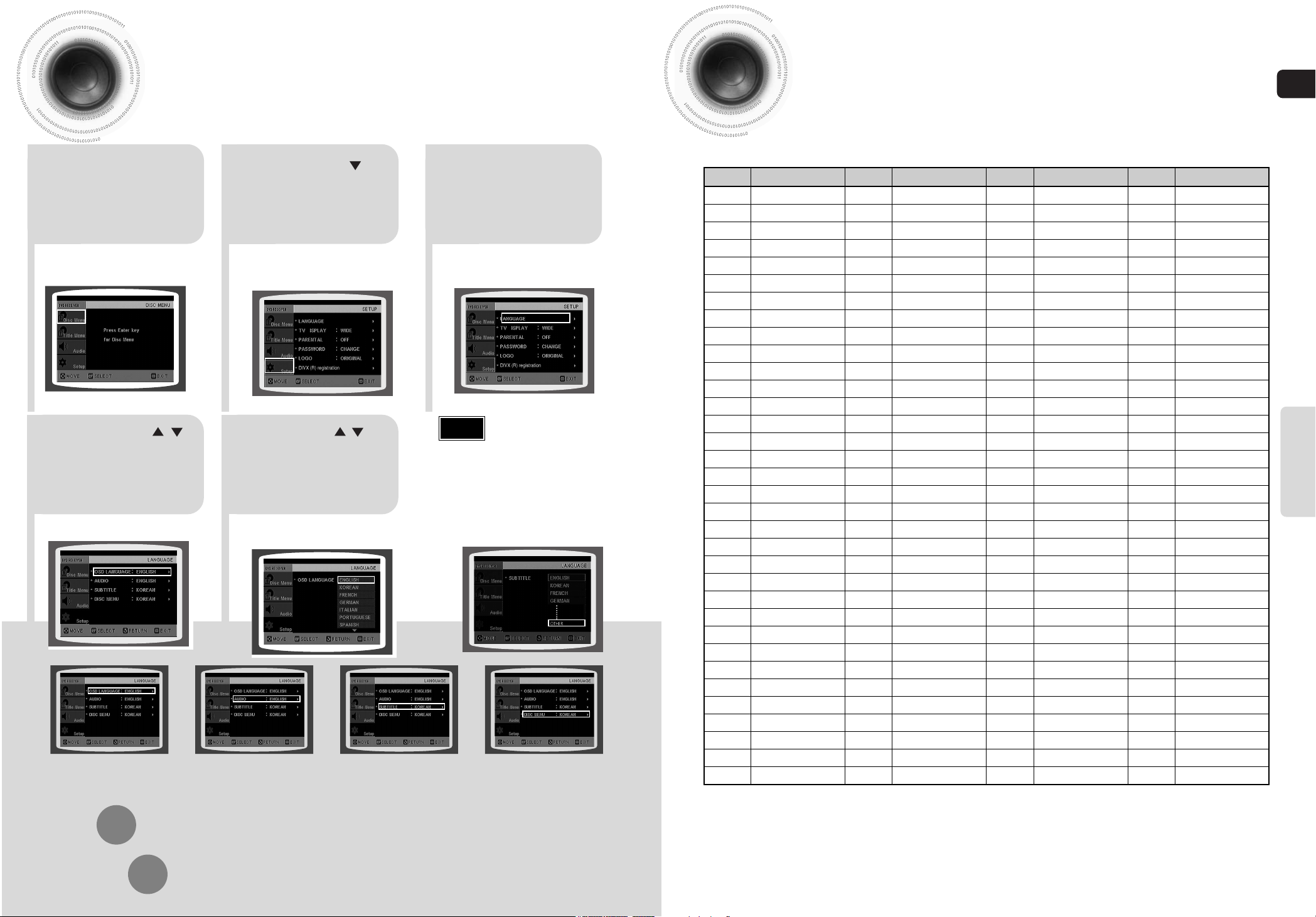

Setting the Language.....................................................................................................................................................................................39
Language Code List.......................................................................................................................................................................................40

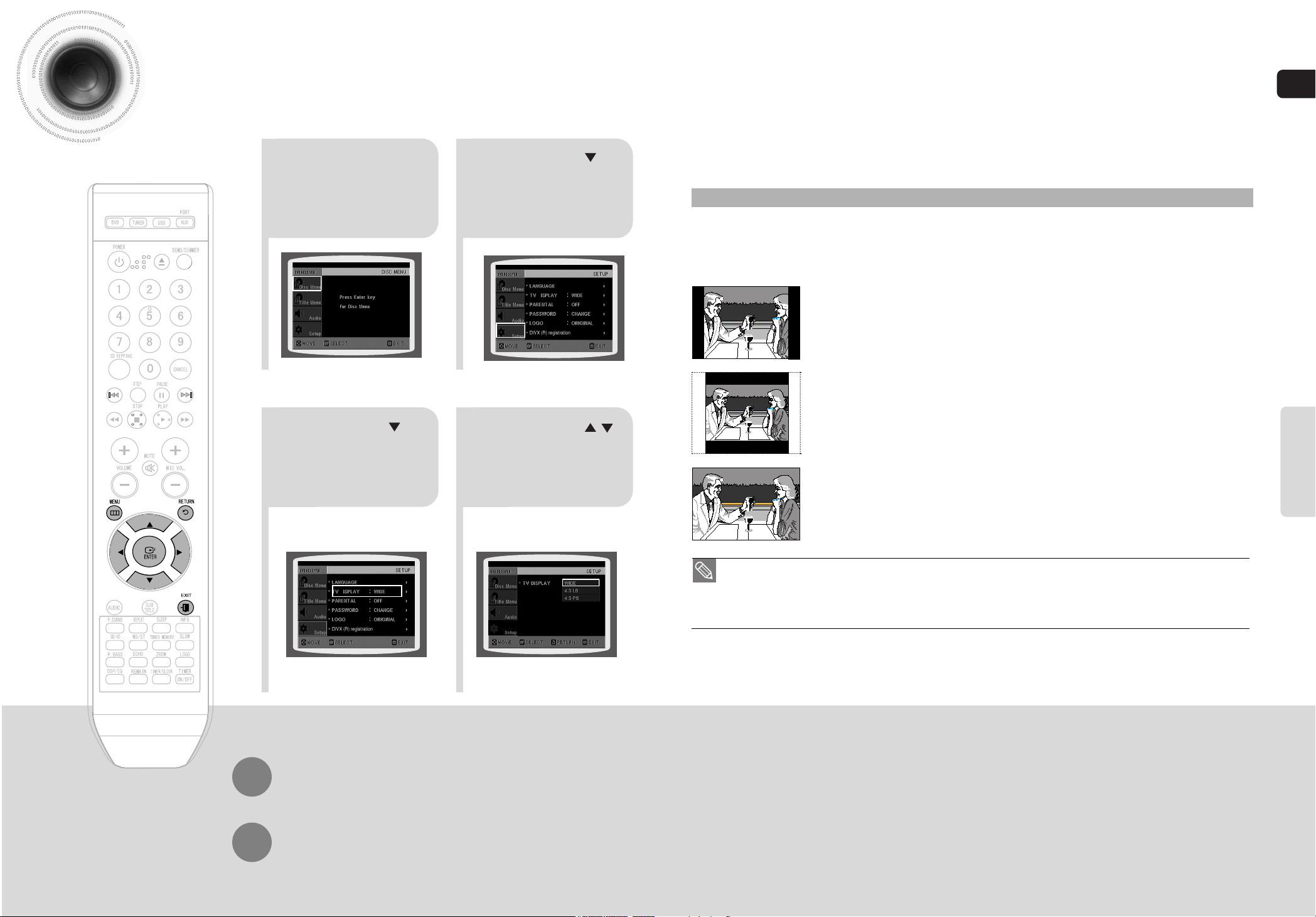

Setting TV Screen type..................................................................................................................................................................................41

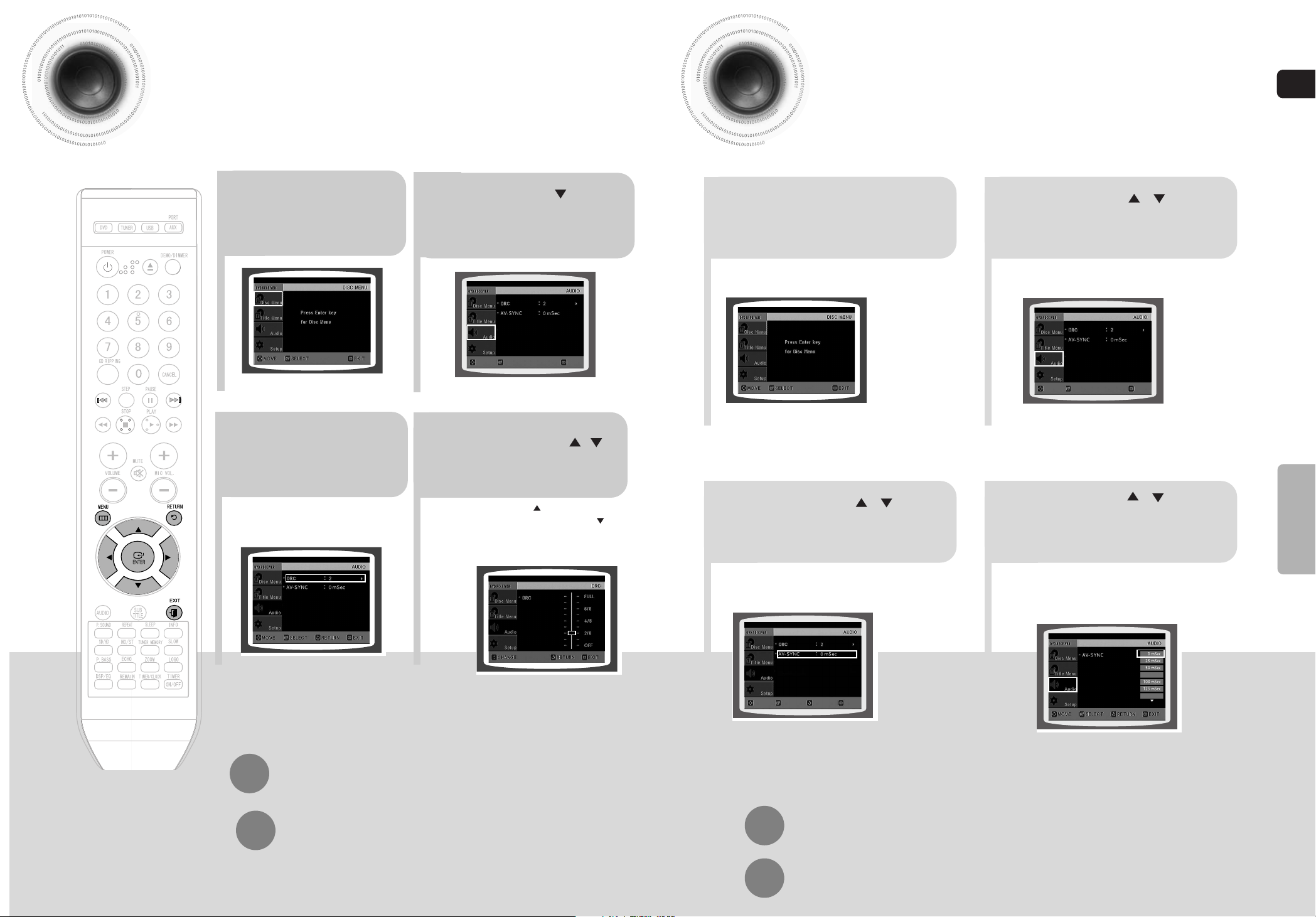

Setting Parental Controls (Rating Level) .......................................................................................................................................................43

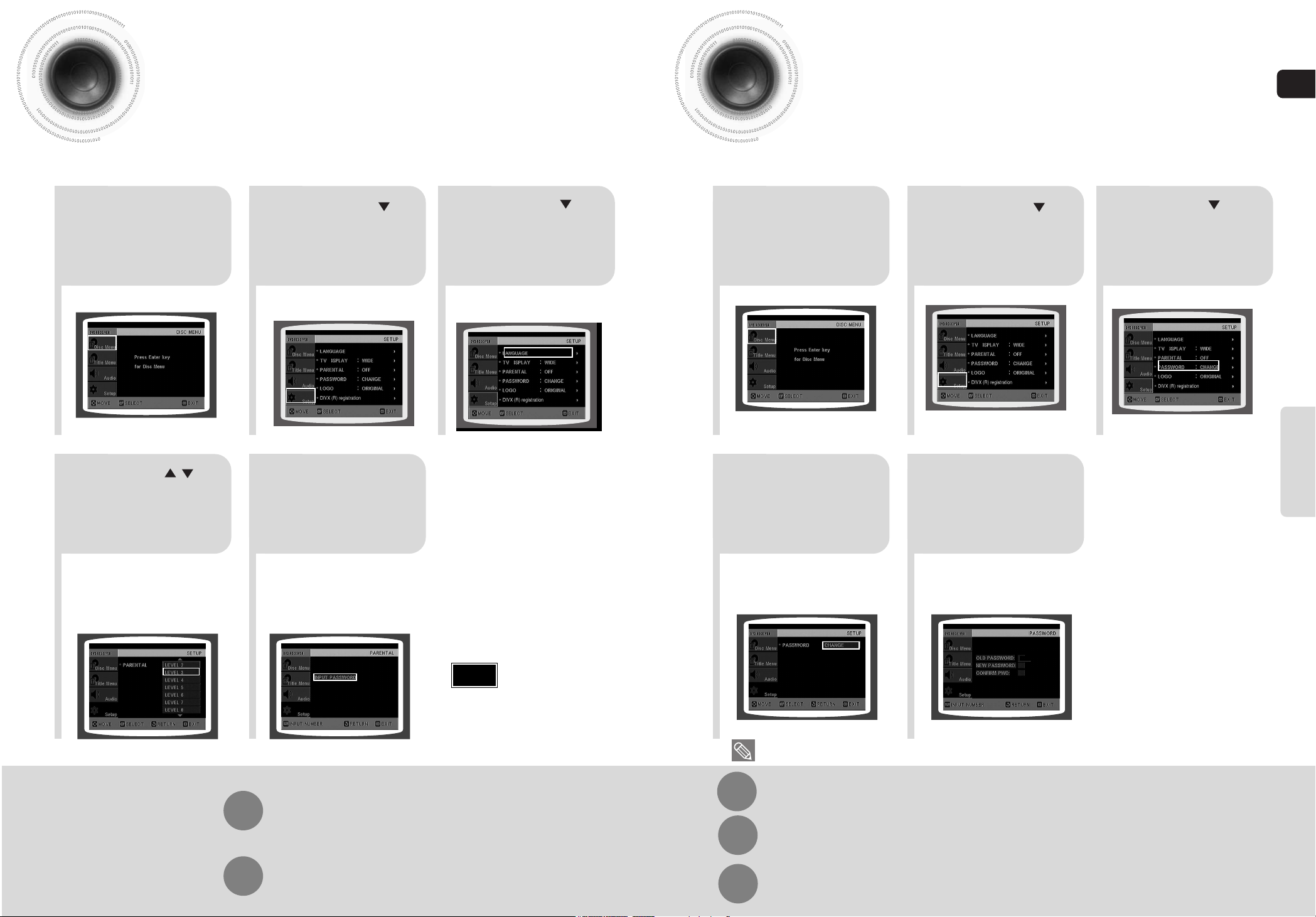

Setting the Password.....................................................................................................................................................................................44

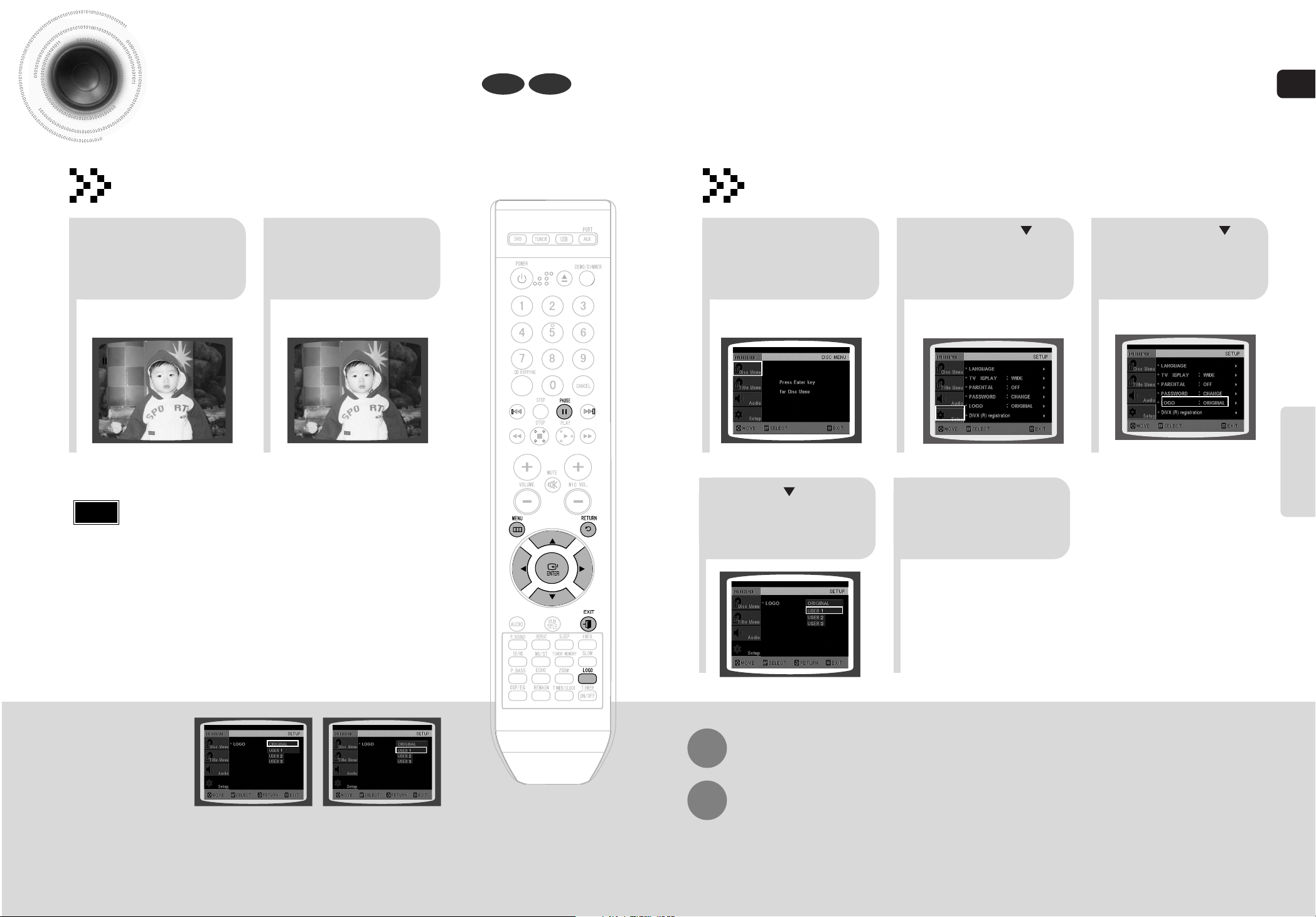

Setting the Wallpaper ....................................................................................................................................................................................45
Setting the DRC (Dynamic Range Compression) .........................................................................................................................................47
AV SYNC Setup ............................................................................................................................................................................................48
RADIO OPERATION
Listening to Radio ..........................................................................................................................................................................................49

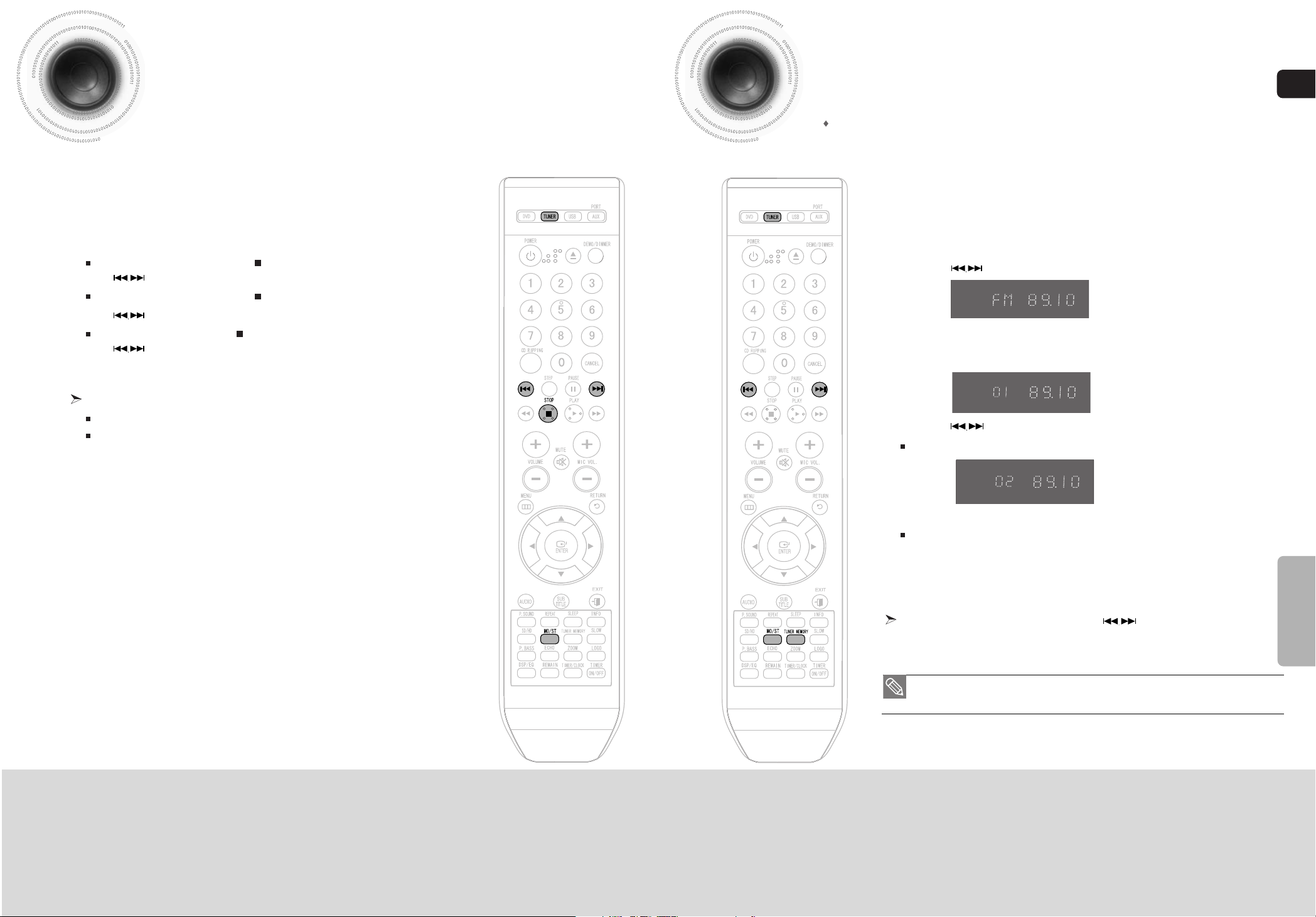

Presetting Stations.........................................................................................................................................................................................50
MISCELLANEOUS

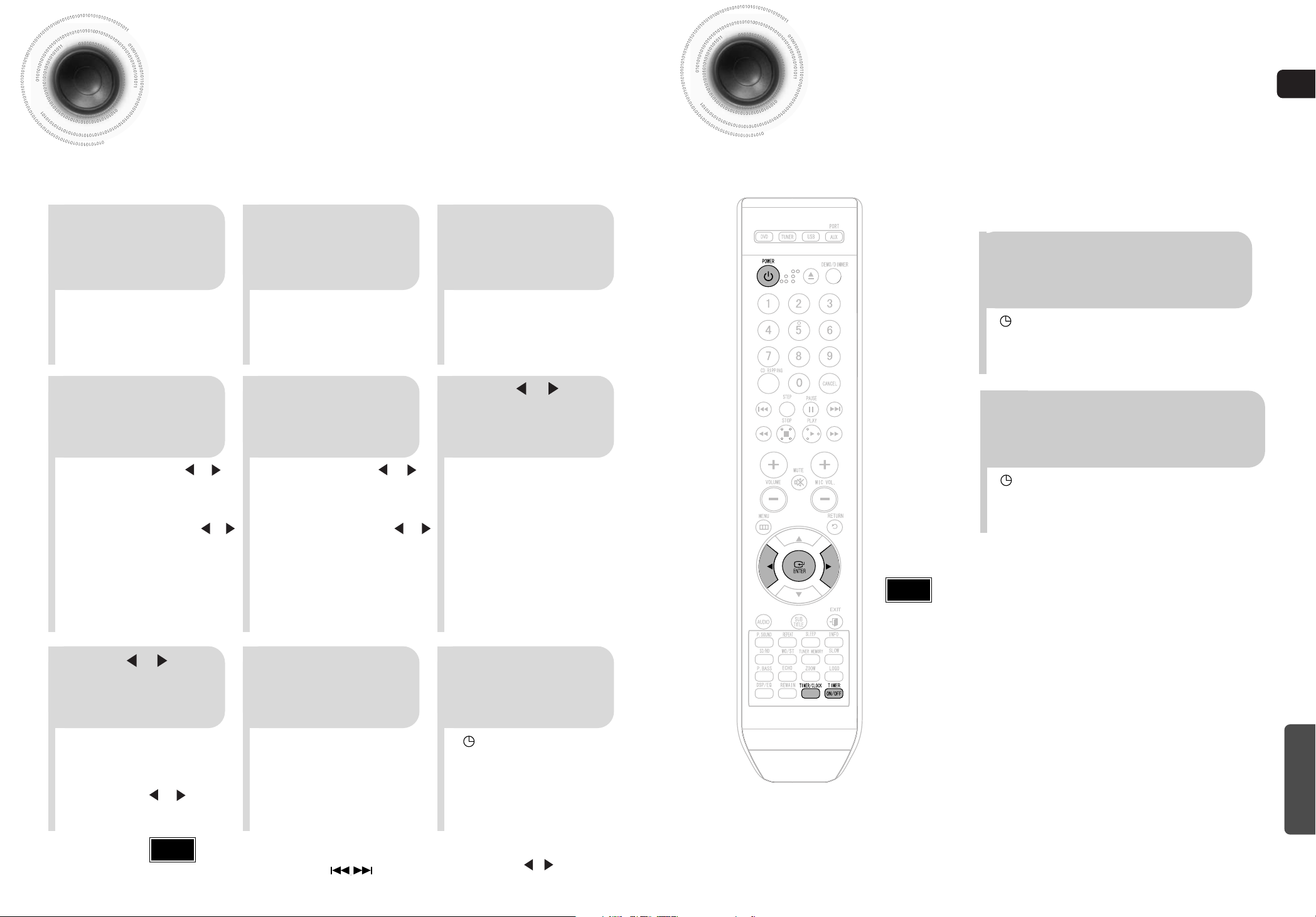

Timer Function...............................................................................................................................................................................................51
Canceling the Timer.......................................................................................................................................................................................52
POWER SOUND/POWER BASS/ DSP/EQ Function ...................................................................................................................................53

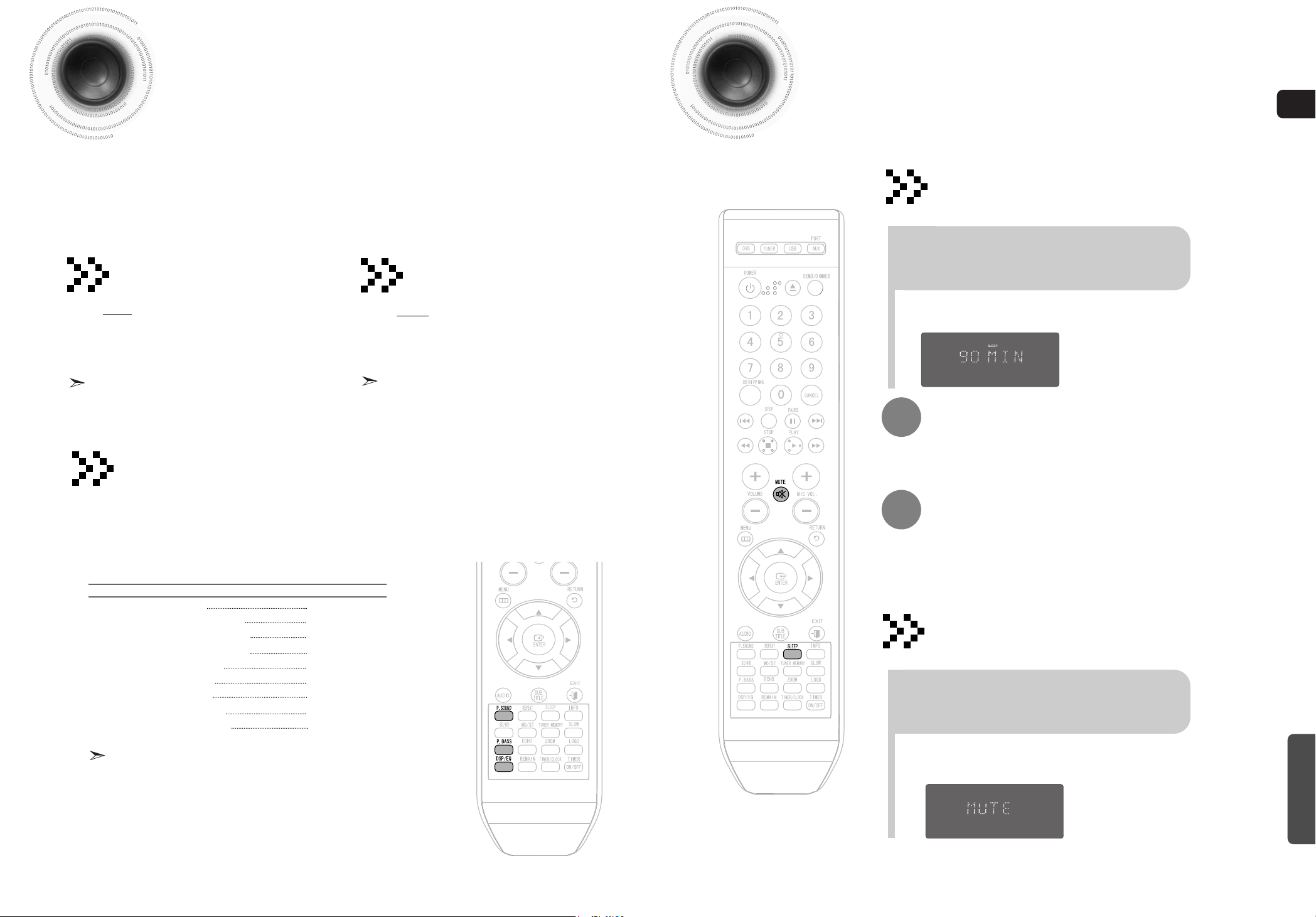

Sleep Timer Function / Mute Function...........................................................................................................................................................54
DEMO Function / DIMMER Function/ECO Function ....................................................................................................................................55

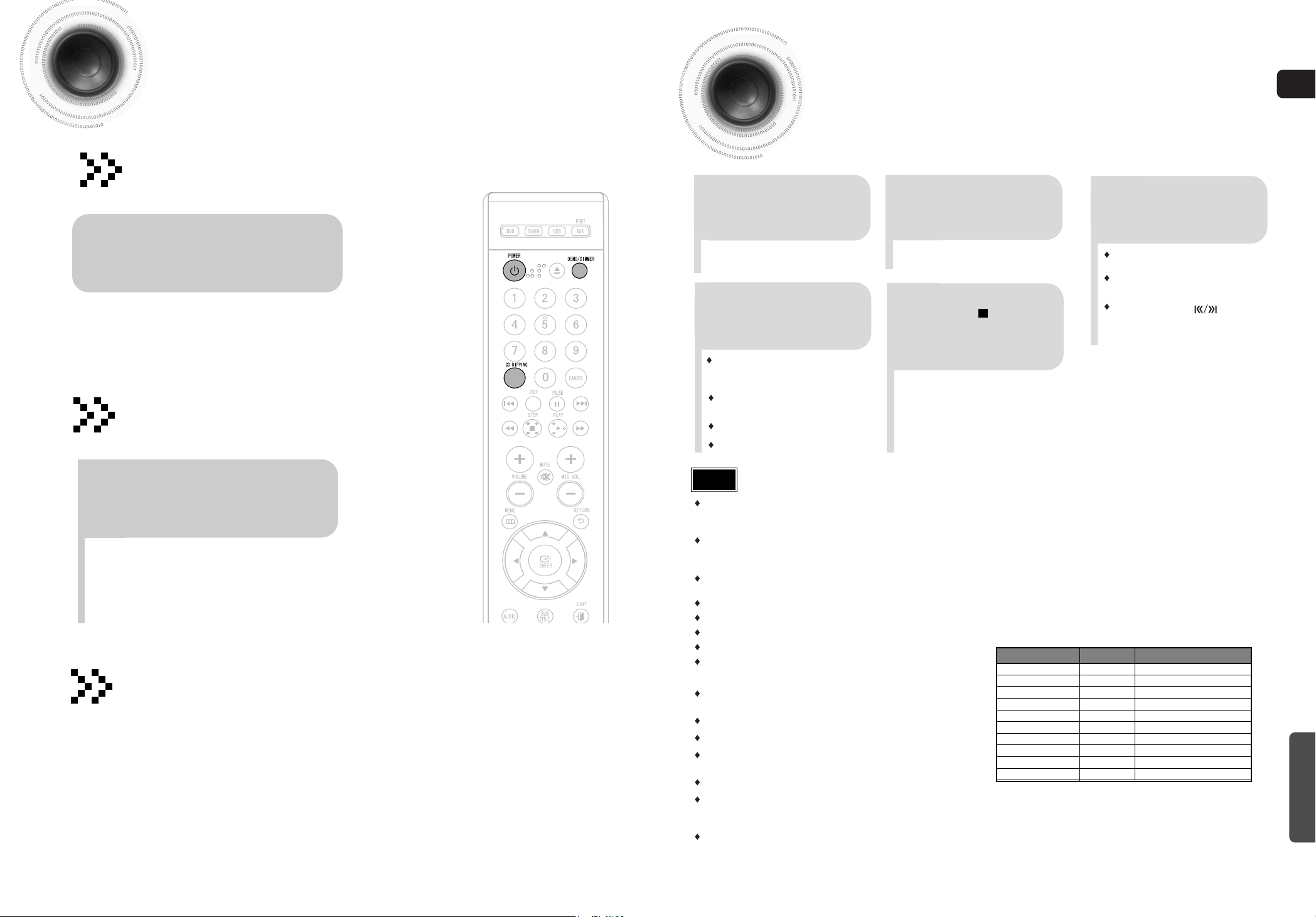

CD Ripping Function......................................................................................................................................................................................56

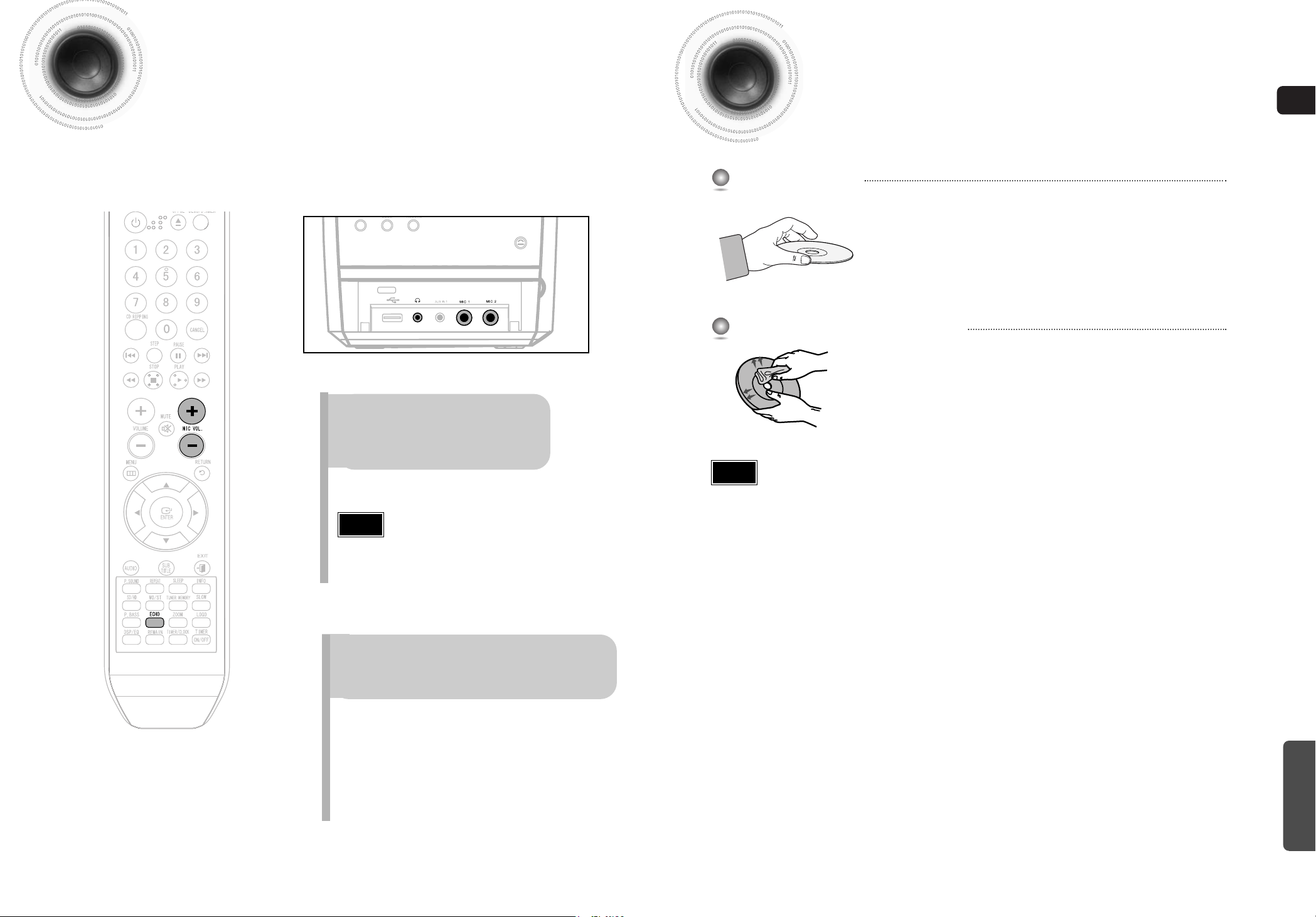

Connecting Headphones/Microphone ...........................................................................................................................................................57
Before Calling for Service ..............................................................................................................................................................................58
Notes on Discs...............................................................................................................................................................................................59
Specifications.................................................................................................................................................................................................61
USB Feature Supported Player .....................................................................................................................................................................62
Notes on Terminology....................................................................................................................................................................................63
TV Screen Saver Function
If the main unit remains in the Stop mode for 3 minutes,the Samsung logo appears on the
TV screen.
The MAX-DA75/DA76 automatically switches itself into the power saving mode after 20
minutes in the screen saver mode.
Power Saving Function
The MAX-DA75/DA76 automatically shuts itself off after 20 minutes in the stop mode.
Customized TV Screen Display
The MAX-DA75/DA76 allows you to select your favorite image during JPEG, DVD playback
and set it as your background wallpaper.
Multi-Disc Playback & FM Tuner, USB HOST.
The MAX-DA75/DA76 combines the convenience of multi-disc playback
capability, including DVD-VIDEO, CD, MP3-CD, CD-R, CD-RW, DivX,JPEG and
DVD-R/RW, with a sophisticated FM tuner, USB HOST all in a single player.
PREPARATION
USB Host support
You can enjoy media files such as pictures, movies and music saved on an MP3 player, digital
camera or USB memory stick by connecting the storage device to the USB port of the Mini
Component.
HDMI
HDMI transmits DVD video and audio signals simultaneously,and provides a clearer picture.
ENG
ENG
Notes on Discs
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
V I D E O
DVD players and the discs are coded by region. These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
1 6
~
•
LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
•
DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message
appears on the TV screen.
•
Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD
player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected DVD discs.
•
This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
Playable Discs
Do not use the following types of disc!
Copy Protection
V I D E O
COMPACT
DIGITAL AUDIO
Mark (Logo)
Video
DVD-VIDEO
AUDIO-CD
DivX
12cm
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
74 min.
20 min.
74 min.
20 min.
8cm
12cm
8cm
12cm
8cm
Audio
Audio + Video
Recorded Signals
Disc Type Disc Size Max. Playing Time
5
CD-R Discs
•
Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of
the disc.
•
Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be playback.
•
Some CD-RW (Rewritable) media, may not be playable.
•
Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be
able to fully play the disc.
CD-R JPEG Discs
•
Only files with the "jpg" extensions can be played.
•
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
•
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
•
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc,
the disc can be played only up to the blank segment.
•
A maximum of 9,999 images can be stored on a single CD.
•
When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
•
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
CD-R MP3 Discs
•
Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
•
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
•
Only files with the "mp3" and extensions can be played.
•
Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
•
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
•
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
•
A maximum of 500 tracks can be played per CD.
•
A maximum of 300 folders can be played per CD.
DVD R/RW, CD-R/RW DivX Discs
•
Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might
not play.
•
Software updates for incompatible formats are not supported.
(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
•
Sections with a high frame rate might not be played while playing a DivX file.
•
For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".
This product does not support Secure (DRM) Media files.
Disc Recording Format
PREPARATION
6
ENG
—Rear Panel—
Video Cable
FM Antenna
Remote Control
User's Manual
HDMI Cable
8
7
Description
Accessories
—Front Panel—
PREPARATION
1.
FM Antenna Connector
2.
2.0 Channel Speaker Output
Terminals
3. External
Digital Optical Input Jack
4. HDMI OUT Jack
5.
AUX IN 2 Jacks
6. Component Video Output Connectors
Connect a TV with component video input jacks to
these jacks.
7. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
1.
FM Antenna Connector
2.
2.1 Channel Speaker Output
Terminals
3. External
Digital Optical Input Jack
4. HDMI OUT Jack
5.
AUX IN 2 Jacks
6. Component Video Output Connectors
Connect a TV with component video input jacks to
these jacks.
7. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
1. STANDBY/ON
/ECO
2. VOLUME
3. USB
4. DVD/CD BUTTON
5. TUNER BUTTON
6. SEARCH FUNCTION BUTTONS/TUNING MODE
OR STOP BUTTON/SKIP BUTTON
7. MUTE
8. EQ/DSP
9. POWER SOUND
10. DISC TRAY OPEN HOLE(NO POWER STATE)
11. USB HOST JACK
12. PHONES
13. AUX IN 1
14. MIC 1
15. MIC 2
16. DISC TRAY
17. OPEN BUTTON
18. MULTI JOG
19. AUX/PORT
20. ENTER
2
1
3
4
5
6
7
8
14
15
17
16
18
19
20
9
11
10
12
13
• You can use MULTI JOG KNOB to instead of SKIP BUTTON .
• You can clockwise turn the gear to open CD-DOOR by hand in no power state.Do not use this
unless necessary.
4
3
6
5
2
1
7
4
3
6
5
2
1
7
MAX-DA75
MAX-DA76
ENG
10
—Remote Control—
9
Description
PREPARATION
POWER SOUND button
VOLUME button
MENU button
POWER button
TUNER button
DVD button
CANCEL button
PAUSE button
Number(0~9) buttons
DEMO/DIMMER button
OPEN/CLOSE button
PORT/AUX button
USB button
Cursor/Enter button
EXIT button
SLOW button
TIMER/CLOCK button
TUNER MEMORY button
ZOOM button
TIMER ON/OFF button
RETURN button
INFO button
SLEEP button
AUDIO button
MIC VOLUME CONTROL button
P.BASS button
SD/HD button
MO/ST button
ECHO button
CD RIPPING button
STEP button
Tuning Preset/CD Skip button
SUBTITLE button
REPEAT button
Play button
SEARCH buttons
Stop button
DSP/EQ button
LOGO button
The remote control can be used up to approximately 23
feet/7 meters in a straight line. It can also be operated at
a horizontal angle of up to 30° from the remote control
sensor.
Range of Operation of the Remote Control
Caution
Remove the battery
cover in the direction
of the arrow.
1
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
2
Replace the battery
cover.
3
Follow these precautions to avoid leaking or cracking cells:
•
Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
•
Use the correct type of batteries.Batteries that look similar may differ in voltage.
•
Always replace both batteries at the same time.
•
Do not expose batteries to heat or flame.
Insert Remote Batteries
REMAIN button
MUTE button
ENG
11
12
CONNECTIONS
Connecting the Speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Connect the connecting jacks (2) to the back of mini-component system.
Make sure the polarities (+and -) are correct.
MAX-DA75
R
L
• Installation in a place near heating apparatus, under direct lay of light or with high humidity may cause
performance degradation of the speaker.
• Do not install on the wall or on a high place of pole or other unstable place to prevent any safety accident
caused by falling of the speaker.
• Do not take the speaker near from TV or computer monitor.
The speaker near the TV or computer monitor may influence the quality of the screen display.
Directions in Installing Speaker
MAX-DA76
Speakers
•
Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.
•
Place the speakers so that their tweeters will be
at the same height as your ear.
Position of the DVD Player
•
Place it on a stand or cabinet shelf,
or under the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
R
L
R
L
SW
Subwoofer
•
The position of the subwoofer is not so critical.
Place it anywhere you like.
•
Usually, it is placed by a corner near the front speakers.
SW
• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated
by the speaker. If this occurs, place the speaker away from your TV set.
• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• Keep the speaker out of reach of children so as to prevent children from inserting their hands or alien substances
into the duct (hole) of the subwoofer speaker.
• Do not hang the subwoofer on the wall through the duct (hole).
Caution
Note
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
•
Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit
could rise and may damage it.
•
Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are
covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)
Cooling Fan
ENG
Connecting the Video Out to your TV
Choose one of the three methods for connecting to a TV.
HDMI Function
CONNECTIONS
If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from
the Component Video Output (Pr, Pb and Y) jacks on the back of the panel of the main unit to the corresponding
jacks on your television.
METHOD 2 : Component Video ....... (Better Quality)
METHOD 3
METHOD 2
METHOD 1
Connect the HDMI cable from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV.
METHOD 1 : HDMI ....... (Best Quality)
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
1 In Stop mode, press the MENU button.
2
Press the Cursor button to move to <Audio> and then press the ENTER button.
3 Press the Cursor button to move to <HDMI AUDIO> and then press
the ENTER button.
4 Press the Cursor , button to select <ON> or <OFF> and then press
the ENTER button.
• ON : Both video and audio signals are transmitted over the HDMI connection cable, and audio
is output through your TV speakers only.
• OFF : Video is transmitted over the HDMI connection cable only, and audio is output through
the home theater speakers only.
Press the RETURN button to return to the previous level.
Press the EXIT button to exit the setup screen.
Setting the HDMI Audio
Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the VIDEO IN jack on
your TV.
METHOD 3 : Composite Video....... (Good Quality)
13
14
• The default setting of this function is HDMI AUDIO OFF.
• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
• P.BASS/CD RIPPING./MIC VOLUME UP/DOWN/ECHO/P.SOUND/EQ/DSP function is not
available when HDMI AUDIO is ON.
•
This product operates in Interlace scan mode for Component Output.
In Stop mode, press and hold the SD/HD (Standard Definition/High Definition)
button on the remote control.
■
Resolutions available for the HDMI output are 576p/480p, 720p, 1080i.
■
SD(Standard Definition) resolution is 576p/480p and HD(High Definition) resolution is 720p/1080i.
Resolution Selection
•
If the TV does not support the configured resolution, you will not be able to see the
picture properly.
• When an HDMI cable is connected, composite and component video signals
are not output.
• See your TV owner's manual for more information on how to select the TV's Video
Input source.
This function allows the user to select the screen resolution for HDMI output.
Why use HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD
video signal digitally without
the process of converting to
analog. You will get sharper
digital pictures when using an
HDMI connection.
Note
Note
Note
MOVE SELECT EXITRETURN
MOVE ENTER EXITRETURN
ENG
16
15
Connecting External Components
Connecting the FM Antennas
FM Antenna (supplied)
FM antenna connection
1. Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you find a location where reception is good, then
fasten it to a wall or other rigid surface.
•
If reception is poor, connect an outdoor antenna.
Before attaching a 75Ω coaxial cable (with a standard type connector), disconnect the supplied FM
antenna.
CONNECTIONS
Connect Audio In on the DVD player to Audio Out on the external analog component.
•
Be sure to match connector colors.
1
Example: Analog signal components such as a VCR, Camcorder, and TV.
Connecting an External Analog Component
Audio Cable
If the external analog component
has only one Audio Out, connect
either left or right.
Press AUX/PORT to select AUX 1.
•
‘
AUX 1’ appears in the display.
2
(not supplied)
Connect the Digital Input(OPTICAL) on the Mini Component to the Digital Output of the
external digital component.
1
Digital signal components such as a Cable Box/Satellite receiver(Set -Top Box).
OPTICAL:Connecting an External Digital Component
Press the AUX/PORT button to select DIGITAL IN.
2
Optical Cable
(not supplied)
Extermal Digital Component
• This unit does not receive AM broadcasts.
Note
AUX2 : Rear Panel
Audio Cable
(not supplied)
If the external analog
component has only
one Audio Out, connect
either left or right.
1 Connect AUX IN 2 (Audio) on the MINI
COMPONENT rear panel to the Audio Out of the
external analog component.
■
Be sure to match connector colors.
2 Press the AUX/PORT button to select <AUX2> input.
The mode switches as follows : AUX 1 ➝ AUX 2.
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
ENG
17
18
Setting the Clock
For each step, you have a few seconds to set the required options.
If you exceed this time, you must start again.
•
You can also use Multi-Jog or button on the panel front
instead of , buttons in step 3,4.
Note
OPERATION
•
You can display the time, even
when you are using another
function, by pressing
TIMER/CLOCK once.
•
CLOCK is displayed.
2
Press TIMER/CLOCK
twice.
1
Switch the system on
by pressing
STANDBY/ON button.
•
"TIMER" appears in the display.
•
The current time is now set.
5
When the correct
time is displayed,
press ENTER.
•
Increase the minutes :
•
Decrease the minutes :
4
When the correct
hour is displayed,
press ENTER.
The minutes flash.
•
Increase the hours :
•
Decrease the hours :
3
Press ENTER.
The hour flashes.
Note
Checking the Remaining Time
Each time the REMAIN button is pressed
Press the REMAIN button.
•
For checking the total and remaining time of a title or chapter being played.
Disc Playback
1
Load a disc.
•
Insert a disc that the disc’s label facing up.
•
Depending on the content of the disc, the initial screen may appear different.
•
Depending on the recording mode, some MP3-CDs cannot be played.
•
Table of contents of a MP3-CD varies depending on the MP3 track format recorded
on the disc.
2
To open/close the disc tray,press
OPEN/CLOSE button.
DVD CD
•
Playback starts automatically.
DivX
MP3
JPEG
•
Playback starts automatically.
•
If the TV is on, a list of MP3s on
the CD will appear on the TV
screen.
Note
•
To resume playback, press PLAY( ) button again.
To temporarily pause playback, press PAUSE button
during playback.
•
If pressed once, the stop position will be stored in memory. If PLAY ( ) button
or ENTER button is pressed, playback resumes from the stop position. (This
function works only with DVDs.)
•
If pressed twice, “STOP” is displayed, and if PLAY ( ) button is pressed,
playback starts from the beginning.
To stop playback, press STOP button during playback.
DVD
CD
MP3
CHAPTER REMAIN
TITLE REMAIN
CHAPTER ELAPSED
TITLE ELAPSED
TRACK REMAIN
TOTAL ELAPSED
TOTAL REMAIN
TRACK ELAPSED
TRACK REMAIN
TRACK ELAPSED
Loading...
