Instruction Manual
THREE-CD CHANGER
MINI-COMPACT SYSTEM
MP3-CD/CD-R/RW PLAYBACK
MAX-C550
MAX-C570
MAX-C580
Page 2
GB
Press Push Important Note
Symbols
3
GB
2
Safety Warnings Contents
Thank you for buying this
SAMSUNG mini-compact system.
Please take time to read these instructions.
They will allow you to operate your
system with ease and take full advantage
of its features.
S
AFETYWARNINGS
.................................................................................................................................................................................. 2
I
NSTALLINGYOURMINI-COMPACTSYSTEM
Front Panel View...................................................................................................................................................................................... 4
Rear Panel View ...................................................................................................................................................................................... 5
Remote Control........................................................................................................................................................................................ 5
Where to Install Your Mini-Compact System............................................................................................................................................ 6
Connecting your System to the Power Supply ........................................................................................................................................ 6
Inserting Remote Control Batteries .......................................................................................................................................................... 6
Connecting the Loudspeakers ................................................................................................................................................................ 6
Connecting to an External Source............................................................................................................................................................ 7
Connecting the AM (MW) Aerial .............................................................................................................................................................. 7
Connecting the FM Aerial ........................................................................................................................................................................ 7
Demo/Dimmer function ............................................................................................................................................................................ 8
Setting the Clock ...................................................................................................................................................................................... 8
CD/MP3-CD-P
LAYER
Loading and Changing Compact Discs.................................................................................................................................................... 9
To reply the CD/MP3-CD ........................................................................................................................................................................ 9
Selecting a CD in the Disc changer ........................................................................................................................................................ 10
Selecting a Track...................................................................................................................................................................................... 10
To select the MP3-CD title and track ...................................................................................................................................................... 10
Searching for a Specific Music Passage on a CD .................................................................................................................................. 11
Shuffle Play Function .............................................................................................................................................................................. 11
Medley Play.............................................................................................................................................................................................. 12
Repeating One or All Tracks on the Compact Discs................................................................................................................................ 12
Function to skip through 10 track at a time ............................................................................................................................................ 12
Last Memory Function ............................................................................................................................................................................ 12
Programming the Order of CD Playback ................................................................................................................................................ 13
Checking or Changing Programmed CD Tracks...................................................................................................................................... 14
T
UNER
Searching for and Storing the Radio Stations ........................................................................................................................................ 14
Selecting a Stored Station........................................................................................................................................................................ 15
Improving Radio Reception...................................................................................................................................................................... 15
T
APEDECK
Listening to a Cassette ............................................................................................................................................................................ 16
CD Synchro Record Feature.................................................................................................................................................................... 16
Recording a Compact Disc ...................................................................................................................................................................... 16
Recording a Radio Program .................................................................................................................................................................... 17
Copying a Cassette (Dubbing) ................................................................................................................................................................ 17
Tape Counter............................................................................................................................................................................................ 17
O
THERFUNCTIONS
Timer Function ........................................................................................................................................................................................ 18
Cancelling the Timer................................................................................................................................................................................ 18
Mute Function .......................................................................................................................................................................................... 19
S.BASS Function...................................................................................................................................................................................... 19
Power Sound Function ............................................................................................................................................................................ 19
Selecting an Equalizer Preset .................................................................................................................................................................. 19
Setting the System to Switch off Automatically........................................................................................................................................ 20
Connecting Headphones.......................................................................................................................................................................... 20
Microphone Function(option).................................................................................................................................................................... 20
R
ECOMMENDATIONS FORUSE
Safety Precautions .................................................................................................................................................................................. 21
Cleaning Your Mini-Compact System...................................................................................................................................................... 21
Precautions When Using Compact Discs................................................................................................................................................ 22
Precautions When Using Audio Cassettes.............................................................................................................................................. 22
Before Contacting the After-Sales Service .............................................................................................................................................. 22
Technical Specifications .......................................................................................................................................................................... 23
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE REAR COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
CAUTION
Page 3
GB
5
GB
4
Rear Panel View
Remote Control
1
13
14
15
16
17
18
19
20
21
22
23
24
25
12
11
10
9
8
7
6
5
4
3
2
1. STANDBY/ON
2. AUX
3. TUNER(BAND)
4. TIMER ON/OFF
5. AI SLEEP
6. DISC SKIP
7. COUNTER RESET
8. CD STOP
9. DECK 1/2
10. VOLUME
11. TAPE Rewind
12. TAPE Stop
13. TAPE Play
14. TAPE Fast-Forward
15. TUNING/ALBUM
16. TUNING MODE (+10)
17. CD Play/Pause
18. CD Skip and Search
19. CD Shuffle Play
20. CD REPEAT
21. MEDLEY
22. S.BASS
23. LATIN SOUND
24. DEMO/DIMMER
25. MUTE
1
2
3
4
Front Panel View
1
2
3
4
5
6
7
8
10
11
12 13
15
16
22
23
19
25
26
27
9
14
28
21
20
24
28
29
3031
32
17
18
33
34
4
5
1. FM Aerial Connector Terminal
2. AM Aerial Connector Terminals
3. AUX-Input
4. Loudspeaker Connector Terminals
5. Voltage Selector(Option)
1. Function Selection buttons
2. STANDBY/ON
3. DEMO/DIMMER
4. MIC LEVEL(option)
5. MIC(option)
6. REC/PAUSE
7. PHONES
8. Deck 1/2
9. DUBBING
10. COUNTER RESET
11. CASSETTE 1
12. CD SYNCHRO
13. PROGRAM
14. TIMER/CLOCK
15. TUNER MEMORY
16. MONO/ST
17. TIMER ON/OFF
18. AI SLEEP
19. CASSETTE 2
20. SEARCH DOWN/UP
21. ENTER
22. S.BASS
23. STOP
24. EQ Lambada
25. EQ Samba
26. EQ Salsa
27. REW./F.FWD
28. VOLUME
29. P.SOUND
30. CD Open/Close
31. Disc Change
32. Disc Selection buttons
33. Compact Disc Compartment
34. Window Display
Page 4
GB
7
To take full advantage of your new mini-compact system, follow
these installation instructions before connecting the unit.
Install the system on a flat, stable surface.
Never place this unit on carpeting.
Never place this unit in an outdoor area.
Maintain an open space of approximately 6 inches (15 cm) on the
sides and rear of the system, for ventilation purposes.
Make sure that you have enough room to open the compact disc
compartment easily.
Place the loudspeakers at a reasonable distance on either side of
the system to ensure good stereo sound.
Direct the loudspeakers towards the listening area.
For optimum performance, make sure that both speakers are placed
at an equal distance above the floor.
Where to Install Your Mini-Compact System
GB
6
Insert or replace remote control batteries when you:
Purchase the mini-compact system
Find that the remote control is no longer operating correctly
When replacing the batteries, use a new set of batteries and
never mix alkaline and manganese batteries.
Place your thumb on the position marked on the battery
compartment cover (rear of the remote control) and push the cover in
the direction of the arrow.
Insert two AAA, LR03 or equivalent batteries, taking care to respect
the polarities:
+ on the battery against + in the battery compartment
– on the battery against – in the battery compartment
Replace the cover by sliding it back until it clicks into position.
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Inserting Remote Control Batteries
1
2
3
The auxiliary input can be used to take advantage of the
sound quality of your mini-compact system when listening to
other sources.
Examples
: A television
A video disc player
A Hi-Fi stereo video cassette recorder
To connect to the external source, the source must have an
audio output. In addition, you need an RCA connection cable.
Set the system to standby mode and disconnect it and the external
source from the main socket.
Connect the audio cable to the rear of the mini-compact system.
Connect the... To the connector marked...
Red jack R (right)
White jack L (left)
For optimum sound quality, do not invert the right and left
channels.
Plug the system back into the main socket and press
STANDBY/ON to switch it on.
Select the AUX source by pressing AUX.
Result
: AUX is displayed.
Switch the external source on.
Adjust the volume and balance as required:
Volume Equalizer
Example: You can watch a film and take advantage of stereo sound
provided that the original sound track is in stereo (as if you
were in a cinema).
Connecting to an External Source
1
2
3
4
5
6
4
3
The loudspeaker connector terminals are located on the rear
of the system.
There are four terminals on the system:
Two for the left speaker (marked L)
Two for the right speaker (marked R)
To achieve the correct sound quality, connect the:
Red wire to the + terminals
Black wire to the
–
terminals
Press and hold the terminal tab.
Insert the speaker cord.
Release the finger.
1
2
3
Connecting the Loudspeakers
The AM aerial (for long and medium waves) can be:
Placed on a stable surface
Fixed to the wall (you must first remove the base)
The AM aerial connector terminals are located on the rear of the system
and are marked AM .
To avoid noise interference, check that the loudspeaker wires do not
run close to the aerial wires.
Always keep them at least 2 inches (5 cm) away.
Connecting the AM (MW) Aerial
How to connect a COAXIAL TYPE aerial.
Connect a 75Ω antenna to the FM antenna terminal.
Plug the connector on the FM aerial supplied into the coaxial socket
(75Ω) marked FM on the rear of the system.
Follow the instructions given on Page 14 to tune into a radio station,
and determine the best position for the aerial.
If reception is poor, you may need to install an outdoor aerial.
To do so, connect an outdoor FM aerial to the FM socket on the rear of
the system using a 75Ω coaxial cable (not supplied).
Connecting the FM Aerial
Connecting your System to the Power Supply
Before plugging your system into a main socket, you must check
the voltage.
Check the position of the voltage selector on the rear of the system
(OPTIONAL).
Plug the main lead into an appropriate socket.
Press the Standby/ON button to switch your mini-compact system .
1
2
3
L
R
Page 5
The CD disc changer can contain up to three 12 cm or 8 cm
compact discs without using an adapter.
Never force the compact disc carrousel when opening and
closing the compartment.
Never press down or place objects on the carrousel.
Always treat your compact discs with care; refer, if necessary, to
the section entitled “Precautions When Using Compact Discs” on
page 22 .
Switch the system on by pressing STANDBY/ON.
Press the OPEN/CLOSE( ) button on the front panel.
Result:
The compartment opens.
Place one disc in the front slots of the carrousel, with the label on the
discs facing upwards.
Check that the compact disc has been correctly inserted in
the holder before closing the compartment.
If you wish to load another disc, press the DISC CHANGE
button on the front panel (or DISC SKIP on the remote control).
Result:
The carrousel rotates by 120°.
Close the compartment by pressing the OPEN/CLOSE( ) button
again.
If you wish to start playing a disc directly, you can also
proceed as follows.
To play... Press...
Disc 1 CD/MP3-CD ( ) or Disc 1
Disc 2 Disc 2
Disc 3 Disc 3
Result:
The compartment closes automatically and the disc selected
starts playing.
To change or unload the compact disc changer, repeat Steps 2 to 5.
Keep the compartment closed whenever you are not using
it, to prevent dust from entering.
You can load or unload compact discs when the radio,
tape or auxiliary source function is selected.
GB
9
GB
8
Loading and Changing Compact Discs
1
2
3
4
5
6
This is a player that enables the playback of audio CD, CD-R,
CD-RW and MP3-CD and does not possess the function that
saves MP3 files.
Do not use CDs of irregular shapes like heart or octagon shapes.
The performance of the player may be degraded.
At least more than one CD should be inserted for playbacks.
Press the STANDBY/ON button to switch on the power.
Press the
CD/MP3-CD
( ) of the main unit to select the CD function.
Insert more than one CD or a MP3-CD.
Press the
CD/MP3-CD
( ) button of the main unit or the button
of the remote control.
If there are more than one CD or an MP3-CD inserted,
replays are then processed in order.
Your CD Player will take a few moments to scan through
all the tracks recorded on a particular MP3-CD.
The English name of the song may be indicated on the display
only if directly downloaded from the PC or if the purchased
MP3-CD is sorted according to titles(directory). (Other
languages besides English may not be indicated.)
The English name of the track may not be indicated
depending on the characteristics of the MP3-CD.
Adjust the volume according to needs with the following procedures.
Turn the VOLUME + or
–
control of the main unit.
or
Press the VOLUME + or –button of the remote control.
If it is desired to pause while the playback is processing, press the
CD/MP3-CD
() button.
Press the CD/MP3-CD( ) button once again to playback again.
To stop playback, press the button.
A new disc may be inserted in the remaining two compartments excluding the CD which is being played back. Press the
Disc Changer button to open the CD tray. The revolving part
does not turn during playbacks.
If there is not even one CD inserted in the CD tray, it is
indicated as “NO DISC”.
If the CD Repeat function is not selected, 3 CDs are played
back which automatically stops.
To replay the CD/MP3-CD
1
2
3
4
All functions available on the system can be viewed on the
display and the display's brightness can be switched between
"on" and "off".
Press the DEMO/DIMMER button.
Result:
All functions available on the system appear on the front
panel display.
Each of these are explained in detail in this guide.
Please refer to the relevant section.
Press the DEMO/DIMMER button again.
Result:
The Dimmer function is selected and the display darkens.
Press the DEMO/DIMMER button once again to brighten the front
panel display.
A display brightness control can only be performed while the
system power is on.
Your system is equipped with a clock which allows you to
turn your system on and off automatically. You should set the
clock:
When you purchase the mini-compact system
After a power failure
After unplugging the unit
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
Switch the system on by pressing Standby/on.
Press Timer/Clock twice.
Result:
CLOCK is displayed.
Press Enter.
Result:
The hour flashes.
To... Press the...
Increase the hours
Decrease the hours
When the correct hour is displayed, press Enter.
Result:
The minutes flash.
To... Press the...
Increase the minutes
Decrease the minutes
When the correct time is displayed, press Enter.
Result:
The clock starts and is displayed, even when the system is in
standby mode.
You can display the time, even when you are using another
function, by pressing Timer/Clock once.
You can also use TUNING/ALBUM / on the remote con-
trol to instead of / buttons in step 4, 6.
Setting the Clock
2
3
1
1
2
3
4
5
6
7
DEMO/DIMMER function
1
2
3,5,7
1
5
1
2,4,6
7
5
5
4
2,5
<CD Playback>
Track Indicator
Playtime Indicator
4,6
4,6
Playtime Indicator
Title(Directory) Indicator
<
During the MP3-CD playback
>
Track Indicator
5
6
7
Page 6
GB
11
10
GB

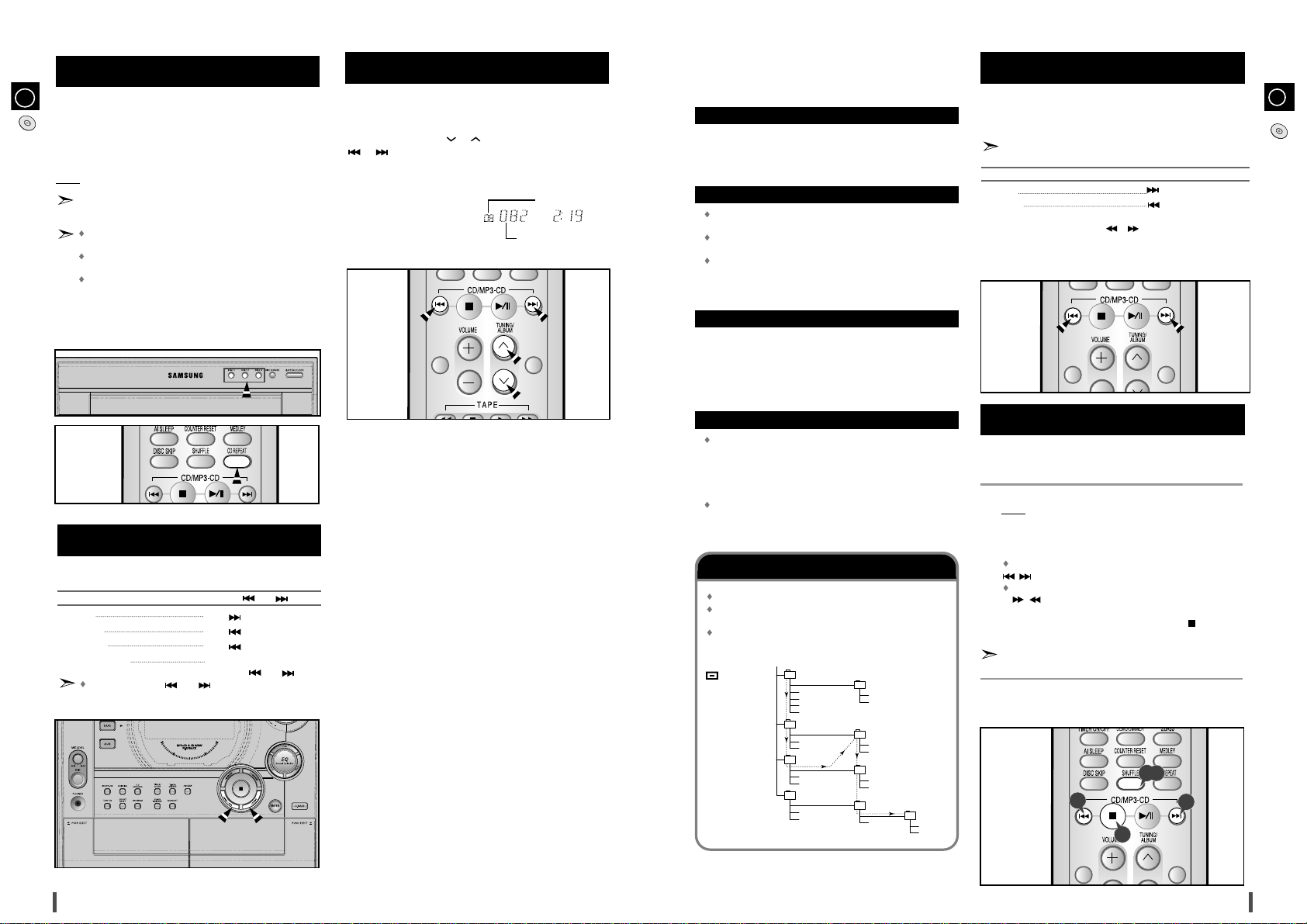

Searching for a Specific Music Passage on a CD
Shuffle Play Function
When listening to a compact disc, you can quickly search for a
specific music passage on a track.
It is recommended that you turn the volume down before using
this function.
To search through the tracks... Press and hold down...
Forwards for at least one second
Backwards for at least one second
You can also press and hold down / on the front panel to auto
search through the tracks.
The CD function is automatically selected when Disc Skip is
pushed.
To select a specific disc, press the corresponding DISC (1, 2, 3)
button on the front panel or DISC SKIP on the remote control, until
the required disc indicator flashes.
Result:
All the discs will be played in turn, starting with the one selected.
If you wish to play the current disc only, press CD REPEAT on
the remocon one or more times, until 1 CD is displayed.
If you use the DISC (1, 2, 3) function when listening to the radio
or to a tape, the system switches automatically to the CD mode.
If the disc selected is not loaded, the next disc is played
automatically.
When the CD door is opened,if you hold the OPEN/CLOSE
button over 5 seconds until “LOCK”is on the display,the CD
door will be locked.In the case, you should hold the
OPEN/COLSE button once again until “UNLOCK”is on the
display,the CD door will be unlocked.
You can select the track you wish to listen to, either when the
compact disc player is stopped or when a disc is playing.
To start playback at the beginning of the... Press the
and
...
Next track Press
once
Current track Press
once
Previous track Press
twice
Track of your choice The appropriate number of
pressing the
and
You can also use the and buttons on the remote control
to select a track.
Selecting a CD in the Disc changer
Selecting a Track
What is MP3?
MP3 means MPEG1 Layer 3, the global standard for audio
signal compression technology. It uses digital compression
technology to compress original sound data by up to 12 times
without sound quality degradation.
File Compatibility
The unit will playback files created in MP3 format
(Mpeg1.Layer3) with *.mp3 as their extension.
Playback will be impossible for the file of MP2 or
22KHz.
ID3*tags cannot be shown on the display.
*An MP3 file can contain file information called “ID3 Tag ”
where its album name, performer, rack title, etc. are recorded.
How many MP3 files can a CD-R or CD-RW disc record?
The maximum capacity of one CD-R or CD-RW disc is
680MB.
Normally, one MP3 file has a capacity of 4MB, therefore
approximately 170 files can be recorded on a single disc.
Regarding the playback of CD-R/RW
In the case of an original CD-R(Recordable) recorded in
audio CD format, CD-RW(Rewritable) and editing by
the user, playback is processed on the respective
completed status. (The player may not be played back
according to the characteristics of the CD or recorded
status.)
The CD-RW is comparably less reflexive than CD which
causes more time delay to read.
Playback sequence of titles and tracks
In case of Window Explorer display.
The arrows indicate playback sequence of titles and
tracks.
Tracks with jpg, wav or doc only are not audio files and
therefore will be skipped.
Kevin01.mp3
TITLE 01
(E) CD-ROM drive
Kevin02.mp3
Kevin03.mp3
Kevin04.mp3
Life.doc
Skipped
TITLE 02
Summer05.mp3
Summer06.mp3
Garden.mp3
Garden.mp3
TITLE 04
TITLE 03
Michael07.mp3
Michael08.mp3
Water.mp3
Water.mp3
TITLE 05
Skipped
Kenny01.wav
Kenny02.wav
Butterfly.mp3
TITLE 06
Piano14.mp3
John15.mp3
TITLE 07
The title and track of the MP3-CD desired to listen may be
selected on stopping or during playbacks.
To select the MP3-CD title and track
Press the TUNING ALBUM or button, the title moves.Press the
or buttons,the track moves.
1,3
3
2
2
Title Movement
Track Movement
You can listen to the tracks on a compact disc in a different
order each time, as the various tracks will be selected automatically in a random sequence.
Press the SHUFFLE button.
Result: The SHUFFLE(CD) or RANDOM(MP3-CD) indication
appears and all the tracks are played in a random order. Both
the track number and the playing time are displayed.
When playing tracks in a random order, you can:
Move on to the next track (selected at random) by pressing
/
Search quickly for a specific point in the current track by pressing
/.
When you have finished the random playback, press or press the
SHUFFLE button again.
Repeat and CD Synchro function are not available in Shuffle playing
mode.
1
2
3
TAPE
1/2
TUNING
MODE
+10
TAPE
1/2
TUNING
MODE
+10
TAPE
1/2
TUNING
MODE
+10
Page 7
13
GB
12
GB

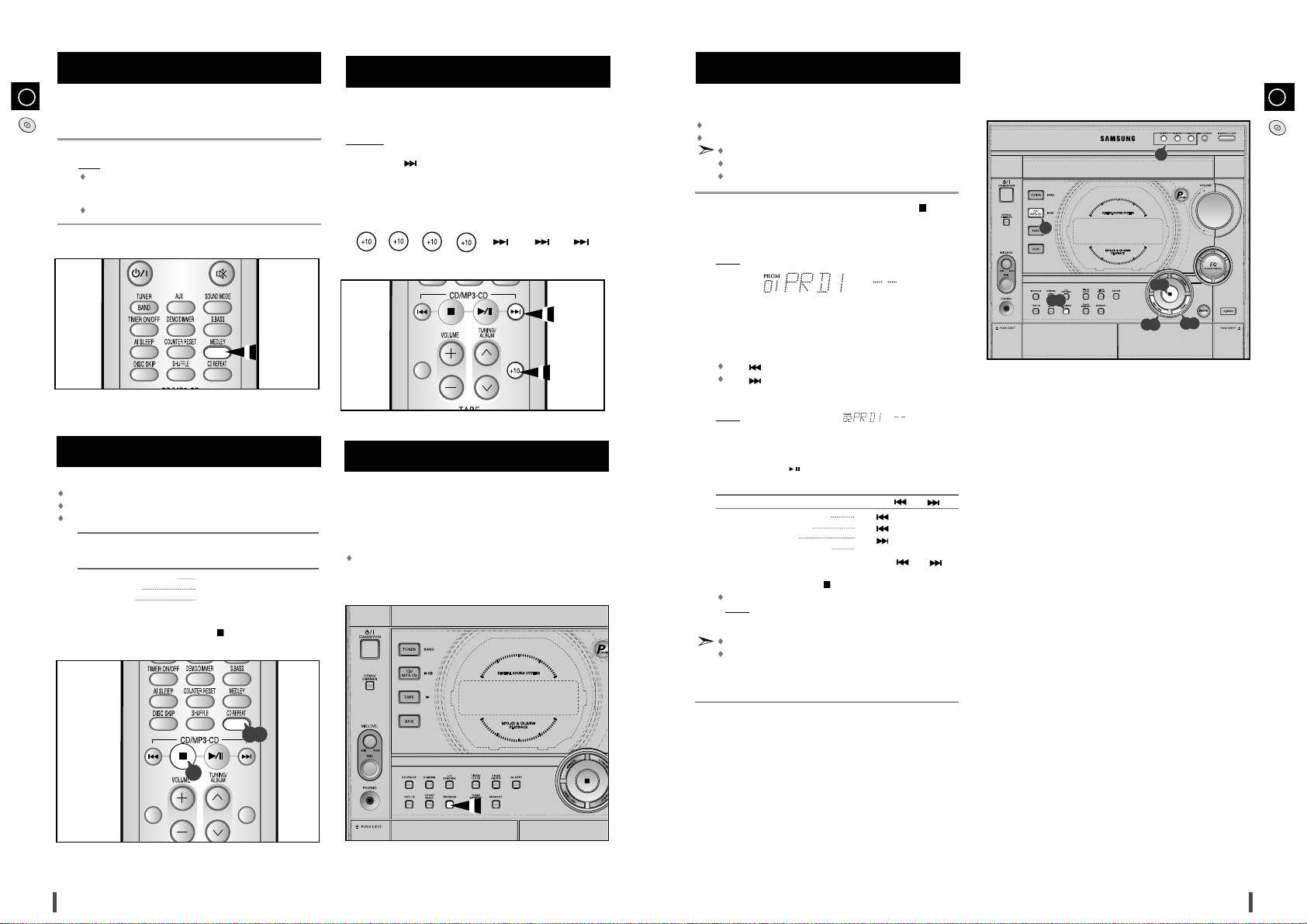

Function to skip through 10 tracks at a time
Press the +10 button briefly while playing back a
CD and MP3-CD. The track 10 tracks after the current
one will then be played back.
Example:
If you want to select track 43 during playback of track
5, press the +10 button four times, and then press
the button three times .
5 ➝10➝20 ➝30 ➝40 ➝41 ➝42 ➝43
When MP3-CD playback is selected again after your CD
player has been stopped or turned off, this function allows
playback from the start of the track that you last listened
to.
Press the PROGRAM button while your MP3-CD is being played
. The LAST ON and LAST OFF may be repeatedly selected.
Last Memory Function
(This function is only available during playback of MP3-CD.)
You can select “MEDLEY ON”and “MEDLEY OFF”during
playback of a CD.
Press the MEDLEY button once.
Result:“MEDLEY ” is displayed.
The interval time between the tracks can be shorten.
Press the MEDLEY button again.
Cancel this function,return to normal playback.
Medley Play
(This function is only available during playback of a CD.)
You can repeat indefinitely:
A specific track on a compact disc.
All tracks on the compact disc selected.
All discs loaded in the carrousel
To repeat... Press CD REPEAT on the Remote
control once or more times
until...
The current track indefinitely REPEAT 1 is displayed
The selected disc REPEAT 1 CD is displayed
All discs loaded REPEAT ALL CD is displayed
When you wish to stop the Repeat function, press CD REPEAT until
ALL CD or 1 CD is displayed, or press .
Repeating One or All Tracks on the Compact Discs
1
1
2
2
1,2
2
You can decide:
The order in which you listen to the tracks on the discs loaded
Which tracks you do not wish to listen to
You can program up to 24 tracks.
You must stop the compact disc player before selecting the tracks.
This feature can be combined with the Repeat function.
If the CD function is selected, stop the player by pressing .
Load the selected CDs.
Press PROGRAM.
Result: The following indications are displayed:
(01 = Programme No, DI = Disc No, – – = Track No on the disc)
If necessary, select the disc containing the required track by pressing
the corresponding DISC (1, 2, 3) button.
Select the required track by pressing the UP and DOWN button:
Press to move back through the tracks
Press to move forward through the tracks
Press PROGRAM to confirm your selection.
Result:
The selection is stored and is displayed.
To select other tracks, repeat Steps 4to 6.
Press CD/MP3-CD ( ) to listen to the track selection in the order
programmed.
To... Press the and ...
Listen to the current track again Press
once
Listen to the previous track Press
twice
Listen to the next track Press
once
Skip forwards or backwards one The appropriate number of
or more tracks
pressing the
and
To cancel the selection, press .
Once if the compact disc player is stopped
Result:
PRGM is no longer displayed.
If you open the compartment, the selection is cancelled.
If you select the number of a disc which is not loaded or a
track which does not exist on the CD, the selection skips to the
next programmed track.
1
2
3
4
5
6
8
9
10
Programming the Order of CD Playback
(This function is not available during playback of an MP3-CD.)
7
4
8
3,6
1,10
5,9
5,9
TAPE
1/2
TUNING
MODE
+10
TAPE
1/2
TUNING
MODE
+10
/
Page 8
15
GB
14
GB

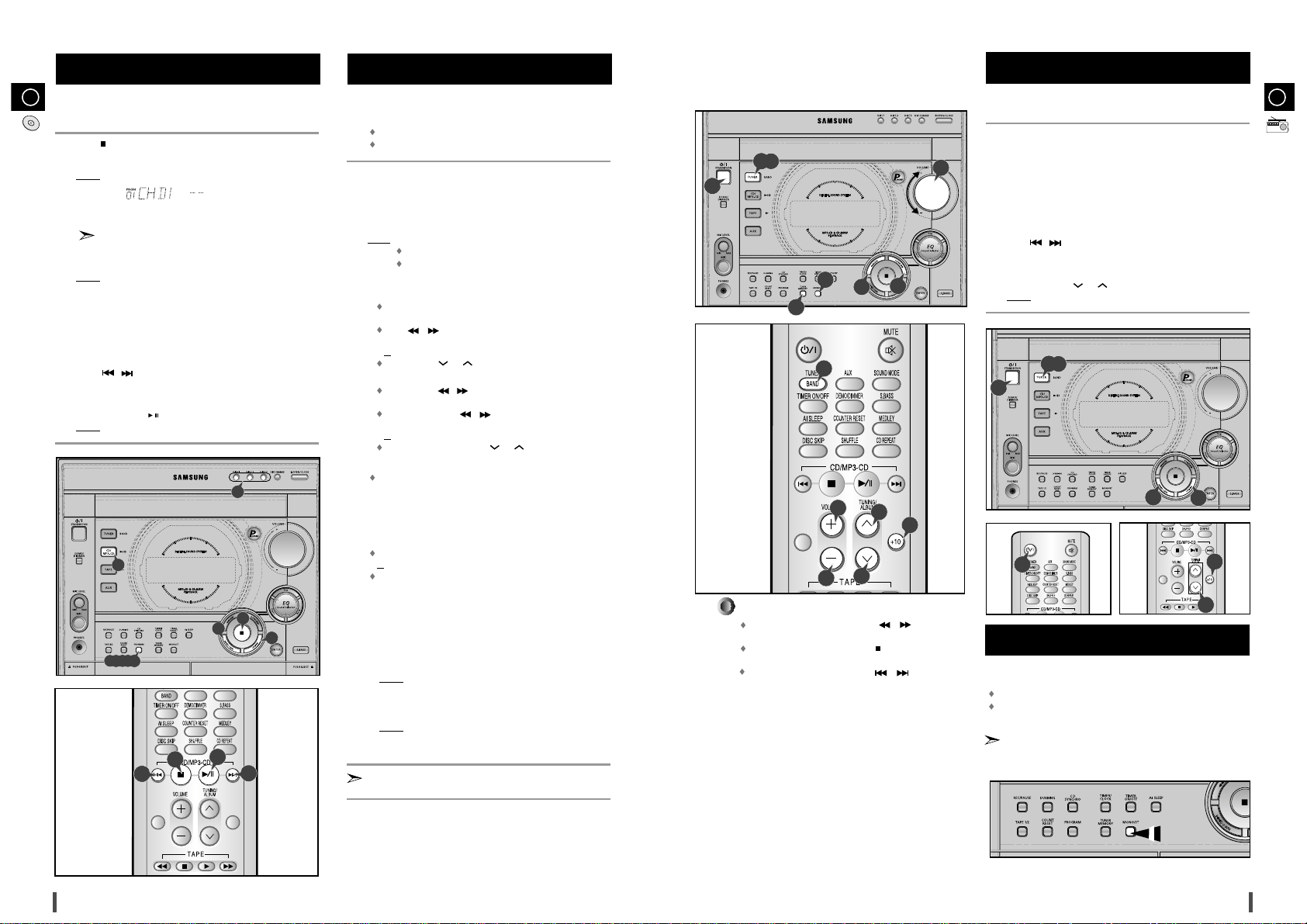

You can improve the quality of radio reception by:
Rotating the FM or AM(MW) aerial
Testing the positions of the FM and AM(MW) aerials before fixing them
permanently
If reception from a specific FM radio station is poor, press MONO/ST
to switch from stereo mode to mono. The quality of the sound will be
improved.
You can listen to a stored radio station as follows:
Switch the system on by pressing STANDBY/ON.
Select the TUNER function by pressing TUNER .
Select the required frequency band by pressing TUNER (BAND) on
the remote control or TUNER (BAND) again on the front panel.
Press the TUNING MODE button on the remote control until
“PRESET” is displayed.
press
/
on the front panel of the unit to select the desired
station.
or
Select the desired station by pressing the
TUNING / ALBUM or button on the remote control.
Result:
The desired station is now received.
Selecting a Stored Station
1
2
3
4
5
Improving Radio Reception
In Tuner Mode
In manual tuning mode, you can use / button to
manual search a radio station.
During Tuner auto searching, press button to stop auto
searching.
In Preset tuning mode, you can use / button to
search a stored radio station.
You can check or change your selection of tracks at any time.
Press once if you have started listening to the selection.
Press PROGRAM.
Result:
The following indications appear:
(CH = Check, 01=Program No, DI = Disc No, – – = Track No on the disc)
If you have already programmed 24 tracks, CH is displayed
instead of PR when you press PROGRAM.
Press PROGRAM again.
Result:
The first track selected is displayed, together with the letter
CH(Change).
Press PROGRAM one or more times until the track to be changed is
displayed.
If necessary, press the corresponding DISC (1, 2, 3) button to change
discs.
Press / to select a different track.
Press Program to confirm your change.
Press MP3-CD/CD ( ) to start listening to the selection.
Result:
The first track selected is played.
You can store up to:
15 FM stations
15 MW stations
Switch the system on by pressing Standby/on.
Select the TUNER function by pressing TUNER(BAND).
Select the required frequency band by pressing TUNER (BAND)
again on the front panel or TUNER (BAND) on the remote control.
Result
: The appropriate indication is displayed:
FM Frequency Modulation
AM(MW) Medium Wave
Tune in to the desired station.
Manual tuning
Press the TUNING/MODE button so that the "MANUAL" indicator lights up on the front panel display.
Press / on the main unit to tune in to the desired station manually.
or
Press
TUNING
or on the remote control to do the same.
Automatic tuning
Press and hold / on the main unit for more than 1 second
so that the "AUTO" indicator lights up on the front panel display.
Press and briefly hold / on the main unit to begin automatic
tuning.
or
Press and briefly hold TUNING
or
on the remote control to
do the same.
Use the manual tuning method if the automatic tuning search does
not stop at the desired station because the signal is weak.
For details on the Preset function, see the “Selecting a Stored
Station” on page 15.
Adjust the volume by:
Turning the VOLUME + or - knob on the front panel
or
Pressing the VOLUME + or – buttons on the remote control
Select the FM stereo or mono mode by pressing MONO/ST on the
front panel.
If you do not want to store the radio station found, revert to Step 4
and search for another station.
Otherwise:
a Press TUNER/MEMORY.
Result:
The PRGM is displayed for a few seconds.
b Press DOWN and UP to assign a programme number between 1
and 15.
c Press TUNER/MEMORY to store the radio station.
Result:
PRGM is no longer displayed and the station is stored.
To store any other radio frequencies required, repeat Steps 3to 7.
The MEMORY function can be used to assign a new station to an
existing programme number.
Checking or Changing Programmed CD Tracks
1
2
3
4
5
6
7
8
Searching for and Storing the Radio Stations
1
2
3
4
5
6
2,3
1
7
8
7
8
1
5
8
2,3,4,7
6
6
6
5
5
5
4
1
4
5
6
6
1
4
4
4
4
3
2,3
1
5
5
/
TAPE
1/2
TUNING
MODE
+10
TAPE
1/2
TUNING
MODE
+10
TAPE
TUNING
1/2
MODE
+10
Page 9
GB
16

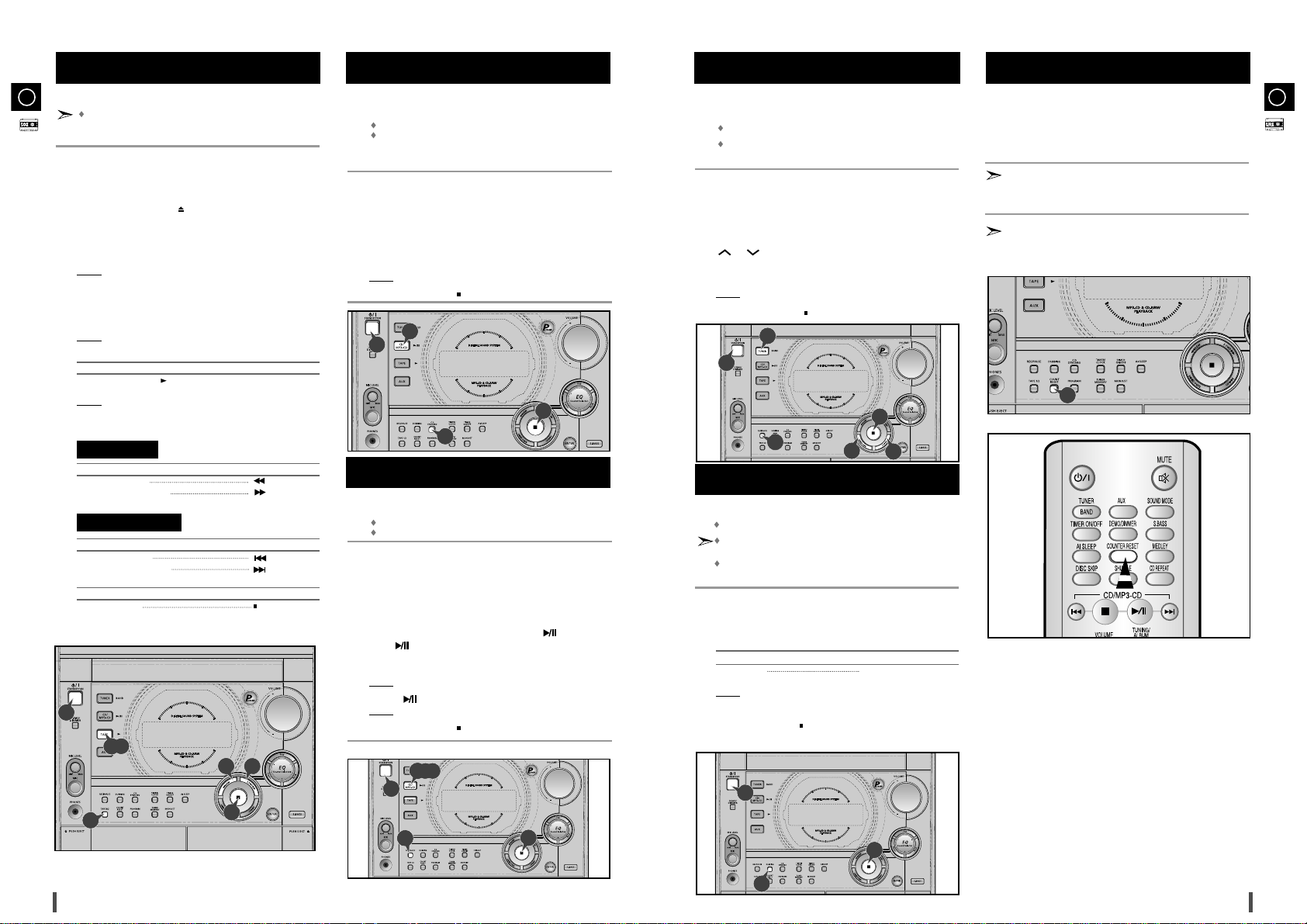

Always treat your cassettes with care; refer, if necessary, to
the section entitled “Precautions When Using Audio Cassettes”
on page 22.
Switch the system on by pressing the STANDBY/ON button.
Select the TAPE function by pressing TAPE on the front panel.
Open either cassette deck 1 or 2 by pushing and releasing the deck
cover where PUSHE JECT ( ) is written.
Insert the pre-recorded cassette with the open edge of the tape
facing downward.
Close the deck by pushing on it until it clicks into place.
Result:
Depending on the deck selected, the 1 or 2 indication is
displayed in front of the counter number.
If you have inserted two cassettes, press TAPE 1/2 on the front panel
or directly the TAPE 1/2 button on the remote control to select the
cassette to be played.
Result:
Depending on the deck selected, the TAPE 1 or TAPE 2
indication is displayed.
To listen to... Press ...
Side A,B TAPE ( )
Result:
The cassette starts playing.
When the cassette is stopped, select one of the following functions
as required or on the remote control.
To... Press...
Rewind the cassette
Fast-forward the cassette
To... Press ...
Rewind the cassette
Fast-forward the cassette
To... Press ...
Stop the playback
You can record a compact disc on a cassette in two different ways:
Synchronised recording
Direct recording
This feature enables you to synchronize the start of the
recording with the start of the disc or track of your choice.
Switch the system on by pressing STANDBY/ON.
Insert a blank cassette in Deck 2.
Select the CD function by pressing
CD/MP3-CD
on the front panel.
Load a compact disc.
Select the required disc.
Select the required track and press CD SYNCHRO or press CD
SYNCHRO directly to start recording at the beginning of the disc.
Result:
REC and CD SYNC are displayed and recording starts.
To stop recording, press .
The direct recording mode enables you to start recording with
any track on the compact disc.
You can only record on cassettes in Deck 2.
You do not need to adjust the volume, as it has no effect on the recording.
Switch your system on by pressing STANDBY/ON.
Insert a blank cassette in Deck 2.
Select the CD function by pressing
CD/MP3-CD
on the front panel.
Load the compact disc.
Select the required disc.
Select the required track on the compact disc and press on the front
panel or on the remote control to set the compact disc player to Pause
mode.
Press the REC/PAUSE.
Result:
REC is displayed.
Press the to start playing the track.
Result:
The track is recorded on the cassette.
To stop recording, press .
CD Synchro Record Feature
(This function is not available during playback of an MP3-CD.)
Recording a Compact Disc
Listening to a Cassette
1
2
3
4
5
6
7
8
1
9
1
2
3
4
5
6
7
2
3
4
5
6
7
8
9
Main Unit
Remote Control
6
2,7
1
1
3
7
6
1
3,6,8
9
7
You can record a radio program of your choice.
You can only record on cassettes in Deck 2.
You do not need to adjust the volume, as it has no effect on
the recording.
Switch the system on by pressing STANDBY/ON.
Insert a blank cassette in Deck 2.
Select the TUNER function by pressing TUNER.
Select the radio station that you wish to record by pressing TUNING
or on the remote control or by press the DOWN or UP on
the front panel.
Press REC/PAUSE.
Result:
REC is displayed in red and recording starts.
To stop recording, press .
You can copy a cassette from Deck 1 to Deck 2.
Normal speed dubbing in selecting Tape function mode.
You do not need to adjust the volume, as it has no effect on the
recording.
Take care not to insert the tape to be copied in Deck 2, as it will
be erased when you start recording.
Switch your system on by pressing STANDBY/ON.
Insert a blank cassette in Deck 2.
Insert the tape to be copied in Deck 1.
To copy a cassette at... Press...
Normal speed DUBBING
Result:
The appropriate indications are displayed and the cassette in
Deck 1 is copied to the cassette in Deck 2.
To stop dubbing, press .
GB
17
Recording a Radio Program
1
2
3
4
5
6
Copying a Cassette (Dubbing)
1
2
3
4
5
4
5
1
1
5
3
When playing a cassette in one of the cassette decks, a
counter is displayed to enable you to take note of the counter
value at the start of each track to start playback at the
beginning of the track to which you wish to listen.
Before starting to record a cassette for which you wish to take
note of the counter values at the beginning of each track, reset
the counter by pressing COUNTER RESET .
Each cassette deck has a separate counter.
Tape Counter
9
8
8
6
4
4
5
Page 10

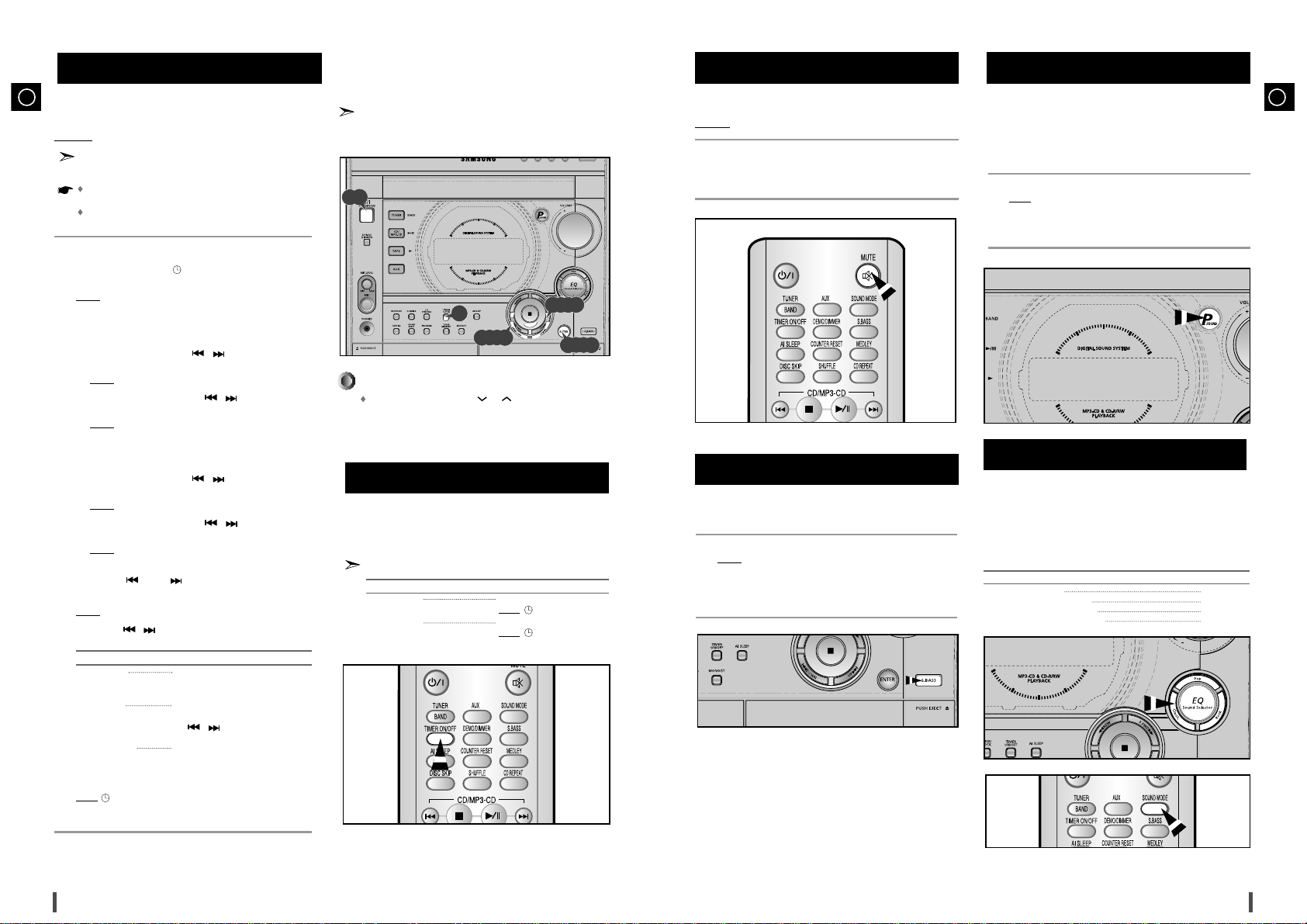

The timer enables you to switch the system on or off at specific times.
Example: You wish to wake up to music every morning.
If you no longer want the system to be switched on or off automatically, you must cancel the timer.
Before setting the timer, check that the current time is cor-
rect.
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
Switch the system on by pressing STANDBY/ON.
Press TIMER/CLOCK until TIMER is displayed.
Press ENTER.
Result:
ON TIME is displayed (instead of the equalizer symbols)
for a few seconds, followed by any switch-on time already
set; you can set the timer switch-on time.
Set the timer switch-on time.
a Set the hour by pressing the
/ buttons
.
b Press ENTER.
Result:
The minutes flash.
c Set the minutes by pressing the
/ buttons
.
d Press ENTER.
Result:
OFF TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-off time
already set; you can now set the timer switch-off time.
Set the timer switch-off time.
a Set the hour by pressing the
/ buttons
.
b Press ENTER.
Result:
The minutes flash.
c Set the minutes by pressing the
/ buttons
.
d Press ENTER.
Result:
VOL XX is displayed, where XX corresponds to the volume already set.
Press DOWN and UP to adjust the volume level and
press
ENTER.
Result:
The source to be selected is displayed.
pressing the
/ buttons to select
the source to be played
when the system switches on .
If you select... You must also...
TAPE (cassette) Insert a recorded cassette in one of the
decks before setting the system to standby.
TUNER (radio) a Press
ENTER.
b Select a preset station by
pressing the
/ buttons
.
CD (compact disc) Load one or more compact discs.
Press ENTER to confirm the timer.
Press STANDBY/ON to set the system to standby mode.
Result
: appears on the front panel display next to the time, indi-
cating the timer has been set. The timer automatically turns
the system on or off at a designated time.
If the timer switch on and off times are identical, the word ERROR
is displayed.
Timer Function
7
8
9
5
6
1
2
3
4
1,9
2
3,4,5,6,7,8
Your mini-compact system is equipped with the function
of Power Sound .
The function of Power Sound amplifies bass and improves
high key or bass twice as much for you to appreciate
powerful real sound.
Press the P(POWER SOUND) button on the front panel.
Result: Press P(POWER SOUND) button on the front panel,
“P,SOUND” is displayed.
To cancel this function, press P(POWER SOUND)button again .
1
2
GB
19
You can turn the sound off temporarily on your system.
Example
: You wish to answer a telephone call.
Press MUTE.
To switch the sound back on , press MUTEagain or the VOLUME
buttons.
Mute Function
GB
18
After having set the timer, it will start automatically as shown
by the TIMER indication on the display. If you no longer wish
to use the timer, you must cancel it.
You can stop the timer at any time (system on or in standby mode).
To... Press TIMER ON/OFF...
Cancel the timer Once.
Result
: is no longer displayed.
Restart the timer Twice.
Result
: is displayed again.
Cancelling the Timer
2
1
Power Sound Function
4,5,6,7
4,5,6,7
Selecting an Equalizer Preset
Your mini-compact system is equipped with a preset equalizer
that allows you to choose the most appropriate balance
between treble and bass frequencies, according to the type of
music you are listening to.
Press EQ Preset (Salsa/Samba/Lambada) on the front panel or LATIN
SOUND on the remote control until the required option is selected.
To obtain a... Select...
Normal balance (linear) PASS
Balance suitable for Salsa music SALSA
Balance suitable for Samba music SAMBA
Balance suitable for Lambada music LAMBADA
Your mini-compact system has a bass amplification function
called SBS (Super Bass Sound). This function makes the
sound more powerful and real.
Press the S.BASS button.
Result:
S. BASS is displayed and “SBS ON” is displayed for a few
seconds.
To cancel this function, press S.BASSagain, “OFF” is displayed for
a few seconds.
1
2
S.BASS Function
To set the timer function
You may use TUNING ALBUM or on the remote control
to adjust in step 4, 5, 6, 7.
Page 11
GB
21
The following diagrams illustrate the precautions to be taken
when using or moving your mini-compact system.
Safety Precautions
Ambient operating conditions:
Ambient temperature 5°C-35°C
Humidity 10-75%
Do not expose the unit to direct sun
radiation or other heat sources.
This could lead to overheating and
malfunction of the unit.
Do not place potted plants or vases
on top of the unit. Moisture entering
the unit could lead to dangerous
electric shock and can cause
equipment damage. In such events
immediately disconnect the main
plug from the socket.
During thunderstorms, disconnect
the main plug from the socket.
Main voltage peaks due to lightning could damage the unit.
Remove the batteries from the
remote control, if not used for any
extended period.
Leaking batteries can cause serious
damage to the remote control.
When using headphones, take care
not to listen at excessive volumes.
Extended use of headphones at
high volumes will lead to hearing
damage.
Do not place heavy items on the
main lead. Main cable damage can
lead to damage of the equipment (fire
hazard) and can cause electric
shock.
Do not remove any equipment panels.
The inside of the unit
contains live components, which
cause electric shock.
GB
20
To obtain the best possible results from your mini-compact
system, you must clean the following elements regularly:
The outer casing
The compact disc player
The cassette players (heads, rollers and drive capstans)
Always unplug the system from the wall outlet:
Before cleaning it
If you are not going to be using it for a long time
Outer Casing
Clean the outer casing regularly using a soft cloth and a light detergent. Do
not use abrasive powders, liquids or aerosol cleaners. Never let any liquids
get into the system.
Compact Disc Player
Before playing a compact disc, clean it with a special CD cleaning
agent. Do not use the same cleaning agents as for vinyl LP records.
Carefully wipe the disc from the centre outward.
Regularly clean the player with a special cleaning disc (available from
your local dealer).
T
ape Decks
Press PUSH EJECT( ) to open the cassette deck.
Use a cotton bud and a special cassette cleaning agent to clean the:
Head (1)
Rollers (2)
Drive capstans (3)
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Although your system is very hard-wearing, it should not be
used in an excessively dusty environment or subjected to
shocks or extreme heat (close to heating appliances or in
direct sunlight, etc.).
If the unit emits an unpleasant odor when in use, unplug it
from the main supply and contact the after-sales service.
Cleaning Your Mini-Compact System
1
1
2
2
3
21

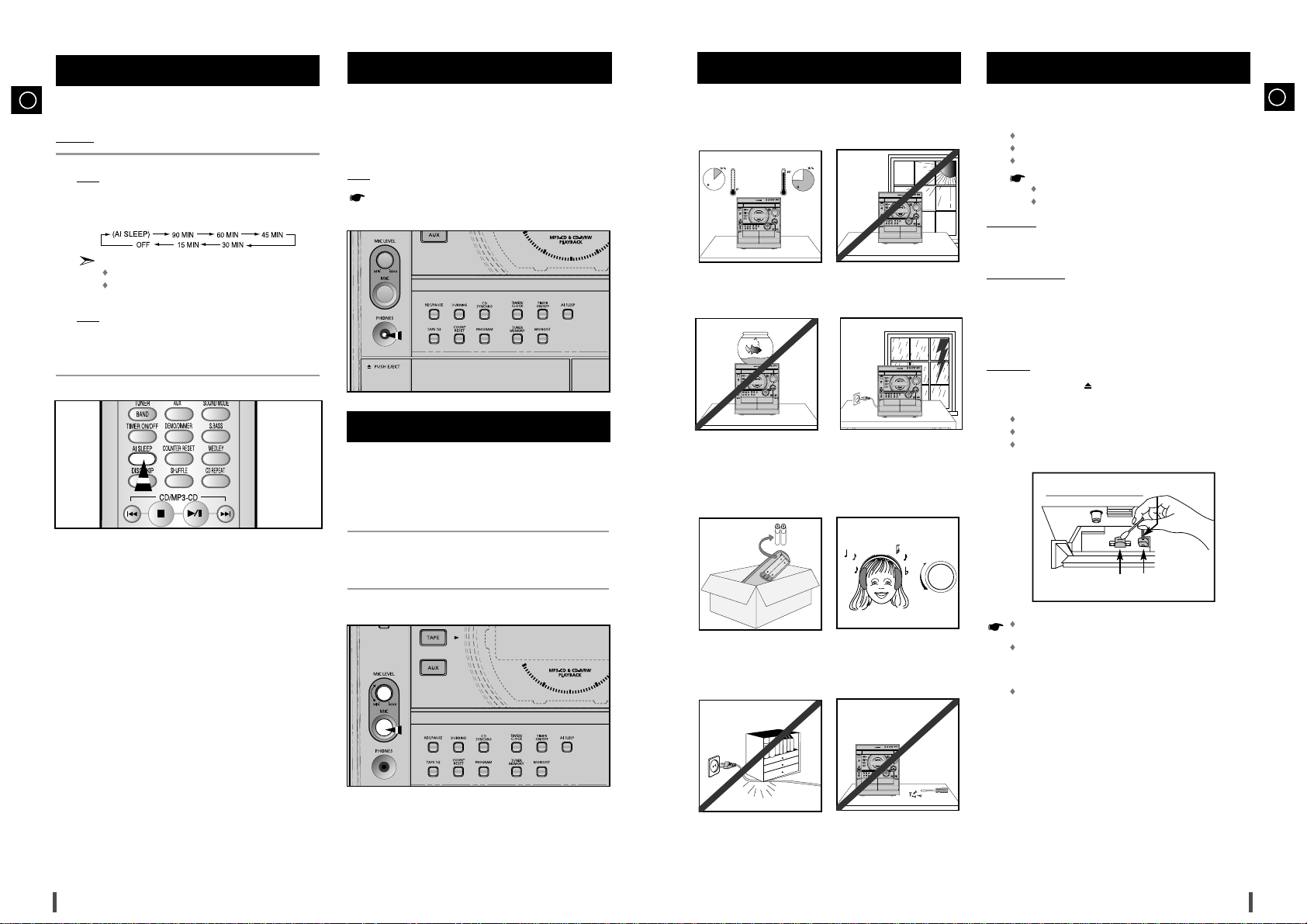

You can connect a set of headphones to your mini-compact
system so that you can listen to music or radio programmers
without disturbing other people in the room. The headphones
must have a 3.5
ø jack or an appropriate adapter.
Connect the headphones to the PHONES jack on the front panel.
Result: The loudspeakers are no longer used to output the sound.
Prolonged use of headphones at a high volume may damage
your hearing.
Connecting Headphones
While listening to a compact disc or a cassette, you can
set the system to switch off automatically
Example: You wish to go to sleep to music.
Press AI SLEEP.
Result: playback starts and the following indications are displayed:
Press AI SLEEP once or more times to indicate how long the
system should continue playing before it switches off:
At any time, you can:
Check the remaining time by pressing AI SLEEP
Change the remaining time by repeating Steps 1 and 2
Press AI SLEEP once or more times until AI SLEEP is displayed.
Result
: The system will automatically switch off at the end of the disc
or cassette.
To cancel SLEEPfunction, press AI SLEEP once or more times until
OFF is display.
Setting the System to Switch off Automatically
1
2
3
4
90 MIN
Microphone Function (OPTION)
The microphone enables the user to mix in his or her vocals
to sing-along with the music or recording .
Preparation
Plug the microphone with a 6.3mm mic jack into microphone terminal.
Turn the MIC Level knob to adjust the mic volume.
1
VOLUME
UP
DOWN
Page 12
GB
23
GB
22

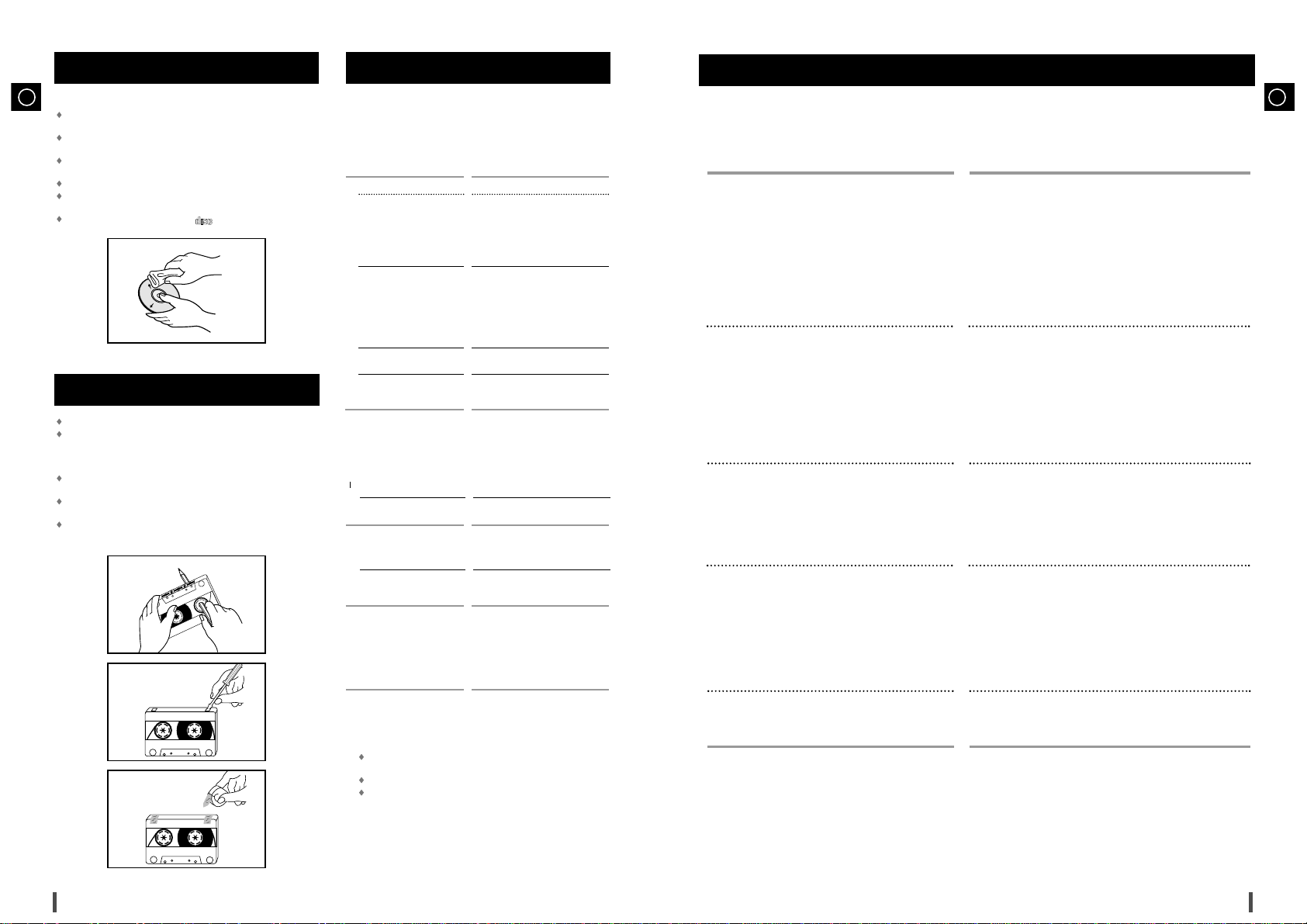

Check that the tape in the cassette is sufficiently taught.
To prevent erasing a cassette that you wish to keep, remove the
safety tab on the upper edge of the cassette. To record a cassette,
where the tab has been broken, simply cover the opening with
adhesive tape.
When you have finished playing a cassette, always put it back in its
case.
Store your cassettes in a clean place, out of direct sunlight, where
they will not be exposed to high temperatures.
Avoid using 120-minute cassettes as they place unnecessary strain
on the tape mechanism.
Handle your compact discs with care. Always hold them by the
edges to avoid leaving fingerprints on the shiny surface.
When you have finished playing a compact disc, always put it back
in its case.
Do not fix paper or adhesive tape to the discs and do not write on
the label.
Clean them with a special-purpose cloth.
Store your compact discs in a clean place, out of direct sunlight,
where they will not be exposed to high temperatures.
Always use compact discs marked .
Precautions When Using Compact Discs
Precautions When Using Audio Cassettes
It always takes a little time to become familiar with a new appliance.
If you have any of the problems listed below, try the solutions given.
They may save you the time and inconvenience of an unnecessary
service call.
If the above guidelines do not allow you to solve the problem, take a
note of:
The model and serial numbers, normally printed on the rear of
the system
Your warranty details
A clear description of the problem
Then contact your local dealer or SAMSUNG after-sales service.
Before Contacting the After-Sales Service
Problem
The system does not work
There is no sound
The Timer does not work
In case it does not work, even the
action is taken as above.
The compact disc player does not
start playing
The MP-3 CD player cannot be
played.
The tape does not start playing
The volume falls off
The cassette is not erased correctly
There is excessive wow and flutter
Reception is poor or no radio
stations are received at all
G
E
N
E
R
A
L
C
D
/
M
P
3
C
D
R
A
D
I
O
C
A
S
S
E
T
T
E
S
Checks/Explanation
• The main lead is not correctly plugged into
a wall socket or the wall socket is not
switched on.
• The remote control batteries need replacing
or the polarity has not been respected.
• The STANDBY/ON button has not been
pressed.
• The volume has been completely turned
down.
• The correct function (TUNER, CD, TAPE,
AUX) has not been selected.
• You have connected a set of earphones.
• The loudspeaker wires have been
disconnected.
• The MUTE button has been pressed.
• The timer has been stopped by pressing
TIMER ON/OFF.
• Press the S.BASS button for 5 seconds in
power ‘OFF’(standby), then it is returned the
original position (RESET)
• The CD function has not been selected.
• The disc has been inserted face down or is
either dirty or scratched.
• The laser sensor is dirty or dusty.
• The system has not been installed on a flat,
horizontal surface.
• Condensation has formed in the player;
leave the system in a warm, airy room for at
least one hour.
• Use the PC to confirm if the extension is
*.mp3.
• The TAPE function has not been selected.
•
The cassette has not been inserted correctly.
• The cassette player has not been closed.
• The tape is either slack or broken.
• The audio heads are dirty.
• The rollers or drive capstans are dirty.
• The tape is worn.
• The TUNER function has not been selected.
• The radio frequency has not been correctly
selected.
• The aerial has been disconnected or is not
facing the right way. Turn it until you find the
best orientation.
• You are in a building that blocks radio
waves; you must use an outside aerial.
SAMSUNG strives to improve its products at all times. Both the design specifications and these user
instructions are thus subject to change without notice.
Technical Specifications
RADIO
AM (MW)
Signal/noise ratio 40 dB
Usable sensitivity 55 dB
Total harmonic distortion 2 %
FM
Signal/noise ratio 55 dB
Usable sensitivity 10 dB
Total harmonic distortion 0.3 %
COMPACT DISC PLAYER
Capacity 3 discs
Frequency range 20 Hz - 20 KHz (± 1 dB)
Signal/noise ratio 90 dB (at 1 KHz) with filter
Distortion 0.05 % (at 1 KHz)
Channel separation 75 dB
Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm
TAPE DECK
Frequency range 125 Hz ~ 8 KHz
Signal/noise ratio 40 dB
Channel separation 35 dB
Erasing effect 50 dB
AMPLIFIER
Output power (6 Ω)(MAX-C550) 40 Watts/CH RMS,IEC (total harmonic distortion: 10 %)
Output power (6 Ω)(MAX-C570) 70 Watts/CH RMS,IEC (total harmonic distortion: 10 %)
Output power (6 Ω)(MAX-C580) 70 Watts/CH RMS,IEC (total harmonic distortion: 10 %)
Channel separation 40 dB
Signal/noise ratio 75 dB
GENERAL
Dimensions 270 (W) x 317 (H) x 396 (D) mm
DIGITAL AUDIO
COMPACT
Page 13
THIS APPLIANCE IS MANUFACTURED BY:
AH68-01686L
Page 14
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care centre.
Póngase en contacto con SAMSUNG WORLD WIDE
Si tiene algún comentario o pregunta en relación con los productos de Samsung, póngase en contacto
con el Centro de atención al cliente de SAMSUNG.
Region Country Customer Care Center
CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca
North America
Latin America
Europe
CIS
Asia Pacific
Middle East & Africa
MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx
U.S.A 1-800-SAMSUNG (7267864) www.samsung.com
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL 0800-124-421 www.samsung.com/br
CHILE 800-726-7864(SAMSUNG) www.samsung.com/cl
COSTA RICA 0-800-507-7267 www.samsung.com/latin
ECUADOR 1-800-10-7267 www.samsung.com/latin
EL SALVADOR 800-6225 www.samsung.com/latin
GUATEMALA 1-800-299-0013 www.samsung.com/latin
JAMAICA 1-800-234-7267 www.samsung.com/latin
PANAMA 800-7267 www.samsung.com/latin
PUERTO RICO 1-800-682-3180 www.samsung.com/latin
REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
TRINIDAD & TOBAGO 1-800-7267-864 www.samsung.com/latin
VENEZUELA 1-800-100-5303 www.samsung.com/latin
BELGIUM 02 201 2418 www.samsung.com/be
CZECH REPUBLIC 844 000 844 www.samsung.com/cz
DENMARK 38 322 887 www.samsung.com/dk
FINLAND 09 693 79 554 www.samsung.com/fi
FRANCE 08 25 08 65 65 (0,15€/Min) www.samsung.com/fr
GERMANY 01805 - 121213 (€ 0,12/Min) www.samsung.de
HUNGARY 06 40 985 985 www.samsung.com/hu
ITALIA 199 153 153 www.samsung.com/it
LUXEMBURG 02 261 03 710 www.samsung.lu
NETHERLANDS 0900 20 200 88 (€ 0.10/Min) www.samsung.com/nl
NORWAY 231 627 22 www.samsung.com/no
POLAND 0 801 801 881 www.samsung.com/pl
PORTUGAL 80 8 200 128 www.samsung.com/pt
SLOVAKIA 0850 123 989 www.samsung.com/sk
SPAIN 902 10 11 30 www.samsung.com/es
SWEDEN 08 585 367 87 www.samsung.com/se
U.K 0870 242 0303 www.samsung.com/uk
RUSSIA 8-800-200-0400 www.samsung.ru
UKRAINE 8-800-502-0000 www.samsung.com/ur
AUSTRALIA 1300 362 603 www.samsung.com/au
CHINA 800-810-5858, 010- 6475 1880 www.samsung.com.cn
HONG KONG 2862 6001 www.samsung.com/hk
INDIA
INDONESIA 0800-112-8888 www.samsung.com/id
JAPAN 0120-327-527 www.samsung.com/jp
MALAYSIA 1800-88-9999 www.samsung.com/my
PHILIPPINES 1800-10-SAMSUNG (7267864) www.samsung.com/ph
SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg
THAILAND
TAIWAN 0800-329-999 www.samsung.com/tw
VIETNAM 1 800 588 889 www.samsung.com/vn
SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za
U.A.E 800SAMSUNG (7267864) www.samsung.com/mea
3030 8282
1600 1100 11
1800-29-3232
02-689-3232
☎
www.samsung.com/in
www.samsung.com/th
Web Site
Loading...
