SAMSUNG LTM230HT10 Specification

Global LCD Panel Exchange Center

ISSUED DATE : 2011-08-25

SAMSUNG TFTSAMSUNG TFT--LCD PRODUCT INFORMATIONLCD PRODUCT INFORMATION

MODEL : LTM230HT10MODEL : LTM230HT10

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

Note : This is Product Information is subject to change after 3 months of issuing date.

Application Engineering Group

LCD Division, Samsung Electronics Co. , LTD.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/ 29

www.panelook.com

Global LCD Panel Exchange Center

3. Electrical Ch

(11)

4.2 Back Light Unit

5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

8.3 O

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

Contents

General Description --------------------------------------------------------------------------------- (3)

1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)

2. Optical Characteristics -------------------------------------------------------------------------- (6)

aracteristics ------------------------------------------------------------------------

3.1 TFT LCD Module

3.2 Back Light Unit

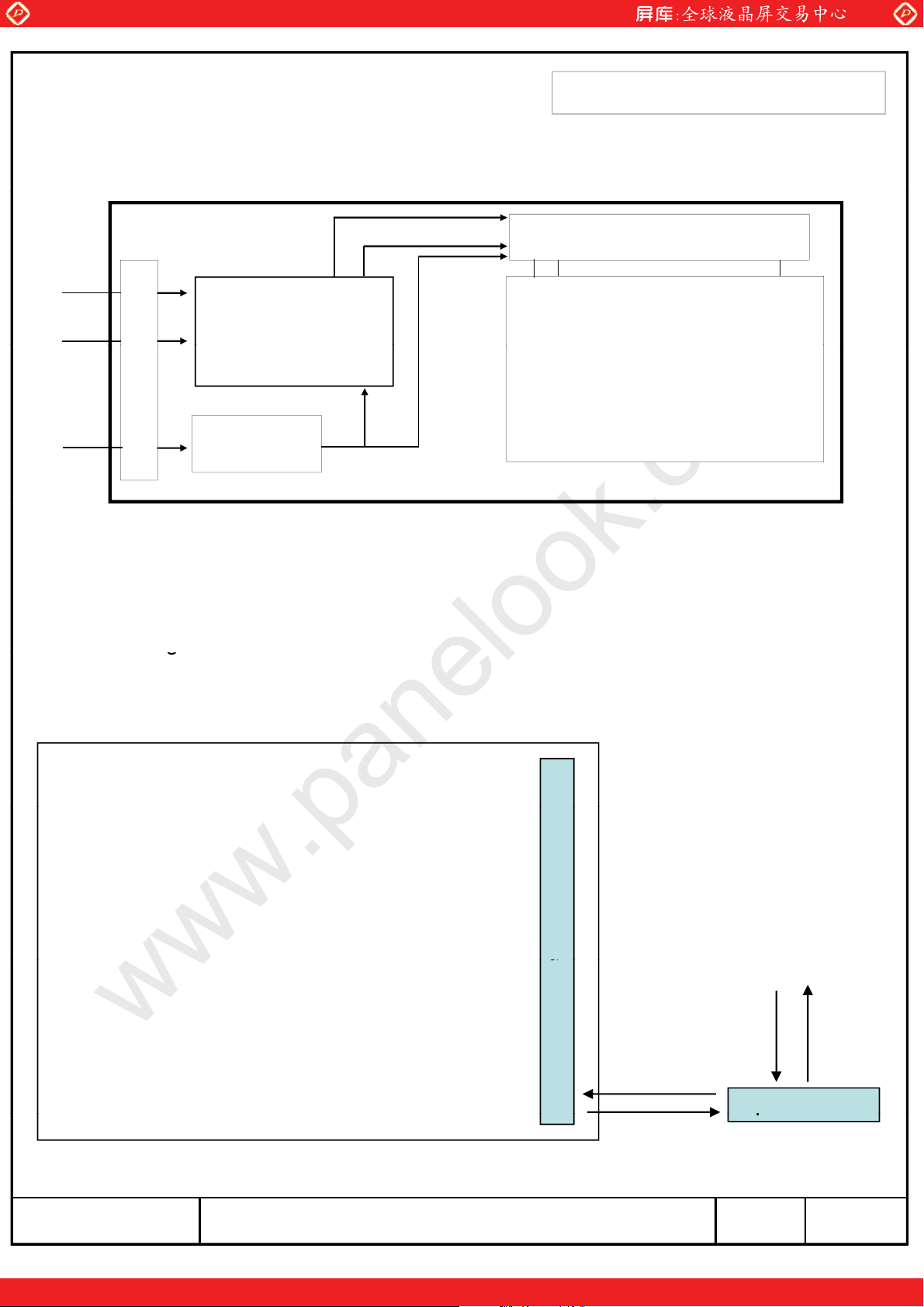

4. Block Diagram ----------------------------------------------------------------------------------- (15)

4.1 TFT LCD Module

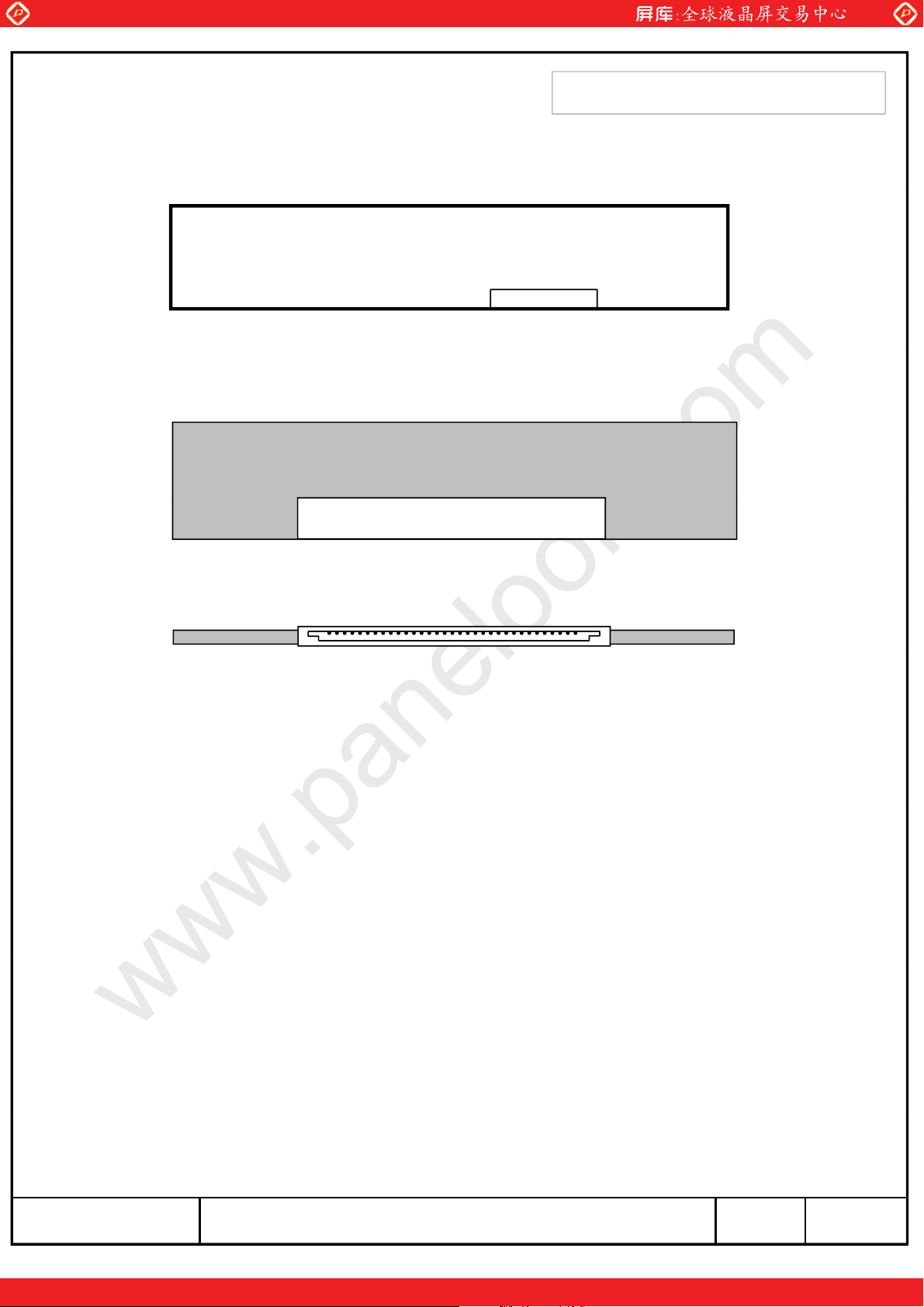

5. Input Terminal Pin Assignment -------------------------------------------------------------- (16)

5.1 Input Signal & Power

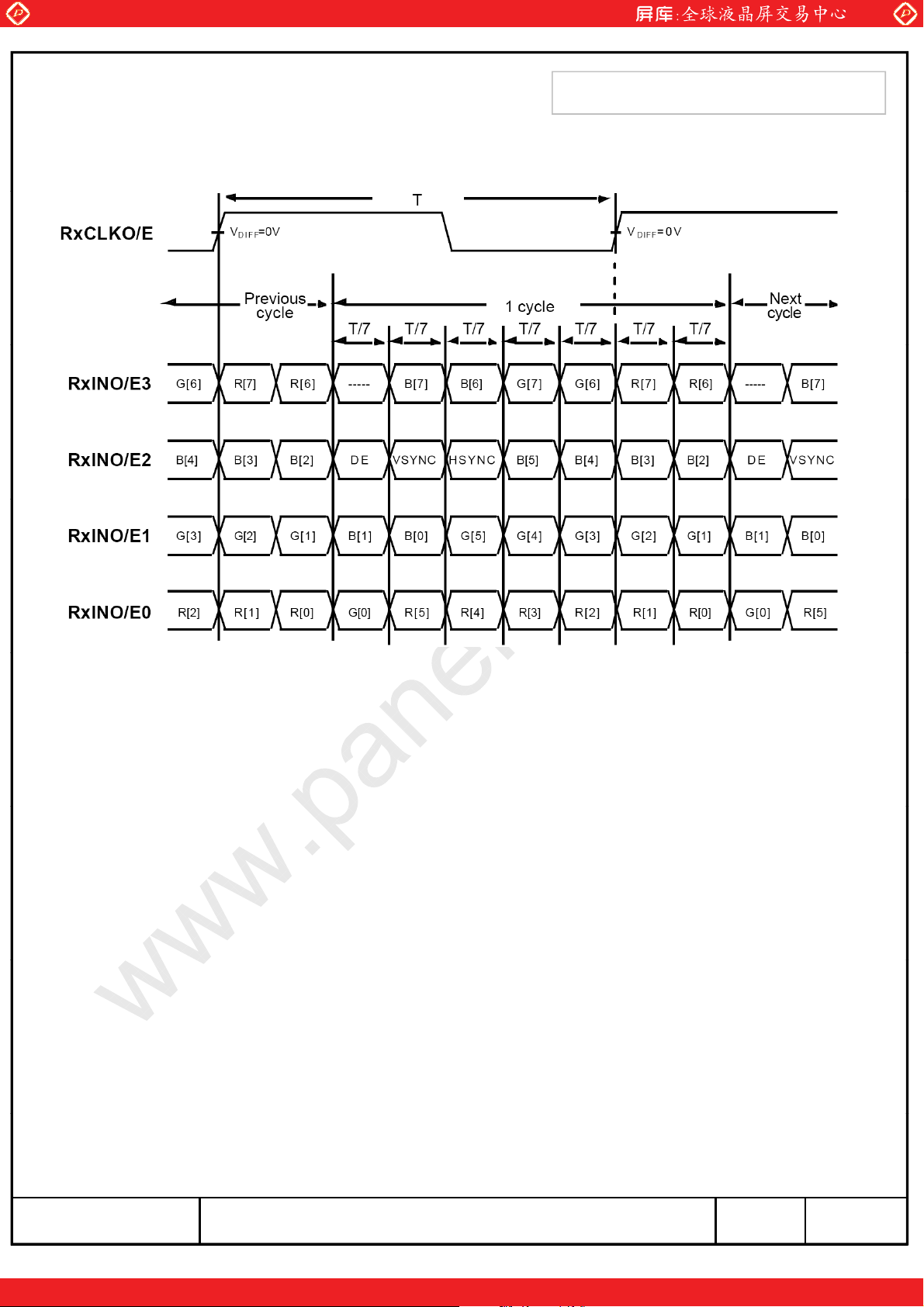

5.2 LVDS Interface

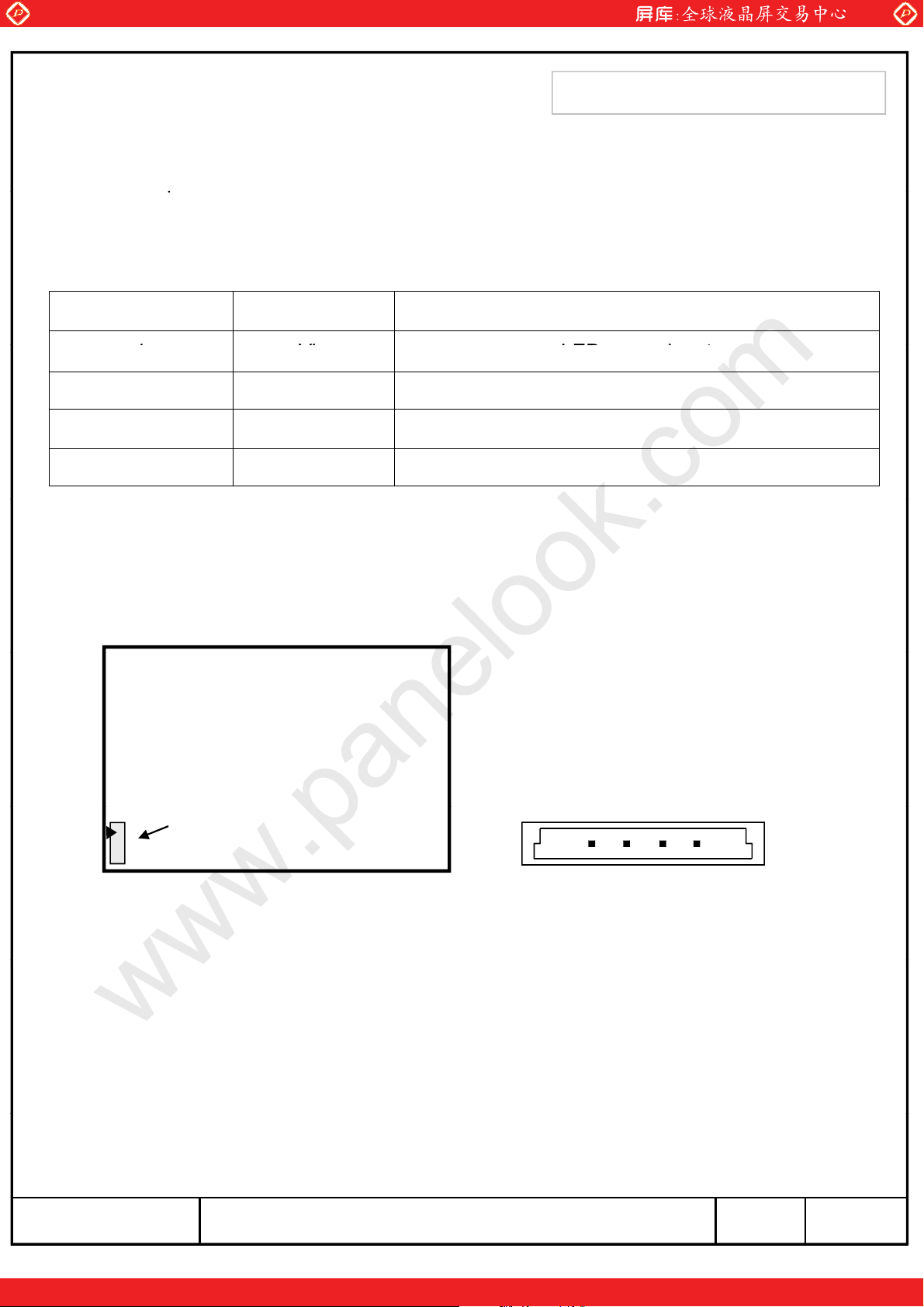

5.3 Back Light Unit

6. Interface Timing --------------------------------------------------------------------------------- (21)

6.1 Timing Parameters (DE only mode)

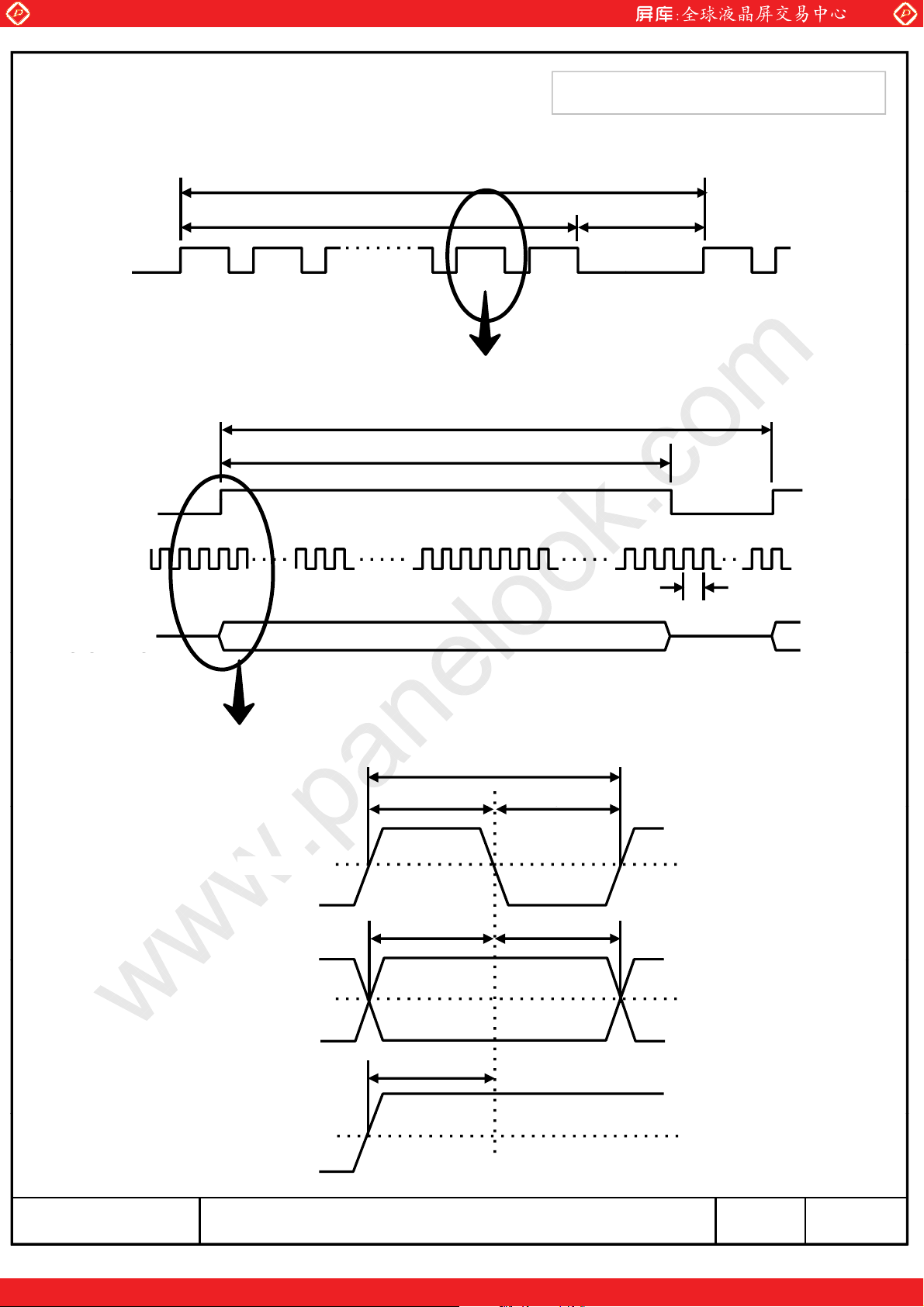

6.2 Timing Diagrams of interface Signal (DE only mode)

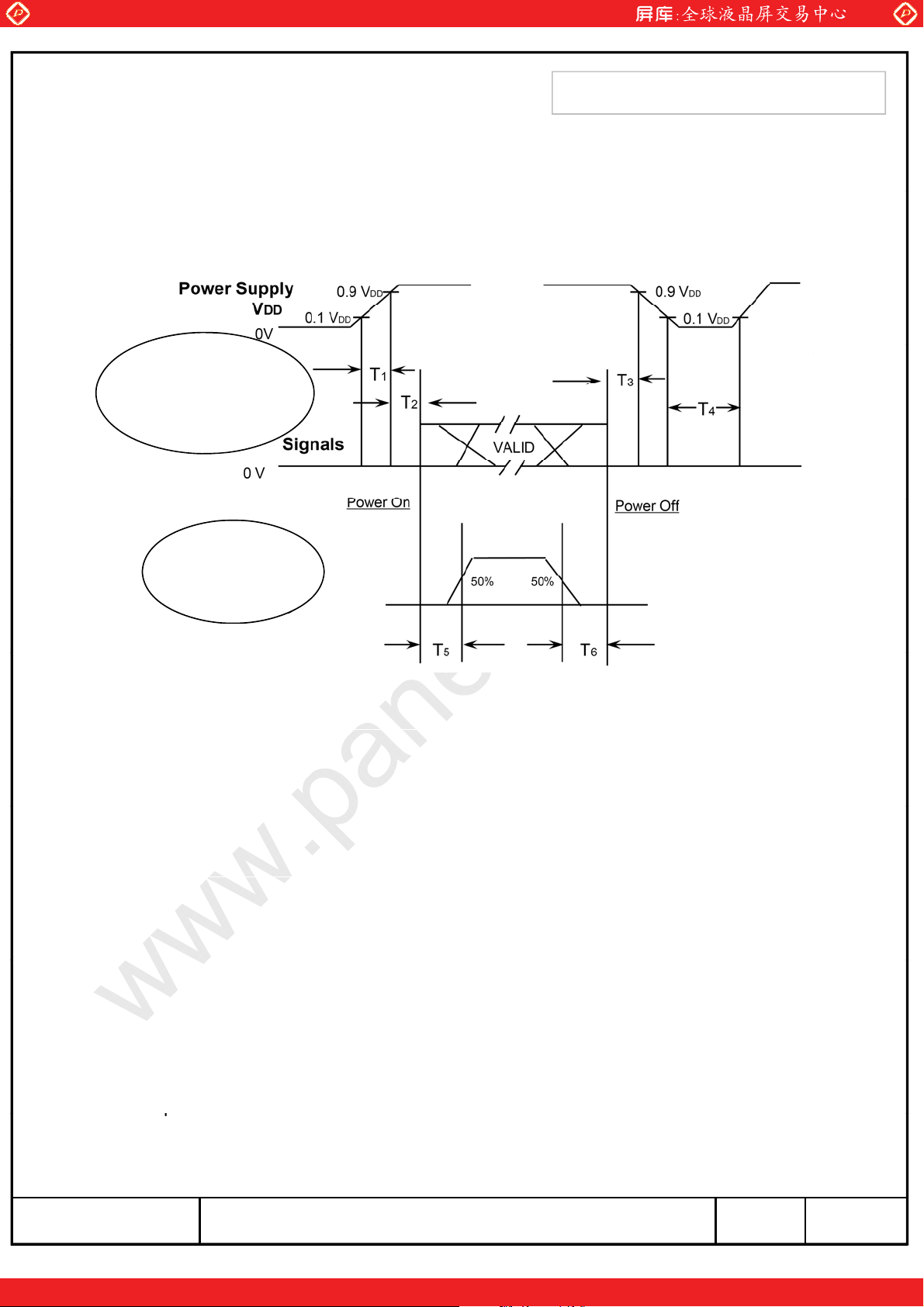

6.3 Power ON/OFF Sequence

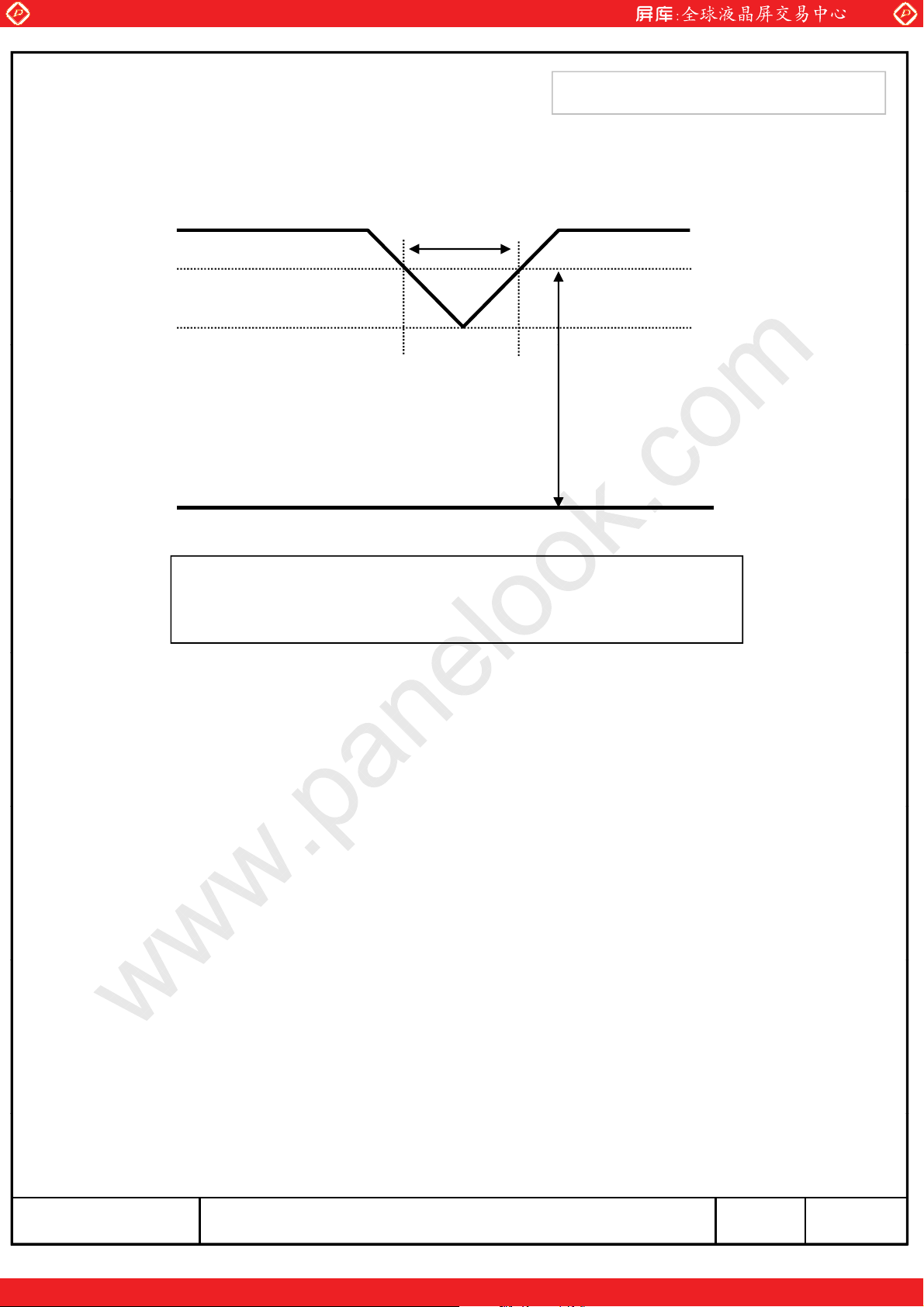

6.4 VDD Power Dip Condition

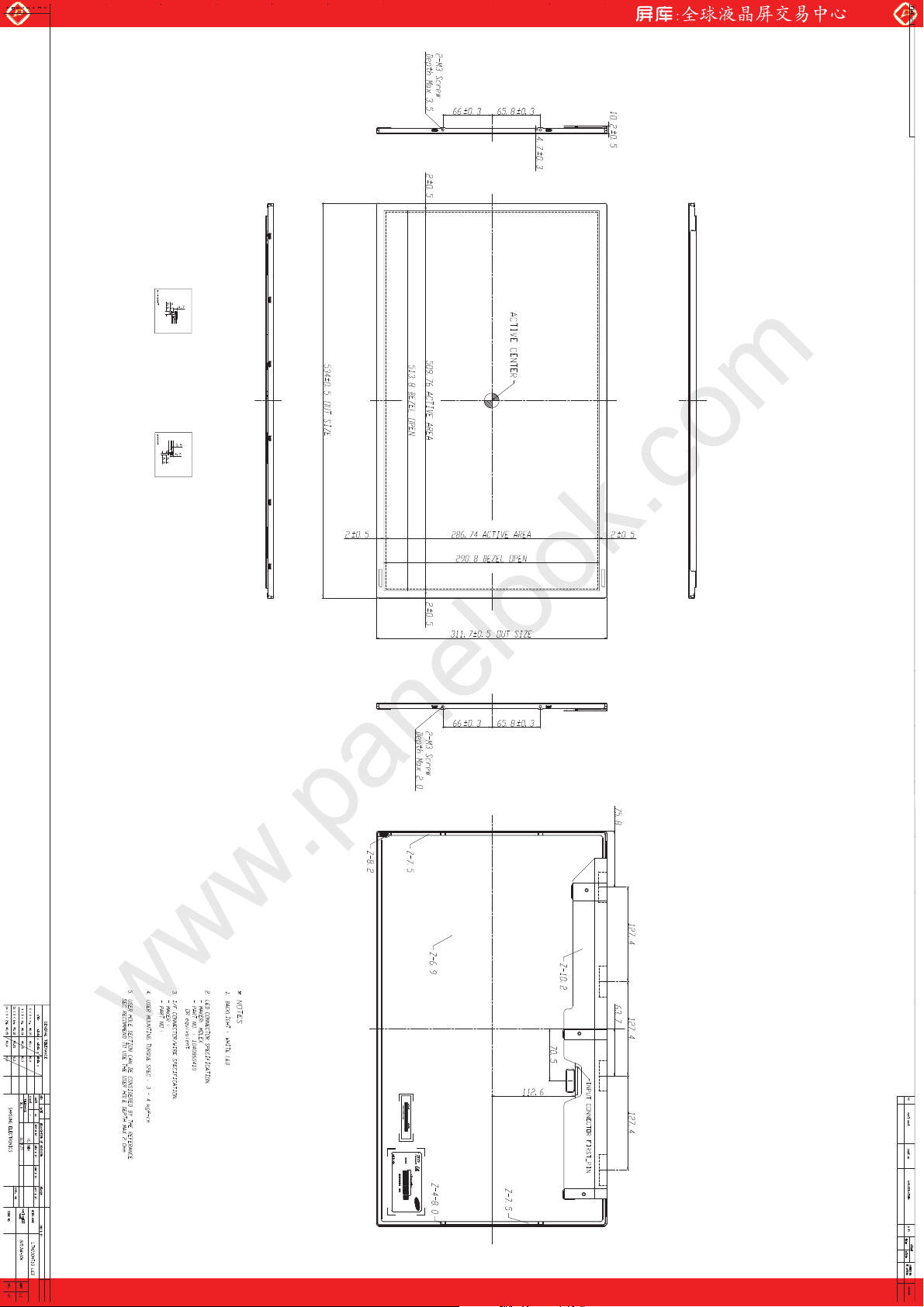

7. Outline Dimension ------------------------------------------------------------------------------- (25)

8. General Precaution ------------------------------------------------------------------------------ (27)

8.1 Handling

8.2 Storage
peration

8.4 Operation Condition Guide

8.5 Others

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/ 29

www.panelook.com

Global LCD Panel Exchange Center

q

y

(

qy py

() p

g

g,gp

p

General Information

Surface Treatment

Haze 25%

Hard coating (3H)

Display Mode

Normally White

www.panelook.com

General Description

PRODUCT INFORMATIONPRODUCT INFORMATION

Description

LTM230HT10 is a color active matrix li

uid crystal displa

LCD) that uses amorphous
silicon TFT (Thin Film Transistor) as switching components. This model is composed of
a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 23.0” is 1920
x 1080 and this model can display up to 16.7 millions colors.

Features

 Hi

h contrast ratio, high aperture structure

 High speed response
 FHD (1920 x 1080 pixels) resolution
 White LED Edge slim Backlight (1-side)
 DE (Data Enable) only mode
 LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
 RoHS, Halogen Free

 TCO 5.1 compliance

( Except for 2.2 response time; this product does not have over driving function.

It is recommended to support in system level )

Applications

 Workstation & desktop monitors
 Display terminals for AV application products
 Monitors for industrial machine

* If the module is used to other applications besides the above, please contact SEC

in advance.

Items Specification Unit Note

Pixel Pitch 265.50(H) x 265.50(W) um

Active Display Area 509.76(H) x 286.74(V) um

,

Display Colors 16.7M (Hi-FRC) colors

Number of Pixels 1,920 x 1,080 pixel

Pixel Arrangement RGB vertical stripe

Luminance of White 250(Typ.)

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

cd/༇

3/ 29

www.panelook.com

Global LCD Panel Exchange Center

yp

p

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

Mechanical Information

Item Min. Typ. Max. Unit Note

Horizontal (H) 533.5 534.0 534.5 mm

Module

size

Note (1) Mechanical tolerance is · 0.5mm unless there is a special comment.

Vertical (V) 311.2 311.7 312.2 mm

Depth (D) - - 10.7 mm -

Weight - - 1700 g LCD module only

-

1. Absolute Maximum Ratings

If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.

Item Symbol Min. Max. Unit Note

Power Supply Voltage V

Data Signal V

Storage temperature T

Center of Glass surface temperature

(Operation)

Shock ( non - operating ) S

Vibration ( non - operating ) V

T

DD

sig

STG

OPR

no

nop

GND-0.5 6.5 V (1)

-5V

-20 60

050

୅

୅

- 50 G (3)(5)

- 1.5 G (4)(5)

(2)

(2)

Note (1) Ta= 25 · 2 ¶C

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/ 29

www.panelook.com

Global LCD Panel Exchange Center

b. Maximum wet

-

bulb temperature at 39

C

or less. (

Ta 39C)

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

(2) Temperature and relative humidity range are shown in the figure below.

a. 90 % RH Max. (Ta  39 ¶C)

¶

c. No condensation

(3) 11ms, sine wave, one time for ·X, ·Y, ·Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
(5) At vibration and shock test, the fixture which holds the module to be tested has to be

hard and rigid enough so that the module would not be twisted or bent by the fixture.

¶

Fig. Temperature and Relative humidity range

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5/ 29

www.panelook.com

Global LCD Panel Exchange Center

r

y

R

0.633

y

(CIE 1976)

Bu'-0.189

White

Ƹ

uv

02

(9)

www.panelook.com

2. Optical Characteristics

PRODUCT INFORMATIONPRODUCT INFORMATION

The optical characteristics should be measured in a dark room or equivalent.

Measuring equipment : SR-3, RD-80S (TOPCON), EZ-Contrast (Eldim)

(Ta = 25 · 2¶C, VDD=5.0V, fv= 60Hz, fDCLK=67.3MHz, If =360mA)

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio

(Center of screen)

Response Time(On/Off)

Luminance of White

(Center of screen)

Red

C/R 600 1000 -

T

- 5 10 ms

Tf

Y

L

x

Ry 0.340

200 250 - cd/m

2

(3)

SR-3

(5)

RD-80S

(6)

SR-3

Color

Chromaticit

(CIE 1931)

Color

Chromaticity

Green

Blue

White

Red

Green

Blue

White

Gx 0.320

Gy 0.622

-0.030

Bx 0.155

Normal

By 0.042

Wx 0.313

Wy 0.329

Ru' - 0.443 -

Rv' - 0.527 -

Gu' - 0.131 -

Gv' - 0.569 -

Bv' - 0.125 -

Wu' - 0.198 -

Wv' - 0.468 -

=0



L,R

=0



U,D

Viewing

Angle

+0.030

(7),(8)

SR-3

-

C.G.L

(ACC ONLY)

* C.G.L : Color Grayscale Linearity

'

'

--0.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/ 29

www.panelook.com

Global LCD Panel Exchange Center

Viewi

(8)

R7080-

LED Forward current : If = 360 mA

Environment condition : Ta

·

2 C

Photo detector

Field

Item Symbol Condition Min. Typ. Max. Unit Note

Color Gamut - - 72 - %

Color Temperature - - 6500 - K

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION



Hor.

ng

Angle

Ver.

Brightness Uniformity

(9 Points)

L



U



D

B

uni

Note (1) Test Equipment Setup

The measurement should be executed in a stable, windless and dark room between
30min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.

70 80 -

CR10 Degrees

70 80 -

70 80 -

--25%

= 25

¶

EZ-

Contrast

(4)

SR-3

Photo detector

SR-3

2ദ

Field

SR-3 : 40໅
RD-80S : 50໅

TFT - LCD Module

The center of the screen

MODEL LTM230HT10 Page

LCD Panel

7/ 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Active Area

Note (2) Definition of test point

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

192 960 1728

8 79

6

: Test Point

Note (3) Definition of Contrast Ratio (C/R)

: Ratio of gray max (Gmax) & gray min (Gmin) at the center point䐣 of the panel

3 2 1

G

CR

Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black

max

G

min

45

108

540

972

Note (4) Definition of 9 points brightness uniformity

BB

Buni

u

100

Bmax : Maximum brightness
Bmin : Minimum brightness

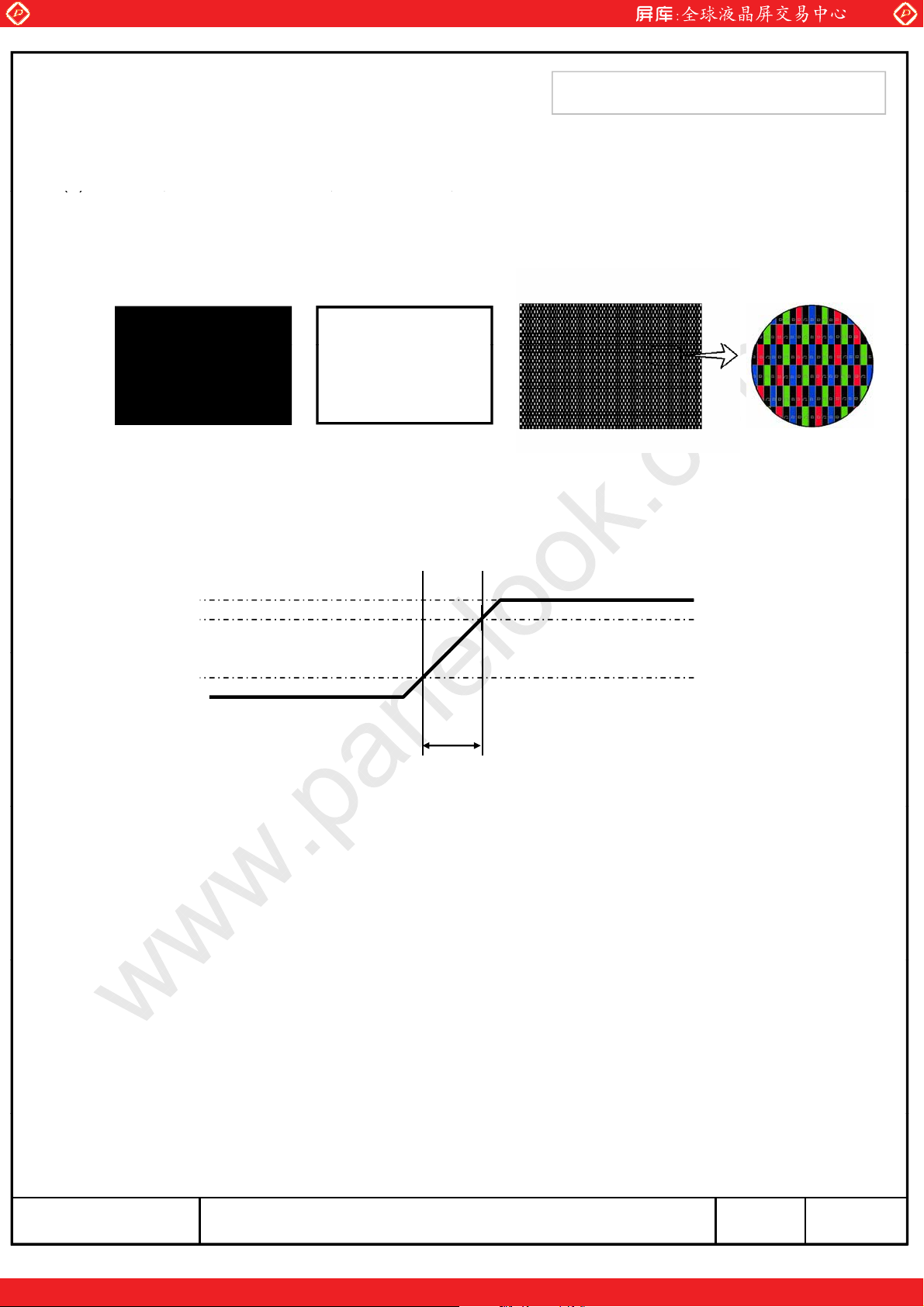

Note (5) Definition of Response time : Sum of Tr, Tf

Display Data White(TFT off) Black(TFT on) White(TFT off)

Optical Instruments

Response

100%

90%

10%

(max min)

B



max

0%

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/ 29

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

Note (6) Definition of Luminance of White : Luminance of white at center point䐣

Note (7) Definition of Color Chromaticity (CIE 1931, CIE1976)

Color coordinate of Red, Green, Blue & White at center point䐣

Note (8) Definition of Viewing Angle

: Viewing angle range (CR  10)

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/ 29

www.panelook.com

Global LCD Panel Exchange Center

1stgray step : move a square of 255 gray level should be moved into the center of the

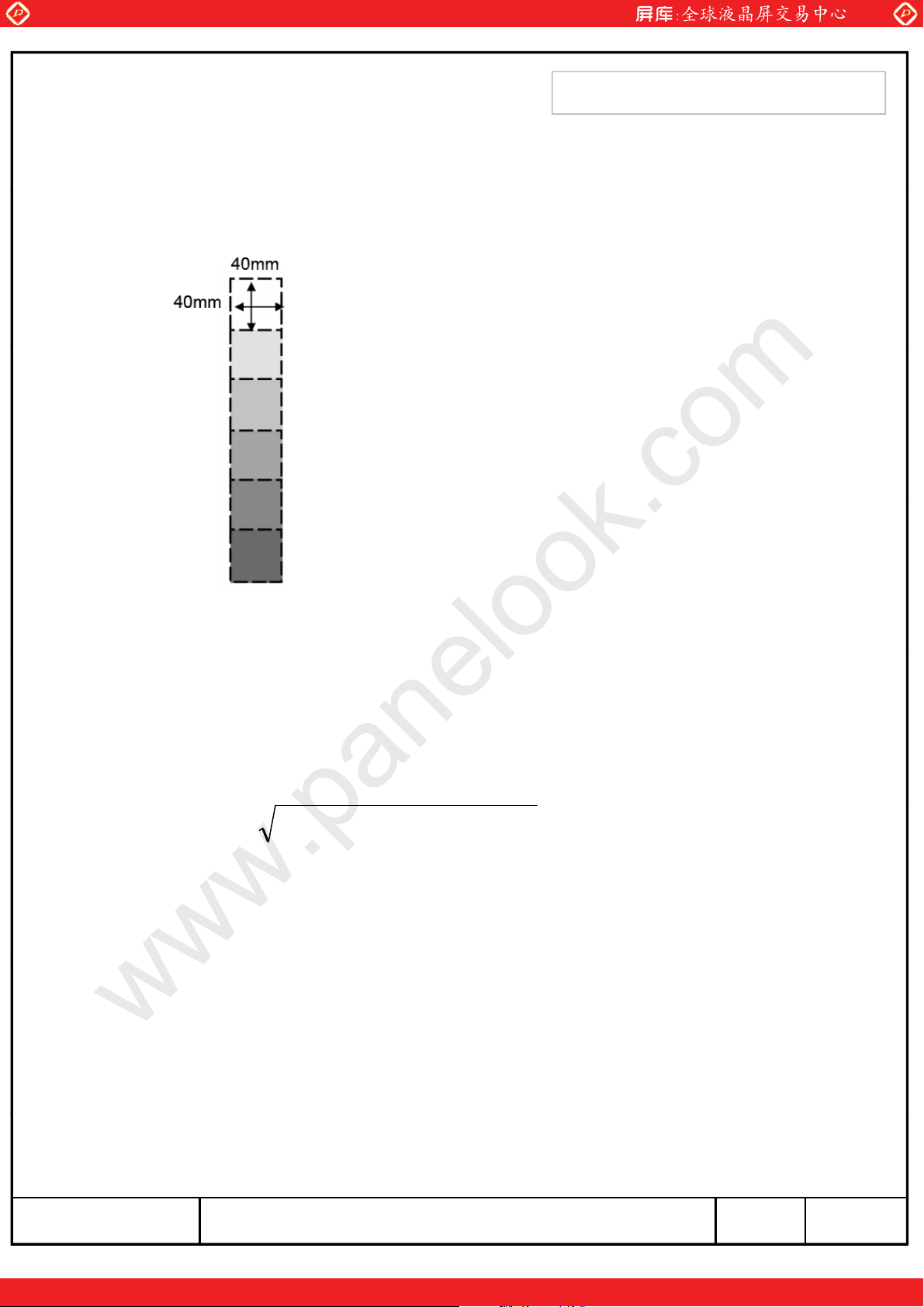

Note (9) Color Grayscale Linearity

a. Test image : 100% full white pattern with a test pattern as below

b. Test pattern : Squares, 40mm by 40mm in size, filled with 255, 225, 195, 165, 135 and

105 grays steps should be arranged at the centerྜྷ of the screen.

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

c. Test method

­screen and measure luminance and u’ and v’ coordinates.

- Next gray step : Move a 225 gray square into the center and measure both
luminance and coordinates, too.

d. Test evaluation

'u' v'= (u' - u' ) + (v' - v' )AB

Where A, B : 2 gray levels found to have the largest color differences between them

i.e. get the largest u’ and v’ of each 6 pair of u’ and v’ and calculate the u’v’.

2

AB

2

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10 / 29

www.panelook.com

Global LCD Panel Exchange Center

LVDS Input

lVidl

100

600

mV

(4)

(5),(6)

(b)

A

S

DD

( ),( )

()

www.panelook.com

3. Electrical Characteristics

3.1 TFT LCD Module
The connector for display data & timing signal should be connected.

Item Symbol Min. Typ. Max. Unit Note

Voltage of Power Supply V

Differential Input High +100 mV

Voltage for LVDS

receiver threshold

LVDS skew T skew -270 270 Ps

Differential input

voltage

Characteristics

PRODUCT INFORMATIONPRODUCT INFORMATION

Ta = 25¶C

DD

Low -100 mV

4.5 5.0 5.5 V (1)

(2)

(3)

Current of Power

upply

Vsync Frequency f

Hsync Frequency f

Main Frequency f

Input voltage

range(single

Vin 0.7 1.7 V

ended)

Common mode

Vcm 1.0 1.2 1.4 V

voltage

(a) Black

White - 700 - m

I

- 1,200 - mA

(c) Dot - 1,300 1,500 mA

V

H

DCLK

49.0 60.0 77.0 Hz

54.0 66.0 88.0 kHz

55.3 67.3 87.5 MHz

(4)

(4)

Rush Current I

RUSH

- - 5.0 A (7)

Note (1) The ripple voltage should be controlled under 10% of VDD.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

11 / 29

www.panelook.com

Global LCD Panel Exchange Center

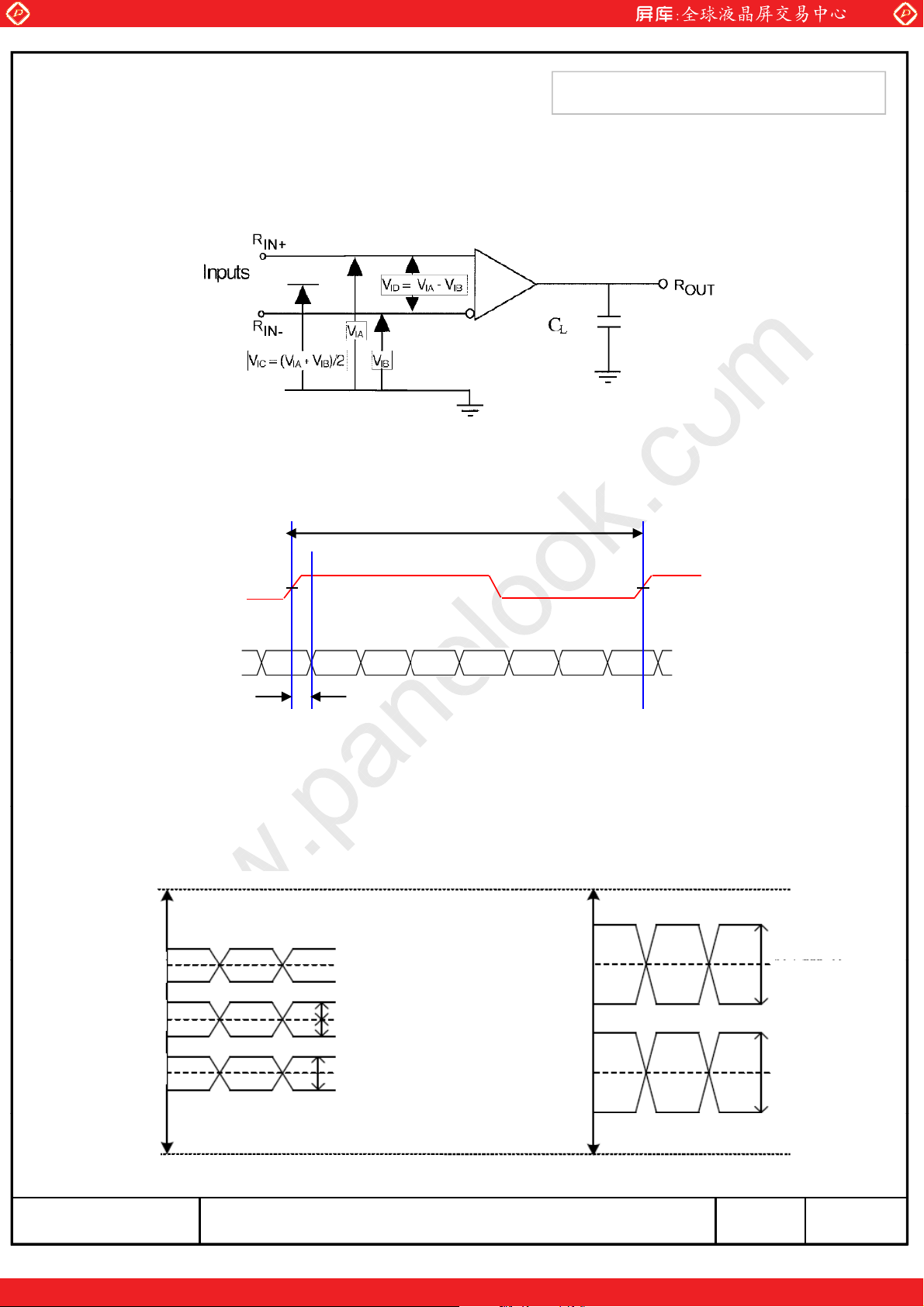

b. C

L

includes all probe and fixture capacitance

LVDS Data

VCM=1.4V

|VID| = 600mV

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

(2) Differential receiver voltage definitions and propagation delay and transition time test circuit

a. All input pulses have frequency = 10MHz, t

Note a.

(3) LVDS Receiver DC parameters are measured under static and steady conditions

which may not be reflective of its performance in the end application.

or tF=1ns

R

Note b.

LVDS Clk

V

= 0V

DIFF

RX +/-

t

SKEW

where tskew : skew between LVDS clock & LVDS data,

T : 1 period time of LVDS clock

cf) (-/+) of 300psec means LVDS data goes before or after LVDS clock.

(4) Definition of VIDand V

V

DD

VCM=1.4V

using single-end signals

CM

|VID| = 100mV

T

= 0V

V

DIFF

Differential

Differential

VCM=1.2V

VCM=1.0

V

SS

|VID| = 100mV

VCMrange with Min |VID|

VCM=1.0

VCMrange with Max |VID|

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

|VID| = 600mV

12 / 29

www.panelook.com

Global LCD Panel Exchange Center

(5)

() ,

,

,

Rush Current I

can be measured when T

470

༕

www.panelook.com

fV=60Hz, fDCLK = 67.3MHz, VDD = 5.0V, DC Current.

(6) Power dissipation check pattern (LCD Module only)

a) Black Pattern b) White Pattern c) Dot Pattern

PRODUCT INFORMATIONPRODUCT INFORMATION

(7) Measurement Condition

100%

90%

10%
GND

RUSH

T

RUSH

=470༕

RUSH

. is

V

DD

.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13 / 29

www.panelook.com

Global LCD Panel Exchange Center

F

3.2 Back Light Unit

3.2.1 The characteristics of LED bar

The back light unit is composed of WLED.

Item Symbol Min. Typ. Max. Unit Note

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

Ta=25 · 2¶C

LED Forward Current I

LED Array Voltage V

F

P

- 360 - mA -

- 35.2 - V -

Operating Life Time Hr 30,000 - - Hour (2)

Note (1) The above specification is not for the converter output, but for the LED bar.

The LED bar consists of 33 LED packages ; 3parallel X 11 serial

(2) Life time (Hr) is defined as the time when brightness of a LED package itself

becomes 50% or less than its original value at the condition of Ta=25 · 2¶C
and I

=360mA.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14 / 29

www.panelook.com

Global LCD Panel Exchange Center

x

x

g

a

a

rp

r

ara

pp

www.panelook.com

4. BLOCK DIAGRAM

PRODUCT INFORMATIONPRODUCT INFORMATION

4.1 TFT LCD Module

Usi-2

Source Driver ICs

Column Driver Circuit

TFT-LCD

LVDS

pair #1

LVDS

pair #2

+5.0V

V

DD

CN1

(30pin)

LVDS (R

USI-2

)

Timing Controller

Power
Circuit

Control signal

S1 S 1920

Control signal

(1920 x RGB x 1080 pixels)

4.2 Back Light Unit

Connector: Molex 104086-0410

((Matching Connector : Molex 104085-0400 )

LED b

LED b

r

LED Power

LED Return

signal

LED Power

44--pin connecto

in connecto

LED Return

signal

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15 / 29

www.panelook.com

Global LCD Panel Exchange Center

10

RXO3N

N

LVDS diff

t

15

RXE1N

Negative LVDS differential data output

www.panelook.com

5. Input Terminal Pin Assignment

PRODUCT INFORMATIONPRODUCT INFORMATION

5.1. Input Signal & Power (Connector : P-TWO 196260-30041 or equivalent)

PIN NO SYMBOL FUNCTION

1 RXO0N Negative LVDS differential data output

2 RXO0P Positive LVDS differential data output

3 RXO1N Negative LVDS differential data output

4 RXO1P Positive LVDS differential data output

5 RXO2N Negative LVDS differential data output

6 RXO2P Positive LVDS differential data output

7 GND Ground

8 RXOC- Negative Sampling Clock (ODD data)

9 RXOC+ Positive Sampling Clock (ODD data)

egative

11 RXO3P Positive LVDS differential data output

erential data outpu

12 RXE0N Negative LVDS differential data output

13 RXE0P Positive LVDS differential data output

14 GND Ground

16 RXE1P Positive LVDS differential data output

17 GND Ground

18 RXE2N Negative LVDS differential data output

19 RXE2P Positive LVDS differential data output

20 RXEC- Negative Sampling Clock (EVEN data)

21 RXEC+ Positive Sampling Clock (EVEN data)

22 RXE3N Negative LVDS differential data output

23 RXE3P Positive LVDS differential data output

24 GND Ground

25 NC * CE (For LCD internal use only. Do not connect)

26 NC * CTL (For LCD internal use only. Do not connect)

27 NC No Connection

28 VDD

Power Supply : +5V29 VDD

30 VDD

* If the system already uses the 25, 26pins, it should keep under GND level

The voltage applied to those pins should not exceed -200mV.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16 / 29

www.panelook.com

Global LCD Panel Exchange Center

All GND pi

Note) Pin number starts from Left side



www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

PCB



Pin No. 1 Pin No. 30

#30#1

P-TWO 196260-30041 or equivalent

#1 #30

Fig. Connector diagram

a.

to the LCD’s metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.

ns should be connected together and also be connected

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17 / 29

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

5.2. Timing Diagrams of LVDS For Transmitting

LVDS Receiver : Integrated T-CON

PRODUCT INFORMATIONPRODUCT INFORMATION

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18 / 29

www.panelook.com

Global LCD Panel Exchange Center

p

1

VinLED

t

www.panelook.com

5.3 Back Light Unit

LED Bar input connector :

Connector: Molex 104086-0410

((Matching Connector : Molex 104085-0400 or equivalent)

Pin No. Pin description Function

2 RTN 1 Channel 1 LED return

3 RTN 2 Channel 2 LED return

PRODUCT INFORMATIONPRODUCT INFORMATION

power inpu

4 RTN 3 Channel 3 LED return

Note ) Pin number starts from Left side

Rear view of panel

Connector



#4

Fig. Connector diagram

#1

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19 / 29

www.panelook.com

Global LCD Panel Exchange Center

BLACK

000000000000000000000000R0

OF

G252

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

DATA SIGNAL

COLOR

BASIC

COLOR

DISPLAY

(8bit)

R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7

BLACK 000000000000000000000000 -

BLUE 000000000000000011111111 -

GREEN 000000001111111100000000 -

CYAN 000000001111111111111111 -

RED 111111110000000000000000 -

MAGENTA111111110000000011111111 -

YELLOW 111111111111111100000000 -

WHITE 111111111111111111111111 -

RED GREEN BLUE

GRAY
SCALE
LEVEL

GRAY

DARK

SCALE

OF

RED

LIGHT

RED 111111110000000000000000 R255

BLACK 000000000000000000000000 G0

DARK

GRAY

SCALE

GREEN 

LIGHT

GREEN 000000001111111100000000 G255

BLACK 000000000000000000000000 B0

DARK

GRAY

SCALE

OF

BLUE

LIGHT

BLUE 000000000000000011111111 B255

100000000000000000000000 R1

010000000000000000000000 R2











:::::: :::::: ::::::

:::::: :::::: ::::::

101111110000000000000000 R253

011111110000000000000000 R254

000000001000000000000000 G1

000000000100000000000000 G2

:::::: :::::: ::::::

:::::: :::::: ::::::

000000001011111100000000 G253

000000000111111100000000 G254

000000000000000010000000 B1

000000000000000001000000 B2

:::::: :::::: ::::::

:::::: :::::: ::::::

000000000000000010111111 B253

000000000000000001111111 B254

R3~

R252

G3~

B3~

B252

Note (1) Definition of Gray :

Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)

Input Signal : 0 = Low level voltage, 1 = High level voltage

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20 / 29

www.panelook.com

Global LCD Panel Exchange Center

SIGNAL

ITEM

SYMBOL

MIN

TYP

MAX

Unit

NOTE

www.panelook.com

6. Interface Timing

6.1 Timing Parameters ( DE only mode )

Clock

Hsync F

Frequency

Vsync F

Active

Vertical

Display Term

Display

Period

Vertical Total T

Active

Display

Horizontal

Period

Display Term

Horizontal

Total

1/T

T

T

T

H

V

VD

V

HD

H

PRODUCT INFORMATIONPRODUCT INFORMATION

.

C

55.3 67.3 87.5 MHz -

54.0 66.0 88.0 kHz -

49 60 77 Hz -

1080 1080 1080 Lines -

1090 1111 1250 Lines -

960 960 960 Clocks

990 1010 1040 clocks

.

.

2pixel/
clock

2pixel/

clock

Note (1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system

(2) Internal Vcc = 5.0V

(3) Best operation clock frequency is 67.3MHz(60Hz)

(4) Clock frequency = Frame frequency x TV(Typ) x TH(Typ)

(5) Max, Min variation range is at main clock Typ value (67.3MHz).

(6) While operation, DE signal should be have the same cycle.

(7) Main frequency Max is 87.5MHz without spread spectrum.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21 / 29

www.panelook.com

Global LCD Panel Exchange Center

DE

SIGNALS

T

CL

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

6.2 Timing diagrams of interface signal ( DE only mode )

TV

DE

DCLK

DATA

TVD

TVB

TH

THD

TC

DCLK

DISPLAY

DATA

DE

TC

TCH

TDS TDH

TES

0.5
V

0.5
V

CC

0.5
V

CC

CC

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22 / 29

www.panelook.com

Global LCD Panel Exchange Center

To prevent a latch

up or DC operation of the LCD Module, the power on/off

p

p

6.3 Power ON/OFF Sequence

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

-

sequence should be as the diagram below.

300༕T110msec

0T250msec
0T350msec

1secT4

Back-Light

(Recommended)

500msecT5
100msecT6

T1 : VDDrising time from 10% to 90%
T2 : The time from V
T3 : The time from valid data off to V

to valid data at power ON.

DD

off at power Off.

DD

T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.

 The supply voltage of the external system for the Module input should be the same

as the definition of V

DD

.

 Apply the lamp voltage within the LCD operation range. When the back light turns on

before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.

 In case of V

= off level,

DD

please keep the level of input signals low or keep a high impedance.

 T4 should be measured after the Module has been fully discharged between power off

and on

eriod.

 Interface signal should not be kept at high impedance when the power is on.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23 / 29

www.panelook.com

Global LCD Panel Exchange Center

6.4 VDD Power Dip Condition

V

DD

90%

www.panelook.com

T

d

PRODUCT INFORMATIONPRODUCT INFORMATION

80%

V

CC

GND

4.5V  VDD 5.5V

If V

(typ.) x 80%  VCC VDD(typ) x 90%

DD

Then, 0<Td 20msec

Note (1) The above conditions are for the glitch of the input voltage.

(2) For stable operation of an LCD Module power, please follow them.

i.e., if typ VDD x 80%  Vcc  typ VDD x 90%, then T

should be less than 20ms.

d

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24 / 29

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

7. Outline Dimension

[ Refer to the next page ]

PRODUCT INFORMATIONPRODUCT INFORMATION

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25 / 29

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(a) When the module is assembled, it should be attached to the system firmly

(e) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth

(g) If the liquid crystal material leaks from the panel

should be kept

away

i

www.panelook.com

8. General Precautions

PRODUCT INFORMATIONPRODUCT INFORMATION

8.1 Handling

using all mounting holes. Be careful not to twist and bend the module.

(b) Refrain from strong mechanical shock and / or any force to the module.

In addition to damage, it may cause improper operation or damage to the module
and LED back light.

(c) Note that polarizer films are very fragile and could be damaged easily.

Do not press or scratch the surface harder than a HB pencil lead.

(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long

time, staining or discoloration may occur.

.

(f) Desirable cleaners are water, IPA (Isopropyl Alcohol) or Hexane.

Do not use Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might cause permanent damage to the polarizer due to chemical
reaction.

, it
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.

(h) Protect the Module from static, or the CMOS Gate Array IC would be damaged.

(i) Use finger-stalls with soft gloves in order to keep display clean during the

ncoming inspection and assembly process.

(j) Do not disassemble the Module.

(k) Protection film for polarizer on the Module should be slowly peeled off just before use

so that the electrostatic charge can be minimized.

(l) Pins of I/F connector should not be touched directly with bare hands.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

27 / 29

www.panelook.com

Global LCD Panel Exchange Center

Prevent products from direct sunlight, moisture nor water; Be cautious of

Power on/off sequence

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

8.2 Storage

We highly recommend to comply with the criteria in the table below

ITEM Unit Min. Max.

Storage Temperature (୅)540

Storage Humidity (%rH) 35 75

Storage life 12 months

- The storage room should provide good ventilation and temperature control.

- Products should not be placed on the floor, but on the Pallet away from

a wall.

-

a build up of condensation.

Storage Condition

- Avoid other hazardous environment while storing goods.

- If products delivered or kept in conditions of over the storage period of 3

months, the recommended temperature or humidity range,

we recommend you leave them at a temperature of 20୅ and a humidity

of 50% for 24 hours.

8.3 Operation

(a) Do not connect or disconnect the Module in the "Power On" condition.

(b) Power supply should always be turned on/off by the item 6.3

"

"

(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference should be done by system manufacturers. Grounding and shielding
methods may be important to minimize the interference.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

28 / 29

www.panelook.com

Global LCD Panel Exchange Center

of electrode

8.4 Operation Condition Guide

(a) The LCD product should be operated under normal conditions.

Normal condition is defined as below;

- Temperature : 20·15୅

- Humidity : 65·20%

- Display pattern : continually changing pattern (Not stationary)

(b) If the product will be used in extreme conditions such as high temperature,

humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at

www.panelook.com

PRODUCT INFORMATIONPRODUCT INFORMATION

Airports, Transit Stations, Banks, Stock market, and Controlling systems.

8.5 Others

(a) Ultra-violet ray filter is necessary for outdoor operation.

(b) Avoid condensation of water. It may result in improper operation or disconnection

.

(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,

input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.

(d) If the Module keeps displaying the same pattern for a long period of time,

the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.

(e) This Module has its circuitry PCB's on the rear side and should be handled

carefully in order not to be stressed.

(f) Please contact SEC in advance when you display the same pattern for a long time.

MODEL LTM230HT10 Page

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

29 / 29

www.panelook.com
