SAMSUNG LTM230HT05-V Specification

Global LCD Panel Exchange Center

ISSUED DATE : 2010-05-11

www.panelook.com

PRODUCT INFORMATION

SAMSUNG TFT--

SAMSUNG TFT

SAMSUNG TFT-LCD PRODUCT INFORMATION

MODEL : LTM230HT05--VV

MODEL : LTM230HT05

MODEL : LTM230HT05-V

LCD PRODUCT INFORMATION

Note : This is Product Information is subject to change after 3 months of issuing date.

Application Engineering Part 3, TCS team

LCD Division, Samsung Electronics Co. , LTD.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/34PageLTM230HT05MODEL

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

PRODUCT INFORMATION

Contents

General Description --------------------------------------------------------------------------------- (3)

1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)

2. Optical Characteristics -------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------(11)

3.1 TFT LCD Module

3.2 Back Light Unit

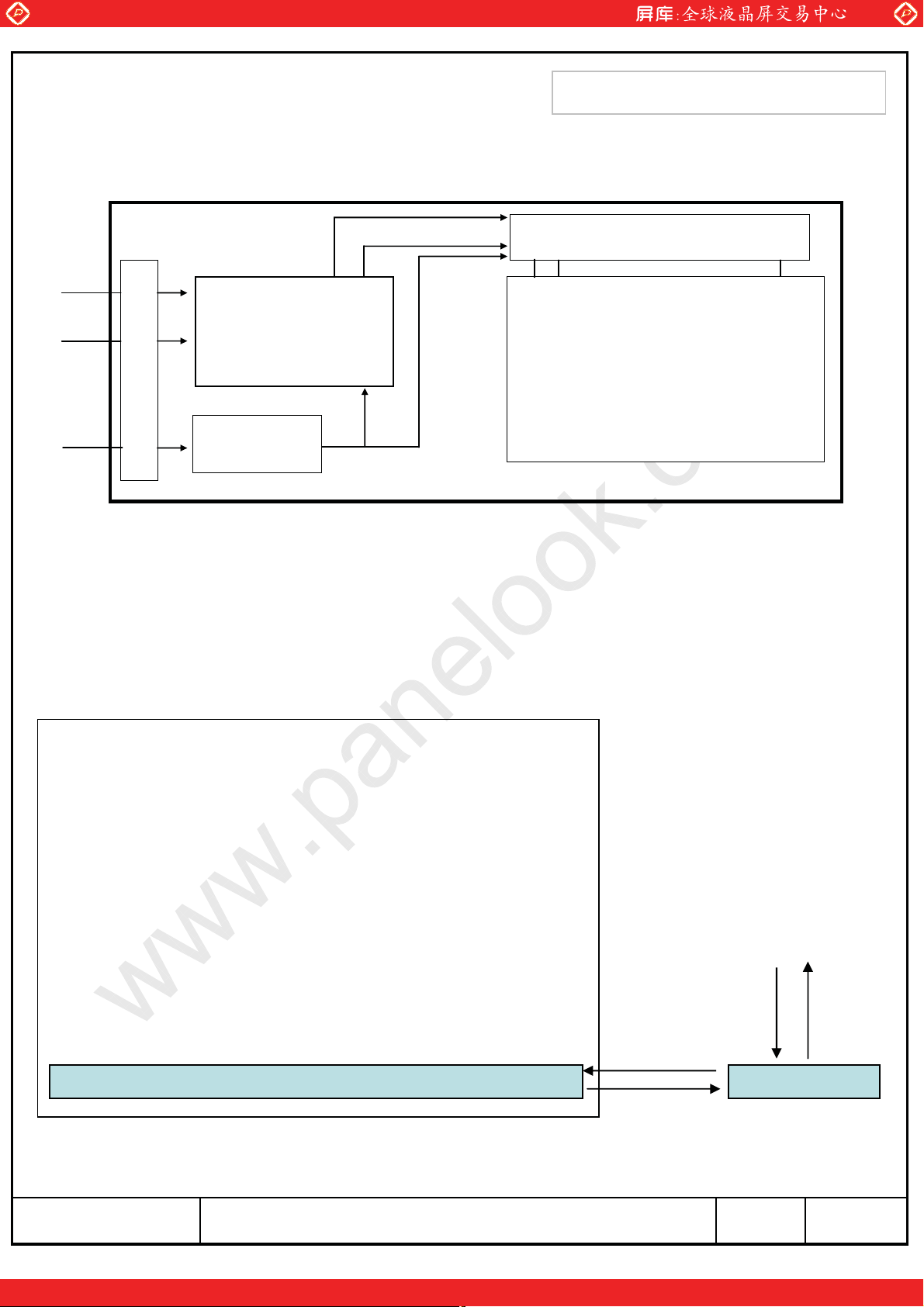

4. Block Diagram ----------------------------------------------------------------------------------- (15)

4.1 TFT LCD Module

4.2 Back Light Unit

5. Input Terminal Pin Assignment -------------------------------------------------------------- (16)

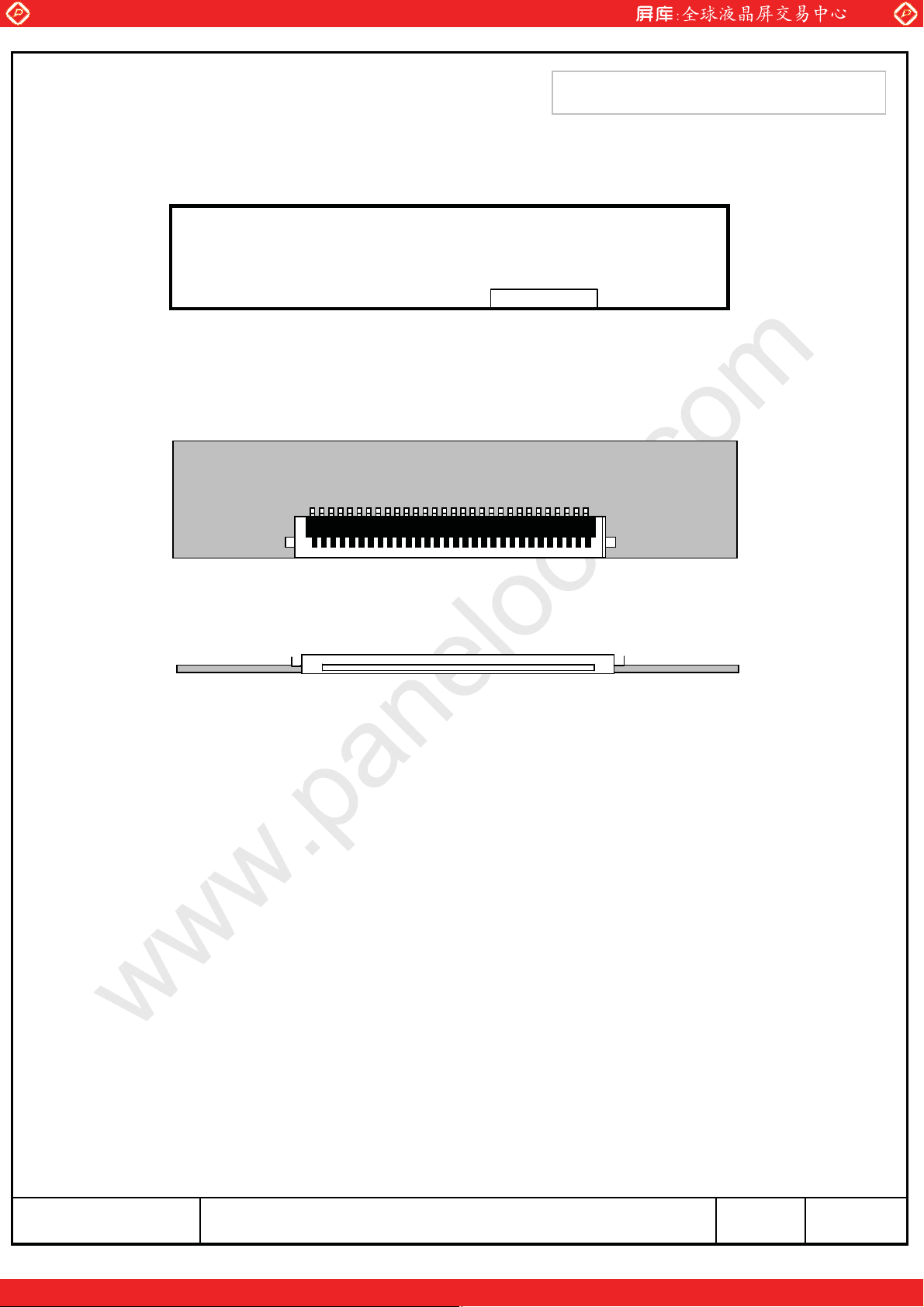

5.1 Input Signal & Power

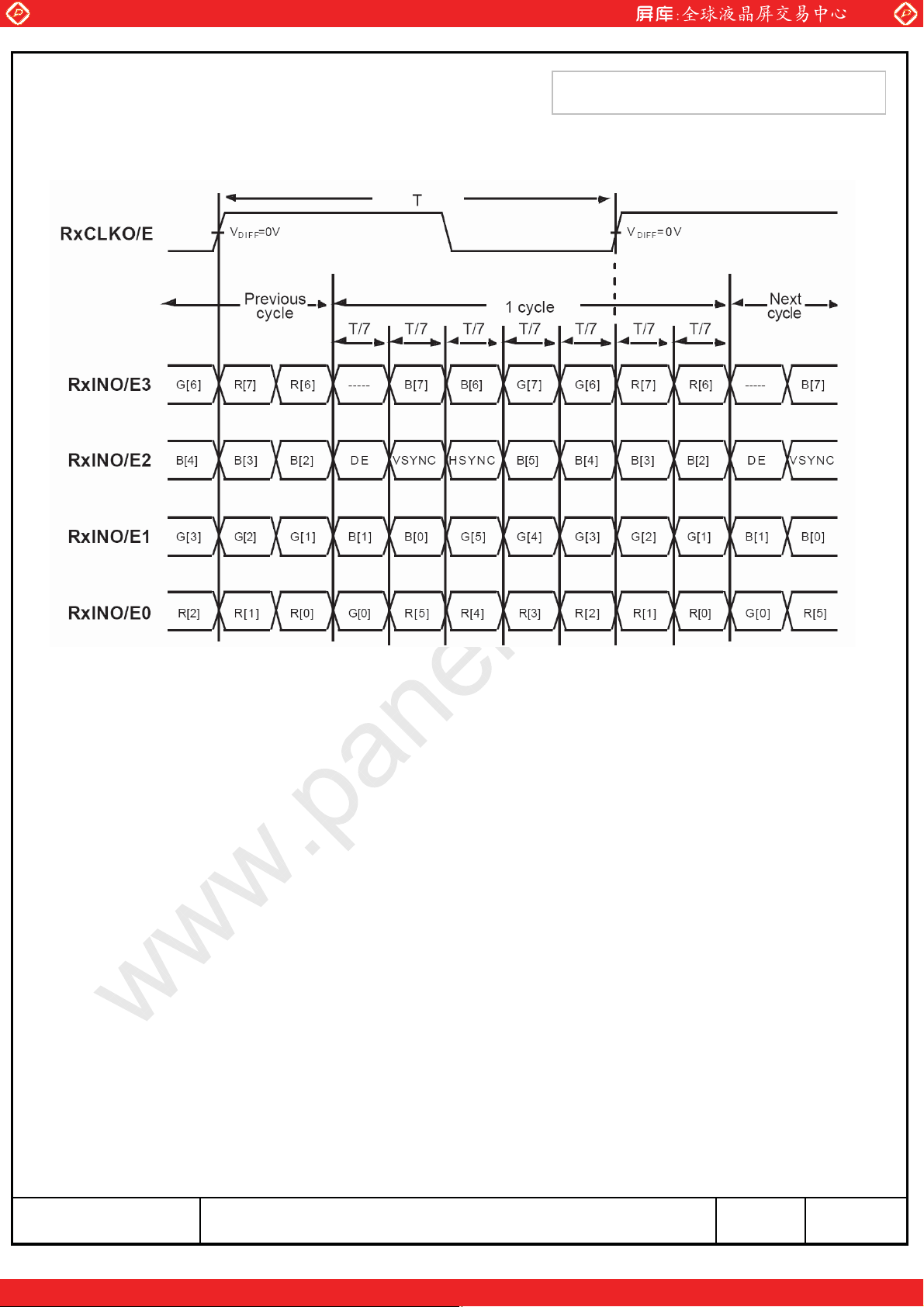

5.2 LVDS Interface

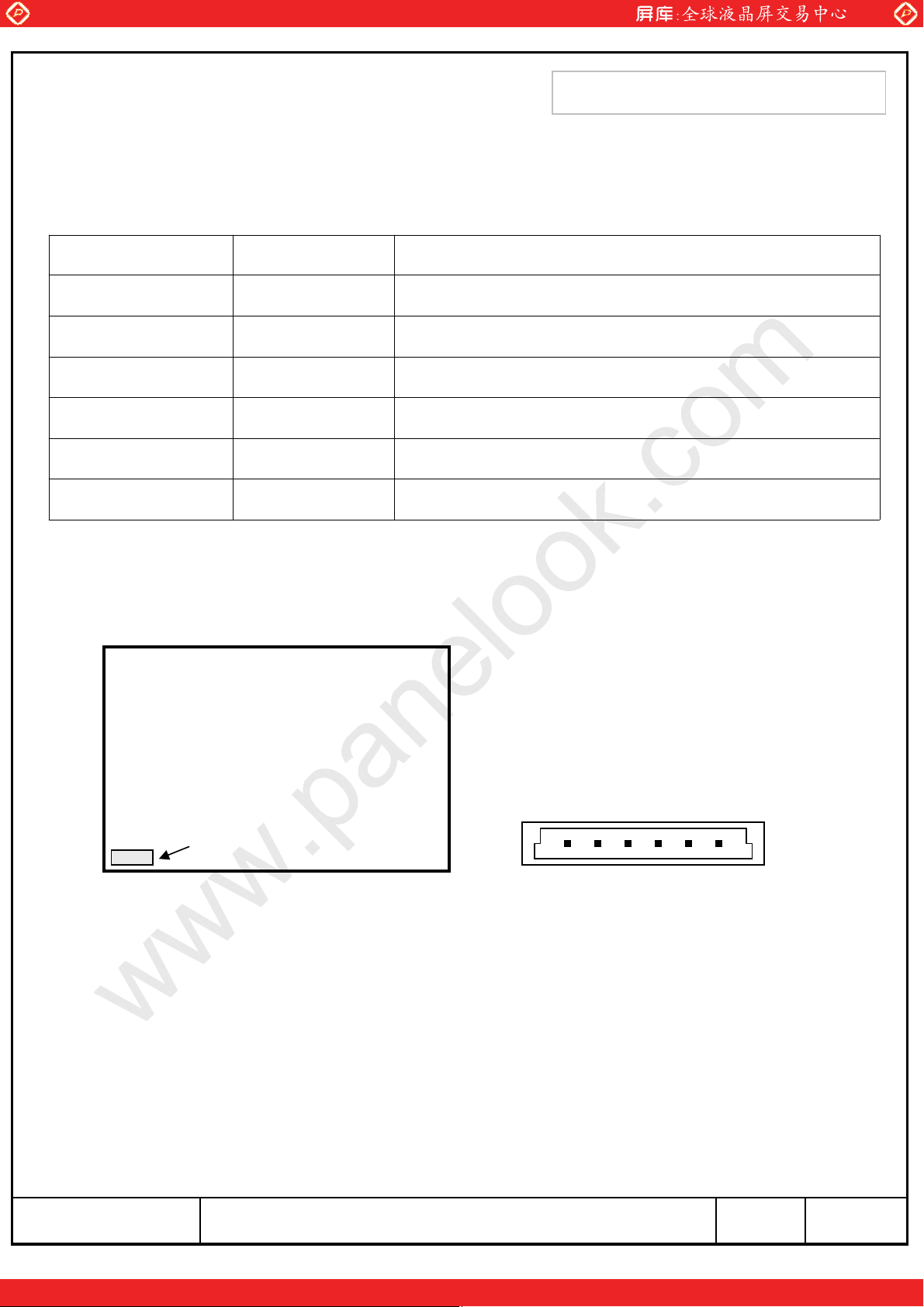

5.3 Back Light Unit

5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

6. Interface Timing --------------------------------------------------------------------------------- (25)

6.1 Timing Parameters (DE only mode)

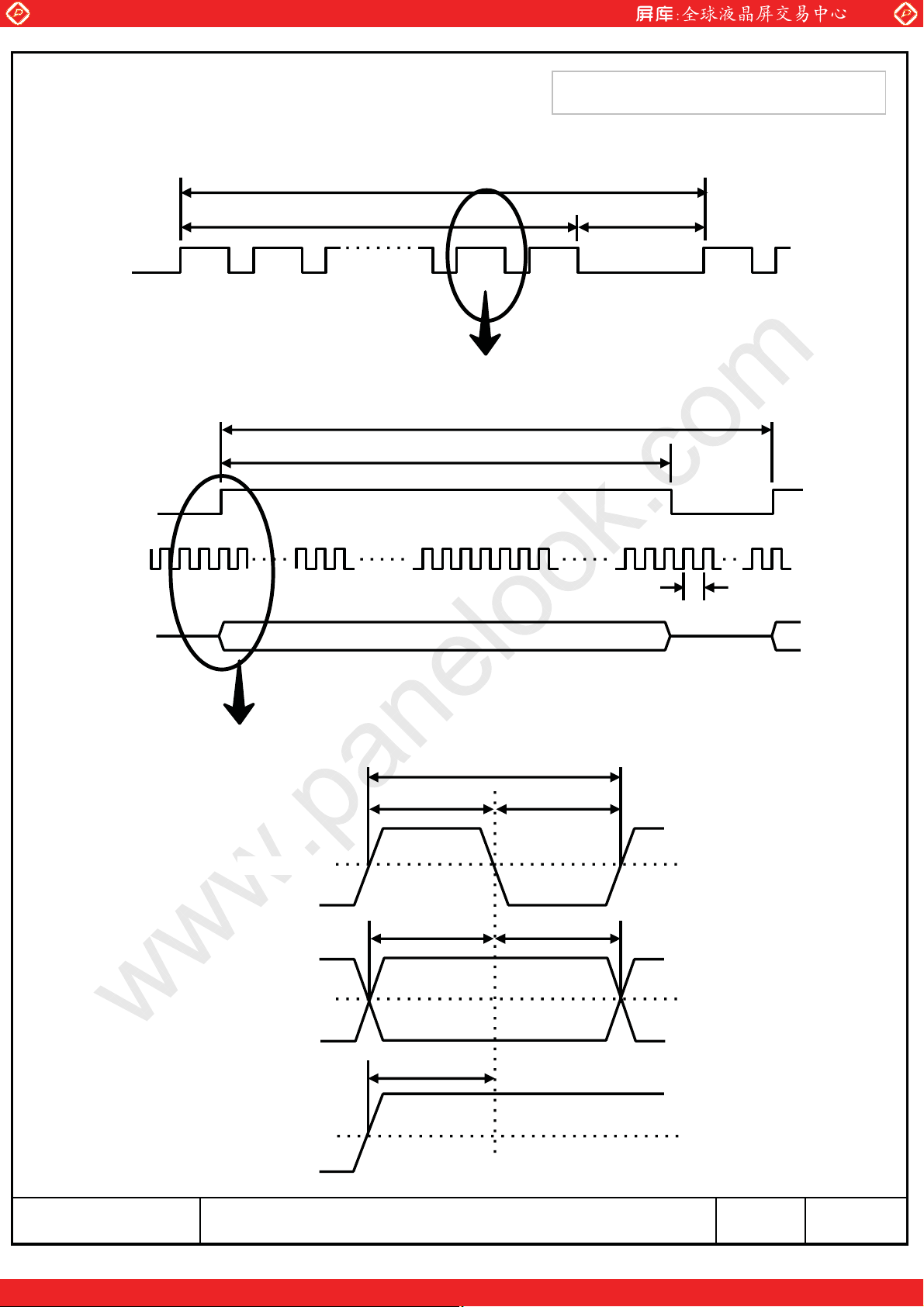

6.2 Timing Diagrams of interface Signal (DE only mode)

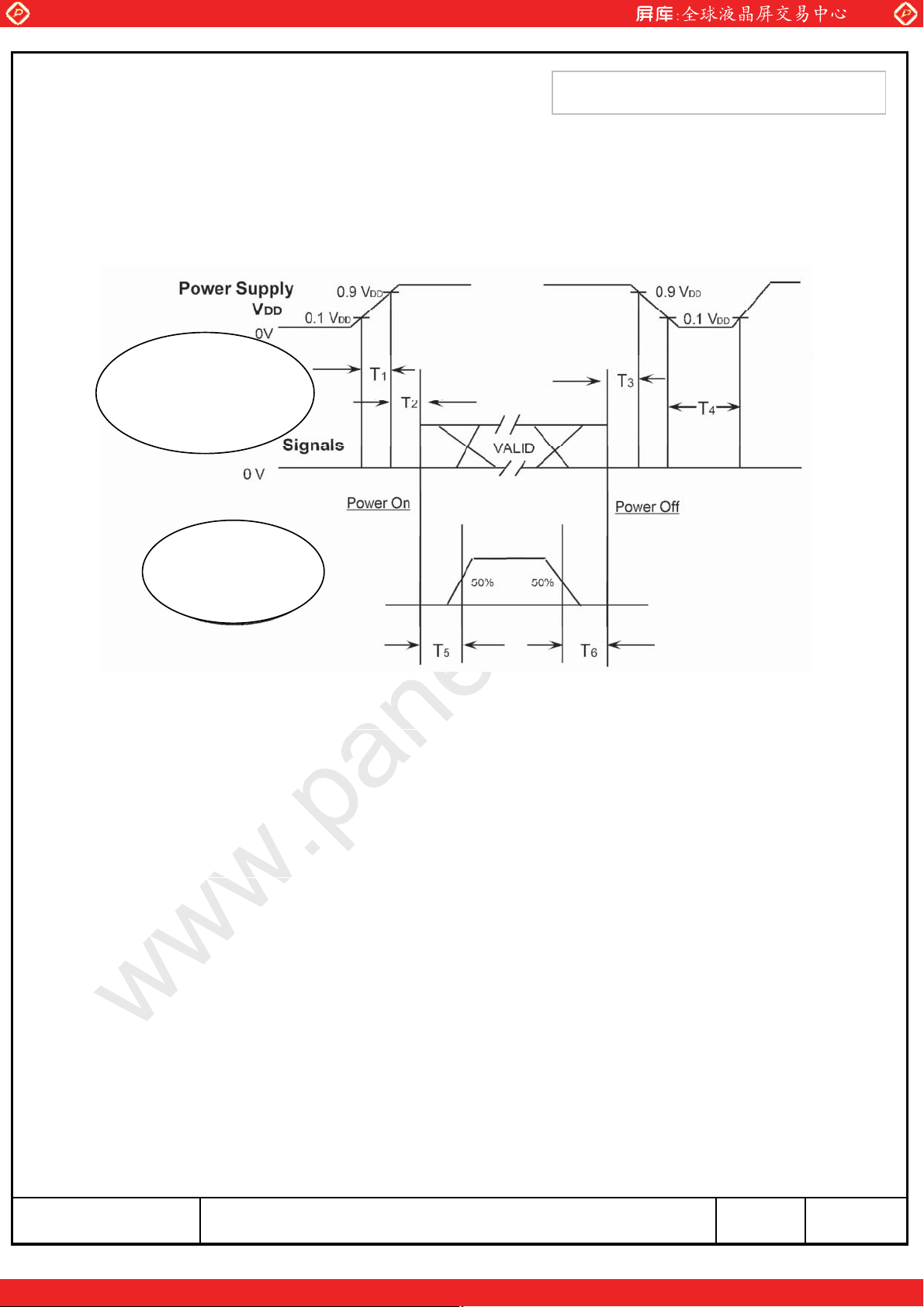

6.3 Power ON/OFF Sequence

6.4 VDD Power Dip Condition

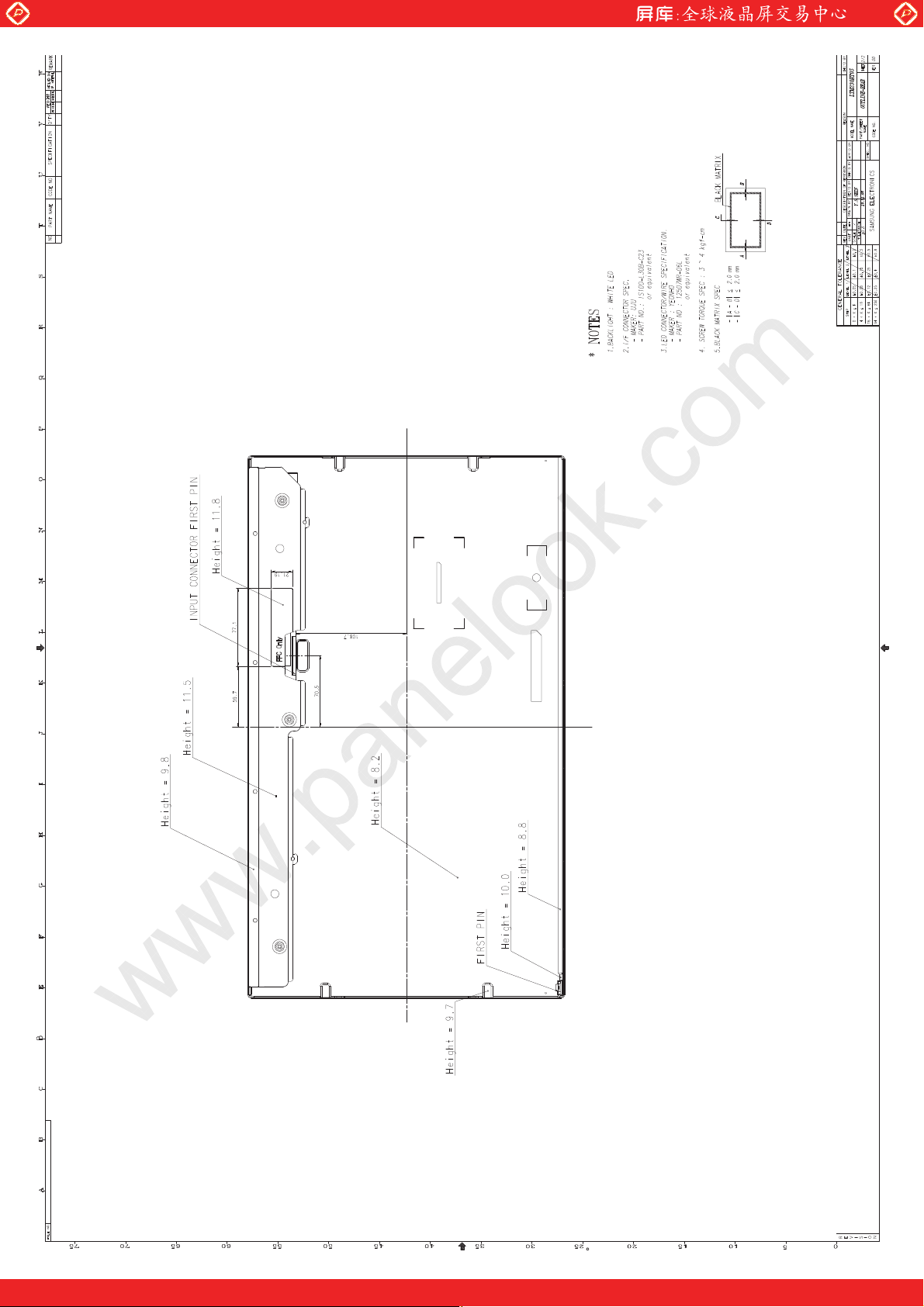

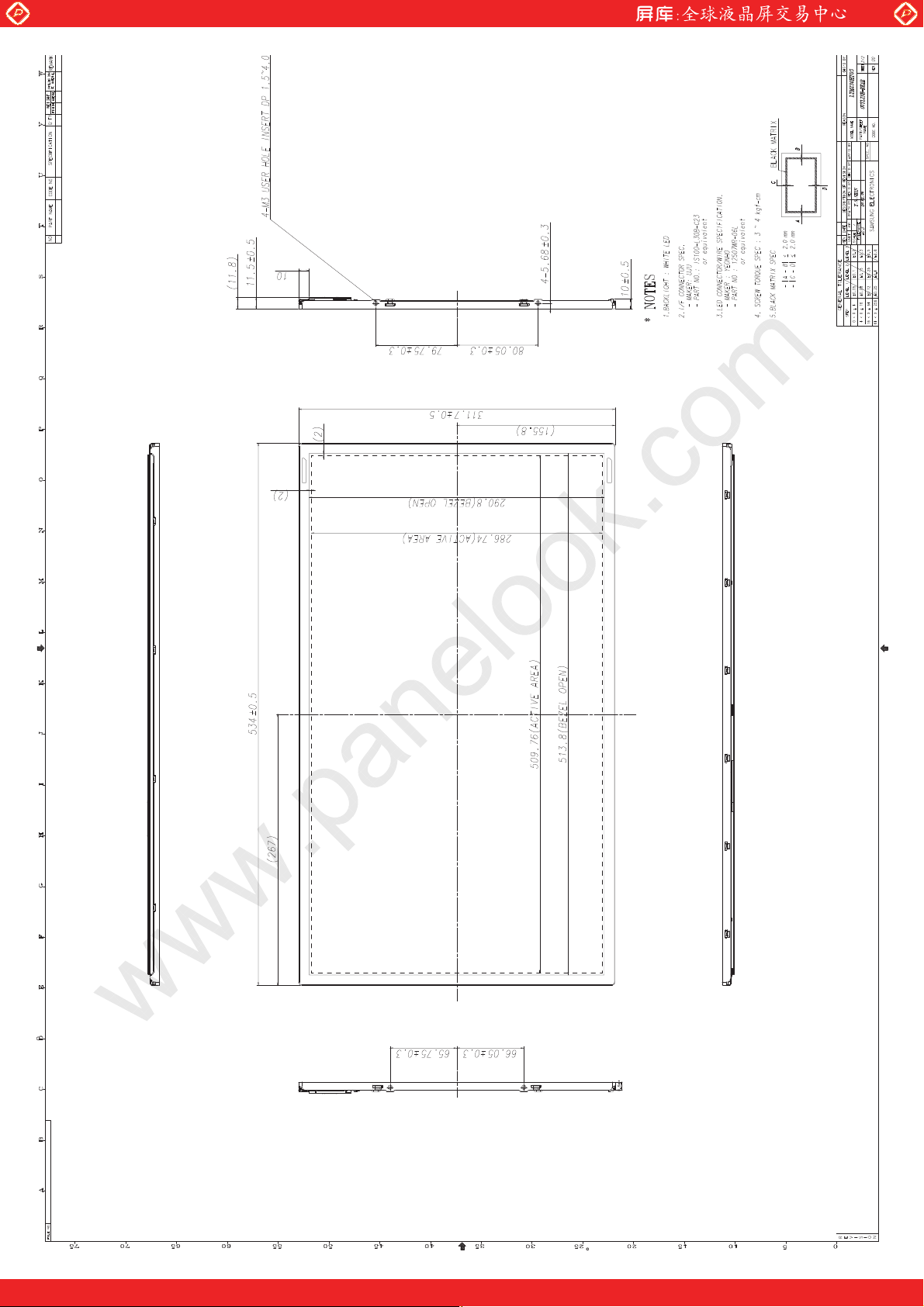

7. Outline Dimension ------------------------------------------------------------------------------- (29)

8. General Precaution ------------------------------------------------------------------------------ (32)

8.1 Handling

8.2 Storage

8.3 Operation

8.4 Operation Condition Guide

8.5 Others

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/34PageLTM230HT05MODEL

www.panelook.com

Global LCD Panel Exchange Center

General Description

www.panelook.com

PRODUCT INFORMATION

Description

LTM230HT05 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 23.0” is 1920 x 1080 and this model can display up to 16.7 millions colors.

Features

 High contrast ratio, high aperture structure  High speed response  FHD (1920 x 1080 pixels) resolution  White LED Edge slim Backlight (1-side)  DE (Data Enable) only mode  LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)  RoHS, Halogen Free



TCO 03’ compliance

Applications

 Workstation & desktop monitors  Display terminals for AV application products  Monitors for industrial machine

* If the module is used to other applications besides the above, please contact SEC

in advance.

General Information

Haze 25% , Hard coating (3H)Surface Treatment

UnitSpecificationItems

mm0.2655(H) x 0.2655(W)Pixel Pitch

mm509.76(H) x 286.74(V)Active Display Area

colors16.7M (Hi-FRC)Display Colors

Note

pixel1,920 x 1,080Number of Pixels

RGB vertical stripePixel Arrangement

Normally WhiteDisplay Mode

cd/༇250(Typ.)Luminance of White

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/34PageLTM230HT05MODEL

www.panelook.com

Global LCD Panel Exchange Center

Mechanical Information

www.panelook.com

PRODUCT INFORMATION

Max.

mm534.0533.5Horizontal (H)

mm311.7311.2Vertical (V)

Module

534.5

312.2

size

Partially 12.3mm in the circuit area.

12.0

mm--Depth (D)

Refer to the page 30.

2,200

LCD module onlyg--Weight

Note (1) Mechanical tolerance is · 0.5mm unless there is a special comment.

1. Absolute Maximum Ratings

NoteUnitTyp.Min.Item

If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable damage to the device.

NoteUnitMax.Min.SymbolItem

Power Supply Voltage

Data Signal

Storage temperature

Center of Glass surface temperature

(Operation)

Shock ( non - operating )

Vibration ( non - operating )

Note (1) Ta= 25 · 2 ¶C

sig

STG

OPR

nop

V5-V

60-25T

500T

୅

(1)V6.5GND-0.5V

(2)

(3)(5)G50-S

(4)(5)G1.5-V

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/34PageLTM230HT05MODEL

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

PRODUCT INFORMATION

(2) Temperature and relative humidity range are shown in the figure below.

a. 90 % RH Max. (Ta ˺ 39 ¶C) b. Maximum wet-bulb temperature at 39 ¶C or less. (Ta ˺ 39 ¶C) c. No condensation

(3) 11ms, sine wave, one time for ·X, ·Y, ·Z axis (4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis (5) At vibration and shock test, the fixture which holds the module to be tested has to be

hard and rigid enough so that the module would not be twisted or bent by the fixture.

(39,90)

(50,50.4)

25,5)

((--25,5)

Fig. Temperature and Relative humidity range

(60,27.7)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5/34PageLTM230HT05MODEL

www.panelook.com

Global LCD Panel Exchange Center

2. Optical Characteristics

www.panelook.com

PRODUCT INFORMATION

The optical characteristics should be measured in a dark room or equivalent.

Measuring equipment : SR-3, RD-80S (TOPCON), EZ-Contrast (Eldim)

(Ta = 25 · 2¶C, VDD=5V, fv= 60Hz, fDCLK=67.3MHz, If =252mA)

NoteUnitMax.Typ.Min.ConditionSymbolItem

Contrast Ratio

(Center of screen)

Luminance of White

(Center of screen)

Green

Color

Chromaticity

(CIE 1931)

Blue

White

Red

-1000-C/R

85-Tr + TfResponse Time(On/Off) msec

0.639

0.340Ry

0.324Gx

0.622Gy

-0.030

0.155Bx

Normal

L,R

U,D

Viewing

Angle

0.042By

0.313Wx

0.329Wy

-250200Y

+0.030

cd/m

(3)

SR-3

(5)

RD-80S

(6)

SR-3

(7),(8)

SR-3

Red

Color

Chromaticity

(CIE 1976)

C.G.L

(ACC ONLY)

* C.G.L : Color Grayscale Linearity

Green

Blue

White

-0.441-Ru'

-0.527-Rv'

-0.132-Gu'

-0.570-Gv'

-0.194-Bu'

-0.118-Bv'

-0.198-Wu'

-0.468-Wv'

(9)0.02--Ƹu'v'White

6/34PageLTM230HT05MODEL

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

PRODUCT INFORMATION

NoteUnitMax.Typ.Min.ConditionSymbolItem

%-72--Color Gamut

K-6500--Color Temperature

-8070

Hor.

Viewing

Angle

Ver.

Brightness Uniformity

(9 Points)

uni

CR˻10

Note (1) Test Equipment Setup

The measurement should be executed in a stable, windless and dark room between 30min after lighting the back light at the given temperature for stabilization of the back light. This should be measured in the center of screen.

LED Forward current : If = 63 mA Environment condition : Ta = 25 · 2 ¶C

Degrees

%25--B

(8)

EZ-

Contrast

(4)

SR-3

Field Photo detector

2ദSR-3

TFT - LCD Module

Photo detector

Field

SR-3 : 40໅ RD-80S : 50໅

LCD Panel

The center of the screen

7/34PageLTM230HT05MODEL

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (2) Definition of test point

www.panelook.com

PRODUCT INFORMATION

192 960 1728

Active Area

: Test Point

Note (3) Definition of Contrast Ratio (C/R)

: Ratio of gray max (Gmax) & gray min (Gmin) at the center point㽶 of the panel

3 2 1

Gmax : Luminance with all pixels white Gmin : Luminance with all pixels black

max

min

8 79

108

540

972

Note (4) Definition of 9 points brightness uniformity

Buni

=×

100

Bmax : Maximum brightness Bmin : Minimum brightness

Note (5) Definition of Response time : Sum of Tr, Tf

Display Data White(TFT off) Black(TFT on) White(TFT off)

Optical Instruments

Response

100%

90%

10%

(max min)

−

max

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/34PageLTM230HT05MODEL

www.panelook.com

Global LCD Panel Exchange Center

Note (6) Definition of Luminance of White : Luminance of white at center point㽶

Note (7) Definition of Color Chromaticity (CIE 1931, CIE1976)

Color coordinate of Red, Green, Blue & White at center point㽶

Note (8) Definition of Viewing Angle

: Viewing angle range (CR ˻ 10)

www.panelook.com

PRODUCT INFORMATION

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/34PageLTM230HT05MODEL

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note (9) Color Grayscale Linearity

a. Test image : 100% full white pattern with a test pattern as below

b. Test pattern : Squares, 40mm by 40mm in size, filled with 255, 225, 195, 165, 135 and

105 grays steps should be arranged at the centerྜྷ of the screen.

PRODUCT INFORMATION

c. Test method

gray step : move a square of 255 gray level should be moved into the center of the

-1 screen and measure luminance and u’ and v’ coordinates.

- Next gray step : Move a 225 gray square into the center and measure both luminance and coordinates, too.

d. Test evaluation

Δu' v'= (u' - u' ) + (v' - v' )

Where A, B : 2 gray levels found to have the largest color differences between them

i.e. get the largest ȟu’ and ȟv’ of each 6 pair of u’ and v’ and calculate the ȟu’v’.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10/34PageLTM230HT05MODEL

www.panelook.com

Global LCD Panel Exchange Center

3. Electrical Characteristics

3.1 TFT LCD Module The connector for display data & timing signal should be connected.

www.panelook.com

PRODUCT INFORMATION

Ta = 25¶C

NoteUnitMax.Typ.Min.SymbolItem

Voltage of Power Supply

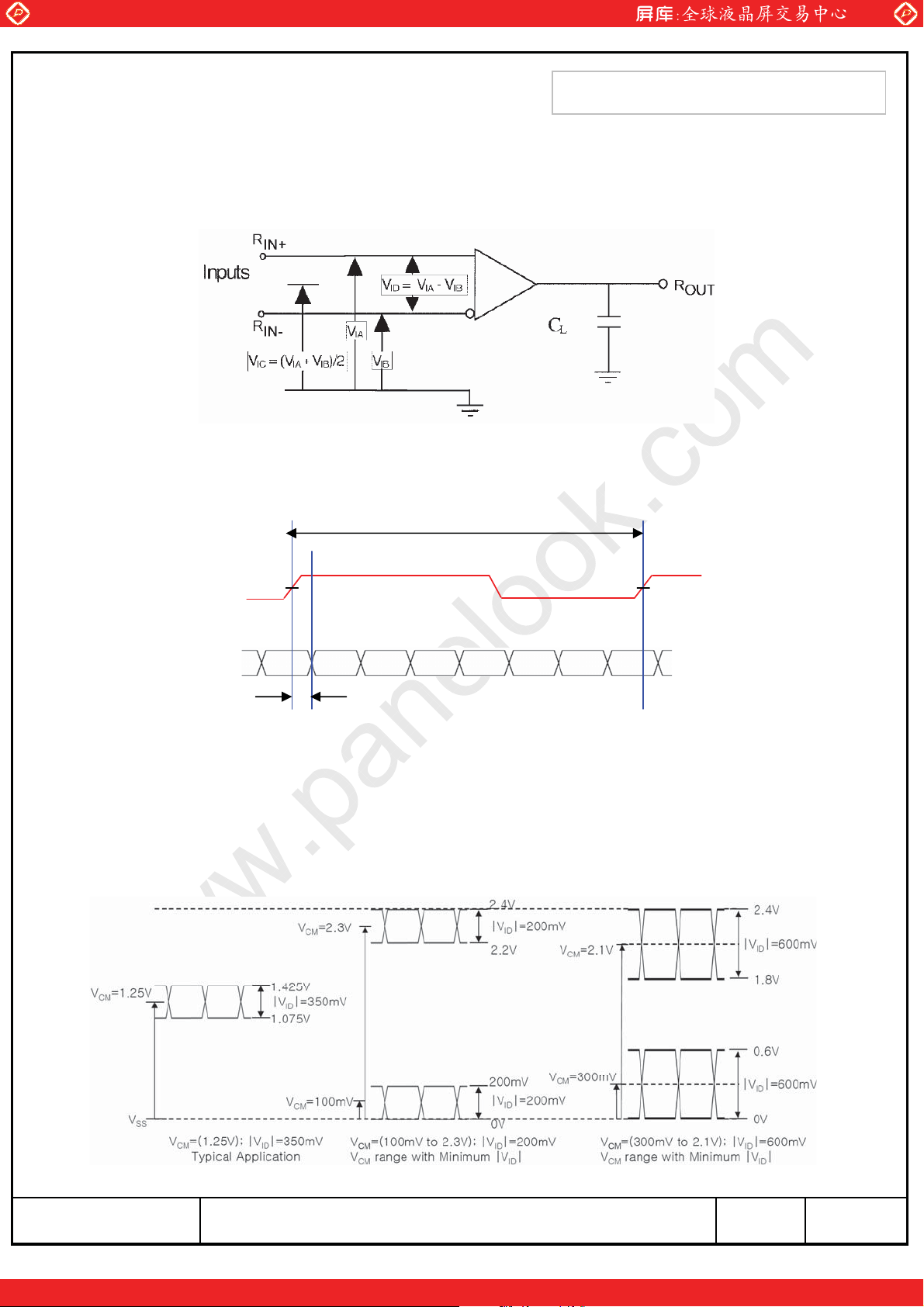

Differential Input

Voltage for LVDS

Receiver Threshold

LVDS skew

LVDS

Input

Characteri

Differential input

voltage

stics

Input voltage range

(single-ended)

Common mode

voltage

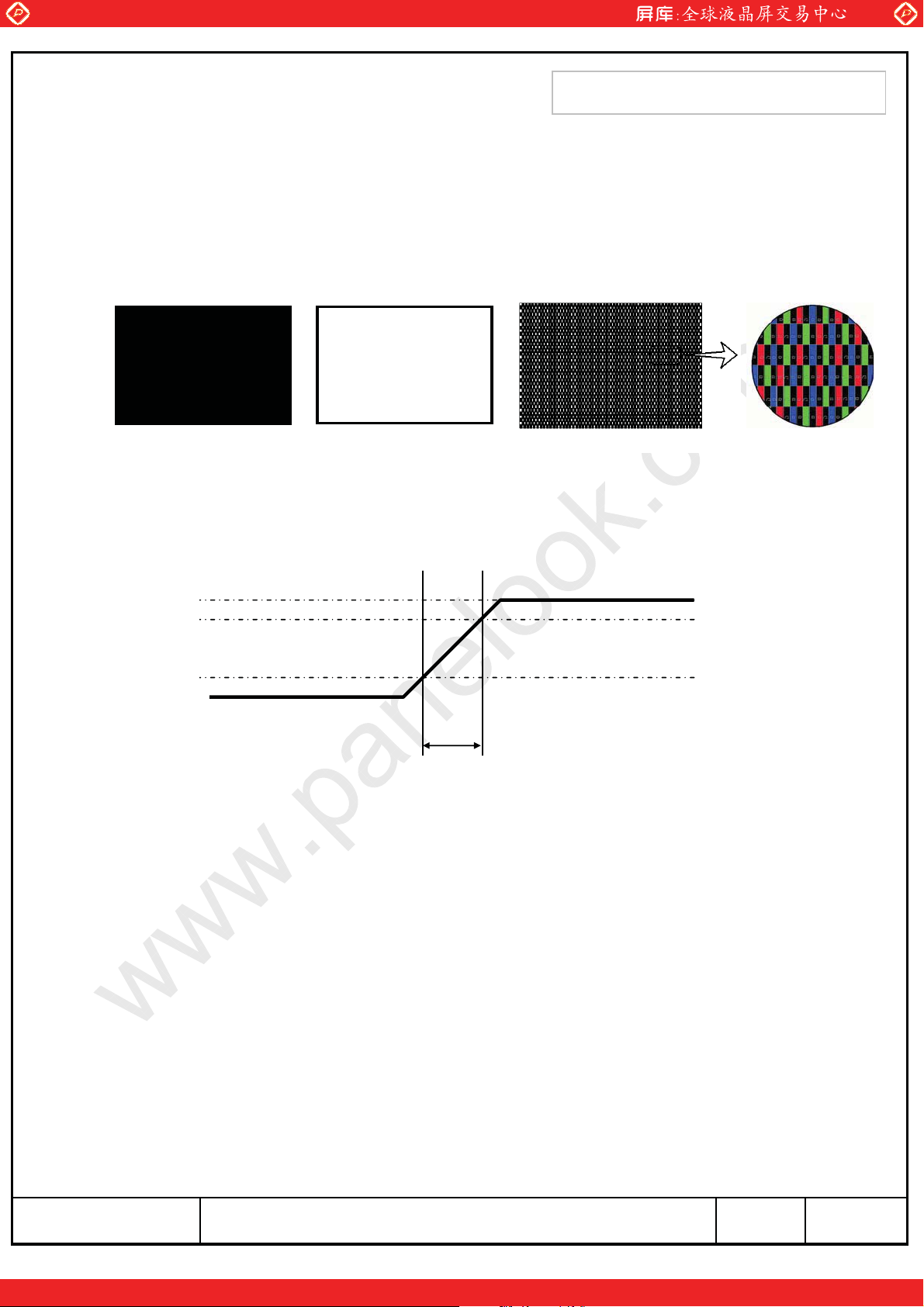

(a) Black

Current of

Power

Supply

SKEW

|/2

1.2

2.4-

(1)V5.55.04.5V

(2)mV+100--High

mV---100Low

(3)ps300--300t

(4)mV600-200|VID|

(4)V2.4-0V

(4)V

|/2

mA-1,300-

mA-800-(b) White (5),(6)

mA2,2001,700-(c) Dot

Vsync Frequency

Hsync Frequency

Main Frequency

Rush Current

DCLK

RUSH

Note (1) The ripple voltage should be controlled under 10% of VDD.

Hz75.060.049.0f

kHz83.866.054.2f

MHz83.067.356.4f

(7)A5.0--I

11/34PageLTM230HT05MODEL
