SAMSUNG LTM220MT05 Specification

ISSUED DATE : 2009-09-29

PRODUCT INFORMATION

PRODUCT INFORMATION

SAMSUNG TFT--

SAMSUNG TFT

SAMSUNG TFT-LCD PRODUCT INFORMATION

MODEL : LTM220MT05

MODEL : LTM220MT05

MODEL : LTM220MT05

LCD PRODUCT INFORMATION

LCD PRODUCT INFORMATION

Note : This is Product Information is subject to change after 3 months of issuing date.

Application Engineering Part 1(TCS),

LCD Division

Samsung Electronics Co . , LTD.

1/34PageLTM220MT05MODEL

PRODUCT INFORMATION

Contents

General Description --------------------------------------------------------------------------------- (3)

1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)

2. Optical Characteristics --------------------------------------------------------------------------- (6)

3. Electrical Characteristics ---------------------------------------------------------------------- (11)

3.1 TFT LCD Module

3.2 Back Light Unit

4. Block Diagram ----------------------------------------------------------------------------------- (16)

4.1 TFT LCD Module

4.2 Back Light Unit

5. Input Terminal Pin Assignment -------------------------------------------------------------- (17)

5.1 Input Signal & Power

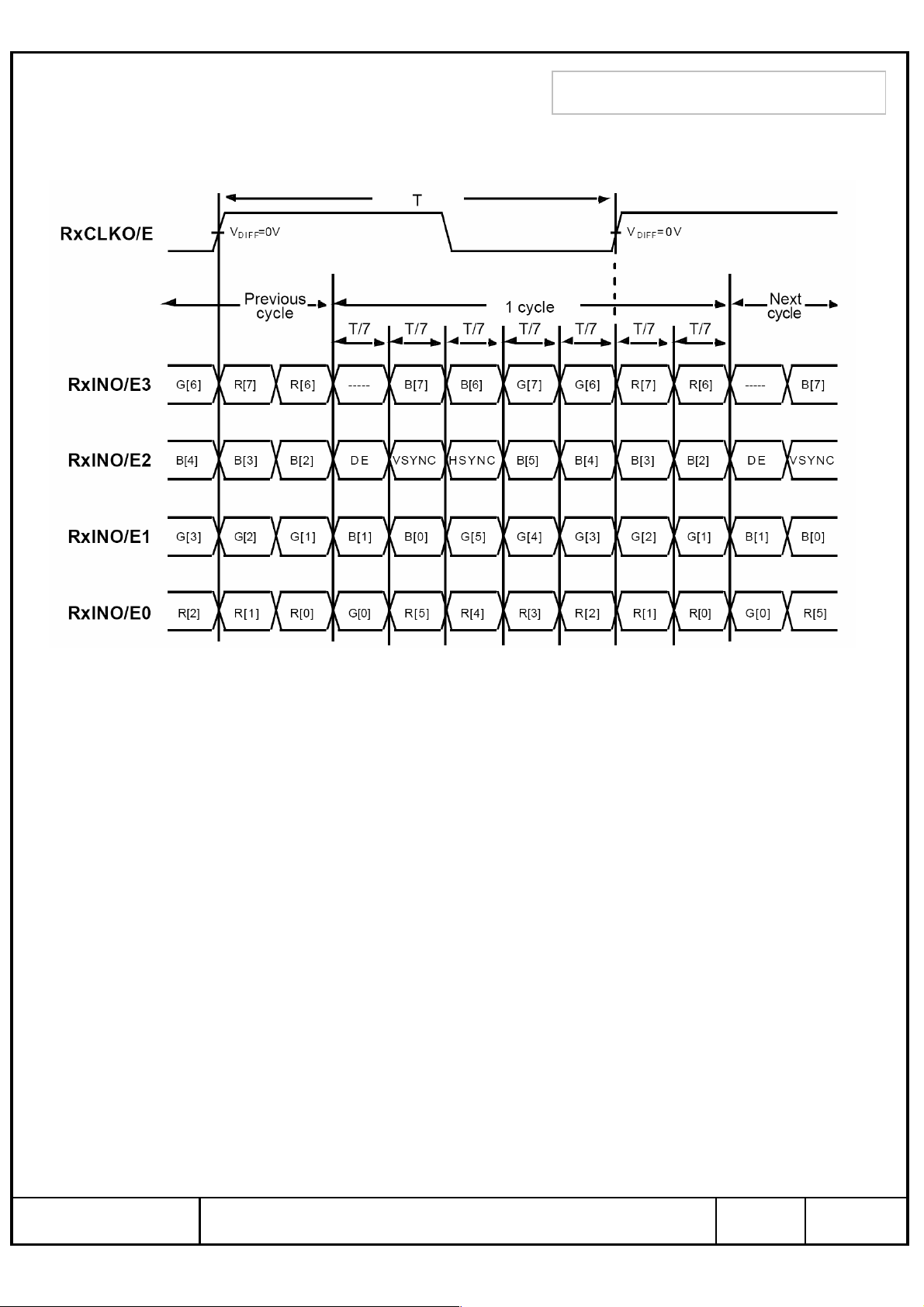

5.2 LVDS Interface(1)

5.3 LVDS Interface(2)

5.4 Back Light Unit

5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

PRODUCT INFORMATION

6. Interface Timing --------------------------------------------------------------------------------- (26)

6.1 Timing Parameters (DE only mode)

6.2 Timing Diagrams of interface Signal (DE only mode)

6.3 Power ON/OFF Sequence

6.4 VDD Power Dip Condition

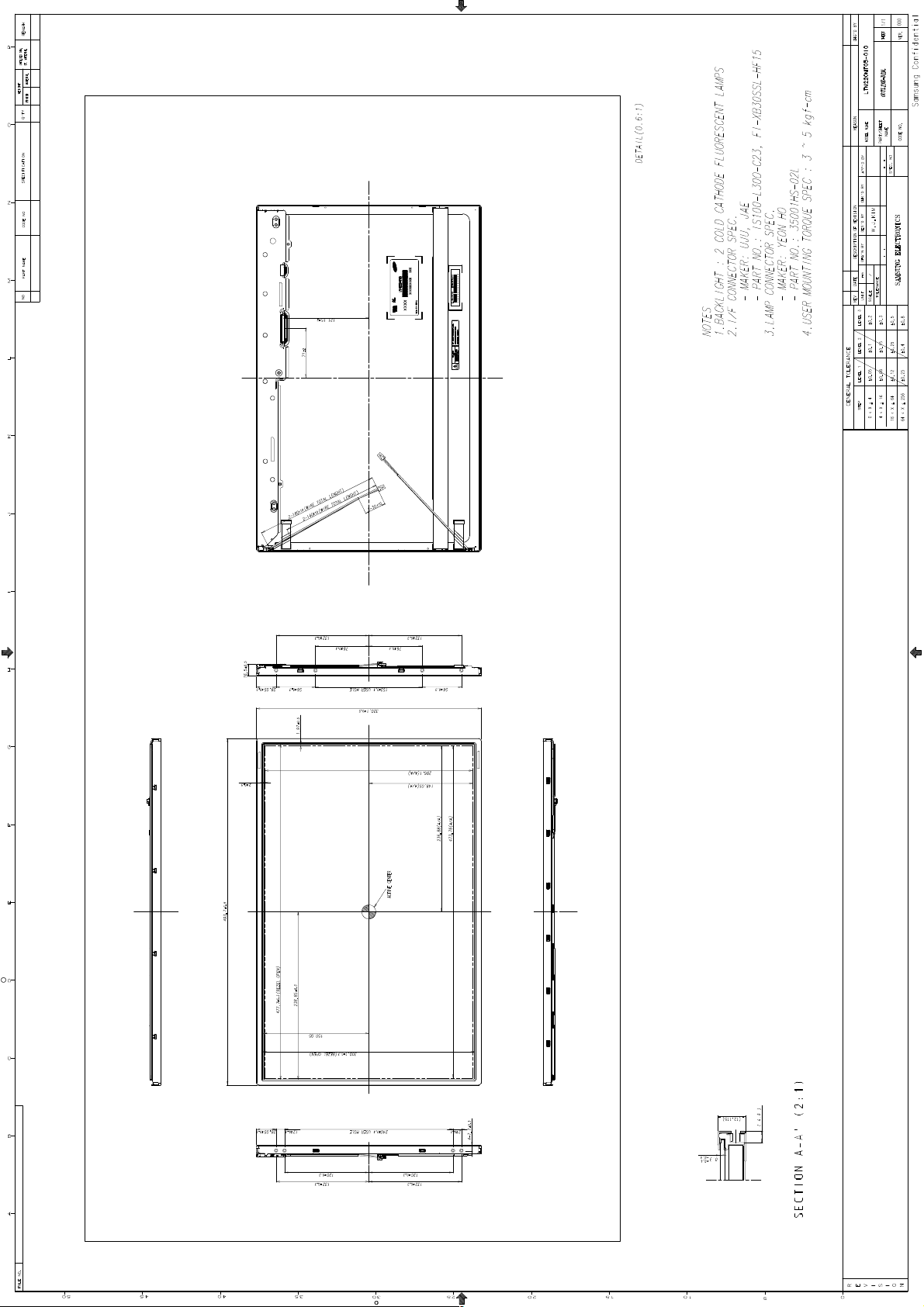

7. Outline Dimension ------------------------------------------------------------------------------- (30)

8. General Precaution ------------------------------------------------------------------------------ (32)

8.1 Handling

8.2 Storage

8.3 Operation

8.4 Operation Condition Guide

8.5 Others

2/34PageLTM220MT05MODEL

PRODUCT INFORMATION

General Description

PRODUCT INFORMATION

Description

LTM220MT05 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT (Thin Film Transistor) as switching components. This model is composed of
a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 22” is 1680 x
1050 and this model can display up to 16.7 millions colors.

Features

 High contrast ratio, high aperture structure
 TN (Twisted Nematic) mode
 Wide Viewing Angle
 High speed response
 WSXGA+ (1680 x 1050 pixels) resolution
 Low power consumption
 2 CCFLs (Cold Cathode Fluorescent Lamp)
 DE (Data Enable) only mode
 LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
 Compact Size Design
 RoHS, TCO 03’ compliance

Applications

 Workstation & desktop monitors
 Display terminals for AV application products
 Monitors for industrial machine

* If the module is used to other applications besides the above, please contact SEC

in advance.

General Information

Haze 25% Hard coating (3H)Surface Treatment

UnitSpecificationItems

mm0.282(H) x 0.282(W)Pixel Pitch

mm473.76(H) x 296.1(V)Active Display Area

colors16.7M (Hi-FRC)Display Colors

pixel1,680 x 1,050Number of Pixels

RGB vertical stripePixel Arrangement

Note

Normally WhiteDisplay Mode

cd/㎡250(Typ.)Luminance of White

3/34PageLTM220MT05MODEL

Mechanical Information

PRODUCT INFORMATION

PRODUCT INFORMATION

Max.

494.2

mm493.7493.2Horizontal (H)

Module

320.6

mm320.1319.6Vertical (V) w/o inverter ass’y

size

17.0

2,600

mm--Depth (D)

LCD module onlyg--Weight

Note (1) Mechanical tolerance is ± 0.5mm unless there is a special comment.

1. Absolute Maximum Ratings

NoteUnitTyp.Min.Item

If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.

NoteUnitMax.Min.SymbolItem

Power Supply Voltage

Data Signal

Storage temperature

Center of Glass surface temperature

(Operation)

Shock ( non - operating )

Vibration ( non - operating )

Note (1) Ta= 25 ± 2 °C

DD

sig

STG

OPR

nop

nop

V5-V

60-25T

500T

℃

℃

(1)V6.5GND-0.5V

(2)

(2)

(3)(5)G50-S

(4)(5)G1.5-V

4/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

(2) Temperature and relative humidity range are shown in the figure below.

a. 93.8% RH Max. (Ta ≤ 39 °C)
b. Maximum wet-bulb temperature at 39 °C or less. (Ta ≤ 39 °C)
c. No condensation

(3) 11ms, sine wave, one time for ±X, ±Y, ±Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
(5) At vibration and shock test, the fixture which holds the module to be tested has to be

hard and rigid enough so that the module would not be twisted or bent by the fixture.

(39,90)

(39,90)

(50,50.4)

(50,50.4)

25,5)

((--25,5)

Fig. Temperature and Relative humidity range

(60,27.7)

(60,27.7)

5/34PageLTM220MT05MODEL

PRODUCT INFORMATION

2. Optical Characteristics

PRODUCT INFORMATION

The optical characteristics should be measured in a dark room or equivalent.

Measuring equipment : SR-3, RD-80S (TOPCON), EZ-Contrast (Eldim)

(Ta = 25 ± 2°C, VDD=5V, fv= 60Hz, fDCLK=59.6MHz, IL = 8.0mArms)

NoteUnitMax.Typ.Min.ConditionSymbolItem

Contrast Ratio

(Center of screen)

Response

Time

Luminance of White

(Center of screen)

Red

Green

Color

Chromaticity

(CIE 1931)

Blue

White

Red

Ry

-1000600C/R

85-Tr + TfOn/Off

L

0.641Rx

0.335

0.300Gx

0.605Gy

Normal

θ

=0

L,R

θ

=0

U,D

Viewing

Angle

-0.03

0.147Bx

0.058By

0.313Wx

0.329Wy

-250200Y

+0.03

-0.447-Ru'

-0.525-Rv'

msec

cd/m

2

(3)

SR-3

(5)

RD-80S

(6)

SR-3

(7),(8)

SR-3

Color

Chromaticity

(CIE 1976)

C.G.L

(ACC ONLY)

* C.G.L : Color Grayscale Linearity

Green

Blue

White

△

u'v'White

-0.124-Gu'

-0.564-Gv'

-0.173-Bu'

-0.153-Bv'

-0.198-Wu'

-0.469-Wv'

(9)0.02--

6/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

NoteUnitMax.Typ.Min.ConditionSymbolItem

K-6500--Color Temperature

θ

Hor.

Viewing

Angle

Ver.

Brightness Uniformity

(9 Points)

L

θ

R

θ

U

θ

D

uni

Note (1) Test Equipment Setup

The measurement should be executed in a stable, windless and dark room between
30min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.

Single lamp current : 8.0mA
Environment condition : Ta = 25 ± 2 °C

CR≥10

-8070

-8070
Degrees

-8070

-8070

%25--B

(8)

EZ-

Contrast

(4)

SR-3

SR-3

Field Photo detector

2

°

TFT - LCD Module

Photo detector

Field

The center of the screen

SR-3 : 40
RD-80S : 50

㎝

LCD Panel

㎝

7/34PageLTM220MT05MODEL

Note (2) Definition of test point

B

−

max

G

min

168 840 1512

PRODUCT INFORMATION

PRODUCT INFORMATION

Active Area

6

: Test Point

Note (3) Definition of Contrast Ratio (C/R)

: Ratio of gray max (Gmax) & gray min (Gmin) at the center point⑤ of the panel

3 2 1

G

CR

=

Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black

max

8 79

45

105

525

945

Note (4) Definition of 9 points brightness uniformity

B B

Buni

= ×

100

Bmax : Maximum brightness
Bmin : Minimum brightness

Note (5) Definition of Response time : Sum of Tr, Tf

Display Data White(TFT off) Black(TFT on) White(TFT off)

Optical Instruments

Response

100%

90%

10%

( max min)

0%

8/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

Note (6) Definition of Luminance of White : Luminance of white at center point⑤

Note (7) Definition of Color Chromaticity (CIE 1931, CIE1976)

Color coordinate of Red, Green, Blue & White at center point⑤

Note (8) Definition of Viewing Angle

: Viewing angle range (CR ≥10)

9/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

Note (9) Color Grayscale Linearity

a. Test image : 100% full white pattern with a test pattern as below

b. Test pattern : Squares, 40mm by 40mm in size, filled with 255, 225, 195, 165, 135 and

105 grays steps should be arranged at the center⑤ of the screen.

c. Test method

-1stgray step : move a square of 255 gray level should be moved into the center of the
screen and measure luminance and u’ and v’ coordinates.

- Next gray step : Move a 225 gray square into the center and measure both
luminance and coordinates, too.

d. Test evaluation

∆u' v'= (u' - u' ) + (v' - v' )

Where A, B : 2 gray levels found to have the largest color differences between them

i.e. get the largest Δu’ and Δv’ of each 6 pair of u’ and v’ and calculate the Δu’v’.

A B

2

A B

2

10/34PageLTM220MT05MODEL

3. Electrical Characteristics

3.1 TFT LCD Module

The connector for display data & timing signal should be connected.

PRODUCT INFORMATION

PRODUCT INFORMATION

Ta = 25°C

NoteUnitMax.Typ.Min.SymbolItem

Voltage of Power Supply

Differential Input

Voltage for LVDS

Receiver Threshold

LVDS skew

LVDS

Input

Characteri

Differential input

voltage

stics

Input voltage range

(single-ended)

Common mode

voltage

(a) Black

Current of

Power

Supply

DD

SKEW

IN

V

CM

I

DD

0+

|VID|/2

1,700-(c) Dot

1.2

2.4-

|VID|/2

2,100

(1)V5.55.04.5V

(2)mV+100--High

mV---100Low

(3)ps300-300t

(4)mV600200|VID|

(4)V2.40V

(4)V

mA-1,500-

mA-800-(b) White (5),(6)

mA

Vsync Frequency

Hsync Frequency

Main Frequency

Rush Current

V

H

DCLK

RUSH

Note (1) The ripple voltage should be controlled under 10% of VDD.

Hz766053f

kHz83.264.857.2f

MHz75.559.652.6f

(7)A4.0--I

11/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

(2)

Differential receiver voltage definitions and propagation delay and transition time test

circuit

a. All input pulses have frequency = 10MHz, tRor tF=1ns
b. CLincludes all probe and fixture capacitance

Note a.

Note b.

(3) LVDS Receiver DC parameters are measured under static and steady conditions

which may not be reflective of its performance in the end application.

T

LVDS Clk

V

= 0V

DIFF

LVDS Data
RX +/-

t

SKEW

where tskew : skew between LVDS clock & LVDS data,

T : 1 period time of LVDS clock

cf) (-/+) of 300psec means LVDS data goes before or after LVDS clock.

(4) Definition of VIDand V

using single-end signals

CM

V

= 0V

DIFF

Differential

Differential

12/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

(5) fV=60Hz, fDCLK = 59.6MHz, VDD = 5.0V, DC Current.
(6) Power dissipation check pattern (LCD Module only)

a) Black Pattern b) White Pattern c) Dot Pattern

(7) Measurement Condition

100%

90%

10%
GND

Rush Current I

T

RUSH

can be measured when T

RUSH

=470㎲

. is 470㎲.

RUSH

V

DD

13/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

3.2 Back Light Unit

The back light unit is an edge - lighting type with 2 dual CCFL ( Cold Cathode
Fluorescent Lamp ) The characteristics of two dual lamps are shown in the following tables.

Ta=25 ± 2°C

NoteUnitMax.Typ.Min.SymbolItem

Lamp Current

Lamp Voltage

Lamp Frequency

Asymmetry

Inverter

waveform

Note (1) Specified values are for a single lamp.

Lamp current is measured with current meter for high frequency as shown below.
Refer to the following block diagram of the back light unit for more information.

rate

Distortion

rate

L

L

L

(1)mArms8.58.04.0I

Vrms-760-V

(2)kHz80-40f

(3)Hour--50,000HrOperating Life Time

%10--Wasy

(4)

1.55541.4141.2726Wdis

0℃ : 1,700

--VsStartup Voltage

25℃: 1,400

(5)Vrms

LCD Module

HOT

COLD

I

1

A

INVERTER

HOT

COLD

A

I

2

Fig. Measurement point of Lamp Current

14/34PageLTM220MT05MODEL

PRODUCT INFORMATION

I

−

I

I

PRODUCT INFORMATION

(2) Lamp frequency which may produce interference with horizontal synchronous
frequency may cause line flow on the display. Therefore lamp frequency should be
detached from the horizontal synchronous frequency and its harmonics as far as
possible in order to avoid interference.

(3) Life time (Hr) is defined as the time when brightness of a lamp unit itself becomes
50% or less than its original value at the condition of Ta = 25±2°C and IL= 8.0mArms

(4) Designing a system inverter intended to have better display performance, power
efficiency and lamp reliability.

They would help increase the lamp lifetime and reduce leakage current.

a. The measurement should be done at typical lamp current.
b. The asymmetry rate of the inverter waveform should be less than 10%.
c. The distortion rate of the waveform should be √2 with ±10% tolerance.

- Inverter output waveform had better be more similar to ideal sine wave.

 Asymmetry rate

| |I I

I

p

I

-p

Fig. Wave form of the inverter

(5) If an inverter has shutdown function, it should keep its output for over 1 second

even if the lamp connector is open. Otherwise the lamps may not be turned on.

 Distortion rate

p - p

rms

I

p

| |

rms

or

× 100

I

- p

| |

rms

15/34PageLTM220MT05MODEL

4. BLOCK DIAGRAM

4.1 TFT LCD Module

RSDS

PRODUCT INFORMATION

PRODUCT INFORMATION

LVDS

pair #1

LVDS

pair #2

CN1

(30pin)

LVDS (Rx)

Timing Controller

+5.0V

V

DD

Power
Circuit

4.2 Back Light Unit

RSDS(Tx)

Control signal

Source Driver ICs

S1 S1680

Control signal

Column Driver Circuit

TFT-LCD

(1680 x RGB x 1050 pixels)

Connector: YEONHO 35001HS-02L

LAMP(CCFL)

LAMP(CCFL)

LAMP(CCFL)

LAMP(CCFL)

1
2

1
2

HOT
COLD

HOT
COLD

16/34PageLTM220MT05MODEL

PRODUCT INFORMATION

5. Input Terminal Pin Assignment

PRODUCT INFORMATION

5.1. Input Signal & Power ( Connector : UJU IS100-L30O-C23 or FI-XB30SSL-HF15 )

FUNCTIONSYMBOLPIN NO

Negative LVDS differential data outputRXO0N1

RXO0P2

RXO1N3

Positive LVDS differential data output

Negative LVDS differential data output

Positive LVDS differential data outputRXO1P4

Negative LVDS differential data outputRXO2N5

Positive LVDS differential data outputRXO2P6

GroundGND7

Negative Sampling Clock (ODD data)RXOC-8

Positive Sampling Clock (ODD data)RXOC+9

Negative LVDS differential data outputRXO3N10

Positive LVDS differential data outputRXO3P11

Negative LVDS differential data outputRXE0N12

Positive LVDS differential data outputRXE0P13

GroundGND14

Negative LVDS differential data outputRXE1N15

Positive LVDS differential data outputRXE1P16

GroundGND17

Negative LVDS differential data outputRXE2N18

Positive LVDS differential data outputRXE2P19

Negative Sampling Clock (EVEN data)RXEC-20

Positive Sampling Clock (EVEN data)RXEC+21

Negative LVDS differential data outputRXE3N22

Positive LVDS differential data outputRXE3P23

GroundGND24

* CE (For LCD internal use only. Do not connect)NC25

* CTL (For LCD internal use only. Do not connect)NC26

No ConnectionNC27

VDD28

VDD29

VDD30

Power Supply : +5V

* If the system already uses the 25, 26pins, it should keep under GND level

The voltage applied to those pins should not exceed -200mV.

17/34PageLTM220MT05MODEL

Note) Pin number starts from Left side

▼

PRODUCT INFORMATION

PRODUCT INFORMATION

PCB

▼

Pin No. 1 Pin No. 30

#30#1

UJU IS100-L30O-C23 or FI-XB30SSL-HF15

#30#1

Fig. Connector diagram

a. All GND pins should be connected together and also be connected to the
LCD’s metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.

18/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

5.2 LVDS Interface

(1)

5.2.1 Odd Pixel Data (1st pixel data)

LVDS Transmitter ( DS90C383, DS90C385 ) Signal Interface

Device Input SignalDevice Input Pin

Red Odd Pixel Data (LSB) RO0TXIN0 51

Red Odd Pixel Data RO1TXIN1 52

Red Odd Pixel Data RO2TXIN2 54

Red Odd Pixel Data RO3TXIN3 55

Red Odd Pixel Data RO4TXIN4 56

Red Odd Pixel Data (MSB) RO7TXIN5 2

Red Odd Pixel Data RO5TXIN6 3

Green Odd Pixel Data (LSB)GO0TXIN7 4

Output

Signal

TXOUT0-

TXOUT0+

TXOUT3-

TXOUT3+

TXOUT0-

TXOUT0+

To LTM220MT05

Interface ( CN101 )

SymbolTerminalFunctionSymbolSymbolNo

No. 1
No. 2

No. 10
No. 11

No. 1
No. 2

RXO0-

RXO0+

RXO3-

RXO3+

RXO0-

RXO0+

Green Odd Pixel Data GO1TXIN8 6

Green Odd Pixel Data GO2TXIN9 7

Green Odd Pixel Data GO6TXIN108

Green Odd Pixel Data (MSB)GO7TXIN1110

Green Odd Pixel Data GO3TXIN1211

Green Odd Pixel Data GO4TXIN1312

Green Odd Pixel Data GO5TXIN1414

Blue Odd Pixel Data (LSB) BO0TXIN1515

Blue Odd Pixel Data BO6TXIN1616

Blue Odd Pixel Data (MSB) BO7TXIN1718

Blue Odd Pixel Data BO1TXIN1819

Blue Odd Pixel Data BO2TXIN1920

Blue Odd Pixel Data BO3TXIN2022

Blue Odd Pixel Data BO4TXIN2123

TXOUT1-

TXOUT1+

TXOUT3-

TXOUT3+

TXOUT1-

TXOUT1+

TXOUT3-

TXOUT3+

TXOUT1-

TXOUT1+

TXOUT2-

TXOUT2+

No. 3
No. 4

No. 10
No. 11

No. 3
No. 4

No. 10
No. 11

No. 3
No. 4

No. 5
No. 6

RXO1-

RXO1+

RXO3-

RXO3+

RXO1-

RXO1+

RXO3-

RXO3+

RXO1-

RXO1+

RXO2-

RXO2+

Blue Odd Pixel Data BO5TXIN2224

Red Odd Pixel Data RO6TXIN2750

TXOUT3-

TXOUT3+

No. 10
No. 11

RXO3-

RXO3+

19/34PageLTM220MT05MODEL

5.2.2 Even Pixel Data (2nd pixel data)

LVDS Transmitter ( DS90C383, DS90C385 ) Signal Interface

PRODUCT INFORMATION

PRODUCT INFORMATION

Device Input SignalDevice Input Pin

Red Even Pixel Data (LSB) RE0TXIN0 51

Red Even Pixel Data RE1TXIN1 52

Red Even Pixel Data RE2TXIN2 54

Red Even Pixel Data RE3TXIN3 55

Red Even Pixel Data RE4TXIN4 56

Red Even Pixel Data (MSB) RE7TXIN5 2

Red Even Pixel Data RE5TXIN6 3

Green Even Pixel Data (LSB)GE0TXIN7 4

Green Even Pixel Data GE1TXIN8 6

Green Even Pixel Data GE2TXIN9 7

Output

Signal

TXOUT0-

TXOUT0+

TXOUT3-

TXOUT3+

TXOUT0-

TXOUT0+

TXOUT1-

TXOUT1+

To LTM220MT05

Interface ( CN101 )

SymbolTerminalFunctionSymbolSymbolNo

No. 12
No. 13

No. 22
No. 23

No. 12
No. 13

No. 15
No. 16

RXE0-

RXE0+

RXE3-

RXE3+

RXE0-

RXE0+

RXE1-

RXE1+

Green Even Pixel Data GE6TXIN108

Green Even Pixel Data (MSB)GE7TXIN1110

Green Even Pixel Data GE3TXIN1211

Green Even Pixel Data GE4TXIN1312

Green Even Pixel Data GE5TXIN1414

Blue Even Pixel Data (LSB) BE0TXIN1515

Blue Even Pixel Data BE6TXIN1616

Blue Even Pixel Data (MSB) BE7TXIN1718

Blue Even Pixel Data BE1TXIN1819

Blue Even Pixel Data BE2TXIN1920

Blue Even Pixel Data BE3TXIN2022

Blue Even Pixel Data BE4TXIN2123

Blue Even Pixel Data BE5TXIN2224

TXOUT3-

TXOUT3+

TXOUT1-

TXOUT1+

TXOUT3-

TXOUT3+

TXOUT1-

TXOUT1+

TXOUT2-

TXOUT2+

No. 22
No. 23

No. 15
No. 16

No. 22
No. 23

No. 15
No. 16

No. 18
No. 19

RXE3-

RXE3+

RXE1-

RXE1+

RXE3-

RXE3+

RXE1-

RXE1+

RXE2-

RXE2+

Red Even Pixel Data RE6TXIN2750

TXOUT3-

TXOUT3+

No. 22
No. 23

RXE3-

RXE3+

20/34PageLTM220MT05MODEL

5.3 LVDS Interface (2)

5.3.3 Odd Pixel Data (1st pixel data)

LVDS Transmitter ( DS90C387 ) Signal Interface

PRODUCT INFORMATION

PRODUCT INFORMATION

Device Input SignalDevice Input Pin

Red Odd Pixel Data (LSB) RO0R1010

Red Odd Pixel Data RO1R119

Red Odd Pixel Data RO2R12 8

Red Odd Pixel Data RO3R13 7

Red Odd Pixel Data RO4R14 6

Red Odd Pixel Data (MSB) RO7R17 3

Red Odd Pixel Data RO5R15 5

Green Odd Pixel Data (LSB)GO0G10 2

Green Odd Pixel Data GO1G11 1

Green Odd Pixel Data GO2G12 100

Green Odd Pixel Data GO6G1694

Green Odd Pixel Data (MSB)GO7G1793

Output

Signal

A0M

A0P

A3M

A3P

A0M

A0P

A1M

A1P

A3M

A3P

To LTM220MT05

Interface ( CN101 )

SymbolTerminalFunctionSymbolSymbolNo

No. 1
No. 2

No. 10
No. 11

No. 1
No. 2

No. 3
No. 4

No. 10
No. 11

RXO0-

RXO0+

RXO3-

RXO3+

RXO0-

RXO0+

RXO1-

RXO1+

RXO3-

RXO3+

Green Odd Pixel Data GO3G1399

Green Odd Pixel Data GO4G1496

Green Odd Pixel Data GO5G1595

Blue Odd Pixel Data (LSB) BO0B1092

Blue Odd Pixel Data BO6B1686

Blue Odd Pixel Data (MSB) BO7B1785

Blue Odd Pixel Data BO1B1191

Blue Odd Pixel Data BO2B1290

Blue Odd Pixel Data BO3B1389

Blue Odd Pixel Data BO4B1488

Blue Odd Pixel Data BO5B1587

Red Odd Pixel Data RO6R164

A1M

A1P

A3M

A3P

A1M

A1P

A2M

A2P

A3M

A3P

No. 3
No. 4

No. 10
No. 11

No. 3
No. 4

No. 5
No. 6

No. 10
No. 11

RXO1-

RXO1+

RXO3-

RXO3+

RXO1-

RXO1+

RXO2-

RXO2+

RXO3-

RXO3+

21/34PageLTM220MT05MODEL

5.3.4 Even Pixel Data (2nd pixel data)

LVDS Transmitter ( DS90C387 ) Signal Interface

PRODUCT INFORMATION

PRODUCT INFORMATION

Device Input SignalDevice Input Pin

Red Even Pixel Data (LSB) RE0R2084

Red Even Pixel Data RE1R2181

Red Even Pixel Data RE2R22 80

Red Even Pixel Data RE3R23 79

Red Even Pixel Data RE4R24 78

Red Even Pixel Data (MSB) RE7R27 75

Red Even Pixel Data RE5R25 77

Green Even Pixel Data (LSB)GE0G20 74

Green Even Pixel Data GE1G21 73

Green Even Pixel Data GE2G22 72

Green Even Pixel Data GE6G2666

Green Even Pixel Data (MSB)GE7G2765

Output

Signal

A4M

A4P

A7M

A7P

A4M

A4P

A5M

A5P

A7M

A7P

To LTM220MT05

Interface ( CN101 )

SymbolTerminalFunctionSymbolSymbolNo

No. 12
No. 13

No. 22
No. 23

No. 12
No. 13

No. 15
No. 16

No. 22
No. 23

RXE0-

RXE0+

RXE3-

RXE3+

RXE0-

RXE0+

RXE1-

RXE1+

RXE3-

RXE3+

Green Even Pixel Data GE3G2371

Green Even Pixel Data GE4G2470

Green Even Pixel Data GE5G2569

Blue Even Pixel Data (LSB) BE0B2064

Blue Even Pixel Data BE6B2658

Blue Even Pixel Data (MSB) BE7B2757

Blue Even Pixel Data BE1B2163

Blue Even Pixel Data BE2B2262

Blue Even Pixel Data BE3B2361

Blue Even Pixel Data BE4B2460

Blue Even Pixel Data BE5B2559

Red Even Pixel Data RE6R2676

A5M

A5P

A7M

A7P

A5M

A5P

A6M

A6P

A7M

A7P

No. 15
No. 16

No. 22
No. 23

No. 15
No. 16

No. 18
No. 19

No. 22
No. 23

RXE1-

RXE1+

RXE3-

RXE3+

RXE1-

RXE1+

RXE2-

RXE2+

RXE3-

RXE3+

22/34PageLTM220MT05MODEL

5.3.5 Timing Diagrams of LVDS For Transmitting

LVDS Receiver : Integrated T-CON

PRODUCT INFORMATION

PRODUCT INFORMATION

23/34PageLTM220MT05MODEL

5.4 Back Light Unit

Upper

Lower

Connect

or

Part No.

PRODUCT INFORMATION

PRODUCT INFORMATION

YEONHO 35001HS-02L

FunctionColorInputPin No.

High VoltagePinkHot1

GroundWhiteCold2

High VoltageBlueHot1

GroundGrayCold2

24/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

DATA SIGNAL

COLOR

BASIC

COLOR

GRAY

SCALE

OF

RED

GRAY

SCALE

OF

GREEN

GRAY

SCALE

OF

BLUE

DISPLAY

(8bit)

DARK

↑

↓

LIGHT

DARK

↑

↓

LIGHT

DARK

↑

↓

LIGHT

BLUEGREENRED

::::::::::::::::::

::::::::::::::::::

::::::::::::::::::

::::::::::::::::::

::::::::::::::::::

::::::::::::::::::

GRAY
SCALE
LEVEL

B7B6B5B4B3B2B1B0G7G6G5G4G3G2G1G0R7R6R5R4R3R2R1R0

-000000000000000000000000BLACK

-111111110000000000000000BLUE

-000000001111111100000000GREEN

-111111111111111100000000CYAN

-000000000000000011111111RED

-111111110000000011111111MAGENTA

-000000001111111111111111YELLOW

-111111111111111111111111WHITE

R0000000000000000000000000BLACK

R1000000000000000000000001

R2000000000000000000000010

R3~

R252

R253000000000000000011111101

R254000000000000000011111110

R255000000000000000011111111RED

G0000000000000000000000000BLACK

G1000000000000000100000000

G2000000000000001000000000

G3~

G252

G253000000001111110100000000

G254000000001111111000000000

G255000000001111111100000000GREEN

B0000000000000000000000000BLACK

B1000000010000000000000000

B2000000100000000000000000

B3~

B252

B253111111010000000000000000

B254111111100000000000000000

B255111111110000000000000000BLUE

Note (1) Definition of Gray :

Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)

Input Signal : 0 = Low level voltage, 1 = High level voltage

25/34PageLTM220MT05MODEL

6. Interface Timing

6.1 Timing Parameters ( DE only mode )

PRODUCT INFORMATION

PRODUCT INFORMATION

NOTEUnitMAX.TYP.MIN.SYMBOLITEMSIGNAL

Clock

Hsync

Vsync

Frequency

C

H

V

Active

Vertical

Display Term

Display

Period

Vertical Total

VD

V

Active

clocks840840840T

Horizontal

Display

Period

HD

Display Term

Horizontal

Total

H

clocks1004920913T

Note (1) This product is DE only mode. The input of Hsync & Vsync signal does

-MHz75.559.652.61/T

-KHz83.264.857.2F

-Hz766053F

-lines105010501050T

-lines110010801059T

2pixel/
clock

2pixel/

clock

not have an effect on normal operation.
(2) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(3) Internal Vcc = 3.3V
(4) Best operation clock frequency is 59.6MHz (60Hz)
(5) Clock frequency = Frame frequency x

T

(Typ) x

V

T

H

(Typ)

(6) Max, Min variation range is at main clock Typ value (59.6MHz).

26/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

6.2 Timing diagrams of interface signal ( DE only mode )

T

V

T

VD

DE

T

H

T

HD

DE

T

VB

D

CLK

DATA

SIGNALS

D

CLK

DISPLAY

DATA

T

C

T

C

T

CH

T

CL

0.5
V

CC

T

DS

T

DH

0.5
V

CC

DE

T

ES

0.5
V

CC

27/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

6.3 Power ON/OFF Sequence

To prevent a latch-up or DC operation of the LCD Module, the power on/off

sequence should be as the diagram below.

0

≤≤≤≤T1≤≤≤≤

10msec

0

≤≤≤≤T2≤≤≤≤

50msec

0

≤≤≤≤T3≤≤≤≤

50msec

1sec

≤≤≤≤

T4

Back-Light

(Recommended)

500msec
100msec

≤≤≤≤
≤≤≤≤

T5
T6

T1 : VDDrising time from 10% to 90%
T2 : The time from VDDto valid data at power ON.
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.

 The supply voltage of the external system for the Module input should be the same

as the definition of VDD.

 Apply the lamp voltage within the LCD operation range. When the back light turns on

before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.

 In case of VDD= off level,

please keep the level of input signals low or keep a high impedance.

 T4 should be measured after the Module has been fully discharged between power off

and on period.

 Interface signal should not be kept at high impedance when the power is on.

28/34PageLTM220MT05MODEL

6.4 VDD Power Dip Condition

V

DD

90%

T

PRODUCT INFORMATION

PRODUCT INFORMATION

d

80%

V

CC

GND

4.5V ≤ VDD≤ 5.5V

If VDD(typ.) x 80% ≤ VCC≤ VDD(typ) x 90%

Then, 0<Td ≤20msec

Note (1) The above conditions are for the glitch of the input voltage.

(2) For stable operation of an LCD Module power, please follow them.

i.e., if typ VDD x 80% ≤ Vcc ≤ typ VDD x 90%, then Tdshould be less than 20ms.

29/34PageLTM220MT05MODEL

7. Outline Dimension

[ Refer to the next page ]

PRODUCT INFORMATION

PRODUCT INFORMATION

30/34PageLTM220MT05MODEL

PRODUCT INFORMATION

8. General Precautions

PRODUCT INFORMATION

8.1 Handling

(a) When the module is assembled, it should be attached to the system firmly

using all mounting holes. Be careful not to twist and bend the module.

(b) Because the inverter uses high voltages, it should be disconnected from power

source before it is assembled or disassembled.

(c) Refrain from strong mechanical shock and / or any force to the module.

In addition to damage, it may cause improper operation or damage to the module
and CCFT back light.

(d) Note that polarizer films are very fragile and could be damaged easily.

Do not press or scratch the surface harder than a HB pencil lead.

(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long

time, staining or discoloration may occur.

(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.

(g) Desirable cleaners are water, IPA (Isopropyl Alcohol) or Hexane.

Do not use Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might cause permanent damage to the polarizer due to chemical
reaction.

(h) If the liquid crystal material leaks from the panel, it should be kept away

from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.

(i) Protect the Module from static, or the CMOS Gate Array IC would be damaged.

(j) Use finger-stalls with soft gloves in order to keep display clean during the

incoming inspection and assembly process.

(k) Do not disassemble the Module.

(l) Do not pull or fold the lamp wire.

(m) Do not adjust the variable resistor located on the Module.

(n) Protection film for polarizer on the Module should be slowly peeled off just before use

so that the electrostatic charge can be minimized.

(o) Pins of I/F connector should not be touched directly with bare hands.

32/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

8.2 Storage

(a) Do not leave the Module in high temperature, and high humidity for a long time.

It is highly recommended to store the Module with temperature from 0 to 35℃
and relative humidity of less than 70%.

(b) Do not store the TFT-LCD Module in direct sunlight.

(c) The Module should be stored in a dark place. It is prohibited to apply sunlight or

fluorescent light in storing.

8.3 Operation

(a) Do not connect or disconnect the Module in the "Power On" condition.

(b) Power supply should always be turned on/off by the item 6.3

"Power on/off sequence"

(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference should be done by system manufacturers. Grounding and shielding
methods may be important to minimize the interference.

(d) The cable between the back light connector and its inverter power supply should

be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of lamp(CCFT) and
may require higher startup voltage(Vs).

8.4 Operation Condition Guide

(a) The LCD product should be operated under normal conditions.

Normal condition is defined as below;

- Temperature : 20±15℃

- Humidity : 65±20%

- Display pattern : continually changing pattern (Not stationary)

(b) If the product will be used in extreme conditions such as high temperature,

humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.

33/34PageLTM220MT05MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

8.5 Others

(a) Ultra-violet ray filter is necessary for outdoor operation.

(b) Avoid condensation of water. It may result in improper operation or disconnection

of electrode.

(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,

input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.

(d) If the Module keeps displaying the same pattern for a long period of time,

the image may be "stuck" to the screen.
To avoid image sticking, it is recommended to use a screen saver.

(e) This Module has its circuitry PCB's on the rear side and should be handled

carefully in order not to be stressed.

(f) Please contact SEC in advance when you display the same pattern for a long time.

34/34PageLTM220MT05MODEL
