SAMSUNG LTM185AT01 Specification

ISSUED DATE : 2008-12-05

PRODUCT INFORMATION

PRODUCT INFORMATION

SAMSUNG TFT--

SAMSUNG TFT

SAMSUNG TFT-LCD PRODUCT INFORMATION

MODEL

MODEL

MODEL : LTM185AT01

LCD PRODUCT INFORMATION

LCD PRODUCT INFORMATION

: LTM185AT01

: LTM185AT01

Note : This is Product Information is subject to change after 3 months of issuing date.

Application Engineering Part 1, HD LCD Division

Samsung Electronics Co . , LTD.

1/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

Contents

General Description --------------------------------------------------------------------------------- (3)

1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)

2. Optical Characteristics --------------------------------------------------------------------------- (6)

3. Electrical Characteristics ---------------------------------------------------------------------- (11)

3.1 TFT LCD Module

3.2 Back Light Unit

4. Block Diagram ----------------------------------------------------------------------------------- (16)

4.1 TFT LCD Module

4.2 Back Light Unit

5. Input Terminal Pin Assignment -------------------------------------------------------------- (17)

5.1 Input Signal & Power

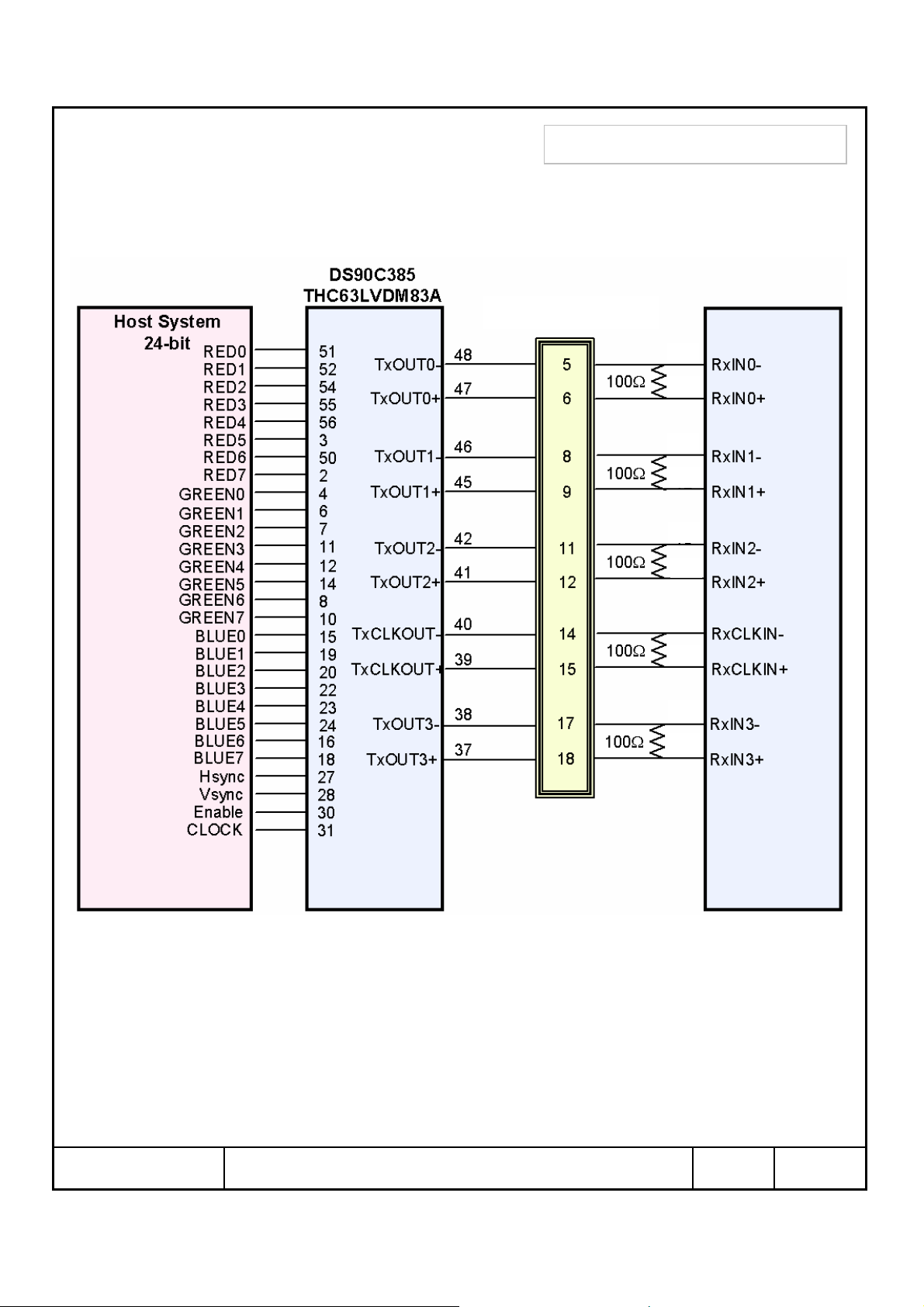

5.2 LVDS Interface

5.3 Back Light Unit

5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

6. Interface Timing --------------------------------------------------------------------------------- (23)

6.1 Timing Parameters (DE only mode)

6.2 Timing Diagrams of interface Signal (DE only mode)

6.3 Power ON/OFF Sequence

6.4 LVDS Input Characteristics

6.5 VDD Power Dip Condition

7. Outline Dimension ------------------------------------------------------------------------------- (27)

8. General Precaution ------------------------------------------------------------------------------ (29)

8.1 Handling

8.2 Storage

8.3 Operation

8.4 Others

2/31PageLTM185AT01MODEL

PRODUCT INFORMATION

General Description

PRODUCT INFORMATION

Description

LTM185AT01 product is a color active matrix liquid crystal display (LCD) that uses
amorphous silicon TFT (Thin Film Transistor) as switching components. This model is
composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a

18.5” is 1366 X 768 and this model can display up to 16.7 millions colors.

Features

 High contrast ratio, high aperture structure
 TN (Twisted Nematic) mode
 Wide Viewing Angle
 High speed response
 HD (1366 x 768 pixels) resolution
 Low power consumption
 2 CCFLs (Cold Cathode Fluorescent Lamp)
 DE (Data Enable) only mode
 LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
 Compact Size Design
 RoHS compliance
 TCO’03 compliance

Applications

 Workstation & desktop monitors
 Display terminals for AV application products
 Monitors for industrial machine

* If the module is used to other applications besides the above, please contact SEC

in advance.

General Information

UnitSpecificationItems
mm0.300(H) x 0.300(W)Pixel Pitch
mm409.8(H) x 230.4(V)Active Display Area

Haze 25%, Hard-coating(3H)Surface Treatment

colors16.7M ( 6bit Hi-FRC )Display Colors

pixel1366 x 768Number of Pixels

RGB vertical stripePixel Arrangement

Normally WhiteDisplay Mode

Note

cd/㎡250(Typ.)Luminance of White

3/31PageLTM185AT01MODEL

Mechanical Information

PRODUCT INFORMATION

PRODUCT INFORMATION

Module

Max.

430.87

255.1

mm430.37429.87Horizontal (H)
mm254.6254.1Vertical (V) w/o inverter ass’y

NoteUnitTyp.Min.Item

size

17.0

2,100

mm--Depth (D)

LCD module onlyg--Weight

Note (1) Mechanical tolerance is ± 0.5mm unless there is a special comment.

1. Absolute Maximum Ratings

If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.

Power Supply Voltage

Storage temperature

Glass surface temperature

(Operation)

Shock ( non - operating )

Vibration ( non - operating )

Note (1) Ta= 25 ± 2 °C

DD

STG

OPR

nop

nop

NoteUnitMax.Min.SymbolItem

(1)V6.5GND-0.5V

60-25T

500T

℃

℃

(2)

(2)

(3)G50-S
(4)G1.5-V

4/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

(2) Temperature and relative humidity range are shown in the figure below.

a. 90 % RH Max. (Ta ≤ 39 °C)
b. Maximum wet-bulb temperature at 39 °C or less. (Ta ≤ 39 °C)

c. No condensation
(3) 11ms, sine wave, one time for ±X, ±Y, ±Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis

(39,90)

(39,90)

(39,90)

(39,90)

(50,50.4)

(50,50.4)

(50,50.4)

(50,50.4)

(60,27.7)

(60,27.7)

(60,27.7)

(60,27.7)

25,5)

25,5)

((--25,5)

((--25,5)

Fig. Temperature and Relative humidity range

5/31PageLTM185AT01MODEL

PRODUCT INFORMATION

2. Optical Characteristics

PRODUCT INFORMATION

The optical characteristics should be measured in a dark room or equivalent.

Measuring equipment :

SR-3, RD-80S (TOPCON), EZ-Contrast (Eldim)

(Ta = 25 ± 2°C, VDD=5V, fv= 60Hz, fDCLK=85.8MHz, IL = 7.5mArms)

NoteUnitMax.Typ.Min.ConditionSymbolItem

Contrast Ratio

(Center of screen)

Response

Time

Luminance of White

(Center of screen)

Color

Chromaticity

(CIE 1931)

Color

Chromaticity

(CIE 1976)

Green

White

Green

Red

Blue

Red

Blue

Wx

-1000600C/R

105-Tr+ TfOn/Off

L

0.645Rx

0.335Ry

0.290Gx

0.605Gy
+0.030

-0.450-Ru'

-0.526-Rv'

-0.120-Gu'

-0.563-Gv'

-0.167-Bu'

-0.188-Bv'

Normal

θ

=0

L,R

θ

=0

U,D

Viewing

Angle

-0.030

0.150Bx

0.075By

0.313

0.329Wy

msec

cd/m2-250200Y

(3)

SR-3

(5)

RD-850S

(6)

SR-3

(7),(8)

SR-3

-0.198-Wu'

White

-0.468-Wv'

C.G.L

* C.G.L : Color Grayscale Linearity (continue to the next page)

△u'v'White

(9)0.020.011-

6/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

NoteUnitMax.Typ.Min.ConditionSymbolItem

θ

Hor.

Viewing

Angle

Ver.

Brightness Uniformity

(9 Points)

L

θ

R

θ

U

θ

D

uni

Note (1) Test Equipment Setup

The measurement should be executed in a stable, windless and dark room between
30min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.

Single lamp current : 7.5mA
Environment condition : Ta = 25 ± 2 °C

CR≥10

--Color Gamut

72

(84)

-8070

-8070

-8070

-8070

%­K-6500--Color Temperature

Degrees

%25--B

CIE1931

(CIE1976)

(8)

EZ-Contrast

(4)

SR-3

Field Photodetector

1°SR-3

TFT - LCD Module

Photodetector

Field

SR-3 : 50㎝
RD-80S : 50㎝

LCD Panel

The center of the screen

7/31PageLTM185AT01MODEL

Note (2) Definition of test point

B

−

max

G

min

137 683 1229

PRODUCT INFORMATION

PRODUCT INFORMATION

Active Area

6

: Test Point

Note (3) Definition of Contrast Ratio (C/R)

: Ratio of gray max (Gmax) & gray min (Gmin) at the center point⑤ of the panel

G

CR

max

=

Gmax : Luminance with all pixels white

3 2 1

8 79

45

77

384

691

Gmin : Luminance with all pixels black

Note (4) Definition of 9 points brightness uniformity

B B

Buni

= ×

Bmax : Maximum brightness
Bmin : Minimum brightness

( max min)

100

8/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

Note (5) Definition of Response time

a. On/Off response time : Sum of Tr, Tf

Display Data White(TFT off) Black(TFT on) White(TFT off)

Optical Instruments

Response

Note (6) Definition of Luminance of White : Luminance of white at center point⑤

Note (7) Definition of Color Chromaticity (CIE 1931, CIE1976)

Color coordinate of Red, Green, Blue & White at center point⑤

Note (8) Definition of Viewing Angle

: Viewing angle range (CR ≥10)

100%

90%

10%

0%

9/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

Note (9) Color Grayscale Linearity

a. Test image : 100% full white pattern with a test pattern as below
b. Test pattern : Squares, 40mm by 40mm in size, filled with 255, 225, 195, 165, 135 and

105 grays steps should be arranged at the center⑤ of the screen.

c. Test method

-1stgray step : move a square of 255 gray level should be moved into the center of the
screen and measure luminance and u’ and v’ coordinates.

- Next gray step : Move a 225 gray square into the center and measure both
luminance and coordinates, too.

d. Test evaluation

∆u'v'= (u' -u' ) +(v' -v' )

Where A, B : 2 gray levels found to have the largest color differences between them

i.e. get the largest Δu’ and Δv’ of each 6 pair of u’ and v’ and calculate the Δu’v’.

A B

2

A B

2

10/31PageLTM185AT01MODEL

3. Electrical Characteristics

3.1 TFT LCD Module

The connector for display data & timing signal should be connected.

PRODUCT INFORMATION

PRODUCT INFORMATION

Ta = 25°C

NoteUnitMax.Typ.Min.SymbolItem

Voltage of Power Supply

Differential Input

Voltage for LVDS

Receiver Threshold

LVDS skew

LVDS

Input

Characteri

Differential input

voltage

stics

Input voltage range

(single-ended)

Common mode

voltage

Current of

(a) Black

Power

Supply

Vsync Frequency

Hsync Frequency

DD

SKEW

IN

V

CM

I

DD

V

H

0+

|VID|/2

1.2

2.4-

|VID|/2

(1)V5.55.04.5V

(2)mV+100--High

mV---100Low

(3)300-300t

(4)mV600200|VID|

(4)V2.40V

(4)V

mA-550­mA-400-(b) White

(5),(6)

mA1000700-(c) Dot

Hz756047f

kHz59.2547.4037.13f

Main Frequency

Rush Current

DCLK

RUSH

Note (1) The ripple voltage should be controlled under 10% of VDD.

MHz90.4272.3356.66f

(7)A3--I

11/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

(2)

Differential receiver voltage definitions and propagation delay and transition time test circuit

a. All input pulses have frequency = 10MHz, tRor tF=1ns
b. CLincludes all probe and fixture capacitance

Note a.

Note b.

(3) LVDS Receiver DC parameters are measured under static and steady conditions

which may not be reflective of its performance in the end application.

T

LVDS Clk

V

= 0V

DIFF

LVDS Data
RX +/-

t

SKEW

where tskew : skew between LVDS clock & LVDS data,

T : 1 period time of LVDS clock
cf) (-/+) of 300psec means LVDS data goes before or after LVDS clock.

(4) Definition of VIDand V

using single-end signals

CM

V

= 0V

DIFF

Differential

Differential

12/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

(5) fV=60Hz, fDCLK = 85.8MHz, VDD = 5.0V, DC Current.

(6) Power dissipation check pattern (LCD Module only)

a) Black Pattern b) White Pattern c) Dot Pattern

(7) Measurement Condition

100%

90%

V

DD

10%
GND

Rush Current I

T

RUSH

can be measured when T

RUSH

=470㎲

. is 470㎲.

RUSH

13/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

3.2 Back Light Unit

The back light unit is an edge type with 2 CCFLs( Cold Cathode Fluorescent Lamp).
The characteristics of those lamps are shown in the following table.

Ta=25 ± 2°C

NoteUnitMax.Typ.Min.SymbolItem
Lamp Current
Lamp Voltage

Lamp Frequency

Asymmetry

Inverter

waveform

Note (1) Specified values are for a single lamp.

Lamp current is measured with current meter for high frequency as shown below.
Refer to the following block diagram of the back light unit for more information.

rate

Distortion

rate

HOT
COLD

L

L

L

I

1

A

(1)mArms8.07.53.0I

Vrms-700-V

(2)kHz60-45f
(3)Hour--50,000HrOperating Life Time

%10--Wasy

(4)

1.55541.4141.2726Wdis

--VsStartup Voltage

0℃ : 1,480

25℃: 1,170

(5)Vrms

LCD Module

INVERTER

HOT
COLD

Fig. Measurement point of Lamp Current

I2

A

14/31PageLTM185AT01MODEL

PRODUCT INFORMATION

I

−

I

I

PRODUCT INFORMATION

(2) Lamp frequency which may produce interference with horizontal synchronous frequency
may cause line flow on the display. Therefore lamp frequency should be detached from the
horizontal synchronous frequency and its harmonics as far as possible in order to avoid
interference.

(3) Life time (Hr) is defined as the time when brightness of a lamp unit itself becomes 50% or
less than its original value at the condition of Ta = 25±2°C and IL= 7.5mArms

(4) Designing a system inverter intended to have better display performance, power efficiency
and lamp reliability.

They would help increase the lamp lifetime and reduce leakage current.

a. The measurement should be done at typical lamp current.
b. The asymmetry rate of the inverter waveform should be less than 10%.
c. The distortion rate of the waveform should be √2 with ±10% tolerance.

- Inverter output waveform had better be more similar to ideal sine wave.

 Asymmetry rate

| |I I

I

p

I

-p

Fig. Wave form of the inverter

(5) If an inverter has shutdown function, it should keep its output for over 1 second

even if the lamp connector is open. Otherwise the lamps may not be turned on.

p - p

rms

 Distortion rate

I

p

| |

or

rms

×100

I

- p

| |

rms

15/31PageLTM185AT01MODEL

4. BLOCK DIAGRAM

4.1 TFT LCD Module

RSDS

Control signal

PRODUCT INFORMATION

PRODUCT INFORMATION

Source Driver ICs

LVDS

pair #1

CN1

(30pin)

LVDS (Rx)

Timing Controller

+5.0V

V

DD

4.2 Back Light Unit

Power
Circuit

LAMP(CCEL)

LAMP(CCEL)

RSDS(Tx)

S1 S1366

Control signal

Column Driver Circuit

TFT-LCD

(1366 x RGB x 768 pixels)

HOT

1

COLD

2

LAMP(CCEL)

LAMP(CCEL)

1
2

HOT
COLD

16/31PageLTM185AT01MODEL

PRODUCT INFORMATION

5. Input Terminal Pin Assignment

PRODUCT INFORMATION

5.1. Input Signal & Power ( Connector : UJU IS100-L30O-C23 or equivalent )

FUNCTIONSYMBOLPIN NO

No Connection (for DVR : CTL)CTL1

No Connection (for DVR : CE)CE2

No ConnectionNC3

Power GroundGND4

Negative LVDS Differential Data Input (0)RXIN0-5

Positive LVDS Differential Data Input (0)RXIN0+6

Power GroundGND7

Negative LVDS Differential Data Input (1)RXIN1-8

Positive LVDS Differential Data Input (1)RXIN1+9

Power GroundGND10

Negative LVDS Differential Data Input (2)RXIN2-11

Positive LVDS Differential Data Input (2)RXIN2+12

Power GroundGND13

Negative LVDS Differential Clock Input (Clock)RXCLKIN-14

Positive LVDS Differential Clock Input (Clock)RXCLKIN+15

Power GroundGND16

Negative LVDS Differential Data Input (3)RXIN3-17

Positive LVDS Differential Data Input (3)RXIN3+18

Power GroundGND19
No ConnectionNC20
No ConnectionNC21
No ConnectionNC22

Power GroundGND23

Power GroundGND24

Power GroundGND25

VCC26
VCC27
VCC28
VCC29
VCC30

Power Supply : +5V

* If the system already uses the 1, 2pins, it should keep under GND level

The voltage applied to those pins should not exceed -200mV.

17/31PageLTM185AT01MODEL

Note) Pin number starts from Left side

▼

#1

PRODUCT INFORMATION

PRODUCT INFORMATION

PCB

▼

Pin No. 1 Pin No. 30

#30

#1

Fig. Connector diagram

a. All GND pins should be connected together and also be connected to the LCD’s

metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.

#30

18/31PageLTM185AT01MODEL

5.2 LVDS Interface

5.2.1 Pixel data

PRODUCT INFORMATION

PRODUCT INFORMATION

DF14H-20P-1.25H

5

6

8

9

11

12

14

15

17
18

Note :

The LCD Module uses a 100ohm resistor between positive and negative lines of each receiver input.

19/31PageLTM185AT01MODEL

5.2.2 Timing Diagrams of LVDS For Transmitting

LVDS Receiver : Integrated T-CON

PRODUCT INFORMATION

PRODUCT INFORMATION

20/31PageLTM185AT01MODEL

5.3 Back Light Unit

Upper

Lower

Connect

or

Part No.

PRODUCT INFORMATION

PRODUCT INFORMATION

High VoltageRedHot – 11
GroundWhiteCold – 12
High VoltageRedHot – 11
GroundWhiteCold – 12

Yeonho 35001HS-02L or equivalent

FunctionColorInputPin No.

21/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

DATA SIGNAL

COLOR

BASIC

COLOR

GRAY

SCALE

OF

RED

GRAY

SCALE

OF

GREEN

GRAY

SCALE

OF

BLUE

DISPLAY

(8bit)

MAGENT

A

DARK

↑

↓

LIGHT

DARK

↑

↓

LIGHT

DARK

↑

↓

LIGHT

G

G0R7R6R5R4R3R2R1R0

G3

2G1

G

G

G6

7

5G4

BLUEGREENRED

GRAY
SCALE
LEVEL

B7B6B5B4B3B2B1B0

-000000000000000000000000BLACK

-111111110000000000000000BLUE

-000000001111111100000000GREEN

-111111111111111100000000CYAN

-000000000000000011111111RED

-111111110000000011111111

-000000001111111111111111YELLOW

-111111111111111111111111WHITE
R0000000000000000000000000BLACK
R1000000000000000000000001
R2000000000000000000000010

::::::::::::::::::
::::::::::::::::::

::::::::::::::::::
::::::::::::::::::

::::::::::::::::::
::::::::::::::::::

R3~

R252

R253000000000000000011111101
R254000000000000000011111110
R255000000000000000011111111RED

G0000000000000000000000000BLACK
G1000000000000000100000000
G2000000000000001000000000

G3~

G252

G253000000001111110100000000
G254000000001111111000000000
G255000000001111111100000000GREEN

B0000000000000000000000000BLACK
B1000000010000000000000000
B2000000100000000000000000

B3~

B252

B253111111010000000000000000
B254111111100000000000000000
B255111111110000000000000000BLUE

Note (1) Definition of Gray :

Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)

Input Signal : 0 = Low level voltage, 1 = High level voltage

22/31PageLTM185AT01MODEL

6. Interface Timing

6.1 Timing Parameters ( DE only mode )

PRODUCT INFORMATION

PRODUCT INFORMATION

NOTEUnitMAX.TYP.MIN.SYMBOLITEMSIGNAL

Clock

Hsync

Vsync

Frequency

C

H

V

Active

Vertical

Display

Period

VD

Display Term

Vertical

Total

VB

Active

Horizontal

Display

Period

HD

Display Term

Horizontal

Total

H

Note (1) This product is DE only mode. The input of Hsync & Vsync signal does

not have an effect on normal operation.

(2) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system

-MHz90.4272.3356.661/T

-KHz59.2547.4037.13F

-Hz756047F

-Lines768768768T

-lines948790776T

-Clocks136613661366T

-clocks183015261446T

(3) Internal Vcc = 3.3V

23/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

6.2 Timing diagrams of interface signal ( DE only mode )

T

V

T

VD

DE

T

H

T

HD

DE

D

CLK

T

VB

T

C

DATA

SIGNALS

D

CLK

DISPLAY

DATA

T

C

T

CH

T

CL

0.5
V

CC

T

DS

T

DH

0.5
V

CC

T

ES

DE

0.5
V

CC

24/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

6.3 Power ON/OFF Sequence

To prevent a latch-up or DC operation of the LCD Module, the power on/off sequence
should be as the diagram below.

300㎲

≤T1≤≤≤≤10msec

㎲㎲㎲≤≤≤

0≤≤≤≤T2≤≤≤≤50msec
0≤≤≤≤T3≤≤≤≤50msec

1sec≤≤≤≤T4

Back-Light

(Recommended)

500msec≤≤≤≤T5
100msec≤≤≤≤T6

T1 : VDDrising time from 10% to 90%
T2 : The time from VDDto valid data at power ON.
T3 : The time from valid data off to VDDoff at power Off.
T4 : VDDoff time for Windows restart
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.

 The supply voltage of the external system for the Module input should be the same

as the definition of VDD.

 Apply the lamp voltage within the LCD operation range. When the back light turns on

before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.

 In case of VDD= off level,

please keep the level of input signals low or keep a high impedance.

 T4 should be measured after the Module has been fully discharged between power off

and on period.

 Interface signal should not be kept at high impedance when the power is on.

25/31PageLTM185AT01MODEL

6.4 VDD Power Dip Condition

V

DD

90%

PRODUCT INFORMATION

PRODUCT INFORMATION

T

d

80%

V

CC

GND

4.5V ≤ VDD≤ 5.5V

If VDD(typ.) x 80% ≤ VCC≤ VDD(typ) x 90%, then 0<Td ≤20msec

Note (1) The above conditions are for the glitch of the input voltage.

(2) For stable operation of an LCD Module power, please follow them.

i.e., if typ VDD x 80% ≤ Vcc ≤ typ VDD x 90%, then Tdshould be less than 20ms.

26/31PageLTM185AT01MODEL

7. Outline Dimension

[ Refer to the next page ]

PRODUCT INFORMATION

PRODUCT INFORMATION

27/31PageLTM185AT01MODEL

PRODUCT INFORMATION

8. General Precautions

PRODUCT INFORMATION

8.1 Handling

(a) When the module is assembled, it should be attached to the system firmly

using all mounting holes. Be careful not to twist and bend the module.

(b) Because the inverter uses high voltages, it should be disconnected from power

source before it is assembled or disassembled.

(c) Refrain from strong mechanical shock and / or any force to the module.

In addition to damage, it may cause improper operation or damage to the module
and CCFT back light.

(d) Note that polarizer films are very fragile and could be damaged easily.

Do not press or scratch the surface harder than a HB pencil lead.

(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long

time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA (Isopropyl Alcohol) or Hexane.

Do not use Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid

or Methyl chloride. It might cause permanent damage to the polarizer due to chemical

reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away

from the eyes or mouth . In case of contact with hands, legs or clothes, it must

be washed away with soap thoroughly.
(i) Protect the Module from static, or the CMOS Gate Array IC would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the

incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not pull or fold the lamp wire.
(m) Do not adjust the variable resistor located on the Module.
(n) Protection film for polarizer on the Module should be slowly peeled off just before use

so that the electrostatic charge can be minimized.
(o) Pins of I/F connector should not be touched directly with bare hands.

29/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

8.2 Storage

(a) Do not leave the Module in high temperature, and high humidity for a long time.

It is highly recommended to store the Module with temperature from 0 to 35℃

and relative humidity of less than 70%.
(b) Do not store the TFT-LCD Module in direct sunlight.
(c) The Module should be stored in a dark place. It is prohibited to apply sunlight or

fluorescent light in storing.

8.3 Operation

(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the item 6.3

"Power on/off sequence"

(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic

interference should be done by system manufacturers. Grounding and shielding
methods may be important to minimize the interference.

(d) The cable between the back light connector and its inverter power supply should

be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of lamp(CCFT) and
may require higher startup voltage(Vs).

8.4 Operation Condition Guide

(a) The LCD product should be operated under normal conditions.

Normal condition is defined as below;

- Temperature : 20±15℃

- Humidity : 65±20%

- Display pattern : continually changing pattern (Not stationary)

(b) If the product will be used in extreme conditions such as high temperature,

humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.

30/31PageLTM185AT01MODEL

PRODUCT INFORMATION

PRODUCT INFORMATION

8.5 Others

(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection

of electrode.

(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,

input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.

(d) If the Module keeps displaying the same pattern for a long period of time,

the image may be "stuck" to the screen.
To avoid image sticking, it is recommended to use a screen saver.

(e) This Module has its circuitry PCB's on the rear side and should be handled

carefully in order not to be stressed.

(f) Please contact SEC in advance when you display the same pattern for a long time.

31/31PageLTM185AT01MODEL
