Page 1
Global LCD Panel Exchange Center
Customer :Shinco DATE : Nov. 04, 2008
www.panelook.com
Product Information
Product Information
SAMSUNG TFT--
SAMSUNG TFT
SAMSUNG TFT-LCD
MODEL
MODEL
MODEL : LTA320AP02
NOTE :
Customer’’
Customer
LCD
LCD
: LTA320AP02
: LTA320AP02
hwwyv}hlkGi
s Approval
s Approval
DATE
Nov .04, 2008
zpnuh{|yl
DATE
wylwhylkGi
DATE
Nov .04, 2008
LCD Business
Samsung Electronics Co . , LTD.
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1/ 27
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Contents
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------ (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Inverter Input & Specification

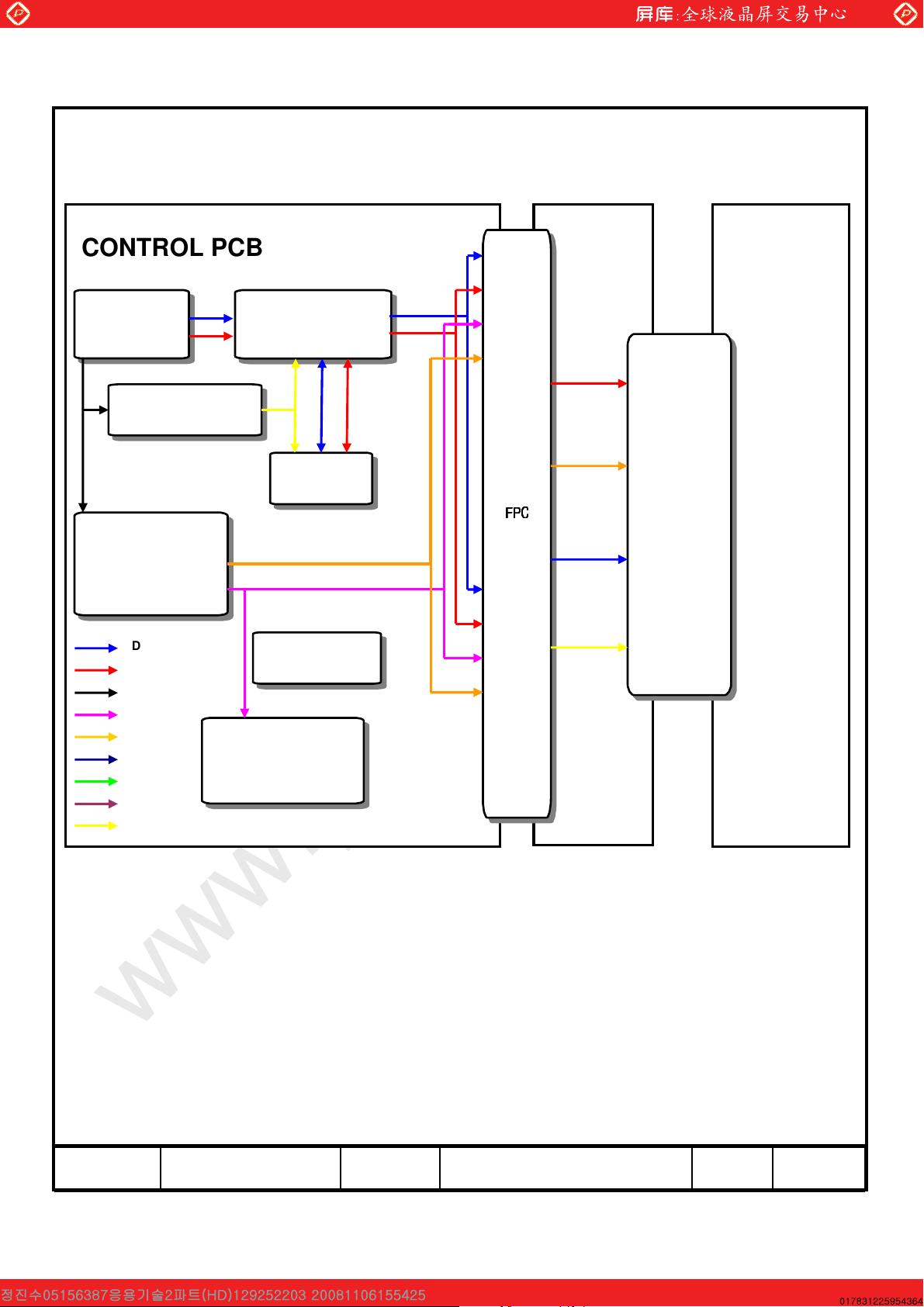

4. Block Diagram ------------------------------------------------------------------------------------------- (12)
5. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
5.1 Input Signal & Power
5.2 Inverter Input Pin Configuration

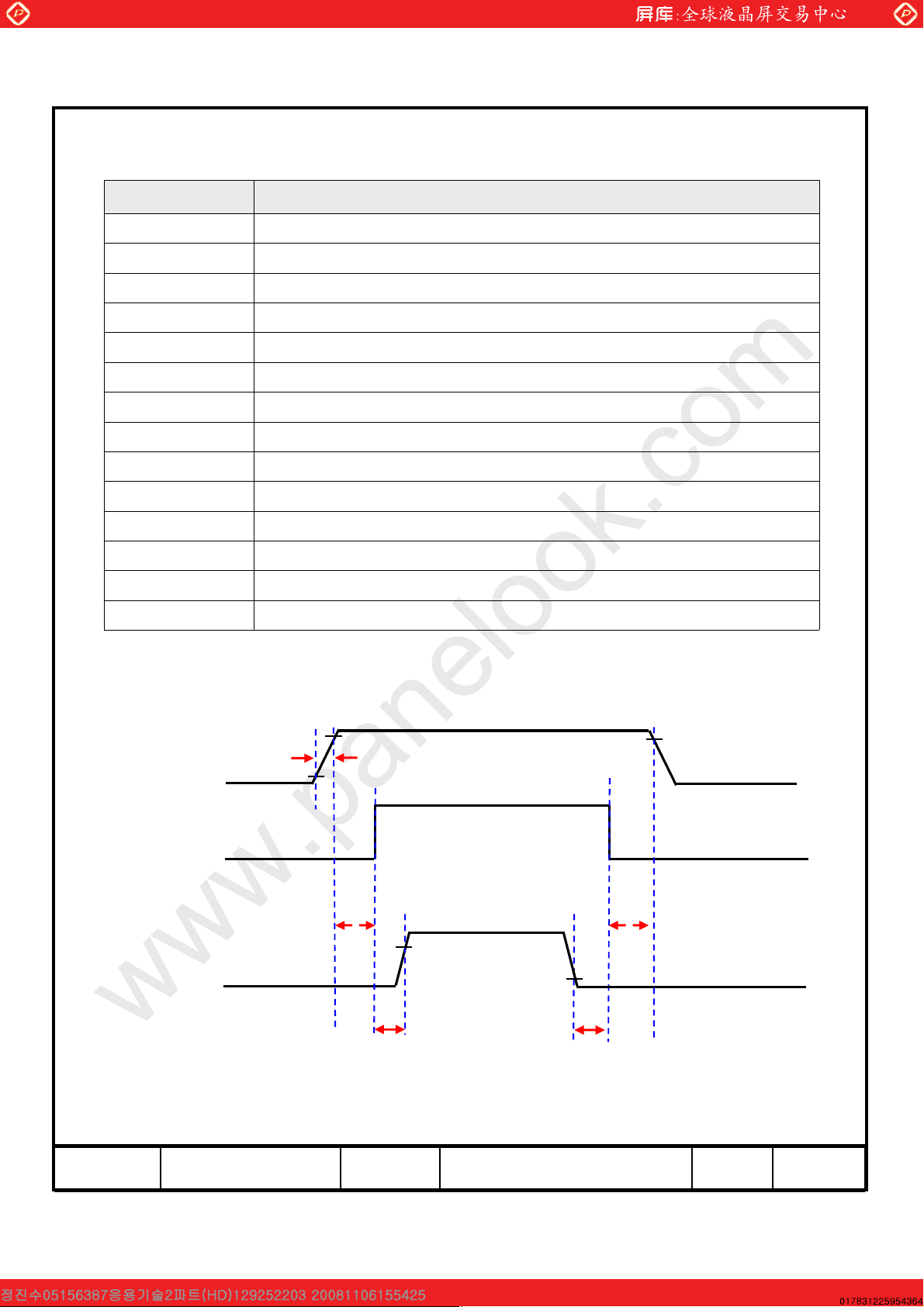

5.3 Inverter Input Power Sequence
5.4 LVDS Interface
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing ----------------------------------------------------------------------------------------- (18)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of interface Signal (DE only mode)

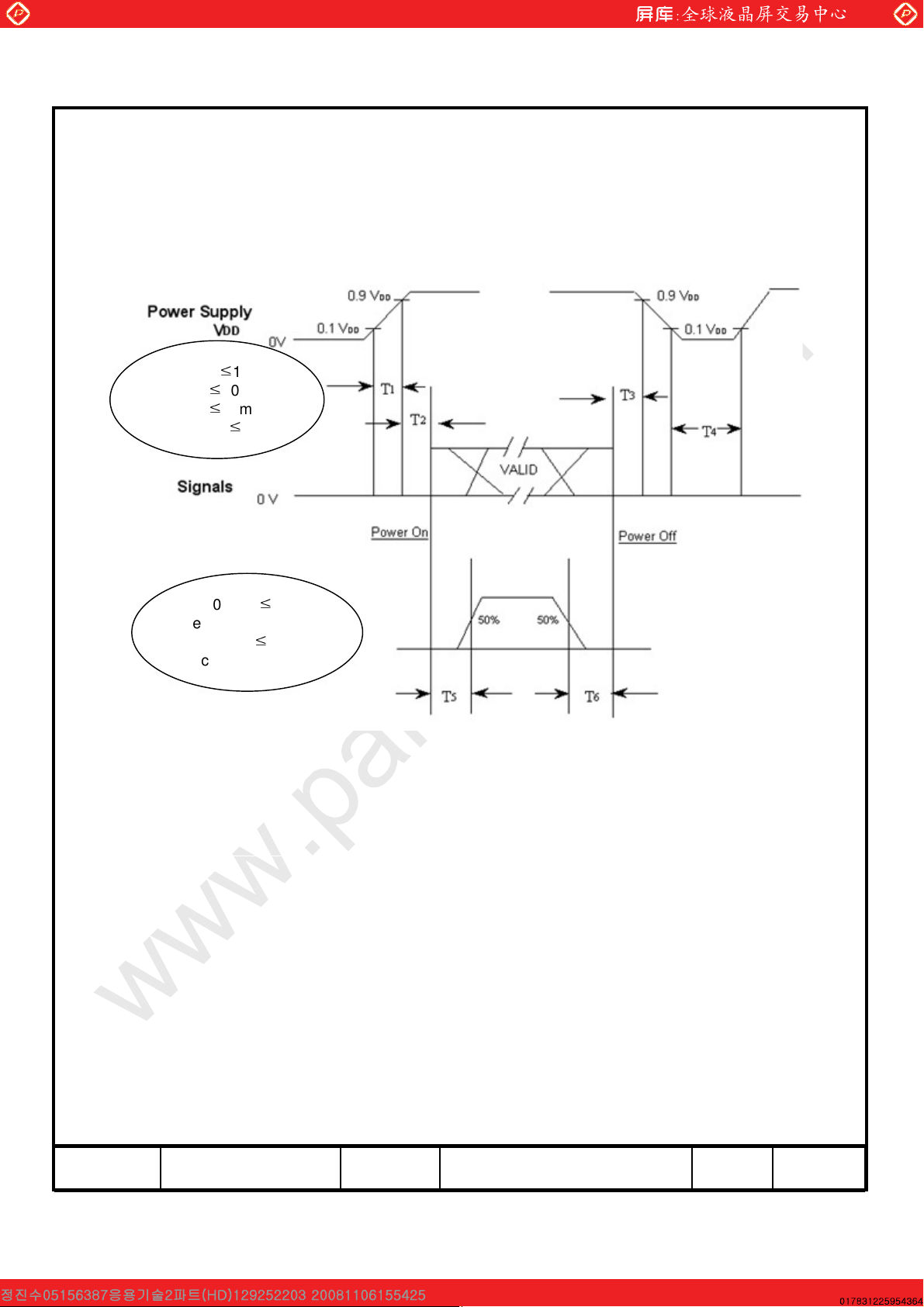

6.3 Power ON/OFF Sequence

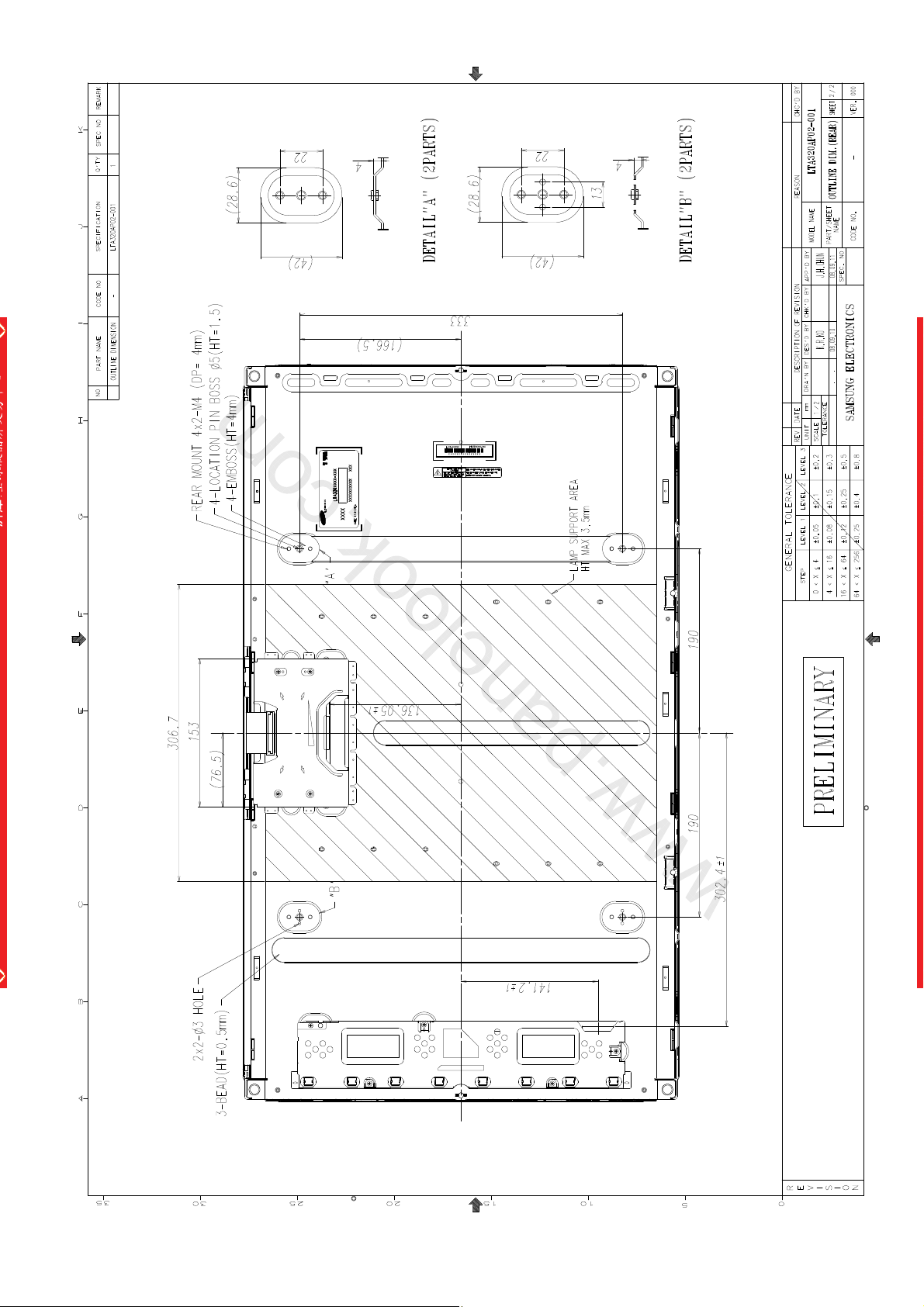

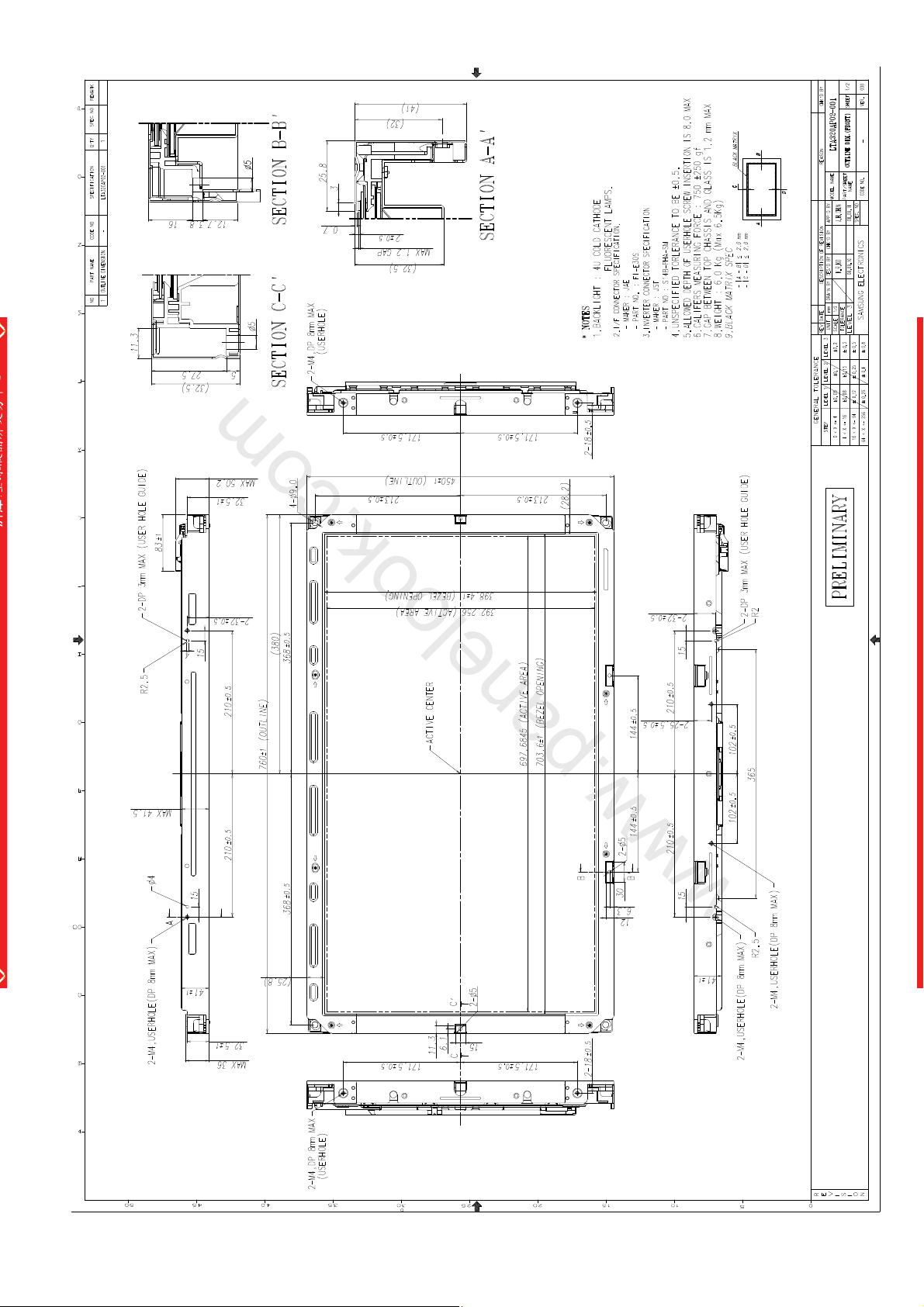

7. Outline Dimension -------------------------------------------------------------------------------------- (21)

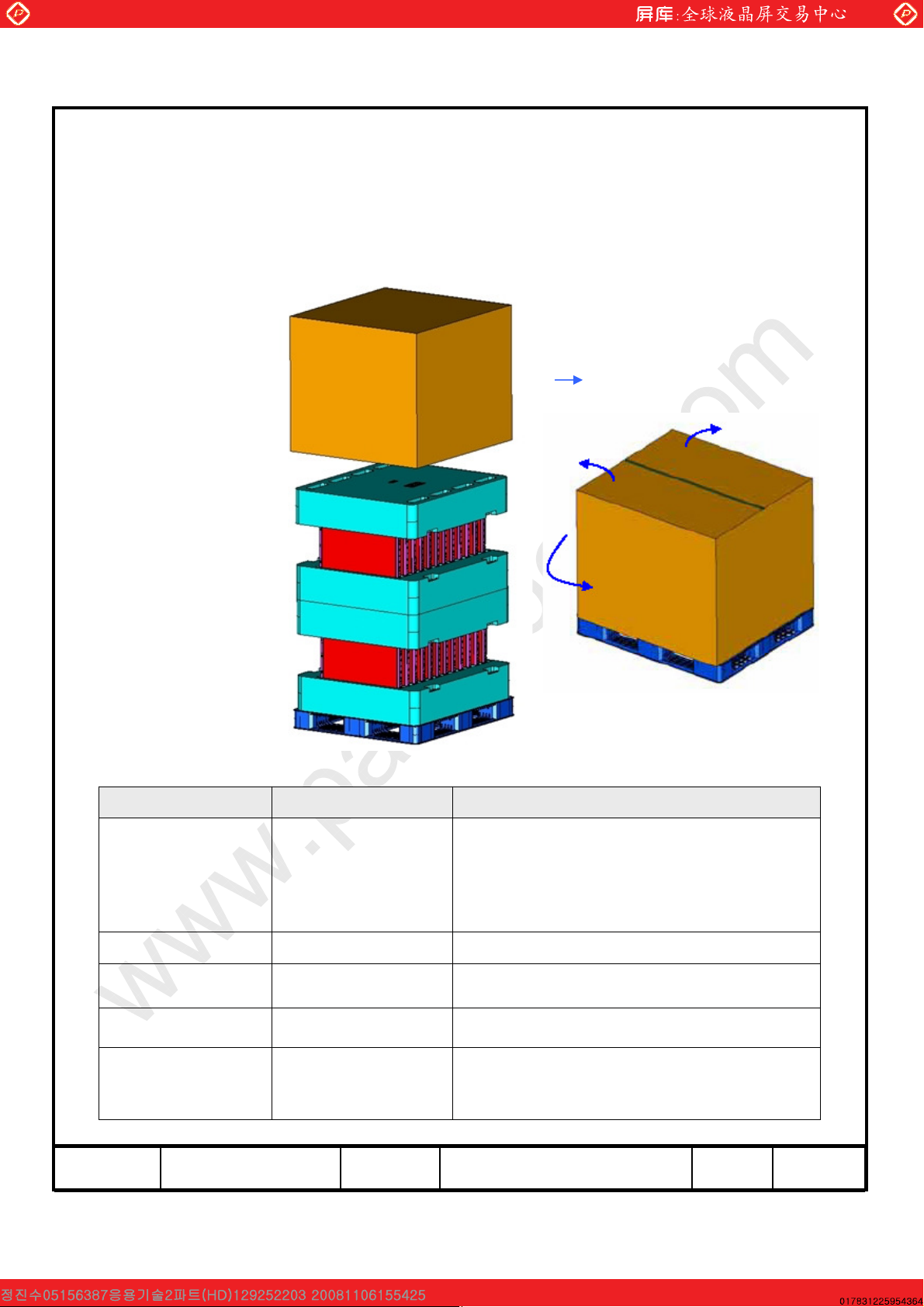

8. Packing --------------------------------------------------------------------------------------------------- (23)

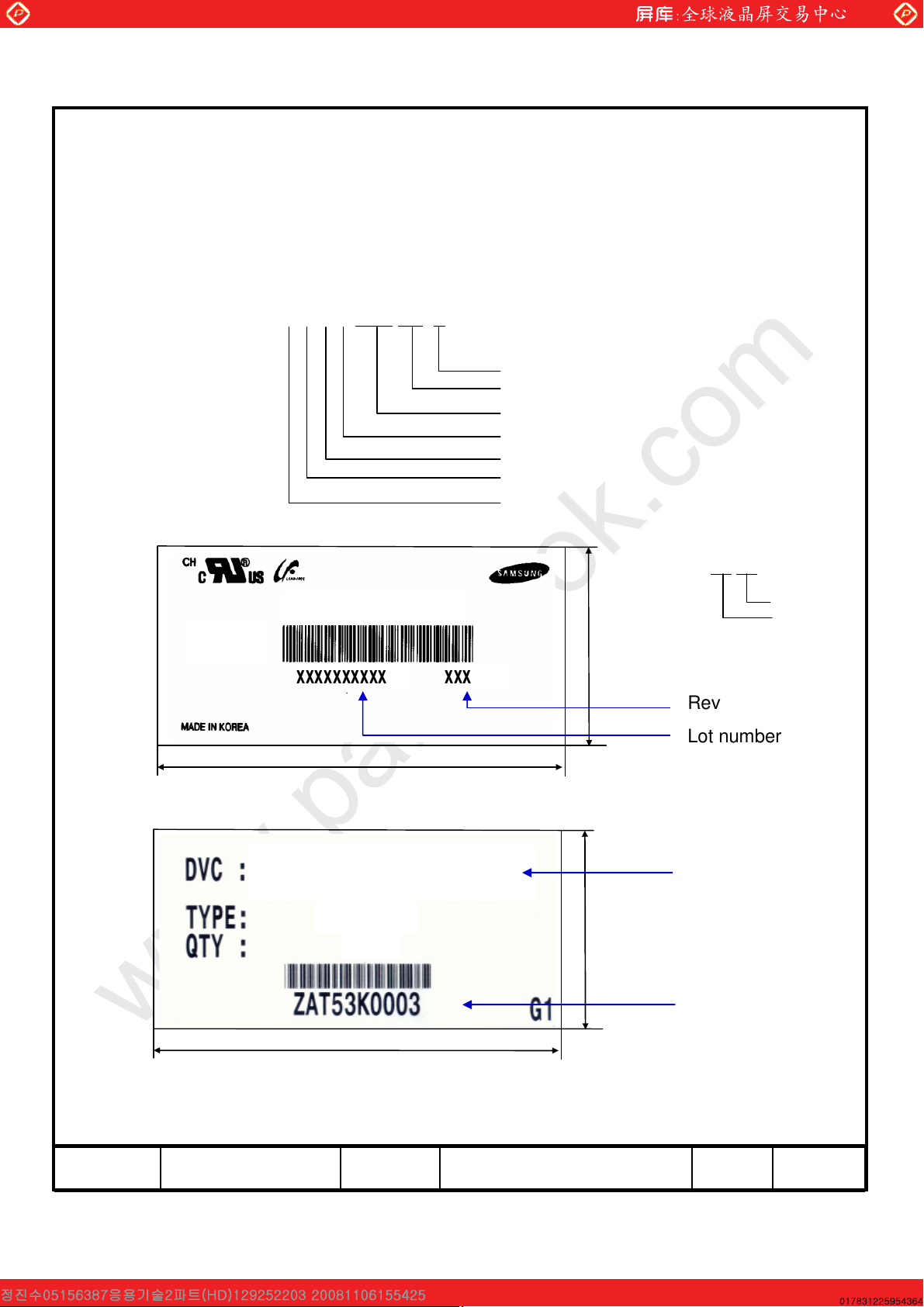

9. Marking & Others --------------------------------------------------------------------------------------- (24)
10. General Precaution ----------------------------------------------------------------------------------- (25)
10.1 Handling
10.2 Storage
10.3 Operation
10.4 Operation Condition Guide
10.5 Others
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2/ 27
www.panelook.com
Page 3
Global LCD Panel Exchange Center
Revision History
www.panelook.com
Date
Sep. 24,
2008
Oct. 09,
2008
Nov.4
2008
Rev.
No
000 all First issued
002
Page Summary
Inverter input current
TBDÆÆÆÆ Max 3.4A (initial), 3.0A (after 2Hr aging)
12001
4,10
12
Lamp Current
TBDÆÆÆÆ 12 (min), 12.5 (typ), 13 (max)
Lamp Frequency
TBDÆÆÆÆ 55 (min), 57.5 (typ), 60(max)
TBDÆÆÆÆ Updated item
Weight, Surface treatment, Current of power supply
Inverter Input current
1)Start In rush
Max:3.4AÆÆÆÆ3.75A
2)Saturation
Max:3.0AÆÆÆÆ3.3A
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
General Description
Description
LTA320AP02 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit.
The resolution of a 32.0” is 1366 x 768 and this model can display up to 16.7 Million
colors with wide viewing angle of 89¶ or higher in all directions. This panel is intended to
support applications to provide a excellent performance for Flat Panel Display such as
Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast & aperture ratio
PVA (Patterned Vertical Align) mode
Wide viewing angle (·178¶)
High speed response
HD resolution (16:9)
Low Power consumption
Direct U-Type 4 CCFLs (Cold Cathode Fluorescent Lamp)
DE (Data Enable) mode
LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
www.panelook.com
General Information
Items Specification Unit Note
Module Size
Weight 7,500Max) g
Pixel Pitch 0.51075(H) x 0.51075(V) mm
Active Display Area 697.68(H) x 392.25(V) mm
Surface Treatment Haze 7%,Hard-coating(3H) -
Display Colors 8 bit - 16.7M colors
Number of Pixels 1366 x 768 pixel
Pixel Arrangement RGB Horizontal stripe -
Display Mode Normally Black -
Luminance of White 450 (Typ.) cd/m
760.0(H
) x 450.0(V
TYP
50.5 (D
MAX
)
TYP
)
mm
2
·
1.0mm
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/ 27
www.panelook.com
Page 5
Global LCD Panel Exchange Center
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
www.panelook.com
Power Supply Voltage V
Storage temperature T
Glass surface
Center T
DD
STG
OPR
GND-0.3 13.2 V (1)
-20 60
050
temperature
(Operation)
T. Uniformity
Shock ( non - operating ) S
Vibration ( non - operating ) V
Note (1) Ta= 25 ·2 ¶C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta
b. Relative Humidity is 90% or less. (Ta > 39
c. No condensation
(3) 11ms, sine wave, one time for
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
˺39¶
C)
·
X, ·Y, ·Z axis
T
nop
nop
-10
- 50 G (3)
- 1.5 G (4)
¶
C)
(2)
(2),(5)
90
Fig. Temperature and Relative humidity range
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
5/ 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
(5) Definition of test point
www.panelook.com
5mm
5mm
12
5
LCD Module (Active)
3
T should be less than 10 (ƸT = | T
T
: Temperature of the center of the glass surface (Test point 5)
OPR
OPR–TMAX
T1~ T4 : Temperature of each edge of the glass surface
T
: The highest temperature of the glass surface
MAX
4
| )
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/ 27
www.panelook.com
Page 7
Global LCD Panel Exchange Center
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment :
Item Symbol Condition Min. Typ. Max. Unit Note
TOPCON RD-80S,TOPCON SR-3, ELDIM EZ-Contrast
(Ta = 25
www.panelook.com
·2¶
C, VDD=12V, fv= 60Hz, f
=75MHz, Max Dimming=3.3V)
DCLK
Contrast Ratio
(Center of screen)
Response
Time
Luminance of White
(Center of screen)
Color
Chromaticity
(CIE 1931)
Color Gamut - - 72 - %
Color Temperature - - 10,000 - K
Viewing
Angle
Brightness Uniformity
(9 Points)
G-to-G
(Avg)
Red
Green
Blue
White
Hor.
Ver.
C/R
Tg - 8 -
Y
L
Rx
Ry 0.335
Gx 0.287
Gy 0.614
Bx 0.146
By 0.071
Wx 0.280
Wy 0.290
θ
L
θ
R
θ
U
θ
D
B
uni
Normal
θ
θ
Viewing
Angle
C/R˻10
- 4,000 -
- 450 - cd/m
0.636
TYP.
-0.03
79 89 -
79 89 -
79 89 -
79 89 -
--25%
TYP.
+0.03
Degree
RD-80S
2
EZ-Contrast
(1)
SR-3
(3)
(4)
SR-3
(5),(6)
SR-3
(5)
SR-3
(5)
SR-3
(6)
(2)
SR-3
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
. Max. Dimming = 3.3V
·2 ¶
. Environment condition : Ta = 25
C
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/ 27
www.panelook.com
Page 8
Global LCD Panel Exchange Center
G
www.panelook.com
Photo detector Field
SR-3 1
RD-80S 2
TFT - LCD Module
- Definition of test point
228 683 1138
Photo detector
ദ
ദ
Field
The center of the screen
SR-3 : 50
RD-80S : 50
EZ-Contrast :0
LCD Panel
༃
128
384
640
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point
CR
/
=
G
ྡྡྡྡ
ྞྞྞྞ
max
ྠྠྠྠ
ྜྷྜྷྜྷྜྷྜ
min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
ྟྟྟྟ
ྜ
ྜྜ
ྙྙྙྙྚྚྚྚྛྛྛྛ
Active Area
Test Point
㽶
of the panel
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/ 27
www.panelook.com
Page 9
Global LCD Panel Exchange Center
Note (2) Definition of 9 points brightness uniformity ( Test pattern : Full White )
www.panelook.com
Buni
BB
=∗
(max min)
100
B
−
max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data
Optical Instruments
Response
100%
Black (data
off)
T
R
White (data on)
90%
10%
0%
nTTnGaGhGGGGnGGGOPG
Black (data off)
T
F
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point
㽶
Note (6) Definition of Viewing Angle
ı
: Viewing angle range (C/R
10)
㽶
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9/ 27
www.panelook.com
Page 10
Global LCD Panel Exchange Center

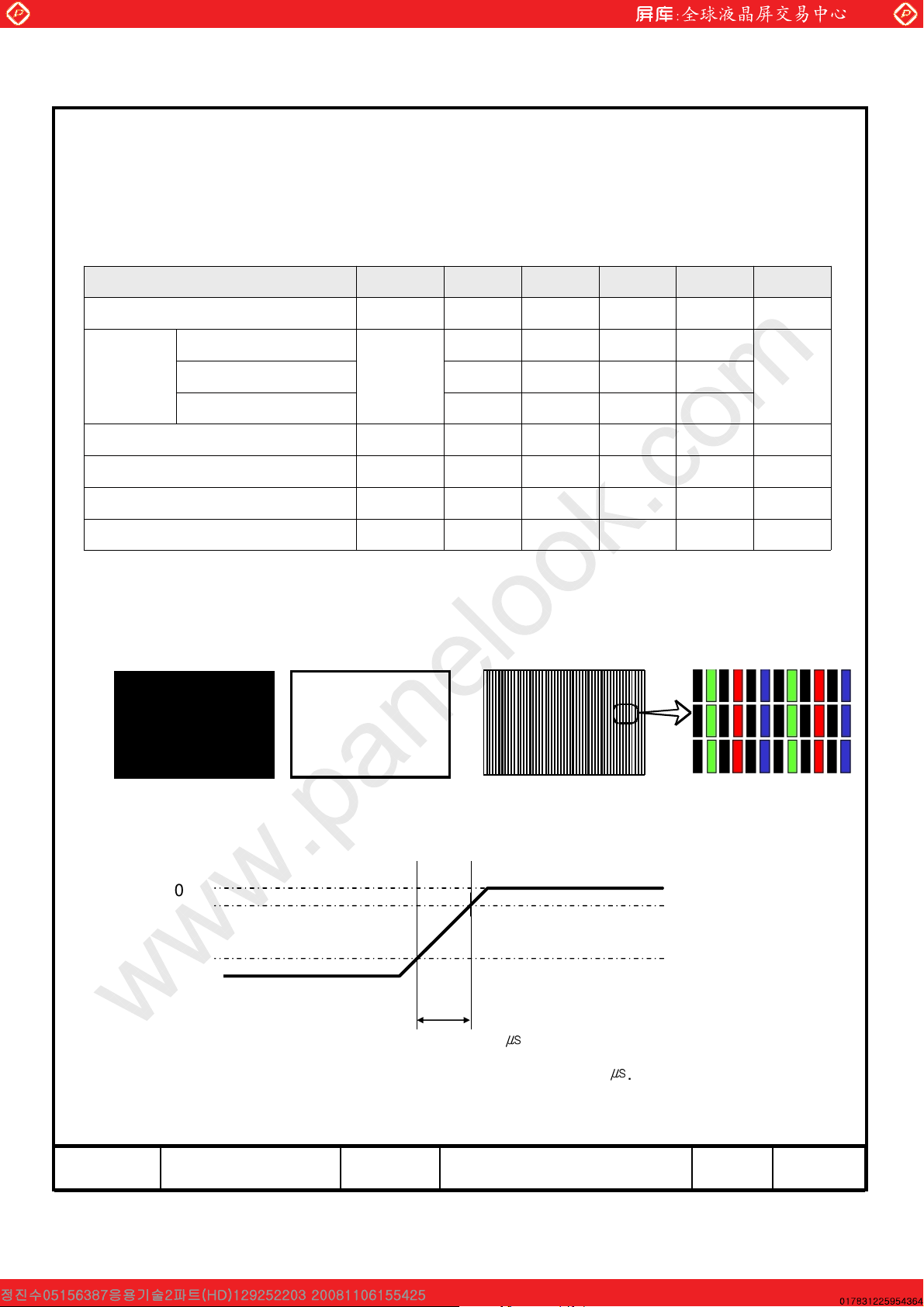

3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Item Symbol Min. Typ. Max. Unit Note
www.panelook.com
Ta = 25¶C · 2 ¶C
Voltage of Power Supply V
Current
of Power
Supply
(a) Black
(b) White - 750 - mA
(c) N-pattern - 800 - mA
Vsync Frequency f
Hsync Frequency f
Main Frequency f
Rush Current I
DD
I
DD
V
H
DCLK
RUSH
10.8 12.0 13.2 V (1)
- 590 - mA
-60-Hz
-48-kHz
-75-MHz
--4A(4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) f
V=60Hz, fDCLK = 78MHz, V
= 12.0V, DC Current.
DD
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) N-pattern
(2),(3)
(4) Measurement Conditions
V
100%
DD
90%
10%
GND
T
=470
༕
. is 470༕.
RUSH
Rush Current I
RUSH
can be measured when T
RUSH
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
10 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center

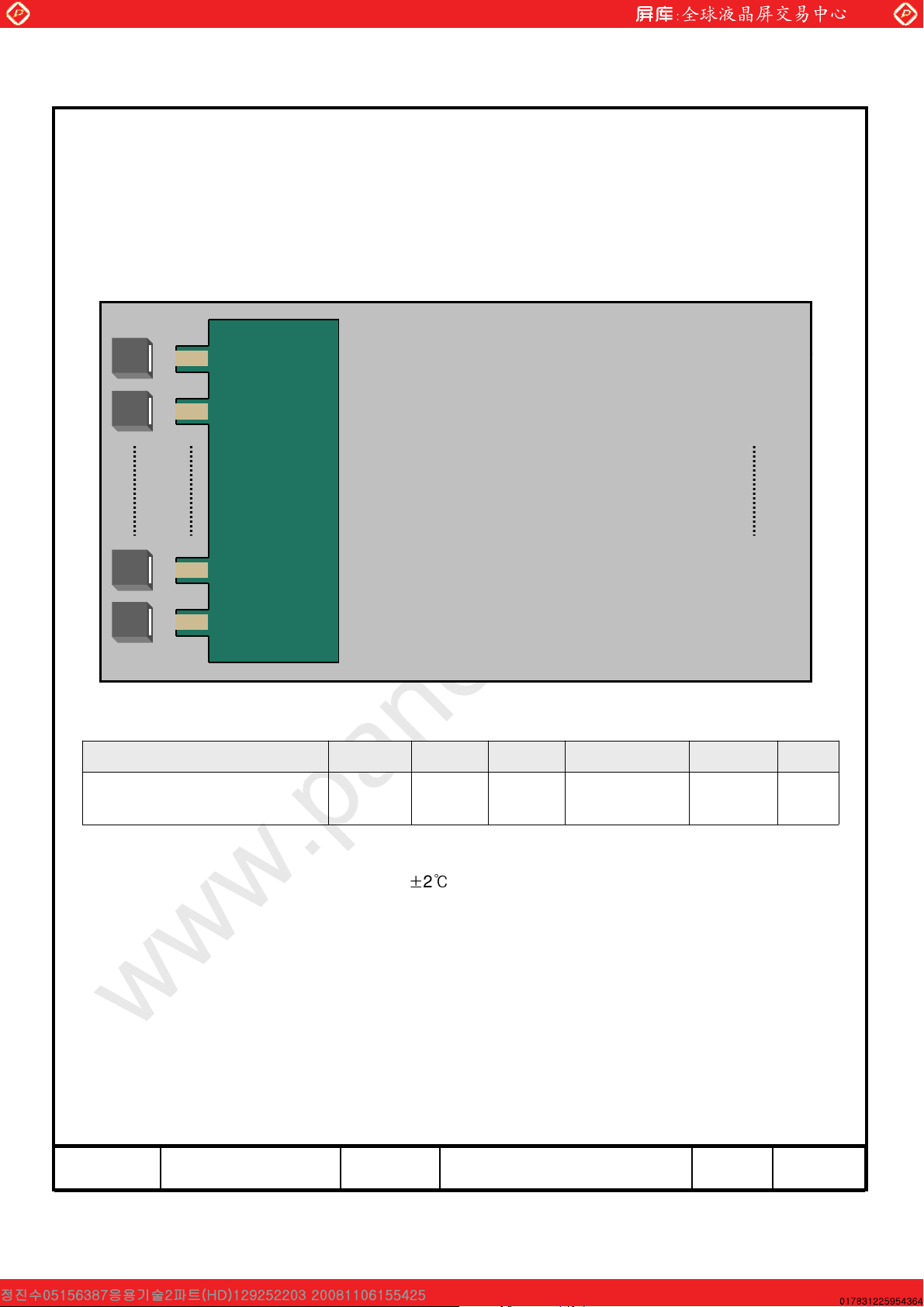

3.2 Back Light Unit
The back light unit contains 4 direct-lighting U-type CCFLs ( Cold Cathode Fluorescent
Lamp ). The characteristics of lamps are shown in the following tables.
Socket
www.panelook.com
Ta=25 · 2¶C
HOT 1
HOT 2
COLD 1
COLD 2
LCD
Inverter
Module
HOT 7
HOT 8
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr 50,000 - - Hour (1)
COLD 7
COLD 8
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value.
·2
[Operating condition : Ta = 25
, IL= TBD , For single lamp only. ]
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11 / 27
www.panelook.com
Page 12
Global LCD Panel Exchange Center
3.3 Inverter Input Condition & Specification
Items Symbol Conditions
www.panelook.com
Specifications
Unit Note
Min. Typ. Max.
Input
Voltage
Input
Current
Lamp
Current
Frequency F
Backlight
On/Off
Dimming
Control
Vin - 22 24 26 V Ta=25
- - 3.75
A
--3.3 (2)
12.0 12.5 13.0 mArms (2)
I
RUSH
I
LAMP
Vin = 24V
Vdim = 3.3V
Vin = 24V
O
Vdim = 3.3V
Vin = 24V 55 57.5 60 kHz -
ON Vin = 24V 2.4 - 5.25
V(3)
OFF Vin = 24V 0 - 0.8
Max Lum 3.3 - -
V
DIM
V(4)
Min. Lum - - 0
(1)
·2 ¶
C
Note) Power Consumption is measured when 450[cd/m2] of luminance which is the typical luminance.
Lamp Current is measured at the point before Lamp.
(1) Max Value of the Power Consumption is measured during initial turn-on time of the backlight.
(2) Max Value of the Power Consumption is measured after 120 min warm-up.
(3) Inverter pin NO.12 is for backlight On/Off.
(4) Inverter pin NO.13 is for dimming control.
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
12 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
4. Block Diagram
CONTROL PCB
www.panelook.com
USER CONNECTOR
DC/DC STEP DOWN
DC/DC CONVERTOR
(AV
DD/VDD/VON/VOFF
DATA
CONTROL
VIN(5.0V)
AV
DD
VON/V
OFF
V
COM
Y VOLTAGE
VDD(3.3V)
VDD(2.5V)
TIMING CONTROLLER
MEMORY(DCC)
ڡګڞ
ڡګڞ
ڡګڞڡګڞ
)
GAMMA-GENERATOR
V
-GENERATOR
COM
SOURCE
PCB
DATA DRIVER
IC
LTA320AP
PANEL
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 / 27
www.panelook.com
Page 14
Global LCD Panel Exchange Center
5. Input Terminal Pin Assignment
5.1. Input Signal & Power Connector : FI-E30S (JAE)
PIN No. Description PIN No. Description
1 No Connection (Note1) 16 GND
2 No Connection (Note1) 17 RxIN3-
3 No Connection (Note1) 18 RxIN3+
4GND19GND
5 RxIN0- 20 GND
6 RxIN0+ 21 LVDS OPTION (Note 2)
7GND22No Connection (Note1)
8 RxIN1- 23 GND
www.panelook.com
9 RxIN1+ 24 GND
10 GND 25 No Connection (Note1)
11 RxIN2- 26 Vin
12 RxIN2+ 27 Vin
13 GND 28 Vin
14 RxCLK- 29 Vin
15 RxCLK+ 30 Vin
Note1) No Connection: This PINS are only used ONLY for SAMSUNG.
˧
Note2) LVDS OPTION : If this PIN is HIGH (3.3 V)
LOW (GND)
SEQUENCE : On = V
DD(T1)
˻˻˻˻
LVDS Option
OFF = Interface Signal(T3)
Normal LVDS format
˧
JEIDA LVDS format
˻˻˻˻
Interface Signal(T2)
˻˻˻˻
LVDS Option
˻˻˻˻
VDD
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 / 27
www.panelook.com
Page 15
Global LCD Panel Exchange Center

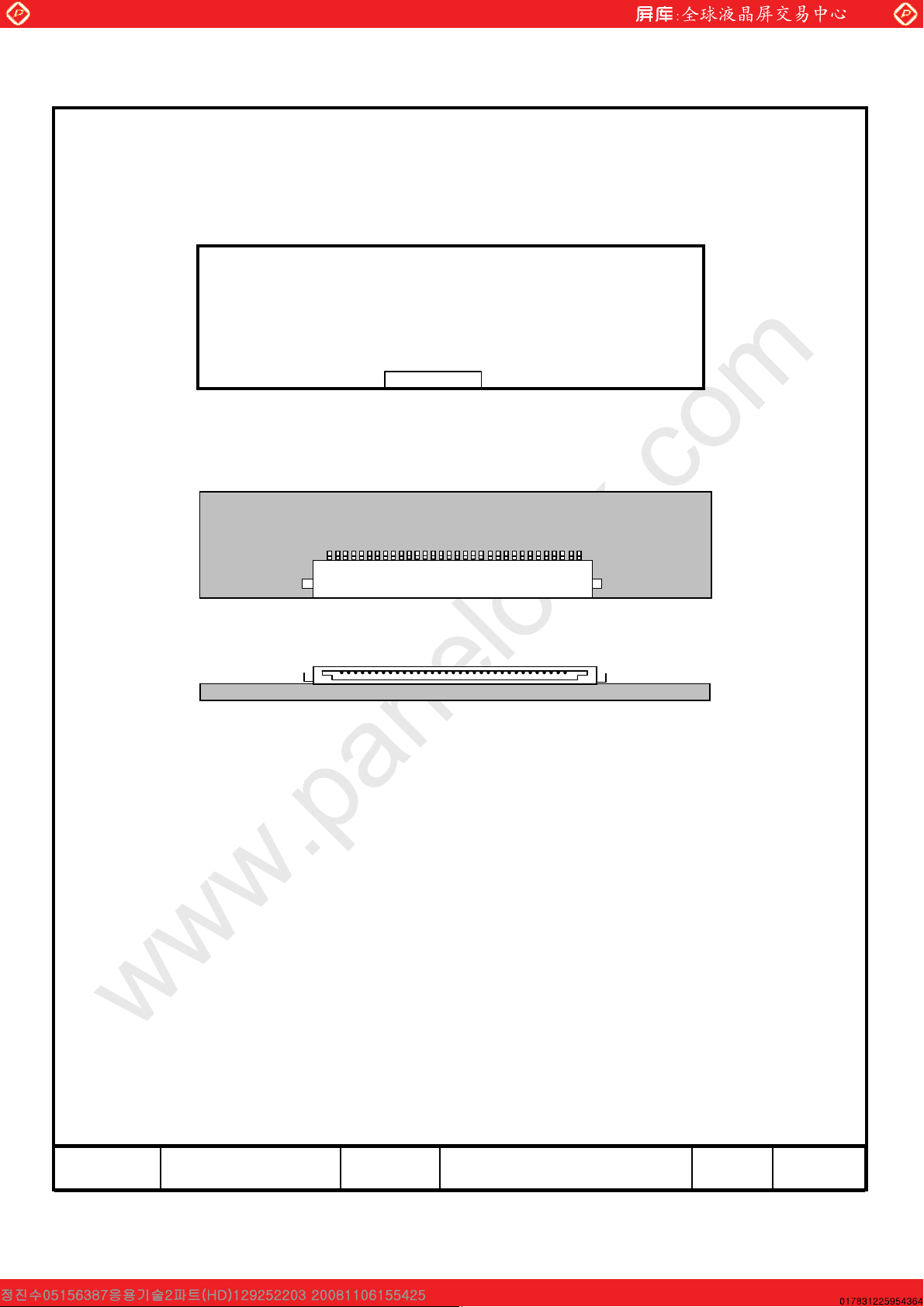

Note(1) Pin number starts from Left side
www.panelook.com
PCB
Pin No. 1 Pin No. 30
#1 #30
#1
#30
Fig. Connector diagram
a. Power GND pins should be connected to the LCD’s metal chassis.
b. All power input pins should be connected together.
c. All NC pin should be separated from other signal or power.
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 / 27
www.panelook.com
Page 16
Global LCD Panel Exchange Center
5.2. Inverter Input Pin Configuration
Pin No. Pin Configuration (FUNCTION)
1 Vin (24 V)
2 Vin (24 V)
3 Vin (24 V)
4 Vin (24 V)
5 Vin (24 V)
6GND
7GND
8GND
www.panelook.com
Connector : S14B-PHA-SM-TB(LF) (JST)
9GND
10 GND
11 No Connection (DO NOT CONNECT)
12 Backlight On /Off [ON: 2.4 ~ 5.5 V, OFF: 0 ~ 0.8 V]
13 Dimming Control [ 0V: Min, 3.3V: Max ]
14 No Connection (DO NOT CONNECT)
5.3. Inverter Input Power Sequence
0.9 Vin
Vin (24V)
Dimming Control
( 0 ~ 3.3 V )
0.1 Vin
20msec [Min]
0.9 Vin
0.5sec [Min]
Backlight On/Off
2.4V(On level)
0.5sec [Min]
0.8V(Off level)
0.1sec [Min]
0.5sec [Min]
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 / 27
www.panelook.com
Page 17
Global LCD Panel Exchange Center
5.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format (JEIDA & VESA)
LVDS pin JEIDA -DATA VESA-DATA
TxIN/RxOUT0 R2 R0
TxIN/RxOUT1 R3 R1
TxIN/RxOUT2 R4 R2
www.panelook.com
TxOUT/RxIN0
TxOUT/RxIN1
TxOUT/RxIN2
TxIN/RxOUT3 R5 R3
TxIN/RxOUT4 R6 R4
TxIN/RxOUT6 R7 R5
TxIN/RxOUT7 G2 G0
TxIN/RxOUT8 G3 G1
TxIN/RxOUT9 G4 G2
TxIN/RxOUT12 G5 G3
TxIN/RxOUT13 G6 G4
TxIN/RxOUT14 G7 G5
TxIN/RxOUT15 B2 B0
TxIN/RxOUT18 B3 B1
TxIN/RxOUT19 B4 B2
TxIN/RxOUT20 B5 B3
TxIN/RxOUT21 B6 B4
TxIN/RxOUT22 B7 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT27 R0 R6
TxIN/RxOUT5 R1 R7
TxIN/RxOUT10 G0 G6
TxOUT/RxIN3
TxIN/RxOUT11 G1 G7
TxIN/RxOUT16 B0 B6
TxIN/RxOUT17 B1 B7
TxIN/RxOUT23 RESERVED RESERVED
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 / 27
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
COLOR
BASIC
COLOR
GRAY
SCALE
OF
RED
GRAY
SCALE
OF
GREEN
GRAY
SCALE
OF
BLUE
DATA SIGNAL
DISPLAY
(8bit)
R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7
BLACK 000000000000000000000000 -
BLUE 000000000000000011111111 -
GREEN 000000001111111100000000 -
CYAN 000000001111111111111111 -
RED 111111110000000000000000 -
MAGENTA111111110000000011111111 -
YELLOW 111111111111111100000000 -
WHITE 111111111111111111111111 -
BLACK 000000000000000000000000 R0
100000000000000000000000 R1
DARK
˦
˨
LIGHT
RED 111111110000000000000000 R255
BLACK 000000000000000000000000 G0
DARK
˦
˨
LIGHT
GREEN 000000001111111100000000 G255
BLACK 000000000000000000000000 B0
DARK
˦
˨
LIGHT
BLUE 000000000000000011111111 B255
010000000000000000000000 R2
:::::: :::::: ::::::
:::::: :::::: ::::::
101111110000000000000000 R253
011111110000000000000000 R254
000000001000000000000000 G1
000000000100000000000000 G2
:::::: :::::: ::::::
:::::: :::::: ::::::
000000001011111100000000 G253
000000000111111100000000 G254
000000000000000010000000 B1
000000000000000001000000 B2
:::::: :::::: ::::::
:::::: :::::: ::::::
000000000000000010111111 B253
000000000000000001111111 B254
RED GREEN BLUE
GRAY
SCALE
LEVEL
R3~
R252
G3~
G252
B3~
B252
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 / 27
www.panelook.com
Page 19
Global LCD Panel Exchange Center
6. Interface Timing
6.1 Timing Parameters ( DE only mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
www.panelook.com
Clock
Hsync F
Frequency
Vsync F
1/T
C
H
V
- 78 - MHz -
- 47.3 - KHz -
- 60 - Hz -
Active
Vertical
Display
Period
T
VD
- 768 - lines -
Display Term
Vertical
Total
T
V
- 838 - lines -
Active
Horizontal
Display
Period
T
HD
- 1366 - clocks -
Display Term
Horizontal
Total
T
H
- 1600 - clocks -
Note) This product is DE only mode. The input of Hsync & Vsync signal does
not have an effect on normal operation.
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal V
DD
= 3.3V
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 / 27
www.panelook.com
Page 20
Global LCD Panel Exchange Center

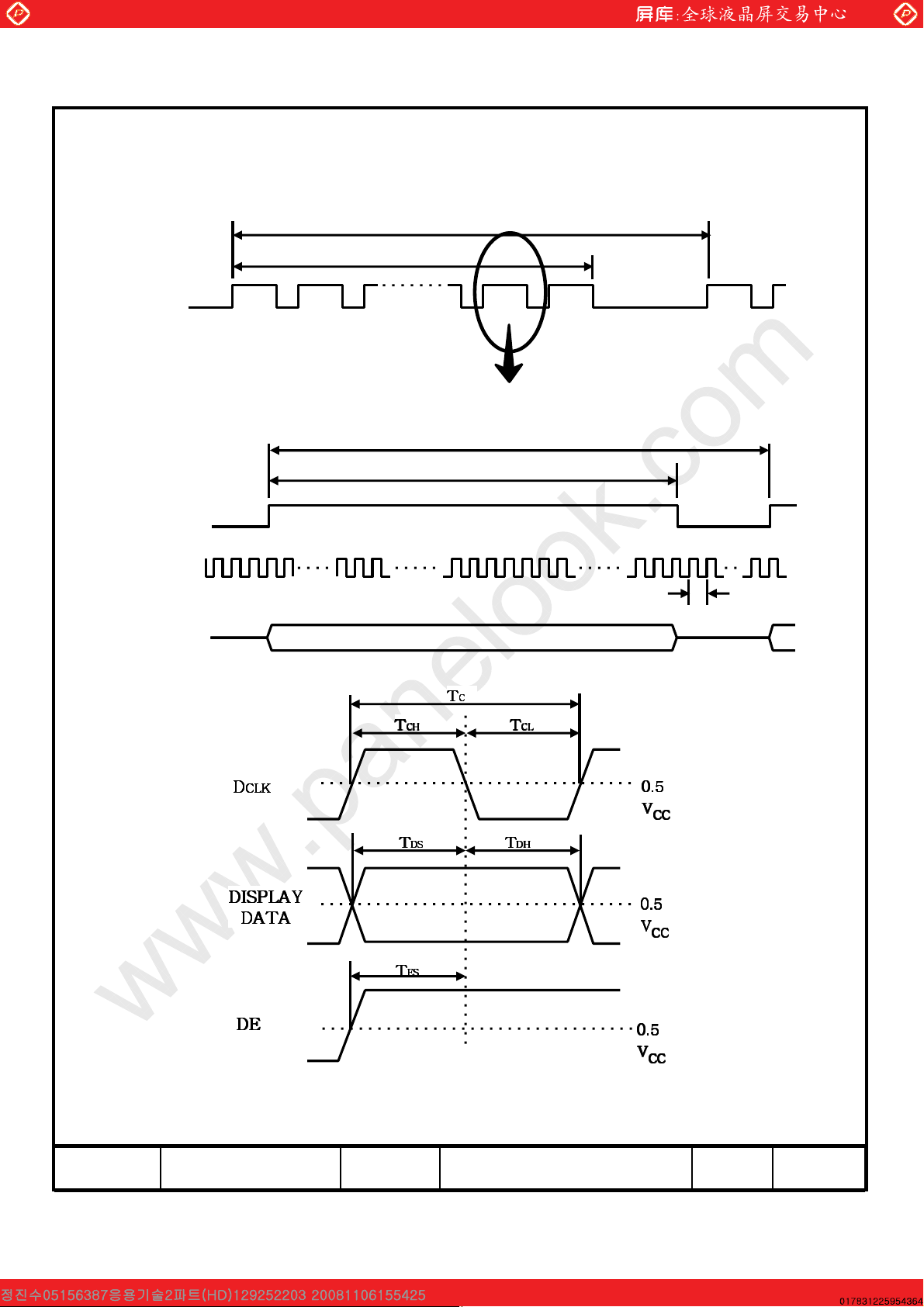

6.2 Timing diagrams of interface signal ( DE only mode )
DE
www.panelook.com
T
V
T
VD
T
H
DE
DCLK
DATA
SIGNALS
kkkk
jsr
jsr
jsrjsr
kpzwsh
kpzwsh
kpzwshkpzwsh
kh{h
kh{h
kh{hkh{h
T
HD
T
C
{{{{
jjjj
{{{{
jo
jo
jojo
{{{{
kz
kz
kzkz
{{{{
js
js
jsjs
WU\G
WU\G
WU\GWU\G
}}}}
jj
jj
jjjj
{{{{
ko
ko
koko
WU\G
WU\G
WU\GWU\G
}}}}
jj
jj
jjjj
{{{{
lz
lz
lzlz
kl
kl
klkl
WU\G
WU\G
WU\GWU\G
}}}}
jj
jj
jjjj
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 / 27
www.panelook.com
Page 21
Global LCD Panel Exchange Center
6.3 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
2ms<T1˺10ms
0<T2
˺
50ms
0<T3
˺
50ms
1000ms
˺
T4
www.panelook.com
1000ms˺T5
(Recommend Value)
100ms
(Recommend Value)
˺
T6
T1 : VDDrising time from 10% to 90%
T2 : The time from V
T3 : The time from valid data off to V
T4 : V
off time for Windows restart
DD
to valid data at power ON.
DD
off at power Off.
DD
T5 : The time from valid data to B/L enable at power ON.
T6 : The time from valid data off to B/L disable at power Off.
The supply voltage of the external system for the Module input should be the same
as the definition of V
DD
.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of V
= off level,
DD
please keep the level of input signals low or keep a high impedance.
T4 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 / 27
www.panelook.com
Page 22
Global
LCD
Panel
Exchange
Center
www.panelook.com
Page 23
Global
LCD
Panel
Exchange
Center
www.panelook.com
Page 24
Global LCD Panel Exchange Center
8. PACKING
8.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
www.panelook.com
Packing
-Pallet Box
Cushion-Foam
LCD Module
Cushion-Foam
Cushion-Foam
LCD Module
Cushion-Foam
Pallet-Plastic
8.2 Packing Specification
Item Specification Remark
Direction to open
1. 168 Kg / LCD (24ea)
LCD Packing
Pallet 1Box / Pallet 1. Pallet weight = 8kg
Packing Direction Vertical
Total Pallet Size H x V x height 1150mm(H) x 985mm(V) x 1161mm(height)
Total Pallet Weight TBD kg
24ea / (Packing-
Pallet Box)
2. 14.0 Kg / Cushion-pallet (4ea)
3. 8.8 Kg / Packing-Pallet Box (1ea)
4. Cushion-pallet Material : EPS
5. Packing-Pallet Box Material : DW4
Pallet(8kg) + Module(168kg) +
Cushion(3.5kg*4ea=12.0kg) + PalletBOX(8.8kg)
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
24 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
9. MARKING & OTHERS
A nameplate bearing followed by is affixed to a shipped product at the specified
location on each product.
(1) Parts number : LTA320AP02
(2) Revision: Three letters
(3) Lot number : X X X X XXX
(4) Nameplate Indication
www.panelook.com
XX X
Cell Position No. (In the Glass)
Glass No. (In the one Lot)
Lot No. (Glass)
Month
Year (Note1)
Product code
Line
LTA320AP02
0730
[[[[[[[[[[ [[[
(5) Packing box attach
OWD653DS35
Week code : 05 29
week
year
40mm
Revision code
Lot number
80mm
100mm
Part number
[[[[
57
Box serial number
165mm
(6) Others
1. After service part
Lamps cannot be replaced because of the narrow bezel structure.
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 / 27
www.panelook.com
Page 26
Global LCD Panel Exchange Center
10. General Precautions
10.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and CCFL back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
www.panelook.com
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the module from Electrostatic discharge. Otherwise the ASIC IC or
Semiconductor would be damaged
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not disassemble shield case of inverter & LVDS board.
.
(m) Do not connect N.C pins. (Samsung internal use only)
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized. Must put on antistatic glove while
handle a module
(o) Pins of I/F connector should not be touched directly with bare hands.
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 / 27
www.panelook.com
Page 27
Global LCD Panel Exchange Center
10.2 Storage
(a) Do not leave the Module in high temperature, and high humidity for a long time.
It is highly recommended to store the Module with temperature from 0 to 35
and relative humidity of less than 70%.
(b) Do not store the TFT-LCD Module in direct sunlight.
(c) The Module should be stored in a dark place. It is prohibited to apply sunlight or
fluorescent light in storing.
10.3 Operation
www.panelook.com
(a) Do not connect or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its inverter power supply should
be connected directly with a minimized length. A longer cable between
the back light and the inverter may cause lower luminance of lamp(CCFL) and
may require higher startup voltage(Vs).
10.4 Operation Condition Guide
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20·15
- Humidity : 55·20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 / 27
www.panelook.com
Page 28
Global LCD Panel Exchange Center
10.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
www.panelook.com
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
MODEL LTA320AP02 Doc. No 06-002-G-081104 Page
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28 / 27
