SAMSUNG LTA230HT10 Specification

Global LCD Panel Exchange Center

h

ifi

www.panelook.com

Tec

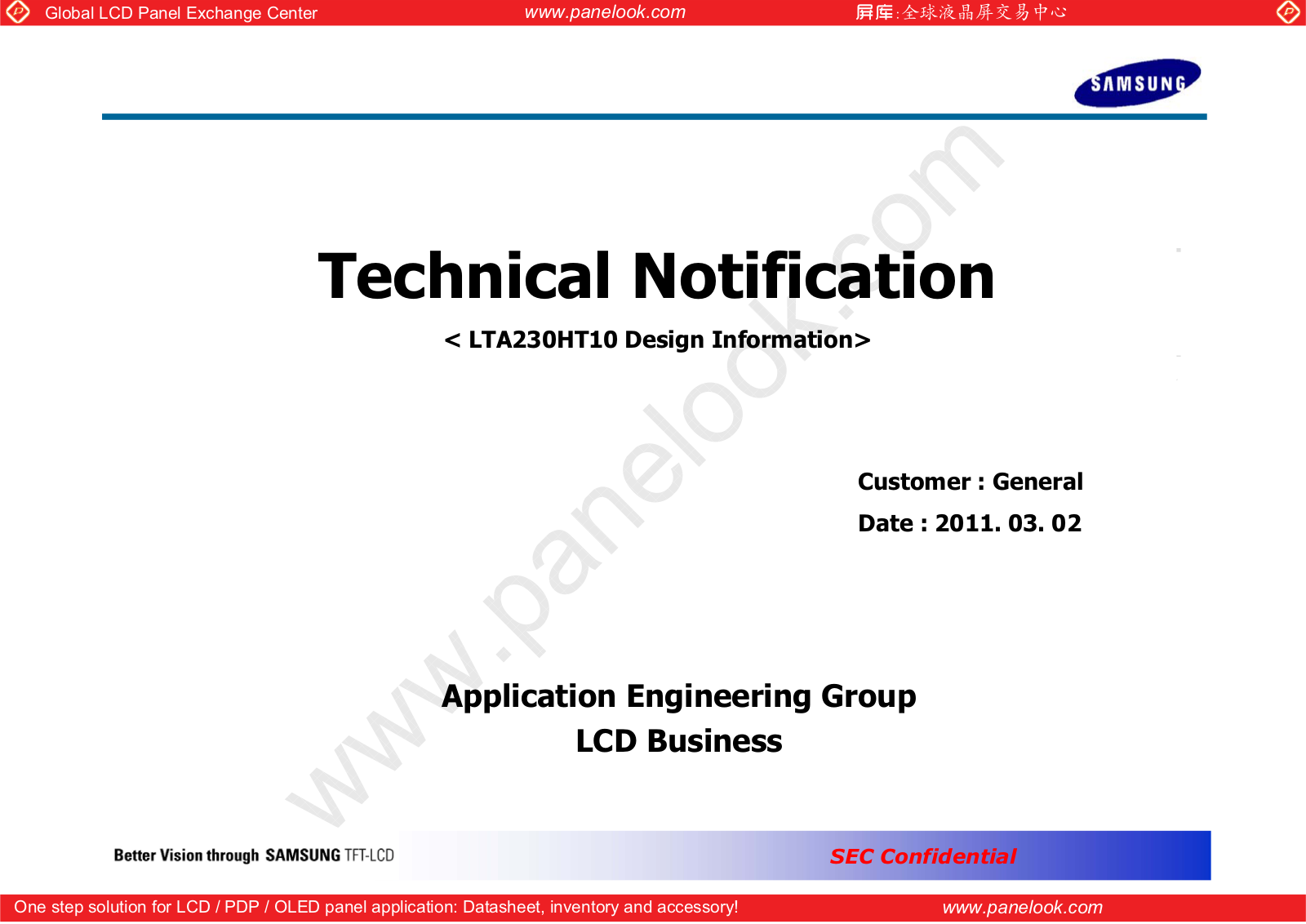

nical Not

< LTA230HT10 Design Information>

Application Engineering Group

cation

Customer : General

Date : 2011. 03. 02

LCD Business

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

SEC Confidential

www.panelook.com

www.panelook.com

1.General information

Surface Treatment

Haze 25%,Hard

coating(3H)

Anti

Glare

LTA230HT10 Design information

Items Specification Unit Note

533.2 (H) x 312.0 (V) mm

Module size

10.3 (Dmax) mm

Weight 1750 g LCD module only

Pixel Pitch 0.2655(H) x 0.2655(W) mm

Active Display Area 509.76(H) x 286.74(V) mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Luminance of White 250(Typ.) cd/m

-

Display Colors 16.7M (Hi-FRC ) colors

Number of Pixels 1,920 x 1,080 pixel

Pixel Arrangement RGB vertical stripe

Display Mode Normally White

-

2
