SAMSUNG LTA230AN01 Specification

CUSTOMER

Changhong

MODEL NO.

LTA230AN01

DATE OF ISSUE

13/01/30

EXTENSION CODE

Customer Approval & Feedback

Approved by

13/01/30

Prepared by

13/01/30

LCD Sales & Marketing Team

Samsung Display Co., Ltd

Product Specification

( √ ) Preliminary Specification ( ) Approval Specification

The information described in this SPEC is preliminary and can be changed without prior notice

————————————————————————————————————————————————–

Table of Contents

REVISION HISTORY ....................................................................................................................................................... 3

GENERAL DESCRIPTION ........................................................................................................................................ 4

1.1 ENVIRONMENTAL ABSOLUTE RATINGS ................................................................................................... 6

2. OPTICAL CHARACTERISTICS.......................................................................................................................... 7

3. ELECTRICAL CHARACTERISTICS ............................................................................................................... 10

3.1 TFT LCD MODULE ............................................................................................................................................. 10

3.2 BACK LIGHT UNIT ............................................................................................................................................. 11

3.3 CONVERTER CONNECTION CABLE ......................................................................................................................... 11

4. BLOCK DIAGRAM ................................................................................................................................................. 12

4.1 TFT LCD MODULE ............................................................................................................................................ 12

5. INPUT TERMINAL PIN ASSIGNMENT ........................................................................................................ 13

5.1 INPUT SIGNAL & POWER ................................................................................................................................ 13

5.2 LVDS INTERFACE .............................................................................................................................................. 15

5.3 INPUT SIGNALS, BASIC DISPLAY COLORS AND GRAY SCALE .......................................................... 16

6. INTERFACE TIMING ........................................................................................................................................... 18

6.1 THE PARAMETERS OF TIMING(DE MODE) ................................................................................................. 18

6.2 TIMING DIAGRAMS OF INTERFACE SIGNAL(ONLY DE MODE) ............................................................ 19

6.3 CHARACTERISTICS OF INPUT DATA OF LVDS ....................................................................................... 20

6.4 THE SEQUENCE OF POWER ON AND OFF ................................................................................................ 21

7. OUTLINE DIMENSION........................................................................................................................................ 22

8. PACKING ................................................................................................................................................................... 24

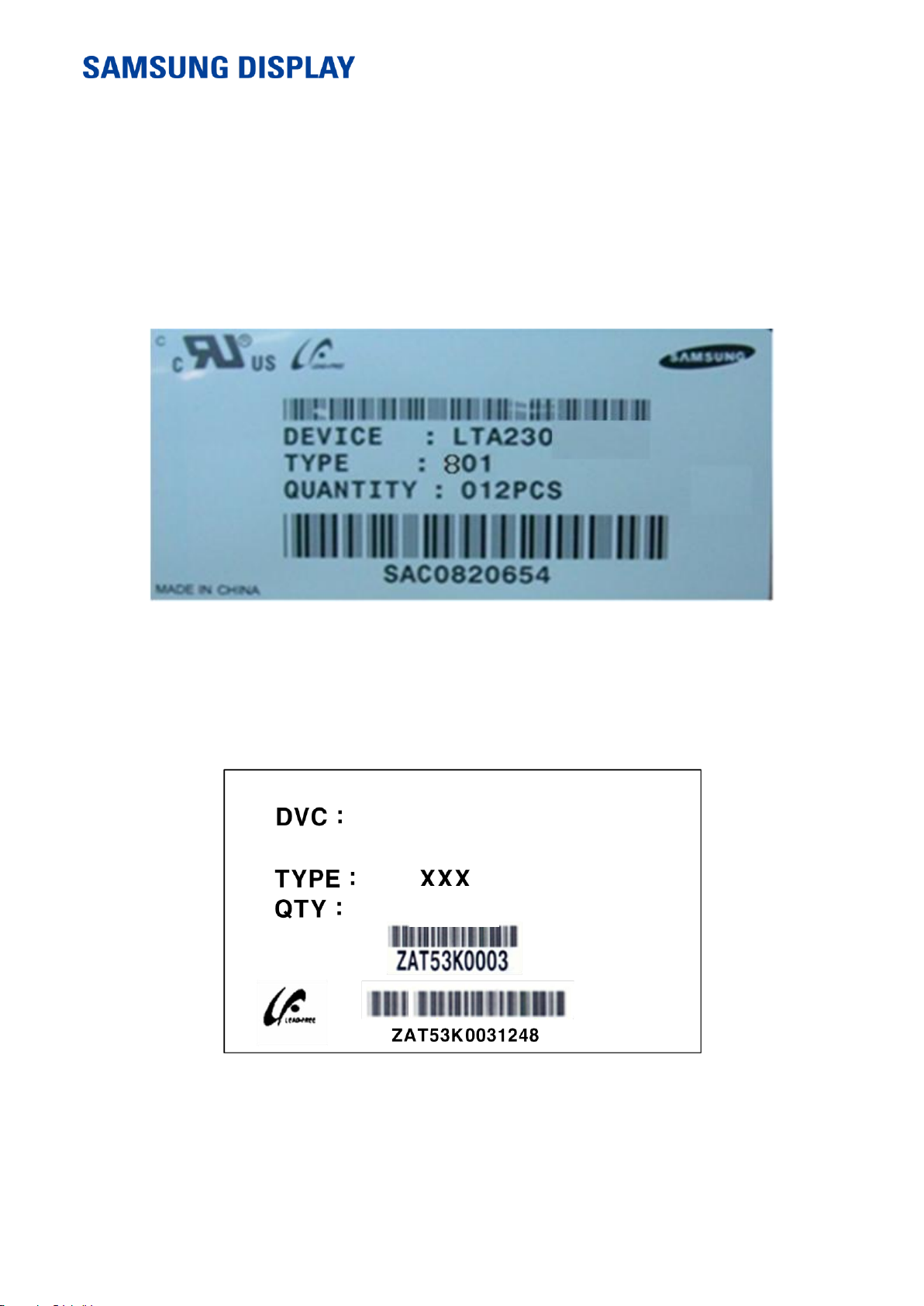

9. MARKINGS & OTHERS ....................................................................................................................................... 25

10. GENERAL PRECAUTIONS .............................................................................................................................. 26

10.1 HANDLING....................................................................................................................................................... 26

10.2 STORAGE ............................................................................................................................................................ 27

10.3 OPERATION ....................................................................................................................................................... 27

10.4 OPERATION CONDITION GUIDE .......................................................................................................................... 28

10.5 OTHERS .............................................................................................................................................................. 28

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 2 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Date.

Rev.No.

Page

Revision Description

2013.01.30

P00

Initial Release

REVISION HISTORY

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 3 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Items

Specification

Unit

Note

Module Size

534.0 (H) x 311.8 (V)

㎜

± 0.5

11.1 (Dmax)

w/o

converter

Weight

2100

g

max

Pixel Pitch

0.372 x 0.372

㎜

Active Display Area

508.152(H) X 285.696 (V)

㎜

Surface Treatment

Anti Glare, Haze 2.3%

± 2.1%

Display Colors

8bit - 16.7M

colors

Number of Pixels

1366 x 768

pixel

16 : 9

Pixel Arrangement

RGB vertical stripe

Display Mode

Normally Black

Luminance of White

250

cd/m2

GENERAL DESCRIPTION

DESCRIPTION

The LTA230AN01 is the one of liquid crystal display devices(LCD) that uses an amorphous silicon TFT(Thin Film Transistor) as switching components and a color active matrix. This model is composed of a TFT LCD panel, a driver circuit, and a back-light unit. This 23.0” model has a resolution of 1366 x 768 pixels and can display up to 16.7Million colors with the wide viewing angle of 89° or higher in all directions.

FEATURES

RoHS compliance(Pb-Free) High contrast ratio & aperture ratio with the wide color gamut SVA(Super Vertical align) mode Wide Viewing angle(± 178°) High speed response HD resolution(16:9) Low Power consumption wLED 1side edge BLU DE(Data enable) mode The interface(1pixel/clock) of 1ch LVDS(Differential signaling with a low voltage)

APPLICATIONS

Home-alone Multimedia TFT-LCD TV High Definition TV

GENERAL INFORMATION

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 4 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Item

Min.

Typ.

Max.

Note

Module size

Horizontal(H)

533.5

534.0

534.5

mm

Vertical(V)

311.3

311.8

312.3

mm

Depth(D)

10.1

10.6

11.1

mm * note (1)

Weight

2100

g

MECHANICAL INFORMATION

NOTE (1) top chassis to bottom surface

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 5 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Item

Symbol

Min.

Max.

Unit

Note

Power supply voltage

VDD

GND-0.3

13.2 V (1)

Storage temperate

TSTG

-20

60

C

(1)

Operating temperature

TOPR 0 50

C

(1)

Surface temperature

TSUR 0 65

C

(2)

Shock ( non-operating )

Snop(X,Y,Z)

-

50 G (3), (5)

Vibration (non-operating)

Vnop 1.5 G (4), (5)

1. ABSOLUTE MAXIMUM RATINGS

1.1 ENVIRONMENTAL ABSOLUTE RATINGS

Note (1) The ranges of temperature and relative humidity are shown in the graph below. 90% RH Max.

(The temperature of Ta shall be over 39℃.) The maximum temperature of wet–bulb shall be less than 39℃. No condensation

Note (2) Although abnormal visual problems can be occurred in TSUR range, the polarizer is not damaged in this range. Note (3) 20ms, one time for ± X, ± Y, ± Z axis Note (4) 10-300 Hz, Sweep rate 11min, 30min for X,Y,Z axis Note (5) The fixture for the test of the vibration and shock, which holds the module to be tested shall be hard and rigid in order for the module not to be twisted or bent by the fixture.

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 6 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Item

Sym

bol

Condition

Min.

Typ.

Max.

Unit

Note

Contrast Ratio

CR 3000

4000 - -

(1) SR-3

Respo

nse

time

G-to-G

Tg

T

PAN.SUR

= 29.9℃

- 8 16

msec

(3) RD-80S

Luminance of

White (At the center

of screen)

YL

Normal

 = 0  = 0

Viewing

Angle

200

250

-

cd/m2

(4) SR-3

Color

Chromat

icity

(CIE

1931)

Red

RX

-0.03

0.645

+0.03

-

(5),(6)

SR-3

RY

0.338

Green

GX

0.302

GY

0.603

Blue BX

0.149

BY

0.067

White

WX

0.285

WY

0.311

Color Gamut

- - -

68 - %

(5)

SR-3

Color temperature

- - -

8500 - K

Viewing

Angle

Hor.

L

CR  10

70

85

-

Degree

(6)

SR-3

EZ-Contrast

R

70

85

-

Ver.

U

70

80

-

D

70

80

-

Brightness

Uniformity

(9 Point)

B

uni

- - -

25

%

(2)

SR-3

2. OPTICAL CHARACTERISTICS

The optical characteristics shall be measured in the dark room or the space surrounded by the similar ambient setting. Measuring equipment : TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast

Ta = 25  2 C, VVDD =12V, fv= 60Hz, fDCLK = 78MHz, IF = 100% duty

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 7 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Gmax : Luminance in all white pixels Gmin : Luminance in all black pixels.

Buni

B B

B

 



100

( max min)

max

Bmax : Maximum brightness

Bmin : Minimum brightness

Display data

The response of

optical instruments

H : Horizontal length of Active

Area

V : Vertical height of Active Area.

H/6 H/2 5H/6

V/6

V/2

5V/6

- Test equipment for setup The measurement shall be executed under the condition including a stable, windless and dark room for 40min or 60min with lighting the back-light at the given temperature, which is suitable to stabilize the back-light.

The module shall be measured at the center of screen.

The ideal temperature for setup shall be the value derived from the formula, Ta = 25 ± 2 °C.

Note (1) Definition of Viewing angle : The range of Viewing angle (10  C/R)

: Ratio of max. gray (Gmax) & min. gray (Gmin) at the center point of the panel



 



Note (2) Definition of brightness uniformity at 9 points ( Test pattern : Full white )

Note (3) Definition of response time : Sum of Tr, Tf

※ G-to-G : Average response time between the whole gray scale to the whole gray scale.

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 8 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Note (4) The definition of luminance of white: The luminance of white at the center point ⑤

Note (5) The definition of chromaticity (CIE 1931)

The color coordinate of red, green, blue and white at the center point ⑤

Note (6) Definition of viewing angle : The range of viewing angle (C/R ≥10)

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 9 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Voltage of Power Supply

VDD

10.8

12.0

13.2 V (1)

Current of

Power

Supply

(a) Black

IDD

-

313

413

mA

(2), (3)

(b) White

-

305

405

(c) V- Stripe

-

559

659

Vsync Frequency

fV

50

60

66

Hz - Hsync Frequency

fH

44

48

53

kHz - Main Frequency

F

dclk

72

78

85

MHz - Rush Current

IRUSH

- - 4 A (4) a) Black Pattern

b) White Pattern

c) V-stripe

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

The connector to transmit a display data and a timing signal shall be connected.

* Ta = 25 ± 2 °C

Note (1) The voltage for ripple shall be controlled under the range, which is lower than 10% of V

Note (2) fV=60Hz, fDCLK =78MHz, VDD = 12.0V, DC Current.

Note (3) The pattern for checking the power dissipation (LCD module only)

Note (4) Conditions for measurement

voltage.

DD

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 10 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Temperature

range

Top

-20 - 70

℃

Note (1)

Storage Temperature

range

Tstg

-30 - 85 ℃ Junction Temperature

Tj - -

125

℃

LED Forward Current

IF - 120

125

mA

1 Ch

LED Forward Voltage

VF - 3.2

3.4

V

Thermal Resistance

Junction to PCB

Rth, JS

- - 23

K/W

Note (1)

Power Consumption

P - 12.7

14.0 W IF X VF X 3ch

Operating Life Time

Hr

30,000

- - Hour

Note (2)

LED Counts

Q - 33 - EA

Pin,

Pin name

Description

1

Vin

LED power input

2

RTN1

LED bar return channel 1

3

RTN2

LED bar return channel 2

4

RTN3

LED bar return channel 3

3.2 BACK LIGHT UNIT

Note (1) LED unit absolute rating Note (2) It is defined as the time to take until the brightness reduces to 50% of its original value.

Operating condition : Ta = 25± 2 ℃, for LED package only.

3.3 Converter connection cable

Connector 104086-0410 Molex

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 11 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 12 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

INPUT CONNECTOR PIN MAP

NO

1

VIN

16

LV1_P

2

VIN

17

GND

3

VIN

18

LV2_N

4

VIN

19

LV2_P

5

NC

20

GND

6

GND

21

LVCLK_N

7

GND

22

LVCLK_P

8

NC

23

GND

9

LVDS_SEL note(2)

24

LV3_N

10

NC

25

LV3_P

11

GND

26

GND

12

LV0_N

27

NC

13

LV0_P

28

NC

14

GND

29

NC

15

LV1_N

30

GND

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 INPUT SIGNAL & POWER

Connector : IS100-L30O-C23

NOTE(1) NC : Not connection, PINs are used SDC only.

NOTE(2) LVDS Option : If this pin is high (3.3V)  Normal LVDS format

Low (GND)  JEIDA LVDS format

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 13 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Note (3) : Pin number, which starts from the left side.

a. Pins for power GND shall be connected to the LCD’s metal chassis. b. All input pins for power shall be connected together. c. All NC pins shall be designed with being separated from other signal or power.

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 14 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

LVDS pin

JEIDA -DATA

VESA -DATA

TxOUT/RxIN0

TxIN/RxOUT0

R2

R0

TxIN/RxOUT1

R3

R1

TxIN/RxOUT2

R4

R2

TxIN/RxOUT3

R5

R3

TxIN/RxOUT4

R6

R4

TxIN/RxOUT6

R7

R5

TxIN/RxOUT7

G2

G0

TxOUT/RxIN1

TxIN/RxOUT8

G3

G1

TxIN/RxOUT9

G4

G2

TxIN/RxOUT12

G5

G3

TxIN/RxOUT13

G6

G4

TxIN/RxOUT14

G7

G5

TxIN/RxOUT15

B2

B0

TxIN/RxOUT18

B3

B1

TxOUT/RxIN2

TxIN/RxOUT19

B4

B2

TxIN/RxOUT20

B5

B3

TxIN/RxOUT21

B6

B4

TxIN/RxOUT22

B7

B5

TxIN/RxOUT24

HSYNC

TxIN/RxOUT25

VSYNC

TxIN/RxOUT26

DEN

TxOUT/RxIN3

TxIN/RxOUT27

R0

R6

TxIN/RxOUT5

R1

R7

TxIN/RxOUT10

G0

G6

TxIN/RxOUT11

G1

G7

TxIN/RxOUT16

B0

B6

TxIN/RxOUT17

B1

B7

TxIN/RxOUT23

RESERVED

5.2 LVDS INTERFACE

- LVDS Receiver : T-CON (merged)

- Data Format(JEIDA & VESA)

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 15 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

COLOR

DISPLAY

(8bit)

DATA SIGNAL

GRAY SCALE LEVEL

RED

GREEN

BLUE

R0

R1

R2

R3

R4

R5

R6

R7

G0

G1

G2

G3

G4

G5

G6

G7

B0

B1

B2

B3

B4

B5

B6

B7

BASIC COLOR

BLACK

0

-

BLUE

0

1

-

GREEN

0

1

0

-

CYAN

0

1

-

RED

1

0

-

MAGENTA

1

0

1

-

YELLOW

1

0

-

WHITE

1

-

GRAY

SCALE

OF

RED

BLACK

0

R0

DARK

↑

↓

LIGHT

1

0

R1

0

1

0

R2

:

R3~

R252

:

1

0

1

0

R253

0

1

0

R254

RED

1

0

R255

GRAY

SCALE

OF

GREEN

BLACK

0

G0

DARK

↑

↓

LIGHT

0

1

0

G1

0

1

0

G2

:

G3~

G252

:

: 0 0

0

1

0

1

0

G253

0

1

0

G254

GREEN

0

1

0

G255

GRAY

SCALE

OF

BLACK

0

B0

DARK

↑

0

1

0

B1

0

1

0

B2

5.3 INPUT SIGNALS, BASIC DISPLAY COLORS AND GRAY SCALE

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 16 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

BLUE

↓

LIGHT

:

B3~

B252

:

0

1

0

1

B253

0

1

B254

BLUE

0

1

B255

Note (1) Definition of gray : Rn: Red gray, Gn: Green gray, Bn: Blue gray (n=gray level) Note (2) Input signal: 0 =Low level voltage, 1=High level voltage

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 17 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

SIGNAL

ITEM

SMBOL

MIN.

TYP.

MAX.

Unit

NOTE

Clock

Frequency

1/TC

72

78

85

MHz - Hsync

FH

44

48

53

KHz - Vsync

FV

50

60

66

Hz

-

Term for the

vertical

display

Active

display period

TVD

-

768

-

Lines - Total vertical

TV

775

802

1200

Lines

-

Term for the

horizontal

display

Active display period

THD

-

1366

-

Clocks

-

Total Horizontal

TH

1460

1624

2000

clocks

-

Parameter

Symbol

Value

Unit

Note

Min

Typ

Max

CMOS

Interface

Input High

Threshold

Voltage

VIH (High)

2.5 - 3.3

V

Input Low

Threshold

Voltage

VIL (Low)

0 - 0.5

V

6. INTERFACE TIMING

6.1 THE PARAMETERS OF TIMING(DE mode)

Note) The signals of Hsync and Vsync must be inputted even though this T-con is operated with DE signal only.

(1) Test Point: TTL controls signals and CLKs at LVDS Tx at the input terminal of system. (2) Internal VDD = 3.3V (3) The spread spectrum

- The limit of spread spectrum's range of SET in which the LCD module is assembled should be within ± 3 %

- Frequency for modulation : Min 30KHz

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 18 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

6.2 TIMING DIAGRAMS OF INTERFACE SIGNAL(Only DE mode)

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 19 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

ITEM

SYMBOL

Min

Typ

Max

Unit

Note

DC

characteristics

Supply voltage

VDD

3.0

3.3

3.6 V

Input Common

mode Voltage

VCM

0.3 1.8 V

Differential Input

Voltage

|VID|

100 600

mV

AC

characteristics

Input data position

TRSRM

- - 450

ps

FIN=78MHz

TRSLM

-450 - -

ps

6.3 CHARACTERISTICS OF INPUT DATA OF LVDS

(1) LVDS characteristics

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 20 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Timing

Spec

Remarks

T1

0.5 msec<T1≤10msec

The time, during which the level of VDD is rising from 10% to 90%.

T2

10 msec<T2≤50msec

The changing time, during which the V

DD

starts rising beyond 90% until the valid data of signal started coming in.

T3

0msec<T3≤50msec

The changing time, during which the valid data of signal starts leaving out until the VDD starts falling below 90%.

T4

1000msec≤T4

The changing time, during which the VDD starts falling below 10% to restart the Windows.

T5

1000msec≤T5 (BLU ON TIME)

The changing time, during which the signal of BLU starts rising beyond 50%.

T6

100msec≤T6

The changing time, during which the signal of BLU starts falling below 50%.

6.4 THE SEQUENCE OF POWER ON AND OFF

To prevent the product from being latched up or the DC in the LCD module from starting an operation, the order to turn the power on and off should be changed to the order as shown in the diagram below.

- The inputted V

’s value for supply voltage, BLU, and signal to the external system of the module shall

DD

be computed with referring to the former mentioned value.

- The method to apply the voltage to the lamp within the range, which the LCD operates. When the backlight is turned on before the LCD is operated or the power of LCD is turned off before the back-light is turned off, the abnormal display on the screen may be shown momentarily.

- Please keep the level of input signal low or keep the level of impedance high when the value of VDD is

below 10%.

- The value shall be measured after the module has been fully discharged between the period, which the power is turned on and the period, which the power is turned off like the T4 timing. The backlight may be flashed if the interface signal remains floated when the above-mentioned signal becomes invalid.

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 21 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

7. OUTLINE DIMENSION

Doc.No. LTA230AN01 Page 22 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Item

Specification

Remark

LCD Packing

12ea / Box

21Kg/ LCD (12ea)

Pallet

16Box / Pallet

Pallet weight : 8.8Kg

Packing Direction

Vertical

Total Pallet Size

H x V x height

1270mm(H) x 1072mm(V) x 865mm (h: with pallet)

Total Pallet Weight

345Kg

Pallet + Module + Cushion + Pallet box

8. PACKING

(1) Packing Form Corrugated Cardboard box as shock absorber.

(2) Packing Method

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 24 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

LTA230AN01

192

AN01

9. MARKINGS & OTHERS

A nameplate is affixed to the specified location on each product.

(1)Parts number : LTA230AN01 (2)Revision code : 3 letters (3)Lot number : XXXXXXXXXXX

(4) Nameplate Indication

Parts name : LTA230AN01 Lot number : XXXXXXXXXX Week code : 1230 (2012 year 30th week) Product Revision Code : 801

(5) Packing small box attach

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 25 of 29 Rev.No. 05-P00-G-130130

Parts name : LTA230AN01 Box serial number : ZAT53K003

————————————————————————————————————————————————–

10. GENERAL PRECAUTIONS

10.1 HANDLING

(a) When the module is assembled, It should be attached to the system firmly using every mounting holes. Be careful not to twist and bend the module.

(b) Refrain from strong mechanical shock and / or any force to the module. In addition to damage, this may cause improper operation or damage to the module and LED back-light.

(c) Note that polarizers are very fragile and could be easily damaged. Do not press or scratch the surface harder than a HB pencil lead.

(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long time, Staining and discoloration may occur.

(e) If the surface of the polarizer is dirty, clean it using some absorbent cotton or soft cloth.

(f) The desirable cleaners are water, IPA (Isoprophyl Alcohol) or Hexane. Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might permanent damage to the polarizer due to chemical reaction.

(g) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth .In case of contact with hands, legs or clothes, it must be washed away thoroughly with soap.

(h) Protect the module from static , it may cause damage to the C-MOS Gate Array IC.

(i) Use fingerstalls with soft gloves in order to keep display clean during the incoming inspection and assembly process.

(j) Do not disassemble the module.

(k) Do not pull or fold the LED FPC.

(l) Do not touch any component which is located on the back side.

(m) Protection film for polarizer on the module shall be slowly peeled off just before use so that the electrostatic charge can be minimized.

(n) Pins of I/F connector shall not be touched directly with bare hands.

(o) Because the converter use high voltage, it should be disconnected from power before it is assembled or disassembled.

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 26 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

ITEM

Unit

Min.

Max.

Storage

Temperature

(℃) 5 40

Storage Humidity

(%rH)

35

75

Storage Life

12 months

Storage Condition

- The storage room should be equipped with a good ventilation facility, which has a

temperature controlling system.

- Products should be placed on the pallet, which is away from the wall not on the

floor.

- Prevent products from being exposed to the direct sunlight, moisture, and water.;

Be cautious not to pile the products up.

- Avoid storing products in the environment, which other hazardous material is

placed.

- If products are delivered or kept in the storage facility more than 3 months,we

recommend you to leave products under the condition including a 20℃

temperature and a humidity of 50% for 24 hours.

- If you store semi-manufactured products for more than 3 months, bake the

products under the condition including the 50℃ temp. and the 10% humidity for

24hrs after being used.

10.2 STORAGE

We highly recommend to comply with the criteria in the table below.

10.3 OPERATION

(a) Do not connect or disconnect the cable to/ from the module at the "Power On" condition. (b) The power shall be always turned on/off by the item 6.5. "Power on/off sequence" (c) The module has a circuit with a high frequency. The system manufacturers shall suppress the

electromagnetic interference sufficiently. The methods to ground and shield are important to minimize the interference.

(d) Design the length of cable to connect between the connector for back-light and the Converter as short

as possible and the shorter cable shall be connected directly. The longer cable between that of back-light and that of Converter may cause the luminance of LED package to lower and need a higher startup voltage(Vs).

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 27 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

10.4 Operation Condition Guide

(a) The LCD product should be operated under normal conditions. Normal condition is defined as below;

- Temperature : 20± 15℃

- Humidity : 55± 20%

- Display pattern : continually changing pattern (Not stationary)

(b) If the product will be used in extreme conditions such as high temperature, humidity, display patterns or operation time etc.., It is strongly recommended to contact SDC for Application engineering advice. Otherwise, its reliability and function may not be guaranteed. Extreme conditions are commonly found at Airports, Transit Stations, Banks, Stock market, and Controlling systems.

10.5 OTHERS

(a) The filter for ultra-violet ray is needed when you operate a product outdoor. (b) Avoid placing the product in the environment, which water is condensed. The former mentioned condition may lead a product to operate improperly or an electrode to be disconnected. (c) Do not exceed the ceiling of absolute maximum rating. (Various supply voltages, Various input voltages, Various contents on the part, various environmental temperatures, and so on) Otherwise, the module may be damaged. (d) If the module displays the same pattern for a long time, the situation can be the image sticking to the screen. (e) This module shall be handled carefully in order not to be stressed by the object from outside since this module contains a circuitry for PCB on the rear side.

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 28 of 29 Rev.No. 05-P00-G-130130

————————————————————————————————————————————————–

Item

Test condition

Quantity

TSS

-20℃ ~ 65℃, 440cycle determination

4EA

HTOL

60℃, 500hr determination

4EA

LTOL

-5℃, 500hr determination

4EA

HTS

70℃, 500hr determination

4EA

LTS

-25℃, 500hr determination

4EA

THB

50℃ / 90%RH, 500Hr determination

4EA

TS

-20℃ 0.5Hr  60℃ 0.5Hr, 100cycle determination

4EA

ESD

(non-operation)

Converter input connector : ± 15 kV, 150 ㎊/330 Ω, 3times/pin LED input connector : ± 4 kV, 150 ㎊/330 Ω, 3times/pin

3EA

ESD(operation)

contact : ± 10 kV, 150 ㎊/330Ω, 210 Point, 1 time/Point air : ± 20kV, 150 ㎊/330Ω, 210 Point, 1 time/Point

3EA

POWER

ON/OFF

-5℃/60℃, 3sec (on) / 2sec(off), 1000 times

4EA

Vibration

10 ~ 300Hz : 1.5G/10minSR, XYZ, 30min/axis [ 30~ 50Hz : 3G/10minSR, XYZ, 30min/axis ]

3EA

Shock

11msec (± XYZ : 50G)

3EA

Acoustic Noise

Electromagnetic noise : below 24dB Expansion/ Contraction noise by Heat : Max 50dB ( Do not exceed 36dB more than 10times)

2EA

Temperature

Humidity Stress

-20℃ ~ 65℃, 0 ~ 90%RH, 2cycle

4EA

PALLET

Vibration

5~200Hz , 1.05Grms, Random 2Hr / Y

1PALLET

PALLET Drop

20cm, 2Edge

1PALLET

Complex

WHTS : Pallet Vibration/ Drop  WHTS  THB 48Hr HTS, LTS : Pallet Vibration/ Drop  HTS, LTS  HTOL 48Hr

WHTS 10EA

HTS 4EA

LTS 4EA

11. Reliability test

[Criteria on evaluation] The components of product, which may affect to the function of display shall not be changed when the display quality test is executed under the normal operating condition.

* HTOL/ LTOL : The operating at the high and low temperature* * THB : The slant of temperature and humidity * HTS/ LTS : The storage at the high and low temperature

* WHTS : The storage condition at the high temperature with the high humidity

——————————————————————————————————————————————––—

Doc.No. LTA230AN01 Page 29 of 29 Rev.No. 05-P00-G-130130

SAMSUNG LTA230AN01 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
